Sebastian
Steiner
*,
Zurwa M.
Shafiq
,
Alexander
Nitzer
,
Dirk
Hollenwäger
and
Andreas J.
Kornath‡
Department Chemie, Ludwig-Maximilians-Universität München, Butenandtstr. 5-13, 81377 Munich, Germany. E-mail: sebastian.steiner@cup.uni-muenchen.de
First published on 16th July 2024
The reactions of difluoroacetyl fluoride and trifluoroacetyl fluoride were investigated in the binary superacid HF/SbF5 by low-temperature NMR spectroscopy. Whereas both haloacetyl fluorides form oxonium species after the addition of HF, the protonated acyl fluorides were not observed. Protonated 1,1,2,2-tetrafluoroethanol was isolated as a solid and represents an example of a protonated α-fluoroalcohol. The salt was characterized by low-temperature vibrational spectroscopy and single-crystal X-ray diffraction. [CHF2CF2OH2][SbF6] crystallizes in the triclinic space group P with two formula units per unit cell. Protonated perfluoroethanol is only stable in solution. The reactivity of both haloacyl fluorides is discussed based on quantum chemical calculations at the MP2/aug-cc-pVTZ-level of theory.
In previous studies of our group, the properties of acetyl fluoride and haloacetyl fluorides were investigated in the binary superacidic systems HF/AsF5 and HF/SbF5. While acetyl fluoride reacts under the formation of stable acetylium salts, the substitution of the CH3 moiety for electron-withdrawing groups leads to the formation of protonated acyl fluorides, as in the case of chloroacetyl fluoride and fluoroacetyl fluoride.14 When even more electron-withdrawing groups such as the CCl2H moiety were introduced, dichloroacetyl fluoride showed a different reactivity. Thus, oxonium salts were formed when the Lewis acid SbF5 was applied in excess. Thereby, the COF moiety is protonated and then HF is added due to an increased electrophilicity of the carbonyl carbon.15 Nevertheless, the intermediate protonated dichloroacetyl fluoride was isolated as a solid and characterized by single-crystal X-ray diffraction.15 This prompted us to perform investigations on the properties of further haloacetyl fluorides with even more electron-withdrawing groups in superacidic media. It was the aim to investigate their reactivity regarding the addition of HF to their carbonyl bonds and to find out if there is a limit to isolating even more electron-deficient protonated haloacetyl fluorides. We herein report the reactions of difluoroacetyl fluoride and trifluoroacetyl fluoride in the binary superacidic systems HF/SbF5 and DF/SbF5.

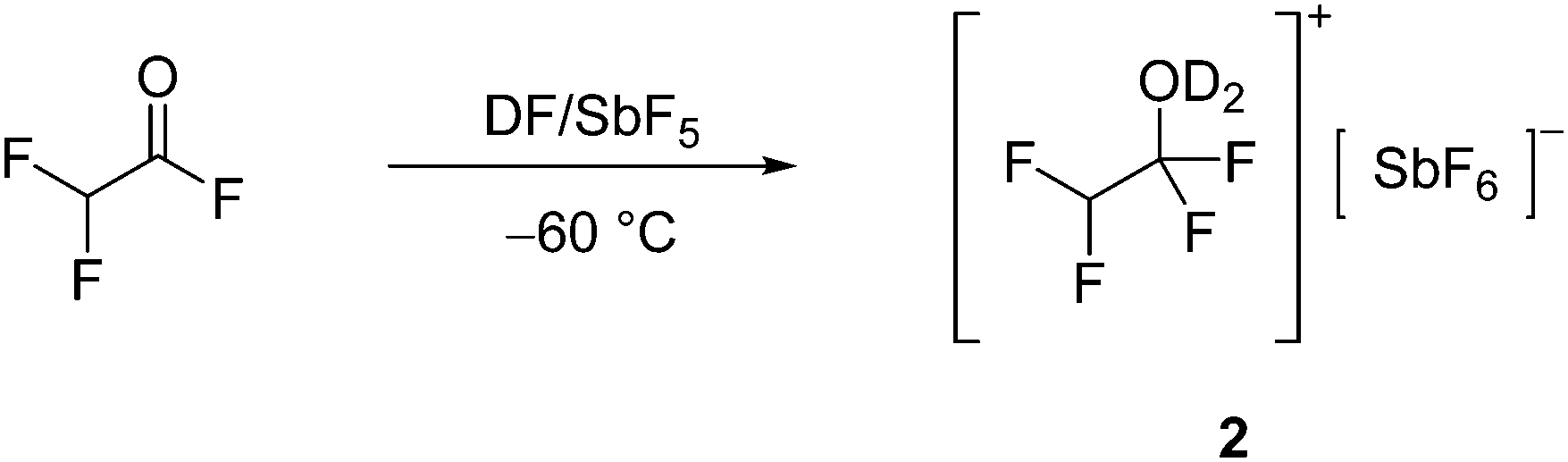

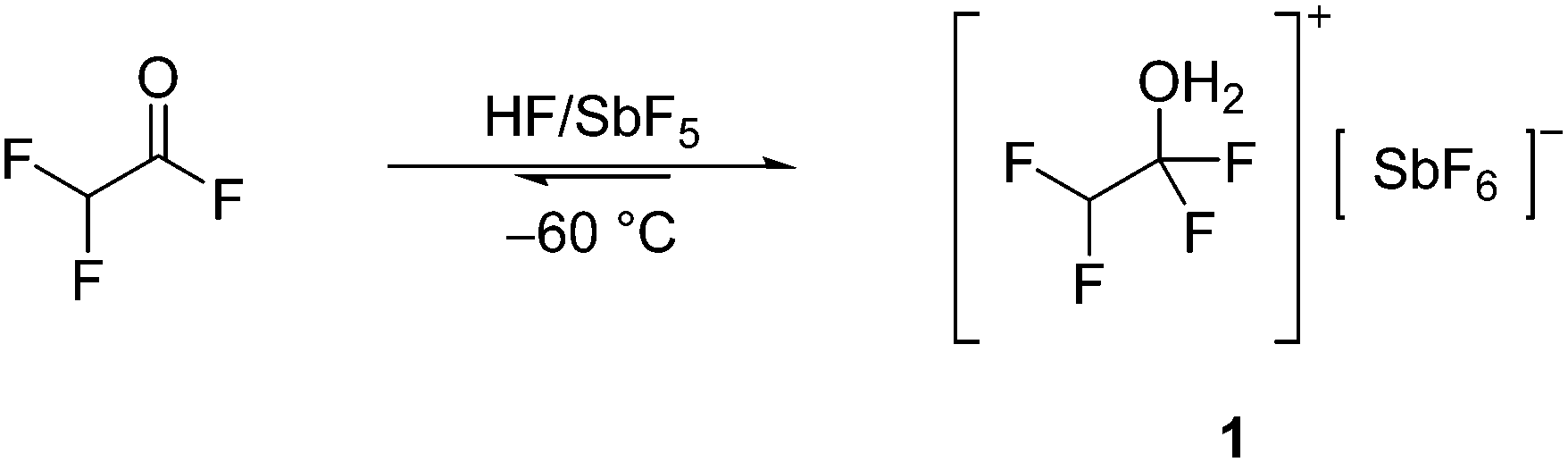

![]() | (1) |
![]() | (2) |
To investigate the reactivity of trifluoroacetyl fluoride (F3AcF) in HF/SbF5, NMR spectroscopy was performed at −70 °C with one equivalent of SbF5 being applied. Analog to the observed reactivity of F2AcF in superacidic media, the measured NMR spectra indicate the presence of [CF3CF2OH2][SbF6] (3) in the solution (see eqn (3)), but also the formation of an equilibrium between F3AcF and the oxonium species 3. As previously reported by Christe,13 the equilibrium is strongly shifted to the side of 3. Here, as in the case of F2AcF, protonated F3AcF is also not observed under these conditions.
![]() | (3) |
F2AcFa | 1 | F3AcFa |
3
![]() |
|
---|---|---|---|---|
a aHF as solvent. b In HF/SbF5. | ||||
δ 1H obs [ppm] | 5.72 (td) (CHF2) | 9.81 (s) (CF2OH2) | — | 9.82 (s) (CF2OH2) |
5.60 (t) (CHF2) | ||||
δ 19F obs [ppm] | 17.74 (t) (COF) | −90.62 (s) (CF2OH2) | 11.07 (q) (COF) | −88.53 (s) (CF2OH2) |
−132.65 (dd) (CHF2) | −141.33 (d) (CHF2) | −78.86 (d) (CF3) | −90.97 (s) (CF3) | |
δ 13C obs [ppm] | 155.1 (dt) (COF) | 115.6 (tt) (CF2OH2) | 147.0 (dq) (COF) | 115.9 (qt) (CF3) |
104.7 (td) (CHF2) | 105.8 (tt) (CHF2) | 112.6 (qd) (CF3) | 113.3 (tq) (CF2OH2) |
The 1H, 19F, and 13C NMR spectra of F2AcF dissolved in aHF display an equilibrium in the solution between the acyl fluoride and the corresponding α-fluoroalcohol that is formed after HF-addition. As depicted in Scheme 1, the acyl fluoride is the predominant species under these conditions as the equilibrium is strongly shifted to the side of F2AcF (see Fig. S5 and S6, ESI†).
By first dissolving equimolar amounts of SbF5 compared to F2AcF in HF and then adding the acyl fluoride, 1 is formed. The 1H NMR spectrum shows a triplet at 5.60 ppm, which is assigned to the CHF2 moiety, and a singlet at 9.81 ppm for the OH2+ group. The 19F NMR spectrum displays a singlet at −90.62 ppm and a doublet at −141.33 ppm for the CF2OH2 and CHF2 moieties, respectively. The NMR resonance of the CF2OH2 moiety is consistent with values reported in the literature.13,15 In the 13C NMR spectrum two triplets of triplets are observed at 115.6 ppm and 105.8 ppm for the CF2OH2 and CHF2 moieties, respectively. Further, in the 19F NMR spectrum, the resonance at −129.19 ppm is assigned to the anion [SbF6]−.16
The 1H, 19F, and 13C NMR spectra of F2AcF dissolved in HF/SbF5 also show an equilibrium between the oxonium species 1 and F2AcF in the solution (see Fig. S7–S9, ESI†). According to Scheme 2, the equilibrium is strongly shifted to the side of the protonated α-fluoroalcohol 1.
Interestingly, protonated F2AcF is not observed under these conditions. This contrasts with the observed reactivity of dichloroacetyl fluoride (Cl2AcF) in the binary superacidic system HF/SbF5. Here, an equilibrium between the analog oxonium species [CCl2HCF2OH2][SbF6] and protonated Cl2AcF was observed in the superacidic solution at −60 °C.15 This is discussed in the theoretical section below.
In the case of F3AcF, similar results to those of F2AcF were found. The observed NMR resonances are in accordance with values previously reported by Christe.13 The measured NMR spectra and the complete NMR data of F3AcF dissolved in aHF and HF/SbF5 are listed in the ESI† (see Fig. S10–S14).
![]() | ||
Fig. 1 Low-temperature Raman and IR spectra of [CHF2CF2OX2][SbF6] (1, 2) (X = H, D) and vibrational spectra of CHF2COF. |
[CHF2CF2OH2][SbF6] (1) | [CHF2CF2OD2][SbF6] (2) | [CHF2CF2OH2]+·2HF | Assignments | ||||
---|---|---|---|---|---|---|---|
Raman | IR | Raman | IR | calc.ab (IR/Raman)c | |||
a Calculated at ωB97XD/aug-cc-pVTZ-level of theory. b Frequencies are scaled with a factor of 0.956. c IR intensity in [km mol−1] and Raman intensity in [Å4 u−1].Abbreviations for IR intensities: vs = very strong, s = strong, m = medium, w = weak, vs = very weak. | |||||||
3055(25) | 3055(50) | 3053 m | 2983(5/81) | v 1 | A | v(C–H) | |
1362(13) | 1364 s | 1359(19) | 1358 w | 1406(14/1) | v 5 | A | v(C–F) |
1251(11) | 1256 s | 1251(12) | 1256 m | 1235(236/2) | v 6 | A | v(C–F) |
1164(5) | 1151 s | 1144(6) | 1152(181/2) | v 9 | A | v(C–F) | |
1124(13) | 1125(15) | 1121 m | 1102(6/4) | v 10 | A | v(C–F) | |
836(34) | 835 s | 816(30) | 814 m | 1045(89/3) | v 12 | A | v(C–O) |
758(3) | 756 w | 755(67/5) | v 14 | A | v(C–C) |
For the [CHF2CF2OH2]+ cation with C1 symmetry 24 fundamental vibrational modes are expected, all of which are Raman and IR active. The ν(O–H) is superposed by condensed water in the IR spectra due to the measuring method. Further, the O–H stretching vibration shows low intensity in the Raman spectra due to the poor polarizability of the O–H group, which does not apply to the O–D group.17 The O–D stretching vibrations of the D-isotopomeric species 2 are observed at 2403 cm−1 and 2286 cm−1 in the Raman spectra and at 2403 cm−1 and 2330 cm−1 in the IR spectra. The O–D stretching vibrations are in good agreement with values reported in the literature.14,15 The C–F stretching vibrations of the CF2 moiety appear significantly blue-shifted by up to 110 cm−1 in comparison to the neutral compound at 1362 cm−1, 1251 cm−1 (1), 1359 cm−1, and 1251 cm−1 (2) (Ra) as well as 1364 cm−1, 1256 cm−1 (1), 1358 cm−1, and 1256 cm−1 (2) (IR).18 They are in good agreement with the values reported for [CCl2HCF2OH2][SbF6].15 Further, the formation of the oxonium species is indicated by the C–O stretching vibration at 836 cm−1 and 816 cm−1 (2) in the Raman spectra and at 835 cm−1 (1) and 814 cm−1 (2) in the IR spectra. The ν(C–O) is in accordance with values reported for protonated alcohols in the literature19,20 but significantly red-shifted by approximately 200 cm−1 compared to the νs(C–O) of the analog oxonium salt [CCl2HCF2OH2][SbF6].15 The ν(C–C) of 2 is observed at 758 cm−1 (Ra) and 756 cm−1 (IR) red-shifted by nearly 100 cm−1 compared to F2AcF.18
For the anion [SbF6]− with ideal octahedral symmetry more vibrations are observed than expected due to interionic interactions leading to a symmetry distortion.17
Bond lengths [Å] | |||
C1–C2 | 1.524(5) | C2–F3 | 1.341(4) |
C1–F1 | 1.318(4) | C2–F4 | 1.346(4) |
C1–F2 | 1.325(4) | C1–O1 | 1.424(4) |
Bond angles [°] | |||
C2–C1–O1 | 109.1(3) | F1–C1–O1 | 106.3(3) |
F1–C1–C2 | 111.9(3) | F1–C1–F2 | 110.0(3) |
F3–C2–C1 | 108.1(3) | F3–C2–F4 | 108.5(3) |
Dihedral angles [°] | |||
F3–C2–C1–F1 | 55.0(3) | F3–C2–C1–O1 | –62.4(3) |
F3–C2–C1–F2 | 178.0(2) | F4–C2–C1–F1 | 171.8(2) |
Interatomic contacts [Å] | |||
O1(–H1)⋯F6i | 2.471(3) | O1⋯F9ii | 2.689(3) |
O1(–H2)⋯F5 | 2.452(3) | F5⋯F3v | 2.888(3) |
C2(–H3)⋯F7iii | 3.129(4) | F5⋯F9iv | 2.890(2) |
C2(–H3)⋯F10iv | 3.166(4) |
The bond length C1–O1 (1.424(4) Å) is significantly elongated compared to difluoroacetyl fluoride (1.180(5) Å)18,21 and is in the range of a formal C–O single bond (1.432 Å).22 The C1–O1 bond length is consistent with the corresponding C–O bond length reported for [CCl2HCF2OH2][SbF6] (1.418(3) Å)15 but significantly shorter than values of oxonium species or protonated alcohols reported in the literature.19,23,24 The bond lengths C1–F1 (1.318(4) Å) and C1–F2 (1.325(4) Å) are slightly shortened compared to the starting material (1.342(7) Å)18,21 and are in accordance with the C–F bond lengths of [CCl2HCF2OH2][SbF6] (1.325(2) Å).15 Further, the bond C1–C2 (1.524(5) Å) remains unchanged compared to F2AcF (1.514(7) Å).18,21
The Sb–F bond lengths of [SbF6]− are in the range between 1.853(2) Å and 1.925(2) Å and correspond with values reported in the literature.25–27 Due to solid-state effects, the anion displays distorted octahedral symmetry. The bonds Sb1–F5 and Sb1–F6 are significantly longer than the other Sb–F bonds because they are involved in hydrogen bonding.
In the crystal structure of 1 the ions are arranged into chains along the a-axis by the strong hydrogen bonds O1(–H1)⋯F6i (2.471(3) Å) and O1(–H2)⋯F5 (2.452(3) Å) (see Fig. 3 and Fig. S2, ESI†).28 The ions also form chains along the c-axis by the weak hydrogen bond C2(–H3)⋯F7ii (3.129(4) Å) and the O⋯F interaction O1⋯F9iv (2.689(3) Å) (see Fig. 3 and Fig. S3, ESI†). Further, dimers of cation–anion pairs are formed by the intermolecular F⋯F contacts F5⋯F3v (2.888(3) Å) and F5⋯F9iv (2.890(2) Å) as well as the weak hydrogen bond C2(–H3)⋯F10iv (3.166(4) Å) (see Fig. S4, ESI†). All interatomic O⋯F and F⋯F contacts are below the sum of their van der Waals radii (2.99 Å, and 2.94 Å).29 Interatomic distances are listed in Table 3.
![]() | ||
Fig. 3 Interionic contacts of 1 (displacement ellipsoids with 50% probability). Symmetry codes: i = −1 + x, y, z; ii = 1 − x, −y, 2 − z; iii = 1 − x, 1 − y, 1 − z; iv = x, 1 + y, z. |
As observed in the experimental section, the NMR spectra of F2AcF and F3AcF dissolved in HF/SbF5 both show equilibria between the oxonium species 1 and 3, respectively, and their corresponding haloacetyl fluorides. In both cases, the protonated haloacetyl fluorides were not observed. This is in contrast with recent studies of our group on the reactivity of dichloroacetyl fluoride in the binary superacidic system HF/SbF5.15 Here, the measured NMR spectra of Cl2AcF dissolved in HF/SbF5 at −60 °C displayed an equilibrium between [CCl2HCF2OH2][SbF6] and protonated Cl2AcF.15 The addition of HF to the carbonyl bond of Cl2AcF was also only observed after the protonation of the CO bond, as the carbonyl carbon displayed an increased electrophilicity due to the protonation.15 To get a more detailed insight into the versatile reactivity of the haloacetyl fluorides in HF/SbF5, quantum chemical calculations were performed at the MP2/aug-cc-pVTZ-level of theory. Therefore, Cl2AcF, F2AcF, F3AcF, as well as [CCl2HC(OH)F]+·HF, [CHF2C(OH)F]+·HF, and [CF3C(OH)F]+·HF were optimized and molecular electrostatic potentials (MEPs) were calculated alongside natural population analysis charges (NPAs) (see Tables S6, S7 and S9–S13, ESI†). The calculated MEPs are shown in Fig. 4 and the calculated NPA charges are listed in Table S13 (ESI†).

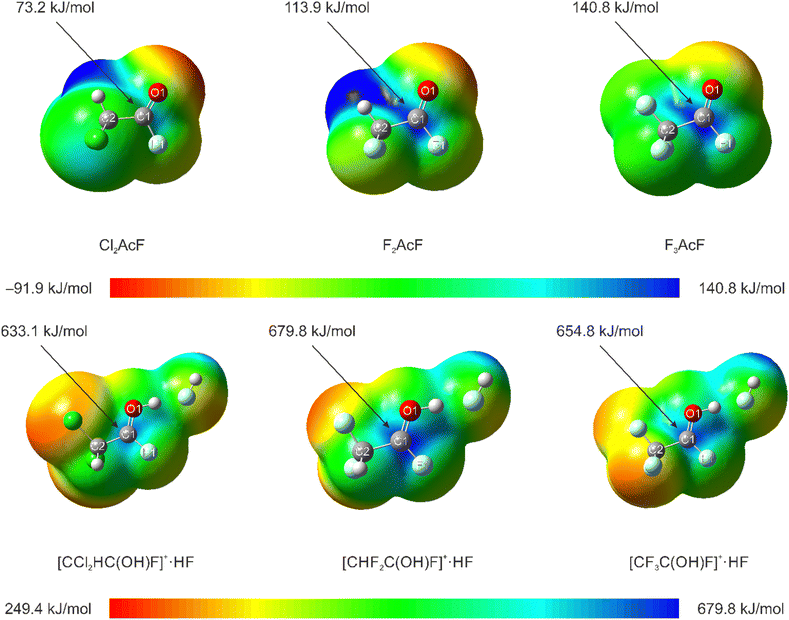

As illustrated, the MEPs of the haloacetyl fluorides as well as of the protonated species show electron-deficient moieties, so-called π-holes, in the region of the carbonyl carbon.14,15,32–35 These indicate that electrophilic regions of the molecules are located at the carbon atoms. To quantify the influence of the electron-withdrawing substituents on the electrophilicity of Cl2AcF, F2AcF, and F3AcF as well as the protonated species, the associated MEP values at the π-holes of the calculated molecules are highlighted in Fig. 4. Accordingly, the most positive MEP values that were found on the MEP surfaces of the haloacyl fluorides are 73.2 kJ mol−1 (Cl2AcF), 113.9 kJ mol−1 (F2AcF), and 140.8 kJ mol−1 (F3AcF). Thus, the π-holes become significantly larger the more electron-withdrawing the adjacent substituent is. Further, the electrophilicity of the carbonyl carbon is therefore significantly increased the more electron-withdrawing the adjacent substituent is.
In the case of the protonated species, the observed MEP values at the π-holes are significantly higher than for the acyl fluorides.14,15,35 Thus, the electrophilicity of the haloacetyl fluorides is significantly increased due to the protonation.14,15,35 Interestingly, as depicted in Fig. 4, the MEP value for the π-hole of [CHF2C(OH)F]+·HF is significantly higher than for [CF3C(OH)F]+·HF. We assume that this is due to the stabilizing effects of CF3 moieties due to hyperconjugation and was observed before for CF3-substituted carbocations.36 In Table S13 (ESI†), the NPA charges of the calculated protonated species are listed. Accordingly, as observed before for protonated acyl fluorides, the NPA charges of the fluorine atoms that are bound to the carbonyl groups are strongly increased compared to the neutral compounds. This indicates that the positive charges located at the carbon atoms are stabilized by electron-donation of the directly bound fluorine atoms (“+R-effect”).14,15,32–35 To further examine these trends and to quantify the influence of the electron-withdrawing substituents on the back-donation of the fluorine lone-pair electrons, NBO analyses were performed at the MP2/aug-cc-pVTZ-level of theory for Cl2AcF, F2AcF, F3AcF, and all protonated species. Thus, for all calculated molecules strong interactions between the π*(CO) and the in-plane fluorine lone-pairs were found.14,15,35 The stabilization energies of these interactions, according to the second-order perturbation theory analyses, are summarized in Table 4.
As expected, the stabilization energies are significantly higher in the case of the protonated acyl fluorides compared to the neutral compounds due to the increased back-donation of fluorine lone-pair electrons.14,15,35 Furthermore, for both the acyl fluorides and the protonated species, the stabilization energies of the n(F) → π*(CO) interactions increase the more electron-withdrawing the adjacent substituents become. Only in the case of F2AcF and F3AcF, approximately the same stabilization energies were found, which is probably again due to the hyperconjugation of the CF3 moiety.36 Thus, these trends also suggest that the π-holes and therefore the electrophilicities of the C
O moieties increase as the neighboring substituents become more electron-withdrawing.
We therefore consequently assume that the reactivity of Cl2AcF, F2AcF, and F3AcF dissolved in HF/SbF5 is directly correlated to the electrophilicity of their carbonyl carbons. As illustrated in Fig. 4, the substitution of the CCl2H moiety for the CHF2 and CF3 moieties leads to a significantly increased electrophilicity of the neutral compounds as well as the protonated species. This results in the favoring of the HF-addition to the carbonyl bond and consequently the shift of the observed equilibria in HF/SbF5 to the side of the protonated oxonium species. Since the π-hole in the case of protonated Cl2AcF is significantly lower than in the cases of protonated F2AcF or F3AcF, the addition of HF to the CO bond is less favored and proceeds much slower. This enables the observation of the protonated intermediate in the solution and even the isolation of the species as a solid.15 In the cases of protonated F2AcF and F3AcF, the significantly increased electrophilicity of the species leads to a more favored and faster HF-addition to the carbonyl bonds. Therefore, the protonated haloacyl fluorides were not observed in the solutions even at low temperatures. Accordingly, the substitution of the CCl2H moiety for the CHF2 moiety represents the limit that allows the isolation of electron-deficient protonated haloacetyl fluorides from the binary superacidic system HF/SbF5.
In addition to the calculations relating to the HF-addition, quantum chemical calculations were performed to evaluate the stability of the oxonium species 1. As observed in the crystallographic section, the solid-state phase of 1 is strongly influenced by O(–H)⋯F and C(–H)⋯F hydrogen bonds. Interestingly, the optimization of the free cation [CHF2CF2OH2]+ in the gas phase as an energetic minimum was only possible with a strongly extended C–O bond length compared to the crystal structure of 1. Only the addition of HF molecules to the cation in the gas phase to simulate the strong hydrogen bonds enabled the optimization with an appropriate C–O bond length. This indicates that the intermolecular contacts have a significant influence on the bond lengths of the cation of 1 as well as on the stabilization of the compound in the solid-state phase. To further investigate this, a Hirshfeld surface analysis37,38 of the intermolecular contacts was performed for the cation of 1. In Fig. 5, the mapped Hirshfeld surface with dnorm of the [CHF2CF2OH2]+ cation in 1 is shown, whereas the strong hydrogen bonds O1(–H1)⋯F6i (2.471(3) Å) and O1(–H2)⋯F5 (2.452(3) Å) as well as the weak hydrogen bond C2(–H3)⋯F7ii (3.129(4) Å) are highlighted. The 2D fingerprint plots of the intermolecular contacts are depicted in the ESI† (see Fig. S18).
![]() | ||

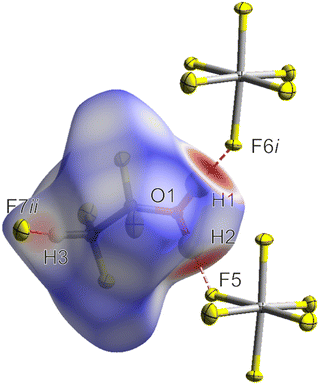

Fig. 5 Interatomic contacts and Hirshfeld surface of the [CHF2CF2OH2]+ cation in 1 (mapped with dnorm).37,38 Color coding of the Hirshfeld surface: white (distance d equals VDW), blue (d exceeds VDW distance), and red (d is smaller than VDW distance). For the hydrogen bond C2(–H3)⋯F7ii, only the contacting fluorine atom is shown for a better visualization. Symmetry codes: i = −1 + x, y, z; ii = 1 − x, 1 − y, 1 − z. |
As illustrated, the O(–H)⋯F and C(–H)⋯F hydrogen bonds are the predominant intermolecular contacts in the coordination sphere of the cation in 1, with their distances being below the sum of their van der Waals radii (2.99 Å, 3.17 Å).29 This is confirmed by the 2D fingerprint plots of the intermolecular contacts (see Fig. S18, ESI†). Thus, although the F⋯F contacts occur more often in the coordination sphere of the cation in 1 in terms of area, they have a significantly smaller influence on the structure and stability of the cation, due to their distances being equal or exceeding the van der Waals radii (2.94 Å).29 The H⋯F contacts occur less than the F⋯F contacts in terms of area, but are stronger and thus more relevant for the crystal structure of 1.
