Abstract
Developing a materials perspective of how to control the degradation and negative impact of complex metal oxides requires an integrated understanding of how these nanomaterials transform in the environment and interact with biological systems. Doping with aluminum is known to stabilize oxide materials, but has not been assessed cohesively from synthesis to environmental fate and biological impact. In the present study, the influence of aluminum doping on metal ion release from transition metal oxides was investigated by comparing aqueous transformations of lithium nickel cobalt aluminum oxide (LiNi0.82Co0.15Al0.03O2; NCA) and lithium nickel cobalt oxide (LiNi0.80Co0.20O2; NC) nanoparticles and by calculating the energetics of metal release using a density functional theory (DFT) and thermodynamics method. Two model environmental organisms were used to assess biological impact, and metal ion release was compared for NCA and NC nanoparticles incubated in their respective growth media: moderately hard reconstituted water (MHRW) for the freshwater invertebrate Daphnia magna (D. magna) and minimal growth medium for the Gram-negative bacterium Shewanella oneidensis MR-1 (S. oneidensis). The amount of metal ions released was reduced for NCA compared to NC in MHRW, which correlated to changes in the modeled energetics of release upon Al substitution in the lattice. In minimal medium, metal ion release was approximately an order of magnitude higher compared to MHRW and was similar to the stoichiometry of the bulk nanoparticles for both NCA and NC. Interpretation of the release profiles and modeling indicated that the increase in total metal ion release and the reduced influence of Al doping arises from lactate complexation of metal ions in solution. The relative biological impacts of NC and NCA exposure for both S. oneidensis and D. magna were consistent with the metal release trends observed for minimal medium and MHRW, respectively. Together, these results demonstrate how a combined experimental and computational approach provides valuable insight into the aqueous transformations and biological impacts of complex metal oxide nanoparticles.
Environmental significance
Understanding how technologically relevant metal oxides transform under environmentally and biologically relevant aqueous conditions is essential for assessing their potential environmental impacts. Al doping plays an important role in tuning the structural stability and performance of high-Ni cathode materials produced in high volumes for car batteries. We demonstrate how Al doping alters transformations of high-Ni nanomaterials under environmentally relevant aqueous conditions by comparing metal ion release for LiNi0.80Co0.20O2 and LiNi0.82Co0.15Al0.03O2 nanomaterials. The experimental studies and modeling demonstrate how material properties can vary based on chemical constituents in the aqueous setting by comparing two aqueous media formulations. These results provide important new fundamental insights into the factors that control potential release and environmental impact of this industrially important class of nanomaterials.
|
1. Introduction
Chemical reactivity of oxide surfaces has widespread environmental impacts, such as by altering the composition of natural waters, contaminant fate and transport, the formation of atmospheric aerosols, microbially-mediated redox processes, geologic CO2 sequestration, and environmental catalysis.1–6 Recent increases in the widespread use of anthropogenic nanoparticles, particularly nanoparticles containing elements with significant toxicity in the environment, has placed increased emphasis on a need to understand the fundamental chemical transformations of nanomaterials with complex compositions (e.g., containing multiple transition metals) and in media representative of varied natural environments.7–9 Microparticles and nanoparticles based on LiCoO2 and related compositions with the delafossite crystal structure represent a particularly important family of complex metal oxides (CMOs) due to their widespread use as the active cathode material in lithium ion batteries (LIBs).10–15 The high cost and limited worldwide supply of Co has fostered great interest in replacing LiCoO2 with alternative compositions that achieve good performance using more earth-abundant elements, Ni and Al.16–18 This has led to development of complex metal oxides with compositions such as LiNixMnyCo1−x−yO2 (NMC) and LiNixCoyAl1−x−yO2 (NCA), which now form the basis of the batteries used in the majority of electric vehicles worldwide.19–24 The absence of globally mandated pathways for the recycling of battery cathode materials has led to increasing concerns about the potential environmental impacts associated with end-of-life disposal.25
The confluence of high demand of LIBs and lack of recycling options gives growing concern to the exposure of nanoscale CMOs to environmental settings. Experiments done under simulated landfill conditions show that disposed LIBs can leach out toxic metals such as Co and Ni.26 The biological impacts of CMO exposure to aqueous conditions can be understood, in part, through studies of how the nanomaterials transform in those settings. For example, in a study of Shewanella oneidensis MR-1 exposure to Li(Ni.33Mn.33Co.33)O2 (“333-NMC”) in bacterial medium, it was determined that release of constituent metals (especially aqueous Ni2+ and Co2+) was the primary source of toxicity.27 It was observed that while the initial NMC composition had equal amounts of Ni, Mn, and Co, the metals were not released at similar amounts; instead, the measured release follow the trend of Ni > Co > Mn (an “incongruent” metal release trend). Over time, the metal release resulted in a Ni- and Co-depleted nanomaterial with altered composition and structure. In a subsequent study, modeling using a combined density functional theory (DFT) and thermodynamics methodology was shown to capture the trend of incongruent metal release.28
The conclusion that toxicity of NMC nanomaterials towards S. oneidensis arises from aqueous cations of the constituent transition metals motivated a body of work aimed at understanding the relationship between the solid-state stoichiometry and trends in the relative amounts of metals released. Here, we refer to “metal release” to disambiguate from “dissolution”, as the dissolution of layered lithium intercalation materials goes on to include delithiation steps and structural evolution of the oxide.29–31 Compositional tuning, or variation of the relative amounts of metals within a bulk CMO material, provides a route to designing cathode materials with tailored performance and release properties. This strategy could be used to intentionally reduce the release of toxic transition metals or promote release for easier recycling methods. For example, in Ni-enriched NMC, such as LiNi0.6Mn0.2Co0.2O2 (622-NMC), Ni is released at higher concentrations than 333-NMC due to the change in metal ratios, but at lower concentrations than expected based on the percent change in the bulk material. DFT modeling was used to show that Ni-enriched NMC leads to a higher fraction of Ni present in more stable 3+ and 4+ oxidation states, providing a chemical explanation for the release trend.32 Other studies varying the NMC composition, with accompanying biological studies and computational modeling, confirmed roles for metal release in NMC toxicity towards S. oneidensis and the relationship between changes in bulk oxidation states and metal release.33,34
Doping, or the intentional addition of a relatively small amount of an impurity to a material, is another means of tuning material properties. The incorporation of small amounts (∼5%) of aluminum into NC (LiNi0.80Co0.20O2), to form NCA (LiNixCoyAl1−x−yO2), has been shown to improve the chemical stability and reduce the release of transition metals into the non-aqueous solvents used in batteries.35 However, the influence of Al on the corresponding aqueous-phase chemistry that largely controls the environmental impacts of improper disposal has not been explored.
In the present study we aim to understand how doping with aluminum influences metal release for high-Ni layered metal oxides by comparing nanoscale NC (LiNi0.80Co0.20O2) and aluminum-doped materials, referred to as NCA, using experimental measurements and computational methods. In NCA compositions, the Ni, Co, and Al are all initially present in the 3+ oxidation state. Therefore, any composition-dependent changes in metal release must be linked to other factors, such as the thermodynamic stability of Al inclusion. Because the composition of the aqueous medium can also play an important role in the overall chemistry, we investigated how aqueous conditions affect metal release from NCA and NC by comparing two common media formulations used to grow freshwater organisms: moderately hard reconstituted water (“MHRW”, D. magna growth medium) and minimal medium (S. oneidensis growth medium). The primary differentiating factor between the two media is the presence of lactate in minimal medium, a known chelating agent that stabilizes released metals in solution.
Our results show that metal ion release is substantially higher in minimal medium than in MHRW for NC and NCA, which is consistent with prior results from the NMC family in these same media.27,32,36 Our comparison of metal release for NC vs. NCA shows that incorporation of Al significantly reduces metal ion release in MHRW, with a preferential release of Ni (incongruent release), but in minimal medium, transition metal release is similar to the mole fraction composition in the bulk nanomaterial (congruent release). Using a computational approach that links density functional theory (DFT) with thermodynamically accessible energies, we provide insight into the mechanisms of aqueous metal ion release for NC and NCA, including the role of lactate, changing metal release profiles. Additionally, we demonstrate that biological impacts for two model organisms exposed to NC and NCA nanoparticles are consistent with experimental and computational metal release trends. The ability to link material properties to dissolution trends and subsequent biological impact has broader implications for a wide range of technologically relevant nanotechnologies.
2. Experimental
2.1 Molten salt synthesis of LiNi0.82Co0.15Al0.03O2 (NCA)
We first synthesized LiNi0.82Co0.15Al0.03(OH)2 (NCA hydroxide) using a co-precipitation reaction of metal salts in the presence of a chelator following methods that have been shown to form materials with a homogeneous distribution of constituent elements.37–41 To form NCA hydroxide, an aqueous solution containing 0.15 M nickel(II) sulfate hexahydrate (NiSO4·6H2O), 0.028 M cobalt(II) sulfate heptahydrate (CoSO4·7H2O), 0.0047 M aluminum(III) sulfate hexadecahydrate (Al2(SO4)3·16H2O), and 0.5 M 5-sulfosalicylic acid was prepared. The metal salt solution was then transferred to a burette and added quickly to a beaker containing a stirring aqueous solution of 4 M lithium hydroxide to promote co-precipitation of NCA hydroxide. The chelating agent 5-sulfosalicylic acid limits the concentration of free metal ions and thereby reduces overall supersaturation for formation of metal hydroxides (pH ∼ 12–13).40 After addition of the chelated metal salts to the LiOH solution, the resulting reaction mixture was stirred at room temperature for 30 minutes. The precipitate was then centrifuged at 4696 × g and washed with water three times to remove the excess ligand and residual ions. Finally, the NCA hydroxide precipitate was dried, yielding a green solid. Powder X-ray diffraction (PXRD) exhibited broad peaks (Fig. S1†) that are consistent with the formation of nanoscale NCA hydroxide particles.42 A molten salt mixture was prepared using a 6
:
4 molar ratio of lithium nitrate and lithium hydroxide. The NCA hydroxide precursor was added to the molten salt mixture at 450 °C and allowed to react for 30 minutes. The reaction mixture was quenched with water and the precipitate was washed with water three times and dried to obtain LiNi0.82Co0.15Al0.03O2 (NCA) nanoparticles.
2.2 Molten salt synthesis of LiNi0.80Co0.20O2 (NC)
The Ni0.80Co0.20(OH)2 (NC hydroxide) precursor was synthesized by adding an aqueous solution of 0.15 M nickel and 0.037 M cobalt sulfate salts to a lithium hydroxide solution. The NC hydroxide precursor was synthesized without 5-sulfosalicylic acid as a chelating agent as Ni(OH)2 and Co(OH)2 have similar Ksp and so are likely to co-precipitate homogeneously. The aqueous solutions of NiSO4·6H2O and CoSO4·7H2O were prepared and transferred to a burette and then added quickly to a stirring aqueous solution of 4 M lithium hydroxide, and then stirred at room temperature for 30 minutes. The resulting precipitate was centrifuged and washed with water three times and dried, yielding NC hydroxide as a green powder. The NC hydroxide precursor was added to a molten salt mixture (prepared by adding 6
:
4 molar ratio of lithium nitrate and lithium hydroxide) at 450 °C for 30 minutes. The reaction mixtures were quenched with water and then the precipitates were washed three times with water and dried in a vacuum oven to yield NC nanoparticles. See results and discussion for characterization of NC nanoparticles synthesized by the molten salt method.
2.3 Nanoparticle characterization
Scanning Electron Microscopy (SEM).
SEM images were obtained using a Leo Supra55 VP scanning electron microscope. To obtain SEM images, dilute methanolic solutions of nanoscale NCA or NC were drop cast onto a boron-doped silicon wafer. SEM images were taken using both in-lens and SE2 detectors using incident beam acceleration voltages of 1 kV and 3 kV respectively.
Powder X-ray diffraction.
Powder XRD patterns were obtained using a Bruker D8 Advance Powder X-ray Diffractometer with Cu Kα radiation. NCA or NC powders were lightly pressed into the well of a zero-background SiO2 plate from MTI Corp (Richmond, CA). XRD patterns were collected for diffraction angles 2θ in the range of 10–90° at a resolution of 0.1°.
ICP-OES for nanoparticle composition.
The composition of NCA and NC nanoparticles was determined by digesting samples in freshly prepared aqua regia (3
:
1 volume mixture of 37% HCl and 70% HNO3) [CAUTION: Aqua Regia is highly corrosive and may result in skin burns or explosion if not treated with extreme care!]. The digested sample was then diluted with water and analyzed by ICP-OES. Concentration of metal ions was obtained as four analytical replicates employing an Agilent 5110 ICP-OES. Analysis of our calibration curves yielded detection limits of 0.3 μM for Ni, 0.15 μM for Co, 0.4 μM for Al, and 0.5 μM for Li. These detection limits are all well below the concentrations observed in the present studies.
ICP-OES for metal ion release.
To determine the concentration of metal species released into the media, nanoparticle suspensions were stirred in either moderately hard reconstituted water (MHRW) at 20 °C or in minimal medium at 30 °C for 72 hours, with aliquots collected at 1, 3, 6, 24, 48, and 72 hours. The aliquots were centrifuged at 4696 × g for 30 minutes. The supernatant was then removed and acidified to achieve 2.5% by weight HNO3, thereby matching the acid concentration of the standards used. The concentration of metal species was determined using two sample replicates and four analytical replicates by ICP-OES.
X-ray photoelectron spectroscopy.
XPS analysis was used to measure the fractional composition of metal species present near the surface for NC and NCA nanoparticles before and after 72 hours incubation in moderately hard reconstituted water (MHRW Fig. S2†) and minimal medium (Fig. S3†). NCA and NC nanoparticles incubated in MHRW and in minimal medium were washed with water three times. Samples collected before and after incubation were then pressed into foil. XPS measurements were carried out on a PHI 5000 VersaProbe III using an Al Kα X-ray source at 45° takeoff angle and charge compensation via dual electron flood gun and ion gun. Survey spectra were recorded with a pass energy of 50 eV. CasaXPS software was used to determine the peak area for metal species in NCA and NC. The fractional composition for metal species at the surface of NC and NCA nanoparticles was determined using the following equation: |  | (1) |
where x = Ni, Co or Al, Ai = area obtained from XPS for element i, Si = atomic sensitivity factor for element i, and λi = inelastic mean free path for element i. Inelastic mean free path values of 2.07 nm (Ni), 2.24 nm (Co) and 3.78 nm (Al) were obtained using the NIST electron inelastic mean free path database43via the TPP-2M equation.44
2.4 Computational modeling
Periodic calculations.
Spin-polarized DFT calculations were carried out on models of NC and NCA. Based on our previous benchmarking of different exchange–correlation functionals,28 work here is done using the GGA-PBE exchange–correlation functional,45 as implemented in the Quantum Espresso (QE) open source suite.46,47 GBRV ultrasoft pseudopotentials48 were used to model electron-nucleus interactions. A planewave cutoff of 40 Ry was chosen for the wavefunction and a charge density threshold of 320 Ry was used, as recommended for the pseudopotential set.
Theoretical lattice constants were determined starting from the bulk structure of LiNiO2 (LNO) based on an experimental crystallographic information file as reported in the Inorganic Crystal Structure Database.49 Variable volume bulk cell geometry optimizations were run using a converged 8 × 8 × 4 Monkhorst–Pack50 grid of k-points and imposing no constraints on atomic positions. A residual force criterion of 5 meV Å−1 was used. This material has an R
m symmetry (space group no. 166) and belongs to the delafossite structure type. The experimental (theoretical) lattice parameters for this structure are a = 2.883 (2.885) Å and c = 14.199 (14.113) Å.51 The better agreement between theory and experiment for the in-plane lattice constant is consistent with other results in the literature and is to be expected for the layered structure.11,52
To generate NC and NCA surface models, we use the optimized bulk LNO as the parent structure to set up a 5 × 2 supercell as shown in Fig. 1. From this surface we can substitute Co and Al in place of Ni to obtain the compositions LiNi0.80Co0.20O2 for NC and LiNi0.70Co0.20Al0.10O2 for NCA, additional structures are presented in the ESI† (Fig. S4). These cells have three O–M–O tri-layers and are exposed to the vacuum region along the (001) direction. A comparison of NC vs. NCA layer spacings is tabulated in the ESI† (Table S1), indicating non significant structural changes between the compositionally tuned surface models. All of these structural models have 10 metal ion sites per metal layer, which allows for various arrangements of neighboring environments for these compositions. We have assembled several structures labeled as nearest neighbor (NN, Fig. 1a and c), where Co atoms occupy edge-sharing sites in the surface plane, and next nearest neighbor (nNN, Fig. 1b and d), where the two Co atoms are separated in the surface plane by a Ni atom.
 |
| Fig. 1 Skewed top-down view of structural figures for NC and NCA compositions with Ni (grey), Co (purple), and Al (blue). (a) and (b) Show nearest neighbor (NN) and next-nearest neighbor (nNN) arrangements of Co in NC, respectively. (c) and (d) Show the structural models with Al added to the lattice. Additional configurations were also tested to provide more varieties of chemical environments (Fig. S4†). | |
In going from the bulk to surface supercell geometry, the k-point mesh was appropriately reduced to 2 × 4 × 1. A 20 Å thick vacuum was included along the surface normal direction to avoid spurious interactions between consecutive periodic images. Vibrational modes were computed using a frozen-phonon approach as implemented in Phonopy software53 using a displacement of 0.01 Å.
The change in Gibbs free energy associated with cation release was modeled by combining DFT calculations with accessible experimental solvation energy data. This DFT + solvent ion model54 has been used in related work and the details of the approach used here are identical.28,32,33,52,55–57 Relevant equations and model values are presented in eqn (S1)–(S7).† In brief, using the DFT + solvent ion model, metal release is modeled as the removal of an M–OH group (where M = Co, Al, or Ni). The process is divided into two steps: in the first step, the vacancy energy, referred to as ΔG1, is calculated using DFT by comparing the total energy of the slab missing the M–OH group relative to the starting slab and M–OH constituents in their respective standard states. DFT total energies are related to Gibbs free energies by adding zero-point energy corrections and vibrational contributions for temperature effects. The redox and hydration of the leaving M–OH constituents are taken into account through terms referred to ΔG2 (based on tabulated data for ΔG0SHE, see Table S2†). In this way, solvation effects of the standard state species to its aqueous ions are taken into account. The free energy change for the overall Ni–OH removal denoted as ΔGT, is given as a sum of ΔG1 and ΔG2 terms:
| ΔGT = ΔG1 + ΔG2 = G[(LiMO2)Ni–OH(s)] + G(H+(aq)) → G[(LiMO2)_(s)] + G(Ni2+(aq)) + G(H2O(l)) + e− | (2) |
Here, (LiMO
2)
Ni–OH represents a pristine surface with an intact Ni–OH group and (LiMO
2)
__ represents the surface after the Ni–OH is removed.
Each of the 5 × 2 surface supercell models allow consideration of distinct ways to remove the M–OH groups for a given metal. When comparing ΔGT between NC and NCA removals, it is useful to consider removal schemes that have similar chemical environments in both compositions, as displayed in Fig. 2.
 |

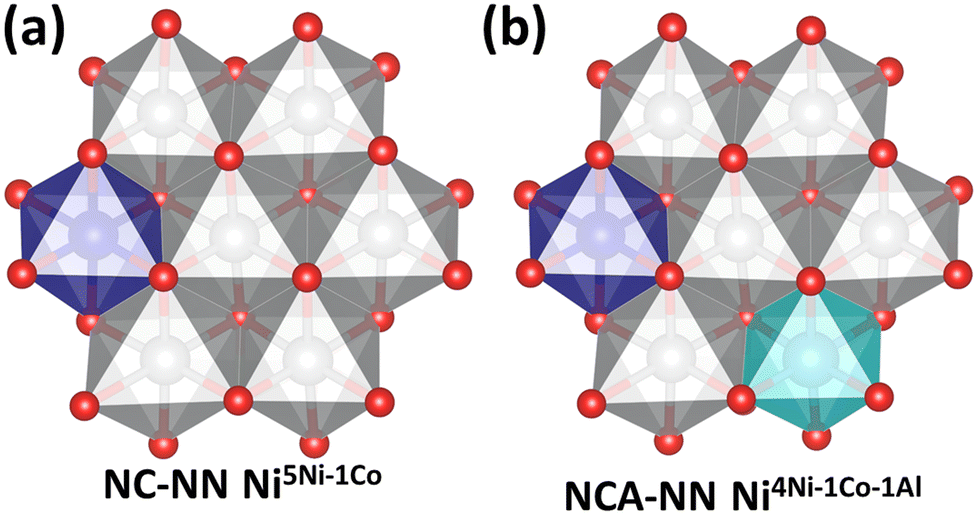

| Fig. 2 Top view of the local environment surrounding defect sites. Ni (grey), Co (purple), and Al (blue). Here, the site of the metal to be removed is in the center and is surrounded by six other metal sites. (a) Starts from the NC-NN-1 slab (Fig. 1(a)) and removes an Ni from the center. 5 of the surrounding metals are Ni and one is Co, so this structure is labeled NC-NN-1 Ni5Ni–1Co. (b) Starts from NCA-NN-1 (Fig. 1(c)) and removes an Ni from the center. The resulting structure has an Ni vacancy surrounded by 4Ni, 1Co, and 1Al, and is labeled NCA-NN-1 Ni4Ni–1Co–1Al. | |
Fig. 2 shows top-views of the NC-NN Ni (a) and NCA-NN Ni (b) surfaces and defines the notation used for the vacancy structures formed by M–OH removals. When an Ni–OH group based on the central Ni atom in Fig. 2(a) is removed, the resulting metal vacancy that is formed is surrounded by 5 Ni atoms and 1 Co atom. The resulting vacancy structure is denoted as NC-NN Ni5Ni–1Co. By analogy, starting from the NCA-NN Ni surface in Fig. 2(b) and removing an Ni–OH group based on the central Ni atom results in a vacancy structure denoted as NCA-NN Ni4Ni–1Co–1Al.
A metric that has shown to be tied to trends in ΔGT is the total spin of the metals directly coordinated to the vacancy site, which we denote as μB.55 This value is taken as the summation of the magnetic moments in Bohr magneton of the six edge sharing metals as shown in eqn (3).
|  | (3) |
In an effort to further relate the DFT calculations to known material functionality and observable properties, we model the thermodynamics of release of Li+,57 examining the fully (de)lithated structures. In turn, the change in energy associated with Li+ release can be related to the intercalation voltage Vint. The calculation of Vint follows after previous computational studies:57,58
|  | (4) |
Finally, as aluminum doping is expected to stabilize the lattice, we go on to calculate DFT formation enthalpies, using a Hess's law approach of summing DFT total energies of the products minus that of the reactants and formation reactions starting from constituents in their respective standard states.
55
Molecular calculations.
As reported previously, additional terms can be added to the DFT + solvent ion model to go on to consider subsequent aqueous chemistry between the hydrated cations formed from release and other species in solution.32,56 Specifically, here we consider steps in which aqueous cations of Ni, Co, and Al go on to form bi-lactated complexes, following after previous work.32 To summarize, Pourbaix diagrams show Ni and Co both exist in a +2 oxidation state at pH 7.59 The energy change associated with the bi-lactate ligand exchange reaction is denoted by ΔG3, and are given in Table 1. The model reactions used for these energy changes are given in eqn (S3)–(S5).†
Table 1 ΔG3 values for bi-lactate ligand exchange (eqn (S6) and (S7)†) for Nia, Coa and Al
(eV) |
Co2+ |
Ni2+ |
Al3+ |
Values taken from previous work.32
|
ΔG3 |
−1.37a |
−0.96a |
−2.13 |
The values of ΔG3 given in Table 1 are used to calculate
as
= ΔGT + ΔG3 (Tables S3–S5†). That is, values of
represent the change in energy for the release of a Co–OH (or Ni–OH) group and subsequent formation of the corresponding bi-lactate complex, depicted in Fig. S5.†
2.5 Evaluation of biological impact
Biological impact was evaluated using two common organisms for environmental toxicology research: Daphnia magna (D. magna), which is found in freshwater aquatic environments, and Shewanella oneidensis MR-1 (S. oneidensis), which is a ubiquitous soil bacterium.
Daphnia magna (D. magna).
Daphnia magna were harvested from cultures maintained in the Klaper lab at the UW-Milwaukee School of Freshwater Sciences. Daphnids were grown in MHRW incubated at 20 °C on a 16
:
8 hour light/dark cycle according to EPA recommendations.60 Daphnids were fed using a combination of 25 mL of freshwater algae (Pseudokirchneriella subcapitata) at an algal density of ∼400
000 algal cells per mL and 10 mL of alfalfa supernatant (Medicago sativa) three times weekly. Alfalfa supernatant was prepared by suspending 8100 mg of alfalfa in 1 L of ultrapure type 1 water, followed by 20 minutes of agitation at 130 RPM and 24 hours of sedimentation. Breeding populations were maintained at a population density of 20 adult daphnids per liter of daphnid media, kept in 1 L glass beakers. Neonates were harvested from daphnid adults between 14 and 28 days old, ensuring healthy neonates for use in exposures.
D. magna exposures.
Acute toxicity was measured for D. magna exposed to NCA or NC nanoparticles following a protocol similar to that used previously in studies of other complex transition metal oxide nanomaterials.36 Briefly, acute exposures followed a modified protocol based on OECD 202 guidelines for the D. magna acute immobilization test.27,34,61,62 Five daphnid neonates (≤24 hours old) were placed in 30 mL glass beakers containing 10 mL of a given treatment. Four replicates were conducted for each treatment and the fraction of surviving animals was quantified visually after 48 hours without feeding. NC and NCA nanoparticles were tested at concentrations of 0 (control), 1, 10, 50, and 100 mg L−1. NC and NCA stock suspensions were prepared by measuring out and mixing materials with ultrapure type 1 water in a 250 mL glass vessel to a concentration of 1 g L−1. To create the desired exposure concentrations, the 1 g L−1 nanoparticle stock solution in ultrapure water was diluted with MHRW to bring the total volume to 10 mL at each given concentration. Stocks were then sonicated for 10 minutes immediately prior to addition to daphnid replicates.
Statistical analysis of D. magna survival data.
In order to determine the significance of impacts of the NC and NCA treatments towards D. magna compared to controls, two statistical analyses, the nonparametric Tukey test and Kruskal–Wallis one way ANOVA on ranks tests, were chosen due to the distribution of data and the homogeneity of variances. The statistical analyses were performed using SigmaStat (Systat Software, San Jose, CA). Impacts of NC and NCA to daphnid survival were assessed using the nonparametric Tukey test since the data did not follow a normal distribution as determined by Shapiro Wilk normality tests.
Shewanella oneidensis MR-1 (S. oneidensis) culture and exposure.
S. oneidensis was cultured in minimal growth medium (“minimal medium” – 11.6 mM NaCl, 4.0 mM KCl, 1.4 mM MgCl2, 2.8 mM Na2SO4, 2.8 mM NH4Cl, 88.1 μM Na2HPO4, 50.5 μM CaCl2, 10 mM HEPES, and 100 mM sodium lactate) for this study. The impact of NCA and NC nanoparticles on S. oneidensis viability was tested using a growth based viability (GBV) assay as previously described.63 Briefly, a working solution 10× more concentrated than target doses was prepared by suspending NCA into deionized water. This suspension was sonicated by bath sonication for 10 minutes and then diluted 1
:
1 to build a series of 10× concentrated working solutions. These suspensions were added to a bacterial suspension in minimal growth medium (OD600 = 0.1) in a 1
:
10 dilution such that desired doses (100, 50, 25, 12.5, 6.25 ppm) were achieved. A calibration curve of S. oneidensis MR-1 is also prepared by 1
:
1 dilution to create a series of S. oneidensis MR-1 suspensions, as described in the previous publication.63S. oneidensis MR-1 was exposed to NCA materials in minimal growth media for three hours. After three hours, 5 μL aliquots of these cultures were transferred to 195 μL of nutrient rich LB broth and allowed to grow up in a plate reader at 30 °C overnight. OD600 was measured at 20 minute intervals. Growth curves were analyzed in R as described in Qiu et al.63
3. Results and discussion
3.1 Synthesis of NC and NCA by molten salt method
Nanoscale NCA and NC were synthesized by a molten salt method that has previously been used to produce high-purity single-phase materials.64–67 For this method, the molten salt acts as a solvent that facilitates diffusion of reactants, which enables the synthesis of high purity materials at lower temperatures and shorter reaction times than those used in traditional calcination processes. Fig. 3 shows XRD patterns (Fig. 3a) and SEM images (Fig. 3b) for NCA. The diffraction patterns in Fig. 3a are similar to those reported previously for NC and NCA.39 While the positions of the peaks are dependent primarily on the crystal structure (here, the delafossite structure), the detailed position and width of the individual diffraction peaks depends on the precise chemical composition, with additional broadening dependent on possible structural disorder and size-dependent broadening. In the XRD data, the intensity of the (003) peak relative to the (104) is a measure of structural disorder; the low intensity of the (003) peak indicates significant disorder in the lattice due to the differing spatial distribution of the metal cations, along with additional broadening due to the small nanoparticle size. We also performed transmission electron microscopy (TEM) of the nanoparticles, with Fig. S6† illustrating histograms of the longest dimension for each nanoparticle. SEM and TEM data each show that NC and NCA are similar in size, with a median length of approximately 25 nanometers.
 |
| Fig. 3 (a) X-ray diffraction patterns of NC and NCA and a simulated pattern for LiNi0.80Co0.20O2. (b) Scanning electron micrographs of NCA (left) and NCA (right). Aggregation observed in SEM is attributed to the effects of surface tension during drying of the samples. | |
3.2 Aqueous metal ion release for NCA and NC nanoparticles
Metal ion release was compared for NC and NCA nanoparticles incubated in MHRW and minimal medium for 72 hours to determine the effects of Al doping and media composition on metal release, with results shown in Fig. 4. In MHRW, NCA was characterized by reduced Ni and Co metal ion release compared to NC, and minimal detection of Al (Fig. 4a and b). Further, metal ion release was non-stoichiometric (incongruent) relative to bulk compositions for both NC and NCA nanoparticles in MHRW, which is consistent with previous results for lithium nickel manganese cobalt oxide (NMC) nanoparticles in MHRW.36 In minimal medium (Fig. 4c and d), combined metal ion concentrations (Ni, Co, Al) were similar for both materials after 72 hours of incubation, indicating that the presence of Al did not reduce metal ion release to the same extent as MHRW. Further, the stoichiometry of Ni, Co, and Al concentrations in minimal medium more closely reflected the bulk compositions (congruent release) for both NC and NCA, which contrasts with incongruent release in MHRW here and for previous studies investigating NMC nanomaterials.27,28,34,36,62
 |
| Fig. 4 Aqueous metal ion dissolution for NCA and NC in minimal medium (MM) and moderately hard reconstituted water (MHRW). (a and b) Concentration of dissolved metal ion species released by 50 mg L−1 (a) NC and (b) NCA incubated 0–72 hours in MHRW (D. magna medium). (c and d) Concentration of dissolved metal ion species released by 50 mg L−1 (c) NC and (d) NCA incubated 0–72 hours in minimal medium (S. oneidensis medium). For these studies, a 10 mL aliquot was removed and subjected to ultra-centrifugation to remove suspended NCA and NC nanoparticles, after which the supernatant solution was analyzed by ICP-OES to determine the concentration of dissolved metal species released into the medium. Values reported as mean ± S.D. (4 replicates from two independent experiments). | |
3.3 Computational modeling comparison of metal ion release for NC and NCA
Interpretation of the values of ΔGT calculated using eqn (2) is carried out alongside other values. Specifically, we consider values of ΔGT alongside values of μB (eqn (3)). We also tabulate the change in values of ΔGT for a given metal between NCA and NC, defined as Δ(ΔGT). For Δ(ΔGT) values > 0, removing the M–OH group from NCA is less favorable relative to the same group removed from NC. Likewise, changes in μB are reported as ΔμB. Negative values for ΔμB indicate NCA formulations have less unpaired electron density surrounding the vacancy site. We expect these materials to be most stable when anti-ferromagnetic couplings are maximized.55
Table 2 reports the values of ΔGT (and other calculated properties for comparison and interpretation) for Ni–OH removals from supercells following the naming schemes described in Fig. 1 and 2 and the accompanying text. For vacancy structures where Al is in the local environment (oxygen edge-sharing) of the removed metal (see Fig. 2, and sites in Table 2 with Al in the superscript), Δ(ΔGT) > 0. This indicates that the Al doping reduces the tendency for Ni–OH release. This agrees with experimental observations for metal release in MHRW, where metal ion release was generally lower for NCA nanoparticles relative to NC. As discussed in the Introduction, previous studies have shown the oxidation states play a key role in controlling ΔGT.32,33 However, here we would not expect a change in oxidation states as Ni is present as a 3+ cation in NC and Al is another 3+ cation. We test this assumption by comparing the electronic structure of Ni before and after Al substitution (Fig. S7†). No changes in the electronic structure were observed for Ni after the substitution of Al indicating the change in ΔGT is not due to changes in oxidation states of the surface metals. Instead, we can correlate the changes in ΔGT to the spin environment of the metals directly neighboring the site. Al3+ has a p6 configuration where all electrons are paired, whereas Ni3+, d7, will have an unpaired electron in the eg orbitals of the octahedral environment. By substituting Al in place of Ni, there are fewer unpaired electrons (and thus greater stability) surrounding the formed vacancy, as indicated by negative ΔμB values. This agrees with previous work that observed Ni release was dependent on the spin environment when the oxidation state of Ni was held constant across different formulations.55
Table 2 ΔGT values (eV) and the total spin environment of neighboring metals (μB) comparing Ni removal after the substitution of Al. Differences are given for ΔGT and μB going from NC to NCA
Structure |
Site |
ΔGT (eV) |
Δ(ΔGT) (eV) |
μ
B
|
ΔμB |
NC-NN-3 |
Ni6Ni |
−4.06 |
0.73 |
5.53 |
−2.73 |
NCA-NN-3 |
Ni5Ni–1Al |
−3.33 |
2.80 |
NC-NN-1 |
Ni5Ni–1Co |
−3.75 |
0.21 |
4.56 |
−2.31 |
NCA-NN-1 |
Ni4Ni–1Co–1Al |
−3.54 |
2.25 |
NC-nNN-1 |
Ni5Ni–1Co |
−4.21 |
0.98 |
4.67 |
−2.38 |
NCA-nNN-1 |
Ni4Ni–1Co–1Al |
−3.23 |
2.29 |
Values of ΔGT between NC and NCA in Table 3 are also compared for cases where the vacancy site does not have a nearest surface site Al neighbor. For example, consider NC-NN Co5Ni–1Co (ΔGT = −2.54 eV) and NCA-NN Co5Ni–1Co (ΔGT = −2.46 eV). In this case, ΔGT is more negative for a Co–OH removal from NC than in the analogous NCA, showing that the doped Al can impact metal release even when it is not occupying a lattice site local to the leaving group. In this example there is little to no change in the spin environment since the neighboring metals remain unchanged. A conclusion is that aluminum induces long-range stability in the lattice.
Table 3 ΔGT values (eV) for Ni–OH or Co–OH removal from NC and NCA materials and total spin environments (μB). Also reported are values of Δ(ΔGT) (eV), which compares the energy of release for related NC and NCA materials in which the chemical environment is held constant. For Δ(ΔGT) > 0, it is more favorable to release a M–OH group from the NC material relative to NCA. Values of ΔμB denote the change in net spin between the NC and related NCA material
Structure |
Site |
ΔGT (eV) |
ΔΔGT (eV) |
μ
B
|
ΔμB |
NC-NN |
Ni6Ni |
−4.06 |
0.44, 0.65 |
5.53 |
+0.09, +0.19 |
NCA-NN |
Ni6Ni |
−3.41 |
5.62 |
NCA-NN |
Ni6Ni |
−3.62 |
5.72 |
NC-nNN |
Ni4Ni–2Co |
−3.54 |
0.21 |
3.42 |
+0.20 |
NCA-nNN |
Ni4Ni–2Co |
−3.33 |
3.62 |
NC-NN |
Ni3Ni–3Co |
−4.21 |
0.03 |
2.26 |
−0.14 |
NCA-NN |
Ni3Ni–3Co |
−4.18 |
2.12 |
NC-nNN |
Co6Ni |
−2.97 |
0.30 |
4.66 |
+0.09 |
NCA-nNN |
Co6Ni |
−2.67 |
4.75 |
NC-NN |
Co5Ni–1Co |
−2.54 |
0.08 |
3.75 |
−0.02 |
NCA-NN |
Co5Ni–1Co |
−2.46 |
3.73 |
To further explore why it is thermodynamically less favorable to remove Ni or Co from NCA than NC, even when the leaving group does not have Al in the local coordination environment, we performed vibrational calculations and compare the energy values of the harmonic frequencies to assess bond rigidity in the NC versus NCA materials. When comparing the vibrational modes between NC and NCA, we see that all frequency values for NCA increase by 5–12 cm−1 (Table S6†). This indicates that the bonding network must be stronger in NCA as a result of aluminum doping. The strengthened bonds, as supported by the vibrational analysis, are in line with the less favorable metal release reflected in the values of ΔGT. Besides increasing the stability of the lattice, we can also measure the effect Al substitution will have on other properties of NCA as a cathode material by computing Vint and Ef as defined in eqn (4) and ref. 55 respectively. Ef values are reported per formula unit.
As a result of Al doping, the calculated values of Vint for modeled NCA increase by at least 0.11 V relative to NC. It has been observed in previous studies that the presence of Al will increase the voltage due to its lack of d-state electrons between oxygen and the Fermi energy.55 This results in electrons requiring more energy to leave the system, causing the output voltage to increase. It is shown in Table 4 that the values of Ef are more favorable for the NCA material. The comparison of Vint and Ef values between NC and NCA, along with the vibrational analysis, all support the enhanced lattice stability resulting from doping Al into the NC material.
Table 4 Computed values for voltage and formation energies, before and after Al doping, for both NN and nNN configurations. Values of ΔVint and ΔEf denote the difference between the NC and NCA materials
Composition (NC) |
V
int (V) |
E
f (eV) |
Composition (NCA) |
V
int (V) |
E
f (eV) |
ΔVint (V) |
ΔEf (eV) |
NC-NN-A |
3.10 |
−63.03 |
NCA-NN-A |
3.22 |
−66.68 |
+0.12 |
−3.65 |
NC-nNN-A |
3.10 |
−63.04 |
NCA-nNN-A |
3.21 |
−66.75 |
+0.11 |
−3.71 |
The final interpretation based on computational analysis considers how subsequent aqueous chemistry after the initial metal release may influence trends as a function of metal identity. Because the value of ΔG3 for Co is 0.41 eV lower in energy than that of Ni (Table 1), the relative values (reflected in Δ(ΔGT) in Tables S3 and S4†) also decreases by that amount. This suggests that Ni–OH and Co–OH removal in the presence of lactate will be energetically on par and corroborates the experimental observation of more congruent metal release in minimal media. Likewise, the relatively large magnitude of ΔG3 for Al leads to similar
values for Ni and Al, in line with observations that Ni and Al release similarly in the lactate-containing minimal media.
3.4 Biological impact of NCA and NC nanoparticles
In biological studies, we aimed to determine if Al substitution would affect acute toxicity towards two model freshwater organisms, D. magna (MHRW) and S. oneidensis (minimal medium). Fig. 5a illustrates the percent survival for D. magna exposed to 0–100 mg L−1 NCA or NC nanoparticles after 48 hour exposure. D. magna survival was decreased compared to control after exposure to 50 and 100 mg L−1 NC nanoparticles, whereas NCA nanoparticles did not have a significant impact on survival for any of the nanoparticle doses measured. These results indicate that the chemical composition of NCA was more favorable to daphnid survival than NC. Previously, a nanoparticle-specific role for biological impact towards D. magna was reported for LiNixMnyCo1−x−yO2 (NMC) nanomaterials, as Ni and Co ion concentrations released by the highest nanoparticle concentration tested (25 mg L−1) did not reduce survival.32,36 Ni released by 50 and 100 mg L−1 NC was higher than concentrations previously reported for NMC in MHRW,32,36 and approached reported EC50 values for daphnid survival upon exposure to Ni ions.68–72 The increased toxicity for NC compared to NCA could be due to the increased release of Ni ions into the media, although we cannot rule out other effects associated with direct interactions with daphnids (e.g., nanoparticle consumption).
 |

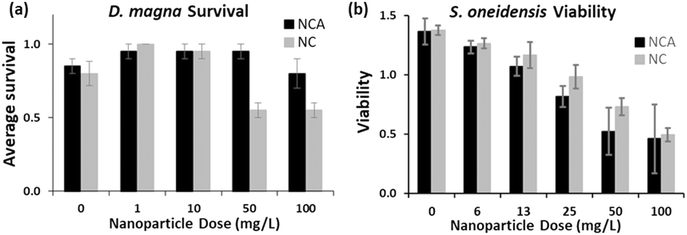

| Fig. 5 NC and NCA impact on (a) D. magna and (b) S. oneidensis. (a) Comparison of average survival for D. magna exposed to 0–100 mg L−1 NC (H = 15.529, df = 4, probability value = 0.004) or NCA (H = 5.111, df = 4, probability value = 0.276) nanoparticles. Statistical significance for daphnid survival after exposure to NC and NCA was assessed using the nonparametric Tukey test (degrees of freedom, df = 4; n = 4 replicate experiments; error bars represent standard error of the mean). (b) S. oneidensis viability was measured for 0–100 mg L−1 NCA or NC using a growth-based viability assay.63 | |
Fig. 5b illustrates relative viability for S. oneidensis exposed to 0–100 mg L−1 NCA or NC nanoparticles, as determined using a growth-based viability assay after 3 hour exposure.63 NCA and NC nanoparticles each had a dose-dependent impact on S. oneidensis viability, which is consistent with previous results reported for NMC materials.27,34,62 However, despite NC releasing higher concentrations of Ni and Co than NCA at the 3 hour time point, there were no significant differences in viability between NCA and NC nanoparticles for any of the doses measured here. These results suggest that metal ion release alone may not fully explain the biological impact of NCA and NC towards S. oneidensis. Taken together, our results demonstrate that substitution of Al into the NC lattice reduced acute toxicity towards D. magna, while the biological impact towards S. oneidensis was similar for both materials. These combined results highlight challenges of redesign strategies aimed at reducing the biological impact of nanomaterials in the environment, where biological diversity and aqueous conditions can vary significantly.
4. Conclusions
NC and NCA were synthesized by a molten salt technique to determine how incorporation of Al into layered metal oxide materials influences metal release and toxicity towards model organisms under aqueous conditions. Metal ion concentrations released in minimal medium were nearly proportional to bulk composition (congruent release) for all nanomaterials after 72 hours of incubation, while the total metal ion release was substantially lower and did not correlate to bulk stoichiometry (incongruent release) in MHRW. In the absence of a strong chelating agent, the integrated experiments and modeling demonstrate that Al doping reduces metal ion release in going from NC and NCA. This is attributed to greater stability in the Al-doped oxide, as supported by enthalpy calculations and computational vibrational analysis. Modeled metal release energetics also trend with electron spin, such that removals that minimize unpaired spin are favored. However, the presence of lactate in minimal medium enhances metal release from NC and NCA compared to MHRW. We conclude this is due to energetically favorable chelation of lactate with the hydrated metal ion species. The relatively more favorable chelation with Co compared to Ni results in shifts in the release profiles from incongruent in MHRW to congruent in minimal medium. Finally, the biological impacts observed for two model organisms exposed to NC and NCA correlate with the release trends in their respective growth media. Together, our combined computational and experimental results provide chemical insights into how changes in nanoparticle composition and the presence of aqueous species in water influence metal release trends and subsequent biological impacts.
Author contributions
Blake G. Hudson, data curation, formal analysis, writing – original draft, writing – review & editing. Curtis M. Green, data curation, formal analysis, validation, writing – review & editing. Arun Kumar Pandiakumar, conceptualization, data curation, formal analysis, writing – original draft. Ali Abbaspour Tamijani, data curation, writing – original draft. Natalie V. Hudson-Smith, data curation, formal analysis, investigation. Joseph T. Buchman, data curation, formal analysis, investigation. Meagan Koss, data curation, formal analysis. Elizabeth D. Laudadio, data curation, formal Analysis. Michael P. Schwartz, supervision, formal analysis, writing – review & editing. Rebecca Klaper, project administration, supervision, methodology, resources, writing – review & editing. Christy L. Haynes, project administration, supervision, methodology, resources, writing – review & editing. Robert J. Hamers, conceptualization, project administration, funding acquisition, supervision, methodology, resources, formal analysis, writing – review & editing. Sara E. Mason, project administration, supervision, methodology, resources, writing – review & editing.
Conflicts of interest
There are no conflicts to declare.
Acknowledgements
This material is based upon work supported by the National Science Foundation under Grant No. CHE-2001611, the NSF Center for Sustainable Nanotechnology. The CSN is part of the Centers for Chemical Innovation Program. EDL was supported by the National Science Foundation Graduate Research Fellowship Program under grant no. DGE-1256259. NVHS and JTB were supported by the National Science Foundation Graduate Research Fellowship Program under grant no. 00039202. JTB received support as a trainee in the National Institute of General Medical Science grant T32-GM008347 from the National Institute of Health. The authors gratefully acknowledge use of facilities and instrumentation at the UW-Madison Wisconsin Centers for Nanoscale Technology (https://wcnt.wisc.edu) partially supported by the NSF through the University of Wisconsin Materials Research Science and Engineering Center (DMR-1720415). This research used Theory and Computation resources of the Center for Functional Nanomaterials (CFN), which is a U.S. Department of Energy Office of Science User Facility at Brookhaven National Laboratory under Contract No. DE-SC0012704.
References
- G. E. Brown, V. E. Henrich, W. H. Casey, D. L. Clark, C. Eggleston, A. Felmy, D. W. Goodman, M. Grätzel, G. Maciel, M. I. McCarthy, K. H. Nealson, D. A. Sverjensky, M. F. Toney and J. M. Zachara, Metal Oxide Surfaces and Their Interactions with Aqueous Solutions and Microbial Organisms, Chem. Rev., 1999, 99, 77–174 CrossRef CAS.
- H. A. Al-Abadleh and V. H. Grassian, Oxide surfaces as environmental interfaces, Surf. Sci. Rep., 2003, 52, 63–161 CrossRef CAS.
- P. B. Kelemen and J. Matter, In situ carbonation of peridotite for CO2 storage, Proc. Natl. Acad. Sci. U. S. A., 2008, 105, 17295–17300 CrossRef CAS.
- A. Kappler and K. L. Straub, Geomicrobiological Cycling of Iron, Rev. Mineral. Geochem., 2005, 59, 85–108 CrossRef CAS.
- G. E. Brown and G. Calas, Environmental mineralogy – Understanding element behavior in ecosystems, C. R. Geosci., 2011, 343, 90–112 CrossRef CAS.
- S. M. Kraemer, A. Butler, P. Borer and J. Cervini-Silva, Siderophores and the Dissolution of Iron-Bearing Minerals in Marine Systems, Rev. Mineral. Geochem., 2005, 59, 53–84 CrossRef CAS.
- J. Baxter, Z. Bian, G. Chen, D. Danielson, M. S. Dresselhaus, A. G. Fedorov, T. S. Fisher, C. W. Jones, E. Maginn, U. Kortshagen, A. Manthiram, A. Nozik, D. R. Rolison, T. Sands, L. Shi, D. Sholl and Y. Wu, Nanoscale design to enable the revolution in renewable energy, Energy Environ. Sci., 2009, 2, 559–588 RSC.
- S. Ghosh, M. A. Makeev, Z. Qi, H. Wang, N. N. Rajput, S. K. Martha and V. G. Pol, Rapid Upcycling of Waste Polyethylene Terephthalate to Energy Storing Disodium Terephthalate Flowers with DFT Calculations, ACS Sustainable Chem. Eng., 2020, 8, 6252–6262 CrossRef CAS.
- J. A. Sulpizio, S. Ilani, P. Irvin and J. Levy, Nanoscale Phenomena in Oxide Heterostructures, Annu. Rev. Mater. Res., 2014, 44, 117–149 CrossRef CAS.
- P. Rozier and J. M. Tarascon, Review—Li-Rich Layered Oxide Cathodes for Next-Generation Li-Ion Batteries: Chances and Challenges, J. Electrochem. Soc., 2015, 162, A2490 CrossRef CAS.
- A. Chakraborty, S. Kunnikuruvan, S. Kumar, B. Markovsky, D. Aurbach, M. Dixit and D. T. Major, Layered Cathode Materials for Lithium-Ion Batteries: Review of Computational Studies on LiNi1–x–yCoxMnyO2 and LiNi1–x–yCoxAlyO2, Chem. Mater., 2020, 32, 915–952 CrossRef CAS.
- A. Du Pasquier, I. Plitz, S. Menocal and G. Amatucci, A comparative study of Li-ion battery, supercapacitor and nonaqueous asymmetric hybrid devices for automotive applications, J. Power Sources, 2003, 115, 171–178 CrossRef CAS.
- K. Ozawa, Lithium-ion rechargeable batteries with LiCoO2 and carbon electrodes: the LiCoO2/C system, Solid State Ionics, 1994, 69, 212–221 CrossRef CAS.
- K. Mizushima, P. C. Jones, P. J. Wiseman and J. B. Goodenough, LixCoO2 (0<x⩽1): A new cathode material for batteries of high energy density, Solid State Ionics, 1981, 3, 171–174 CrossRef.
- K. Mizushima, P. C. Jones, P. J. Wiseman and J. B. Goodenough, LixCoO2 (0<x<-1): A new cathode material for batteries of high energy density, Mater. Res. Bull., 1980, 15, 783–789 CrossRef CAS.
- W. Liu, P. Oh, X. Liu, M.-J. Lee, W. Cho, S. Chae, Y. Kim and J. Cho, Nickel-Rich Layered Lithium Transition-Metal Oxide for High-Energy Lithium-Ion Batteries, Angew. Chem., Int. Ed., 2015, 54, 4440–4457 CrossRef CAS.
- J. B. Goodenough and Y. Kim, Challenges for Rechargeable Li Batteries, Chem. Mater., 2010, 22, 587–603 CrossRef CAS.
- J. B. Goodenough and K.-S. Park, The Li-Ion Rechargeable Battery: A Perspective, J. Am. Chem. Soc., 2013, 135, 1167–1176 CrossRef CAS PubMed.
- M. G. S. R. Thomas, W. I. F. David, J. B. Goodenough and P. Groves, Synthesis and structural characterization of the normal spinel Li[Ni2]O4, Mater. Res. Bull., 1985, 20, 1137–1146 CrossRef CAS.
- J. R. Dahn, U. von Sacken, M. W. Juzkow and H. Al-Janaby, Rechargeable LiNiO2/Carbon Cells, J. Electrochem. Soc., 1991, 138, 2207–2211 CrossRef CAS.
- M. Broussely, F. Perton, J. Labat, R. J. Staniewicz and A. Romero, Li/LixNiO2 and Li/LixCoO2 rechargeable systems: comparative study and performance of practical cells, J. Power Sources, 1993, 43, 209–216 CrossRef CAS.
- T. Ohzuku and A. Ueda, Why transition metal (di) oxides are the most attractive materials for batteries, Solid State Ionics, 1994, 69, 201–211 CrossRef CAS.
- F. Zhang, X. A. Zhou, X. Fu, C. Wang, B. Wang, W. Liang, P. Wang, J. Huang and S. Li, Which is the winner between the single-crystalline and polycrystalline LiNi0.80Co0.15Al0.05O2 cathode in the lithium-ion battery?, Mater. Today Energy, 2021, 22, 100873 CrossRef CAS.
- M. Jo, M. Noh, P. Oh, Y. Kim and J. Cho, A New High Power LiNi0.81Co0.1Al0.09O2 Cathode Material for Lithium-Ion Batteries, Adv. Energy Mater., 2014, 4, 1301583 CrossRef.
- O. Velázquez-Martínez, J. Valio, A. Santasalo-Aarnio, M. Reuter and R. Serna-Guerrero, A critical review of lithium-ion battery recycling processes from a circular economy perspective, Batteries, 2019, 5, 68 CrossRef.
- D. H. P. Kang, M. Chen and O. A. Ogunseitan, Potential Environmental and Human Health Impacts of Rechargeable Lithium Batteries in Electronic Waste, Environ. Sci. Technol., 2013, 47, 5495–5503 CrossRef CAS.
- M. N. Hang, I. L. Gunsolus, H. Wayland, E. S. Melby, A. C. Mensch, K. R. Hurley, J. A. Pedersen, C. L. Haynes and R. J. Hamers, Impact of Nanoscale Lithium Nickel Manganese Cobalt Oxide (NMC) on the Bacterium Shewanella oneidensis MR-1, Chem. Mater., 2016, 28, 1092–1100 CrossRef CAS.
- J. W. Bennett, D. Jones, X. Huang, R. J. Hamers and S. E. Mason, Dissolution of Complex Metal Oxides from First-Principles and Thermodynamics: Cation Removal from the (001) Surface of Li(Ni1/3Mn1/3Co1/3)O2, Environ. Sci. Technol., 2018, 52, 5792–5802 CrossRef CAS PubMed.
- J. Choi, E. Alvarez, T. A. Arunkumar and A. Manthiram, Proton Insertion into Oxide Cathodes during Chemical Delithiation, Electrochem. Solid-State Lett., 2006, 9, A241 CrossRef CAS.
- A. Manthiram and J. Choi, Chemical and structural instabilities of lithium ion battery cathodes, J. Power Sources, 2006, 159, 249–253 CrossRef CAS.
- E. Billy, M. Joulié, R. Laucournet, A. Boulineau, E. De Vito and D. Meyer, Dissolution Mechanisms of LiNi1/3Mn1/3Co1/3O2 Positive Electrode Material from Lithium-Ion Batteries in Acid Solution, ACS Appl. Mater. Interfaces, 2018, 10, 16424–16435 CrossRef CAS PubMed.
- J. T. Buchman, E. A. Bennett, C. Y. Wang, A. Tamijani, J. W. Bennett, B. G. Hudson, C. M. Green, P. L. Clement, B. Zhi, A. H. Henke, E. D. Laudadio, S. E. Mason, R. J. Hamers, R. D. Klaper and C. L. Haynes, Nickel enrichment of next-generation NMC nanomaterials alters material stability, causing unexpected dissolution behavior and observed toxicity to S. oneidensis MR-1 and D. magna, Environ. Sci.: Nano, 2020, 7, 571–587 RSC.
- J. W. Bennett, D. T. Jones, R. J. Hamers and S. E. Mason, First-Principles and Thermodynamics Study of Compositionally Tuned Complex Metal Oxides: Cation Release from the (001) Surface of Mn-Rich Lithium Nickel Manganese Cobalt Oxide, Inorg. Chem., 2018, 57, 13300–13311 CrossRef CAS PubMed.
- I. L. Gunsolus, M. Hang, N. Hudson-Smith, J. T. Buchman, J. Bennett, D. Conroy, S. E. Mason, R. Hamers and C. Haynes, Influence of nickel manganese cobalt oxide nanoparticle composition on toxicity toward Shewanella oneidensis MR-1: Redesigning for reduced biological impact, Environ. Sci.: Nano, 2017, 4, 636–646 RSC.
- C. H. Chen, J. Liu, M. E. Stoll, G. Henriksen, D. R. Vissers and K. Amine, Aluminum-doped lithium nickel cobalt oxide electrodes for high-power lithium-ion batteries, J. Power Sources, 2004, 128, 278–285 CrossRef CAS.
- J. Bozich, M. Hang, R. Hamers and R. Klaper, Core chemistry influences the toxicity of multi-component metal oxide nanomaterials, lithium nickel manganese cobalt oxide and lithium cobalt oxide to Daphnia magna, Environ. Toxicol. Chem., 2017, 36, 2493–2502 CrossRef CAS.
- Y. Kim and D. Kim, Synthesis of High-Density Nickel Cobalt Aluminum Hydroxide by Continuous Coprecipitation Method, ACS Appl. Mater. Interfaces, 2012, 4, 586–589 CrossRef CAS PubMed.
- S. Jouanneau and J. R. Dahn, Preparation, structure, and thermal stability of new NixCo1-2xMnx(OH)(2) (0 <= x <= 1/2) phases, Chem. Mater., 2003, 15, 495–499 CrossRef CAS.
- M. Guilmard, C. Pouillerie, L. Croguennec and C. Delmas, Structural and electrochemical properties of LiNi0.70Co0.15Al0.15O2, Solid State Ionics, 2003, 160, 39–50 CrossRef CAS.
- H. Xie, K. Du, G. Hu, J. Duan, Z. Peng, Z. Zhang and Y. Cao, Synthesis of LiNi0.8Co0.15Al0.05O2 with 5-sulfosalicylic acid as a chelating agent and its electrochemical properties, J. Mater. Chem. A, 2015, 3, 20236–20243 RSC.
- J. K. Ngala, N. A. Chernova, M. Ma, M. Mamak, P. Y. Zavalij and M. S. Whittingham, The synthesis, characterization and electrochemical behavior of the layered LiNi0.4Mn0.4Co0.2O2 compound, J. Mater. Chem., 2004, 14, 214–220 RSC.
- M. Okubo, E. Hosono, J. Kim, M. Enomoto, N. Kojima, T. Kudo, H. Zhou and I. Honma, Nanosize Effect on High-Rate Li-Ion Intercalation in LiCoO2 Electrode, J. Am. Chem. Soc., 2007, 129, 7444–7452 CrossRef CAS.
-
C. J. Powell and A. Jablonski, NIST Electron Inelastic-Mean-Free-Path Database - Version 1.2, National Institute of Standards and Technology, Gaithersburg, MD, 2010 Search PubMed.
- S. Tanuma, C. J. Powell and D. R. Penn, Calculation of electron inelastic mean free paths (IMFPs) VII. Reliability of the TPP-2M IMFP predictive equation, Surf. Interface Anal., 2003, 35, 268–275 CrossRef CAS.
- J. P. Perdew, K. Burke and M. Ernzerhof, Generalized gradient approximation made simple, Phys. Rev. Lett., 1996, 77, 3865–3868 CrossRef CAS PubMed.
- P. Giannozzi, O. Andreussi, T. Brumme, O. Bunau, M. Buongiorno Nardelli, M. Calandra, R. Car, C. Cavazzoni, D. Ceresoli, M. Cococcioni, N. Colonna, I. Carnimeo, A. Dal Corso, S. de Gironcoli, P. Delugas, R. A. DiStasio, A. Ferretti, A. Floris, G. Fratesi, G. Fugallo, R. Gebauer, U. Gerstmann, F. Giustino, T. Gorni, J. Jia, M. Kawamura, H. Y. Ko, A. Kokalj, E. Küçükbenli, M. Lazzeri, M. Marsili, N. Marzari, F. Mauri, N. L. Nguyen, H. V. Nguyen, A. Otero-de-la-Roza, L. Paulatto, S. Poncé, D. Rocca, R. Sabatini, B. Santra, M. Schlipf, A. P. Seitsonen, A. Smogunov, I. Timrov, T. Thonhauser, P. Umari, N. Vast, X. Wu and S. Baroni, Advanced capabilities for materials modelling with Quantum ESPRESSO, J. Phys.: Condens. Matter, 2017, 29, 465901 CrossRef CAS PubMed.
- P. Giannozzi, S. Baroni, N. Bonini, M. Calandra, R. Car, C. Cavazzoni, D. Ceresoli, G. L. Chiarotti, M. Cococcioni, I. Dabo, A. Dal Corso, S. de Gironcoli, S. Fabris, G. Fratesi, R. Gebauer, U. Gerstmann, C. Gougoussis, A. Kokalj, M. Lazzeri, L. Martin-Samos, N. Marzari, F. Mauri, R. Mazzarello, S. Paolini, A. Pasquarello, L. Paulatto, C. Sbraccia, S. Scandolo, G. Sclauzero, A. P. Seitsonen, A. Smogunov, P. Umari and R. M. Wentzcovitch, QUANTUM ESPRESSO: a modular and open-source software project for quantum simulations of materials, J. Phys.: Condens. Matter, 2009, 21, 19 CrossRef PubMed.
- K. F. Garrity, J. W. Bennett, K. M. Rabe and D. Vanderbilt, Pseudopotentials for high-throughput DFT calculations, Comput. Mater. Sci., 2014, 81, 446–452 CrossRef CAS.
- M. Hellenbrandt, The Inorganic Crystal Structure Database (ICSD) - Present and Future, Crystallogr. Rev., 2004, 10, 17–22 CrossRef CAS.
- H. J. Monkhorst and J. D. Pack, Special points for Brillouin-zone integrations, Phys. Rev. B: Solid State, 1976, 13, 5188–5192 CrossRef.
- A. Hirano, R. Kanno, Y. Kawamoto, Y. Takeda, K. Yamaura, M. Takano, K. Ohyama, M. Ohashi and Y. Yamaguchi, Relationship between non-stoichiometry and physical properties in LiNiO2, Solid State Ionics, 1995, 78, 123–131 CrossRef CAS.
-
A. Abbaspour Tamijani, J. W. Bennett, D. T. Jones, N. Cartagena-Gonzalez, Z. R. Jones, E. D. Laudadio, R. Hamers, J. A. Santana and S. E. Mason, DFT and Thermodynamics Calculations of Surface Cation Release in LiCoO2, ChemRxiv, 2019, DOI:10.26434/chemrxiv.9764774.v1.
- A. Togo and I. Tanaka, First principles phonon calculations in materials science, Scr. Mater., 2015, 108, 1–5 CrossRef CAS.
- X. Rong and A. M. Kolpak, Ab Initio Approach for Prediction of Oxide Surface Structure, Stoichiometry, and Electrocatalytic Activity in Aqueous Solution, J. Phys. Chem. Lett., 2015, 6, 1785–1789 CrossRef CAS PubMed.
- J. W. Bennett, D. T. Jones, B. G. Hudson, J. Melendez-Rivera, R. J. Hamers and S. E. Mason, Emerging investigator series: first-principles and thermodynamics comparison of compositionally-tuned delafossites: cation release from the (001) surface of complex metal oxides, Environ. Sci.: Nano, 2020, 7, 1642–1651 RSC.
- C. Ma, J. Borgatta, B. G. Hudson, A. A. Tamijani, R. De La Torre-Roche, N. Zuverza-Mena, Y. Shen, W. Elmer, B. Xing, S. E. Mason, R. J. Hamers and J. C. White, Advanced material modulation of nutritional and phytohormone status alleviates damage from soybean sudden death syndrome, Nat. Nanotechnol., 2020, 15, 1033–1042 CrossRef CAS PubMed.
- B. G. Hudson and S. E. Mason, Metal Release Mechanism and Electrochemical Properties of Lix(Ni1/3Mn1/3Co1/3)O2, Appl. Sci., 2022, 12(8), 4065 CrossRef CAS.
- A. Urban, D.-H. Seo and G. Ceder, Computational understanding of Li-ion batteries, npj Comput. Mater., 2016, 2, 16002 CrossRef CAS.
- A. Jain, S. P. Ong, G. Hautier, W. Chen, W. D. Richards, S. Dacek, S. Cholia, D. Gunter, D. Skinner, G. Ceder and K. A. Persson, Commentary: The Materials Project: A materials genome approach to accelerating materials innovation, APL Mater., 2013, 1, 011002 CrossRef.
-
K. E. Biesinger, L. R. Williams and W. H. van der Schalie, Procedures for Conducting Daphnia magna Toxicity Bioassays, U.S. Environmental Protection Agency, Office of Research and Development, Environmental Monitoring Systems Laboratory, 1987 Search PubMed.
-
OECD, OECD Guidelines for Testing Chemicals: Test No. 202: Daphnia sp., Acute Immobilisation Test, Organisation for Economic Cooperation and Development, 2004, DOI:10.1787/9789264069947-en.
- M. N. Hang, N. V. Hudson-Smith, P. L. Clement, Y. Zhang, C. Wang, C. L. Haynes and R. J. Hamers, Influence of Nanoparticle Morphology on Ion Release and Biological Impact of Nickel Manganese Cobalt Oxide (NMC) Complex Oxide Nanomaterials, ACS Appl. Nano Mater., 2018, 1, 1721–1730 CrossRef CAS.
- T. A. Qiu, T. H. T. Nguyen, N. V. Hudson-Smith, P. L. Clement, D.-C. Forester, H. Frew, M. N. Hang, C. J. Murphy, R. J. Hamers, Z. V. Feng and C. L. Haynes, Growth-Based Bacterial Viability Assay for Interference-Free and High-Throughput Toxicity Screening of Nanomaterials, Anal. Chem., 2017, 89, 2057–2064 CrossRef CAS PubMed.
- J. H. Kim, S. T. Myung and Y. K. Sun, Molten salt synthesis of LiNi0.5Mn1.5O4 spinel for 5 V class cathode material of Li-ion secondary battery, Electrochim. Acta, 2004, 49, 219–227 CrossRef CAS.
- D. Demirskyi, D. Agrawal and A. Ragulya, Neck formation between copper spherical particles under single-mode and multimode microwave sintering, Mater. Sci. Eng., A, 2010, 527, 2142–2145 CrossRef.
-
T. Kimura, Advances in Ceramics - Synthesis and Characterization, Processing and Specific Applications, ed. C. Sikalidis, InTech, Rijeka, 2011, ch. 4, DOI:10.5772/20472.
- D. Qian, Y. Hinuma, H. Chen, L.-S. Du, K. J. Carroll, G. Ceder, C. P. Grey and Y. S. Meng, Electronic Spin Transition in Nanosize Stoichiometric Lithium Cobalt Oxide, J. Am. Chem. Soc., 2012, 134, 6096–6099 CrossRef CAS PubMed.
- B. G. Anderson, The apparent thresholds of toxicity to Daphnia magna for chlorides of various metals when added to Lake Erie water, Trans. Am. Fish. Soc., 1950, 78, 96–113 CrossRef CAS.
- N. M. E. Deleebeeck, K. A. C. De Schamphelaere, D. G. Heijerick, B. T. A. Bossuyt and C. R. Janssen, The acute toxicity of nickel to Daphnia magna: Predictive capacity of bioavailability models in artificial and natural waters, Ecotoxicol. Environ. Saf., 2008, 70, 67–78 CrossRef CAS PubMed.
- K. E. Biesinger and G. M. Christensen, Effects of Various Metals on Survival, Growth, Reproduction, and Metabolism of Daphnia magna, J. Fish. Res. Board Can., 1972, 29, 1691–1700 CrossRef CAS.
- E. F. Pane, C. Smith, J. C. McGeer and C. M. Wood, Mechanisms of Acute and Chronic Waterborne Nickel Toxicity in the Freshwater Cladoceran, Daphnia magna, Environ. Sci. Technol., 2003, 37, 4382–4389 CrossRef CAS PubMed.
- E. M. Traudt, J. F. Ranville and J. S. Meyer, Effect of age on acute toxicity of cadmium, copper, nickel, and zinc in individual-metal exposures to Daphnia magna neonates, Environ. Toxicol. Chem., 2017, 36, 113–119 CrossRef CAS PubMed.
|
This journal is © The Royal Society of Chemistry 2024 |
Click here to see how this site uses Cookies. View our privacy policy here.
