Extracting water from the air using a metal–organic framework (MOF) is an emerging solution to mitigate the global water crisis. Reported MOF water harvesters have improved water productivity from 0.1, 1.0 to 3.5 LH2O kgMOF−1 d−1 using different strategies, but still cannot meet practical demands. Herein, we report the design of a MOF water harvester with tunable sorption–desorption behaviors by introducing cooling-assisted adsorption. Triple benefits brought by cooling effects—rapid sorption, enhanced capacity and reduced desorption temperature—deliver extraordinary productivities of 7.75–22.81 LH2O kgMOF−1 d−1 in a diverse range of climates (10–35 °C, 20–80%RH), outperforming the best-performing MOF water harvester. Field tests produced 990.4 mL of clean water continuously throughout the day using a heat pump-integrated harvester in weather with an extremely low RH of 26%, corresponding to a productivity of 9.9 LH2O kgMOF−1 d−1 with an energy consumption of 2.96 kW h LH2O−1, demonstrating the great potential to provide adequate drinking water in real-world scenarios.
Broader contextThe escalating global water scarcity motivates people to find innovative water solutions to quench the world's thirst. Sorption-based atmospheric water harvesting (SAWH) is a promising technology due to its wide climate adaptivity. However, the low water productivity and high energy consumption of current water harvesters underestimated the great potential of SAWH at an engineering scale owing to the weakened heat and mass transfer when scaling up materials-based SAWH. Here, we report an active and continuous water harvester using a metal–organic framework by introducing cooling in the sorption stage, enabling rapid dynamics, low-temperature regeneration, and high-water productivity. Applied cooling helps SAWH broaden the climate adaptivity, making water harvesting possible even if the ambient humidity is beyond the intrinsic boundary of materials. An innovative heat pump-integrated device with compact adsorber designs demonstrated impressive water production at the liter scale in a semi-arid climate, which could provide a feasible solution for practical water harvesting in a real-world application. |
As early as the last century, the desire for drinking water has inspired the construction of SAWH devices, but their further development was impeded by the lack of ideal sorbents.13 Encouragingly, the emergence of metal–organic frameworks (MOFs) with high hydrolytic stability, superior sorption capacity and tailorable structure has recently revitalized interest in SAWH.14–17 In 2017, the first conceptual SAWH was developed to yield water droplets using MOF-801 under arid conditions, demonstrating the feasibility of harvesting water from desert climates.18 This breakthrough led to extensive research on producing practical water at an enlarged scale.19 Primely, the monocyclic and passive SAWH is the main configuration adopted (Fig. S1A, ESI†).20,21 A pioneering device was demonstrated to produce a daily water productivity of ∼0.1 LH2O kgMOF−1 (10–40%RH) in a desert climate using a few hundred grams of MOF-801.22 However, the potential for even higher productivity needs to be unlocked.
One of the critical bottlenecks behind this low efficiency is limited water harvesting cycles. Optimizing moisture diffusion channels via pore design at the molecular level is a promising method for achieving rapid sorption–desorption dynamics.23–25 In this regard, the concept of an active/ratcheting mode with multicyclic water harvesting has become feasible (Fig. S1B, ESI†).26 With sorption during daytime and correspondingly increased harvesting cycles, productivity could be dramatically improved. Nevertheless, with the scaling-up of SAWH, an attenuation of the sorption rate is inevitable owing to worsened mass transfer. Practices have revealed that speeding up the sorption rate through forced convective airflow is more realistic and effective on an engineering scale.27 This method has been successful in improving the daily water productivity to ∼1.0 LH2O kgMOF−1 (27 °C/32%RH) using MOF-303 in a multicyclic SAWH, leading to a nearly tenfold increase (Fig. S1C, ESI†).28 Subsequently, the development of an adaptive mode with optimal sorption–desorption duration resulted in an impressive enhancement (3.5 LH2O kgMOF−1 d−1 at 19–46%RH).29 However, improving productivity still needs more attempts by maximizing the number of water-harvesting cycles and minimizing energy consumption. Moreover, existing MOF water harvesters employ multiple trays to load the MOF powders, which presents a challenge in terms of portability and compactness for practical needs. For instance, producing abundant drinking water for a person (at least 4 L of water) requires more than 1.14 kg of MOF, which corresponds to a sorbent unit size of ca. 0.15 m3.
Due to the complex interplay among adsorption, desorption, and condensation, each process needs to be carefully designed.30 At the adsorption stage, sorbent selection is crucial to achieving a high sorption capacity. Microporous MOFs, such as MOF-801 and MOF-303, exhibit outstanding working capacities of ca. 0.3–0.4 g g−1 in arid climates and have been successfully implemented in desert regions.20,22,28,29 But the desorption becomes challenging under high air temperatures (Ta) or humid conditions.31 In previous field tests, heating temperatures of up to 120 °C were required to achieve acceptable productivity.28 Additionally, past harvesters have utilized an extra refrigeration-based system to lower the condensation temperature (Tcd, below 10 °C) to ensure condensation efficiency,28,29 resulting in significant energy waste (approximately half of the total power consumption was used for condensation), which is inefficient from an energy utilization standpoint.
In this work, we report a design for a MOF water harvester by cooling-enhanced sorption to achieve a daily water productivity of 7.75–22.81 LH2O kgMOF−1 d−1 under a wide range of climates (10–35 °C, 20–80%RH), which presents a great improvement compared with existing state-of-the-art active MOF water harvesters. The MIL-101(Cr) is shaped on two identical high-surface-to-volume heat exchangers with a high load density of 25.8 kg m−3. By controlling the cooling or heating temperature (Tc and Th, referring to temperatures of supplied fluid), the sorption or desorption behaviors can be tuned due to the changed air temperature and humidity gradient near the sorbent. Two independent sorbent units undergo sorption and desorption in turn, allowing a sorbent unit of 0.007–0.02 m3 to continuously deliver 4 L of water. By tuning the sorption behavior via cooling assistance, the working zone can be extended to an arid climate at as low as 20%RH, even though the intrinsic operational RH of MIL-101(Cr) needs to be higher than 45%. By re-utilizing the cooling energy from the adsorption stage to desorption, the Th could be reduced to as low as 45 °C. With compactness, cooling effect and convective airflow, the sorption period of the MOF adsorber could be shortened to within 20 minutes. A practical test in a real-world scenario with an extremely low RH of 26% resulted in the collection of nearly 1 L of water during one day, with a corresponding productivity of 9.9 LH2O kgMOF−1 d−1 and a competitive energy consumption of 2.96 kW h LH2O−1. Water quality analysis confirmed that the produced water met WHO guidelines and China's national drinking standard.
Following the similar principle of natural air temperature drop and RH rising from day to night, introducing active cooling at the adsorption stage could elevate the effective RH near the sorbents,32 which provides an opportunity for the use of an energy-efficient mesoporous MOF (normally with a step at high pressure) in various climates. A promising MIL-101(Cr) with moderate step pressure and high water uptake is suitable for tuning the sorption behavior with cooling assistance (Note S1, ESI†). Once the MOF encounters arid weather, introducing cooling makes the isotherms shift to the low pressure (or humidity) zone and ensures effective operation. As indicated by the variable-temperature isotherms in Fig. 1B, with a decrease in sorption temperature, the isotherms could be tailored to low-pressure regions. If the humidity is beyond the operating humidity range in the daytime (RH < step RH), active cooling helps the sorbent capture moisture effectively (Fig. S2–S4, ESI†). The step point at 15 °C mitigates to a zone where the humidity is lower than 5 g kg−1 dry air (0.82 kPa), covering almost all regions in the world. This means using a sorption temperature of 15 °C could adapt to most climates.

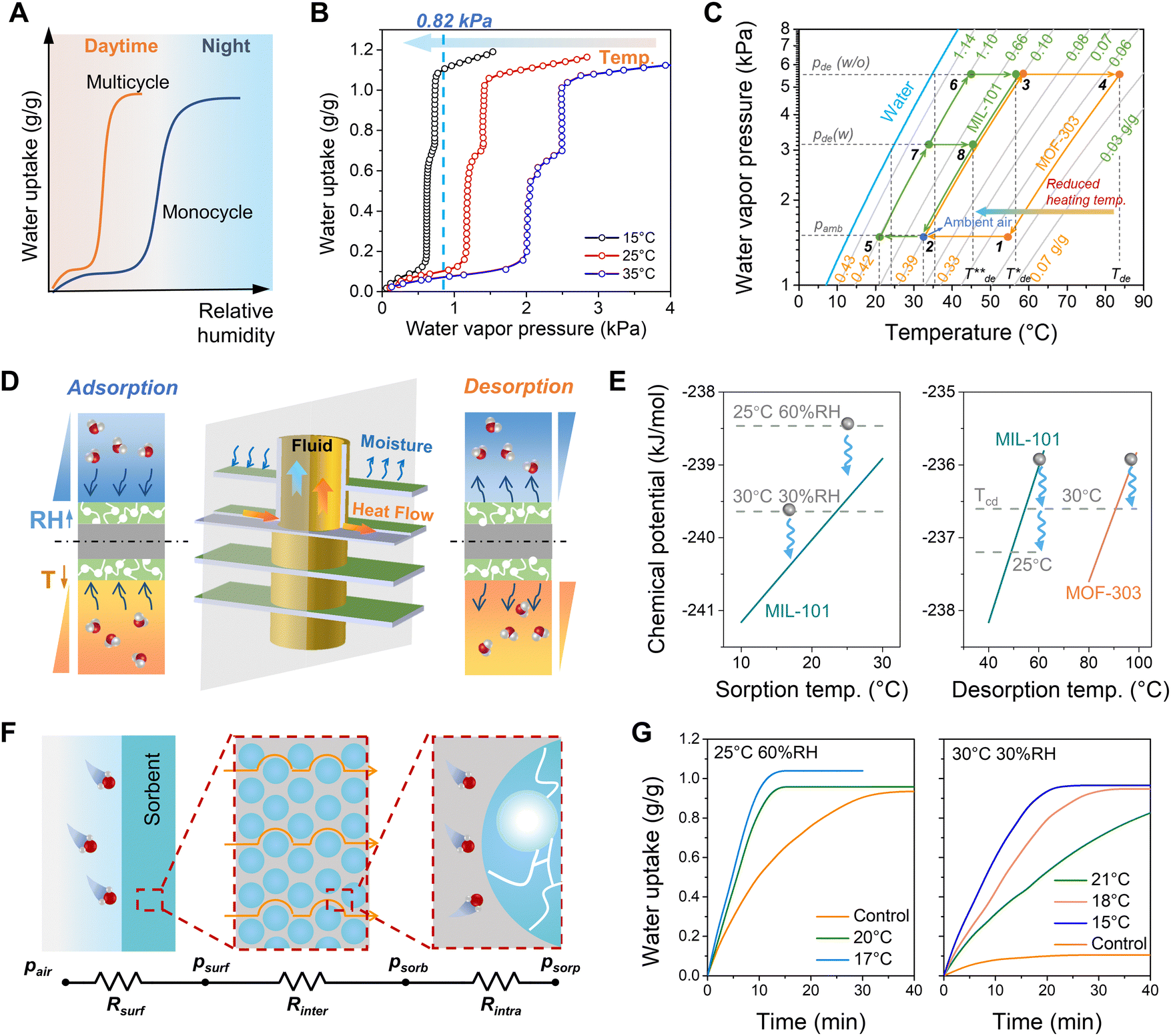

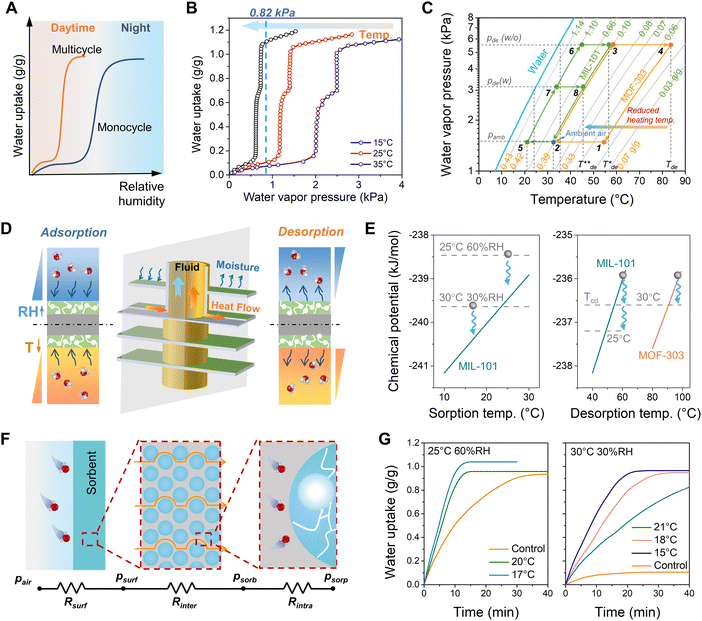

Fig. 1C depicts the lnp-T diagram of the water harvesting cycle using MIL-101 (the cycle with MOF-303 represents traditional SAWH). Due to the high-pressure step position of MIL-101, the water harvesting cycle (2–5–6–3) could be driven by a lower temperature (T*de) than that using MOF-303 (cycle 1–2–3-4 at Tde). Additionally, if the waste cooling energy from the adsorption stage is utilized to lower the condensation temperature, desorption temperature is expected to be further reduced (from T*de to T**de), leading to a water harvesting cycle described as 2–5–7–8. Using this principle, the basic configuration of the proposed SAWH can be illuminated in Fig. S5 (ESI†), where adsorption and desorption occur with the cooling and heating supply, meanwhile, the sorption heat can be eliminated by the cooling effect, and extra cooling energy could be recovered to the condenser.
Considering the required cooling/heating operations, the compact heat exchanger is selected for constructing the harvester owing to its high heat/mass transfer efficiency. The reforming temperature and humidity gradients at the interface between air and sorbent break the constraint of ambient conditions, allowing effective moisture sorption and release (see Fig. 1D and Fig. S6, ESI†). The explanation from the view of chemical potential revealed that cooling effect contributes the significant driving force for sorption and desorption (Fig. 1E, and Note S2, ESI†). The mass transfer resistance network indicated that the bulk parameters (dimension and convective airflow) can also contribute to the fast dynamics as well as the material design for optimized intrinsic kinetics (e.g., porosity and tortuosity) (Fig. 1F and Note S3, ESI†). The dynamics experiments using a MOF sample proved the above theoretical analysis, resulting in a faster sorption rate and higher capacity with cooling effect than that of the control case without cooling (Fig. 1G), which provides an opportunity for increasing the number of water-harvesting cycles to maximize daily productivity. It should be noted that, although cooling is introduced, the cooling is only required to trigger the sorption behavior, thus the Tc is still higher than the dew point to maintain an energy-efficient process.
To fabricate this tunable MOF water harvester, we first synthesized MIL-101(Cr) (see the Experimental section) and then shaped it onto compact heat exchangers (210 × 205 × 45 mm) via an instantaneous-evaporation spraying method (Fig. S7–S9, ESI†). The high-temperature medium warrants instant evaporation of MOF solution, resulting in a stable and uniform sorbent layer on the metal surface (Fig. S10, ESI†). Compared with traditional acrylic trays (0.2 W m−1 K−1), the high thermal conductivities of the aluminum fin (217 W m−1 K−1) and copper pipe (379 W m−1 K−1) provide a better heat transfer path. Considering the thermal resistance of the MOF coating, the thickness of MOF was controlled to within ca. 300 μm (Fig. S11, ESI†). The high surface-to-volume ratio (ca. 516 m2 m−3) meets the demands of compactness for a portable and scalable SAWH in most scenarios. A dynamics comparison between the coating sample and powders also proved that the coating method will relatively promote the sorption rate owing to the enlarged contact surface and reduced mass transfer path (Fig. S12, ESI†), which also could be explained by the mass transfer network with reduced inter-crystalline diffusion resistance (Fig. 1F).

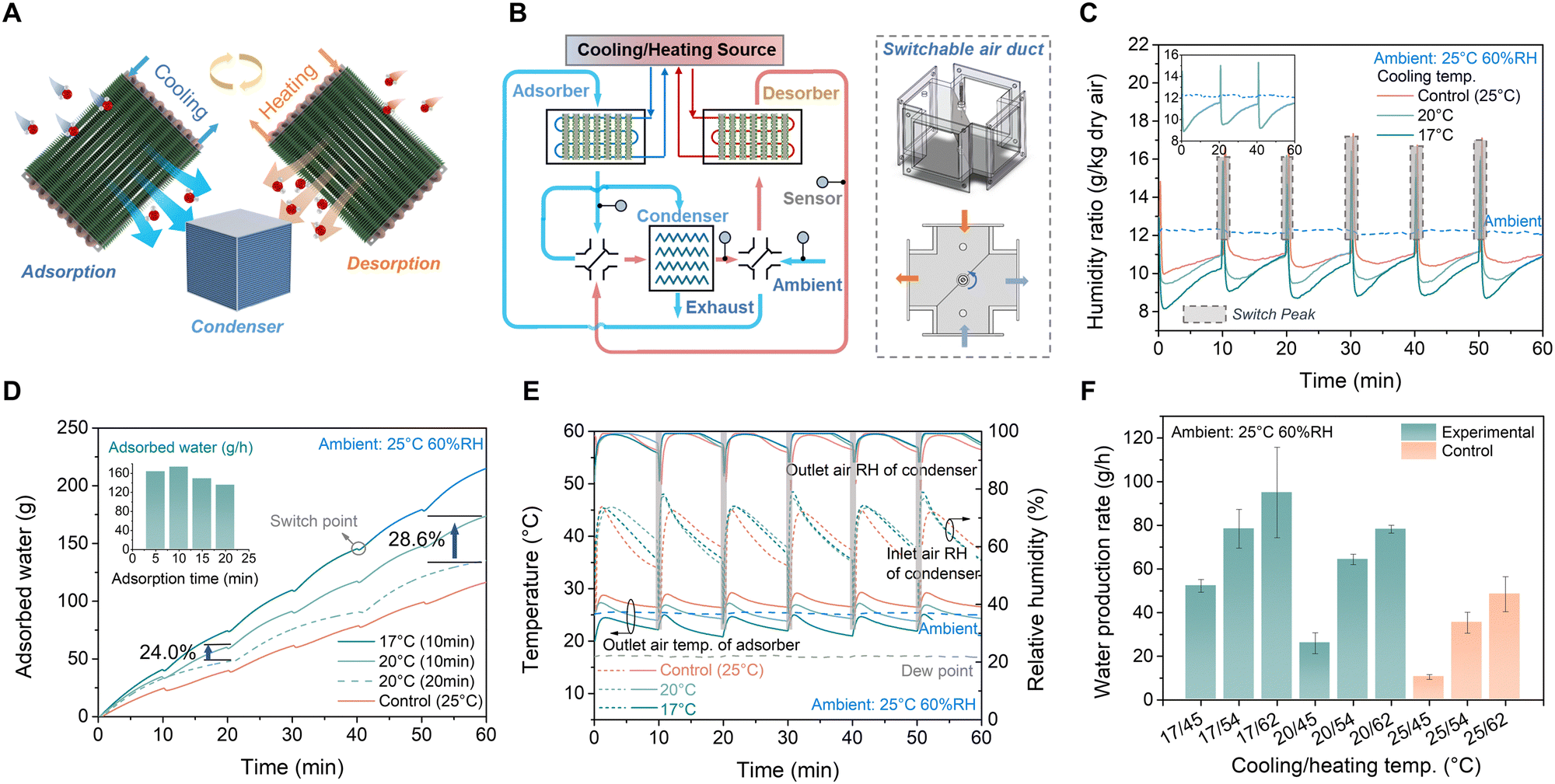

Prolonging the adsorption time to 20 minutes, the outlet air humidity tends toward ambient humidity over time (see the inset graph in Fig. 2C), indicating that the sorption reaches equilibrium at about 20 minutes. Such rapid dynamic sorption benefits from synergistic impacts of the external convective airflow and high humidity difference caused by the cooling effect (Fig. 1G). To quantify the effects of convective airflow and cooling effect, a comparison case was conducted using the same MOF adsorber with natural airflow. The mass transfer resistance analysis revealed that introducing convective airflow promotes the sorption rate by 87%, and the cooling effect will further bring 63.3 to 109.8% improvement of the sorption rate (see Note S3, ESI†). Despite that, the long duration of sorption leads to the loss of desorption due to the unequal sorption/desorption rate. The transient mass change of adsorbed water with different switching durations reveals that using an optimal duration of 10 minutes could improve the overall quality of the adsorbed water (Fig. 2D). After two sorption periods, the mass of adsorbed water is 24% more than that using a longer sorption time (20 minutes), and the enhancement will be cumulated to 28.6% after a one-hour sorption–desorption process. According to the mass of adsorbed water per hour, the sorption period of 10 minutes is appropriate (Fig. 2D).
To find the optimal switch point, we calculated the dynamic sorption and desorption curves, indicating that although a longer sorption time is conducive to higher sorption capacity per cycle, there is no significant increase in the sorption rate per hour (see Fig. 3C). The results also prove that the heat transfer is fast and the mass transfer is not delayed thanks to the thin sorbent layer. However, from the desorption view, it is worth noting that dynamic desorption curves reveal that the desorbed water within 10 minutes accesses almost 80.1% of the total desorbed water within 20 minutes (Fig. 3C). In this case, the shorter sorption–desorption time will benefit the rapid desorption, thereby improving the cumulative released water. After the one-hour sorption–desorption cycle, the cumulative mass of desorbed water using a switching frequency of 10 minutes is 59.3% higher than that using 20 minutes.
The desorption behaviors are conducted by tuning the heating temperature, revealing that a low temperature of 50 °C is also sufficient to release water (Fig. S22, ESI†). With a Tc of 15 °C, when the Th is higher than 45 °C, the release efficiency is improved up to 0.7–0.8, and the adsorbed or released water no longer shows a strong correlation with the temperature. This desorption process driven by small temperature differences provides a great potential to utilize low-grade thermal energy.
For conventional water collection without tuning, this device cannot produce liquid water under this arid climate since the ambient RH is beyond its working zone. With the cooling tuning, the promoted local RH allows for collecting water. As shown in Fig. 3D, a maximum water production rate of 75.87 g h−1 is accessible at 15/60 °C (Tc/Th). The temperature decreases of 3 °C (from 18 °C to 15 °C) contribute 36.0%, 94.9%, 86.0% and 179.8% increase in the production rate when Th is 60 °C, 55 °C, 50 °C and 45 °C, respectively. But no water is collected under the conditions of 21/45 °C due to the tiny temperature difference between sorption and desorption. With a relatively higher cooling temperature, the resistance of heat conductivity weakens the cooling effect, and the higher cooling temperature also refers to the higher condensation temperature, making the requirement for a heating source tougher.
We firstly collected annual average climates in 188 main global cities, as shown in Fig. 4A (detailed locations in Fig. S23, ESI†). Based on the sorption properties of MIL-101, the water harvester can effectively function in the region with RH > 45%, covering ca. 86% of global regions. In other weather zones, the tunable operation strategy permits this harvester to work effectively. According to the tuning principle with cooling/heating operations, the critical cooling temperature should enable sorption by keeping the local humidity near the sorbent higher than the upper limit of step RH range in the isotherm, and the critical heating temperature should trigger the desorption by maintaining local humidity lower than the lower limit of its step RH range (Note S5, ESI†). With the critical cooling/heating temperatures, we tested the performance in the boundary climate marked in Fig. 4A to investigate the feasibility of extended weather zones, as shown in Fig. 4B. As revealed, the daily water productivity can be up to ca. 22.81 LH2O kgMOF−1 d−1 at 25 °C/60%RH and 22.16 LH2O kgMOF−1 d−1 at 30 °C/80%RH (also see Fig. S24, ESI†). A slight reduction in productivity can be found in the cold-humid region (10 °C/80%RH) since the cold temperature weakens the movement of water molecules, but the productivity remains at 19.06 LH2O kgMOF−1 d−1. In the extended climate zone, the daily productivities are 7.75, 11.22, and 18.21 LH2O kgMOF−1 d−1 under hot-arid (35 °C/20%RH), cold-arid (10 °C/40%RH) and typical arid (30 °C/30%RH) climates, respectively. The relatively low productivity in the hot-arid region is caused by the greater heat transfer resistance and limited cooling capacity in the test rig. However, such harsh environments have relatively short duration in a given year due to diurnal and seasonal weather fluctuation.
![]() | ||
Fig. 4 Water production in various climates. (A) Annual average weather data in the main global cities. (B) Daily water productivity in different climates. (C) Comparison of water productivity and heating temperature between this work and reported works. (D) Comparison of water productivity between this work and reported MOF water harvester. The error bars represent the mean ± s.d. and the data are determined from the results of six sorption–desorption cycles. Note that the water productivity in ref. 18 was cited from ref. 36. |
Featured with tunable behaviors, both reduced heating temperature and improved productivity can be achieved simultaneously, as presented in Fig. 4C. Benefiting from the designed operation mode, the water production performance of this device is superior to that of devices in the reported literature.12,21,25,28,33–35 Particularly, we summarized the development of MOF water harvesters18,20,22,23,28,29,36 (Fig. 4D). Initially, the conceptual harvester is only validated with nearly no liquid water. Since then, great strides have been made from 0.1 to 1 LH2O kgMOF−1 d−1 (32%RH), and even up to 3.5 LH2O kgMOF−1 d−1 (19–46%RH). In this work, the triple bonus brought by the cooling effect—rapid dynamics, enhanced sorption capacity and reduced heating temperature—contributes to a high production yield and an improvement of one order of magnitude.
Considering that the reported active SAWH used electricity to drive water production, we demonstrated the comparison of energy consumption between reported works and our design driven by an electric heat pump. The cooling and heating could be supplied simultaneously by the evaporation and condensation process, and the energy consumption of the compressor is determined based on the cooling and heating capacity. The comparison reveals that energy-efficient SAWH can be achieved by our design (Fig. S25 and Table S3, ESI†), and the comparison with the direct dewing method indicates the energy consumption of our design is competitive and the harvester has wide climate adaptivity (Fig. S26, ESI†).

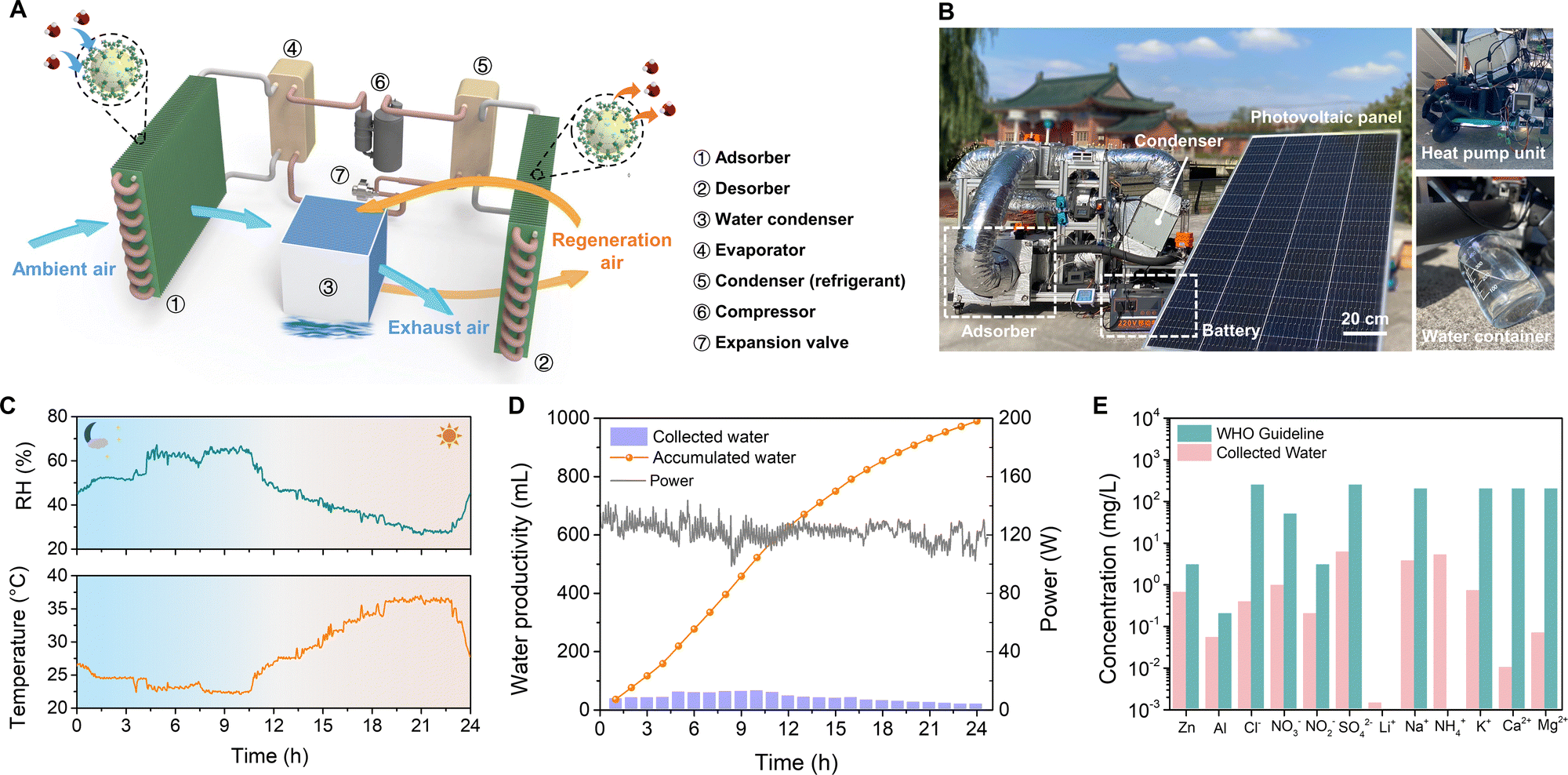

We demonstrated this all-in-one harvester in a real-world scenario in Shanghai, China (30°40′ N, 120°52′ E). The typical weather during an experimental day was recorded in Fig. 5C. The RH was 50–65% at night with an extremely low RH of 26% in the daytime. The ambient temperature was 22–25 °C at night and rose to 36 °C during the daytime. When the device worked, the Tc and Th were controlled at 17 °C and 50 °C at high humidity conditions. With the ambient temperature raising, the cooling temperature was slightly increased to 19 °C, and the heating temperature was correspondingly increased to 53 °C (see Fig. S29 and S30, ESI†). During the test process, the outlet RH of the condenser remained near 100%, indicating the water condensation lasted all the time (see Fig. S31–S34, ESI†). We recorded the quality of collected water every hour, as shown in Fig. 5D (details in Table S4, ESI†). The water production rate was fast at night and became low in the daytime. Despite the ultra-low temperature driven SAWH, remarkably, 990.41 mL of liquid water was collected and the total power consumption was ca. 122 W (including 14 W for air fans and 12 W for pumps), the corresponding specific power consumption was 2.96 kW h LH2O−1 and daily water productivity was 9.9 LH2O kgMOF−1 d−1 (26–65%RH), which was 2.82 times that of an advanced MOF-based water harvester (3.5 LH2O kgMOF−1 d−1, 19–46%RH).29 Considering the electricity price is around $0.08 kW h−1, the related price for producing 1 L water is about $0.24 based on this field test (see Note S6 and Table S5–S6, ESI†).
As a comparison, we summarized the performance of state-of-the-art active MOF water harvesters in Table 1. The feasibility of water harvesting under a broad range of weather conditions has been proven in this work, and the rapid sorption–desorption cycles enable a superior water yield per kg MOF per day with low power consumption, even if air cooling is employed. Different from reported works that used an electrical heater and refrigerator to drive the respective desorption and condensation, a single heat pump was used here to supply cooling and heating simultaneously. High productivity and a well-designed MOF adsorber ensure a compact sorbent unit of 0.016 m3 (based on a field test) when producing 4 L water per day, which makes this harvester more attractive than other reported devices. For the active harvester, the auxiliary equipment is also important, which always covers a large area or volume. Almost all the reported active harvesters have no optimized system configurations in the experiments, which leads to an unfair comparison for the whole size. As indicated in Fig. S35 (ESI†), the optimized SAWH could reduce total volume by 89.4%. In this case, our comparisons only calculated the sorbent unit since this is the core part of a harvester. The comprehensive comparisons of materials-, sorbent unit-, and device-level are also conducted in Tables S7 and S8 (ESI†). It should be noted that the demonstration of heat pump-integrated SAWH in the field test employed a mini-compressor with low COP (coefficient of performance, standard COP is lower than 2.2 based on the product guideline). When scaling up this harvester with more synthesized MOF, a commercial high-efficiency compressor with a high COP can be used (the commercial compressor has a high COP of 5–6),37–39 bringing a great potential to reduce power consumption by at least 56% (ca. 1.3 kW h L−1), which shows the competitive potential for a commercial dewing harvester (5.6 kW h L−1 in arid conditions and 2.52 kW h L−1 in mild conditions40). More importantly, our demonstrations provide a paradigm for commercialization using low-temperature driving, validating a flexible strategy to adapt to various kinds of weather.
Sorbent | Proven conditions | Equilibrium sorption time (h) | Productivity (L kg−1 d−1) | Size of sorbent unit for 4 L d−1 (m3) | Energy (kW h L−1) | Continuous or not | Energy supply | Ref. | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Desorption | Condensation | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
a Based on the practical test. b Depends on the environments. | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
MIL-101 | 10–35 °C | 0.33 | 7.78–22.8 | 0.007–0.02 | 2.96a | √ | Heat pump | Air cooling | This work | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
20–80%RH | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
MOF-801 | 19–46%RH | 0.5–0.67 | 1.8–3.5 | 0.15–0.28 | 1.67–5.25b | × | Electrical heater | Refrigerator | 29 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
MOF-801 | 15–35 °C | 0.67 | 1.2–2.4 | 0.21–0.43 | 3–7b | × | Electrical heater | Refrigerator | 29 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
10–70%RH | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
MOF-303 | 10–32%RH | 0.8–2.2 | 0.7–1.3 | 0.05–0.07 | 5.33a | × | Electrical heater | Refrigerator | 28 |
We finally measured the concentration of metals and ions in the collected water (Fig. 5E). The details of this can be found in Table S9 and S10 (ESI†). Although a chromium-based MOF is used, chromium cannot be detected in the collected water owing to its superior stability, as well as other hazardous metals, showing the water quality can meet the WHO guidelines and national drinking standards of China (GB 5749-2022). However, mineral elements are also lacking. A suitable concentration of these elements (e.g., sodium, potassium and calcium) is beneficial to health. In this case, the mineralization process should be supplemented for drinking water.
We believe our demonstration of a MOF water harvester is an encouraging way to realize a better energy utilization pathway. Together with the efforts on sorbent tailoring, device fabrication and operation strategy from different discipline backgrounds, SAWH will promote a sustainable water supply in the future.
The bare heat exchangers (HX) were immersed with commercial scouring powder to clean the oil and impurities on the surface and then dried at 70 °C. Before shaping, the cycling hot water of 60 °C was introduced into the pipe of the heat exchanger to heat the surface of the heat exchanger. The mixture solution was sprayed on the surface of the heat exchanger. When the solution reached the hot surface, the solvent was evaporated to form a uniform MOF layer. The above spraying operation was repeated several times. Too thick coating will increase the heat and mass transfer resistance but too thin coating will lead to a low sorption capacity. Based on the experience of the sorption cooling devices and the results of thermal conductivity, the thickness of sorbent coating is kept around 300 μm. Finally, the heat exchanger was dried at 70 °C for several hours until the water inside the heat exchanger was evaporated thoroughly. Then the mass change of the heat exchanger was recorded as shown in Table S1 (ESI†).
For the field test of the water harvester, water temperatures were controlled by the heat pump unit (Fig. S27, ESI†), and the switchable air duct was the same as used in the lab test. A DC-24V compressor (cooling capacity of 100–500 W), two plate heat exchangers (54 × 119 × 50 mm) and a capillary tube (diameter of 2 mm) were connected as a cooling/heating unit. Two sensors were used to record the evaporation and condensation pressure. When the heat pump worked, water was cooled or heated by the heat exchange with the refrigerant (R134a) in the evaporator and condenser, respectively. The PV-powered battery was used to supply the electricity in the field test.
The field test was carried out in Shanghai Jiao Tong University, Shanghai, China (30°40′ N, 120°52′ E) in October 2022. The air temperature was changed from 22 to 37 °C, and humidity from 26 to 66%RH. Two MOF adsorbers were fabricated in the water harvester, and the total mass of MOF was 100 g. The field test was conducted from 16:
00 to 16
:
00 the next day. The quality of collected water was weighted using an electronic balance (3 kg/0.01 g) every hour. The required electricity was from a battery (3.3 kW h) and the battery can be charged by a solar PV panel. When the test began, the compressor was run to provide the cooling and heating water, and the water flow was pumped by a DC-12V pump (max. power of 6 W). The switch was controlled by the electric relay (Delixi, JSS48A-S) and the switching frequency was set as 10 minutes. The total power consumption was also recorded on the power meter.
