The role of reducibility vis-à-vis oxygen vacancies of doped Co₃O₄/CeO₂ in the oxygen evolution reaction

Abstract

Electrochemical water splitting, which is a highly promising and environmentally friendly technology for H₂ fuel production, faces significant hurdles due to the sluggish kinetics of the oxygen evolution reaction. Co -based oxides have garnered significant attention as alternative catalysts for the oxygen evolution reaction owing to the Co²⁺/Co³⁺ redox couple. Enhancing the challenging Co²⁺ → Co³⁺ oxidation process can further improve the catalytic oxygen evolution reaction. The aim of our work was to design a Co₃O₄-based catalyst to enhance reactivity by increasing the number of Co³⁺ active sites, serving as an excellent platform for facilitating the oxygen evolution reaction. To drive the effectiveness of the catalyst, in this study, we synthesized Co₃O₄ anchored on CeO₂ (Co₃O₄/CeO₂). The kinetics and efficacy of the oxygen evolution reaction catalysed by Co₃O₄/CeO₂ was significantly improved by aliovalent doping of Sr into Ce sites and Cu into Co sites. The reducible nature of Ce stimulates the formation of Co³⁺ ions, resulting in an increased production of intermediate –OOH species, thus expediting the reaction. The transformation of Co²⁺ to Co³⁺ consequently leads to an increase in anion vacancies, which, in turn, promotes the adsorption of more intermediate species at the active site. The Sr- and Cu-doped Co₃O₄/CeO₂ catalyst exhibited a high current density of 200 mA cm⁻² at 580 mV and a low overpotential of 297 mV at 10 mA cm⁻². The study functions as a key indicator to establish a connection between oxygen vacancies and metal oxidation states in order to investigate the mechanistic aspects of the oxygen evolution reaction on mixed metal oxides. Moreover, this study is expected to pave the way for the development of innovative oxygen evolution reaction catalysts with reducible supports, thus offering a new pathway for their design.

---

1. Introduction

The transient nature of the primary feedstock obtained from the spontaneous combustion of non-renewable fossil fuels has spurred the advancement of the sustainable H₂ energy economy. Water electrolyzers enable the conversion of water into the energy carrier H₂ through an electrochemical process. However, the bottleneck of this technology is the sluggish anodic oxygen evolution reaction (OER) characterized by a four-electron transport process, the breaking of the O–H bond, and the subsequent formation of the O–O bond. These complex processes result in high kinetic energy barriers and, consequently, significant overpotentials.^1,2 In addition to water splitting, the OER is also a crucial half-reaction in processes such as CO₂ and N₂ electroreduction as well as in metal–air batteries. The practical implementation of common OER catalysts, such as Pt, Ru, and Ir, in large-scale applications is constrained by their high cost and limited availability. Therefore, extensive research is being conducted for developing affordable, stable, and efficient OER catalysts. In recent times, significant attention has been devoted to exploring non-noble metals as potential electrocatalysts for the OER.^3–5

Among the transition metals, Co-based materials have garnered significant attention as alternative catalysts for the OER owing to their crucial redox couple, which promotes OER kinetics through surface reconstruction.^6–8 For instance, the bimetallic hetero-structured hybrid nanorod NiSe₂–CoSe₂ has been explored as an excellent OER catalyst.⁹ Transitional metal boride-based materials are well-known catalysts for the water-splitting reaction.¹⁰ Based on the literature, it is widely believed that during the OER, the first redox feature of the Co²⁺/Co³⁺ couple facilitates the formation of essential Co³⁺–OOH species under basic conditions, while the second redox feature of the Co³⁺/Co⁴⁺ couple promotes the formation of Co⁴⁺O₂.^11,12 In our earlier report, we have exclusively shown that Co²⁺/Co³⁺ oxidation in Co₃O₄ aids the facile occurrence of the OER.¹³ However, the oxidation of Co to its highest possible oxidation state i.e. Co²⁺/Co³⁺ and Co³⁺/Co⁴⁺ must occur alongside parallel reduction reactions, which require a support material with facile reducibility.

To create an efficient Co²⁺/Co³⁺ and Co³⁺/Co⁴⁺ redox system in Co₃O₄, in this work, we have developed cerium-dioxide-supported cobalt oxide (Co₃O₄/CeO₂) by a solution combustion method. CeO₂ can improve the electrical conductivity and optical activity of Co₃O₄ as the oxidation of cobalt is facilitated by the reduction of cerium and/or lattice oxygen evolution (O²⁻ → ½O₂ + 2e⁻).¹⁴ The ability of CeO₂ to transit between the Ce³⁺ and Ce⁴⁺ oxidation states allows it to facilitate reversible surface oxygen ion exchange. This property serves as an oxygen buffer for effective oxygen supply and also creates the potential for robust electron interactions with other materials.¹⁵ Moreover, density functional theory calculations suggest that CeO_x can influence the electronic properties of cobalt species.^16,17 We further substituted Ce with Sr (Co₃O₄/Ce_1−ySr_yO_2−δ) to enhance the oxidizing power of CeO₂ as Sr with a lower oxidation potential is a judicious choice for ameliorating the redox behaviour of cerium and cobalt.^18–23 To further enhance the impact of oxygen vacancies, we partially substituted the cobalt sites with another transition metal, namely Cu (Co_3−xCu_xO₄/Ce_1−ySr_yO_2−δ). The substitution of cobalt with copper will elevate the oxidation state of cobalt. In addition, it can also accelerate the formation of oxygen vacancies to maintain the charge balance.^24,25 The study shows the crucial roles of the reducible CeO₂ support and Cu²⁺ doping in Co₃O₄ in facilitating the oxidation of Co²⁺/Co³⁺ and Co³⁺/Co⁴⁺ and their impact on the catalytic oxygen evolution reaction.

2. Experimental methods

The Co₃O₄/CeO₂ catalysts were synthesized using a novel solution combustion method, which is known for its energy efficiency and low-temperature initiation.¹³ During synthesis, water-soluble Ce(NO₃)₃·6H₂O (SRL chemicals, 99%), Co(NO₃)₂·6H₂O (S.D. Fine Chem Limited, 99%), Sr(NO₃)₂ (Sigma Aldrich, 99%), and Cu(NO₃)₂·6H₂O (S.D. Fine Chem Limited, 99%) were utilized as oxidizers, while glycine served as the fuel. The synthesis of 40% Co₃O₄/CeO₂ was carried out by dissolving 0.58 g of Co(NO₃)₂·6H₂O, 0.87 g of Ce(NO₃)₃·6H₂O, and 0.2 g of glycine in 50 mL of water. The resulting homogeneous aqueous solution was then placed in a preheated furnace at 450 °C for 15 minutes. Initially, the solution exhibited boiling and foaming; the exothermic redox reaction generated sufficient heat of combustion, compensating for the energy required for oxide formation and resulting in a burning flame at the ignition point. Subsequently, the complete dehydration of the solution yielded the solid powder product of pristine Co₃O₄/CeO₂, accompanied by the evolution of N₂, and CO₂. Henceforth, Co₃O₄/CeO₂ is denoted as CoCe in the manuscript. About 0.58 g of Co(NO₃)₂·6H₂O, 0.34 g of Ce(NO₃)₃·6H₂O, 0.04 g of Sr(NO₃)₂ and 0.29 g of glycine were used for the synthesis of 40% Co₃O₄/Ce_0.9Sr_0.1O_2−δ (designated as CoSrCe) and 0.78 g of Co(NO₃)₂, 0.08 g of Cu(NO₃)₂·6H₂O, 0.34 g of Ce(NO₃)₃·6H₂O, 0.04 g of Sr(NO₃)₂ and 0.37 g of glycine were used to synthesise 40% Co_3−xCu_xO₄/Ce_0.9Sr_0.1O_2−δ (designated as CoCuSrCe) in a similar manner.

The structure and crystallinity of the prepared mixed metal oxides were characterized using X-ray diffraction (XRD) data obtained using a Rigaku Ultima IV instrument with Cu K_α radiation. The XRD scans were performed at a scan rate of 0.02° min⁻¹ with a step size of 0.01°. The nanocrystalline size of the synthesized metal was determined using Debye–Scherrer's formula (D = 0.9λ/B cos θ), where λ is the wavelength of the radiation, B is the full-width at half-maximum, and θ is the corresponding angle. The surface morphology and composition analyses were conducted using a Field Emission Scanning Electron Microscope (FE-SEM, FEI-Apreo S) equipped with an Energy Dispersive X-ray Spectroscopy (EDX) unit. The instrument was operated at an acceleration voltage of 20 kV. The Brunauer–Emmett–Teller (BET) method was employed to determine the surface area and pore size of the synthesized catalysts. The X-ray photoelectron spectra (XPS) of the synthesized catalysts were recorded using a Thermo Scientific K-Alpha surface analysis spectrometer with Al K_α radiation (1486.6 eV). The binding energies were reported with respect to C (1s) at 284.8 eV. The EPR analysis was conducted using a Bruker ESR 5000. A UniRam Raman spectroscopy system was used for Raman spectroscopy.

The electrochemical tests of the synthesized materials were conducted using a conventional three-electrode system. The working electrode was prepared by coating the synthesized catalyst onto Ni foam (NF). The reference electrode used was Hg/HgO saturated with an aqueous KOH solution, and a Pt wire served as the counter electrode. For the preparation of the working electrode, 3 mg of the synthesized catalyst and 0.5 mg of carbon black powder were dispersed in 1 mL of methanol. Additionally, 10 μL of 5% aqueous Nafion (Sigma-Aldrich) was added to the solution. The mixture was sonicated for 60 minutes to achieve a homogenized dispersion of the synthesized metal oxides and carbon. The active mass ratio of the catalyst to carbon black was maintained at 6 : 1.5. The NF electrode was cut into pieces of 1 × 0.3 cm² and soaked in 0.3 M H₂SO₄ for 15 minutes. It was then ultrasonically washed with acetone followed by distilled water. An ink prepared with 50 μL of the catalyst was drop-casted onto the clean NF electrode, with an active mass loading of 0.1 mg cm⁻². The electrode was left to dry at room temperature. Cyclic voltammetry (CV), linear sweep voltammetry (LSV), and electrochemical impedance spectroscopy (EIS) measurements were performed in a basic electrolyte medium of 1 M KOH using a scan rate of 10 mV s⁻¹. The CV cycles and OER polarization curves from LSV traces were recorded between 0.9 and 1.9 V (vs. RHE). The obtained potentials were converted to values corresponding to the reversible hydrogen electrode (RHE) using the equation: . Here, E_RHE represents the final converted potential with respect to RHE, E_Hg/HgO is the experimental potential with respect to the Hg/HgO electrode, and is the standard reduction potential of the Hg/HgO electrode. To evaluate material stability, chronoamperometric (CA) measurements were performed in a three-electrode system for 12 hours in 1 M KOH. EIS was carried out in the frequency range of 100 kHz to 10 mHz, by applying the overpotential versus Hg/HgO. The gaseous product O₂ was measured using a portable Gas Chromatograph (GC) from Mayura Analytical Pvt. Limited, India.

3. Results and discussion

3.1 Structure and surface of the catalysts

The XRD patterns and the refinements of the synthesized composite metal oxides are shown in Fig. 1(a–c). The Rietveld refinements were carried out by using the Fullprof program suite. The diffraction patterns of all the synthesized catalysts exhibited sharp peaks, indicating high crystallinity, and based on the Debye–Scherrer formula, the crystallite sizes were found to be ∼30 nm for all the materials. From Fig. 1a, it is evident that crystals of both Co₃O₄ with space group Fd3m (S.G. no. 227, JCPDS #43-1003) and CeO₂ with space group Fm3m (S.G. no. 225, JCPDS #34-0394) were clearly present in CoCe. Similarly, the Rietveld refinement of the diffraction data of CoSrCe confirmed the coexistence of Co₃O₄ and Sr-doped CeO₂ (Fig. 1b). On the other hand, the CoCuSrCe data in Fig. 1c exhibit the presence of four phases, namely, Sr-doped CeO₂ with space group Fm3m (S.G. no. 225, JCPDS #34-0394), Cu-doped Co₃O₄ with space group Fd3m (S.G. no. 227, JCPDS #43-1003), tetragonal SrCoO_2.8 with space group I4/mmm (S.G. no. 139, JCPDS #39-1084) and monoclinic CuO with space group C2/c (S.G. no. 15, JCPDS #05-0661). The Rietveld refinement of the compound, incorporating mixed phases, has successfully achieved a well-fitting profile for the data. The reliability factors along with the refined lattice parameters and constraints of all the phases from the three synthesized composite catalysts are provided in Tables S1–S3.† Elemental doping was corroborated by the XRF studies, as shown in Table S4.†

Fig. 1 Rietveld refinement profiles of (a) CoCe, (b) CoSrCe and (c) CoCuSrCe. The blue vertical lines represent the Bragg positions of CeO₂ and Sr-doped CeO₂ fluorite phases, and the red lines indicate those of the Co₃O₄ and Cu-doped Co₃O₄ spinel phases. The green vertical lines represent the Bragg positions of SrCoO_2.8, and the pink lines represent those of CuO. The corresponding FESEM images are provided as insets. The EDX mappings and elemental analysis of (d) CoCe, (e) CoSrCe and (f) CoCuSrCe.

As electrocatalysis is a surface phenomenon, next, we studied the surface properties of the combustion-synthesized materials. The FESEM micrographs in the insets of Fig. 1(a–c) show the surface morphologies of pristine CoCe, doped CoSrCe and CoCuSrCe. All three materials showed a similar spherical particle morphology with an average diameter of ∼0.17 μm. EDX elemental mapping indicated the surface enrichment of dopants Cu and Sr in the matrix (Fig. 1(d–f) and Table S4†). This was further verified by the other spot EDX elemental mappings shown in Fig. S1.† The surface area was also studied, and all the materials exhibited type II N₂ adsorption–desorption isotherms with negligible hysteresis, specifying the nanoporous nature of the surface (Fig. S2†). The average surface areas of the materials estimated using the BET equation were found to be in the 1–3 m² g⁻¹ range.

The electrochemical active surface area (ECSA) plays an important role in the electrocatalytic activity of a material. The ECSA was calculated from the electrochemical double layer capacitance (C_dl) and specific capacitance (C_S) according to the equation: ECSA = C_dl/C_s.^26,27 The C_dl values were obtained from the CV curves obtained in the non-faradaic region (0.72 to 1.32 V vs. RHE) in 1 M KOH at various scan rates (10–50 mV s⁻¹), as shown in Fig. S3.† The current is linearly proportional to the active surface area owing to the charging of the double layer, and the slope obtained from the plot of half of the capacitive current (ΔJ/2 = (J_anodic − J_cathodic)/2) against the scan rate is defined as C_dl.²⁸ The representative C_dl values of the synthesized materials were obtained from the curves presented in Fig. 2a. The C_S was calculated using the following equation: , where (mA mV) is the area under the CV curve cycled at the scan rate of 10 mV s⁻¹, m (0.1 mg) is the active mass of the catalyst loaded on the electrode (area = 0.6 cm²), V_S is the scan rate (mV s⁻¹) and ΔV is the potential window (mV). Thus, the obtained C_S values with respect to unit mass loading (mF mg⁻¹) were converted to mF cm⁻². The representative ECSAs were found to be 2.36, 5.7 and 6.9 cm² for CoCe, CoSrCe and CoCuSrCe, respectively (Fig. 2b). An apparent 3-fold increase in electrochemical surface area was observed with the concomitant doping of Sr and Cu in CoCe.

Fig. 2 (a) Linear regression between current density differences vs. scan rates based on CV in a potential window of 1.16 V, and (b) ECSAs of the three composite catalysts.

XPS was used to probe the surface elemental composition and oxidation states of the synthesized catalysts. The survey spectra of all the synthesized catalysts displayed the expected elements (Fig. S4a†). The areas under the peaks of the corresponding elements were derived using the peak fitting software Avantage, and the values were normalized against the X-ray energy used. The surface atomic percentages were calculated by dividing the normalized peak area by the respective photoionization cross-section of the corresponding elements.²⁹ Table S4† indicates surface enrichment of Sr and Cu than the bulk. The deconvoluted Ce 3d core level spectra (3d_5/2 is labelled as v, and 3d_3/2 is labelled as u) of CoCe, CoSrCe, and CoCuSrCe are presented in Fig. 3a. The spectra exhibited a total of 5 spin–orbit coupled peaks, of which v–u, v′′–u′′, and v′′′–u′′′ belong to Ce⁴⁺, and v_o–u_o and v′–u′ belong to Ce³⁺. The Ce⁴⁺ doublets designated as v–u (882.2–901.0 eV), v′′–u′′ (889.3–907.3 eV) and v′′′–u′′′ (897.0–916.5 eV) are associated with the Ce 3d⁹4f²O 2p⁴, Ce 3d⁹4f¹O 2p⁵ and Ce 3d⁹4f⁰O 2p⁶ final states, respectively. The other two doublets of Ce³⁺ positioned at v_o–u_o (879.6–898.5 eV) and v′–u′ (885.3–903.0) correspond with the Ce 3d⁹4f²O 2p⁵ and Ce 3d⁹4f¹O 2p⁶ final states.^30–32 The relative surface concentrations (C) of Ce³⁺ and Ce⁴⁺ were estimated from the total area under the deconvoluted peak (A) by using the following equations:

A_Ce³⁺ = Av_o + Au_o + Av′ + Au′

A_Ce⁴⁺ = Av + Au + Av′′ + Au′′ + Av′′′ + Au′′′

C_Ce⁴⁺ = A_Ce⁴⁺/A_Ce⁴⁺ + A_Ce³⁺ × 100%

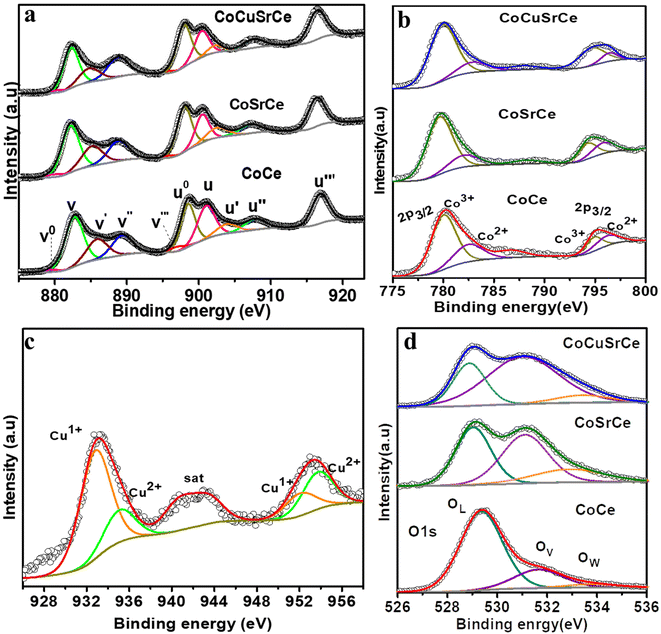

Fig. 3 (a) The Ce 3d core level spectra, (b) Co 2p core level spectra, (c) Cu 2p core level spectra, and (d) O 1s core level spectra of the synthesized pristine and doped oxides.

According to the calculations, the percentage of Ce⁴⁺ present in CoCe, CoSrCe, and CoCuSrCe were 65.6, 68.0 and 74.1%, respectively. Apparently, the occurrence of Ce⁴⁺ increased with Sr and Cu doping. Fig. 3b exhibits the high-resolution Co 2p core level spin–orbit doublet peaks of the three catalysts, which demonstrate the 2p_3/2 and 2p_1/2 peaks associated with the Co²⁺ and Co³⁺ ions. The Co²⁺ peak appeared at a higher binding energy (2p_3/2–2p_1/2 at 782.5–796.2 eV) than the Co³⁺ peak (2p_3/2–2p_1/2 at 780.0–795 eV).^13,33 The percentage of Co³⁺ present in CoCe, CoSrCe, and CoCuSrCe were 61.02, 67.9, and 71.1%, respectively. It is interesting to observe that with the incorporation of lower valent Sr and Cu at the Ce and Co sites, respectively, the Ce and Co ions underwent oxidation for charge neutralization. We also collected the core-level Cu 2p spectrum of CoCuSrCe (Fig. 3c), which showed the presence of bivalent Cu²⁺ with the peaks of Cu 2p_3/2 and Cu 2p_1/2 associated with the Cu²⁺ and Cu¹⁺ ions at 933.5 and 953.3 eV, respectively.^32,34–38 The Cu²⁺ peak appeared at a higher binding energy (2p_3/2–2p_1/2 at 934.9–954.7 eV) than the Cu¹⁺ peak (2p_3/2–2p_1/2 at 933–952.8 eV).³⁹ The Cu L₃M₄₅M₄₅ Auger spectrum in Fig. S4b† distinctively shows the Cu¹⁺ peaks at 916 eV and Cu²⁺ at 917 eV. The percentage of Cu²⁺ present in CoCuSrCe was found to be 50.29%. We also checked the Cu 2p core level spectrum of CoCuSrCe after the OER study (Fig. S4c†). The XPS data revealed that lattice doping with lower-valent elements, such as Sr²⁺ and Cu²⁺, induced further oxidation of Ce and Co. This phenomenon suggests the potential creation of oxygen vacancies as well. Therefore, a detailed XPS study of O 1s was performed for all three catalysts, and the deconvoluted spectra are plotted in Fig. 3d. The spectra showed three distinct peaks: one at 529 eV due to lattice oxygen (O_L), one at 531 eV due to the adsorbed oxygen species at the surface defect sites i.e. oxygen vacancies (O_V), and one at 533 eV due to the hydroxyl species of the surface-adsorbed water molecules (O_W). The percentage of surface oxygen vacancies in each catalyst was quantified from the area under the O_V peak with respect to the total area under the O 1s core level spectrum (O_T)^40–43 with the help of the following equation:

The percentage of oxygen vacancies was found to be 27% in pristine CoCe. Interestingly, the O_V content (%) increased to 65 and 74% in CoSrCe and CoCuSrCe, respectively. The O_L content (%) in the materials was also calculated in a similar manner, and the values were found to be 69.3, 36.2 and 21.8% for CoCe, CoSrCe, and CoCuSrCe, respectively. Apparently, lattice doping of bivalent Sr²⁺ and Cu²⁺ not only made Ce and Co undergo further oxidation but also created sufficient surface oxygen vacancies. Surface oxygen vacancies are known to facilitate the formation of the −OOH species, a key OER intermediate.

A correlation between the occurrence of oxygen vacancies and doping was also established using the fluorescence spectra. Fig. S5a† illustrates a gradual decrease in fluorescence intensity with Sr and Cu doping, indicating that the absorbed light is trapped by oxygen vacancies (O_V). Among the three oxides, CoCuSrCe exhibited the lowest intensity, suggesting the formation of oxygen vacancies.⁴² To further confirm the presence of O_V, we conducted Raman spectroscopy. Fig. S5b† shows that the Raman peak intensity at 548 cm⁻¹ corresponding to O_V (A_1g mode)⁴¹ increased in the order of CoCe < CoSrCe < CoCuSrCe, indicating an increase in the formation of oxygen vacancies with doping. The yellow-highlighted region in the range of 440–460 cm⁻¹ in the Raman spectra indicates the presence of Co–O and Ce–O bonds.^44,45

3.2 OER

The catalytic OER activity of the synthesized materials deposited on Ni foam electrodes was measured in 1 M KOH using LSV polarization curves, as shown in Fig. 4a. For clarity, the activity of the bare Ni foam electrode is also plotted in the graph. The three catalysts exhibited a prominent peak at ∼1.4 V vs. RHE before the OER onset potential. This peak can be attributed to the oxidation of Co²⁺ to Co³⁺.⁴⁶ Interestingly, from the peak current density, it was observed that the extent of Co oxidation increased with Sr doping at the Ce sites and consequently Cu doping at the Co sites. Notably, the highly oxidized Co³⁺ facilitates the formation of the key OER intermediate species –OOH. Fig. 4a represents that compared to pristine CoCe, CoSrCe exhibited a lower onset potential, as well as a lower OER overpotential. Among the three catalysts, CoCuSrCe displayed the lowest overpotential. The higher extent of Co²⁺ → Co³⁺ oxidation, which leads to the formation of the intermediate –OOH species with the help of oxygen vacancies (as observed from the XPS studies), is apparently proportional to the OER catalytic activity of pristine and doped oxides. For benchmarking, a commercial RuO₂ sample was measured under similar conditions, and the oxides clearly outperformed the commercial RuO₂ catalyst. The overpotential required to achieve a current density of 10 mA cm⁻² is a widely accepted metric for solar fuel production. Hence, the overpotentials at 10, 50 and 100 mA cm⁻² were plotted for the synthesized materials, as shown in Fig. 4b. Fig. 4b demonstrates that the best OER activities of CoCuSrCe with the lowest overpotential were 297, 410 and 470 mV at 10, 50 and 100 mA cm⁻², respectively. We further compared the OER activity data with other reported Co-based catalysts, and Table 1 demonstrates that CoCuSrCe exhibits comparable or even superior performance to the other Co-based catalysts. For a global comparison and practical applicability, good mass activity, as well as intrinsic activity, of a catalyst is highly desirable. The mass activity of electrochemical OER catalysts is determined by normalizing the current density to the loaded amount of catalyst, whereas, the intrinsic activity is the current density per unit electrochemical active surface area. Fig. 4c shows the mass activity and intrinsic activity of the three catalysts at the OER onset potential. Evidently, CoCuSrCe exhibited a far superior OER catalytic activity to the pristine and only Sr-doped oxides. To corroborate the superiority of CoCuSrCe, we further measured the oxygen evolved during OER with the help of gas chromatography, and thereby calculated the faradaic efficiency using the following equation:
where n is the total number of electrons transferred, F is the Faraday constant, i is the amount of current produced and t denotes time. The calculated FE_O2% values are plotted in Fig. 4d. Apparently, the FE_O2% of CoCuSrCe (84%) turned out to be better than those of the other two catalysts.

Fig. 4 (a) OER polarisation curves of the three catalysts synthesized with bare Ni foam and the commercial RuO₂ catalyst; (b) overpotentials, (c) mass activity and intrinsic activity, and (d) FE (%) of oxygen evolution of the synthesized materials.

Table 1 Comparison of OER activity data of pristine and supported Co₃O₄ catalysts with previous works

Catalysts	Measurement conditions	OER activity		Ref.
		Overpotential at 10 mA cm^−2	Tafel slope
a At 100 mA cm^−2.
Co3O4 nanoarrays on carbon	0.1 M KOH	0.29 V	70 mV dec^−1	47
Co3O4 nanoparticles	1 M KOH with 5 mV s^−1 scan rate	0.38 V	153 mV dec^−1	48
Co3O4-ZIF 8	1 M KOH with 10 mV s^−1	0.40 V	82 mV dec^−1	49
Co(OH)2 on GC	1 M NaOH with 10 mV s^−1 scan rate	0.4 V	90 mV dec^−1	50
Co3O4 nanocubes	1 M KOH with 1 mV s^−1 scan rate	0.5 V	59 mV dec^−1	51
Co3O4@CoO	0.5 M KOH	0.43 V	89 mV dec^−1	52
CoOx/CeOx	1 M NaOH with 10 mV s^−1 scan rate	0.31 V	66 mV dec^−1	17
Co3O4/CeO2 nanohybrids (NHs)	1 M NaOH with 10 mV s^−1 scan rate	0.27 V	60 mV dec^−1	14
Co3O4/CeO2 heterojunction	1 M KOH	0.25 V^a	34.4 mV dec^−1	53
CoCuSrCe	1 M KOH	0.29 V	42 mV dec^−1	This work

---

To understand the kinetics of the OER over the three synthesized catalysts, the scan rate dependency of their OER activity and the activation energy of the OER were evaluated. Scan rate dependency studies were carried out by varying the scan rate from 10 to 50 mV s⁻¹ in the presence of 1 M KOH as the electrolyte. Fig. 5a unveils that the OER current density linearly increased with the square root of the scan rate, indicating a diffusion-controlled electrocatalytic reaction over these catalysts.⁵⁴ The Arrhenius plots of CoCe, CoSrCe, and CoCuSrCe showing current density (ln j) vs. temperature (T⁻¹) at the OER potential were charted to determine the activation energy. The temperature was varied from 25 to 50 °C with a gap of 5 °C. The activation energy (E_a) was obtained from the slope values in Fig. 5b. The activation energy of pristine CoCe was 14.8 kJ mol⁻¹, whereas CoSrCe and CoCuSrCe exhibited activation energies of 12.3 and 11.7 kJ mol⁻¹, respectively. The lower activation energy indicates faster OER kinetics over CoCuSrCe.

Fig. 5 (a) Scan rate dependency study and (b) activation energy plots of the oxygen evolution reactions over the synthesized materials.

A good electrocatalyst with considerable charge transfer ability should have a low Tafel slope. Fig. 6a shows the lowest Tafel slope of 42 mV dec⁻¹ for CoCuSrCe compared with 78 mV dec⁻¹ over pristine CoCe. The low Tafel slope indicates an improved charge transfer between the doped electrode material and the electrolyte, rationalizing its efficient OER activity. The Nyquist impedance plots (Fig. 6b) also supported the OER efficacy trend of the materials. EIS measurements were performed under OER conditions (1 M KOH), and the data were fitted to the equivalent circuit shown in the inset of Fig. 6b. The equivalent circuit revealed one polarisation resistance (R_ct) with a parallel constant-phase resistance. CoCuSrCe showed a smaller semicircle than those of CoSrCe and CoCe, suggesting faster shuttling of charges due to higher conductivity in the double-doped composite catalyst.^55,56

Fig. 6 (a) Tafel plots and (b) Nyquist plots of the three composite catalysts.

The electrochemical stability of the best catalyst was evaluated by chronoamperometry studies in a 1 M KOH solution for 22 h at the corresponding OER overpotential. A remarkably stable OER current density was observed with CoCuSrCe (Fig. 7). To corroborate this further, we also collected the LSV traces of CoCuSrCe before and after the 22 h chronoamperometry study. The inset in Fig. 7 demonstrates the almost identical current densities of the fresh and exhausted catalysts, signifying the outstanding stability of the catalyst even at a considerably strong alkaline condition.

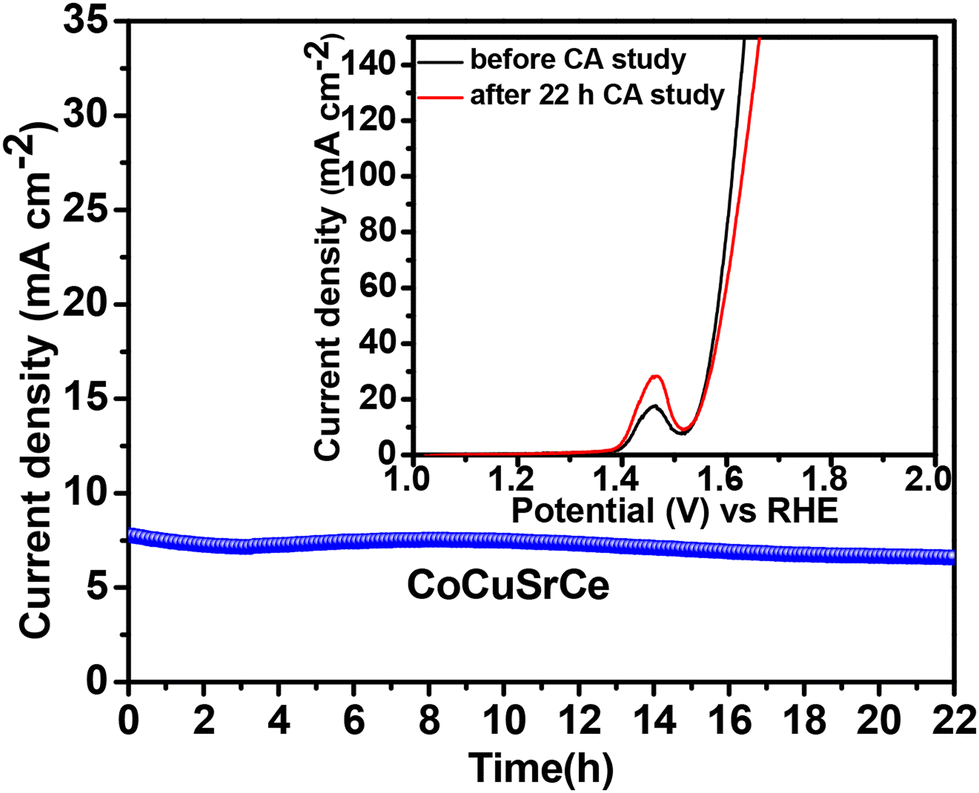

Fig. 7 Chronoamperometry plots of the three synthesized catalysts. The inset shows the polarisation curves of CoCuSrCe before and after the 22 h chronoamperometry study.

3.3 Mechanism

The superiority of the OER catalytic activity of double-doped CoCuSrCe intrigued us to probe the mechanism of the reaction in the presence of this material. In order to understand the role of the doped oxides, we thoroughly characterized the exhausted CoCuSrCe catalyst after 12 h of OER chronoamperometry. Fig. 8a shows the XRD pattern of the exhausted material along with the FESEM image in the inset. While the bulk crystalline structure remained unchanged, some minor additional peaks at 2θ = 35.4°, 39.06° and 40.9° were observed. These peaks correspond to the crystalline structures of Co(OH)₂, Cu(OH)₂ and Co–OOH formed during the OER.^57–59 The crystalline peaks of M(OH)₂ confirm the active involvement of Co and Cu in the OER reaction mechanism. The formation of M(OH)₂ and their apparent oxidation to form M–OOH species evidently modifies the surface morphology of the exhausted CoCuSrCe, as observed in the FESEM image.

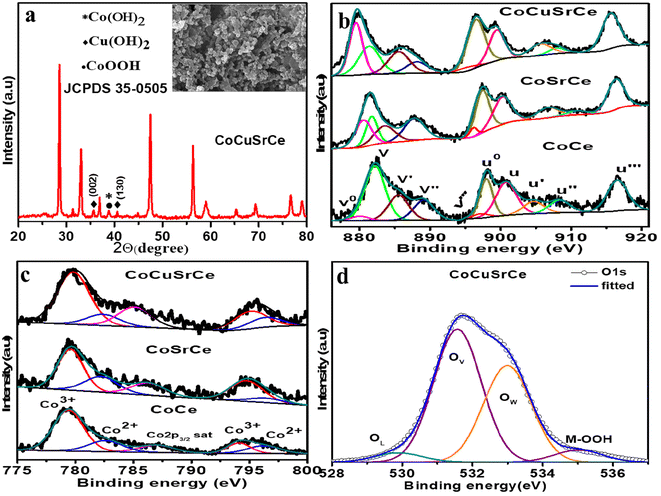

Fig. 8 (a) XRD pattern of CoCuSrCe and its FESEM image in the inset; the core level (b) Ce 3d (c) Co 2p spectra of all three exhausted composite oxides after 12 h of chronoamperometry OER; (d) O 1s of exhausted CoCuSrCe after the 12 h chronoamperometry study.

The core-level deconvoluted Ce 3d XPS spectra of the exhausted catalysts are shown in Fig. 8b. The spectra reveal the same 5 spin–orbit coupled peaks corresponding to the Ce⁴⁺ and Ce³⁺ oxidation states as the fresh catalyst (Fig. 4a). However, after OER, the concentration of Ce⁴⁺ in the exhausted catalysts reduced to 61.3, 58.6 and 51% for CoCe, CoSrCe and CoCuSrCe, respectively. Notably, 65.6, 68.0 and 74.1% of Ce⁴⁺ were present in the as-prepared CoCe, CoSrCe and CoCuSrCe catalysts, respectively. This signifies the highly reducible nature of Ce⁴⁺ in these catalysts and that the extent of reduction of Ce⁴⁺ increased from CoCe to CoSrCe and CoCuSrCe. The reduction of Ce⁴⁺ → Ce³⁺ during the positive potential sweep of OER must occur alongside parallel oxidation reactions. These parallel oxidation reactions can be attributed to the oxidation of Co²⁺ → Co³⁺ and/or the evolution of lattice oxygen (O²⁻ → ½O₂ + 2e⁻) to create oxygen vacancies. Therefore, either the Co³⁺ ions or the adjacent oxygen vacancies are responsible for the formation of the –OOH species, which was also observed evidently in the XRD pattern of the exhausted catalyst. To corroborate this hypothesis, we collected the core-level Co 2p spectra of the exhausted catalysts (Fig. 8c). Interestingly, the relative ratios of Co³⁺/Co²⁺ increased to 66.5, 75.2, and 79.1% in CoCe, CoSrCe and CoCuSrCe, respectively. We further probed the O 1s spectra, and the deconvoluted spectrum is plotted in Fig. 8d. The extra peak at 535 eV is attributed to the intermediate –OOH formed during the OER. The corresponding peak, however, could be attributed to the generation of Co–OOH and/or Cu–OOH. The surface O_L content (%) was found to be significantly reduced to 7.9% after the OER reaction. The comprehensive structural and surface study revealed that the facile reduction of Ce⁴⁺ → Ce³⁺ during the positive potential of OER helped the parallel occurrence of both oxidation of Co²⁺ → Co³⁺ and the evolution of lattice oxygen to create oxygen vacancies primarily on the surface of the oxides, and the extent of reduction of Ce⁴⁺ along with the oxidation of Co³⁺ was found to be the maximum in CoCuSrCe (Fig. 9). The formation of Co³⁺ along with oxygen vacancies due to the electronic interaction of the catalyst with the support helped the formation of the key intermediate –OOH, which in turn reduced the activation energy barrier and thereby enhanced the kinetics of oxygen evolution over the CoCuSrCe catalyst. However, in addition to Co³⁺, the presence of Cu²⁺ on the surface of CoCuSrCe also accelerated the OER efficacy, as observed from the XRD pattern and the core level O 1s XPS.

Fig. 9 Change in the content (%) of Ce⁴⁺, Co³⁺ and Cu²⁺ during the OER over the three catalysts.

4. Conclusion

The three composite catalysts were synthesized by a single-step solution combustion route. The Rietveld refinement of the powder XRD pattern of CoCe revealed the co-existence of Co₃O₄/CeO₂. Similarly, CoSrCe showed the presence of Co₃O₄/Ce_0.9Sr_0.1O_2−δ and CoCuSrCe was composed of Co_3−xCu_xO₄, Ce_0.9Sr_0.1O_2−δ, SrCoO_2.8 and CuO. The electrochemical surface area of doped CoCuSrCe was found to be 3 times higher than that of CoCe. In the electrocatalytic OER studies, the doped material CoCuSrCe outperformed the other two composites, showing the highest current density and highest faradaic efficiency at the lowest overpotential. CoCuSrCe also exhibited the lowest Tafel slope of 42 mV dec⁻¹ and the lowest OER activation energy of 11.7 kJ mol⁻¹. The outstanding stability of the catalyst CoCuSrCe was observed in the 12 h OER study at a considerably strong alkaline condition. The detailed mechanistic studies indicate that the favourable reducibility of cerium introduces a higher concentration of Co³⁺ ions at the catalytic sites, leading to enhanced formation of the Co–OOH species. Further, the lower-valence Sr and Cu ions doped at the Ce and Co sites, respectively, accelerate the formation of the active Co³⁺ species, as well as oxygen vacancies, aiding the efficient and facile progression of the oxygen evolution reaction. In addition to Co³⁺, the presence of Cu²⁺ on the surface of CoCuSrCe might also accelerate the OER kinetics, as evidenced by the XRD pattern and XPS spectrum of the exhausted catalyst. Overall, these findings underscore the significance of the electronic interactions between the active catalytic sites and the support, as well as the involvement of oxygen vacancies, in realizing sustainable advancement of the H₂ economy in the future.

Conflicts of interest

There are no conflicts to declare.

Acknowledgements

Authors thank BITS Pilani Hyderabad Campus for the financial support.
