Cytotoxic Pt(II) complexes containing alizarin: a selective carrier for DNA metalation

Abstract

Many efforts have been made in the last few decades to selectively transport antitumor agents to their potential target sites with the aim to improve efficacy and selectivity. Indeed, this aspect could greatly improve the beneficial effects of a specific anticancer agent especially in the case of orphan tumors like the triple negative breast cancer. A possible strategy relies on utilizing a protective leaving group like alizarin as the Pt(II) ligand to reduce the deactivation processes of the pharmacophore enacted by Pt resistant cancer cells. In this study a new series of neutral mixed-ligand Pt(II) complexes bearing alizarin and a variety of diamine ligands were synthesized and spectroscopically characterized by FT-IR, NMR and UV–Vis analyses. Three Pt(II) compounds, i.e., 2b, 6b and 7b, emerging as different both in terms of structural properties and cytotoxic effects (not effective, 10.49 ± 1.21 μM and 24.5 ± 1.5 μM, respectively), were chosen for a deeper investigation of the ability of alizarin to work as a selective carrier. The study comprises the in vitro cytotoxicity evaluation against triple negative breast cancer cell lines and ESI-MS interaction studies relative to the reaction of the selected Pt(II) complexes with model proteins and DNA fragments, mimicking potential biological targets. The results allow us to suggest the use of complex 6b as a prospective anticancer agent worthy of further investigations.

---

Introduction

One of the greatest successes of medicinal inorganic chemistry is the discovery of Pt(II) anticancer agents, medically used for over 30 years in the treatment of various tumours.^1–4 Three anticancer Pt(II)-based drugs (cisplatin, carboplatin and oxaliplatin) are in clinical use worldwide, while an additional four are exclusively approved in selected countries (nedaplatin and miriplatin in Japan, lobaplatin in China and heptaplatin in South Korea) (Fig. 1).⁵

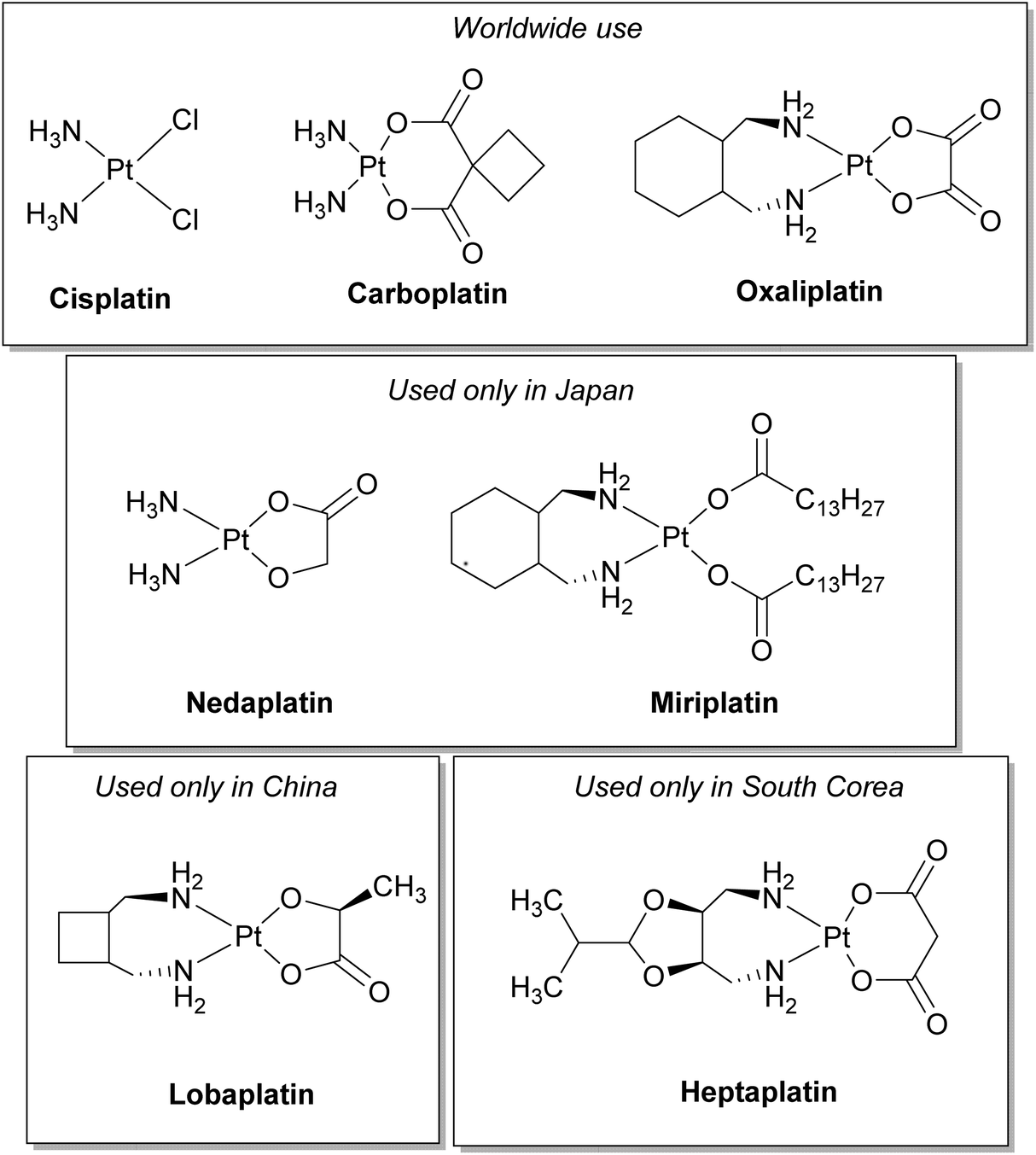

Fig. 1 Chemical structures of approved chemotherapeutic Pt(II) based drugs.

Although some details of their mechanism of action are still to be clarified, it is well known that the main anticancer activity of most of the Pt(II) drugs arises from their direct interaction with DNA. Generally, these compounds – beyond nucleic acids – display numerous additional intracellular targets as biomolecules containing nitrogen, sulphur, and oxygen atoms (mostly peptides and proteins), such as ribonucleic acids, thiols, glutathione and phospholipids, causing their systemic toxicity.^6–8

The lack of tumor selectivity, the associated side effects and acquired drug resistance have greatly limited the therapeutic application of these drugs. To improve the efficacy of Pt(II)-based compounds, the design and synthesis of new classes of these compounds were focused on the decrease in systemic toxicity through in situ activation. With the aim to improve cancer therapy, including receptor targeting, selective drug delivery and design of prodrugs, a wide range of functional Pt(IV) and Pt(II)-based drugs have been studied by applying different synthetic strategies.^9–18

Based on our long experience in the development of synthetic routes to afford both neutral and ionic complexes of the platinum group,^19–22 we recently synthesized and studied novel charged platinum complexes exhibiting comparable cytotoxicity to cisplatin in particular against the triple negative breast cancer cell line (MDA-MB-231).^23–25 Thus, we focused our attention on MDA-MB-231 known for being a highly aggressive, invasive and poorly differentiated triple-negative breast cancer (TNBC) cell line as it lacks estrogen receptor (ER) and progesterone receptor (PR) expression, as well as HER2 (human epidermal growth factor receptor 2) amplification. For these reasons, antitumoral drugs towards this specific cell line are highly needed and searched for.^26,27

In the first study, we reported on the synthesis and cytotoxic activity of a series of Pt(II) complexes using 8-aminoquinoline and its chiral 5,6,7,8-tetrahydro-derivatives as chelating ligands.² Afterwards, we studied two different series of anionic cyclometalated Pt(II) complexes bearing two different (O^O) chelated ligands, tetrabromocatechol (BrCat)²⁻ and alizarin (aliz).²³ In both studies, promising novel anticancer candidates were identified, showing that both the cycloplatinated amine ligands and the aliz ancillary ligand could induce favorable antitumoral activities in the resulting Pt(II) complexes. On this basis, we decided to combine the main structural features, matching the chelating amine ligands with aliz as the leaving group.

The choice of the leaving group has also been proven to deeply influence the cytotoxicity of the platinum-based chemotherapeutics. The necessity to improve the stability of cisplatin together with the idea to introduce selectivity toward specific tumor cell lines has been realized by substituting the chloride atoms in cisplatin with O,O dicarboxylate groups leading indeed to the more stable carboplatin and oxaliplatin. Based on these important achievements, a series of Pt(II) complexes bearing different pyridylmethylamine N,N ligands both in the form of oxalate and cyclobutanedicarboxylate complexes were prepared. Among them, Oxamusplatin cytotoxicity was demonstrated to be the most potent of the series towards breast adenocarcinoma (MCF-7, IC₅₀ = 8.1 ± 0.8 μM) and metastatic prostate carcinoma (DU-145, IC₅₀ = 21 ± 1 μM). These complexes also exhibited a better selectivity, even better than that of oxaliplatin, highlighting the importance of finding the perfect match between the nitrogen diamine ligands and the O,O leaving groups.²⁸

Recently Pt(II) anticancer agents containing differently substituted O^O ferrocenylbutane-1,3-diones as leaving ligands were synthesized with the aim to modulate the reactivity towards deactivating biomolecules. This study is of relevance in showing the effect of the leaving group on substantially changing the pharmacokinetic and pharmacodynamic processes of the diamino-Pt fragment. Due to the need for increasing pharmacokinetic stability and the selectivity toward cisplatin-resistant cancer cells, Pt(IV) complexes could be synthesized as well and take advantage of the presence of oxygenated ligands in axial positions usually endowed with biological properties.^29,30 Converesly to what described above, another recent example in the literature provides the use of α-hydroxyl carboxylate as the leaving group as in nedaplatin and lobaplatin in view of increasing both the anticancer potency and expanding the nonselective cytotoxicity of platinum chemotherapeutics. This series of 3-hydroxyacrylatoplatinum(II) complexes containing Michael acceptors as leaving groups afforded anticancer complexes with similar activity to oxaliplatin but with a better safety profile in vivo.³¹

However, the use of O,O leaving groups different from the popular dicarboxylates for the synthesis of platinum complexes endowed with a new biological profile remains largely unexplored. In this regard, the catechol moiety in alizarin as a dichelating O,O leaving ligand in platinum complexes should represent a truly novel approach for the development of anticancer drugs with higher selectivity.

Indeed, herein we report a series of neutral Pt(II) complexes with the general formula [(N^N)Pt(aliz)], 1b–9b. Specifically, the coordination sphere comprises an (N^N) neutral bidentate ligand and aliz as the O^O ligand. This set of (N^N) spectator ligands was selected with the aim of probing the influence of the structural and, therefore, electronic features of the ligands on the cytotoxic activity. Furthermore, the (N^N) ligands were also chosen because of their differences in hydrophobicity, steric bulk, and ligand orientation (Fig. 2).^32–34

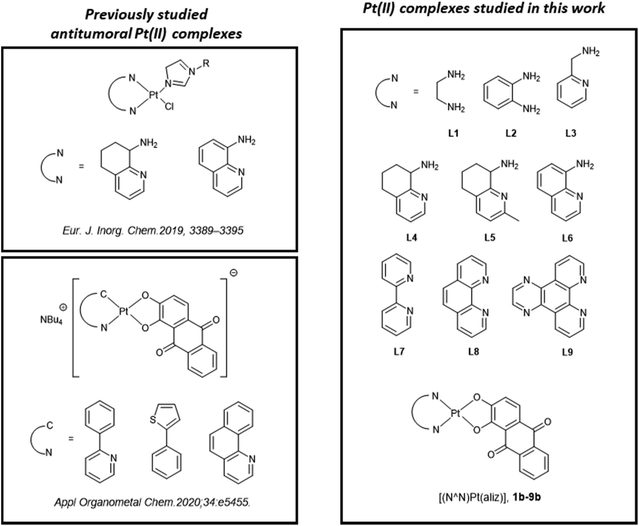

Fig. 2 Chemical structures: on the left panel, literature homologous Pt(II) complexes previously studied; on the right panel, selected ligands (L1–L9) and related Pt(II) complexes (1b–9b) containing alizarin, objects of the present study.

In particular, the starting ligand to be considered for this study is 1,2-diaminoethane (L1). We decided to extend the series by adding 1,2-phenylenediamine (L2), which maintained invariant the two NH₂ chelating groups but introduced a greater rigidity into the resulting metallocycle. To form a second subclass of the series, we chose 2-picolylamine (L3) that with respect to 1,2-diaminoethane introduces the sp² hybridized nitrogen atom of the pyridine ring in place of the second NH₂ functional group. This subclass was completed with three aminoquinoline derivatives differing in their substituents or in aromaticity, namely: 5,6,7,8-tetrahydro-8-aminoquinoline (L4), 2-methyl-5,6,7,8-tetrahydro-8-aminoquinoline (L5) and 8-aminoquinoline (L6). Finally, the series was completed by introducing two pyridinyl nitrogen atoms through adding to the ligand pool the ligands 2,2′-bipyridine (L7), 1,10-phenanthroline (L8), and pyrazino[2,3-f][1,10]phenanthroline (L9), which were selected not only because of their differences in rigidity and extension of aromaticity, but also because their biological activity is well known (Fig. 2).^35–37

Several studies have been conducted to investigate the effect of the non-leaving (N^N) ligands on the reactivity of Pt(II) antitumor drugs and, also, on the rate of ligand exchange for the formation of Pt(II) diaqua complexes, which are important because they represent the reactive species in the crucial step of cisplatin binding to DNA.^33,38,39

In order to explore how their properties are influenced by the use of (N^N) ligands, the [(NH₃)₂Pt(aliz)] complex was also synthesized.²⁵

Experimental section

Materials

All commercially available chemicals were purchased from Sigma-Aldrich or Alfa Aesar and used without further purification. [(N^N)PtCl₂] precursors 1a, 3a, 8a, 9a^40–43 and 4a–6a^24,44 were synthesized following already reported methods. DMEM, trypsin-EDTA, penicillin, streptomycin, non-essential amino acid solution, fetal calf serum (FCS), disposable culture flasks and Petri dishes were purchased from Euroclone S.p.A. (Pero, Milan, Italy).

Physical methods

Melting points were determined with a Leica DMLP polarizing microscope equipped with a Leica DFC280 camera and a CalCTec (Italy) heating stage.⁴⁵ Elemental analyses were performed with a PerkinElmer 2400 analyzer CHNS/O. FT-IR spectra (KBr pellets) were recorded on a Spectrum One PerkinElmer FT-IR spectrometer. ¹H and ¹³C NMR spectra were recorded on a Bruker Avance 300 MHz spectrometer and in DMSO-d₆ with TMS as the internal standard.⁴⁶ ESI-MS analyses were performed by using a Thermo Finnigan (MA, USA) LCQ Advantage system MS spectrometer with an electrospray ionisation source and an ‘Ion Trap’ mass analyser. The MS spectra were obtained by direct infusion of a sample solution in MeOH under ionisation, ESI positive. For UV–Visible spectroscopy, spectrofluorimetric-grade solvents were used for the preparation of all solutions. The buffer solution (pH 7.4) was prepared by dissolving one phosphate buffered saline tablet (Sigma-Aldrich) in 200 mL of water. Compounds 1b−9b were dissolved in DMSO and then diluted to reach a final concentration of 1 × 10⁻⁵ M in DMSO/buffer solution (DMSO 0.5% v/v). A PerkinElmer Lambda 900 spectrophotometer was employed to record the UV–Visible absorption spectra, using 10 mm path-length quartz cuvettes.

Preparation of [(N^N)PtCl₂] complexes 2a, 6a, and 7a

Potassium tetrachloroplatinate (3.47 mmol) was dissolved in 10 mL of distilled water in a Schlenk tube under a nitrogen atmosphere and to this 3.47 mmol of the diamine ligand L1–L9 was added. The mixture was acidified with 6 M HCl (4.62 mL) and heated under reflux overnight. After cooling to room temperature, the product was collected as a differently colored solid, washed extensively with water followed by small amounts of diethyl ether and dried under vacuum. The complexes were completely characterized, and the data obtained were in accordance with those reported in the literature.

[(L2)PtCl₂], 2a. Yield 80%; m.p. >250 °C; C₆H₈Cl₂N₂Pt (MW = 372.97): Anal. calcd: C, 19.26; H, 2.16; N, 7.49; found C, 19.63; H, 2.20; N, 7.30. ¹H NMR (300 MHz, DMSO-d₆) δ 7.61 (bs, 4H), 7.43–7.40 (m, 2H), 7.30–7.27 (m, 2H) ppm. ¹³C NMR (101 MHz, DMSO-d₆) δ 143.64, 127.87, 126.47 ppm; MS(ESI): m/z [M]⁺ calcd 389.16; found 412.08 [M + Na]⁺; 352.32 [M − Cl]⁺.

[(L6)PtCl₂], 6a. Yield 98%; m.p. >250 °C; C₉H₈Cl₂N₂Pt (MW = 408.97): Anal. calcd: C, 26.36; H, 1.97; N, 6.83; found C, 26.87; H, 2.06; N, 6.94. ¹H NMR (300 MHz, DMF-d₇) δ = 9.67 (dd, J = 5.3, 1.3 Hz, 1H), 8.94 (dd, J = 8.4, 1.3 Hz, 1H), 8.09 (dd, J = 21.3, 7.5 Hz, 2H), 7.96–7.64 (m, 2H), 4.02 (brs, 2H) ppm. ¹³C NMR (101 MHz, DMF-d₇) δ 149.12, 148.90, 141.99, 138.72, 130.72, 129.11, 128.23, 127.53, 123.74 ppm; MS(ESI): m/z [M]⁺ calcd 408.97; found 409.23 [M + H]⁺.

[(L7)PtCl₂], 7a. Yield 92%; m.p. >250 °C; C₁₀H₈Cl₂N₂Pt (MW = 420.97): Anal. calcd: C, 28.45; H, 1.71; N, 6.64; found C, 28.35; H, 1.85; N, 6.49. ¹H NMR (300 MHz, DMSO-d₆) δ 9.43 (d, J = 32.6, 19.5 Hz, 1H), 8.58 (d, J = 8.1 Hz, 1H), 8.41 (t, J = 7.8 Hz, 1H), 7.83 (t, J = 6.7 Hz, 1H) ppm. ¹³C NMR (101 MHz, DMSO-d₆) δ 124.8, 128.3, 141.1, 149.3, 157.9 ppm; MS(ESI): m/z [M]⁺ calcd 422.17; found 423.08 [M + H]⁺.

Preparation of [(N^N)Pt(aliz)] complexes 1b–9b

[(L1)Pt(aliz)], 1b. H₂(aliz) (58 mg, 0.24 mmol) was solubilized in 15 mL of degassed ethanol, and KOH (54 mg, 0.96 mmol) was added. After 1a (80 mg, 0.24 mmol) was suspended, the mixture was stirred for 12 h at r.t. The desired product was filtered off and washed with ethanol, distilled water, dichloromethane, and ethyl ether. Purple solid, yield 67%; m.p. >250 °C; C₁₆H₁₄N₂O₄Pt (MW = 493.38): Anal. calcd: C, 38.95; H, 2.86; N, 5.68%; found: C, 38.92; H, 2.89; N, 5.67%; FT-IR (KBr) ν(cm⁻¹) = 3303s (NH), 3206s (NH), 3063s (CH aromatic), 2995w (CH aliphatic), 1630s (CO), 1587s (CO), 1455s (CC), 1349vs (C–O), 1204m, 716s; ¹H NMR (300 MHz, DMSO-d₆) δ 8.12 (pseudo-dd, 2H), 7.75 (m, 2H), 7.52 (d, J = 8.25 Hz, 1H), 6.32 (d, J = 8.49 Hz, 1H), 5.60 (sbr, 4H, –NH₂), 2.48 (s, 4H) ppm; ¹³C NMR (75 MHz, DMSO-d₆,) δ 186.90, 176.01, 168.72, 155.67, 135.30, 133.13, 132.92, 131.10, 125.35, 125.19, 124.27, 117.87, 113.69, 112.39, 46.54 ppm; MS(ESI): m/z [M]⁺ calcd 493.38; found 493.01 [M]⁺.

[(L2)Pt(aliz)], 2b. The reaction conditions were analogous to those reported for 1b, using 2a (100 mg, 2.73 mmol), H₂(aliz) (128 mg, 5.34 mmol) and KOH (61 mg, 10.91 mmol). Dark purple solid, yield 88%; m.p. >250 °C; C₂₀H₁₄N₂O₄Pt (MW = 541.42): Anal. calcd: C, 44.37; H, 2.61; N, 5.17%; found: C, 44.40; H, 2.63; N, 5.15%; FT-IR (KBr) ν(cm⁻¹) = 3224sh (NH), 3060w (CH aromatic), 2914vw (CH aliphatic), 1625m (CO), 1584m (CO), 1556s (CC), 1497vs, 1465vs, 1392vs (C–O), 1361m, 1206s, 717s; ¹H NMR (300 MHz, DMSO-d₆) δ 8.14 (m, 4H), 7.77 (m, 4H), 7.56 (m, 1H), 6.51 (m, 1H) ppm; ¹³C NMR (101 MHz, DMSO-d₆) δ 188.41, 178.50, 163.85, 155.83, 154.74, 135.55, 134.54, 133.87, 132.99, 126.67, 126.50, 124.00, 122.22, 119.62, 118.83, 116.93, 115.37 ppm; MS(ESI): m/z [M]⁺ calcd 541.42; found 408.56 [M − C₈H₄O₂]⁺.

[(L3)Pt(aliz)], 3b. The reaction conditions were analogous to those reported for 1b. The reaction was conducted using 3a (100 mg, 2.67 mmol), H₂(aliz) (128 mg, 5.34 mmol) and KOH (61 mg, 10.70 mmol). The mixture was heated at reflux temperature for 24 hours. Dark blue solid, yield 89%; m.p. >250 °C; C₂₀H₁₄N₂O₄Pt (MW = 541.42): Anal. calcd: C, 44.37; H, 2.61; N, 5.17%; found: C, 44.34; H, 2.59; N, 5.17%; FT-IR (KBr) ν(cm⁻¹) = 3219m (NH), 3185sh (NH), 3117w (CH aromatic), 1624m (CO), 1584m (CO), 1555s (CC), 1497vs, 1461vs, 1391vs (C–O), 1362m, 1206s, 716s; ¹H NMR (300 MHz; DMSO-d₆) δ 9.06 (m, 1H), 8.10 (m, 4H), 7.74 (m, 3H), 7.49 (m, 1H), 6.37 (m, 2H, –NH₂), 4.02 (m, 2H) ppm; ¹³C NMR (101 MHz, DMSO-d₆) δ 173.08, 170.24, 166.77, 157.40, 149.21, 147.63, 143.38, 142.19, 139.19, 135.89, 134.22, 129.27, 125.78, 125.06, 125.06, 124.67, 123.51, 123.01, 122.31, 122.31, 53.31 ppm; MS(ESI): m/z [M]⁺ calcd; found 423.32 [M − C₇H₄O₂]⁺.

[(L4)Pt(aliz)], 4b. [(L4)PtCl₂], complex 4a (0.73 mmol) and Ag(CF₃SO₃) (1.46 mmol) were suspended in dimethylformamide (10 mL) and stirred at room temperature for 12 h under a nitrogen atmosphere in the dark. The precipitate was filtered off on Celite and to the resulting solution were added H₂(aliz) (0.73 mmol) and 2 M NaOH (2 eq.). After 5 h, the solvent was evaporated under vacuum and the obtained powder was suspended in 20 mL of acetone. At this point, the mixture was filtered yielding the desired product as a purple solid, yield 58%; m.p. >250 °C; C₂₃H₁₄N₂O₄Pt (MW = 577.06); Anal. calcd: C, 47.84; H, 2.44; N, 4.85; found: C, 47.35; H, 2.50; N, 4.34; FT-IR (KBr) ν(cm⁻¹) = 3486w (N–H), 3062w (CH aromatic), 1623m (CO), 1588s(CC), 1387s(C–O), 1254w, 1225s, 828s, 717vs; ¹H NMR (300 MHz, DMSO-d₆) 8.20–8.06 (m, 3H), 7.80–7.70 (m, 3H), 7.42 (d, J = 9.5 Hz, 2H), 6.47 (d, J = 8.0 Hz, 1H), 3.91 (s, 1H), 3.06 (m, 2H), 2.69–2.65 (m, 1H), 2.54 (m, 2H), 2.38–2.29 (m, 1H) ppm. ¹³C NMR (101 MHz, DMSO-d₆) δ 189.29, 181.08, 153.37, 151.29, 149.32, 141.85, 139.07, 135.61, 134.56, 134.07, 133.36, 130.38, 129.80, 129.32, 128.19, 127.45, 127.22, 126.99, 124.23, 124.00, 121.62, 121.33, 116.76 ppm; MS(ESI): m/z [M]⁺ calcd 577.46; found 578.09 [M + H]⁺.

[(L5)Pt(aliz)], 5b. The reaction conditions were analogous to those reported for 4b. The product was obtained as a purple powder, yield 83%; m.p. >250 °C; C₂₃H₁₈N₂O₄Pt (MW = 581.09); Anal. calcd: C, 47.34; H, 3.45; N, 4.80; found: C, 47.23; H, 3.40; N, 4.77; FT-IR (KBr) ν(cm⁻¹) = 3522w (N–H), 3216w (CH aromatic), 1659m (CO), 1589s (CC), 1398s (C–O), 1252w, 1165w, 828s, 714s; ¹H NMR (300 MHz, DMSO-d₆) δ 8.17 (m, 2H), 7.91–7.83 (m, 3H), 7.74 (s, 1H), 7.57 (d, J = 8.2 Hz, 1H), 7.36 (m, 1H), 7.08 (d, J = 8.0 Hz, 1H), 2.87 (s, 3H), 2.83–2.70 (m, 4H), 2.60 (m, 2H) ppm. ¹³C NMR (101 MHz, DMSO-d₆) δ 178.68, 162.78, 150.90, 149.82, 143.31, 135.86, 135.70, 133.50, 132.59, 126.38, 122.76, 122.29, 120.09, 119.39, 117.39, 117.37, 116.17, 116.13, 114.81, 108.69, 107.92, 107.16, 36.25, 31.25 ppm. MS(ESI): m/z [M]⁺ calcd 581.49; found 582.33 [M + H]⁺.

[(L6)Pt(aliz)], 6b. The reaction conditions were analogous to those reported for 4b. The product was obtained as a purple powder, yield 64%; m.p. 185 °C; C₂₄H₂₀N₂O₄Pt (MW = 595.11); Anal. calcd: C, 48.41; H, 3.39; N, 4.70; found: C, 48.12; H, 3.32; N, 4.67; FT-IR (KBr) ν(cm⁻¹) = 3367w (N–H), 3119w (CH aromatic), 3053w (CH aliphatic), 2890s (CH aliphatic), 1661m (CO), 1587s (CC), 1454w (CH aliphatic), 1399s (C–O), 1287w, 1161w, 830s, 773m, 713m; ¹H NMR (300 MHz, DMSO-d₆) δ 9.63–9.43 (m, 1H), 8.86 (dd, J = 8.4, 1.2 Hz, 1H), 8.29–8.16 (m, 2H), 8.02 (dd, J = 8.9, 4.4 Hz, 1H), 7.99–7.88 (m, 3H), 7.76 (m, 2H), 7.71–7.63 (m, 1H), 7.30 (d, J = 8.3 Hz, 1H) ppm. ¹³C NMR (101 MHz, DMSO-d₆) δ 180.57, 162.76, 159.36, 157.95, 141.40, 140.95, 135.14, 135.13, 134.79, 134.77, 134.07, 132.94, 131.48, 127.09, 126.78, 126.73, 123.26, 121.63, 119.99, 114.35, 36.22, 26.63, 22.98, 20.66 ppm. MS(ESI): m/z [M]⁺ calcd 595.52; found 596.72 [M + H]⁺.

[(L7)Pt(aliz)], 7b. The reaction conditions were analogous to those reported for 1. The reaction was conducted using 7a (80 mg, 0.19 mmol), H₂(aliz) (45 mg, 0.19 mmol) and KOH (37 mg, 0.76 mmol). Very dark purple solid, yield 88%; m.p. >250 °C; C₂₄H₁₄N₂O₄Pt (MW = 589.46): Anal. calcd: C, 48.90; H, 2.39; N, 5.75%; found: C, 48.91; H, 2.42; N, 5.73%; FT-IR (KBr) ν(cm⁻¹) = 3085w (CH aromatic), 3059w (CH aromatic), 1624m (CO), 1584m (CO), 1557s (CC), 1500s (CC), 1392vs (C–O), 1207s, 761vs, 717vs; ¹H NMR (300 MHz; DMSO-d₆) δ 9.50 (m, 2H), 8.59 (d, J = 7.77 Hz, 2H), 8.44–8.39 (m, 2H), 8.15–8.09 (m, 2H), 7.86–7.69 (m, 4H), 7.55–7.45 (m, 1H), 6.36 (d, J = 8.46 Hz, 1H) ppm; ¹³C NMR (101 MHz, DMSO-d₆) δ 181.36, 173.83, 157.27, 156.30, 148.83, 140.95, 140.21, 134.05, 133.53, 133.01, 128.34, 128.13, 126.54, 126.24, 124.64, 123.00, 119.92 ppm; MS(ESI): m/z [M]⁺ calcd 613.49; found 461.19 [M − C₇H₄O₂]⁺.

[(L8)Pt(aliz)], 8b. The reaction conditions were analogous to those reported for 1b. The reaction was conducted using 8a (80 mg, 0.18 mmol), H₂(aliz) (43 mg, 0.18 mmol) and KOH (30 mg, 0.72 mmol). Black-purple solid, yield 51%; m.p. >250 °C; C₂₆H₁₄N₂O₄Pt (MW = 613.48): Anal. calcd: C, 50.90; H, 2.30; N, 4.57%; found: C, 50.88; H, 2.33; N, 4.55%; FT-IR (KBr) ν(cm⁻¹) = 3082s (CH aromatic), 3059s (CH aromatic), 1626s (CO), 1585m (CO), 1492vs, 1462m (CC), 1382vs (C–O), 1208s, 839vs, 716m, 707vs; ¹H NMR (300 MHz; DMSO-d₆) δ 9.69 (d, J = 5.43 Hz, 2H), 9.04 (d, J = 7.77 Hz, 2H), 8.29 (s, 2H), 8.19–8.10 (m, 4H), 7.76–7.66 (m, 2H), 7.47 (d, J = 8.28 Hz, 1H), 6.29 (d, J = 8.52 Hz, 1H) ppm; ¹³C NMR (101 MHz, DMSO-d₆) δ 198.48, 187.82, 174.37, 150.84, 149.84, 140.39, 139.47, 137.12, 134.38, 134.00, 132.87, 131.21, 128.61, 127.27, 126.97, 126.84, 126.72, 124.23, 123.42, 120.34, 118.45 ppm; MS(ESI): m/z [M]⁺ calcd 613.49; found 469.25 [M − C₈H₄O₃]⁺.

[(L9)Pt(aliz)], 9b. The reaction conditions were analogous to those reported for 1b. The reaction was conducted using 9a (80 mg, 0.16 mmol), H₂(aliz) (38 mg, 0.16 mmol) and KOH (36 mg, 0.64 mmol). Light purple solid, yield 57%; m.p. >250 °C; C₂₈H₁₄N₄O₄Pt (MW = 665.52): Anal. calcd: C, 50.53; H, 2.12; N, 8.42%; found: C, 50.56; H, 2.09; N, 8.40%; FT-IR (KBr) ν(cm⁻¹) = 3122w (CH aromatic), 1624m (CO), 1584m (CO), 1555s (CC), 1497vs, 1462vs, 1389vs (C–O), 1206s, 716s; ¹H NMR (300 MHz; DMSO-d₆) δ 9.47 (pseudo-dd, 1H), 9.25 (m, 1H), 9.17 (pseudo s, 2H), 8.15–8.09 (m, 2H), 7.97 (dd, 2H), 7.79–7.73 (m, 2H), 7.54 (d, J = 8.22 Hz, 1H), 6.42 (d, J = 8.76 Hz, 1H) ppm; ¹³C NMR (101 MHz, DMSO-d₆) δ 188.48, 156.14, 152.92, 147.66, 146.28, 140.46, 136.41, 134.56, 134.40, 133.40, 132.83, 127.38, 126.87, 126.71, 125.23, 125.12, 120.78, 119.41, 115.22 ppm; MS(ESI): m/z [M]⁺ calcd 665.53; found 591.91 [M − C₆H₄]⁺.

Log P_ow determination

RP-HPLC analyses were performed to correlate the hydrophobicity of the platinum(II) complexes with their retention time. The chromatograms were registered using a Partisil C18-ODS reversed-phase HPLC column, at 25 °C and with a water/methanol ratio of 80/20 in the presence of 15 mM HCOOH as the mobile phase and using KI as the internal standard (flow rate of 1 mL min⁻¹, λ = 210 nm). The calibration curve was realized in comparison with reference compounds, chosen in commercially available platinum compound series (i.e. cisplatin, oxaliplatin and carboplatin).^24,25

Interaction study with GSH

The binding studies with GSH were directly conducted in NMR tubes mixing 1 eq. of the compound (2b, 6b or 7b) in 20% of 0.9% w/v NaCl–D₂O solution in DMSO-d₆; then 1.1 eq. GSH was added to the solution. The sample was evaluated at 24 h by ¹H NMR analysis.

Cell culture

The breast cancer cell line MDA-MB-231 cells were cultured in DMEM supplemented with penicillin (10 000 U mL⁻¹), streptomycin (10 mg mL⁻¹), non-essential amino acid solution and 10% fetal calf serum (FCS). The cells were incubated with newly synthesized complexes dissolved in DMSO. The same volume of solvent was added to control conditions and did not exceed 0.5% v/v.^24,25

Sulphorodamine B cell viability assay

Cellular toxicity of the MR compounds was assessed using the sulphorodamine (SRB) assay according to the protocol established by Skehan et al.⁴⁷ 8000 cells per well were seeded in a 96 well-tray in 100 μl per well of the complete medium. The following day, the medium was replaced with fresh media containing 0.4% FBS and treatments or DMSO as the control. After 24 h of incubation, the SRB assay was performed and absorbances were measured at 570 nm with a Victor Nivo multiplate reader by PerkinElmer.

Determination of intracellular and DNA-bound Pt concentrations

For the DNA-bound Pt concentrations, the nuclear DNA was extracted by incubating cell monolayers with digest buffer (final composition: 50 mM in Tris HCl, 100 mM NaCl, 100 mM EDTA, 1% SDS), then transferred to 1.5 mL microcentrifuge tubes and a saturated NaCl solution was added. The samples were then clarified by centrifugation for 15 min at 13 000 rpm and the supernatant transferred to new microcentrifuge tubes and DNA precipitated by isopropanol. DNA was then washed by centrifugation twice with 70% ethanol and resuspended in TE buffer (10 mM Tris pH 8.0, 0.1 mM EDTA). The Pt concentrations were then determined by ICP-MS and normalized by total DNA. For the determination of total intracellular Pt concentrations, cells were washed twice with PBS and lysed by incubation with 1% Triton X100/0.1% SDS for 5 min at room temperature. Cell lysates were then removed by centrifugation at 14 000g for 10 min, and the Pt concentrations were determined by ICP-MS (the calibration curve was realized by using platinum chloride standard solution (platinum standard solution, for AAS, 1 mL = 1.00 mg Pt = 5.13 mmol L⁻¹ in 10–20% HCl)). Data were normalized with the protein concentrations determined using the BCA protein assay (Thermo Scientific, Rockford, IL USA).

ESI MS experiments

Sample preparation: stock solutions of ODN (Merck), bovine pancreatic ribonuclease A (Merck) and human serum albumin (Merck) 10⁻³ M were prepared by dissolving the lyophilized protein or oligonucleotide in LC-MS grade water. Stock solutions of 10⁻² M platinum compounds were prepared by dissolving the samples in acetonitrile. For the experiments, an aliquot of the stock solutions of the selected protein was mixed with aliquots of each platinum compound at a protein-to-metal ratio of 1 : 1 and diluted with 2 mM ammonium acetate solution (pH 6.8) to 100 μM final protein concentration. The mixtures were incubated at 37 °C up to 48 h. After the incubation time, the protein solutions were sampled and diluted to a final protein concentration of 500 nM using 2 mM ammonium acetate solution, pH 6.8 and adding 0.1% v/v formic acid just before the infusion in the mass spectrometer. For the oligomer the final concentration was 1 μM, diluted with 2 mM ammonium acetate solution, pH 6.8 and 1% v/v triethylamine was added just before infusion in the mass spectrometer. Instrumental parameters: the ESI mass spectra were acquired through direct infusion at 7 μL min⁻¹ flow rate in a Tri-pleTOF® 5600+ high-resolution mass spectrometer (Sciex, Framingham, MA, U.S.A.), equipped with a DuoSpray® interface operating with an ESI probe.

The ESI source parameters were as follows:

RNase: positive polarity, ionspray voltage floating 5500 V, temperature 0, ion source gas 1 (GS1) 45 L min⁻¹; ion source gas 2 (GS2) 0; curtain gas (CUR) 15 L min⁻¹, declustering potential (DP) 60 V, collision energy (CE) 10 V, acquisition range 570–1300 m/z.

HSA: positive polarity, ionspray voltage floating 5500 V, temperature 0, ion source gas 1 (GS1) 30 L min⁻¹; ion source gas 2 (GS2) 0; curtain gas (CUR) 12 L min⁻¹, declustering potential (DP) 150 V, collision energy (CE) 10 V, acquisition range 1000–2600 m/z.

ODN: negative polarity, ionspray voltage floating −4500 V, temperature 0, ion source gas 1 (GS1) 30 L min⁻¹; ion source gas 2 (GS2) 0; curtain gas (CUR) 20 L min⁻¹, declustering potential (DP) 50 V, collision energy (CE) 10 V, acquisition range 600–1400 m/z.

For acquisition, Analyst TF software 1.7.1 (Sciex) was used, and deconvoluted spectra were obtained by using the Bio Tool Kit micro-application v.2.2 embedded in Peak-ViewTM software v.2.2 (Sciex).

Theoretical calculations

All the quantum mechanical calculations were performed using density functional theory (DFT) by using the Gaussian16 software package.⁴⁸ The hybrid B3LYP exchange and correlation functional,^49,50 comprised of Grimme's dispersion correction (D3), was used for the optimization calculations in conjunction with the Pople double-ζ basis set 6-31+G* for the oxygen atoms and 6-31G** for C, N and H atoms; while the effective core potentials (ecp) SDD^51,52 were used for the Pt atom along with the associated split valence basis set. The aqueous environment effects were taken into consideration by the integral equation formalism variant of the polarizable continuum model (IEFPCM),⁵³ using a dielectric constant of 78.4. Harmonic frequency calculations were performed in order to identify both the minimum and transition state nature of each stationary point (0 or 1 imaginary vibrational frequencies, respectively) and to get Gibbs free energies at 298 K and 1 atm from total energies, including zero-point, thermal and solvent corrections.⁵⁴ Intrinsic reaction coordinate analysis was performed to properly connect minima to each transition state.^55,56 Final energies were obtained by means of single-point calculations employing the triple-ζ basis set 6-311+G** for all the atoms, except Pt for which ECP def2-QZVP basis set was employed in conjunction with the split valence basis set. UV–Vis spectra were achieved, within the non-equilibrium time dependent (TD) DFT approach, as vertical electronic excitations on the ground-state structure, using the same protocol as that used for the optimization calculations.

The gauge-independent atomic orbital (GIAO) method^57,58 was used to estimate the absolute chemical shielding as implemented in Gaussian 16. The standard basis set 6-311++G** for all the atoms and the SDD for the Pt center, were coupled to the B3LYP functional. Chemical shifts have been then obtained from absolute shieldings by subtraction of a calculated reference, the absolute chemical shielding of TMS computed at the same level of theory.

Results and discussion

Synthesis and characterization

Complexes [(N^N)Pt(aliz)], 1b–9b were prepared starting from their corresponding [(N^N)PtCl₂] precursors, 1a–9a, obtained following or adapting already reported procedures,^40–43 to afford after filtration and washing the desired products in overall good yields of 60–90% (Scheme 1).

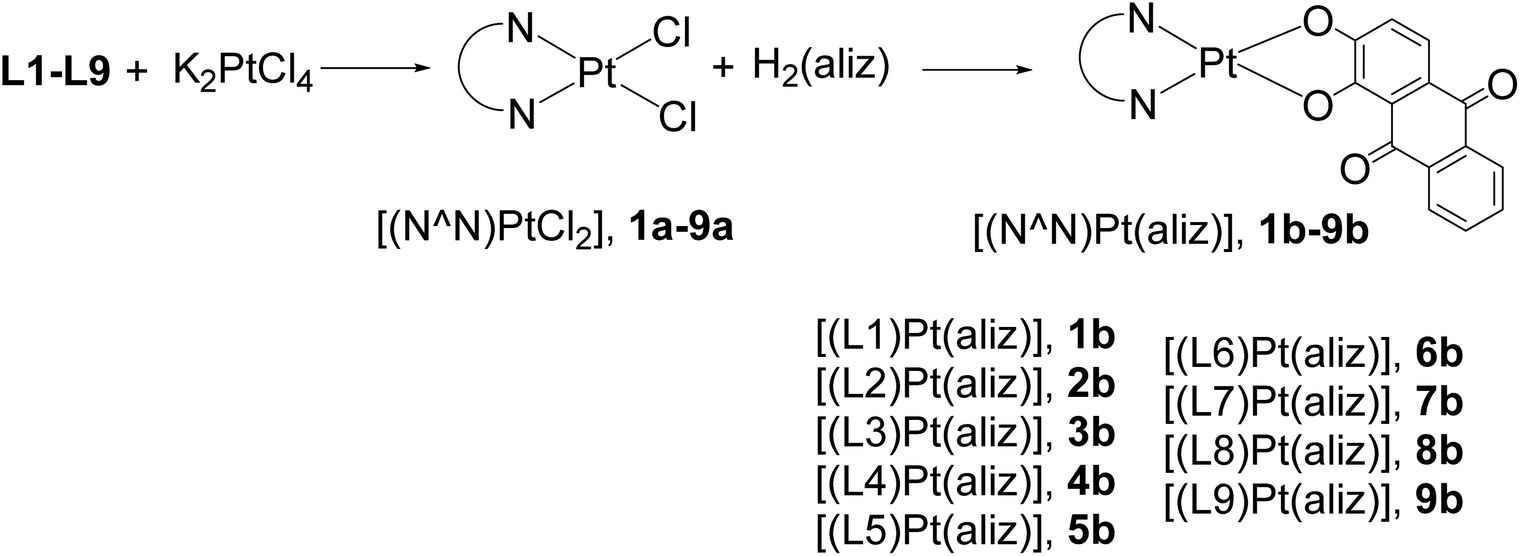

Scheme 1 Synthesis of [(N^N)Pt(aliz)₂] complexes, 1b–9b.

All complexes were obtained as dark powders, mostly insoluble in the common organic solvents except for dimethyl sulfoxide (DMSO). Complexes 1b–9b were fully characterized through spectroscopic characterization (FT-IR, multinuclear NMR, and electrospray ionization ESI-MS) as well as melting point determination and elemental analysis. In the free H₂(aliz) ligand, the (C=O) bands are present at 1683 and 1663 cm⁻¹ while the (C–O) band is at 1320 cm⁻¹.^22,59 In complexes 1b–9b, the (C=O) stretching vibration band is present as a red-shifted medium or a strong band centred at 1625 cm⁻¹. Moreover, each spectrum exhibits an intense band at ca. 1555 cm⁻¹ that can be reconducted to mixed (C=O) and (C=C) vibrations. With regards to the C–O bond, a very strong absorption band is present at 1349 cm⁻¹ for 1b and in the range of 1382–1392 cm⁻¹ for complexes 2b–9b. Lastly, for the complexes 1b–6b, it is important to underline the presence of the stretching bands related to the (N–H) vibrations. Specifically, they are positioned at 3303–3200 (1b), 3219 (2b), 3224 (3b), 3486 (4b), 3522 cm⁻¹ (5b) and 3367 (6b) cm⁻¹, respectively. ¹H NMR spectra confirm exhaustively once again the complexation of aliz. For each complex 1b–9b the coordination of aliz is testified by the shift of the aliz protons nearest to coordination sites, the most sensitive protons to ligand coordination. In each spectrum, the signal of the two H most sensitive to metal coordination is shifted to high fields with respect to H₂(aliz) and, in particular, of ca. 0.72 and 0.10 ppm respectively. Notably, the synthesis of complexes 3b–6b could afford a mixture of geometrical isomers, due to the asymmetry of both aliz and their corresponding (N^N) ligand.⁶⁰ The cis/trans isomers can be defined in function of the relative position of the N-atom of the –NH₂ function with respect to the more sterically hindered O-chelated atom of the alizarin ligand (Fig. 3).

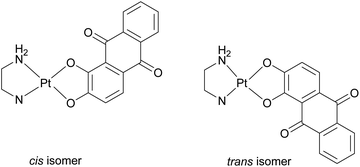

Fig. 3 Geometric cis/trans isomers of complexes 3b–6b.

However, the ¹H NMR spectra of compounds 3b–6b display a sole set of signals for both ligands evidencing that only a single isomer was obtained in each case. The spectral features of the two possible isomers of complexes 3b–6b were simulated in the framework of the GIAO method in order to establish if there is any evidence supporting the presence of one or other isomers in the examined sample. Both ¹³C and ¹H NMR spectrum simulations of the two possible isomers of complexes 3b–6b evidenced a very similar behavior of the two species; no significant difference in the computed chemical shifts (collected in Table S1†) about the key region of each complex was found. Even from a thermodynamic point of view, the relative stability of the two isomers differs by no more than 0.5 kcal mol⁻¹. In the absence of suitable crystals for X-Ray diffraction, to shed light on the nature of the synthesized isomer, we computationally analyzed the shortest distances between protons of the two ligands separated by the Pt(II) metal center in the complexes, looking for possible candidates prone to display the nuclear Overhauser effects (NOE). Measured distances computed in DMSO were extracted from the optimized geometries of complexes 3b–6b as reported in Table TS2.† Comparing the interproton distances complex 5b with a methyl group at the ortho-position of the pyridine ring has been identified as the rightful candidate for this study. Indeed, the interproton distance between the protons of the methyl group and the nearest proton of the alizarin ligand is 3.85 Å in the cis isomer, an ideal value for a NOE effect, as observed in the case of a Pd(II) complex.⁶¹ Therefore, in a 2D-NOESY experiment, it is expected that cis-5b isomer is expected to display two correlations: one with the nearest proton of alizarin, and one with the neighboring proton of the pyridine ring, while the trans-5b isomer should only display the latter one. The 2D-NOESY spectrum of 5b recorded in DMSO-d₆ as reported in Fig. S16,† clearly shows a unique NOE effect, thus evidencing that the trans isomer was produced. It is therefore hypothesized that for all complexes 3b–6b, only the trans isomer was indeed synthesized.

From a structural point of view, computations evidenced that all the complexes are characterized by a square planar structure in which the O^O and the N^N ligands, when fully aromatic, are coplanar to each other. While a distortion from the planarity on the N^N ligand can be observed, as expected, when one or both nitrogen atoms coordinated to the platinum center are sp³. The nature of the N^N ligands has only a marginal influence on the Pt–N and Pt–O bond lengths, as previously reported for some aquo complexes with similar nitrogen ligands.³² However, looking at such distances reported in Fig. S17† a slight shortening of the Pt–O bond trans to aromatic N as compared to trans to NH₂ can be observed. Similarly, the Pt–N distances involving aromatic nitrogen atoms are shorter than those with non-aromatic ones. For further detailed description, cartesian coordinates are reported in Table TS3.†

Stability of Pt complexes in buffered solutions (experimental and theoretical)

The UV–Visible absorption spectra of complexes 1b−9b were recorded in 1 × 10⁻⁵ M DMSO/buffer solution (DMSO 0.5% v/v) at room temperature, and the results are shown in Fig. 4. Moreover, in order to spectroscopically assess the long-term stability of all compounds in an aqueous medium, the absorption profiles were acquired over time (0, 3, 6 and 24 h) (Fig. S18†). The TD-DFT computed spectra in the water environment are reported in Fig. S19† and more detailed information collected in Table S4.† Both aqueous solutions of 1b and 2b, bearing N^N ligands L1 and L2, respectively, display absorption spectra characterized by a peak at 326 nm and by a broad, structureless electronic band at a lower energy (440–650 nm). In agreement with the experimental and theoretical absorption spectra of the analogous compound [(NH₃)₂Pt(aliz)] and other aliz transition metal complexes^25,62–64 such a band is assigned to metal to ligand charge-transfer (MLCT) transitions involving the aliz fragment (Fig. 4A). Indeed, the plot of the natural transition orbitals (NTOs), reported in Fig. S20,† confirm the MLCT nature of the band, which is generated by a pure electronic transition from HOMO to LUMO centered at 517 and 513 nm for 1b and 2b, respectively. The highest energy peak, is, instead, due to an intraligand charge transfer localized on the aliz ligand (ILCT), with a very weak participation of the metal only in the case of 1b. The electronic transition starts from an inner orbital (H-4) and ends at the LUMO.

Fig. 4 Absorption spectra of complexes 1b–2b (A), 3b–6b (B), and 7b–9b (C).

Analogously 3b–6b, all characterized by having a sp² hybridized nitrogen atom in the coordination sphere, show electronic absorption features in the UV–Visible range very similar to those of the related [(NH₃)₂Pt(aliz)] complex, pointing out the predominant involvement of the (O^O) ligand over the (N^N) one (Fig. 4B). The two bands, thus, originated by transitions with MLCT and ILCT character in the regions 440–650 and 275–420 nm, respectively.

The recorded and computed absorption spectra of the Pt(II)-diamine complexes 7b–9b are reported in Fig. 4C and Fig. S19C.† In all cases, a band between 440 and 650 nm is observed, attributed to a charge-transfer transition from the metal center to the aliz ligand. Nevertheless, differently from the other cases, the plot of NTOs clearly proves the participation of the (O^O) ligand in the charge transfer from the metal center (Fig. S20†). In the highest energy region (275–420 nm), also according to the comparison with the absorption spectra of the representative Pt(II) complexes 7a–9a, 7b–9b exhibit bands attributable to MLCT transitions involving the (O^O) ligand as well as the (N^N) ligand.^65,66 This is particularly evident in the case of 9b, for which a contribution of transitions having ligand to ligand charge transfer character can be highlighted.

In conclusion, it is possible to state that the photophysics of compounds 1b–9b is characterized by electronic transitions which strongly involve the 1,2-dihydroxy-9,10-anthraquinone ligand, as also observed in other alizarin-bearing coordination compounds.^67,68

Log P_ow and pharmacological evaluation

For complexes 1b–9b, log P_ow values were determined by RP-HPLC and using commercially available Pt(II) complexes as references.^69–71 The values were generally comparable, in a range of 2.79–3.57, depending on the type of the N^N ligands and on the presence of aliz (Table 1 and Fig. S13–15†).

Table 1 Log P_ow and cytotoxic effects of 1b–9b complexes on MDA-MB-231

[(N^N)Pt(aliz)] complexes	Log Pow^a	IC50 on MDA-MB-231^b
a Log Pow was evaluated by RP-HPLC, equipped with C18 ODS at 25 °C with water/methanol in ratio 80/20 in presence of 15 mM HCOOH as an eluent. b IC50 values were determined by the sulforhodamine B (SRB) assay.
1b	2.84	>200 μM
2b	2.82	>200 μM
3b	2.87	>200 μM
4b	3.26	>200 μM
5b	3.57	89.54 ± 2.21 μM
6b	3.39	10.49 ± 1.21 μM
7b	2.81	24.5 ± 1.5 μM
8b	2.79	>200 μM
9b	2.79	>200 μM
Cisplatin	-2.21	59.4 ± 10.06 μM

---

The cytotoxicity of complexes 1b–9b was tested in vitro on a triple negative breast cancer MDA-MB-231 cell line by the sulforhodamine B (SRB) assay. After 24 h incubation with increasing concentrations of the compounds, the IC₅₀ values were determined. As shown in Table 1, by the analysis of the cytotoxic activity results, only 5b, 6b and 7b showed a considerable decrease of cell viability with IC₅₀ values of 89.54 ± 2.21 μM (5b), 10.49 ± 1.21 μM, (6b) and 24.5 ± 1.5 μM (7b), respectively. In particular, 6b revealed the lowest IC₅₀ value.

Given the promising values of cytotoxicity obtained for some of the complexes, the object of this work, the intent was to study their possible mechanism of action. Therefore, we decided to deeply investigate complexes 2b, 6b and 7b which are similar from the structural point of view, but with very different cytotoxic profiles (not effective, 10.49 ± 1.21 μM and 24.5 ± 1.5 μM, respectively), in order to elucidate the fundamental role played by the (N^N) ligand. Furthermore, for a better understanding of the contribution of aliz in these three complexes’ reactivity, they are compared to their dichloride precursors 2a (IC₅₀ value of 6.65 μM), 6a (4.5 μM)²⁴ and 7a (11.92 μM). In order to understand the cause of the difference in terms of activity of these six complexes, Pt(II) bioavailability was analyzed by measuring the intracellular concentrations of Pt concentrations by ICP-MS of cellular lysates. Surprisingly, we detected minimal amounts of Pt after 6 h of incubation with 6b and 7b. Instead, 2b, 2a, 6a and 7a produced the highest incorporation into cellular proteins (Fig. 5).

Fig. 5 Protein-bound concentrations of Pt after incubation of the MDA-MB-231 cell line with Pt(II) complexes. Cells were seeded (250 000/35 mm Petri dish) and incubated with DMEM supplemented with 10% FCS; 24 h later the medium was replaced with the one containing 0.4% FCS and indicated concentrations of compounds. The incubation was continued for 6 h at 37 °C. At the end of this incubation period, the total cell homogenates were prepared. (A) ng Pt per mg protein and (B) percentage of Pt protein-bound compared to μM concentration utilized.

Since it was observed that the Pt established a minimal association with intracellular proteins, the amount of Pt bound to DNA was determined in order to justify its cytotoxic effect. The complex that displayed the largest affinity to nuclear DNA is 6b, probably due to its efficient transport into the nucleus without affecting cellular proteins. The Pt percentage bound to DNA, in relation to the entire compound incubated, exhibited by 6b was the highest compared to the other complexes selected. These results suggest that 6b elicits its highly potent cytotoxic effect by a very large association with nuclear DNA with a minimal interaction with intracellular proteins. The DNA binding capacity of 6b was significantly higher than cisplatin (Fig. 6).

Fig. 6 DNA-bound concentrations of Pt after incubation of the MDA-MB-231 cell line with Pt(II) complexes and cisplatin. Cells were seeded (250 000/35 mm Petri dish) and incubated with DMEM supplemented with 10% FCS; 24 h later the medium was replaced with one containing 0.4% FCS and indicated concentrations of compounds. The incubation was continued for 6 h at 37 °C. At the end of this incubation period, the total DNA was extracted. (A) ng Pt per mg DNA and (B) percentage of Pt DNA-bound compared to μM concentration utilized.

ESI-MS and NMR interaction studies of Pt complexes with biological molecules

A number of binding studies were conducted according to a well-defined ESI-MS experimental protocol that was recently developed in the METMED laboratory in Florence and is now documented in several papers.^72–74 In more detail, we reacted two distinct proteins, i.e. ribonuclease A (RNase A) and human serum albumin (HSA), and a DNA oligonucleotide, i.e. the single-stranded 12-mer ODN1, with equimolar amounts of three complexes 2b, 6b and 7b and of their respective chloride counterparts (2a, 6a and 7a) and analyzed through ESI-MS the products of those interactions. Notably, HSA (65 kDa) is a relatively big globular protein characterized by the presence of 17 disulfide bonds and only one free cysteine residue (Cys34);⁷⁵ HSA is the most abundant protein in the plasma and is known to interact with several metallodrugs including the classical anticancer drug cisplatin.⁷⁶ RNase A (14 kDa) is a relatively small protein with four disulfide bonds in its native state, i.e., Cys26–84, Cys58–110, Cys40–95 and Cys65–72; these disulphide bonds are relatively well exposed to the solvent. RNase is usually used as a model protein to better understand the molecular mechanisms of interaction of platinum metal complexes with proteins.⁷⁷ The DNA oligonucleotide ODN1 contains a single “GG” box in the middle of the sequence (5′-ATTAGGCCTAAT-3′) which is the typical binding site for the Pt(II) complexes.

Interestingly, the obtained ESI-MS spectra reveal a large difference in the reactivity of complex 6b compared to 2b and 7b, despite their close structural relationship. Indeed, in the case of complex 6b, an appreciable reactivity is observed with RNase and ODN1; in both cases complex 6b leads to the formation of a well-defined adduct bearing the Pt(II) 8-aminoquinoline fragment (Fig. 7).

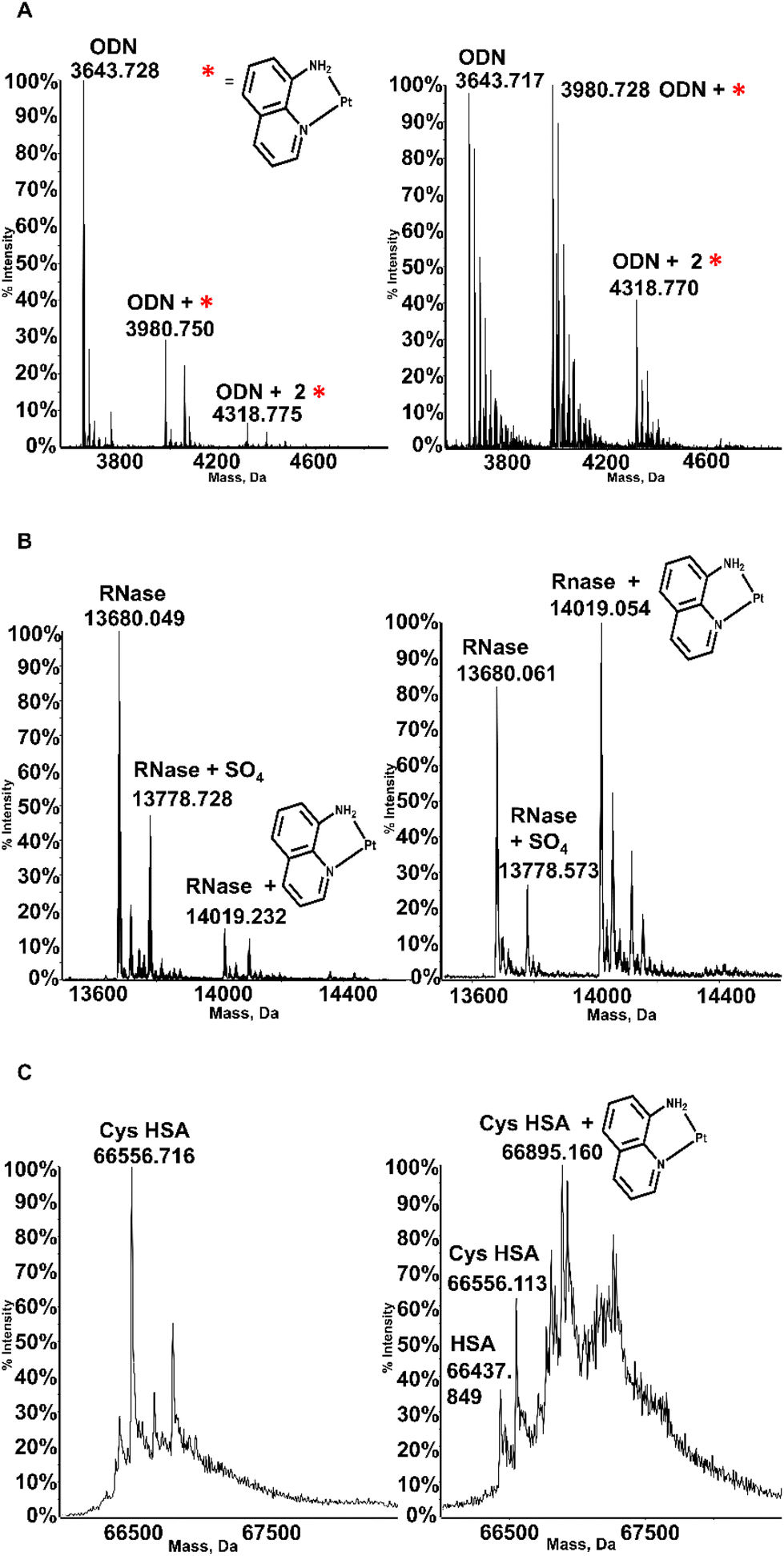

Fig. 7 (A) Deconvoluted ESI-Q-TOF spectra of ODN with complex 6b (left) and 6a (right). (B) Deconvoluted ESI-Q-TOF spectra of RNase with complex 6b (left) and 6a (right). (C) Deconvoluted ESI-Q-TOF spectra of HSA with complex 6b (left) and 6a (right), in a 1 : 1 molecules to platinum ratio. All spectra were recorded at 24 h.

Conversely, complexes 2b and 7b did not show any significant reactivity with RNase and ODN1; no adduct formation was indeed detected in the ESI-MS spectra after incubation (data not shown). No adduct formation was detected between complexes 2b, 6b and 7b and HSA.

At variance, all the chloride compounds, i.e. complexes 2a, 6a and 7a, manifested a large reactivity towards all tested targets (RNase, HSA and ODN), owing to the presence of the more labile chloride ligands. In Fig. 7, the ESI-MS spectra of complex 6b and its chloride counterpart, i.e. complex 6a, interacting with the above biomolecules are comparatively shown. In all spectra the signal of the native biomolecule is retained indicating that complete metalation of the targets has not occurred. In the case of ODN1 the peak at 3643 Da belongs to the native oligonucleotide and the other two signals at 3980 Da and 4318 Da belong to the adducts with the Pt(II) 8-aminoquinoline fragment with a binding stoichiometry of up to 1 : 2 of metal fragment/target. A similar reaction pattern is also identified in the case of RNase, with the native protein signal at 13 680 Da and a binding stoichiometry of up to 1 : 1. Instead, complex 6b did not react with HSA, as shown in Fig. 7C, while the complex 6a interacts with the protein, binding the classical Pt(II) 8-aminoquinoline fragment.

These findings pointed out that the chloride leaving group enhanced the reactivity of the Pt(II) complexes compared to the aliz analogues. This aspect is also confirmed by the comparative studies performed with the well-known anticancer agent cisplatin. The interactions between this drug and some biological targets, such as ODN, RNase and HSA, were evaluated; the adduct formation with the metal fragment [Pt(NH₃)²⁺] was observed in the case of RNase and ODN (see Fig. S21†).

It turns out that the aliz ligand greatly reduced the ability of the Pt(II) complexes to interact with the model biomolecules. However, the greater reactivity of complex 6b towards the targets, in contrast to the behavior of complexes 2b and 7b, was in good agreement with the cytotoxicity data; in fact, the cytotoxic data demonstrated that complex 6b (IC₅₀ value of 10.49 μM) was more active against the MDA-MB-231 cell line than complexes 2b and 7b, with IC₅₀ values of >200 μM and 24.5 μM, respectively.

Regarding the interaction with GSH, an NMR study was performed (Fig. S22†). As shown in the ¹H NMR spectrum, the appearance of two multiplets at 3.1–3.3 and 2.8–2.95 ppm is noted, assigned to the shift of the methylene protons next to the SH group originally present as a multiplet located at 2.60–2.85 ppm. Moreover, the new multiplet at 4.55–4.70 ppm arose in the spectrum originally represented as a multiplet at 4.3–4.4 ppm and relative to two methane functions, underlining the interaction between the complexes and GSH, more evident after 24 h in the case of 6b. With these types of complexes, despite the protective role possibly played by the aliz ligand, evidence is clearly obtained for sulfur coordination to the platinum center and adduct formation. Yet, it remains to be established to what extent the reaction proceeds in the real cellular environment and what is the precise platinum speciation. The relevant cytotoxic effects still produced by 6b in cancer cells suggest that only partial inactivation of the platinum complex by GSH has occurred.

Computational exploration of the mechanism of action

Given the substantially different abilities of the characterized complexes in causing cell death, a detailed computational study was carried out to explore their respective mechanisms of action. On the basis of the measured IC₅₀ (Table 1), complexes 2b, 6b and 7b were selected as they can be considered as a representative of inactive, highly active and medium active complexes, respectively. For the sake of comparison, the same calculations were performed on the chlorido derivatives 2a, 6a and 7a, the precursors of the selected complexes, in order to assess the influence of the aliz ligand on the anticancer action.

The key steps of the mechanism of action of Pt(II)-based anticancer drugs inside the cell, as depicted in Scheme 2, are as follows: (i) the labile ligand substitution by water molecules that leads to the formation of the corresponding aqua-complexes (hydrolysis) and (ii) the subsequent binding to nuclear DNA (DNA platination). The product of the first part of the mechanism can be both the mono- and di-aquo complexes as a result of the first and the second hydrolysis, respectively. Accordingly, the second part of the mechanism of action, that is DNA platination, can in principle involve either the mono-aquo (path a) or the di-aquo complexes (path b). The latter step, as is well-known, causes the structural distortion of DNA that ultimately leads to cell death. Complex 6b, as some of the investigated complexes for which the N^N ligand is not symmetric, can exist in two different isomeric forms. Calculations evidenced equal stability (energy difference of less than 0.5 kcal mol⁻¹) of the two isomers and, as no trans effect can influence the water attack, the anticancer activity was explored only for the trans isomer, being the experimentally obtained one.

Scheme 2 Schematic reaction mechanism accounting for the mode of action of the anticancer [(N^N)Pt(aliz)] complexes.

In Table 2 the activation free energies and the reaction free energies computed for both hydrolysis steps and DNA platination, are reported.

Table 2 Calculated activation (ΔG^‡) and reaction (ΔG_r) free energies (kcal mol⁻¹) in water describing the first and second hydrolysis processes and guanine interaction with mono- (aGua) and di-aquo (bGua) complexes

	1^st		2^nd		aGua		bGua
	ΔG^‡	ΔGr	ΔG^‡	ΔGr	ΔG^‡	ΔGr	ΔG^‡	ΔGr
2b	28.0	10.7	22.8	6.2	17.8	−11.9	16.9	−12.4
6b	26.4	14.9	20.9	5.5	19.6	−14.2	13.1	−11.3
7b	23.1	16.3	21.2	4.9	19.5	−7.8	17.5	−15.9
2a	23.2	5.9	20.5	7.0	16.7	−10.6	—	—
6a	23.9	6.1	23.2	8.2	15.3	−15.1	—	—
7a	20.9	5.8	25.5	9.6	18.9	−11.5	—	—

---

The anticancer action starts with the entrance of water in place of one arm of the O^O ligand (1^st hydrolysis). All the investigated complexes show approximately the same tendency to undergo the first hydrolysis. In all cases the reaction is endergonic in a range between 6 (for 6a) and 17 kcal mol⁻¹ (for 7b). The detachment of one oxygen coordinating atom of aliz in favor of water coordination requires the highest energy amount to be realized in complex 2b (see ΔG^‡ for the 1^st hydrolysis in Table 2), while for the reference complex 6a the lowest energy barrier was computed. The subsequent step, that is the formation of the diaquo-complex (2^nd hydrolysis), is only slightly endergonic for all the complexes. The kinetics of the second hydrolysis is rather similar for all the complexes. The associated activation energies remain in a range of 20–23 kcal mol⁻¹. The energies put into play suggest the first hydrolysis as the rate limiting step of the complete aquation reaction, as found for the analogue neutral complex [(NH₃)₂Pt(aliz)] previously studied.²⁵

DNA platination involves the attack of the Pt-based complexes to DNA nucleobases to form inter- and intrastrand crosslinks that cause structural distortion. Such a step of the anticancer action is usually modelled by simulating the attack on the preferred site of attack that is the guanine purine base of DNA at the N7 position.⁷⁸ Displacement of water allows guanine coordination to the metal center. This reaction was explored by taking into consideration the guanine attack to both mono- and di-aquo complexes (aGua and bGua in Table 2, respectively). The outcomes, in terms of activation and reaction free energies (Table 2), suggest that the behavior of the mono- and di-aquo complexes is similar for all the investigated complexes. Overall, the platination reaction is rather exergonic, similar to that observed for analogous complexes having the (C^N) ligand.^25,79

The soft nature of the platinum center may result in deactivation of the complexes due to the presence in the biological environment of sulfur-containing molecules, which can form stable adducts with Pt(II) complexes. As in our previous works, N-acetyl methionine (NAM) was used as a representative of such a class of biological residues, with the aim to explore the proclivity of the investigated complexes to undergo the attack of sulphur-containing units.⁸⁰ The computed free energy profiles are reported in Fig. S23.† Outcomes evidence that complexes 2b and 7b exhibit the same reactivity toward NAM. In contrast, complex 6b shows a certain resistance to being attacked by NAM. Among the chlorido derivatives, again, that bearing the L6 N^N ligand (7a) is less prone to undergo one aliz arm detachment in favor of NAM coordination. The adduct formation with NAM is endergonic in all cases, with the exception of 2a and 6a chlorido derivatives for which product stabilization, by about 2 and 6 kcal mol⁻¹, respectively was observed.

Conclusions

In the herein proposed series of neutral mixed-ligand Pt(II) complexes, the bidentate ligand alizarin was rationally introduced as the leaving group with the idea of protecting the active Pt centre from the deactivation processes commonly occurring in cells. After a careful evaluation of their structural properties and their cytotoxic activities, three compounds, i.e., 2b, 6b and 7b, were chosen to understand in more detail the role of aliz in serving as a selective carrier of the Pt centre to nuclear DNA, the main target of these types of complexes.

Typically, these tetracoordinated Pt(II) complexes contain two bidentate ligands, i.e., an inert ligand providing two nitrogen donors and aliz providing two oxygen donors. We noticed that the inert ligand can modulate importantly the biological activity of these Pt complexes. Indeed, only in two cases, i.e., 6b and 7b, a significant cytotoxic activity was observed while the other Pt complexes turned out to be poorly active or inactive. The comparison of 2b, 6b and 7b with their corresponding dichloride precursors 2a, 6a and 7a is particularly instructive. Indeed, replacement of the two chloride ligands with aliz makes these compounds far more selective for DNA than for proteins; this is particularly true in the case of compounds 6b and 7b as clearly indicated by the ICP results. This feature makes aliz a very attractive ligand for the preparation of medicinal Pt complexes. ESI-MS and NMR interaction studies nicely supported the lower reactivity with targets of the aliz Pt complexes in comparison with their dichlorido analogues. The computational studies confirmed this possible mechanism of action, leading to the identification of the Pt(II) complex 6b as a valid candidate for further pharmacological investigation.
