Tracking of structural defects induced by Eu-doping in β-Ag₂MoO₄: their influences on electrical properties

Abstract

In this study, several methods were employed to investigate the electrical characteristics of β-Ag₂MoO₄ systems, both Eu-doped and undoped, synthesized using the microwave-assisted hydrothermal method. The focus extended to understanding how synthesis time influences material defects, with doping fixed at 1%. A systematic shift in the silver vacancy (V_Ag) concentration was observed within the doped β-Ag₂MoO₄ system. Specifically, this study demonstrated that the incorporation of Eu³⁺ into polycrystalline β-Ag₂MoO₄ initially increases the V_Ag concentration. However, as the synthesis time progresses, the V_Ag concentration decreases, resulting in alterations in the resulting electrical properties, arising from the intricate interplay between the number of grain boundaries and carrier density. By combining information obtained from photoluminescence, positron annihilation lifetime spectroscopy, and impedance spectroscopy, a comprehensive conduction mechanism was formulated, shedding light on both doped and undoped β-Ag₂MoO₄ systems.

---

Introduction

Comprehending the intricate relationship between the structure, defect nature, and electrical transport properties is paramount in the design of multifunctional semiconductors. Molybdates with the molecular formula X₂MoO₄, where X = Li, Tl, and Ag, have garnered significant attention within the scientific community due to their remarkable photocatalytic properties,^1,2 applications in scintillators,³ sensors,^4–6 optical fibers,⁷ as well as their outstanding performance in diverse applications such as antibacterial,⁸ antifungal,⁹ antiviral,¹⁰ tribological,¹¹ microwave dielectric,¹² and supercapacitor electrode¹³ applications. Furthermore, highly pure β-Ag₂MoO₄ with a spinel-type cubic structure has been synthesized for catalysis applications due to its electronic properties.¹³

The use of Ag₂MoO₄ has shown enhanced properties, which are size and morphology-dependent when in nanoparticulate form.⁸ Particularly, the morphology of nanoparticles can be finely controlled through advanced synthesis methods (e.g., precipitation, sonochemical, conventional and microwave hydrothermal, etc.).^7,14–17 The initial synthesis of β-Ag₂MoO₄ crystals, as reported by Wyckoff et al., employed a solid-state reaction method, offering limited control over particle shape and size.¹⁸ Subsequently, Teodoro et al. investigated the impact of highly energetic facets on the photoluminescent (PL) response of β-Ag₂MoO₄ nanocrystals with varying sizes and shapes prepared using the microwave hydrothermal method.¹⁹ This is particularly relevant as semiconductor performance is intricately linked to the quantity and nature of defects, which can be influenced by the synthesis method. Moreover, the doping of β-Ag₂MoO₄ crystals has the potential to enhance their properties.^20–22

One significant advantage of doping silver compounds lies in the possibility of incorporating rare earth elements. Rare earth metals (REs) exhibit unique optical properties, primarily attributed to 4f–4f or 5d–4f transitions stemming from their electronic configurations.²³ Eu³⁺ ions, in particular, are known for their distinct and well-defined emission bands²⁴ arising from their electronic configuration 4f,⁶ where the outermost electrons shield the inner ones.^25,26 Consequently, Eu-doping has a profound effect on the PL properties of the host matrix.²⁶ Additionally, the incorporation of Eu³⁺ can elevate the concentration of oxygen vacancies (V_O).

The concentration of V_O (e.g., , , ) and silver vacancies (e.g., , V_Ag–O, etc.) plays a pivotal role in governing the electronic behavior of transition metal oxide (TMO) semiconductors.²⁷ These vacancies arise due to electron–hole recombination within the bandgap region and deviations from the perfect crystal lattice, leading to a reduction in the interfacial reaction energy barrier.²⁸ Hence, understanding and manipulating defects in semiconductors have emerged as potent tools for fine-tuning their performance. In 2019, Sudarshan et al. successfully synthesized pure and Dy³⁺ doped β-Ag₂MoO₄ using a co-precipitation method at room temperature.²⁹ Their work demonstrated that Dy³⁺ induces cation vacancies and surface defects, as evidenced by positron annihilation lifetime spectroscopy (PALS), confirming Dy³⁺ stabilization at Ag⁺ sites.

Despite existing studies in the field of defects, shallow discussions have prevailed in this area of knowledge, highlighting a clear need for in-depth exploration. In the present study, β-Ag₂MoO₄ powders doped with Eu³⁺ were synthesized using the microwave-assisted hydrothermal method. The concentration of Eu³⁺ was held constant (1%), while the synthesis time was varied (4, 8, 16 minutes). All samples underwent characterization through a combination of XRD, Rietveld refinement, micro-Raman spectroscopy, diffuse reflectance spectroscopy (DRS), field emission scanning electron microscopy (FE-SEM), and photoluminescence (PL) emissions. To elucidate the nature of defects, measurements were conducted using PALS and impedance spectroscopy (IS). Finally, a conduction mechanism was proposed based on the observed behavior, taking into account the results of PL, PALS, and IS.

Results and discussion

Structural characterization

Fig. 1a shows the X-ray diffraction patterns for the as-prepared β-Ag₂MoO₄ samples. All samples exhibit narrow, well-defined XRD peaks, indicating the synthesis of highly crystalline material.³ All peaks for the crystalline structure were indexed by the cubic β-Ag₂MoO₄ phase (ICSD #238013) belonging to the Fd3̄m space group. No secondary phase peaks were identified. The lattice and Rietveld parameters compiled in Fig. S1 and Table S1† demonstrate a coherent refinement, as evidenced by the Rietveld parameters (χ², R_wp, R_bragg). In addition to the Rietveld parameters, Table S2† summarizes the values associated with atomic coordinates, occupancy factor and anisotropic thermal factor for all samples. It is worth mentioning that the Rietveld method was carried out fixating the occupancy factor parameters considering a 1% Eu-doping for all samples. Additionally, Fig. 1b highlights a peak shift associated with the (311) crystallographic plane towards higher Bragg angles (2θ), which may be attributed to the incorporation of Eu³⁺ ions at Ag⁺ sites within the β-Ag₂MoO₄ structure. This incorporation leads to the formation of Eu³⁺ clusters that replace three Ag⁺ clusters, resulting in lattice relaxation, polarization of the structure, and the formation of oxygen vacancies and silver vacancies (V_O/V_Ag). Depending on the synthesis time, the crystalline structure acquires greater symmetry, resulting in different electronic densities in the V_O/V_Ag and variations in the influence of the Eu clusters on the semiconductor properties. The behavior of β-Ag₂MoO₄ can be explained by complex V_O that can exist in three different charge forms: neutral (), singly ionized (), and double ionized ().³⁰ This is corroborated by a slight increase in the unit cell volume from ∼806.7 ų (Pure) to 807.4 and 807.5 ų (4Eu and 8Eu, respectively), and 808.2 Å3 (16Eu) as the synthesis time increases. Using the Williamson-Hall method (Fig. S2†), microstrain values were calculated for the samples, revealing a decrease in values when compared to the pure sample. This indicates a decompression in the crystallites of the sample, consistent with the results obtained from Rietveld refinement.

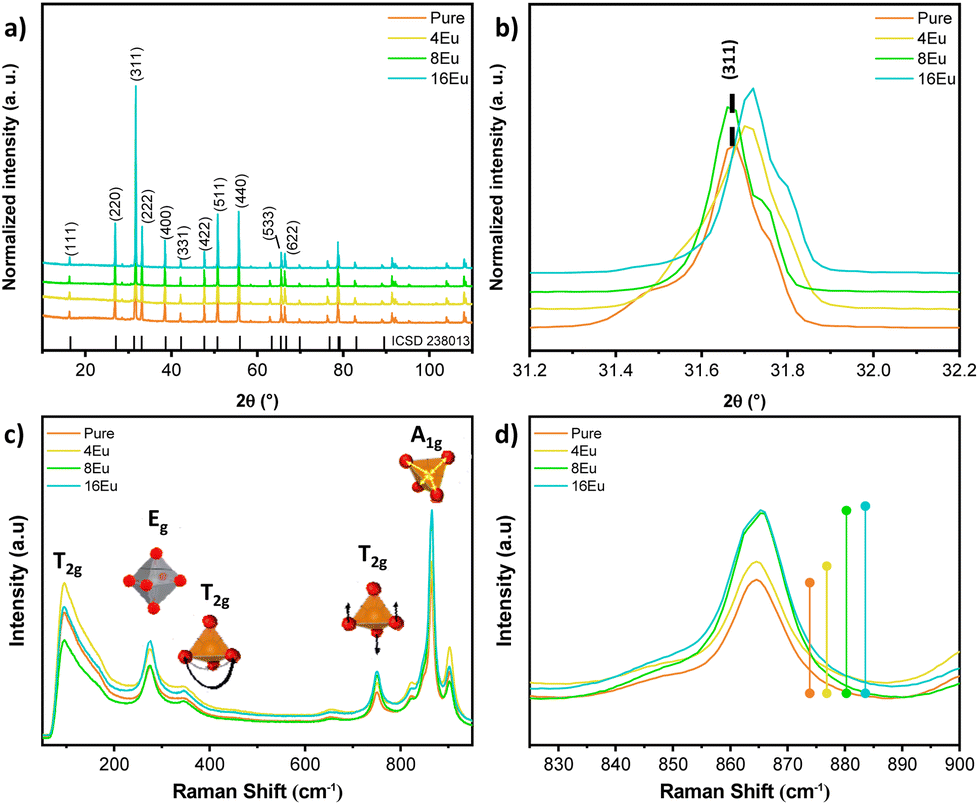

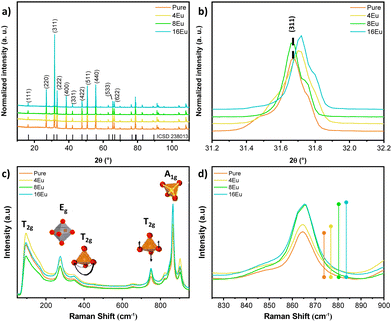

Fig. 1 (a) XRD spectra of the samples and; (b) detailed analysis of the (311) plane. (c) micro-Raman spectra of the samples and; (d) detailed analysis of the A_1g Raman mode.

Fig. 1c shows the micro-Raman spectra collected at room temperature for all samples. According to the group theory, there are 16 vibrational groups possible for β-Ag₂MoO₄: A_1g; E_g; 3T_2g; T_1g; 4T_1u; 2A_2u; 2E_u; and 2T_2u, of which 6 (A_1g + E_g + 3T_2g + T_1g) are Raman active, and mode T_1u is detectable in infrared spectra. However, subscripts “g” and “u” indicate an inversion center in the β-Ag₂MoO₄ structure, leading to a total of five Raman active modes. At ∼95 cm⁻¹ mode T_2g may be associated with the mobility of O²⁻ ions within the β-Ag₂MoO₄ structure.^6,31 Mode E_g, detected at ∼275 cm⁻¹ can be associated with vibrations of the [AgO₆] octahedral.^8,32 The band at around ∼348 cm⁻¹ is attributed to the T_2g mode, which in turn is related to bending vibrations of O–Mo–O bonds in [MoO₄] clusters. The asymmetric stretching of these bonds is responsible for the T_2g mode, which is ascribed to the band located at approximately ∼750 cm⁻¹.^8,32 At ∼670 cm⁻¹, ν₁ was assigned to the anti-symmetric vibrational F_2g mode of [MoO₄] polyhedra. Finally, A_1g mode can be detected at ∼865 cm⁻¹, corresponding to the symmetric stretching of Mo–O bonds in the [MoO₄] tetrahedra.^8,32 Analogously, the modes orbiting the A_1g – ν₂ (∼820 cm⁻¹) and ν₃ (∼895 cm⁻¹) can be ascribed to anti-symmetric stretching in the [MoO₄].³¹ Teodoro et al.¹⁹ reported peak broadening and the presence of shoulder-like peaks associated with the A_1g mode in β-Ag₂MoO₄ synthesized by the hydrothermal microwave method. The authors linked this behavior with inelastic scattering (i.e., bond length changes, which vary the vibrational mode frequency).^8,32,33 None of the samples had a significant position shift of Raman bands. However, Fig. 1d shows a slight increase in the intensity of mode A_1g with Eu³⁺ incorporation, which may be related to the formation of V_Ag within the crystal structure.^31,34 Increasing synthesis time leads to changes in the chemical environment capable of promoting tetrahedral distortions, increasing symmetry and, consequently, increasing the structural order at a short-range. In particular, the mode located at 865 cm⁻¹ which corresponds to the stretching mode of the Mo–O bond in the tetrahedral [MoO₄] cluster, can be considered as a signature of the structural change of the β-Ag₂MoO₄ lattice provoked by the increasing of the soaking time. From the Raman spectra we can noted that the obtained powders are free of impurities since no active modes are evident in the spectra. These results are in agreement with XRD data. As Eu³⁺ substitutes Ag⁺, V_Ag are formed and changes in the symmetry as well as in the periodicity of atoms with different degrees of ordering at short range distances. From the Raman measurements, we fitted the peaks using the Lorentzian peak function, which gave us the FWHM values seen in Table S3 and Fig. S3.† A high degree of disorder in the structure is observed as synthesis time raises. Eu³⁺ doping induces the formation of large cationic intergranular vacancies leading to local polarization, and affecting the distribution of the energy levels within the bandgap region.

Fig. 2a–d exhibits FE-SEM images of the as-prepared β-Ag₂MoO₄ samples. The pure sample displays an agglomerate of irregular particles with undefined geometry (1.75 ± 0.39 μm × 4.29 ± 0.96 μm). As Eu³⁺ is incorporated at Ag⁺ sites within the β-Ag₂MoO₄ structure, the micrograph images reveal the formation of well-defined cubic-shaped particles (4Eu, 0.98 ± 0.63 μm), which grow significantly with synthesis time (8Eu, 6.47 ± 1.22 μm; 16Eu 6.82 ± 0.87 μm). Small structures randomly distributed on the surface of the particles, and whose contribution increase with synthesis time, significantly increase superficial roughness. From Wullf's construction (Fig. 2e), one can observe the behavior of the morphology in relation to the surface energies imposed on the system. According to Foggi et al., the ideal β-Ag₂MoO₄ system has surface energies for the (001), (011), and (111) planes of 1.90, 1.28, and 3.46 J m⁻².⁸ It is observed that the ideal morphology is characterized by the complete exposure of the (011) surface due to its lower energy. Therefore, different morphologies can be achieved by stabilizing the (001) and (111) surfaces. By stabilizing the surface energy of (111), an octahedral morphology is gradually reached, while stabilizing the surface energy of (001) leads to a gradual transition to a cubic morphology. This reduction in energy needs to be at least 1.28 J m⁻² for complete exposure of the (001) surface. Consequently, it can be seen that Eu³⁺ plays a fundamental role as a dopant in stabilizing the (001) surface energy, allowing for its selective use in the design of new materials. This surface is composed of surface clusters [AgO₅.V_O], making it more active for photocatalytic and antimicrobial applications. This result is aligned with what was observed by Almeida et al.,³ where it is demonstrated that an increase in the concentration of Eu³⁺ in the β-Ag₂MoO₄ lattice results in the appearance of a small concentration of cubes. The concentration of cubes can be enhanced through the synthesis method, but previously works did not show selectivity for cubes,^19,35,36 with Eu³⁺ being the primary morphology-directing agent.

Fig. 2 FE-SEM images of the samples (a) Pure, (b) 4Eu, (c) 8Eu, and (d) 16Eu. (e) Wullf construction of the β-Ag₂MoO₄ morphologies.

Optical characterization

The Wood–Tauc method and the Kubelka–Munk function were employed to determine the optical band gap energy (E_gap) of the samples. This approach relies on converting diffuse reflectance measurements to accurately estimate E_gap values within specified limits.³⁷ All samples behaved as expected for a β-Ag₂MoO₄ (E_gap = 3.2–3.3 eV, Fig. S4†), which is consistent with the Rietveld analysis that shows an almost constant unit cell volume. The optical absorption in β-Ag₂MoO₄ microcrystals as a function of indirect electronic transitions (e.g., lowest energy e⁻ in the conduction band hopping to distinct areas of the valence band in the Brillouin zone), was previously study in our group.

Fig. 3a shows the PL emission spectra recorded at room temperature for all samples excited by a 355 nm. PL emissions between 400–550 nm form a broad excitation band associated with the β-Ag₂MoO₄ matrix, which was referred to as O²⁻/Eu³⁺ charge transfer band (CTB) by Dorenbos.³⁸ This band can be considered as a combination of three charge transfer mechanisms, which are: (1) relocation of electrons from O²⁻ to Mo⁶⁺; (2) transference of electrons between Eu³⁺ 4f states to Mo⁶⁺ valence band; and (3) electronic transition between filled up O²⁻ 2p orbitals to vacant 4f Eu³⁺ orbitals. A broad emission in the blue region, between 390 and 550 nm (λ_max ≈ 450 nm), is characteristic of the β-Ag₂MoO₄ matrix (Fig. 3b). Almeida et al.³ reported this behavior as a result of changes in the order of [MoO₄] tetrahedra and [AgO₆] octahedra, leading to local polarization, and affecting the distribution of the energy levels within the bandgap region. Thus, the PL emissions of the matrix are significantly determined by Ag–O/Mo–O distortions, due to their influence on the electronic properties of the material.²⁸

Fig. 3 (a and b) Photoluminescence spectra for all samples of the β-Ag₂MoO₄ system showing the influence of Eu³⁺ and synthesis time, (c) a practical model explaining the PL mechanism for both pure and Eu-doped β-Ag₂MoO₄ and (d) the associated chromaticity diagram.

The PL spectra (Fig. 3a) of the Eu-doped samples are significantly different from that of pure sample, showing sharp bands between 550 and 750 nm. These bands can be associated with inter configurational f–f electronic transitions (⁵D₀ → ⁷F_J) in the Eu³⁺ ions occurring at 595 nm (⁵D₀ → ⁷F₁), 616 nm (⁵D₀ → ⁷F₂), 655 nm (⁵D₀ → ⁷F₃), and 703 nm (⁵D₀ → ⁷F₄).³⁹ Some of these transitions are hypersensitive to the crystal field and may be useful for understanding the host lattice and local symmetry,^39,40 while ⁵D₀ → ⁷F₁ transitions are insensitive to a local symmetry, ⁵D₀ → ⁷F₂ transitions correspond to electronic dipole transitions, which provide rich information on the local chemistry around Eu³⁺ ions^39,41,42 As the (⁵D₀ → ⁷F₂) transition at 616 nm is more intense than (⁵D₀ → ⁷F₁) transition at 595 nm we can infer that Eu³⁺ ions are located in a site without inversion of symmetry. In this way, the relative area ratio of the ⁵D₀ → ⁷F₂ to ⁵D₀ → ⁷F₁ transitions provides information about the local distortions in the clusters into which Eu³⁺ cations have been incorporated within the structure.⁴³ The values obtained for the 4Eu, 8Eu, and 16Eu samples were 3.66, 5.36, and 6.01, respectively. Consequently, it is observed that increasing the synthesis time in the microwave hydrothermal system leads to an increase in local distortions associated with the Eu³⁺ clusters within the crystal lattice. This outcome aligns with what has been observed thus far, as an increase in short and long-range order occurs with the synthesis time, resulting in greater distortions in the neighborhood of the Eu³⁺ atoms due to a more organized crystal lattice.

Fig. 3c shows a practical model explaining the luminescence mechanism in Eu³⁺-doped β-Ag₂MoO₄ samples. A source of light supplies energy and promotes electrons from O 2p levels in the valence band (VB), to the conduction band (CB), made up of Mo 4d levels. Light emission occurs as the excited electrons radiatively decay from the CB to the VB. The incorporation of Eu³⁺ ions within the β-Ag₂MoO₄ generates an alternate path to emissions, in which the excited electrons decay from the CB to excited levels of the Eu³⁺ cations located within the bandgap region before reaching the VB. First, occupied 4f states decay non-radiatively to Eu³⁺ characteristic emission levels (⁵D₀) and then radiatively to fundamental states (⁷F_j, j = 1, 2, 3, and 4) emitting on specific characteristic lengths. Fig. 3d exhibits the PL-associated coordinates in the chromaticity diagram (CIE–Commission internationale de l'eclairage 1931)⁴⁴ using a 355 nm wavelength light as excitation source. Our results indicate a significant red shift in PL emission at the chromaticity diagram as [MoO₄]-[EuO₈] energy transfer becomes more efficient. Hence, the Eu-doped samples are red phosphorus, and β-Ag₂MoO₄ can be considered a good host for red Eu³⁺ emission sensing. One can observe that as synthesis time increases, the correlated color temperature of the Eu-doped samples increase (see Table S4†), and its coordinates become closer to the edge, indicating the emission consists of purer red – lower contribution of other colors in the gamut emission.^3,39 Also, β-Ag₂MoO₄ acts like a good matrix for receptor of Eu³⁺ cations due to the energy transfer from the [MoO₄] to the [EuO₈] clusters. Based on these results we can infer that europium is an excellent activator of the red emitting phosphor due to its low 4f → 4f absorption efficiency in the near ultraviolet region.

Impedance spectroscopy

In order to comprehend the effect of synthesis time in the pure and Eu-doped β-Ag₂MoO₄ systems, the electrical response as a function of frequency was studied. Nyquist plots (Z*) of the β-Ag₂MoO₄, Fig. 4a is shown. Also, the electrical capacitance (C_p) and the electrical resistance (R_p) were determined at two different temperatures (40 and 140 °C) to assess thermally activated phenomena (Fig. 4b and c). The results show that the semicircle radius decreases with temperature. This behavior can be associated with higher mobility of the charge carriers as the temperature rises. Generally, Nyquist plots are characterized by the presence of multiple semicircular arcs, which can be attributed to specific contributions of the grains, grain boundaries, as well as electrodes. The presence of these semicircles depends on the impedance values and frequency range. For polycrystalline semiconductor pellets at 140 °C, the observed semicircles can be ascribed to the grain boundaries and electrodes, whereas at 40 °C, the involved resistances are very high and, hence, only a part of a semicircle can be observed, which could be associated with the grain boundaries. To fit the Nyquist plots, an equivalent circuit combining ideal resistors, capacitors, and inductors is regularly used. However, in many cases, ideal elements can only approximate the experimental impedances in a limited frequency range. When dealing with an activation energy distribution instead of a single value, the Debye-like response is changed due to the dispersion associated with defects within the semiconductor and a better fitting to the experiments can be obtained by incorporating a Constant Phase Element (CPE) as discussed in.⁴⁵ The used equivalent circuit is presented in Fig. S5.†

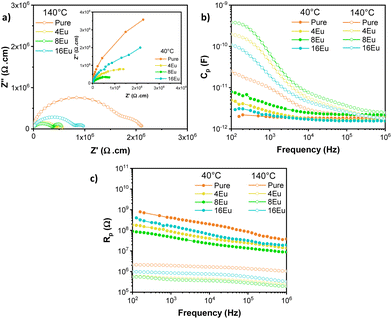

Fig. 4 (a) Nyquist plots (Z*) obtained at 140 °C. The inset shows the Z* plots at 40 °C. (b) C_p and (c) R_p total electrical behavior as a function of frequency (Hz) at 40 and 140 °C for all samples.

Fig. 4b and c exhibit total parallel equivalent capacitance (C_p) and the total parallel resistance (R_p) as a function of frequency. These plots clearly show a decrease in resistance as the temperature increases, indicating thermally activated conduction mechanism. Additionally, the capacitance increases with temperature, which can be ascribed to the activation of electronic traps as the temperature rises. The grain boundary capacitance could be extracted from the results at a high enough frequency. In the present case, values for the highest frequency we can reach (∼10⁶ Hz) seem to be still decreasing with frequency, and, especially, they are very small to have confidence on the exact values that could be measured. On the other hand, the observed capacitance for f = 100 Hz mainly corresponds to the contribution of traps at the contacts. From the observed semicircles in the Nyquist plots, we can determine the grain boundary resistance (R_gb). On the Nyquist plots obtained at 40 °C, R_gb values can be determined from the only detected semicircle, whereas at 140 °C, R_gb values are those associated with the high-frequency semicircle. These results are displayed in Fig. 5a. At both 40 and 140 °C, the resistance decreases with the incorporation of Eu³⁺ within the β-Ag₂MoO₄ structure up to 8 minutes holding time (8Eu). Then R_gb increases for the sample 16Eu. Fig. 5b shows the capacitance (C) estimated at 100 Hz. Analogously to the R_gb, C increases in the Eu-doped samples, reaching a maximum for sample 8Eu, for sample 16Eu the C_gb values decrease. This result is consistent and can be ascribed to conductance through tunneling. Likewise, an increase in the value of C may be related to the narrowing of the depletion layer. The changing trend in R_gb and C found when the synthesis time changes from 8 to 16 minutes indicates a lowering density of V_ag associated. It is worth noting that a defect density increase would be competing with structural changes during the synthesis. Indeed, larger grains would imply a lower number of interfaces and, hence, lower resistance and larger capacitance. However, structural changes cannot explain the larger value of R_gb and the lower values of C for sample 16Eu. This would indicate a lower acceptor density (V_ag) since we are dealing with a p-type semiconductor, as explained by Lacerda et al.⁴⁶ Then, in order to corroborate previous interpretations, in the following section an analysis of PALS is presented.

Fig. 5 (a) Grain boundary electrical resistance (R_gb) at 40 and 140 °C. These values were determined from the only detected semicircle at 40 °C in Fig. 4a. Instead at 140 °C the R_gb values are those associated with the high-frequency semicircle, and (b) shows the capacitance (c) estimated at 100 Hz (grain boundary capacitance (C_gb)). At both 40 and 140 °C the grain boundary capacitance values are associated at low frequency semicircle of Fig. 4a.

PALS measurements

PALS is a powerful, non-destructive, sensitive, and versatile technique for investigating the nanostructure of crystalline materials. In particular, PALS has been demonstrated to be a powerful tool for studying the defect structure, including the type and concentration of defects present at the nanoscale in metals and semiconductors.^47,48 In general, from a PALS spectra decomposition, several lifetime components can be obtained; each of them is characterized by a lifetime value and an associated intensity. In a crystalline system, the presence of distinct lifetime components can be related to positron trapping and annihilation into different types of vacancy-like defects, such as vacancies, dislocations, or grain boundaries. On the other hand, in the absence of defects, the obtained positron lifetime is called bulk lifetime (τ_b). This lifetime is characteristic of the material and can be used as a reference for identifying the presence of defects. In the present work, all the measured PALS spectra could be satisfactorily fitted by considering three lifetime components. The longest component, which has lifetimes ranging from 1.5 ns to 2 ns, is usually attributed to positron annihilation at the air-sample interface and, therefore, does not contain any physical information from the sample. Furthermore, given that the intensity associated with this component is very low (<1%), it will not be considered from now on.

Under this scenario, the relevant physical information regarding the changes occurring in the defect structure (nature and concentration of defects) due to doping of β-Ag₂WO₄ sample with Eu³⁺ and varying the synthesis time can be found in the first and second lifetime components. Positron lifetime and intensity parameters obtained from the PALS spectra decomposition for the different measured samples are presented in Fig. 6 As can be seen, for the pure sample, the first lifetime component is characterized by a lifetime of ∼183 ps and an associated intensity of ∼57% while the second lifetime component has a larger lifetime of ∼350 ps with an intensity of ∼43%. The addition of Eu³⁺ causes a rise in both positron lifetimes; τ₁ value increases up to ∼201 ps and τ₂ up to ∼375 ps. Moreover, the intensity I₂ dropped at approximately 40%. The increase in the synthesis time provokes a systematic drop in τ₁ values, ranging from ∼201 ps for the 4Eu sample up to ∼186 ps for the 16Eu sample. The same behavior can be observed in τ₂ values, which vary between ∼375 ps and ∼350 ps for the 4Eu and 16Eu samples, respectively. Regarding the associate intensity to this component, I₂ values increase with the synthesis time, from ∼40% to ∼46% for the 4Eu and 16Eu samples, respectively.

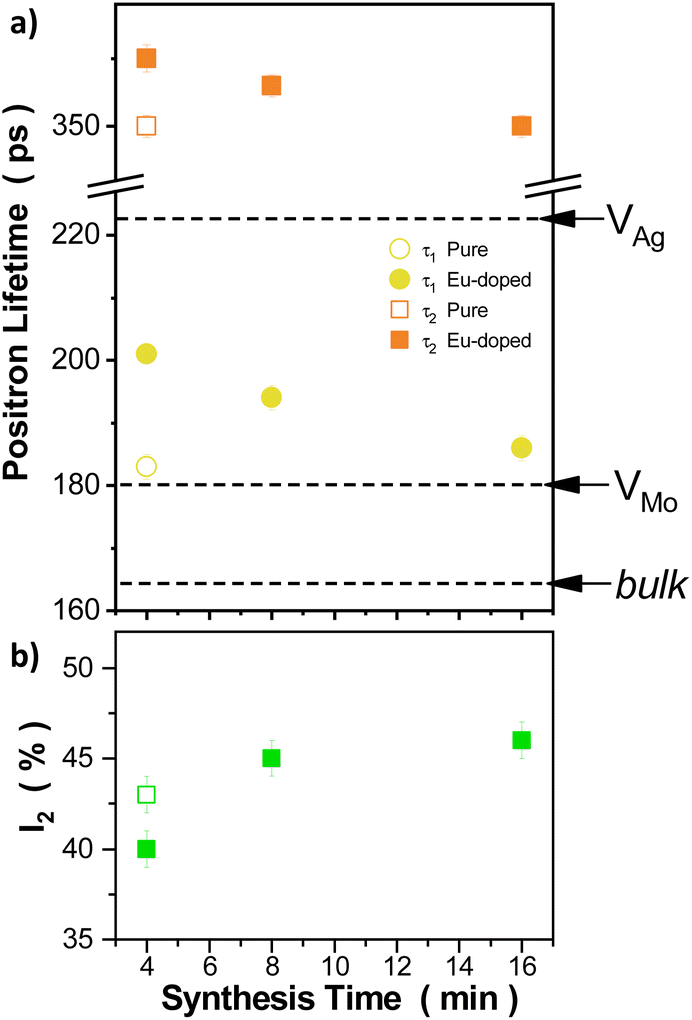

Fig. 6 Evolution of the PALS parameters as a function of the synthesis time for the pure and doped β-Ag₂MoO₄ samples: (a) τ₁ and τ₂ parameters. The dotted lines indicate the theoretical positron lifetimes calculated for the perfect β-Ag₂MoO₄ structure and containing various defect states, and (b) the intensity associated with τ₂.

As usual in the literature when studying PALS using nanostructured powder-based systems, the second temporal component is attributed to the trapping and subsequent annihilation of positrons in extended volume defects, typically clusters of vacancies (V_C) present on the surface of the nanograins or in the intergranular spaces, i.e., intergranular defects. Conversely, the shorter lifetime component is usually assigned to the trapping and subsequent annihilation of positrons in smaller defects, typically monovacancies located within the nanograins, known as intragranular defects.^49–51 In complex systems, to analyze and interpret the information obtained from PALS is often challenging. One of these challenges is to obtain a reference sample representing a perfect crystal with a low enough defect concentration. PALS is an inherently comparative technique that relies on appropriate reference samples of the material under study. Additionally, these oxides can have coexisting vacancies of different types. In such cases, performing first-principles calculations of positron states is extremely useful for interpreting the measured lifetimes.^50,52,53 In the present work, we have used the simplest calculation scheme to calculate the theoretical positron lifetimes for the bulk and different vacancy states that could be present in the pure β-Ag₂WO₄ structure. The details of the calculation procedure are reported by Espinosa et al.⁵² To model the pure β-Ag₂WO₄ lattice, we have used a supercell containing 448 atoms (2 × 2 × 2 replication of the cell used for the Rietveld refinement). In such a structure, a V_O was created by removing an O atom; a molybdenum vacancy (V_Mo) by removing a Mo atom and a V_Ag by removing an Ag atom, all of them located in the center of the supercell. For the different positron states, the theoretical positron lifetime (τ) and the positron binding energy (E_b) were calculated, and the obtained results are reported in Table 1. The parameter E_b is defined as the difference between the ground energy of the delocalized positron and the energy of the positron trapped in the considered defect.⁵⁰ A positive E_b value indicates that the considered defect acts as an effective positron trap.

Table 1 Theoretical positron lifetimes and positron binding energies for the β-Ag₂MoO₄ structure and various defects states

Positron state	τ (ps)	E b (eV)
Bulk	163.9	—
VO	167.0	−0.10
VMo	180.1	+0.32
VAg	223.1	+0.48

---

Experimental

Synthesis

The samples were synthesized using the hydrothermal microwave method. Initially, Na₂MoO₄·2H₂O (1.0 mmol, Sigma-Aldrich-99.5%) and AgNO₃ (2.0 mmol, Sigma-Aldrich-99.99%) were separately dissolved in 50 mL of deionized water. Both solutions were heated to 80 °C and stirred magnetically for 15 minutes. Upon mixing the resulting solutions, a solid beige precipitate (β-Ag₂MoO₄) promptly formed. To produce Eu-doped β-Ag₂MoO₄ powders, 0.01 mmol of Eu(NO₃)₃, obtained from Eu₂O₃ (Sigma-Aldrich, 99.99%) dissolved in HNO₃ (LabSynth, 37.0%) with heating, was introduced into the AgNO₃ solution. The system was transferred to a Teflon reactor, sealed, and placed in the microwave hydrothermal system (2.45 GHz, maximum power of 800 W) for different times (4, 8, and 16 minutes) at 160 °C. The samples were denoted as Pure, 4Eu (4 min), 8Eu (8 min), and 16Eu (16 min).

Characterizations

Phase analysis was performed using XRD on a D/Max-2500PC diffractometer. Data were collected using Cu-Kα radiation (λ = 1.5406 Å) over the 10° ≤ 2θ ≤ 110° range at the rate of 1° min⁻¹. The crystal structure of the as-prepared pellets was evaluated using the Rietveld method⁵⁴ on Topas V5, in its academic version.⁵⁵ For all samples, a Chebychev polynomial function of order 5 was considered as the background and considering and setting fixed occupancy factor values for Ag⁺ (0.99) and Eu³⁺ (0.01) ions, taking into consideration a 1% Eu-doping. Quantitative phase analysis and the statistical parameters (R_Bragg, R_wp, and χ²) were estimated. Raman spectroscopy was carried out on an iHR550 spectrometer with a charge-coupled device detector and an Argon-ion laser operating at 633 nm and a power of 200 mW. The morphology of the as-prepared β-Ag₂MoO₄ powders was assessed using an FE-SEM Supra 35-VP microscope operating at 5 kV. The optical properties were investigated by absorption spectroscopy in the UV–Vis range, using a Varian model 5G spectrometer programmed in diffuse reflectance mode. To estimate the band-gap energy, the UV-Vis data were converted into Tauc plots via the Kubelka–Munk function, considering indirect type allowed transitions for the samples (n = 2). The y-axis corresponds to the transformed Kubelka–Munk function ([F(R_∞)hν]1/2) and the x-axis to the photon energy. The band-gap energy corresponds to the interception point between the extrapolation of the linear fit of the curves and the x-axis. For room temperature PL measurements, a Kimmon He–Cd laser emitting at 355 nm with a maximum power of 40 mW was utilized as the excitation source.

Impedance spectroscopy

The impedance spectroscopy technique provides fundamental characteristics of semiconductors like conductivity (σ) as a function of time, temperature, applied voltage bias, and frequency (ω).⁵⁶ Previous to this electrical evaluation, the as-prepared powders were cold pressed into pellets (diameter/width) at 1 atm and thermally treated at 70 °C for 5 min. Finally, silver electrodes were painted on both plain faces. Impedance measurements were carried out with an HP 4284A LRC meter. The measurement frequency range was from 100 Hz to 1 MHz. The impedance data have been measured in the temperature range between 40 to 140 °C with an increasing rate of ∼1 °C min⁻¹. For our studies, we focus on 40 and 140 °C measurements. To ensure that the system was in a steady state prior to the data acquisition, the temperature was kept constant at a predetermined value until it did not vary with time. For each temperature, a sequential number of measurements were performed, and the capacitances and electrical resistances were estimated by fitting the data to an equivalent circuit using a homemade program. The relative error for all measurements was lower than 3%.

PALS measurements

PALS spectra were obtained using a Positron Lifetime Picosecond Timing System (ORTEC) with a time resolution of 230 ps in a collinear geometry. As a positron source, 10 μCi sealed source of ²²NaCl deposited onto two thin Kapton foils (7.5 μm thick) sandwiched between two identical samples was used. The spectra were acquired at room temperature, and typically 1.5–2 × 10⁶ counts per spectrum were collected. The reported lifetime values for each sample are the average of at least 10 measurements under the same experimental conditions, with the error bars corresponding to the statistical error of the average value. After subtracting the background and source contribution, the positron lifetime spectra were analyzed using the LT10⁵⁷ code.

Conclusions

In this work, Eu-doped and undoped β-Ag₂MoO₄ crystals were successfully synthesized using the co-precipitation method, and the effect of the synthesis time on the crystal structure, morphology, and nature of defects was investigated. The main conclusions of the present work can be summarized as follows: (i) doped and undoped β-Ag₂MoO₄ present V_Ag with Schottky potential barriers at grain boundaries, corresponding to a p-type semiconductor; (ii) In Eu³⁺ doped samples, the excited electrons decay from the CB to the 4f states of Eu³⁺ ions incorporated within the β-Ag₂MoO₄. (iii) The Eu³⁺ incorporation into polycrystalline β-Ag₂MoO₄ initially increases the V_Ag concentration; however, as the synthesis time rises, the defect structure density V_Ag decreases, (iv) The resulting electrical properties are a consequence of the competing effects between the number of grain boundaries and the carrieŕs density (V_Ag observed with PALS). Overall, the obtained results allow to understand the existing relation between structural defects and functional properties of polycrystalline β-Ag₂WO₄ by Eu³⁺ doping and employing different synthesis times.

Author contributions

C. Macchi, M. S. Castro, C. M. Aldao, H., Moreno, A. Z. Simões,: writing – original draft, formal analysis, methodology, investigation, funding acquisition. M. Petinardi, L. A. Freire, T. M. Luiz, F. Moura: formal analysis, methodology. E. Longo, A. Somoza, M. Assis, M. A. Ponce: writing – original draft, conceptualization, writing – review & editing, investigation, resources, supervision, funding acquisition.

Conflicts of interest

There are no conflicts to declare.

Acknowledgements

This work was funded in part by Fundação de Amparo à Pesquisa do Estado de São Paulo – FAPESP (2013/07296-2), Conselho Nacional de Desenvolvimento Científico e Tecnológico – CNPq, Financiadora de Estudos e Projetos – FINEP, and Coordenação de Aperfeiçoamento de Pessoal de Nível Superior – CAPES (001). M. A. was supported by the Margarita Salas postdoctoral contract MGS/2021/21 (UP2021-021) financed by the European Union-Next Generation EU. C. M. A and M. A. P would like to acknowledge ANPCyT (Agencia Nacional de Promoción Científica y Tecnológica, Argentina) and CONICET. CM and A S want to acknowledge CONICET (project PIP 11220210100663CO).

References

1. F. H. P. Lopes, L. F. G. Noleto, V. E. M. Vieira, P. B. de Sousa, A. C. S. Jucá, Y. L. Oliveira, K. R. B. S. Costa, M. A. P. Almeida, A. F. Gouveia and L. S. Cavalcante, Experimental and Theoretical Correlation of Modulated Architectures of β-Ag₂MoO₄ Microcrystals: Effect of Different Synthesis Routes on the Morphology, Optical, Colorimetric, and Photocatalytic Properties, J. Inorg. Organomet. Polym. Mater., 2023, 33(2), 424–450.
2. L. Warmuth, C. Ritschel and C. Feldmann, Facet-, Composition- And Wavelength-Dependent Photocatalysis of Ag₂MoO₄, RSC Adv., 2020, 10(31), 18377–18383.
3. P. B. Almeida, I. M. Pinatti, R. C. de Oliveira, M. M. Teixeira, C. C. Santos, T. R. Machado, E. Longo and I. L. V. Rosa, Structural, Morphological and Photoluminescence Properties of β-Ag₂MoO₄ Doped with Eu³⁺, Chem. Pap., 2021, 75(5), 1869–1882.
4. M. Abinaya, R. Rajakumaran, S.-M. M. Chen, R. Karthik and V. Muthuraj, In Situ Synthesis, Characterization, and Catalytic Performance of Polypyrrole Polymer-Incorporated Ag₂MoO₄ Nanocomposite for Detection and Degradation of Environmental Pollutants and Pharmaceutical Drugs, ACS Appl. Mater. Interfaces, 2019, 11(41), 38321–38335.
5. J. A. A. Jesila, N. Murthy Umesh, S.-F. Wang, M. Govindasamy, Z. A. Alothman and R. A. Alshgari, Simple and Highly Selective Electrochemical Sensor Constructed Using Silver Molybdate Nano-Wire Modified Electrodes for the Determination of Oxidative Stress Biomarker in Blood Serum and Lens Cleaning Solution, J. Electrochem. Soc., 2020, 167(14), 147501.
6. J. V. Kumar, R. Karthik, S.-M. M. Chen, V. Muthuraj and C. Karuppiah, Fabrication of Potato-like Silver Molybdate Microstructures for Photocatalytic Degradation of Chronic Toxicity Ciprofloxacin and Highly Selective Electrochemical Detection of H₂O₂, Sci. Rep., 2016, 6(1), 34149.
7. R. H. N. Frazão, D. G. Della Rocca, S. M. d. Amorim, R. A. Peralta, C. D. Moura-Nickel, A. de Noni and R. d. F. P. M. Moreira, Plastic Optical Fibres Applied on the Photocatalytic Degradation of Phenol with Ag₂MoO₄ and SS-Ag₂MoO₄/Ag₃PO₄ under Visible Light, Environ. Technol., 2021, 42(8), 1271–1282.
8. C. C. De Foggi, R. C. De Oliveira, M. Assis, M. T. Fabbro, V. R. Mastelaro, C. E. Vergani, L. Gracia, J. Andrés, E. Longo and A. L. Machado, Unvealing the Role of β-Ag₂MoO₄ Microcrystals to the Improvement of Antibacterial Activity, Mater. Sci. Eng., C, 2020, 110765.
9. B. N. A. d. S. Pimentel, F. H. Marin-Dett, M. Assis, P. A. Barbugli, E. Longo and C. E. Vergani, Antifungal Activity and Biocompatibility of α-AgVO₃, α-Ag₂WO₄, and β-Ag₂MoO₄ Using a Three-Dimensional Coculture Model of the Oral Mucosa, Front. Bioeng. Biotechnol., 2022, 10, 826123.
10. M. Assis, L. K. Ribeiro, M. O. Gonçalves, L. H. Staffa, R. S. Paiva, L. R. Lima, D. Coelho, L. F. Almeida, L. N. Moraes, I. L. V. Rosa, L. H. Mascaro, R. M. T. Grotto, C. P. Sousa, J. Andrés, E. Longo and S. A. Cruz, Polypropylene Modified with Ag-Based Semiconductors as a Potential Material against SARS-CoV-2 and Other Pathogens, ACS Appl. Polym. Mater., 2022, 4(10), 7102–7114.
11. S. S. Rajput, S. Gangopadhyay, T. B. Yaqub, A. Cavaleiro and F. Fernandes, Room and High Temperature Tribological Performance of CrAlN(Ag) Coatings: The Influence of Ag Additions, Surf. Coat. Technol., 2022, 450, 129011.
12. D. Zhou, W.-B. Li, L.-X. Pang, J. Guo, Z.-M. Qi, T. Shao, Z.-X. Yue and X. Yao, Sintering Behavior and Dielectric Properties of Ultra-Low Temperature Fired Silver Molybdate Ceramics, J. Am. Ceram. Soc., 2014, 97(11), 3597–3601.
13. J. J. William, S. Balakrishnan, M. Murugesan, M. Gopalan, A. J. Britten and M. Mkandawire, Mesoporous β-Ag₂MoO₄ Nanopotatoes as Supercapacitor Electrodes, Mater. Adv., 2022, 3(22), 8288–8297.
14. D. W. R. Coimbra, F. S. Cunha, J. C. Sczancoski, J. F. S. de Carvalho, F. R. C. de Macêdo and L. S. Cavalcante, Structural Refinement, Morphology and Photocatalytic Properties of β-(Ag_2–2xZn_x)MoO₄ Microcrystals Synthesized by the Sonochemical Method, J. Mater. Sci.: Mater. Electron., 2019, 30(2), 1322–1344.
15. G. d. S. Sousa, F. X. Nobre, E. A. Araújo Júnior, J. R. Sambrano, A. d. R. Albuquerque, R. d. S. Bindá, P. R. d. C. Couceiro, W. R. Brito, L. S. Cavalcante, M. R. d. M. C. Santos and J. M. E. de Matos, Hydrothermal Synthesis, Structural Characterization and Photocatalytic Properties of β-Ag₂MoO₄ Microcrystals: Correlation between Experimental and Theoretical Data, Arabian J. Chem., 2020, 13(1), 2806–2825.
16. J. V. B. Moura, T. S. Freitas, R. P. Cruz, R. L. S. Pereira, A. R. P. Silva, A. T. L. Santos, J. H. da Silva, C. Luz-Lima, P. T. C. Freire and H. D. M. Coutinho, β-Ag₂MoO₄ Microcrystals: Characterization, Antibacterial Properties and Modulation Analysis of Antibiotic Activity, Biomed. Pharmacother., 2017, 86, 242–247.
17. N. F. Andrade Neto, A. B. Lima, M. R. D. Bomio and F. V. Motta, Microwave-Assisted Hydrothermal Synthesis of Ag₂Mo_1-xW_xO₄ (x = 0, 0.25, 0.50, 0.75 and 1 Mol%) Heterostructures for Enhanced Photocatalytic Degradation of Organic Dyes, J. Alloys Compd., 2020, 844, 156077.
18. R. W. G. Wyckoff, The Crystal Structure of Silver Molybdate, J. Am. Chem. Soc., 1922, 44(9), 1994–1998.
19. V. Teodoro, A. F. Gouveia, T. R. Machado, A. B. Trench, N. Jacomaci, M. Assis, G. E. Marques, M. D. Teodoro, M. A. San-Miguel, J. Andrés, J. Bettini and E. Longo, Connecting Morphology and Photoluminescence Emissions in β-Ag₂MoO₄ Microcrystals, Ceram. Int., 2022, 48(3), 3740–3750.
20. F. C. Tompkins, Superficial Chemistry and Solid Imperfections, Nature, 1960, 186(4718), 3–6.
21. C. J. Kevane, Oxygen Vacancies and Electrical Conduction in Metal Oxides, Phys. Rev., 1964, 133, A1431.
22. F. Gunkel, D. V. Christensen, Y. Z. Chen and N. Pryds, Oxygen Vacancies: The (in)Visible Friend of Oxide Electronics, Appl. Phys. Lett., 2020, 116(12).
23. L. Krishna Bharat, S. H. Lee and J. S. Yu, Synthesis, Structural and Optical Properties of BaMoO₄:Eu³⁺ Shuttle like Phosphors, Mater. Res. Bull., 2014, 53, 49–53.
24. J. Cichos, M. Karbowiak, D. Hreniak and W. Stręk, Synthesis and Characterization of Monodisperse Eu³⁺ Doped Gadolinium Oxysulfide Nanocrystals, J. Rare Earths, 2016, 34(8), 850–856.
25. K. Binnemans, Lanthanide-Based Luminescent Hybrid Materials, Chem. Rev., 2009, 109(9), 4283–4374.
26. A. Tymiński and T. Grzyb, Are Rare Earth Phosphates Suitable as Hosts for Upconversion Luminescence? Studies on Nanocrystalline REPO₄ (RE = Y, La, Gd, Lu) Doped with Yb³⁺ and Eu³⁺, Tb³⁺, Ho³⁺, Er³⁺ or Tm³⁺ Ions, J. Lumin., 2017, 181, 411–420.
27. C. T. Campbell and C. H. F. Peden, Oxygen Vacancies and Catalysis on Ceria Surfaces, Science, 2005, 309(5735), 713–714.
28. S. K. Gupta, P. S. Ghosh, K. Sudarshan, R. Gupta, P. K. Pujari and R. M. Kadam, Multifunctional Pure and Eu³⁺ Doped β-Ag₂MoO₄: Photoluminescence, Energy Transfer Dynamics and Defect Induced Properties, Dalton Trans., 2015, 44(44), 19097–19110.
29. K. Sudarshan, S. K. Gupta, K. Sonawane and R. M. Kadam, Room Temperature Synthesis, Concentration Quenching Study and Defect Formation in β-Ag₂MoO₄:Dy³⁺ - Photoluminescence and Positron Annihilation Spectroscopy, J. Lumin., 2019, 212, 293–299.
30. R. D. Shannon, Revised Effective Ionic Radii and Systematic Studies of Interatomic Distances in Halides and Chalcogenides, Acta Crystallogr., Sect. A: Cryst. Phys., Diffr., Theor. Gen. Crystallogr., 1976, 32(5), 751–767.
31. J. V. B. Moura, J. G. da Silva Filho, P. T. C. Freire, C. Luz-Lima, G. S. Pinheiro, B. C. Viana, J. Mendes Filho, A. G. Souza-Filho and G. D. Saraiva, Phonon Properties of β-Ag₂MoO₄: Raman Spectroscopy and Ab Initio Calculations, Vib. Spectrosc., 2016, 86, 97–102.
32. A. F. Gouveia, J. C. Sczancoski, M. M. Ferrer, A. S. Lima, M. R. M. C. Santos, M. S. Li, R. S. Santos, E. Longo and L. S. Cavalcante, Experimental and Theoretical Investigations of Electronic Structure and Photoluminescence Properties of β-Ag₂MoO₄ Microcrystals, Inorg. Chem., 2014, 53(11), 5589–5599.
33. M. T. Fabbro, C. C. Foggi, L. P. S. Santos, L. Gracia, A. Perrin, C. Perrin, C. E. Vergani, A. L. Machado, J. Andrés, E. Cordoncillo and E. Longo, Synthesis, Antifungal Evaluation and Optical Properties of Silver Molybdate Microcrystals in Different Solvents: A Combined Experimental and Theoretical Study, Dalton Trans., 2016, 45(26), 10736–10743.
34. A. Beltrán, L. Gracia, E. Longo and J. Andrés, First-Principles Study of Pressure-Induced Phase Transitions and Electronic Properties of Ag₂MoO₄, J. Phys. Chem. C, 2014, 118(7), 3724–3732.
35. M. T. Fabbro, C. Saliby, L. R. Rios, F. A. La Porta, L. Gracia, M. S. Li, J. Andrés, L. P. S. Santos and E. Longo, Identifying and Rationalizing the Morphological, Structural, and Optical Properties of β-Ag₂MoO₄ Microcrystals, and the Formation Process of Ag Nanoparticles on Their Surfaces: Combining Experimental Data and First-Principles Calcul, Sci. Technol. Adv. Mater., 2015, 16(6), 65002.
36. M. T. Fabbro, C. C. Foggi, L. P. S. Santos, L. Gracia, A. Perrin, C. Perrin, C. E. Vergani, A. L. Machado, J. Andrés, E. Cordoncillo and E. Longo, Synthesis, Antifungal Evaluation and Optical Properties of Silver Molybdate Microcrystals in Different Solvents: A Combined Experimental and Theoretical Study, Dalton Trans., 2016, 45(26), 10736–10743.
37. P. F. S. Pereira, A. F. Gouveia, M. Assis, R. C. de Oliveira, I. M. Pinatti, M. Penha, R. F. Gonçalves, L. Gracia, J. Andrés and E. Longo, ZnWO₄ Nanocrystals: Synthesis, Morphology, Photoluminescence and Photocatalytic Properties, Phys. Chem. Chem. Phys., 2018, 20(3), 1923–1937.
38. P. Dorenbos, Systematic Behaviour in Trivalent Lanthanide Charge Transfer Energies, J. Phys.: Condens. Matter, 2003, 15(49), 8417–8434.
39. M. Assis, M. C. d. Oliveira, A. F. Gouveia, L. K. Ribeiro, I. L. V. Rosa, R. A. P. Ribeiro, J. Andrés and E. Longo, Luminescence and Structural Properties of Ca_1-XZrO₃:Eu_X: An Experimental and Theoretical Approach, Ecletica Quim. J., 2022, 47(1SI), 90–104.
40. N. Baig, A. R. Kadam, K. Dubey, N. S. Dhoble and S. J. Dhoble, Wet Chemically Synthesized Na₃Ca₂(SO₄)₃Cl:RE³⁺ (RE = Ce, Dy, Eu) Phosphors for Solid-State Lighting, Radiat. Eff. Defects Solids, 2021, 176(5–6), 493–507.
41. M. C. Oliveira, R. A. P. Ribeiro, L. Gracia, S. R. de Lazaro, M. de Assis, M. Oliva, I. L. V. Rosa, M. F. d. C. Gurgel, E. Longo and J. Andrés, Experimental and Theoretical Study of the Energetic, Morphological, and Photoluminescence Properties of CaZrO₃:Eu³⁺, CrystEngComm, 2018, 20(37), 5519–5530.
42. P. Dang, G. Li, X. Yun, Q. Zhang, D. Liu, H. Lian, M. Shang and J. Lin, Thermally Stable and Highly Efficient Red-Emitting Eu³⁺-Doped Cs₃GdGe₃O₉ Phosphors for WLEDs: Non-Concentration Quenching and Negative Thermal Expansion, Light: Sci. Appl., 2021, 10(1), 29.
43. A. F. Gouveia, M. Assis, L. K. Ribeiro, A. E. B. Lima, E. d. O. Gomes, D. Souza, Y. G. Galvão, I. L. V. Rosa, G. E. da Luz, E. Guillamón, E. Longo, J. Andrés and M. A. San-Miguel, Photoluminescence Emissions of Ca_1−xWO₄:XEu³⁺: Bridging between Experiment and DFT Calculations, J. Rare Earths, 2022, 40(10), 1527–1534.
44. Commission Internationale de L′Éclairage. In Commission internationale de l'eclairage proceedings; 1931.
45. M. Assis, M. S. Castro, C. M. Aldao, C. Buono, P. P. Ortega, M. D. Teodoro, J. Andrés, A. F. Gouveia, A. Z. Simões, E. Longo, C. E. Macchi, A. Somoza, F. Moura and M. A. Ponce, Disclosing the Nature of Vacancy Defects in α-Ag₂WO₄, Mater. Res. Bull., 2023, 164(5), 112252.
46. L. H. d. S. Lacerda, E. Longo, J. Andrés and M. A. A. San-Miguel, Diagnosis Approach for Semiconductor Properties Evaluation from Ab Initio Calculations: Ag-Based Materials Investigation, J. Solid State Chem., 2022, 305, 122670.
47. A. Dupasquier and A. P. Mills Jr., Positron Spectroscopy of Solids (Proceedings of the International School of Physics), IOS Press, 1st edn, 1995.
48. K. Saarinen, P. Hautojärvi and C. Corbel, Chapter 5 Positron Annihilation Spectroscopy of Defects in Semiconductors, in Identification of Defects in Semiconductors, ed. M. Stavola, Elsevier, 1998, vol. 51, pp. 209–285.
49. X. Liu, K. Zhou, L. Wang, B. Wang and Y. Li, Oxygen Vacancy Clusters Promoting Reducibility and Activity of Ceria Nanorods, J. Am. Chem. Soc., 2009, 131(9), 3140–3141.
50. J. Čížek, O. Melikhova, I. Procházka, J. Kuriplach, R. Kužel, G. Brauer, W. Anwand, T. E. Konstantinova and I. A. Danilenko, Defect Studies of Nanocrystalline Zirconia Powders and Sintered Ceramics, Phys. Rev. B: Condens. Matter Mater. Phys., 2010, 81(2), 024116.
51. C. Macchi, M. A. Ponce, P. M. Desimone, C. M. Aldao and A. Somoza, Vacancy-like Defects in Nanocrystalline SnO₂: Influence of the Annealing Treatment under Different Atmospheres, Philos. Mag., 2018, 98(8), 673–692.
52. A. P. Espinosa, L. Ramajo, F. Rubio-Marcos, C. Macchi, A. Somoza and M. Castro, Influence of the BaTiO₃ Addition to K_0.5Na_0.5NbO₃ Lead-Free Ceramics on the Vacancy-like Defect Structure and Dielectric Properties, J. Eur. Ceram. Soc., 2021, 41(2), 1288–1298.
53. M. Assis, M. A. Ponce, A. F. Gouveia, D. Souza, J. P. d. C. da Costa, V. Teodoro, Y. G. Gobato, J. Andrés, C. Macchi, A. Somoza and E. Longo, Revealing the Nature of Defects in α-Ag₂WO₄ by Positron Annihilation Lifetime Spectroscopy: A Joint Experimental and Theoretical Study, Cryst. Growth Des., 2021, 21(2), 1093–1102.
54. H. M. Rietveld, A Profile Refinement Method for Nuclear and Magnetic Structures, J. Appl. Crystallogr., 1969, 2(2), 65–71.
55. A. A. Coelho, TOPAS and TOPAS-Academic : An Optimization Program Integrating Computer Algebra and Crystallographic Objects Written in C++, J. Appl. Crystallogr., 2018, 51(1), 210–218.
56. E. Von Hauff, Impedance Spectroscopy for Emerging Photovoltaics, J. Phys. Chem. C, 2019, 123(18), 11329–11346.
57. J. Kansy, Microcomputer Program for Analysis of Positron Annihilation Lifetime Spectra, Nucl. Instrum. Methods Phys. Res., Sect. A, 1996, 374(2), 235–244.

---

Footnote

† Electronic supplementary information (ESI) available. See DOI: https://doi.org/10.1039/d3dt03385f

---
