Abhishek
Udnoor
ab,
Béla
Urbán
c,
Karel
Škoch
a,
Jan
Hynek
a,
Michal
Horáček
c,
Martin
Lamač
*c and
Jan
Demel
*a
aInstitute of Inorganic Chemistry of the Czech Academy of Sciences, Husinec-Řež 1001, 250 68, Řež, Czech Republic. E-mail: demel@iic.cas.cz
bDepartment of Inorganic Chemistry, University of Chemistry and Technology Prague, Technická 5, 166 28 Praha 6, Czech Republic
cJ. Heyrovsky Institute of Physical Chemistry of the Czech Academy of Sciences, Dolejškova 2155, 182 00, Prague 8, Czech Republic. E-mail: lamac@jh-inst.cas.cz
First published on 22nd July 2024
Activated borane (ActB), a metal- and halogen-free porous borane cluster polymer with a significant Lewis acidity, has been successfully used as a heterogeneous catalyst for hydrodehalogenation reactions of aliphatic fluorides and chlorides using triethylsilane as a reductant. In analogy to known homogeneous systems, full dehalogenation of organohalides is achieved with a predominant formation of Friedel–Crafts alkylation products in aromatic reaction media. Importantly, the herein described material is robust, tolerates elevated reaction temperatures and can be re-used, while reaching a turnover number (TON) of up to 5190. These features make it an attractive candidate for a sustainable disposal of halogenated pollutants by heterogeneous catalysis.
Catalytic dehalogenation is recognized as a cost-effective and ecologically benign technology for dealing with pollutants that can be transformed into significantly less dangerous species or potentially valuable chemicals. Traditionally, C–X bonds were cleaved using low valent transition metal catalysts.8 This is done through oxidative addition of the C–X bond to the metal centre. However, the reactivity decreases in the order C–I > C–Br > C–Cl > C–F, which makes the most persistent pollutants, organofluorides, least reactive. Additionally, in order to increase the activity of transition metal-based catalysts various phosphine or carbene ligands are used to stabilize the low valent active species. This is rather challenging when it comes to the design of heterogeneous catalysts that could be used in flow reactors or otherwise easily separated from the reaction mixture.9
In recent years, transition metal free catalysis has gained significant interest. The impetus being not only the price of transition metals, but also the environmental aspects related with their recovery and refining. Main group element based strong Lewis acids are perceived as an alternative,10 while various approaches to their heterogenization have been developed.11 Strong molecular boron Lewis acids, such as B(C6F5)3 (commonly abbreviated as BCF), have been shown to readily hydrodefluorinate primary, secondary and tertiary alkyl fluorides in the presence of triethylsilane.12 More recently, the BCF-catalysis has been applied to selective C–F bond functionalisations.10,13 C–F bond cleavage in gem-difluorocyclopropenes enabled an elegant preparation of substituted cyclopropane derivatives by using silylated nucleophiles. It has been demonstrated that the fluoroborate anion [FB(C6F5)3]− is a plausible intermediate in these reactions.14 In a related work, Paradies et al. have utilised benzylic fluorides as substrates for C–C bond forming reactions under BCF catalysis.15
However, –CF3 groups proved to be challenging substrates for BCF.16 To overcome this limitation, BCF needs to be combined with various bases, thus employing the frustrated Lewis pairs (FLP) mechanism.17 These systems, however, require a proper selection of a matching Lewis base.18 In parallel, Ozerov et al. showed that triethylsilylium (Et3Si+) ions generated in situ from Et3SiH and Ph3C[B(C6F5)4] can defluorinate even –CF3 groups using triethylsilane as the hydride source.19 The borate anion proved to be unstable over several catalytic cycles, for this reason systems employing closo-borane anions such as halogenated CB11H12− and B12H122− were developed.20 Analogously, silylium ions can be used for catalytic dechlorination,20a or utilized in tandem hydrodechlorination/Friedel–Crafts alkylation reaction,21 however, silylium ions are very unstable and commonly are generated in situ.22 Alternatively 4-coordinate phosphonium salts or 3-coordinate dications can act as potent Lewis acids inducing defluorination of fluoroalkanes.17b–d,18,23
Strong heterogeneous Lewis acids were also tested for dehalogenation reactions. For example, amorphous aluminium chlorofluoride in the presence of Et3SiH was shown to form a silylium-ion-like surface species capable of defluorination.24 In a similar way, silylium species generated on the surface of sulphated zirconia were active defluorination catalysts.25 Moreover, materials such as aluminium chlorofluoride can be also used for transhalogenation reactions,26 and related zirconium chlorofluoride can be used for HF elimination and subsequent HF addition to a triple bond.27
Unfortunately, the majority of the abovementioned molecular as well as heterogeneous Lewis acids contain fluorine and/or chlorine atoms as electron withdrawing groups making those systems controversial for the use of dehalogenation. For this reason, we turned our attention to halogen-free boron-based solid Lewis acids.
An example of such materials is activated borane (hereafter abbreviated as ActB), which is a porous polymer formed by co-thermolysis of decaborane(14) (nido-B10H14) and an organic solvent.28 In this report, we describe the ability of ActB to promote dehalogenation reactions (Scheme 1).
![]() | ||

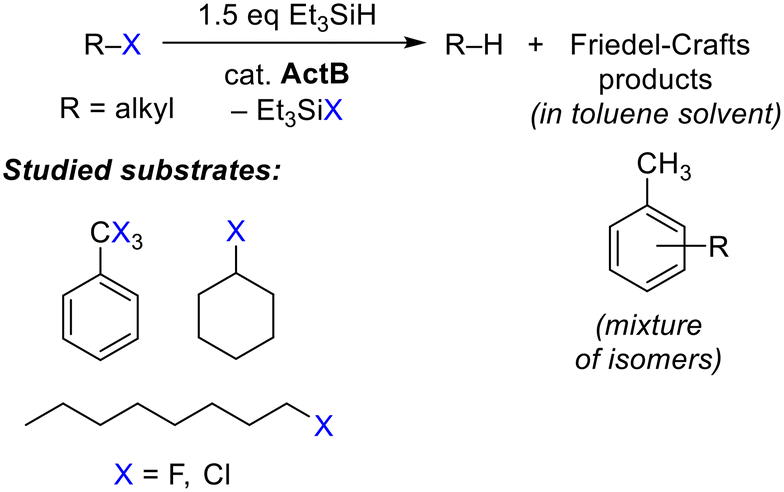

Scheme 1 Hydrodehalogenation (HDH) of organohalides with triethylsilane in the presence of ActB – a general reaction scheme and substrate scope. |
Initial screening was performed using PhCF3 at 140 °C with a reaction time of 1 h. We varied the amount of catalyst, silane, and the solvent, see Table 1. As expected, increasing the amount of ActB and excess of silane resulted in higher conversion. The use of (EtO)3SiH or PMHS (polymethylhydrosiloxane) as a substitute for Et3SiH did not yield satisfactory results. It shall be noted that in the complete absence of the catalyst and/or silane, no conversion of the substrate was observed. Toluene was found to be the best solvent for the reaction, while the solvent molecules were involved in scavenging the carbocations produced by the fluoride abstraction. Such Friedel–Crafts (FC) reactivity involving the aromatic solvents leads to a mixture of isomeric arene alkylation products (Scheme 1). This, together with the identification of Et3SiF and, to a small extent also Et2SiF2, (by 19F and 1H NMR) as the fluorine-containing product, is an additional confirmation that the mechanism (Scheme 2) proceeds similarly to homogeneous Lewis acid catalysts, like BCF.19 The use of aliphatic chlorinated solvent, 1,2-dichloroethane, resulted in comparable reaction rates to toluene, while benzylated toluenes originating solely from the PhCF3 substrate were detected as the major reaction products.
Solvent | Conversionb (%) |
---|---|
Toluene | 26 |
Benzene | 13 |
Hexane | 5 |
Dichloromethane | 2 |
1,2-Dichloroethane | 25 |
1,4-Difluorobenzene | 9 |
Et3SiH (mmol) | Conversionc (%) |
---|---|
None | 0 |
1.5 | 9 |
4.5 | 26 |
9.0 | 38 |
Neat Et3SiH | 58 |
4.5 eq. (EtO)3SiH instead of Et3SiH | 0 |
4.5 eq. PMHS instead of Et3SiH | 0 |
Catalyst (mg) | Conversiond (%) |
---|---|
a Total conversion of C–F bonds determined by 19F NMR; conditions as described below. b PhCF3 (1 mmol), Et3SiH (4.5 mmol), ActB (20 mg), indicated solvent (2 mL), 140 °C, 1 h. c PhCF3 (1 mmol), Et3SiH (indicated amount), ActB (20 mg), toluene (2 mL), 140 °C, 1 h. d PhCF3 (1 mmol), Et3SiH (4.5 mmol), ActB (indicated amount), toluene (2 mL), 140 °C, 1 h. | |
None | 0 |
20 | 26 |
40 | 53 |
60 | 78 |

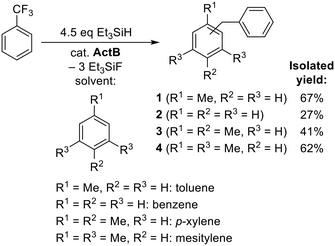

In order to demonstrate the synthetic utility of the observed defluorination/arylation reaction sequence, the main monobenzylated FC product, benzyltoluene 1 (Scheme 3), was isolated in a 67% yield as a mixture of 2- and 4-isomers (ratio ca. 2/3). Toluene was also replaced by other aromatic substrates serving as solvents for the reaction and the corresponding monobenzylated products 2–4 were isolated as summarized in Scheme 3. As evident, for benzene, p-xylene, and mesitylene, respectively, a single-isomer product was formed. The low isolated yield of diphenylmethane 2 could be explained by a more pronounced concurrent formation of multiply alkylated or oligomeric products.
For further testing we defined uniform conditions using 1 mmol of a halogenated substrate, 20 mg of ActB, 50% excess of Et3SiH and toluene as a solvent. In order to assess the catalytic activity of ActB, we screened aliphatic (1-fluorooctane), cyclic aliphatic (fluorocyclohexane) and benzylic (PhCF3) substrates (Scheme 1, Fig. 1–4).
From the temperature optimization (Fig. 1a) and kinetic profiles (Fig. 1b) of dehalogenation of PhCF3 and PhCCl3 it is clear that the reaction proceeds very slowly below 120 °C and dechlorination proceeds faster than defluorination, which is in line with previous observations done by Ozerov et al.20a For both PhCF3 and PhCCl3, the reaction is complete after 1 h at 180 and 200 °C, respectively, or after 6–8 hours at 140 °C. Interestingly, for the defluorination of PhCF3, we did not observe mono- or difluorotoluene as intermediates during the dehalogenation, however, in the case of PhCCl3 after 1 h reaction at 30% overall conversion ca. 7% of dichlorotoluene was detected, which was later fully converted to the dehalogenated products. This is also in accordance with previous studies suggesting that once the first halogen atom is removed the substrate becomes much more reactive.19 The main products of the dehalogenation reactions were fluoro- and chloro-silanes along with the FC products. When the reaction of PhCF3 was performed in benzene as described in Scheme 3, the GC yield of toluene as a simple product of reductive dehalogenation was only around 7% (see the ESI† for details).

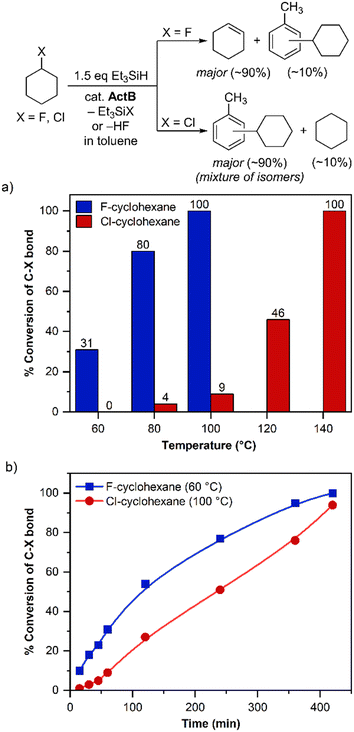

The rate of dehalogenation for 1-fluorooctane was faster than for 1-chlorooctane (Fig. 2), which is likely due to the different affinity of the Lewis acid to fluoride and chloride anion, i.e., a hard acid prefers a lighter halogen. This is consistent with the observations made for homogeneous silylium-based systems.20a The conversion of halocyclohexane (Fig. 3) was significantly faster, with fluorocyclohexane the reaction was by far the fastest of all the studied ones, being complete after only 1 h at 100 °C. In this case, however, we observed an almost exclusive formation of cyclohexene (92% cyclohexene and 8% of FC reaction products; determined by GC) and etching of the glass reaction vessel. Formation of the unsaturated product suggested that in this case the formed carbocation follows a dehydrofluorination pathway eliminating HF, which is then responsible for the glass etching. To understand the role of Et3SiH in the reaction mixture we performed the reaction without silane, heating only fluorocyclohexane with ActB in toluene. Surprisingly, the reaction also led to the full conversion after 1 h at 100 °C (Fig. 4) and exhibited the same distribution of reaction products (i.e., >90% of cyclohexene). Motivated by those results we tested also chlorocyclohexane, 1-fluorooctane, and 1-chlorooctane for the reaction without silane, however, in all cases the reaction did not proceed even at temperatures as high as 200 °C.
Analogous HF elimination from alkyl fluorides was previously reported by Braun et al. using heterogeneous Lewis acid catalysts based on aluminium or zirconium chlorofluoride.24b,27,29 Furthermore, they used this reactivity to perform hydrofluorination reactions of various alkyne substrates by the in situ formed HF.27
To establish the limitations of the studied catalytic system, we also tested chloro- and fluoro-benzene as substrates, in both cases, however, the reaction did not proceed even at 200 °C, confirming that aromatic C–halogen bonds are inert under these conditions. Similarly, we tested perfluorinated substrates that are considered to be persistent pollutants. In the case of perfluorooctanoic acid at 200 °C we observed the formation of Et3SiF, however, the catalyst was deactivated rapidly and the overall conversion was below 1%. In the case of perfluorooctane no reaction was observed.
One of the main advantages of heterogeneous catalysts is the possibility of catalyst recycling. To test the reusability of ActB for defluorination of PhCF3, we consecutively added portions of the substrate and silane (all under Ar atmosphere) after the complete conversion was reached (8 h reaction time) at 140 °C (Fig. 5). During six consecutive reactions, a full conversion was achieved, only in the seventh run we observed a slight decrease in the activity. This reveals a significant robustness of the catalyst that can convert over 20 mmol of C–F bonds using only 20 mg of the catalyst, reaching overall turnover number (TON) of 5190 (based on Si–F bond formation, see below for the assessment of the concentration of active centres). It should be noted that when ActB recycling was studied in hydrosilylation and deoxygenation reaction, the catalytic activity was gradually declining.28b We believe that this was caused by the presence of oxygen-containing species that over the course of the reaction poisoned the Lewis acid centres while fluorosilanes and aromatic hydrocarbon products are inert and therefore are not interfering with the catalytic centres.
In order to assess the concentration of active sites in ActB catalyst we adapted a procedure described by M. Conley et al. which consists in measuring the catalytic activity in the presence of titrated amounts of triethylphosphine oxide (TEPO). Because TEPO forms a strong adduct with strong Lewis acids its presence decreases the amount of available catalytic centres. We selected defluorination of PhCF3 done at 140 °C for 2 h in the presence of increasing amounts of TEPO and the C–F bond cleavage conversion was determined. As can be seen from Fig. 6, the decrease in activity is not linear. We fitted two lines which suggest the presence of two types of catalytic centres. This analysis indicates that the concentration of catalytic centres is approximately 0.2 mmol g−1.
![]() | ||

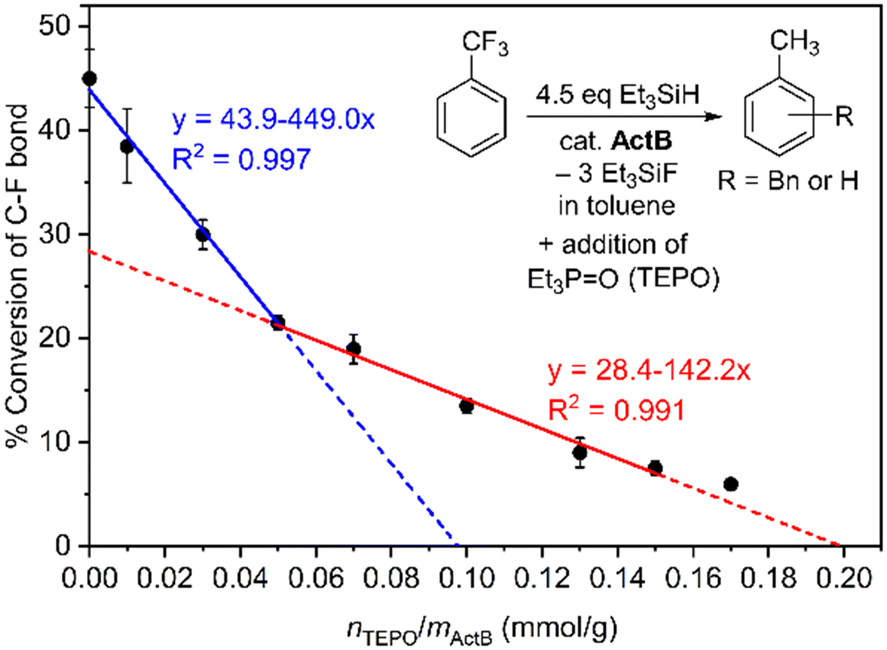

Fig. 6 C–F bond conversion in the PhCF3 dehalogenation catalysed by ActB in the presence of increasing amounts of TEPO. Conditions: 140 °C, 2 h, toluene solvent. |
The adsorption isotherm of Ar at 87 K before and after the reaction (Fig. 7b) revealed that ActB lost nearly all porosity during the catalytic reaction. We believe that blocking of the pores is a result of the additional organic matter detected by FT-IR and EDX (see below). We would like to point out that even though the catalyst after reaction is non-porous it retained its catalytic activity which suggests that the catalytic reaction is taking place only at the surface of the catalyst.
The scanning electron microscopy (SEM, Fig. 7c) showed that the morphology of ActB did not change during the reaction and EDX measurement did not reveal the presence of fluorine in the material suggesting that all fluorine was effectively scavenged by triethylsilane. In line with the data obtained from FTIR, the amount of carbon increased significantly, from C:
B ratio close to 1
:
1 for as prepared ActB to 14
:
5 for ActB after the reaction.
The fact that ActB does not contain any halogen atom or transition metal to induce a strong catalytic activity for hydrodefluorination and hydrodechlorination reactions makes ActB a rare example among heterogeneous catalysts.
Footnote |
† Electronic supplementary information (ESI) available: Full experimental details of syntheses and catalytic experiments, additional characterization data for the reaction products and for ActB after use. See DOI: https://doi.org/10.1039/d4cy00732h |
