Selected ion flow tube studies of the reactions of H₃O⁺, NO⁺, O₂⁺˙ and O⁻˙ ions with alkanes in He and N₂ carrier gases at different temperatures

Abstract

The kinetics of the reactions of H₃O⁺, NO⁺, O₂⁺˙ and O⁻˙ with n-hexane, 3-methylpentane, 2,5-dimethylhexane and 2,3-dimethylheptane were studied experimentally under several selected ion flow tube (SIFT) conditions: in a Profile 3 instrument in He and N₂ carrier gases at 300 K and in the Voice200 instrument in N₂ carrier gas at 300 and 393 K – where the effect of the extraction lens voltage was also assessed. It was found that H₃O⁺ ions react differently than expected, with reaction rates slower than collisional. Instead of transferring a proton, they associate and form fragment product ions [M–H]⁺. NO⁺ ions react via hydride ion transfer. O₂⁺˙ ions react via charge transfer followed by fragmentation that is highly sensitive to the temperature and the ion extraction lens voltage. Negative ions did not react, except for the O⁻˙ ion, which reacted via an associative detachment process. Computational analysis using Density Functional Theory (DFT) provided insights into the exothermicities and exergodicities of these reactions. A notable result is that proton transfer from H₃O⁺ does not take place despite its potential exothermicity; this is important for the interpretation of proton transfer reaction (PTR) and SIFT mass spectrometry data.

---

1. Introduction

Selected ion flow tube mass spectrometry (SIFT-MS) is being increasingly used as a highly sensitive and rapid soft chemical ionisation technique for analysing gaseous matrices.¹ It has been widely used in recent years for environmental studies,^2,3 headspace analyses of foods,⁴ breath analyses within clinical settings,⁵ headspace analyses of archaeological artefacts^6,7 as well as for investigating ion–molecule reactions.¹

In SIFT-MS, several reagent ions for the chemical ionisation of analyte species can be switched rapidly.^1,8 In recent years, the selection of possible reagent ions for analyses has expanded from traditional three (H₃O⁺, NO⁺ and O₂⁺˙) to eight by including five negative (OH⁻, O₂⁻˙, O⁻˙, NO₂⁻ and NO₃⁻).⁹

To date, the analysis of alkanes using selected ion flow tube mass spectrometry (SIFT-MS) remains challenging. Despite this, alkanes play a critical role in atmospheric chemistry, environmental analysis,^10,11 and clinical volatolomics.^12–16 Thus, to facilitate SIFT-MS alkane analyses, the ion chemistry needs to be understood in detail.

We investigated the ion–molecule reactions between representative alkanes and the SIFT-MS reagent ions in He and N₂ carrier gases at 300 K and 393 K. The study included three branched alkanes relevant to disease diagnostics:¹⁶ 3-methylpentane, 2,5-dimethylhexane, 2,3-dimethylheptane and the straight-chain alkane n-hexane (the isomer of 3-methylpentane), for comparison (Fig. 1). The energetics of the observed reactions were calculated using density functional theory (DFT) calculations.

Fig. 1 Skeletal structures, names and relative molecular masses (RMM) of the four alkane species investigated in this work.

2. Experimental

The SIFT-MS technique has been detailed in previous articles.^8,17–21 In brief, plasma produced in the ion source is filtered by a quadrupole mass filter to select a single type of reagent ion. The gaseous sample is introduced into the flow tube with a carrier gas (He or N₂), where ion–molecule reactions occur with neutral molecules during a defined time at pressures below 1 torr. The quadrupole mass spectrometer then analyses the reagent and product ions.

2.1. Materials and instruments

This study used the standard reagents n-hexane (≥99%, Sigma-Aldrich, Steinheim, Germany), 3-methylpentane (≥99%, Sigma-Aldrich, St Louis MO, USA), 2,5-dimethylhexane (99%, Sigma-Aldrich, St Louis MO, USA), and 2,3-dimethylheptane (98%, Sigma-Aldrich, St Louis MO, USA).

A Voice200infinity SIFT-MS instrument (Syft Technologies^TM, Christchurch, New Zealand) was used with positive reagent ions (H₃O⁺, NO⁺ and O₂⁺˙) and negative reagent ions (O⁻˙, NO₂⁻, NO₃⁻, OH⁻ and O₂⁻˙). The flow tube temperature was either ambient (300 ± 3 K) or stabilised at 120 °C (393 K) at a flow tube pressure of 470 mTorr, using N₂ (purity 5.0, Messer Technogas, Prague, Czechia) as the carrier gas. For some experiments, the voltage of the ion extraction lens (LE) at the entrance of the downstream mass spectrometer was lowered from the standard 7 V to 4 V, to minimise fragmentation. Alkane vapour samples diluted by zero air were introduced into the flow tube via a heated sampling inlet at a standard flow rate of 25 sccm. To monitor the formation of free electrons as products of negative ion reactions, a 1 sccm flow rate of 1% SF₆ in N₂ was introduced in addition to the alkane vapour samples. Formation of SF₆⁻ was considered to indicate the presence of free electrons.

An earlier model of the SIFT-MS instrument, the Profile 3 (Instrument Science Crewe, United Kingdom), was used with positive reagent ions (H₃O⁺, NO⁺ and O₂⁺˙) at an ambient flow tube temperature of 300 K. Helium (920 mTorr) and nitrogen (200 mTorr) were used as carrier gases (He purity of 4.6, N₂ purity of 5.0, Messer Technogas, Prague). Alkane vapour samples diluted by zero air were introduced into the flow tube via a heated capillary at a flow rate of 25 sccm.

2.2. Experiments to determine branching ratios and relative rate coefficients

Clean zero-air was introduced at a flow rate of 200 sccm into a glass bottle, from which 25 sccm was sampled into the SIFT-MS instruments. Full scan mass spectra were repeatedly obtained in the mass-to-charge (m/z) range of 10 to 250 for the positive reagent ions (1 minute for each scan); the appropriate volume of alkane headspace was injected into the glass bottle; and the vapour concentration was allowed to decrease over a time of 20 minutes. The decrease in reagent ion signal was observable immediately after vapour injection and the main product ion signals were typically reduced in intensity from >10⁵ c s⁻¹ to <10⁴ c s⁻¹.

Product ion branching ratios and relative rate coefficients of reactions of different reagent ions with the same neutral compound were determined using an algorithm implemented in Python. First, the raw experimental data were parsed and compiled into a peak table listing ion count rates for all reagent ions registered at different times. The process then involves selecting the 20 most intense signals from the raw data (based on the average count rate over the entire experiment). Thus, no assumptions or manual choices were made concerning the selection of the product ions. These ions include the injected reagent ions, background signals, and the dominant product ions produced by the reactions. In the next step, the product ions were identified based on the decrease in signal intensity after introducing the reactant vapour. The background was then determined by extrapolating the ion count rates to the later time when the reactant vapour almost disappeared. To estimate the concentration of the neutral reactant molecules (M), the ratio of background-corrected reagent to product ion signal (R/P) was used to provide an indirect measure of the concentration of M as

The algorithm plotted the percentage of each product ion signal as a function of [M] to understand how the product ion distribution varied with [M]. Subsequently, parabolic curves were used to model the dependence of product ion percentages on concentration, allowing for primary and secondary ion products to be distinguished. The secondary products, with intercept values < 1%, were excluded from subsequent analysis to determine true primary product ion branching ratios. Subsequently, a linear fit was applied to the data, and branching ratios were taken as the intercept when extrapolating to the limit of [P]/[R] (and thus [M]) approaching zero. ¹³C isotopologues of the main product ions were used to confirm the number of carbon atoms.²²

Relative rate coefficients were determined by analysing changes in ion signals with varying concentrations, M, considering both the decrease in reagent ion signals and the increase in total product ion signals. The theoretical collisional rate coefficients (k_c) were calculated using the Su and Chesnavich method.²³ The relative rates were then multiplied by k_c for the fastest observed reaction. This gave the resulting experimental rate coefficient (k).

2.3. DFT calculations

DFT calculations were conducted to evaluate the thermodynamics of the investigated reactions, which would confirm the presence of a specific branching pathway. All quantum chemistry calculations were performed using the ORCA 5.0.4 software.²⁴ Molecular geometries of all neutral reactant molecules and of all reagent and product ions were first drawn using the AVOGADRO software and then further optimised using ORCA, with the B3LYP DFT and the 6-311++G(d,p) basis set with D4 correction.²⁵ This basis set has been recently validated on multiple calculations related to ion energetics and kinetics.^26,27 This level of theory was also used to calculate the normal mode vibrational frequencies and the total enthalpies, entropies and Gibbs free energies of the neutral molecules (including their polarizabilities and dipole moments). Thermodynamic values were calculated for selected observed product ions along with their corresponding neutral products. From these, the changes in enthalpies (ΔH) and Gibbs free energies (ΔG) were calculated for the reactions discussed later.²⁸ Expected proton affinities (PA) for several potential protonated structures were calculated as the difference between the total enthalpies of the neutral molecules and the various optimised protonated structures, accounting for the thermal enthalpy of a free proton of 6.2 kJ mol⁻¹ at 298.15 K.^28,29

3. Results and discussion

Table 1 gives the product ions identified for the reactions of all available reagent ions with n-hexane, 3-methylpentane, 2,5-dimethylhexane and 2,3-dimethylpentane, together with the branching ratios of the reactions observed using the Voice200infinity instrument (N₂ carrier gas, 300 K, 4 V at the ion extraction lens LE – data for 393 K at 4 and 7 V are in Tables S1 and S2 in ESI†). Corresponding data for product ions observed in the Profile 3 instrument (He and N₂ carrier gases at 300 K) are summarised in Table 2.

Table 1 Product ions for the reactions of the reagent ions with the alkanes observed using the Voice200infinity with a N₂ carrier gas at a flow tube temperature of 300 K at 4 V with an LE lens. The relative molecular mass of the alkanes is shown in parentheses after the alkane name; for the product ions, the m/z value of the product ion is shown first, followed by the formula and the branching ratio in parentheses

Compound (RMM/Da)	H3O^+	NO^+	O2^+˙
n-Hexane (86)	105 C6H14·H3O^+ (70)	116 C6H14·NO^+ (18)	57 C4H9^+ (39)
C6H14	85 C6H13^+ (16) 71 C5H11^+ (14)	85 C6H13^+ (67)	56 C4H8^+˙ (25)
		83 C6H11^+ (15)	86 C6H14^+˙ (24)
			42 C3H6^+˙ (6)
			43 C3H7^+ (6)
3-Methylpentane (86)	105 C6H14·H3O^+ (45)	85 C6H13^+ (100)	56 C4H8^+˙ (57)
C6H14	85 C6H13^+ (44)		57 C4H9^+ (31)
	71 C5H11^+ (11)		86 C6H14^+˙ (6)
			55 C4H7^+ (3)
			71 C5H11^+ (3)
2,5-Dimethylhexane (114)	133 C8H18·H3O^+ (64)	113 C8H17^+ (100)	99 C7H15^+ (29)
C8H18	113 C8H17^+ (36)		57 C4H9^+ (23)
			114 C8H18^+˙ (15)
			71 C5H11^+ (11)
			70 C5H10^+˙ (7)
			112 C8H16^+˙ (4)
			42 C3H7^+ (6)
			43 C3H7^+ (3)
			56 C4H8^+˙ (2)
2,3-Dimethylheptane (128)	147 C9H20·H3O^+ (12)	127 C9H19^+ (100)	84 C6H12^+˙ (48)
C9H20	127 C9H19^+ (88)		85 C6H13^+ (31)
			128 C9H20^+˙ (7)
			71 C5H11^+ (7)
			70 C5H10^+˙ (3)
			56 C4H8^+˙ (2)
			83 C6H11^+ (2)

---

Table 2 Branching ratios for the product ions of the alkane reactions observed in the Profile 3 with a He and N₂ carrier gas at 300 K. The relative molecular mass of the alkanes is shown in parentheses after the alkane name; for the product ions, the m/z value of the product ion is shown first, followed by the formula and the branching ratio in parentheses

Compound (RMM/Da)	He carrier gas			N2 carrier gas
	H3O^+	NO^+	O2^+˙	H3O^+	NO^+	O2^+˙
n-Hexane (86)	105 C6H14·H3O^+ (96)	116 C6H14·NO^+ (12)	86 C6H14^+˙ (38)	105 C6H14·H3O^+ (91)	116 C6H14·NO^+ (1)	86 C6H14^+˙ (36)
C6H14	85 C6H13^+ (4)	85 C6H13^+ (88)	85 C6H13^+ (4)	85 C6H13^+ (9)	85 C6H13^+ (85)	85 C6H13^+ (6)
			57 C4H9^+ (35)		83 C6H11^+ (14)	57 C4H9^+ (31)
			56 C4H8^+˙ (21)			56 C4H8^+˙ (24)
			55 C4H7^+ (2)			55 C4H7^+ (3)
3-Methylpentane (86)	105 C6H14·H3O^+ (42)	85 C6H13^+ (100)	86 C8H18^+˙ (18)	105 C6H14·H3O^+ (33)	85 C6H13^+ (100)	86 C8H18^+˙ (15)
C6H14	85 C6H13^+ (58)		57 C4H9^+ (31)	85 C6H13^+ (67)		57 C4H9^+ (27)
			56 C4H8^+˙ (51)			56 C4H8^+˙ (52)
						55 C4H7^+ (6)
2,5-Dimethylhexane (114)	133 C8H18·H3O^+ (74)	113 C8H17^+ (100)	114 C8H18^+˙ (24)	133 C8H18·H3O^+ (55)	113 C8H17^+ (100)	114 C8H18^+˙ (24)
C8H18	113 C8H17^+ (26)		113 C8H17^+ (3)	113 C8H17^+ (45)		113 C8H17^+ (4)
			112 C8H16^+˙ (3)			112 C8H16^+˙ (3)
			99 C7H15^+ (35)			99 C7H15^+ (32)
			71 C5H11^+ (11)			71 C5H11^+ (14)
			70 C5H10^+˙ (7)			70 C5H10^+˙ (7)
			57 C4H9^+ (14)			57 C4H9^+ (14)
			43 C3H7^+ (2)			43 C3H7^+ (2)
2,3-Dimethylheptane (128)	147 C9H20·H3O^+ (10)	127 C9H19^+ (100)	128 C9H20^+˙ (13)	147 C9H20·H3O^+ (8)	127 C9H19^+ (100)	128 C9H20^+˙ (13)
C9H20	127 C9H19^+ (90)		85 C6H13^+ (33)	127 C9H19^+ (92)		85 C6H13^+ (29)
			84 C6H12^+˙ (44)			84 C6H12^+˙ (44)
			83 C6H11^+ (2)			83 C6H11^+ (6)
			71 C5H11^+ (7)			71 C5H11^+ (6)
			56 C4H8^+˙ (1)			56 C4H8^+˙ (2)

---

Table 3 gives the reaction rate coefficients obtained in the Voice200, together with the molecular properties used for their calculation. The Profile 3 results are given in Table 4.

Table 3 The experimentally derived reaction rate coefficients (k) and the theoretical collisional rate coefficients (k_c) (shown in square brackets) of the alkane reactions obtained in the Voice200infinity SIFT-MS in N₂ carrier gas at 300 K using a 4 V LE lens. The units of k and k_c are 10⁻⁹ cm³ s⁻¹

Voice200infinity	Polarizability, α Å^3 (×10^−24 cm^3)	Dipole moment, D debye	H3O^+k, [kc]	NO^+k, [kc]	O2^+˙ k, [kc]
Compound
a Ionisation energy values in eV obtained from the NIST database.^30 b DFT Calculations using the ORCA programme with the B3LYP DFT and 6-311++G(d,p) basis set, with a D4 correction.^31
n-Hexane (86) 10.29^a	11.3^b	0.00^b	0.4, [2.0]	0.0, [1.7]	1.6, [1.6]
3-Methylpentane (86) 10.04^a	11.2^b	0.10^b	0.6, [2.0]	1.7, [1.7]	1.4, [1.6]
2,5-Dimethylhexane (114) 9.76^a	14.9^b	0.00^b	1.1, [2.2]	1.8, [1.9]	1.8, [1.8]
2,3-Dimethylheptane (128)	16.6^b	0.08^b	2.4, [2.4]	1.6, [2.0]	1.7, [2.0]

---

Table 4 The experimentally derived reaction rate coefficients (k) and the theoretical collisional rate coefficients (k_c) (shown in square brackets) of the alkane reactions obtained in the Profile 3 SIFT-MS, in both He and N₂ carrier gases at 300 K. The rate coefficients shown in standard font are in He; rate coefficients in bold are in N₂ carrier gas. The units of k and k_c are 10⁻⁹ cm³ s⁻¹

Profile 3 at 300 K	H3O^+k, k, [kc]	NO^+k, k, [kc]	O2^+˙ k, k, [kc]
Compound
n-Hexane (86)	0.5, 0.2, [2.0]	0.1, 0.7, [1.7]	1.6, 1.6, [1.6]
3-Methylpentane (86)	0.9, 0.8, [2.0]	1.7, 1.7, [1.7]	1.4, 1.2, [1.6]
2,5-Dimethylhexane (114)	1.7, 1.4, [2.2]	1.9, 1.9, [1.9]	1.4, 1.1, [1.8]
2,3-Dimethylheptane (128)	2.0, 1.9, [2.4]	2.0, 2.0, [2.0]	2.0, 2.0, [2.0]

---

3.1. Positive ions

3.1.1. H₃O⁺ reactions. It is commonly expected that H₃O⁺ reagent ions will react with organic molecules by proton transfer, resulting in MH⁺ ions, as long as the molecules' proton affinities are greater than those of H₂O (691 kJ mol⁻¹).³² It is thus a striking result that MH⁺ ions (expected at m/z 87, 115, and 129) are not observed amongst the product ions, in agreement with previous work on small hydrocarbons.³³

The main ion product for n-hexane, C₆H₁₄, is the adduct ion observed at m/z 105 that undergoes a fast secondary reaction with H₂O molecules forming H₃O⁺·H₂O at m/z 37. Another product ion is (M–H)⁺ at m/z 85, resulting from the formation of H₂ from the transient reaction complex (C₆H₁₄·H₃O⁺*). In the Voice200, an ion product C₅H₁₁⁺at m/z 71 is also present, corresponding to the formation of a CH₄ molecule.

→C₆H₁₃⁺ + H₂ + H₂O (m/z 85) (2b)

→C₅H₁₁⁺ + CH₄ + H₂O (m/z 71) (2c)

The branching ratios are different under different conditions. The association pathway is dominant in the Profile 3, in both carrier gases (over 90%). In the Voice200, the percentage of the adduct is 70% at 300 K, and disappears completely at 393 K. The signal intensities of C₆H₁₃⁺ and C₅H₁₁⁺ are similar in the Voice200, whilst in the Profile 3, the signal at m/z 71 is 20 times smaller than that at m/z 85, corresponding to less than 1% of the net reaction.

The results for the branched isomer, 3-methylpentane, are qualitatively similar; the main difference being that the net rate coefficients are faster and the channel forming C₆H₁₃⁺ is always dominant in all observed conditions.

For the 2,5-dimethylhexane reaction, the main product at 300 K is the adduct ion, with (M–H)⁺ corresponding to the formation of a neutral H₂ molecule.

→C₈H₁₇⁺ + H₂ + H₂O (m/z 113) (3b)

At higher temperatures (393 K) the adduct branching ratio reduces from 14% to 7% depending on the ion optics voltage.

2,3-Dimethylheptane reacts with H₃O⁺ mostly by producing the (M–H)⁺ product, with only a minor adduct ion signal observed.

H₃O⁺ + C₉H₂₀ → C₉H₁₉⁺ + H₂ + H₂O (m/z 127) (4a)

At higher temperatures, the adduct remains a minor but significant ion product (∼20%).

The bar chart in Fig. 2 illustrates the branching ratios of association channels for all compounds under various conditions.

Fig. 2 The branching ratios of the association channels of H₃O⁺ reactions with alkanes under various conditions.

To understand why protonated molecules (MH⁺) are not observed, DFT calculations were performed to determine the geometries and enthalpies of protonated forms of each alkane molecule, considering several possible positions of H⁺. Geometry optimisation revealed that the stable structures of protonated alkane molecules can be represented as (M–H)⁺ H₂, (M–CH₃)⁺·CH₄, or R₁H·R₂⁺, where R₁ and R₂ are alkane fragment radicals. The geometries of these various protonated alkane formations are shown in Fig. 3.

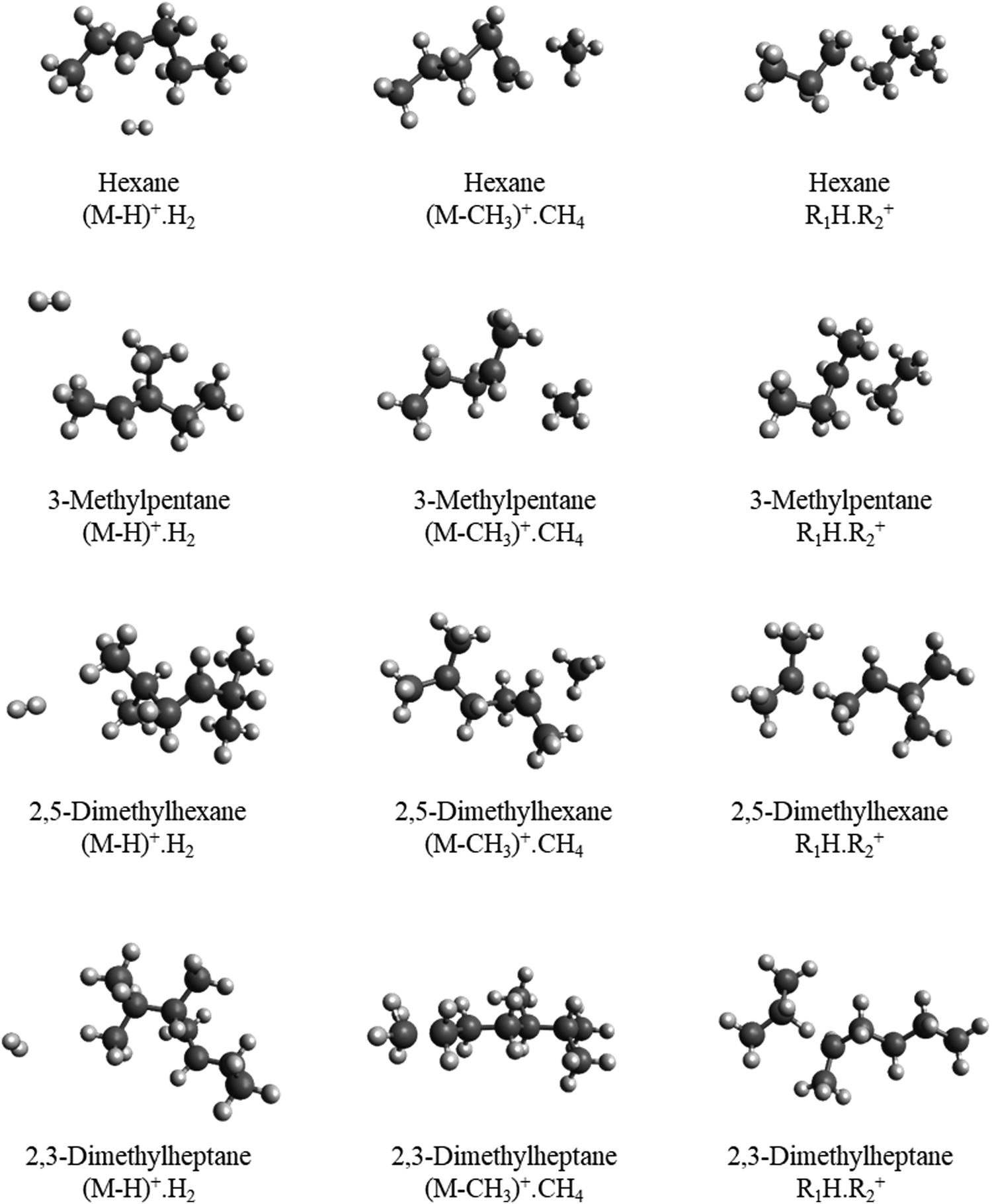

Fig. 3 Calculated structures of the different possible protonated arrangements of the four hydrocarbons studied in this work. Black spheres represent C atoms, and white spheres represent H atoms.

PA values calculated for each of the structures shown in Fig. 3 are given in Table 5. Note that for each alkane species, at least one configuration corresponds to a proton affinity greater than that of water. Note that the structures indicate the composition of the ions from two units: a positively charged closed shell ion weakly bound to a neutral moiety C_nH_2n+2 (n = 0…3). As the formation of MH⁺ was not observed, it appears that they are not thermodynamically stable and dissociate into the observed product ions.

Table 5 The proton affinities (kJ mol⁻¹) calculated for the different possible stable structures of MH⁺ ions are shown in Fig. 3

PA (kJ mol^−1)	(M–H)^+·H2	(M–CH3)^+·CH4	R1H·R2^+
a The values greater than 691 kJ mol^−1 are indicated in bold.
n-Hexane	678	677	693
3-Methylpentane	680	730	724
2,5-Dimethylhexane	693	741	727
2,3-Dimethylheptane	701	599	763

---

The experiments clearly reveal that the H₃O⁺ reactions lead to the formation of (M–H)⁺ product ions. To understand how the reactions (2b), (3b) and (4a) proceed, several possible structures of the (M–H)⁺ product ions were optimised by DFT, and the lowest energy case was used to calculate the reaction enthalpy (ΔH) and Gibbs Free energy (ΔG) changes; the results are given in Table 6.

Table 6 Enthalpy (ΔH) and free energy (ΔG) changes in the H₃O⁺ reactions with hydrocarbons producing (M–H)⁺ + H₂ + H₂O products (reactions (2b), (3b) and (4a)), calculated by DFT

Thermodynamics	ΔH (kJ mol^−1)	ΔG (kJ mol^−1)
n-Hexane	13	−23
3-Methylpentane	11	−25
2,5-Dimethylhexane	−3	−37
2,3-Dimethylheptane	−8	−37

---

It is interesting to note that the reactions are close to thermoneutral, ΔH, ranging from slightly exothermic (−8 kJ mol⁻¹) to endothermic (+13 kJ mol⁻¹). However, the calculations reveal that all these reactions are exergonic because the ΔG is negative. This is due to a significant increase in translational entropy caused by the ejection of separate H₂ and H₂O molecules. The TΔS term for an additional H₂ product molecule contributes −37 kJ mol⁻¹. The suggested mechanism of this reaction involves the formation of the MH₃O⁺* transitional complex, from which an H₂ molecule and an H₂O molecule are ejected after the (M–H)⁺ product ion is formed within this complex. Fig. 4. illustrates the mechanism for the formation of the (M–H)⁺ product ion on an example of 3-methylpentane. Note that the H₂ molecule is formed from one of the H atoms of the H₃O⁺ and from an H atom in the middle of the hydrocarbon molecule. This was validated by preliminary molecular dynamics simulations of this reaction using the ORCA MD module.

Fig. 4 The suggested mechanism of (M–H)⁺ formation and H₂ ejection from the reaction of 3-methylpentane and the H₃O⁺ reagent ion.

Considering the rate coefficients, the speed of H₃O⁺ reactions (see Tables 3 and 4) seem to correlate with the ΔH values; they are slow for endothermic cases and the only fast reaction occurs for 2,3-dimethylheptane (exothermic by 8 kJ mol⁻¹).

Note that the adduct ions M·H₃O⁺ formed at the lower temperature of 300 K are highly reactive with H₂O molecules and thus they may only be observed in a highly dry carrier gas for which even a few ppmv of water vapour causes their rapid conversion via ligand switching to the H₃O⁺H₂O secondary product ion.³⁴ At the higher temperature of 393 K, formation of the adducts is suppressed.³⁵

3.1.2. NO⁺ reactions. In contrast to the H₃O⁺ reactions, these NO⁺ reactions with alkanes proceed as hydride ion (H⁻) transfer. The only exception is n-hexane, where fragment ions are observed along with minor adduct ions:

NO⁺ + C₆H₁₄ → C₆H₁₃⁺ + HNO (m/z 85) (5a)

→C₆H₁₁⁺ + H₂ + HNO (m/z 83) (5b)

Note that the rate coefficient for the reaction in He (k = 0.1 × 10⁻⁹ cm³ s⁻¹) is slower than in N₂ (k = 0.7 × 10⁻⁹ cm³ s⁻¹) (as shown in Table 4), because N₂ is a more effective third body for collisional stabilisation of the adduct ions. For 3-methylpentane, 2,5-dimethylhexane, and 2,3-dimethylheptane, the hydride ion transfer process was the only reaction observed:

NO⁺ + C₆H₁₄ → C₆H₁₃⁺ + HNO (m/z 85) (6)

NO⁺ + C₈H₁₈ → C₈H₁₇⁺ + HNO (m/z 113) (7)

NO⁺ + C₉H₂₀ → C₉H₁₉⁺ + HNO (m/z 127) (8)

The present observation of hydride ion transfer as the major process is in agreement with previous work.^33,34 Note that the previous results for the NO⁺ and n-hexane reaction showed only a slow hydride ion transfer reaction. However, the more accurate present study adds a 14% fragment and a 1% adduct, which were neglected previously.³⁴

It is known that NO⁺ ions may undergo charge transfer reactions³⁶ with molecules having ionisation energies (IE) lower than that of NO˙, which is 9.25 eV. Thus, charge transfer was not observed in the NO⁺ reactions with n-hexane, 3-methylpentane or 2,5-dimethylhexane that have an IE of 10.29 eV, 10.04 eV, and 9.76 eV, respectively. Also, the absence of charge transfer to 2,3-dimethylheptane indicates that the IE of this molecule is likely >9.25 eV.

3.1.3. O₂⁺˙ reactions. As is common in most O₂⁺˙ reactions with organic molecules, charge transfer was observed with alkanes via nondissociative formation of the molecular radical cation, in conjunction with multiple dissociative channels leading to various fragments (see Table 1).

O₂⁺˙ + C_nH_2n+2 → C_nH_2n+2⁺˙ + O₂ (9a)

→C_xH_y⁺ + C_n−xH_2n+2−y + O₂ (9b)

The percentage of the nondissociative channel varied widely between the compounds and significantly also between the experimental conditions. It is thus instructive to plot the percentages of the undissociated molecular radical cation product (C_nH_2n+2⁺˙) for different carrier gases, temperatures and instrumental arrangements for extraction of the product ions from the flow tube. The branching ratios of channel (9a) under various conditions are illustrated in the bar chart in Fig. 5.

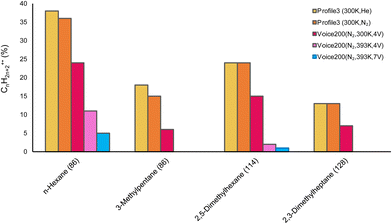

Fig. 5 The percentage of the nondissociative charge transfer from O₂⁺˙ for each alkane under various conditions.

Amongst the compounds, the linear alkane (n-hexane) products exhibited the lowest percentage of fragmentation under He and N₂ at 300 K. However, a significant decrease in the branching ratio of reaction (9a) was observed under elevated temperatures (393 K) and higher extraction lens voltages (4 V and 7 V), indicating increased fragmentation. The branched structure of 3-methylpentane had a much greater degree of fragmentation. 2,5-Dimethylhexane had similar branching ratios for nondissociative charge transfer under He and N₂ at 300 K, but it decreased with increasing temperature and voltage. 2,3-Dimethylheptane exhibits the lowest values overall. In all cases, there is a clear trend in the Profile 3 where the branching ratios do not change between He or N₂; they decrease in the Voice200 due to the presence of additional electric fields;³⁷ and further reduce with increasing temperature and extraction lens voltage. The decreasing trend with the size of the alkane molecule agrees with the previous work, which also reported low proportions of the charge transfer product for larger alkanes.³⁴

3.2. Negative ions

Out of the available negative ions in the Voice200infiinity, the only reagent that reacted significantly with the alkanes was O⁻˙. No reactions were observed for OH⁻, O₂⁻˙, NO₂⁻ or NO₃⁻. The O⁻˙ reactions proceed as associative detachment, as confirmed by SF₆ capturing free electrons; Fig. 6 shows an example of 3-methylpentane where the SF₆⁻ product ion signal increases as the count rates of O⁻˙ decrease.³⁸ The rate coefficients were estimated by comparison with the positive ion reactions to be in the range of 1 to 1.6 (in the units of 10⁻⁹ cm³ s⁻¹).

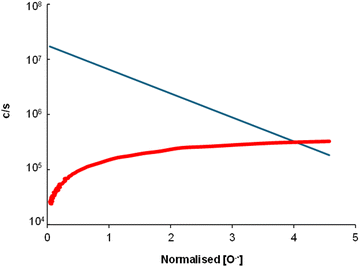

Fig. 6 Associative detachment process of 3-methylpentane demonstrated by the relative concentrations of [O⁻˙] at m/z −16 (blue) and [SF₆⁻] at m/z −146 (red).

4. Conclusion

Whilst alkanes are seemingly the simplest type of organic molecule, reactions of the SIFT-MS reagent ions with these molecules exhibit an unexpected complexity. One of the most interesting results obtained in the present detailed study is that H₃O⁺ does not transfer its proton to alkane molecules, even though the calculated proton affinities would indicate that this should be possible. Instead, product ions at m/z (M-1) are formed alongside the adduct ions. Thus, the widely held concept within the SIFT-MS and PTR-MS communities³⁹ that H₃O⁺ reacts with VOCs via fast proton transfer reactions^32,39 does not apply to alkanes. DFT-optimised lowest energy protonated structures do not correspond to a proton sitting on the molecule but instead involve the insertion of the proton between two C atoms, resulting in a complex with a hydrocarbon molecule (CH₄ or C₃H₈) and a closed-shell ion. DFT calculations further reveal that the reaction of H₃O⁺ with alkanes producing H₂ and the [M–H]⁺ product ions are near thermoneutral and substantially exergonic and are therefore entropically driven. This is accompanied by the finding that H₃O⁺ ions undergo efficient association reactions with alkanes, producing M·H₃O⁺ adducts, indicating the formation of a long-lasting reaction complex. It is from this complex, that after appropriate rearrangement, H₂ is ejected together with H₂O; this is also suggested by exploratory molecular dynamics simulations, which would deserve dedicated future work outside the scope of the present study. The M·H₃O⁺ adducts undergo rapid ligand-switching reactions with H₂O molecules forming H₃O⁺·H₂O and will not thus be present on SIFT-MS spectra obtained in the presence of water vapour.

NO⁺ reacted predominantly via hydride ion transfer, also forming [M–H]⁺; the same product ion as H₃O⁺, a rather unusual case amongst VOCs. Thus, in SIFT-MS applications, one way to identify alkanes is by observation of the same ions on H₃O⁺ and NO⁺ spectra. The O₂⁺˙ reactions resulted in a variable amount of molecular radical cations and multiple fragment ions. The negative reagent ions did not lead to any product ions and are thus not useful for alkane SIFT-MS analyses.

Data availability

The data supporting this article are available in the National Repository at https://doi.org/10.48700/datst.gzx8g-3tt47 under the Creative Commons open access licence.

Conflicts of interest

There are no conflicts to declare.

Acknowledgements

The authors gratefully acknowledge financial support from the Czech Science Foundation (Grantová Agentura České Republiky, GACR; Project No. 21-25486S) and from the Praemium Academiae funding by the Czech Academy of Sciences. We would also like to thank Nicholas Demarais for his feedback.
