Optimisation of dynamic nuclear polarisation using “off-the-shelf” Gd(III)-based polarising agents

Abstract

Complexes of paramagnetic metal ions, in particular Gd³⁺, have been demonstrated as efficient polarising agents for magic-angle spinning (MAS) dynamic nuclear polarisation (DNP). We recently demonstrated that commercially available and inexpensive Gd(NO₃)₃ is suitable for use as an “off-the-shelf” MAS DNP polarising agent, providing promising sensitivity enhancements to ¹H, ¹³C, and ¹⁵N NMR signals. Here we expand upon this approach by investigating the impact of the Gd(NO₃)₃ concentration and by exploring a larger range of readily available Gd³⁺ sources. We found that a Gd(NO₃)₃ concentration of 20 mM in the case of ¹H and ¹³C, and 40 mM in the case of ¹⁵N, offers optimum signal enhancements and is rationalised as a trade-off between DNP enhancements, polarisation build-up times, and electron paramagnetic resonance (EPR) spin–spin relaxation times. We determined that a range of different gadolinium compounds (GdCl₃, Gd₂(SO₄)₃, GdBr₃, and Gd(OAc)₃) are also suitable for use as polarising agents and yield ¹H, ¹³C, and ¹⁵N signal enhancements of variable values. Gd(OAc)₃ yields lower signal enhancements, which is proposed to be the result of greater local asymmetry at the Gd³⁺ centre leading to EPR line broadening, and the methyl group in the acetate ion acting as a relaxation sink and limiting the nuclear polarisation available.

---

Introduction

Dynamic nuclear polarisation (DNP) has been widely demonstrated as a highly efficient method for overcoming the typically limited sensitivity of solid-state nuclear magnetic resonance (NMR) spectroscopy under magic-angle spinning (MAS).^1–3 By employing microwave irradiation to transfer polarisation from unpaired electrons to nuclear spins, improvements to the signal-to-noise ratio of orders of magnitude can be achieved in a variety of NMR applications, including inorganic materials⁴ and biomolecules.⁵ DNP is particularly important for low natural abundance nuclei such as ¹⁷O,⁶ nuclei with low gyromagnetic ratios such as ⁸⁹Y,⁷ and surface sites.^8,9

Some of the most significant advances in DNP have been attributed to the rational design of polarising agents (PAs), in particular nitroxide biradicals for which polarisation transfer is driven by the highly efficient cross effect (CE) mechanism.¹⁰ One of the first major developments in PA design was the introduction of the water-soluble bis-nitroxide TOTAPOL,¹¹ with subsequent optimisation focussing on increasing the rigidity of the linker, resulting in PAs such as AMUPol,¹² TEKPol,¹³ AsymPol,¹⁴ and TEKPol2.¹⁵ More recently, HydrOPol and NaphPol have been shown to be the most efficient PAs to date, providing ¹H enhancements of 330 and 249, respectively, at 9.4 T (400 MHz) and 100 K.^16–18

Paramagnetic metal ion complexes have also been extensively investigated for use as PAs in DNP driven by the solid effect (SE) mechanism.¹⁹ Gadolinium(III) is the most promising of these, due to its weak spin–orbit coupling (SOC), negligible hyperfine coupling to its NMR active isotopes (¹⁵⁵Gd and ¹⁵⁷Gd), and high stability with respect to oxidation and reduction.²⁰ [Gd(dota)(H₂O)]⁻, which gives a ¹H enhancement of −16 at 9.4 T, was used as a basis for an investigation into a wide range of Gd(III) chelates.^21–24 [Gd(tpatcn)] was shown to be the strongest performer, giving a ¹H enhancement of −36 at the same field. In addition, bis-gadolinium complexes have been considered as potential PAs for CE DNP.²⁵ Paramagnetic metal ions have also been applied to the labelling of specific sites in proteins and nucleic acids to achieve site-selective enhancements^22,26,27 Endogenous DNP has been carried out for materials doped with metal ions, with notable examples being inorganic glasses^28,29 as well as ⁶Li, ⁷Li, and ¹⁷O DNP in battery anode and phosphor materials doped with manganese(II) and iron(III).^30–33

A key limitation of DNP is the relative inaccessibility of PAs, with only a limited range of the most widely-used being commercially available. The synthesis of PAs is seldom trivial, with most requiring multi-step syntheses with low yields. For example, AMUPol is prepared using a four-step synthesis with a 24% yield,¹² and [Gd(tpatcn)] requires a six-step synthesis with a 6% yield.²³ Furthermore, radicals are known to exhibit poor stability in strongly reducing or acidic environments.³⁴ Clearly there is a need for the development of PAs that are more widely accessible.

Recently, our group introduced the concept of “off-the-shelf” polarising agents: paramagnetic compounds that are readily commercially available, easily affordable, and can be used “as is” without any further synthesis.³⁵ We initially selected gadolinium(III) nitrate ([Gd(NO₃)₃]) and achieved enhancements of −16 and −11 for ¹³C and −57 and −23 for ¹⁵N in glycine at 9.4 T and 14.1 T (600 MHz), respectively. Although these enhancements were smaller than those attainable using Gd(III) complexes with chelating ligands, it is hoped that the convenient nature of “off-the-shelf” PAs will contribute to DNP becoming more accessible.

In this work, we further explore other Gd(III) sources as well as the impact of the Gd(III) concentration, investigating the effect on the DNP efficiency, with the enhancement, build-up dynamics, and paramagnetic bleaching being considered. This will be accompanied by supporting electron paramagnetic resonance (EPR) data, as well as an investigation into the Gd(III) coordination sphere using high-resolution mass spectrometry (HRMS).

Materials and methods

Sample preparation

Five Gd(III) compounds from common suppliers were investigated as potential PAs: Gd(NO₃)₃·6H₂O (Sigma-Aldrich, 99.99%), GdCl₃·6H₂O (Alfa-Aesar, 99.9%), Gd₂(SO₄)₃·8H₂O (Alfa-Aesar, 99.99%), GdBr₃·xH₂O (Alfa-Aesar, 99.99%), and Gd(OAc)₃·xH₂O (Alfa-Aesar, 99.9%). The number of waters of hydration, x, was determined using thermogravimetric analysis (TGA) to be 13 and 4 for GdBr₃ and Gd(OAc)₃, respectively.

For the DNP experiments, solutions of 1.5 M 2-¹³C,¹⁵N-glycine (Sigma-Aldrich, 99% ¹³C labelled on the α-carbon, 98% ¹⁵N), doped with various concentrations of Gd(NO₃)₃, 10 mM Gd₂(SO₄)₃, and 20 mM of all other Gd(III) compounds (so as to maintain a constant Gd³⁺ concentration), were prepared in the glass-forming mixture glycerol-d₈/D₂O/H₂O (6/3/1 v/v/v) (“DNP juice”). The volume of glycerol was determined indirectly by mass, whereas water and water/glycerol mixtures were pipetted using miropipettes with an uncertainty of 1%. The samples were sonicated at 70 °C for 30 minutes to ensure complete dissolution of both glycine and the Gd(III) compound (although Gd₂(SO₄)₃ was difficult to dissolve, indicating that the solubility limit may be exceeded at this concentration). 20 μL amounts of solution were placed into 3.2 mm sapphire rotors, closed with Vespel drive caps and sealed using polytetrafluoroethylene (PTFE) tape around the inside of the caps. The rotors were weighed before and after sample loading in order to determine the sample mass.

Solutions for EPR and HRMS analysis were prepared in a similar manner, albeit both with and without 1.5 M unlabelled glycine (Alfa Aesar, 99%) and 3/2 v/v glycerol/H₂O as the solvent. EPR tubes with outer diameters of 5 mm were filled with each solution to a 1 cm height to ensure that the active region of the resonator was entirely filled. A small amount of formic acid was added to the HRMS samples to ensure complete dissolution.

DNP MAS NMR

DNP experiments were performed at ∼105 K on a commercial Bruker Biospin DNP system³⁶ at a static magnetic field B₀ = 14.1 T on a 600 MHz AVANCE III spectrometer with a gyrotron microwave (μW) source operating at a frequency of ω_0S/2π = 395 GHz. Experiments were performed at a MAS rate ω_r/2π of 10 kHz on either a 3.2 mm triple resonance HXY low-temperature MAS probe tuned to X = ¹³C and Y = ¹⁵N or a 3.2 mm double resonance HX low-temperature MAS probe tuned to X = ¹³C or ¹⁵N. ¹H, ¹³C, and ¹⁵N NMR spectra were measured using Hahn echo pulse sequences, synchronised to one rotor period, with radiofrequency (rf) pulse amplitudes of ω_H/2π = 66 kHz, ω_C/2π = 60 kHz, and ω_N/2π = 38 kHz on the triple resonance probe and ω_H/2π = 88 kHz, ω_C/2π = 74 kHz, and ω_N/2π = 50 kHz on the double resonance probe. ¹H → ¹³C cross polarisation (CP) spectra were recorded using Hartman–Hahn matched rf pulse amplitudes of ω_H/2π = 68 kHz and ω_C/2π = 60 kHz on the triple resonance probe and ω_H/2π = 88 kHz and ω_C/2π = 74 kHz on the double resonance probe, with a 70% → 100% linear amplitude ramp on the ¹H pulse, and a CP contact duration of 2 ms. SPINAL-64 decoupling was applied during ¹³C and ¹⁵N NMR signal acquisition with a ¹H rf-pulse amplitude of 63 kHz on the triple resonance probe, and 88 kHz on the double resonance probe.³⁷ The stator and waveguide design is identical for both probes³⁸ and there is no significant change in the effective microwave power at the sample and DNP enhancement as exemplified in the data given in Fig. S1 (ESI†). A train of 100 pre-saturation rf pulses, separated by 1 ms, was applied on all relevant spectrometer rf-channels before data collection.

DNP build-up time constants (T_B,ON) were measured by varying the length of the irradiation period following pre-saturation (using a standard pulse programme for saturation recovery), and fitting the resulting data with a stretched exponential function of the type , where α is a stretching constant, and the final T_B,ON values were calculated as , with being the gamma function. Uncertainties in T_B,ON values were taken to be the 95% confidence intervals calculated using MATLAB's curve fitting tool. The DNP enhancements, ε, defined as the ratio of the integrated NMR signal intensities with and without μW irradiation, were measured at the field position for optimum negative enhancement with an electron Larmor frequency of 395 GHz (previously determined to be 14.159 T for ¹H, 14.175 T for ¹³C, and 14.179 T for ¹⁵N, with some minor adjustments of less than 2 mT being made where necessary to optimise the enhancement) with a build-up delay of 5 × T_B,ON, and are reported as the optimum values as a function of the μW power curve. Uncertainties in the DNP enhancements were calculated as , where SNR is the signal-to-noise ratio.¹⁸ The contribution factor (θ), which accounts for paramagnetic bleaching, is defined as the ratio of the integrated intensities of the ¹³C CP MAS spectra with and without a Gd(III) compound, scaled by the sample masses in each case. Due to potential differences in T_1ρ, the CP contact time was optimised for maximum signal on each sample. The recycle delay was set to five times the ¹H T₁ value. The ¹H and ¹³C spectra were externally referenced to adamantane at 1.8 ppm^39,40 and 29.45 ppm,⁴¹ respectively, while the ¹⁵N spectra were internally referenced to glycine at 33.4 ppm.⁴²

EPR

EPR data were recorded using Bruker E580 Elexsys pulsed spectrometers, equipped with a Bruker 4118X-MD5 Flexline resonator for X-band (9.5 GHz) measurements, and a Bruker QT-II resonator for Q-band (34 GHz) measurements. Experiments were carried out at 100 K (80 K for 40 and 60 mM Gd(NO₃)₃, and 30 K for 100 mM Gd(NO₃)₃), with cryogenic temperatures achieved with closed cycle cryofree cryostats from Bruker Biospin and Cryogenic Ltd. The presence of helium in the cryostats excluded oxygen from the samples. Echo-detected field-swept EPR spectra were recorded using a standard Hahn echo sequence of π/2–τ–π–τ where the π pulse was 32 ns, and τ was 180 ns and 300 ns at X-band and Q-band, respectively. Electron spin–spin relaxation time constants (T_2e) were measured by increasing τ in 4 ns increments. In some cases, a longer π pulse of 60 ns was used in order to suppress ESEEM (Echo Spin Echo Envelope Modulation) from interacting nuclei modulating the magnetisation decay curve. The data were fit with an exponential function of the type . Electron spin–lattice relaxation time constants (T_1e) were obtained using a three-pulse inversion recovery echo sequence π–T–π/2–τ–π–τ, with a four-step phase cycle in order to minimise effects from unwanted echoes, and with T increasing in 2 ns increments. The data were fit with a stretched exponential function of the type , where β is a stretching constant, and the final T_1e values were calculated as , with being the gamma function.

The axial zero-field splitting (ZFS) components, D, of each Gd(III) compound were determined using echo-detected field swept spectra measured at 10 K with a Gd(III) concentration of 25 μM. Under these conditions, T_2e was measured to be longer than 3 μs for both the central and satellite transitions, which is significantly longer than the echo delay. Therefore, the satellite signals are not expected to have decayed to a greater degree than the central transition, allowing for adequate fitting of both spectral components.^43–45 The procedure for extracting D using spectral fitting has been described previously.^46,47 The distribution of D values was assumed to be Gaussian in nature, with a width of σ_D, while the ratio of E (the transverse ZFS constant) to D was assumed to be randomly distributed between 0 and 1/3 (with all E/D values being equally probable). For a range of D and σ_D values (between 300 and 1950 MHz, and 50 and 600 MHz, respectively, and separated by 50 MHz in both cases), 1000 values of D and E were generated according to the above constraints, and EPR spectra at both X-band and Q-band were simulated using EasySpin.⁴⁸ The average spectrum in each case was averaged, and compared to experimental data at X-band and Q-band in order to calculate the root mean square deviation (RMSD) using:

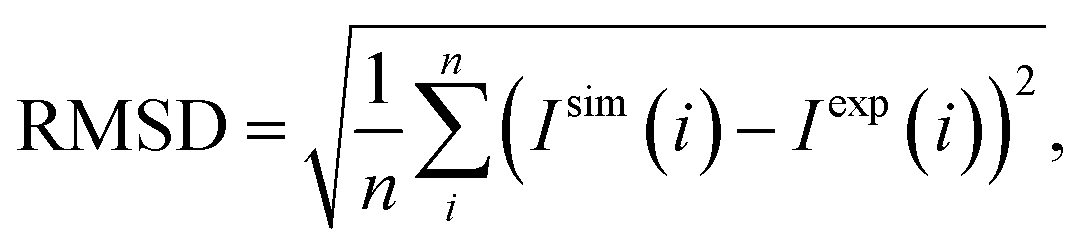

where I^sim(i) and I^exp(i) are, respectively, the normalised simulated and experimental signal intensities at data point i, and n is the number of data points in the spectrum. Contour plots of the products of the X-band and Q-band RMSD values for D versus σ_D were produced, and an ellipse was fit to the contour corresponding to double the minimum RMSD. The best fit D and σ_D values were taken to be the centre of this ellipse, with the uncertainties being taken to be the width and height of the ellipse at its centre.

HRMS

HRMS data were recorded on an Agilent 6540 quadrupole-time-of-flight mass spectrometer using electrospray ionisation in the positive mode. A list of notable peaks is given in Table S1 (ESI†). Peaks arising from Gd(III) species are easily identifiable due to gadolinium's characteristic isotopic pattern (approximately 0.15 : 0.21 : 0.16 : 0.25 : 0.22 for ¹⁵⁵Gd : ¹⁵⁶Gd : ¹⁵⁷Gd : ¹⁵⁸Gd : ¹⁶⁰Gd).

Results and discussion

Impact of the Gd(NO₃)₃ concentration

The DNP enhancement of 2-¹³C,¹⁵N-glycine was previously determined to be driven by the solid effect, as shown by the Zeeman field profiles.³⁵ Here, the measurements were carried out at the previously-determined optimum fields for negative enhancement, due to the positive enhancements being inaccessible within the range of the sweep coil. As an example, the DNP-enhanced MAS NMR spectra using 10 mM Gd(NO₃)₃ for ¹H (indirectly detected via¹H → ¹³C CP), ¹³C, and ¹⁵N (both directly detected via Hahn echoes) show enhancements (ε, taken as the ratio of the signal intensity under microwave irradiation to that without irradiation in the same sample) of −2.7 ± 0.1, −14 ± 0.2, and −23 ± 3, respectively (Fig. 1). The ¹H DNP enhancement (Fig. 2(a) and Table S2, ESI†) initially increases as the Gd(NO₃)₃ concentration increases, up to −4.5 ± 0.1 at 20 mM, since more polarisation sources become available, but with higher concentrations, the enhancement decreases. A similar concentration dependence is seen for direct ¹³C polarisation (Fig. 2(b)) where the optimum concentration of 20 mM provides an enhancement of −23 ± 3. For ¹⁵N, on the other hand, 40 mM gives the highest enhancement of −37 ± 4 (Fig. 2(c)). It was experimentally observed that in no case did the optimum field for the negative enhancement change significantly, strongly suggesting that there is no contribution from the CE (which might be expected at higher concentration if the EPR spectrum is broadened and the electron–electron coupling becomes sufficiently strong).²⁵

Fig. 1 (a) CP-detected ¹³C, (b) direct Hahn echo detected ¹³C, and (c) direct Hahn echo detected ¹⁵N NMR spectra of 2-¹³C,¹⁵N-glycine in 6/3/1 v/v/v glycerol-d₈/D₂O/H₂O, doped with 10 mM Gd(NO₃)₃, with (red) and without (black) microwave irradiation. All spectra were measured at ∼105 K and 14.1 T with a MAS frequency of 10 kHz. Signals marked with an asterisk originate from the glycerol solvent.

Fig. 2 (a)–(c) DNP enhancements, (d)–(f), DNP build-up times, and (g), (h), (i) overall sensitivity enhancements for (a), (d), (g) ¹H, (b), (e), (h) ¹³C, and (c), (f), (i) ¹⁵N of 1.5 M 2-¹³C,¹⁵N-glycine in 6/3/1 v/v/v glycerol-d₈/D₂O/H₂O at ∼105 K and 14.1 T, with various concentrations of Gd(NO₃)₃.

It is well-known that the DNP enhancement is, by itself, not an accurate metric for the overall DNP efficiency, due to other factors which influence the sensitivity.^49–52 The overall improvement to the NMR sensitivity ε_θ (i.e. the increase in signal-to-noise ratio per square root unit time) was determined using:⁵³

where T_B,ON is the DNP build-up time constant, T₁ is the spin–lattice relaxation time in the absence of the PA (measured to be 166 s, 1338 s, and 4882 s for ¹H, ¹³C, and ¹⁵N respectively at 400 MHz³⁵), and θ is the contribution factor (sometimes referred to as a quenching or bleaching factor in the case of the SE). θ quantifies the reduction in the NMR signal intensity that results from broadening on the NMR signals in the immediate vicinity of the PA, and is defined as the ratio of the integrated signal intensities of the sample of interest to that in the absence of PA. Due to the long recovery delays that would be required to obtain quantitative ¹³C and ¹⁵N signals in the absence of PA, the same contribution factors were assumed for all three nuclei, and were measured using the ¹H → ¹³C CP MAS signals. θ decreases as the Gd(NO₃)₃ concentration increases (Fig. 3(a)) which is to be expected.

Fig. 3 Contribution (paramagnetic bleaching) factors for 2-¹³C,¹⁵N-glycine as a function of (a) the Gd(NO₃)₃ concentration and (b) the Gd(III) source.

For all three nuclei considered, it is seen that T_B,ON becomes shorter as the Gd(NO₃)₃ concentration is increased (Fig. 2(d)–(f)), which is expected to be mainly due to paramagnetic relaxation enhancement. With build-up dynamics and paramagnetic bleaching taken into account, the optimum sensitivity enhancements are −7.2 ± 0.3 for ¹H with 20 mM Gd(NO₃)₃, −24 ± 3 for ¹³C with 20 mM Gd(NO₃)₃, and −61 ± 12 for ¹⁵N with 40 mM Gd(NO₃)₃ (Fig. 2(g)–(i)).

The decrease in enhancement at higher Gd(III) concentrations can be rationalised by considering the EPR data. Gd(III) has an electronic configuration of 4f⁷ with each of the seven f-orbitals being singly occupied, leading to a total electron spin of S = 7/2. Due to the half-filled f-subshell, the spin–orbit coupling (SOC) is negligible, resulting in a g-factor close to the free electron value of 2.0023.⁵⁴ There are eight Zeeman levels and seven single-quantum transitions. The central transition (m_s = −1/2 → +1/2) is only broadened by a second-order zero-field splitting (ZFS) effect, which results in a narrow central EPR line.⁵⁵ The satellite transitions on the other hand are broadened by a direct first-order ZFS effect, which leads to an additional broad satellite EPR signal.

The EPR spectra of various concentrations of Gd(NO₃)₃ at X-band (9.5 GHz) and Q-band (34 GHz) are shown in Fig. 4(a) and (b), respectively. The expected narrow central transition and broad satellite transitions are easily identifiable at Q-band, while at X-band, they are not easily distinguished. The g-factor was determined to be 1.990, close to the previously-reported value for GdCl₃ in aqueous solution.⁴⁷ No hyperfine splittings are resolvable due to the weak coupling to gadolinium's NMR-active isotopes. It has been shown using perturbation theory that the full-width at half-maximum (FWHM, Δ_h) of the central transition varies with the magnetic field, B₀, as:

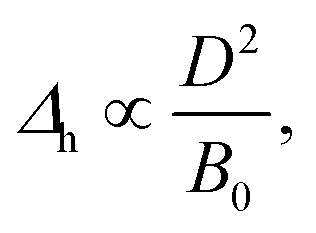

where D is the axial ZFS constant.⁵⁵ This is shown to be true here, with the FWHM values at 20 mM being 20 mT (557 MHz) at X-band and 6 mT (167 MHz) at Q-band. It is therefore estimated that at the DNP-relevant field of 14.1 T, the FWHM will be approximately 0.43 mT (12 MHz). Given that typical linewidths for trityl and BDPA-type radicals are about 20 mT (560 MHz),^56,57 it is not surprising that Gd(III) compounds are suitable for solid effect DNP. Fig. 4(a) and (b) show that the linewidth becomes broader as the concentration increases, which may be due to stronger inter-gadolinium dipolar interactions.

Fig. 4 Echo-detected field-swept EPR spectra of various concentrations of Gd(NO₃)₃ in 3/2 v/v glycerol/H₂O, measured at (a) X-band and (b) Q-band at the temperatures indicated for each concentration.

The electron spin–lattice (T_1e) and spin–spin (T_2e) relaxation times are important parameters for assessing a PA's suitability, particularly for SE DNP, since it is easier to saturate the forbidden zero- and double-quantum transitions for slowly relaxing electron spins. Both time constants were found to decrease as the Gd(NO₃)₃ concentration was increased (Fig. 5(a), (b) and Table S3, ESI†), which is expected due to stronger dipolar couplings between Gd(III) centres. For this reason, the data for Gd(III) concentrations of 40 mM or higher were collected at lower temperatures (80 K for 40 and 60 mM, 30 K for 100 mM), due to significant relaxation during echo delays at higher temperatures. This is also the cause of the lower signal-to-noise ratio for 60 mM Gd(NO₃)₃ at X-band, and the slightly distorted lineshape for 100 mM Gd(NO₃)₃ at Q-band. Previously-reported Gd(III) complexes were found to have Q-band T_1e values ranging between 500 and 860 ns, and T_2e values ranging between 300 and 470 ns, respectively.²⁴ These were measured at 10 K and with a concentration of 25 μM, so no direct comparisons to our 100 K values can be made. However, we have also measured T_1e and T_2e of 25 μM Gd(NO₃)₃ at 10 K to be 219 μs and 3.7 μs, respectively. Therefore, the relaxation behaviour of Gd(NO₃)₃ is suitable for DNP applications. The broadened lineshape and faster relaxation are likely to be the main contributing factors to the reduced DNP enhancement when using higher Gd(NO₃)₃ concentrations.

Fig. 5 Dependence of (a), (c) T_1e and (b), (d) T_2e on (a), (b) the concentration of Gd(NO₃)₃ and (c), (d) the Gd(III) source, measured at X-band and Q-band at 100 K (80 K for 40 and 60 mM Gd(NO₃)₃, 30 K for 100 mM Gd(NO₃)₃), with and without 1.5 M glycine.

Impact of the Gd(III) source

The DNP enhancements for ¹H, ¹³C, and ¹⁵N were measured for a range of Gd(III) compounds: Gd(NO₃)₃, GdCl₃, Gd₂(SO₄)₃, GdBr₃, and Gd(OAc)₃ (Fig. 6(a)–(c) and Table S4, ESI†). This range was selected based on the commercial accessibility of these compounds, and provides a mixture of monodentate, bidentate, hard and soft ligands. It should be noted that GdCl₃ has previously been investigated for use as a PA, albeit at 5 T, with a concentration of 10 mM, and with 3/2 v/v ¹³C₃-glycerol/H₂O as the solvent.²² For ¹H and ¹⁵N, Gd(NO₃)₃, GdCl₃, Gd₂(SO₄)₃, and Gd(OAc)₃ appear to give similar enhancements, comparable to the calculated uncertainties. However, for ¹³C, there appears to be some variation between compounds (which is larger than the uncertainties in the enhancements), with Gd(NO₃)₃ and GdCl₃ giving the largest enhancements, and Gd₂(SO₄)₃ and GdBr₃ giving smaller enhancements. It is also noted that for all three nuclei, Gd(OAc)₃ gives significantly smaller enhancements than all other Gd(III) compounds.

Fig. 6 (a)–(c) DNP enhancements, (d)–(f), DNP build-up times, and (g)–(i) overall sensitivity enhancements for (a), (d), (g) ¹H, (b), (e), (h) ¹³C, and (c), (f), (i) ¹⁵N of 1.5 M 2-¹³C,¹⁵N-glycine in 6/3/1 v/v/v glycerol-d₈/D₂O/H₂O at ∼105 K and 14.1 T, with various Gd(III) compounds.

The polarisation build-up time constants (Fig. 6(d)–(f)) for Gd(NO₃)₃, GdCl₃, and Gd₂(SO₄)₃ are very similar, but those for GdBr₃ and Gd(OAc)₃ are noticeably faster. It was also noted that the ¹³C and ¹⁵N build-up times for Gd₂(SO₄)₃ were slightly longer than all other Gd(III) compounds. This may indicate a lower-than-expected Gd(III) concentration in solution, owing to its lower solubility in DNP juice, which may limit its suitability as a DNP polarising agent. It was observed that, as expected, the contribution factor does not depend on the Gd(III) source (Fig. 3(b)). The overall sensitivity enhancements (Fig. 6(g)–(i)) for Gd(NO₃)₃, GdCl₃, and GdBr₃ were very similar (with the exception of the ¹³C enhancement for GdBr₃, which is noticeably lower, the cause of which is not apparent). The sensitivity increase for Gd₂(SO₄)₃ is slightly smaller for ¹H and ¹⁵N, and significantly smaller for ¹³C, which is possibly due to its lower solubility with respect to the other Gd(III) compounds. Finally, in all cases, the overall sensitivity increase for Gd(OAc)₃ is significantly smaller, in spite of the faster DNP build-up times.

One of the most important parameters affecting the DNP efficiency is the zero-field splitting constant and since the SE DNP enhancement is inversely proportional to the EPR linewidth,⁴⁶ the DNP efficiency has an inverse quadratic dependence on D in the absence of additional line broadening mechanisms.^23,24 Using established models for fitting the EPR spectra measured at 10 K and a Gd(III) concentration of 25 μM (echo-detected field-swept spectra shown in Fig. 7(a) and (b),^46,47 a value of D = 1079 ± 53 MHz is yielded for Gd(NO₃)₃ (Fig. 8, contour plot shown in Fig. S4, ESI†). This is larger than the previously-reported value of 810 MHz, in part due to the difference in the measurement conditions (which were 100 K and 20 mM previously), and in part due to σ_D originally being assumed to be fixed at D/3.³⁵ Similar values are seen for most of the other Gd(III) compounds (Table 1 and Fig. S4, ESI†), which leads to virtually identical EPR linewidths. T_1e and T_2e vary slightly with different Gd(III) sources (Fig. 5(c) and (d) and Table S3, ESI†), although there is no apparent trend, indicating that the counter-ion is not a significant source of electron spin relaxation.

Fig. 7 Echo-detected field-swept EPR spectra of 25 μM of various Gd(III) compounds in 3/2 v/v glycerol/H₂O without (a) and (c) and with (b) and (d) 1.5 M glycine, at (a) and (b) X-band and (c) and (d) Q-band at 10 K.

Table 1 Average axial ZFS parameters and their Gaussian distribution widths for all Gd(III) compounds, with and without 1.5 M glycine

Gd(III) compound	D/MHz		σ D/MHz
	Without glycine	With glycine	Without glycine	With glycine
Gd(NO3)3	1079 ± 53	1342 ± 60	311 ± 27	371 ± 34
GdCl3	1038 ± 70	1295 ± 46	288 ± 39	350 ± 30
Gd2(SO4)3	1044 ± 36	1389 ± 57	299 ± 20	373 ± 33
GdBr3	1062 ± 63	1367 ± 35	300 ± 38	369 ± 23
Gd(OAc)3	1050 ± 66	1535 ± 68	295 ± 39	433 ± 36

---

Fig. 8 Best fits to the (a) X-band and (b) Q-band echo detected field swept EPR spectra of 25 μM Gd(NO₃)₃ in 3/2 v/v glycerol/H₂O at 10 K.

It is well-established that the strength of the ZFS is dependent upon the symmetry about the gadolinium centre.^23,24,58 While this is potentially accessible from liquid-state NMR spectra, this is significantly challenged by the paramagnetic nature of Gd(III). Moreover, the Gd(III) species of interest are formed in frozen glasses, precluding the use of powder X-ray diffraction for structural refinements. These challenges have previously been recognised in the case of coordination and organometallic chemistry, with mass spectrometry (MS) being suggested as a suitable alternative.^59–61 Therefore, we turned to high-resolution MS (HRMS) with electrospray ionisation to gain some insight into possible Gd(III) species formed. Mass spectra were recorded for 20 mM of each Gd(III) compound (10 mM for Gd₂(SO₄)₃) dissolved in 3/2 v/v glycerol/H₂O. The relevant HRMS peaks and their assignments are given in Table S1 (ESI†). Here we make the assumption that the detected Gd(III) species exist in solution, and are not formed following ionisation of the solution and subsequent evaporation of the solvent from the charged droplets.

All salts showed a collection of peaks corresponding to [Gd(glycerol)₂]³⁺ fragments, which is expected given that glycerol can act as either a bidentate or tridentate ligand for lanthanide ions, including Gd³⁺.⁶² It was previously noted³⁵ that the nitrate anion also binds directly to the metal ion, as evidenced by the detection of [Gd(glycerol)₂(NO₃)₃]²⁺ (Fig. 9(a)). This is reasonable given that nitrate is a hard Lewis base and can act as a bidentate ligand, so binds strongly to Gd³⁺ (a hard Lewis acid). Similarly, sulfate, also a hard ligand that can bind in the bidentate mode, is found to bind directly to the metal centre. The corresponding peaks for GdCl₃ are much weaker, owing to chloride being a softer, more polarisable anion which, being monoatomic, can only bind in the monodentate mode. Surprisingly, despite the bromide ion being an even softer Lewis base than chloride, strong peaks corresponding to [Gd(glycerol)₂Br]³⁺, are observed. Furthermore, no signals corresponding to [Gd(glycerol)₂(OAc)]²⁺ are seen, despite the fact that acetate is a hard Lewis base. Therefore, the interactions between hard and soft Lewis acids and bases are unlikely to be the cause of the effects seen here. However, evidence of the formation of bis-gadolinium species is seen for Gd(OAc)₃, many of which contain acetate ions. It is not possible to distinguish whether glycerol or acetate acts as the bridging ligand, although the absence of similar peaks for the other Gd(III) compounds makes the latter case more plausible, and there is literature precedence for the existence of such complexes.⁶³ The emergence of these bis-gadolinium species may be the reason no evidence of acetate binding to a single Gd(III) centre are seen. The similarities in the ligand spheres for most of the Gd(III) compounds is consistent with their virtually identical ZFS constants.

Fig. 9 Structures of Gd(III) coordination spheres in 3/2 v/v glycerol/H₂O, both (a) without and (b) with 1.5 M glycerol, determined using HRMS.

In order to determine the Gd(III) structures formed in the DNP samples at hand, HRMS measurements were also carried out in the presence of 1.5 M glycine. Interestingly, all five compounds now show the same five collections of peaks, corresponding to the coordination of glycerol and glycine to the metal centre: [Gd(glycerol)₂]³⁺, [Gd(glycine)(glycerol)]³⁺, [Gd(glycine)(glycerol)₂]³⁺, [Gd(glycine)₃]³⁺, and [Gd(glycine)₂(glycerol)]³⁺ (Fig. 9(b)). It is possible that the former two of these do not nominally exist in solution and are the result of fragmentation during ionisation. Peaks corresponding to the counter-ion binding to the inner sphere do not appear for any of the compounds. This seems to imply that in the DNP sample of interest, the ligand sphere does not differ between Gd(III) compounds. The EPR spectra all appear to be broader than those measured in the absence of glycine (Fig. 7(c) and (d)). Despite the ZFS constants of most of the compounds once again being similar (albeit larger than those measured without glycine), the value for Gd(OAc)₃ is notably larger than the others (Table 1 and Fig. S5, ESI†). It was previously observed that for Gd(tpatcn), water molecules could form hydrogen bonds to the carboxylate moieties of the chelating ligand, resulting in a second coordination sphere.^64,65 It is possible that a similar phenomenon could occur here, with acetate anions forming hydrogen bonds to glycerol and glycine protons (with the latter being more likely due to the absence of this line broadening without glycine), as shown in Fig. 10. Since this has been shown to alter Gd–O bond lengths, this may provide an explanation for an apparent change in local symmetry (and hence a stronger ZFS interaction). It is also feasible that the relative concentrations of each Gd(III) species in solution may vary between compounds. It is not, however, possible to determine this from the HRMS peak intensities given that it is not a quantitative technique (due to differences in solvent evaporation rates and ionisation efficiencies of various species). At 100 K, the addition of glycine, in some cases, also results in a slight increase in T_1e (Fig. 5(c) and Table S3, ESI†).

Fig. 10 Proposed structure of the Gd(III) coordination sphere for Gd(OAc)₃ in 3/2 v/v glycerol/H₂O with added glycine, showing hydrogen bonding between the acetate anion and glycine.

A stronger ZFS interaction would certainly justify a significantly lower DNP enhancement with Gd(OAc)₃. It is also possible that the methyl group in the acetate ion can act as a relaxation sink, limiting the nuclear polarisation that may be obtained, a fact that is well-known in the context of PA development.^13,66–69 In addition, the presence of quadrupolar nuclei in the counter-ions (¹⁴N (nuclear spin I = 1), ^35/37Cl (I = 3/2) and ^79/81Br (I = 3/2)) could act as a relaxation sink (an effect which could tentatively be active for GdBr₃, where a lower ¹³C enhancement was observed), but could also facilitate the spin-diffusion of enhanced polarisation. Recent studies have shown that the addition of simple salts such as sodium chloride or lithium chloride in large concentration can significantly increase DNP enhancements in aqueous solvents by promoting glass formation.^70,71 However, it was suggested that it is the cation, rather than the anion, that causes these effects. Furthermore, such effects are unlikely to be significant for samples in DNP juice, where glass formation is already efficient.

Conclusions

This work has expanded upon our previous proof-of-concept demonstration of the use of simple gadolinium compounds as DNP polarising agents, establishing that 20 mM is the optimum concentration of Gd(NO₃)₃ for enhancing ¹H and ¹³C, and 40 mM for enhancing ¹⁵N. We have shown using mass spectrometry that while the ligand sphere structures for different gadolinium compounds vary slightly in water/glycerol solution, the addition of glycine to the samples results in the predominant Gd(III) species becoming identical in all cases. This is supported by the EPR data, which shows that the electron spin relaxation times and zero-field splitting parameters are not affected by the choice of counter-ion, except for Gd(OAc)₃ where a stronger ZFS interaction results in a broader EPR lineshape. In most cases, this in turn translates into similar DNP enhancements for Gd(NO₃)₃, GdCl₃, and GdBr₃, providing a broader choice when selecting a polarising agent, while in general, Gd₂(SO₄)₃ and Gd(OAc)₃ gave lower sensitivity improvements. The lower solubility of the former could be the cause of this effect, potentially limiting its suitability as a DNP polarising agent. The low enhancement for Gd(OAc)₃ may be due to a less symmetrical local Gd(III) environment, or the methyl group in the acetate ion acting as a relaxation sink. Our enhancements are smaller than those obtained using previously-reported complexes, with values that are in line with those predicted based on their ZFS parameters.²⁴ Nevertheless, it is promising that appreciable sensitivity enhancements can be achieved using a variety of gadolinium compounds, which is expected to be of significant benefit as a cost-saving factor in instances where modest enhancements, rather than the hundreds-fold enhancements provided by biradicals, are sufficient.

Exploring other paramagnetic ions is one way in which the field of “off-the-shelf” polarising agents could progress. Mn²⁺ appears to be an obvious choice, having been introduced alongside [Gd(dota)(H₂O)]⁻,²¹ and later used to enhance ⁶Li and ⁷Li in battery anode materials.³¹ However, a significant disadvantage of Mn²⁺ is the hyperfine coupling to the spin-5/2 ⁵⁵Mn, splitting the DNP enhancement profile into six lines each for the positive and negative lobes. This results in a six-fold reduction in the maximum enhancement that can be achieved (although this is partially offset by the larger proportion of electron spins that contribute to the central EPR transition in S = 5/2 versus S = 7/2 systems, and hence to the solid effect).²¹ Given the already modest enhancements with simple Gd³⁺ compounds, it is likely that enhancements provided by simple Mn²⁺ salts would be too small to be useful. This problem is not applicable to metals without abundant NMR-active isotopes, such as Fe³⁺ (S = 5/2)^32,33 or Cr³⁺ (S = 3/2),⁷² which have also been used in DNP, although the latter requires high local symmetry in order to avoid a large g-anisotropy. Other factors such as the EPR relaxation behaviour and redox stability would also need to be taken into account, but these metal ions may be a worthy avenue for further investigation.

Finally, it should be noted that while these proof-of-concept studies demonstrate that simple Gd(III) compounds can be used as PAs without complex ligands, it is yet to be established how this approach could be applied to more complex substrates. Particularly the observation that the Gd³⁺ ion is observed to bind directly to glycine may mean that it may be unsuitable for biomolecules, to which Gd³⁺ and other metal ions are known to bind (as has already been exploited in DNP),²⁷ potentially resulting in conformational changes. This approach is therefore more suited to the detection of small molecules in solution However, it is worth considering that in this work, the glycine concentration (1.5 M) was significantly higher than the Gd(III) concentration (at most 100 mM). Therefore, the majority of glycine molecules are not bound to the metal centre. This may not remain to be the case if DNP using simple Gd(III) compounds is applied to the detection of low-concentration metabolites.

Author contributions

Daniel J. Cheney: investigation, formal analysis, writing – original draft; Paolo Cerreia Vioglio: technical support (DNP); Adam Brookfield: technical support (EPR); and Frédéric Blanc: conceptualization, funding acquisition, supervision, writing – review & editing.

Data availability

NMR data are available from the University of Liverpool Data Catalogue portal at https://datacat.liverpool.ac.uk/.

Conflicts of interest

There are no conflicts to declare.

Acknowledgements

We thank the Leverhulme Trust for funding a Research Project Grant under RPG-2020-066. MAS DNP experiments were performed at the Nottingham DNP MAS NMR Facility, which is funded by the University of Nottingham and EPSRC [grant numbers EP/L022524/1 and EP/R042853/1]. EPR spectra were collected at the EPSRC National Service for EPR Spectroscopy at the University of Manchester [grant number NS/A000055/1], and we thank Dr Alice Bowen and Dr Muralidharan Shanmugan for additional support during these experiments. We thank Richard Roberts and Stephen Moss (University of Liverpool) for collecting the HRMS data, as well as Glynn Connolly (University of Liverpool) for confirming the level of hydration in the Gd(III) compounds via thermogravimetric analysis. Finally, we would like to acknowledge fruitful discussions with Dr Benjamin Duff (University of Liverpool), Dr Stuart Elliott (Imperial College London) and Dr Daniel Lee (University of Manchester).

References

1. A. S. Lilly Thankamony, J. J. Wittmann, M. Kaushik and B. Corzilius, Prog. Nucl. Magn. Reson. Spectrosc., 2017, 102–103, 120–195.
2. Q. Z. Ni, E. Daviso, T. V. Can, E. Markhasin, S. K. Jawla, T. M. Swager, R. J. Temkin, J. Herzfeld and R. G. Griffin, Acc. Chem. Res., 2013, 46, 1933–1941.
3. T. Maly, G. T. Debelouchina, V. S. Bajaj, K.-N. Hu, C.-G. Joo, M. L. Mak-Jurkauskas, J. R. Sirigiri, P. C. A. van der Wel, J. Herzfeld, R. J. Temkin and R. G. Griffin, J. Chem. Phys., 2008, 128, 052211.
4. A. G. M. Rankin, J. Trébosc, F. Pourpoint, J. P. Amoureux and O. Lafon, Solid State Nucl. Magn. Reson., 2019, 101, 116–143.
5. U. Akbey and H. Oschkinat, J. Magn. Reson., 2016, 269, 213–224.
6. F. Blanc, L. Sperrin, D. A. Jefferson, S. Pawsey, M. Rosay and C. P. Grey, J. Am. Chem. Soc., 2013, 135, 2975–2978.
7. N. J. Brownbill, D. Lee, G. De Paëpe and F. Blanc, J. Phys. Chem. Lett., 2019, 10, 3501–3508.
8. A. Lesage, M. Lelli, D. Gajan, M. A. Caporini, V. Vitzthum, P. Miéville, J. Alauzun, A. Roussey, C. Thieuleux, A. Mehdi, G. Bodenhausen, C. Copéret and L. Emsley, J. Am. Chem. Soc., 2010, 15459–15461.
9. A. J. Rossini, A. Zagdoun, M. Lelli, A. Lesage, C. Copéret and L. Emsley, Acc. Chem. Res., 2013, 46, 1942–1951.
10. L. Gkoura and A. Equbal, J. Magn. Reson. Open, 2023, 16–17, 100125.
11. C. Song, K.-N. Hu, C.-G. Joo, T. M. Swager and R. G. Griffin, J. Am. Chem. Soc., 2006, 128, 11385–11390.
12. C. Sauvée, M. Rosay, G. Casano, F. Aussenac, R. T. Weber, O. Ouari and P. Tordo, Angew. Chem., Int. Ed., 2013, 52, 10858–10861.
13. A. Zagdoun, G. Casano, O. Ouari, M. Schwarzwälder, A. J. Rossini, F. Aussenac, M. Yulikov, G. Jeschke, C. Copéret, A. Lesage, P. Tordo and L. Emsley, J. Am. Chem. Soc., 2013, 135, 12790–12797.
14. F. Mentink-Vigier, I. Marin-Montesinos, A. P. Jagtap, T. Halbritter, J. van Tol, S. Hediger, D. Lee, S. Th. Sigurdsson and G. De Paëpe, J. Am. Chem. Soc., 2018, 140, 11013–11019.
15. D. J. Kubicki, G. Casano, M. Schwarzwälder, S. Abel, C. Sauvée, K. Ganesan, M. Yulikov, A. J. Rossini, G. Jeschke, C. Copéret, A. Lesage, P. Tordo, O. Ouari and L. Emsley, Chem. Sci., 2016, 7, 550–558.
16. G. Stevanato, G. Casano, D. J. Kubicki, Y. Rao, L. E. Hofer, G. Menzildjian, H. Karoui, D. Siri, M. Cordova, M. Yulikov, G. Jeschke, M. Lelli, A. Lesage, O. Ouari and L. Emsley, J. Am. Chem. Soc., 2020, 142, 16587–16599.
17. A. Venkatesh, G. Casano, Y. Rao, F. De Biasi, F. A. Perras, D. J. Kubicki, D. Siri, S. Abel, H. Karoui, M. Yulikov, O. Ouari and L. Emsley, Angew. Chem., Int. Ed., 2023, 62, e202304844.
18. A. Venkatesh, G. Casano, R. Wei, Y. Rao, H. Lingua, H. Karoui, M. Yulikov, O. Ouari and L. Emsley, Angew. Chem., Int. Ed., 2024, 63, e202317337.
19. D. Jardón-Álvarez and M. Leskes, Prog. Nucl. Magn. Reson. Spectrosc., 2023, 138–139, 70–104.
20. A. Martorana, G. Bellapadrona, A. Feintuch, E. Di Gregorio, S. Aime and D. Goldfarb, J. Am. Chem. Soc., 2014, 136, 13458–13465.
21. B. Corzilius, A. A. Smith, A. B. Barnes, C. Luchinat, I. Bertini and R. G. Griffin, J. Am. Chem. Soc., 2011, 133, 5648–5651.
22. M. Kaushik, T. Bahrenberg, T. V. Can, M. A. Caporini, R. Silvers, J. Heiliger, A. A. Smith, H. Schwalbe, R. G. Griffin and B. Corzilius, Phys. Chem. Chem. Phys., 2016, 18, 27205–27218.
23. G. Stevanato, D. J. Kubicki, G. Menzildjian, A.-S. Chauvin, K. Keller, M. Yulikov, G. Jeschke, M. Mazzanti and L. Emsley, J. Am. Chem. Soc., 2019, 141, 8746–8751.
24. Y. Rao, C. T. Palumbo, A. Venkatesh, M. Keener, G. Stevanato, A.-S. Chauvin, G. Menzildjian, S. Kuzin, M. Yulikov, G. Jeschke, A. Lesage, M. Mazzanti and L. Emsley, J. Phys. Chem. C, 2022, 126, 11310–11317.
25. M. Kaushik, M. Qi, A. Godt and B. Corzilius, Angew. Chem., Int. Ed., 2017, 56, 4295–4299.
26. P. Wenk, M. Kaushik, D. Richter, M. Vogel, B. Suess and B. Corzilius, J. Biomol. NMR, 2015, 63, 97–109.
27. J. Heiliger, T. Matzel, E. C. Çetiner, H. Schwalbe, G. Kuenze and B. Corzilius, Phys. Chem. Chem. Phys., 2020, 22, 25455–25466.
28. A. L. Paterson, F. A. Perras, M. F. Besser and M. Pruski, J. Phys. Chem. C, 2020, 124, 23126–23133.
29. B. Thomas, D. Jardón-Álvarez, R. Carmieli, J. van Tol and M. Leskes, J. Phys. Chem. C, 2023, 127, 4759–4772.
30. T. Chakrabarty, N. Goldin, A. Feintuch, L. Houben and M. Leskes, ChemPhysChem, 2018, 19, 2139–2142.
31. T. Wolf, S. Kumar, H. Singh, T. Chakrabarty, F. Aussenac, A. I. Frenkel, D. T. Major and M. Leskes, J. Am. Chem. Soc., 2019, 141, 451–462.
32. A. Harchol, G. Reuveni, V. Ri, B. Thomas, R. Carmieli, R. H. Herber, C. Kim and M. Leskes, J. Phys. Chem. C, 2020, 124, 7082–7090.
33. D. Jardón-Álvarez, G. Reuveni, A. Harchol and M. Leskes, J. Phys. Chem. Lett., 2020, 11, 5439–5445.
34. W. R. Couet, R. C. Brasch, G. Sosnovsky and T. N. Tozer, Magn. Reson. Imaging, 1985, 3, 83–88.
35. S. J. Elliott, B. B. Duff, A. R. Taylor-Hughes, D. J. Cheney, J. P. Corley, S. Paul, A. Brookfield, S. Pawsey, D. Gajan, H. C. Aspinall, A. Lesage and F. Blanc, J. Phys. Chem. B, 2022, 126, 6281–6289.
36. M. Rosay, L. Tometich, S. Pawsey, R. Bader, R. Schauwecker, M. Blank, P. M. Borchard, S. R. Cauffman, K. L. Felch, R. T. Weber, R. J. Temkin, R. G. Griffin and W. E. Maas, Phys. Chem. Chem. Phys., 2010, 12, 5850–5860.
37. B. M. Fung, A. K. Khitrin and K. Ermolaev, J. Magn. Reson., 2000, 142, 97–101.
38. A. Purea, C. Reiter, A. I. Dimitriadis, E. de Rijk, F. Aussenac, I. Sergeyev, M. Rosay and F. Engelke, J. Magn. Reson., 2019, 302, 43–49.
39. R. K. Harris, E. D. Becker, S. M. C. De Menezes, P. Granger, R. E. Hoffman and K. W. Zilm, Magn. Reson. Chem., 2008, 46, 582–598.
40. D. A. Hirsh, A. V. Wijesekara, S. L. Carnahan, I. Hung, J. W. Lubach, K. Nagapudi and A. J. Rossini, Mol. Pharmaceutics, 2019, 16, 3121–3132.
41. C. R. Morcombe and K. W. Zilm, J. Magn. Reson., 2003, 162, 479–486.
42. P. Bertani, J. Raya and B. Bechinger, Solid State Nucl. Magn. Reson., 2014, 61–62, 15–18.
43. A. Raitsimring, A. Dalaloyan, A. Collauto, A. Feintuch, T. Meade and D. Goldfarb, J. Magn. Reson., 2014, 248, 71–80.
44. L. Garbuio, K. Zimmermann, D. Häussinger and M. Yulikov, J. Magn. Reson., 2015, 259, 163–173.
45. D. Ossadnik, S. Kuzin, M. Qi, M. Yulikov and A. Godt, Inorg. Chem., 2023, 62, 408–432.
46. J. A. Clayton, K. Keller, M. Qi, J. Wegner, V. Koch, H. Hintz, A. Godt, S. Han, G. Jeschke, M. S. Sherwin and M. Yulikov, Phys. Chem. Chem. Phys., 2018, 20, 10470–10492.
47. A. M. Raitsimring, A. V. Astashkin, O. G. Poluektov and P. Caravan, Appl. Magn. Reson., 2005, 28, 281–295.
48. S. Stoll and A. Schweiger, J. Magn. Reson., 2006, 178, 42–55.
49. H. Takahashi, D. Lee, L. Dubois, M. Bardet, S. Hediger and G. De Paepe, Angew. Chem., Int. Ed., 2012, 51, 11766–11769.
50. H. Takahashi, C. Fernández-de-Alba, D. Lee, V. Maurel, S. Gambarelli, M. Bardet, S. Hediger, A.-L. Barra and G. De Paëpe, J. Magn. Reson., 2014, 239, 91–99.
51. F. Mentink-Vigier, S. Paul, D. Lee, A. Feintuch, S. Hediger, S. Vega and G. De Paëpe, Phys. Chem. Chem. Phys., 2015, 17, 21824–21836.
52. D. Lee, S. Hediger and G. De Paëpe, Solid State Nucl. Magn. Reson., 2015, 66–67, 6–20.
53. A. J. Rossini, A. Zagdoun, M. Lelli, D. Gajan, F. Rascón, M. Rosay, W. E. Maas, C. Copéret, A. Lesage and L. Emsley, Chem. Sci., 2012, 3, 108–115.
54. A. Abragam and B. Bleaney, Electron Paramagnetic Resonance of Transition Ions, Oxford University Press, Oxford, 1970.
55. B. Corzilius, Phys. Chem. Chem. Phys., 2016, 18, 27190–27204.
56. J. H. Ardenkjær-Larsen, I. Laursen, I. Leunbach, G. Ehnholm, L.-G. Wistrand, J. S. Petersson and K. Golman, J. Magn. Reson., 1998, 133, 1–12.
57. O. Haze, B. Corzilius, A. A. Smith, R. G. Griffin and T. M. Swager, J. Am. Chem. Soc., 2012, 134, 14287–14290.
58. M. A. Hope, Y. Zhang, A. Venkatesh and L. Emsley, J. Magn. Reson., 2023, 353, 107509.
59. S. W. Hunsucker, R. C. Watson and B. M. Tissue, Rapid Commun. Mass Spectrom., 2001, 15, 1334–1340.
60. N. Geue, Anal. Chem., 2024, 96, 7332–7341.
61. J. S. McIndoe and K. L. Vikse, J. Mass Spectrom., 2019, 54, 466–479.
62. N. G. Naumov, M. S. Tarasenko, A. V. Virovets, Y. Kim, S.-J. Kim and V. E. Fedorov, Eur. J. Inorg. Chem., 2006, 298–303.
63. M. Ahrén, L. Selegård, F. Söderlind, M. Linares, J. Kauczor, P. Norman, P.-O. Käll and K. Uvdal, J. Nanopart. Res., 2012, 14, 1006.
64. C. Gateau, M. Mazzanti, J. Pécaut, F. A. Dunand and L. Helm, Dalton Trans., 2003, 2428–2433.
65. M. Botta, Eur. J. Inorg. Chem., 2000, 399–407.
66. H. Sato, S. E. Bottle, J. P. Blinco, A. S. Micallef, G. R. Eaton and S. S. Eaton, J. Magn. Reson., 2008, 191, 66–77.
67. V. Kathirvelu, C. Smith, C. Parks, M. A. Mannan, Y. Miura, K. Takeshita, S. S. Eaton and G. R. Eaton, Chem. Commun., 2009, 454–456.
68. A. Zagdoun, G. Casano, O. Ouari, G. Lapadula, A. J. Rossini, M. Lelli, M. Baffert, D. Gajan, L. Veyre, W. E. Maas, M. Rosay, R. T. Weber, C. Thieuleux, C. Coperet, A. Lesage, P. Tordo and L. Emsley, J. Am. Chem. Soc., 2012, 134, 2284–2291.
69. H. Sato, V. Kathirvelu, A. Fielding, J. P. Blinco, A. S. Micallef, S. E. Bottle, S. S. Eaton and G. R. Eaton, Mol. Phys., 2010, 105, 2137–2151.
70. M. Juramy, P. C. Vioglio, F. Ziarelli, S. Viel, P. Thureau and G. Mollica, Solid State Nucl. Magn. Reson., 2022, 122, 101836.
71. F. Ferrer, M. Juramy, R. Jabbour, S. Cousin, F. Ziarelli, G. Mollica, P. Thureau and S. Viel, J. Phys. Chem. Lett., 2023, 14, 9619–9623.
72. B. Corzilius, V. K. Michaelis, S. A. Penzel, E. Ravera, A. A. Smith, C. Luchinat and R. G. Griffin, J. Am. Chem. Soc., 2014, 136, 11716–11727.

---

Footnote

† Electronic supplementary information (ESI) available: Comparisons between double and triple-resonance probes, data tables, list of HRMS peaks, EPR spectral fits. See DOI: https://doi.org/10.1039/d4cp02924k

---
