Investigation of the stability of D5SIC-DNAM-incorporated DNA duplex in Taq polymerase binary system: a systematic classical MD approach

Abstract

DNA polymerases are fundamental enzymes that play a crucial role in processing DNA with high fidelity and accuracy ensuring the faithful transmission of genetic information. The recognition of unnatural base pairs (UBPs) by polymerases, enabling their replication, represents a significant and groundbreaking discovery with profound implications for genetic expansion. Romesberg et al. examined the impact of DNA containing 2,6-dimethyl-2H-isoquiniline-1-thione: D5SIC (DS) and 2-methoxy-3-methylnaphthalene: DNAM (DN) UBPs bound to T. aquaticus DNA polymerase (Taq) through crystal structure analysis. Here, we have used polarizable and nonpolarizable classical molecular dynamics (MD) simulations to investigate the structural aspects and stability of Taq in complex with a DNA duplex including a DS–DN pair in the terminal 3′ and 5′ positions. Our results suggest that the flexibility of UBP-incorporated DNA in the terminal position is arrested by the polymerase, thus preventing fraying and mispairing. Our investigation also reveals that the UBP remains in an intercalated conformation inside the active site, exhibiting two distinct orientations in agreement with experimental findings. Our analysis pinpoints particular residues responsible for favorable interactions with the UBP, with some relying on van der Waals interactions while other on Coulombic forces.

---

Introduction

The precise synthesis and repair of DNA¹ within cells relies extensively on a complex network of proteins of which DNA polymerases are key players.^2–5 In biological process, DNA polymerases are specific towards four nucleotides (A, T, G, C) and two base-pairings (A–T and G–C).^1–6 The concept of incorporating synthetic molecules as base pairs, termed Unnatural Base-Pairs (UBPs),^7–42 depends upon a crucial prerequisite: these synthetic entities must undergo a thorough selection process orchestrated by polymerase enzymes.^43–50 In essence, the viability of these synthetic molecules as base pairs is contingent upon the polymerase's ability to discriminate and incorporate them into the growing DNA strand with a high degree of accuracy and efficiency. This selectivity is essential to ensure that the resulting DNA sequence maintains fidelity and stability, akin to the natural base pairs (nBPs), and to avoid introducing errors or disruptions that could compromise the biological function of DNA. As a result, successful recognition and incorporation of unnatural bases by DNA polymerases is fundamental to their potential utilization in various biotechnological and genetic engineering applications.

Several potential UBPs have been synthesized in recent years^30–42 among them d5SICS (DS)-dNaM (DN) have emerged as one of the proficiently replicated unnatural base pairs.^30,31 Previous reported work revealed that DS–DN form unconventional structures inside a DNA duplex. Bertz et al. reported two crystal structures of a DNA polymerase in complex with DNA containing a DS–DN incorporation.^30,31 The first report involves a crystal structure of DNA polymerase I from T. aquaticus (Taq) in a closed ternary complex with DN in the templating position, and DS- triphosphate (DSTP) as substrate (PDB ID: 3SV3).³⁰ In this structure, DN and DSTP exhibit Watson–Crick–Franklin (WCF) like parallelly stacked geometry.

Later they also reported the binary complex of Taq with the artificial base pair DS–DN in the post-insertion site. Crystal structures showed that in the binary complex of the polymerase, DS–DN forms two distinct intercalated non-Watson–Crick–Franklin (nWCF) structures in the terminal position of the DNA duplex. In one structure (PDB ID: 4C8L),³¹ the primer-DS is located externally with respect to the substrate-DS; whereas in another (PDB ID: 4C8O)³¹ the positioning becomes opposite.

Different computational techniques have been employed to predict the impact of DS–DN inside DNA in aqueous solvent, which predict both WCF and nWCF structures of the UBP inside DNA without polymerase systems.^51–58 Our another theoretical work⁵¹ suggests that the inclusion of a DS–DN pair at the terminal position of DNA increases the flexibility of these bases, with occasional mispairing and fraying.

Romesberg et al. further reported individual residue contacts between Taq and the UBP-incorporated DNA based on the X-ray crystal structures.³¹ Although this investigation provided valuable insights into possible molecular interactions, a comprehensive interplay between Taq and UBP-incorporated-DNA including their dynamic characteristics, remains a subject yet to be thoroughly investigated. The full scope of how a polymerase orchestrates the interactions, and the dynamic nature of these connections remains an unsolved avenue for further exploration and scientific inquiry.

Here, we have employed classical molecular dynamics simulation with both AMOEBA and AMBER force fields to investigate the dynamical characteristics of UBP-incorporated DNA in binary complex with Taq and the molecular level interactions of UBP incorporated DNA with Taq. The reminder of the paper is organized as follows: The next section describes the setup of the simulation systems, simulation procedures, and analyses. Subsequently, analysis of the MD simulations is presented and discussed, followed by concluding remarks. This work is intended to provide novel insights on the DNA polymerase-bound behaviour of DNA that incorporates an experimentally synthesized and tested UBP that can be replicated, translated and transcribed in vitro. Our results uncover the specific drivers for the stabilization and selectivity of specific pairing of the UBP in the active site, which can help drive the field of synthetic biology forward.

Computational methods

System setup

We have considered two types of binary complexes of Taq with a DS–DN UBP in the post-insertion site. In one case PDB ID: 4C8L has been used to generate a model where DS is externally placed with respect to DN designated as EXT. Additionally, the INT structure has been generated by using the PDB ID: 4C8O crystal structure where DS is placed below DN (Fig. 1). These EXT and INT structures are linked through the inter-strand flipping process of the UBP. In both cases the UBP adopts an intercalated configuration with the sulfur and methoxy groups in the same phase (SYN). We have also considered ANTI structures for both EXT and INT where the sulfur and methoxy groups are on opposite sides. All together four structures have been considered: EXT_SYN, EXT_ANTI, INT_SYN, INT_ANTI. Both the EXT_SYN and INT_SYN have been simulated in two ways; (i) UBP-incorporated DNA with one single overhang base and (ii) truncated UBP-incorporated DNA. We have considered one single orientation of the glycosidic bond as reported in the crystal structures. The Taq fragment consists of 541 amino acid residues with residue numbers from 292 to 832. The residue numbers of DNA base-pairs are from 833 to 855 with DS and DN located in positions 843 and 846 respectively. The distance between DS and DN is designated as d_DS–DN. The distance between the UB and its adjacent NB is designated as d_DS–DC and d_DN–DG respectively. The <DS–P–DC and <DN–P–DG have been also calculated as depicted in Fig. S1 (ESI†). Parameters for the DS and DN bases were obtained with the PYRED program⁵⁹ for AMBER.^60–62 For the required AMOEBA parameters^63–66 we have used TINKER⁶⁷ and GDMA 2.3.⁶⁸ All new parameters are included as electronic ESI.†

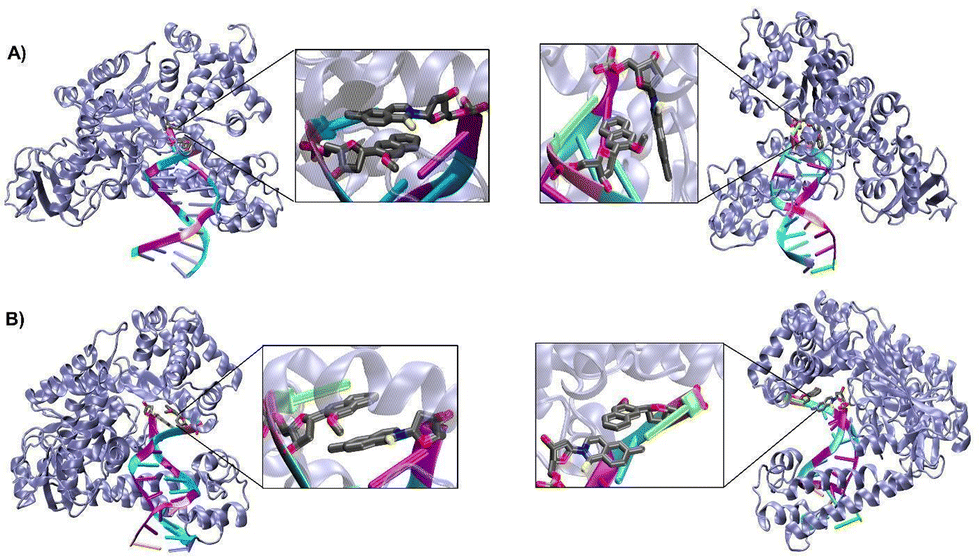

Fig. 1 Binary complex of Taq with the artificial base pair DS–DN where (A) DS is externally intercalated, EXT_SYN (left) and EXT_ANTI (right) (B) DS is internally placed with respect to DN; INT_SYN (left) and INT_ANTI (right).

AMBER setup

The LEaP module⁶⁹ in AMBER20⁷⁰ was used to set up the simulation box with Taq with UBP-incorporated DNA systems. The PROPKA software is adopted to protonate the amino acids of the Taq.^71,72 Adding the hydrogen atoms to the systems, neutralization of the system with the required number of counterions (Na⁺), and solvation of the system in a cubic box filled with TIP3P water,⁶⁰ extending at least 12 Å from the protein–DNA complex was done with the LEAP module from AMBER. The MD simulations were performed via AMBER20 pmemd.cuda using ff14SB AMBER force field⁶¹ for protein OL15 for nucleic acid.⁶² Seven minimization steps were done with decreasing restraint (10.0–0.0 kcal mol⁻¹ Å⁻²) on the solute's heavy atoms. In each stage, the system was minimized within 5000 cycles of minimization via the steepest descent algorithm, continuing with 5000 cycles via the conjugated gradient algorithm. In the next step, each system was heated to 300 K using Langevin dynamics with a collision frequency of 2 ps⁻¹ followed by 7 ns of NVT equilibration with decreasing restraint (10.0–0.0 kcal mol⁻¹ Å⁻²) on the protein's heavy atoms. The production calculations for each system were accomplished in 250 ns of NPT ensemble without restraints in triplicate for a total of 750 ns of production simulation for each system. Production was run in the NPT ensemble using a Langevin thermostat and Berendsen barostat. Temperature was held constant at 300 K and pressure at 1.0 bar with a 2 fs time step. The SHAKE method⁷³ has been employed for the bonds with hydrogen atoms, and for long-range Coulomb interactions, the smooth particle mesh Ewald approach⁷⁴ was used with a 10 Å cutoff for nonbonded interactions. The CPPTRAJ module⁷⁵ in AMBER20 was used to analyze production dynamics, i.e., RMSD, RMSF, correlation, normal mode analysis and geometrical parameters. In addition, Python libraries NumPy,⁷⁶ Matplotlib,⁷⁷ Pandas,⁷⁸ were also employed for further data processing and graphing. A total of 12 500 frames have been extracted from the entire trajectory of each replicate for the analysis. Energy decomposition analysis (EDA) has been employed to investigate the intermolecular interactions between the UBP and residues of the rest of the systems for the entire trajectory using 12 500 frames for two replicates. As both the replicates show similar outcomes, the rest of the analysis has been done for one replicate. Amber-EDA was employed to calculate the nonbonded intermolecular interaction energies.⁷⁹

AMOEBA setup

All polarizable AMOEBA (Atomic Multipole Optimized Energetics for Biomolecular)^63–66 simulations were performed with TINKER-HP.⁶⁷ The simulation box with the protein–DNA system was built with the help of packmol software.⁸⁰ Initially, the Taq and UBP-incorporated DNA duplex complex was minimized using the BFGS nonlinear optimization algorithm with a convergence criterion (RMS gradient) of 0.1 Å. Subsequently molecular dynamics simulations in vacuum followed by implicit water with the GBSA model for 2 ns were carried out to relax the system. The resulting system was solvated using 72 000 AMOEBA water molecules and neutralized using Na⁺ in the center of the box with volume 90 × 90 × 90 ų using packmol. After that, the system was heated to 300 K in 4 simulation steps (2 ns each) with an NVT ensemble removing all positional restrains (100.0–0.0 kcal Å⁻¹). After the equilibration step, MD simulations were carried out for 50 ns in an NPT ensemble (1 atm and 300 K). The Monte Carlo barostat and the Bussi thermostat were used to keep the pressure and temperature fixed respectively. The duration of the time step was 2 fs using RESPA integrator. The smooth particle mesh Ewald (sPME) method⁸¹ was used in the calculation of charge, atomic multipole, and polarization interactions. A value of 10 Å was used for the cutoff distance value for van der Waals potential energy interactions and the real-space distance cutoff in the Ewald summation.⁸² Geometry sampling was done every 5 ps, which led to generate total 10 000 frames.

Results and discussion

The results for the EXT_SYN conformer systems (Fig. 1) simulated using the AMBER force field suggest that the DS–DN pair maintains an intercalated orientation in the DNA duplex for the entire 250 ns duration in all three replicates. No deviation from the intercalated structure of the DS–DN pair inside the DNA duplex were observed from the simulation with AMOEBA force field for 50 ns in two replicates. The low RMSD value (Table 1 and Fig. S2, ESI†) suggests that the system is stable throughout the simulation. This indicates that the flexibility of the UBP in DNA observed in aqueous solution as previously reported⁵¹ is arrested by the polymerase, which is also consistent with the per-residue RMSF values (Fig. 3).

Table 1 Average RMSD values and standard deviation of RMSD values of each replicate of each system obtained from AMOEBA and AMBER simulations. The values are in Å

	RMSD/STDV
	Rep1	Rep2	Rep3
AMOEBA
EXTSYN	2.71/0.37	1.56/0.23
INTSYN	2.17/0.29	2.23/0.24
AMBER
EXTSYN	2.11/0.26	2.40/0.28	2.21/0.30
INTSYN	2.58/0.30	2.40/0.31	2.58/0.41
INTANTI	2.65/0.40	2.29/0.23	2.72/0.46
EXTANTI	2.87/0.40	2,93/0.39	2.79/0.45

---

Fig. 2 UB–NB distances obtained from (A) AMOEBA and (B) AMBER force field-mediated simulations. In crystal structure, DS–DC and DN–DG is 6.69 Å and 4.64 Å respectively for EXT_SYN and 4.98 Å and 6.04 Å respectively for INT_SYN.

Fig. 3 3D representations of average RMSF values of the protein–DNA residues and associated RMSF plots of three replicates of EXT and INT structures; (A) SYN and (B) ANTI conformers obtained from AMBER simulations.

The distance between DS and DN (d_DS–DN) (Table 2 and Fig. S3, ESI†) based on both AMOEBA and AMBER simulation, indicating a reduced distance compared to that of a nBP of ∼10.5 Å. We have also measured the distance (Fig. 2) and angles (Fig. S4, ESI†) of UBs with respect to their adjacent nBP. It has been found that throughout the simulation the gap between d_DS–DC and d_DN–DG is always positive indicating the asymmetric nature of the DNA strand with external intercalation of DS and DN (Fig. 2). From angle analysis the asymmetric nature of DNA is also observed since <DS–P–DC is found to be greater than <DN–P–DG throughout entire trajectory of the simulation. In the crystal structure a similar trend for the UB–NB and <UB–P–NB have been observed.

Table 2 Average DS–DN distance and standard deviation of DS-DN distance values of each replicate of each system obtained from AMOEBA and AMBER simulations. The values are in Å. In Crystal structure DS–DN of EXT_SYN is 8.44 Å and INT_SYN is 9.36 Å

	Distance/STDV
	Rep1	Rep2	Rep3
AMOEBA
EXTSYN	8.08/0.45	8.10/0.38
INTSYN	9.10/0.32	7.52/0.62
AMBER
EXTSYN	8.60/0.77	8.86/0.87	7.89/1.13
INTSYN	9.63/0.44	9.67/0.47	9.71/0.38
INTANTI	9.06/0.73	9.07/0.76	9.19/0.86

---

Similar to AMBER, simulations with the AMOEBA force field for 50 ns for EXT_SYN also result in an intercalated DS–DN structure with no conformational change and no significant distortion inside the polymerase. Here also, the DS–DN distance is found to be shorter than that of nBPs. AMOEBA also predicts greater d_DS–DC and <DS–P–DC than d_DN–DG and <DN–P–DG (Fig. 2 and Fig. S4, ESI†) and throughout the simulations supporting an external intercalation of the UBP leading to the maintenance of an asymmetric DNA strand structure. From the AMBER and AMOEBA simulations, it becomes apparent that both yield mostly similar results in terms of RMSD values and related geometric parameters. Furthermore, the simulations show minimal deviations from the actual crystal structures, suggesting that the molecular dynamics (MD) simulations align closely with the experimental observation of binary Taq with UBP-incorporated DNA. Interestingly, with no-overhang DNA, the simulation with AMBER also predicts similar stability and structural features indicating an overhanging base doesn’t significantly impact UBP stability when the dsDNA is in complex with Taq. The associated RMSD, RMSF and geometrical parameters are presented in Fig. S6 (ESI†).

The INT structure has been obtained through inter-strand flipping of the UBP in the EXT conformer (Fig. 4). For the INT_SYN conformer, the intercalation of DS–DN was also maintained during the entire simulation with both force fields, with low RMSD value (average RMSD for each replicate <2.6 Å for AMBER) (Table 1 and Fig. S2, ESI†). RMSF values obtained from the AMBER simulated system indicates that the fluctuation of all the residues including UBP are low. Similar to EXT_SYN, the INT_SYN system exhibits no conformational change and no significant distortion, suggesting that in this case the flexibility of the UBP has also been prevented by Taq. It is also evident (Fig. 3) that along with most of the protein–DNA residues, DS and DN also display low RMSF values confirming the relatively low fluctuating nature of the UBP.

Fig. 4 Conformational change through Intra- and Inter-strand flipping observed during the MD simulations. (Figure taken from preprint with permission⁵¹).

The pattern of fluctuations of the polymerase residues as observed from the RMSF analysis is similar to EXT_SYN, suggesting that a conformational change of the UBP doesn’t influence the characteristics of the system. In this case also the calculated d_DS–DN distance, derived from both AMOEBA and AMBER force fields, is found to be lower than that of nBPs. Asymmetricity of the DNA duplex is reflected in the associated uneven d_UB–NB (Fig. 2) and <UB–P–NB (Fig. S4, ESI†) obtained from both AMOEBA and AMBER simulations. It is observed that here d_DS–DC and <DS–P–DC are found to be lower than d_DN–DG and <DN–P–DG respectively, which is in agreement with the crystal structure. Comparing these geometrical parameters between EXT_SYN and INT_SYN, contrasting trajectories have been observed from which two conformers can be distinguished. Here also there is no significant deviations between the AMBER and AMOEBA results as both predict similar structural behaviour. We have further simulated no-overhang INT_SYN system with the AMBER force field from which it is evident that in absence of hanging base pair also UBP can stabilize an intercalated structure with low RMSD values and similar RMSF and geometrical parameters (Fig. S7, ESI†). It also suggests that hanging base pair has no significant influence on the formation of nWCF UBP-incorporated DNA strand in Taq.

Despite the conformational dissimilarities between EXT_SYN and INT_SYN, they exhibit mostly similar RMSF pattern (ΔRMSF∼0). (Fig. S5, ESI†) This is further supported by the cross-correlation analyses for both systems (Fig. S8, ESI†), which demonstrates similar correlation patterns among the residues for both EXT_SYN and INT_SYN. Normal mode analysis also indicates that exclusive dominance of the 1st normal mode has been observed with similar vibration pattern (ESI†).

To investigate the effect of conformational change on Taq, we have generated the EXT_ANTI system via an intra-strand flipping of the DS in the EXT_SYN structure where the sulfur of DS and methoxy group of DN are on opposite sides. As discussed in our previous article,⁵¹ the UBP can stay in both SYN and ANTI forms within DNA in aqueous solution with spontaneous intra-strand flipping. As depicted in Fig. 5, O–S distance for INT_SYN is lower than INT_ANTI. But simulations of UBP-intercalated DNA bound to Taq suggests that the EXT_ANTI conformer of UBP inside the DNA duplex is disfavored, leading to a non-pairing between DS and DN inside the DNA duplex (Fig. 1). From all three replicates it has been found that DS–DN fails to generate an intercalated structure, and rather DS is flanked out from the DNA duplex. Comparatively higher RMSD value (Table 1 and Fig. S2, ESI†) suggests that EXT_ANTI induces larger structural changes compared with the SYN conformation. Notably, some specific polymerase residues mainly from the finger region of the polymerase exhibit higher RMSF (ΔRMSF_(SYN-ANTI) > 0) values (Fig. S5, ESI†). From cross-correlation analysis also, significant deviation of movement correlation among the polymerase residues has been observed between SYN and ANTI conformation (Fig. S8, ESI†).

Fig. 5 O–S distance for INT_SYN and INT_ANTI conformers obtained from AMBER simulation. O–S distance of crystal structure of INTSYN is 7.4 Å. Distance value are in Å.

INT_SYN is further reoriented through intra-strand flipping the DS which leads to the production of INT_ANTI structure (Fig. 1). Despite the conformational change, this UBP conformation results in an intercalated structure in Taq with low RMSD value throughout the simulation (Fig. S2, ESI†). RMSF analysis suggests that apart from terminal residues, the fluctuation of most polymerase residues is below 4.5 Å, indicating low degree of flexibility. Here also it is observed that for ANTI conformer, polymerase residues from finger region fluctuate more compared to SYN indicating perturbation arises on conformational change on the finger region. Average DS–DN distance is found to be ∼9.1 Å, indicating minor reduction of the distance as obtained from SYN conformer (Table 2). The persistence of intercalated geometry of the UBP suggests that, unlike EXT, the INT conformer doesn’t result in mispairing through intra-strand flipping, indicating that both SYN and ANTI orientations are tolerated by Taq for INT UB conformers.

We have further performed EDA analysis to identify and quantify individual interactions between individual protein residues and the UBP (Fig. S9 and S10, ESI†). It has been observed that attractive Coulomb interactions (E_Coul) arise mostly from positively charged residues. Arg and Lys, from all three polymerase subdomains (Fig. 6 and 7). For all the conformers, R587 and R746 exhibit the highest E_Coul with the UBP through interactions with the phosphate backbone of 3′-DS and 5′-DN respectively. Interestingly, these two residues are identified in the interacting zone with the phosphate backbone of DS and DN from the crystal structure analysis of 4C8L (EXT_SYN) but not for 4C8O (INT_SYN) by Romesberg et al. R573 is also found to be strongly interacting with the UBs having higher negative E_Coul for all the conformers but only reported for EXT_SYN from crystal structure analysis. These findings lead to create a scope to extend the experimental investigation through mutagenesis techniques to identify the Taq residues that interact with UBP in different conformers. EDA also predicts that residues residing in the finger region of Taq interacting with the UBP through vdW interactions. Tyr671 is known as the steric gate, which is crucial for rNTP discrimination. Interestingly, in the case of UBPs, Tyr671 exhibits stabilizing vdW interactions with the exposed UBs (DS for EXT_SYN and DN for INT_SYN) which is also in agreement with the findings from crystal structure analysis. Nevertheless, a disparity between experimental observations and our EDA results becomes evident concerning Glu615. While crystal structure analysis propose that Glu615 forms attractive interactions with DS, our EDA findings indicate that while the van der Waals interaction is indeed attractive, the Coulombic interaction is significantly repulsive in nature and consequently the total non-covalent interaction energy between DS and Glu615 becomes positive. This is consistent with the fact that Glu615, being a negatively charged residue in physiological pH exhibits repulsive Coulombic interactions with the phosphate backbone of the UBP.

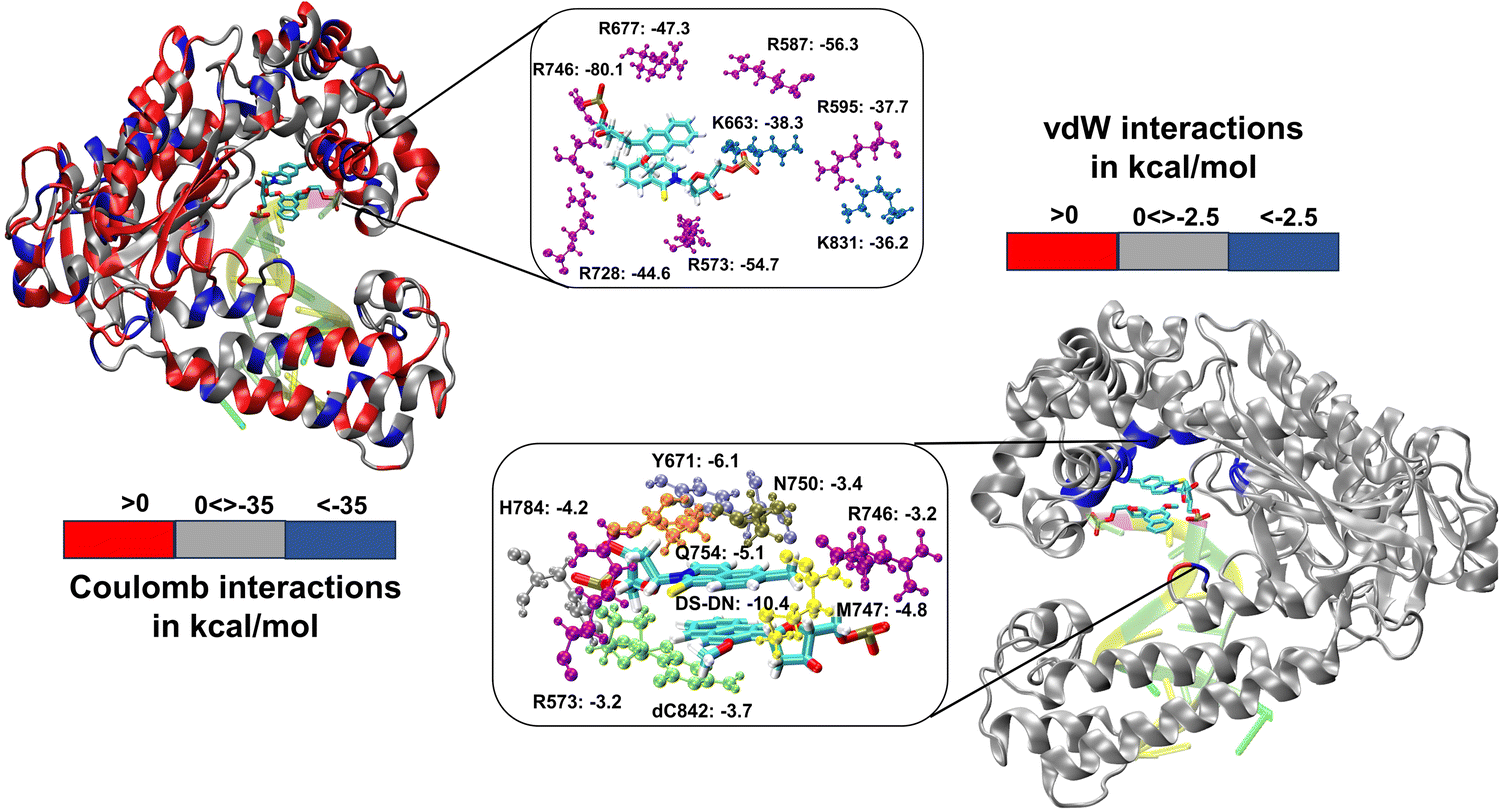

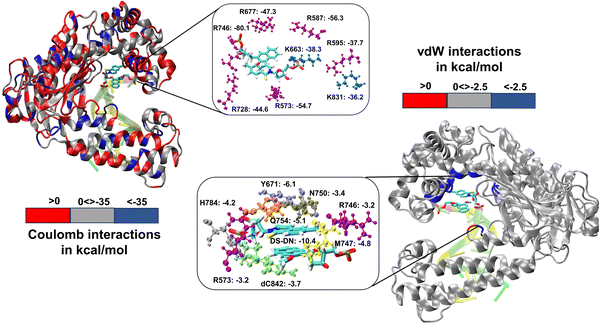

Fig. 6 3D representation of non-covalent interactions between polymerase residues and UBP through EDA for Ext_SYN. Residues with Coulomb interactions < −35.0 kcal mol⁻¹ and vdW interactions < −2.5 kcal mol⁻¹ are highlighted. Energy values are in kcal mol⁻¹.

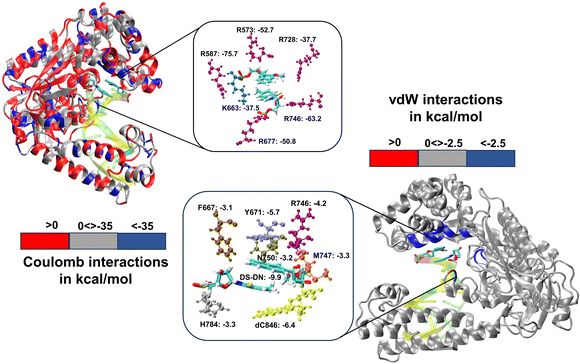

Fig. 7 Non-covalent interactions between polymerase residues and for Int_SYN. Residues with Coulomb interactions < −35.0 kcal mol⁻¹ and vdW interactions < −2.5 kcal mol⁻¹ are highlighted. Energy values are in kcal mol⁻¹.

Comparing the EDA results of Taq-UBP-incorporated DNA with the 3.2 Å resolution mapped structures of Taq-nB-DNA⁸³ it is observed that interaction profile (E_vdW) looks mostly similar for both the cases. A notable distinction observed is that, in the case of nBP, Tyr671 and Phe667 form interactions with the 5'- and 3'-BP positions, respectively. In contrast, when the UBP is incorporated into DNA, significant interactions primarily occur between the exposed UBs (3'-DS for EXT_SYN and 5'-DN INT_SYN) and Tyr671. Additionally, in the INT_SYN scenario, instead of the Phe667-5'-BP interaction, we observed E_vdW interaction between Phe667 and the 3'-DS.

We have further calculated the total inter-molecular interaction (interaction between UBP and sum of all the Taq residues) differences (ΔE_Tot) between different conformers. The difference in total interaction energy ΔE_Tot between EXT_SYN and INT_SYN is found to be insignificant (−3.5 kcal mol⁻¹) suggesting the similar stability of the UBP inside Taq for both of these conformers. However, EXT_ANTI displays a significant increase of ΔE_Tot as compared to EXT_SYN (ΔE_Tot = 70.4 kcal mol⁻¹) implying intra-strand flipping is not favored for EXT conformer, which is consistent with this conformation not being structurally stabilized. For INT, ΔE_Tot between SYN and ANTI is found to be −12.4 kcal mol⁻¹ indicating despite energetic difference INT_ANTI is also significantly stabilized inside Taq.

Mutation of R660S of the homologous E. coli DNA polymerase I (Klenow fragment, KF) conducted by Yosida et al. revealed a reduction in transitions from T to C.⁸⁴ Thompson et al. reported changes in fidelity by mutating 26 amino acids in the KF, and found that DNA mismatches are recognized by two important factors; free energy difference for the partitioning of the DNA primer terminus (i) between the polymerase and exonuclease sites for several mispairs, (ii) between the residues near the active site and the mismatched pairs.⁴⁶ They concluded that residues N845 and R668 are required for recognition of correct mispairs. Singh and Modak also reported that residues N845, Q849, R668, H881, and Q677 are part of a hydrogen bond track. Computational studies have also been done to investigate the effect of mutation of DNA polymerase I towards mispairing of the base pairs in the terminal positions.^49,85

Collectively, previous studies confirmed that mutation of KF residues R668, R682, E710 and N845 (R573, R587, E615 and Asn750 for Taq) are the key residues controlling the fidelity within the KF^84–87 whereas E742 and A743 are found to be crucial for the elongation activity.⁸⁷ Our studies also identified similar residues with significant interactions (E) with UBP particularly for EXT_SYN, INT_SYN and INT_ANTI. Interestingly these residues also exhibit significant difference in interactions (ΔE) on conformational change. It has been observed that Coulomb interaction profile (E_Coul) almost looks similar apart from few residues (R573, R587, E615 and R746) displaying significant altered interactions (ΔE_Coul ≠ 0) from EXT_SYN to INT_SYN. (Fig. 8) Similar vdW interaction profile (E_vdW) has also been observed for these two conformers with few residues exhibiting altered vdW interactions (ΔE_vdW ≠ 0) on finger region. Intra-strand flipping between SYN and ANTI also leads to minimal perturbation of Coulomb and vdW interaction between UBP and Taq (Fig. 9). The difference in inter-molecular interactions between the different UBP orientations results in almost all residues exhibiting similar (de)stabilizing roles, albeit there are some exceptions, among them R573, R587, E615, E742 and R746 are significant. However, the difference of interaction profile is prominent between SYN and ANTI for EXT with several residues showing altered interactions indicating the EXT_ANTI is not stabilized by Taq, leading to non-pairing of the UBP. The extent of non-covalent interactions between DS and DN is also obtained from EDA. Interaction between DS and DN is found to be highest for EXT_SYN (E_vdW = −10.4 kcal mol⁻¹) followed by INT_SYN (E_vdW = −9.9 kcal mol⁻¹) and INT_ANTI (E_vdW = −9.2 kcal mol⁻¹) and least for EXT_ANTI (E_vdW = −3.5 kcal mol⁻¹) indicating apart from EXT_ANTI intercalation persist for all three conformers. During the examination of adjacent nBP interactions, EDA analysis indicates that the neighboring base pair exhibits relatively lower stability when contrasted with other base pairs, which suggest that the structure and stability of adjacent BP have been affected by the presence of the unconventional orientation of UBP.

Fig. 8 Difference in interaction profiles (ΔE_Coul and ΔE_vdW) between EXT_SYN and INT_SYN. Energy values are in kcal mol⁻¹.

Fig. 9 Difference in interaction profiles (ΔE_Coul and ΔE_vdW) between (A) EXT_SYN and EXT_ANTI, (B) (A) INT_SYN and INT_ANTI. Energy values are in kcal mol⁻¹.

Conclusions

Our research delved into the structural characteristics and conformational orientations of UBP-incorporated DNA within the binary Taq. Further, we conducted an in-depth analysis to predict the interaction profile between UBP and Taq through Coulombic and vdW interactions. Both the AMOEBA and AMBER force fields employed in this study produce consistent results that agree with experimental outcomes. Our simulated results predict that flexibility of the UBP- incorporated DNA, observed in the solution, is arrested by the polymerase. This stabilization leads to a stable intercalated form of the UBP that is conducive to DNA polymerization with unnatural bases. It has been observed that inter-strand flipping from EXT to INT leads to the generation of minimal perturbation of the stabilization of the UBP within Taq, whereas intra-strand flipping from SYN to ANTI leads to the generation of a non-pairing structure of the UBP with significant perturbations in the polymerase residues specifically for EXT conformers. Further EDA analysis established the interaction profiles between UBP and polymerase residues which also depicts minor differences of interactions during inter-strand flipping and intra-strand flipping for INT. Lack of pairing of DS–DN in EXT_ANTI leads to change the interaction profiles significantly. Unlike nBP-polymerase interactions, Tyr671 interacts with both 3′ and 5′-UB depending on the exposure of the UB in the conformers. Overall, our systematic MD simulation associated with EDA analysis portrayed the structural properties, effect of conformational changes and interaction profiles of binary system of Taq in complex with a DNA duplex including an intercalated DS–DN pair.

Conflicts of interest

There are no conflicts to declare.

Acknowledgements

This work was supported by NIH R01GM108583 and Fulbright-Nehru postdoctoral Scholarship. Computing time from UNT CASCaM funded by NSF Grant No. CHE1531468 and OAC-2117247 is gratefully acknowledged. Tanay Debnath is a USIEF postdoctoral fellow (Fulbright-Nehru postdoctoral Scholarship). Computational time for this project was provided by the University of North Texas CASCaM CRUNTCh3 and 4 high-performance cluster and the University of Texas at Dallas, Cyberinfrastructure and Research Services, Ganymede and Titan HPC clusters and NCSA DELTA at University of Illinois Urbana-Champaign. The authors thank the reviewers for their constructive comments, which have helped improve our manuscript.
