A first-principles study of electro-catalytic reduction of CO₂ on transition metal-doped stanene

Abstract

Employing first-principles calculations based on density functional theory, this work examines the activity of 3d transition metal-doped stanene for electro-catalytic CO₂ reduction through the first two electron transfer steps to CO. Our results related to CO₂ activation, the first and a crucial step of the reduction process revealed that, among the entire 3d transition metal row studied, only Ti- and Fe-doped stanene can bind and significantly activate the CO₂ molecule, while the rest of the TM single atoms are inert in activating the molecule. The activation of the CO₂ molecule on Ti- and Fe-doped stanene has been observed in the presence of water as well. In addition, the formation of OCHO has been observed to be energetically preferred over COOH formation as a reaction intermediate, indicating the preference for the formate path of the reduction reaction. Furthermore, despite the strong adsorption of H₂O on the catalyst surface, the presence of water seems to enhance CO₂ adsorption on the catalysts, contrary to what has been observed recently in graphene-based catalysts. Finally, our difference charge density and the Bader charge calculations reveal that the ability of Ti- and Fe-doped stanene in activating the CO₂ molecule and their potential catalytic activity for CO₂ reduction is to be attributed to the charge transfer between the catalyst and the molecule, providing new insights into the rational design of 2D catalysts beyond graphene.

---

1 Introduction

Electrochemical conversion of CO₂ into value added products has emerged as a sustainable way to alleviate global warming, and as a promising solution to address the current energy crisis.^1–6 The advantage of the electro-catalytic CO₂ reduction reaction (CO₂RR) lies in the fact that the reaction can proceed under ambient conditions on efficient electrocatalysts,^7–20 and can be controlled by suitably changing the applied potential.²¹ Reduction of CO₂ to CO is considered as the first step of this process²² and is highly important for the chemical industry.²³ Nevertheless, the major bottleneck even for this two electron reduction reaction,²² is due to the poor selectivity, compromised stability, high cost and low transformation efficiency of the conventional catalysts.^24–28 Design and development of non-precious and highly active catalysts with better selectivity and stability is hence highly necessary. Recently, two-dimensional (2D) nanomaterials have drawn immense attention due to their unique structural and electronic properties, high surface to volume ratio and higher maneuverability compared to their bulk counterparts,^14,29–33 enabling their potential usage in an extensive range of applications. Lately, stanene, among the recently developed group iv monolayers, has exhibited efficiency for sensing triatomic gases such as CO₂, NO₂ and SO₂^34–40 and its ability to attain higher room temperature conductivity compared to graphene and silicene through efficient doping.³⁹ In spite of the unique structural and electronic properties of stanene and its already proven ability to capture and sense CO₂ gas, the role of stanene as a catalyst for the CO₂RR is not yet explored thoroughly. Employing first-principles calculations based on density functional theory (DFT), this work intends to investigate the activity of pure and 3d transition metal (TM: Sc to Zn)-doped stanene towards CO₂ reduction.

This article is structured as follows: Section 2 provides the computational details. In Section 3 we discuss our results involving both pure and 3d TM-doped stanene as catalysts for the reduction of CO₂ to CO, and Section 4 provides the conclusion.

2 Computational details

Spin polarized density functional theory calculations have been performed using the Vienna ab initio simulation package (VASP)⁴¹ employing the projected augmented wave (PAW) method⁴² and a plane wave basis⁴³ set. The generalized gradient approximation (GGA) as implemented in the Perdew–Burke–Ernzerhof (PBE)⁴⁴ functional has been employed and D3 Grimme-dispersion correction⁴⁵ to address the van der Waals interaction is incorporated in all our calculations. The total energy of the stanene layer per atom is calculated as −3.48 eV per atom, 0.09 eV less than the energy reported using the HSE06 functional.⁴⁶ A fully optimized unit cell of stanene has a = b = 4.67 Å, a Sn–Sn bond length of 2.83 Å, and a buckling height of 0.86 Å. The calculated values are all within a reasonable agreement with previous reports.^40,47–50 A 4 × 4 supercell constructed from the unit cell with 20 Å vacuum introduced along the z direction was further used to construct doped stanene structures. TM single atom (SA)-doped stanene with a doping concentration of 3.12% is depicted in Fig. 1a. All the structures are optimized using the conjugate gradient scheme with a 5 × 5 × 1 Monkhorst–Pack⁵¹k-mesh and a plane wave energy cut-off of 450 eV. The calculations are considered converged when the energy difference between successive iterations becomes less than 10⁻⁵ eV and the force exerted on each atom is less than 0.001 eV Å⁻¹. The stability of a TM single atom in stanene is calculated from its binding energy (B.E.) calculated as,

B.E. = E_TM@Stanene − E_Stanene − E_TM

where E_TM@Stanene, E_TM and E_Stanene are the energies of TM doped stanene, of a single TM atom, and of the energy of the pristine stanene monolayer, respectively. The adsorption energy (E_ads) of a molecule adsorbed on the catalyst has been computed using the following equation,⁵²

E_ads = E_cat+mol − E_cat − E_mol

E_cat+mol, E_cat and E_mol are the energies of the catalyst with the adsorbed molecule, of the catalyst and of the isolated molecule, respectively.

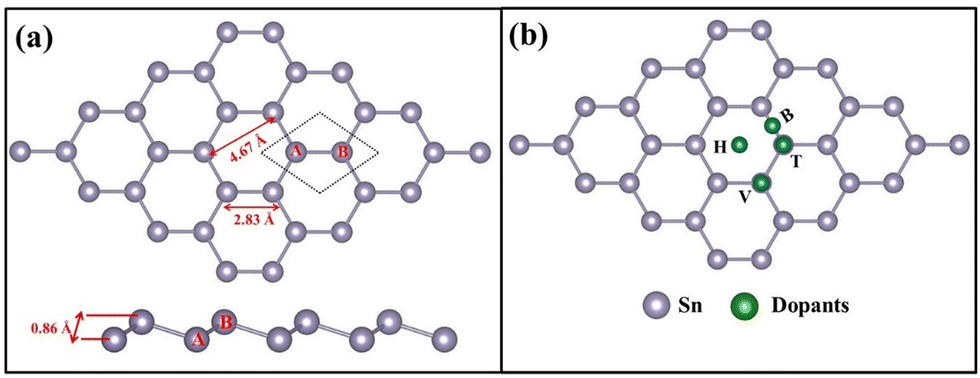

Fig. 1 (a) Top and side view of an optimized 4 × 4 stanene supercell. The dotted area indicates a single unit cell. The buckling height of 0.86 Å is the distance observed between the A and B sublattices. (b) Possible sites to add the TM dopants.

The reaction free energy change ΔG is calculated as ΔG = ∑G(products) − ∑G(reactants) where the free energy for each adsorbed species is calculated using the following equation,⁵³

G = E_DFT − TS + ZPE

Here, E_DFT is the DFT calculated electronic energy,⁵⁴S and ZPE are the entropy and zero-point energy correction, respectively, and the corresponding values for the reaction intermediates are taken from the literature.^52,55 For all the proton coupled electron transfer (PCET) steps of the CO₂RR, the chemical potential of a proton and electron pair is considered as ½ of the chemical potential of gaseous hydrogen, as per the CHE model.⁵⁴ The limiting potential (U_L) is determined as,⁵⁶

U_L = −ΔG_max/e

where e is electronic charge and ΔG_max is the highest change in free energy observed in the potential limiting step (PLS) of the reaction.

3 Results and discussion

3.1 The binding sites for TM in stanene

Four possible binding sites, namely (i) hollow (H): center of hexagon, (ii) top (T): top of an Sn atom in the upper sublattice, (iii) valley (V): top of an Sn atom in the lower sublattice, and (iv) bridge site (B): in between two adjacent Sn atoms,⁴⁸ were investigated to find the most preferred binding position for the TM atoms (Sc to Zn) doped in stanene (Fig. 1b). The binding energy (B.E.) value for each TM dopant in stanene is listed in Table 1.

Table 1 Binding energies of 3d TM atoms on all four possible doping sites

TM	B.E. (eV)
	Top (T)	Hollow (H)	Valley (V)	Bridge (B)
Sc	−3.28	−3.99	−3.74	Unstable
Ti	−2.10	−4.33	−3.90	Unstable
V	−2.72	−3.58	−3.11	Unstable
Cr	−1.11	−2.33	−1.94	Unstable
Mn	−1.11	−2.38	−2.19	Unstable
Fe	−1.37	−3.14	−3.05	Unstable
Co	−3.25	−3.52	−3.56	Unstable
Ni	−3.32	−3.78	−3.64	Unstable
Cu	−1.57	−2.57	−2.39	Unstable
Zn	−0.41	0.10	−0.44	−0.42

---

Table 1 shows that the hollow site (H) is the most preferred binding site for all TM atoms studied, except Co and Zn. For Co and Zn, the valley site (V) is the preferred site for TM binding. It has also been observed that the bridge site is unstable for all TM atoms, except Zn. For Zn, however, the difference in binding energies between the valley and bridge sites is very small (0.02 eV). For other TM atoms, our simulations revealed that if doped at the bridge site, the TM atom will eventually migrate to the valley site. It has also been noticed that, TM atoms, when added at the valley site, move closer to the plane of the stanene monolayer and push the Sn atom slightly away from the plane. The negative binding energies indicate the strong binding of TM-SACs on stanene.^57,58Fig. 2 depicts the TM single atoms at the most preferred doping sites in stanene.

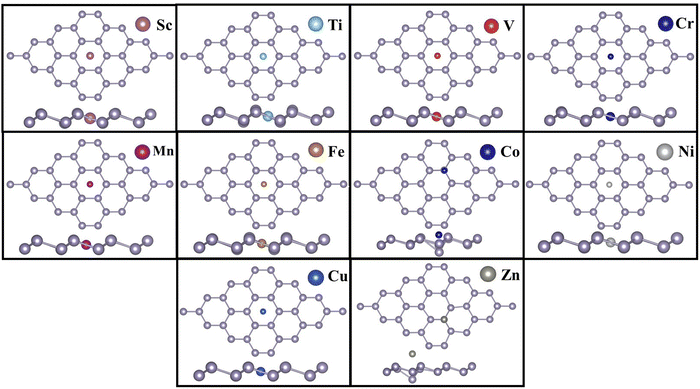

Fig. 2 TM SAs at their preferred doping sites in stanene.

From our calculations it is evident that, the TM binding energy is stronger for the early transition metals (Sc to V), with Ti, which shares the same number of valence electrons as Sn, exhibiting the highest binding energy amongst all the TMs studied. The binding energy, however, decreases in Cr and Mn where both the TMs possess a half-filled 3d shell. The B.E. increases again for Fe, Co and Ni, and decreases in late TMs Cu and Zn. The structural geometries of the TM embedded stanene layer and the corresponding TM magnetizations are listed in Table 2. It is apparent that incorporation of the TM SA in stanene results in local distortion with the maximum distortion observed in Co-doped stanene, where the Co atom pushes the Sn atom away from the plane towards the valley site and the local Sn–Sn bond length stretches to 3.29 Å. For the other TMs, the Sn–Sn bond length varies from 2.85 Å in Ni-, to 3.03 Å in Sc-doped stanene. While most of the TM SAs exhibit strong chemisorption with the stanene sheet, with the TM–Sn distance varying from 2.43 Å to 2.88 Å, for Zn, physisorption is observed with a Zn–Sn distance of 4.01 Å and a binding energy of −0.44 eV. The weak binding of Zn in stanene compared to other TMs can be attributed to its closed shell structure.

Table 2 TM–Sn distance (d_TM–Sn), Sn–Sn distance (d_Sn–Sn), and magnetization for TM, doped at the most preferred binding site in stanene

TM	d TM–Sn (Å)	d Sn–Sn (Å)	μ d
Sc	2.88	3.03	0.00
Ti	2.80	3.03	0.84
V	2.80	2.95	2.40
Cr	2.82	2.92	3.64
Mn	2.80	2.94	3.71
Fe	2.73	2.92	2.60
Co	2.43	3.29	1.46
Ni	2.72	2.85	0.00
Cu	2.77	2.89	0.00
Zn	4.01	2.91	0.00

---

3.2 CO₂ reduction to CO on bare catalysts

3.2.1 CO₂ activation. CO₂ activation is the first and a crucial step of CO₂RR, although largely ignored in most of the studies pertaining to CO₂RR.^59–63 Thus, as a first step to understand the CO₂RR on TM@Sn, we analysed the efficiency of the TM SAs to bend and therefore to activate the CO₂ molecule. The structural geometry of the complex, the adsorption energies and the reaction free energies of the CO₂ molecule, and the TM magnetization after CO₂ adsorption are listed in Table 3.

Table 3 TM–C distance, O–C–O angle, adsorption energies (E_ads) and free energies (ΔG) for CO₂ adsorption. TM magnetization is also listed

TM	d TM–C (Å)	∠O–C–O	E ads (eV)	ΔG (eV)	μ d
Pure stanene	3.64	179.7	−0.09	0.59	0.00
TM@Sn
Sc	4.61	179.7	−0.29	0.39	0.00
Ti	2.23	149.4	0.09	0.77	0.60
V	4.16	179.6	−0.16	0.52	2.38
Cr	4.49	179.9	−0.21	0.47	3.76
Mn	4.41	179.9	−0.19	0.49	3.67
Fe	2.06	148.4	−0.12	0.56	0.84
Co	3.44	179.6	−0.11	0.57	1.40
Ni	3.53	179.1	−0.27	0.41	0.00
Cu	4.03	179.7	−0.14	0.54	−0.02
Zn	3.41	179.6	−0.15	0.53	0.00

---

For CO₂ adsorption on pristine stanene (Fig. 3a), a weak physisorption (E_ads −0.09 eV) is observed with no activation of the molecule. Our simulations for the entire 3d TM row studied revealed that, only Ti and Fe can activate the CO₂ molecule. For Ti, the CO₂ molecule is activated with ∠O–C–O of 149°, and the C–O bond is elongated to 1.22 Å. For Fe, the activation of the CO₂ molecule is observed with ∠O–C–O reducing to 148° and the bond length is increased to 1.22 Å. For the rest of the TM SAs, no activation of the CO₂ molecule is observed. For Sc@Sn, the Sn atom is pushed slightly out of the plane of the stanene monolayer and the CO₂ molecule moves further away from the plane. The same trend has been observed for other TMs (V, Cr, Mn, Co and Cu) with no activation of the CO₂ molecule. For Ni@Sn as well, no activation in CO₂ is observed, and our calculated CO₂ adsorption energy of −0.27 eV is consistent with previous reports involving Ni SAC in similar materials.⁶⁴

Fig. 3 CO₂ adsorption on (a) pristine, (b) Sc-, (c) Ti- and (d) Fe-doped stanene monolayers: top view and side view.

Henceforth, we focus our attention on Ti and Fe-doped stanene as they activate the CO₂ molecule and hence are likely to be active in the CO₂RR. In addition, Sc-doped stanene is also studied for comparison, Sc being the representative of the TMs that does not activate the CO₂ molecule. The optimized geometries of CO₂ adsorption on TM@Sn (Sc, Ti and Fe) are shown in Fig. 3.

Our ab initio molecular dynamics (AIMD) simulation at 300 K for 5 ps verifies the kinetic stability of the catalysts that activate CO₂. As depicted in Fig. S1 (ESI†), the energy and temperature profiles of Ti- and Fe-doped stanene oscillate within a very small range, indicating the stability of these catalytic systems. Additionally, the thermodynamic and electrochemical stability of the catalysts have also been investigated (ESI†). Our calculated formation energy per unit area for pure stanene within the GGA-PBE framework is −0.26 eV Å⁻² with a deviation of +0.09 eV Å⁻² from the HSE06 value of −0.35 eV Å⁻² reported earlier.⁴⁶ The stability further increases in TM-doped stanene with the order ΔE_Ti@Sn < ΔE_Fe@Sn < ΔE_Sn (Table S2, ESI†). Furthermore, our dissolution potential calculations for the catalysts (Table S2, ESI†) indicate the electrochemical stability of TM@Sn as well. Our results are in range with the existing reports on similar 2D materials⁶⁵ and the absolute deviations from the reported values for a specific TM are attributed to the different levels of theory involved in the respective work.

3.2.2 Reaction intermediates. CO₂RR is an intricate process involving multiple proton-electron transfer steps, and various reaction intermediates. The pathway involving a two-electron transfer mechanism is explored in our study (reduction of CO₂ to CO) and the subsequent equations describing the possible intermediates for the same are given below.⁶⁶

CO₂ + * → *CO₂

*CO₂ + H⁺ + e⁻ → *COOH(*OCHO)

*COOH + H⁺ + e⁻ → *CO + H₂O

*OCHO + H⁺ + e⁻ → *HCOOH

where the catalyst is indicated by an asterisk and the asterisk placed prior to an adsorbate signifies its binding on the catalyst.

The subsequent step after CO₂ activation entails the first hydrogenation process, leading to the formation of COOH or OCHO. This step holds substantial significance as it plays a crucial role in determining both the end products and the desired reaction pathway, as the formation of COOH (OCHO) indicates the preference for the carboxylic (formate) pathway.^52,67 Hence in our study following the CO₂ activation over Ti and Fe doped stanene, we compared the probabilities of formation of both COOH and OCHO as reaction intermediates. For Ti@Sn, our calculation revealed that OCHO formation has higher energy preference (ΔG = −1.51 eV) over COOH (ΔG = −0.70 eV). Subsequently, the next step of the reaction process, the formation of the intermediate HCOOH, has also been studied and the additional energy input required for the conversion of OCHO to HCOOH is calculated to be 1.37 eV. Interestingly, had COOH been the favored intermediate in the 1st hydrogenation step, the further conversion of COOH to CO would be an exothermic process with a free energy change of −0.38 eV. The energy preference of OCHO over COOH has also been observed in previous reports.^52,68

For Fe@Sn, we found a similar trend, where OCHO emerges as the energetically preferred intermediate in the 1st hydrogenation step over COOH (ΔG = −0.88 eV and 0.16 eV respectively). For the next step of the reaction, an energy input of 1.32 eV is required for HCOOH formation from OCHO. Similar to Ti@Sn, had COOH been the preferred intermediate in the initial step, the subsequent CO formation would have a free energy change of −1.17 eV.

Hence, for both Ti- and Fe-doped Sn, OCHO to HCOOH formation is the potential limiting step (PLS), with the limiting potentials (U_L) being −1.37 V and −1.32 V respectively. Fig. 4(a) and (b) display the optimal geometries and the corresponding free energy diagrams along the carboxylic and formate pathways for both the catalysts. For each reaction step the change in ΔG as shown in Fig. 4(b) is considered with respect to the previous reaction step.^69–71 All the energy parameters are summarized in Table 4.

Fig. 4 (a) Optimized structures and (b) free energy profiles along the carboxylic and formate pathways for Ti- and Fe-doped stanene.

Table 4 Change in free energy along the reaction pathway and limiting potentials for Ti- and Fe-doped stanene

TM	COOH		CO		OCHO		HCOOH		PLS	U L (V)
	E ads (eV)	ΔG (eV)	E ads (eV)	ΔG (eV)	E ads (eV)	ΔG (eV)	E ads (eV)	ΔG (eV)
Ti	−3.09	−0.70	−1.85	−0.38	−4.04	−1.51	−0.73	1.37	*OCHO + H^+ + e^− → *HCOOH	−1.37
Fe	−2.45	0.16	−2.00	−1.17	−3.62	−0.88	−0.36	1.32	*OCHO + H^+ + e^− → *HCOOH	−1.32

---

However, apart from the reaction intermediates mentioned above, H* may also emerge as a part of the hydrogen evolution reaction (HER) that can occur simultaneously with CO₂RR.⁷² Hence, free energy changes related to H* adsorption on the catalysts have been calculated and compared with that of COOH and OCHO, reaction intermediates from the 1st hydrogenation step of CO₂RR.⁷² The free energy change (ΔG^H) related to H-adsorption along the reaction pathway of HER came out to be −0.09 eV and 0.16 eV for Ti- and Fe doped stanene, respectively. Hence, we found that ΔG^OCHO < ΔG^COOH < ΔG^H for Ti-doped stanene, and ΔG^OCHO < ΔG^COOH = ΔG^H for Fe@Sn. The lowest Gibbs free energy change has been observed for OCHO formation in both the cases, indicating that the formation of OCHO is most preferred among all the reactants considered, and the catalysts are selective towards CO₂RR over HER.⁷²

3.3 CO₂ reduction in water

As CO₂RR occurs in aqueous medium, CO₂ activation in the presence of water has also been studied for these systems. However, in order to understand CO₂ adsorption on wet catalysts, first the catalysts’ ability to bind water molecules has been investigated.

3.3.1 H₂O adsorption on TM@Sn. The optimized catalyst structures with adsorbed H₂O are shown in Fig. 5 and the adsorption energies and the structural geometries are listed in Table 5.

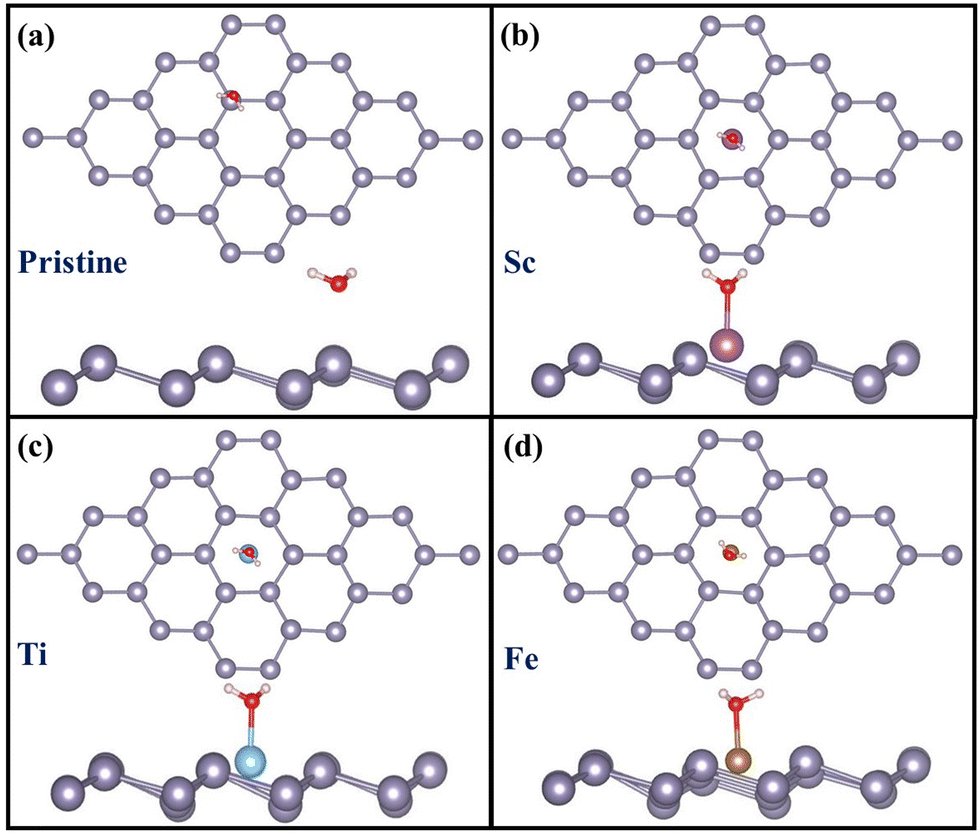

Fig. 5 H₂O adsorption on (a) pristine and (b) Sc- (c) Ti- and (d) Fe-doped stanene: top view and side view.

Table 5 TM–O distance, H–O–H angle, adsorption energies (E_ads) and free energies (ΔG) for H₂O adsorption on TM@Sn. TM magnetization is also listed

Pure stanene	d TM–O (Å)	∠H–O–H	E ads (eV)	ΔG (eV)	μ d
	2.95	105.0	−0.16	0.43	0.00
TM@Sn
Sc	2.22	108.3	−1.18	−0.59	0.07
Ti	2.16	108.0	−0.96	−0.37	0.00
V	2.14	107.1	−0.69	−0.10	0.57
Cr	2.21	106.9	−0.67	−0.08	3.73
Mn	2.20	106.6	−0.72	−0.13	3.73
Fe	2.17	106.8	−0.61	−0.02	2.80
Co	2.10	106.8	−0.58	0.01	1.47
Ni	2.15	106.1	−0.50	0.09	0.00
Cu	2.22	106.0	−0.45	0.14	0.02
Zn	2.76	105.7	−0.12	0.47	0.00

---

It is apparent that H₂O binds weakly on pure and Zn-doped stanene with E_ads of −0.16 eV and −0.12 eV, respectively. However, in all the TM-doped stanenes (except Zn), water binds strongly on the catalyst with the strongest adsorption observed in Sc-doped stanene (−1.18 eV). To explore the effect of water on CO₂ binding and activation on the catalyst, we further studied CO₂ adsorption on TM@Sn in the presence of a water molecule as described below.

3.3.2 Co-adsorption of CO₂ and H₂O on TM@Sn. For simulating adsorption of CO₂ in the presence of H₂O, the 2D symmetry of the catalyst can be exploited considering CO₂ and H₂O located on the same side as well as on the opposite sides of the stanene monolayer.⁵² In the present study, we have considered adsorption of one H₂O molecule (i) on the same side and (ii) on the opposite side of CO₂ on the catalyst. The detailed structural geometry, the adsorption energies (E_ads) and the adsorption free energies for co-adsorption of CO₂ and H₂O are listed in Table 6. The adsorption energies for CO₂ are calculated considering the catalyst with pre-adsorbed H₂O as a reference. For CO₂ and H₂O adsorption on the opposite sides, both the molecules move away from a pure stanene monolayer with no activation of the CO₂ molecule. In Sc-doped stanene, the Sc atom moves closer to the H₂O molecule, in line with its ability to bind H₂O strongly. Furthermore, similar to dry Sc@Sn, there is no activation of CO₂ in the presence of H₂O. A similar trend is observed when both the molecules lie on the same side of the Sc-doped stanene: the CO₂ and H₂O molecules move away from each other and there is no activation of CO₂. For Ti-doped stanene as well, the Ti atom moves very close to the H₂O molecule as expected from its strong adsorption of H₂O. We observe that the CO₂ molecule does not get activated when H₂O is added on the opposite side of the catalyst. However, when adsorbed on the same side of the catalyst, the Ti atom moves closer to the CO₂ molecule and the latter gets activated on the catalyst with an adsorption energy of −0.39 eV. In Fe-doped stanene, on the other hand, CO₂ gets activated in both cases and the H₂O molecule moves away from the Fe atom. A strong binding and subsequent activation of CO₂ is evident from the O–C–O bond angle of 149° (141°) and an elongated C–O bond of 1.22 Å (1.29 Å) when placed on the opposite (same) side of H₂O on Fe-doped stanene.

Table 6 TM–C (C of CO₂ molecule) and TM–O (O of H₂O molecule) distances, C–O–C bond angles, adsorption energies and free energies for CO₂ adsorption in the presence of one water molecule

TM	H2O on the opposite side						H2O on the same side
	d TM–C (Å)	d TM–O (Å)	∠O–C–O	C–O (Å)	(eV)	ΔG^CO2 (eV)	d TM–C (Å)	d TM–O (Å)	∠O–C–O	C–O (Å)	(eV)	ΔG^CO2 (eV)
Sc	4.82	2.23	180	1.18	−0.15	0.53	4.78	5.64	180	1.18	0.67	1.35
Ti	4.61	2.19	179	1.18	−0.12	0.56	2.04	3.90	127	1.40	−0.39	0.29
Fe	2.06	4.20	149	1.22	0.28	0.96	1.94	3.87	141	1.29	−0.28	0.40

---

Our calculations revealed that the catalysts that activated CO₂ in the dry phase also activate the molecule in the presence of water. Surprisingly, the presence of water in close vicinity seems to enhance the strength of CO₂ adsorption on the catalyst: and the adsorption energy decreases by 0.48 and 0.16 eV for Ti and Fe, respectively, a behaviour opposite to what has recently been observed in N-doped graphene.⁵²

To explore the origin of the enhanced CO₂ adsorption on the catalysts in the presence of water, the interaction energies between activated CO₂ and the nearby H₂O molecules have been calculated as per the super-molecular approach.^73,74 The negative interaction energies resulted for Ti and Fe-doped stanene (ESI†) indicate the formation of H-bonds between the molecules. The H-bond lengths for Ti@Sn and Fe@Sn are 1.89 and 1.95 Å, respectively, similar to the H-bond lengths reported previously for various oxygen containing functional groups.⁷⁵ In addition, the distances between the donor and acceptor atoms in Ti@Sn and Fe@Sn are much shorter than the sum of van der Waals radii of the donor and acceptor atoms and the O–H bond length in H₂O (ESI†). Furthermore, our Bader charge analysis indicates the shift in electron density: charge on the O atom of water increases while on the C atom of the CO₂ molecule decreases (Table S3, ESI†). The above two factors collectively point towards the formation of H-bonds between the activated CO₂ and the nearby H₂O molecules resulting in the enhanced adsorption strength of CO₂ on the catalysts in the presence of water.^75,76

Our calculations pertaining to CO₂ activation on Ti- and Fe-doped stanene in the presence of two H₂O molecules simultaneously adsorbed on both sides of the stanene monolayer (Fig. 6) revealed a trend similar to same side co-adsorption of the molecules. For Ti@Sn, the CO₂ activation is well sustained with ∠O–C–O 129° and C–O bond 1.36 Å, while the same for Fe@Sn are measured as 140° and 1.29 Å, respectively. In this case as well, we observe an increased adsorption strength of CO₂ in the presence of two water molecules compared to dry catalysts: E_ads is −0.52 eV for Ti@Sn and −0.26 eV for Fe@Sn, similar to co-adsorption of CO₂ and H₂O on the same side of the catalysts as discussed above.

Fig. 6 Co-adsorption of CO₂ and H₂O on Sc-, Ti- and Fe-doped stanene. CO₂ and one H₂O on the opposite side (1st panel) and same side (2nd panel) of the catalysts, CO₂ and two H₂O molecules, on both sides of the catalysts (3rd panel).

3.4 Charge density difference and Bader charge analysis

3.4.1 Bare catalysts. Finally, to understand the observed activity of a few TM SA and the inertness of the remaining TMs, we have performed charge density difference (CDD) calculations and Bader charge analysis⁷⁷ for Sc, Ti, and Fe-doped stanene. Fig. 7(a)–(c) depicts the CDD plots for TM-doped stanene without the adsorbed molecules. For Ti and Fe, charge accumulation (yellow region) is clearly visible near the TM and the neighboring Sn atom, which is not present in Sc@Sn. The CDD plots also indicate strong binding of Ti and Fe in the stanene monolayer and hence the stability of the catalysts. The Bader charge calculations revealed that while a charge transfer of 1.30e occurs from Sc to Sn, the amount of charges transferred between the TM and neighboring Sn atoms are 0.99e and 0.13e for Ti and Fe-doped stanene, respectively. The decrease in charge transfer from Sc to Ti and Fe may indicate that Ti and Fe retain excess charge accumulated around them, which can later be transferred to a molecule when adsorbed on the catalyst.

Fig. 7 Charge density difference plots for TM@Sn (1st panel), CO₂ adsorption on TM@Sn (2nd panel) and CO₂ and H₂O co-adsorption on TM@Sn (3rd panel) with isosurface values 0.005 se Å⁻³, 0.04 e Å⁻³ and 0.03 e Å⁻³ respectively. Yellow and cyan regions indicate electron accumulation and depletion, respectively.

3.4.2 CO₂ adsorption in the dry phase. The CDD plots of the complexes with adsorbed CO₂ molecules are shown in Fig. 7(d)–(f). Our Bader charge calculations revealed that there is almost no charge transfer (0.05e) from Sc to the CO₂ molecule, also evident from the charge density difference plot (Fig. 7d); instead, a charge depletion region is noticed just above the Sc atom. On the other hand, for the Ti doped system, a total of 0.57e has been transferred to CO₂ from the surface, which is further confirmed by the CDD plot in Fig. 7(e). The charge depletion region (in cyan) just beneath the Ti atom further indicates a charge transfer from the Ti atom to a CO₂ molecule. In Fe doped stanene, 0.46e charge has been transferred to CO₂ from the surface. Fig. 7(f) shows that there exists a charge depletion zone below the Fe atom, similar to Ti, indicating that electrons have been transferred from Fe to CO₂ molecules.

3.4.3 CO₂ adsorption in the presence of water. Charge density difference and Bader charge calculations have also been carried out for CO₂ adsorption on the catalysts in the presence of H₂O to investigate if the charge transfers from the catalyst to CO₂ as observed in the dry phase still persist in the presence of water. Fig. 7(g)–(i) exhibits the CDD plots for CO₂ adsorption in the presence of water on the catalysts. Our calculation revealed that for Sc-doped stanene, there is almost no charge transfer (0.04e) to the CO₂ molecule from the catalyst in the presence of water. On the other hand, similar to the dry catalyst, a net charge of 1.02e has been transferred to the CO₂ molecule from Ti, even in the presence of water, as evident from the CDD plot (Fig. 7h). In Fe doped stanene as well, the CO₂ molecule gains 0.63e charge from the surface, clearly revealed from the CDD plot (Fig. 7i). Hence, from the CDD and Bader charge calculations it is apparent that it is the transfer of excess charges from the TM (Ti, Fe) to CO₂ which is responsible for the binding and subsequent activation of the CO₂ molecule, and the observed activity of the catalysts.

4 Conclusion

Employing density functional theory, this present work investigates the efficiency of pure and transition metal-doped stanene as catalysts for the CO₂ reduction reaction, investigating the first two electron transfer steps, i.e., reduction of CO₂ to CO. As activation of CO₂ is crucial for the CO₂RR, we have studied the relative ability of pure and TM-doped stanene to bind and activate CO₂. Our calculations revealed that only Ti- and Fe-doped stanene bind and activate CO₂ while pristine stanene and the rest of the TM@Sn do not activate the molecule, indicating that activating CO₂ is difficult because of the inert nature of the C=O bond. Our DFT results pertaining to the next hydrogenation steps revealed that the formation of OCHO as a reaction intermediate is preferred over COOH, during the 1st hydrogenation step, leading to HCOOH as the end product for the two-electron-transfer CO₂RR pathway. This trend is observed in both Ti- and Fe-doped stanene. The selectivity of the catalysts for the CO₂RR over the competitive HER has also been observed. As the reaction takes place in an aqueous environment, water adsorption on the catalysts and activation of CO₂ in the presence of a water molecule has also been investigated in detail with a particular emphasis on the role of water in simulating CO₂ adsorption on the catalysts. It has been observed that in presence of water, CO₂ adsorption is promoted on the catalyst. The enhanced strength of CO₂ adsorption on the catalysts is attributed to the potential formation of the hydrogen bond between the activated CO₂ and neighboring H₂O molecule. Finally, to understand the reason behind the activation of CO₂ on Ti- and Fe-doped stanene and the inertness of the rest of the TMs studied, charge density difference and Bader charge analysis have been carried out. While in Ti- and Fe@Sn a substantial charge transfer has been observed from the catalyst to CO₂, there is almost no charge transfer from the rest of the TM@Sn studied (such as Sc) contributing to their inertness in CO₂ activation. It is evident, hence, from our calculation that the observed activity of a few TMs can be attributed to the charge transfer from the catalyst to the CO₂. Our results obtained within the DFT framework can be extended to similar materials beyond graphene with improved functionals, for screening efficient 2D catalysts for reduction of CO₂ to CO and beyond.

Conflicts of interest

There are no conflicts to declare.

Acknowledgements

SG acknowledges the support from IIITDM Kancheepuram through research assistantship. DM thanks IIITDM Kancheepuram for financial support through institute SEED grant (No: IIITDM/ISG/PHY/7).
