Cd(II) and Zn(II) coordination polymer-assisted CO₂/cyclohexene oxide copolymerization with a double metal cyanide catalyst

Abstract

It is attractive but challenging to develop a cocatalyst for CO₂/cyclohexene oxide (CHO) copolymerization with a double metal cyanide (DMC) catalyst. In this study, we synthesized three coordination polymers (CPs) [Cd(3N3PY)(NDC)]·0.58H₂O (1), [Zn(3N3PY)(IPA)]·3H₂O (2) and [Cd(3N3PY)(NPA)]·2DMF·2H₂O (3) (3N3PY = 4′-(4-(1H-1,2,4-triazol-1-yl)phenyl)-2,2′:6′,2′′-terpyridine, H₂NDC = 2,6-naphthalene dicarboxylic acid, H₂IPA = isophthalic acid, H₂NPA = 2,2′-dinitro-4,4′-biphenyldicarboxylic acid). Crystal structural analyses show that 1–3 are different one-dimensional (1D) chains that further assemble into three-dimensional (3D) supramolecular structures by π–π and hydrogen bonding interactions. CPs 1–3 were applied as cocatalysts to assist DMC for CO₂/CHO copolymerization and the efficient proportion of carbonate P_–OC(O)O– in the product is 59% achieved for 2 at 80 °C in 1 MPa CO₂. The proportion of carbonate F(CO₂) and conversion rate of CHO (C_CHO) are 63% and 93%, respectively. The mechanistic study on structure–activity relationship and chemoselectivity was performed.

---

Introduction

Excessive emission of carbon dioxide (CO₂) is one of the main reasons for the greenhouse effect, which is hazardous to the environment and human health.¹ Thus, it is meaningful to develop valid methods to consume the excessive CO₂ in the atmosphere. In fact, CO₂ is a kind of resource-rich, renewable and non-toxic carbon source.² As reported previously, the ring opening reaction of epoxides with CO₂ is an efficient and atom-economic way for chemically fixing CO₂.³ As a result, it is attractive to create effective catalysts and explore valid methods to control the selectivity of products.⁴

In 2020, Hu and Zhang's group synthesized an Al-salen catalyst in cooperation with an ionic liquid to convert CO₂ into cyclic carbonate.⁵ The highest yield is 92% with a wide scope of substrates at 25 °C and 1 MPa CO₂. In 2018, Wang's lab reported Al-porphyrin catalysts for copolymerization of CO₂ and propylene oxide (PO).⁶ At 80 °C and 4 MPa CO₂, the proportion of carbonate, defined as F(CO₂), in the produced polymer is 53.1% in the obtained PO–CO₂ polyols and the conversion rate of PO is 99%. Recently, the same group studied the copolymerization of CO₂ with cyclohexene oxide (CHO) heterogeneously catalyzed by double metal cyanide (DMC) at 80 °C and 3 MPa CO₂.⁷ As a result, the F(CO₂) value is 96% and the conversion rate of CHO is 99%. In the last decades, DMC was found to be efficient for binary and ternary copolymerization with advantages of simple preparation, low synthetic cost and insensitivity to water and air.^8,9 Recyclable aliphatic polycarbonate products have demands in wide applications like environmental protection, adhesives, electronic devices, biomedical materials and automobile accessories.^10,11 In the reported studies, cocatalysts of DMC to enrich the function of products and optimize the reaction conditions are seldom explored.

Owing to the open metal and bifunctional acid–base sites, coordination polymers (CPs) are considered to be desirable for catalysis by forming noncovalent interactions with organic substrates, such as ionic, cation–π, anion–π, lone pair–π, π–π stacking, etc.^12,13 Furthermore, in the epoxide and CO₂ atmosphere, CPs are considered to form metal carbonate species, which is derived from control experiments by separately catalysing the CHO/CO₂ reaction with only heat or addition of bis(triphenylphosphine)iminium chloride (PPNCl) or tetrabutylammonium bromide (NBu₄Cl) as a cocatalyst at 80 °C. Besides, the detailed kinetic studies were also conducted and analyzed.¹⁴

Based on the above-mentioned situation, in this work, we designed and synthesized three CPs with terpyridyl ligand 4′-(4-(1H-1,2,4-triazol-1-yl)phenyl)-2,2′:6′,2′′-terpyridine (3N3PY), namely [Cd(3N3PY)(NDC)]·0.58H₂O (1), [Zn(3N3PY)(IPA)]·3H₂O (2) and [Cd(3N3PY)(NPA)]·2DMF·2H₂O (3) (H₂NDC = 2,6-naphthalene dicarboxylic acid, H₂IPA = isophthalic acid, H₂NPA = 2,2′-dinitro-4,4′-biphenyldicarboxylic acid). They were applied as cocatalysts for CO₂/CHO copolymerization with DMC. It was found that the efficient carbonate proportion was achieved with the assistance of CPs and the mechanism was also explored.

Experimental

Materials and general methods

All commercially available solvents and chemicals are of reagent grade and were used directly without further purification. DMC solvent with the formula Zn₃[Co(CN)₆]₂·ZnCl₂·solvent is a commercial product of Huaian Bud Polyurethane Science & Technology Co., Ltd. Ligand 3N3PY was prepared according to the previously reported method.^15–17 Powder X-ray diffraction (PXRD) data were collected on a Bruker D8 Advance X-ray diffractometer with Cu Kα (λ = 1.5418 Å) radiation. Thermogravimetric analysis (TGA) was carried out on a Mettler-Toledo (TGA/DSC1) thermal analyzer with a heating rate of 10 °C min⁻¹ under a N₂ atmosphere. FTIR-ATR spectra were measured on a Bruker Tensor II infrared spectrophotometer equipped with a diamond ATR module in the range of 400–4000 cm⁻¹. Elemental analyses for C, H and N were performed on an Elementar Vario MICRO elemental analyzer. ¹H NMR spectra were recorded on a Bruker-DRX instrument (500 MHz).

Synthesis of [Cd(3N3PY)(NDC)]·0.58H₂O (1)

A mixture of 3N3PY (18.82 mg, 0.05 mmol), H₂NDC (10.81 mg, 0.05 mmol) and Cd(NO₃)₂·4H₂O (15.40 mg, 0.05 mmol) in a mixed solvent of DMF/H₂O (2 mL, v : v = 3 : 1) was charged into a 10 mL glass vial, and then heated at 110 °C for 72 h under solvothermal conditions. The yield of the obtained crystals was 25% after cooling down to ambient temperature. FTIR-ATR (cm⁻¹, Fig. S1†): 3658 (w), 3099 (w), 2983 (w), 2897 (w), 1662 (w), 1606 (m), 1551 (m), 1470 (w), 1400 (s), 1350 (m), 1284 (w), 1239 (w), 1143 (w), 1088 (w), 1052 (w), 1011 (w), 979 (w), 915 (w), 841 (w), 787 (s), 734 (m), 670 (m), 627 (m), 520 (w), 488 (w), 446 (m).

Synthesis of [Zn(3N3PY)(IPA)]·3H₂O (2)

Zn(NO₃)₂·6H₂O (14.88 mg, 0.05 mmol), 3N3PY (18.82 mg, 0.05 mmol), H₂IPA (8.31 mg, 0.05 mmol) and 2 mL DMF/H₂O (v : v = 3 : 1) mixed solvent were added into a 10 mL glass vial. Then, it was heated at 110 °C for 72 h. After cooling to room temperature, colorless crystals were obtained with a yield of 68%. FTIR-ATR (cm⁻¹, Fig. S1†): 3483 (w), 3062 (w), 1676 (w), 1609 (s), 1554 (m), 1530 (m), 1473 (m), 1405 (m), 1337 (s), 1147 (w), 1085 (w), 1011 (w), 977 (w), 834 (w), 793 (m), 749 (m), 725 (m), 660 (w), 569 (w), 521 (w), 420 (w).

Synthesis of [Cd(3N3PY)(NPA)]·2DMF·2H₂O (3)

A mixture of Cd(NO₃)₂·4H₂O (15.40 mg, 0.05 mmol), 3N3PY (18.82 mg, 0.05 mmol), H₂NPA (16.61 mg, 0.05 mmol) and 2 mL DMF/H₂O (v : v = 3 : 1) mixed solvent in a 10 mL glass vial was heated at 110 °C for 72 h. After cooling to room temperature, yellow block crystals were obtained with a yield of 58%. FTIR-ATR (cm⁻¹, Fig. S1†): 3427 (w), 3104 (w), 2923 (w), 2862 (w), 1666 (s), 1597 (s), 1526 (s), 1481 (m), 1390 (s), 1345 (s), 1279 (m), 1240 (m), 1153 (w), 1086 (m), 1007 (m), 970 (m), 916 (m), 835 (m), 785 (s), 724 (m), 669 (m), 512 (m), 482 (w), 421 (m).

Synthesis of methyl iodized CPs 1Me–3Me

The methyl iodized CPs were prepared with modification of the previously reported method.¹⁸ CP 1 (20 mg, 0.028 mmol)/2 (20 mg, 0.030 mmol)/3 (20 mg, 0.020 mmol), 4 mL DMF and 48 μL (0.77 mmol) methyl iodide (CH₃I) were added into a glass vial. Then, the mixture was heated at 70 °C for 12 h. After cooling, the obtained product was added to 15 mL ethyl acetate and the precipitate was collected by filtration. After washing with diethyl ether and vacuum drying, the final products 1Me/2Me/3Me were obtained.

Catalytic copolymerization of the CO₂/CHO reaction with DMC and 1–3

5 mg DMC, 3.5 μmol activated CP obtained by heating at 230 °C in vacuum for 12 h and 0.5 mL CHO were added into a Teflon-lined stainless steel container. Then, CO₂ gas was charged and pressurized at 1 MPa. The sealed reactor was heated at 80 °C using an oil bath for 12 h. After cooling to room temperature, CO₂ gas was slowly released and the obtained product was determined by ¹H NMR in CDCl₃.

Results and discussion

Crystal structure description

Crystal structure of [Cd(3N3PY)(NDC)]·0.58H₂O (1). Single crystal X-ray diffraction results are presented in Fig. 1. The space group of 1 is P2₁/c belonging to the monoclinic crystal system (Table 1). The central Cd(II) coordinates with four oxygen atoms (O1, O2, O3 and O4) from two NDC²⁻ and three nitrogen atoms (N1, N2 and N3) from one 3N3PY (Fig. 1a). The bond lengths of Cd–O and Cd–N are in the range of 2.2988(17)–2.5525(17) Å and 2.3372(18)–2.407(2) Å, respectively (Table S1†). The Cd(II) atoms are linked together by NDC²⁻ ligands to form an infinite one-dimensional (1D) chain, in which 3N3PY serves as the terminal ligand (Fig. 1b). The 1D chains are further assembled into a three-dimensional (3D) supramolecular structure (Fig. S2a†) through π–π interactions between the 3N3PY moieties (Fig. 1c, Tables S2 and S3†). In addition, there are C–H⋯O hydrogen bonds between the C–H bond in 3N3PY and the oxygen atoms in the carboxylate group of NDC²⁻ as well as the non-coordinated water molecule (Fig. 1d). The detailed hydrogen bonding data are summarized in Table S4.†

Fig. 1 (a) Coordination environment of Cd(II) in 1 with the ellipsoids drawn at the 50% probability level. Hydrogen atoms are omitted for clarity. (b) 1D chain in 1. (c) Selected π–π interactions in 1. (d) Hydrogen bonds in 1.

Table 1 Crystal data and structure refinements for 1–3

Compound	1	2	3
a R 1 = ∑||Fo| − |Fc||/∑|Fo|. b wR2 = |∑w(|Fo|^2 − |Fc|^2)|/∑|w(Fo)^2|^1/2, where w = 1/[σ^2(Fo^2) + (aP)^2 + bP]. P = (Fo^2 + 2Fc^2)/3.
Formula	C35H23.17N6O4.58Cd	C31H26N6O7Zn	C43H40N10O12Cd
Formula weight	713.48	659.95	1001.25
Temperature (K)	296.15	193	193
Crystal system	Monoclinic	Triclinic	Tetragonal
Space group	P21/c	P1̄	P41212
a (Å)	10.6395(3)	8.8685(9)	18.1361(9)
b (Å)	28.9664(8)	10.2782(11)	18.1361(9)
c (Å)	10.5656(4)	16.752(2)	26.421(2)
α (°)	90	95.095(7)	90
β (°)	114.3410(10)	101.142(6)	90
γ (°)	90	110.208(5)	90
V (Å^3)	2966.74(16)	1385.8(3)	8690.2(11)
Z	4	2	8
Dc (g cm^−3)	1.597	1.582	1.531
μ (mm^−1)	0.791	1.153	3.154
F(000)	1439	680	4096
Data collected	23 532	4858	82 863
Unique reflections	5491	4858	7974
Goodness-of-fit	1.060	1.041	1.034
R 1 [I > 2σ(I)]	0.0279	0.0967	0.0314
wR2^b [I > 2σ(I)]	0.0646	0.2581	0.0795

---

Crystal structure of [Zn(3N3PY)(IPA)]·3H₂O (2). The space group of crystal 2 is P1̄ in the triclinic crystal system, which is distinct from that of 1 (Table 1). The asymmetric unit of 2 consists of one Zn(II), one 3N3PY and one IPA²⁻. Zn(II) exhibits a five-coordinated environment and is surrounded by three nitrogen atoms N1, N2 and N3 from one 3N3PY and two oxygen atoms O3 and O1A [symmetry code: (x, −1 + y, z)] from two different IPA²⁻ (Fig. 2a) with normal Zn–N and Zn–O bond distances (Table S1†). Each IPA²⁻ coordinates with two Zn(II) atoms to form 1D chains (Fig. 2b), which are further connected with each other to form a 3D supramolecular structure (Fig. S2b†) by π–π interactions between two neighbouring 3N3PY ligands (Fig. 1c, Tables S2 and S3†) and hydrogen bonds like C(9)–H(9)⋯N(6) (2.44 Å), C(12)–H(12)⋯O(4) (2.25 Å) and C(20)–H(20)⋯O(2) (2.36 Å) (Fig. 1d and Table S4†). It is noteworthy that the 1D chain in 1 stretches as a zigzag-type with terminal 3N3PY ligands bidirectionally arranged (Fig. 1b), while in 2 the 1D chain is linear and the 3N3PY ligands arrange in one direction (Fig. 2b).

Fig. 2 (a) Coordination environment of Zn(II) in 2 with the ellipsoids drawn at the 50% probability level. Hydrogen atoms are omitted for clarity. (b) 1D chain in 2. (c) Selected π–π interactions in 2. (d) Hydrogen bonds in 2.

Crystal structure of [Cd(3N3PY)(NPA)]·2DMF·2H₂O (3). CP 3 was isolated with a similar preparation method to 1 by changing the carboxylic acid ligand to H₂NPA instead of H₂NDC. The results of crystal structural analysis revealed that 3 crystallizes in the tetragonal crystal system with a chiral space group of P4₁2₁2 [the Flack factor is 0.058(9)], which is different from 1 and 2 (Table 1). The asymmetric unit of 3 contains one Cd(II) ion, one 3N3PY and one NPA²⁻ ligand. Each Cd(II) atom connects three nitrogen atoms N1, N2 and N3 derived from the terpyridyl unit in 3N3PY and three oxygen atoms O1, O7A and O8A [symmetry code: (−x, 1 − y, −0.5 + z)] from two carboxylate groups of different NPA²⁻ ligands (Fig. 3a). Each dicarboxylate NPA²⁻ ligand connects two Cd(II) to form a 1D chain (Fig. 3b). The helical chiral structure may arise from the spiral twist of the dinitrobiphenyl moieties in NPA²⁻.¹⁷ The 1D chains are further connected by π–π interactions between the neighbouring 3N3PY (Fig. 3c, Tables S2 and S3†) and hydrogen bonds C–H⋯O (Fig. 3d and Table S4†) to assemble into a 3D structure (Fig. S2c†).

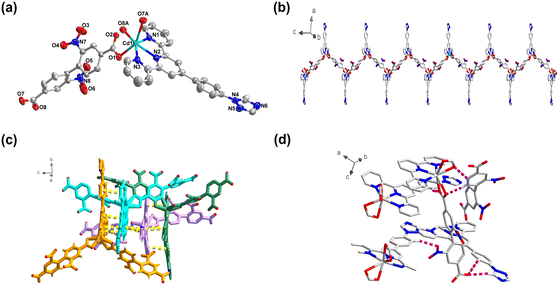

Fig. 3 (a) Coordination environment of Cd(II) in 3 with the ellipsoids drawn at the 50% probability level. Hydrogen atoms are omitted for clarity. (b) 1D chain in 3. (c) Selected π–π interactions in 3. (d) Hydrogen bonds in 3.

Characterization of 1–3

IR spectra of 1–3 and ligands are shown in Fig. S1† and no vibrational bands were observed between 1680 and 1760 cm⁻¹ for the synthesized 1–3, implying the complete deprotonation of the dicarboxylic acid to produce a dicarboxylate ligand coordinating with the metal centers in 1–3. This is in good agreement with the results of crystal structure analysis as mentioned above. The measured PXRD patterns of the as-synthesized 1–3 are consistent with the simulated results from the single crystal structure analysis (Fig. S3†), indicating the good crystallinity and phase purity of the bulky samples 1–3. As shown in Fig. S4,† thermogravimetric (TG) data reflect the thermal stability of 1–3. The weight loss of solvent molecules mainly occurred from 25 to 180 °C with 1.39% for 1 and 8.82% for 2, which are consistent with the theoretical results of 1.46% for 1 and 8.21% for 2. Further, the collapse of the 3D supramolecular framework starts from 390 °C. For 3, the weight decreased by 16.65% in the range of 25–247 °C, which is caused by the loss of DMF and water molecules with a theoretical value of 18.18%. CP 3 maintained stable at 247–308 °C and then the structure began to decompose.

Catalytic copolymerization of CO₂/CHO by DMC and 1–3

It has been proved that the ring opening reaction of epoxide with CO₂ is an effective approach to the chemical fixation of CO₂. Accordingly, CPs 1, 2 and 3 were utilized to cocatalyze CO₂/CHO copolymerization with DMC. According to the ¹H NMR data of the product, the wide signals in 3.26–3.75 and 4.32–4.80 ppm indicate that the copolymers were obtained and CO₂ was fixed into the copolymers as a carbonate group. The proportion of carbonate in the obtained copolymer is recorded as the F(CO₂) value and C_CHO indicates the conversion rate of CHO, while P_–OC(O)O– means the proportion of carbonate in the total product, and P_–OC(O)O– = F(CO₂) × C_CHO.

In this study, CPs 1, 2, and 3 with Zn(II) and Cd(II) with d¹⁰ electron configuration were applied to cocatalyze the CO₂/CHO reaction with DMC at 80 °C. The F(CO₂) values are 65%, 63% and 60% for CPs 1, 2 and 3, respectively, which are significantly improved comparing with the result of 47% for sole DMC without CPs (Fig. 4 and Table 2). The C_CHO values are 90%, 93% and 94% for CPs 1, 2 and 3, respectively, while it was 76% in the absence of cocatalysts 1, 2, and 3. The total carbonate groups existing in the product P_–OC(O)O– are 58%, 59% and 56% for CPs 1, 2 and 3, respectively, and these values are obviously improved by comparing with the result of 36% without CPs (Table 2).

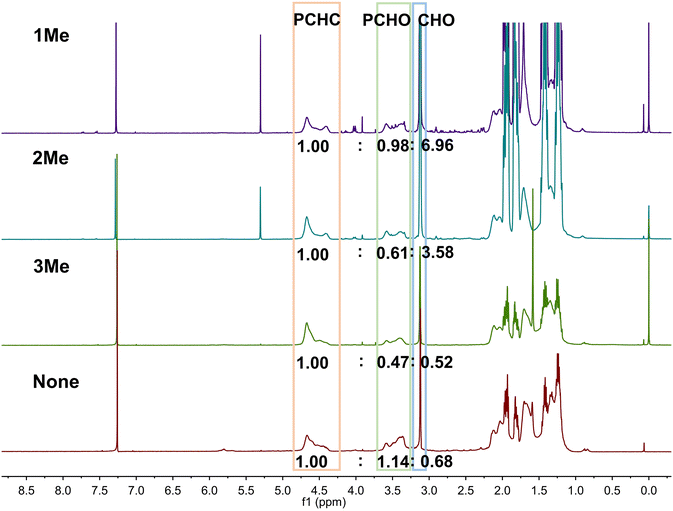

Fig. 4 ¹H NMR spectra (CDCl₃, 500 MHz) of the products by the addition of CPs 1–3.

Table 2 DMC assisted with CPs 1–3 and 1Me–3Me for CO₂/CHO copolymerization^a

Cocatalyst	F(CO2)/%	C CHO/%	P –OC(O)O–/%
a Reaction conditions: DMC (5 mg), cocatalyst (3.5 μmol), CHO (0.5 mL) at 80 °C, 1 MPa. The results were determined by ^1H NMR in CDCl3.
1	65	90	58
2	63	93	59
3	60	94	56
1Me	51	22	11
2Me	62	31	19
3Me	68	74	50
None	47	76	36
Cd(OAc)2	35	98	34
PhCOONa	<1	<1	<1
3N3PY	<1	<1	<1

---

Owing to the specific structure of the obtained CPs, the non-coordinated free triazole may influence the ability of adsorbing CO₂ in the reaction. In order to further verify this conjecture, the triazole was methylated and the NMR spectra show the complete methylation of the triazole groups in the obtained products 1Me, 2Me and 3Me (Fig. S5–S7†). Then, they were utilized to cocatalyze the CO₂/CHO copolymerization. The ¹H NMR data of the products are shown in Fig. 5. After the addition of methylated CPs 1Me, 2Me and 3Me, the F(CO₂) values in the produced copolymers are 51%, 62% and 68%, respectively (Table 2). Meanwhile, the calculated C_CHO values are separately 22%, 31% and 74%, and the P_–OC(O)O– values are 11%, 19% and 50% for CPs 1Me, 2Me and 3Me, which obviously decreased by comparing with the corresponding results of CPs 1, 2 and 3 (Table 2). The results imply the role of uncovered free triazoles. Furthermore, C_CHO was gradually decreased with the sequence 3Me, 2Me and 1Me. As was reported, the methylated triazole may be able to adsorb CHO as a guest.¹⁸ As shown in Fig. S2,† the overall structure (1D chain) may be beneficial to uncovering triazole groups, which may be suitable for adsorbing CO₂ during the copolymerization.²² And the carboxylate ligand of the CPs may affect the stacking arrangement of triazole groups in 3N3PY. In CP 1, ligand 3N3PY is almost perpendicular to each other, while the triazole groups in 3N3PY are presented as head-to-head in CP 2. In CP 3, the presence of nitro groups may influence the electron configuration of triazoles by d–π interactions.¹⁹

Fig. 5 The ¹H NMR spectra (CDCl₃, 500 M) of the products by adding CPs 1Me–3Me.

Furthermore, control experiments were carried out to test the significance of assembling the d¹⁰ metal ion(II), carboxylate ligand and terpyridine for cocatalyzing the CO₂/CHO reaction and the results are summarized in Table 2. When Cd(OAc)₂ was used as the cocatalyst, the F(CO₂) value for the produced polymer is 35% and C_CHO is 98%. However, almost no copolymerization occurred when PhCOONa or 3N3PY was added.

It has been reported that an onium salt with an N-containing functional group is helpful for catalyzing the ring opening reaction of epoxide with CO₂, and NBu₄Br is the popular one for synthesizing cyclic carbonate (Fig. S8†).^20–23 However, in order to fix CO₂ into more valuable and stable polycarbonate, PPNCl is more suitable to alter the selectivity of the product (Fig. 6). In the tests of adding CP 1/2/3 and PPNCl, the calculated results of F(CO₂) values are separately 71%, 72% and 74%, which are much better than the value of 44% in the absence of CPs (Table 3). Based on the above experimental results, it is speculated that it may result from the combination of the CPs and PPN⁺ to form an intermediate, which can adsorb CO₂ and promote the generation of carbonate. However, as for the conversion rate of CHO, it was 81%, 58% and 49% in the presence of CPs 1, 2 and 3, respectively, and it was 89% for the sample without adding CPs. It is obvious that CP 1 presents a more efficient result for fixing CO₂. Owing to similar Lewis acidic electronic effects of DMC, CPs 1–3 and PPN⁺, competition may occur and hinder the contact between the epoxy group in CHO and catalytic sites on DMC when PPNCl and CPs were added. The comparison with other reported systems is listed in Table S5,† and it presents a preferable result for fixing CO₂ into a carboxylate polymer with the assistance of CPs at a low pressure of CO₂.

Fig. 6 ¹H NMR spectra (CDCl₃, 500 MHz) of the products by adding PPNCl and CPs 1–3.

Table 3 DMC assisted with PPNCl and CPs 1–3 for CO₂/CHO copolymerization

Cocatalyst	F(CO2)/%	C CHO/%	P –OC(O)O–/%
PPNCl + 1	71	81	58
PPNCl + 2	72	58	42
PPNCl + 3	74	49	36
PPNCl	44	89	39

---

Kinetic analysis of the CO₂/CHO reaction catalyzed by CPs 1–3 and DMC

As shown above, CPs give superior cocatalytic performance for CO₂/CHO copolymerization and 2 is used as an example for kinetic analysis characterized by ¹H NMR. It is obvious that in the early stage of the reaction, the concentration of the substrate decreased linearly with time, indicating that the ring opening of CHO was a zero-order reaction. And the reaction rate constants are separately 3.19 × 10⁻⁶, 6.94 × 10⁻⁶, 1.49 × 10⁻⁵, and 1.31 × 10⁻⁴ s⁻¹ with different concentrations of the catalyst (DMC and CP 2) at 50, 25, 12.5 and 8.3 mM (Fig. S9a–d†). Subsequently, plotting the logarithm of the observed rate coefficient vs. the logarithm of the catalyst concentration shows a linear fit between 50 and 12.5 mM, indicating a first order in the catalyst concentration (Fig. S9e†). The rate dependence on CO₂ pressure was determined by measuring the observed rate coefficient over a range of CO₂ pressure from 6 to 10 bar. And the obtained k values are separately 4.70, 6.51, and 3.43 × 10⁻⁵ s⁻¹ at the pressures of 10, 8, and 6 bar (Fig. S10a–c†).The plot of the rate coefficient vs. pressure resulted in a slightly curved fit to the data, but without significant rate changes over the range of 6–10 bar, indicating the zero-order of CO₂ concentration (Fig. S10d†). Therefore, the reaction proceeded in the first-order rate law: first order in the concentration of the catalyst and zero order in CO₂ and single substrate CHO with the rate expression of rate = [CHO]⁰[CO₂]⁰[Cat]¹.

Next, the pressure of CO₂ was considered to be the characterization of dynamic analysis for calculating the activation energy. As shown in Fig. S11,† the calculated rate constants are 0.413, 1.22, 4.70, and 1.82 × 10⁻⁵ s⁻¹ respectively for 313, 333, 353 and 373 K. It is obvious that the reaction rate gradually increased at 313–353 K, but decreased at 373 K, which is probably induced from the entropy reduction of the reaction and the decomposition of the generated carbonate group at high temperature. In Fig. S12a,† a plot of ln(k/T) vs. 1/T was obtained to determine the transition state enthalpy ΔH of 52.90 kJ mol⁻¹ and ΔS of −84.32 J mol⁻¹ K⁻¹ according to the Eyring analysis, i.e. overall, the transition state Gibbs free energy was determined as ΔG = 82.66 kJ mol⁻¹ (80 °C). Besides, the simple activation energy value (E_a) was also determined as 55.66 kJ mol⁻¹ by Arrhenius methods (Fig. S12b†), which may be a preferable method to compare the efficiency of the catalyst for the CO₂/CHO reaction.

Proposed catalytic mechanism

Based on the above data, the selectivity of the CO₂/CHO reaction is considered. It is proposed that the double metal centers of DMC would like to act as the Lewis acid sites to activate epoxide through M–O coordination. As shown in path a (Fig. 7), if the reaction is only heated at 1 bar CO₂ without a cocatalyst, the coordinated oxygen atom will connect with C⁺ generated at the adjacent metal in DMC and produce polycyclohexyl ether (PCHO). While, CO₂ was inclined to insert into the M–O bond with the addition of ionic cocatalyst in 1 MPa CO₂, because anion is known to be a good leaving group and always used as initiator.^20,21 Therefore, two halide salts with different onium cations separately participated in the CO₂/CHO reaction with DMC, and the chemoselectivity is obviously altered, which is supposed to be ascribed to the different electrophilic characters of the cations under the reaction conditions. Firstly, the cyclic carbonate was produced with the assistance of NBu₄Cl due to its strong electrophilicity (Fig. 7, path b). In this process, the metal-activated CHO connects with CO₂ and the metallic-carbonate active species perform “back-biting” to produce the five-membered ring by the S_N2 pathway. And in the process of adding PPNCl with weak electrophilicity, the metallic-carbonate preferred to interact with the epoxide group activated at the adjacent metal in DMC and generated the linear polycarbonate (Fig. 7, path c).

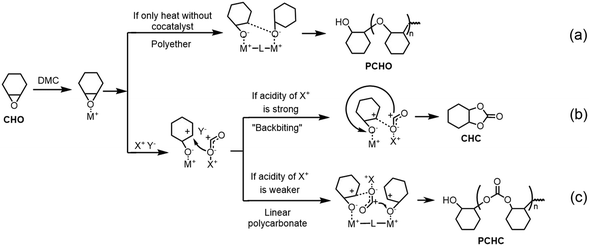

Fig. 7 Proposed mechanism of the chemoselectivity for the CO₂/CHO reaction. (a) PCHO path. (b) CHC path. (c) PCHC path.

In this work, the electrophilicity of CPs 1–3 may be similar to that of PPN⁺ applied to fix CO₂ into the metallic-carbonate intermediate and produce linear poly(cyclohexene carbonate), which is probably supported with the phenomenon of the low F(CO₂) values when competitive CPs and PPNCl exist simultaneously. Besides, it is interesting that according to the superior catalytic result of CP 2, the CP with a Zn(II) ion may be more suitable for fixing CO₂ than that with Cd(II) by producing metal–ligand (M–L) active sites due to the high Lewis acidity of Zn(II).²⁴

Conclusions

In this work, three novel coordination polymers were synthesized by using Zn(II) and Cd(II) as the metal centers. The ligands were dicarboxylate and N-donor ligand 3N3PY containing a tripyridine group. Then, the obtained CPs 1–3 can assist DMC for catalyzing CO₂/CHO copolymerization. The efficient carbonate proportion was obtained with the assistance of 2, in which the F(CO₂) and C_CHO values are separately 72% and 58%. By comparing with the results of the catalysis by the sole metal salts and ligands, the efficiency increased after assembling into CPs. Besides, the dynamic analysis of this first-order reaction was also performed and the ΔG value of the transition state was calculated to be 82.66 kJ mol⁻¹ at 80 °C. The simple activation energy value (E_a) was 55.66 kJ mol⁻¹. Furthermore, the mechanism was also tested. It is supposed that the uncovered triazoles in the CPs may be helpful for fixing CO₂, and the chemoselectivity of the CO₂/CHO reaction is probably related to the electrophilicity of cocatalysts.
