Zhaofan
Li
a,
Sara A.
Tolba
b,
Yang
Wang
c,
Amirhadi
Alesadi
d and
Wenjie
Xia
*a
aDepartment of Aerospace Engineering, Iowa State University, Ames, Iowa 50011, USA. E-mail: wxia@iastate.edu
bMaterials and Nanotechnology Program, North Dakota State University, Fargo, ND 58108, USA
cZernike Institute for Advanced Materials, University of Groningen, 9747 AG, Groningen, The Netherlands
dDepartment of Civil, Construction and Environmental Engineering, North Dakota State University, Fargo, ND 58108, USA
First published on 19th August 2024
Conjugated polymers (CPs) have emerged as pivotal functional materials in the realm of flexible electronics and optoelectronic devices due to their unique blend of mechanical flexibility, solution processability, and tunable optoelectronic properties. This review synthesizes the latest molecular simulation-driven insights obtained from various multiscale modeling techniques, including quantum mechanics (QM), all-atomistic (AA) molecular dynamics (MD), coarse-grained (CG) modeling, and machine learning (ML), to elucidate the optoelectronic, structural, and thermomechanical properties of CPs. By integrating findings from our recent computational work with key experimental studies, we highlight the molecular mechanisms influencing the multifunctional performance of CPs. This comprehensive understanding aims to guide future research directions and applications in the modeling assisted design of high-performance CP-based materials and devices.
Investigating CPs presents several challenges due to their diverse chemical structures, which can include various backbone configurations, side-chain lengths, and functional groups. This structural diversity leads to a wide range of thermomechanical and optoelectronic behaviors that are complex to predict and control. Experimental techniques, although valuable, often face limitations in fully capturing the dynamic and nanoscale behaviors of CPs. For instance, small-angle X-ray scattering (SAXS) and neutron scattering (SANS) are commonly used to determine chain conformation, but the presence of aggregates can complicate the interpretation of scattering profiles.20,21 Additionally, techniques such as differential scanning calorimetry (DSC) and dynamic mechanical analysis (DMA) are employed to study thermal properties, but these methods sometimes struggle with the small sample sizes typical of CPs and their semicrystalline nature, which can obscure transitions such as the glass transition temperature (Tg).22–25
To overcome these challenges, molecular simulations have become an indispensable tool, offering detailed molecular-level insights that complement experimental approaches. Multiscale modeling techniques, which include quantum mechanics (QM), all-atomistic (AA) molecular dynamics (MD), coarse-grained (CG) modeling, and machine learning (ML), enable the study of CPs across different length and time scales (Fig. 1). QM methods based calculations of the polymers’ electronic structure information (e.g., highest and lowest occupied molecular orbitals, band gap, electronic band structure) is needed to further understand the optoelectronic properties of CPs. For instance, Jackson et al. demonstrated that various nonbonding interactions between neighboring donor and acceptor units can improve backbone planarity.26 Wang et al. utilized density functional theory (DFT) calculations of molecular orbital energies to guide the rational design of conjugated polymers for photocatalytic CO2 reduction by analyzing molecular orbital energies, they selected polycyclic arenes and anthraquinone to construct donor–acceptor copolymers with suitable band structures.27 AA-MD simulations offer insights into molecular and chain-level interactions and dynamics, which are important for exploring chain conformations and various physical properties.28 For instance, Alberga et al. employed AA-MD simulations of both crystalline and amorphous phases of poly(3-hexylthiophene) (P3HT) and poly(2,5-bis(3-alkylthiophen-2-yl)thieno[3,2-b]thiophene) (PBTTT) to understand the relationship between molecular structure and charge mobility using Marcus theory.29 Similarly, De Pablo et al. combined experimental SANS measurements with AA-MD simulations to accurately determine the persistence length of PTB7.30 These simulations reveal the molecular structure of aggregates that contribute to complex optoelectronic phenomena, providing insights into the solution-phase conformations of CPs that are challenging to achieve through experimental methods alone. Furthermore, CG modeling simplifies complex systems, enabling the study of larger-scale phenomena and long-term behavior while retaining necessary molecular details, making CG-MD simulations particularly valuable for “bottom-up” investigations of polymer systems over extended spatiotemporal scales. By reducing degrees of freedom and eliminating non-essential atomistic details, CG-MD can explore the influences of fundamental molecular parameters on the thermomechanical behaviors of polymers with different segmental and chain structures in both bulk and confined states.31–33 For instance, generic CG models, designed to mimic the essential structural features of diketopyrrolopyrrole (DPP)-based polymer chains, have shown that polymer chains align along the deformation axis through chain-sliding and torsional motions, increasing alignment and extension with strain.34 A chemistry-specific CG model for P3HT predicted that backbone chain alignment increases with applied uniaxial strain.35 These multiscale modeling techniques collectively provide a comprehensive understanding of CP behaviors across various scales.
![]() | ||
Fig. 1 Schematics of the multiscale modeling techniques across different time and length scales of CPs material systems from quantum, all-atom, to coarse-graining. The paradigm shows the approximate ranges of time and length scales associated with each modeling technique along with relevant applications. Figure adapted from ref. 64 (copyright 2023 Elsevier). |
Recently, ML algorithms have seen increasing use in developing simplified models that offer excellent predictive capabilities for polymer properties.36–39 By deriving molecular features directly from the monomer geometry, ML models circumvent the complexity of traditional feature descriptors. For instance, ML models have effectively predicted the Tg of CPs, as demonstrated by Xie and coworkers,40 who introduced an empirical model that predicts Tg based on the mobility of various functional groups within the repeat unit, achieving a root-mean-square error of 13 °C for 32 semi-flexible polymers. Additionally, ML techniques have been applied to enhance CG modeling by efficiently calibrating complex force fields to match properties derived from AA-MD simulations or experimental data.38 This approach significantly extends the length and time scales of MD simulations, enabling more accurate predictions of thermomechanical properties across different temperatures and curing states. Integrating ML with CG modeling accelerates the materials design process, providing a powerful tool for developing new CPs with tailored properties. High-throughput experiments and simulations combined with data-driven ML approaches further enhance our ability to rapidly screen and optimize materials, significantly accelerating the discovery process. For instance, Yang et al. highlighted how ML can be utilized to predict and design properties for CPs, demonstrating the broad applicability of these techniques.41
This short review aims to summarize the recent simulation-driven insights from our research group, highlighting the main findings in the optoelectronic, structural, and thermomechanical properties of CPs. By integrating various multiscale modeling techniques, including QM, AA-MD, CG modeling, and ML, we provide a comprehensive understanding of how these properties can be optimized for flexible electronics and optoelectronic applications. Our goal is to present a multiscale modeling framework to enable fundamental understanding of the molecular mechanisms underlying CP functional behaviors, thereby offering valuable guidance for future research, design and development of advanced CP-based materials and devices. This review is organized as follows: Section 2 covers the models and methods used in our simulations, including DFT calculations, AA-MD, CG modeling, and data-driven ML approaches. Section 3 discusses the results and insights gained from these simulations, focusing on optoelectronic properties, chain conformation in solution, Tg, and mechanical properties. Finally, Section 4 concludes with a summary of our findings and perspectives on future research directions in the field of CP-based materials.
In our rencent DFT studies, periodic polymer chains were optimized using semi-local Perdew–Burke–Ernzerhof (PBE) functional,47 and the projector-augmented wave (PAW)48 to get the chain conformation into the ground state. The kinetic energy threshold was set to 400 eV. For geometry optimization, Gamma-centered 1 × 1 × 1 k-points were employed to balance computational efficiency with accuracy, given the large unit cell size (>15 Å). However, for subsequent electronic structure calculations, which are crucial for capturing the delocalized nature of CPs, we increased the k-point sampling to 16 k-points along the polymer backbone direction. This two-step approach allowed us to efficiently optimize the geometry while ensuring a more comprehensive sampling of the Brillouin zone for accurate electronic property predictions. Atomic positions were optimized using the conjugate gradient method with energy and force tolerance of 10−6 eV and 0.01 eV Å−1, respectively. Then, the electronic structure was accurately calculated using the Hartree–Fock/DFT HSE06 hybrid functional.49 Hybrid functionals are a class of approximations to the exchange–correlation energy functional in DFT that incorporate a portion of exact exchange from Hartree–Fock (HF) theory with DFT exchange and correlation. This scheme improves the accuracy of calculated molecular properties, including atomization energies, bond lengths, and vibrational frequencies, compared to pure DFT functionals. Also, the inclusion of exact exchange helps to correct the self-interaction error inherent in pure DFT functionals and improves the description of electronic localization, which is crucial for accurately predicting band gaps and electronic structures. The Heyd–Scuseria–Ernzerhof (HSE) functional, a widely used hybrid functional, employs a range-separated approach. It includes a fraction of exact Fock exchange at short range, while using pure DFT exchange at long range. The HSE exchange–correlation functional:
EHSExc = αEHF,SRx(ω) + (1 − α)EPBE,SRx(ω) + EPBE,LRx(ω) + EPBEc |
The long-range and remaining short-range exchange is determined from the exchange-hole formulation of PBE functionals.
All periodic structures were simulated using Vienna Ab initio Simulation Package (VASP).50,51 While non-periodic models were simulated with the Becke's three-parameter functional B3LYP52 and the augmented correlation consistent triple-zeta basis set (aug-cc-pVTZ),53 using Gaussian16 software package.54 Also, the time-dependent DFT (TD-DFT) simulation were used to predict the excited states, the excitation energies and the maximal absorption wavelength. While these are commercial packages, there are several open-source alternatives available that researchers could consider, such as Quantum ESPRESSO or SIESTA, NWChem or Psi4, ABINIT, CP2K.
To study the impact of charge injection on the electrical configuration of polymers, different configurations with varying numbers of electrons were considered. The solution of the electronic structure and total energy depends on the number of electrons.55 For the negatively charged system, DFT calculations were performed on a model with two additional electrons, while for the positively charged system (hole-injected DFT model), the model includes two fewer electrons.45 The occupancy of molecular orbitals in the DFT periodic models was modified to simulate the promotion of electronic population from the highest occupied molecular orbital (HOMO) to the lowest unoccupied molecular orbital (LUMO). This modification reflects a change in the population pattern for Kohn–Sham (KS) orbitals while maintaining a closed-shell and singlet spin configuration.
Additionally, the general amber force field (GAFF) was used to predict the Tg of various CPs. Initially, CP models were built and optimized, followed by atom typing and charge calculation. The bulk systems underwent equilibration under the NPT ensemble at the melt state and subsequent cooling to the target temperature. To determine Tg, the density as a function of temperature was analyzed, fitting linear lines at low-T glassy and high-T melt regimes to identify the intersection marking Tg. The AA-MD simulations further unraveled the fundamental roles of chemical building blocks in dynamical heterogeneity and local mobility of CPs. By measuring the mean-squared displacement (MSD), these measurements provided critical insights into the molecular interactions and segmental mobility that influence the mechanical performance and thermal stability of CPs.63
Simulations based on the generic CG models have been effectively employed to investigate the effect of temperature, solvent quality, and chain length on the mechanical properties and chain conformation of CPs.34,65–68 These models simplify the representation of complex polymer architectures, allowing for detailed analysis of how side-chain length and bending rigidity influence properties such as Young's modulus, tensile strength, and ductility. The results from these simulations align well with experimental observations, providing valuable insights into the orientation and alignment of polymer chains under mechanical stress.
The ER approach adjusts the cohesive interaction strength and effective interaction length-scale parameters to correct deviations in activation free energies that occur upon coarse-graining. This method allows the CG model to reflect the dynamics and structural properties of the CPs accurately. By employing the ER method, the CG models maintain fidelity to the original AA model, ensuring that essential interactions and behaviors are preserved even as the model is simplified. Additionally, the ER approach allows for the creation of temperature-transferable CG models, ensuring accurate simulations across a broad range of temperatures.59 MD simulations using these models unravel the roles of chemical building blocks in dynamical heterogeneity and local mobility of CPs, providing crucial insights for designing CP-based materials for flexible electronics and other high-performance applications.
In this ML framework, ordinary least squares (OLS) multiple linear regression was employed to correlate the geometry of six key chemical building blocks—side-chain fraction, isolated rings, fused rings, bridged rings, halogenated atoms, and double/triple bonds—with Tg values. This model was trained on a diverse dataset comprising Tg data points from literature, experimental measurements, and MD simulations. By doing so, the ML model effectively captured the influence of these chemical features on Tg, offering a powerful predictive tool for material scientists. The dataset used in training the ML model included 154 Tg data points, allowing for the identification of patterns and relationships between chemical structure and thermal properties. The ML predictions were validated through both MD simulations and experimental techniques such as quasi-elastic neutron scattering (QENS). These validations ensured the reliability of the ML model and provided deeper insights into the segmental dynamics and local mobility of CPs.63
The practical application of this ML framework was demonstrated through the accurate prediction of Tg for several high-performance CPs used in organic solar cells, such as poly[(2,6-(4,8-bis(5-(2-ethylhexyl-3-fluoro)thiophen-2-yl)-benzo[1,2-b:4,5-b0]dithiophene))-alt-(5,5-(10,30-di-2-thienyl-50,70-bis(2ethylhexyl)benzo[10,20-c:40,50-c0]dithiophene-4,8-dione))] (PM6), poly[(2,6-(4,8-bis(5-(2-ethylhexyl-3-chlore)thiophen-2-yl)-benzo[1,2-b:4,5-b0]dithiophene))-alt-(5,5-(10,30-di-2-thienyl-50,70-bis(2ethylhexyl)benzo[10,20-c:40,50-c0]dithiophene-4,8-dione))] (PM7), and PTB7 polymers. The predicted Tg values aligned closely with experimental measurements, underscoring the effectiveness of the ML approach. This predictive capability was crucial for developing CP materials with optimized thermal and mechanical properties, addressing challenges in creating stable and efficient organic electronics. Recent advancements in ML have further enhanced the prediction of electronic structures, as demonstrated by a study on polycyclic aromatic hydrocarbons (PAHs) which used guided diffusion methods for inverse molecular design, achieving accurate predictions of electronic properties.71
![]() | ||

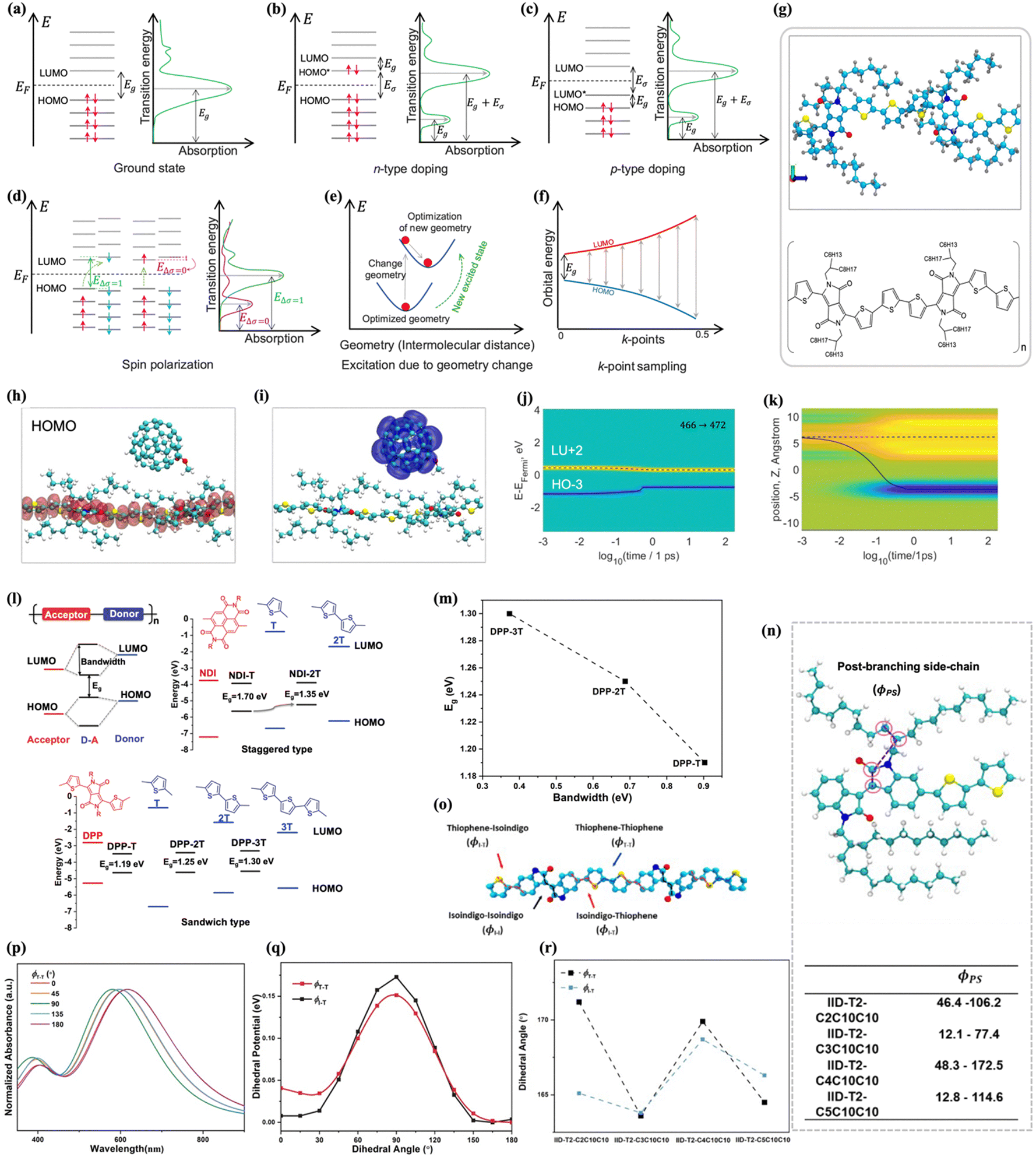

Fig. 2 (a) Schematic of the ground-state energy band and absorption spectra. (b) Schema of the energy band and absorption spectra due to negative type doping (electron donors). (c) Schema of the energy band and absorption spectra due to positive type doping (electron acceptors). (d) Schema of the spin polarization process and corresponding absorption spectra. (e) Portrayal of change of geometry due to excitation and optimized geometry after the excitation. (f) Schematic representation of a band structure with k-points sampling and corresponding absorption spectrum. Here, Eg, EF, Eσ, and EΔσ represents band gap energy, Fermi energy, and band energy gap of the excited state, respectively. (g) Top panel is the geometry-optimized structure (ground state) of the polymer model aligned in the y–z plane. Cyan, blue, gray, yellow, and red spheres represent C, N, H, S, and O atoms, respectively. Bottom panel is schematic chemical structure of the PDPP CP model employed in the simulations. Figures adapted from ref. 45 (copyright 2021 American Chemical Society). (h) HOMO for DPP:PCBM. (i) LUMO for DPP:PCBM. Shaded areas indicate the electron density. Calculations are performed via HSE06 functionals. (j) and (k) Charge carrier dynamics of the DPP:PCBM blend upon photoexcitation for three representative initial transitions which possess higher oscillator strength; HO−3 → LU+2. For all initial transitions, both excited electron and hole are located on PCBM. (j) indicates the distribution of charge as a function of energy and time, dashed and solid lines indicate expectation values for energy, calculated in an energy space distribution for conduction and valence bands, respectively. (k) represents charge density distribution as a function of time and position in the space. Electrons, equilibrium distribution, and holes are represented in yellow, green, and blue, respectively, where the offset between solid and dashed lines corresponds to the electric dipole. Figures adapted from ref. 73 (copyright 2022 American Chemical Society). (l) Top-left panel: The mechanism of molecular orbital hybridization between alternating donor unit and acceptor moiety; top-right panel: energy alignment of NDI-nT polymers; bottom panel: orbital energy alignment of DPP-nT polymers. (m) The dependence of band gap on bandwidth for DPP-nT (n = 1, 2, 3). Figures adapted from ref. 46 (copyright 2023 John Wiley and Sons). (n) Top panel: Repeating unit of a polymer chain showing the post-branching side-chain dihedral angles; bottom panel: values calculated for the dihedral angles (in degrees). (o) Schematic definition of the dihedral angles between thiophene–thiophene (ϕT–T) units, and isoindigo–thiophene (ϕI–T) units and isoindigo–isoindigo (ϕI–I) units. (p) DFT calculated UV-vis spectrum of IID-T2-C2C10C10 backbone with twisted T–T dihedral angles. (q) Dihedral potential for a IID-based trimer. (r) DFT calculated averaged dihedral angles ϕT–T and ϕI–T of IID-based polymers. Figures adapted from ref. 60 (copyright 2023 Royal Society of Chemistry). |
In a related study, Alesadi et al. used ab initio molecular dynamics simulations to investigate photo-induced charge transfer (CT) between a diketopyrrolopyrrole-based polymer donor and two different acceptor units: non-fullerene ITIC (forming a DPP:ITIC blend) and fullerene PCBM (forming a DPP:PCBM blend).73 The study employed HSE06 functionals to calculate the HOMO and LUMO orbitals for DPP:PCBM, with electron density indicated in the shaded areas (Fig. 2(h) and (i)). They analyzed representative charge carrier dynamics upon photoexcitation for specific initial electronic transitions at the blend interface with zero external electric fields. The distribution of charge as a function of energy and time is shown in Fig. 2(j), while Fig. 2(k) represents charge density distribution as a function of time and spatial position. The results demonstrated that the spatial redistribution of hole density occurs much faster than electron relaxation. At the end of the relaxation process, the hot electron relaxes on the PCBM acceptor unit, and the hot hole remains on the backbone of the DPP model. Comparing the two blends, the CT rate calculations indicated that the DPP:ITIC blend offers a better photovoltaic effect compared to the DPP:PCBM blend. This study introduced a potential computational approach to qualitatively characterize the CT performance of CP blends based on the difference between the transfer rates of electrons and holes over time. In another work, Chang et al. introduced a computationally efficient model using the effective Frenkel–Holstein (EFH) Hamiltonian to analyze donor–acceptor–donor (DAD) chromophore aggregates.74 This model, which simplifies each chromophore to a two-level system with vibronic coupling, effectively captures the optical properties and spectral features of π-stacks with significant intermolecular charge transfer (ICT). The EFH model aligns well with experimental data from bithiophene-DPP (2T-DPP-2T) and is contrasted with other models like the essential states model (ESM). The study highlights how ICT and Coulomb coupling affect optical behavior and suggests further investigation in near-resonance regimes using more robust models.
In another study, the effect of chain conformation on the optical properties of donor–acceptor CPs was investigated.60 Specifically, chain rigidity (Fig. 2(q)), coplanarity of the polymer backbone, side-chain length, and branch points were analyzed. The study revealed the critical role of side-chain length and branch points in optical absorption, attributed to steric effects. DFT calculations demonstrated that variations in backbone planarity significantly impact optical absorption (Fig. 2(p)), with blue shifts correlating to less planar backbones. Additionally, the optical shift for IID-based polymers, which changed according to an odd–even effect of the branching point, was ascribed to changes in backbone coplanarity induced by steric hindrance from the side chains (Fig. 2(n)). Geometry-optimized structures from DFT calculations indicated that even branching positions cause the backbone to adopt a more twisted conformation, as shown in Fig. 2(r). Furthermore, DFT calculations showed that, despite their rigidity, the backbones of DPP-based and IID-based polymers are not fully planar, and their observed optical absorption shifts can be explained by local distortions in the backbone structure.60 These DFT studies highlight the significance of single-chain conformation in determining the optoelectronic properties of CPs. By providing detailed insights into molecular interactions and conformational changes, DFT enables the rational design of CPs with optimized properties for specific optoelectronic applications.
![]() | ||

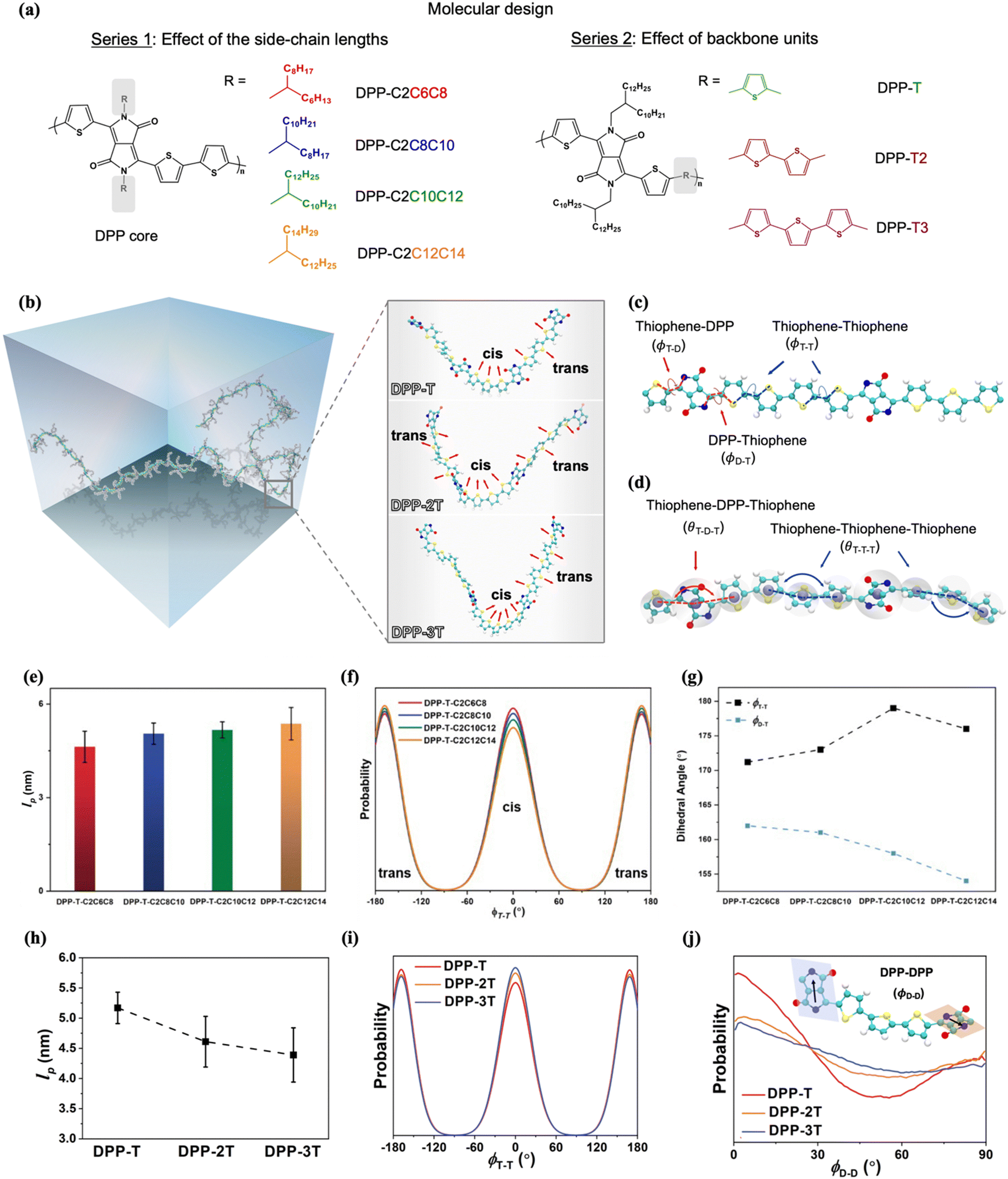

Fig. 3 AA-MD simulation of single chain conformation. (a) Structure of DPP-based polymers with different side-chain lengths and varied numbers of thiophenes. (b) A snapshot of a DPP-T polymer chain simulated in a solution state. (zoom view) The enlarged inset shows the two planar conformations: trans and cis conformations for cv with different oligothiophene length. (c) Schematic definition of the dihedral angles between thiophene–thiophene units (ϕT–T) and DPP–thiophene units (ϕD–T). (d) Schematic definition of the bending angle. Grey beads denote the center-of-mass of each functional group. (e) lp of DPP-based polymers with varied side-chain length from MD simulation. (f) Thiophene–thiophene dihedral angle distributions from AA-MD simulation. (g) DFT calculated averaged ϕT–T and ϕD–T. (h) lp values for DPP-nT polymers with varied donor length from MD simulation. (i) Thiophene–thiophene dihedral angle distributions for DPP-nT polymers. (j) Dihedral angle between adjacent DPP cores for DPP-nT polymers. Inset shows the graphical definition of the dihedral angle between adjacent DPP cores (ϕD–D). Figures adapted from ref. 46 (copyright 2023 John Wiley and Sons) and ref. 60 (copyright 2023 Royal Society of Chemistry). |
The backbone configuration also played a crucial role in determining chain conformation. Polymers with different backbone units exhibited distinct conformational behaviors due to varying steric hindrance and electronic effects. DPP-based polymers with longer oligothiophene units demonstrated decreased lp (Fig. 3(h)), indicating a more flexible backbone. Longer oligothiophene units increased the population of cis conformations (Fig. 3(i)), which reduces steric hindrance and lowers lp. Additionally, co-planar conformation between DPP cores is less favorable with increasing oligothiophene length (Fig. 3(j)), highlighting that the increased conformational freedom of longer thiophene units reduced overall chain rigidity.46
Polymer chain conformation directly impacts optoelectronic properties. Experimental observations showed that longer side-chains lead to blue shifts in optical absorption spectra due to less planar backbone conformations.60 Backbone structure also affects optoelectronic properties; longer oligothiophene units reduce conjugation length and alter optical absorption characteristics.46 This alignment between AA-MD simulations and experiments underscores the importance of simulations in understanding molecular mechanisms behind optoelectronic behavior and highlights the need to carefully design side-chains and backbone structures to optimize CP-based devices.
![]() | ||

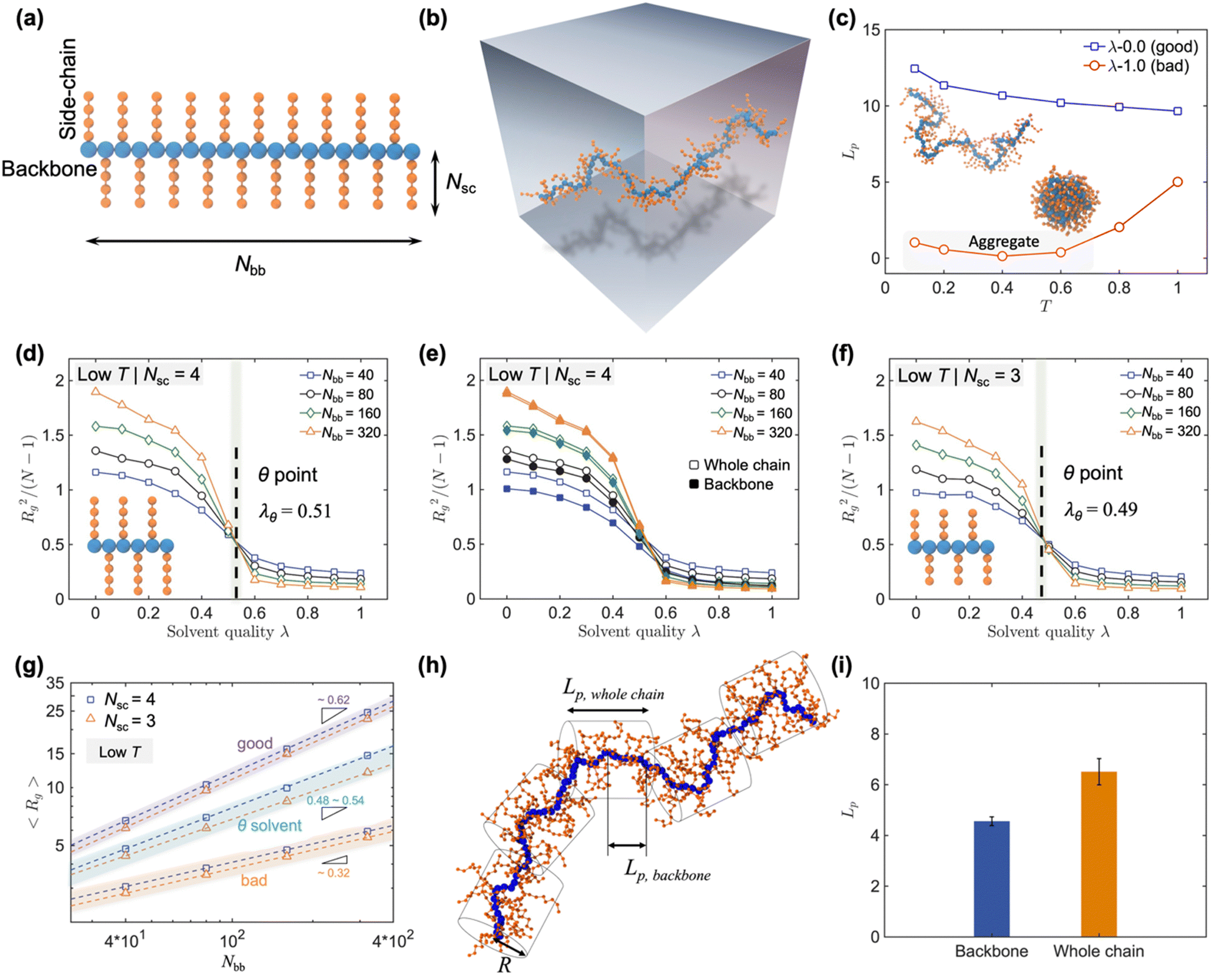

Fig. 4 (a) Schematic illustration of CG polymer model with branched side-chain, where Nbb and Nsc are the numbers of segments in the backbone and each side-chain, respectively. (b) Snapshot of a single polymer chain simulated in a solution state. (c) Evolution of persistence length Lp of the polymer chain as a function of the temperature under two distinct solvent conditions. Influence of side-chain on the location of the θ point. Normalized squared radius of gyration Rg2/(N − 1) as a function of solvent quality parameter λ for different scenarios: (d) side-chain length Nsc = 4, (e) comparison of whole chain and backbone for Nsc = 4, (f) Nsc = 3, with Nbb representing the number of monomers in each polymer chain. The location of the θ point is indicated by the black dashed line. (g) Molecular mass dependence of Rg for solvent qualities ranging from an ideal good solvent (λ = 0), θ solvent (λ = λθ), to a poor solvent (λ = 1). (h) Snapshot of a CP simulated using the CG model in a solution state, where schematic cylinders denote a chain of effective persistence length of segments Lp,whole chain and cross-sectional radius of R. (i) Comparison of the Lp between the backbone alone and the overall polymer chain. All Lp values are reported in reduced LJ units. Figures adapted from ref. 68 (copyright 2023 John Wiley and Sons) and ref. 80 (copyright 2020 American Chemical Society). |
Higher temperatures and good solvents significantly impact polymer chain conformation in similar ways, both promoting extended polymer configurations. Conversely, lower temperatures and poor solvents lead to chain aggregation. As temperature increases, polymer chains become more flexible, resulting in a decrease in persistence length Lp. At lower temperatures, chains in poor solvents exhibit significant aggregation, but as temperature rises, chains show slight extension, though Lp remains low compared to good solvents (Fig. 4(c)).68 The solvent quality parameter (λ) was adopted to describe the interaction between polymer and solvent, where a higher λ indicates a poorer solvent, enabling tuning of “solvent quality” by varying λ between particles.81,82 In good solvents, chains exhibit increased radius of gyration (Rg) and Lp, indicating a more extended conformation. As the λ increases, indicating worse solvent quality, the Rg diminishes, reflecting the gradual compaction of the polymer coil within the solution. When λ exceeds a certain threshold, the polymer chain collapses into a compact conformation, demonstrating the impact of solvent quality on polymer chain behavior (Fig. 4(d)). For a more comprehensive analysis, Rg was calculated for both the entire polymer chain and the backbone alone, exhibiting a consistent decreasing trend (as shown in Fig. 4(e)). However, the difference in Rg between the entire chain and the backbone becomes more pronounced for shorter chain lengths, while for longer chains, the presence of side-chains has a relatively minor impact on the polymer size. Moreover, the parameter λθ, marking the θ solvent condition where the polymer transitions from a good solvent to a poor solvent, is defined by the crossover point where curves from different molecular masses intersect (Fig. 4(d)). Side-chain length significantly impacts λθ, with longer side-chains improving solubility and delaying the transition to poorer solvent conditions (Fig. 4(f)).68 Side-chain architecture also affects λθ, suggesting that CPs with long, dense, and branched side-chains can achieve enhanced polymer–solvent interaction, thus enabling overall better solution dispersion.67 These conclusions were corroborated by experimental observations, which demonstrated that side-chain modifications could significantly enhance polymer–solvent interactions, showing that polymers with longer and branched side-chains exhibited better solubility, less aggregation, and maintained extended chain conformations even in poorer solvents.67
Additionally, the mass scaling exponent ν, defined by the power-law relationship Rg ∝ Nνbb, serves as a fundamental structural measure of polymer size. A higher ν suggests that the polymer expands more rapidly as it grows, while a lower ν indicates that the polymer remains relatively compact even as its length increases. The scaling exponent ν was systematically investigated under different solvent conditions (as shown in Fig. 4(g)). In good solvents, ν approximates 0.62 and remains nearly constant across varying side-chain lengths. However, in θ solvents, distinct variations in ν were observed with different side-chain lengths, showing greater sensitivity to changes in solvent quality. These findings underscore the significant influence of side-chain length and solvent quality on the scaling behavior of polymer chains in dilute solutions, emphasizing the robustness of ν as a structural descriptor in polymer science.
To explore the impact of backbone rigidity on chain conformation, CG-MD simulations were employed, offering a detailed examination of the structural properties of CPs by varying the stiffness of the polymer backbone. The stiffness of the backbone was controlled through an angular stiffness constant (kθ) parameter, allowing the simulation of different degrees of rigidity. The CG-MD simulations revealed several key insights. Increasing backbone rigidity led to a more extended chain conformation. Specifically, for polymers with flexible backbones, the overall chain conformation, including both the backbone and side-chains, exhibited a significant increase in rigidity compared to the backbone alone (as shown in Fig. 4(h)). This was evident from the Lp measurements, which showed that the Lp of the backbone alone was significantly smaller than that of the entire chain contour. By employing a center of geometry (COG) assumption, the effective persistence length of the entire CP contour was calculated, accounting for the influence of side-chains. This approach demonstrated that the presence of side-chains significantly affects the overall chain rigidity, especially for polymers with flexible backbones.80 As the backbone stiffness increased, the difference between the Lp of the backbone and the overall chain diminished, eventually resulting in an almost linear, rod-like configuration for the most rigid polymers (Fig. 4(i)). For semi-rigid and highly rigid backbones, the impact of side-chains on the overall chain conformation was reduced, aligning closely with experimental observations. These findings highlight the importance of considering both backbone and side-chain effects when designing CPs for specific applications, providing quantitative insights into the solution behavior of CPs and guiding the design and processing of CPs toward next-generation organic electronics.
To verify the experimental results and gain more insights, CG-MD simulations were employed to probe how side-chain length (M) and grafting density (f) influence mechanical properties and Tg.66 A generic bead-spring CG model was used to preserve the essential structural features of the D–A CPs (Fig. 5(a)). Specifically, the CG model of each CP consists of a linear backbone chain, a side-chain branching site, and side-chains representing alkyl groups. These simulations revealed that increasing the side-chain length significantly decreased the Tg of the bulk polymers. For polymer models with a side-chain length (M) greater than three, Tg tended to plateau, indicating a reduced rate of decrease with further increases in side-chain length (Fig. 5(a)). These simulation results were consistent with experimental findings, demonstrating that longer side-chain lengths lead to a greater reduction in Tg. To further explore the influence of the side-chain group on bulk properties, the Debye–Waller factor 〈u2〉 was calculated, which measures local free volume and segmental mobility.85,86 The simulations indicated that larger side-chain lengths exhibited higher mean-squared displacement (MSD) values, reflecting enhanced chain mobility. As the fraction of side-chain beads in the bulk polymer model increases, either by increasing side-chain length (M) or grafting density (f), 〈u2〉 also increases (as shown in Fig. 5(a)). This suggests a greater local free volume associated with segmental mobility, which significantly influences Tg. The simulation results highlight that the structure of side-chain groups is a critical parameter for controlling the Tg and mechanical properties of D–A CPs.
![]() | ||

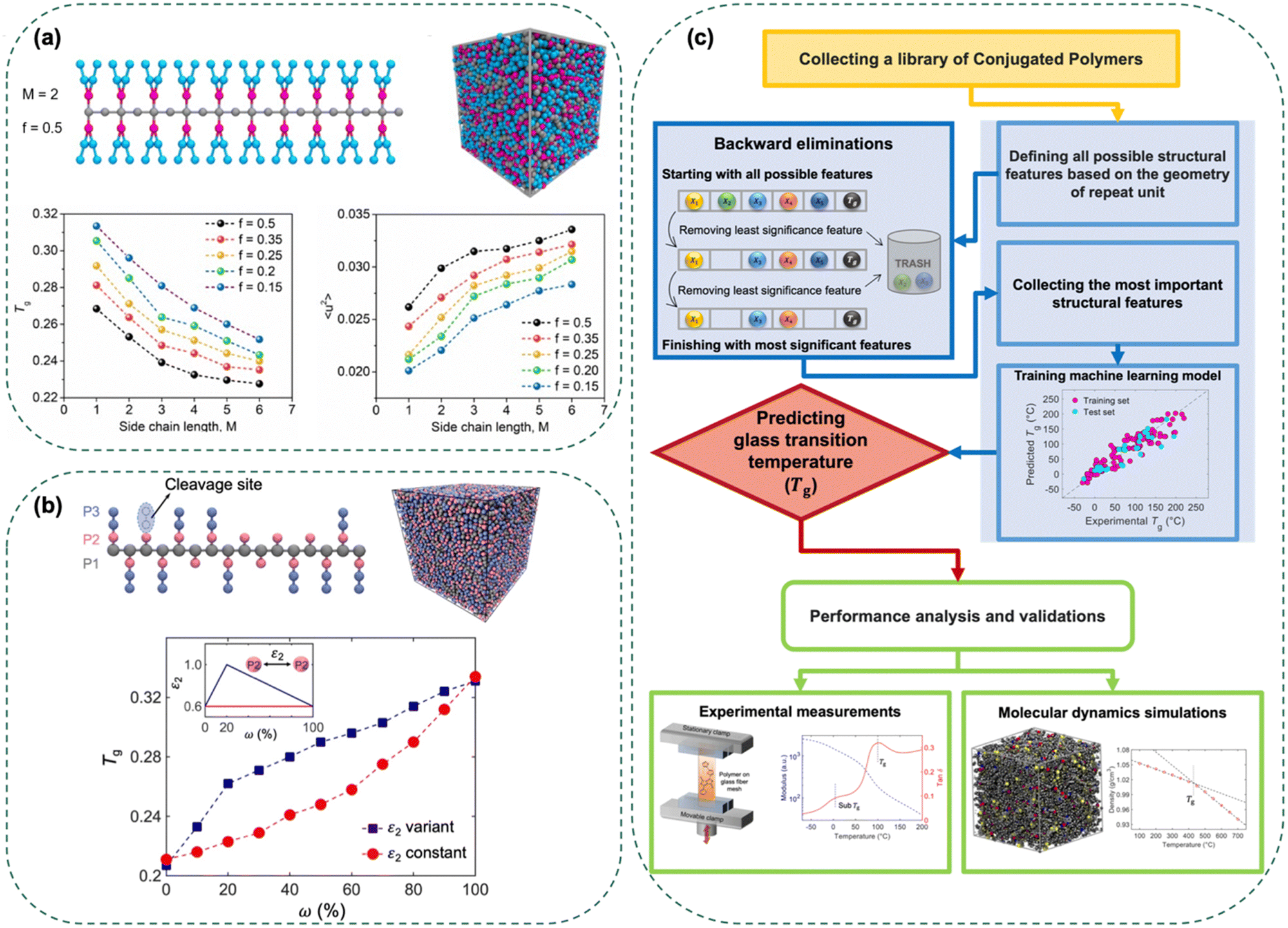

Fig. 5 (a) Computational molecular model of PDPPT-based polymers. Representative geometrical configuration of simulated polymers with branched side-chains. The backbone of all chains is composed of 20 CG beads (shown in gray). M represents the number of CG beads for each branched side-chain (shown in cyan). f represents the grafting density (the branching position is shown in purple). A snapshot of bulk CG polymer system. Tgversus side-chain length M for six polymers with different grafting densities f. Debye–Waller factor 〈u2〉 versus side-chain length M for polymers with different grafting densities f. Figure adapted from ref. 66 (copyright 2020 John Wiley and Sons). (b) Bulk CG of polymer with random cleaved side-chains. Representative configuration of simulated polymers with cleaved branch side-chains. Snapshot of the bulk CG polymer system. The variation of Tg as a function of the degree of cleavage ω for constant cohesive interaction strength ε2 (red color) and variant cohesive interaction strength ε2 (blue color). Inset shows the function of constant ε2 and variant ε2. Figure adapted from ref. 87 (copyright 2022 John Wiley and Sons). (c) Machine learning model. Flow chart of the integrated machine learning framework, molecular dynamics simulations, and experimental techniques to predict Tg of conjugated polymers. Figure adapted from ref. 63 (copyright 2022 Elsevier). |
Building on the insights gained from examining how side-chain length affects Tg, it is equally crucial to understand the impact of side-chain cleavage. Experimental studies have demonstrated that flexible side-chains possess much faster dynamics, and the cleavage of these side-chains reduces chain dynamics, leading to a higher Tg. Controlled side-chain cleavage in polythiophenes, for instance, revealed that removing more than 95% of alkyl side-chains at 140 °C significantly raised the backbone Tg from 23 °C to 75 °C.87 This increase in Tg was attributed to the specific interchain interactions between the residual carbonyl groups in ester groups and the hydroxyl groups of newly formed carboxylic groups. To gain deeper insights and verify experimental results, CG-MD simulations were employed to study the Tg dependence on side-chain cleavage. These simulations examined the structural properties and molecular dynamics by varying the degree of side-chain cleavage. The CG model represented the polymer backbone and side-chains, where side-chain segments were selectively removed to mimic thermal cleavage (Fig. 5(b)). The simulations revealed that increasing side-chain cleavage significantly increased Tg, agreeing well with experimental findings. The reduction of flexible side-chains was found to enhance the thermal stability of CPs by decreasing chain dynamics. The Tg enhancement trend was found to be governed by specific interchain interactions, which were captured at the molecular level.
These findings underscore the importance of considering both side-chain length and side-chain cleavage in designing CPs for specific applications, highlighting the consistency between simulation and experimental results. Such a comprehensive understanding of side-chain effects on Tg is crucial for guiding the development and processing of CPs toward next-generation organic electronics.
The foundation of this framework lies in the construction of an ML model using a dataset of 154 Tg values collected from both literature and experimental measurements. Simplified molecular features derived from the chemical structure of the repeat units of CPs were used to develop the model. Six key structural features were identified as the most influential: side-chain fraction, isolated rings, fused rings, bridged rings, halogenated atoms, and double/triple bonds. These features formed the basis of a multiple linear regression model, which demonstrated strong predictive capability for diverse CPs. To enhance the model's accuracy, MD simulations provided deeper insights into the role of these chemical building blocks. The simulations revealed the influence of side-chains and aromatic rings on the dynamic heterogeneity and local mobility of CPs, corroborating the ML model's predictions. By capturing the molecular-level interactions and chain dynamics, the MD simulations offered a detailed understanding of how these structural features govern Tg. This integration of ML predictions and MD insights underscores the robustness of the predictive framework.
Additionally, the integrated approach included dynamic mechanical analysis (DMA), differential scanning calorimetry (DSC) experiments, and quasi-elastic neutron scattering on CPs to improve dataset diversity and validate model predictions.63 This comprehensive method highlighted that Tg is strongly governed by the chemical structure of key building blocks of CPs. Recent studies have demonstrated the use of ML for predicting the Tg of polymers, achieving significant accuracy improvements and emphasizing the importance of diverse datasets and robust feature selection.40,88 The practical application of this combined ML and MD approach was demonstrated through accurate Tg predictions for high-performance CPs used in organic solar cells, such as PM6 and PTB7. These predictions closely aligned with experimental measurements, showcasing the model's capability to design CPs with tailored thermal properties. This integrated predictive framework underscores the importance of combining computational and experimental methods to achieve reliable material predictions.
To complement the experimental investigations on thin film systems, CG-MD simulations were employed to study the mechanical behavior of CPs with varying side-chain lengths and structures (Fig. 6(a)). The simulations utilized a “bead-spring” model to capture essential structural characteristics, where a linear backbone chain with each backbone bead was connected to a side-chain to simulate the alkyl groups. In the CG-MD simulations, the elastic modulus (E) was analyzed as a function of temperature for the polymer thin film system, ranging from 0.7 Tg to 1.3 Tg (Fig. 6(b)). The results revealed a significant drop in E with increasing temperature, indicating that the material becomes less stiff as it approaches and surpasses the Tg. The inset of Fig. 6(b) illustrates the representative tensile stress–strain response of the polymer thin film at different temperatures, where E was determined by linearly fitting the stress–strain data within 3% strain, as marked by the dashed lines. These findings align well with experimental observations, demonstrating the validity of the simulation approach.65
![]() | ||
Fig. 6 (a) Snapshot of CG free-standing thin film. (b) Elastic modulus vs. T for polymer thin film system. Inset shows representative tensile stress–strain response of polymer thin film for different T, where the elastic modulus E was determined by linearly fitting the stress–strain data within 3% strain as marked by the dashed lines. (c) Average orientation parameter (left y-axis) and end-to-end distance (right y-axis) versus strain for two representative T. Inset shows the schematic of a single polymer chain with a defined angle between the bond orientation and tensile direction. CG-MD simulation results were expressed using the reduced LJ units. (d) Coarse-graining the all-atomistic (AA) model of P3HT to the CG model, illustrating the CG mapping scheme. The snapshot depicts a scratching test on polymer thin film, with the bottom 2 nm polymer layer treated as a rigid region (gray atoms), and the cone-shaped indenter also shown in gray. (e) Toughness (area under tensile stress curve to 250%) of P3HT with different Mw (or n) with the inset showing a snapshot of stretched P3HT thin films with different chain lengths at 135% strain. (f) Representative indentation curves of force vs. depth for P3HT thin film systems with 10 and 150 monomers per chain and with the inset showing the nanoindentation theoretical model. (g) Top view snapshots of P3HT thin film at various strains: for the 30-mer film at strains 1.2 and 1.3, cracks occur by chain pullout with decreased orientation along the tensile direction when straining ![]() |
Experimental studies have emphasized the need for detailed insights into the mechanical and conformational properties of CPs thin films to design materials with optimal performance. To address this need, a chemistry-specific CG model was developed, derived from all-atomistic (AA) simulations of poly(3-hexylthiophene) (P3HT).59 This approach preserves the critical molecular interactions and conformations observed experimentally, enabling systematic investigation of the mechanical behavior and conformational characteristics of free-standing CP thin films through uniaxial tension, nanoindentation, and scratching tests.
Using the chemistry-specific CG model, the mechanical properties of P3AT derivatives with different side-chain lengths were systematically explored. The simulations revealed that increasing the side-chain length generally leads to a decrease in E and tensile strength, as longer side-chains introduce more free volume and flexibility into the polymer matrix. This trend was consistent across various molecular weight (Mw), indicating that side-chain length is a significant factor in determining the mechanical behavior of CP thin films. Uniaxial tension tests further revealed that higher Mw, corresponding to longer polymer chains, resulted in elevated stress levels before fracture. As the stretching progressed, the radius of gyration (Rg) of P3HT chains exhibited a trend similar to that of stress, with Rg undergoing a decline upon film fracture. This behavior is attributed to the increased entanglement and segmental rearrangement capacity of higher Mw chains, which accommodate applied strain more effectively, preventing fracture initiation. Fig. 6(e) illustrates this trend, where the area under the stress–strain curve (indicative of material toughness) increases with Mw. The inset of Fig. 6(e) provides visual confirmation, showing that low-Mw systems tend to fracture via chain pullout, whereas high-Mw systems allow more conformational changes and segmental rearrangements within the polymer chains, accommodating the applied strain more effectively. This enhancement in ductility and toughness with increasing Mw is crucial for the performance of flexible devices.
The orientation of polymer chains during stretching was further evaluated by calculating the orientation parameter of the thin film system. This parameter, defined by the angle formed by the bond vector connecting two consecutive backbone CG beads relative to the deformation direction (inset of Fig. 6(c)), provided insights into the chain alignment. Fig. 6(c) shows clear evidence that, as the tensile strain increased, the polymer chains exhibited a greater tendency to align along the deformation axis, resulting in a higher orientation parameter and an increase in the end-to-end distance of the polymer chains. This tendency for backbone orientation under strain was observed for different temperatures (0.7 Tg and 1.3 Tg), with a Gaussian-like distribution of local orientation parameters, indicating a propensity for backbone alignment in the direction of strain. The end-to-end distance distribution exhibited a similar trend, with both the orientation parameter and end-to-end distance being nearly independent of temperature.65 These CG-MD simulations provided valuable insights into the molecular-level mechanisms driving the mechanical behavior and chain conformation during stretching, complementing the experimental observations.
Furthermore, scratch testing provided additional insights into the mechanical resilience and durability of CP thin films. The simulations indicated that high-Mw thin films exhibited elevated friction forces due to chain accumulation on the indenter. The Von Mises stress distribution, depicted in Fig. 6(h), revealed that high-Mw films could better distribute and dissipate stress, contributing to their enhanced mechanical performance. This behavior is due to the sufficient chain sliding and alignment along the scratch path, which allows the material to absorb and redistribute stress more effectively. Conversely, films with longer side-chains showed lower friction coefficients, correlating with their reduced mechanical strength. The polymer chains in these films exhibited lower stress values, indicating less effective stress distribution and higher susceptibility to damage during scratching.90 The chemistry-specific CG model effectively captured the mechanical and conformational behaviors of P3AT thin films, providing molecular-level insights consistent with experimental observations, and guiding the design of CP-based materials for flexible electronics.
To elucidate the impact of graphene content on the mechanical performance of P3AT nanocomposites, tensile deformation simulations were conducted. As shown in Fig. 6(j), the Young's modulus of P3HT/graphene nanocomposites increases with graphene content. The comparison between the simulation results and the Halpin–Tsai predictive model95,96 highlights the reinforcing effect of graphene. Notably, the experimental data align well with the simulation predictions, demonstrating the reliability of the CG model.89 Additionally, the Tg also showed a positive correlation with graphene content, further reinforcing the thermal stability of the nanocomposites. The simulations revealed that higher graphene content leads to improved mechanical strength and thermal stability, making these nanocomposites suitable for advanced applications. Furthermore, to explore the impact of graphene content on dynamical heterogeneity, color maps of local stiffness 1/〈u2〉 were generated for P3HT/graphene nanocomposites at 300 K (Fig. 6(k)). The results indicate that as the graphene content increases, the local stiffness becomes more pronounced, with higher concentrations of red regions representing areas of slower molecular dynamics. This increased dynamical heterogeneity is attributed to the presence of more rigid graphene, which enhances the mechanical response of the system. The inclusion of graphene not only increases the overall stiffness of the nanocomposite but also induces significant dynamical heterogeneity, contributing to the improved mechanical properties of the material. Additionally, Fig. 6(l) illustrates the tensile modulus E/Ebulkvs. 〈u2〉bulk/〈u2〉 for all P3AT/graphene nanocomposites at different temperatures and with varying graphene contents. The dashed line represents the linear fitting of the data, showing a clear linear relationship. This linear correlation between the tensile modulus and local stiffness highlights the fundamental role of graphene in altering the mechanical properties of CP nanocomposites. Specifically, the presence of graphene significantly increases the local molecular stiffness, as indicated by the higher values of 1/〈u2〉. This enhanced stiffness translates directly into higher tensile moduli, demonstrating that the mechanical reinforcement provided by graphene is not only due to its intrinsic strength but also due to its ability to modify the local dynamics and structural properties of the polymer matrix. The consistent increase in tensile modulus with local stiffness further underscores the effectiveness of graphene in improving the mechanical performance of CP nanocomposites.
Furthermore, the strain-induced chain conformation of P3AT/graphene nanocomposites was evaluated to understand the effects of uniaxial strain on molecular alignment. Applying uniaxial strain causes the chain segments to align along the axial direction, enhancing charge carrier mobilities in highly aligned nanofibrillar structures.97 Representative snapshots before and after straining to 150% show significant morphological changes (Fig. 6(m)). Simulations of P3HT/graphene nanocomposites (5 wt% graphene) at 300 K demonstrated that both the P3HT backbone and graphene exhibited increasing chain alignment with rising strain along the stretching direction, while decreasing along the transverse direction (Fig. 6(n)). Due to its planar architecture and high stiffness, graphene exhibited a lower degree of alignment, which nonetheless contributes to the overall mechanical enhancement of the nanocomposite. The alignment behavior was found to be relatively insensitive to temperature and graphene content, but the longer side-chains in the P3AT system exhibited a higher tendency for alignment due to stronger segment dynamics. These findings provide a comprehensive understanding of the thermomechanical behavior of graphene-reinforced CP nanocomposites, highlighting the significant role of graphene in enhancing mechanical properties and stability. This molecular-level insight is crucial for optimizing CP nanocomposites for advanced flexible electronics and other high-performance applications.
