Predicting nanocarrier permeation across the human intestine in vitro: model matters

Abstract

For clinical translation of oral nanocarriers, simulation of the intestinal microenvironment during in vitro testing is crucial to evaluate interactions with the intestinal mucosa. However, studies are often conducted using simplistic cell culture models, overlooking key physiological factors, and potentially leading to an overestimation of nanocarrier permeation. In this study, we systematically investigate different tissue models of the human intestine under static cultivation and dynamic flow conditions and analyze the impact of altered tissue characteristics on nanocarrier permeation. Our results reveal that the selection of cell types as well as the respective culture condition have a notable impact on the physiological characteristics of the resulting tissues. Tissue layer thickness, mucus secretion, and barrier impairment, all increase with increasing amounts of goblet cells and the application of dynamic flow conditions. Permeation studies with poly(lactic-co-glycolic acid) (PLGA) nanocarriers with and without polyethylene glycol (PEG) coating elucidate that the amount of mucus present in the respective model is the limiting factor for the permeation of PLGA nanocarriers, while tissue topography presents the key factor influencing PEG–PLGA nanocarrier permeation. Furthermore, both nanocarriers exhibit diametrically opposite permeation kinetics compared to soluble compounds. In summary, these findings reveal the critical role of the implemented test systems on permeation assessment and emphasize that, in the context of preclinical nanocarrier testing, the choice of in vitro model matters.

---

Introduction

Many nanocarrier formulations designed for oral administration fail to accomplish the transition from preclinical development to clinical application due to their inability to effectively navigate the complex microenvironment of the intestinal mucosa to reach their target site. Rather than a flat layer of epithelial cells, the mucosa constitutes an intricate three-dimensional tissue comprising a variety of specialised cells and lined with a mucus layer, posing an additional diffusion barrier for nanocarriers. The therapeutic efficacy of oral formulations hinges on their ability to traverse the mucosal barrier by evading entrapment within the mucus layer and effectively crossing the underlying cell barrier. During the rational design of nanoparticulate formulations, it is therefore crucial to perform functional characterization assays by investigating the interaction between the nanocarriers and biological tissue. Following technical advancements and the broad acceptance by regulatory agencies, the preclinical evaluation of novel therapeutics and their interaction with human cells and tissues is increasingly performed in in vitro systems rather than animal models.^1–3 The in vitro approach offers a controlled environment for the characterization of pharmacokinetic and pharmacodynamic processes and allows, in combination with in silico tools, for the prediction of the in vivo performance of the formulations.^4,5 Cell-based assays are implemented to assess the biocompatibility of the formulation by measuring metabolic activity or cytotoxic effects and are further used to observe the biological function of the material and encapsulated drug.^6–8 In the context of oral formulations, the efficiency of targeting approaches or the uptake into cells might be investigated, but in general, the ability of the nanocarrier to cross the biological barrier of the intestinal mucosa is used to estimate their oral bioavailability as a measure for their performance.^9–12 The desire to accelerate nanocarrier formulation optimisation prompts many researchers to combine formulation development and biological testing in the same laboratory to allow for rapid adaptions. To achieve this, simplified cell monolayer permeability studies are often employed, particularly Caco-2 assays recommended by the FDA in an ICH harmonised guideline for biopharmaceutics classification system-based biowaivers.¹³ The standardized cultivation of Caco-2 monocultures has made cell culture studies more accessible to researchers in fields such as chemistry and pharmaceutics who may not have extensive experience with handling biological specimens. Despite their usefulness, these simplified models neglect key physiological factors of the intestinal epithelium that could substantially impact on the interaction with nanocarriers. The exclusion of the mucus barrier, villi topography, and fluidic forces can distort fundamental assumptions about nanocarrier-tissue interactions, leading to inaccurate assessments of drug bioavailability. Strategies to overcome these limitations comprise the integration of mucus producing cell types, induced pluripotent stem cells or patient-derived material, and their cultivation in microfluidic chips, resulting in the formation of complex three-dimensional micro-tissues.^14–19 While these approaches offer the potential to create test systems with improved physiological relevance, they require a high level of expertise in the fields of cell biology as well as engineering and are currently limited by high production costs and low throughput. Efforts to strike a balance between manageable in vitro models and models with a higher degree of physiological relevance have led to the development of co-cultures of the enterocyte cell line Caco-2 and the mucus-producing cell line HT29-MTX, cultured on permeable membrane inserts.^20,21 Such test systems have gained widespread attention in nanocarrier research due to their relative ease of use and ability to provide insights into the role of mucus in intestinal barrier function. Despite their popularity, there is significant variability in the used cell ratios and culture conditions across different laboratories. Besides monocultures of both cell lines, the ratios of 90 : 10, 80 : 20, 70 : 30, 75 : 25, and 50 : 50 (Caco-2 : HT29-MTX) are frequently reported in literature.^22–26 As a result, the impact of these variations on the properties of the resulting tissue, particularly the barrier integrity, secreted mucus amount, and the implications on nanocarrier interaction, remain poorly understood. While there is a range of reference literature on permeation properties of model drugs, small molecules, and fluorescent dyes across different in vitro models, our understanding of the interaction and permeation of nanocarriers across tissues remains limited.^27–30 To address the current knowledge gap concerning the permeation of nanocarriers across the intestinal epithelium in vitro, we conducted a systematic evaluation of commonly used human cell line-based tissue models by examining four different ratios of Caco-2 and HT29-MTX cells under both static cultivation and dynamic flow conditions. With the aim to implement a dynamic cultivation that can be realized independently from microfluidic setups, we opted for an attainable approach based on orbital agitation. We characterized the resulting tissue models in terms of tissue topography, barrier properties, and mucus secretion to obtain a comprehensive understanding of physiological changes. The consequential impact on the permeation of polymeric nanocarriers was subsequently assessed using two well-established nanocarrier formulations based on poly(lactic-co-glycolic acid) and polyethylene glycol.

Experimental

Cell culture

Cultivation of intestinal in vitro models was performed using the Caco-2 clone C2BBe1 (LGC Standards, Teddington, UK) passages 50 to 64, and HT29-MTX-E12 (ECACC, Porton Down, UK) passages 52 to 66. The two cell lines were cultured separately in Dulbecco's modified Eagle's medium (DMEM) (Gibco, Carlsbad, US) supplemented with 10% foetal bovine serum (Sigma Aldrich, Darmstadt, Germany) and 1% non-essential amino acids (Gibco, Carlsbad, US) at 37 °C and 5% CO₂. Cells were subcultured once a week. In vitro models were seeded in Caco-2 : HT29-MTX-E12 ratios of 100 : 0, 90 : 10, 75 : 25, and 0 : 100 with a seeding density of 5 × 10⁴ cells per cm². Cells were seeded in 12-well Transwell® inserts with a pore size of 3.0 μm (Falcon, Corning, US) and cultivated for 21 days under static (incubator shelf) or dynamic conditions. Dynamic cultivation was achieved by placing the cell culture plates on an MTS orbital microtiter shaker (IKA, Staufen, Germany) at 175 rpm 24 h after seeding. The medium was replaced every two to three days.

Histology

To assess the distribution of Caco-2 and HT29-MTX cells within the different in vitro models and visualize the cell layer organization, histological analyses were conducted on all cultures. In vitro models were washed twice with phosphate-buffered saline (PBS), pH 7.4, and fixed by incubating the sample in a 3.7% buffered paraformaldehyde solution for 15 min at room temperature. Samples were dehydrated through an ethanol series of 70%, 80%, 95%, 100% ethanol, and xylene for 30 min each. The dehydrated samples were immersed in liquid paraffin at 65 °C for 60 min, embedded, and cured overnight. Samples were cut into 5 μm-thick sections using a CUT5062 microtome (Slee, Mainz, Germany). The sections were then dried overnight at 37 °C to remove any excess water. Next, sections were rehydrated through the same ethanol series for 5 min each and stained using Alcian blue and periodic acid/Schiff's reagent (Morphisto, Offenbach am Main, Germany). Finally, the sections were dehydrated again through the ethanol series, cleared in xylene, and mounted on glass slides with a coverslip. The slides were then observed under a light microscope (LSM900, Carl Zeiss Microscopy, Jena, Germany). Histological analyses were conducted for one sample each (n = 1) in three independent experiments (N = 3).

Layer thickness measurement

The thickness of cell layers of the different models was assessed by acquiring images of histological sections using a 20× objective. Images were imported into FIJI,³¹ and measurements were performed on three independent cultures (N = 3) with 10 acquired images and 10 measurements per image, resulting in n = 100 measurements per sample group.

Scanning electron microscopy

To obtain more detailed information about surface topography, scanning electron microscopy (SEM) was performed using a ZEISS EVO 10 scanning electron microscope (Carl Zeiss Microscopy, Jena, Germany) with an acceleration voltage of 6 kV. Before imaging, all samples were fixed and dehydrated in an ascending ethanol series and subsequently dried using an EM CPD300 critical point dryer (Leica, Wetzlar, Germany). Samples were sputter-coated with a thin layer of palladium/gold using an SC7620 Mini Sputter Coater (Quorum Technologies, Lewes, UK) for six minutes. SEM analyses were conducted for one sample of each in vitro model (n = 1) in three independent experiments (N = 3).

Topography measurement

Surface morphology of the in vitro tissues was visualized using profilometry based on white light reflectance. Samples from SEM analysis (n = 1, N = 1) were analysed using the topography feature of an Alpha300R⁺ confocal Raman microscopy system (WITec, Ulm, Germany). Acquired z-values representing the surface topography were exported as txt files and subsequently plotted using a custom script in MatLab (version R2023a, MathWorks, Natick, USA).

Mucus quantification

For the quantification of mucus in in vitro models, cells were seeded in 12-well plates (Greiner Bio-One, Kremsmünster, Austria) and cultured as described above. For in situ Alcian blue staining, the supernatant was carefully removed, and cell layers were fixed with methanol and acetone (1 : 1) for 15 min at −20 °C. Samples were incubated for further 15 min with 1% Alcian blue pH 2.5 (Morphisto, Offenbach am Main, Germany) and afterwards washed with ultrapure water (Veolia Water Technologies, Celle, Germany) to remove unbound dye. After complete drying of the samples, absorbance was measured at 630 nm in 225 different positions within one sample using a plate reader (Tecan, Männedorf, Switzerland). For each data point, three biological replicates (n = 3) in three independent experiments (N = 3) were measured. The amount of mucus is given as the relative amount after normalisation to the statically cultured Caco-2 monoculture in each independent experiment. Photographs of exemplary cultures were acquired using an EOS M50 camera (Canon, Tokio, Japan).

Transepithelial electrical resistance (TEER) measurement

To monitor the barrier formation of in vitro models over the course of the 21-day cultivation period, the TEER values were measured at days 7, 14, and 21 using a Millicell volt-ohm-meter (Merck, Darmstadt, Germany). Averaged blank values of empty cell culture inserts were subtracted from resistance measurements and normalised to the area of the insert (0.9 cm²). Six independent experiments (N = 6) with at least three biological replicates (n = 3) were conducted.

Immunofluorescent staining

To visualize the formation of tight junctions, in vitro cultures were washed twice with PBS and fixed using equal parts of ice-cold acetone and methanol for 20 min at −20 °C. Samples were rinsed afterwards with PBS, blocked with 3% bovine serum albumin/1% goat serum in PBS, and incubated with an anti-zonula occludens 1 (ZO-1) antibody (1 : 400, #61-7300, lot XH358286, Invitrogen, Waltham, US). After washing, samples were incubated with a goat-anti-rabbit Alexa Fluor™ 488 antibody (1 : 500, #A-11008, lot VG302077, Invitrogen, Waltham, US) for 1 h at room temperature, followed by staining with Alexa Fluor™ 546 Phalloidin for 1 h (1 : 400, #A22283, Invitrogen, Waltham, US) and 4′,6-diamidin-2-phenylindol, dihydrochlorid (DAPI) for 5 min (1 : 100, #D1306, Invitrogen, Waltham, US). Samples were mounted on glass slides and z-stacks were acquired using an LSM900 confocal laser scanning microscope (Carl Zeiss, Jena, Germany). Z-Stacks were displayed using the “surface” function of the ZEN blue edition software (Carl Zeiss, Jena, Germany). ZO-1 staining was performed for one sample (n = 1) in three independent experiments (N = 3), of which only exemplary images were provided in this study.

Permeability assessment

To further assess the barrier integrity of in vitro models, permeability studies were conducted by measuring the flux of fluorescein isothiocyanate (FITC) labelled 4 kDa dextran (TdB Labs, Uppsala, Sweden) across the epithelia. Cell culture models were pre-incubated for 30 min with Hank's balanced salt solution (HBSS) before TEER measurements. The basolateral compartment was replaced with fresh HBSS, and a solution of 250 μg mL⁻¹ FITC-dextran was applied to the cell layer in the apical compartment. Permeation testing was performed under agitation, irrespective of the initial cultivation conditions. 100 μL samples were collected at time points 1, 2, 3, and 4 h. 100 μL of fresh HBSS was added to each sample's basolateral compartment after a sample was collected. Fluorescence intensity was immediately measured in black 96-well plates (Greiner Bio-One, Kremsmünster, Austria) using a plate reader (Tecan, Männedorf, Switzerland). After the collection of the last samples, TEER values were measured again to validate the barrier stability during the course of the experiment. The apparent permeability coefficients (P_app) were calculated using eqn (1):

P_app = (dQ/dt) × (1/A × C₀) (1)

where dQ/dt is the rate of cumulative drug transport (μg s⁻¹), A is the surface area of the cell monolayer (cm²), and C₀ is the initial concentration of the drug in the donor compartment (μg mL⁻¹). Permeability tests were conducted in three biological replicates (n = 3) in three independent experiments for 4 kDa FITC-dextran (N = 3).

Nanocarrier preparation

PLGA nanocarriers were prepared using the double emulsion solvent evaporation method. Initially, a solution of Resomer® RG 502H (herein referred to as PLGA) (Evonik, Darmstadt, Germany) in chloroform was combined with tris(hydroxymethyl)aminomethane buffer (tris buffer) (Sigma Aldrich, Darmstadt, Germany) and subjected to sonication (Vibra Cell™, VCX750, Sonics & Materials, Inc., USA) to generate a primary emulsion. Subsequently, the primary emulsion was added to a solution of Tween® 80 (Sigma Aldrich, Darmstadt, Germany) in ultrapure water, which was sonicated (40%, 120 s) to produce the secondary emulsion. Solid nanocarriers were formed by evaporating the chloroform at room temperature under reduced pressure. To encapsulate Coumarin 6 (Sigma Aldrich, Darmstadt, Germany), the payload was dissolved in the chloroform phase before nanocarrier production. The resulting nanocarriers were then subjected to centrifugation at 21 500g for 20 min to separate any non-encapsulated drug molecules. The supernatant was discarded, and the NCs were subjected to sonication and redispersion in ultrapure water. This washing process was repeated three times. PEG–PLGA nanocarriers were produced accordingly, with a 3 : 1 mixture of PLGA and PEG–PLGA (Sigma Aldrich, Darmstadt, Germany) as polymers. Finally, the nanocarriers were stored at 8 °C in the absence of light until further use. Hydrodynamic diameters and PDI values of the formulations were determined using dynamic light scattering, while the zeta-potential was measured using electrophoretic light scattering (Zetasizer NanoZS, Malvern Panalytical, Malvern, UK). To confirm stable encapsulation of the payload, nanocarriers were incubated in HBSS at 37 °C. Samples were drawn after 0.5, 1, 3, 5, 8, and 24 h incubation and centrifuged (21 500g, 4 °C, 20 min) (Thermo Scientific SL 8R Centrifuge, Thermo Fisher Scientific, Darmstadt, Germany). The fluorescence intensity of the supernatant was measured (485 nm excitation, 535 nm emission) (Spark multimode microplate reader, Tecan, Männedorf, Switzerland) to confirm that coumarin 6 was not leaking from the nanocarriers. For each permeation experiment, three batches of nanocarriers (n = 3) were produced (N = 3).

Cytotoxicity testing

The cytotoxic potential of nanocarrier formulations was evaluated in the different in vitro models following a 21-day cultivation under static or dynamic conditions in 48 well plates. Nanocarriers were applied at a final concentration of 0.2 mg mL⁻¹ in HBSS. As a positive control for each tissue model, pure HBSS without nanocarriers was applied. In vitro models were incubated for 6 h, followed by the addition of 1 mg mL⁻¹ MTT reagent (3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyltetrazolium bromide) (Sigma Aldrich, Darmstadt, Germany). After the incubation period of 4 h, the culture medium was removed, and the resulting formazan crystals were dissolved in dimethyl sulfoxide (DMSO). Absorbance measurements were performed at a wavelength of 570 nm using a microplate reader (Tecan, Männedorf, Switzerland), allowing for the quantification of cell viability and the assessment of nanocarrier-induced cytotoxicity viaeqn (2):³²

Cytotoxicity testing was performed once (N = 1) with three (n = 3) independent batches of PLGA and PEG–PLGA nanocarriers.

Nanocarrier permeation testing

The permeation of PLGA and PEG–PLGA nanocarriers was assessed analogously to the permeability studies described above. Nanocarriers were applied at a concentration of 0.2 mg mL⁻¹ and samples were collected at time points 1, 2, 3, 4, and 6 h. The permeation of nanocarrier formulations was assessed in three biological replicates (n = 3) in three independent experiments (N = 3). For each independent experiment (N = 1), one sample (n = 1) was fixed with a 3.7% buffered paraformaldehyde solution and stained using Alexa Fluor™ 546 Phalloidin and DAPI as described above.

Statistical analysis

Statistical analysis was performed using R: A Language and Environment for Statistical Computing (R Foundation for Statistical Computing, Vienna, Austria) and applied for evaluation of the TEER value, FITC-dextran leakage, nanocarrier permeation assays, mucus quantification, and layer thickness. After testing of normality distribution (Shapiro–Wilk test) and variance homogeneity (Bartlett test), the presence of statistically significant differences (alpha level 0.05) between groups was determined either by one-way analysis of the means followed by Welch test with Bonferroni correction or by ANOVA and Tukey multiple comparisons of means (95% family-wise confidence level). P values <0.05 were considered statistically significant (* p < 0.05, ** p < 0.01, *** p < 0.001). All data are shown as mean ± standard deviation.

Results and discussion

The present study provides a comprehensive evaluation of commonly utilized human cell culture models for assessing the permeation of nanocarriers across the human intestinal epithelium. While these models are well-established for evaluating the permeability of solute drug molecules,^25,27,28,33 the influence of cell composition, tissue topography, and mucus secretion on nanocarrier permeation remains poorly understood. Therefore, we have adopted a systematic approach to thoroughly characterize eight different in vitro models with respect to their physiological properties and the resulting implications on nanocarrier permeation. The human cell lines Caco-2 (enterocyte-like) and HT29-MTX (goblet cell-like) were seeded in different ratios (100 : 0, 90 : 10, 75 : 25, 0 : 100) to observe effects in monocultures as well as co-cultures with physiological ratios found in the human small intestine (90 : 10) and colon (75 : 25). The tissue cultures were cultivated in Transwell® inserts for 21 days under static or dynamic conditions, by placing the culture plates on the incubator shelf or an orbital shaker, respectively (Fig. 1). Although dynamic cultivation may accelerate specific morphological and functional properties of the in vitro tissues, culture times were kept identical for static and dynamic models for direct comparative purposes.

Fig. 1 Cultivation procedure. Schematic overview of the cultivation procedure of intestinal in vitro models. The enterocyte- and goblet cell-like cell lines Caco-2 and HT29-MTX-E12 (magnification 20×) were seeded in four different ratios in 12-well Transwell® inserts and cultivated for 21 days under static (incubator shelf) or dynamic (orbital shaker) conditions.

Tissue morphology

In vitro models of the human intestinal epithelium display an even, planar surface morphology when cultured under static cultivation conditions and undergo a remodelling of the tissue topography when exposed to shear forces under dynamic cultivation conditions.^34–36 The subsequent changes in tissue layer thickness, three-dimensionality, and surface area will consequentially impact the diffusion of drug molecules and nanocarriers.³⁷ To evaluate the impact of static and dynamic culture conditions on the tissue topography of the in vitro models used in the present study, we conducted histological analysis by Alcian blue/periodic acid-Schiff (PAS) staining (Fig. 2A). The staining method enabled the discrimination between nuclei (dark purple), cytosol (light purple), and acidic mucins (bright blue). Mucus-producing HT29-MTX cells were distinguished from Caco-2 via the presence of acidic mucins.^38,39 The number of mucin-positive cells correlated with the initial seeding ratios of Caco-2 and HT29-MTX cells, showing no mucins in Caco-2 monocultures and increasing amounts of mucin-positive cells in the 90 : 10, 75 : 25, and HT29-MTX monocultures. Although a notable layer of mucus was visible on top of HT29-MTX-containing in vitro models during the culture period, acidic mucins were solely observed within goblet cells in histological staining. Secreted mucins were most likely removed during the multiple washing steps involved in the histological sample preparation and staining procedure. The ratio of the two cell types further influenced the thickness of the cell layer in the respective cultures under static conditions (Fig. 2B). Enterocytes exhibited a cuboidal morphology, while goblet cells showed a more columnar shape with mean epithelial layer thicknesses of 11.19 ± 5.14 and 25.22 ± 5.67 μm, respectively (larger magnifications in ESI file 1†). The co-cultures of both cell types presented an intermediate epithelial layer thickness (13.62 ± 7.00 μm for 90 : 10, 16.07 ± 6.53 μm for 75 : 25) between the respective monocultures. The shear stress produced by the circular motion during dynamic cultivation induced a notable change in tissue morphology, leading to a more columnar cell morphology in both cell types. A significant increase in tissue layer thickness was observed for all cultures compared to statically cultivated models, measuring mean thicknesses of 47.85 ± 19.71 μm (100 : 0), 46.04 ± 23.88 μm (90 : 10), 59.96 ± 27.54 μm (75 : 25), and 90.69 ± 23.71 μm (0 : 100). Further, the applied shear stress promoted the formation of three-dimensional protrusions from the epithelium, which ranged from 80–120 μm in height and approximately 100 μm in width, independent of the cellular composition of the respective model. In cultures containing Caco-2 cells these protrusions comprised multiple cell layers and resembled the shape of intestinal villi. In HT29-MTX monocultures, the protrusions formed interconnected structures above the basal epithelium, resembling a continuous surface layer. The observed protrusions reached approximately 10% to 25% of the length of villi of the human small intestine, which typically measure 400 to 1000 μm.⁴⁰ However, the diameter of the protrusions observed in the in vitro models was similar to the dimensions of villi of the human small intestine.⁴¹ Compared to microfluidic chip-based tissue models of the small intestine, the length, width, and density of the reported protrusions seem to correspond to those of the dynamically cultured in vitro models analyzed in this study, although exact measurements are lacking in the cited literature.^19,36,42,43

Fig. 2 Tissue layer thickness. A: Alcian blue/PAS staining of histological sections of in vitro tissue models cultured under static or dynamic conditions (n = 1, N = 3). Scale bars: 50 μm. B: Layer thickness of epithelial tissues was evaluated based on histological samples (n = 100, N = 3). Box plots show 25%–75% (box), 1.5 IQR (fences), median (vertical line), and single data points (circles) for each sample group. Statistical significance was evaluated using ANOVA and Tukey test: * p < 0.05, ** p < 0.01, *** p < 0.001.

To develop a better understanding of the tissue architecture, we performed scanning electron microscopy allowing the visualization of the epithelial surface of the in vitro tissues (Fig. 3A). In statically cultured in vitro models, the surface showed a flat topography without any notable protrusions, confirming the findings from histological evaluation. In contrast, scanning electron micrographs of the dynamic cultures displayed an increasingly structured surface from Caco-2 monocultures to 75 : 25 cultures. Based on electron scanning micrographs, it becomes apparent that the number of protrusions increased notably in in vitro models with higher proportions of HT29-MTX cells. Profilometry based on white light reflectance further highlights the topographic changes between static and dynamic cultivation (Fig. 3B) and allows for better visualisation of the height differences in goblet cell monocultures, which exhibited a planar epithelial surface morphology under both culture conditions. While the observed protrusions in dynamic co-cultures seemingly took the shape of flattened villi in histological cross-sections, the acquired micrographs revealed an elongated, stretched, and interconnected morphology in many of the structures. In literature, the analysis of tissue topography of microfluidic chip-based models mainly includes cross sections in form of histological or (immuno)fluorescence staining, depicting villi-like structures.^42,44 Only occasionally, publications include light microscopic images or electron micrographs that provide more thorough structural investigations of the surface morphology, showing similarly shaped protrusions.³⁶ We can assume that the orbital shaking induces comparable surface morphogenesis to microfluidic chip-based models and therefore represents a more attainable approach for modelling the three-dimensional surface of the intestine in vitro. While orbital agitation successfully promoted tissue remodeling, it should be noted that this approach, as well as the laminar unidirectional flow in microfluidic chip systems, cannot recapitulate the dynamic fluid regimes seen in vivo. Although the villi-like structures do not match the exact dimensions of the in vivo counterparts, using three-dimensional intestinal models might greatly influence the permeation of soluble drug molecules as well as nanocarriers due to the change of available surface area.

Fig. 3 Surface morphology. A: Scanning electron micrographs (n = 1, N = 3) and B: topography maps of the surface of statically and dynamically cultivated in vitro models (n = 1, N = 1). Scale bars: 100 μm.

Mucus secretion

The human intestinal cells are protected by a mucus lining that varies in thickness and poses an additional permeation barrier for orally administered drugs as well as nanocarriers. To account for this additional barrier, goblet cells (HT29-MTX) were integrated in in vitro models in differing amounts. We chose ratios of 90 : 10 and 75 : 25 (Caco-2 : HT29-MTX) to mimic the cellular composition of enterocytes to goblet cells in the human small intestine and the colon epithelium, respectively.^45,46 To evaluate the impact of Caco-2 to HT29-MTX ratio and the influence of dynamic cultivation on mucus secretion, we quantified the amount of acidic mucins via in situ Alcian blue staining. By varying the ratio of enterocytes to goblet cells in the models, an increase in mucus was observed via the presence of dark blue spots within the cell layer (Fig. 4A). Upon dynamic cultivation, these mucin-rich spots grow in size and abundance in all cultures containing HT29-MTX cells. Although a notable layer of mucus on top of the epithelial layer was observed during cultivation, the secreted mucus layer was not visible in in situ staining. We suspect, that due to the multiple fixation and washing steps, secreted mucins were removed, and consequentially only intracellular mucins were stained and quantified. Absorbance-based quantification revealed an increase of 21.4% and 45.9% in mucus production in statically cultured 90 : 10 and 75 : 25 in vitro models, respectively, compared to Caco-2 monocultures (100 : 0) (Fig. 4B). Mucus production in HT29-MTX monocultures (0 : 100) was increased by 72.9%. These observations are supported by a study measuring the thickness of mucus layers in similar models, showing a comparable trend in mucus height.³⁰ We found that the percentage of goblet cells in the statically cultured in vitro models (10%, 25%, 100%) was not matched by an equal increase in produced mucus. The dynamic cultivation of tissue models had a small effect on mucin production in 100 : 0 (+14.4%) and 90 : 10 cultures (+16.8%) but showed a more pronounced increase in 75 : 25 (+55.5%) and 0 : 100 cultures (+70.6%) compared to their static counterparts, respectively. Filamentous remainder of this mucins can also be observed in the scanning electron micrographs (Fig. 3A). Overall, the increase of mucin secretion was notably more pronounced under dynamic conditions and is consistent with previous studies performed in chip-based in vitro systems.³⁵ However, with respect to the extent of the intestinal mucus layer in vivo, which can range from 20–100 μm in the small intestine and several hundred μm in the colon,^47,48 a comparison to in vitro models is difficult. Due to the quantification procedure, which involved fixation and washing steps, large amounts of mucus might have been removed from the epithelial surface, and the method did not allow for the determination of mucus layer thickness. Nevertheless, the grave differences in mucus secretion between static and dynamic culture underscore the need for critical model selection to characterise permeation abilities of nanocarriers in vitro.

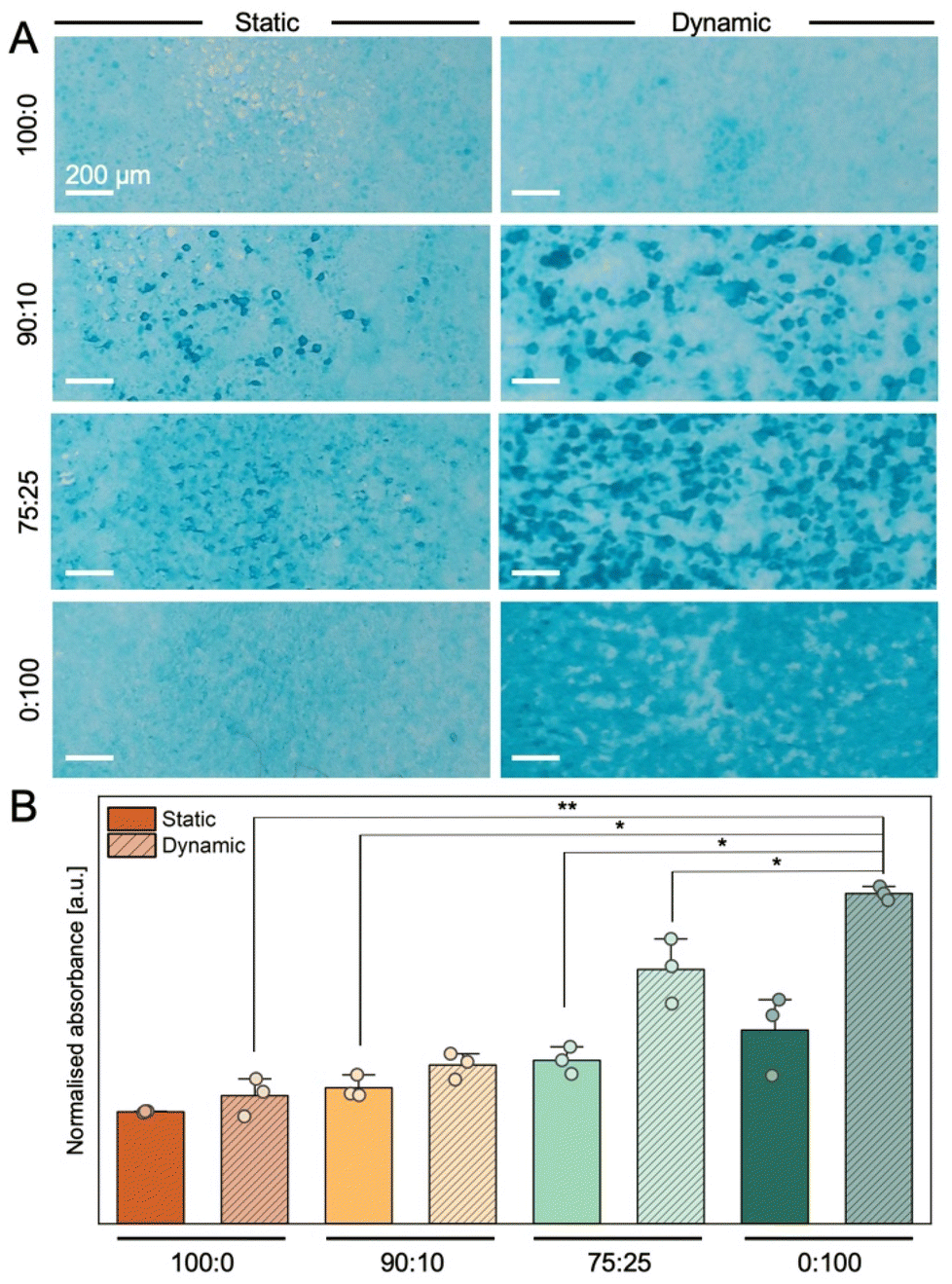

Fig. 4 Mucus secretion. A: In situ alcian blue staining of acidic mucins in different in vitro models cultured under static or dynamic conditions. Scale bars: 100 μm. B: Semi-quantitative evaluation of mucus production via Alcian blue absorbance measurements (n = 3, N = 3). Data are displayed as mean ± SD. Statistical significance was evaluated using one-way analysis of the means followed by Welch test: * p < 0.05, ** p < 0.01, *** p < 0.001.

Epithelial barrier integrity

Below the mucus layer, the epithelium poses the next permeation barrier for nanocarrier formulations. For Caco-2-based cell culture models, a cultivation time of 21 days is required to allow the cells to differentiate into enterocytes, which exhibit microvilli on the apical surface and express tight junction protein complexes that are essential for barrier formation.^49–51 The presence of microvilli as an indicator for enterocyte differentiation was confirmed by scanning electron microscopy in all cell culture ratios and static and dynamic cultivation conditions (Fig. 3A). To validate the formation of an intact epithelial barrier, the transepithelial electrical resistance (TEER) of the cell culture models was monitored over the course of the 21-day cultivation period (Fig. 5A and B). Under static conditions, 100 : 0 cultures experienced an initial increase in TEER during the first 7 days, eventually reaching a plateau with a final TEER of 172 ± 30 Ω cm². The 90 : 10 and 75 : 25 co-cultures behaved similarly and exhibited comparable final TEER values (173 ± 22 and 183 ± 21, respectively) to the Caco-2 monoculture. In contrast, 0 : 100 cultures showed a slower but continuous increase in barrier integrity throughout the cultivation period and reached slightly higher TEER values compared to other static cultures. When subjected to dynamic conditions, TEER values of 100 : 0 cultures reached a maximum after just 7 days at 290 ± 66 Ω cm², followed by a decrease to 175 ± 38 Ω cm². 0 : 100 cultures again exhibited a slow and steady increase of barrier integrity under dynamic conditions but only reached a maximum of 81 ± 23 Ω cm² after 21 days. This value represented approximately 30% of the TEER observed in static 0 : 100 cultures. 90 : 10 and 75 : 25 co-cultures demonstrated an intermediate development between the two monocultures and exhibited a final TEER of 127 ± 24 and 135 ± 24 Ω cm², respectively. Upon closer inspection of individual replicate measurements (see ESI file 2†), a more uniform development of TEER values of Caco-2 cultures under static conditions was observed, while larger deviations were measured under dynamic conditions. In contrast, HT29-MTX cultures showed the opposite characteristics in time-dependent barrier formation with higher deviations after 21 days in static culture. Overall, dynamic cultures containing goblet cells exhibited lower TEER values than their static counterparts at the end of the cultivation period. Although cell-line based in vitro models often exhibit higher TEER values, it is worth noting that the here observed values corresponded to measurements performed on ex vivo human intestinal tissue, which exhibited TEER values around 100 Ω cm².^52,53 These models can therefore be considered a physiologically relevant barrier for studying the permeation of nanocarriers across the intestinal epithelium, especially since nanocarrier permeation occurs predominantly via the transcellular route, independently from paracellular transport.⁵⁴ While a passage number-related fluctuation of TEER values was not observed in this study, it is important to note that cell age and cultivation conditions (media, supplements) can influence TEER values, potentially hindering replication of results and comparison between studies.

Fig. 5 Epithelial barrier integrity. Transepithelial electrical resistance (TEER) of cell culture models under A: static and B: dynamic culture conditions (n = 3, N = 6). Data are displayed as mean ± SD. C: Fluorescence staining of the tight junction associated protein ZO-1 (green) and cell nuclei (blue) after 21 days in culture. Arrows indicate ribboning of tight junctions. Scale bars: 25 μm.

To further evaluate the integrity of the epithelial barrier in all in vitro models, we analyzed the expression of the tight junction-associated protein zonula occludens 1 (ZO-1) as an additional marker (Fig. 5C). While ZO-1 was clearly present in all investigated samples, statically cultured in vitro models exhibited a more homogeneous distribution of ZO-1 along the cell membrane. In dynamic models, ribboning and internalisation of ZO-1 was observed in multiple instances (indicated by arrows in Fig. 5C), possibly contributing to the slightly lowered TEER values. The decrease in fluorescence intensity in co-cultures and 0 : 100 cultures, especially under dynamic conditions, was due to the increasing proportion of goblet cells, which inhibited efficient fluorescence staining due to higher amounts of secreted mucus.

Tissue permeability

The permeability of the intestinal epithelial barrier of drugs of nanocarriers is dependent on the intricate interplay between both, the extent of the mucus layer and the properties of the cellular barrier with respect to tissue layer thickness and the development of cellular junctions.^55,56 After conducting a comprehensive characterization of these factors in our intestinal in vitro models, we proceeded with transport studies to elucidate how tissue composition and culture conditions influence the epithelial permeability of model drug substances as well as of polymeric model nanocarrier formulations (Fig. 6). First, we employed FITC-dextran-based leakage studies as an established procedure to determine the paracellular permeability of solute substances through tissue models.⁵⁷ The mean apparent permeability coefficient (P_app) for 4 kDa FITC-dextran is shown in Fig. 6A. Under static conditions, FITC-dextran exhibited comparable P_app values in 100 : 0 monoculture and co-cultures (90 : 10 and 75 : 25), probably due to their similar physiological properties observed in earlier experiments (tissue layer thickness, mucus secretion, TEER). However, HT29-MTX monocultures showed higher P_app values of FITC-dextran despite increased layer thickness and TEER values. Similar discrepancies between TEER and P_app have been observed in different tissue models and highlight the inherent necessity of performing control experiments to assess the transport of soluble substances.^58–60 Under dynamic conditions, the P_app values increased notably for all cultures, although TEER values of 0 : 100, 90 : 10, and 75 : 25 cultures were comparable to their static counterparts. Dynamic 0 : 100 monoculture exhibited the highest increase. These data show that monocultures of HT29-MTX cells were more permeable than Caco-2 monocultures and co-cultures of both cell lines, which supports recent findings from a study performed by McCright et al., where similar cell ratios were compared after 21 days of static cultivation.³⁰ Further, we found that the dynamic cultivation of in vitro models overall induced higher permeability of the tissue barrier for solute substances. The impact of dynamic conditions on barrier permeability in intestinal in vitro models is not thoroughly characterized in current literature and yields conflicting results depending on the choice of cell source and cultivation setup. In a study from Schweinlin et al., primary human enterocytes were cultivated in a similar dynamic cultivation procedure with lower shear stress and no alteration in barrier permeability was observed.⁶¹ In contrast, a study comparing Transwell®-based Caco-2 cultures with microfluidic chip-based systems showed that dynamic conditions led to increased permeability, a trend consistent with the findings of our study.⁶² While our dynamic orbital agitation model exhibits physiological relevance through altered tissue morphology and mucus secretion, similar to that observed in microfluidic chips, its exact prediction capability, particularly with respect to permeability in comparison to in vivo intestinal tissue, has not yet been systematically evaluated.

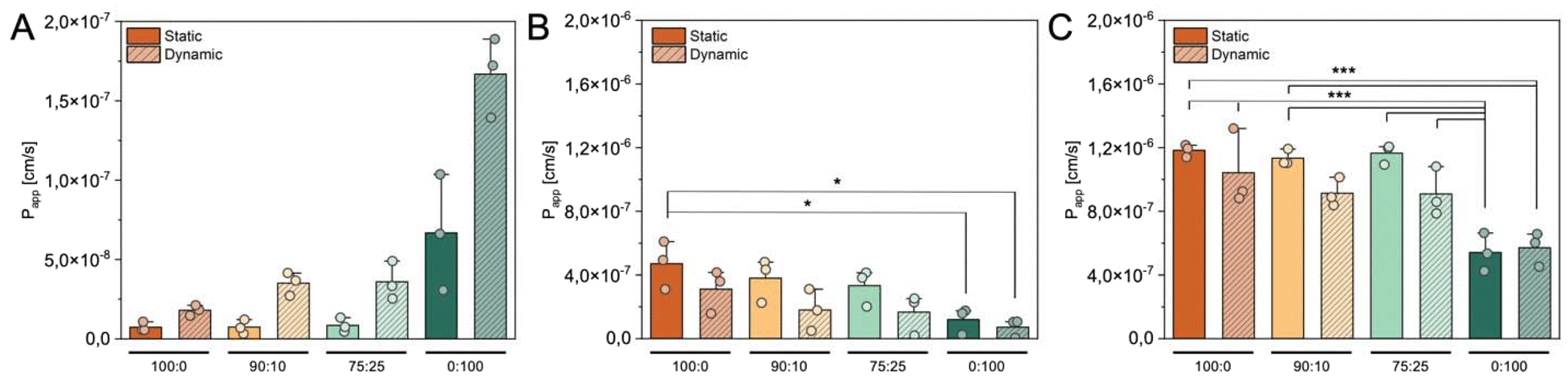

Fig. 6 Tissue permeability. Apparent permeability (P_app) of A: a solution of 4 kDa FITC-dextran, B: PLGA nanocarriers, and C: PEG–PLGA nanocarriers, determined via the transported mass across different in vitro models over 4 h. Data are displayed as mean ± SD. Statistical significance was evaluated using one-way analysis followed by Welch test (A) or ANOVA followed by Tukey test (B and C): * p < 0.05, ** p < 0.01, *** p < 0.001.

Given the complex barriers of the intestinal mucosa, which impact the permeability of substances based on their size and physicochemical properties, our study ultimately aimed to elucidate the influence of the choice of in vitro model on the permeation characteristics of nanocarriers. While small molecules like dextrans predominantly permeate epithelial barriers via the paracellular route, passing through tight junctions between cells, particles typically permeate through the transcellular route, entering and exiting cells, as their size restricts them from utilizing the paracellular pathway.⁶³ Therefore, we assessed the transport of nanocarriers across the different in vitro models using two types of commonly used polymeric nanocarriers in the field of drug delivery. We fabricated PLGA nanocarriers with an average size of 180.7 ± 10.7 nm and a zeta potential of −37.2 ± 4.9 mV, as well as PEG–PLGA nanocarriers measuring 181.8 ± 20.5 nm in size and having a surface charge of −36.4 ± 4.2 mV (see ESI file 3†). These well-established model formulations were selected for the study based on the extensive knowledge and understanding of their characteristics and their potential for oral drug delivery.^64–67 The implementation of PLGA as more hydrophobic polymer and the addition of PEG as commonly employed hydrophilic surface modification allows for the evaluation of two nanocarrier formulations, each exhibiting distinct physicochemical surface properties.^68,69 We assessed the permeation kinetics of both formulations in the different in vitro models under static and dynamic conditions over 6 h. PLGA nanocarriers showed the highest P_app values in statically cultured 100 : 0 models, and a steady decrease of permeability was observed with increasing percentages of goblet cells in the respective in vitro models (Fig. 6B). The consequential higher amount of produced mucus on top of the cell layer is known to pose an additional barrier for the PLGA nanocarriers.⁷⁰ Static 0 : 100 cultures showed a significant drop in PLGA nanocarrier permeation of approximately 75% decrease compared to static 100 : 0 cultures. The observed trends were even more pronounced when investigating the permeability of PLGA nanocarriers in dynamically cultured models. P_app values in dynamic in vitro cultures were decreased by 33%, 52%, 50%, and 39% in 100 : 0, 90 : 10, 75 : 25, and 0 : 100 compared to their static counterparts, respectively. A highly significant decrease in nanocarrier permeation could be observed between static 100 : 0 and dynamic 0 : 100 cultures. As we were able to show during the characterization of the in vitro models, the dynamic cultivation not only increased the layer thickness of the respective model, but also promoted an increase in mucus secretion in all in vitro tissues. While the exact contribution of increased tissue and mucus layer thickness cannot be determined based on the present data, literature suggests that especially for polymeric nanocarriers without surface modifications, increased mucus presented most likely the main contributing factor in the reduced permeability.^70,71

PEG–PLGA nanocarriers overall exhibited higher P_app values compared to PLGA carriers, due to the hydrophilic properties of PEG chains.^72,73 The permeation ability of nanocarriers in statically cultured 100 : 0, 90 : 10, and 75 : 25 models was comparable and showed only a small decrease in cultures with higher proportions of goblet cells, matching recent literature reports.³⁰ Dynamic cultivation of these models led to an average decrease of 14%, 20%, and 22% in P_app values in comparison to their static counterparts, respectively. Since a lower P_app for PEG–PLGA nanocarriers was also observed in dynamic 100 : 0 cultures, which do not produce notable amounts of mucus, we suggest that the effect might be attributed to changes in the tissue morphology rather than the increase in mucus secretion during dynamic cultivation. This hypothesis was supported by confocal fluorescence images of the epithelial cell layer after the transport study (see ESI file 4†). In these images, nanocarriers were observed to accumulate within the inter-villus regions, resembling valley-like structures in the intestinal models. This accumulation suggests a potential reduction in the available surface area of the epithelium for active permeation processes. Moreover, 0 : 100 monocultures exhibited significantly lower nanocarrier permeation in static and dynamic models, indicating a permeation-reducing effect of mucus in in vitro models with percentages of goblet cells above 25%. Despite the increase in mucus secretion in 0 : 100 cultures under dynamic conditions, no notable differences in PEG–PLGA nanocarrier permeation between static and dynamic 0 : 100 cultures were observed. Interestingly, the layer thickness of these models did not appear to be an attributing factor to permeation abilities either, as dynamic 0 : 100 cultures would have been expected to experience a reduction in P_app values if this were the case.

Moreover, the differences in three-dimensional tissue architecture of dynamically cultured in vitro models might be attributed to differences between enterocyte-containing models, which exhibit a villus-like morphology, and 0 : 100 cultures, which showed a flat epithelial surface but an overall increased tissue layer thickness. However, the attribution of permeation inhibition to the available surface area in each model is difficult due to the lack of advanced imaging systems that allow for the real-time monitoring of permeation processes and requires further investigation.

To ensure the reliability of our findings regarding the permeation ability of FITC-dextran and nanocarriers, we conducted standard quality assessments during each experiment. This involved measuring the TEER values before and after the transport studies, as well as evaluating the cytotoxicity of nanocarrier formulations. These assessments were performed to validate that our observations were specific to the permeation ability of the substances and not influenced by toxicity-induced increased permeability of the in vitro models (see ESI file 5†).

Conclusions

In the here presented study, we set out to elucidate how the selection of the in vitro tissue model impacts the assessment of nanocarrier permeation kinetics in oral drug delivery. In a systematic approach, we demonstrated that varying cell ratios (enterocytes to goblet cells) and cultivation conditions (static versus dynamic) have complex effects on key physiological properties of in vitro models of the human intestinal mucosa. The resulting variations in three-dimensionality, epithelial surface morphology, mucus secretion and barrier properties were found to significantly influence the permeation kinetics of nanocarrier formulations. Notably, depending on the carrier type different physiological features of the models were identified as individual rate-limiting factors. While a definitive answer as to which model best replicates the in vivo situation will require systematic comparative in vivo studies, the present results highlight the potential for model-based bias in nanocarrier permeation testing and the critical need to carefully select in vitro models during formulation development. By raising awareness for the choice of a suitable model for predictive permeation testing of nanocarriers, this study might contribute to address a key challenge hindering the translation of nanomedicine formulations from preclinical development to clinical application.
