A method using dispersive liquid–liquid microextraction (DLLME) prior to high performance liquid chromatography-diode array detection (HPLC-DAD) was developed to determine seven additives from the plastics industry (butylated hydroxytoluene, diisodecyl phthalate, irgafos 168, lawsone, quercetin, triclosan and vitamin E) in seawater samples. These compounds can reach seawater due to direct discharge from wastewater treatment plants and leaching from plastics and microplastics. The extraction was performed using 25 mL of seawater, 500 μL of 1-octanol (extraction solvent) and a stirring step instead of dispersive solvent. Additive concentrations were determined by LC-DAD on a C18 column with a mobile phase of acetonitrile and phosphoric acid aqueous solution (pH 3.5) by gradient elution. The analytical recoveries ranged from 82 to 93% for all compounds, except for lawsone (60%). Repeatability and intermediate precision were adequate with RSD < calculated values following the Horwitz equation at the concentration levels evaluated (0.06 and 0.24 mg L−1). All additives exhibited linear matrix calibration curves (R2 > 0.99). Detection limits ranged from 0.009 to 0.028 mg L−1 and quantification limits ranged from 0.027 to 0.084 mg L−1. Finally, the application of the method to real samples verified the method as accurate and applicable to seawater.
Chemical compounds associated with plastics include both additives added during manufacturing (plasticisers, antioxidants, stabilizers, flame retardants…) and organic compounds (polycyclic aromatic hydrocarbons, polychlorinated biphenyls, pesticides…) adsorbed on their surface from the surrounding environment.2 About this, it should be noted that additives have been studied considerably less than organic compounds adsorbed on the surface. However, environmental studies focusing on plastics should include additives as they can easily leach from the polymer matrix which implies a risk to marine organisms.3,4

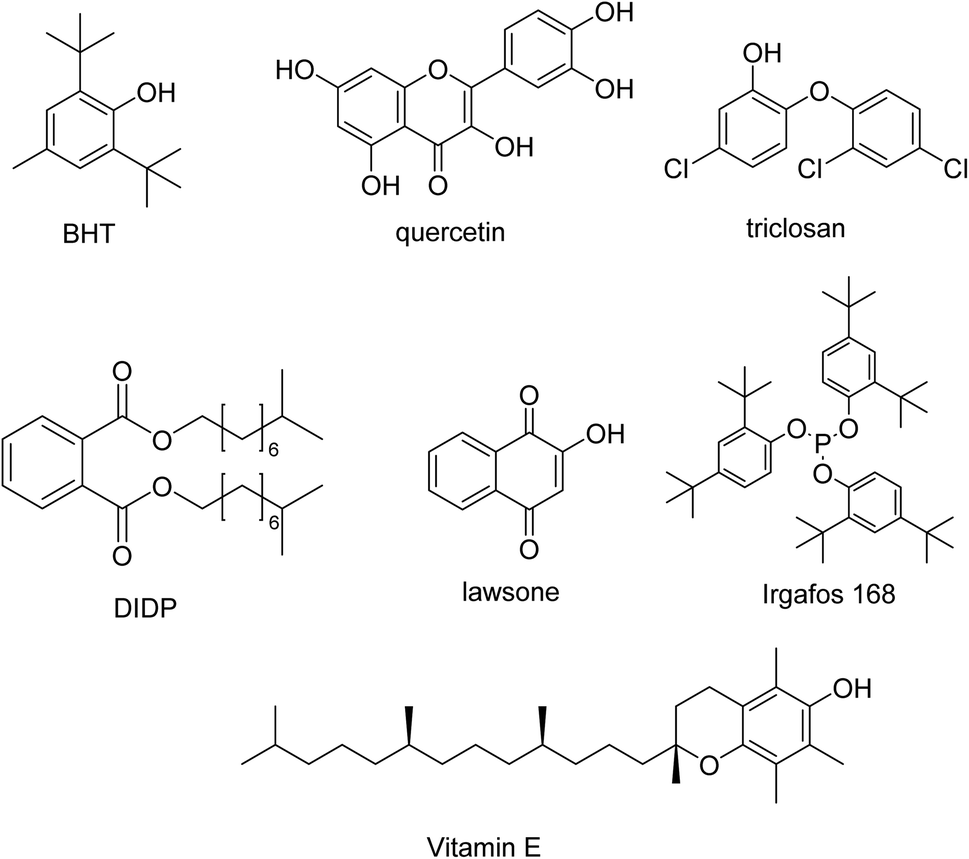

Among the seven additives studied in this work, there are two natural antioxidants (quercetin and vitamin E) and a natural colouring agent with antimicrobial properties (lawsone). The latter one can be obtained from the leaves of the henna plant4 and quercetin is found naturally in some foods (onions, grapes and tea).5 The other four compounds are industrially produced chemicals. Butylated hydroxytoluene (BHT) is employed as an antioxidant in foodstuffs. Exposure to this compound can cause damage mainly due to its degradation products, especially in algae and fish.6 Irgafos 168 is also an antioxidant used in the manufacture of polymers for food preservation. Diisodecyl phthalate (DIDP) is a plasticiser belonging to the group of phthalates whose toxicity has been extensively investigated in recent years.7 Finally, triclosan is an antibacterial agent employed in household and personal care products. This additive accumulates in algae and its toxicity to aquatic organisms needs to be studied.8 The adverse effects on marine organisms of some of these additives are already known, but the lack of information on others makes it impossible to know what effects they may have. Therefore, it is necessary to develop analytical methods for the determination of these compounds in the marine environment.
High-performance liquid chromatography (HPLC) with ultraviolet (UV) detection or diode array detection (DAD) is the most commonly employed technique in the analysis of these additives.9–19 The reversed-phase mode using octadecyl columns10–14,20–23 and mixtures of acetonitrile/water or methanol/water as mobile phase11,12,14,16,17,22 is by far the most commonly used chromatographic conditions currently for the analysis of these additives.
Regarding the extraction procedures employed for the determination of additives in water samples, solid-phase extraction (SPE) is the most widely used method.15,20,24–26 However, this technique is being replaced by other fast techniques that minimize the waste of organic solvents such as liquid–liquid microextraction techniques. Thus, ultrasound-assisted salt-induced liquid–liquid microextraction followed by HPLC-DAD analysis has been used for the determination of triclosan in swimming pool, lake, and wastewater.16 Caldas et al. used dispersive liquid–liquid microextraction (DLLME) combined with liquid chromatography-tandem mass spectrometry (LC-MS/MS) to determine 58 organic compounds, including triclosan, in water samples. The DLLME procedure was carried out with 1-octanol as extraction solvent and acetone as dispersive solvent.27 Finally, DLLME has also been used in the extraction of some of the analytes under study from food samples. Asadollahi et al. used this microextraction technique for the analysis of quercetin in food samples.28 The sample pH was adjusted to ∼3 and methanol and 1-undecanol were employed as the dispersive and extraction solvent respectively. Moreover, a study for the analysis of vitamin E in infant formula by DLLME combined with HPLC-UV has also been developed.29 The advantages of DLLME are simplicity of operation, short extraction time, low cost and high enrichment factors.30 In addition, surface water matrices have little effect on DLLME and for seawater samples, the salt in the sample leads to increased ionic strength enhancing the extraction efficiency.
The present work has two objectives: (i) to develop a simple reversed-phase with ionic suppression for routine determination of the seven additives, and (ii) development and validation of a method based on DLLME for the extraction of the seven additives from seawater samples. It should be noted that the simultaneous chromatographic determination of these chemicals, as well as the use of DLLME for their extraction from seawater has not been reported before in the literature.
A synthetic saltwater solution of 35 g L−1 was prepared using sea salts from Sigma-Aldrich (chloride 19000–20
000 mg L−1; sodium 10
700–11
000 mg L−1; sulfate 2660 mg L−1; potassium 300–400 mg L−1; calcium 400 mg L−1; carbonate 140–200 mg L−1; boron 5.6 mg L−1; magnesium 1320 mg L−1; strontium 8.8 mg L−1 and insoluble matter ≤0.05%) (Steinheim, Germany). 1-Octanol Chromasolv® (grade HPLC 99%) was purchased from Sigma-Aldrich (Steinheim, Germany), acetonitrile HiPerSolv Chromanorm® (≥99.9%) was from VWR Chemicals (Leicester, UK) and phosphoric acid was from Panreac (Barcelona, Spain). Ultrapure water was obtained using a Millipore Milli-Q system (Millipore, Bedford, MA, USA). To prevent potential contamination, no plastic wares or equipment were used during sampling, extraction and analysis.
The signal was monitored in the 190–600 nm range, to confirm its identification and also to check the homogeneity of the spectral peak. For quantification purposes 200 nm was selected in order to achieve maximum sensitivity.
On the other hand, silica-based columns usually contain free silanol groups on their surface, which are ionized at neutral pH and can participate on the analyte retention by electrostatic interactions because of their negative charge.33 Therefore, the adjustment of pH of the mobile phase also governs the state of the ionization of the silanol surface. Protonation of silanol groups occurs at pH values less than 4.5, thus working at lower pHs minimizes electrostatic interactions and helps to reduce peak tail problems.
Considering the points mentioned above, the pKa of lawsone and quercetin (4.31 and 6.31 respectively) and the range of pH of the aqueous mobile phase (2.5–3.7) employed in the literature for chromatographic analysis of lawsone, in this work the pH of the aqueous phase was adjusted to 3.5.18,21,34
The hydrophobicity of the seven additives is too large so a gradient elution will be necessary. The most employed acids for adjusting the pH of the mobile phase for the determination of these additives are acetic acid,19,21 formic acid18,23 and phosphoric acid.13,35 In this work phosphoric acid was selected since organic acids exhibit absorbance at 200 nm, and consequently they cannot be used in gradient elution.
Initially, because articles have not been found in which these seven additives were analysed simultaneously, isocratic runs were performed using individual solutions of the additives (10 mg L−1) at different ratios of acetonitrile and a solution of phosphoric acid at pH 3.5 as a mobile phase. Then several gradient conditions were carefully assayed which correspond closely to their isocratic counterparts. The best conditions for achieving an adequate chromatographic resolution of the seven additives were obtained by employing the gradient previously described in the Experimental section, starting the mobile phase gradient with 20% acetonitrile in order to avoid overlapping between the peaks of lawsone and quercetin. As can be seen in Fig. 3, adequate resolution was reached for all the additives in less than 20 min.
Upon the chromatographic method being optimized, in order to check the precision of the chromatographic system, two standard solutions containing 0.5 and 6 mg L−1 of each additive were employed. For intra-day precision, ten consecutive measurements of each concentration level were analyzed; in the case of inter-day precision, three replicates of each concentration level were injected per day on five consecutive days. The obtained precision was good, with RSD values lower than 5% in both intra- and inter-day precision assays. In order to verify the linearity of the detector, eight concentration levels of each additive (0.25, 0.50, 1, 2, 4, 6, 8 and 10 mg L−1) were prepared and injected in triplicate. Coefficients of determination (R2) were higher than 0.999 for six of the seven additives, being a bit lower in the case of lawsone (0.998).
The effect of the extraction solvent volume was studied employing 100, 300, 400 and 500 μL volumes of 1-octanol. The single drop formed by adding the organic solvent to the water sample was dispersed by using an agitation step (10 min, 1200 rpm). Then, the mixture was centrifuged (5 min at 3500 rpm) to separate the phases. For tested volumes below 500 μL, the formed drop was not easily distinguishable from the aqueous phase. This could be due to the solubility of 1-octanol in water, which is also reflected in the small volume of organic phase obtained (<300 μL) after the extraction when 500 μL were used. Consequently, 500 μL of 1-octanol was chosen as optimum extraction solvent volume.
Since the sample pH can affect the extraction efficiency of ionisable compounds, a study of sample pH was carried out. For this purpose, saltwater with unchanged pH and saltwater with pH adjusted to 3 using phosphoric acid were subjected to the extraction procedure under the above-mentioned shaking and centrifugation conditions. Then, 200 μL of the 1-octanol drop was collected and diluted with acetonitrile (1:
3). To calculate the recoveries, standards of the additives with the final concentration of the extracts and the same ratio of 1-octanol/acetonitrile were used. The results obtained (see Table 1) showed that lawsone and quercetin were not extracted at saltwater pH because ionic suppression of these compounds is not achieved. For the other additives studied, recovery increased at acid pH, except for DIDP. Therefore, pH 3 was selected to carry out the extraction method.
Compound | Recovery (%) | |
---|---|---|
pH = 3.5 | Saltwater pH | |
Lawsone | 56.1 | — |
Quercetin | 86.9 | — |
Triclosan | 92.4 | 85.6 |
BHT | 89.8 | 83.2 |
DIDP | 83.5 | 89.7 |
Vitamin E | 84.4 | 82.6 |
Irgafos 168 | 88.1 | 84.2 |

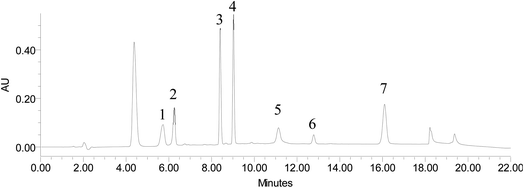

The effect of agitation time was examined by testing three different times (5, 10 and 20 min) keeping constant the other experimental conditions. As can be seen in Fig. 4, the extraction efficiency slightly increased up to 20 min for most additives. Therefore, 20 min was chosen as extraction time. As an example, Fig. 5 shows the chromatogram corresponding to unspiked and spiked synthetic saltwater analysed with the developed procedure.
Compound | LOD (mg L−1) | LOQ (mg L−1) | Determination coefficient (R2) | Intra-day precision RSDa (%) | Inter-day precision RSDa (%) | Recoverya (%) | |||
---|---|---|---|---|---|---|---|---|---|
0.06 mg L−1 | 0.24 mg L−1 | 0.06 mg L−1 | 0.24 mg L−1 | 0.06 mg L−1 | 0.24 mg L−1 | ||||
a n = 5 for intraday precision and recovery; n = 3 for inter-day precision. | |||||||||
Lawsone | 0.028 | 0.084 | 0.9929 | 7.98 | 5.92 | 11.45 | 8.94 | 62.1 | 59.6 |
Quercetin | 0.027 | 0.082 | 0.9931 | 9.11 | 6.21 | 11.31 | 8.14 | 82.1 | 85.1 |
Triclosan | 0.010 | 0.031 | 0.9990 | 5.10 | 3.42 | 7.80 | 7.42 | 87.4 | 92.6 |
BHT | 0.009 | 0.027 | 0.9992 | 5.67 | 3.76 | 7.17 | 6.08 | 85.4 | 91.3 |
DIDP | 0.020 | 0.059 | 0.9965 | 3.92 | 3.05 | 5.54 | 4.57 | 85.3 | 87.0 |
Vitamin E | 0.025 | 0.077 | 0.9960 | 7.70 | 4.39 | 7.26 | 7.27 | 85.8 | 82.0 |
Irgafos 168 | 0.013 | 0.041 | 0.9983 | 3.39 | 3.46 | 6.52 | 7.85 | 85.7 | 93.1 |
Linearity was investigated by triplicate analysis of standard synthetic saltwater solutions. Five-point calibration curves were constructed at the concentration range between 0.03 and 0.24 mg L−1. As can be seen in Table 2, determination coefficients (R2) higher than 0.9900 were achieved for all compounds.
The LODs were determined as 3 × Sy/x/b and the LOQs as 10 × Sy/x/b, where Sy/x is the residual standard deviation and b is the slope of the calibration curves. The detection and quantification limits obtained using only 25 mL of synthetic saltwater (between 0.009–0.028 and 0.027–0.084 mg L−1 respectively) can be considered adequate (see Table 2). Furthermore, in case more sensitivity is required, the method is easy to adapt for further analysis by LC-MS.
Precision and accuracy were investigated at two levels of concentration (0.06 and 0.24 mg L−1). The precision of the analytical method, expressed as relative standard deviation (RSD), was studied as intra-day and inter-day precision. To evaluate intra-day precision, RSDs were calculated using five replicates measured at the same day. Inter-day precision was investigated measuring three replicates on three consecutive days. The obtained values lower than 10 and 11.5% for intra-day and inter-day precision respectively (see Table 2) indicated that the developed method was reproducible.
The Horwitz equation was also employed as an additional criterion for checking the precision of the method. The equation is RSD (%) = 21−0.5logC, with C being the mass fraction expressed as a power of 10. For intra-day precision, the obtained values for RSD (%) would be lower than 1/2 (21−0.5logC), whereas in the case of inter-day precision, the values for RSD (%) would be lower than 2/3 (21−0.5logC). The values of RSDs obtained with the proposed methodology were highly satisfactory because, for the seven additives, the results achieved of RSD (%) for intra-day and inter-day precision were below the limits calculated by the Horwitz equation (intra-day 12.21 and 9.92% and inter-day 16.28 and 13.22% for 0.06 and 0.24 mg L−1 respectively).
The accuracy of the method was evaluated as analytical recovery. Five replicate analyses of 25 mL of synthetic saltwater solution spiked with the standard mixture of additives at each fortification level were employed. The method showed very good recoveries for all additives in the range of 82.1–87.4% for the low level and 82.0–93.1% for the high level, except for lawsone with a recovery value of around 60%, an accepted value in residue analysis (Table 2).
Seawater samples were collected using amber glass bottles from 3 different sites in the city of A Coruña during May of 2023: sample 1 from Santa Cristina beach located in the estuary formed by the mouth of Mero River, sample 2 from Riazor beach located in an open sea area and sample 3 from the harbour area. The samples were stored at 4 °C until further analysis.
The presence of the additives in the samples was studied by analyzing procedural blanks and peaks were not observed at the retention times of the compounds. Therefore, it was concluded that the additives were not present or present at concentrations below the LOD values (see Table 2).
Recovery experiments were carried out using sample 1 as a test sample. For this purpose, the sample was spiked at two concentration levels (0.06 and 0.24 mg L−1) and three replicates were assayed for both levels. The percent recovery results for additives are presented in Table 3. As can be seen, high recoveries were obtained for all additives at both concentration levels, except for lawsone. For this additive, the recovery reached (around 60%) was similar to that obtained when synthetic saltwater solution was used. Moreover, the RSD values were below 5% (see Table 3), which validates the high repeatability of the developed method.
Compound | Recovery ± RSD (%) | |
---|---|---|
0.06 mg L−1 | 0.24 mg L−1 | |
Lawsone | 54.7 ± 1.2 | 64.3 ± 3.9 |
Quercetin | 82.7 ± 3.6 | 100.7 ± 2.8 |
Triclosan | 83.9 ± 3.3 | 95.9 ± 3.6 |
BHT | 84.6 ± 2.4 | 94.0 ± 2.9 |
DIDP | 84.5 ± 3.6 | 93.6 ± 4.0 |
Vitamin E | 81.9 ± 3.4 | 92.9 ± 3.8 |
Irgafos 168 | 84.7 ± 3.4 | 98.0 ± 3.7 |
The procedure employed for the extraction of the additives from seawater is mainly influenced by the sample pH. Under optimal conditions, the compounds are extracted from sample showing recoveries higher than 80% for all compounds, except for lawsone (60%).
Finally, it is important to note that there are few studies of these compounds in seawater and the presented method allows the separation and determination of these seven additives in seawater. Moreover, the method meets the requirements of Green Analytical Chemistry, as the score (PPs) calculated with the Analytical Eco-Scale metric was 86. This score is considered excellent for green analysis.37
