Open Access Article
This Open Access Article is licensed under a Creative Commons Attribution 3.0 Unported Licence
Correction: 3D printed and stimulus responsive drug delivery systems based on synthetic polyelectrolyte hydrogels manufactured via digital light processing
Sonja
Vaupel
ab,
Robert
Mau
cd,
Selin
Kara
a,
Hermann
Seitz
cd,
Udo
Kragl
bc and
Johanna
Meyer
*abc
aInstitute of Technical Chemistry, Leibniz University Hannover, Callinstraße 5, 30167 Hannover, Germany. E-mail: johanna.meyer@iftc.uni-hannover.de
bInstitute of Chemistry, University of Rostock, Albert-Einstein-Str. 3a, 18059, Rostock, Germany
cDepartment Life, Light & Matter, Faculty for Interdisciplinary Research, University of Rostock, Albert-Einstein-Straße 25, 18059 Rostock, Germany
dMicrofluidics, University of Rostock, Justus-von-Liebig-Weg 6, 18059 Rostock, Germany
First published on 30th June 2023
Abstract
Correction for ‘3D printed and stimulus responsive drug delivery systems based on synthetic polyelectrolyte hydrogels manufactured via digital light processing’ by Sonja Vaupel et al., J. Mater. Chem. B, 2023, DOI: https://doi.org/10.1039/d3tb00285c.
The authors regret an error in Fig. 6 due to a figure compilation error. The corrected Fig. 6 is shown below.
 | ||

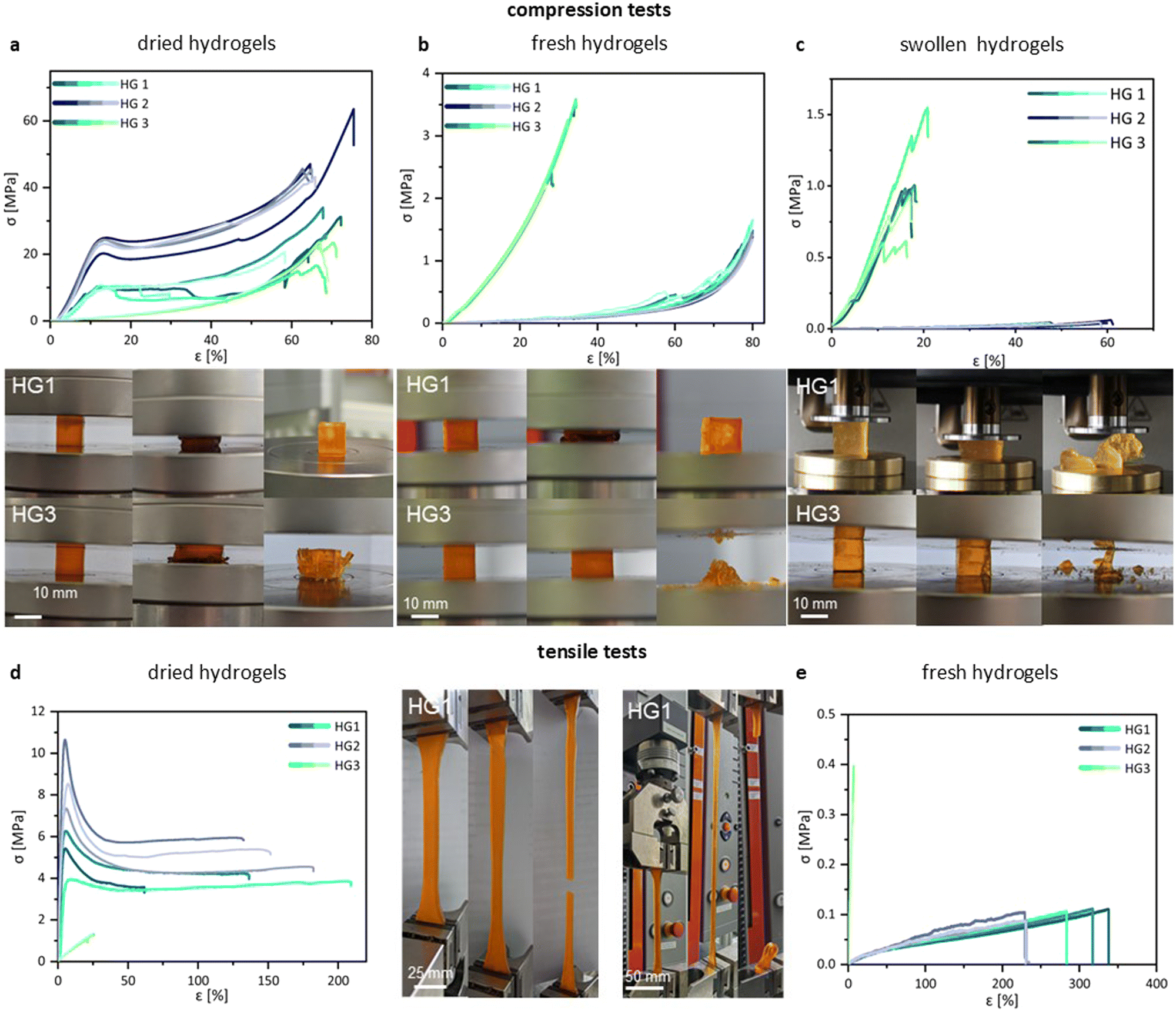

| Fig. 1 Mechanical properties of 3D printed hydrogels. Compression stress–strain curves of the (a) dried, (b) fresh and (c) swollen (in PBS) hydrogels with exemplary photos of HG 1 and HG 3, as well as tensile stress–strain curves of the (d) dried and (e) fresh hydrogels with exemplary photos of HG 1 (20 °C; n ≤ 3). HG 1 and HG 2 showed relatively high strains, coming with yielding at the dried state. Fracture behaviour for HG 1 and HG 2 was mostly ductile. The greater the amount of water included, the stronger the softening of the materials. These effects resulted due to the dominance of long-chained AETMA backbone in the polymeric network. HG 3 did not show yielding and relatively low strains. The fracture behaviour for HG 3 was brittle in the dried, fresh and swollen state, due to the dominance of short-chained PEGDA (Mn = 700 Da). | ||
The Royal Society of Chemistry apologises for these errors and any consequent inconvenience to authors and readers.
| This journal is © The Royal Society of Chemistry 2023 |
