Abstract
The side-chain engineering of A–DA'D–A-type nonfullerene acceptors (NFAs), well known as the Y6 series, is an efficient approach for retaining the physical properties of the Y6 series but allowing the manipulation of the solubility, crystallization, intermolecular packing, and orientation. This can permit further fine-tuning of their structures for high power conversion efficiencies (PCEs) of organic solar cells (OSCs). Inspired by recent results regarding the critical roles of “inner side-chain modulation” in the aforementioned features, this study designed and synthesized three isomeric BzY-series NFAs (o-BzY, m-BzY, and p-BzY) using o-, m-, and p-hexylbenzyl side chains on the pyrrole motif of the Y6 core framework. This design concept implants a benzene ring at the branching position of the inner side chain. The interrelationship of the isomeric inner side chains within the BzY-series NFAs and isomeric xylene solvents (o-, m-, and p-xylenes) was examined by UV–vis spectroscopy, 1D/2D-nuclear magnetic resonance spectroscopy, and morphological characterization. In-depth studies of 3 (BzY-series NFAs) × 3 (solvents) pair systems of non-chlorinated solvent-processed OSCs found that the best PCEs were achieved from the additive and thermal annealing-free OSCs fabricated with the same structural isomeric pairs of BzY-series NFAs and solvents (i.e., o-BzY with o-xylene, m-BzY with m-xylene, and p-BzY with p-xylene cases). These findings show that the high structural compatibility between the side chains and processing solvents has great potential for improving the OSC performance.
Introduction
Organic solar cells (OSCs) have attracted considerable attention as one of the next-generation energy harvesting systems owing to their light weight, facile synthesis, low cost, and easily tunable optoelectronic properties. Extensive advances have been achieved through innovations in both device engineering and material design for over 30 years.1–6 In particular, tremendous improvement in the power conversion efficiencies (PCEs) of OSCs has been made by the emergence of nonfullerene acceptors (NFAs), which enable long-wavelength absorption and low energy loss.7–10 Y6 is one of the state-of-the-art NFAs first reported by Zou et al. in 2019.11 After surpassing 15% PCE using a Y6 NFA with a PM6 donor polymer, many molecular structural modifications were performed. The development of the so-called Y-series NFAs has induced a renaissance in OSCs with a record PCE beyond 19% based on single-junction OSCs.12,13
Y-series NFAs consist of an A–DA′D–A-type π-backbone and two sets of alkyl side chains located on the “outer position” at the 2-position of the thienothiophene moieties and the “inner position” at the pyrrole rings (see Fig. 1). One approach for developing new Y-series NFAs is modifying the π-backbone core. Several attempts have been made for π-framework variation, including changing the heteroatom of the core DA′D structure, modulating the π-extension of fused rings, and attaching different end-capping units.14–16 This modulation simultaneously influences the intrinsic molecular electronic properties (such as the absorption spectrum and energy level) and intermolecular interactions. Another efficient approach for advances in Y-series NFAs is alkyl side-chain alternation, which primarily affects intermolecular interactions. Surprisingly, this alkyl side-chain engineering effectively modulates the morphology, molecular ordering, phase separation, and mixing. This can be a powerful method of optimizing the molecular design of Y-series NFAs for high-performance OSCs. On the outer position at the 2-position of the thienothiophene moieties in Fig. 1, various modifications, including alkyl chain length variation, branched alkyl side-chain alteration, and alkylaryl-group introduction, have enhanced the performance of OSCs.8,17,18 In the case of the inner position at the pyrrole rings (see Fig. 1), introducing a branched alkyl side chain is essential for achieving high PCEs. The attachment of linear alkyl side chains into the inner position of Y-series NFAs could lead to limited solubility of the resulting NFAs in various processing solvents, even though the outer alkyl side chains are branched, thereby worsening the OSC performance.19 Therefore, it is essential to maintain the branched inner side chains when designing high-performance Y-series NFAs. For example, β- and γ-branched inner side chain-containing Y-series NFAs are an archetype of the state-of-the-art Y-series NFAs.19 In addition to high PCE, there is another critical factor that needs to be considered for the successful commercialization of OSCs. A process safety issue during device fabrication is caused by the use of harmful chlorinated organic solvents, such as chloroform (CF) and chlorobenzene (CB).20–22 Recently, new Y-series NFAs that can be used with non-chlorine solvents were developed by appropriately controlling the solubility and blend morphologies. Huang et al. reported a high-performing NFA, DTY6, designed by extending the branched inner alkyl side-chain length that achieved a high PCE of more than 16% in a non-chlorinated solvent (o-xylene) processing system.23 Kim et al. reported the outer side chain-tuned selenophene-incorporated Y6 analogs demonstrating a PCE of 16.11% with an o-xylene processing solvent.14 Nevertheless, most attempts to obtain the constitutional ideality of Y-series NFAs toward non-chlorinated solvent-processed OSCs are still limited to modulating the linear or branched alkyl side-chain lengths.
 |
| Fig. 1 Chemical structure of A–DA′D–A structured BTP backbone-based small molecule acceptors. | |
This paper introduces hexylbenzyl inner side chains into the Y6 core structure to give distinctive features as a new approach for inner side-chain engineering. Three new isomeric Y-series NFAs are presented, called o-BzY, m-BzY, and p-BzY (so-called BzY-series NFAs), which are incorporated with three isomeric benzyl alkyl side chains (o-, m, and p-hexylbenzyl groups) into the inner position of the Y6 core structure. These new isomeric Y-series NFAs were applied to OSCs with three isomeric xylenes (o-, m-, and p-xylenes) as non-chlorinated processing solvents. The BzY-series NFAs had sufficient solubility in these non-chlorinated xylene solvents for the fabrication of OSCs. Therefore, this study explored the interrelationship between the isomeric benzyl inner sides of BzY-series NFAs and isomeric non-chlorinated xylene solvents (o-, m-, and p-xylenes) using a combination of one-/two-dimensional nuclear magnetic resonance (1/2D-NMR) spectroscopy and in-depth optical studies. Interestingly, all the BzY-series NFA-based devices with PM6 donor polymer showed their optimal PCEs without the need for additives or thermal annealing. A more interesting discovery was that the structurally identically oriented pairs of BzY-series NFA and xylene (i.e., o-BzY with o-xylene, m-BzY with m-xylene, and p-BzY with p-xylene)-based OSCs yielded superior photovoltaic performance, compared to the corresponding other pair systems. Furthermore, the PM6
:
m-BzY-based device prepared with m-xylene showed the highest PCE of 16.1%, which is almost equal to the highest PCE of OSCs with a non-additive, non-annealing process, and non-chlorinated solvent reported in the literature (vide infra). This paper reports the novel design strategy of Y-series NFAs for realizing practical OSCs with a non-chlorinated solvent, non-additive, and non-thermal annealing process. In addition, it provides a reference for understanding the structure–processing solvent–property relationship.
Results and discussion
Material design, synthesis, and characterization
Implanting a benzene ring at the branching position of the inner side chain in Y-series NFAs would induce unique features because the intrinsic properties of the 2D aromatic side chains (e.g., bulkiness and rigidity) are very different from those of alkyl side chains. Scheme 1 outlines the chemical structures and synthetic routes of Y-series NFAs, and the ESI† details the synthetic procedures. First, the Grignard reaction of three isomeric bis(bromomethyl)benzene compounds and 1-bromopentane using a copper(I) bromide dimethyl sulfide complex as a catalyst was conducted to synthesize the o-, m-, and p-hexylbenzyl bromides (1a, 1b, and 1c). 5,6-Dinitro-4,7-bis(6-undecylthieno[3,2-b]thiophen-2-yl)benzo[c][1,2,5]thiadiazole (2) was synthesized via palladium-catalyzed Stille coupling using Pd(PPh3)4 as the catalyst in anhydrous toluene. The benzyl inner side-chain-containing fused DA′D cores (3a, 3b, and 3c) were prepared by Cadogan cyclization, which then converted the corresponding dialdehyde intermediates (4a, 4b, and 4c) via the Vilsmeier–Haack reaction. Finally, the three new isomeric BzY-series NFAs, o-BzY, m-BzY, and p-BzY, were afforded by the Knoevenagel condensation of each dialdehyde compound with the end-capping unit, 2FIC, under pyridine-catalyzed conditions. The chemical structures of the intermediates and final target molecules were fully characterized by 1H and 13C NMR spectroscopy (see the Experimental section and ESI†). All the synthesized NFAs showed good solubility in all the used xylenes at 80 °C, as well as common chlorine solvents at room temperature (Fig. S1†). In addition, thermogravimetric analysis (TGA) showed that these NFAs have good thermal stability with a thermal decomposition temperature (Td) with 5% weight loss at 302 °C for o-BzY, 296 °C for m-BzY, and 292 °C for p-BzY (Fig. S2† and Table S1†).
 |

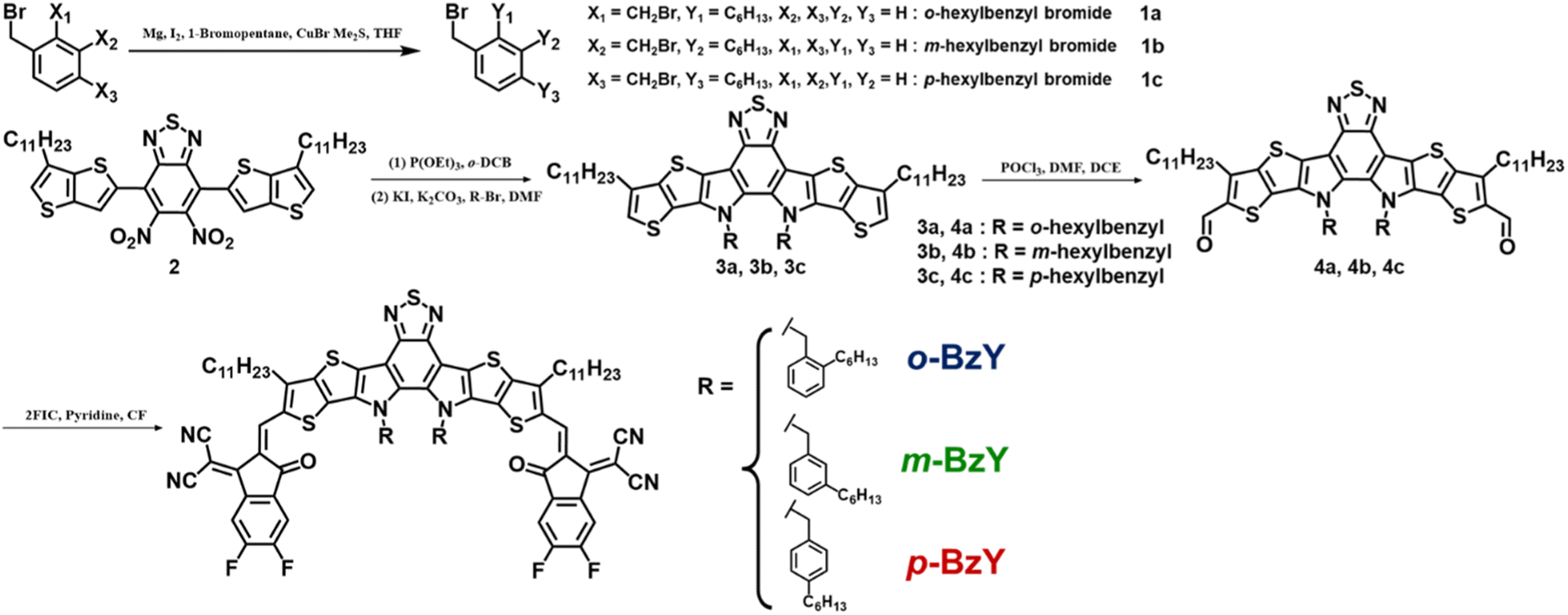

| Scheme 1 Chemical structures and synthetic routes of o-BzY, m-BzY, and p-BzY. | |
Theoretical calculations and physicochemical properties
Density functional theory (DFT) calculation using a B3LYP/6-31G(d,p) basis set was performed on the o-BzY, m-BzY, and p-BzY molecules to investigate the isomeric structural effect of the inner side chains on the electron density distribution, molecular dipole moment, and optimized molecular conformation (Fig. 2(a)–(c) and S3†). In the optimized geometries, the torsion angles between the central core unit and the end-capping unit (2FIC) were different depending on the three benzylic side chains; o-BzY had slightly larger torsion angles of 2.41° and 2.42° compared to m-BzY (1.90° on both sides) and p-BzY (1.91° and 1.92°) (Fig. 2(a)). Furthermore, as shown in Fig. 2(b), o-BzY exhibited a considerably higher twisted angle of 19.84° between the two planes made up of 2FIC units in each terminal position and the central 2,1,3-benzothiadiazole unit, while m-BzY and p-BzY had smaller values of 15.50° and 15.94°, respectively. These different geometries in the o-BzY molecule are probably due to the different geometric locations of the benzyl pendant on the BzY-series acceptor. From the top view of the molecules (Fig. 2(c)), the benzene rings protrude in a vertical direction relative to the molecular plain in the cases of m-BzY and p-BzY, which is slightly different from those of o-BzY. The benzene rings were located on the o-BzY molecule with less protruded geometry because of the ortho-position hexyl moiety on the benzyl pendant; thus, the steric effect of the benzyl pendant induces more twisted geometry on the backbone of the o-BzY molecule. This suggests that utilizing the m- and p-hexylbenzyl side chains of the inner N-sites in Y6 analogs promotes higher molecular planarity and intermolecular π–π interactions, which is consistent with the trend of the changed optical profiles, in which compared to o-BzY, more red-shifted absorption of m-BzY and p-BzY is observed from the solution to the thin-film state compared (vide infra).24 In addition, the isomeric effect in the benzyl side chain made a slight difference in the molecular dipole moment in the optimized geometries of NFAs. This dipole moment variation is related to the direction and location of the hexyl moiety in the benzyl pendant of the inner side-chain position of the BzY-series NFAs. From the front and side views of Fig. 2, the total dipole moment of the whole molecule increases (order: p-BzY (3.15 D), o-BzY (2.60 D), and m-BzY (2.04 D), see Table S2† for the vector values) when the hexyl moiety is toward the vertical direction and located downward. To support the understanding of this phenomenon, the local dipole of hexylbenzene constituting inner benzyl side chains was calculated.25,26 As illustrated in Fig. S4,† the hexylbenzene had a local dipole of 0.3776 D with the direction in which the hexyl moiety stretched. It implies that the dipole moment of BzY-series NFAs with hexyl chains extending downward can be increased (see Fig. 2(b) for the local dipole direction of the hexylbenzene unit in the molecular geometry of each BzY-series NFA). The isomeric xylene solvents also exhibit different dipole moments (o-xylene (0.59 D), m-xylene (0.31 D), and p-xylene (0.08 D) from the DFT calculation with the same basis set) depending on the isomeric structure, so the slight differences in dipole moment on both isomeric NFAs and xylenes probably would affect subtle intermolecular interaction behaviors.27 As shown in Fig. S3,† the highest occupied molecular orbital (HOMO) wave functions were localized mainly on the central electron-donating core units. In contrast, the lowest unoccupied molecular orbitals (LUMOs) were well-delocalized along the molecular backbones, implying the n-type character of synthesized NFAs and representing efficient intramolecular charge transfer behavior.28 In addition, the calculated HOMO/LUMO energy levels are −5.51/−3.48, −5.50/−3.46, and −5.49/−3.47 eV for o-BzY, m-BzY, and p-BzY, respectively. As expected, the isomerism in the benzyl alkyl chains as the inner side-chain rarely affects the intrinsic electronic properties of the BzY-series NFAs in an isolated state from the calculation results.
 |
| Fig. 2 (a) Front view, (b) side view, and (c) top view of BzY-series NFAs in optimized molecular geometries (dashed arrows represent the local dipole direction of hexylbenzene). (d) Energy level diagrams of PM6 and BzY-series NFAs. (e) Cyclic voltammetry of BzY-series NFAs. | |
The experimental electrochemical properties were examined by cyclic voltammetry (CV) to evaluate the HOMO and LUMO levels of BzY-series NFAs (Fig. 2(d) and (e) and Table 1) using ferrocene/ferrocenium (Fc/Fc+) as the external standard. As shown in Fig. 2(d), o-BzY, m-BzY, and p-BzY have similar HOMO/LUMO levels of −5.80/−3.93, −5.79/−3.93, and −5.76/−3.92 eV, respectively.29,30 Additionally, we carried out ultraviolet photoelectron spectroscopy to compare the HOMO levels of NFAs with the CV and DFT results.31,32 As provided in Fig. S5,† BzY-series NFAs have similar HOMO energy levels of −5.63 for o-BzY, −5.58 for m-BzY, and −5.60 for p-BzY. It indicates that three isomeric benzyl side chains do not endow conspicuous effects on the energy levels of the BzY-series NFAs.17
Table 1 Optical and electrochemical properties of o-BzY, m-BzY, and p-BzY
NFAs |
Processing solvent |
λ
maxsol [nm]a |
λ
maxfilm [nm]a |
λ
onset [nm]b |
E
optg [eV]b |
E
CVHOMO [eV]c |
E
CVLUMO [eV]c |
Taken from the material solutions in xylenes and corresponding films on glass substrates.
Determined from the onset of the UV-vis absorption plots in the films.
Estimated from the oxidation and reduction onset by using the equations of EHOMO = −(Eonsetox − EonsetFc + 4.8) eV, ELUMO = −(Eonsetred − EonsetFc + 4.8) eV, and ECVg = EHOMO − ELUMO.
|
o-BzY
|
o-Xylene |
720 |
769 |
829 |
1.50 |
−5.80 |
−3.93 |
m-Xylene |
718 |
754 |
820 |
1.51 |
p-Xylene |
717 |
755 |
816 |
1.52 |
m-BzY
|
o-Xylene |
721 |
791 |
857 |
1.45 |
−5.79 |
−3.92 |
m-Xylene |
719 |
794 |
859 |
1.44 |
p-Xylene |
718 |
792 |
858 |
1.45 |
p-BzY
|
o-Xylene |
721 |
782 |
854 |
1.45 |
−5.77 |
−3.92 |
m-Xylene |
718 |
783 |
856 |
1.45 |
p-Xylene |
718 |
781 |
854 |
1.45 |
Intermolecular interaction behaviors of BzY-series NFAs depending on isomeric xylene solvents
The correlation between isomeric benzyl inner side chains and isomeric xylene solvents was assessed by analyzing the optical, morphological, and structural characteristics of the BzY-series NFA solutions and thin films using isomeric xylenes, respectively. Ultraviolet–visible (UV–vis) absorption spectroscopy was conducted (Fig. 3 and Table 1) to assess the optical properties of o-BzY, m-BzY, and p-BzY in each of the o-, m-, and p-xylenes and corresponding thin-film states. As shown in Fig. 3(a)–(c), in dilute o-, m-, and p-xylene solutions, the three BzY-series NFAs showed similar absorption spectra and strong absorption in the 500–800 nm range with maximum absorption peaks (λmaxs) at 718–721 nm in each solvent, indicating that both the isomeric benzyl side chains and the isomeric xylene solvents had no isomeric structural effect on the absorption ranges of the BzY-series NFAs in the solution states. It is attributed to the similar polarities of isomeric xylenes and the negligible effect of the isomeric benzyl side chains on the conjugation length/intramolecular charge transfer of the BzY-series NFAs in the solution states.8,17,33 In addition, the temperature-dependent absorption of BzY-series NFAs was measured to reveal the aggregation behaviors in the solution state. As shown in Fig. S6,† all BzY-series NFAs displayed temperature-dependent aggregation tendencies with weakened peak intensity over elevated temperatures. This indicates the preaggregation features of BzY-series NFAs in xylene solutions.34,35 In particular, p-BzY showed slightly higher temperature-dependent aggregation properties in p-xylene than the o- and m-xylene solutions, which is probably due to the relatively lower compatibility of p-BzY with p-xylene of the low dipole moment of 0.08 D (0.31 D for m-xylene and 0.59 D for o-xylene).36 Furthermore, in terms of the degree of the solvatochromic shift estimated by comparing the λmaxs of the synthesized BzY-series NFAs in the p-xylene and CF solutions, which were selected as nonpolar and polar solvents, respectively (Fig. S7 and Tables S3 and S4†), the different hexyl-attached positions in the benzyl side chain affect the polarity of the molecular excited state; p-BzY showed a slightly higher Δν of 229 cm−1 compared to m-BzY and o-BzY (Δν = 211 cm−1), which was attributed to the larger dipole moment of p-BzY and well matched with the DFT calculation results above.36
 |
| Fig. 3 (a)–(c) Normalized UV-vis absorption spectra in each xylene solution and (d)–(f) corresponding thin film of o-BzY, m-BzY, and p-BzY. | |
When changing from the solution to thin-film states (Fig. 3(d)–(f)), m-BzY consistently showed slightly larger red-shifted absorption profiles with λmax values of 791–794 nm compared to p-BzY (λmax of 781–783 nm) and o-BzY (λmax of 754–769 nm) in all the used xylene-processed films. This indicates that the position of substituted hexyl chains on the benzyl ring affects the intermolecular packing; particularly the m-substituted hexyl benzyl side chain induces larger intermolecular π–π interaction among the BzY-series NFAs.32 Intriguingly, o-BzY displayed more pronounced shoulder peaks at around 690 nm, probably due to the different aggregation tendency with higher intermolecular ordering than the other two isomeric NFAs.37 Furthermore, the absorption spectrum of o-BzY exhibited a more red-shifted phenomenon in an o-xylene-processed film than in m-xylene- or p-xylene-processed films (λmax of 769 nm in o-xylene-, 754 nm in m-xylene-, and 755 nm in p-xylene-coated films, respectively), inferring different intermolecular π–π interactions depending on the isomeric xylenes during film formation. The absorption spectrum of p-BzY displayed a slightly higher 0–1 shoulder peak than m-BzY, suggesting different aggregation behaviors between m-BzY and p-BzY. In addition, as shown in Fig. S8,† the absorption coefficients of thin films of the BzY-series NFAs prepared from three types of isomeric xylene were measured. In particular, o-BzY films demonstrated slightly lower values than m-BzY and p-BzY despite the higher aggregation properties. It probably originated from different packing behaviors induced by inner side-chain orientation. Among them, o-xylene-processed film showed a higher value of approximately 1.25 × 105 cm−1 than the m-xylene and p-xylene-processed ones because of the enhanced intermolecular π–π interactions. Hence, the hexyl-substituted position on the inner benzyl alkyl and the processing solvents influence the molecular packing in the thin-film state.
The isomeric effects of the BzY-series NFAs and xylene solvents on nanoscale morphologies were confirmed by measuring the corresponding films using atomic force microscopy (AFM) and grazing-incident wide-angle X-ray scattering (GIWAXS). Compared to other films, all the o-BzY films showed rougher surface morphologies with high root-mean-square (RMS) values of 8.26–21.7 nm, arising from the stronger aggregation and intermolecular ordering during the film forming process (Fig. 4(a)). In particular, the m-xylene-processed o-BzY film showed a significantly higher RMS value of 21.7 nm than the corresponding o-xylene- and p-xylene-processed ones owing to compact aggregation during the film-formation process. In m-xylene- and p-xylene-processed m-BzY films, slightly rougher surface morphologies with higher RMS roughness values of 3.92–4.35 nm were observed compared to the corresponding o-xylene-processed film. This indicates that more compact aggregation of m-BzY occurred in m-xylene- and p-xylene-processed films during the film-formation process because of the better solubility originating from relatively lower intermolecular interaction than in o-xylene. In contrast, all the p-BzY exhibited a very smooth surface with RMS values of 0.404–0.421 nm and no significant differences in the RMS value among the three kinds of xylene-processed films. The isomeric BzY-series NFAs displayed significantly different diffraction peaks in the results of GIWAXS measurement, as illustrated in Fig. 4(b), S9 and summarized in Table S5†. First, o-BzY films exhibited a polycrystalline feature with many crystallites distributed along large azimuthal angles independently of the processing solvent because of the highly ordered crystallites, strong molecular aggregation, random crystal orientation, and the presence of multiple polymorphs.38 The m-BzY and p-BzY neat films commonly exhibited preferential face-on orientation, similar to other reported Y6-derivatives.11,18 Generally, all the m-BzY showed denser intermolecular packing with small d-spacing values of 3.634–3.675 Å in the out-of-plane (OOP) direction than p-BzY (3.668–3.714 Å), due to the stronger intermolecular π–π stacking. In particular, in the p-xylene-processed film, the m-BzY film had another lamellar stacking peak along the in-plane (IP) direction at qxy = 0.197 Å−1, indicating different molecular packing structures depending on the processing solvents (see Fig. 4(b)). The most characteristic point in the p-BzY neat films was the strong π–π stacking peaks in the OOP direction containing distinct tilted signals in the small azimuthal angle range originating from the tilted intermolecular packing structure toward the substrates (see Fig. 4(b)). In the p-xylene-processed p-BzY film, an additional strong lamellar stacking peak was observed along the OOP direction at qz = 0.422 Å−1, indicating the coexistence of an edge-on orientation (Fig. 4(b)).39 The slightly different molecular packing orientations of p-xylene-processed m-BzY and p-BzY films compared to other films processed with o-xylene and m-xylene probably originated from partial interactions of BzY-series NFAs in xylene solution (vide infra) and different physical properties of xylenes which can determine the kinetics in the film forming process (Table S6†). The calculated crystalline coherence length (CCL) estimated using the Scherrer equation showed that m-BzY has a higher crystalline feature along the OOP direction than p-BzY, which benefits vertical charge transport. Moreover, the m-xylene- and p-xylene-processed m-BzY films had relatively higher CCL values in both the IP and OOP directions than the o-xylene-processed ones, reconfirming the enhanced aggregation properties grown during the film-formation process of the m-BzY films fabricated with m-xylene and p-xylene solvents (Table S5†).
 |

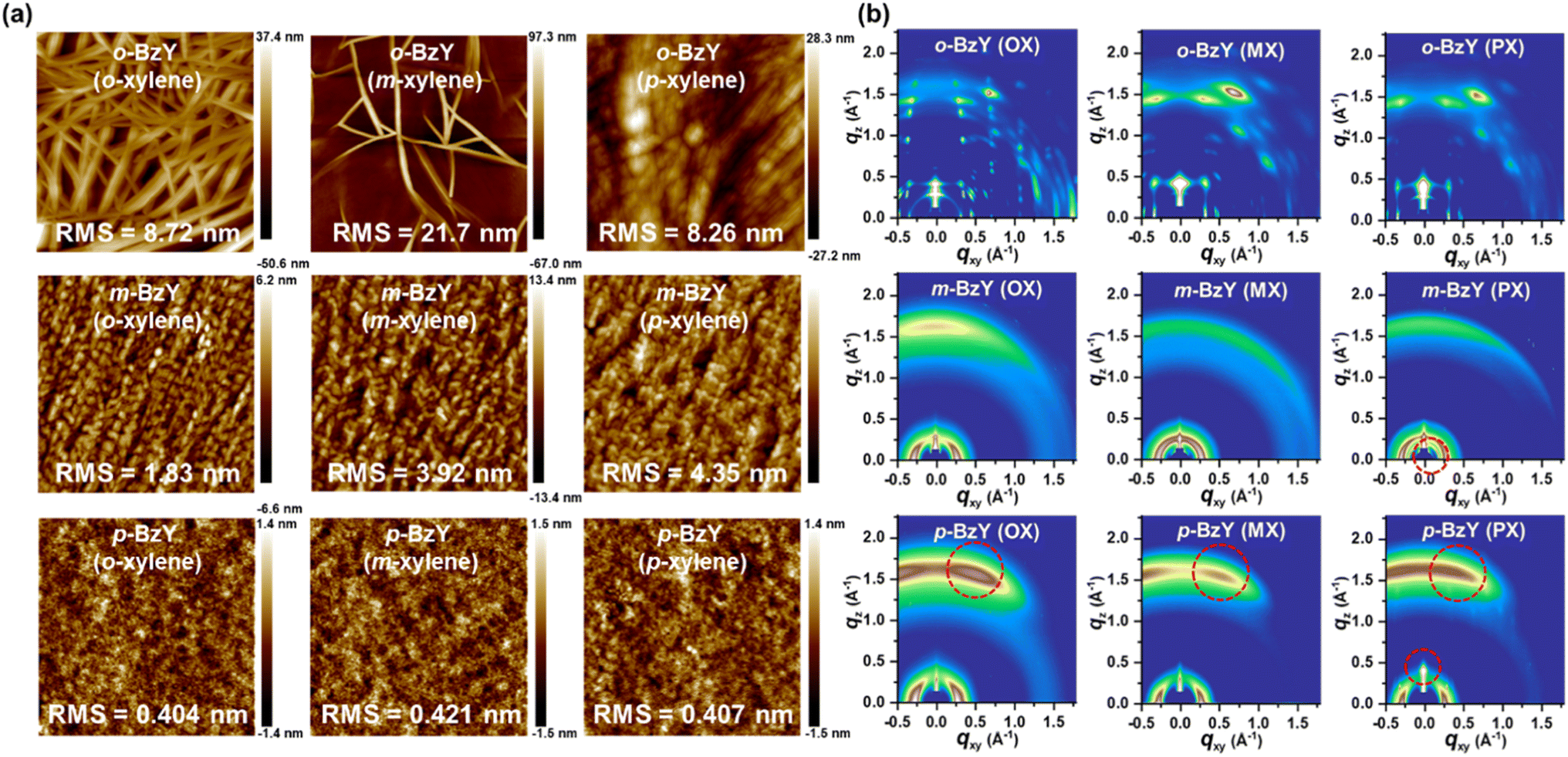

| Fig. 4 (a) AFM images and (b) 2D GIWAXS images of BzY-series NFA neat films prepared with three types of xylenes: o-xylene (OX), m-xylene (MX), and p-xylene (PX). | |
NMR spectroscopy for investigating the interrelationship between the BzY-series molecules and xylene solvents
1D- and 2D-diffusion-ordered spectroscopy (DOSY)-mode NMR with deuterated CF and xylene solvents (i.e., CDCl3, o-xylene-d10, m-xylene-d10, and p-xylene-d10) were performed to further explore the origins of the interrelationship between isomeric BzY-series NFAs and isomeric xylene solvents (Fig. 5 and S10†). Four well-distinguishable peaks were observed in the NMR spectrum of molecules that represent the vinyl linkage (H1), end-capping group (H2), inner side-chain (H3), and outer side-chain (H4). These peaks were assessed to observe the change in the chemical environment of the molecules depending on the solvents and temperatures. As shown in Fig. 5(a), o-BzY showed distinct differences in chemical shifts between room temperature and elevated temperatures in all deuterated solvents used compared to m-BzY and p-BzY. In the CDCl3 solutions, the change in the chemical shifts of H1 (0.07 ppm) in o-BzY between room temperature and 50 °C was smaller than that in m-BzY (0.10 ppm) and p-BzY (0.10 ppm), whereas there were similar differences in the change in other assigned peaks (H2, H3, and H4) when the samples were heated to 50 °C. This indicates that o-BzY maintained a higher degree of aggregation than m-BzY and p-BzY even at 50 °C. Interestingly, in deuterated xylenes systems, o-BzY had a more dramatic contrast. As summarized in Table S7†, o-BzY exhibited smaller changes in chemical shifts of approximately 0.02–0.04 ppm in H1 (concerned with the vinyl linkage) than m-BzY (0.06–0.09 ppm) and p-BzY (0.07–0.10 ppm) with increasing temperature. Importantly, it had contrastively dramatic chemical shift differences of 0.09–0.12 ppm in H3 (related to the inner side-chain) of o-BzY compared to m-BzY (0.04–0.05 ppm) and m-BzY (0.04–0.06 ppm) under the increased measured temperature. This suggests that intermolecular interaction and aggregation of o-BzY were affected mainly by the inner side-chain, and the different geometric locations of the benzyl pendant of o-BzY induced characteristic partial intermolecular behaviors, unlike m-BzY and p-BzY. Furthermore, the broadness of each peak, full-width at half maximum (FWHM), was compared to investigate the effect of xylene solvents on the partial intermolecular interaction (see Fig. 5(b)). All the BzY-series NFAs showed similar peak broadness in H2 and H4, suggesting that the kinds of solvents cannot significantly affect the intermolecular interactions associated with the end-capping units and outer side chains. In the case of o-BzY, however, the peak of H1 in the p-xylene-d10 solution (FWHM of 4.24 Hz) was more than 1.35 times broader than those in o-xylene-d10 (FWHM = 2.93 Hz) and m-xylene-d10 (FWHM = 3.14 Hz) solutions, and the peak of H3 in o-xylene-d10 solution showed a more than 1.35 times higher broadness than those in the other isomeric xylene-d10 solutions. Hence, each partial interaction of vinyl linkages and inner side chains dominantly works for the intermolecular interaction of o-BzY in p-xylene and o-xylene, respectively.40 Furthermore, m-BzY in the o-xylene-d10 solution and p-BzY in the p-xylene-d10 solution exhibited much broader H1 and H3 peaks than those in the other deuterated xylene solvents, respectively, indicating the slightly stronger partial intermolecular interaction of vinyl linkages and inner side chains in each solvent.
 |
| Fig. 5 (a) Chemical shift of H1–H4 of BzY-series acceptors at elevated temperatures in CDCl3, o-xylene-d10, m-xylene-d10, and p-xylene-d10. (b) FWHM values of H1–H4 of o-BzY and p-BzY at room temperature and m-BzY at 50 °C. | |
DOSY NMR experiments were also carried out to investigate the intermolecular interactions. The diffusion coefficient (D) is related to intermolecular interactions and aggregations.41 As depicted in Fig. S10† and summarized in Table S8†, o-BzY in m-xylene-d10 had higher D values in H1–H4 than o-xylene-d10 and p-xylene-d10 solutions, indicating suppressed partial intermolecular interactions.42,43 At the same time, o-BzY in o-xylene-d10 had lower D values in H1–H4 than m-xylene-d10 and p-xylene-d10 solutions, demonstrating higher intermolecular interactions in o-xylene solution. It can be considered one of the reasons for the difference in the UV-vis absorption spectra of o-BzY films depending on the kind of processing isomeric xylene solvent (vide supra). Also, p-BzY exhibited slightly lower D values in H1–H4 compared to o-BzY in each deuterated xylene solvent. It can be inferred that higher partial intermolecular interaction of p-BzY with lower D values is one of the origins of the largely red-shifted absorption band of p-BzY films compared to o-BzY films. Especially, p-BzY exhibited even lower D values in the p-xylene-d10-solutions, implying higher intermolecular interaction in the p-xylene system, which is consistent with the analysis of the aforementioned 1D-NMR peak broadness. Consequentially, an analysis of 1/2D-NMR spectroscopy strongly shows that the isomeric inner benzyl side chains affect different intermolecular behaviors in the solution state. Moreover, the kinds of isomeric xylene solvents can also induce different partial intermolecular interactions.
Photovoltaic performance and energy loss analysis
OSCs based on three isomeric BzY-series NFAs and xylenes were fabricated with a conventional device structure of indium-tin-oxide (ITO)/poly(3,4-ethylenedioxythiophene):poly(styrenesulfonate) (PEDOT:PSS)/PM6:NFAs/PDINO/Al to investigate the effects of the relationship mentioned above between NFAs and processing solvents on the device performance. The representative polymer PM6 was selected as a donor because the energy level is well matched with those of the NFAs, and the complementary absorption is maintained correctly.44 The optimal blend ratios of PM6
:
o-BzY (D/A 1
:
1.5), PM6
:
m-BzY (D/A 1
:
1.3), and PM6
:
p-BzY (D/A 1
:
1.2 wt.) were found by varying the ratio of the active layer materials (Table S9†). The donor/acceptor blends were dissolved in the three isomeric xylene solvents. The devices with an as-cast active layer showed optimal performance without any additive and thermal annealing, which provides the usefulness of the BzY-series NFAs toward realizing cost-effective and simply processable OSCs.45,46Fig. 6(a)–(c) show the representative current density–voltage (J–V) curves of the devices measured under simulated AM1.5G one-sun illumination (100 mW cm−2), and Table 2 lists the detailed photovoltaic parameters. Among them, the as-cast device of PM6
:
m-BzY processed with m-xylene yielded a high PCE of 16.1% with an open-circuit voltage (VOC) of 0.888 V, short-circuit current density (JSC) of 24.4 mA cm−2, and fill factor (FF) of 74.5%. Under the conditions of o-xylene and p-xylene, however, the PCEs decreased to 15.2% (VOC of 0.881 V, JSC of 23.2 mA cm−2, and FF of 74.3%) and 13.6% (VOC of 0.886 V, JSC of 21.3 mA cm−2, and FF of 72.2%), respectively. The PM6
:
p-BzY device fabricated with p-xylene showed a higher PCE of 15.4% with a VOC of 0.891 V, JSC of 24.2 mA cm−2, and FF of 71.3% compared to the slightly inferior PCEs of 13.6% (VOC of 0.888 V, JSC of 22.6 mA cm−2, and FF of 67.9%) and 14.4% (VOC of 0.878 V, JSC of 23.9 mA cm−2, and FF of 68.5%) for the o-xylene and m-xylene-processed devices, respectively. In addition, the PM6
:
o-BzY-based OSC prepared with o-xylene showed a moderate PCE of 14.2% (VOC of 0.924 V, JSC of 22.7 mA cm−2, and FF of 67.9%), which is higher than the efficiencies achieved in the m-xylene and p-xylene-processed devices (PCEs of 10.2% with a VOC of 0.935 V, JSC of 20.0 mA cm−2 and FF of 54.6% for m-xylene- and 11.6% with a VOC of 0.931 V, JSC of 18.7 mA cm−2 and FF of 66.9% for p-xylene-processed OSCs, respectively). The key factors of significant deterioration in the PCEs of the m-xylene and p-xylene-processed o-BzY-based devices were the lower JSC and FF values, which probably originated from the unsuitable morphologies for efficient charge transport and enhanced charge recombination (vide infra). The relatively high VOC values observed in all the o-BzY-based devices were attributed to the larger optical bandgap of those films [vide infra for the external quantum efficiency (EQE) spectra and vide supra for the absorption spectra].47,48 Consequently, PM6
:
m-BzY processed with m-xylene, PM6
:
p-BzY with p-xylene, and PM6
:
o-BzY with o-xylene showed the best performance with higher JSC and FF values. In particular, PM6
:
m-BzY in m-xylene showed the best performance among all systems, with a maximum PCE of 16.1% with enhanced photovoltaic parameters. To the best of our knowledge, this PCE value is almost equal to the highest PCE of OSCs with non-additive, non-annealing process, and non-chlorinated solvent in the literature, as summarized in Fig. 6(d) and Table S10†.
 |

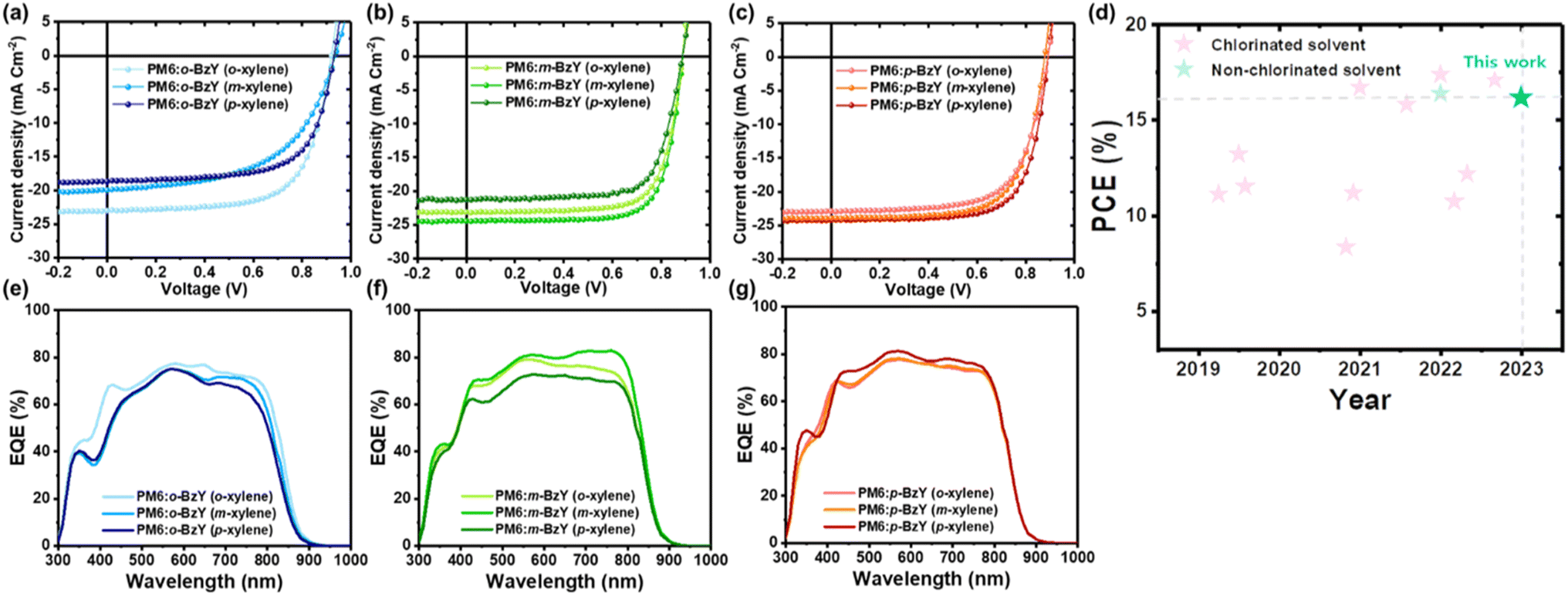

| Fig. 6
J–V characteristics of (a) PM6 : o-BzY, (b) PM6 : m-BzY, and (c) PM6 : p-BzY. (d) Comparison of PCE values in the literature and this work for OSCs with a non-additive and non-annealing process (red stars for chlorinated solvent and green stars for non-chlorinated solvent). EQE spectra of (e) PM6 : o-BzY, (f) PM6 : m-BzY, and (g) PM6 : p-BzY of each optimized device. | |
Table 2 Summary of the photovoltaic parameters of the optimized devices under the illumination of AM1.5G (100 mW cm−2)
Active layer |
Processing solvent |
V
OC [V]a |
J
SC [mA cm−2]a |
Integrated JSC [mA cm−2]b |
FF [%]a |
PCE [%]a |
The average values and standard deviations in the parentheses are based on 15 devices.
The integrated JSC is calculated from EQE spectra.
|
PM6 : o-BzY (1 : 1.5) |
o-Xylene |
0.924 (0.920 ± 0.004) |
22.7 (22.9 ± 0.48) |
21.3 |
67.9 (66.5 ± 0.85) |
14.2 (14.0 ± 0.23) |
m-Xylene |
0.935 (0.932 ± 0.003) |
20.0 (19.8 ± 0.71) |
19.7 |
54.6 (56.1 ± 1.13) |
10.2 (10.3 ± 0.23) |
p-Xylene |
0.931 (0.933 ± 0.004) |
18.7 (17.9 ± 0.68) |
18.6 |
66.9 (64.4 ± 2.08) |
11.6 (10.8 ± 0.66) |
PM6:m-BzY (1 : 1.3) |
o-Xylene |
0.881 (0.889 ± 0.002) |
23.2 (22.9 ± 0.21) |
21.7 |
74.3 (73.6 ± 0.51) |
15.2 (15.2 ± 0.1) |
m-Xylene |
0.888 (0.884 ± 0.004) |
24.4 (24.1 ± 0.37) |
23.1 |
74.5 (74.2 ± 0.33) |
16.1 (15.8 ± 0.20) |
p-Xylene |
0.886 (0.881 ± 0.014) |
21.3 (21.1 ± 0.93) |
20.2 |
72.2 (73.0 ± 1.77) |
13.6 (13.6 ± 0.21) |
PM6 : p-BzY (1 : 1.2) |
o-Xylene |
0.888 (0.887 ± 0.002) |
22.6 (22.9 ± 0.43) |
21.4 |
67.9 (67.2 ± 0.82) |
13.6 (13.7 ± 0.24) |
m-Xylene |
0.878 (0.881 ± 0.003) |
23.9 (23.7 ± 0.25) |
22.3 |
68.5 (67.6 ± 0.79) |
14.4 (14.1 ± 0.15) |
p-Xylene |
0.891 (0.889 ± 0.003) |
24.2 (24.0 ± 0.33) |
22.7 |
71.3 (70.2 ± 1.49) |
15.4 (15.0 ± 0.40) |
Fig. 6(e)–(g) show the EQE. All the devices based on m-BzY and p-BzY showed higher EQEs than that of o-BzY in the entire range of 300–1000 nm. In particular, PM6
:
m-BzY processed with m-xylene exhibited a slightly stronger response at the longer wavelength of the acceptor absorption (700–800 nm), resulting in the highest integrated JSC of 23.1 mA cm−2, which is consistent with the aforementioned absorption coefficient values of the BzY-series NFAs of the neat films and measured JSC from the J–V curves within 5% mismatch. Table 2 lists the integrated JSC values of the other devices. In addition, the devices based on o-xylene-processed o-BzY exhibited a higher EQE response than the m-xylene- and p-xylene-processed ones, which was attributed to the higher absorption coefficient value (vide supra for the absorption coefficient data).
The energy losses (Eloss) in the optimized devices were investigated (Fig. S11† and Table S11†). The total Eloss can be expressed as follows: Eloss = ΔErad + (Eoptg − ECT) + ΔEnonrad = ΔE1 + ΔE2 + ΔE3, where ΔE1 is ΔErad, which originated from radiative recombination above the bandgap due to the Shockley–Queisser limit. ΔE2 is additional radiative recombination originating from the absorption below the bandgap related to the charge dynamics, which can be calculated by using Eoptg − ECT, where Eoptg is the optical bandgap of the blend films from the derivatives of the EQE spectra, and ECT represents the charge transfer state energy. ΔE3 is ΔEnonrad, which is related to nonradiative recombination, and can be calculated from ΔEnonrad = −kT
ln(EQEEL), where k is the Boltzmann constant, T is the temperature in K, and EQEEL is the EQE of electroluminescence (EL) when charge carriers are injected under dark conditions.49 Overall, the devices showed similar total energy losses. All the tested devices exhibited similar ΔE1 values. The ΔE2 varied depending on the applied NFAs: o-BzY displayed higher values (>0.06 eV) than m-BzY- and p-BzY-applied devices (≈0.05 eV) because of the difference in Eoptg derived from the EQE spectra. However, the energy losses of o-BzY-based devices were fully compensated for by the small ΔE3 with less nonradiative recombination. Therefore, the higher VOC values of the o-BzY-based devices originated from the larger optical bandgap of o-BzY than m-BzY and p-BzY, which can be reconfirmed by the crossing point between electroluminescence and EQEPV spectra (Fig. S12†).48
Charge-carrier transport and recombination dynamics
The JSC and VOC were measured as a function of the light intensity (Plight) to delineate the main recombination mechanism of the BzY-series-based devices, as shown in Fig. 7(a)–(c). Generally, the JSC dependence on Plight can be described as JSC ∝ Plightα, where the power-law exponent α is a factor related to bimolecular recombination.50 In the PM6
:
m-BzY device, a fitted α of 0.972 was obtained when it was processed with m-xylene, which is the nearest value to unity among the tested devices based on the synthesized NFAs. In addition, both PM6
:
p-BzY devices fabricated with p-xylene and PM6
:
o-BzY with o-xylene acquired α values closer to unity (0.965 and 0.961, respectively) than those in other xylene-used systems. Hence, the OSCs of PM6
:
NFAs fabricated with identically oriented xylenes showed weaker bimolecular recombination, accounting for the high FF. In particular, PM6
:
m-BzY showed the closest α to 1, which means the least bimolecular recombination leading to a higher FF of 74.5% and the best PCE of 16.1%.
 |
| Fig. 7 Light intensity dependence of (a)–(c) JSC and (d)–(f) VOC, and (g)–(i) Jphversus Veff for the optimized BzY series-based devices. | |
In addition, the relationship between VOC and Plight can be described as VOC ∝ nkBT/q
ln(Plight), where kB,T, and q are defined as the Boltzmann constant, Kelvin temperature, and elementary charge, respectively.51 The presence of trap-assisted Shockley–Read–Hall (SRH) recombination can be related to the ideal factor (n) close to 2. The n value should be close to 1 kBT/q if bimolecular recombination is the dominant mechanism in the device, whereas the slope should be close to 0.5 kBT/q if surface recombination is the dominant mechanism.52 The slopes of the PM6
:
m-BzY-based devices were calculated to be 1.06 (o-xylene), 1.01 (m-xylene), and 1.20 kBT/q (p-xylene). Slopes of 1.09 (o-xylene), 1.06 (m-xylene), and 1.01 kBT/q (p-xylene) were obtained in the cases of p-BzY (Fig. 7(d)–(f)). Hence, bimolecular recombination is dominant in all the m-BzY and p-BzY-used cells rather than monomolecular recombination, particularly in the PM6
:
m-BzY-based devices prepared from m-xylene and the PM6
:
p-BzY-based devices prepared from p-xylene. Unlike the PM6
:
o-BzY-based devices fabricated with o-xylene exhibiting the slopes of 1.00 kBT/q, the m-xylene and p-xylene-processed devices show much lower slopes of 0.899 and 0.896 kBT/q, respectively, suggesting a suppressed bimolecular recombination and increased influence of surface recombination on those devices, which is consistent with the higher roughness of those films observed by AFM (vide infra).53,54
Fig. 7(g)–(i) show the plots of the photocurrent density (Jph) of the PM6
:
NFA-based OSCs as a function of the effective voltage (Veff). Here Veff = V0 − Vbias and Jph = Jlight − Jdark, where V0 is the voltage when Jph is equal to zero; Vbias is the applied voltage; Jlight and Jdark are the current density under illumination at 100 mW cm−2 and under dark conditions, respectively. The exciton dissociation probability (Pdiss) and charge collection probability (Pcoll) can be calculated by using Pdiss = Jph/Jsat and Pcoll = Jph/Jsat, where Jph is the short-circuit current condition and maximum power output, respectively.17,55 As listed in Table S12†, the PM6
:
p-BzY-based devices exhibited reasonable Pdiss and Pcoll values regardless of processing solvents. However, the PM6
:
m-BzY and PM6
:
o-BzY based OSCs showed higher values of 99.3%/89.6% in the m-xylene-processed devices and 98.0%/86.0% in the o-xylene-processed devices, respectively, compared to those in the other solvents. These results indicate better exciton dissociation and charge collection of those devices, which is well matched with the aforementioned charge recombination studies. In addition, the photoluminescence (PL) spectra of neat PM6 and BzY-series NFAs and corresponding blend films were recorded to evaluate the charge transfer properties.56 As shown in Fig. S13,† the PL spectrum of m-BzY and p-BzY-used blend films was more effectively quenched compared to o-BzY in the range of 800–1000 nm, indicating efficient charge transfer.
Blend film morphology and microstructure analysis
AFM was performed to investigate the nanoscale morphology of the optimized blend films. The PM6
:
o-BzY blend film prepared with o-xylene showed smooth and uniform surface morphologies with a RMS roughness of 1.12 nm (Fig. 8(a)). In contrast, m-xylene- and p-xylene-processed films displayed extremely high RMS values of 15.5 and 13.3 nm, respectively, which can be attributed to the lower solubility and higher crystalline nature of o-BzY that negatively affects charge separation and contribute to the lower EQE and JSC of those devices.23 The PM6
:
m-BzY blend films showed relatively smooth surfaces: RMS roughnesses of 1.15 nm and 1.49 nm for the o-xylene- and m-xylene-processed devices, respectively. On the other hand, a relatively rougher surface with an RMS roughness of 3.04 nm was detected in the p-xylene-processed film, indicating a lower JSC value of the corresponding devices. In the case of PM6
:
p-BzY blend films, the uniform and smooth surface with RMS roughnesses of 0.963–1.13 nm in all kinds of xylene-processed ones probably influenced the ameliorated deviation of JSC values of all the PM6
:
p-BzY-based devices.
 |
| Fig. 8 (a) AFM height and (b) 2D GIWAXS images for optimized blend films. | |
GIWAXS measurements were conducted to further understand the blend film molecular orientations. The blend films were prepared using each NFA (o-BzY, m-BzY, and p-BzY) and PM6 donor polymer under the optimized device conditions (Fig. 8(b), S14, S15, S16, Tables S13 and S14†). For neat PM6, as shown in Fig. S14,† predominant edge-on orientation was observed in xylenes-processed films. Among the blend films, the PM6
:
m-BzY films adopted a dominant face-on orientation; π–π stacking peaks in the OOP direction and lamellar stacking peaks in the IP direction were observed. In particular, the m-xylene-processed film reported a shorter vertical π–π staking distance of dπ–π = 3.675 Å, indicating a tighter molecular packing structure. The PM6
:
p-BzY films also exhibited a preferred face-on orientation. Interestingly, the PM6
:
o-BzY films exhibited markedly different diffraction patterns depending on the processing solvents; only the o-xylene-processed film adopted a bimodal intermolecular packing structure with the coexistence of face-on and edge-on orientations. By contrast, m-xylene- and p-xylene-processed films showed randomly oriented diffraction signals for the crystallites in a large azimuthal angle range, which were attributed to the strong aggregation of o-BzY and are consistent with the AFM results. Such distinguishable packing orientation in PM6
:
o-BzY blend films according to processing xylene solvents is probably due to their characteristic molecular behaviors in the film-forming process induced by the partial interaction of benzyl pendants in the solution of different kinds of isomeric xylenes. Furthermore, the miscibility between donor polymers and NFAs is considered a key factor of blend morphologies. Thus, we calculated the Flory–Huggins interaction parameter (χ) using contact angle measurement to understand the different crystalline orientation behaviors of blend films depending on the kind of xylene solvent (Fig. S17 and Table S15†). As a result, the o-BzY films exhibited higher χ values of 0.52 and 0.51 with PM6 when they were processed with m-xylene- and p-xylene, respectively, compared to the o-xylene-processed one of 0.15. It implies that low miscibility between o-BzY and PM6 under m-xylene- and p-xylene conditions induced the characteristic diffraction signals of the PM6
:
o-BzY blend, which seem to represent the predominant packing behaviors of o-BzY itself.57 In summary, when BzY-series NFAs are blended with a PM6 donor, m-BzY and p-BzY construct well-ordered dominant face-on orientations favorable for efficient charge transport. Moreover, o-BzY showed more suitable packing behaviors in only o-xylene-processed blend films for charge transport.
Remarkably, the CCL values demonstrate that the PM6
:
m-BzY blend film prepared with m-xylene and the PM6
:
p-BzY blend film prepared with p-xylene have a slightly higher crystallinity, exhibiting CCLπ–π = 31.354 Å and CCLπ–π = 30.814 Å in the OOP direction, respectively. At the same time, all other xylene-processed each kind of blend films exhibit almost similar values of CCLπ–π. The position of the substituted hexyl chains on the benzyl pendants in the NFAs and the film-processing isomeric xylene solvents simultaneously affects the molecular orientation and crystalline features. Consequently, three isomeric NFAs adopt favorable morphological characteristics for efficient charge transport in blend films when processed with identically oriented xylenes, e.g., PM6
:
o-BzY of o-xylene-, PM6
:
m-BzY of m-xylene-, and PM6
:
p-BzY of p-xylene-processed films. Among them, the PM6
:
m-BzY film processed with m-xylene has a dominant face-on orientation, and the strongest vertical π–π stacking, leading to the highest JSC and FF achieved in all the devices tested.
Conclusions
A benzene ring was introduced into the branched position of the inner side chain in Y-series NFAs to give distinctive features. Three new isomeric Y-series NFAs, o-BzY, m-BzY, and p-BzY (so-called BzY-series), were designed and synthesized by inserting the isomeric benzyl side chains distinguished by the hexyl-attached position to explore the effects of isomeric benzyl side chains and the isomerism in the inner benzyl side-chain on the intermolecular behaviors. OSCs based on three isomeric BzY-series NFAs were developed with three isomeric xylenes (o-xylene, m-xylene, and p-xylene) as non-chlorinated processing solvents. Through methodical studies, including theoretical calculations, optical investigations, and morphological/structural analyses, isomerism in the benzyl side chain on the BzY-series NFAs significantly affects the optical characteristics, aggregation morphologies, and crystalline properties of the corresponding films. Furthermore, the interrelationship in the pairs of isomeric NFAs and xylenes was investigated carefully via 1/2D-NMR spectroscopy. All the analyzed results strongly indicate that the isomeric inner benzyl side chains bring about different intermolecular behaviors. The kinds of isomeric xylene solvents can also induce different partial intermolecular interactions. The m-BzY-based films showed enhanced intermolecular packing and higher and properly well-ordered crystalline behaviors, which are suitable for efficient charge transport, particularly in the films processed with m-xylene. All the OSCs using synthesized BzY-series NFAs and non-chlorinated processing solvent, o-xylene, m-xylene, and p-xylenes with the PM6 donor exhibited their optimal photovoltaic performance without any help of additives and a thermal annealing process. Moreover, identically oriented pairs of BzY-series NFA and xylene (i.e., o-BzY with o-xylene, m-BzY with m-xylene, and p-BzY with p-xylene)-based OSCs demonstrated higher PCE with appropriate morphologies and improved JSC and FF values, compared to the devices prepared with different kinds of xylenes. These findings suggest a new approach to designing NFAs that can be utilized in additive/thermal annealing-free devices using non-chlorinated solvents for the commercialization of NFA-based OSCs and provides meaningful clues for the interrelationship between the pairs of isomeric NFAs and processing solvents.
Author contributions
S. J., J. P., and Y. J. conceived the idea and analysed the data. Y. C., B. L., M. J., S. J., and S. Y. conducted the measurements and prepared relevant figures. Y. Z. and S.-J. Y. reviewed the data. C. Y. and S. J. wrote the manuscript. C. Y. conceived and supervised the project and provided intellectual and technical guidance. All authors reviewed the manuscript.
Conflicts of interest
There are no conflicts to declare.
Acknowledgements
This work was supported by the National Research Foundation of Korea (NRF) grant funded by the Korea government (MSIP) (2021R1A2C3004202), Wearable platform Materials Technology Center (2022R1A5A6000846) funded by the Korean Government (MSIT), Technology Development Program to Solve Climate Changes of the National Research Foundation (NRF) funded by the Ministry of Science, ICT & Future Planning (2020M1A2A2080746), Korea Institute of Energy Technology Evaluation and Planning (KETEP) grant funded by Korea government (MOTIE) (20213091010010, Super Solar cells-Development of double junction solar cells, breakthrough for the theoretical limit of silicon solar cell efficiency (>35%)), and Foreign expert project of Jilin Province (L202233).
Notes and references
- Y. Chen, X. Wan and G. Long, Acc. Chem. Res., 2013, 46, 2645–2655 CrossRef CAS PubMed.
- B. Lee, S. Jeong, Y. Cho, M. Jeong, S. M. Lee, J. Oh and C. Yang, Adv. Funct. Mater., 2020, 30, 2005037 CrossRef CAS.
- Y. Liu, B. Liu, C.-Q. Ma, F. Huang, G. Feng, H. Chen, J. Hou, L. Yan, Q. Wei, Q. Luo, Q. Bao, W. Ma, W. Liu, W. Li, X. Wan, X. Hu, Y. Han, Y. Li, Y. Zhou, Y. Zou, Y. Chen, Y. Li, Y. Chen, Z. Tang, Z. Hu, Z.-G. Zhang and Z. Bo, Sci. China: Chem., 2022, 65, 224–268 CrossRef CAS.
- Y. Liu, B. Liu, C.-Q. Ma, F. Huang, G. Feng, H. Chen, J. Hou, L. Yan, Q. Wei, Q. Luo, Q. Bao, W. Ma, W. Liu, W. Li, X. Wan, X. Hu, Y. Han, Y. Li, Y. Zhou, Y. Zou, Y. Chen, Y. Liu, L. Meng, Y. Li, Y. Chen, Z. Tang, Z. Hu, Z.-G. Zhang and Z. Bo, Sci. China: Chem., 2022, 65, 1457–1497 CrossRef CAS.
- L. Lu, T. Zheng, Q. Wu, A. M. Schneider, D. Zhao and L. Yu, Chem. Rev., 2015, 115, 12666–12731 CrossRef CAS PubMed.
- J. Oh, S. Jung, S.-H. Kang, G. Park, M. Jeong, S. Kim, S. Lee, W. Kim, B. Lee, S. M. Lee and C. Yang, J. Mater. Chem. A, 2022, 10, 20606–20615 RSC.
- J. Hou, O. Inganäs, R. H. Friend and F. Gao, Nat. Mater., 2018, 17, 119–128 CrossRef CAS PubMed.
- C. Li, J. Zhou, J. Song, J. Xu, H. Zhang, X. Zhang, J. Guo, L. Zhu, D. Wei, G. Han, J. Min, Y. Zhang, Z. Xie, Y. Yi, H. Yan, F. Gao, F. Liu and Y. Sun, Nat. Energy, 2021, 6, 605–613 CrossRef CAS.
- M. List, T. Sarkar, P. Perkhun, J. Ackermann, C. Luo and U. Würfel, Nat. Commun., 2018, 9, 3631 CrossRef PubMed.
- D. Luo, W. Jang, D. D. Babu, M. S. Kim, D. H. Wang and A. K. K. Kyaw, J. Mater. Chem. A, 2022, 10, 3255–3295 RSC.
- J. Yuan, Y. Zhang, L. Zhou, G. Zhang, H.-L. Yip, T.-K. Lau, X. Lu, C. Zhu, H. Peng, P. A. Johnson, M. Leclerc, Y. Cao, J. Ulanski, Y. Li and Y. Zou, Joule, 2019, 3, 1140–1151 CrossRef CAS.
- Y. Wei, Z. Chen, G. Lu, N. Yu, C. Li, J. Gao, X. Gu, X. Hao, G. Lu, Z. Tang, J. Zhang, Z. Wei, X. Zhang and H. Huang, Adv. Mater., 2022, 34, 2204718 CrossRef CAS PubMed.
- L. Zhu, M. Zhang, J. Xu, C. Li, J. Yan, G. Zhou, W. Zhong, T. Hao, J. Song, X. Xue, Z. Zhou, R. Zeng, H. Zhu, C.-C. Chen, R. C. I. MacKenzie, Y. Zou, J. Nelson, Y. Zhang, Y. Sun and F. Liu, Nat. Mater., 2022, 21, 656–663 CrossRef CAS PubMed.
- C. Kim, S. Chen, J. S. Park, G.-U. Kim, H. Kang, S. Lee, T. N.-L. Phan, S.-K. Kwon, Y.-H. Kim and B. J. Kim, J. Mater. Chem. A, 2021, 9, 24622–24630 RSC.
- S. Lee, G. Park, M. Jeong, B. Lee, S. Jeong, J. Park, Y. Cho, S. M. Noh and C. Yang, ACS Appl. Mater. Interfaces, 2022, 14, 33614–33625 CrossRef CAS PubMed.
- G. Li, X. Zhang, L. O. Jones, J. M. Alzola, S. Mukherjee, L.-W. Feng, W. Zhu, C. L. Stern, W. Huang, J. Yu, V. K. Sangwan, D. M. DeLongchamp, K. L. Kohlstedt, M. R. Wasielewski, M. C. Hersam, G. C. Schatz, A. Facchetti and T. J. Marks, J. Am. Chem. Soc., 2021, 143, 6123–6139 CrossRef CAS PubMed.
- G. Chai, Y. Chang, J. Zhang, X. Xu, L. Yu, X. Zou, X. Li, Y. Chen, S. Luo, B. Liu, F. Bai, Z. Luo, H. Yu, J. Liang, T. Liu, K. S. Wong, H. Zhou, Q. Peng and H. Yan, Energy Environ. Sci., 2021, 14, 3469–3479 RSC.
- Y. Cui, H. Yao, J. Zhang, K. Xian, T. Zhang, L. Hong, Y. Wang, Y. Xu, K. Ma, C. An, C. He, Z. Wei, F. Gao and J. Hou, Adv. Mater., 2020, 32, 1908205 CrossRef CAS PubMed.
- K. Jiang, Q. Wei, J. Y. L. Lai, Z. Peng, H. K. Kim, J. Yuan, L. Ye, H. Ade, Y. Zou and H. Yan, Joule, 2019, 3, 3020–3033 CrossRef CAS.
- C. McDowell and G. C. Bazan, Curr. Opin. Green Sustainable Chem., 2017, 5, 49–54 CrossRef.
- D. Wang, G. Zhou, Y. Li, K. Yan, L. Zhan, H. Zhu, X. Lu, H. Chen and C.-Z. Li, Adv. Funct. Mater., 2022, 32, 2107827 CrossRef CAS.
- X. Xu, L. Yu, H. Yan, R. Li and Q. Peng, Energy Environ. Sci., 2020, 13, 4381–4388 RSC.
- S. Dong, T. Jia, K. Zhang, J. Jing and F. Huang, Joule, 2020, 4, 2004–2016 CrossRef CAS.
- P. Gopikrishna, H. Choi, D. H. Kim, J. H. Hwang, Y. Lee, H. Jung, G. Yu, T. B. Raju, E. Lee, Y. Lee, S. Cho and B. Kim, Chem. Sci., 2021, 12, 14083–14097 RSC.
- S. J. Sung, J. Im, G. Kim, C. S. Moon, J. J. Yoo, S. S. Shin, N. J. Jeon, B. S. Ma, D. J. Kim, T.-S. Kim and J. Seo, Adv. Energy Mater., 2022, 12, 2200758 CrossRef CAS.
- S.-J. Yoon, J. W. Chung, J. Gierschner, K. S. Kim, M.-G. Choi, D. Kim and S. Y. Park, J. Am. Chem. Soc., 2010, 132, 13675–13683 CrossRef CAS PubMed.
- K. Koperwas, K. Adrjanowicz, A. Grzybowski and M. Paluch, Sci. Rep., 2020, 10, 283 CrossRef CAS PubMed.
- R. Khatua, S. Debata and S. Sahu, New J. Chem., 2020, 44, 8412–8421 RSC.
- J. Bertrandie, J. Han, C. S. P. De Castro, E. Yengel, J. Gorenflot, T. Anthopoulos, F. Laquai, A. Sharma and D. Baran, Adv. Mater., 2022, 34, 2202575 CrossRef CAS PubMed.
- J. Sworakowski, J. Lipiński and K. Janus, Org. Electron., 2016, 33, 300–310 CrossRef CAS.
- Q. An, F. Zhang, L. Li, J. Wang, Q. Sun, J. Zhang, W. Tang and Z. Deng, ACS Appl. Mater. Interfaces, 2015, 7, 3691–3698 CrossRef CAS PubMed.
- Y. Cui, H. Yao, J. Zhang, T. Zhang, Y. Wang, L. Hong, K. Xian, B. Xu, S. Zhang, J. Peng, Z. Wei, F. Gao and J. Hou, Nat. Commun., 2019, 10, 2515 CrossRef PubMed.
- J. Ko, J. Kim, H.-J. Song, Y. Park, J. Kwak, C. Lee and K. Char, Adv. Mater. Interfaces, 2021, 8, 2100029 CrossRef CAS.
- D. Qian, L. Ye, M. Zhang, Y. Liang, L. Li, Y. Huang, X. Guo, S. Zhang, Z. a. Tan and J. Hou, Macromolecules, 2012, 45, 9611–9617 CrossRef CAS.
- H. Zhao, H. B. Naveed, B. Lin, X. Zhou, J. Yuan, K. Zhou, H. Wu, R. Guo, M. A. Scheel, A. Chumakov, S. V. Roth, Z. Tang, P. Müller-Buschbaum and W. Ma, Adv. Mater., 2020, 32, 2002302 CrossRef CAS PubMed.
- S. Chatterjee, T. Ohto, H. Tada, S. Jinnai and Y. Ie, ACS Sustainable Chem. Eng., 2020, 8, 19013–19022 CrossRef CAS.
- Z. Fei, P. Boufflet, S. Wood, J. Wade, J. Moriarty, E. Gann, E. L. Ratcliff, C. R. McNeill, H. Sirringhaus, J.-S. Kim and M. Heeney, J. Am. Chem. Soc., 2015, 137, 6866–6879 CrossRef CAS PubMed.
- J. Lee, S.-J. Ko, H. Lee, J. Huang, Z. Zhu, M. Seifrid, J. Vollbrecht, V. V. Brus, A. Karki, B. R. Luginbuhl, H. Wang, K. Cho, T.-Q. Nguyen and G. C. Bazan, ACS Energy Lett., 2019, 4, 1732 CrossRef CAS.
- S. Park, M. H. Lee, K. S. Ahn, H. H. Choi, J. Shin, J. Xu, J. Mei, K. Cho, Z. Bao, D. R. Lee, M. S. Kang and D. H. Kim, Adv. Funct. Mater., 2016, 26, 4627–4634 CrossRef CAS.
- D. Dutta, N. Nagapradeep, H. Zhu, M. Forsyth, S. Verma and A. J. Bhattacharyya, Sci. Rep., 2016, 6, 24499 CrossRef CAS PubMed.
- L. Avram and Y. Cohen, Chem. Soc. Rev., 2015, 44, 586–602 RSC.
- D. Li, G. Kagan, R. Hopson and P. G. Williard, J. Am. Chem. Soc., 2009, 131, 5627–5634 CrossRef CAS PubMed.
- Y. Zhang, C. Yu, T. Shan, Y. Chen, Y. Wang, M. Xie, T. Li, Z. Yang and H. Zhong, Cell Rep. Phys. Sci., 2022, 3, 100765 CrossRef CAS.
- S. Zhang, Y. Qin, J. Zhu and J. Hou, Adv. Mater., 2018, 30, 1800868 CrossRef PubMed.
- Y. Liu, M. Li, J. Yang, W. Xue, S. Feng, J. Song, Z. Tang, W. Ma and Z. Bo, Adv. Energy Mater., 2019, 9, 1901280 CrossRef.
- X. Xu, Y. Qi, X. Luo, X. Xia, X. Lu, J. Yuan, Y. Zhou and Y. Zou, Fundam. res., 2022 DOI:10.1016/j.fmre.2022.01.025.
- L. Perdigón-Toro, L. Q. Phuong, F. Eller, G. Freychet, E. Saglamkaya, J. I. Khan, Q. Wei, S. Zeiske, D. Kroh, S. Wedler, A. Köhler, A. Armin, F. Laquai, E. M. Herzig, Y. Zou, S. Shoaee and D. Neher, Adv. Energy Mater., 2022, 12, 2103422 CrossRef.
- K. Vandewal, J. Benduhn and V. C. Nikolis, Sustain. Energy Fuels, 2018, 2, 538–544 RSC.
- D. He, F. Zhao, C. Wang and Y. Lin, Adv. Funct. Mater., 2022, 32, 2111855 CrossRef CAS.
- S. R. Cowan, A. Roy and A. J. Heeger, Phys. Rev. B: Condens. Matter Mater. Phys., 2010, 82, 245207 CrossRef.
- W. Xu, X. Zhu, X. Ma, H. Zhou, X. Li, S. Y. Jeong, H. Y. Woo, Z. Zhou, Q. Sun and F. Zhang, J. Mater. Chem. A, 2022, 10, 13492–13499 RSC.
- S. Solak, A. G. Ricciardulli, T. Lenz, N. I. Crăciun, P. W. M. Blom and G. A. H. Wetzelaer, Appl. Phys. Lett., 2017, 110, 163301 CrossRef.
- J. Ge, L. Xie, R. Peng, B. Fanady, J. Huang, W. Song, T. Yan, W. Zhang and Z. Ge, Angew. Chem., Int. Ed., 2020, 59, 2808–2815 CrossRef CAS PubMed.
- S. Wheeler, F. Deledalle, N. Tokmoldin, T. Kirchartz, J. Nelson and J. R. Durrant, Phys. Rev. Appl., 2015, 4, 024020 CrossRef.
- T. Wang, X.-Y. Yang, P.-Q. Bi, M.-S. Niu, L. Feng, J.-Q. Liu and X.-T. Hao, Solar RRL, 2019, 3, 1900087 CrossRef.
- T. A. Shastry, I. Balla, H. Bergeron, S. H. Amsterdam, T. J. Marks and M. C. Hersam, ACS Nano, 2016, 10, 10573–10579 CrossRef CAS PubMed.
- F. T. A. Wibowo, N. V. Krishna, S. Sinaga, S. Lee, W. T. Hadmojo, Y. R. Do and S.-Y. Jang, Cell Rep. Phys. Sci., 2021, 2, 100517 CrossRef CAS.
|
This journal is © The Royal Society of Chemistry 2023 |
Click here to see how this site uses Cookies. View our privacy policy here.
