A and B site Co-doping of CaMnO₃: a route to enhanced heat storage properties

Abstract

The successful commercialization of concentrating solar power (CSP) plants requires effective energy storage for the supply of power on demand during solar transients. High-temperature thermal energy storage (≥700 °C up to 1200 °C) has the potential to address storage needs and power capacity owing to the efficiency gains from a high-temperature operation. Recently, doped CaMnO₃ has been identified as a promising candidate for thermochemical heat storage in CSP plants. Herein, we aim at tuning the CaMnO₃ heat storage temperature window and enhancing the heat storage properties beyond that of singly doped compositions by co-doping with equal amounts of La and Fe on the A and B sites, respectively, ((La_xCa_1−x)(Fe_xMn_1−x)O₃). Two doping levels are investigated (x = 0.05 and 0.10). X-ray absorption spectroscopy and diffraction studies revealed that in both materials, Fe and Mn adopt, respectively, the 3+ and 4+ oxidation states under ambient conditions and the dopants are incorporated into the intended sites. Interestingly, the heat storage capacity did not vary monotonically with dopant content. The highest heat storage capacity was attained from La_0.05Ca_0.95Fe_0.05M_0.95O_3−δ. This surprising result is a consequence of the substantial large extent of reduction enabled by the slightly lower enthalpy than that of La_0.1Ca_0.9Fe_0.1Mn_0.9O_3−δ. Under technologically relevant conditions, operating over a temperature window value ranging from 700 to 1200 °C and under an oxygen partial pressure of about 10⁻³ atm, the thermochemical heat storage capacities of La_0.05Ca_0.95Fe_0.05Mn_0.95O_3δ and La_0.1Ca_0.9Fe_0.1Mn_0.9O_3−δ are 378.5 ± 1.0 kJ kg_ABO3⁻¹ and 282.3 ± 1.5 kJ kg_ABO3⁻¹, respectively, and exceed the values not only of the undoped material but also of other singly doped analogs for the first material. Furthermore, with respect to the singly Fe-doped CaMnO₃, we narrowed the operating temperature range from 400–1200 °C to 700–1200 °C, which is the target temperature for the CSP plants. Hence, we demonstrated that by co-doping, it is possible to tailor reduction enthalpy and extent together with the operating temperature range.

---

Introduction

In setting the world's sustainable development priorities enshrined in the Sustainable Development Goals (SDG), the United Nations (UN) has included in N.7 access to affordable, reliable, and sustainable energy for all.¹ Among the targets to be achieved by 2030 is a substantial increase in the share of renewable energy in the global energy mix. Solar-driven power generation has the potential to substantially contribute to this goal because of its vast solar resources. Amongst the approaches for generating electricity from sunlight, concentrated solar power (CSP), in which solar energy is concentrated to generate high temperatures that, in turn, drive a heat engine, has garnered significant interest in recent years, with an increasing number of CSP plants currently under construction or planned.² This reflects the overall state of technological readiness of the CSP approach.

Key to the efficiency and hence economic competitiveness of CSP plants is operated at high temperatures (≥700 °C up to 1200 °C),^3,4 along with the storage of the high-temperature heat for on-demand power generation.⁵ Accordingly, about half of all CSP plants (∼47%) currently in operation globally incorporate a Thermal Energy Storage (TES) system, and even a greater proportion of plants under construction (∼72%) and planned (∼77%) do so.^6,7 Most operational TES systems are based on sensible heat storage. The technology is reliable and relatively inexpensive. However, sensible heat storage suffers from low energy density. Thermochemical heat storage (TCS) technologies store heat in the form of reversible chemical reactions and have a significantly higher energy density and longer-term storage duration than sensible heat storage, which explains the growing interest in such systems. A range of reactive materials (e.g. carbonates⁸ to hydroxides^9,10 and hydrides¹¹ to oxides^12,13) have been investigated for TCS systems. None of the materials evaluated to date achieve both the cost and efficiency targets for a CSP plant.¹⁴

A promising class of materials under examination for TCS systems are non-stoichiometric perovskite-structured oxides, AMO_3−δ, in which the oxygen content can vary continuously with temperature and oxygen partial pressure.^15–18 Heat is released upon the oxidation of these materials according to the following reaction:

where δ_i is the initial oxygen nonstoichiometry (corresponding to the charged state) and δ_f is the nonstoichiometry after the process (the discharged state). Endothermic reduction, during which heat is stored, is carried out upon heating. The subsequent exothermic oxidation embodied in eqn (1) is carried out at a lower temperature, releasing heat when needed. Nonstoichiometric perovskites continuously release/uptake oxygen over a range of temperatures and thus allow heat storage over a broad temperature window. The reaction scheme differs from that of stoichiometric oxides, which adopt discrete quantities of oxygen and for which the redox reaction proceeds to completion at a single transition temperature. In some cases, these nonstoichiometric oxides are subject to a phase transition that can be used for latent heat storage.^19,20 However, the heat involved is limited and not considered here.

The amount of chemical heat stored per mole of material (H), or chemical heat storage capacity, is the difference in the heat content of the oxide in the two states, H_initial and H_final. In nonstoichiometric oxides, ΔH depends on the net change in oxygen content through the redox cycle as well as the partial molar enthalpy of oxygen in the oxide, H̄_O (sometimes denoted by h_O), and is given by

where ΔH̄⁰_O, the relative partial molar enthalpy of oxygen in the oxide (H̄_O − H̄⁰_O), denotes the redox thermodynamics of eqn (1),²¹ and the superscript 0 denotes the reference state. Thus, the two metrics that define the heat storage capacity of a nonstoichiometric oxide are thus ΔH̄⁰_O, a fundamental property of the material, and the extent of stoichiometry change (Δδ = δ_f − δ_i), which depends on both the material properties and the operating conditions. The larger the magnitudes of these two parameters, the larger the heat storage capacity. The mass-normalized heat storage capacity is defined as Q_M = ΔH/M_ABO3, where M_ABO3 is the molar mass of the oxide.

Among the perovskites investigated for TCS systems, CaMnO₃ (CM) has attracted interest owing to its cost-effectiveness and the high abundance of its constituent elements.^22–24 The pristine (undoped) material suffers from ready decomposition into spinel (CaMn₂O₄) and Ruddlesden–Popper (Ca₂MnO₄) phases at temperatures above 900 °C and pO₂ ≤ 0.004 atm,^18,23 limiting its maximum operating temperature. The magnitude of the molar enthalpy term of CaMnO₃, ΔH̄⁰_O, is also relatively small, implying a relatively small heat storage capacity. Accordingly, chemical modifications by doping were pursued to enhance stability and increase the enthalpy associated with the redox reaction (eqn (1)).

The introduction of La on the A-site in CaMnO₃-based and SrMnO₃-based perovskites has been shown, both experimentally and computationally, to increase monotonically the magnitude of ΔH̄⁰_O.^25–30 This behavior reflects the easier reduction of Mn from the fully 4+ oxidation state in the end-member A²⁺Mn⁴⁺O₃ compounds than when Mn is already partially reduced to 3+ in (A²⁺, La³⁺)(Mn⁴⁺, Mn³⁺)O₃. Related to this result is the frequent (but not universal) observation that the magnitude of ΔH̄⁰_O increases as the oxygen nonstoichiometry increases in Mn bearings and even other perovskites.^{26,27,29–33} These trends have been explained in terms of the perovskite electronic structure. The removal of oxygen requires the redistribution of O 2p electrons associated with the formerly occupied oxygen site to the lowest unoccupied state at the Fermi energy (E_F).^30,34 Thus, the greater the energy difference between the oxygen 2p band center and E_F, the greater the energetic penalty of creating oxygen vacancies. The position of E_F increases as the electron count increases. Hence, Sr²⁺ is replaced with La³⁺ as the reduction proceeds, causing the observed increase in oxygen formation energy, which is the dominant term in ΔH̄⁰_O. The influence of La doping has equivalently been explained in terms of a decrease in the overlap of the e_g orbital of the Mn ions and the 2p_σ orbital of the oxygen ions with increasing La content, again increasing the energetic penalty of adding electrons into the available electronic states upon oxygen removal.³⁵

The influence of B-site doping is less clear, particularly because various approaches are available: the dopant may be redox inert, with an oxidation state of either 3+ (e.g., Al³⁶) or 4+ (e.g., Ti^31,32), or it may be redox active (e.g., Co³⁷). It has been suggested that across the SrMO₃ series of perovskites, where the M-site element can adopt the 4+ oxidation state, the effective band gap decreases with the increasing electronegativity of the M species. Consequently, a decrease in the effective band gap can result in a decrease in the energetic penalty of oxygen vacancy formation.³⁰ However, it is unknown whether an analogous trend holds upon doping, that is, when more than one species resides on the M site. In the few studies aimed at quantifying the impact of M-site doping on the thermodynamics of oxygen vacancy formation energy in CaMnO₃, it has been observed that doping with Al,²² Ti²² and Fe²⁴ at moderate levels increases the magnitude of ΔH̄⁰_O in all cases, suggesting that the introduction of less reducible species renders the entire material less reducible. Moreover, these dopants have been found to enhance the thermal stability of the material against decomposition into the spinel and Ruddlesden–Popper phases. Thus, although the fundamental electronic origins of these effects are unclear, B-site doping can provide significant benefits to the properties of CaMnO₃.

This study examines the behavior of La and Fe co-doped CaMnO_3, ((La_xCa_1−x)(Fe_xMn_1−x)O_3,x = 0.05 and 0.10). In our earlier study on Fe-doped CaMnO₃, we observed not only enhanced thermal stability and increased heat storage capacity compared to the undoped system but also, surprisingly, that Fe remained in the 3+ oxidation state under all conditions explored.²⁴ Thus, the material with 10 at% Fe on the B site was most appropriately described as CaMn_0.9Fe_0.1O_2.95−δ, reflecting the resistance of Fe towards the adoption of the 4+ oxidation state. Although light doping enhanced the heat storage capacity, compositions with Fe content beyond 10 at% displayed a low value of the magnitude of ΔH̄⁰_O, and thus the opportunities for enhancing the properties using Fe alone are limited. Co-doping with La is attractive because of the well-known increase La induces in the magnitude of ΔH̄⁰_O, as already described. Our previous studies of La-doped CaMnO₃ generated results similar to those of Fe-doping, with the dopant increasing the thermal stability and the heat storage capacity provided that the concentration did not exceed 10 at%.³⁸ Beyond this concentration, (La,Ca)MnO_3−δ adopts the orthorhombic (rather than cubic) structure over a wide T-pO₂ space with a small entropy of reduction, causing the extent of stoichiometry change between charge and discharge conditions, Δδ, to become small. Thus, again, opportunities for enhancing heat storage using just La are limited. Herein, we aimed to combine the benefits of both Fe and La. Furthermore, by introducing these elements in equal concentrations, i.e., the preparation of (La_xCa_1−x)(Fe_xMn_1−x)O₃ compositions, we aimed to design a material capable of attaining an oxygen stoichiometry of 3 under technologically relevant conditions. A large initial oxygen content is desirable because the contribution to the configurational entropy from oxygen vacancies scales with ln(δ/(3 − δ))³⁹ and is thus large in the small δ region. A large entropy, in turn, encourages a large change in δ with temperature. Because of the detrimental impact of high levels of Fe and La doping, we examine the specific compositions of x = 0.05 and 0.10. We establish the thermodynamic properties by thermogravimetric analysis and characterize the crystallographic properties by in situ high-temperature diffraction to ascertain the conditions of stability and gain insight into the atomistics of the reduction behavior. The latter objective is further supported by X-ray absorption studies. Using thermodynamic data, we provide an assessment of the heat storage capacity.

Methods

Material synthesis

(La_0.05Ca_0.95)(Fe_0.05Mn_0.95)O₃ and (La_0.10Ca_0.90)(Fe_0.10Mn_0.90)O₃ materials, hereinafter, LCFM5 and LCFM10, respectively, were prepared according to a modified Pechini method:³⁹ stoichiometric amounts of the nitrate salt precursors, Ca(NO₃)₂·4H₂O (Sigma-Aldrich, 99.0% purity), La(NO₃)₃·6H₂O (Sigma-Aldrich, ≥99.9% purity), Mn(NO₃)₂·4H₂O (Sigma-Aldrich, ≥97.0% purity), Fe(NO₃)₃·9H₂O (Sigma-Aldrich, ≥98% purity), and citric acid (in a 2 : 1 molar ratio of CA : metal) were dissolved in distilled water. The mixture was stirred at 70 °C for 3 h. Ethylene glycol (EG) was then added in a 3 : 2 ratio of CA : EG and stirred again at 90 °C for 45 minutes, at which point a gel was obtained. The gel was dried at 200 °C for 12 h, transformed into a brittle char, which was then ground and subsequently calcined at 1100 °C for 24 h under static air. Two additional 12 h firing steps at 1300 °C under flowing oxygen (50 ml min⁻¹), with intermediate grinding, were required to obtain single-phase products. Cylindrical porous monoliths were obtained in the second firing step, in which a loosely formed green body was sintered lightly. The self-supporting structure was prepared by moistening ∼500 mg of the powder with isopropyl alcohol, lightly pressing it in a cylindrical alumina die (internal diameter 10 mm), and allowing the alcohol to evaporate.

Chemical and morphological characterization

Chemical analysis of the products was performed by inductively coupled plasma-optical emission spectrometry (ICP-OES, iCAP7000 ThermoFisher Scientific in axial configuration) for the simultaneous detection of La, Ca, Mn, and Fe. Samples were dissolved by digestion in a solution of HNO₃ and H₂O₂ for 12 h at 60 °C.

The morphological features of the porous monoliths were characterized using scanning electron microscopy (SEM, Hitachi SU8030). Additional chemical analysis was performed alongside the morphological studies by energy dispersive X-ray spectroscopy (EDX, Oxford X-max 80 SDD) at an acceleration voltage of 20 kV. The EDX composition mapping (Fig. S1†) revealed that the cations were uniformly distributed across the materials.

Crystal–chemical properties at ambient temperature

Formation of single-phase perovskite products was established by X-ray powder diffraction (XRD, Rigaku Ultima IV, Cu Kα, 40 V, 44 mA, 0.05° s⁻¹ scan rate) performed on ground powders obtained from sintered porous monoliths (Fig. S1a†). Rietveld refinement against the diffraction data was performed using the GSAS package^40,41 to determine the average long-range crystallographic properties (Fig. S2b and c†). The orthorhombic structure of CaMnO₃ (ref. 24) was used as the starting point for the refinements.

X-ray Absorption Near Edge Structure (XANES) and Extended X-ray Absorption Fine Structure (EXAFS) measurements were performed to gain insight into the local structure of the materials and clarify the redox chemistry. Powders (again obtained from the sintered monoliths) were dispersed homogeneously over the adhesive tape. Data were collected at the La L-III edge, Mn K-edge and Fe K-edge in transmission mode at room temperature under synthetic air using the facilities at Sector 5 (5BM-D) of the Advanced Photon Source (APS) at Argonne National Laboratory. The transmission emissions were measured using a four-element Si-drifted detector (SII) with the incident X-ray angle θ at about 45° with respect to the sample surface.

The XAS data were analyzed using the Demeter software package.⁴¹ The oxidation state of cations was determined using the position of the adsorption edge energy (E₀), the energy at which a sharp change in adsorption occurs in the XANES region, in turn identified by finding the maximum of the derivative of the normalized absorption function μ(E). Spectra of standard materials (La₂O₃, Fe₂O₃, Fe₃O₄, FeO, MnO, Mn₂O₃, and MnO₂) available in the database of the International X-ray Absorption Society (https://www.i-x-s.org/)⁴² were used to establish calibration lines (Fig. S4†) to convert the measured edge energies to the oxidation state. LaFeO₃ and CaMnO₃ were prepared and used as standard materials for the comparison of XANES features. For local structure analysis, the data in the EXAFS region, spanning the k range of 2.0–9.8 Å⁻¹, were weighted based on k³ and Fourier transformed with a Hanning window. Fitting was carried out in R space from R = 0.7 to 3.8 Å using a three-shell model with paths for the first (Mn–O and Fe–O for Mn and Fe K-edge spectra, respectively), second (Mn–Ca/La and Fe–Ca/La), and third (Mn–Mn and Fe–Mn) nearest neighbor shells.

Phase evolution and thermal analysis

Phase evolution was tracked in situ by high-temperature XRD (Rigaku Ultima IV, Cu Kα, 40 V, 44 mA, 0.05° s⁻¹ scan rate). Data were collected at temperatures between ambient and 1200 °C in 50–100 °C increments (HTK 1200 heating chamber) under 30 ml min⁻¹ of N₂ (pO₂ ∼ 10⁻³ atm). After each heating interval (10 °C min⁻¹), the sample was equilibrated for 20 min before the diffraction pattern was collected. Diffraction data were collected upon the completion of the selected thermal analysis experiments. Phase formation and evolution were analyzed using whole pattern fitting (or the Pawley method), as implemented in the commercial software package Materials Data by Jade, Inc. The XRD measurements were performed under more reducing conditions than those of the thermal analysis experiments, thus revealing the suitability of the thermal data for thermodynamic characterization.

Thermal analysis, in which mass and thermal events were measured as a function of temperature, was performed using a simultaneous thermal analyzer (STA449 F5 Jupiter Netzsch) coupled with an inline pO₂ sensor (MicroPoas, Setnag) to measure the oxygen partial pressure of the exhaust gas. One set of measurements was made by assessing overall phase transition behavior and thermal stability, with both mass (TG, thermogravimetric) and thermal (DSC, differential scanning calorimetry) signals recorded. The sample mass was set to 80–100 mg, and data were collected at a heating rate of 10 °C min⁻¹ under gas conditions of pO₂ = 0.18 atm and 5.1 × 10⁻⁴ atm, corresponding to the most oxidizing and most reducing conditions considered for subsequent TG measurements. Each measurement was initiated with a 1 h hold at 200C under pO₂ = 0.18 atm to remove surface species. Both heating and cooling profiles were recorded, and data were collected up to a temperature of 1100C. A second set of measurements was made with the objective of accurately recording mass change upon oxygen loss or uptake. For these experiments, large samples, 200–500 mg, were employed. The heating rate decreased to 5 °C min⁻¹, and only the mass signal was recorded. Each experiment (Fig. S5†) was again initiated with a 1 h hold under pO₂ = 0.18 atm to remove possible surface adsorbed species. Data were recorded at seven pO₂ values: 0.18, 0.09, 0.07, 0.04, 0.02, 0.008, and 0.004 atm. Measurements were made again on both heating and cooling, with a maximum temperature of 1200 °C. For both sets of experiments, the target gas composition was achieved by mixing dry synthetic air and Ar, and the total gas flow rate was fixed at 250 ml min⁻¹.

The change in oxygen non-stoichiometry (Δδ(mol_O/mol_ABO3)) from the reference condition (200 °C and pO₂ = 0.18 atm) was computed using the following equation:

where Δm (mg) is the mass change, m_in (mg) is the reference state mass of the sample, M_ABO3 (g mol⁻¹) and M_O (g mol⁻¹) are, respectively, the molar mass of the ABO₃ oxide and monoatomic oxygen. The oxygen non-stoichiometry in the reference state, used for determining the absolute δ, was determined by measuring the mass loss upon the complete reduction of the sample, achieved by exposure to 3% H₂/Ar at 1000 °C (ref. 43) after equilibration at the reference condition. The total mass loss (Fig. S6a†) agreed with the initial stoichiometries of La_0.05Ca_0.95Fe_0.05Mn_0.95O₃ and La_0.1Ca_0.9Fe_0.1Mn_0.9O₃. Thus, the materials displayed negligible concentrations of oxygen vacancies in the reference condition (essentially the as-prepared state), consistent with the XANES results of Fe and Mn in the 3+ and 4+ oxidation states, respectively. The XRD pattern of the reduced product was in both cases a mixture of Fe, La₂O₃ and Ca_0.5Mn_0.5O in the expected respective stoichiometric ratios (Fig. S6b†).

Results and analysis

Chemical, morphological and structural characterization

The results of the chemical analysis, Table 1, indicated that the compositions were all within 3 at% of the target Mn/Ca (n_Mn/n_Ca), Fe/Mn (n_Fe/n_Mn) and La/Ca (n_La/n_Ca) values. Hereinafter, the ideal cation stoichiometries are quoted. The structures displayed large porosities, with feature sizes at the tens of micrometer length-scale (Fig. 1), indicating the suitability of the samples for thermogravimetric analysis due to easy gas access to the entirety of the material.

Table 1 Chemical properties of (La_xCa_1−x)(Fe_xMn_1−x)O₃ samples prepared in this study

Code	Target composition^a	n Mn/nCa (mol mol^−1)	n Fe/nCa (mol mol^−1)	n La/nCa (mol mol^−1)	Implied stoichiometry^a
a Taking Fe to be Fe^3+ and Mn to be Mn^4+.
LCFM5	La0.05Ca0.95Fe0.05Mn0.95O3	1.031 (3)	0.0533 (10)	0.0527 (10)	La0.049Ca0.922Fe0.049Mn0.951O2.97
LCFM10	La0.10Ca0.90Fe0.10Mn0.90O3	1.026 (9)	0.1142 (11)	0.1148 (14)	La0.101Ca0.877Fe0.100Mn0.900O2.98

---

Fig. 1 SEM micrographs of (a) LCFM5 and (b) LCFM10.

At ambient temperature, both LCFM5 and LCFM10 crystallize in the orthorhombic (Pnma) GdFeO₃-type structure (Fig. 2a), as do the end-member materials CaMnO₃ and LaFeO₃. Because the lattice dimensions b/2 and c/√2 are metrically identical in LCFM10, the nonzero intensity of the (210) peak indicates that the cell is not tetragonal (Fig. S1a,† see also Fig. 5d below). A shift toward lower 2Θ angles (Fig. 2a) relative to CaMnO₃ signifies a slight increase in the lattice parameters (and the unit cell volume) in response to the La and Fe doping (Fig. 2b). A slight broadening of the peaks as the La and Fe concentrations increase is also a reflection of the incorporation of the dopants, which induce strain gradients into the structure. The refined parameters are reported in Table 2, along with those of the singly doped compositions, for comparison. The extent of the orthorhombic distortion, defined based on the orthorhombicity, (being α₁ = a, α₂ = b/√2, α₃ = c and [small alpha, Greek, macron] = (abc/√2)^1/3) and also reported in Table 2, remains relatively constant across the series.

Fig. 2 Diffraction analysis of (La_xCa_1−x)(Fe_xMn_1−x)O₃: (a) details of the most intense peaks of (La_xCa_1−x)(Fe_xMn_1−x)O₃ XRD patterns and (b) structural parameters as a function of x.

Table 2 Crystallographic parameters of LCFM5 and LCFM10 and related materials, all of which adopt in the orthorhombic (Pnma) GdFeO₃-type perovskite distortion at ambient conditions. The numbers in parentheses indicate the uncertainty in the final digit(s)

Material	Lattice parameters
	a (Å)	b (Å)	c (Å)	V cell (Å^3)	ρ (kg m^−3)	O 10^−2%	Source
a Crystallographic density.
CaMnO3−δ	5.2785 (4)	7.4564 (5)	5.2664 (2)	207.27 (4)	4820	7.7 (2)	Mastronardo et al.^24
LCFM5	5.2987 (7)	7.4836 (5)	5.2885 (5)	209.71 (3)	4688	6.9 (1)	This work
LCFM10	5.3257 (7)	7.5199 (4)	5.3176 (6)	212.96 (3)	4772	6.9 (1)	This work
CaFe0.1Mn0.9O2.95−δ	5.2906 (5)	7.4737 (4)	5.2804 (7)	208.79 (6)	4814	6.8 (1)	Mastronardo et al.^24
La0.1Ca0.9MnO3−δ	5.3110 (9)	7.4988 (13)	5.3036 (9)	211.22 (7)	4826	6.7 (1)	Mastronardo et al.^24

---

The XANES study revealed that the Mn and Fe oxidation states in the as-prepared materials are, respectively, 4+ and 3+, in both LCFM5 and LCFM10 (Fig. 3), which agrees with our earlier studies of singly Fe-doped CaMnO₃.²⁴ Unsurprisingly, La is found in the 3+ oxidation state (Fig. S3†). Thus, the introduction of La at an equal concentration as Fe enables access to the crystallographic state in which all oxygen sites are fully occupied, as desired. The XAS study further revealed that doping has a negligible effect on the Mn environment, as would be expected given the minimal impact of the introduction of La and Fe on the lattice parameters and the fact that only a small fraction of the next nearest neighbours of Mn are changed between the compositions CaMnO₃ and La_0.1Ca_0.9Fe_0.1Mn_0.9O₃. This result is evident in both the XANES (Fig. 3a) and EXAFS (Fig. 4a) analyses. Quantitative treatment of the EXAFS data (Fig. S7 and S8†) showed that the Mn–O distance remained close to the mean value of 1.901(4) Å of undoped CaMnO₃ (ref. 44) in both LCFM5 (1.918 Å) and LCFM10 (1.897 Å) (Tables S2 and S3).† In contrast, there are relatively strong changes in the X-ray absorption spectra at the Fe K edge between LaFeO₃, LCFM5, and LCFM10 (Fig. 3b). Because the three materials are globally isostructural and the Fe and Mn oxidation states remain unchanged, the differences reflect changes in the local chemical environment of Fe, resulting from large differences in the concentrations of Ca and Mn between the LaFeO₃ and LCFM compounds. The pre-edge feature reflects the formally forbidden 1s → 3d transition^45,46 and is known to increase in intensity with Sr content in doped LaFeO₃.⁴⁷ This is consistent with the present observation. Significant herein is the high level of similarity in the EXAFS of the Mn and Fe species (Fig. 4), reflecting the incorporation of Fe on the B-site. The Fe–O distances of 1.94 Å in both LCFM5 and LCFM10 (Tables S4 and S5†) are almost identical to the Mn–O distances and shorter than the mean Fe–O distance of 2.03(10) Å in LaFeO₃.⁴⁸

Fig. 3 XANES spectra of (La_xCa_1−x)(Fe_xMn_1−x)O₃ about (a) the Mn K edge and (b) the Fe K edge. Spectra of the reference materials CaMnO₃ and LaFeO₃ are also shown. Insets highlight pre-edge features. The Mn oxidation state is 4+ for all materials, and the local environment, reflected in the features of the pre-edge feature (inset), is relatively unchanged with doping. The Fe oxidation state is 3+ for all materials, but in this case, the Fe local environment differs across the various materials.

Fig. 4 Fourier transforms (FT), with modulus (∣χ(R)∣) and imaginary part (Im[χ(R)]) of (a) Mn and (b) Fe EXAFS spectra of LCFM5 and LCFM10.

Phase evolution and thermal analysis

The in situ XRD study, Fig. 5, revealed that both LCMF5 and LCMF10 were transformed upon heating from the as-prepared orthorhombic phase to a cubic phase, with a transformation temperature that slightly decreased as the dopant content increased. Additionally, both materials were stable against any sort of decomposition up to the maximum temperature of 1200 °C. The temperature dependent cell parameters, obtained by Rietveld refinement and shown in Fig. 6 (and also in Tables S7 and S8 as ESI),† revealed rather similar thermal expansion behavior. A slight decrease in the anisotropy as the dopant concentration increased was observed. Moreover, the apparent thermal expansion of both materials notably increased upon transformation to the cubic phase. As shown below, the cubic phase undergoes a reduction more readily than the lower symmetry phases. The enhanced expansion of this phase presumably reflects the contribution of chemical expansion.

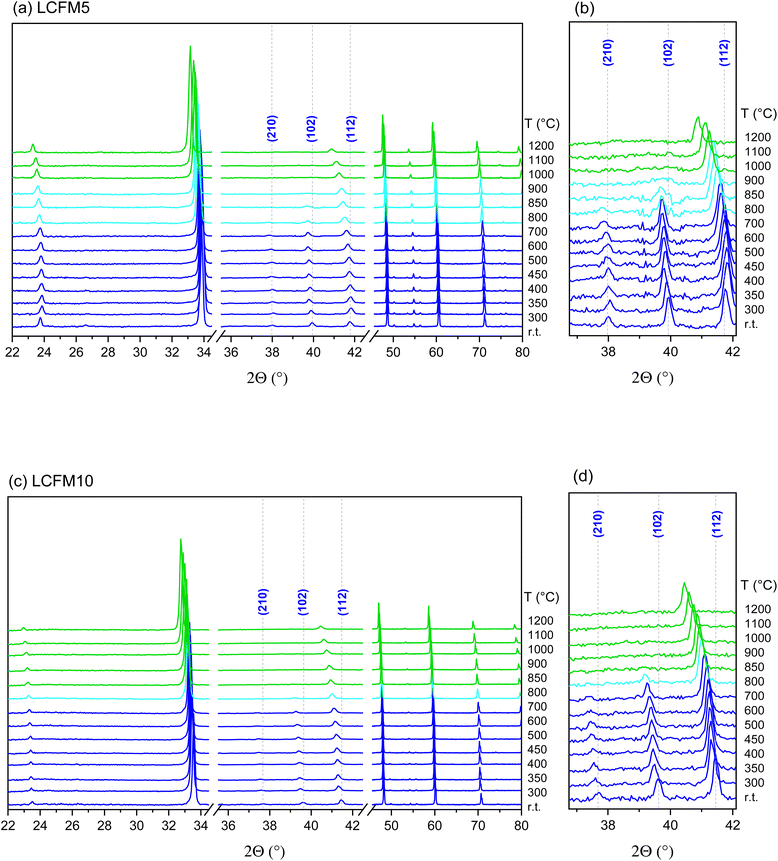

Fig. 5 In situ high-temperature XRD patterns collected under an inert atmosphere (30 ml min⁻¹ N₂, pO₂ ∼ 0.001 atm) with measurement temperatures as indicated: (a and b) LCFM5 and (c and d) LCFM10. Color scheme corresponds to phase formation: blue = orthorhombic; green = cubic; and aqua = mixed.

Fig. 6 Temperature dependence of the lattice parameters of (a) LCFM5 and (b) LCFM10 under an inert atmosphere (30 ml min⁻¹ N₂ and pO₂ ∼ 0.001 atm).

Reported in Fig. 7 and 8 are the simultaneous thermal analysis profiles for the (La_xCa_1−x)(Fe_xMn_1−x)O₃ materials. As indicated above, these were performed at a relatively high ramp rate (10 °C min⁻¹) and under the most oxidizing and most reducing conditions considered in this study, pO₂ = 0.18 and 5.1 × 10⁻⁴ atm, respectively. To highlight the role of the dopants, the profiles measured for CaMnO₃ (CM) from our previous study²⁴ are included in the figures.

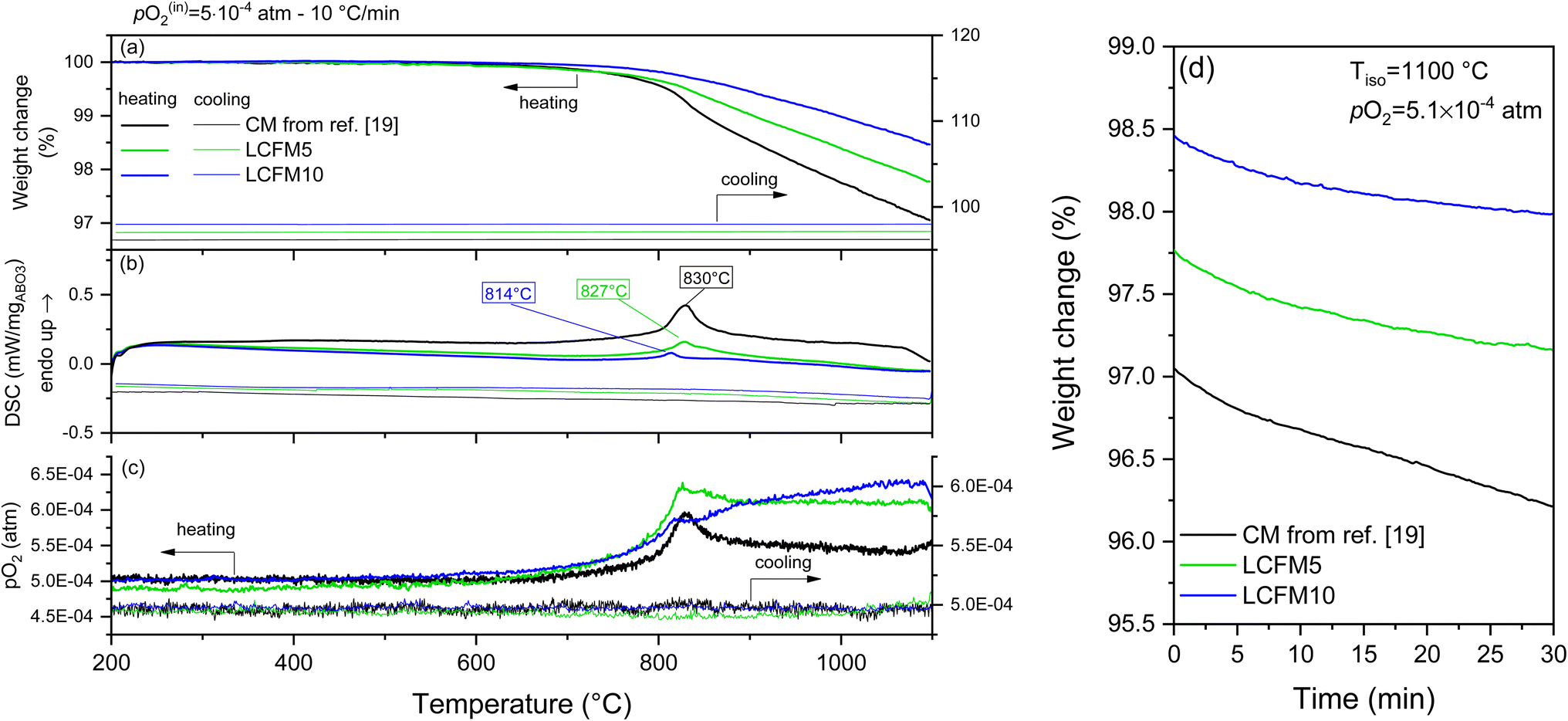

Fig. 7 TGA/DSC profiles of CM,²⁴ LCMF5, and LCMF10 on heating and cooling to 1100 °C at a ramp rate of 10 °C min⁻¹ under a pO₂ of 0.18 atm: (a) mass, (b) DSC, and (c) pO₂ profiles as functions of temperature. (d) Mass evolution during 2 h isothermal hold at 1100 °C applied between heating and cooling steps.

Fig. 8 TGA/DSC profiles of CM,²⁴ LCMF5, and LCMF10 on heating and cooling to 1100 °C at a ramp rate of 10 °C min⁻¹ under a pO₂ of 5.1 × 10⁻⁴ atm: (a) mass, (b) DSC, and (c) pO₂ profiles as functions of temperature. (d) Mass evolution during 30 min isothermal hold at 1100 °C applied between heating and cooling steps.

The thermal profiles reveal anomalies that agree with the phase transitions recorded by XRD. Specifically, transformations from the low-temperature orthorhombic distortion to the cubic aristotype are observed. A tetragonal distortion appears at intermediate temperatures depending on composition and oxygen partial pressure.⁴⁹ In general, the same behavior is observed by decreasing the oxygen partial pressure or introducing the dopants. Namely, the transition temperatures shift downwards, the heat of the transition decreases, and the thermal window of the intermediate tetragonal phase is narrowed (Fig. S9 and Table S6 in the ESI†). The absence of the tetragonal phase in the XRD results (Fig. 5) is related to the lower oxygen partial pressure condition of the diffraction study.

Under pO₂ = 0.18 atm, as shown in Fig. 7 (the higher oxygen partial pressure conditions), the phase transformations were reversible, with only a slight hysteresis for the reverse transformation temperature evident for the doped compositions. Moreover, no change in mass was recorded during the isothermal hold at the highest measurement temperature of 1100 °C, and the mass profiles obtained on cooling exactly overlapped those recorded on heating. This behavior indicates that the materials remained in equilibrium throughout the experiment. In contrast, in the measurement at lower oxygen partial pressure (pO₂ = 5.1 × 10⁻⁴ atm, Fig. 8), mass loss occurred during the isothermal hold at 1000 °C, and the masses did not return to their initial values upon cooling. These features, along with the absence of the thermal signatures of the reverse transitions, indicate that equilibrium was not maintained over the course of the measurement. The out-of-equilibrium behavior is likely a reflection of insufficient gas flow to remove evolved oxygen on heating and provide oxygen on cooling, as discussed elsewhere,⁵⁰ rather than slow surface reaction kinetics or oxygen diffusion. Additional notable features of the thermal behavior are as follows: (i) a decline in high-temperature mass loss as the dopant concentration increases and (ii) an increase in mass loss upon transformation to the cubic phase. In undoped CaMnO₃, the transition to the cubic phase occurs with a detectable step change in oxygen content under both measurement conditions. The transition is furthermore accompanied by a transient increase in oxygen partial pressure in the experiment performed under an inlet oxygen partial pressure of pO₂ = 5.1 × 10⁻⁴ atm (Fig. 8), with similar but less pronounced effects evident for both LCMF5 and LCMF10. The absence of a similar feature in the oxygen partial pressure profiles under the higher pO₂ condition (Fig. 7) indicates a marginal increase in oxygen content in the gas phase because the release from the solid is small relative to the oxygen content in the inlet gas supply.

Thermodynamic evaluation

The oxygen non-stoichiometry (δ) profiles obtained from the thermogravimetric analysis experiments with pO₂ ≥ 0.008 atm are summarized in Fig. 9. At each pO₂ shown, the heating (solid lines) and cooling (dashed lines) curves almost perfectly overlap, indicating that equilibrium behavior was recorded at a moderate heating/cooling rate of 5 °C min⁻¹ used in these experiments. Moreover, the oxygen sensor recorded negligible variations of pO₂ during the experiments (Fig. S10 in ESI†). In contrast, at pO₂ = 0.004 atm, the heating and cooling profiles showed detectable disagreement (Fig. S11 in ESI†), indicating non-equilibrium behavior. Accordingly, this profile was omitted from the subsequent thermodynamic analysis. To permit experimental assessment of the mass loss behavior under this low oxygen partial pressure condition, additional measurements were performed in which the LCMF5 and LCMF10 samples were allowed to equilibrate at 1200 °C under a pO₂ of 0.004 atm for 1 h (the single-filled symbol in each panel). A significant feature of all the mass loss (and hence non-stoichiometry) profiles is the evidence of discontinuity at the crystallographic phase transition(s). This effect, which is particularly pronounced in undoped CaMnO₃,²⁴ reflects the difference between the maximum δ in the orthorhombic phase and the minimum δ in the higher temperature phase (either tetragonal or cubic) at the pO₂ of the measurement.

Fig. 9 Absolute oxygen non-stoichiometry as a function of the temperature of (a) LCFM5 and (b) LCFM10 measured under six oxygen partial pressures. Solid (heating) and dashed (cooling) lines and filled symbol () are measured values of δ data. Open symbols are calculated from the thermodynamic functions shown in Fig. 11.

The temperature span over which the discontinuity appears reflects finite kinetics and precludes access to material nonstoichiometry over a small temperature window following the transition. Stability (pO₂ − 1/T) and schematic phase (T − δ) diagrams generated from the analysis of the thermogravimetric profiles are presented in the ESI (Fig. S12 and S13†). Overall, high temperature and low oxygen partial pressure conditions favor the cubic phase. The orthorhombic phase is favored at low temperatures and high oxygen partial pressures. Moreover, the influence of co-doping CaMnO₃ with Fe and La resembles that observed upon doping with either species independently. For example, the tetragonal perovskite phase is absent in both LCMF10 and 10% Fe-doped CaMnO₃. The fundamental reasons that La and Fe doping shift the stability regions of the various crystallographic phases are yet unknown.

The non-stoichiometry profiles, δ(T), obtained from the thermogravimetry experiments, were used to determine the relative partial molar enthalpy and relative partial molar entropy of oxygen in the solid as a function of δ based on the van't Hoff approach,⁵¹ where the enthalpy term is required for computing the heat storage capacity based on eqn (2). In brief, at the limit of an infinitesimal extent of oxidation, δ_i → δ_f, the chemical activities of ABO_3−δi and ABO_3−δf become equal, and the equilibrium constant for this infinitesimal oxidation is

K_oxd = p̃_O2^−1/2 = e^{−Δ_oxdḠ0/RT}, (4)

where p̃O₂ is the oxygen pressure relative to the reference state of 1 atm (numerically identical to the oxygen partial pressure, pO₂) and Δ_oxdḠ⁰ is the standard Gibbs energy of oxidation per mole O. The latter is exactly equal to the relative oxygen chemical potential, implying that

Δ_oxdḠ⁰(δ) = Δ[small mu, Greek, macron]⁰_O(δ) = ΔH̄⁰_O(δ) − TΔS̄⁰_O(δ) (5)

and that the relative partial molar enthalpy and entropy of oxygen are respectively equivalent to the enthalpy and entropy of the oxidation reaction given in eqn (1), which is, in turn, equal to the negatives of the respective reduction terms. Eqn (4) can be written in Arrhenius form:

Thus, from the slopes and intercepts of plots of ln(pO₂) vs. 1/T for each δ, the relative partial molar enthalpy (ΔH̄⁰_O (kJ mol_O⁻¹)) and relative partial molar entropy (ΔS̄⁰_O (J mol_O K⁻¹)) of oxygen can be extracted, respectively, as functions of δ.

The iso-stoichiometric data of the (La_xCa_1−x)(Fe_xMn_1−x)O₃ materials, along with the linear fits (R² > 0.99), are presented in Arrhenius form, as illustrated in Fig. 10. Because of the continuous nature of the measured δ(T) profiles, it was possible to determine the temperature at which any given δ is adopted by the material under peach pO₂ condition. Hence, a set of six (pO₂, T) pairs are available for each arbitrarily selected δ within the measurement range and single phase region. Furthermore, the data summary presented in Fig. 10 emphasizes that the phase boundaries do not occur at fixed δ but rather at δ values that vary with and are determined by T and pO₂, as shown in Fig. S13.† To avoid the influence of experimental artifacts at large δ at which fewer data are available, the enthalpy in the large δ region was fixed at the value obtained from the analysis of the Arrhenius line at the largest δ with five (pO₂, T) pairs.

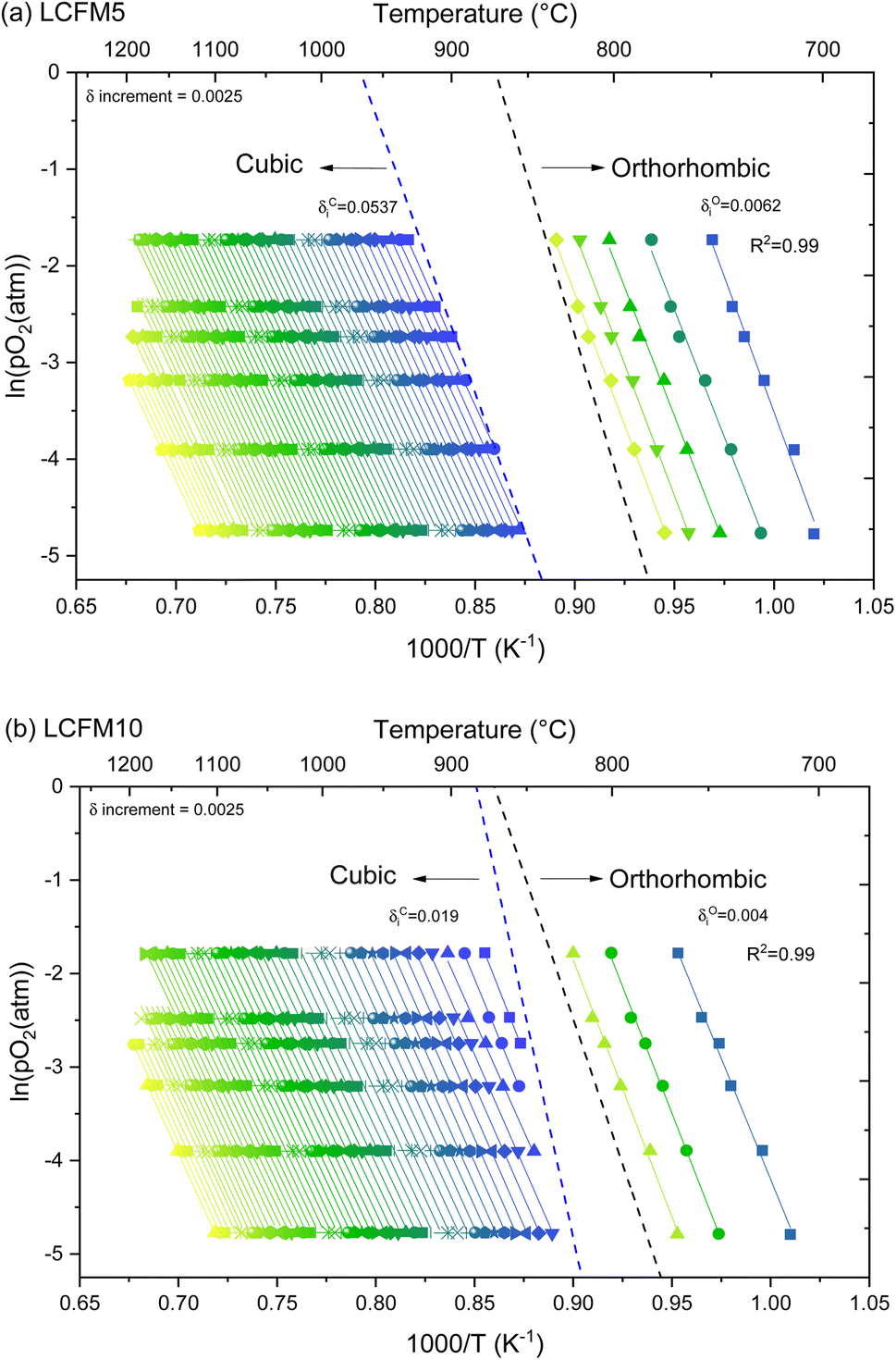

Fig. 10 Arrhenius presentation in the ln(pO₂) − T plane of isostoichiometric conditions for the extraction of thermodynamic properties using the van't Hoff approach in (a) LCMF5 and (b) LCMF10. Regions corresponding to the cubic and orthorhombic phases are indicated. In (a), the tetragonal phase exists over too small a region to be characterized. In both (a) and (b), finite phase transformation kinetics result in a region unsuitable for analysis.

Extracted enthalpy (ΔH̄⁰_O(δ) (kJ mol_O⁻¹)) and entropy (TΔs̄⁰_O(δ) (J mol_O K⁻¹)) functions of the (La_xCa_1−x)(Fe_xMn_1−x)O₃ materials are depicted in Fig. 11, along with those of undoped CaMnO₃.²⁴ The insensitivity of ΔH̄⁰_O(δ) to δ beyond δ ≈ 0.08 is immediately evident, justifying the use of a fixed ΔH̄⁰_O in the high δ region of ≥0.13. Overall, the data reveal that simultaneous doping by La and Fe increases the magnitude of the enthalpy in both the orthorhombic and cubic phases, albeit to a moderate extent, while expanding the compositional window of the cubic phase. Similar behavior was observed for singly doped materials.^24,38 The results agree with the literature observations that La doping increases the enthalpy in variable valence perovskites. Somewhat surprisingly, co-doping with 10% of the dopants on both the A and B sites results in an enthalpy that is intermediate between that obtained by doping at the 10% level on either site alone. This is evident from the comparison of ΔH̄⁰_O(δ = 0.10) presented in Fig. 11c. Thus, the impacts of doping on the energetics are not additive, and for the materials compared, the highest enthalpy is obtained from 10% La-doped CaMnO₃. The differences in the entropies of the materials are significantly smaller (Fig. S14†), indicating that the co-doping strategy with equal A and B site dopant concentrations was successful in retaining a large magnitude of ΔS̄⁰_O. At δ = 0.10, the values for the undoped and doubly doped materials range from 123 to 129 J mol_O K⁻¹. The increasing magnitude of enthalpy with increasing co-doping levels largely explains the monotonic decrease in reducibility from CaMnO₃ to LCFM5 to LCFM10 (Fig. 7 and 8). The slightly enhanced magnitude of the entropy of LCFM5 also contributes to the reducibility of this material.

Fig. 11 Thermodynamic properties of CM,²⁴ LCFM5, and LCFM10: (a) relative partial molar enthalpy and (b) relative partial molar entropy of oxygen as functions of δ; and (c) comparison of relative partial molar enthalpy of oxygen in selected doped compositions at δ = 0.10, where CFM10 (ref. 24) is CaFe_0.10Mn_0.90O_2.95−δ, and LCM10 (ref. 38) is La_0.1Ca_0.9MnO_3−δ.

Discussion: heat storage capacity

The calculation of the heat storage capacity according to eqn (2) requires the knowledge of ΔH̄⁰_O(δ) over the δ range spanning from δ_i (charged state) to δ_f (discharged state). From the XRD study, it was shown that LCFM5 and LCFM10 are both stable at T = 1200 °C and pO₂ = 0.001 atm (Fig. 5), a more reducing condition than included in the TGA studies. To enable the estimation of the heat storage capacity for charging under these technologically viable and attractive conditions, the ΔH̄⁰_O(δ) and ΔS̄⁰_O(δ) functions were extrapolated to large δ assuming fixed values for the enthalpy and linear behavior in the entropy beyond δ = 0.1959 for LCFM5 and beyond δ = 0.1482 for LCFM10. Using these expanded functions, respective δ_i values of 0.291 and 0.228 were computed (for the charging conditions, T = 1200 °C and pO₂ = 0.001 atm). The validity of these extrapolations to larger δ is supported by the agreement of the computed and measured (equilibrium) nonstoichometry at pO₂ = 0.004 and T = 1200 °C in Fig. 9, where the predicted curves based on both pO₂ = 0.004 and 0.001 atm are shown in their entirety. Additionally, for both materials, the calculated δ(T) profiles at 0.004 atm almost perfectly overlap with the experimental curves (Fig. S11 in ESI†), which show only slight disagreement between the heating and cooling regimes.

Integration of ΔH̄⁰_O(δ) was performed by assuming linear interpolation between measured data points, including across the phase transition, and by assuming linear extrapolation in the orthorhombic regime to zero δ. This conservative approach ignores the contributions to heat storage resulting from the phase transition. Fig. 12 depicts the resulting mass-normalized heat storage capacity (Q_M) curves:

where δ_f is the nonstoichiometry at the discharge condition of T = 700 °C and pO₂ = 0.18 (and is approximately 0 for all compositions). The δ_i can be varied by varying the charge conditions, where the maximum δ_i (= δ^max_i) is that attained at T = 1200 °C and pO₂ = 0.001 atm. Volumetric heat storage capacity (Q_V(kW h m⁻³)) is simply calculated as follows:

Q_V(δ_i) = Q_M·ρ. (8)

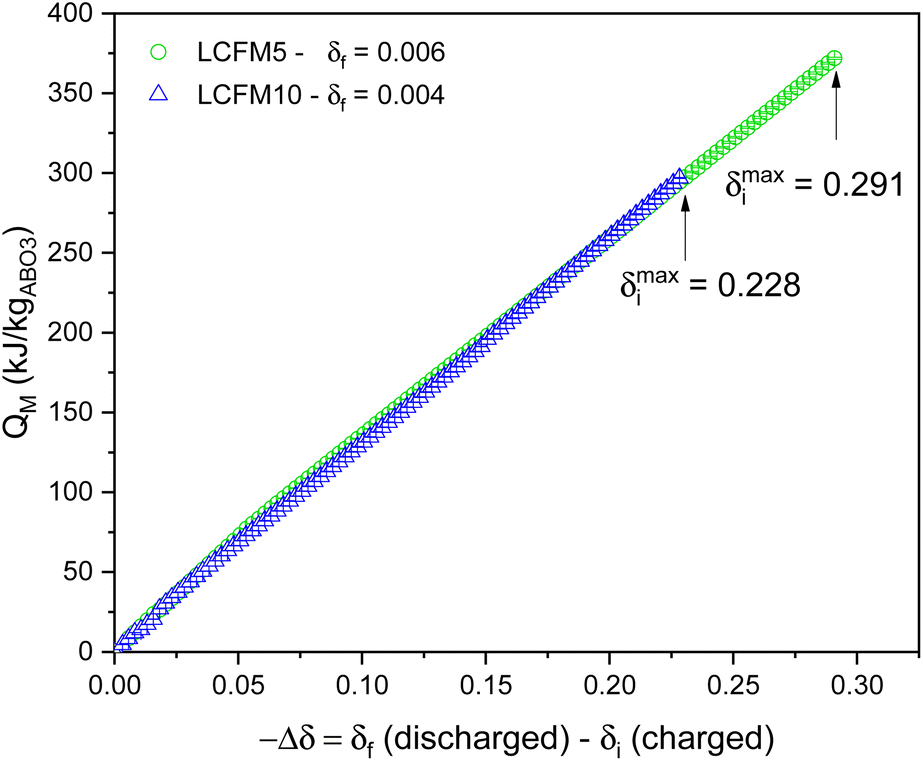

Fig. 12 Mass-normalized chemical heat storage capacity (Q_M (kJ kg_ABO3⁻¹)) of LCFM5 and LCFM10 indicated as a function of nonstoichiometry change. The final nonstoichiometry in the discharged state corresponds to that at T = 700 °C and pO₂ = 0.008 atm, with values given in the legend. The charge condition is considered variable, with the maximum δ being that at T = 1200 °C and pO₂ = 0.001 atm, and the corresponding values are shown in the figure.

The data illustrated in Fig. 12 reveal that, for a given Δδ, LCFM5 and LCFM10 provide similar chemical heat storage capacity. This is because the higher enthalpy of LCFM10 at high and very low δ is compensated for by the lower enthalpy at intermediate δ. The maximum attainable heat storage capacity, however, is higher for LCFM5 (378.5 ± 1.0 kJ kg_ABO3⁻¹) than for LCFM10 (282.3 ± 1.5). This occurs because the latter has slightly higher entropy and slightly lower enthalpy in the high δ region, which translates into a substantially larger extent of reduction.

Heat storage in TES reactors is controlled by adjusting the temperature and gas conditions of the heat storage steps rather than controlling the nonstoichiometry values adopted by a material. Accordingly, Fig. 13 illustrates the heat storage capacities of LMFC5 and LMFC10 as functions of temperature at given pO₂ values. Thus, Q_M is computed by integration based on eqn (2) using integration limits implied by δ_i = δ (T, pO₂ = pO₂^fixed) and δ_f = δ (T = 700 °C and pO₂ = pO₂^fixed), where pO₂^fixed is the same on charging and discharging. The representation here highlights the advantages offered by LMFC5 over LMFC10 already noted above, with the energy storage capacity of LMFC5 being greater than that of LMFC10 at all charging temperatures.

Fig. 13 Mass-normalized heat storage capacities of (a) LCFM5 and (b) LCFM10 as a function of charging temperature under various values of pO₂, representing realistic operating conditions. The discharge temperature fixed at 700 °C.

The impacts of doping by the co-doping single-site doping strategies on the heat storage capacity of lightly doped CaMnO₃ materials are summarized in Fig. 14 and Table S9† for the operating conditions pO₂ = 0.008 atm and T_dis = 700 °C. Undoped CaMnO₃ is inherently attractive for heat storage, but as already noted, its poor high-temperature stability limits its capacity. Of the doped compositions, the previously developed material CaMn_0.9Fe_0.1O_2.95−δ (CMF10)²⁴ and the new material La_0.05Ca_0.95Fe_0.05Mn_0.95O_3−δ (LCFM5), which displays similar relative partial molar enthalpies (Fig. 11c), attain the highest (and comparable) heat storage capacities. Significantly, the materials with the largest relative partial molar enthalpy amongst this group, LCM10 (ref. 38) and LCFM10 (Fig. 11c), exhibit diminished heat storage capacities. As discussed above, in the context of LCFM10, the large enthalpy value diminishes the extent of reduction under the charge condition. Thus, the chemical heat storage capacity does not simply scale with the enthalpy of the oxidation reaction. Design strategies that focus solely on increasing the magnitude of ΔH̄⁰_O(δ) in variable valence oxides is unlikely to achieve materials with a high heat storage capacity. Furthermore, co-doping has produced materials with properties comparable to those of the singly doped analogs. In both cases, doping increases the thermal stability and the enthalpy without a negative impact on the entropy, with light doping providing an optimal, intermediate value of enthalpy.

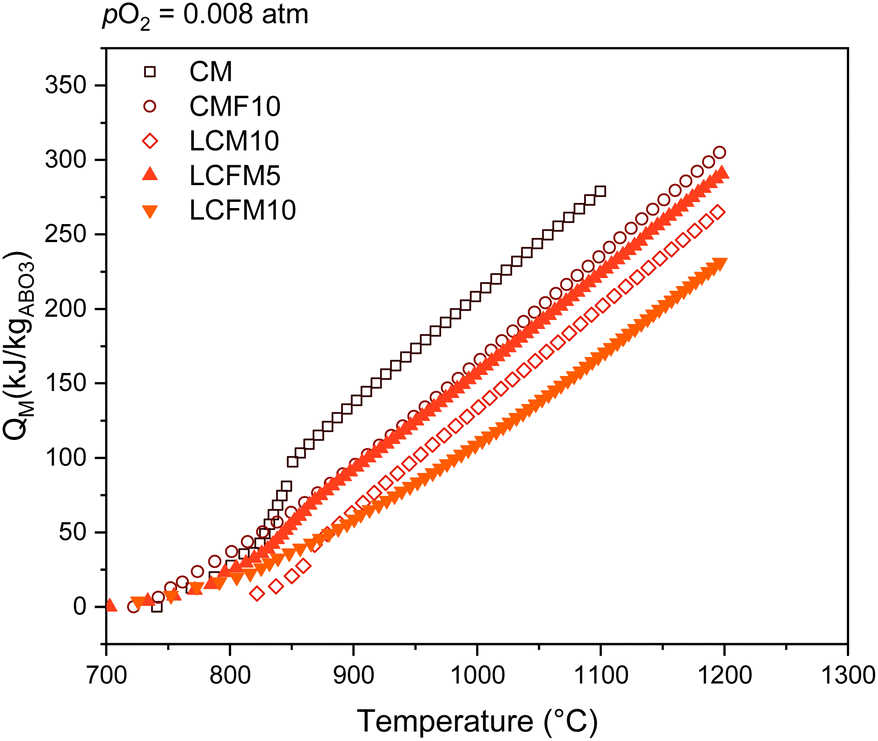

Fig. 14 Comparison of LCFM5 and LCFM10 with previously investigated compositions CM, CMF10 and LCM10 under similar operating conditions (pO₂ = 0.008 atm, T_dis = 700 °C, and T_ch = 1200 °C).

Overall, the properties of LCMF5 (and CMF10) are very attractive for incorporation into CSP plants. Owing to favorable operating conditions and the earth's abundance of constituent elements, the implementation of heat storage using these materials can be expected to lower the cost of CSP operation. In comparison to other CaMnO₃-derived materials, including those doped with Al, Ti, Co and Sr,^22,23,37,52 these compounds enable operation at higher temperatures and more moderate pO₂ for a comparable, and in some cases higher, level of heat storage. The SrMO_3−δ (M = Co, Fe, and Mn)⁵³ series of perovskites have also been evaluated for chemical heat storage but can only operate in a limited temperature range of 500–1000 °C. Other investigated doped redox systems, namely La_xSr_1−x(Mn,Fe,Co)O_3−δ,⁵⁴ and Ba_ySr_1−yCoO_3−δ,⁵⁴ show lower heat storage capacity than LCFM5 (and CMF10). Stoichiometric metal oxides,⁵⁵ such as Co₃O₄/CoO (844 kJ kg⁻¹),⁵⁶ BaO₂/BaO (474 kJ kg⁻¹)⁵⁷ and Mn₂O₃/Mn₃O₄ (202 kJ kg⁻¹),⁵⁸ offer higher gravimetric energy storage capacity, but as noted above, the redox reactions of these materials are discrete. Consequently, heat release is limited to the specific temperature of the reaction, which in many instances is lower than desirable. The perovskites investigated herein offer greater flexibility and access to higher temperatures of heat storage.

The volumetric heat storage density achieved by chemical redox with LCFM5 (under a pO₂ of 0.001 atm) reaches ∼500 kW h m³ (Fig. 13). Such a storage capacity, which does not include the additional sensible heat storage capacity of the perovskite, exceeds that of several TES technologies employed in CSP plants for heat storage at high temperatures. For example, sensible heat storage systems offer only 70–210 kW h m⁻³ storage capacity and are further limited by low thermal conductivity.⁵⁹ Molten salts, though somewhat higher in storage capacity (∼400 kW h m⁻³), still do not achieve the capacity of LCFM5 and further suffer from operability in a limited temperature range (between their melting point and decomposition temperature) and the severe risk of loss of material due to leakage.⁵⁹

Conclusions

In this study, La and Fe co-doped CaMnO₃ (x = 0.05 and 0.10 in compositions (La_xCa_1−x)(Fe_xMn_1−x)O₃) indicate that many of the features of the co-doped materials are similar to those of the singly doped materials. The structures of the co-doped materials are orthorhombic under ambient conditions, crystallizing in the GdFeO₃-type perovskite distortion, with Fe entirely in the 3+ oxidation state and Mn entirely in the 4+ state. Co-doping shifts the orthorhombic to cubic transition to a lower temperature, narrows the stability range of the intermediate tetragonal phase, and stabilizes the perovskite against decomposition into spinel and Ruddlesden–Popper phases to at least 1200 °C. XANES studies confirm that Fe and Mn are always found in the +3 and +4 oxidation states, respectively, under as-synthesized conditions, whereas EXAFS reveals the insertion of these cations in octahedral B sites. The enthalpy of reduction generally increases with the co-doping level in both the orthorhombic and cubic phases, albeit to a moderate extent, and not at all values of δ. The tetragonal phase, which exists only over a very narrow window, could not be fully characterized. For a given change in non-stoichiometry, Δδ, LCFM5 [(La_0.05Ca_0.95)(Fe_0.05Mn_0.95)O_3−δ] and LCFM10 [(La_0.1Ca_0.9)(Fe_0.1Mn_0.9)O_3−δ] provide similar chemical heat storage capacities. This is because the higher enthalpy of LCFM10 at high and very low δ is compensated for by a lower enthalpy at intermediate δ. The maximum attainable heat storage capacity, however, is substantially higher for LCFM5 (378.5 ± 1.0 kJ kg_ABO3⁻¹) compared to 282.3 ± 1.5 for LCFM10. This apparent contradiction arises because the slightly higher entropy and slightly lower enthalpy of LCFM5 in the high δ region translate into a substantially larger extent of reduction. This observation indicates that design strategies focus solely on increasing the magnitude of ΔH̄⁰_O(δ) in variable valence oxides, without considering the impacts on the extent of reduction, is unlikely to produce materials with a high heat storage capacity. The intermediate value of the reduction enthalpy of LCFM5, along with its high stability, and earth-abundant constituent elements, render it an attractive material for further evaluation in TCS applications.

Author contributions

Emanuela Mastronardo: conceptualization, investigation, writing-review & editing, funding acquisition. Xin Qian: investigation. Juan M. Coronado: supervision, writing-review & editing, funding acquisition. Sossina M. Haile: supervision, writing-review & editing, funding acquisition.

Conflicts of interest

There are no conflicts to declare.

Acknowledgements

This project has received funding from the European Union's Horizon 2020 Research and Innovation Programme under the Marie Sklodowska-Curie grant agreement No. 74616. Support of the US Department of Energy, Office of Energy Efficiency and Renewable Energy, Award DE-EE0008089.0000, and ACES2030 from “Comunidad de Madrid” and European Structural Funds to (P2018/EMT-4319) are also fully acknowledged. This work made use of the Jerome B. Cohen X-Ray Diffraction Facility at the Materials Research Center at Northwestern University supported by the National Science Foundation MRSEC program (DMR-1720139) and the Soft and Hybrid Nanotechnology Experimental (SHyNE) Resource (NSF ECCS-1542205). Metal analysis was performed at the Northwestern University Quantitative Bio-element Imaging Center (QBIC). This work additionally made use of the DuPont-Northwestern-Dow Collaborative Access Team (DND-CAT) located at Sector 5 of the Advanced Photon Source (APS) supported by Northwestern University, The Dow Chemical Company, and DuPont de Nemours, Inc. The APS is a U.S. Department of Energy (DOE) Office of Science User Facility operated for the DOE Office of Science by Argonne National Laboratory under Contract No. DE-AC02-06CH11357. The authors acknowledge Jerrold A. Carsello, Manager of X-Ray Diffraction Facilities at the Materials Research Center at Northwestern University, for his assistance on XRD analysis, Rebecca A. Sponenburg, Assistant Core Scientist at the Northwestern University Quantitative Bio-element Imaging Center (QBIC), for her support on ICP-OES analysis, Dr Qing Ma, Research Scientist at Advanced Photon Source (APS), for his assistance in XAS analysis, Dr Ana Iglesias-Juez, Researcher at the Institute of Catalysis and Petrochemistry of CSIC, for fruitful discussions of the XAS data. Dr Weizi Yuan and graduate student Elise Goldfine are also gratefully acknowledged for their support on XAS data analysis software.
