Pressure-induced postsynthetic cluster anion substitution in a MIL-53 topology scandium metal–organic framework

Abstract

Postsynthetic modification of metal–organic frameworks (MOFs) has proven to be a hugely powerful tool to tune physical properties and introduce functionality, by exploiting reactive sites on both the MOF linkers and their inorganic secondary building units (SBUs), and so has facilitated a wide range of applications. Studies into the reactivity of MOF SBUs have focussed solely on removal of neutral coordinating solvents, or direct exchange of linkers such as carboxylates, despite the prevalence of ancillary charge-balancing oxide and hydroxide ligands found in many SBUs. Herein, we show that the μ₂-OH ligands in the MIL-53 topology Sc MOF, GUF-1, are labile, and can be substituted for μ₂-OCH₃ units through reaction with pore-bound methanol molecules in a very rare example of pressure-induced postsynthetic modification. Using comprehensive solid-state NMR spectroscopic analysis, we show an order of magnitude increase in this cluster anion substitution process after exposing bulk samples suspended in methanol to a pressure of 0.8 GPa in a large volume press. Additionally, single crystals compressed in diamond anvil cells with methanol as the pressure-transmitting medium have enabled full structural characterisation of the process across a range of pressures, leading to a quantitative single-crystal to single-crystal conversion at 4.98 GPa. This unexpected SBU reactivity – in this case chemisorption of methanol – has implications across a range of MOF chemistry, from activation of small molecules for heterogeneous catalysis to chemical stability, and we expect cluster anion substitution to be developed into a highly convenient novel method for modifying the internal pore surface and chemistry of a range of porous materials.

---

Introduction

Metal–organic frameworks (MOFs), coordination polymers wherein metal ions/clusters are connected by multitopic linkers into network structures,¹ are being extensively investigated for a number of applications based around the chemistry of the inorganic secondary building unit (SBU). Kinetically labile bonds between metals and ligands can allow access to coordinatively unsaturated metal sites^2–4 that endow MOFs with catalytic properties,^5–7 enhance their interactions with sorbates such as H₂,^8–11 and offer potential sensing mechanisms.^12–14 Dynamic SBU solvent substitution can facilitate structural flexibility^15,16 and metal–ion exchange,^17,18 while also offering routes to pore functionalisation through linker exchange,^18–22 linker incorporation/grafting,^23–26 and defect substitution.^27–33 Coordinative exchange reactions may also be responsible for MOF degradation, for example through hydrolysis.³⁴ To date, most studies on such reactions within MOFs focus either on binding and removal of neutral solvent molecules,³⁵ or direct exchange of carboxylate and/or pyridyl-based ligands, despite the fact that a significant number of commonly observed SBUs contain bridging oxo or hydroxo ligands.³⁶ Some of us have recently developed solid-state (and in particular ¹⁷O) NMR spectroscopy as a valuable analytical tool to study structural and chemical changes in microporous materials such as MOFs and zeolites.^37–40 In doing so, we have shown that the bridging μ₂-OH ligand in the one-dimensional chain SBU of MIL-53(Sc), [ScOH(BDC)]_n (BDC = 1,4-benzenedicarboxylate), is labile, observing up to 25% enrichment with ¹⁷O by reaction with H₂¹⁷O (90% ¹⁷O) under hydrothermal conditions (200 °C, 72 h).³⁸ Allied to the fact that MIL-53 analogues are known with alternative anionic^41–43 and neutral^44–46 bridging ligands, this suggests a rich potential reactivity at this particular SBU.

Herein, we report the pressure-induced reactivity of the SBU of the Sc MOF GUF-1 (GUF = Glasgow University Framework), where the 4,4′-(ethyne-1,2-diyl)dibenzoate (EDB²⁻) linker connects one-dimensional ScOH SBUs into a two-fold interpenetrated MIL-53 structure with sra topology and overall formula [ScOH(EDB)]_n.⁴⁷ Using high-pressure techniques alongside solid-state NMR spectroscopy, we show that up to 17(2)% of bridging μ₂-OH ligands can be replaced by bridging μ₂-OCH₃ units in the bulk phase by reaction with methanol at 0.8 GPa in a large volume press, with conversions of up to 98(4)% in a single crystal pressurised to 4.98 GPa in methanol in a diamond anvil cell (DAC) observed by single crystal X-ray diffraction. This is at least an order of magnitude higher than analogous reactivity under ambient conditions, which we hypothesise is a consequence of the pressure-induced confinement of the CH₃OH within the pores of the MOF inducing enhanced reactivity in a confined space,⁴⁸ and represents a rare example of pressure-induced postsynthetic modification of MOFs⁴⁹ with significant implications for their activation with methanol, and processing and shaping for application.

Results and discussion

We recently reported the synthesis, structure, and excellent H₂ storage capacity of GUF-1.⁴⁷ As its interpenetration results in limited breathing in comparison to non-interpenetrated MIL-53 topology MOFs,^50,51 allied to the fact that it has a potentially flexible EDB²⁻ linker, we sought to characterise its structural response to pressure using high-pressure single crystal X-ray diffraction in a DAC. This approach⁵² has previously allowed us and others to characterise mechanical compliance of a range of MOFs,^53–58 as well as to investigate the structural basis of spectroscopic responses to pressure and different guests,^59,60 complementing a burgeoning body of work investigating pressure compliance of MOFs.^61–69 Single crystals of GUF-1-(HCl) were prepared according to our previously reported HCl modulated solvothermal synthesis in N,N-dimethylformamide (DMF),⁴⁷ and transferred into fresh DMF for storage (see ESI, Section S2†). Under ambient conditions, GUF-1 forms pale pink cuboidal crystals in the orthorhombic space group, Cmme. One-dimensional chains of corner-sharing ScO₆ octahedra extend along the crystallographic a-axis (Fig. 1a). The chains are tethered at the Sc^III centres by bridging EDB²⁻ linkers to form a wine-rack net in the bc plane of the unit cell (Fig. 1b), which is two-fold interpenetrated and perforated by rhombic, one-dimensional channels that run parallel to the ScO₆ chains down the a-axis (Fig. 1c). We have previously quantified the flexibility of the material by measuring the internal angles of the rhombic pore, Ψ and Φ (Fig. 1b). There are two types of chemically distinct channels. One is decorated by μ₂-OH groups at the shared corners of ScO₆ pairs, and contains two DMF molecules from the crystallisation solvent per unit formula, with a hydrogen bonding interaction between the formyl group of the DMF and the H atom of the bridging hydroxide (O⋯O = 2.89(2) Å).⁴⁷ The second channel is vacant upon synthesis, with a solvent accessible volume of 270 ų (probe radius = 1.2 Å, grid spacing = 0.7 Å, Mercury, CSD).⁷⁰

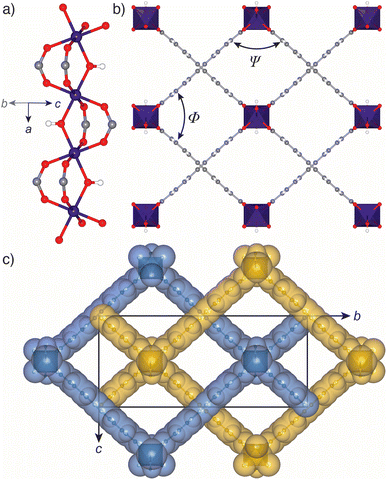

Fig. 1 Solid state-structure of GUF-1-(HCl). (a) Infinite chain SBU of ScO₆ octahedra with bridging μ₂-OH ligands that runs down the crystallographic a-axis. (b) Fragment of the packing structure viewed down the crystallographic a-axis, with interior pore angles Ψ and Φ labelled. (c) Two-fold interpenetrated packing structure with individual nets coloured blue and yellow, and the unit cell overlaid. Where applicable, atoms are coloured Sc: purple; C: grey; O: red; H: white. H atoms and pore-bound DMF in parts (b) and (c) are omitted for clarity. Reproduced from CSD deposition 2095589.⁴⁷

A single crystal of GUF-1-(HCl) was transferred from DMF storage and compressed in a modified Merrill–Bassett DAC⁷¹ using methanol (CH₃OH) as the pressure-transmitting medium; CH₃OH is a commonly used solvent which is small enough to infiltrate the framework pores and remains liquid to high pressures (see ESI, Section S3†). Compression was followed by in situ single crystal X-ray diffraction up to 4.98 GPa. A crystal of GUF-1-(HCl) was also compressed in a non-penetrating medium of Fluorinert® FC-70 to examine its flexibility under direct pressure. However, the crystal became polycrystalline at the initial loading pressure of 0.1 GPa, so no further structural analysis was performed. Crystallographic and structural data are given in Tables 1, S2 and S3 (ESI†). Compression of GUF-1-(HCl) in CH₃OH between ambient pressure and 4.98 GPa causes the unit cell volume to decrease by 158.9(9) Å (−7.0%) (Fig. 2a, Table 1).

Table 1 Unit cell axes and refined crystallographic occupancy of μ₂-OCH₃ for GUF-1 and GUF-1-OCH₃ during hydrostatic compression in a pressure transmitting medium of CH₃OH. All structures are in the space group Cmme

P/GPa	a/Å	b/Å	c/Å	V/Å^3	μ2-OCH3 occ.
a Separate crystal, data collection at ambient pressure at 273 K.
0.00^a	7.3054 (5)	26.5207 (17)	11.7550 (9)	2277.5 (5)	0.00
0.23	7.3533 (9)	26.584 (12)	11.879 (4)	2322.2 (14)	0.00
0.47	7.3205 (15)	26.609 (5)	11.922 (2)	2322.2 (8)	0.00
0.71	7.3445 (19)	23.984 (3)	13.1770 (13)	2321.1 (7)	0.33 (3)
1.61	7.3293 (16)	23.332 (3)	13.3614 (11)	2284.9 (6)	0.93 (4)
2.13	7.290 (3)	22.957 (4)	13.4286 (14)	2247.4 (9)	0.69 (5)
2.61	7.241 (4)	22.814 (7)	13.473 (3)	2225.6 (14)	0.82 (5)
2.84	7.213 (2)	22.789 (3)	13.4966 (13)	2218.6 (7)	0.72 (4)
3.20	7.180 (2)	22.587 (4)	13.5541 (13)	2198.2 (7)	0.85 (4)
3.45	7.1429 (17)	22.463 (5)	13.5504 (12)	2174.2 (7)	0.78 (5)
3.85	7.1069 (17)	22.297 (4)	13.5859 (16)	2152.8 (7)	0.68 (4)
4.11	7.0769 (18)	22.232 (6)	13.613 (15)	2141.7 (6)	0.90 (4)
4.60	7.0380 (14)	22.061 (7)	13.652 (2)	2119.8 (8)	0.85 (4)
4.98	7.0142 (12)	21.941 (7)	13.6972 (19)	2108.0 (8)	0.98 (4)

---

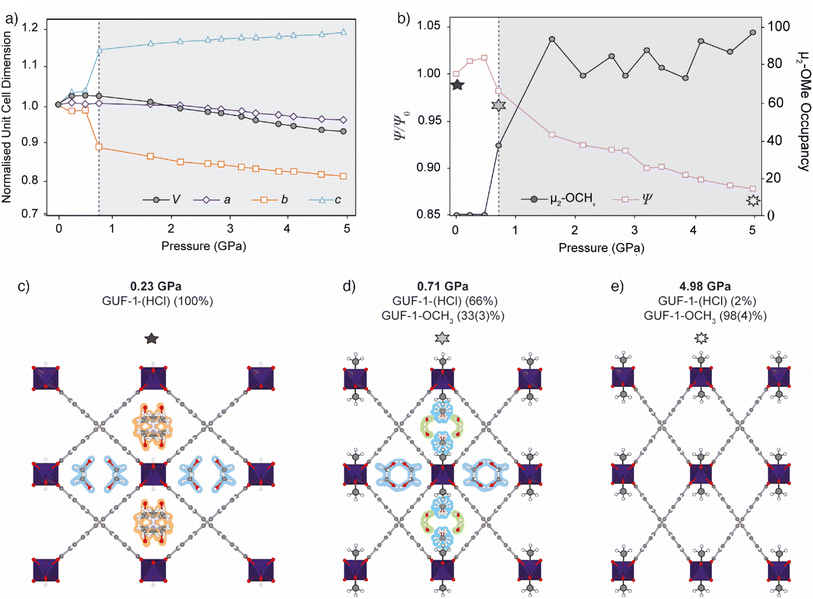

Fig. 2 (a) Unit cell volume (black) and normalised unit cell axis lengths (a – purple diamonds, b – orange squares, c – blue triangles) of GUF-1-(HCl) (white region) and GUF-1-OCH₃ (shaded region) during hydrostatic compression in CH₃OH. Error bars are within the data markers. (b) Plot of the refined occupancy of the exchanged μ₂-OCH₃ bridge (grey circles) and the normalised hinge angle, Ψ/Ψ₀ (pink squares), where Ψ is at high-pressure and Ψ₀ is at ambient pressure, during compression. The stars correspond to individual structures shown in (c)–(e). (c) Crystal structure of GUF-1-(HCl) at 0.23 GPa viewed along the crystallographic a-axis, showing disordered DMF (highlighted in orange) and CH₃OH (highlighted in blue) in the pores. (d) Crystal structure of the post-synthetically modified framework, GUF-1-OCH₃, at 0.71 GPa with the CH₃ groups enhanced for clarity. Adsorbed water in the pores is highlighted in green. At this pressure, 33(3)% of the μ₂-OH groups have been exchanged for μ₂-OCH₃. (e) Structure of GUF-1-OCH₃ at 4.98 GPa, where 98(4)% of the μ₂-OH groups have been exchanged for μ₂-OCH₃ and the wine-rack structure is compressed. Atoms are coloured according to previous figure.

The compression occurs in two stages, marked by a change in the compressibility of the crystal at 0.71 GPa. Initial compression of native GUF-1 between ambient pressure and 0.47 GPa causes the unit cell volume to increase by 55.3(9) ų (+2.4%) with the associated change in the channel shape indicated by an increase in Ψ, the hinge angle of the framework defined as the angle between intersecting EDB²⁻ linkers⁴⁷ (Fig. 2b, Table 1). Compression of native GUF-1 promotes adsorption of CH₃OH into the previously vacant channels at 0.23 GPa, expanding the structure (Fig. 2c). Subsequently, postsynthetic modification occurs suddenly at a critical pressure of 0.71 GPa, (Fig. 2d) and involves partial exchange of the μ₂-OH ligand for a bridging methoxide group, μ₂-OCH₃, in a single-crystal-to-single-crystal reaction with retention of the Cmme symmetry. The high-pressure phase observed between 0.71 GPa and 4.98 GPa (Fig. 2e) therefore corresponds to a postsynthetically modified framework, denoted as GUF-1-OCH₃. At 0.71 GPa, conversion from GUF-1 to GUF-1-OCH₃ is measured to be 33(3)%, according to the refined crystallographic occupancy of the C atom of the methyl group.

Postsynthetic cluster anion substitution is clearly facilitated by the pressure-induced intrusion of CH₃OH from the hydrostatic medium into the framework channels. At 0.71 GPa, the pressure is sufficient to promote exchange of the DMF in the μ₂-OH decorated channel for CH₃OH and H₂O (Fig. 2d), which brings the reactant CH₃OH in close proximity to the μ₂-OH sites, (O⋯O = 5.2(3) Å), likely promoting the postsynthetic cluster anion exchange. The subsequent identification of adsorbed H₂O could result from this being the by-product of the μ₂-OH for μ₂-OCH₃ exchange or, alternatively, it may originate from residual moisture in the pressure transmitting medium. The CH₃OH is adsorbed at two independent sites near the centre of the channel, with occupancies of ∼20% at 0.71 GPa, one of which is disordered over a mirror plane, while H₂O is located in two equivalent sites near the corner of the rhombic channel, with an occupancy of ∼49%. Above 0.71 GPa, the adsorbate became highly disordered and so was modelled using the SQUEEZE⁷² algorithm in PLATON.⁷³

The mechanism of the postsynthetic cluster anion substitution process cannot be ascertained from the crystal structure, although it is possible that the guest exchange and cluster anion exchange are concerted, accounting for the high pressure required to facilitate the reaction. Intuitively, μ₂-OH to μ₂-OCH₃ exchange is likely to be an associative process involving coordination of methanol and breaking of one of the Sc–OH bonds, maintaining the overall six-coordinate environment around the Sc^III ions, followed by proton transfer from methanol to hydroxide, water dissociation, and subsequent coordination to the now bridging μ₂-OCH₃ unit. Confinement of H₂O in the channel may promote the reverse process, which would account for the partial conversion of GUF-1 to GUF-1-OCH₃ at 0.71 GPa.

Conversion is effectively quantitative by 1.61 GPa, being measured as 93(4)%. The possible equilibrium between μ₂-OH, μ₂-OCH₃, H₂O and CH₃OH may create a pressure dependence on the conversion to GUF-1-OCH₃; values fluctuate between 1.61 GPa and 4.98 GPa before reaching 98(4)% at the highest pressure measured, with pressure-induced intrusion of CH₃OH into the channels favouring the forward, μ₂-OH to μ₂-OCH₃, exchange process (Fig. 2b, Table 1). While we appreciate the refined C-atom occupancy for the μ₂-OCH₃ unit does fluctuate above 1.61 GPa, this is a room temperature measurement from a single crystal in a DAC. Nevertheless, the largest and most statistically significant change occurs on increasing the pressure from 0.71 to 1.61 GPa (12σ change in C-atom occupancy), after which the refined occupancies all lie within 0.8–3.9σ of each other.

The μ₂-OH to μ₂-OCH₃ substitution process is associated with a decrease in the porosity of the framework, and occurs concurrently with compression of the wine-rack structure. In GUF-1-OCH₃, the methyl groups of the μ₂-OCH₃ ligands protrude into the channel, decreasing the pore volume by 39 ų (−13.1%) between 0.47 GPa and 0.71 GPa (Fig. 3 and Table S3†), and increasing its hydrophobicity.

Fig. 3 Fragments of (a) GUF-1-(HCl) (ambient pressure) and (b) GUF-1-OCH₃ (0.71 GPa) showing the solvent accessible volume (yellow).

At the time of formation of GUF-1-OCH₃, the hinge angle, Ψ, decreases from 97.41(3)° to 94.30(2)°, compressing the wine-rack structure in width and extending it in height (Table S3†). This is associated with a sudden contraction of the b-axis by 2.625(6) Å (−9.9%) and extension of the c-axis by 1.255(2) Å (+10.5%) between 0.47 GPa and 0.71 GPa, while the a-axis and cell volume remain largely unchanged (Table 1). This type of anisotropic compression and associated negative linear compressibility are common to MIL-53 frameworks^74–77 and, in GUF-1-OCH₃, appears to primarily result from the application of hydrostatic pressure. Upon further compression of GUF-1-OCH₃ from 0.71 GPa to 4.98 GPa, ψ gradually decreases by 3.75(4)° (−4.0%, Fig. 2b, Table S3†). No such behaviour is observed in the native framework, GUF-1-(HCl), up to 0.47 GPa due to the initial intrusion of CH₃OH into the channels, which limits the framework flexibility as we have observed in Zr MOF systems.⁵³

This cluster anion substitution reaction, in effect pressure-induced chemisorption of methanol, is highly unusual in MOFs, but the experimental set-up using the DAC only allows probing of an individual crystal. As we have previously used solid-state NMR spectroscopy to successfully monitor exchange of μ₂-OH ligands with isotopically enriched water in the related MOF MIL-53(Sc),³⁸ we again turned to this technique to determine if the bulk reactivity mirrored that observed in the single crystal. Large-scale samples of the MOF were prepared by acetic acid modulated synthesis to yield GUF-1-(AcOH) and the as-synthesised materials exchanged with either fresh DMF as a control sample, or different isotopologues of methanol: natural abundance CH₃OH, CD₃OD (99% ²H), and ¹³CH₃OH (99% ¹³C). A large volume press was used to apply pressure to the samples (see ESI, Section S4†). Each suspension was individually transferred to a sample chamber comprising a 60 mm length of Teflon tubing (ID 8 mm, OD 10 mm) sealed with Teflon caps and Teflon tape. The sample capsule was inserted into a large volume press assembly and a load of 7 tonnes was applied (equivalent pressure = 0.8 GPa, the highest pressure accessible with the equipment).⁷⁸ The samples were held at elevated pressure for a period of 16 h at room temperature (ca. 20 °C). For all tested samples, the load on the sample had decreased to ∼6–6.5 tonnes (pressure = 0.69–0.75 GPa) indicating a decrease in sample pressure over the 16 h period. This is frequently observed in other systems and hence is due to a mechanical effect rather than changes to the sample. After this time, the sample was returned to atmospheric pressure over a period of 10 minutes and recovered as a suspension. Control experiments were carried out on identical samples that were exchanged in methanol at ambient pressure for the same time period. The samples are named GUF-1-(solv)-X, where solv = DMF or the methanol isotopologue used, and X = am (ambient) or P (pressurised to 0.8 GPa) to denote the pressure used for postsynthetic exchange (see ESI, Table S1†).

Solid-state NMR spectroscopy was then employed to further investigate the nature of the cluster anion substitution process using ¹³C, ¹H and ²H magic angle spinning (MAS) NMR experiments (see ESI, Section S5†). Assignments of the signals from the linker carbon environments are based on ¹³C NMR experiments performed on GUF-1-(DMF)-am (see ESI, Section S5.1,† which includes the atom labelling scheme). No resonances corresponding to acetic acid, or acetate acting as a cluster-capping defect, were observed before or after exchange with DMF. Initial ¹³C MAS and cross polarisation (CP) MAS NMR spectra (see ESI, Section S5.2†) acquired for a sample exchanged with unenriched methanol at ambient pressure – GUF-1-(CH₃OH)-am – show five resonances corresponding to the MOF linker at δ = 170 (C1, carboxyl carbon), 134 (C2), 132 (C3 and C4), 127 (C5), and 96 ppm (C6, alkyne carbon), as well as three resonances arising from the presence of DMF (δ = 161, 35 and 30 ppm). Alongside these peaks is a small additional resonance at 56 ppm, a typical δ_iso value for the ¹³C nucleus of a OCH₃ group. This peak remains following calcination of the MOF at 140 °C, 10⁻⁴ torr for 48 hours, indicating it arises from framework bound OCH₃ rather than free CH₃OH within the MOF pores. However, the intensity of this signal is low, and accurate information on the relative percentage of unenriched CH₃OH exchange taking place within the framework cannot be determined easily from these ¹³C NMR spectra.

Repeating the methanol exchange process with ¹³CH₃OH (99% ¹³C) enables ¹³C NMR spectra to be acquired with an improved signal-to-noise ratio. This process was performed on two samples of GUF-1-(AcOH), one exchanged under ambient pressure conditions – GUF-1-(¹³CH₃OH)-am – and a second which had been pressurised to 0.8 GPa in the large volume press, GUF-1-(¹³CH₃OH)-P. Both materials were stored in their ¹³CH₃OH solvent for 6 further days after pressurisation, prior to filtering and packing in MAS NMR rotors. ¹³C and ¹H MAS NMR spectra were acquired on the freshly filtered materials, and subsequently after calcination at 140 °C, 10⁻⁴ torr for 48 h. The ¹³C MAS NMR spectra for the materials before and after calcination are shown in Fig. 4a and b, while ¹³C CP MAS and ¹H MAS NMR spectra are provided in the ESI, Section S5.3.† In order to acquire a quantitative ¹³C MAS NMR spectrum, T₁ relaxation measurements were carried out on GUF-1-(¹³CH₃OH)-am using a saturation recovery experiment, which indicated the alkyne carbon had the slowest relaxation (with T₁ values of 10 and 12 s for the post-soaking and calcined forms, respectively) and thus a recycle interval of 2 minutes was utilised for every ¹³C MAS NMR spectrum. The ¹³C MAS NMR spectrum of GUF-1-(¹³CH₃OH)-am (Fig. 4a) shows significant enhancement of the resonance at 56 ppm, providing further evidence that this peak relates to the exchanged μ₂-OCH₃. Fitting and integrating the peaks in the solid-state NMR spectrum, including spinning sidebands, indicates 2.2(2)% of the hydroxyl groups in the framework have been replaced with μ₂-OCH₃ following the ambient pressure exchange step. After calcination this value decreases to 1.6(3)%, suggesting a very small portion of free ¹³CH₃OH was still present in the original material. Additional resonances arise in the ¹³C MAS NMR spectrum between 10 and 50 ppm when the material is exchanged with ¹³CH₃OH. It is believed that these peaks correspond to a minor impurity in the material, present at 2–3% (w/w), but are only observable when ¹³CH₃OH is used and would be too weak to observe crystallographically. A more detailed discussion of the possible nature of these signals is included in the ESI, Section S5.3.†

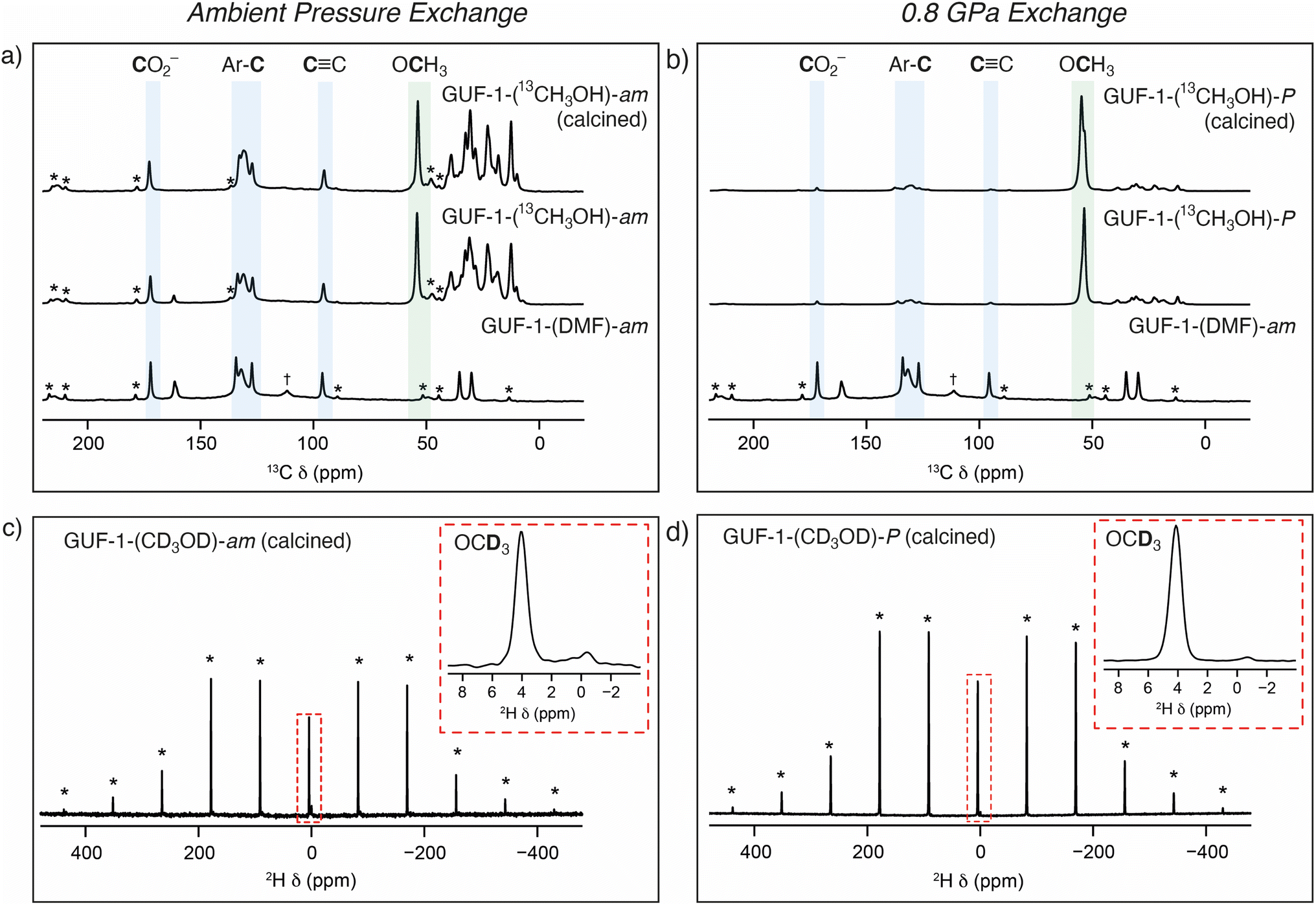

Fig. 4 Top: comparative ¹³C (14.1 T, 12.5 kHz) MAS NMR spectra of GUF-1-(DMF)-am before and after soaking in ¹³CH₃OH and calcination at (a) ambient pressure (GUF-1-(¹³CH₃OH)-am), and (b) at 0.8 GPa in the large volume press (GUF-1-(¹³CH₃OH)-P). Resonances shaded in blue correspond to carbon atoms of the EDB²⁻ linker, and the resonances shaded green to the OCH₃ group coordinated to the SBU (56 ppm). Resonances for ¹³C nuclei of DMF are visible in the spectrum of GUF-1-(DMF)-am at 30, 35, and 161 ppm. Resonances between 10 and 50 ppm correspond to a minor impurity introduced by the ¹³CH₃OH (see ESI†). Bottom: ²H (14.1 T, 8 kHz) MAS NMR spectra of (c) GUF-1-(CD₃OD)-am and (d) GUF-1-(CD₃OD)-P, with the resonances assigned to the OCD₃ group at 4 ppm shown in inserts. Dagger (†) denotes a signal arising from a PTFE 4 mm MAS NMR rotor insert. Asterisks (*) denote spinning sidebands.

For the sample prepared under high pressure, GUF-1-(¹³CH₃OH)-P, the percentage of μ₂-OCH₃ exchange increases significantly to 20(4)%, decreasing slightly to 17(2)% following calcination (Fig. 4b), confirming the significant effect of pressure in enhancing cluster anion exchange by an order of magnitude, and the stability of the μ₂-OCH₃ substituent once the pressure is returned to ambient and the CH₃OH is removed. These values correspond reasonably well with the 33(3)% μ₂-OCH₃ exchange observed using crystallography at 0.71 GPa. Powder X-ray diffraction analysis of the samples recovered following solid-state NMR spectroscopy shows that the MOFs remain intact after the bulk scale pressurisation, with some minor differences in relative peak intensities apparent after calcination (see ESI, Section S6†).

To provide additional evidence of μ₂-OCH₃ binding to the GUF-1 framework, ²H MAS NMR spectra of materials exchanged using CD₃OD (99% ²H) were acquired to investigate any limitations on free rotation of methanol through measurement of the ²H quadrupolar coupling constant, C_Q. In general, for ²H in a molecule which can rotate isotropically, as in solution, a C_Q value of 0 would be observed (i.e., the anisotropic quadrupolar interaction would be completely removed). Larger values of C_Q indicate restricted motion of the molecule, for example if μ₂-OCH₃ was bound to the MOF. The ²H MAS NMR spectra of the calcined frameworks in Fig. 4c and d, GUF-1-(CD₃OD)-am and GUF-1-(CD₃OD)-P, respectively, show two resonances at 3.9 and −0.5 ppm (insets), corresponding to deuterated μ₂-OCD₃ and the previously mentioned minor impurity (see ESI, Section 5.3†), respectively. Fitting of the resonance at 3.9 ppm gives a C_Q value of 46(3) kHz for the framework exchanged under ambient conditions and 48(3) kHz when exchange is carried out under higher pressure. Both fittings provide an η_Q value (where η_Q is a measure of the asymmetry of the quadrupolar interaction)⁷⁹ of 0.0(2) confirming an axially symmetric averaged electric field gradient tensor, as expected for a C₃ rotation. This provides further evidence that the resonance at 3.9 ppm corresponds to μ₂-OCH₃ that is bound to the MOF at the SBU rather than present as free CH₃OH within the framework pores.

Conclusions

In summary, we have demonstrated that the bridging μ₂-OH ligands in the MIL-53 topology Sc^III MOF GUF-1 can be exchanged for μ₂-OCH₃ ligands through pressure-induced reaction with pore-bound methanol in a process we have termed cluster anion substitution. Up to 98(4)% of the μ₂-OH groups were seen to exchange crystallographically at 4.98 GPa in a single crystal pressurised in a diamond anvil cell, while solid-state NMR spectroscopy showed 17(2)% exchange in bulk samples subjected to 0.8 GPa in a large volume press, an order of magnitude greater than the 1.6(3)% exchange observed for samples soaked in methanol under ambient conditions. We hypothesise that pressure-induced intrusion of CH₃OH into the pores of GUF-1 brings the adsorbate into close contact with the framework and results in an enhancement of reactivity due to close confinement of the reagents. These findings provide further evidence of the lability of the bridging hydroxo ligands commonly found in MOF SBUs, beyond the simple μ₂-OH/μ₂-¹⁷OH exchange reported previously in MIL-53(Sc) under hydrothermal conditions, and suggest that CH₃OH activation of MOFs should be carefully monitored for unintentional reactivity and chemisorption of the solvent. Indeed, refluxing a sample of GUF-1-(DMF)-am in CH₃OH for 16 h results in 46(2)% exchange (see ESI, Section S6.3†); whilst this is lower than the near quantitative exchange achieved at 4.98 GPa, it further demonstrates the lability of the SBU. The presumably associative ligand exchange mechanism could be a proxy not only for solvent-induced structural breakdown of MOFs – for example certain Zr MOFs containing μ₂-OH ligands at their SBUs are known to be sensitive to CH₃OH^80–82 – but also a potential mechanism for small molecule activation, as similar bridging methoxide units at the SBUs of related MOFs have been implicated in catalytic mechanisms.⁸³ In addition, formation of terminal Zr–OCH₃ units at defect sites in Zr MOFs is implicated in their CH₃OH activation for further functionalisation,⁸⁴ while the presence of μ₂-OCH₃ in the SBUs of GUF-1 could explain changes in physical properties observed when related MIL-53 analogues are directly synthesised in CH₃OH.^85,86 Our bulk scale pressure measurements identified a low level (∼2%) pore-located impurity in the samples, which we have not currently identified, but whose isotopic enrichment confirms its origin in the ¹³CH₃OH used to induce reactivity. Future work will seek to identify this material and exploit transient alkoxide coordination for catalytic reactions.

Data availability

CCDC 2223543–2223556 contain the supplementary crystallographic data. These data can be obtained free of charge from The Cambridge Crystallographic Data Centre; see https://www.ccdc.cam.ac.uk/. The data that support the findings of this study are openly available in University of Glasgow, Enlighten repository at https://doi.org/10.5525/gla.researchdata.1453.†

Author contributions

R. S. F. and S. A. M. conceived the project. A. J. R. T. and W. L. W. L. synthesised all materials, and carried out all postsynthetic modifications and lab scale characterisation. A. J. R. T., G. F. T., I. P., C. L. H., D. R. A. and M. R. W. (Warren) carried out high-pressure single crystal X-ray diffraction measurements at Diamond Light Source, and G. F. T. and S. A. M. analysed the data. M. R. W. (Ward) and I. D. H. O. carried out bulk scale pressurisation experiments in the high-volume press. Z. H. D. carried out solid-state NMR spectroscopic experiments and analysed the data with R. E. M. and S. E. A. All authors contributed to the preparation of the manuscript, which was initially drafted by A. J. R. T., R. S. F., G. F. T., S. A. M., Z. H. F., and S. E. A.

Conflicts of interest

The authors declare no competing interests.
