NIR squaraine dyes for dual colorimetric and fluorescent determination of Fe3+, Cu2+, and Hg2+ ions†
Received
12th April 2023
, Accepted 26th May 2023
First published on 8th June 2023
Abstract
Four benzoindolenine-based squaraine dyes (SQs), which have the advantages of intense visible and near-infrared (NIR) absorption and emission (λabs/max 663–695 nm, λem/max 686–730 nm) were synthesized and characterized by UV-vis absorption, fluorescent emission spectrophotometry, FTIR, NMR and HRMS analysis. Among them, BBSQ showed excellent performance, which exhibited high selectivity to Fe3+, Cu2+, and Hg2+ in acetonitrile solution even in the presence of other competitive metal ions, accompanied by obvious color change easily detected by the naked eye. The detection limit was 14.17 μM for Fe3+ and 6.06 μM for Cu2+. Most importantly, the response mechanism of BBSQ to Fe3+, Cu2+, and Hg2+ involves the coordination of BBSQ and metal ions through the O atom on the central squarate ring, N atom, and olefin π bond of BBSQ and has been demonstrated by Job's plot, FTIR, and 1H NMR titration analyses. Furthermore, BBSQ was applied successfully to detect Fe3+, Cu2+, and Hg2+ in thin-layer chromatography (TLC) plates with good precision and is quite promising for the quantitative detection of Fe3+ and Cu2+ ions in water samples.
1. Introduction
With the development of society and the continuous improvement of human living standards, the accompanying negative problems have become more and more serious, among which the impact of metal ions, anions, and biomolecules on people's daily life and the ecological environment cannot be underestimated.1 Heavy metals cause great harm to the environment and human life by polluting land and water, which is not conducive to the growth of animals and plants.2–4 Iron is involved in oxygen transport and proton transfer in blood and is an important component of various enzymes and hemoglobin.5 The lack of iron in the body will lead to physiological dysfunction, thereby causing diseases. Excess iron is also potentially harmful, becoming toxic by promoting the oxidation of fats, proteins, and other components of the cell.6 Similarly, the lack or excess of copper ions in the body can lead to growth and metabolic disorders, leading to severe disorders of copper metabolism.6–8 In addition, mercury is a heavy metal element with high toxicity to human beings and the environment, and its accumulation in the body will lead to serious health problems.2,3,9,10
A variety of detection methods have been used to detect metal ions, for example, atomic fluorescence spectrometry (AFS), atomic absorption spectrometry (AAS), inductively coupled plasma (ICP), chemical titration, electrochemical analysis, and chromatography.7,11 Although these methods have the advantages of low detection limit and high sensitivity, they also have the disadvantages of expensive instruments, complex operation, troublesome pre-processing, and long-time consumption.4 Therefore, the development of efficient and reliable analytical methods to detect metal ions in real-time is of great significance for food safety problems, early diagnosis of diseases, and environmental level monitoring.8 Colorimetric and fluorescence detection technology realizes the visual detection of metal ions, simplifies the analysis operation, and improves the detection sensitivity, which plays an important role in promoting the research and solution of problems that plague the origin of human life, disease diagnosis, and treatment, as well as environmental pollution and food safety issues.5,12 There are a large number of colorimetric and fluorescent metal ion probes with various organic molecular platforms, including boron-dipyrromethene (BODIPY), rhodamine, fluorescein, coumarin, and naphthimide (shown in Table S1†), whose absorption and fluorescence emission wavelength are usually in the ultraviolet and visible (UV-vis) regions.13,14 In order to expand the application of the metal ion probes in biological systems, chromophores and fluorophores such as cyanines, and squaraines (SQs) with near-infrared (NIR) absorption and fluorescence emission properties have attracted more and more attention.
Squaraine dyes, a class of resonance stable squaric acid derivatives with zwitterionic characteristics, contain an electron-deficient central squarate ring (A) connecting the two electron-donating groups (D), forming the intramolecular “donor–acceptor–donor” (D–A–D) structure with a large π-conjugate system.15,16 Indolenine- and benzoindolenine-based squaraines are one of the common squaraine structures, which have been synthesized and employed as phototherapeutic agents, optical probes, biological imaging, biomarkers, organic photovoltaic donor materials and so on due to their large π conjugate planar structure and good absorption and emission properties in the NIR region.17–23 Two benzoindolenine-based squaraines BBSQ and BBSQ-NEt were reported by our group in 2019, and BBSQ-NEt was used as an interfacial layer for efficient polymer solar cells with good performance.15 In the subsequent preliminary study, we found that BBSQ and BBSQ-NEt responded to metal ions. In fact, there are two oxygen atoms on the central squarate ring of the parent structure of squaraine dyes, which can be directly used as coordination sites with metal ions, leading to significant changes in the colorimetric and fluorescence properties.24,25 In addition, oxygen atoms can be further replaced and modified by sulfur atoms, nitrogen atoms and so on, which may change the coordination ability with metal ions, adjust their photophysical properties, and obtain probe molecules with different response phenomena.19,22,26
In this work, in order to investigate the effect of structural changes on the metal ion response by changing the O atoms, four benzoindolenine-based squaraine dyes with different substituents on the central squarate ring, such as oxygen (BBSQ), monosulfur (BBSQ-S), disulfide (BBSQ-SS), and diethylamine group (BBSQ-NEt) were synthesized using readily available raw materials and simple synthetic routes, as shown in Scheme 1. Four squaraine dyes exhibited strong absorption at 600–750 nm and fluorescence emission at 650–850 nm in the deep-red/near-infrared region. The experimental results showed no significant difference in the response of BBSQ, BBSQ-S, BBSQ-SS, and BBSQ-NEt to metal ions. The best-performing BBSQ was selected to thoroughly study its response to metal ions. BBSQ showed good colorimetric and fluorescence recognition capabilities for Fe3+, Cu2+, and Hg2+ with short response time and no interference by other ions.
 |
| Scheme 1 The synthetic routes of intermediates and target compounds. Reagents/reaction conditions: (a) n-butane iodide, nitromethane, 100 °C, 18 h, 86%; (b) squaric acid, quinoline, toluene/n-butanol = 1 : 1 (v/v), reflux, 9 h, 54%; (c) methyl trifluoromethanesulfonate, anhydrous dichloromethane, argon, room temperature, 12 h, 49%; (d) phosphorus pentasulfide, pyridine, room temperature, 26 h, 69%; (e) Lawesson's reagent, HMPA, toluene, 115 °C, 2.5 h, 33%; (f) diethylamine, dichloromethane, argon, room temperature, 12 h, 62%. | |
2. Experimental section
2.1. Reagents
All solvents and reagents (analytical and spectroscopic grades) were obtained commercially and were used as received unless otherwise noted. 1,1,2-Trimethyl-1H-benzo[e]indole, nitromethane, n-butane iodide, squaric acid, quinoline, phosphorus pentasulfide, pyridine, Lawesson's reagent, hexamethylphosphoramide (HMPA), methyl trifluoromethanesulfonate, diethylamine, potassium bromide, metal salts (except for mercury perchlorate and zinc perchlorate, all other salts are chlorides), and all reagents were of analytical or spectral grade purity. The experimental water was ultrapure water.
2.2. Synthesis of target compounds
The synthetic routes are outlined in Scheme 1. B-C4, BBSQ, BBSQ-OMe, BBSQ-NEt, BBSQ-S, and BBSQ-SS were prepared according to the procedures described in the literatures.15,27
2.2.1 Synthesis of BBSQ. 1,1,2-Trimethyl-1H-benzo[e]indole (10.00 g, 47.50 mmol) was added to 80 mL CH3NO2, stirred, and dissolved. After adding n-butane iodide (21.50 g, 95.50 mmol), the reaction mixture was heated to 100 °C for 14 h, and monitored by thin layer chromatography (TLC). It was detected that some raw materials in the system were still unreacted; thus, 1.80 mL n-butane iodide was added, and the reaction mixture was further heated at 100 °C for 4 h. The reaction solution was concentrated to about 50 mL and titrated with 350 mL ethyl acetate. The precipitate was filtered, washed with petroleum ether, and then filtered to obtain light gray-green precipitate B-C4 (16.00 g, yield 86%).B-C4 (10.00 g, 25.4 mmol), squaric acid (1.45 g, 12.7 mmol), quinoline (3.30 g, 25.4 mmol) were added to 150 mL mixed solvent of toluene/n-butanol (v/v = 1
:
1). The reaction mixture was refluxed with a Dean–Stark trap for 9 h. The reaction solution was concentrated under reduced pressure to 20 mL and 300 mL of ethyl acetate was added to it. The formed precipitate was suction filtered, washed with 200 mL of petroleum ether twice, and suction filtered to obtain brownish green solid BBSQ (4.16 g, yield 54%). M.p. 302.7–304.1 °C. 1H NMR (400 MHz, chloroform-d, ppm) δ 8.20 (d, J = 8.5 Hz, 2H, ArH), 7.90 (d, J = 8.6 Hz, 2H, ArH), 7.87 (d, J = 8.4 Hz, 2H, ArH) 7.58 (t, J = 7.7 Hz, 2H, ArH), 7.42 (t, J = 7.6 Hz, 2H, ArH), 7.29 (d, J = 8.7 Hz, 2H, ArH), 6.03 (s, 2H,
CH), 4.12 (s, 4H, CH2), 2.09 (s, 12H, CH3), 1.90–1.83 (m, 4H, CH2), 1.54–1.46 (m, 4H, CH2), 1.01 (t, J = 7.4 Hz, 6H, CH3). 13C NMR (101 MHz, chloroform-d, ppm) δ 178.0, 171.4, 139.7, 134.4, 131.2, 129.7, 129.6, 128.7, 127.3, 124.3, 122.6, 110.2, 86.3, 51.2, 43.7, 29.4, 26.8, 20.4, 13.9. HRMS (ESI): m/z calcd for [C42H44N2O2]+ ([M + H]+): 609.3476; found 609.3475.
2.2.2 Synthesis of BBSQ-S. BBSQ (0.54 g, 0.89 mmol) and phosphorus pentasulfide (0.79 g, 1.80 mmol) were reacted in pyridine (6 mL) for 26 h at room temperature. The reaction solution was concentrated and purified by column chromatography with 200–300 mesh of silica gel (eluent: dichloromethane) to obtain a relatively pure product. The product was washed with n-hexane to obtain dark green solid BBSQ-S (0.39 g, yield 69%). M.p. 197.7–199.4 °C. 1H NMR (400 MHz, chloroform-d, ppm) δ 8.22 (d, J = 8.5 Hz, 2H, ArH), 7.91 (d, J = 6.9 Hz, 2H, ArH), 7.89 (d, J = 7.4 Hz, 2H, ArH), 7.57 (t, J = 7.8 Hz, 2H, ArH), 7.42 (t, J = 7.6 Hz, 2H, ArH), 7.34 (d, J = 8.9 Hz, 2H, ArH), 6.50 (s, 2H,
CH), 4.22 (t, J = 7.5 Hz, 4H, CH2), 2.11 (s, 12H, CH3), 1.96–1.85 (m, 4H, CH2), 1.54–1.47 (m, 4H, CH2), 1.01 (t, J = 7.5 Hz, 6H, CH3). 13C NMR (101 MHz, chloroform-d, ppm) δ 205.7, 182.7, 177.9, 173.2, 139.6, 134.7, 131.4, 129.8, 129.7, 128.6, 127.4, 124.5, 122.5, 110.4, 88.9, 51.3, 43.8, 29.5, 26.7, 20.4, 14.0. HRMS (ESI): m/z calcd for [C42H44N2OS]+ ([M + H]+): 625.3247; found 625.3257.
2.2.3 Synthesis of BBSQ-SS. BBSQ (0.20 g, 0.33 mmol), Lawesson's reagent (0.27 g, 0.66 mmol), and hexamethylphosphoryltriamide (HMPA, 0.13 mL) were added to 15 mL of degassed toluene under anhydrous anaerobic conditions, and the mixture was refluxed for 2.5 h. The reaction solution was added to 100 mL of diethyl ether to form a precipitate. The solid was dissolved in dichloromethane, purified by column chromatography with 200–300 mesh of silica gel (eluent: dichloromethane/petroleum ether = 1
:
1, v/v), and recrystallized (dichloromethane
:
ethanol = 1
:
3, v/v) to obtain bright copper solid BBSQ-SS (0.07 g, yield 33%). M.p. 242.2–243.6 °C. 1H NMR (400 MHz, chloroform-d, ppm) δ 8.21 (d, J = 8.5 Hz, 2H, ArH), 7.92 (d, J = 8.0 Hz, 2H, ArH), 7.90 (d, J = 8.5 Hz, 2H, ArH), 7.59 (t, J = 7.7 Hz, 2H, ArH), 7.45 (t, J = 7.6 Hz, 2H, ArH), 7.37 (d, J = 8.0 Hz, 2H, ArH), 6.63 (s, 2H,
CH), 4.36 (t, J = 7.6 Hz, 4H, CH2), 2.14 (s, 12H, CH3), 1.93–1.86 (m, 4H, CH2), 1.56–1.46 (m, 4H, CH2), 1.02 (t, J = 6.0 Hz, 6H, CH3). 13C NMR (101 MHz, chloroform-d, ppm) δ 204.5, 185.1, 174.9, 139.4, 135.0, 131.4, 129.7, 129.6, 128.6, 127.3, 124.6, 122.7, 110.7, 87.5, 51.6, 45.2, 29.4, 27.6, 20.3, 13.9. HRMS (ESI): m/z calcd for [C42H44N2S2]+ ([M + Na]+): 663.2838; found 663.2836.
2.2.4 Synthesis of BBSQ-NEt. BBSQ (3.00 g, 4.93 mmol) and CF3SO3CH3 (4.04 g, 24.64 mmol) were added to 90 mL of degassed anhydrous dichloromethane, and the reaction mixture was stirred at room temperature under argon protection for 12 h and poured into water. The organic phase was separated and the aqueous phase was extracted with CH2Cl2 three times. The combined organic phase was dried over anhydrous Na2SO4, filtered, and concentrated in vacuo to obtain yellow-green solid BBSQ-OMe.BBSQ-OMe (0.40 g, 0.52 mmol) and diethylamine (0.19 g, 2.59 mmol) were added to 50 mL degassed anhydrous dichloromethane. The mixture was reacted at room temperature for 12 h under argon protection, then concentrated, purified by column chromatography with 200–300 mesh of neutral alumina (eluent: dichloromethane/methanol = 60
:
1, v/v), and recrystallized (dichloromethane
:
n-hexane) to obtain brown metallic-luster needle-like crystals of BBSQ-NEt (0.26 g, yield 62%). M.p. 203.2–204.7 °C. 1H NMR (400 MHz, chloroform-d, ppm) δ 8.16 (d, J = 8.5 Hz, 2H, ArH), 7.95 (d, J = 4.0 Hz, 2H, ArH), 7.93 (d, J = 4.0 Hz, 2H, ArH) 7.61 (t, J = 8.0 Hz, 2H, ArH), 7.49 (t, J = 7.5 Hz, 2H, ArH), 7.41 (d, J = 8.8 Hz, 2H, ArH), 5.86 (s, 2H,
CH), 4.27 (t, J = 7.4 Hz, 4H, CH2), 3.94 (q, J = 8.0 Hz, 4H, CH2), 2.00 (s, 12H, CH3), 1.87–1.79 (m, 4H, CH2), 1.58 (t, J = 7.1 Hz, 6H, CH3), 1.48–1.41 (m, 4H, CH2), 0.98 (t, J = 7.3 Hz, 6H, CH3). 13C NMR (101 MHz, chloroform-d, ppm) δ 173.7, 173.5, 165.2, 157.3, 138.1, 134.0, 130.9, 129.2, 128.9, 127.3, 126.6, 124.1, 121.5, 110.0, 86.5, 50.9, 46.0, 44.5, 28.7, 25.3, 19.3, 14.4, 12.9. 19F NMR (376 MHz, chloroform-d, ppm) δ −78.07. HRMS (ESI): m/z calcd for [C47H54F3N3O4S]+ ([M]+): 813.3787; found 813.3777.
2.3. Spectral test conditions
UV-vis absorption spectra were recorded using a Shimadzu UV-3600 Plus atomic absorption spectrophotometer. Fluorescence emission spectra were recorded on the FS5 fluorescence spectrophotometer at the excitation wavelength of 620 nm with an excitation slit width of 5 nm and an emission slit width of 1 nm. Stock solutions of the probe molecules (2.0 mM) were prepared in dichloromethane. Test probe solutions (10 μM) were prepared by placing 50 μL of probe stock solution into a test tube and diluted to 10 mL with CH3CN. Stock solutions of various metal ions (40 mM, Fe3+, Cu2+, Hg2+, Fe2+, Na+, K+, Li+, Ca2+, Ba2+, Al3+, Pb2+, Mn2+, Co2+, Zn2+, Ag+, Mg2+, Ni2+, Cd2+, Cr3+, and Cr2+) were prepared in deionized water. In the titration experiments, test solutions were prepared with 10 μM BBSQ acetonitrile solutions with different concentrations of Fe3+, Cu2+, and Hg2+, respectively. The detection limit formula is LOD = 3δ/k; δ is the standard deviation of the blank solution; k is the slope of the calibration curve. In selectivity experiments, the test samples were prepared by placing appropriate amounts of the cations stock solutions (40 mM) into 10 mL of BBSQ, BBSQ-S, BBSQ-SS, and BBSQ-NEt acetonitrile solution (10 μM). For the interference test, the test samples were prepared by adding 50 μL of other metal ion stock solutions into BBSQ acetonitrile solution (10 μM) containing Fe3+ (20 equiv.), Cu2+ (20 equiv.) and Hg2+ (20 equiv.). For the response time test, the test samples were 10 μM BBSQ acetonitrile solution containing Fe3+ (12 equiv.), Cu2+ (4 equiv.), and Hg2+ (4 equiv.) respectively, and the change in the fluorescence emission intensity of the BBSQ probe at 686 nm was measured as a function of the reaction time. In Job's plot curve experiments, the test samples containing BBSQ and Fe3+, Cu2+, and Hg2+, the total concentration of BBSQ and metal ions was maintained at 10 μM. The molar fractions of Fe3+, Cu2+, and Hg2+ were taken at equal intervals between 0–1, and the fluorescence emission intensity of the samples at 686 nm was tested after a period of reaction.
1H NMR and 13C NMR spectra were recorded on a Bruker AscendTM 400 MHz Superconducting Nuclear Magnetic Resonance Spectrometer using a deuterated solvent as the lock and TMS as an internal reference. For 1H NMR titration of BBSQ with Fe3+, Cu2+, and Hg2+, BBSQ (18 mM in CDCl3) was titrated by adding known quantities of metal ions salts. High-resolution mass spectra (HRMS) were recorded on Waters G2-XS QTOf and Shimadzu LCMSIT-TOF instruments. FTIR spectra were recorded on an IRAffinity-1S Fourier Transform Infrared Spectrophotometer (KBr pellet method). The melting points were recorded using an MP470 Automatic Video Melting Point Meter.
3. Results and discussion
3.1. Photophysical properties of BBSQ, BBSQ-S, BBSQ-SS, and BBSQ-NEt
To verify the efficacy of solvent, the response of BBSQ to various metal ions in CH3CN, DMSO, MeOH, and H2O was studied (Fig. S1–S4†). BBSQ was insoluble in H2O. The DMSO system of BBSQ did not respond to metal ions, while the CH3CN system of BBSQ responded to Fe3+, Cu2+, and Hg2+ ions and the MeOH system of BBSQ responded to Fe3+, Cu2+, and Ag+ ions. The experimental results show that different solvents can affect the interactions between BBSQ and each metal ion, thus affecting the selectivity of BBSQ for metal ions. Additionally, the UV-vis absorption spectra of BBSQ with the concentration of 0–16 μM in CH3CN were recorded. As depicted in Fig. S5,† a good linear correlation could be obtained between the concentration of BBSQ and the absorbance value at 663 nm, indicating that the BBSQ showed good solubility in CH3CN in the concentration range of 1–16 μM. Therefore, BBSQ CH3CN (10 μM) system should be suitable for this study.
The UV-vis absorption spectra and fluorescence emission spectra of BBSQ, BBSQ-S, BBSQ-SS, and BBSQ-NEt in acetonitrile solution were analysed. As shown in Fig. 1 and Table 1, all four probe molecules exhibited sharp and strong absorption peaks in the near-infrared region with the maximum absorption wavelengths (λabs/max) located at 663, 668, 679, and 695 nm for BBSQ, BBSQ-S, BBSQ-SS, and BBSQ-NEt, respectively. Meanwhile, they showed red-shifted emission spectra with the corresponding maximum emission wavelength located at 686, 694, 704, and 730 nm. Obviously, as the oxygen atoms on the central squarate ring were replaced with monosulfur atoms, disulfide atoms, and diethylamine group, the absorption and emission spectra of the probe molecules showed a significant red shift, which is consistent with the results reported in the literature.27–29 Simultaneously, the 1H NMR spectra analysis showed that the methane protons were seen at δ 6.03 ppm for BBSQ, where the same signal moved proportionally to the lower field at δ 6.50 ppm and 6.63 ppm for monothiosquaraine BBSQ-S and dithiosquaraine BBSQ-SS, respectively, while the same signal of BBSQ-NEt with diethylamine group moved towards the higher field at δ 5.86 ppm. These results show that the changes of oxygen atoms on the central squarate ring will affect the electronic distribution and photophysical properties of these probe molecules.
 |
| Fig. 1 (a) UV-vis absorption spectra and (b) fluorescence emission spectra of the four probe molecules. | |
Table 1 Spectral properties and ion-responsive properties of the four compounds
|
λabs/max [nm] |
λem/max [nm] |
Response to ions |
LOD (Fe3+) [μM] |
BBSQ |
663 |
686 |
Fe3+, Hg2+, Cu2+ |
14.17 |
BBSQ-S |
668 |
694 |
Fe3+, Hg2+, Cu2+ |
32.81 |
BBSQ-SS |
679 |
704 |
Fe3+, Hg2+, Cu2+ |
41.73 |
BBSQ-NEt |
695 |
730 |
Fe3+, Hg2+, Cu2+ |
46.32 |
3.2. Selectivity study of BBSQ, BBSQ-S, BBSQ-SS, and BBSQ-NEt to various metal ions
In order to explore the selective response of these four probe molecules to metal ions, UV-vis absorption and fluorescence emission spectra of BBSQ, BBSQ-S, BBSQ-SS, and BBSQ-NEt were recorded in the presence of a variety of metal ions (Fe3+, Cu2+, Hg2+, Fe2+, Na+, K+, Li+, Ca2+, Ba2+, Al3+, Pb2+, Mn2+, Co2+, Zn2+, Ag+, Mg2+, Ni2+, Cd2+, Cr3+, and Cr2+), shown in Fig. 2, S4, S6–S8,† and Table 1. It can be found that the colour of the BBSQ CH3CN solution changed from blue to yellow after Fe3+, Cu2+, and Hg2+ were added; accordingly, the absorbance of BBSQ at 663 nm and the fluorescence emission intensity at 686 nm significantly decreased to about 0. However, when other metal ions were added, the colour, absorbance, and fluorescence intensity did not show obvious changes. For BBSQ-S, BBSQ-SS, and BBSQ-NEt, their response to these metal ions is relatively similar to BBSQ, all selectively responding to Fe3+, Cu2+, and Hg2+. Although Fe2+ ion caused a color change in the BBSQ solution (Fig. 2a and S4†), Fe2+ ion did not induce an obvious response in the fluorescence spectrum. Ag+ ion and BBSQ-SS showed a similar situation (Fig. 2c and S7†). As such, Fe2+ and Ag+ were not discussed when studying the colorimetric and fluorescent dual response of these probes to metal ions.30 The above results indicate that the change of oxygen atoms on the central squarate ring of BBSQ did not significantly affect their selective response to metal ions. However, compared with BBSQ-S, BBSQ-SS, and BBSQ-NEt, the absorbance and fluorescence intensity of BBSQ in response to Fe3+, Cu2+, and Hg2+ were quenched more thoroughly, and the colour change of the solution was also more obvious. Concurrently, the detection limit of Fe3+ was obtained by the concentration titration experiments of four probe molecules, and BBSQ showed the lowest detection limit of Fe3+ with 14.17 μM by the absorption of spectral titration. Therefore, BBSQ was selected as a representative probe molecule to further investigate the detection effect and response mechanism to Fe3+, Cu2+, and Hg2+.
 |
| Fig. 2 UV-vis absorption spectra selective histogram and colorimetric photographs of (a) BBSQ (10 μM), (b) BBSQ-S (10 μM), (c) BBSQ-SS (10 μM), and (d) BBSQ-NEt (10 μM) acetonitrile solution with different metal ions (20 equiv.). | |
3.3. Anti-interference study of BBSQ in response to Fe3+, Cu2+, and Hg2+
The results of the selectivity experiments indicate a favourable selective response of BBSQ to Fe3+, Cu2+, and Hg2+. In order to further explore the interference effects of other metal ions, the absorption and fluorescence responses of BBSQ (10 μM) to competitive metal ions were analysed. As shown in Fig. 3 and S9–S11,† when Fe3+, Cu2+, and Hg2+ (20 equiv.) were added, the absorbance of BBSQ acetonitrile solution at 663 nm decreased sharply to almost disappear, and when other interfering metal ions (20 equiv.) were later added, the absorbance of the system showed no significant variation. Similarly, no substantial change in the fluorescence spectra was observed when BBSQ responded to Fe3+, Cu2+, and Hg2+ in the presence of other metal ions. The interference experiments demonstrated the good selective recognition of BBSQ to Fe3+, Cu2+, and Hg2+ even in the presence of other metal ions.1,5
 |
| Fig. 3 Absorption intensity at 663 nm of BBSQ (10 μM) in the presence of (a) Fe3+ (20 equiv.), (b) Cu2+ (20 equiv.), and (c) Hg2+ (20 equiv.) along with other metal ions (20 equiv.). | |
3.4. UV-vis absorption and fluorescence spectral titrations of BBSQ with Fe3+, Cu2+, and Hg2+
Fig. 4, S12 and S13† show the UV-vis absorption and fluorescence emission spectra of BBSQ (10 μM) in response to different concentrations of Fe3+, Cu2+, and Hg2+. As shown in Fig. 4, BBSQ exhibited a sharp and strong absorption peak at 663 nm. As the concentration of Fe3+ increased from 0 μM to 120 μM, the intensity of the absorption peak at 663 nm gradually decreased until almost disappeared, and from 120 μM to 200 μM, the intensity remained unchanged. In addition, the fluorescence emission intensity of BBSQ at 686 nm also gradually weakened with increasing Fe3+ concentration from 0 μM to 120 μM and reached saturation from 120 μM to 200 μM. The insets in Fig. 4 show the concentration titration curves with the Fe3+ concentration in the abscissa and the absorbance (663 nm) or fluorescence emission intensity (686 nm) as the ordinate. The UV-vis absorption response of BBSQ to Fe3+ exhibited a linear correlation within the Fe3+ concentration in the range of 15–55 μM, while the fluorescence response of BBSQ to Fe3+ exhibited a linear relationship with the Fe3+ concentration in the range of 15–95 μM. According to the linear fitting equation and detection limit calculation formula,31 the detection limit (LOD) of BBSQ toward Fe3+ by absorption and fluorescence spectral titration was calculated to be 14.17 μM and 51.7 μM, respectively.
 |

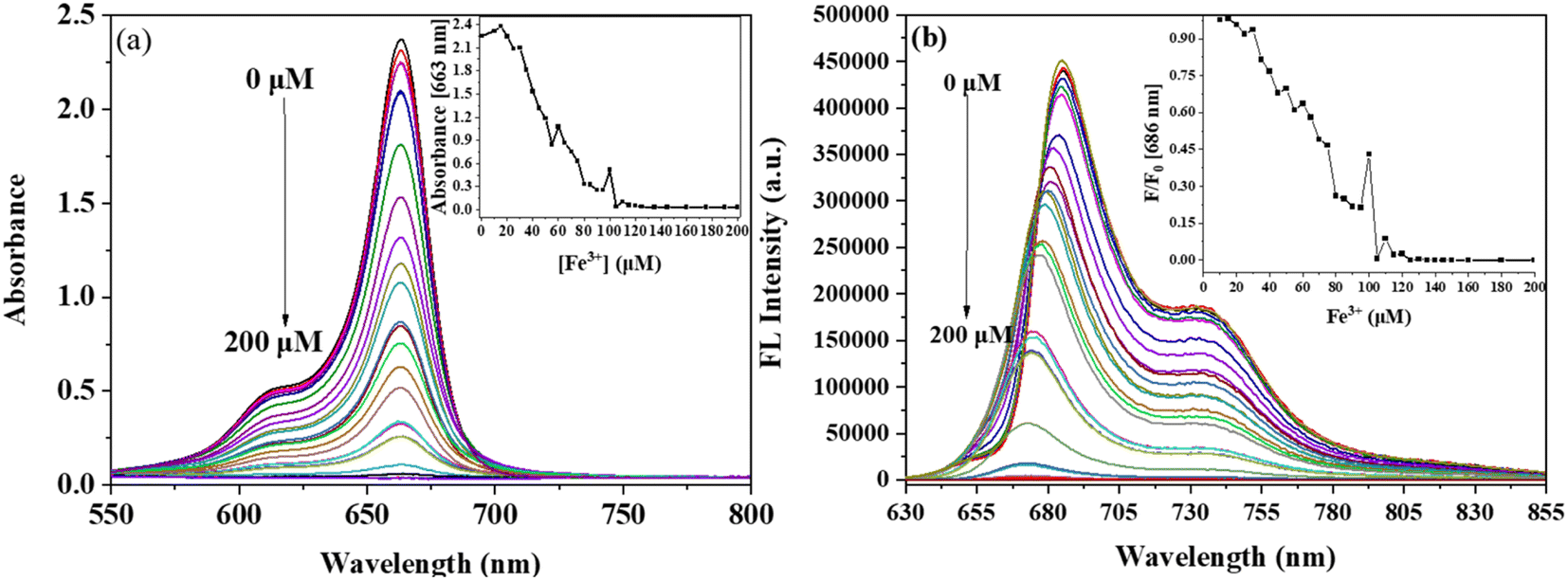

| Fig. 4 (a) UV-vis absorption and (b) fluorescence spectral titrations of BBSQ acetonitrile solution (10 μM) with Fe3+ (0–200 μM); inset: (a) the concentration titration curves of absorbance at 663 nm and (b) fluorescence emission intensity at 686 nm with increasing Fe3+ concentration. | |
As shown in Fig. S12,† the UV-vis absorption and fluorescence emission spectra of BBSQ (10 μM) in response to different concentrations of Cu2+ were measured. The absorption peak at 663 nm and fluorescence emission peak at 686 nm of BBSQ gradually decreased with the increase of Cu2+ concentration from 0–40 μM. When the Cu2+ concentration was 40 μM, the response of BBSQ to Cu2+ reached a saturated state. According to the corresponding concentration titration curves, the LOD of BBSQ toward Cu2+ by absorption and fluorescence spectral titration was calculated to be 6.06 μM and 14.17 μM, respectively.
As shown in Fig. S13,† the intensity of the absorption peak at 663 nm and fluorescence emission peak at 686 nm of BBSQ decreased sharply with the gradual increase of Hg2+ concentration from 0 μM to 40 μM, and is not linearly correlated. The response of BBSQ to Hg2+ reached saturation at 40 μM.
3.5. Response time of BBSQ towards Fe3+, Cu2+, and Hg2+
After adding Fe3+ (12 equiv.), Cu2+ (4 equiv.) and Hg2+ (4 equiv.), the absorption and emission spectra of the BBSQ (10 μM) system were tested immediately and subsequently every 2 min. As shown in Fig. 5, after adding Fe3+, the fluorescence emission intensity at 686 nm of BBSQ was reduced to almost disappear rapidly within a few seconds, followed by no change after 2 min over time. Simultaneously, the absorbance at 663 nm immediately decreased to about 1/3 times, and it gradually decreased over time, reaching equilibrium at about 10 min. The results of the BBSQ response to Hg2+ over time were similar to that of Fe3+. For Cu2+, both the fluorescence emission intensity at 686 nm and the absorbance at 663 nm of BBSQ were reduced to almost disappear immediately within a few seconds. The experimental results show that BBSQ can respond to Fe3+, Cu2+, and Hg2+ rapidly within a few seconds and complete the detection in about 2 min.
 |
| Fig. 5 Time-resolved fluorescence emission pattern and UV-vis absorption spectra (inset) of BBSQ acetonitrile solution with (a) Fe3+ (12 equiv.), (b) Cu2+ (4 equiv.), and (c) Hg2+ (4 equiv.). | |
3.6. Response mechanism of BBSQ to Fe3+, Cu2+, and Hg2+
In general, the selectivity of the probe molecules for metal ions depends on the binding ability of the ligands with lone pair electrons such as N, O, and S in their structures to metal ions. Therefore, in order to explore the interaction between BBSQ and Fe3+, Cu2+, and Hg2+, the metal chelator ethylene diamine tetraacetic acid (EDTA) was added to the system after BBSQ responded to Fe3+, Cu2+, and Hg2+, and the corresponding absorption spectra are shown in Fig. 6. After the response of BBSQ to Fe3+ or Hg2+, the absorbance at 663 nm decreased sharply, and then after adding EDTA, the reduced absorbance was almost recovered to the metal-free state. However, when BBSQ responded to Cu2+ and EDTA was added, the absorbance of the system was not restored quickly and a new absorption peak appeared at 732 nm. These results suggest that the BBSQ responds with Fe3+, Cu2+, and Hg2+ through complexation interactions, and the complexation ability of BBSQ–Fe3+, BBSQ–Cu2+, and BBSQ–Hg2+ is weaker than that of EDTA-Fe3+, EDTA-Cu2+, and EDTA-Hg2+, respectively.32,33 Moreover, the different colours caused by the absorption change of BBSQ–metal ion systems after adding EDTA enable the human eye to distinguish Cu2+ from Fe3+/Cu2+/Hg2+.
 |
| Fig. 6 UV-vis absorption spectra of BBSQ and BBSQ in response to (a) Fe3+ (8 equiv.), (b) Cu2+ (4 equiv.), (c) Hg2+ (4 equiv.) with/without adding EDTA. | |
In order to determine the binding ratio of BBSQ–Fe3+, BBSQ–Cu2+, and BBSQ–Hg2+, the Job's plots were collected as shown in Fig. 7. The plots were prepared by recording the fluorescence emission intensity at 686 nm against [Fe3+]/[Fe3+ + BBSQ], [Cu2+]/[Cu2+ + BBSQ], or [Hg2+]/[Hg2+ + BBSQ]. For these three systems, when the molar fraction of Fe3+, Cu2+, and Hg2+ approached 0.5, the curve appeared at an inflection point, indicating that the binding ratio of probe BBSQ to Fe3+, Cu2+, and Hg2+ was 1
:
1,9,32 which was also confirmed from the ESI-HRMS data (shown in Fig. S28–S30†). A solution containing BBSQ with 1 equiv. of FeCl3 showed a strong peak at 769.17, assigned to [BBSQ–FeCl3+] ion,34 while the BBSQ–Cu2+ system showed a peak at 671.3481, assigned to [BBSQ–Cu2+], and BBSQ–Hg2+ system showed a peak at 945.6797, assigned to [BBSQ–Hg2+ + 2CH3CN + 2H2O + OH−].
 |

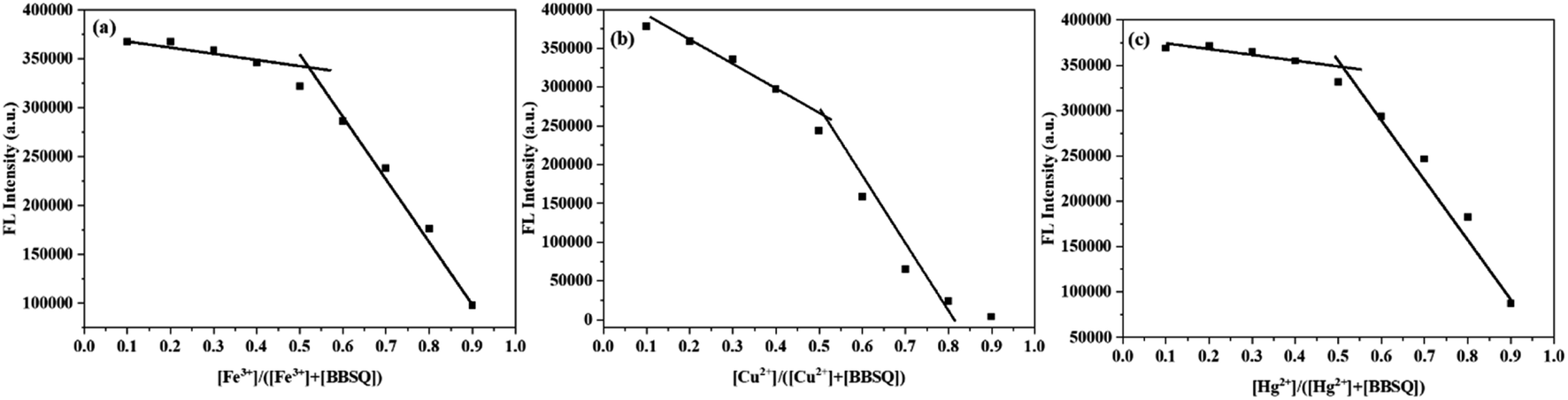

| Fig. 7 Job's plots of interaction between (a) Fe3+ and BBSQ, (b) Cu2+ and BBSQ, and (c) Hg2+ and BBSQ. | |
In order to further investigate the binding properties of BBSQ with Fe3+, Cu2+, and Hg2+, 1H NMR and FT-IR spectra of BBSQ, BBSQ–Fe3+, BBSQ–Cu2+, and BBSQ–Hg2+ were tested. As shown in Fig. 8,10 BBSQ showed a single peak of olefin proton (Ha) at 6.03 ppm, and a broad peak of methylene proton (Hb) at 4.11 ppm. With the addition of 0.1 equiv. Fe3+, Cu2+, or Hg2+ to BBSQ CD3CN solution, the multiple signals of aromatic and aliphatic protons broadened due to the paramagnetic nature of the Fe3+, Cu2+, and Hg2+ metal ions; moreover, the signal intensity of Ha at 6.03 ppm and Hb at 4.11 ppm decreased to nearly vanish, indicating that BBSQ were complexed with Fe3+, Cu2+, and Hg2+ through the N atom and olefin π bond.35 Olefins with π bonds can also be used as ligands, which are called π bond ligands.35
 |
| Fig. 8 1H NMR spectra of BBSQ and with 0.1 equiv. Fe3+/Cu2+/Hg2+ in CD3CN (10 mM). | |
As shown in Fig. 9, BBSQ exhibited a strong peak at 1576 cm−1 in the FTIR spectrum, which corresponded to the C
C stretching vibration of the central squarate ring.36 However, for BBSQ–Fe3+, BBSQ–Cu2+, and BBSQ–Hg2+ systems, the characteristic peak of BBSQ at 1576 cm−1 shifted to 1628 cm−1, and C
O stretching peak was observed at 1739 cm−1 even in BBSQ–Fe3+ systems, which indicates that O atom on the central squarate ring of BBSQ was involved in the recognition of these three metal ions.10 Simultaneously, the tensile vibration peak of N–C in the range of 1216–1310 cm−1 and the C–H vibration peak at 851 cm−1 of the alkenyl group near the central squarate ring also changed significantly compared to those of BBSQ. The result assures that Fe3+, Cu2+, and Hg2+ bond with the O atom, N atom, and olefin π bond of BBSQ, which is consistent with the results of 1H NMR measurement. Therefore, the specific response of BBSQ to Fe3+, Cu2+ and Hg2+ ions might be attributed to the strong coordination ability of transition metal Fe3+, Cu2+, and Hg2+ ions. Moreover, among transition metal ions, Fe3+, Cu2+, and Hg2+ have higher electronegativity, which leads to thermodynamically stable complexes in the presence of electron-rich O, N, and olefin π bonds.37 Hence, according to the results of Job's plot curve, 1H NMR and FTIR spectra, and the relevant references,10,35,36 the proposed chelating mechanism of BBSQ with Fe3+, Cu2+, and Hg2+ metal ions is depicted in Fig. 10.
 |

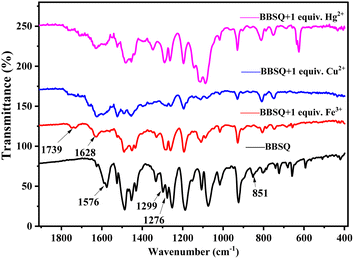

| Fig. 9 FTIR spectra of BBSQ and with 1 equiv. Fe3+, Cu2+, and Hg2+. | |
 |

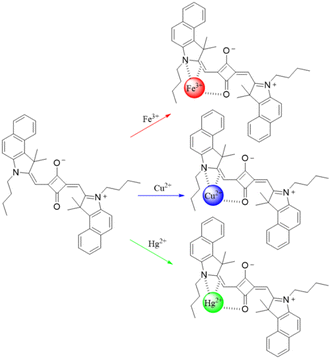

| Fig. 10 The proposed chelating mechanism of BBSQ with Fe3+, Cu2+, and Hg2+. | |
3.7. Practical application of BBSQ
The detection parameters of BBSQ and some reported probes for Fe3+, Cu2+, and Hg2+ are summarized in Table S1.† Compared with the other probes, BBSQ shows a relatively high detection limit, and the sensitivity needs further improvement. However, BBSQ also shows the advantages of NIR detection wavelength, fast response time in a few seconds, and the visualization of naked eye detection. Motivated by the advantages, BBSQ loaded on TLC plates were prepared to detect Fe3+, Cu2+, and Hg2+ easily and quickly. The TLC plates were immersed in an ethanol solution containing BBSQ (1.92 mM) and dried in air. The TLC plates loaded with BBSQ were immersed in the various concentrations of Fe3+, Cu2+, and Hg2+ aqueous solution, then dried in air. Clear visual colour changes of TLC plates were observed to achieve the purpose of detection.11 As shown in Fig. 11, when detecting Fe3+ and Hg2+, the colour of the TLC plates changed gradually from blue to yellow with the increased concentration of Fe3+ and Hg2+, and the obvious change in colour was recognized by the naked eye at the concentration of 30 mM for Fe3+ and 16.76 mM for Hg2+. For Cu2+, the colour of the TLC plates gradually changed from blue to blue-purple, then constantly deepened to purple. These results show that the simple colorimetric TLC plates loaded with BBSQ can detect Fe3+, Cu2+, and Hg2+ by the naked eye quickly and conveniently in situ, which is important for practical applications.38
 |
| Fig. 11 Photographs of the BBSQ-loaded TLC plates before and after (a) Fe3+, (b) Cu2+, and (c) Hg2+ processing. | |
In addition, BBSQ was also used to detect Fe3+ and Cu2+ ions in the water samples from the Yudaihe River in Luzhou city with the standard addition method.39,40 Since the response of BBSQ to Hg2+ ion was not linearly correlated with the concentration of Hg2+ ion, the detection of Hg2+ ion was not tested. As depicted in Table 2, the pristine water sample could not induce a significant optical response of BBSQ. The different concentrations of Fe3+ (20 μM and 30 μM) and Cu2+ (20 μM and 30 μM) were spiked into water samples and measured with BBSQ. The results show that Fe3+ and Cu2+ ions in the water samples could be accurately measured with good recovery (94–108%), indicating that BBSQ is quite promising for the quantitative detection of Fe3+ and Cu2+ ions in real water samples.31,41
Table 2 BBSQ detection of Fe3+ and Cu2+ in real water samples
Sample |
Metal ion |
Spiked (μM) |
Recovered (μM) |
Recovery (%) |
Yudaihe River |
Fe3+ |
0 |
Not detected |
— |
20 |
18.73 ± 0.01 |
94 |
30 |
32.44 ± 0.06 |
108 |
Cu2+ |
0 |
Not detected |
— |
20 |
21.30 ± 1.05 |
104 |
30 |
28.30 ± 1.90 |
94 |
4. Conclusion
In summary, four inexpensive and highly selective chemical sensors (BBSQ, BBSQ-S, BBSQ-SS, and BBSQ-NEt) based on benzoindolenine–squaraine dyes were developed. They exhibited strong absorption and emission in the visible and near-infrared regions and showed significant selectivity in the recognition of Fe3+, Cu2+, and Hg2+ over other metal ions with obvious colorimetric and fluorescence changes. The stoichiometry of the complex between BBSQ and Fe3+, Cu2+, and Hg2+ was revealed in a 1
:
1 composition. 1H NMR titration and FTIR studies proved that Fe3+, Cu2+, and Hg2+ are complexed with the O atom on the central squarate ring, N atom, and olefin π bond of BBSQ. Moreover, the BBSQ-loaded TLC plates can detect Fe3+, Cu2+, and Hg2+ quickly and conveniently, and BBSQ is quite promising for the quantitative detection of Fe3+ and Cu2+ ions in real water samples.
Author contributions
Huifang Li: conceptualization, formal analysis, validation, investigation, methodology, writing – original draft. Yiru Tang: validation, investigation. Kunrong Shen: validation. Ji Lu: resources, writing – review, and editing. Zhijie Zhang: resources, writing – review, and editing. Dong Yi: resources, writing – review, and editing. Na Hao: resources, writing – review, and editing. Qiang Fu: investigation, resources, writing – review, and editing. Zi Ye: investigation. Jun Wei: resources, writing – review, and editing. Jun Wang: resources, writing – review, and editing. Xianchao Pan: resources, writing – review, and editing. Siping Wei: resources, writing – review and editing, funding acquisition. Lin Yang: conceptualization, resources, writing – review and editing, funding acquisition, Supervision.
Conflicts of interest
There are no conflicts to declare.
