Structural, magnetic and optical properties of disordered double perovskite Gd₂CoCrO₆ nanoparticles

Abstract

We have synthesized disordered double perovskite Gd₂CoCrO₆ (GCCO) nanoparticles with an average particle size of 71 ± 3 nm by adopting a citrate sol–gel method to investigate their structural, magnetic, and optical properties. Rietveld refinement of the X-ray diffraction pattern showed that GCCO is crystallized in a monoclinic structure with space group P2₁/n, which is further confirmed by Raman spectroscopic analysis. The absence of perfect long-range ordering between Co and Cr ions is confirmed by the mixed valence states of Co and Cr. A Néel transition was observed at a higher temperature of T_N = 105 K compared to that of an analogous double perovskite Gd₂FeCrO₆ due to a greater degree of magnetocrystalline anisotropy of Co than Fe. Magnetization reversal (MR) behavior with a compensation temperature of T_comp = 30 K was also observed. The hysteresis loop obtained at 5 K exhibited the presence of both ferromagnetic (FM) and antiferromagnetic (AFM) domains. Super-exchange and Dzyaloshinskii–Moriya (DM) interactions between various cations via oxygen ligands are responsible for the observed FM or AFM ordering in the system. Furthermore, UV-visible and photoluminescence spectroscopy demonstrated the semiconducting nature of GCCO with a direct optical bandgap of 2.25 eV. The Mulliken electronegativity approach revealed the potential applicability of GCCO nanoparticles in photocatalytic H₂ and O₂ evolution from water. Due to a favorable bandgap and potentiality as a photocatalyst, GCCO can be a promising new member of double perovskite materials for photocatalytic and related solar energy applications.

---

1 Introduction

Perovskite oxides have attracted notable research interest in the last few decades because of their fascinating structure and physical properties like ferroelectric, ferromagnetic, multiferroic, photocatalytic, etc^1–5. It is noticeable that among different types of perovskites, GdCoO₃ and GdCrO₃ possess interesting properties along with potential applications.^6–11 For instance, GdCoO₃ exhibits a giant magnetocaloric effect near the Néel transition T_N = 3.1 K with a significant refrigerant capacity of 278 J kg⁻¹ for a 0–70 kOe field change which belongs to the half-filled 4f orbital of Gd³⁺ ions.⁶ It also shows impressive optoelectronic properties like a suitable bandgap of ∼1.83 eV, excellent absorbance in the visible region of the solar spectrum, and noticeable photocatalytic efficiency in a decrease of the recombination rate of the electron–hole pairs.^7,8 On the other hand, GdCrO₃ shows temperature-dependent magnetization reversal (TMR), spin reorientation (SR), and spin flipping (SF) as a result of competitive magnetic interactions between Gd and Cr-sublattices that makes it a strong candidate for potential applications.⁹ Furthermore, GdCrO₃ exhibits antiferromagnetic (AFM) ordering at a comparatively higher temperature of 167 K than that of GdCoO₃ because of the Cr³⁺–Cr³⁺ interaction followed by weak ferromagnetic (FM) ordering of Cr³⁺–Gd³⁺ interaction and magnetization reversal below 95 K due to interaction between Gd³⁺ and Cr³⁺ ions.¹⁰ Notably, GdCrO₃ also shows excellent absorbance in UV-visible regions with an optical bandgap of 3.15 eV.¹¹ Such diversified magnetic and optical properties of parent single perovskites GdCoO₃ and GdCrO₃ motivated us to synthesize nanoparticles of their double perovskite Gd₂CoCrO₆.

It is worth mentioning that a number of previous investigations demonstrated double perovskites of general formula A₂BB'O₆ (A = rare earth elements, B and B′ = transition metal elements) exhibit better flexibility and show a wide variety of properties compared to single perovskites due to two transition metal elements at B sites.^2,12,13 These perovskite materials show superconductivity, magnetic ordering from ferromagnetic to antiferromagnetic, multiferroic, and catalytic properties.^14–16 As a result, they can be exploited in different fields of applications such as spintronic devices, information storage devices, photocatalytic systems, photovoltaic devices, photochemical energy storage devices, etc^17–22.

Notably, due to various cationic ordering and compositions at B and B′ sites along with octahedral distortion in B/B′O₆ octahedral rare-earth-based double perovskites exhibit complex magnetic behavior like coexisting ferromagnetic and antiferromagnetic states, high curie temperature/Néel transition, magnetic reversibility, spin reorientation, etc^16,22–24. For instance, Gd₂CoMnO₆ shows ferromagnetic transition at a higher temperature T_C = 112 K, whereas its parent materials GdMnO₃ and GdCoO₃ exhibit ferromagnetic and antiferromagnetic behavior with very low transition temperatures 20 K and 3.2 K, respectively.^6,23,25 Another investigation on Pr₂FeCrO₆ exhibits a magnetically ordered state below the transition temperature of 240 K due to 180° super-exchange interactions between Fe³⁺(t³_2ge²_g)–O–Cr³⁺(t³_2ge⁰_g).¹⁶ A separate investigation on Gd₂FeCrO₆ shows complex behavior of both FM and AFM states at 5 K due to octahedral distortion on Fe/CrO₆ octahedral.²² Recent investigation on Y₂FeCrO₆ double perovskite shows magnetization reversal with higher compensation temperature T_comp = 192 K, and spin reorientation behavior with transition temperature T_SR = 30 K followed by DM interaction and single-ion anisotropy.²⁴

Furthermore, double perovskites exhibit great catalytic efficiency due to favorable bandgap and strong absorbance in the visible regions of the solar spectrum.^26,27 For instance, La₂CuNiO₆ shows much higher catalytic activity for methane combustion compared to its parent material LaNiO₃ and the mixture of LaNiO₃ and LaCuO₃ due to different structures and surface morphologies.²⁶ Another investigation on La₂FeTiO₆ and LaFeO₃ reveals that La₂FeTiO₆ shows the higher photocatalytic activity of p-chlorophenol degradation compared to LaFeO₃ under visible light irradiation, which is also responsible for different structures and surface morphologies.²⁷ These fascinating magnetic and optical properties of double perovskites compared to single perovskites also motivated us to investigate the Gd₂CoCrO₆ double perovskite.

However, it is difficult to synthesize the ordered structure of Gd₂CoCrO₆ double perovskite owing to antisite disorder which arises due to the almost identical ionic radii of Co²⁺ and Cr³⁺ ions 0.65 Å and 0.62 Å, respectively.^28,29 The comparable ionic radii of these two ions disrupt the ideal repeating order of Co and Cr ions.^28,30 It is well known that the physical properties of A₂BB'O₆ double perovskites are closely connected to the fluctuation of antisite disorder.²⁸ Because of difficulties to control the order–disorder effect during synthesis, the family of A₂CoCrO₆ has not been investigated yet.

Therefore, in the present investigation, Gd₂CoCrO₆ nanoparticles were synthesized via the citrate sol–gel method, and their structural, morphological, magnetic, and optical properties were investigated extensively. Finally, the potential of photocatalytic water splitting of GCCO was discussed in terms of bandgap and band edge potential.

2 Experimental details

2.1 Sample preparation

The Gd₂CoCrO₆ double perovskite was synthesized by adopting a citrate sol–gel method due to the simplicity, higher phase purity, and higher production efficiency of the sol–gel method.^22,31 Fig. 1 depicts schematically the synthesis steps of Gd₂CoCrO₆ double perovskite. At first, stoichiometric amounts of analytical grade Gd(NO₃)₃·6H₂O (Sigma-Aldrich, 99.9%), Cr(NO₃)₃·9H₂O (Sigma-Aldrich, 99%), and Co(NO₃)₂·6H₂O (Merck, 99%) were dissolved separately in 50 mL of deionized (DI) water. Then, the solutions were mixed in a beaker and vigorously stirred for 25 minutes at 50 °C for better mixing. To avoid the formation of multiple phases of binary oxide, citric acid (CA), a chelating agent that binds metal ions together, was used. Aqueous ammonia was used to maintain the pH value of the solution at approximately 7. Drop by drop, Ethylene glycol (EG) was added to the solution following the molar ratio of {Gd³⁺, Co²⁺ + Cr³⁺} : {CA} : {EG} = 1 : 1 : 4 to create a polymeric metal-cation network.^22,32 The mixture was then heated at 80 °C for 4 hours to produce the gel precursor. The resulting gel was burned at a high temperature until auto-combustion was initiated. The resultant fluffy powder was then ground in an agate mortar and finally calcinated at 800 °C for 6 hours in air.^22,33

Fig. 1 Schematically the synthesis steps of Gd₂CoCrO₆ double perovskite using the sol–gel method.

2.2 Characterization details

In this investigation, the X-ray diffraction (XRD) was carried out by using a PW3040 X'pert PRO Philips XRD diffractometer ranging from 20° to 80° with a Cu X-ray source of wavelength, λ: K_α = 1.5405 Å. The FullProf software package was used to analyze the Rietveld profile using the powder XRD data. Raman spectroscopy was carried out by MonoVista CRS+ Raman microscope systems (S & I) to further verify the crystal structure of GCCO nanomaterials. Fourier transform infrared spectroscopy (FTIR) was conducted via a Shimadzu (IRSpirit) FTIR spectrometer to observe the presence of the functional group in the as-synthesized GCCO nanomaterials. Thermogravimetric analysis (TGA) was performed using a thermogravimetric analyzer (Hitachi TG/DTA7200) with a simultaneous thermal analysis (TGA + DTA) module and an Al₂O₃ pan in a nitrogen atmosphere at a heating rate of 10 °C min⁻¹ ranging from 30 °C to 900 °C to investigate the thermal stability of GCCO nanoparticles. Both field emission electron microscope (FESEM) (JEOL JSM 7600F) and transmission electron microscope (TEM) (Talos F200X) were carried out to scrutinize the surface morphology of as-prepared GCCO nanomaterials. X-ray photoelectron spectroscopy (XPS) was performed by a K-alpha XPS (Thermo Fisher Scientific) with an Al K_α (1486.6 eV) X-ray source to see the valence state of all elements present in the GCCO. Magnetic properties were investigated using a quantum design physical properties measurement system (PPMS) DynaCool. Finally, to see the optical properties of GCCO nanomaterial, the optical absorption spectrum was investigated by using an ultraviolet-visible (UV-visible) spectrophotometer (UV-2600, Shimadzu) and steady-state photoluminescence (PL) spectrum was investigated using a Spectro Fluorophotometer (RF-6000, Shimadzu).

3 Results and discussion

3.1 Crystallographic structure analysis

Prior to conducting experimental analysis, the tolerance factor and global instability index (GII) were calculated to predict the crystal structure of GCCO double perovskite by using the Structure Prediction Diagnostic Software (SPuDS) to get a notion about its crystal structure.³⁴ The tolerance factor (t) for GCCO double perovskite can be written as,^22,35
where r_Gd, r_Co, r_Cr, and r_O represent the ionic radius of Gd, Co, Cr, and O ions, respectively. For double perovskites, generally, the value of the tolerance factor t ≈ 1 is related to perfect cubic structure. If t > 1.05, the crystal could have a hexagonal structure, and if it is less than 0.97, the structure will be either monoclinic or orthorhombic.^22,35 Noticeably, at room temperature (RT), the tolerance factor t of GCCO double perovskite was computed to be 0.94, which suggests that the crystal structure of GCCO is either monoclinic or orthorhombic.

The overall structural stability of a particular phase of double perovskites can be predicted by calculating their global instability indices (GII), which are the difference between the formal valence of cations and anions and the calculated bond-valence sum (BVS). The global instability index (GII) is defined as the root mean square value of the bond discrepancy factor.^34,36

where d_i is the bond discrepancy factor computed from the bond valence sum and N is the number of atoms in the asymmetric unit. GII = 0 means perfectly stable structure.³⁶ For relaxed (unstrained) structures, the GII values are typically less than 0.1 v. u. (valence unit) and larger than 0.2 v. u. for a structure with lattice-induced strains, which is unstable in nature.³⁴ Particularly, according to several investigations, under ambient pressure stable double perovskite structures can be formed that have GII values smaller than 0.02 v. u.^37,38 Since the GII value of GCCO was computed to be 0.004 v. u., which is less than 0.02 v. u., an unstrained stable crystal structure of GCCO is feasible to form without applying high pressure during synthesis.

Fig. 2 demonstrates the Rietveld refined powder XRD pattern of as-synthesized GCCO nanoparticles at room temperature (RT). The crystalline size of GCCO double perovskite was found to be 36 nm using the Scherrer formula.³⁹ No undesired peak in the XRD pattern confirms the high phase purity of the as-synthesized GCCO nanoparticles. As was mentioned earlier, the tolerance factor was calculated to be 0.94, which means that the crystal structure would be either monoclinic or orthorhombic. Hence, Rietveld refinement was performed by considering both monoclinic and orthorhombic structures, and it was found that the monoclinic structure of the P2₁/n space group fitted more accurately compared to the orthorhombic structure of the Pbnm space group. Cation ordering can be verified by checking the superstructure peak around the diffraction angle 20°.^40,41 The presence of a superstructure peak at an angle of 20.6° is almost negligible, which demonstrates the absence of proper long-range ordering between Co and Cr ions. Mixed valence states of Co and Cr elements confirmed by the XPS analysis, which will be discussed further also revealed the absence of perfect long-range ordering between Co and Cr cations. The lattice parameters of the GCCO double perovskite from Rietveld refinement were observed to be a = 5.266 Å, b = 5.455 Å, c = 7.525 Å, α = γ = 90° and β = 90.083° with unit cell volume 216.17 ų, which were consistent with similar double perovskites.^16,22,42 Exploiting these parameters, the GCCO unit cell with Co/CrO₆ octahedra was demonstrated by the structure visualization software VESTA.⁴³ Visualized unit cell of GCCO is shown in Fig. 3(a).

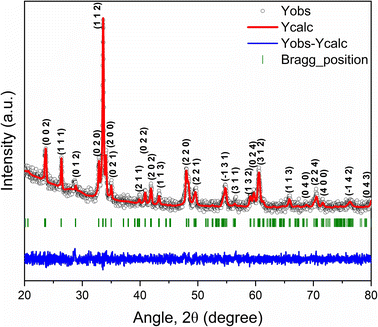

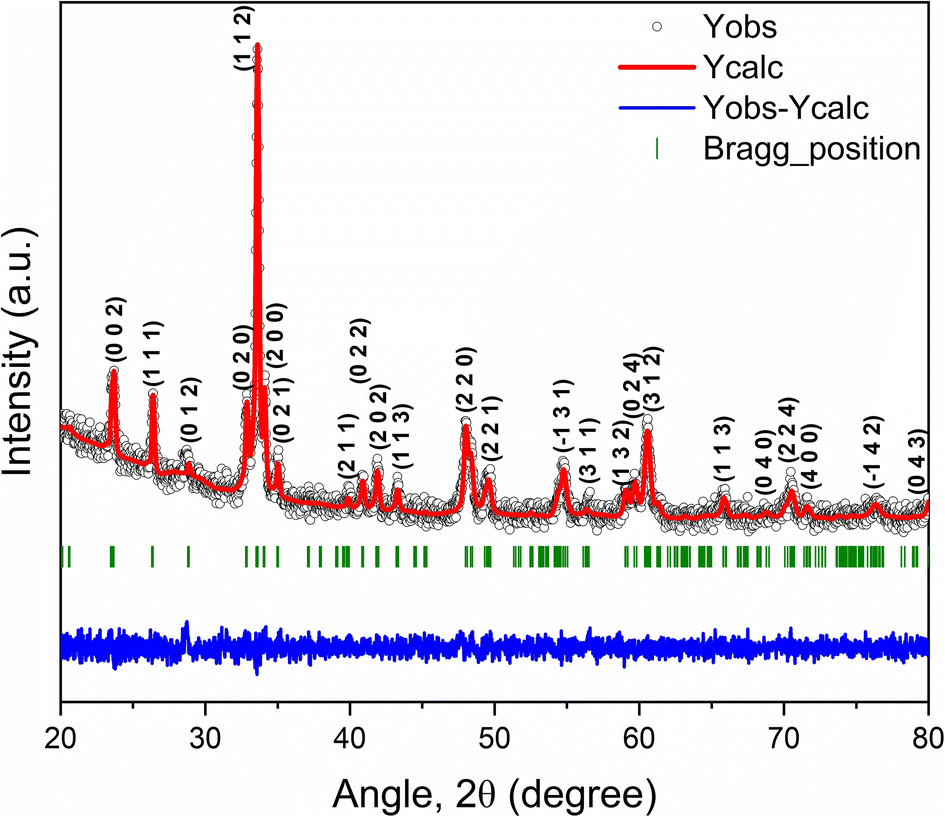

Fig. 2 Rietveld refined powder XRD pattern of Gd₂CoCrO₆ nanoparticles at the room temperature.

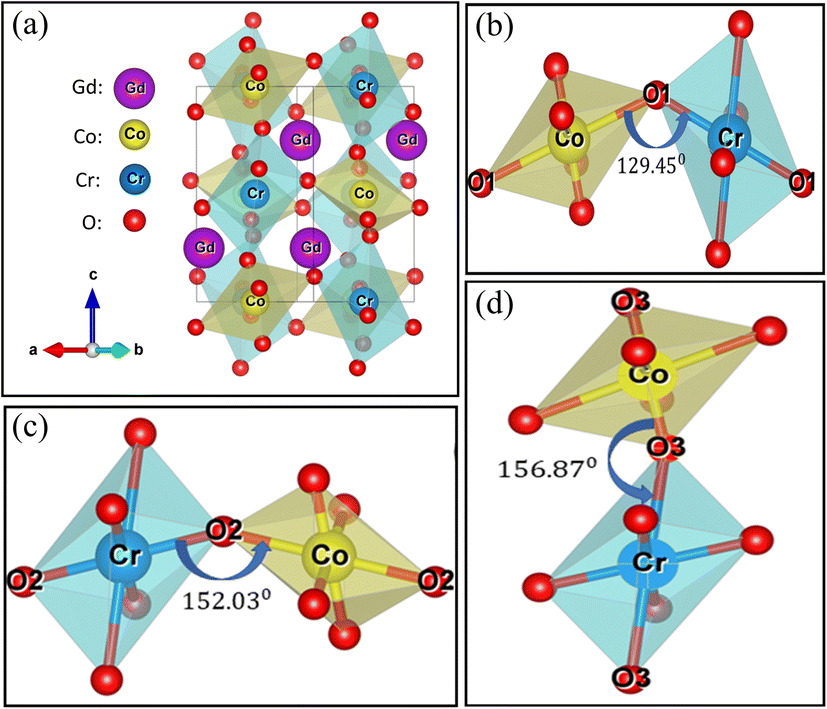

Fig. 3 GCCO unit cell (a) and magnified view of Co/CrO₆ octahedral (b, c, and d).

In Fig. 3(a), the deviation of Co and Cr ions from the center of the octahedron indicates the octahedral distortion.⁴⁴ For further insight, the magnified view of three Co/CrO₆ octahedral is presented in Fig. 3(b–d). The distortion can be estimated by calculating tilt angle Φ, which is equal to Φ = (180 − θ)/2, where θ is Co/Cr–O–Cr/Co bond angle.¹⁶ Unequal bond distances further verify the octahedral distortion in the GCCO unit cell. The mean value of the tilt angle Φ was calculated to be 16.94°. Table 1 represents the Rietveld refined structural parameters of GCCO double perovskite.

Table 1 Atoms, Wyckoff positions, atomic coordinates, bond lengths, bond angles, tilt angles, and reliability factors obtained from Rietveld refinement of XRD pattern

Atom	Wyckoff position	X	Y	Z	Bond distance (Å)	Bond angle (°)	Tilt angle (°)	Reliability factors
Gd	4e	0.511	0.554	0.251	Co–O1 = 2.25	Co–O1–Cr = 129.45	25.28	Rexp = 5.73
Co	2c	0	0.500	0	Co–O2 = 2.01
Cr	2d	0.500	0	0	Co–O3 = 1.50	Co–O2–Cr = 152.03	13.99	Rwp = 6.00
O1	4e	0.213	0.223	−0.088	Cr–O1 = 1.94
O2	4e	0.258	0.755	0.053	Cr–O2 = 1.89	Co–O3–Cr = 156.87	11.56	χ^2 = 1.10
O3	4e	0.416	−0.043	0.278	Cr–O3 = 2.33

---

3.2 Raman spectrum analysis

Raman spectroscopy was performed at room temperature (RT) to further verify the as-synthesized GCCO crystal structure. Vibrational modes that arise in the Raman spectroscopy are mainly due to the vibration of Co/CrO₆ octahedral and Co/Cr–O bonds. Fig. 4 shows the Raman spectrum of as-synthesized GCCO nanoparticles.

Fig. 4 Raman spectrum of GCCO nanoparticles observed at RT. Inset of the figure shows magnified view of B_g mode.

Since GCCO possesses a monoclinic structure with space group P2₁/n, hence it is expected to the presence of two vibrational modes A_g and B_g in the Raman spectrum of GCCO.^45,46 The presence of A_g and B_g modes can be seen clearly in the Raman spectrum of GCCO at Raman shifts of 487 cm⁻¹ and 653 cm⁻¹ respectively. Here, A_g mode arises due to the anti-symmetric stretching vibration of Co/CrO₆ octahedra, and B_g mode arises due to the symmetric stretching vibration of Co/CrO₆ octahedra.⁴⁵ The presence of these two modes further confirms the monoclinic structure with space group P2₁/n. There is also the presence of two intense peaks, M₁ and M₂, at Raman shifts of 1361 cm⁻¹ and 1604 cm⁻¹. The Raman peak at 1361 cm⁻¹ arises due to the overtone of two B_g modes, and the Raman peak at 1604 cm⁻¹ arises due to the linear combination of 2A_g and B_g modes.⁴¹ The average bond distance can also be calculated using the stretching mode through the following formula,^47,48

v (cm⁻¹) = 21349 exp(−1.9176R (Å))

where ν is the mode of vibration and R is the average Co/Cr–O bond distance. The average bond distance is calculated to be 1.98 Å corresponding to anti-symmetric stretching vibration, which is consistent with the average bond distance obtained from Rietveld refinement.

3.3 FTIR spectrum analysis

FTIR spectroscopy was performed at room temperature to identify the infrared (IR) active modes and the presence of different functional groups in the as-synthesized GCCO nanoparticles, as demonstrated in the ESI Fig. S1.† It is expected that there will be six normal modes of vibration (V₁–V₆) of the Co/CrO₆ octahedral complex in the GCCO unit cell. Among these V₃ and V₄ are IR active, V₁, V₂, and V₅ are Raman active, and V₆ is inactive.^22,42,49

The broad transmission mode around 516 cm⁻¹ arises basically due to the bending vibration of Co/Cr–O bonds in Co/CrO₆ octahedral in the GCCO unit cell and is denoted by V₃.²² The transmission mode at 571 cm⁻¹ is denoted by V₄ and arises basically due to the stretching vibration of Co/Cr–O bonds.⁴² The transmission band at 918 cm⁻¹ is assigned to the NO₃⁻ ions trapped in the GCCO nanoparticles, which arises due to the use of nitrate salt as precursor materials.^22,49 C–O bonds arise at the range of 1384–1681 cm⁻¹ and 2355 cm⁻¹ due to the chemisorption of atmospheric CO₂ by the GCCO nanomaterials.^22,42 Finally, O–H bonds arise in the range of 3663–3868 cm⁻¹ because of the absorption of the water at the surface of GCCO nanoparticles.⁴²

3.4 TGA and DTA analysis

Thermogravimetric analysis (TGA) was performed to see the thermal stability of GCCO double perovskite. The TGA curve demonstrated in the ESI Fig. S2† shows that the weight loss of GCCO powders is less than ∼1% up to temperatures of 900 °C, which indicates the great thermal stability of GCCO nanoparticles over a wide range of temperatures. The weight loss at a lower temperature is most probably due to the removal of absorbed water and gases from the surface of GCCO nanoparticles. The weight loss at higher temperatures might be due to the loss of Co and Cr ions in the lattice because of the loss of lattice oxygen.^22,50 Thermal stability up to 900 °C indicates that the calcination at a temperature of 800 °C was reasonable.

In the Differential Thermal Analysis (DTA) curve illustrated in the ESI Fig. S2,† initially enthalpy increases due to the increase of operating temperature. No intense peak was observed corresponding to a significant phase transition. The weak endothermic peak at the temperature of 720 °C was observed, which was due to the dissociation of C–O bonds present in the GCCO nanoparticles.⁵¹ The presence of C–O bonds was also confirmed by the FTIR analysis in the previous section.

3.5 FESEM imaging

The surface morphology of as-synthesized GCCO double perovskite was investigated initially by conducting field emission scanning electron microscopy (FESEM). Fig. 5(a) shows the surface morphology of as-synthesized GCCO nanoparticles obtained from FESEM measurement. The surface of the GCCO nanomaterials calcined at 800 °C is not homogeneously distributed and the particles are agglomerated to some extent. This agglomeration occurs due to the relatively higher surface-to-volume ratio and higher surface energy of nanoparticles. After that, agglomeration occurs to lower its surface energy.^52,53 Again, the precursors, chelating agent, pH of the solution, and solvent affect the particles to agglomerate to some extent.^54,55 Finally, the agglomeration can take place due to the larger enthalpy changes due to bond formation than entropy, which is responsible for negative Gibbs free energy. Agglomeration tends to eliminate this negative free energy (ΔG) to be thermodynamically stable.^56,57 Inset of Fig. 5(a) shows the particle size distribution of GCCO nanoparticles obtained from a FESEM image, which shows that the majority of the particles are in the range of 40 to 140 nm with an average particle size of 71 ± 3 nm, which is well in agreement with the similar material Gd₂FeCrO₆ double perovskite.²² The energy dispersive spectrum (EDS) illustrated in the Fig. 5(b) shows the presence of all required elements.

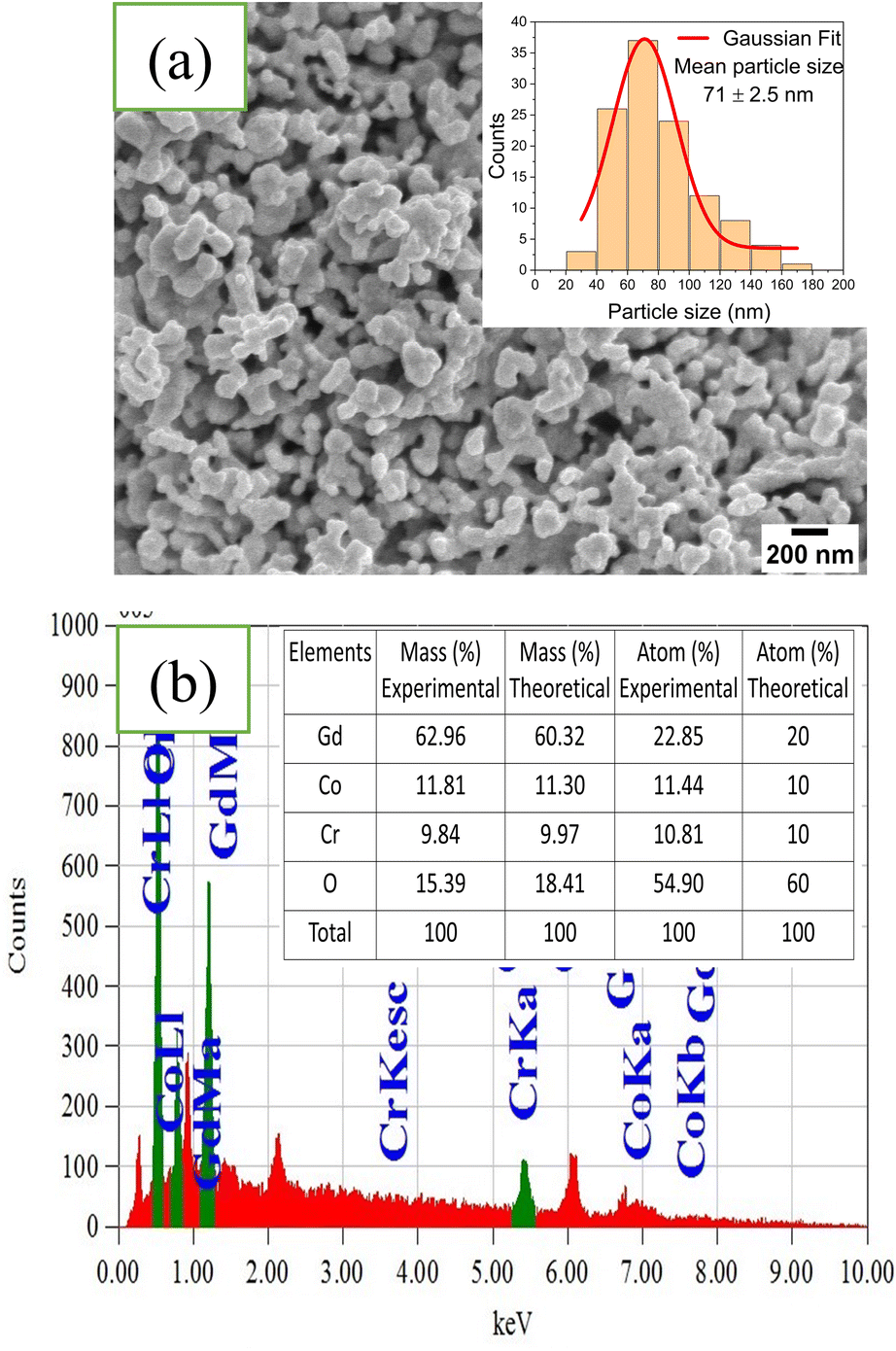

Fig. 5 (a) FESEM image of Gd₂CoCrO₆ nanoparticles. Inset of figure (a) shows particle size distribution histogram. (b) Energy dispersive spectrum with inset showing the percentage of all required elements.

The mass and atomic percentage of all required elements found from EDS spectroscopy and calculated theoretically are demonstrated in the inset of Fig. 5(b). It is seen that the experimentally obtained values are analogous to the theoretically calculated values, which further demonstrated the successful synthesis of GCCO nanomaterials.

3.6 TEM imaging

In the morphological investigation, transmission electron microscopy (TEM) shows a better insight into particle morphology. Fig. 6(a) exhibits the bright field TEM image of the GCCO nanoparticles. The particle sizes obtained from TEM are in the range of 40–120 nm, which is well in agreement with the particle sizes obtained from FESEM analysis. Fig. 6(b) demonstrates the high-resolution TEM image with an interplanar spacing of 0.31 nm. The Rietveld analysis demonstrated that the interplanar spacing of 0.31 nm is associated with the (−1 1 2) lattice plane. The ring shape pattern of selected area electron diffraction (SAED) in the inset of Fig. 6(b) demonstrates the polycrystallinity of GCCO double perovskite with the presence of (−1 2 4), (0 1 4), (1 1 3), (0 2 1), and (1 1 1) lattice planes.⁷

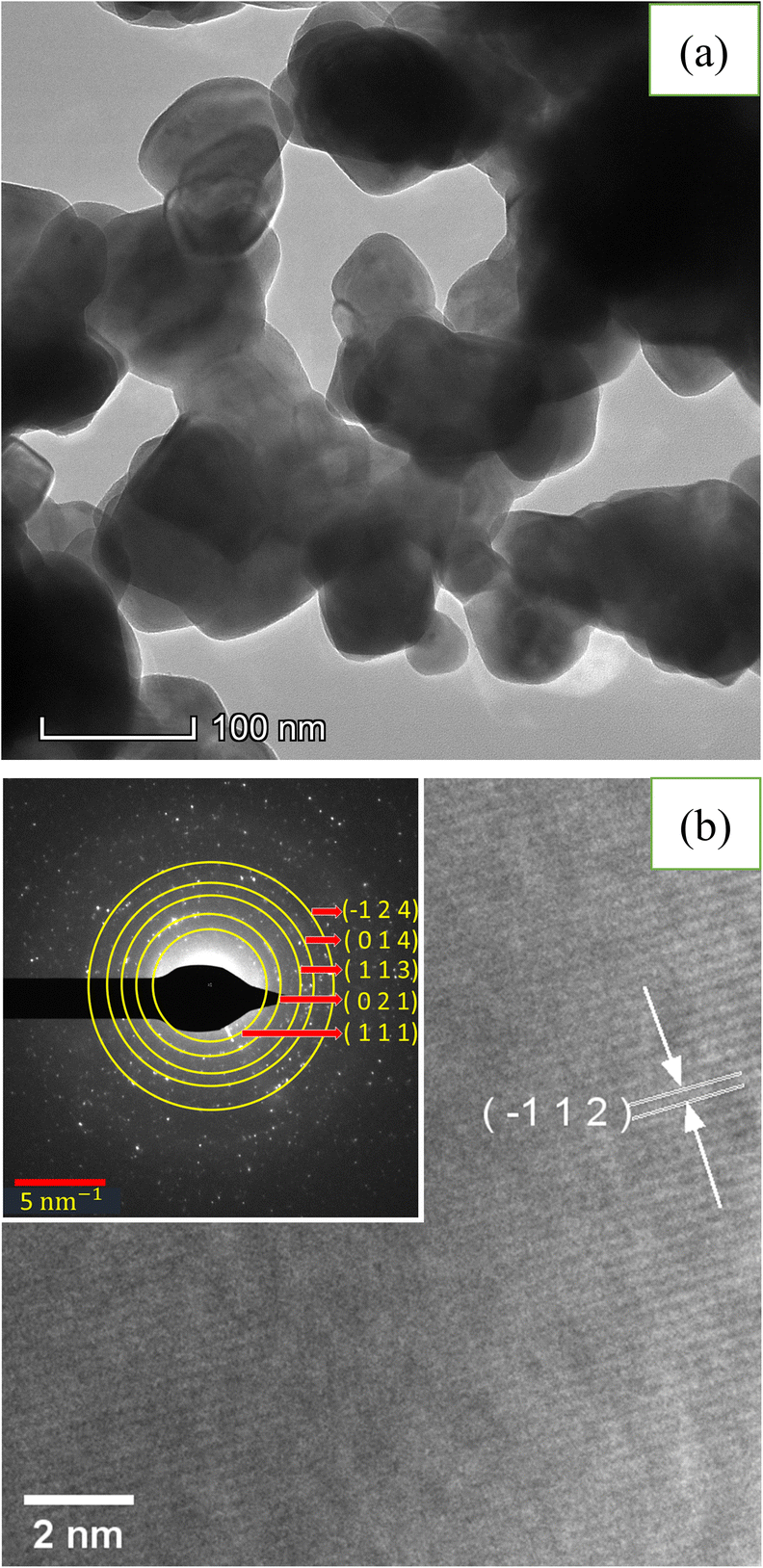

Fig. 6 (a) Bright field TEM image of GCCO nanoparticles, (b) high resolution TEM image. Inset of figure (b) shows SAED pattern of as-synthesized GCCO nanomaterials.

3.7 X-ray photoelectron spectroscopy (XPS) analysis

The oxidation states and chemical binding energies of individual atoms of as-prepared GCCO double perovskite were scrutinized by performing X-ray photoelectron spectroscopy (XPS). The high-resolution XPS spectra of Gd-4d, Co-2p, Cr-2p, and O-1s core levels of the as-prepared sample are shown in Fig. 7(a–d), respectively. The XPS spectrum of Gd (Fig. 7(a)) exhibits two characteristic doublet peaks due to spin–orbit splitting at 4d_5/2 and 4d_3/2, which are associated with the binding energies of 141.63 eV and 146.02 eV, respectively. The binding energies of Gd-4d_5/2 and Gd-4d_3/2 indicate the presence of the Gd³⁺ ion in the GCCO double perovskite.^5,58 In the XPS spectrum of Co content (Fig. 7(b)), the spin–orbit splitting of the Co-2p orbital is composed of two major peaks at 780.28 eV and 795.78 eV, related to the Co-2p_3/2 and Co-2p_1/2 states, respectively, with a satellite peak at the binding energy of 803.49 eV due to interaction between the photo-ejected electron and the valence electron. The deconvolution peaks of Co-2p_3/2 at binding energies of 780.22 eV and 784.49 eV represent the Co³⁺ and Co²⁺ states, respectively, and the deconvolution peak of Co-2p_1/2 at 795.78 eV represents the Co³⁺ state.^59,60 Similarly, the XPS spectrum of the Cr element also exhibits spin–orbit splitting at 575.88 eV and 585.85 eV, which correspond to the 2p_3/2 and 2p_1/2 states, respectively. Further deconvolution of state 2p_3/2 at 575.54 eV and 576.98 eV reveals the presence of mixed states Cr²⁺ and Cr³⁺, respectively, and deconvolution of state 2p_1/2 at 585.68 eV and 586.88 eV represents the mixed state of Cr³⁺ and Cr⁶⁺ states.^61,62 The presence of Cr⁶⁺ is well consistent with the previous investigation.⁶²

Fig. 7 (a–d) High resolution XPS spectra of Gd-4d, Co-2p, Cr-2p and O-1s of Gd₂CoCrO₆ nanoparticles, respectively.

Fig. 7(d) shows the core level XPS spectrum of O 1s_1/2, the peak at 528.92 eV corresponds to the characteristic peak of O²⁻ ions of the lattice oxygen, while the wide peak at 530.74 eV denotes the ionization of oxygen ions associated with the subsurface of GCCO nanomaterials. This suggests that the subsurface is formed of oxygen ions with a lower electron concentration than the O²⁻ ions. These oxide ions can be ascribed as excess oxygen or O⁻ species.¹⁶ The presences of mixed states of Co and Cr elements indicate the absence of perfect long-range ordering between Co and Cr elements in the GCCO double perovskite.

3.8 Magnetic characterization

The temperature-dependent direct-current (dc) magnetization measurements of Gd₂CoCrO₆ nanoparticles were performed under an applied magnetic field of 100 Oe using both ZFC and FC modes as shown in Fig. 8(a). The FC magnetization curve increases as temperature decreases without any sharp transition, indicating the absence of proper long-range ordering among Co³⁺ and Cr³⁺ ions which is consistent with XRD analysis.^16,22 Notably, the ZFC curve displays a cusp-like feature at 105 K (shown by the red arrow in the inset of Fig. 8(a)), which suggests a Néel transition at T_N = 105 K. In a similar type of double perovskite Gd₂FeCrO₆, we observed previously a Néel transition at a temperature around ∼15 K.²² Interestingly, the replacement of Fe by Co enhanced Néel transition temperature significantly probably due to the higher degree of magnetocrystalline anisotropy of Co owing to strong spin–orbit coupling and stronger exchange interactions among the 3d electrons compared to Fe.⁶³

Fig. 8 (a) ZFC and FC magnetization curves at an applied field of 100 Oe. Inset of (a) shows enlarged view of ZFC curve. (b) Curie–Weiss plot of FC magnetization curve. (c) M–H loops obtained at 5 K, 50 K, 100 K, 200 K and 300 K. Inset shows magnified view of M–H loop obtained at 50 K.

Magnetization reversal (MR) behavior was also observed in the ZFC curve of Fig. 8(a) with a compensation temperature of T_comp = 30 K. In a recent investigation,³³ we observed such a magnetization reversal in an analogous double perovskite Y₂FeCrO₆. We also found that the temperature range/region of this negative magnetization is decreasing with increasing field and eventually vanishes for a higher applied magnetic field. Notably, a small negative field, trapped in the superconducting magnet can mimic a negative magnetization under the ZFC condition and that might be misleading. Therefore, in our investigation, the magnitude of the remanence in the magnet was reduced to 1–2 gauss by setting the field to zero from an initial field above 1 Tesla in the oscillator mode of the magnetometer. This also attenuated the flux creep effects. The remanence was further reduced to <0.05 gauss by using the ultra-low field option in the magnet to compensate for the trapped flux from the magnet. Therefore, we think that in our investigation, the observed negative magnetization is not an artifact due to the trapped field in the superconducting magnet.

For the existence of negative magnetization in the GCCO, we think that at around T_N = 105 K, canted-antiferromagnetic ordering arises in the |Co + Cr| sublattice according to the antisymmetric Dzyaloshinskii–Moriya (DM) interaction, while Gd-sublattice remains its paramagnetic state.⁹ Below 105 K magnetization gradually decreases due to the polarization of paramagnetic Gd ions along anti-parallel to the canted antiferromagnetic state of |Co + Cr| sublattice and becomes zero at T_comp = 30 K. At T < T_comp, polarized Gd³⁺ moment dominant over the canted antiferromagnetic state of |Co + Cr| sublattice and magnetization become negative.^33,64

Fig. 8(b) displayed the inverse susceptibility χ⁻¹ vs. temperature curve obtained at 100 Oe using the FC technique. There are three regions in the inverse susceptibility curve. Beyond 130 K is region I, where antiferromagnetic-like inverse susceptibility shows a negative intercept, region II from 85 to 130 K indicates the presence of additional magnetic interaction between Co and Cr ions and shows ferromagnetic-like inverse susceptibility with a positive intercept, and region III from 0 to 85 K, which shows paramagnetic like inverse susceptibility with zero intercept.⁶⁵ We have also calculated the paramagnetic moment of GCCO nanoparticles by Curie Weiss fitting in the linear region 130–400 K. According to Curie Weiss law,⁶⁶

where C = N_Aμ²_eff/3k_B stands for the Curie constant, θ_w denotes the paramagnetic Curie–Weiss temperature, k_B is the Boltzmann constant, μ_eff denotes the effective paramagnetic moment, and N_A is Avogadro's number. The Curie–Weiss temperature θ_w is found to be −10 K, which suggests an antiferromagnetic ordering of GCCO double perovskite. The effective paramagnetic moment μ_eff of the sample was calculated from experimental data using the following expression,⁶⁷
where C is the inverse of the slope in emu K per mole. The calculated effective paramagnetic moment μ_eff was found to be 11.15 μ_B. Theoretically, the magnetic moment of Co and Cr ions can be expressed as , considering their orbital angular momentum quenched by interatomic forces,⁶⁶ where g is the gyromagnetic ratio. The calculated μ_eff values of Co²⁺, Co³⁺, Cr²⁺, Cr³⁺, and Cr⁶⁺ are 3.88, 4.90, 4.90, 3.88, and 0 μ_B, respectively. Moreover, μ_eff (Gd³⁺) is given by , where gyromagnetic ratio g = 2 and total angular momentum J = 7/2 for the Gd³⁺ ion. Then, the magnetic moment of Gd³⁺ is 7.9 μ_B. Thus, the theoretical paramagnetic moment of Gd₂CoCrO₆ is,

The experimentally obtained paramagnetic moment experienced a little deviation from the theoretical one, which is consistent with a similar investigation of Gd₂NiMnO₆ (ref. 41) that might be due to the lattice distortion present in the GCCO double perovskite. Further, theoretically obtained effective paramagnetic moment also suggest the presence of mixed states of Co²⁺, Co³⁺, Cr²⁺, and Cr³⁺ states in the GCCO double perovskite.

Additionally, the field-dependent magnetization of GCCO double perovskite was carried out at temperatures 300 K, 200 K, 100 K, 50 K, and 5 K under an external magnetic field of up to ±7 T. The magnetization vs. magnetic field (M–H) curves are displayed in Fig. 8(c). The linear M–H curves obtained at 300 K, 200 K, and 100 K indicate the paramagnetic nature of GCCO nanoparticles at these temperatures. An enlarged image of the magnetic hysteresis loop obtained at 50 K is shown in the inset of Fig. 8(c), which is also linear with applied field along with some remanent and coercivity and indicates the presence of both AFM and FM states. The hysteresis loop obtained at 5 K is nearly saturated with a maximum magnetization of 110 emu g⁻¹ at an applied field of 7 T. From this hysteresis loop, the remanent magnetization (M_r) and coercive field (H_c) are determined to be ∼3.37 emu g⁻¹ and ∼0.14 T, respectively. Noticeably, the narrow hysteresis loop was not saturated even at a higher applied field of 7 T, which also indicates the presence of both FM and AFM states at a lower temperature (<50 K). This phenomenon of multiple magnetic domain states may be explained in the following ways. From structural analysis, we have seen that Co³⁺ and Cr³⁺ are not perfectly ordered at B sites (B and B′). Further, the XPS studies reveal the presence of mixed states of Co and Cr elements. Thereby, in the absence of long-range ordering between Co³⁺ and Cr³⁺ sites, there may exist several configurations of B–B′ ions in GCCO: Co²⁺(e²_g)–Co²⁺(e²_g), Co²⁺(e²_g)–Co³⁺(e¹_g), Co³⁺(e¹_g)–Co³⁺(e¹_g), Cr²⁺(e¹_g)–Cr²⁺(e¹_g), Cr²⁺(e¹_g)–Cr³⁺(e⁰_g), Cr³⁺(e⁰_g)–Cr³⁺(e⁰_g), Co²⁺(e²_g)–Cr²⁺(e¹_g), Co²⁺(e²_g)–Cr³⁺(e⁰_g), Co³⁺(e¹_g)–Cr²⁺(e¹_g), and Co³⁺(e¹_g)–Cr³⁺(e⁰_g). Among them, only Co²⁺(e²_g)–Cr³⁺(e⁰_g) pair is responsible for the FM state according to the Goodenough–Kanamori rule,⁶⁸ and others are responsible for the AFM state.^16,22 This rule states that the FM state is produced by a 180° super-exchange interaction between an empty Cr³⁺-d(e⁰_g) orbital and a half-filed Co²⁺-d(e²_g) orbital. However, due to lattice distortion, this magnetic interaction changes into an AFM when the d(e²_g)–O–d(e⁰_g) angle is less than 180°.⁶⁹ Particularly for the systems like GCCO, the super-exchange interaction differs from FM to AFM for a span of 125° to 150° bond angles.⁶⁹ As previously shown in XRD analysis, octahedral distortion causes the Co–O–Cr bond in GCCO double perovskite to bend to 146°. This distortion is also attributed to the formation of the AFM interaction alongside the FM state.

3.9 Optical properties

To analyze the optical properties of as-synthesized GCCO nanomaterials, UV-visible absorbance spectroscopy was performed. Fig. 9(a) shows the absorbance spectrum with corresponding band fittings of as-synthesized GCCO nanoparticles. Band fittings were carried out using Gaussian functions by employing the fitting program integrated into Origin 10.0. In the absorbance spectrum three absorption bands A_1, A_2, and A₃ at 300 nm, 430 nm, and 720 nm, respectively, suggest the multi-band electronic structure of GCCO double perovskite.^22,42 The absorption bands (A₁ and A₂) around 300 nm and 430 nm, respectively, are due to the p–d charge-transfer (CT) transition [O(2p) → Co/Cr(3d)] in the centers of the Co/CrO₆ octahedral structure of GCCO nanomaterials.^42,70 The low energy absorption band (A₃) close to 720 nm is ascribed by the d–d electronic transition in the Co³⁺ ions.⁷¹ Moreover, the three absorption bands in Fig. 9(a) show a wide solar harvesting potential of GCCO, which may increase the photocatalytic efficiency of GCCO nanomaterial.^72,73 The direct optical bandgap was estimated by a Tauc plot using the Tauc relation,

αhν = A(hν − E_g)^½

where, α-absorption coefficient, A-proportionality constant, hν-the energy of the incident photon and E_g is direct bandgap energy. The direct optical bandgap found by extrapolating the linear portion of the Tauc plot shown in Fig. 9(b) is 2.25 eV. In addition, steady-state PL spectroscopy was performed with an excitation wavelength of 270 nm to further verify the direct bandgap of as-synthesized GCCO nanomaterials. In the PL spectroscopy, the PL peak was found at the wavelength 542 nm as shown in Fig. 9(c), which corresponds to the optical bandgap of 2.28 eV that closely matched with the direct bandgap found from UV-visible spectroscopy. Further, this result demonstrates the semiconducting nature of GCCO nanomaterial and, more critically, demonstrates its capacity to effectively absorb visible light from the solar spectrum. Notably, our present investigated GCCO nanomaterials show a slightly higher optical bandgap compared to previously investigated GFCO nanoparticles, which is due to the higher electron concentration in the Co atom compared to the Fe atom associated with the higher number of electrons in Co than Fe, that is known as Burstein–Moss effect.^74,75

Fig. 9 (a) Absorbance (Abs.) spectrum and corresponding band fittings, (b) bandgap estimated by Tauc plot and (c) PL spectrum of GCCO nanomaterials.

Finally, we have made a comparative analysis of structural, magnetic, and optical properties of as-synthesized Gd₂CoCrO₆ and previously investigated rare-earth and transition metal-based double perovskite materials. The summary of the comparative analysis is presented in Table 2. It is seen from Table 2 that GCCO possesses a higher Néel transition temperature compared to other rare-earth chromite except for Y₂FeCrO₆ double perovskite.²⁴ The optical bandgap of this class of double perovskite materials is close to 2.0 eV, which might have potential optoelectronic applications.

Table 2 A comparative analysis of structural, magnetic and optical properties of as-synthesized Gd₂CoCrO₆ and previously investigated rare-earth chromite

Materials	Lattice parameters (Å)	Space group	Structure	B site order	TN (K)	Bandgap (eV)	Ref
Gd2CoCrO6	a = 5.27	P21/n	Monoclinic	Disorder	105	2.25	Present work
	b = 5.46
	c = 7.53
Gd2FeCrO6	a = 5.36	P21/n	Monoclinic	Disorder	15	2.0	22
	b = 5.59
	c = 7.68
Er2FeCrO6	a = 5.25	Pbnm	Hexagonal	Disorder	11.7/5.7	—	76
	b = 5.55
	c = 7.57
Y2FeCrO6	a = 5.55	Pbnm	Orthorhombic	Disorder	327	1.90	24,33
	b = 7.57
	c = 5.26
La2FeCrO6	—	—	—	Order	45	1.6	77

---

3.10 Potentiality as a photocatalyst

The applicability of GCCO nanoparticles as a photocatalyst was assessed by calculating the valence band maximum (VBM) and conduction band minimum (CBM) by the Mulliken electronegativity approach.^78,79 According to the approach,

E_VBM = E_CBM + E_g (2)

where χ is Mulliken electronegativity, which depends on atomic ionization energy and electron affinity, E_c is free electron energy, which is 4.5 eV on the standard hydrogen scale and finally, E_g is direct bandgap found from the Tauc plot. The calculated value of χ for GCCO is 5.57 eV and the values of VBM and CBM are computed to be +2.2 eV and −0.055 eV. The VBM and CBM band edge position of GCCO has been demonstrated in Fig. 10 with respect to the H⁺/H₂ potential (0 eV) and O₂/H₂O potential (1.23 eV) in the normal hydrogen scale.

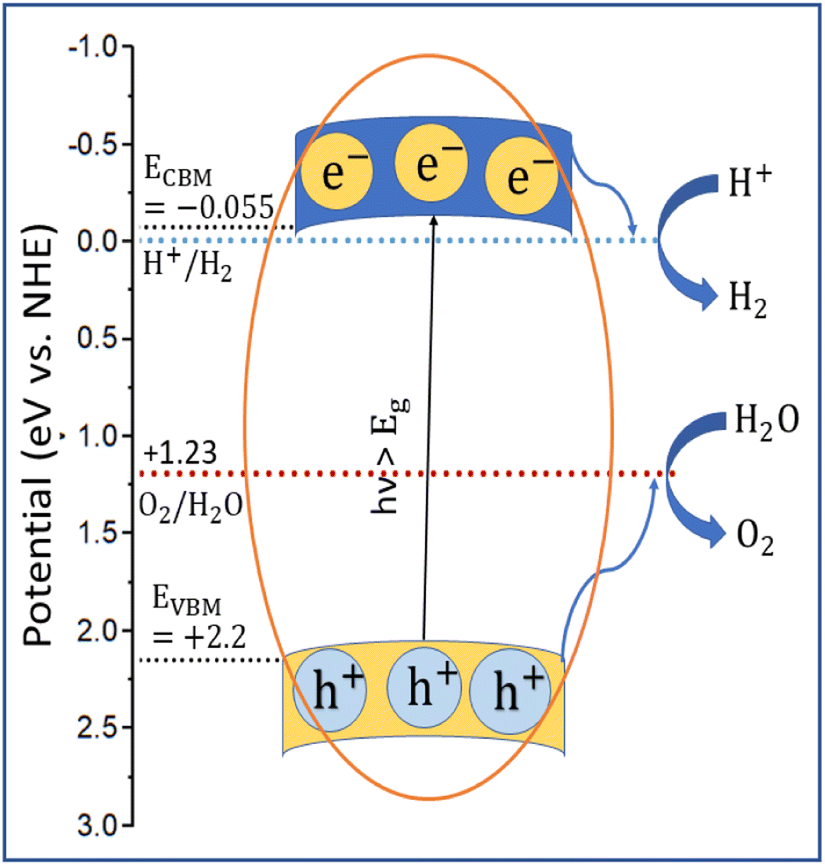

Fig. 10 Schematic representation of estimated band edge position of GCCO nanoparticles.

According to the literature, if the conduction band minimum of a semiconductor is lower than the reduction potential of hydrogen, then it can produce photocatalytic hydrogen by splitting water, and if the valence band maximum is higher than the oxidation potential of oxygen, then it can produce O₂ from water.^22,80,81 As illustrated in Fig. 10, the conduction band minimum of GCCO is lower than the reduction potential of H_2, and the valence band maximum is higher than the oxidation energy of oxygen. Therefore, according to a theoretical perspective, GCCO nanoparticles are potential candidates for photocatalytic H₂ and O₂ evolution through the splitting of water.^22,81

4 Conclusions

Powder X-ray diffraction, Raman spectroscopy, X-ray photoelectron spectroscopy, and electron microscopy imaging ensured the successful synthesis of double perovskite Gd₂CoCrO₆ nanoparticles with an average particle size of 71 ± 3 nm. A further decrease of temperature from Néel transition at T_N = 105 K demonstrated a magnetization reversal behavior with a compensation temperature of T_comp = 30 K. Low-temperature hysteresis loops demonstrated the presence of both FM and AFM domains in the GCCO double perovskite. Strong anisotropy along with different kinds of exchange interactions like super-exchange and Dzyaloshinskii–Moriya interactions between various cations via oxygen ions are responsible for the presence of multiple magnetic states in this perovskite system. Finally, the favorable optical bandgap (∼2.25 eV) unveiled the promising potential of GCCO nanoparticles in photocatalytic H₂ and O₂ evolution from water. The fascinating structural, magnetic, and optical properties revealed that GCCO double perovskite might be a potential new member of rare earth and transition metal-based perovskite material for applications in spintronics, optoelectronics, and photocatalysis.
