Investigation of thermodynamics, and structural, dynamical, and electrical properties of polyoxometalate ionic liquid confined into carbon nanotubes during the melting process using molecular dynamics simulation

Abstract

Understanding the properties of ionic liquids confined into nano-pores is required to use ionic liquids for many applications such as electrolytes for energy storage in capacitors and solar cells. Recently, polyoxometalate ionic liquids have attracted much attention for their potential applications in electrochemistry, catalysis, and nanotechnology. In this work, we have performed MD simulations on 1-ethyl-3-methylimidazolium Keggin ([emim]₃[PW₁₂O₄₀]) confined into armchair (20,20) CNTs to study the thermal properties and melting process. Changes in the simulated results of configurational energy of confined polyoxometallate IL indicated that the melting range of the confined polyoxometalate IL is about 650–750 K. Heat capacity at constant volume of the confined IL is about 2 (cal K⁻¹ mol⁻¹) which shows sharp changes around the melting range. The average number of hydrogen bonds (〈HB〉) of the confined IL is about 2.8 which also presents sharp changes around the melting range. The ion conductivity and self-diffusion coefficient of [emim]₃[PW₁₂O₄₀] IL also present a sharp maximum of 25 (S m⁻¹) and 6 × 10⁻¹⁰ (m² s⁻¹) at the melting point. Our results did not show a significant hysteresis in the melting process and therefore, the process is reversible. Our simulation also indicated that the confinement of the polyoxometallate IL into the CNT increases its thermal stability and melting point. Our simulations also indicated that the type of CNT configuration has a small effect on the melting point of the confined polyoxometallate IL.

---

1. Introduction

Ionic liquids (ILs), which remain in the liquid state at room temperatures, have some interesting properties such as nonflammability, non-volatility, low vapor pressure, electrical conductivity, thermal stability, and electrochemistry.^1–4 Recently, polyoxometalate (POM) ionic liquids have attracted much attention for their potential applications in electrochemistry, catalysis, and nanotechnology.^5–7 The POMs are clusters of metal cations and oxo ligands and have distinctive chemical properties.⁸ These inorganic compounds have several applications in materials science, catalysis, electrochemistry, and medicine.^9,10 The Keggin anion, PW₁₂O₄₀⁻³, is one of the most representative POMs. In recent years, several experiments, simulations and quantum mechanics calculations have focused on this family of compounds.¹¹ Recently, Huang et al.⁴ synthesized and studied a series of reversible phase transformation of POM-IL gels. They observed that the Keggin-type anion clusters decorated with long alkyl chains have a gel state at room temperature which convert into liquid state after heating-cooling process. They also showed that the thermal stability and conductivity of ammonium-based POM-ILs can be improved by decreasing the alkyl chain length. Mei et al.¹² investigated the morphology of aqueous solutions of ILs with the anion Keggin and some alkyl-functionalized imidazole-typed cations using molecular dynamics (MD) simulations. They indicated that the alkyl chain length in imidazolium cation can regulate the aggregation behavior among the negative POM anions.

ILs can also represent interesting applications in nano-confined systems which are different from the bulk properties.^13,14 The confined ILs have also important applications in catalytic reactions, nanocomposites, lubricants, and solar cells.^14–25 Previous studies reported that the thermal stability of ILs increases by confining into carbon nanotubes (CNTs).^18,21 Li et al.²⁴ studied the melting temperature of 1-ethyl-3-methylimidazolium bromide ([emim][Br]) IL confined into porous silicone oxide nanoclusters. They concluded that the confinement in the nano-pores results in the increase in the melting point. Dong et al.²² observed an ordered ion arrangement of 1-butyl-3-methylimidazolium hexafluorophosphate ([bmim][PF₆]) into CNTs using MD simulation. Dou et al.¹³ also reported a shell-chain structure [bmim][PF₆] IL into CNTs. Akbarzadeh and Abbaspour²⁶ investigated structure and dynamics of [emim][PF₆] IL into CNTs using MD simulations. They found that the diameter and chirality of the CNT have important effects on the confined IL properties. Akbarzadeh et al.²⁷ also studied melting process of [emim][PF₆] IL confined into CNTs with different sizes.

It is very hard to achieve a molecular level insight of ILs into nano-pores from experiment alone. MD simulations enable us to interpret the experimental findings and to predict the behavior of the confined system accurately.²⁷ Understanding the properties of ionic liquids confined into nano-pores is required to use ionic liquids for many applications such as electrolytes for energy storage in capacitors and solar cells.²⁸ Due to the important applications of polyoxometallate ILs,^5–7,9,10 for the first time, we aim to study the structural and dynamical properties of 1-ethyl-3-methylimidazolium Keggin ([emim]₃[PW₁₂O₄₀] or [emim]₃[Keggin]) IL confined into armchair (20,20) CNT during the melting process. In order to do this, we have calculated and discussed the configurational energy, heat capacity at constant volume, radial distribution function, and average number of hydrogen bonds. Very small number of previous simulations investigated the electrical properties of the confined materials into CNT. Therefore, we want to examine the ion conductivity of [emim]₃[Keggin] IL at the different temperatures during the melting process too.

2. Simulation details

We have performed NVT molecular dynamics (MD) simulations on [emim]₃[Keggin] IL confined into armchair (20,20) carbon nanotube CNT (45 cations and 15 anions according its density of 6.249 (g cm⁻³)) with the CNT length of 50 Å in the orthorhombic box with dimensions of 50.7 × 50.7 × 80 ų using the DLPOLY software.²⁹ Shi and Sorescu also investigated the structure of a IL into armchair (20,20) CNT using MD simulations.³⁰ To examine the effect of CNT configuration, we have also simulated [emim]₃[Keggin] IL into zigzag (35,0) CNT with the same length and almost similar diameter in the same simulation box using the NVT ensemble. To investigate the confinement effect, we have also simulated the bulk IL in the simulation box with the dimensions of 40 × 40 × 40 ų with 225 cations and 75 anions using the NPT ensemble in the pressure of 1 atm. The snapshots of the IL confined into the armchair (20,20) CNT has been presented in Fig. 1. The Nose–Hoover thermostat was applied to all systems in order to maintain their temperature constant with a relaxation time of 0.1 ps. The equation motions have integrated using the verlet leapfrog algorithm with the integration time step of 1 fs.²⁹ The CNT was kept in fixed positions and was filled with [emim]₃[Keggin] IL corresponding to its density at 300 K. The [emim] cation was modeled using the OPLS-AA potential.^31–33 The Keggin anion were modeled as a rigid particle and the all-atom force field parameters of the PW₁₂O₄₀³⁻ anion were taken from the work by Lopez et al.,³⁴ which is based on the amber force field and has been extensively applied for the POM anions simulation.^12,35,36

Fig. 1 The chemical structures of emim cation and Keggin anion and the snapshots of [emim]₃[Keggin] IL into the armchair (20,20) CNT. The O atoms are in red, H atoms are in white, W atoms are in green, P atom is in dark green, and N atoms are in blue.

The Lennard-Jones (LJ) potential was used for the IL-CNT interaction, utilizing the geometric mean for ε (the well depth of the interaction potential) and the arithmetic mean for σ (the distance at which the interaction potential is zero). The LJ parameters of the polyoxometallate IL and the CNT have been presented in Table S1 in the ESI.† The coulombic long range interactions were calculated using mesh Ewalds' method with a precision of 10⁻⁶. All interatomic interactions between the atoms in the simulation box have calculated within the cutoff distance 15 Å. The periodic boundary conditions are applied in all dimensions.

According to the previous simulations,^26,27 the IL-CNT system was kept in vacuum in the center of the orthorhombic box in such a way that one side of the box (x-direction) was almost equal to the length of the CNT, and the length of the other two sides of the box was long enough to avoid any artificial effect caused by the periodic boundary conditions. The system was run long enough (30 ns) to overcome the initial configuration and reach to the equilibrium state at 300 K. Then, it was run for 6 ns (2 ns for the equilibration and 4 ns for the production runs) at every temperature. The time step for all simulation was 1 fs. The configurational energies of the system versus simulation times have been presented at the different temperatures in Fig. S1 in the ESI.† As this figure shows, the system has been reached to the equilibrium state. It can be also observed the jump in the energy in the melting range.

3. Results and discussion

The configurational energy of [emim]₃[Keggin] IL confined into (20,20) CNT has been computed at different temperatures and presented in Fig. 2. The configurational energy is the result of force field effect on the system during the MD simulation and is the sum of the various intermolecular and intramolecular energies such as van der Waals energy, coulombic energy, etc. The change in the configurational energy in the range of 650–750 K corresponds to the melting process. The snapshots of the confined IL into the CNT have been also presented in Fig. 2. These snapshots have been prepared using the center of mass of the cations and anions. According to these snapshots, the ordered arrangements of the cations and anions have been disappeared at the melting range (T = 700 K). To assure the melting range, we have also presented the heat capacity at constant volume for the confined IL into the CNT in Fig. 2. The sharp peaks in the C_V plot corresponds to the first-order (or pseudo first-order) melting which its range is 650–750 K (with the sharpest peak at 690 K), in according with the configurational energy results.³⁷ At the best knowledge of the authors, there is not any experimental melting temperature for the [emim]₃[Keggin] IL in the literature. However, Rajkumar and Rao³⁸ synthesized the bulk 1-Butyl-3-methylimidazolium Keggin ([bmim]₃[Keggin]) IL and reported its melting temperature at 673 K. Li et al.³⁹ synthesized tributyltetradecylphosphonium Keggin ([TBTP]₄[PW₁₁O₄₀]) IL and reported its melting point below 373 K. It should be also noted that the confining of IL into CNT can also increase its melting point.²⁷ To investigate the hysteresis phenomenon in the melting process of the [emim]₃[Keggin] IL into CNT, we have also simulated the cooling process and the corresponding results of C_V have been presented in Fig. S2 in the ESI.† As this figure shows, there is not significant change in the melting point (650–800 K) which means that we have not a significant hysteresis in the melting process and therefore the process is reversible. This result can be due to the fact that the IL-CNT wall interactions do not change upon the melting process.

Fig. 2 The configurational energy and heat capacity at constant volume of [emim]₃[Keggin] IL confined into the CNT at different temperatures. The inserted snapshots represent the center of mass cations and anions at initial state at 300 K and final configurations at 700 and 1000 K. The cations are in blue and anions are in red.

To investigate the confinement effect, we have also simulated the bulk [emim]₃[Keggin] IL and the corresponding plot of the heat capacities has been presented in Fig. S3 in the ESI.† According to this figure, the melting point of the bulk IL is almost at 500–600 K. This result means that the confinement of the polyoxometallate IL into the CNT increases its thermal stability and melting point. This result is in agreement with the simulation results of Akbarzadeh et al.²⁷ on [emim][PF 6] IL confined in CNT.

To examine the CNT configuration on the melting range of the confined [emim]₃[Keggin] IL, we have also simulated the polyoxometallate IL into the zigzag (35,0) CNT and the corresponding plots of the configurational energies and heat capacities have been presented in Fig. S4 in the ESI.† According to this figure, the melting point of the IL is 700 K. In comparison with the melting range in armchair CNT (650–750 K), this result means that the there is good agreement between two configurations. In the other words, the kind of CNT configuration has small effect on the melting point of the confined polyoxometallate IL.

To examine the structural properties of the confined system, we have calculated the radial distribution function (RDF) using the following relation:²⁸

where N is total number of atoms in the system, ρ is the number density (ρ = N/V, V is the volume of the system), r_ij is the distance between atoms i and j, and the brackets indicate the ensemble average in the NVT simulation. The cation–cation, anion–anion, and cation–anion RDFs of the confined [emim]₃[Keggin] IL have been presented in Fig. 3. As this figure shows, the height of RDF peaks change from the solid state (300 K) to the liquid state in the melting range (650–750 K). We have provided the plots of maximum points of the first RDF peaks at the different temperatures in Fig. S5 in the ESI.† As this figure shows, the height of first RDF peaks of cation–cation decrease whereas anion–anion and cation–anion increase in the melting range. This means that the cations tend to be positioned closer to the anions in the melting range and therefore the cation–anion RDF increases. It is also shown that the position of appearance of cation–cation and anion–anion first RDF peaks totally increase but the position of cation–anion first RDF peak decreases by increasing the temperature. This means that the interaction between the cations and anions increases by increasing the temperature upon the melting range. We have also presented the cation-CNT and anion-CNT RDFs in Fig. S6 in the ESI.† According to this figure, there are very small changes in the ion-CNT RDFs during the melting process which means that there is very small changes in the IL-CNT interactions upon the melting process.

Fig. 3 The cation–cation (emim–emim), anion–anion (Keggin–Keggin), and cation–anion (emim-Keggin) RDFs of [emim]₃[Keggin] system at different temperatures. The nitrogen atom has been selected as the representative of the cation and the phosphorus atom has been chosen in the case of the anion. The inset of the emim-Keggin figure shows the distance of appearance of the RDF peaks.

We have also presented the average number of hydrogen bonds (〈HB〉) in the confined [emim]₃[Keggin] system at different temperatures in Fig. 4. The Keggin anion has a high negative charge and polarizes the surrounding molecules which form multiple hydrogen bonds with the external oxygens of the polyoxometalate.⁴⁰ We consider the criteria for HB that if the distance between the hydrogen atom in cation and oxygen atom in anion is less than 2.67 Å, then the interaction can be recognized as HB.^27,41 Fig. S7 in the ESI† shows the HBs between H atoms from emim cations and O atoms from Keggin anion (according to the final configuration of the confined IL in CNT at 500 K).

Fig. 4 The average number of hydrogen bonds (〈HB〉) for the confined [emim]₃[Keggin] IL at different temperatures.

According to Fig. 4, the 〈HB〉 of the confined [emim]₃[Keggin] IL is about 2.8 which is smaller than other ILs such as [emim][PF6] IL confined into CNT (〈HB〉 ≈ 7)²⁷. This result is due to presence of less number of polyoxometallate ions into the CNT than the other ILs due to the higher density of Keggin anion. The [emim][PF6] IL has more 〈HB〉 because of the more donor (F) atoms on the anion which increases the probability of formation of HB with the cation. It is also shown in Fig. 4 that the 〈HB〉 shows small deviation with the temperature. The 〈HB〉 decreases by increasing the temperature whereas it increases by increasing the temperature after the melting range. The sudden change in 〈HB〉 is almost in agreement with the energy and RDF results but it is somewhat more (800 K) and indicates the melting range. The increasing of 〈HB〉 by increasing the temperature (after melting) is in agreement with the small shift of cation–anion RDF to the shorter distances and also by increasing of the RDF first peaks by increasing the temperature (Fig. 3). In the other words, the cations and anions get closer after melting and make more HBs between each other.

We have also computed the electrical conductivity of the confined [emim]₃[Keggin] IL at different temperatures using the Nernst–Einstein relation:^27,42

and from the slope of the mean square displacement (MSD) using Einstein relation:⁴³and presented in Fig. 5. In these equations, N₊ (=45) and N₋ (=15) are the number of cations and anions, e is charge of electron, K_b is the Boltzmann constant, T is the temperature, V′ is the inner volume of CNT, Z₊ (=+1) and Z₋ (=−3) are the formal charges on the cation and anion, and D₊ and D₋ are the self-diffusion coefficients of cation and anion, respectively. The transference number (fraction of the total electric current carried by the anion or the cation of anion and cation) in the confined system has been also computed using the following relation⁴⁴ and presented in Fig. 5:where t₊ and t₋ are the transference numbers of positive and negative ions, respectively.

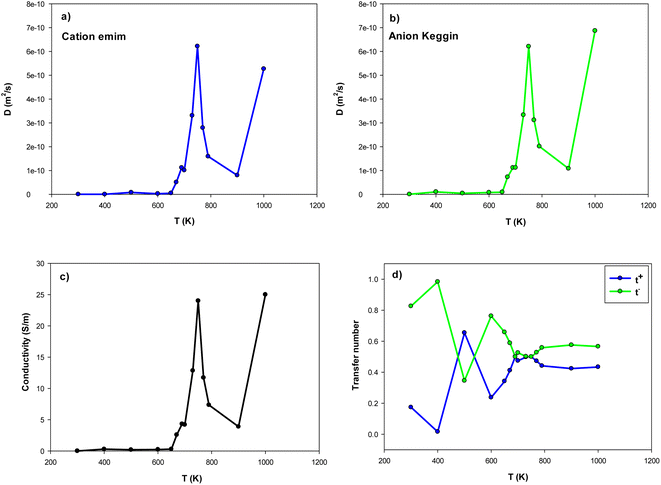

Fig. 5 The self-diffusion, ion conductivity, and ion transference numbers for the confined [emim]₃[Keggin] IL at different temperatures.

Our simulated ion conductivity value of [emim]₃[Keggin] IL at 300 K (0.001 (S m⁻¹)) is almost in similar order of other ILs such as [emim][PF₆] IL confined into CNT (0.004 (S m⁻¹) in (30,0) CNT).²⁸ However, the ion conductivity of the different ILs confined in nanopores is much less than the experimental value of the bulk IL.⁴⁵ According to Fig. 5, the ion conductivity of IL represents sharp increases about the melting temperature. The sharp increase in the ion conductivity of confined [emim]₃[Keggin] IL is due to the sharp increase in its self-diffusion in the melting range (Fig. 5a–c). This result is also due to the decrease of 〈HB〉 until the melting range (Fig. 4). After the melting, some oscillations can be observed in ion conductivity results which are in agreement with the 〈HB〉 results in Fig. 4. The sharp decrease of ion conductivity by increasing the temperature after the melting point is due to the sharp increase of 〈HB〉 after the melting. The sharp increase of ion conductivity after that at 1000 K is due to the sharp increase of self-diffusion coefficient by increasing the kinetic energy of the particles by more increasing of the temperature. We have also presented the MSD curves of cation and anion versus simulation time at the different temperatures in Fig. S8 in the ESI.† This figure clearly shows the sharp change in the slope of the MSD curves close to the melting range.

According to Fig. 5, the self-diffusion coefficients of cations and anions are almost similar in the melting range and beyond. Fig. 5 also represents the variation of transference number with increasing temperature. The t₊ increases by increasing the temperature until the melting range. After the melting, it remains almost constant. The trend of t₋ is in opposite trend of t₊ versus the temperature. The reason why both transference numbers remain almost constant in the melting range and after that is due to the fact that the self-diffusion of anion and cation is almost similar in theses ranges (according to eqn (4) and (5)). This is also in agreement with the 〈HB〉 results in which it remains almost constant after 900 K.

4. Conclusion

In this work, we have studied the thermal properties and melting process of confined [emim]₃[Keggin] IL into (20,20) CNT. The simulated configurational energy, heat capacity at constant volume, and RDF results indicated that the melting range of the confined polyoxometalate IL is 650–750 K. Our results showed that we have not a important hysteresis in the melting process and therefore the process is reversible. This result can be due to the fact that the IL-CNT wall interactions do not change upon the melting process. Our simulation also indicated that the confinement of the polyoxometallate IL into the CNT increases its thermal stability and melting point. This result is in agreement with the previous simulation results of [emim][PF 6] IL confined in CNT. Our simulations on zigzag CNT indicated that there is good agreement between two armchair and zigzag configurations. In the other words, the kind of CNT configuration has small effect on the melting point of the confined polyoxometallate IL.

The sudden change in 〈HB〉 is almost in agreement with the energy and RDF results but it is somewhat more (800 K) and indicates the melting range. The increasing of 〈HB〉 by increasing the temperature (after melting) is in agreement with the small shift of cation–anion RDF to the shorter distances. The ion conductivity of [emim]₃[Keggin] IL also represents a sharp peak at the melting temperature which is due to the sharp increase in its self-diffusion because of the decrease of 〈HB〉. The t₊ also increases by increasing the temperature until the melting range. After the melting, it remains almost constant. The trend of t₋ is in opposite trend of t₊ versus the temperature. We expect that the understanding the thermal properties of [emim]₃[Keggin] IL confined into nano-pore (such as the melting range, ion conductivity, etc.) help us using its potential applications in electrochemistry, catalysis, and nanotechnology.

Conflicts of interest

There are no conflicts to declare.
