Photocatalytic water oxidation over LaWO0.6N2.4 mesoporous single crystals under visible and near-infrared light illumination

Lin Yang , Hui Duan * and Xiaoxiang Xu *
Shanghai Key Lab of Chemical Assessment and Sustainability, School of Chemical Science and Engineering, Tongji University, Shanghai, 200092, China. E-mail: dhui@tongji.edu.cn; xxxu@tongji.edu.cn; Tel: +86-21-65982670 Tel: +86-21-65986919

Received 18th May 2023 , Accepted 26th June 2023

First published on 26th June 2023


Abstract

Narrow-bandgap perovskite oxynitrides emerge as a promising class of inorganic photocatalysts to store solar energy in chemical fuels. However, conventional synthetic routes generally introduce a high defect concentration in these compounds, particularly at grain boundaries (GBs), which also intercept charge transportation, thus severely undermining the photocatalytic performance. Herein, we demonstrate that GB-free porous single crystals (PSCs) of narrow bandgap semiconductor LaWO0.6N2.4 can be prepared by the topotactic conversion of BiLaWO6. Due to a high structural homogeneity and porosity, LaWO0.6N2.4 PSCs deliver a good photocatalytic activity for oxidizing water into O2 even under near-infrared light illuminations. Under optimal conditions, an apparent quantum efficiency (AQE) value as high as 0.13% at 800 ± 20 nm were achieved, being the first near-infrared-light active oxynitride for photocatalytic water oxidation thus far. Steady overall water splitting into stoichiometric H2 and O2 has also been realized in a Z-scheme system employing LaWO0.6N2.4 PSCs as the O2-evolution moiety under visible light insolation. These results not only justify that PSCs serve as an ideal platform to trigger the photocatalytic performance of oxynitrides with high defects content but also attract great attention upon W-based perovskite oxynitrides for solar energy conversions.


Introduction

Water cleavage over particulate photocatalysts offers a promising means to store intermittent solar energy into hydrogen energy, which is the ideal fuel for the future.1–5 To this end, narrow bandgap semiconductors that can harvest a significant portion of the solar spectrum, i.e., visible to near infrared, are strongly desired.6–12 However, narrow bandgap semiconductors can generally produce low energetic photocarriers; thereby, it is very challenging to drive the uphill-type water splitting reactions.13,14 For instance, a semiconductor with light absorption threshold of 800 nm can only produce photocarriers with an energy gap of 1.55 eV, being very close to the minimal demand of 1.23 eV for overall water splitting reactions. Thus, it becomes imperative to minimize energy loss during photocarrier transportation and transfer steps over narrow bandgap semiconductors for photocatalytic water splitting reactions.

Among various narrow bandgap semiconductors reported, d0-type transition metal perovskite oxynitrides, i.e., AM(O,N)3 (A = Ca, Sr, Ba, and La; M = Ti, Nb, Ta, and W), have gained considerable attention as photocatalysts for water splitting owing to their intensive visible light absorption, chemical robustness, and photocatalytic activity for water redox reactions.15–18 In particular, LaWO0.6N2.4 shows strong light absorption from visible to near infrared region as an ideal photocatalyst to convert solar energy.19,20 This is partly attributed to its high N/O ratio that substantially uplifts the valence band top, thereby reducing the threshold for light harvest. Notwithstanding such appealing properties, LaWO0.6N2.4 is subject to poor photocatalytic activities.21 This can be understood by the high electronegativity of W6+ that is susceptible to induce a high concentration of defects (W5+, W4+etc.) during high-temperature ammonolysis. These defects have been widely recognized as charge trapping and recombination centers that greatly undermine the photocatalytic activity.18,22,23 Things become even worse as powdery LaWO0.6N2.4 often contains copious grain boundaries (GBs). These GBs not only are enriched with defects but also serve as interceptions to the photocarrier transportation across neighboring particles.24–29 Accordingly, it implicates a useful strategy to upgrade the photocatalytic performance of LaWO0.6N2.4 by eliminating the GBs as well as defects.

In general, LaWO0.6N2.4 is prepared by high-temperature ammonolysis using shapeless precursor powders of La2W2O9, La4W3O15 and amorphous metal oxides.19–21 The irregular precursor particles with random exposure of crystal facets are characterized with uncontrolled grain growth during high-temperature ammonolysis, resulting in abundant GBs in the product. Seeking alternative precursors with specific exposure of crystal facets would be a useful means to regulate grain growth as well as to avoid GBs. We have previously used Sillén–Aurivillius type oxyhalides as the precursors to prepare porous single crystals (PSCs) of perovskite oxynitrides that are free of GBs.30–33 In this work, we adopt a layered compound BiLaWO6 as the precursor to synthesize LaWO0.6N2.4 PSCs for the first time. BiLaWO6 contains perovskite blocks and can be topotactically transformed into LaWO0.6N2.4 during high-temperature ammonolysis. The as-prepared LaWO0.6N2.4 PSCs do not contain GBs and are active to drive water oxidation reactions under visible and even near infrared light illumination. Its potential as a water splitting photocatalyst is also exemplified by a Z-scheme overall water splitting system that employs LaWO0.6N2.4 PSCs as the O2-evolution moiety.

Experimental

Materials synthesis

Preparation of BiLaWO6 precursor. The BiLaWO6 precursor was synthesized based on a molten-salt assisted flux method. Briefly, 0.6518 g La2O3 (Aladdin, 99.99%), 0.9329 g Bi2O3 (Aladdin, 99.9%), and 0.9292 g WO3 (Aladdin, 99.8%) were blended thoroughly with 1.4985 g KCl (SCR, 99.5%) using an agate mortar and a pestle. The mixtures were then transferred into an alumina crucible and were annealed at 1073 K for 1 h in a muffle furnace. After cooling naturally to room temperature, the product powders were rinsed with deionized water and ethanol repeatedly to remove residual KCl. Pale yellow powders were collected and dried at 353 K overnight for further use.
Preparation of LaWO0.6N2.4 porous single crystals (PSCs). LaWO0.6N2.4 PSCs were prepared by topotactically transforming BiLaWO6via high-temperature ammonolysis. Specifically, 0.2 g freshly prepared BiLaWO6 powders were mounted into a tube furnace using an alumina boat. The furnace was then heated up to 1173 K (heating rate ∼ 7 K min−1) under flowing ultrapure ammonia (flow rate ∼ 200 mL min−1, Jiaya Chemicals, 99.999%) and was kept at 1173 K for 10 h. The furnace was then cooled naturally to room temperature under flowing ammonia. The resultant black powders were collected and labelled as LaWO0.6N2.4-P. For comparison, LaWO0.6N2.4 was also prepared under the same conditions using conventional La2W2O9 as the precursor. The La2W2O9 powders were synthesized by calcining the mixtures of 1.3035 g La2O3 (Aladdin, 99.99%) and 1.8584 g WO3 (Aladdin, 99.8%) at 1373 K for 24 h according to a previous report.19 The resultant product after ammonolysis was labelled as LaWO0.6N2.4-S for discrimination.
Preparation of Rh-doped SrTiO3 (SrTiO3:Rh). Rh-doped SrTiO3 (SrTiO3:Rh) was used as an H2-evolution moiety for Z-scheme water splitting reactions. SrTiO3:Rh powders were prepared according to a previous report.34 To promote H2-evolution reactions, Ru (0.5 wt%) was photodeposited onto SrTiO3:Rh as a cocatalyst. Briefly, 0.2 g SrTiO3:Rh powders and 1 mL RuCl3 aqueous solution (1 mgRu mL−1) were dispersed into 20 mL methanol aqueous solution (50 vol%) to form suspensions under sonication. After constant irradiation for 7 h using a xenon lamp (300 W, PLX-SXE300, Perfect Light), the suspensions were centrifuged and the precipitates were washed with deionized water and ethanol several times before drying in air at 353 K overnight.

Materials characterization

The freshly prepared sample powders were subject to a series of analysis to understand their physical and chemical properties. X-ray powder diffraction (XRD) analysis was conducted on a Bruker D8 Focus diffractometer (Bruker, Germany) to check the phase purity and crystal structure using Cu Kα1 (λ = 1.5406 Å) and Cu Kα2 (λ = 1.5444 Å) as the incident radiation. The general step size and duration time for data collection were set as 0.01 and 0.1 s at each step, respectively. The XRD data collected were used for Rietveld refinement based on General Structure Analysis System (GSAS) software package to investigate the crystal structure.35 A pseudo-Voigt function was adopted for profile fitting and the first type Chebyshev polynomial was applied for background fitting. The oxygen and nitrogen content in sample powders were determined through an Elemental Analyzer (Unicube, Elementar, Germany). The cations in the samples were quantified by inductively coupled plasma optical emission spectrometry (ICP-OES, Agilent 720ES). Sample powders were further inspected under a field emission scanning electron microscope (Hitachi S4800, Japan) equipped with an energy-dispersive X-ray spectroscopy (EDS) analysis system and a transmission electron microscope (TEM, JEOL JEM-2100, Japan). The Raman spectra of the as-obtained sample powders were collected on a UV Raman spectrometer (Renishaw inVia). The specific surface area of the sample powders was calculated according to the data collected on a NOVA 2200e adsorption instrument (Quantachrome, USA) using the Brunauer–Emmett–Teller (BET) model. Ultraviolet-visible-near infrared diffuse reflectance spectra (UV-Vis-NIR DRS) were collected on a UV-Vis-NIR spectrophotometer (Agilent Cary 5000) equipped with an integrating sphere. The non-absorbing reference material was BaSO4. An X-ray photoelectron spectrometer (XPS, AXIS Ultra DLD, Japan) with a monochromatic Al Kα X-ray source was used to examine the surface state of the sample powders. The adventitious carbon C 1s peak at 284.7 eV was adopted for signal adjustment.36 XPS PEAKFIT software was used for XPS data fitting. The fitting was performed by referring to Gaussian–Lorentzian (Lorentzian weighting of 20%) type peak shape and a Shirley-type background. Mott–Schottky (MS) experiments were conducted on a Zahner electrochemical workstation based on a three-electrode configuration setup. The working electrodes were fabricated through the electrophoretic deposition method using fluorine-doped tin oxide (FTO) glasses as the conductive substrate.37 The prepared photoelectrode, Pt foil (10 × 10 mm), and Ag/AgCl electrode (saturated KCl) were used as the working, counter, and reference electrodes, respectively. Aqueous KOH solution (0.1 M, pH = 13) was applied as the electrolyte. Flat band potentials were obtained by extracting the capacitance data from the electrochemical impedance spectra (EIS) at 500, 1000, and 2000 Hz within a potential window of −0.3 to 0.8 V vs. RHE.

Photocatalytic water splitting

Photocatalytic water-splitting experiments were conducted in a top-irradiation-type reactor connected to a gas-closed circulation and evacuation system (Labsolar-6A, Perfect Light). In brief, proper amounts of CoOx were thermally loaded onto sample powders as a cocatalyst by referring to a previous report.15 Subsequently, 0.1 g sample powders loaded with CoOx cocatalyst and 0.2 g La2O3 (pH buffer, Aladdin, 99.9%) were dispersed into 100 mL silver nitrate aqueous solution (0.05 M) under constant magnetic stirring. The so-formed suspensions were transferred into the reactor. The reactor temperature was maintained at 281 K using a water jacket. After evacuation for 45 min to remove the dissolved air, the reactor was illuminated from the top by a 300 W xenon lamp (PLX-SXE300, Perfect Light) coupled with either a UV (λ ≥ 420 nm) or visible light (λ ≥ 800 nm) cutoff filter. For the determination of apparent quantum efficiency (AQE), bandpass filters at 420 nm, 450 nm, 500 nm, 550 nm, 600 nm, 700 nm, and 800 nm (Perfect Light) were respectively used to obtain monochromatic light. The photon flux was quantitatively determined by a quantum meter (Apogee MP-300, USA). The gas component within the reactor was analyzed by an on-line gas chromatograph (GC2014C, SHIMADZU, Japan) installed with a 5 Å molecular sieve column, TCD detector, and Ar as the carrier gas. The AQE for oxygen production was calculated based on the following equation (eqn (1)).

image file: d3qi00924f-t1.tif(1)

For Z-scheme water splitting, 50 mg Ru-loaded SrTiO3:Rh and 50 mg CoOx-loaded LaWO0.6N2.4 were ultrasonically dispersed into 100 mL FeCl3 aqueous solution (2 mM). Several drops of HCl aqueous solution (0.1 M) were added to adjust the pH value to about 2.5. Pre-illumination lasted for about 1 h was conducted before overall water splitting experiment, which induces the formation of Fe2+/Fe3+ redox couple by the partial conversion of Fe3+ to Fe2+. The Z-scheme water splitting experiments were performed similar to previous experiments using a 300 W xenon lamp (PLX-SXE300, Perfect Light) coupled with a UV cutoff filter (λ ≥ 420 nm).

Results and discussion

Crystal structures and morphologies

The precursor BiLaWO6 is an isostructural compound to Bi2WO6, an archetypal Aurivillius compound with the general formula [Bi2O2][An−1BnO3n+1] (n = 1). The structure of BiLaWO6 comprises alternative stacking of [Bi(La)2O2]2+ fluorite layer and [WO4]2− perovskite layer.38,39 WO6 polyhedrons in the BiLaWO6 are connected in a corner-type manner, which is topotactically similar to those of LaWO0.6N2.4 (Fig. 1b). X-ray powder diffraction (XRD) analysis and corresponding Rietveld refinement confirm the successful preparation of LaWO0.6N2.4 using BiLaWO6 as the precursor (Fig. 1a, b, Fig. S1 and Table S1). The possible transformation mechanism is proposed as follows: BiLaWO6 undergoes gradual Bi loss during the high-temperature ammonolysis since Bi3+ cations are susceptible to reduction into elemental Bi, which subsequently evaporates at high temperatures. The residual perovskite blocks then stack facilely without substantial atom migrations/rearrangements to form LaWO0.6N2.4 (Fig. 1c). As no long-range migration of La and W atoms are involved during transformation, the product LaWO0.6N2.4 particles can retain the morphologies of the precursor. This is evidently supported by the field-emission scanning electron microscopic (FE-SEM) characterization (Fig. 1d, e, and Fig. S2). As can be seen from the FE-SEM images, the ribbon-like morphologies of BiLaWO6 are well-maintained in the product LaWO0.6N2.4, thus verifying our proposed mechanisms. The high porosity of LaWO0.6N2.4 particles can be attributed to the evaporation of Bi as well as O/N replacements during high-temperature ammonolysis. The product LaWO0.6N2.4 is then denoted as LaWO0.6N2.4-P to be discriminated from the one produced from La2W2O9 (denoted as LaWO0.6N2.4-S).
image file: d3qi00924f-f1.tif
Fig. 1 Observed and calculated X-ray powder diffraction (XRD) patterns of (a) BiLaWO6 and (b) LaWO0.6N2.4-P, refined reasonable agreement factors (Rp, Rwp, and χ2) are inseted; images of their refined crystal structures are also included; (c) the proposed structural evolution mechanism from BiLaWO6 to LaWO0.6N2.4; field-emission scanning electron microscopy (FE-SEM) images for (d) BiLaWO6 and (e) LaWO0.6N2.4-P.

Although LaWO0.6N2.4 can be produced from different precursors (Fig. 3a, Fig. S3 and Table S2), their microstructures are distinct and are strongly correlated with the precursors used. The LaWO0.6N2.4-S powders contain irregularly-shaped grains with a size of ∼50 nm and are randomly compacted to form bulky particles as large as several microns (Fig. 2a). Although LaWO0.6N2.4-S powders are porous, GBs between neighbouring grains can be easily identified (Fig. 2b). This is in sharp contrast to LaWO0.6N2.4-P, which contains no GBs (Fig. 2c–e). This is also confirmed by TEM analysis. As can be seen from Fig. 2e, a single LaWO0.6N2.4-P particle contains three-dimensionally interconnected pores and is lacking of GBs in its skeletons. The single LaWO0.6N2.4-P particle is of high crystallinity whose crystal structure is coherent throughout the entire particle, as revealed by the high-resolution TEM image (HRTEM) (Fig. 2f) and selected area electron diffraction (SAED) pattern (Fig. 2g). The high porosity of both LaWO0.6N2.4-P and LaWO0.6N2.4-S is further confirmed by BET analysis, which shows hysteresis between the desorption and adsorption profiles (Fig. 3b). The pore size distribution analysis (Fig. 3b inset and Table S3) indicates that most pores fall into the region of mesopores (<50 nm). These results jointly suggest that LaWO0.6N2.4 PSCs can be successfully prepared from BiLaWO6via the topotactic transformation mechanisms.


image file: d3qi00924f-f2.tif

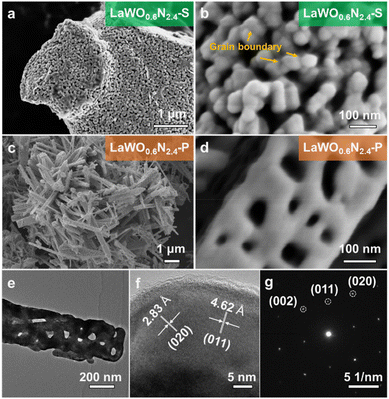

Fig. 2 FE-SEM images of (a and b) LaWO0.6N2.4-S and (c and d) LaWO0.6N2.4-P under different magnifications; GBs are marked by yellow arrows; (e) TEM image of a single LaWO0.6N2.4-P; (f) HRTEM image of LaWO0.6N2.4-P, lattice fringes marked correspond to (020) and (011) facets of LaWO0.6N2.4-P; (g) SAED pattern of a single LaWO0.6N2.4-P.

image file: d3qi00924f-f3.tif

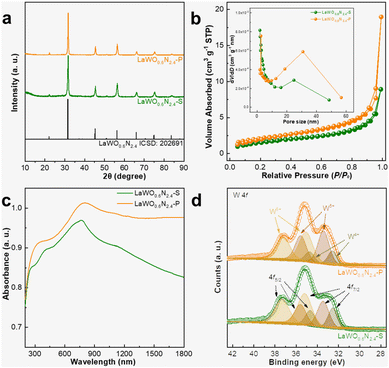

Fig. 3 (a) XRD patterns for LaWO0.6N2.4-S and LaWO0.6N2.4-P, standard pattern of LaWO0.6N2.4 (ICSD: 202691) is also included for comparison; (b) BET analyses of LaWO0.6N2.4-S and LaWO0.6N2.4-P; the inset displays their pore size distributions; (c) ultraviolet-visible-near infrared diffuse reflectance spectra (UV-Vis-NIR DRS) for LaWO0.6N2.4-S and LaWO0.6N2.4-P; (d) X-ray photoelectron spectroscopy (XPS) W 4f spectra of LaWO0.6N2.4-S and LaWO0.6N2.4-P.

Surface state and UV-Vis-NIR spectra

Given the distinct morphologies between LaWO0.6N2.4-S and LaWO0.6N2.4-P, we continue our exploration on their optical and surface properties. The UV-Vis-NIR DRS spectra of LaWO0.6N2.4-S and LaWO0.6N2.4-P powders are illustrated in Fig. 3c. Both compounds exhibit intense absorption in the measured range from 250 nm to 1800 nm, which is consistent with the black color of the sample powders. In particular, LaWO0.6N2.4-P appears to have stronger light absorption than LaWO0.6N2.4-S although their structure and composition are essentially identical. The slightly higher light absorption of LaWO0.6N2.4-P might be rationalized by its higher porosity than LaWO0.6N2.4-S, which favors more light reflection in the inner part of the particle. The bandgap is then deduced by a modified Tauc plot analysis method, which suggests a light absorption threshold of ∼1.2 eV of both compounds (Fig. S4), consistent with the value reported.19,21 The intense absorption above 1050 nm is therefore assignable to various types of defect absorption, which is frequently noticed for oxynitrides. The existence of high concentration of defects is also indicated by XPS analysis shown in Fig. 3d, Fig. S5, and Table S4. Specifically, the W 4f state contains three distinct spin–orbit pairs assignable to the W6+, W5+, and W4+ species.19 Nevertheless, there is slight variation in the content of these species between LaWO0.6N2.4-S and LaWO0.6N2.4-P. For instance, LaWO0.6N2.4-P has a high W5+ content (41.5%) while LaWO0.6N2.4-S is enriched with W4+ (20.7%). These differences might be related to the different precursors used for synthesis. BiLaWO6 might serve partially as a sacrificial agent due to the reduction of Bi3+, which helps to reduce the risks of W6+ reduction.

Photocatalytic performance and band edge positions

The photocatalytic performance of LaWO0.6N2.4-P and LaWO0.6N2.4-S was then evaluated by comparing their O2-evolution activity using visible (λ ≥ 420 nm) and infrared light (λ ≥ 800 nm) illumination. 1 wt% CoOx was thermally deposited as a cocatalyst and AgNO3 was used as the electron scavenger. Control experiments without any key component of either photocatalyst, light sources, or water did not produce any detectable oxygen gases, thereby excluding any O2-evolving spontaneous reactions. Instantaneous oxygen signals were detected when sample powders were illuminated in the presence of AgNO3 aqueous solution, confirming that real photocatalytic processes (Fig. 4 and Fig. S6). A concomitant N2-evolution was also observed for both samples, which was attributed to photooxidative self-decomposition similar to other oxynitrides.19,40,41 Impressively, LaWO0.6N2.4-P photocatalyzed more than 3-fold O2-evolution when compared with LaWO0.6N2.4-S (Fig. 4a). As both compounds are of high structural and compositional similarity, such improved activity and stability is probably related to the peculiar microstructures of PSCs. More importantly, LaWO0.6N2.4-P is capable of photocatalytic water oxidation into O2 under infrared light illumination (λ ≥ 800 nm), underscoring the capability to substantially extend the useable bandwidth of solar spectrum (Fig. 4b).
image file: d3qi00924f-f4.tif

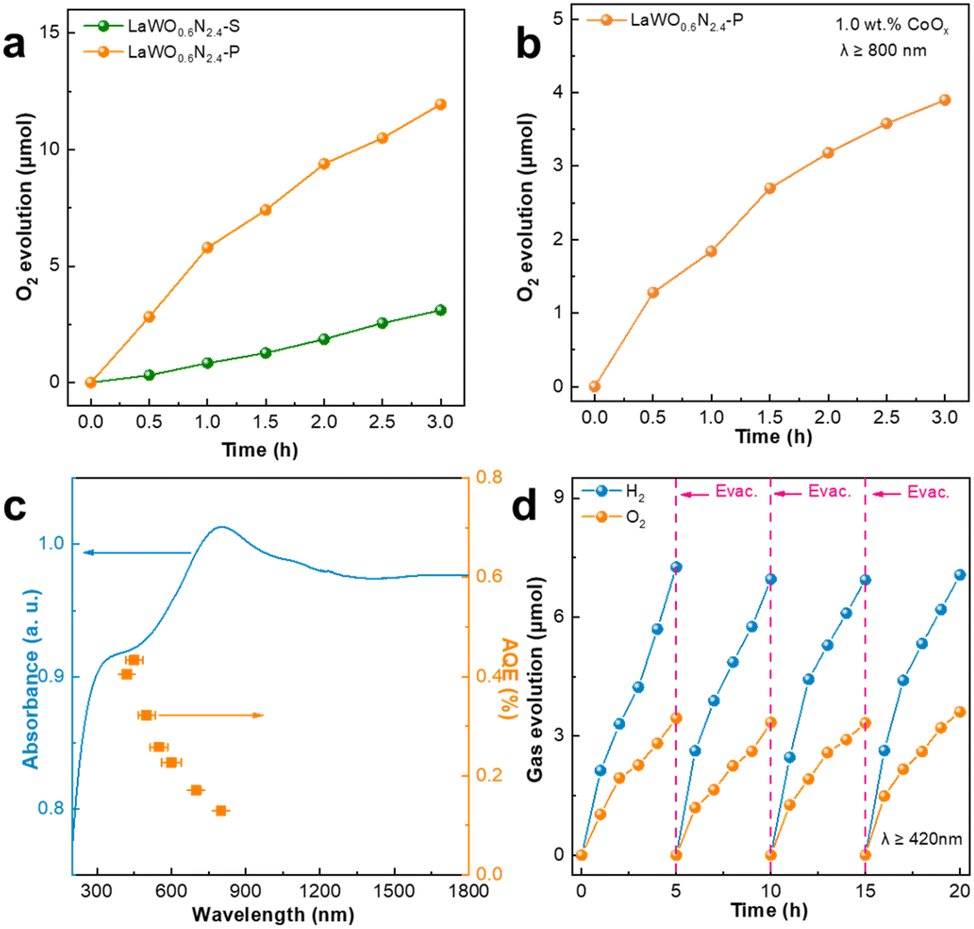

Fig. 4 (a) Temporal O2 and N2 evolution over LaWO0.6N2.4-S and LaWO0.6N2.4-P with 1 wt% CoOx as a cocatalyst under visible light illumination (λ ≥ 420 nm) in 0.05 M AgNO3 aqueous solution, 0.2 g La2O3 was added as the pH buffer; (b) temporal O2 and N2 production over LaWO0.6N2.4-P loaded with 1 wt% CoOx as a cocatalyst under infrared light illumination (λ ≥ 800 nm) in 0.05 M AgNO3 aqueous solution containing 0.2 g La2O3; (c) action spectra of LaWO0.6N2.4-P loaded with 1 wt% CoOx for O2 production; (d) Z-scheme overall water splitting under visible light illumination (λ ≥ 420 nm) based on LaWO0.6N2.4-P (loaded with 1 wt% CoOx) as the O2-evolution moiety and SrTiO3:Rh (loaded with 0.5 wt% Ru) as the H2-evolution moiety, Fe2+/Fe3+ redox couple (0.002 M) was used as the redox shuttle, and evacuation was performed every 5 h.

The photocatalytic activity of LaWO0.6N2.4-P was further optimized by varying the amounts of CoOx cocatalyst deposited (Fig. S6). 1 wt% CoOx loading delivered the highest activity and was adopted for the determination of apparent quantum efficiency (AQE). The action spectra of LaWO0.6N2.4-P, i.e., AQE vs. wavelength, are illustrated in Fig. 4c, and the data for calculating AQE were tabulated in Table S5. The LaWO0.6N2.4-P approaches an AQE as high as 0.13% at 800 ± 20 nm, which is the first near-infrared-light active oxynitride for photocatalytic water oxidation thus far. The large deviation of the AQE profile with UV-Vis-NIR spectra can be explained by the defect's high absorption that superimposed the intrinsic light absorption of LaWO0.6N2.4. The repeated photocatalytic test was performed in 0.05 M sodium persulfate aqueous solution, which suggests a durable production of O2 from LaWO0.6N2.4-P (Fig. S7). The attempts to photocatalyze water reduction into H2 failed using both LaWO0.6N2.4-P and LaWO0.6N2.4-S. This can be explained by the inappropriate conduction band edge alignment of LaWO0.6N2.4, which is more positive than the water reduction potential, as revealed by the band edge analysis (Fig. 5). Mott–Schottky analysis (Fig. 5a and b) combined with XPS valence band scan data (Fig. 5c) suggests that the conduction and valence band edge of LaWO0.6N2.4 set approximately at 0.10 V and 1.3 V vs. RHE. A schematic illustration of band edge position is shown in Fig. 5d.


image file: d3qi00924f-f5.tif

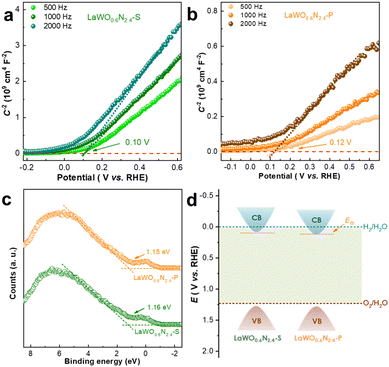

Fig. 5 Mott–Schottky (MS) plot for (a) LaWO0.6N2.4-S and (b) LaWO0.6N2.4-P photoelectrodes, flat band potential is determined by extrapolating the MS curve down to energy axis; (c) XPS valence band scan for LaWO0.6N2.4-S and LaWO0.6N2.4-P; (d) schematic representation of band edge positions for LaWO0.6N2.4-S and LaWO0.6N2.4-P; water redox potentials are also included, Efb: flat band potential.

From the band edge alignment, one can quickly realize that LaWO0.6N2.4 cannot be a single-component photocatalyst for overall water splitting but can be an O2-evolution photocatalyst for Z-scheme overall water splitting. As an exemplification, LaWO0.6N2.4-P was combined with Rh-doped SrTiO3 (SrTiO3:Rh), a typical H2-evolution photocatalyst, to fabricate a Z-scheme system (Fig. 6). The so-formed system was capable of overall water splitting into stoichiometric H2/O2 evolution under visible light illumination (λ ≥ 420 nm) in the presence of the Fe2+/Fe3+ redox couple (Fig. 4d). Although XRD and FE-SEM analysis (Fig. S8 and S9) suggest nearly no structural changes of LaWO0.6N2.4-P before and after photocatalytic experiment, N2 evolution as well as XPS analysis (Fig. S10) indicate that the following self-decomposition reactions occur.


2N3− + 6h+ → N2(R1)

W4+ + h+ → W5+(R2)

W5+ + h+ → W6+(R3)


image file: d3qi00924f-f6.tif

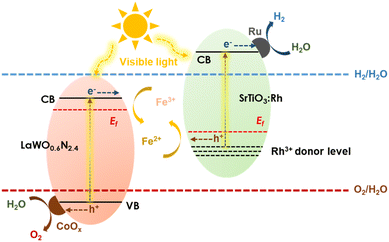

Fig. 6 Schematic illustration of the Z-scheme system employing Ru-loaded Rh-doped SrTiO3 (Ru-SrTiO3:Rh) as the H2-evolution moiety and LaWO0.6N2.4-P thermally deposited with CoOx as the O2-evolution photocatalyst for visible light-driven overall water splitting. Conditions: 50 mg Ru-SrTiO3:Rh and 50 mg CoOx–LaWO0.6N2.4-P in 100 mL aqueous solution (2 mM FeCl3, pH ∼ 2.5 adjusted by HCl), light source 300 W Xe lamp coupled with a UV (λ ≥ 420 nm) cutoff filter.

The self-decomposition reactions might be related to the poor oxidation power of photogenerated holes in LaWO0.6N2.4 whose valence band edge is close to the water oxidation potential. A more active cocatalyst would be useful to promote water oxidation reactions rather than oxidative self-decomposition reactions and will be our future work.

Conclusion

In summary, a narrow bandgap semiconductor, LaWO0.6N2.4, has been successfully synthesized in the form of porous single crystals (LaWO0.6N2.4 PSCs) from the topotactic conversion of BiLaWO6. Photocatalytic tests suggest that it demonstrates superior activities for catalyzing water oxidation reactions under visible and infrared light illuminations. An AQE value as high as 0.13% at 800 ± 20 nm was recorded under optimal conditions, being the first near-infrared-light active oxynitride for photocatalytic water oxidation thus far. Moreover, its potential application was exemplified by constructing a Z-scheme system employing LaWO0.6N2.4 PSCs as the O2-evolution moiety to achieve steady overall water splitting. This work not only provide us a porous single-crystaline LaWO0.6N2.4 with triggered photocatalytic performance for water oxidation reactions but also throws light on W-based perovskite oxynitrides with narrow bandgaps for solar energy conversions.

Author contributions

Mr Lin Yang performed the experiments. Dr Hui Duan analyzed the data. Prof. Xiaoxiang Xu administered the project and wrote the manuscript.

Conflicts of interest

There are no conflicts to declare.
