Contrasting-functionality-decked robust MOF for moisture-tolerant and variable-temperature CO₂ adsorption with in-built urea group mediated mild condition cycloaddition

Abstract

The dire need to reduce the atmospheric carbon dioxide (CO₂) concentration has attracted worldwide attention to the capture of this greenhouse gas and its conversion into useful chemicals. Nevertheless, it is still difficult to achieve variable-temperature and humid-condition adsorption with mild condition fixation of CO₂ in metal–organic frameworks (MOFs) due to difficulties in positioning assorted task-specific sites. We introduced open metal site (OMS), hydrogen-bond operative functionality, and free amine moiety inside the pore wall of a mixed-ligand robust Cd(II) framework. Two-fold interpenetration generated high-density acid–base functionalization promotes appreciable CO₂ adsorption in the guest-free structure at elevated temperature with considerable MOF–CO₂ interaction. The aqua-robust MOF exhibits minimum loss in CO₂ uptake during multiple capture–release cycles under variable temperature and retains the adsorption capacities even upon exposure to 75% RH. The atomistic-level snapshots of temperature-induced inclusion of gas molecules inside this microporous vessel are rationalized from simulation studies, and portray diverse CO₂-philic sites. Particularly, the four-fold increased CO₂ adsorption compared to that of an un-functionalized MOF validates the prime role of pore surface engineering. Moreover, the CO₂ selectivity shows a drastic improvement upon gradually increasing the temperature, attaining a CO₂/N₂ value of 380 at 313 K. The framework further demonstrates solvent-free CO₂ conversion to cyclic carbonates in high yield with broad substrate scope and satisfactory reusability under less harsh conditions and in a rather short time. In addition to typical OMS/co-catalyst synergism, the mutual participation of antagonistic active sites in substrate interaction and activation is validated by juxtaposing the performance of a urea-free isoskeletal framework and by the relative fluorescence modification in the presence of epoxide. The results corroborate the unique organic-functionality-mediated cycloaddition mechanism, which provides important structure–function synergy in this unconventional route to non-redox CO₂ fixation.

---

Introduction

The rising concentration of the major greenhouse gas, carbon dioxide (CO₂), in the atmosphere is recognized to be the prime contributor to worldwide climate destabilization.^1,2 Although the use of renewable energy sources and energy-efficient industrial processes has been proposed to mitigate this global issue, achieving total freedom from fossil-fuel-based energy seems difficult in the near future from a practical perspective.^3,4 Therefore, CO₂ capture from point sources is a more viable option, particularly for developing countries.^5,6 So far, CO₂ capture and removal has been overwhelmingly dominated by aqueous-amine-solution-based chemisorption, which presents intrinsic difficulties such as energy-intensive adsorbent regeneration, leakage of toxic amines and poor recyclability.^7,8 Thus, the development of recyclable adsorbent material with high stability and selectivity is becoming the need of the hour.^9–12 The adsorbents must cover certain important parameters, including (1) maintenance of selective CO₂ adsorption over a wide range of temperatures, (2) stable adsorption/desorption capacity (non-hysteretic) during repeated cycles, and (3) prospect to rationalize the molecular-level adsorption mechanism.^13–16 Additionally, adsorption capacity is often reduced upon moisture exposure; thus, the choice of material is very crucial, as most of commercial adsorbents show very poor performance for CO₂ capture under humid conditions.^17–19 Hence, tailor-made materials with molecule-specific interactions on their surface have gained immense importance and popularity.²⁰

The newly developed porous hybrid structures (metal–organic frameworks: MOFs), because of their remarkable surface area, excellent thermo-chemical stability, the simplicity of fine-tuning the pore chemistry, and the ability to affix task-specific functionalities, are the best potential candidates.^21–27 Nevertheless, decreased MOF–CO₂ interaction with increasing adsorption temperature severely reduces the CO₂ uptake in MOFs, and only a handful of examples exist for humid-condition CO₂ uptake because of MOF instability and/or pore blockage by water molecules.^13,28 Thus, the fabrication of robust and tailor-made CO₂-phillic frameworks is of utmost importance.^29–31 The successful implementation of this strategy requires the judicious amalgamation of multiple task-specific sites in such a way that they do not hinder MOF formation and/or block the effective pore space during CO₂ adsorption.^32,33

On a similar note, the valorization of CO₂ to chemicals is an alternative effective way to overcome major environmental problems, which has sparked extensive research on the use of captured CO₂ as a C1 feedstock for value-added chemicals.^29,34–36 While high-energy redox processes generally involve the production of methanol, methane, ethanol, or ethylene, non-redox reactions of CO₂ lead to the formation of urea, polycarbonate, cyclic carbonates, etc.^37–40 In particular, catalytic CO₂ fixation to cyclic carbonates is a green and atom-economic approach, and of particular industrial importance for their wide applications in polymer synthesis, the electrolytic elements of batteries, pharmaceuticals, polar aprotic solvents, and as precursors to fine chemicals.^41,42 However, homogeneous CO₂ cycloaddition presents inherent product separation difficulties, whereas most heterogeneous catalyses suffer from very low conversion because of the high thermodynamic stability and kinetically inert nature of CO₂.^43,44 In this context, the major advantages of MOFs include: (1) open metal sites (OMSs) as Lewis acid sites, which provide electrostatic interactions with substrates, (2) heteroatom-bearing Lewis basic functionalities on organic struts, which confer favourable interactions with the reactants, and (3) optimized framework pores, which provide micro-reactor type environments to augment collisions between incoming CO₂ gas and epoxides to facilitate cycloaddition reaction.^40,45–52 Nevertheless, non-redox CO₂ fixation in most MOFs often requires the use of hazardous solvents, harsh temperatures and/or pressures, and long reaction time. Additionally, the creation of high-density OMSs is hindered by thermo-chemical instability as well as lack of solvent-bound metal nodes, whilst pendent groups in organic struts not only block the micropores, but also lead to unwanted structures through coordination with metal ions. The above discussion clearly indicates that the rational design of an acid–base bifunctional MOF, encompassing unsaturated metal nodes as well as built-in Lewis basic sites and featuring suitably-sized cavities, is imperative for high-temperature adsorption and non-redox CO₂ conversion under mild conditions.

Building on the above discussion, and our quest to develop multi-functional, robust frameworks for assorted sustainable applications,^53–59 we constructed a bipillared-layer Cd(II)-organic framework (Scheme 1) from the amine-based tri-carboxylate ligand 4,4′,4′′-tricarboxytriphenylamine (H₃TCA) and the urea-moiety-grafted pyridyl linker 1,3-di(pyridin-4-yl)urea (L). The guest-free MOF exhibits high CO₂ adsorption at diverse temperatures and shows appreciable CO₂–framework interaction with trivial loss during multiple capture–release cycles under humid conditions. Remarkably, gradually raising the temperature from 273 to 298 to 313 K leads to significant improvement in the CO₂/N₂ and CO₂/CH₄ selectivities, which was also validated by the presence of multiple CO₂ attraction sites inside the optimum-sized MOF cavities based on simulation studies. This Lewis acid–base functionalized framework further demonstrates effective CO₂ cycloaddition under mild, solvent-free conditions with a high yield, broad substrate scope and good reusability. The synergistic role of the contrasting functionalities is demonstrated using rationally designed control experiments that substantiate the route to CO₂ fixation. Overall, this study highlights a rare demonstration of variable-temperature and selective scavenging of CO₂ under humid conditions and organic functionality-assisted non-redox conversion of a major greenhouse gas to chemicals.

Scheme 1 Structural and functional attributes of the MOF for CO₂ capture and fixation.

Results and discussion

Structural characterization and stability aspects

Single-crystal X-ray diffraction analysis revealed that the MOF exhibits the triclinic space group P1̄, and the asymmetric unit (Fig. S1a, ESI†) comprises three Cd(II) ions, two deprotonated H₃TCA ligands, one pyridyl linker (L) and two metal-bound molecules of the solvent water. Six carboxylate groups adjoin three Cd(II) centers to form a trinuclear [Cd₃(COO)₆] unit, in which two of the terminal Cd(II) centres are attached to the aqua molecules and provide the chance to create open metal sites (OMSs) upon activation (Scheme 1). The six-coordination of the middle Cd(II) ion is satisfied by oxygen atoms from four carboxylate groups, while terminal Cd(II) ions are attached to both carboxylate and pyridine ligands. The [Cd₃(COO)₆] units are connected through a C₃-symmetric tripodal ligand and generate a two-dimensional (2D) bilayer (Fig. 1a) with hexagonal pores (15.98 × 18.77 Ų) (distance refers atom-to-atom connection). The linkers connect these bilayers to a 3D pillar-bilayer structure with rhombus channels (22.33 × 25.11 Ų) when viewed along b axis.⁴⁵ Importantly, the urea group of the linker the and water-bound metal centers are projected inward the pores (Fig. 1b), providing an appropriate Lewis acid–base environment for the interaction/activation of incoming guest molecules. The large cavity dimensions lead to the two-fold interpenetration (Scheme 1) of the overall framework, resulting in a (3,8)-connected 2-nodal 3D net (Fig. 1c) with Schlafli symbol (4³6²4⁸)(4³)₂.⁶⁰

Fig. 1 (a) View of the nearly hexagonal pores in a single net of the MOF. (b) Free Lewis-basic-site and metal-bound-water (green) decorated pores along the b axis. (c) Topological representation and (d) void view (along the a axis) of the two-fold entangled structure.

Despite the interpenetration, cavities with dimensions of 6.67 × 10.61 Ų still exist along the a axis (Fig. 1d), which accounts for the large 1689.8 ų (44%) solvent-accessible void volume per unit cell.⁶¹ It is worth mentioning that the number of contrasting task-specific functionalities (urea moieties, amine groups and OMSs) consequently doubles in the overall structure, which might be advantageous for the selective adsorption and transformation of CO₂ molecules. The disordered guest molecules were determined using the combined results of thermogravimetric analysis (TGA), FT-IR, PLATON calculations and elemental analysis, which support the molecular formula [Cd₃(TCA)₂L(H₂O)₂]·2DMA·11H₂O (for calculations, see ESI†). The powder X-ray diffraction (PXRD) pattern of the as-synthesized MOF perfectly matches the simulated one (Fig. 2a), attesting to high crystallinity as well as phase purity. The crystalline material was dipped in various solvents (methanol, chloroform, acetonitrile, acetone and toluene) for a day, and the PXRD patterns were found to be consistent with that of the pristine MOF in all cases (Fig. 2a), affirming its solvent stability. Noticeably, the framework is capable of preserving its structural integrity in open-air-conditions and exposure to water (Fig. 2a). Presumably, the close-packed structure with a large aromatic cloud from the organic struts and strong interactions among layers and pillars in the interpenetrated net provides rigidity to this 3D MOF for hydrolytic stability. TGA data showed a two-step weight loss (Fig. S2, ESI†), with a first weight loss of 11.93% (calc. 11.97%) around 120 °C, corresponding to the low-boiling lattice guest (water). A second weight loss (9.34%, calc. 9.77%) up to 300 °C is attributed to the loss of the high-boiling guest DMA.

Fig. 2 (a) Powder X-ray diffraction (PXRD) patterns of the MOF as-synthesized, activated, simulated and after being subjected to several organic solvents, water and open air. (b) Elemental mapping of the MOF crystal, showing even distribution of elements (mix, Cd, O, N, and C) throughout the surface. XPS spectra acquired at a high resolution showing (c) Cd 3d and (d) C 1s.

The FT-IR spectrum revealed a peak at 1640 cm⁻¹ (>C=O stretching) due to the presence of DMA guest molecules (Fig. S3, ESI†), whereas the solvent water molecules gave rise to a broad peak around 3500 cm⁻¹. The C–N stretch for the tertiary amine in the framework could be found at 1210 cm⁻¹, and the N–H bend for the urea functionality appeared at 1610 cm⁻¹. The peaks at 1384 and 1596 cm⁻¹ represent the antisymmetric stretching of metal-bound carboxylates. Scanning electron microscopy (SEM) with energy dispersive X-ray analysis (EDX, Fig. 2b) indicated homogenous distribution of all the constituent elements of the MOF (C, N, O, and Cd), which was also observed from the X-ray photoelectron spectroscopy (XPS) results (Fig. S5a, ESI†). The high-resolution C 1s XPS (Fig. 2d) was fitted to peaks at binding energies (BEs) of 284.5, 285.63, and 287.7 eV, corresponding to C=C, C–N, and C–O bonding, respectively.⁶² Two major spin–orbit orientations (Fig. 2c) corresponding to Cd 3d_5/2 and Cd 3d_3/2 were fitted at 405.54 eV and 412.27 eV, respectively.⁵⁴ The O–Cd and O–C bonding in the deconvoluted O 1s spectrum (Fig. S5b, ESI†) were found at 530.3 eV and 531.9 eV, while the high-resolution N 1s (Fig. S5c, ESI†) exhibited two peaks at 399.59 and 400.62 eV, attributed to the tertiary nitrogen of the tripodal ligand and N–H binding in the N-donor linker, respectively.^55,63

Porosity measurement and gas adsorption studies

Before proceeding to the projected applications, the framework was activated by soaking the finely ground crystals in acetone (for 3 days) and subsequent heating at 120 °C under vacuum for 6 h. The PXRD pattern of the activated MOF (Fig. 2a) showed similar peaks to that of the as-synthesized framework, indicating maintenance of structural integrity and crystallinity. Additionally, peaks corresponding to DMA molecules were absent in the FT-IR spectrum (Fig. S3, ESI†), and TGA revealed no weight loss up to 300 °C (Fig. S2, ESI†), indicating complete expulsion of the solvent molecules. Further, an SEM image of the activated crystal revealed an unaltered block-shaped morphology (Fig. S4, ESI†). The nitrogen adsorption isotherm of the activated MOF (Fig. S8a, ESI†) at 77 K indicated a maximum uptake of ∼149 cm³ g⁻¹ (P/P₀ = 1), which corresponds to a Brunauer–Emmett–Teller (BET) specific surface area of 503 m² g⁻¹. The pore size distribution (PSD) calculation, which was based on the non-local density functional theory (NLDFT) models, gave an average pore diameter of 1.022 nm (Fig. S8a, inset, ESI†), which is attributed to the two-fold-interpenetration-induced generation of small-sized micropores. Although several high-surface-area MOFs are available in the literature, the present value is still higher than that of some well-known frameworks like TMOF-1 (Table S4, entry 9, ESI†), MAC-4-OH (Table S4, entry 27, ESI†), {[Co(BDC)(L)·2H₂O]·xG}(Table S4, entry 29, ESI†), Ni-MOF-1 (Table S4, entry 31, ESI†), CSMCRI-7 (Table S4, entry 32, ESI†) and CSMCRI-13 (Table S4, entry 33, ESI†). The presence of the OMS-, urea- and amine-decorated 1D channels, together with the high thermo-chemical stability and microporous nature of the MOF, prompted us to use it for sorption studies of various small gas molecules (CO₂, N₂, and CH₄). The gas adsorption studies on the activated framework were performed at different temperatures at absolute pressures of up to 1.0 bar. As divulged in Fig. 3a and b, the framework begins to adsorb CO₂ in the low-pressure region, and the maximum uptake at 273 K and 298 K reaches 53.06 cm³ g⁻¹ (2.37 mmol g⁻¹, 10.42 wt%) and 28.39 cm³ g⁻¹ (1.27 mmol g⁻¹, 5.57 wt%), respectively. It can be noted that the adsorption capacity is comparable and/or superior to that of other reported frameworks (Fig. 4c). For instance, the CO₂ adsorption capacities of [Cd(bpydc)₂(DMF)₂·2DMF]_n (Table S4,† entry 3), [Zn(bpydc)(DMF)·DMF]_n (JMS-4) (entry 3), [Co^II₄(μ-OH₂)4(MTB)₂·(H₂O)₄]_n·13nDMF·11nH₂O (entry 5), {[Zn(SDB)(3,3′-L)_0.5]·xG}_n (entry 23), {[Zn₂(SDB)₂(4,4′-L)]·xG}_n (entry 23), CSMCRI-7 (entry 32) and CSMCRI-8 (entry 32) are comparable or lower to the that of the present MOF. Further, the adsorption–desorption pathways at both temperatures exhibit minimal hysteresis with no apparent saturation at pressures up to 1.0 bar, which indicate the possibility of greater adsorption capacity in the high-pressure range. The adsorption isotherms for CH₄ and N₂ were also recorded (Fig. 3a and b) and showed uptake capacities of 14.70 cm³ g⁻¹ and 0.52 cm³ g⁻¹ at 273 K, and 4.53 cm³ g⁻¹ and 0.19 cm³ g⁻¹ at 298 K. Furthermore, the adsorption data for this MOF were investigated at elevated temperature. As depicted in Fig. 3c, the framework still exhibits a type-I isotherm with negligible hysteresis and an uptake of 20.63 cm³ g⁻¹ (0.92 mmol g⁻¹, 4.05 wt%) of CO₂ at 313 K. Although the adsorption capacity was reduced as a result of the temperature effect, the value is still comparable to those in the handful of reports on CO₂ adsorption in crystalline frameworks at 313 K.^11,13,28,64

Fig. 3 Gas adsorption isotherms for CO₂, CH₄, and N₂ at (a) 273 K, (b) 298 K, and (c) 313 K. (d) Amount of CO₂ adsorbed before (red) and after (green) exposure of the MOF to humidity at different temperatures (inset shows a schematic of water vapour exposure).

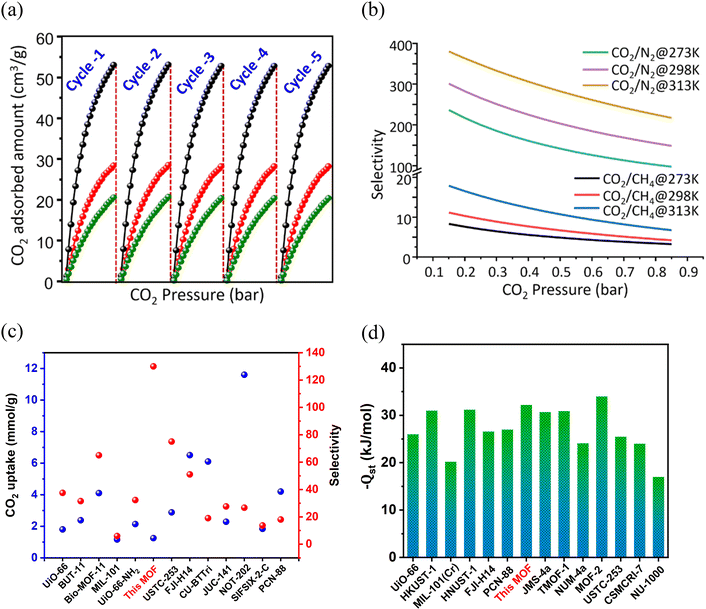

Fig. 4 (a) Multicyclic CO₂ adsorption at 273 K (black), 298 K (red), and 313 K (green). (b) Selectivity toward CO₂ over other gases (CH₄ and N₂) at three temperatures. Comparison of (c) CO₂ uptake capacity with CO₂/N₂ selectivity and (d) the Q_st values of some benchmark MOFs as well as other MOFs.

Nonetheless, further studies indicated negligible uptake of CH₄ (2.80 cm³ g⁻¹) and N₂ (0.08 cm³ g⁻¹) at this temperature. Taking advantage of the hydrolytic stability of the MOF, and in light of the importance of CO₂ adsorption under humid conditions, we examined the CO₂ adsorption of a water-vapor-exposed sample. For this purpose, the MOF was exposed to 75% relative humidity (RH) overnight (Fig. 3d), and thereafter degassed under mild conditions (50 °C, 2 h) to ensure that complete expulsion of the aqua molecules from the water-encapsulated structure did not ensue. The CO₂ isotherms were separately recorded using these samples at 273, 298, and 313 K (Fig. S8c, ESI†), which showed a minor drop in the uptake capacities (Fig. 3d) with no alteration in the MOF integrity (Fig. S8d, ESI†). To check the reusability of this material, we tested the CO₂ sorption capacity for five consecutive cycles at three different temperatures (degassing the same sample prior to each cycle). Pleasingly, all the experiments showed complete sorption recurrence with no hysteresis (Fig. 4a), indicating the great prospects of this material in retaining adsorption capacity at diverse analysis temperatures. To explore the effect of functionality on CO₂ adsorption, we synthesized a TCA-based Cd(II) framework by replacing the urea-functionalized linker with 4,4′-bipyridine (bpy). The CO₂ adsorption capacity for this un-functionalized framework was only 15.1 cm³ g⁻¹ of uptake at 273 K (Fig. S8e, ESI†), which is four times less than that of the present MOF and clearly validates the essential role of the structural aspect and CO₂-specific sites in this tri-functionalized framework.

Adsorption selectivity and computational insights

To further understand the potential of the MOF for gas separation, the selectivity for CO₂ (S) over other gases was determined at three different temperatures using the ideal adsorbed solution theory (IAST).⁶⁵ At the onset, all the adsorption isotherms were fitted using a single-site Langmuir (SSL) equation (see ESI† for details), and fitting parameters were computed.^28,66 Subsequently, this SSL fitting equation provided the saturation capacities (q_m) and affinity coefficients for the different gases at different temperatures. To our delight, the adsorption selectivity (Fig. 4b) for CO₂/N₂ was found to be 237 (273 K), 301 (298 K), and 380 (313 K), while that of CO₂/CH₄ was found to be 8 (273 K), 11 (298 K), and 18 (313 K). The systems tabulated in Table S4,†i.e., [NH₂(CH₃)₂]₂[Cd₃(BTA)(BTC)₂(H₂O)]₂ (entry 2), [Zn₂(btm)₂]·4H₂O (entry 7), CSMCRI-16 (entry 10), and IITKGP-5 (entry 37) have a lesser value of selectivity towards CO₂ adsorption. Despite the obvious reduction in the adsorption capacity, the selectivity values greatly increased upon elevating the temperature, which is unique in comparison to porous carbon and/or zeolitic materials. These values further substantiate that polar CO₂ molecules (quadrupole moment: 13.4 × 10⁻⁴⁰ C m²; polarizability: 26.3 × 10⁻²⁵ cm³) interact strongly with the available interaction sites (OMS, urea, and amine functionalities) inside the MOF channels and are preferentially adsorbed.^53,67 To confirm this verdict, we measured the isosteric heat of CO₂ adsorption (Q_st) using the Clausius–Clapeyron equation for the data at 273 and 298 K.⁶⁸ The Q_st value (Fig. S7, ESI†) at zero loading was found to be 32.2 kJ mol⁻¹, and maintains a steady curve at higher coverage, even though the sites for maximum affinity become saturated. Comparative Q_st data of recent as well as some benchmark MOFs possessing OMSs are presented in Fig. 4d and Table S4 of the ESI,† which show that the present value is ideal for physisorption-based CO₂ adsorbents.^69–71 However, the relatively superior uptake of CH₄ in spite of its larger kinetic diameter (3.8 Å) compared to that of N₂ (3.64 Å) can be explained based on the greater polarizability (26 × 10⁻²⁵ cm³) of CH₄ molecule compared to that of N₂ (17.6 × 10⁻²⁵ cm³). These influences improved interaction with the available π-electron cloud in the framework, causing it to be adsorbed more than N₂.^28,72,73

To gain molecular-level understanding of the highly preferred uptake of CO₂ over other gases in this MOF and determine the actual binding interactions of the adsorbed CO₂ gas with three different CO₂-philic sites (the bridgehead nitrogen in the carboxylate ligand, the free urea site of the linker, and the coordination-frustrated Cd(II) centre), computational studies employing a configurational bias Monte Carlo (CBMC) simulation were carried out. Analysis of the CO₂ sorption was calculated using a framework consisting of (1 × 1 × 1) unit cells at three experimental temperatures (273 K, 298 K, 313 K) at pressures of up to 1.0 bar (Fig. 5). The patterns seen in the experiments are in exact accordance with the trends shown in the models of CO₂ capture at these temperatures (Fig. 5a–c). A progressive reduction in the CO₂ uptake amount in the unit cell is evidenced upon gradual increase in the temperature from 273 to 313 K.

Fig. 5 Snapshots of the location of CO₂ molecules in the framework configurational bias derived from Monte Carlo simulation at (a) 273 K, (b) 298 K, and (c) 313 K at a pressure of 1 bar. Interaction between CO₂ molecule and different functionalities, including the (d) OMS, (e) urea, and (f) amine sites of the framework with their interaction distances.

It is clear that strong dipole–quadrupole and quadrupole–quadrupole interactions exist between incoming CO₂ gas molecules and the functional adsorptive sites in the framework. To validate the CO₂–framework interactions, we closely examined these structures. The unsaturated metal centers of the [Cd₃(COO)₆] units interact with the oxygen atoms of the CO₂ molecule (Cd⋯O–C = 3.05 Å) (Fig. 5d). Moreover, the CO₂ molecule exhibits interaction (Fig. 5e and f) with the free basic nitrogen of the TCA³⁻ ligand (N⋯C–O = 3.6 Å) and the –NH group of urea (N–H⋯O–C = 3.01 Å) inside the channel. These binding distances are in good agreement with those of literature reports.^13,74–76 Further insights regarding the adsorptive locations were obtained from the density distribution map (Fig. S9, ESI†), which demonstrates that the majority of the of CO₂ molecules lie inside the available porous channels of the framework. These results are also in accordance with the number of CO₂ molecules present per unit cell at 273 K (7), 298 K (4), and 313 K (3).

Solvent-free non-redox fixation of CO₂

The presence of the exposed OMS as a Lewis acid site and the urea and amine moieties as Lewis basic sites, together with the appreciable CO₂ adsorption, indicated that the framework might serve as a catalyst for CO₂ conversion. Based on this conjecture, we employed this tri-functionalized MOF for effective CO₂ cycloaddition reaction (Scheme 2) with the model substrate styrene oxide (SO). The optimization was performed under solvent-free conditions (Table 1), and provided excellent conversion of SO (99.9%) with 100% selectivity. Further experiments were conducted to ensure maximum conversion under mild conditions. However, the catalyst-free reaction did not lead to any styrene carbonate (SC) formation. Although the use of Cd(NO₃)₂·4H₂O resulted in a conversion of nearly 17.2%, the use of the organic struts (H₃TCA and L) showed no conversion (Table 1, entry 2). Subsequent screening studies were conducted to establish the need for the co-catalyst tetrabutylammonium bromide (TBAB), which is known to assist in the ring-opening step in this reaction.⁷⁷ However, TBAB alone and/or mixed with 4,4′,4′′-tricarboxytriphenylamine provided little conversion. In contrast, the combination L/Bu₄N⁺Br⁻ resulted in better conversion due to the presence of the urea moiety as a potential interaction site (Table 1, entry 5).^45,46 To our delight, the use of the activated MOF (0.25 mol%) and TBAB (0.2 mol%) afforded remarkable >99% conversion in the absence of solvent, which attests to the synergistic effect of the catalyst and co-catalyst in this reaction.

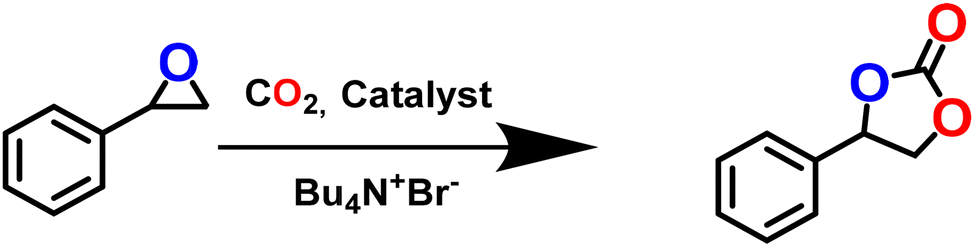

Scheme 2 Cycloaddition reaction of CO₂ and styrene oxide.

Table 1 CO₂ cycloaddition reactions with styrene oxide using different catalysts^a

Entry	Catalyst/precursors	Temperature (°C)	Selectivity (%)	Conversion (%)	Time (h)
a Reaction conditions: epoxide: 26.46 mmol; CO2 pressure: 0.5 MPa. b CO2 pressure: 0.1 MPa.
1	Blank	70	—	—	10
2	H3TCA/L	70	—	—	10
3	Cd(NO3)2·4H2O	70	93	17.2	10
4	Bu4N^+Br^−	70	94	15.7	10
5	L /Bu4N^+Br^−	70	98	53.2	10
6	H3TCA/Bu4N^+Br^−	70	97	20.2	10
7	Cd(NO3)2·4H2O/Bu4N^+Br^−	70	97	22.5	10
8	As-synthesised MOF	70	97	23.4	10
9	Activated MOF/Bu4N^+I^−	70	100	70	10
10	Activated MOF/Bu4N^+Br^−	70	100	99.9	4
11	Activated MOF/Bu4N^+Br^−	50	100	99.9	4
12.	Activated MOF/Bu4N^+Br^−	RT^b	100	20	8
13.	Activated MOF/Bu4N^+Br^−	RT^b	100	38	24
14.	Activated MOF/KCl	50	100	42	4
15.	Activated MOF/KBr	50	100	73	4
16.	Activated MOF/KI	50	100	71	4

---

All the parameters, including the amount of catalyst and co-catalyst, CO₂ pressure, reaction temperature, and time and were subsequently optimized. Upon gradually increasing the catalyst loading (0.05 to 0.25 mol%), the conversion reached a maximum value of 99.9% (Fig. 6a), and further increase led to a slight reduction in the conversion due to alteration in the mass transfer process.⁷⁸ Next, the outcome of cycloaddition with varying the co-catalyst amount (0.05 to 0.15 mol%) (Fig. 6b) was studied, which revealed a significant increase from 28 to 76%. Further increasing the amount of TBAB to 0.2 mol% led to 99.9% conversion. We also examined the performance of other co-catalysts, like TBAI (Bu₄N⁺I⁻) and KX salts (X = Cl, Br, I) under the optimized conditions. The co-catalyst TBAI resulted in decreased conversion (70%) (Table 1, entry 9) in comparison to TBAB. In the case of the halide salts, we observed that the conversion of styrene oxide was lowest in the presence of KCl (42%) (Table 1, entry 14), while KBr (73%) and KI (71%) produced comparable conversion (Table 1, entries 15 and 16). These findings are in accordance with previous literature reports.^39,79,80 Given that the MOF possesses optimum-sized cavities, we speculate that the larger sized I⁻ experiences steric hindrance in entering the channels for synergic catalysis^45,73 which explains the lower conversion of the product for TBAI and KI. This fact was additionally proved when bulkier epoxide substrates were considered (vide infra). Although reduction of the CO₂ pressure from 1.0 MPa to 0.5 MPa did not make any difference (Fig. 6c), further lowering it to 0.3 MPa resulted in reduced conversion (65%), demonstrating the enrichment effect of CO₂ in the reaction vessel towards the formation of the desired product. On the other hand, monitoring of the reaction at temperatures from 30 to 60 °C showed a gradual increase in the SC conversion (%) with temperature, and product formation remained constant beyond 50 °C (Fig. 6d). The time-dependent reaction analysis revealed maximum conversion within 4 h (Fig. S10, ESI†). Thus, the optimum cycloaddition conditions were set as: 0.5 MPa CO₂ pressure, 50 °C temperature, and 4 h duration, with no formation of diols and dimers as side products.^45,73,81 A comparison with literature data revealed that present non-redox CO₂ fixation performance is among the best reported for MOFs (Table S5, ESI†) with milder catalytic conditions. Moreover, the CO₂ conversion can reach equilibrium within a rather short time compared to other materials, indicating that this MOF can efficiently accelerate the CO₂ conversion process in a less-energy-consuming and time-saving manner. This effective CO₂ conversion performance may be attributed to the modification of the microenvironment in the 1D channels via the introduction of multiple task-specific sites, which include two different functional organic groups and an OMS. Particularly, the urea group and OMS should be the key factors to actively interact and activate SO, as is detailed in the mechanistic validation below.^46,82,83 The catalytic performances of the various systems presented in Table S5† clearly indicate that this MOF can perform the non-redox transformation of CO₂ into the corresponding cyclic carbonates under relatively milder conditions than Mg-MOF-74 (entry 1), NH₂-MIL-101(Al) (entry 2), Ni@ZrOF (entry 14), CSMCRI-13 (entry 15) and DUT-52(Zr) (entry 17).

Fig. 6 Effects of various reaction parameters on the conversion and selectivity of styrene oxide: (a) dosage of catalyst, (b) amount of co-catalyst, (c) CO₂ pressure, and (d) temperature.

The catalyst activity under the optimized conditions was further extended by considering various other epoxides. As detailed in Table 2, complete maintenance of catalytic efficacy was observed for a wide range of aromatic and aliphatic substrates (Fig. S11–S15, ESI†). Nevertheless, cyclohexene oxide exhibits low conversion due to the steric crowding, which deters the S_N2 attack of the Br⁻ ion on the intermediate species (Scheme 3).⁸⁴ From the results, it was further noticed that the conversion decreases with increasing alkyl chain length of the epoxides (Table 2, entry 6). This fact can be attributed to limited diffusion of larger epoxides in the narrow voids of the microporous framework, and alternately, indicates size-selectivity. To check the reusability performance of the catalyst over multiple cycles, we recovered the MOF by centrifugation, washed it with acetone and then reused the powdered material after drying in vacuum at 100 °C. The spent catalyst showed almost constant SC conversion over five consecutive cycles (Fig. 7a). The slight reduction in the conversion might stem from catalyst loss during the recovery process. The PXRD pattern of the recovered MOF shows precise agreement with that of the unused catalyst (Fig. S16, ESI†). The FT-IR (Fig. S17, ESI†) and FE-SEM analyses (Fig. S19a, ESI†) of the MOF after multiple runs show no alteration in its structural and/or morphological properties, attesting to its great potential for repeated cycloaddition. Also, elemental mapping (SEM-EDX) shows a uniform distribution of elements in the selected area of the MOF crystal after catalysis (Fig. S19b, ESI†). To check for any leaching of metal ions during CO₂ fixation, the MOF was separated after reaction, and the filtrate was dried and analyzed using inductively coupled plasma mass spectrometry (ICP-MS), which showed a negligible Cd(II) ion concentration (0.003 ppm). Furthermore, the XPS spectra (Fig. S18e, ESI†) of the recovered MOF was found to be similar to that of the fresh catalyst. The N₂ adsorption isotherm at 77 K did not reveal any significant differences (Fig. S20, ESI†), corroborating the maintenance of the porous structure. In a nutshell, this MOF exemplifies an efficient heterogeneous catalyst for non-redox conversion of CO₂ under mild conditions.

Scheme 3 Proposed reaction pathway for CO₂ cycloaddition with epoxide using the OMS and functional organic site of guest-free MOF in the presence of the co-catalyst.

Fig. 7 (a) Multicycle catalytic performance of the activated framework towards the cycloaddition reaction. (b) Change in the luminescence intensity of the activated framework upon incremental addition of styrene oxide.

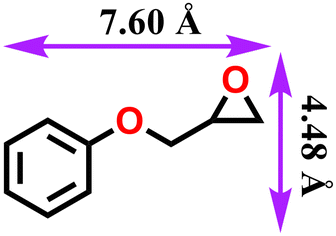

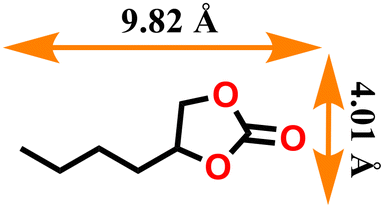

Table 2 Study of cycloaddition activity using various substrates^a

Entry	Reactant	Model structure	Product	Model structure	Yield (%)	TON
a Reaction conditions: epoxide: 26.46 mmol; MOF: 0.25 mol%; Bu4N^+Br^−: 0.2 mol%; CO2 pressure: 0.5 MPa; temp: 50 °C; time: 4 h; selectivity >99%. TON = (moles of product/moles of catalyst).
1					99.9	498
2					99.9	498
3					94.5	471
4					97.1	484
5					99.9	498
6					68	339
7					18	90

---

Mechanistic validation of CO₂ cycloaddition reaction

Given that this MOF contains multiple potential substrate interaction sites, as confirmed during the CO₂ adsorption studies, we conducted a series of control experiments to validate the exact catalytic pathway of the cycloaddition reaction. At the onset, the role of classical OMS was probed by comparing the activities of the as-synthesized and activated MOFs in the presence of TBAB under the optimized conditions. As indicated in Table 1 (entry 8), the guest-loaded MOF provided hardly any SO conversion, which was ascribed to the unavailability of the OMSs for substrate activation. Based on this observation, coupled with prior literature reports, we propose the OMS-mediated tentative mechanism shown as Path-1 in Scheme 3. Here, the cycloaddition reaction is initiated by the activation of the epoxide through interaction from the Lewis-acidic Cd(II) centre. Subsequently, the Br⁻ of TBAB participates in a nucleophilic attack on the less-crowded carbon atom of the epoxide, which leads to ring opening.^39,55,79,85 Finally, an intramolecular ring closure reaction produces the expected cyclic carbonate with the regeneration of the MOF catalyst, which takes part in activation of another epoxide molecule.

On the other hand, urea group in the framework can also principally act as an efficient activation site for the epoxide via hydrogen-bonding interactions.^86,87 Preliminarily, CO₂ fixation using the linker in the presence of a co-catalyst revealed 53.2% conversion for the L/TBAB combination (Table 1, entry 5). This experiment indicates that reaction must have proceeded via using the urea site of the organic strut. In order to more explicitly rationalize the preferred interaction site between the amine and the urea functionality, a comparison of the catalytic activity of an isoskeletal MOF that lacks the urea moiety was carried out. To this end, we used one of our previous systems, which forms an identical 2-fold interpenetrated network, containing the TCA³⁻ ligand and aqua-molecule-bound [Cd₃(COO)₆] secondary building unit, but without a urea moiety in the linker (Fig. S1, ESI†). This MOF exhibited the following optimized conditions for CO₂ cycloaddition: 1.0 MPa CO₂ pressure, 65 °C temperature, and 6 h duration, and a higher loading of the catalyst (0.35 mol%) and co-catalyst (0.36 mol%).⁴⁵ This fact clearly demonstrates that urea functionalization has a positive impact in effectively catalyzing CO₂ with epoxide under milder conditions in the present system. The role of the urea moiety in substrate activation was further proven by fluorescence modification of the MOF in the presence of a model epoxide. First, 2 mg of finely ground as-synthesized MOF powder was well-dispersed (in 2 mL toluene) in a cuvette. Freshly prepared SO solution (1 mM in toluene) was then incrementally added to the cuvette under stirring conditions. To our delight, the luminescence intensity of the MOF considerably decreased (Fig. 7b), which signifies strong host–guest interaction. In sharp contrast, the isoskeletal MOF without the urea unit did not show much influence on the spectral intensity (Fig. S21b, ESI†), which instead demonstrates the obvious interaction and activation of the epoxide molecule by the urea functionality in the present system through spatially controlled and pore-wall-aligned H-bonding sites in the present framework.^46,88 Building on these, we propose the urea-group-triggered CO₂ cycloaddition shown as Path-2 in Scheme 3. Here, the epoxide molecule is activated through formation of two-point H-bonding interactions. Subsequently, the bromide ion (Br⁻) of the co-catalyst attacks in S_N2 fashion at the less-hindered carbon atom of the epoxide, resulting in ring opening. After coupling between CO₂ and the ring-opened epoxy species, the thus-formed alkyl carbonate anion subsequently attacks the electrophilic β-carbon atom of the ring-opened epoxide, leading to ring closure via elimination of Br⁻.⁴⁶ Although the cycloaddition reaction using OMS-based Lewis-acidic sites is well explored, the present version through H-bond-donating sites in the framework is hitherto unprecedented. To the best of our knowledge, this work represents a unique demonstration of CO₂ cycloaddition, in which the mutual participation of contrasting functionalities in the MOF facilitates substrate interaction and activation, which in turn paves catalysis of the reaction under less-harsh conditions.

Conclusions

In conclusion, we successfully introduced a Lewis acid centre, H-bond operative site, and free amine moiety inside the microporous channels of a mixed-ligand Cd(II) MOF. The two-fold interpenetration of this three-dimensional (3D) pillar-bilayer framework leads to the creation of suitably sized unidirectional porous channels and doubles the number of active sites. Benefiting from these outstanding structural attributes and pore functionalization, the activated MOF shows high CO₂ adsorption at 273, 298 and 313 K, with the adsorption capacity at every temperature remaining unaltered for up to five uptake–release cycles. Interestingly, the selectivity for CO₂ over N₂ and CH₄ displays a remarkable improvement upon gradually increasing the temperature, while variable-temperature CO₂ adsorption under humid conditions revealed remarkable sorption recurrences, making this MOF a potential material for practical CO₂ sequestration. A configurational bias Monte Carlo simulation gave molecular-level insights into the sequential insertion of CO₂ molecules inside the multi-functionalized porous channels and portrays structure–property synergy through depicting the individual roles of the CO₂-philic sites. In situ grafted Lewis-basic and H-bond operative sites, together with activation-generated open metal centres, promote the performance of the MOF as an excellent heterogeneous catalyst in the solvent-free fixation of CO₂ to cyclic carbonates with high yield, broad substrate scope and multicyclic reusability. In addition to the mild catalytic conditions and conventional catalyst–co-catalyst synergism, the mutual participation of the contrasting functionalities towards substrate interaction and activation was validated via the fluorescence modification of the framework in the presence of epoxide and comparison with the catalytic activity of an iso-structural MOF, which confirm the unique organic-functionality-driven mechanistic route to CO₂ valorization. Given that the adsorption and chemical fixation of CO₂ are highly important global agendas for environmental remediation, this one-of-a-kind tri-functional MOF satisfies important prerequisites for real-time CO₂ capture and demonstrates unconventional organic-functionality-actuated CO₂ fixation, which promises to unlock new avenues to resolve modern-day issues of concern.

Experimental section

Detailed description of the synthesis of the linkers and framework has been provided in the ESI.†
