CVD of MoS₂ single layer flakes using Na₂MoO₄ – impact of oxygen and temperature–time-profile

Abstract

Two-dimensional (2D) materials are of great interest in many fields due to their astonishing properties at an atomic level thickness. Many fundamentally different methods to synthesize 2D materials, such as exfoliation or chemical vapor deposition (CVD), have been reported. Despite great efforts and progress to investigate and improve each synthesis method, mainly to increase the yield and quality of the synthesized 2D materials, most approaches still involve some compromise. Herein, we systematically investigate a chemical vapor deposition (CVD) process to synthesize molybdenum disulfide (MoS₂) single layer flakes using sodium molybdate (Na₂MoO₄), deposited on a silica (SiO₂/Si) substrate by spin-coating its aqueous solution, as the molybdenum source and sulfur powder as sulfur source, respectively. The focus lies on the impact of oxygen (O₂) in the gas flow and temperature–time-profile on reaction process and product quality. Atomic force microscopy (AFM), Raman and photoluminescence (PL) spectroscopy, X-ray photoelectron spectroscopy (XPS), and time-of-flight secondary ion mass spectrometry (ToF-SIMS) were used to investigate MoS₂ flakes synthesized under different exposure times of O₂ and with various temperature–time-profiles. This detailed study shows that the MoS₂ flakes are formed within the first few minutes of synthesis and elaborates on the necessity of O₂ in the gas flow, as well as drawbacks of its presence. In addition, the applied temperature–time-profile highly affects the ability to detach MoS₂ flakes from the growth substrate when immersed in water, but it has no impact on the flake.

---

Introduction

Crystals with a layered structure, like graphite, can generally be mechanically cleaved into single- or very few-layered flakes, analogous to graphene.^1,2 About two-thirds of the transition metal dichalcogenide (TMDC) crystals consist of such a layered structure and allow fabrication of single layered flakes, commonly called two-dimensional (2D) materials.¹ These single layered TMDCs possess outstanding chemical and physical properties,^3,4 making them interesting 2D materials useful as building blocks for a wide range of devices from electronics^5,6 to catalysis,⁷ and biomedical applications.⁸ Molybdenum disulfide (molybdenite, MoS₂) is a prominent representative of the layered TMDCs and is widely studied due to its substantial direct band gap,^9,10 high on/off ratio,¹¹ flexibility,¹² strong photoluminescence,^13,14 and many more properties.¹⁵ Next to the fabrication of MoS₂ single layer flakes by mechanical cleavage, other top-down synthesis methods such as electrochemical exfoliation¹⁶ and liquid exfoliation in a suitable solvent¹⁷ or with a pre-intercalation step¹⁸ were developed to increase the production yield of flakes. However, the latter methods lack control over the lateral size and number of layers, and in addition, transitions in the polytype from the trigonal prismatic (2H) to the octahedral phase (1T) cannot be prevented.¹⁸ This inhomogeneity in the fabricated flakes gives rise to undesired varying properties of the final product. To tackle these issues, bottom-up approaches such as atomic layer deposition,¹⁹ molecular beam epitaxy,²⁰ and chemical vapor deposition (CVD)^21,22 have been developed. Among these synthesis methods, CVD is regarded as a very promising technique due to good scalability, low cost, relative simplicity, and better control of the size and thickness of the synthesized MoS₂ flakes. Nevertheless, control of the synthesis by CVD remains a challenge, and the underlying growth mechanism is not yet fully understood due to a large number of different parameters such as precursors, temperature–time-profile, composition and rate of gas flow, growth substrate material, and pressure, as well as their interdependence.^23,24 Commonly, synthesis of MoS₂ flakes by CVD is performed using molybdenum trioxide (MoO₃) powder as molybdenum (Mo) source, placed in a crucible and partially covered by the growth substrate, and sulfur (S) powder positioned separately in the upstream heating zone. This set-up leads to spatial nonuniformity of the synthesized MoS₂ flakes on the growth substrate and, therefore, reduced control of the growth process due to the significant local differences in vapor pressure, non-homogeneous diffusion of the precursors, and reaction of vaporized sulfur with MoO₃ powder, poisoning the Mo-source.²⁵ Enhanced process control was achieved using gaseous precursors such as preheated molybdenum hexacarbonyl (Mo(CO)₆) as Mo-source and diethyl sulfide (S(C₂H₅)₂) or hydrogen sulfide (H₂S) as S-source.^26–28 However, H₂S and Mo(CO)₆ gases are highly toxic, which limits their wider application, while the organic ligands in S(C₂H₅)₂ get incorporated in the synthesized MoS₂, reducing the final flake quality.^29,30 To circumvent the toxicity and inhomogeneous diffusion of the Mo-source in the gas phase when using Mo(CO)₆ gas or MoO₃ powder piled up below the growth substrate, the Mo-source can instead be uniformly distributed over the entire growth substrate prior to the synthesis by spin-coating an aqueous Mo-solution.^31,32 This synthesis method provides an effective approach to synthesize single layered MoS₂, yet, despite its simplicity, it is seldomly used and lacks detailed description and in-depth investigation of process parameters and their influence on the reaction process and flake quality.

In this work, we investigate the CVD process based on sodium molybdate (Na₂MoO₄), spin-coated as aqueous solution onto a silica (SiO₂/Si) growth substrate. The focus lies on the impact of oxygen (O₂) in the gas flow and the temperature–time-profile, defined by holding temperature and holding time, on reaction process and product quality. Our synthesis protocol, with O₂ present in the gas flow in the early stage of the synthesis process, yields homogeneous distributions of high-quality MoS₂ single layer flakes over a wide range of temperature–time-profiles. Interestingly, for low enough holding temperature and short holding time, MoS₂ flakes detach from the growth substrate when immersed in water. We propose a reaction process (see Fig. 1), which we validated using atomic force microscopy (AFM), Raman and photoluminescence (PL) spectroscopy as well as X-ray photoemission spectroscopy (XPS) and time-of-flight secondary ion mass spectrometry (ToF-SIMS) to determine flake quality, sample topography, and chemical composition.

Fig. 1 Schematic drawing of the proposed reaction process to form MoS₂ flakes with different degree of detachability. The subsets, identified by roman numerals, represent the sample preparation through spin-coating (Ia and Ib), the burning of airborne organic contaminants by oxygen (II), Na₂MoO₄ conversion to MoS₂ (III), further reaction of Na with the silica substrate and its migration into the SiO₂ matrix (IV), and the distinction between water-detachable and non-water-detachable MoS₂ flakes (Va, Vb). Depending on the T–t-profile, the flakes sit on a Na-containing and a water-soluble by-product or are in direct contact with the substrate, reducing the detachability. The oval insets show the corresponding AFM measurements, light microscopy images, or schematic illustrations, respectively.

Synthesis and characterization

Synthesis model

Our synthesis of MoS₂ single layer flakes by CVD with sodium molybdate (Na₂MoO₄) is based on the vapour–liquid–solid (VLS) growth mode.^32,33 Therein, vaporized sulfur (S) reacts with liquified Na₂MoO₄ on the growth substrate to form solid MoS₂ when the temperature is raised above the specific melting point of S and Na₂MoO₄, respectively. Here, we first summarize the synthesis model (Fig. 1 and its subsets identified by roman numerals) and subsequently address key aspects as the requirement of oxygen (O₂) in the formation of MoS₂ single layer flakes, process duration, influence of the temperature–time-profile (T–t-profile), and the role of sodium.

Spin-coating and drying of the aqueous solution of Na₂MoO₄ on silica (SiO₂/Si) lead to formation of small clumps uniformly distributed over the entire substrate, which entails homogeneous distribution of the Mo-source (Ia, Ib). While heating up the tube furnace to a specific temperature (holding temperature, T_hold), the O₂ in the gas flow burns away any kind of airborne organic contaminants on the growth substrate and enables the growth of triangular flakes (II). When the center of the tube furnace reaches a temperature of 650 °C the sulfur powder, placed in a crucible in the upstream heating zone, starts to melt and evaporates, subsequently being transported to the growth substrate by the gas flow, where it reacts with the liquified Na₂MoO₄ at around 690 °C to form MoS₂ within a very short time frame (III).³² With increasing time, only chemical changes related to sodium (Na) originating from the Mo-source take place (IV). At low T_hold and short holding time (t_hold), which refers to the time frame in which the center of the tube furnace is at T_hold, a thin layer of Na-containing and water-soluble by-product remains between the growth substrate and MoS₂ flakes (Va). Upon immersion of the growth substrate into water, this layer dissolves, leading to complete detachment of the MoS₂ flakes. These detached MoS₂ flakes float on the water surface as a greenish carpet and can be collected by immersing a fresh substrate and picking them up. Samples synthesized at high T_hold and long t_hold, however, do not exhibit this water-soluble layer due to enhanced migration of the Na-by-product into the substrate (Vb). Consequently, the MoS₂ flakes are in direct contact with the growth substrate rendering them impossible to be detached by water. This Na-by-product might be composed of sodium oxide (Na₂O), a possible side-product of the MoS₂ flake formation, as described elsewhere.³⁴ Na₂O exhibits both temperature-dependent reactivity with SiO₂, forming sodium silicate glasses, and migration into SiO₂, where it becomes diluted within the silica glass matrix, consonant with our findings.³⁵

Requirement of oxygen

The composition of the gas flow present during CVD plays a crucial role for successful synthesis of triangular MoS₂ single layer flakes with Na₂MoO₄ uniformly distributed on a SiO₂/Si substrate by spin-coating its aqueous solution. Kim et al. already reported that a brief exposure of oxygen (O₂) to the growth substrate is mandatory in the initial phase of synthesis to etch the carbon atoms introduced by iodixanol, which the authors added to their Mo-solution to improve adhesion to the substrate during spin-coating, and subsequently to promote the formation of large MoS₂ flakes.³⁴ Even in the absence of an extra carbon source, such as iodixanol, we found that O₂ has a strong effect on the morphology of MoS₂, while synthesis of triangular shaped MoS₂ single layer flakes is impossible in the absence of O₂ (Fig. 2a and Fig. S31†). Yet, O₂ exposure throughout the synthesis must be avoided, as MoS₂ is susceptible to oxidation (Fig. 2b).^36,37 To determine the impact of O₂ exposure time on the formation and oxidation of MoS₂ flakes, we performed X-ray photoelectron spectroscopy (XPS) on a series of samples synthesized at 710 °C for 6 min with different exposure times of O₂ (1.3% in nitrogen, see Experimental and Table S1†). Analysis of the high-resolution X-ray photoelectron (XP) spectra reveals the disappearance of the Mo 3d signal of MoS₂ and the concurrent rise of a Mo⁶⁺ signal of oxidized molybdenum with increasing exposure time of O₂ (Fig. 2c). Oxidation of MoS₂ is also confirmed by the disappearance of S 2s and S 2p signals and the concurrent rise of a sulfate signal. The apparent S/Mo-ratio, determined by the formula described in Experimental, continuously decreases with exposure time of O₂ longer than 10 min, further corroborating the oxidation of MoS₂ flakes (Fig. S32†). The apparent S/Mo-ratio of the sample synthesized without O₂ in the gas flow is about 1.9, i.e., close to the stoichiometric value of MoS₂. In addition, the high-resolution XP-spectra of such a sample (Fig. S21†) is readily comparable with those of MoS₂ powder (Fig. S8†) as well as with those of samples exhibiting large triangular shaped flakes (Fig. S15,† as an example). MoS₂ thus forms even in absence of O₂, but the latter has a dramatic impact on the morphology of the product. Based on these findings, we propose that O₂ burns organic contaminants on the surface of the growth substrate at the beginning of synthesis, enabling lateral growth of MoS₂ single layer flakes, just as oxygen exposure in a plasma environment serves to remove organic contaminants from surfaces.³⁸ However, as the synthesis time progresses, O₂ becomes detrimental and even has a destructive effect by oxidizing grown MoS₂ flakes, so the presence of oxygen in the gas phase late in the synthesis is not conducive.

Fig. 2 (a) AFM images of a sample synthesized at 710 °C for 6 min without O₂ in the gas flow during synthesis, hampering the growth of triangular MoS₂ single layer flakes. The scale bar represents 2 μm and 400 nm (inset), respectively. (b) AFM images of a sample synthesized at 710 °C for 6 min with O₂ exposure for 13 min during synthesis. The scale represents 5 μm and 400 nm (inset), respectively. (c) High-resolution XP-spectra of Mo 3d, S 2s, and S 2p core level peak regions of samples synthesized at 710 °C for 6 min and various exposure times of O₂. Sulfates (black arrow) and Mo⁶⁺ (grey arrows) were detected in samples exposed to oxygen for prolonged time during synthesis, while the Mo⁴⁺-signals (red arrows) and the MoS₂-sulfur signals (orange arrows) disappear. This observation points to the oxidation of the in situ formed MoS₂ flakes when the samples were exposed to O₂ at elevated temperatures for too long.

In summary, O₂ proves to be a crucial parameter in this type of CVD process and must be carefully adjusted to promote the growth of MoS₂ single layer flakes while avoiding any detrimental oxidation. Unless otherwise specified, in the following experiments, the exposure time of O₂ is kept constant at about 2.5 min (until the tube furnace reaches a temperature of 200 °C) to determine the impact of temperature and synthesis time on the formation of MoS₂.

Formation of MoS₂ single layer flakes

Light microscopy of MoS₂ flakes synthesized at 710 °C and t_hold > 4 min shows no discernible differences in size and number with respect to t_hold, suggesting a short time frame required for the synthesis of MoS₂ flakes (Fig. 3a). Analysis of the high-resolution XP-spectra of samples synthesized at 710 °C and various t_hold confirms the formation of MoS₂ by the disappearance of the Mo 3d signal of Na₂MoO₄ and the concurrent rise of that of MoS₂ with increasing t_hold, as well as the appearance of S 2s and S 2p signals (Fig. 3b and additional samples in ESI† section XPS analysis). Since no significant changes in the apparent S/Mo-ratio were measured for all samples with t_hold > 4 min, the conversion of Na₂MoO₄ to MoS₂ was found to be completed at very short t_hold (Fig. 3c). The O 1s signal of Na₂MoO₄ also becomes undetectable for all samples with a t_hold > 4 min, corroborating the fast consumption of the Mo-source and conversion to MoS₂ (Fig. S33†). However, a minor peak at the binding energy range characteristic of Mo⁶⁺ 3d_3/2 remained observable even at the highest t_hold. This spectral feature might indicate the presence of unreacted molybdate, or the occurrence of some minor re-oxidation of MoS₂ flakes after exposure to air. Alternatively, the signal could entirely constitute the secondary structure of the Mo 3d signal of MoS₂, as found by Wang et al. for the case of nearly pure MoS₂.³⁹ In our samples, small amounts of oxidized MoS₂ cannot be unambiguously identified by the analysis of the O 1s region, as the latter is dominated by the signal of the SiO₂/Si substrate, which partially overlaps with the O 1s signal of oxidized MoS₂ (Fig. S33†). Despite the curve fitting model used in this work assumes that the minor peak at the binding energy range characteristic of Mo 3d_3/2 of oxidized MoS₂ is solely ascribed to such species, the actual interpretation of the signal may be not so straightforward.

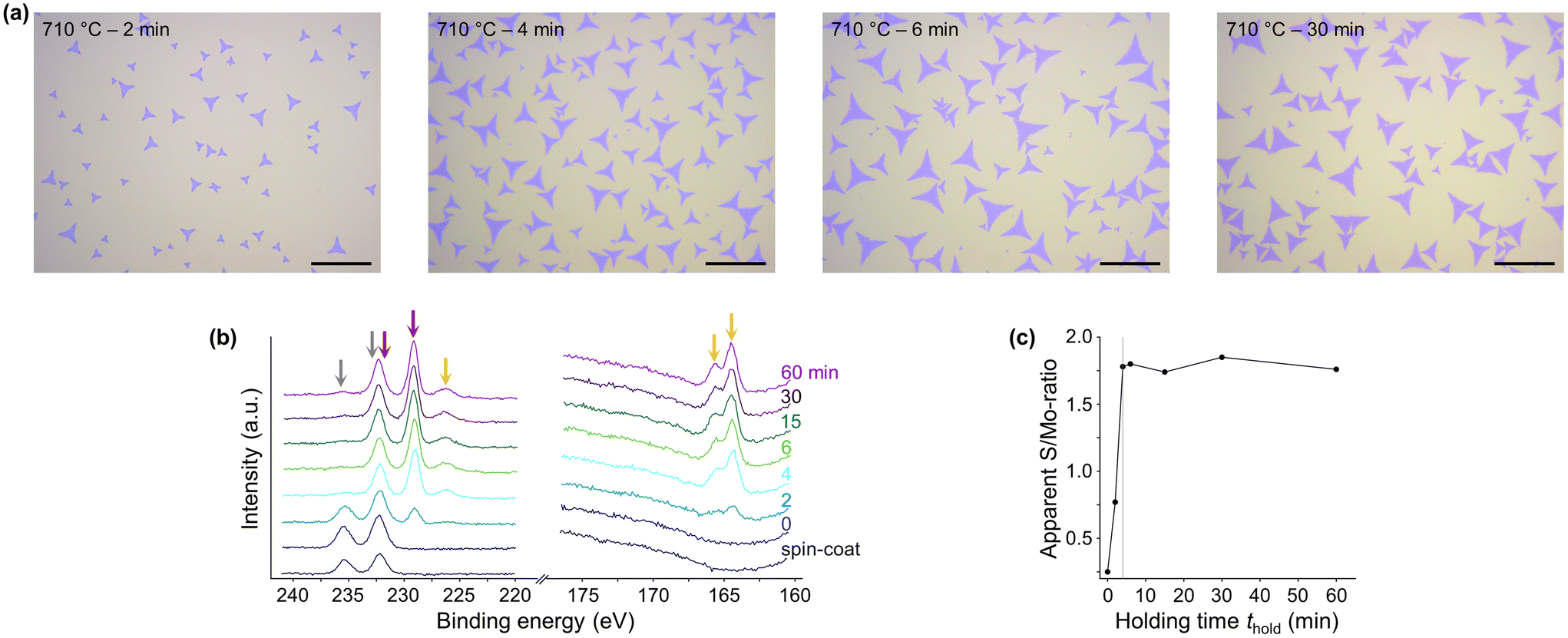

Fig. 3 (a) Light microscopy images of samples synthesized at 710 °C for 2, 4, 6, and 30 min, respectively. The scale bar represents 20 μm. (b) High-resolution XP-spectra of Mo 3d, S 2s, and S 2p core level peak regions of samples synthesized at 710 °C and various t_hold. The grey arrows indicate the Mo⁶⁺-signals, red the Mo⁴⁺-signals, and orange the sulfur signals of MoS₂, respectively. (c) Apparent S/Mo-ratio of the samples synthesized at 710 °C with different t_hold, determined by the formula described in the Experimental section. The grey line indicates the t_hold of 4 min after which no change in the apparent S/Mo-ratio was detected anymore, settling to a value of 1.8 (1.75 ± 0.04), rather close to the expected stoichiometry.

Overall, the XPS analysis reveals that MoS₂ flakes can be synthesized within 2 min at 710 °C and extending beyond 4 min does not affect their size, number, and chemistry. In the following, we explore a range of T_hold (710–810 °C) and t_hold (2–60 min) and study their influence on the MoS₂ flakes.

Influence of temperature–time-profile

The temperature–time-profile (T–t-profile) is defined by the maximum temperature (holding temperature, T_hold) and the duration of T_hold (holding time, t_hold) and applies to the center of the tube furnace, where the tube furnace thermocouple and growth substrate were placed. Since the synthesis and any other reactions can also occur outside the t_hold timeframe during heating and cooling, we introduced an additional parameter denoted as synthesis time (t_syn), indicating the time during which the temperature in the center of the tube furnace is higher than 650 °C (see Experimental). By using different T–t-profiles, other synthesis parameters, such as the sulfur (S) content in the gas phase, which is governed by the temperature in the S-evaporating zone (see Experimental), will also be affected. To exclusively investigate the influence of T–t-profile, a single synthesis was conducted at 790 °C for 10 min, using 14 growth substrates placed in a row within the reaction tube (14-sample test). Taking advantage of the temperature gradient within the tube furnace, T_hold and t_syn increase and decrease progressively for the growth substrates along the reaction tube, reaching a maximum for those situated in the center, the standard synthesis position. This allows simultaneous synthesis of samples with different T–t-profiles, while keeping the sulfur content as constant as possible. The growth substrates were labeled from I to XIV, starting with the sample located in the upstream heating zone, and further described by their distance from the center of the tube furnace, the position of growth substrate number VII (Fig. S3†). We always refer to these samples by the term “14-sample test” to distinguish them from the results obtained by the standard synthesis conducted with a single growth substrate positioned at the center of the tube furnace.

For the holding temperatures and times tested (710–810 °C and 4–60 min, respectively), light microscopy shows no obvious effects on the morphology of the MoS₂ flakes, which also applies to flakes synthesized in the 14-sample test (examples shown in Fig. S34 and S35†). All flakes are triangular in shape, evenly distributed over the complete growth substrate and similar in size and number independent on the applied T–t-profile. Furthermore, all flakes show the same color indicating an identical flake thickness,^40,41 except for the most upstream and most downstream samples placed in the tube furnace in the 14-sample test (samples I and XIV in S35†). Measurements with an external thermocouple indicate that T_hold was about 660 °C at the position of growth substrate number XIV, suggesting unfavorable process conditions. Therefore, samples I and XIV are excluded from further analysis. It is worth noting that the synthesized MoS₂ flakes don't exhibit exact triangular shapes but have slightly concave edges. Despite the former has lowest formation energy, various morphologies such as truncated triangles, hexagons, and dendritic (snowflakes) can easily be synthesized with CVD, by varying the growth environment, such as holding temperatures of precursors, position of growth substrate, and synthesis time.^24,42,43 In the end, the molybdenum to sulfur (Mo_source/S_source) ratio, which can be tuned by the as mentioned synthesis parameters, determines the shape of MoS₂ flakes. In our synthesis method, we assume a similar growth environment during the formation of MoS₂ flakes for each T–t-profile investigated, resulting in the same shape of flakes, as first the amount of molybdenum available for the synthesis is constant for each synthesis. Second, each T–t-profile studied had the same heating rate, and the sulfur crucible was placed so that the sulfur melted at the same time during heating, resulting in the same Mo_source/S_source-ratio within the short time frame the MoS₂ flakes are formed. The Raman spectra of all samples show two characteristic peaks at around 404 cm⁻¹ and 384 cm⁻¹ representing the out-of-plane vibration mode A_1g and the in-plane vibration mode E_2g¹, respectively (Fig. S36†). The difference of about 20 cm⁻¹ between the two peaks indicates the presence of single layers (Table S5†).^44,45 AFM height analysis also results in about 1 nm thickness, thus confirming the presence of single layers (Fig. S37†).^45,46 Additionally, AFM measurements reveal prominent particle-like features around and on the flakes. The density of these features decreases with increasing T_hold and t_hold (Fig. 4a). Flakes exposed to water no longer show such particle-like features and, moreover, no detrimental defects, indicating that these features are not defective structures of the MoS₂ flakes but rather a water-soluble by-product of the synthesis that is apparently not assimilated into the MoS₂ flakes (Fig. S38 and S44†). Due to the fast consumption of the Mo-source (see Fig. 3b and c), this by-product is no leftover of the Mo-salt. This by-product raises no concerns as it is not incorporated into the MoS₂ flakes and can be easily removed through water, a process that naturally occurs during transfer of MoS₂ flakes using a water-based method. A discussion on the decrease in concentration of the by-product with increasing T_hold and t_hold is provided in Role of sodium.

Fig. 4 (a) AFM measurements of samples synthesized with different T–t-profiles. The scale bars represent 2 μm. (b)–(d) The shape of the markers indicate the degree of detachability, where circles represent 100% detachability, triangles represent partial detachability with varying degrees, and crosses no detachability at all (see Fig. 5). (b) I_B/I_A-ratio versus synthesis time t_syn of all synthesized samples listed in ESI Table S2,† where different colors represent the corresponding T_hold. Low I_B/I_A-ratio indicates low density of defects and high crystal quality.⁴⁶ (c) I_B/I_A-ratio of the samples synthesized in the 14-sample test. The grey vertical line indicates the center of the tube furnace, where sample number VII was placed. The samples I and XIV were excluded, as they did not pass the first quality screening with the light microscope (see Fig. S35†). (d) I_B/I_A-ratio of various samples before (symbols and colors as in b) and after transfer (stars) with the PMMA-assisted transfer process. All measurements are conducted after a storage time of at least 48 hours, after which no further water adsorption is expected, influencing the measurement.

The crystal quality of MoS₂ flakes was also investigated by photoluminescence (PL). The PL spectrum of a MoS₂ single layer flake shows a prominent peak at around 1.85 eV and a less dominant one at around 2.0 eV (Fig. S39†). These two resonances are the direct excitonic transitions at the Brillouin zone K point due to the spin–orbit splitting of the valence band and are known as A- and B-exciton, respectively.^47,48 The ratio of the A- and B-exciton PL intensity (I_B/I_A-ratio) reflects the crystal quality of the MoS₂ flakes, with a low I_B/I_A-ratio indicating a low density of defects and high sample quality.⁴⁹ When analyzed on the growth substrate, flakes synthesized with different T–t-profiles strongly differ in their measured I_B/I_A-ratios, showing a parabolic trend with increasing t_syn for each T_hold (Fig. 4b). The I_B/I_A-ratio of the samples synthesized in the 14-sample test exhibits an increasing trend the closer the sample was placed to the center of the tube furnace, where it is exposed to a higher T_hold and longer t_syn (Fig. 4c). This behavior correlates well with the respective right branches of the parabolas in Fig. 4b, where increasing t_syn leads to a higher I_B/I_A-ratio. The left branches in Fig. 4b are not discernible in Fig. 4c due to the too high T_hold and long t_hold in the 14-sample test. However, any PL measurement of MoS₂ single layer flakes strongly depends on the substrate material and the interactions the flakes establish with their surroundings.^50–52 To determine whether the applied T–t-profile affects the crystal quality or alters the growth substrate–flake interactions, which in turn influence the PL, random samples were transferred onto freshly cleaned SiO₂/Si substrates using the poly(methyl methacrylate) (PMMA) assisted method (see Experimental). All transferred flakes have a similar I_B/I_A-ratio of 0.1, regardless of the T–t-profile applied for their synthesis (red stars in Fig. 4d), indicating an equally high quality of the synthesized MoS₂ flakes. Therefore, the observed differences in PL for MoS₂ flakes on the growth substrate infer different interactions between the flakes and the substrate, potentially resulting from variations in the concentrations of the by-product, which are dependent on the applied T–t-profile and will be discussed in more detail later.

For a range of T–t-profiles, we observed that synthesized MoS₂ flakes detach from the growth substrate when immersed in water directly after synthesis (Fig. 5a and Fig. S40, S41†). The detached flakes float on the water surface as a greenish carpet and can be collected by immersing a fresh substrate and lifting them off (Fig. S42†). To determine the influence of the T–t-profile on the detachability, samples were synthesized with different combinations of T_hold and t_hold and analyzed by light microscopy after partial immersion of the growth substrate into water. The detachability was subsequently evaluated qualitatively using a rating system with yellow circles representing full (100%) detachability, orange triangles partial detachability, and red crosses no detachability at all (Fig. 5a). The T–t-profile strongly influences detachability, which generally decreases with increasing T_hold and t_syn (Fig. 5b). The transition from full to zero detachability occurs over a wide range of t_syn for low T_hold (710–750 °C) and becomes significantly narrower for higher T_hold. The same trend is evident for t_syn, where the detachability decreases rapidly with increasing T_hold for long t_syn. The samples synthesized in the 14-sample test show a reduction in detachability for the samples placed closer to the center of the tube furnace, where they are exposed to a higher T_hold and longer t_syn (Fig. 4c and S41†). This finding corroborates the relationship between the T–t-profile and detachability as it excludes other parameters influenced by the T–t-profile that could potentially account for the variation in detachability. Comparison of the I_B/I_A-ratio measured by PL on the growth substrate with the degree of detachability shows for all samples, including those synthesized in the 14-sample test, that the I_B/I_A-ratio minimum is always around the t_syn at which the samples start to lose their detachability (Fig. 4b and c). Further, the observed parabola compresses with increasing T_hold (Fig. 4b), just as the transition range between water-detachable and non-detachable decreases. This correlation additionally illustrates the influence of the T–t-profile on the growth substrate–flake interaction and suggests that the observed influence of the T–t-profile on PL and detachability is likely attributable to the same underlying cause.

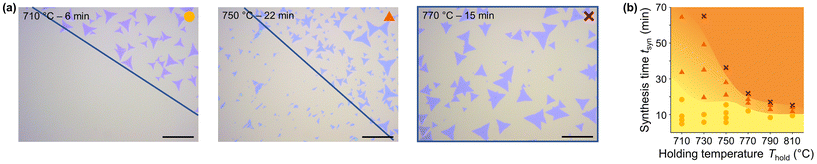

Fig. 5 (a) Light microscopy images of three samples synthesized with the T–t-profile as indicated in the images. The blue line marks the immersion depth of the growth substrate into water to detach the flakes. The sample synthesized at 770 °C for 15 min was completely immersed into water. The scale bar represents 20 μm. (b) Detachability of MoS₂ flakes as a function of T_hold and t_syn. The color and shape of the markers indicate the degree of detachability, where yellow circles represent 100% detachability, orange triangles represent partial detachability with varying degree, and red crosses no detachability at all.

Besides the T–t-profile, storage of MoS₂ flakes in ambient conditions also affects detachability, becoming lower with increasing storage time. Notably, in dry environments, this effect is suppressed, indicating a direct involvement of humidity on the aging process (Fig. S43†). The formation of particle-like features and the I_B/I_A-ratio measured by PL also depend on the storage time. Samples measured by AFM directly after synthesis show a smooth surface without any significant features, which appear only after about 12 hours of storage in ambient conditions (22 °C, 40–60% RH, Fig. S44†). The I_B/I_A-ratio of samples with water-detachable flakes strongly changes in the first 40 hours of storage, while samples with non-detachable flakes have a constant I_B/I_A-ratio (Fig. S45†). These findings confirm that the by-product governs growth substrate–flake interactions, consequently being responsible for variations in PL and detachability. However, the parabolic behavior of the PL measurements cannot be rationalized at this point yet.

In summary, the T–t-profiles tested show no influence on shape, size, number of layers, and quality of the MoS₂ flakes, suggesting a wide range of suitable T–t-profiles for simple and fast synthesis of MoS₂ single layer flakes in high quality and large quantity. The XPS and AFM measurements unveil the presence of a water-soluble by-product, of which the concentration decreases with increasing T_hold and t_hold and thus depends on the T–t-profile. This by-product, its variation in concentration, and formation of clumps with storage time due to moisture adsorption, are responsible for differences in the growth substrate–flake interaction and thus for the degree of detachability and variances in PL. We expect that this by-product or rather the different growth substrate–flake interaction will also affect the measurements of electrical properties. However, we defer this characterization as it is beyond the scope of this manuscript. Here we investigate the CVD process in more detail by discussing the role of sodium in the synthesis, as we suspect the presence of a sodium-containing by-product.

Role of sodium

Sodium (Na) is known to support the lateral growth of MoS₂ flakes and is typically added directly to the Mo-source as sodium chloride (NaCl) or sodium hydroxide (NaOH).^34,53 Since our Mo-source (Na₂MoO₄) already contains Na no additional Na was added. Although the XPS measurements reveal that the conversion of Na₂MoO₄ to MoS₂ is completed after a t_hold of about 4 min (see Fig. 3b and c), the apparent Na/Mo-ratio decreases continuously with increasing t_hold. Moreover, the Na 1s signal shifts towards higher binding energy, indicating chemical changes that still take place after synthesis of MoS₂ (Fig. 6a and b). If no volatile Na-containing products are formed, the decrease of the apparent Na/Mo-ratio and chemical shift with longer t_hold indicate a migration of Na into the growth substrate,⁵⁴ suggesting the involvement of the SiO₂/Si growth substrates in the synthesis process. It is worth noting that the apparent Na/Mo-ratio of spin-coated Na₂MoO₄ of 4.4, as measured by XPS, is substantially larger than the expected stoichiometry for Na₂MoO₄. The observed deviation is discussed in some detail in the ESI (see ESI† section XPS analysis 2.6). While XPS is a powerful tool to quantitatively analyze the chemical composition of samples, it lacks lateral resolution. Therefore, time-of-flight secondary ion mass spectrometry (ToF-SIMS) measurements were performed to obtain a chemical mapping of the MoS₂ flakes and growth substrate to identify possible local features and anomalies. No remarkable variances could be detected in the mapping of S⁻- and Mo⁺-ions of samples synthesized with different T–t-profiles (Fig. S46 and S47†). In contrast, a significant change in the mapping of Na⁺-ions is observed for samples synthesized at varying T_hold and t_hold. Specifically, a rapid decrease in Na intensity is firstly observed as T_hold and t_hold increases, which is in line with the outcomes of the XPS quantitative analysis (Fig. 6c, d and Fig. S48, S49†). Secondly, the areas of the growth substrate that were immersed into water to detach the MoS₂ flakes show an increased concentration of Na⁺-ions at the sites where MoS₂ flakes were previously grown (Fig. 6c). These “ghost-flakes” indicate that Na preferentially accumulates between the MoS₂ flakes and the growth substrate. Finally, in areas where no MoS₂ flakes were grown, a decrease of Na⁺-ion concentration can be detected in the water-exposed part compared to the non-exposed part (Fig. 6d). These observations indicate the presence of a Na-containing water-soluble by-product and point to a potential key role of Na, not only in supporting the lateral growth of MoS₂ flakes, but also in mediating the ability to detach the MoS₂ flakes with water. Possible Na-containing water-soluble by-products formed during the conversion of Na₂MoO₄ to MoS₂ could be sodium sulfite (Na₂SO₃) and its in air easily weathered and oxidized form sodium sulfate (Na₂SO₄),⁵⁵ or sodium oxide (Na₂O),³⁴ which forms sodium hydrogencarbonate (NaHCO₃) and sodium carbonate (Na₂CO₃) if exposed to air. However, none of these species could be clearly identified in the ToF-SIMS and XPS measurements. Nonetheless, Na₂O has a temperature-dependent reactivity with SiO₂ forming sodium silicate glasses,³⁵ and can migrate into the substrate (see Fig. 1), diluting in the silica glass matrix, consistent with the decrease in concentration and shift in binding energy of Na with increasing T_hold and t_hold as measured by XPS.

Fig. 6 (a) Apparent Na/Mo-ratio of samples synthesized at 710 °C with different t_hold, determined by the formula described in the Experimental. The grey line marks the t_hold of 4 min after which no changes in the apparent S/Mo-ratio were detected anymore (see Fig. 3b and c). SC marks the sample with spin-coated Na₂MoO₄ as a reference. (b) High-resolution XP-spectra of Na 1s signal. (c and d) ToF-SIMS elemental maps of N⁺-ions at a partly washed area of samples synthesized with different T–t-profiles. The blue lines mark the immersion depth of the growth substrate into water to detach the flakes. The scan size was 100 μm.

To search for possible interactions between Na₂MoO₄, SiO₂, and O₂ in the gas flow, selected syntheses were repeated in the absence of sulfur (Table S1†). No significant differences were observed in the high-resolution XP-spectra of either the Mo 3d or Na 1s core level peak regions, regardless of the exposure time of O₂ (Fig. S50†). Thus, when simply heating Na₂MoO₄ on SiO₂/Si, with or without O₂ present in the gas flow, no chemical reactions take place and only minor amounts of Mo and Na are lost by evaporation or migration into the substrate, despite increased mobility due to Na₂MoO₄ being in the liquid state. The reaction of S with Na₂MoO₄ to form MoS₂ is indispensable for the migration of Na into the substrate, strengthening the assumption that a Na-containing by-product with enhanced mobility in SiO₂ such as Na₂O, is formed.^34,35 These findings reveal an involvement of the SiO₂ in the synthesis of MoS₂ flakes, and we strongly recommend transferring the synthesized MoS₂ flakes onto a fresh substrate for further processing, such as device fabrication and characterization, as the growth substrate and growth substrate–flake interaction are greatly affected by the synthesis by-products and substrate modifications through Na migration. Water-based transfer methods enable mitigation of these risks.

Concluding this section, our experiments reveal the presence of a water-soluble and Na-containing by-product around, on, and beneath the synthesized MoS₂ flakes, significantly affecting the behavior of the MoS₂ flakes. Synthesis at lower T_hold (710–750 °C) and shorter t_hold (4–10 min) results in a high concentration of this Na-by-product. Due to the water-solubility of such by-products, the MoS₂ flakes easily detach from the growth substrate when immersed in water. Moreover, the hygroscopic nature of the Na-by-product facilitates the adsorption of moisture, forming clumps and creating a water-rich environment surrounding the MoS₂ flakes. With increasing T_hold or t_hold, the concentration of Na-by-product diminishes due to its migration into the growth substrate. Consequently, the local environment experienced by the MoS₂ flakes changes, leading to a shift in the I_B/I_A-ratio measured by PL. At certain combinations of T_hold and t_hold, the MoS₂ flakes begin to lose their water-detachability as the Na-by-product migrates away from the interphase between the growth substrate and flakes, resulting in a direct growth substrate–flake contact. This unmediated connection apparently inhibits the detachment of MoS₂ flakes from the growth substrate by water. At this point, the I_B/I_A-ratio has its minimal value (see Fig. 4b). With further increase in T_hold and t_hold, direct contacts between growth substrate and flake increase, leading to a reduced degree of detachability until it is no longer possible to detach the MoS₂ flakes at all. The I_B/I_A-ratio increases again, which may be attributed to induced strain due to the lattice mismatch between growth substrate and MoS₂ flakes, as well as differences in thermal conductivity.⁵⁶ The transferred MoS₂ flakes are free of any Na-by-product, due to its water solubility and the water-based transfer method used. Furthermore, the flakes are not in direct contact with the fresh substrate, as water clusters are expected to be trapped between the transferred flakes and the fresh substrate. Due to the absence of particles and direct substrate–flake contact a low I_B/I_A-ratio is measured.

Conclusions

We have presented a simple CVD method to synthesize MoS₂ single layer flakes that cover the entire growth substrate with high uniformity and good quality, using Na₂MoO₄ deposited directly on the growth substrate (SiO₂/Si) by spin-coating its aqueous solution and sulfur powder as Mo- and S-source, respectively. In-depth studies using Raman, PL, AFM, XPS, and Tof-SIMS measurements firstly showed that the composition of the gas flow must be carefully selected to promote the growth of MoS₂ single layer flakes and to avoid any detrimental oxidation of the synthesized flakes. Secondly, the study shows that the reaction to form MoS₂ flakes takes place within the first few minutes of synthesis at temperatures higher than 710 °C and long synthesis time is not necessary. Moreover, the range of suitable T–t-profiles for the synthesis of MoS₂ single layer flakes is very wide, rendering this CVD method very robust, insensitive to variations during the synthesis process, and adaptable to different types of tube furnaces. However, the T–t-profile exhibited a strong influence on the growth substrate–flake interaction and the detachability of MoS₂ flakes from the growth substrate with water. While no apparent flake parameter correlated with the detachability of the MoS₂ flakes, the growth substrate–flake interaction was found to be governed by a Na-containing by-product derived from the Mo-source. The presence of this Na-containing by-product, particularly facilitated by low T_hold and short t_hold, and its water-solubility enables the detachment of MoS₂ flakes. In contrast, high T_hold and long t_hold promote the migration of this Na-by-product into the growth substrate, in turn decreasing its concentration below the MoS₂ flakes and thus hindering detachability.

Experimental

Sample fabrication

Materials. Sulfur S (99.98%, CAS: 7704-34-9) and sodium molybdate Na₂MoO₄ (≥98%, CAS: 7631-95-0) were purchased from Sigma-Aldrich and used as delivered without any further purification. The aqueous solution of Na₂MoO₄ with a concentration of 0.5 mg ml⁻¹ was prepared with deionized water. The growth substrate was a silicon (100) n-type wafer (4-inch) with a 300 nm thick thermal oxide layer (SiO₂/Si). The gases required for synthesis were ultra-pure nitrogen (99.999% N₂) and an oxygen–nitrogen mixture (10% O₂ (99.95%) in N₂ (99.999%)), which were purchased from PanGas.

Growth substrate preparation. The growth substrate was cut into pieces of 15 × 15 mm using a wafer dicer (ProVectus LA 7100, Zhengzhou, China), prior to successively cleaning in an ultrasonic bath with acetone, isopropanol, and deionized water for 15 to 20 minutes to remove the polymeric protection layer necessary for cutting. To improve the wettability of SiO₂ and homogeneous distribution of the Mo-source, the growth substrate was transformed from hydrophobic to hydrophilic using oxygen plasma (600 W for 3 min),^57,58 prior to spin-coating the aqueous solution of Na₂MoO₄ at 4000 rpm for 40 s.

Synthesis of MoS₂. The MoS₂ flakes were synthesized in a 1-inch single heating zone tube furnace Blue M™ Mini-Mite (Lindberg, Riverside, USA) by enabling the reaction of sulfur vapor and liquidized Na₂MoO₄ directly on the growth substrate at atmospheric pressure and at elevated temperatures (ESI† section Synthesis of MoS₂). In particular, the growth substrate was positioned at the center of the tube furnace directly after spin-coating the aqueous solution of Na₂MoO₄. 30 mg sulfur was placed in a small crucible (∅ = 5 mm) at the entrance of the tube furnace in the upstream heating zone. The small crucible confines the sulfur powder and facilitates its precise positioning in the tube, allowing accurate control of the melting time of the sulfur. Right after assembly, the temperature in the tube furnace was gradually increased to a specific temperature (holding temperature, T_hold) within an adjusted ramp-up time of approximately 68 °C min⁻¹ for all investigated T_hold. The temperature was kept at T_hold for a specific time (holding time t_hold), followed by cooling via convection down to room temperature (Fig. S2†). To accelerate the cooling and accordingly stop the synthesis the tube furnace was partially opened at a temperature of 650 °C and fully opened at 570 °C. These changes in temperature with time define the temperature–time-profile (T–t-profile). However chemical reactions do not occur exclusively during t_hold when the tube furnace is at T_hold but may start earlier and will continue while the tube furnace cools down. As the cooling takes a finite amount of time, which in turn depends strongly on T_hold, an additional parameter denoted as synthesis time t_syn was introduced. This t_syn represents an effective synthesis time and is given by the time during which the temperature in the center of the tube furnace is higher than 650 °C, which ensures that the sulfur source is in liquid state (i.e. >120 °C) at its position at the entrance of the tube furnace. We found that insufficient amounts of sulfur are present in the gas phase if only relying on sublimation of powder. Furthermore, diffusion of Mo is low for temperatures lower than 650 °C due to the melting point of Na₂MoO₄ at 687 °C. The composition of the gas flow was a combination of ultra-pure nitrogen (pure N₂) and an oxygen–nitrogen (O₂/N₂) mixture (10% O₂ in N₂). The pure N₂ gas ran throughout the synthesis with a flow profile depending on T_hold and t_hold. At a temperature of 650 °C in the center of the tube furnace, the sulfur starts to melt, and the pure N₂ gas flow was reduced from 100 to 50 sccm to create a sulfur-rich environment. After t_hold elapsed, the pure N₂ gas flow was increased to 500 sccm to support the cooling of the tube furnace. Unless otherwise specified, the O₂/N₂ gas ran only during approximately the first 2.5 min of synthesis with 15 sccm, until the tube furnace reached a temperature of 200 °C. Considering the 100 sccm pure N₂ carrier gas flow, the concentration of O₂ in the total gas flow equals 1.3%. All experiments conducted are listed in Tables S1 and S2.† To exclude the influence of other parameters, such as the amount of S in the gas phase or gas flow fluctuations, when changing the T–t-profile, a single synthesis was performed at 790 °C for 10 min but with 14 growth substrates placed simultaneously in a row in the reaction tube (14-sample test, Fig. S3†). Due to the temperature gradient within the tube furnace, T_hold and t_syn decrease from the center towards the end of the reaction tube, allowing samples with different T–t-profiles to be synthesized at the same time. The growth substrates were labelled from I to XIV, starting with the sample placed in the upstream heating zone, and were further described by their distance from the center of the tube furnace, the position of growth substrate number VII.

Transfer of MoS₂ flakes by the pick-up method. To remove any kind of water-soluble by-products and to avoid any influence of the growth substrate on measurements of MoS₂ flakes, water-detachable MoS₂ flakes can be transferred onto a fresh substrate by the pick-up method. Therein, the growth substrate is immersed into water directly after synthesis. The MoS₂ flakes detach from the growth substrate and float as a greenish carpet on the water surface, where they can be picked up by a fresh substrate of any type of material.

Transfer of MoS₂ flakes by the poly(methyl methacrylate) (PMMA) assisted method. To measure photoluminescence without the influence of the growth substrate, MoS₂ flakes were transferred from the growth substrate onto a bare 300 nm SiO₂/Si substrate, which was previously cleaned in an ultrasonic bath successively with acetone, isopropanol, and deionized water for 15 to 20 minutes. To this end, poly(methyl methacrylate) (PMMA, 95k) was spin-coated onto the growth substrate at 4000 rpm for 60 s to create a homogeneous thin layer of PMMA (about 300 nm), and cured overnight at ambient conditions. Prior to peeling off the PMMA layer by floating the substrate on a 1 M KOH solution, the edges of the substrate were trimmed to facilitate penetration of the etchant. To remove all etchant residues after peeling, the PMMA layer was washed three times with deionized water by floating on stirred water. After transferring onto a fresh substrate and drying overnight, the PMMA layer was dissolved by immersing the substrate successively in acetone, isopropanol, and deionized water for 1 min for three times. To remove adsorbed water and possible residues of the PMMA layer, the MoS₂ flakes were irradiated with a green laser (561 nm, 7.6 mW measured at the sample surface) for 1 min before recording the photoluminescence spectrum (Fig. S51†).⁵⁰

Sample characterization

All samples were measured after storage for at least 48 hours, if not stated otherwise.

Raman and photoluminescence (PL) spectra were recorded in air at ambient conditions by a NT-MDT (Moscow, Russia) Raman system equipped with a green laser (561 nm, 50 mW) and an 100× objective lens (NA = 0.8). The gratings were 150 lines per mm for PL measurements and 1800 lines per mm for Raman measurements. The peak of silica from the substrate was applied as an internal standard for all spectra.

Measurements with the atomic force microscope (AFM) were performed under ambient conditions using a Cypher S Asylum Research AFM (Oxford Instruments, Santa Barbara, USA) in amplitude modulation mode (AM-AFM). The records were analyzed with Gwyddion.

X-ray photoelectron spectroscopy (XPS) was conducted with a PHI Quantera SXM spectrometer (ULVAC-PHI, Chanhassen, USA), operating in constant-analyzer-energy (CAE) mode and equipped with a monochromatic Al Kα X-ray source (1.487 keV). A nominal beam-spot size of 150 μm was used for all spectral acquisitions. High resolution spectra were acquired with a pass energy and an energy step of 55 and 0.1 eV, respectively. For the survey spectra, the pass energy and step size were 280 and 1.0 eV. All spectra were offset by using the O 1s signal of the growth substrate (SiO₂/Si) as an internal reference (binding energy of 532.5 eV). A detailed description of the XPS chemical state analysis and curve fittings is provided in the ESI (ESI† section XPS analysis). The atomic ratio of the elements of interest x_a was estimated from the high-resolution X-ray photoelectron spectra with

where I_i is the intensity (area) of the peak of element i and RSF_i the associated relative sensitivity factor.⁵⁹ The RSFs used in this work are taken from the spectrometer's software, after correction with the instrument transmission function. It should be noted that the above equation strictly applies to samples with a homogeneous surface material to a depth comparable to the information depth of the analytical method (about 8 nm). As this is clearly not the case for MoS₂ single layer flakes on SiO₂, as well as for spin-coated MoS₂ precursor (aqueous solution of Na₂MoO₄) investigated in this work, the “apparent” atomic ratios, i.e. the estimates obtained by this equation, may deviate significantly from the actual ratios.

Measurements with the time-of-flight secondary ion mass spectrometry (ToF-SIMS) were performed using an IONTOF, ToF-SIMS 5 instrument (IONTOF, Munster, Germany). A beam of 25 keV Bi⁺ as primary ions was randomly raster-scanned across the area of interest. Images and spectra of the sputtered positive and negative ions were recorded on separate areas of the sample (extraction voltage 2 kV).

Author contributions

A. Arcifa and R. Kalt conducted the XPS measurements and interpreted the XP-spectra. C. Wäckerlin performed the ToF-SIMS measurements. C. Wäckerlin and R. Kalt analyzed the ToF-SIMS spectra. R. Kalt synthesized all samples and conducted the Raman, PL, and AFM study. R. Kalt devised all experiments and wrote the original draft with input from all authors. A. Stemmer supervised the project, and reviewed, commented, and edited the manuscript drafts.

Conflicts of interest

There are no conflicts of interest to declare.

Acknowledgements

The authors gratefully acknowledge the Cleanroom Operations Team of the Binning and Rohrer Nanotechnology Center (BRNC) for their help and support. C. Wäckerlin gratefully acknowledges financial support by the Swiss National Science Foundation (grant PCEFP2_202775) and the University of Zürich Research Priority Program LightChEC. The ToF-SIMS experiments were performed at Empa Dübendorf.
