Magnetic graphene noble metal aerogels: preparation and application for catalytic degradation of 4-NP

Abstract

In this work, the preparation of magnetic graphene noble metal aerogels (GA–Fe₃O₄–Au–_ethanol) was realized by self-assembly induced by radiation reduction. The prepared material GA–Fe₃O₄–Au–_ethanol can be easily attracted by a magnet. Meanwhile, GA–Fe₃O₄–Au–_ethanol successfully realized the degradation of 4-nitrophenol (4-NP), which was considered an environmentally harmful pollutant. It is worth mentioning that the prepared materials showed a better catalytic performance than general noble metal catalysts, and it was found that the content of noble metals in the fabricated composite significantly influenced the catalytic reaction rate. The successful preparation of this material provides a feasible scheme for treating pollutant 4-NP.

---

1. Introduction

Noble metal nanoparticles are often used in medicine and environmental research because they have unique biophysical properties, mainly due to their highly accessible surface. Among a series of noble metal nanoparticles, Au nanoparticles have received the most attention from researchers.¹ Conventionally, AuNPs are synthesized using chemical substances as reducing agents.² Due to the chemical-reducing agents being generally toxic and easily polluting the environment, developing environmentally friendly nano-synthetic routes is of high importance. Preparing noble metal nanoparticles by radiation reduction is a greener preparation method than traditional chemical methods.³

Catalytic reduction of 4-nitrophenol using metal-based catalysts is an important reaction that typically employs noble metals such as palladium, rhodium, and platinum, as well as transition metals such as iron, nickel, and cobalt.^4–6 In this reaction, the catalyst acts as a reducing agent, and under catalysis, the nitro group is reduced to an amino group.

The choice of catalyst depends on factors such as reaction conditions, catalyst cost, and reaction rate. For example, palladium-based catalysts have high catalytic activity and selectivity, and are suitable for many reduction reactions, but are expensive. Therefore, some studies have attempted to use inexpensive catalysts such as nickel, iron, and others.^7,8

This reaction has broad application prospects, for example, it can be used in the preparation of organic chemicals, pharmaceuticals, and dyes. Additionally, the reaction can also be used in areas such as wastewater treatment and air pollution control. Therefore, catalytic reduction of 4-nitrophenol using metal-based catalysts is an important research area that attracts widespread attention and study.

Nitroaromatic compounds are widely employed in manufacturing pharmaceuticals, pigments, dyes, plastics, pesticides, fungicidal agents, explosives, and industrial solvents. However, considering its industrial production and potential environmental pollution, 4-NP has been regarded as the most important of the mononitrophenols.⁹ Among the metal NPs, AuNPs generated under various conditions are known to be efficient catalysts for reducing organic dyes and reducing 4-nitrophenol (4-NP) to 4-aminophenol (4-AP).¹⁰ A lot of research studies have reported combing nanogold with some substrates to prepare nanogold materials with small size and uniform dispersion, such as combining nanogold with polymers,¹¹ inorganic metal materials,¹² and with graphene oxide.¹³ Among them, the materials prepared by Au and graphene oxide are often tricky because they are challenging to recover.¹⁴ In this paper, by introducing magnetic iron oxide into composites, we hope to obtain materials that can be attracted and controlled using magnets to solve the problem of difficulty in recovering materials to a certain extent.

Herein we report the synthesis of a GA–Fe₃O₄–Au–_ethanol composite using a mild one-step method. We used reducing substances produced by irradiating water at 200 KGy in the presence of ethanol. The Au NPs produced in the reaction get attached to the graphene sheets and are stable for weeks without a noticeable change in their properties. The AuNPs made were small, with sizes below 5 nm, and were found to show high catalytic activity. The amount of AuNPs produced could be easily controlled by controlling the starting materials (AuCl₃·HCl·4H₂O). Also, due to the addition of Fe₃O₄ NPs, the material can be easily attracted by the magnet. We have studied the catalytic reduction of 4-NP to 4-AP by the composite using NaBH₄ as the reducing agent under heterogeneous conditions. When the heterogeneous catalytic reaction was carried out in the presence of excess NaBH₄, it was observed to follow pseudo-first-order kinetics, and the apparent reaction rate constant depended linearly on the concentration of AuNPs present in the composite.

2. Experimental section

2.1 Reagents and materials

GO was synthesized from natural graphite flakes using a modified Hummers' method.¹⁵ Fe₃O₄, ethanol, and AuCl₃·HCl·4H₂O were obtained from Sinopharm Chemical Reagent Co., Ltd (Shanghai, China). Besides, the solvents used in the experiment are analytical grade and require no further purification.

2.2 Synthesis of GA–Fe₃O₄–Au–_ethanol composites by γ-ray irradiation

The process of preparing GA–Fe₃O₄–Au–_ethanol composites is shown in Fig. 1. First, 0.0136 mmol L⁻¹ Fe₃O₄ was added into GO solution (2 mg mL⁻¹) and stirred thoroughly (ultrasonic stirring is recommended because Fe₃O₄ will interact with a magnetic stirrer), Then chloroauric acid solution with different concentrations (0.02 mg mL⁻¹, 0.1 mg mL⁻¹, 0.2 mg mL⁻¹, 0.4 mg mL⁻¹, and 0.8 mg mL⁻¹) was added to the above solution and stirred separately. Finally, the solvent (ethanol and water 1 : 1) was added to the above mixture and stirred for 2–3 h. Subsequently, the above-mixed solution was put into a 50 mL small bottle, about two-third of the bottle, then nitrogen was blown into the bottle (for 5–10 min) to create an inert environment in the bottle, and the bottle was covered. Finally, the above samples were irradiated at room temperature for 17 h with a dose of 200 kGy. After irradiation, graphene/Fe₃O₄/Au composite hydrogels (GH–Fe₃O₄–Au–_ethanol) were obtained, and then the obtained GH–Fe₃O₄–_ethanol was washed 10 times with ethanol/water solution to remove ionic impurities and other organic molecules. Following that, GA–Fe₃O₄–Au–_ethanol aerogels were obtained by freeze-drying GH–Fe₃O₄–Au–_ethanol at −40 °C and 0.14 kPa. Through the same steps, the samples obtained with different Au contents were labeled as GA–Fe₃O₄–Au–_ethanol 0.02 mg mL⁻¹, GA–Fe₃O₄–Au–_ethanol 0.1 mg mL⁻¹, GA–Fe₃O₄–Au–_ethanol 0.2 mg mL⁻¹, GA–Fe₃O₄–Au–_ethanol 0.4 mg mL⁻¹ and GA–Fe₃O₄–Au–_ethanol 0.8 mg mL⁻¹, respectively. And the sample without chloroauric acid was also prepared as the control and labeled as GH–Fe₃O₄–_ethanol.

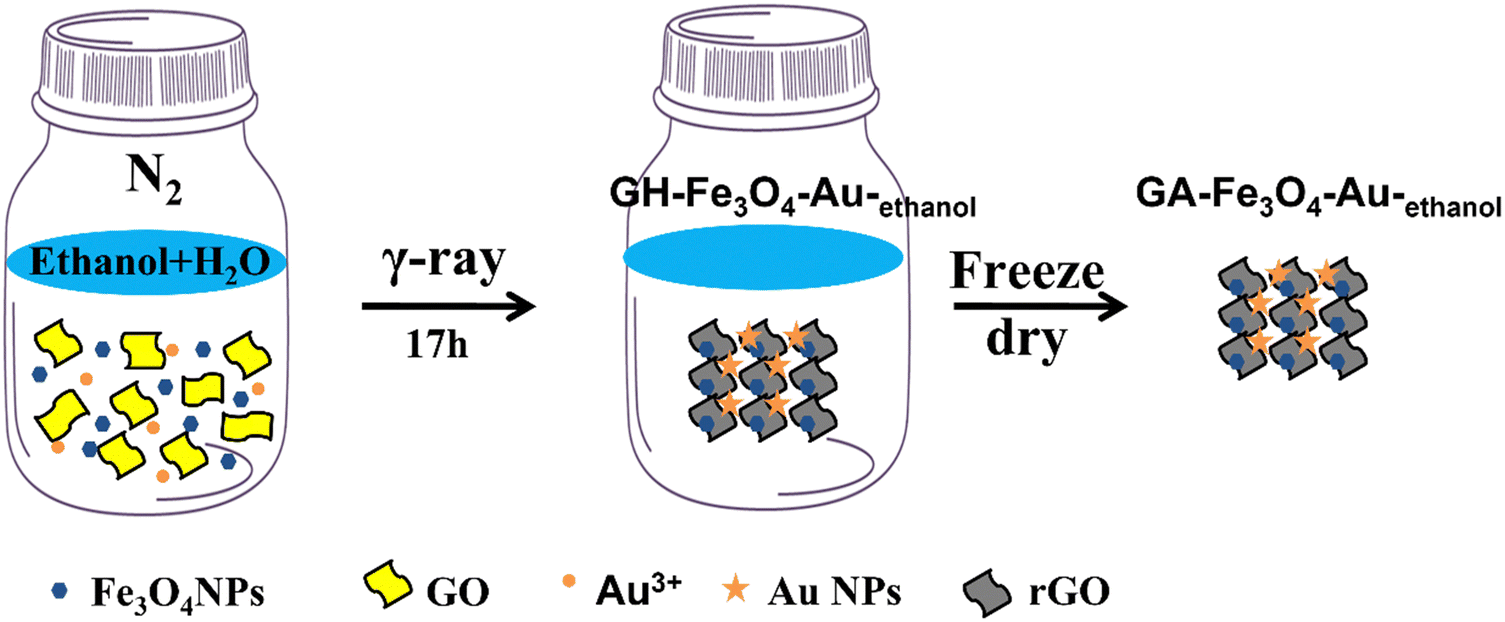

Fig. 1 Schematic illustration of the synthesis process of GA–Fe₃O₄–Au–_ethanol. In the figure, GO represents graphite oxide, GH represents graphene hydrogel, GA represents graphene aerogel, and rGO represents reduced graphite oxide.

2.3 Catalytic degradation of 4-NP

We measured the process of the composite catalysis experiment using a UV-VIS spectrometer, and the scanning wavelength range was 200–700 nm. During continuous stirring, 10 mg GA was added as a catalyst to the 4-NP (20 mL 0.5 mmol L⁻¹) solution, and then the newly prepared NaBH₄ aqueous solution (10 mL 0.5 mol L⁻¹) was quickly added to the above solution. All catalytic reactions were stirred in a 50 mL small beaker at a speed of 150 rpm. Then the reaction process was monitored using UV-VIS spectroscopy. The kinetic rate constant k of the first-order reaction can be calculated using the formula (1)C₀ is the initial concentration of 4-NP and C_t is the concentration of 4-NP in the reaction.

2.4 Adsorption of organic solvents

A certain mass of material (m_b) was weighed and placed in dodecane for a period to achieve adsorption equilibrium. The mass of material (m_a) was weighed after adsorption of organic solution. The formula (m_a − m_b)/m_a was used to calculate the adsorption capacity of the material. After that, the material adsorbed with the organic solution was dried. This step was repeated to test the cyclic adsorption capacity of the material.

2.5 Characterization of GA–Fe₃O₄–Au–_ethanol composites

The microstructure of GA–Fe₃O₄–Au–_ethanol composite aerogels was observed using a field emission scanning electron microscope (FESEM, JSM-6700F, JEOL, Ltd Tokyo, Japan) at an accelerating voltage of 5.0 kV. T. A high-resolution transmission electron microscope (HR-TEM; JEM-3000F, JEOL, Ltd) was used to observe the distribution of Fe₃O₄ NPs on graphene. The crystal structure of GA–Fe₃O₄–Au–_ethanol composites was measured using an X-ray diffractometer (XRD, Bruker D8, Germany) with a Cu-Ka radiation source (λ =1.54 Å) at 40 kV and 50 mA.

3. Results and discussion

3.1 Morphology of GA–Fe₃O₄–Au–_ethanol composites

It can be seen from Fig. 2a that the height of the composite is about 3.2 cm, the diameter of the bottom is about 2 cm, and the apparent morphology of the composite is similar to the appearance of the container used for preparation, which implies that the container used for preparation may directly affect the appearance of the prepared material. Therefore, it is expected that composites of any shape can be produced by controlling the shape of the container.

Fig. 2 (a) Appearance and dimensions of composite materials and the corresponding containers. (b) GA–Fe₃O₄–Au–_ethanol attracted by a magnet. (c) Surface topography of GA–Fe₃O₄–Au–_ethanol. (d) TEM image of GA–Fe₃O₄–Au–_ethanol. (e) Internal morphology of GA–Fe₃O₄–Au–_ethanol.

The composite was further analyzed using SEM. As shown in Fig. 2e, the material's interior has a porous network structure due to the mutual overlap and self-assembly of graphene oxide after reduction.¹⁶ At the same time, tiny particles can be seen attached at the edge of the porous channel, with a diameter of about 1 μm or less. It is preliminarily considered that they are Fe₃O₄ nanoparticles added to the material. Fig. 2c shows the outer surface of the composite material. It can be seen that its outer surface is relatively flat and doped with small particles. This is because the material's outer surface is in direct contact with the wall of the container used in the preparation process, which limits the assembly between graphene oxide sheets. Here, we also preliminarily believe that the tiny particles attached to the surface are Fe₃O₄ nanoparticles. Meanwhile, using magnets can easily attract materials, as shown in Fig. 2b. This also shows the successful introduction of Fe₃O₄ on the one hand. To further characterize the morphology of the material, the material was observed using a transmission electron microscope, as shown in Fig. 2d. It was found that the diameter of Au nanoparticles was 15–30 nm, and the Au nanoparticles were found to be evenly distributed on the graphene layer. At the same time, Fe₃O₄ with a diameter of about 60 nm was also observed. (Nano Fe₃O₄ exhibits a cubic crystal structure and its particle size is consistent with that of the iron tetroxide we purchased, with a particle size of 50–100 nm.) The above results further illustrate the successful preparation of the material.

3.2 FI-IR/XPS/XRD characterization

To determine the elemental composition of the material, X-ray photoelectron spectroscopy (XPS) measurements were carried out revealing the presence of C, Fe, O, and Au elements in GA–Fe₃O₄–Au–_ethanol as shown in Fig. 3a. Meanwhile, Fig. 3b shows the high-resolution XPS spectrum of Au 4f measured on the GA–Fe₃O₄–Au–_ethanol surface. The peak value of Au 4f_7/2 is 83.8 eV, indicating that gold does exist in the form of uncombined atoms.¹⁷ The above conclusion shows that the reduction of Au³⁺ can be achieved through radiation reduction, and the prepared composites contain Au⁰.

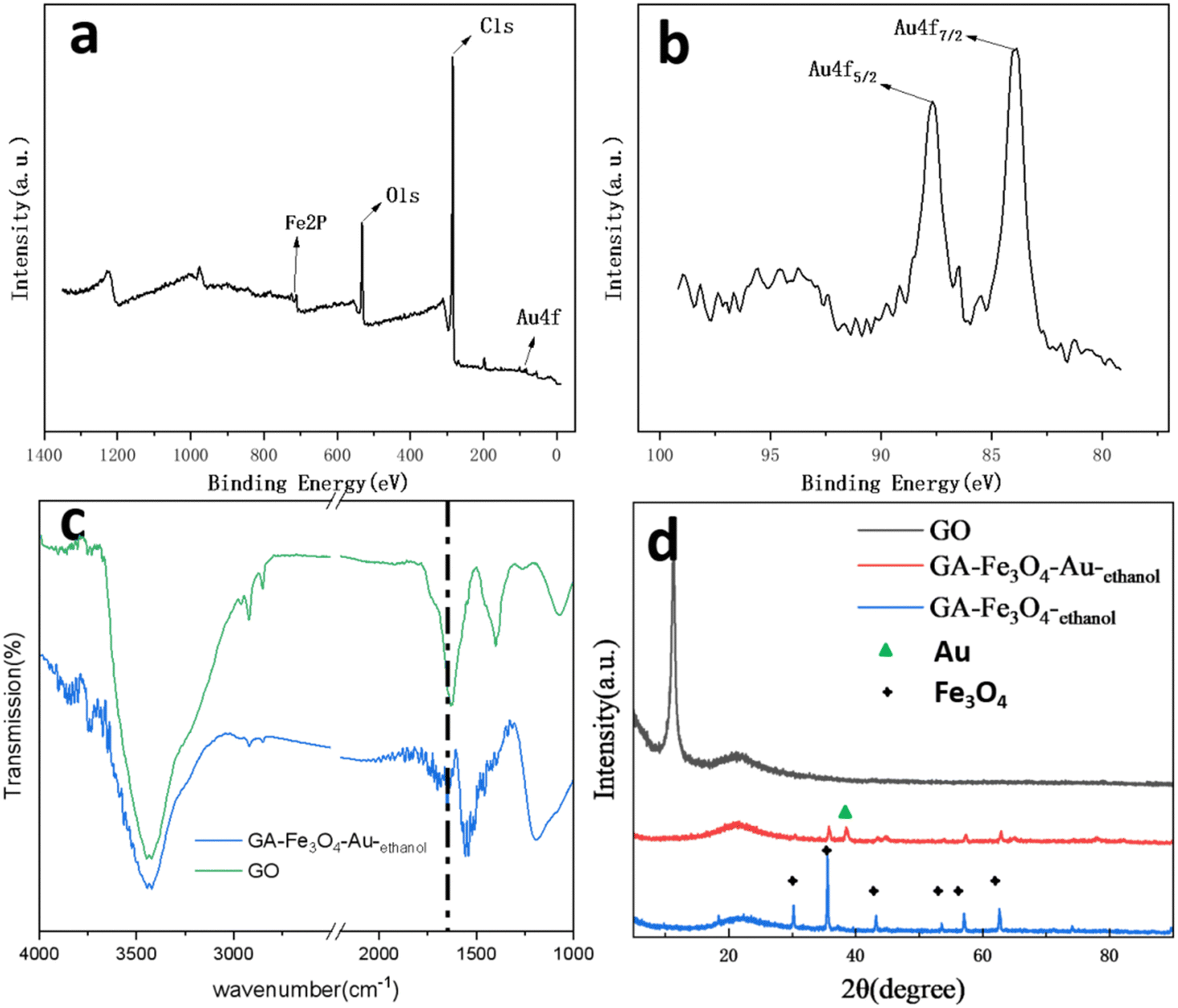

Fig. 3 (a) XPS survey spectrum of GA–Fe₃O₄–Au–_ethanol (b) the Au 4f high resolution XPS spectrum of GA–Fe₃O₄–Au–_ethanol. (c) FT-IR spectra of GA and GA–Fe₃O₄–Au–_ethanol. (d) XRD spectra of GA–Fe₃O₄–Au–_ethanol, GA–Fe₃O₄–_ethanol, and GO.

As shown in Fig. 3c, the bands at 1632 cm⁻¹ in the GA–Fe₃O₄–Au–_ethanol spectrum are attributed to the stretching vibrations of C=O in the quinone-like structure.¹⁸ Compared with the original GO spectrum, the intensity of the peak at about 1632 cm⁻¹ is reduced, indicating that graphene oxide has been reduced. The characteristic vibration peaks of GO are the broad and intense peak of O–H groups centered at 3400 cm⁻¹, the strong C=O peak at about 1735 cm⁻¹, the O–H deformation peak at about 1400 cm⁻¹, the C–OH stretching peak at about 1256 cm⁻¹, and the C–O stretching peak at about 1080 cm⁻¹.¹⁹ The reduction of graphene oxide can also be explained by the reduction of the carboxyl peak located at about 1735 cm⁻¹.

The XRD spectra of GA–Fe₃O₄–Au–_ethanol are shown in Fig. 3d, and are compared with the XRD spectrum of graphene oxide. It can be found that the characteristic peaks belonging to GO disappear at about 12°, and a broad peak belonging to graphite appears at about 23° due to the removal of oxygen-containing functional groups. The peak at 23° is assigned to the (002) crystal plane of graphite, confirming the formation of rGO sheets. And the broad rise of the peak was caused by the disordered stack of rGO sheets and structural defects.²⁰ Compared with the XRD spectrum of GA–Fe₃O₄–ethanol, the X-ray diffraction patterns of both composites show five sharp peaks at approximately 30.43°, 35.75°, 43.36°, 57.29° and 62.87°, which represent different crystal planes of Fe₃O₄, suggesting the successful incorporation of Fe₃O₄ nanoparticles. At the same time, compared with GA–Fe₃O₄–ethanol composites, it is found that there are distinctive diffraction peaks at 2θ = 38.5°, which belong to the (1 1 1) planes of the cubic phase of Au.²¹ It shows that radiation reduction successfully introduces Au nanoparticles into the composites.

3.3 Vibrating sample magnetometry (VSM) characterization

The magnetic properties of the GA–Fe₃O₄–Au–_ethanol composite were studied using VSM. Fig. 4 shows the hysteresis loop of the composite obtained by applying an external field between −2 and 2 T at room temperature. The magnetization curve reveals that the composite exhibits superparamagnetic properties at room temperature, without remanence or coercivity.²² Superparamagnetism refers to the characteristic of being responsive to an applied magnetic field but not retaining any magnetism after removal of the field. The composite's superparamagnetic properties can prevent the formation of aggregates caused by residual magnetism after the external field is removed.

Fig. 4 M–H curve of the GA–Fe₃O₄–Au–_ethanol composite at room temperature.

3.4 Analysis of catalytic reduction of 4-NP

Using c = 0.5 mol mL⁻¹ NaBH₄ as a reducing agent, 4-NP with a concentration of c = 0.5 mmol mL⁻¹ was catalytically reduced. The process diagram of the catalytic reaction is shown in Fig. 5a. The solution becomes transparent as the reaction proceeds. As a model reaction, the catalytic reaction was easy to study using the UV-VIS spectrum as shown in Fig. 5b–d. The absorption peaks at 400 and 300 nm correspond to 4-NP and 4-AP(Fig. 5b), respectively. In the UV-VIS Spectrum, the decrease of the absorption peak at 400 nm and the increase of the absorption peak at 300 nm indicate that 4-AP is generated. That is, the catalytic reaction is in progress. The disappearance of the characteristic peak at 400 nm represents the full completion of the catalytic reaction. The catalytic efficiency is further improved by the increased loading of AuNPs in GA materials. The corresponding ln(C_t/C₀) versus the time curve at 400 nm is shown in Fig. 5d, and shows that the kinetic reaction constants are 0.12 min⁻¹, 0.12 min⁻¹, and 0.25 min⁻¹, respectively. Compared with other literature reports, such as Xiong, LL, etc., our work only uses 0.02 mM metal nanoparticles to achieve a similar catalytic effect.²³ Compared to what Zhang, RF et al. reported, our work achieved faster degradation of 4-NP, completing the catalytic degradation of 4-NP in less than 20 minutes.²⁴ It can be seen that GA–Fe₃O₄–Au–_ethanol shows excellent performance for the catalytic reduction of 4-NP, following pseudo-first-order kinetics and, what is more, the apparent rate constant depended linearly on the concentration of Au NPs present in the composite.

Fig. 5 (a) The color of the solution changes with the progress of the catalytic reaction (0.4 mg mL⁻¹ GA–Fe₃O₄–Au–_ethanol was used).(b–d) UV-VIS spectrum of GA–Fe₃O₄–Au–_ethanol for catalytic degradation of 4-NP. (e) The corresponding ln(C_t/C₀) versus time curve.

3.5 Organic dye adsorption

As the graphene sheet has the potential ability to adsorb organic dye solution, we tested the ability of the composite to adsorb organic dye solution. As shown in Fig. 6b, a certain quantity of the composite was added to a specific concentration of methylene blue solution and kept for a while until the adsorption reaches equilibrium (it takes 12 h to reach adsorption equilibrium). UV-VIS spectrometry was used to characterize a particular volume of the adsorbed dye solution. It was found that the composite has a specific ability to adsorb methylene blue. We also carried out the same experiment on the adsorption of rhodamine using the composite, as shown in Fig. 6c. The results show that the composite also has a particular ability to adsorb rhodamine. The change before and after the adsorption of organic dye solution is not evident through direct observation with the naked eye, which may be caused by too few composite materials and too high a concentration of the organic dye solution.

Fig. 6 (a) UV-VIS spectra of 4-NP adsorbed by GA–Fe₃O₄–Au–_ethanol. (b) UV-VIS spectra of methylene blue adsorbed by GA–Fe₃O₄–Au–_ethanol. (c) UV-VIS spectra of rhodamine adsorbed by GA–Fe₃O₄–Au–_ethanol.

At the same time, the adsorption capacity of the material for 4-NP was also tested, as shown in Fig. 6a. It was found that the material had a specific adsorption capacity to 4-NP, and the material reached adsorption equilibrium in 3 h. This result shows that the material can adsorb a certain amount of 4-NP in the experiment of catalytic degradation of 4-NP. Still, the amount of adsorption must be increased to make the reaction system clear and transparent. The clarification of the solution after the reaction is due to the occurrence of a substantial catalytic response rather than simple adsorption. The adsorption of 4-NP on the materials is also conducive to the enrichment of 4-NP, which makes the catalytic reaction rate faster.

3.6 Adsorption of organic solution

The adsorption evaporation curve of the material for cyclic adsorption of n-dodecane is shown in Fig. 7. It can be seen that the material can adsorb n-dodecane with a maximum mass of about 50 times its own and maintain good adsorption stability in recycling adsorption. Compared to the GA–Fe₃O₄–Au–_ethanol materials prepared previously,²⁵ it was found that the introduction of AuNPs did not adversely affect the adsorption capacity of the materials.

Fig. 7 (a) Cyclic adsorption of n-dodecane by materials (b and c) Schematic diagram of dodecane dyed with oil red adsorbed by materials.

3.7 BET analysis

By employing BET analysis, we have analyzed the pore structure of the material, and the test results, as depicted in Fig. 8, reveal that the material possesses a fairly large specific surface area of about 78.79 m² g⁻¹, with an average pore size of 12.58 nm. This is advantageous for the application of the material in the field of catalysis, as the high specific surface area offers more abundant catalytic binding sites. From the desorption isotherm, it can be inferred that initially, adsorbed molecules tend to aggregate around the most attractive sites on the surface. As the adsorption progresses, a self-accelerating phenomenon emerges. The observed type III adsorption isotherm suggests that the material at hand is macroporous. The adsorption–desorption isotherm curve for nitrogen displays a H3 hysteresis loop, without any conspicuous saturated adsorption platform, indicating an irregular pore structure. The H3-type hysteresis loop stems from flake-particle materials and cracked pore materials, which can be deemed as slit pores formed by the accumulation of flake particles, and does not exhibit adsorption saturation in the higher relative pressure region. One can infer from the aperture distribution that the material has commonly present pores smaller than 10 nm, which may be attributed to the release and extrusion of nanoparticles from graphene layers during preparation.

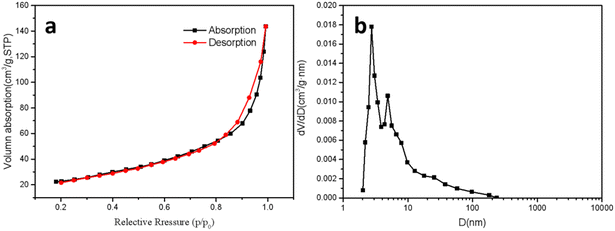

Fig. 8 (a) Isothermal nitrogen adsorption and desorption curve of GA–Fe₃O₄–Au–_ethanol. (b) Aperture distribution curve of GA–Fe₃O₄–Au–_ethanol.

4. Conclusion

By utilizing radiation reduction technology, the Au nanoparticles were successfully combined with reduced graphene oxide and ferroferric oxide was introduced into the composite. GA–Fe₃O₄–Au–_ethanol composites that magnets can attract are synthesized effectively and simply using a one-step method. It is found that the composite can be used as a catalyst to degrade the pollutant 4-NP effectively. Its catalytic performance is linear with the concentration of AuNPs in the composite, and the catalysis follows the pseudo-first-order kinetics. At the same time, the adsorption capacity of the composite for organic dye solution is also explored. It is found that the composite has a specific adsorption capacity for organic dye solution.
