Kraft lignin (KL) was treated by employing mild oxidation conditions enhanced by ultrasound irradiation (US) for obtaining more functionalized particles, avoiding the undesired side reactions of degradation and depolymerization. The aim was to obtain products with plausible value for applications with a greater potential market, enabling the introduction of low-cost bio-based materials for technically advanced applications. In the present work, KL was oxidized in alkaline media, applying low temperatures (30–60 °C), short times (15 to 60 min), and US waves (20 kHz). The influence of incorporating hydrogen peroxide (H2O2) as an oxidizing agent was also studied, as well as the chemical composition, physicochemical, thermal, and morphological properties of the final lignin particles. It was observed from Quantitative Acid Hydrolysis (QAH), Elemental Analysis (EA), and molecular weights (Mw) that oxidized lignin particles (OxL) did not suffer any major degradation. Other techniques used to determine physicochemical properties, such as Fourier Transformed Infrared (FTIR), 31 Phosphorous Nuclear Magnetic Resonance (31P NMR), or Ultraviolet–visible (UV-vis) methods, corroborated oxidation reactions, evident by the increment of carboxylic groups. The most noticeable difference, however, was observed when the stability and morphology of the particles were observed by Dynamic Light Scattering (DLS) and Transmission Electron Microscopy (TEM). Some conditions greatly promoted the formation of more stable and nanosized particles. The best conditions were the mildest but with the highest reaction times (no addition of H2O2, 30 °C and 60 minutes). Moreover, all reactions had good recovery yields, above 70% of the original lignin.
Conversely, oxidative fractionation of lignin into dicarboxylic acids (DCAs) like muconic, maleic, and succinic acids can substitute the currently used.24 Lastly, the other family of compounds that can be obtained from the oxidation of lignin is the oxidized derivatives of aromatic compounds, also known as quinones. These molecules are interesting because they can act as catalysts in Kraft processes to enhance the performance of the pulping process and as redox-active organic molecules, plausible to replace the redox-active metals presently used in energy storage, leading to the incorporation of a biomass-derived and inexpensive material.25
An extended amount of work investigating lignin oxidation is based on incorporating and utilizing different chemical catalysts (homogeneous and heterogeneous). A wide variety of compounds have been used as catalyzing agents, starting from the most common metallic ones (like Cu26) to TiO2 doped with bimetals like Cu–Au or Fe–Au,27 as well as KOH28 or KOtBu.29 These catalytic agents have been widely used along with other oxidating agents like H2O2, an extensively used bleaching agent in the paper industry.30 A weak acid dissociates into a strong nucleophile perhydroxyl anion (HOO−), attacking electron-deficient functional groups like carbonyl groups and enabling lignin degradation into phenolic compounds.31 It is highly susceptible to decomposition reactions, especially when high temperatures and pH are used.30 It has been reported to be able to react with phenols on lignin, forming phenoxy radicals that later degrade to low molecular weight compounds. Nevertheless, these reactions happen when metals are added or pH is kept at similar values to the pKa of the peroxide (11.7). Minor degradation reactions can still happen at milder conditions than explained, with primary reaction products from phenolic structures (primarily quinones) as yields.32
US irradiation is based on acoustic cavitation. Liquids irradiated in the correct conditions create, expand, and collapse vapor bubbles capable of inducing the formation of radicals by the cavitation effect.33 This cavitation effect is formed by the implosion of the bubbles, which create localized high pressures and temperatures while the overall liquid maintains a controlled temperature. The US has been mainly used in biorefinery processes to enhance delignification processes, increasing extraction yields and purity. However, more recently, it has been observed that this technology can synthesize lignin nanoparticles, similar to the formation of nanocellulose and nanochitosan entities.34 When lignin is subjected to ultrasonic forces, its molecule considerably reduces its size since the molecular bonds present in the structure are broken down by the energy applied in the form of cavitation effect.35 Consequently, spherical nanolignins of diameters around 100 nm can be obtained and physically prevented from re-attaching themselves to avoid their reorganization in bigger molecules, as stated before by Gilca et al. and Mishra et al.34,36
This work aims to produce oxidized lignin nanoparticles, highly functionalized and with great surface area and potential to be incorporated in a varied application range. The designed route to obtain this objective was defined based on the oxidation of Kraft lignin in mild conditions with the combined action of an oxidating agent (H2O2) and ultrasonic cavitation in an innovative integrated mechanism not tested before. This procedure may therefore enhance a way for obtaining primary reaction products from the phenolic structures present in lignin without reaching the most widely explored path until the present day, which are low molecular weight redox-active compounds like quinones, widely investigated materials for diverse applications ranging from biologic applications due to their immunotoxic, cytotoxic, and carcinogenic properties,37 to electrochemical applications in different types of batteries (redox-flow batteries,38 and zinc39 or sodium ion batteries40). Moreover, the obtention of nanosized particles, with an increased ratio of surface to volume, has improved properties, opening new possibilities for the lignin incorporation in a wider range of applications like cosmetics,41 polymer nanocomposites with enhanced mechanical properties, or even energy storage materials.42
E = P·t | (1) |
The yields obtained, shown in Fig. 1 and listed in Table S3,† are similar for most of the samples, which means that the product loss is due to the different stages of the process, such as precipitation, centrifugation, and filtration. Even though a considerable amount was lost (around 25%), optimizing the recovery stages could easily reduce this value. In terms of energy delivered to the system, visible in Fig. 1, the tendency followed was linear with time. H2O2 addition significantly affected the pH variation during the reaction, considerably decreasing the value due to the acidic nature of the compound and its disassociation into HOO−. In the experiments where peroxide was not added, the pH remained almost constant; however, its addition decreased pH values. It is observable that the increase in sonication time favored the dissociation of H2O2 at medium and high temperatures since the pH decreased considerably more than at low temperatures.

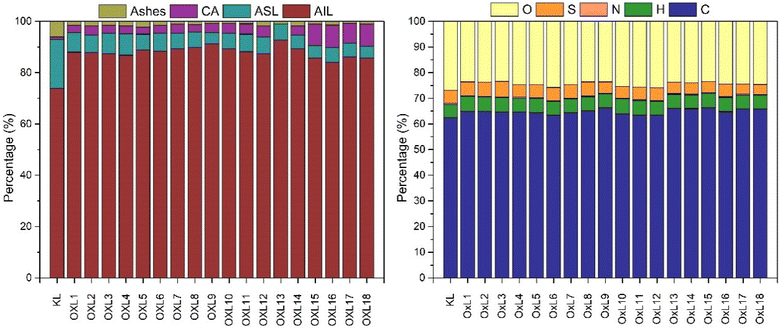

Fig. 2 Chemical composition (left) and elemental composition (right) of KL and the oxidized samples. |
The results obtained from the Elemental Analysis are illustrated in Fig. 2 (right), and values are listed in Table S5.† Carbon, hydrogen, nitrogen, oxygen, and sulfur content were determined, useful to deduce how external functional groups to lignin (HOO− from the peroxide or SO42− from the sulphuric acid used for precipitation) adhere to the samples depending on the reaction conditions. KL is primarily composed of carbon (62.44 ± 0.38%); however, carbon content increased with the sonochemical oxidation, reaching up to 66.41 ± 0.76% in the case of OxL9. The second most abundant element in lignin biopolymers is oxygen, with values around 25%. KL was the sample with the highest O content, with 26.98 ± 0.54%, while most of the oxidized lignins had around 23–24%, the least being the OxL3 with 23.41 ± 0.28%. However, this does not necessarily mean that KL is the sample with the highest functionality. Lignin macromolecules are formed by crosslinking monolignols through several linkages, ether bonds being the most common. Therefore, the high amount of O can be related to the high amount of ether groups rather than hydroxyl or carbonyl.43 In terms of hydrogen, it increased with the reaction time, with the set point at 5.20 ± 0.02% and reaching values of 5.69 ± 0.19%; the same trend followed throughout the samples.
Regarding S content, KL contains 5.07 ± 0.16%, increasing to 6.08 ± 0.05% in the case of OxL3 and decreasing to 3.93 ± 0.11% in the case of OxL18. This might be influenced by the temperature in which the reaction occurred, contributing to the pH change. In the case of the lowest temperature conditions (30 °C), the lignins obtained have higher S content and lower O content than the ones compared with the samples obtained at the highest temperature conditions (60 °C). This also concurs with the pH change and, consequently, the dissociation of H2O2 to HOO−. The samples obtained at 30 °C had fewer HOO− ions to associate with, so when precipitated with H2SO4, they had more active sites for the adhesion of S atoms. Conversely, the samples obtained at 60 °C had a higher content of HOO− ions, promoting their attachment before the precipitation with H2SO4. Finally, the N content did not fluctuate in the process, which is insignificant, to the point where it could be considered N-free. This parameter, however, is determined by the nature of the raw material rather than by the process.44
M n (g mol−1) | M w (g mol−1) | Đ M | |
---|---|---|---|
KL | 856 | 2590 | 3.0 |
OxL1 | 828 | 2497 | 3.0 |
OxL2 | 852 | 2532 | 3.0 |
OxL3 | 849 | 2595 | 3.1 |
OxL4 | 851 | 2608 | 3.1 |
OxL5 | 871 | 2690 | 3.1 |
OxL6 | 901 | 2887 | 3.2 |
OxL7 | 860 | 2583 | 3.0 |
OxL8 | 876 | 2678 | 3.1 |
OxL9 | 1029 | 3580 | 3.5 |
OxL10 | 964 | 3204 | 3.3 |
OxL11 | 898 | 2821 | 3.1 |
OxL12 | 930 | 3002 | 3.2 |
OxL13 | 933 | 3071 | 3.3 |
OxL14 | 1003 | 3549 | 3.5 |
OxL15 | 1005 | 3549 | 3.5 |
OxL16 | 897 | 2774 | 3.1 |
OxL17 | 933 | 3168 | 3.4 |
OxL18 | 945 | 3348 | 3.5 |
In terms of polydispersity, the changes were not substantial. A similar phenomenon attributed to the change in Mw could be applied, where mild conditions in the reaction did not affect the molecular composition. In contrast, the higher conditions created new molecular structures due to bond cleavages and recondensation, increasing the general heterogeneity. Still, the increase in ĐM can be considered neglectable.
The FTIR spectra are illustrated in Fig. S4,† and the assignments for each frequency range are listed in Table S6.† Structural features and functional groups of the lignins can be observed. The broad bands obtained at 3400 cm−1 are attributed to O–H stretching in aliphatic and phenolic hydroxyl groups. This band intensified in all the oxidized samples, meaning the OH content increased during the process. CO stretching, attributed to bands at 1708 cm−1, also increased, more clearly seen in a close-up look in Fig. S5.†
On the other hand, aromatic skeletal vibration bands at 1610 cm−1 slightly decreased their intensity with the oxidation reactions, along with the bands at 1329 cm−1 and 1217 cm−1, attributed to S ring and G ring stretching. This means that a mild decomposition happened in lignin due to aromatic cleavage. Moreover, the decrease in intensity of the bands at 1150 cm−1 implies a decrease in aliphatic ether groups. Consequently, aromatic rings and aliphatic ether bonds cleaved increased carboxylic and hydroxyl groups, especially for samples reacted for extended times and low temperatures (30 °C, OxL3) and medium times for medium temperatures (45 °C, OxL8, and OxL11), either with or without the addition of hydrogen peroxide. At high temperatures (60 °C), the lack of H2O2 favored the process, and short and long periods were the ones exhibiting the most differences (OxL13 and OxL15).45
The amount of OH mmol quantified by the Folin–Ciocalteu method is illustrated in Fig. S6.† Overall, the total phenolic content decreased. As seen from the FTIR, aromatic rings suffered cleavage, causing degradation of the phenolic compounds of lignin and forming quinones.46 The more the TPC decreases, the harsher the oxidation conditions and the more degradation occur. Since these conditions are kept mild, and the QAH analysis corroborates that a considerably low amount of CA is obtained, it is evident that although lignin reacts, the reactions finish before high degradation of lignin occurs, ensuring the preservation of its integrity throughout the process. The fluctuation in the TPC did not follow any linearity with the increase in time.
In some cases, shorter times favored the increment of TPC, while in other times, specifically when temperatures were also higher, longer times led to molecules with more OH groups. At short times (15 min), the temperature increase aggravated its loss, showing a linear trend (a decrease from 0.013 mmol g−1 at 30 °C, to 0.095 mmol g−1 at 45 °C, to 0.009 mmol g−1 at 60 °C). When H2O2 was added, the trend followed was similar; OH concentration decreased inversely proportionally with time. Medium times were the optimum at medium temperatures, while long times had the best results at high temperatures.
This could be because low temperatures do not allow breaking aromatic rings, and substituting aliphatic and phenolic OH groups does not require extended time. On the other hand, because the increase in temperature aggravates the reaction conditions, short times are sufficient for partial lignin aromatic ring cleavage, and new functional groups like hydroxyl groups are created. However, longer times tend to repolymerize, again decreasing the OH content, as condensation reactions happen in this functional group. UV absorption bands were also recorded from 400 to 260 nm, illustrated in Fig. S6.† The absorption peaks at 280 nm correspond to non-conjugated OH groups, while values at 315 nm correspond to the conjugated OH groups. Samples obtained at low temperatures follow the same trend as in TPC, where longer times reduce the OH content the most, both conjugated and non-conjugated. All samples reduced their content in conjugated and non-conjugated OH groups, although this change was irrelevant. Nevertheless, medium temperatures were the ones that reduced the quantity of these functional groups most, while high temperatures were the ones that reduced the least and the most similar, albeit changing time and adding H2O2.
Different OH groups in lignin were identified and quantitatively determined by 31P NMR spectroscopy. Peaks associated with aliphatic OH, C5-substituted OH, guaiacyl OH, p-hydroxyphenyl OH, and carboxylic acid OH were integrated and compared with the integration value obtained for the internal standard (NHND) to get mmol g−1 lignin concentration values. Besides, S/G ratios were also obtained. The results are listed in Table 2, and the spectra are represented in Fig. S7.† All samples lacked from H unit due to the hardwood origin of the Kraft lignin; overall, an increase in OH content can be observed for all the treated samples. The increase in hydroxyl content indicates that the conditions used are not strong enough for condensation or depolymerization reactions, which validates these conditions as suitable for the oxidation of lignin. Ultrasonic forces fragment the condensed structures. Therefore, S and G units free themselves from the macromolecule, regaining the OH group from which condensation occurred. Since the C5 of the aromatic ring is free in G units, their reactivity is higher and easier to condense. Consequently, G units are more abundant in condensed structures, and when fractioned, the released units are also G units.47
Aliphatic OH | C5-substituted (S) OH | Guaiacyl (G) OH | p-Hydroxyphenyl (H) OH | Carboxylic acid OH | Total phenolic OH | S/G ratio | |
---|---|---|---|---|---|---|---|
KL | 0.05 | 0.18 | 0.06 | — | 0.04 | 0.24 | 3.17 |
OxL1 | 0.06 | 0.21 | 0.07 | — | 0.03 | 0.28 | 2.86 |
OxL2 | 0.06 | 0.20 | 0.07 | — | 0.03 | 0.27 | 2.86 |
OxL3 | 0.07 | 0.25 | 0.09 | — | 0.03 | 0.34 | 2.89 |
OxL9 | 0.06 | 0.20 | 0.06 | — | 0.04 | 0.26 | 3.08 |
OxL16 | 0.06 | 0.20 | 0.07 | — | 0.03 | 0.27 | 2.83 |
OxL17 | 0.06 | 0.21 | 0.07 | — | 0.04 | 0.28 | 2.88 |
OxL18 | 0.04 | 0.20 | 0.07 | — | 0.01 | 0.27 | 2.67 |
Total phenolic hydroxyl content increased in all treated samples. The lowest temperatures without adding hydrogen peroxide were even more efficient for an increment in phenolic OH content (OxL1 and OxL2), where the most extended times were most effective (OxL3). OxL3 obtained the optimal results, with the highest OH content, both aliphatic and phenolic. This differs from the results obtained from the Folin–Ciocalteu method, where longer times led to less TPC at the lowest T.
The efficiency in medium and high temperatures, with the addition of H2O2, was not so satisfactory, meaning the harsher conditions did not positively influence the results (OxL9 and OxL18). Low and medium times, nevertheless, showed better results in the harshest conditions (OxL16 and OxL17) than longer times (OxL18). However, once again, these results are not in concordance with the ones obtained with those obtained with the Folin method since the TPC measured had medium values with sample OxL9, and an increase could be observed with the increment with time when the harshest conditions were applied (60 °C and H2O2).
Aliphatic OH groups also increased in all samples except for OxL18, which decreased due to condensation. Aliphatic hydroxyl groups are more reactive than phenolic hydroxyl groups,47 meaning that these conditions might be where condensation reactions start instead of oxidation. In carboxylic acid OH groups, a clear tendency could not be observed; although medium conditions like low temperature and medium time (OxL2) and high temperature and low time (OxL16) obtained less COOH content, harsher conditions favored the appearance of more groups. Nevertheless, OxL18 was the sample with the considerably lowest COOH content, following the same mechanism that caused the reduction of the aliphatic content.
In terms of the S/G ratio, all treated samples reduced their S/G ratio, meaning that the quantity of G units increased more than S units. OxL18 was the one that obtained the smallest ratio, but observing the individual concentrations of G and S OH, OxL3 was the most effective in increasing both S and G units, considerably increasing the value of S OH mmol, the hardest compound to react, while using low temperatures with no addition of oxidizing agent. This matches with the results obtained in FTIR spectra, where the band intensity at 1150 cm−1 decreased, presuming the cleavage of aliphatic ether bonds and increasing CO and OH groups. This happened at low temperatures and without the addition of hydrogen peroxide because ultrasound irradiation is efficient at low temperatures, enabling the oxidation of lignin without further undesired phenomena like agglomeration, depolymerization, and degradation. The quantity of oxidized functional groups increased with the prolongation of the reaction time, whereas the conditions were too mild for the occurrence of further reactions. When heat and H2O2 are supplied, these other reactions start, exceeding the oxidation step intended and leading to obtaining degraded samples.
DTGA curves depict the different degradation stages happening at different temperatures. The first degradation stages happening below 150 °C are due to moisture loss. The second degradation stage happens between 200 and 300 °C, corresponding to the degradation of polysaccharides and aliphatic alcohols and acids. Finally, aromatic ring cleavage and degradation of syringyl and guaiacyl units into phenolic compounds happen at temperatures above 300 °C.48,49
The first degradation step is due to the moisture loss of the sample, happening at 50–60 °C in all cases. The second significant mass loss happened around 200 and 300 °C, with minor degradation. In this step, small molecules were degraded, while the main part of the lignin sample was lost between 350 and 460 °C. Finally, a few samples had residual matter, which degraded at around 700 °C. OxL4 and OxL15 have the highest thermal stability, while OxL1, OxL8, and OxL16 have the lowest. This might be due to the condensed structures being more considerable in the first ones and scarcer in the last ones. The main degradation temperatures were also higher for samples OxL4 and OxL15, while KL and OxL5 had the lowest.
Differential Scanning Calorimetry (DSC) curves can be seen in Fig. S9,† and the Tg-s obtained are listed in Table S7.† It can be observed that values ranged around 116–118 °C or around 97 °C. This fluctuation of Tg values can be related to the heterogeneous nature of lignin samples since a correlation between Tg and ĐM was noticed. KL and other oxidized samples maintained a similar polydispersity value, around 3.0–3.3, while samples OxL9, OxL14, OxL15, OxL17, and OxL18 have a ĐM value of 3.4–3.5. This small increase in ĐM entailed a reduction of the Tg of almost 20 °C, detrimental to the rigidity when temperatures reach that Tg value.
Fig. 3 Stability of lignin particles. Z potential (mV), conductivity (mS cm−1), size average (nm), and dispersity index (from left to right and top to bottom). |
There was not a visible correlation between ZP and size average. Nevertheless, the smallest particles, OxL3 and OxL18, had the highest conductivity values, almost doubling the values of the other samples. These two samples had the longest reaction times, contributing to higher H content, probably due to the formation of hydroxyl groups that improve stability. Overall, regarding morphological properties, OxL3 is the sample with the best results since it has the highest ZP, highest conductivity, smallest size, and lowest dispersity index.
Selected lignin particles were dispersed in water at a concentration of 0.1 wt% and prepared for TEM analysis. The images obtained at a 500 nm scale and negative contrast are shown in Fig. 4, and aggregate particle types and average particle size values are listed in Table S8.† It should be mentioned that the size values obtained from DLS and TEM differ due to the nature of the analyses. The first is measured by dispersing samples in a liquid media and measuring the light scattering of dispersed bodies, while the latter is dried and just particles are imaged. Therefore, size values obtained from DLS are higher, but a similar trend in the values change can be observed from both.
Images obtained by TEM display that the reaction reduced the sizes and influenced the dispersion, aggregation, and agglomeration of the lignin particles. KL particles had considerably bigger diameters than the sonochemically oxidized samples, which demonstrated the influence of the process on the final particles when times were medium or high. The average particle size of OxL1 and OxL16 maintained quite similar to the value of KL, obtaining particles with diameters ranging from 125–150 nm, regardless addition of H2O2 and T. With the increase of t at low temperatures (OxL2 and OxL3), a drastic reduction of size could be observed, where 25 nm sized particles were measured. A decrease was also observed with time in the case of OxL17 and OxL18, but the particles obtained did not reduce so drastically. Medium T and long t were also effective for the obtention of nanolignin (OxL9) since the smallest particles quantified by this technique were these. Another interesting parameter observable by this technique is the variability of the tendency to create particle clusters. KL particles were tightly bound, creating agglomerations. These clusters reduced significantly even with the mildest reaction conditions (30 °C during 15 min), as can be observed in the image of OxL1, where the particle size is much smaller, and the agglomerates are minor. When the reaction time increased to 30 min (sample OxL2), particles switched from being tightly bound to slightly bound, creating agglomerations instead of aggregates.50 This means that the interactions with the highest force were broken and substituted by others with lighter force. When time increased to 60 min, particle–particle forces were hardly noticeable, mostly finding free particles (OxL3). Agglomerations reoccurred when the temperature increased to 45 °C while maintaining the longest time (OxL9). This phenomenon magnified significantly when the temperature increased to 60 °C while maintaining the one-hour reaction time (OxL18). It can be concluded that reaction time influences more the agglomeration formation than the reaction temperature, as the samples obtained at 60 °C after 15 and 30 min (OxL16 and OxL17, respectively) were loose molecules with no visible particle–particle interactions. Moreover, the addition of H2O2 has no apparent effect on it either. It has also been established that the particles with higher molecular weights have smaller particle sizes51 since they initiate the nucleation in the lignin precipitation and have a more hydrophobic nature. The lack of small Mw lignins means that they will not coat the larger molecules, as they are the ones that precipitate subsequently.52
The current work experiments were carried out at three different times (15, 30, and 60 min). Other conditions like T and [H2O2] did not considerably affect the Es of each experiment, as seen in Fig. 1. Experiments with 15 min of duration consumed overall around 50 kJ, while the ones with 30 and 60 min consumed around 75 and 250 kJ, respectively. The volume of the solutions prepared and sonicated was 60 mL for all of them. Therefore, 800, 1250, and 4170 kJ L−1 were consumed for 15, 30, and 60 min treatments.
In terms of overall sustainability, there have been works where certain metrics have been applied to consider processes as green.4 Generally speaking, the proposed process complies with this category, due to the utilization of waste derived from the paper and pulp industry, with no conflicting interests with alimentary products, and with the implementation of ultrasonic cavitations. Moreover, this work has concluded that adding peroxide as an oxidating agent has detrimental effects, and no other catalyst compounds have been added, easing the posterior processing of the obtained waste or side products of the designed process.
Sample | [H2O2] (eq) | T (°C) | t (min) |
---|---|---|---|
KL | — | — | — |
OxL1 | 0 | 30 | 15 |
OxL2 | 0 | 30 | 30 |
OxL3 | 0 | 30 | 60 |
OxL4 | 0.1 | 30 | 15 |
OxL5 | 0.1 | 30 | 30 |
OxL6 | 0.1 | 30 | 60 |
OxL7 | 0 | 45 | 15 |
OxL8 | 0 | 45 | 30 |
OxL9 | 0 | 45 | 60 |
OxL10 | 0.1 | 45 | 15 |
OxL11 | 0.1 | 45 | 30 |
OxL12 | 0.1 | 45 | 60 |
OxL13 | 0 | 60 | 15 |
OxL14 | 0 | 60 | 30 |
OxL15 | 0 | 60 | 60 |
OxL16 | 0.1 | 60 | 15 |
OxL17 | 0.1 | 60 | 30 |
OxL18 | 0.1 | 60 | 60 |
Fourier-transformed Infrared (FTIR) spectra were recorded in FT/IR-4700 Spectrometer (Jasco). The wavenumber range was defined from 4000 to 400 cm−1, with a resolution of 4 cm−1 and 64 scans.58
The spectrophotometric method of Folin–Ciocalteu was used to determine the total phenolic content (TPC) of the oxidized lignins. Solutions were prepared as followed: 0.5 mL of 2 g L−1 of lignin dissolved in DMSO, 5 mL of Folin–Ciocalteu reagent, and 2.5 mL of 200 g L−1 of Na2CO3 dissolved in water were added in 50 mL flasks and filled with distilled water until the indicated volume. Flasks were covered to avoid undesired reactions with light and immersed in a water bath at 40 °C for 30 minutes. Absorbance values were recorded at 715 nm of wavelengths right after the reaction in a V-730 spectrophotometer (Jasco). The same procedure was followed for the calibration curve measurements, where gallic acid solutions ranging from 1000 to 100 mg L−1 were prepared and used in the solutions with the Folin–Ciocalteu reagent. Absorbance values were recorded, and a calibration curve was calculated.59
The UV-vis spectrophotometer was also used to determine the conjugated and non-conjugated OH groups of the samples. ≈5 mg of the lignin sample was dissolved in 10 mL of dioxane:H2O (95:5 v/v%). Once the sample was completely solubilized, 1 mL of the solution was diluted in 9 mL of dioxane:H2O (50:50 v/v%), and the absorbance bands of these last sample solutions were recorded between 400 nm and 260 nm.60
31P NMR was used to quantitatively determine the hydroxyl groups and the S/G ratio. Py and CDCl3 were used as a solvent in a ratio of 1.6:1 (v/v), both for the internal standard (IS) and sample solutions. The IS solution was prepared, adding 5 mg of Cr(acac)3 and 18 mg of NHND per 1 mL. 0.1 mL of this IS solution was added to the sample solution prepared by solubilizing 50 mg of lignin in 0.5 mL of the solvent mixture. Once the samples were dissolved, 0.1 mL of TMDP was added for the phosphitylation reaction.6131P NMR spectra were recorded in a Bruker AVANCE 500 MHz, and MestReNova 11.0 was used for the data processing.
The OH group concentrations were quantified by comparing the integrated areas of the samples with that of the IS. Each area corresponds to different OH groups, enabling their quantification individually. For example, 144–137 ppm spectral region corresponds to the total phenolic OH content (from 144 to 141.5 ppm are C5-substituted OH groups, considered equivalent to S unit OH groups, from 140.5 to 139 ppm are G unit OH groups, and from 139 to 137 ppm are H unit OH groups), 150–145 ppm range corresponds to aliphatic OH groups and 136–134 ppm to carboxylic acid OH groups.61
Calorimetric properties of lignins were obtained with a Q20 (TA Instruments) calorimeter. For each test, 5 ± 0.5 mg of lignin was put inside aluminum hermetic pans, and water was removed by heating samples up to 105 °C until the weight was stable; the starting temperature was set at −50 °C. Heat flows of lignins were recorded from −50 °C to 200 °C with a ramp of 10 °C min−1 under a nitrogen atmosphere (50 mL min−1).49
Electron microscopy was done with a TECNAI G2 20 TWIN operated at 200 kV and equipped with LaB6 filament. Samples were prepared by first preparing a 0.1 wt% aqueous suspension, a drop of which was then suspended onto a TEM copper grid (300 Mesh) covered by a pure carbon film for 1 min. The grid was afterward blotted with filter paper and placed onto a drop of 2% uranyl acetate for 20 seconds. It was finally washed twice using distilled water for 20 seconds each time.62 Particle sizes were calculated using the software Image J, and ten particles of each sample were calculated to get the average particle size values.
