Emerging concepts in intermediate carbon dioxide emplacement to support carbon dioxide removal

Abstract

Substantial upscaling of carbon dioxide capture is possible in the coming decades but existing solutions for storage are projected to be limited in annual capacity by as much as 2–10 GtCO₂ per year until mid-century. Temporary storage of CO₂ in a solid or liquid state could prove useful for filling this gap in capacity, until more permanent and ideally lucrative CO₂ sequestration options come online. There are several concepts for reversible solid-state and chemical CO₂ storage, but their advantages and limitations have yet to be reviewed in this context. This article focuses on the physical and chemical aspects of CO₂ storage via liquid and solid chemical carriers and sorbents, and gives an overview of the energetics around their use, as well as prospects for their future development. Exciting opportunities for coupling capture and medium to high maturity multi-year storage technologies could support carbon removal in the coming decades. Highlights of the analysis are the remarkable storage capacity of oxalic acid and formic acid (CO₂-density of 1857 kg m⁻³ and 1152 kg m⁻³, compared with condensed liquid CO₂ at 993–1096 kg m⁻³, respectively), the relative scalability and compatibility of carbonate salts for stationary storage with direct air capture, and the potential promise of multiple carriers for CO₂ transportation. Solid sorbents do not achieve such ultra-high storage capacities, but could improve storage over compressed gas tanks on a capacity and energetics basis.

---

Broader context

To mitigate climate change, we must move an enormous amount of CO₂ out of the atmosphere, greater than any mass moved by humanity to date (∼473 Gt to lower CO₂ concentration to 350 ppm). Identifying CO₂ storage solutions to serve booming CO₂ capture developments until permanent geologic storage options come online remains an underappreciated scientific challenge of the highest importance.

Introduction

Carbon dioxide removal (CDR) technologies can slow the accumulation of CO₂ in the atmosphere if deployed in the first half of the century, which is essential for staying below 2 °C warming.¹ Direct air capture (DAC) and bioenergy with carbon capture and sequestration (BECCS) are commercially viable CDR technologies that generate gas with high concentrations of CO₂. Cost predictions from the IPCC and some of this study's authors suggest that deploying these and other CO₂ capture technologies could greatly reduce the cost of meeting emissions reductions targets,² but would necessitate global capture on the order of 7 GtCO₂ per year or more by 2050.³ Substantial upscaling of BECCS is possible based on existing available biomass, while DAC which is only cost limited, can upscale rapidly in areas with cheap renewable energy resources, land, and water. In the last few years, commercial development of capture systems has increased rapidly,⁴ but supporting the boom in capture will require deploying equal or greater annual CO₂ storage capacity where capture is occurring. In this paper, we investigate the possibility of using materials that can store CO₂ or carbon from CO₂, even temporarily, to supplement geologic storage.

Upscaling CO₂ storage is nontrivial and has been hampered by the slow arduous regulatory and construction processes involved in bringing permanent geologic sequestration projects online. Geologic storage capacity is plentiful, but geographically limited and commercial capacity has remained relatively stable at approximately 40 MtCO₂ per year.⁴ Ringrose and Meckel suggest that necessary injection well development, on the order of 10–14 thousand wells by 2050, is not outside of what has been historically achieved through petroleum exploitation, but relies heavily on undeveloped offshore regions and subsequent CO₂ shipping or pipeline delivery.^5,6 Several large projects are now under development, such as the Northern Lights Project in Europe which proposes to use ships to transport liquid CO₂ to a terminal for pipeline transport at capacities of up to 1.5 million tonnes of CO₂ per year.⁷ Even as offshore transport options come online, new pipeline or rail connections transporting CO₂ to shipping terminals are unlikely to be viable for small- to medium-scale capture facilities (120 tonnes CO₂ per day or less).⁸

Additionally, dozens of new and existing utilization pathways have been identified that use CO₂ directly or as a carbon feedstock for building materials, chemicals and fuels,^9,10 but most are limited in that: (1) CO₂ is released immediately upon use; (2) potential consumption of CO₂ is projected to be small and not easily collocated with capture facilities; and (3) resulting products do not yet meet cost parity with incumbent petroleum-based products. For example, CO₂ can be sequestered in cement and concrete materials via mineral carbonation. However, it is projected that the near-term implementation of CO₂ for cement production in the United States (US) would require transporting less than a kilo-tonne of CO₂ per year to over 8000 distributed production sites.¹¹ Carbon dioxide can also be stored semi-irreversibly for very long periods of time through the mineralization of natural or waste alkaline materials. These reactions achieve the ultimate goal of carbon sequestration and thus are excellent storage solutions, but reputable reviews suggest they will be limited by rates of reaction and starting materials in the near future.^12,13

Despite the lack of storage options available, large-scale carbon capture and storage (CCS) continues to be included in possible response options to climate change. Shared socio-economic pathways (SSP) are one such example where possible socio-political, economic, and technological changes and their climate implications are modeled.¹⁴ As depicted in Fig. 1A, demand for CO₂ storage surpasses 2 GtCO₂ per year by 2035 in pathways where countries adopt a wide range of aggressive emissions reduction policies and reliance on CCS is minimal (SSP1 and SSP2).¹⁵ In comparison, the necessary supply of storage from geologic storage and CO₂ utilization with meaningful carbon retention will not occur until after 2045.^4,5,16 This simple representaton suggests that the gap in storage supply will be massive, at 2–10 GtCO₂ per year, but will only last for a few decades (Fig. 1B). As such, temporary reversible storage solutions that act as “batteries” for CO₂ may be of interest. We estimate the total amount of storage capacity and duration required for storage systems based on a physical process or material that releases the CO₂ or “self-discharges” on relatively short timescales, such as 3 or 10 years (Fig. 1B). Additional capture and storage would be required, compared with the SSP baselines, to compensate for self-discharge, which would ideally occur in a controlled measurable manner, unlike the gradual loss of carbon stored in biomass, biochar, or construction materials. Similar to the way a battery revolutionized society despite its cost and inevitable self-discharge, we see great value in methods of storage that offer temporary storage of CO₂, not for commercial use, but for the sole purpose of meeting near-term target removal rates in the first-half of the century. As such, unlike previous reviews of CO₂ conversion and utilization, in the context of CO₂ storage, we consider a much broader range of materials, as we are not concerned with future commercial value.

Fig. 1 (A) Demand for CO₂ storage across scenarios towards limiting global mean temperature rise to 2 degrees warming (SSP1 and SSP2), plotted with historical and projected rates of supply of CO₂ storage. The geologic storage projection is based on proposed storage capacity under development out to 2040, and on optimistic but feasible injection well development rates (Scenario F from Ringrose & Meckel).⁵ The utilization storage projection is based on CO₂ consumption for enhanced oil recovery, plastics and building materials; the projection for total utilization is plotted as a reference, and includes these applications as well as chemicals and fuels. (B) Gap in annual CO₂ storage capacity for SSP1 and SSP2 plotted with required storage capacity for systems that offer 3 or 10 years of storage.

Currently, storing CO₂ in its molecular form without any chemical conversion at reasonable sizes for transportation or stationary storage involves compressing and/or cooling the gas. At standard ambient pressure and temperature, 1 tonne of CO₂ has a volume of 506 m³, which can be imagined as a cube with sides as long as a bus. Industries already transport gaseous or liquid CO₂ by truck, ship, rail, or pipeline, with conditions presented in Fig. 2. Condensed liquid CO₂ is typically stored at 238 to 261 K at 1.2–2.5 MPa with densities between 993–1096 kg m⁻³. Liquid CO₂ transport ships such as the Coral Carbonic offer capacities between 1200–1500 m³ while larger ships proposed by Daewoo Shipbuilding & Marine Engineering offer capacities as large as 100 000 m³.^17,18 New state of the art ships proposed by Knutsen NYK Carbon Carriers have moved towards ambient temperature and high pressure (4.5 MPa) liquid storage to boost capacity.¹⁹ Despite these demonstrations of large-scale liquefaction, it is limited in that it requires expensive specialized tanks, energy intensive liquefaction processes, and offers limited storage durations (days) due to boil-off issues. Compressed CO₂ can be achieved at moderate pressures, but storing CO₂ for long periods in pressurized tanks presents safety and physical footprint concerns. Furthermore, just drying and compressing CO₂ for pipeline transport (7.5 MPa) may require more electricity (256–475 kW h per tCO₂) than reported minimum mole-specific work for separating CO₂ from air (e.g. Carbon Engineering: 130 kW h per tCO₂ or amine capture 380 kW h per tCO₂).^20–22 Solid CO₂, commonly referred to as “dry ice” is used in industry for short duration refrigeration, but it is not used for long duration storage or transportation. We do not consider compressed gas or dry ice storage further in this analysis.

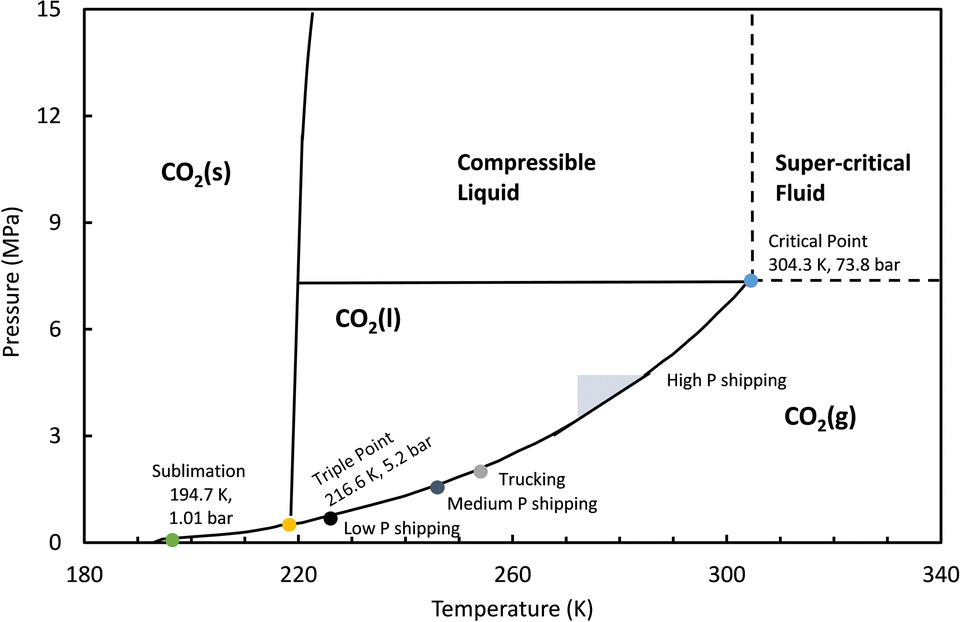

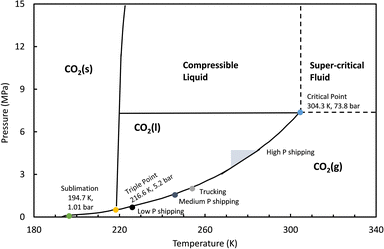

Fig. 2 Carbon dioxide phase diagram with pressure and temperature conditions for commercial and state of the art storage and transport modes.

Storage of CO₂ using a material, however briefly, is already the motivation of DAC and other point-source CO₂ capture technologies that rely on a material to separate CO₂ from other gases. Liquid and solid materials in these systems have been extensively studied for carbon capture, but not for temporary CO₂ storage applications. A class of solids well known for their ability to store CO₂ are carbonate salts, including alkali metal and alkaline earth metal carbonates. If stored properly, carbonate salts can retain CO₂ at ambient conditions for months or years. In theory, carbonates could offer permanent storage, but in practice storage duration is affected by material morphology, and not just chemical stability. For example, solids need to maintain their powdery character in order to enable loading and transport to a final storage or utilization end-use. Carbonate salts are widely utilized in cement,²³ paper and pulp,²⁴ and iron and steel industry²⁵ as a chemical feedstock, and more recently as chemical intermediates in proposed aqueous and mineral carbonation-based DAC processes by companies such as Carbon Engineering²⁰ and Heirloom.²⁶ In these cases, CO₂ storage via carbonate salts may be leveraged in these existing and forthcoming processes with minor modifications.

Advanced porous materials such as zeolites, mesoporous silica, polymeric resins, activated carbon, and rigid and flexible metal organic frameworks (MOF) are another material class that have been investigated in the separation of CO₂ from ambient air and flue gases.²⁷ Porous materials offer large internal surface areas with amine functionalized groups to which CO₂ can selectively and reversibly bind.²⁸ These materials are being tuned to minimize the energy required to take CO₂ off (i.e. regeneration), while remaining selective to CO₂ over other compounds such as water. This challenge is key to outcompeting energy intensive absorptive liquids such as monoethanolamine, and achieving this balance while ensuring the material can take up CO₂ at high densities has yet to be achieved for DAC. Still, existing materials today have demonstrated higher densities than what is achieved by compressed gas tanks at the same pressure.²⁷ This is an active area of research, and new materials and design considerations may lead to breakthroughs in performance.

A third class of materials that could be used to store CO₂ is liquid organic hydrogen carriers (LOHC) with high carbon contents, include ethanol, methanol, formic acid (FA), formate salts (FS), and other hydrocarbons. These carriers can be dehydrogenated at elevated temperatures with a catalyst to deliver high purity H₂, the status of which is thoroughly discussed by Southall and Lukashuk.²⁹ While well established, generating these materials directly from CO₂ requires new approaches, such as electrochemical processes. Furthermore, the use of CO₂ as a material to store H₂ has been well studied, but never from the perspective of CO₂ storage. This might change if the value of mitigating or capturing a tonne of CO₂ is higher than the value of delivering the stored hydrogen. The availability of affordable H₂ is considered a key assumption in the projected growth of CO₂ utilization pathways for fuel and chemical development, and is reflected in our projections of future demand for CO₂ storage.

We believe reversibility of storage is an acceptable and even beneficial aspect of the materials evaluated for several reasons. As we envision these storage systems to be only temporary “last resort” solutions that may take up large amounts of land, reversibility offers the possibility of decommissioning and later use of the CO₂ and storage material. Ideally reversibility is a controlled process, but even a material that exhibits gradual release of CO₂ could be of value if it is ready to be deployed and helps us achieve significant near-term capture. Finally, reversibility allows for materials to double as carriers of CO₂ for transportation.

In this study, we screen materials based on gravimetric (i.e. CO₂ mass fraction, CO₂ wt%) and volumetric CO₂ capacities (i.e. CO₂-density), stability, and the energetics of getting CO₂ on and off materials. We focus on materials that can offer high densities of CO₂ to minimize material requirements. Overcoming the low volumetric density of CO₂ at ambient conditions (1.98 kg m⁻³) will be necessary to reduce the number of tanks and land required for storage. The storage methods included in this study are: carbonate salts, sorbents, liquid organic carriers, and chemical solids that allow for reversible CO₂ storage. We estimate the material required and land footprint of multi-year storage. While the focus of this paper is on the storage of CO₂, we include a perspective on the use of materials for truck transportation of CO₂.

Methods and materials

The feasibility of CO₂ storage was estimated for materials in each class. Upon down selection, candidates were evaluated for CO₂ capture facilities with capacities of 10 tonnes per year (tpy) and 1 million tonnes per year (Mtpy), which are scales typically used to represent pilot and large DAC facilities. The source could be a facility that generates CO₂ as a by-product or captures it from a waste stream, or a dedicated CO₂ removal facility such as DAC. We note that some materials evaluated capture CO₂ directly in the process of storage, which obviates the need for a CO₂ source.

Screening method

We start by conducting a broad screening of material classes that can store CO₂ or carbon from CO₂ through adsorption or chemical bonds. As gleaned from research on H₂ carriers, there are a number of properties to consider when selecting a storage material.³⁰ These include properties such as safety, toxicity, compatibility with existing infrastructure, total cost of ownership, material availability, storage duration, storage capacity, reversibility, material durability/cyclability, energy efficiency, and life cycle impacts. As many of the materials evaluated in this analysis have yet to be properly explored for CO₂ storage and transport, there are a number of data gaps limiting the ability to estimate these properties. As such we kept our initial screening to general assessments of technology maturity, stability, reversibility, energetics, and CO₂ capacity, which we define as:where m is mass in kg and ρ is the density in kg m⁻³. Volumetric capacity indicates how densely CO₂ can be stored and influences the volume of the storage unit. In packed powder or sorbent materials, bulk storage capacity is less than the volumetric capacity of the sorbent, as it includes inter-particle void volume, which can be influenced by method of packing, while crystal or particle density is an intrinsic property.

Gravimetric capacity is the quantity of CO₂ stored within a unit mass of material and is of major relevance to transportation applications which in many cases are weight limited. It is important to note that a fair comparison of material storage options with compressed gas or liquid CO₂ storage will include the additional weight and volume of the containers used, as is done in this study.

For sorbents, we modelled storage tanks filled with porous packing material (pellets made of crystal sorbent material) as packed beds. The mass of sorbent material within the container is estimated using (eqn (2)) where ρ_s is the single crystal density in kg m⁻³ and ε is the porosity of the pellet or tank bed. Unlike skeletal density, which is the ratio of the mass of crystal solid to the volume of the solid excluding pore volume, crystal density divides the same mass of crystal solid by the envelope volume of the crystal, giving a much lower density (Fig. 3). In this analysis, the porosity of the pellet and bed are used to derive the inter-crystal and inter-pellet pore volumes, respectively, and exclude crystal pore volume which is evaluated separately.

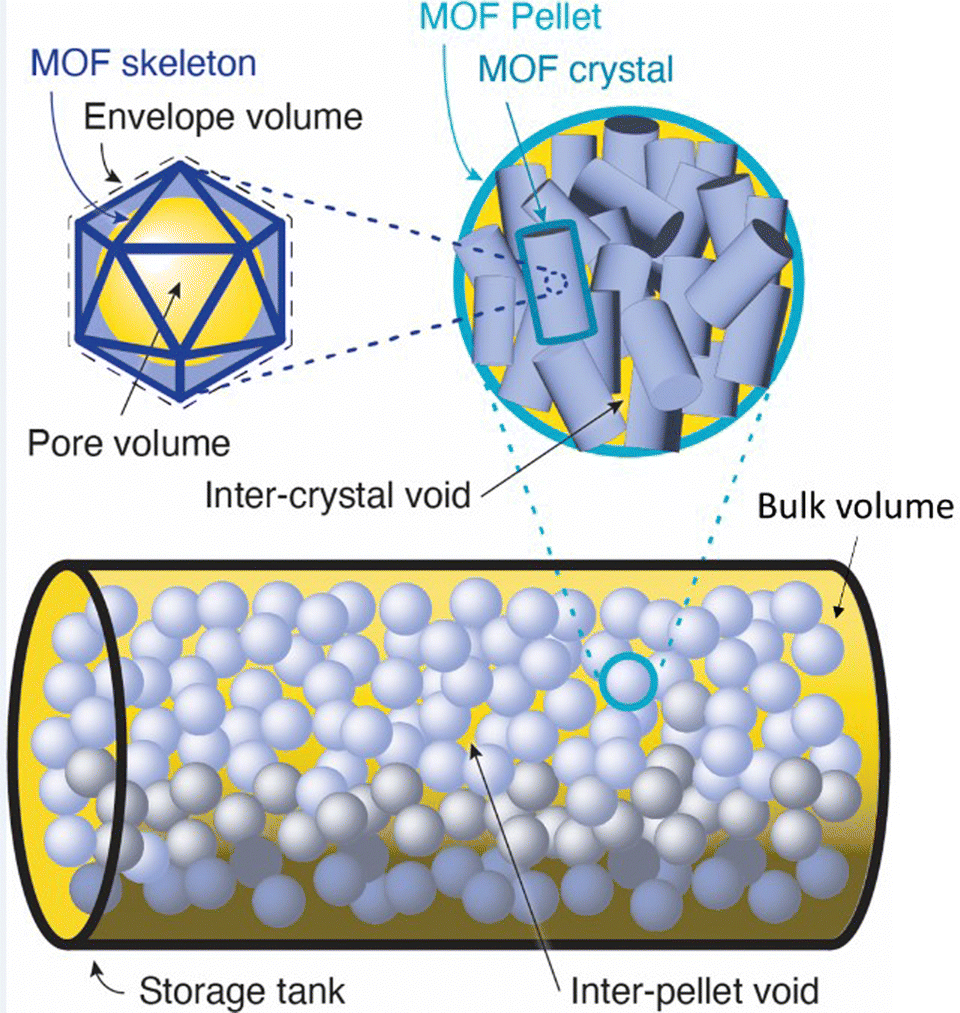

Fig. 3 Illustration demonstrating bulk volume used for estimating bulk density of the MOF-packed tank, pellet volume and inter-crystal void volume included in pellet porosity, and crystal pore and skeletal volumes.

The CO₂ stored inside the crystal envelope volume of the sorbent in kg-CO₂ per kg-material includes CO₂ adsorbed on the material surface and CO₂ stored in the pore volume (eqn (3)) where V is the pore volume in m³ kg⁻¹ and ρ_gasCO2 is the CO₂ gas density in kg m⁻³. The CO₂ stored in the tank is the combination of , the CO₂ in the inter-crystal void inside the pellets, and the CO₂ in the inter-pellet void space at a specific temperature and pressure (eqn (4)). The amount adsorbed and in the pore volume at a given temperature and pressure is derived from experimental isotherm data, which tend to be reported for crystals at conditions relevant to CO₂ capture (0.1 MPa or lower). The absolute amount of CO₂ storage with adsorbents in a tank can be maximized by increasing the pressure, which is limited to around 6.4 MPa at 298 K due to liquefaction.

ρ_bulk = ρ_s(1 − ε_pellet)(1 − ε_bed) (2)

A number of materials identified were too early stage or do not meet our screening criteria. We provide additional details on these materials in the ESI† to guide future work in this space. For solid and liquid carriers, we define four levels of technology maturity: L1: neither CO₂ fixation nor regeneration are commercial; L2: either fixation or regeneration is commercial; L3: fixation and regeneration are commercial but require validation for storage; and L4: commercially used. For sorbents, as the reactor design for CO₂ storage may be similar to existing concepts for compressed gas storage, the biggest bottleneck is likely to be materials synthesis. As such, we define four levels of technology maturity as: L1: a theoretical concept; L2: lab-scale synthesis of material; L3: demonstration for DAC; and L4: industrial-scale synthesis.

Truck transport model

We estimated the energy associated with transporting CO₂ by road for each candidate material and for liquified CO₂ assuming long haul commercial trucks with B-train configuration that comprises a tractor and two trailers. We assume liquid CO₂ is transported at 2.2 MPa and 255 K, giving a bulk density of 1022 kg m⁻³. Tare weight, or empty weight of the truck without material is the sum of the tractor and trailer weights, which is 21.0, 18.0, and 19.3 tonnes for trucks designed for compressed gas (including cryogenic liquid CO₂), liquids, and solids, respectively. We assumed trucks are filled until either the United States federal limit on gross weight rating of the truck (70.0 tonnes) or the volume limit of the trailer (84.7 m³) is met. For perspective, commercial trucks transport CO₂ in small quantities of 2–30 tonnes, while rail cars can transport larger quantities ∼60 tonnes but are limited to rail networks.

Upon delivery of the CO₂, we assumed trucks will return to the CO₂ capture facility either empty (in the case of liquid CO₂, liquid organic carriers or other one-way carriers), or with the regenerated material. Trucks were assumed to travel on ungraded highway networks at a fixed speed of 100 km h⁻¹, which is reflective of speed limits for freight trucks in the United States and in the European Union (80–130 km h⁻¹). The energy needed for trucking was calculated based on the energy needed to overcome the rolling resistance and aerodynamic drag of a typical heavy-duty truck.³¹ We then assumed an engine and transmission efficiency of 40% and 90%, respectively. Total energy required takes into account the mass of the transported CO₂, the material, and the tare weight of the B-Train on the outbound and inbound trips.

For the MOF-filled trailers, we assumed CO₂ is transported at 5.6 MPa and 98–99% of CO₂ is discharged upon arrival. This reflects a scenario where pressure is decreased to 0.03 MPa. Thermophysical properties of CO₂ are retrieved from National Institute of Standards and Technology (NIST) Chemistry WebBook.³² Loading trucks with solid powders or stable liquids, as would be the case for solid and liquid carriers, at ambient conditions will not require significant energy, but the chemical conversion of CO₂ to a carrier likely will. As significant uncertainty remains regarding the supply chain logistics of chemical solid and liquid carriers, we believe it would be too preliminary to present results for charging and discharging across material classes.

Pipeline model

Today, there are over 6500 km of CO₂ pipelines worldwide, transporting approximately 68 million tonnes of CO₂ per year.³³ Pipelines are designed to keep CO₂ in either a gaseous, dense liquid, or supercritical phase, and CO₂ is typically compressed to pressures above 7.5 MPa to avoid two-phase flow regimes and changes in compressibility at temperatures of the surrounding soil. Because CO₂ cannot exist as a liquid at atmospheric conditions, it takes pressurization and cooling to achieve a liquid state. Supercritical CO₂ storage is based on compression to 10.0–15.2 MPa at 313 K. Supercritical pipelines are used when moving large quantities of CO₂ over a long distance. The high density of the supercritical CO₂ (629–783 kg m⁻³), which is comparable to liquid phase, allows for a high throughput transport while its low viscosity (48–69 μPa s), similar to vapor state, helps reduces friction loss during transport.

Numerous models for estimating pipeline pressure drop and necessary pipeline diameters exist, but real-world examples of CO₂ pipelines suggest design and operation is highly location dependent and requires proper engineering especially for dense state CO₂.^34,35 As such, we used values from a similar-scale (12 inch diameter) hypothetical pipeline and assumed recompression from 10.3 to 15.2 MPa at 313 K is required every 100 km (49 Pa m⁻¹ pressure drop), to avoid pressure falling below 10.3 MPa.³⁶ From this, we derived a single-stage recompression energy (14.7 kJ per kg-CO₂) using the Peng–Robinson equation of state in ProSim software, assuming a 98% mechanical efficiency, 97% electrical efficiency, 65% isentropic efficiency, and 10% additional power consumption for auxiliaries. This is much lower than the initial compression required to take gaseous CO₂ from 0.1 MPa to a supercritical state. For example, Climeworks derives a 363.3 kJ per kg-CO₂ compression energy assuming an 8 stage compression and intercooling system is used to take CO₂ from 0.1 to 15.0 MPa at 313 K.³⁷ Carbon Engineering derives a 475.2 kJ per kg-CO₂ compression energy assuming a 4 stage compression system is used to take CO₂ to 15.2 MPa at 313 K.²⁰ Neither report recompression energy for pipelines. These compression energies match well with that reported by the Carbon Capture Simulation Initiative Toolset implemented in Aspen Plus for the conditioning of ambient pressure CO₂ to 15.2 MPa (370–441 kJ per kg-CO₂).³⁸ We find our approach for estimating recompression energy to be reasonable as we were able to derive similar compression energies of 392 to 420 kJ per kg-CO₂ assuming 4 and 3 stage compression, respectively.

CO₂ emissions from transport

Emissions during transport are estimated by accounting for the emission factor of diesel fuel (0.07 kgCO₂ per MJ) for trucking³⁹ and the national grid carbon intensity in the US in 2020 (0.38 kg kW⁻¹ h⁻¹ or 0.107 kgCO₂ per MJ)⁴⁰ for pipeline recompression. Based on this, we estimated a breakeven distance for all options where CO₂ emissions generated during transport are equal to the quantity of CO₂ being transported. Note that these estimations are based on first-order calculations to compare different CO₂ carrier options and the more accurate emissions estimations would require dedicated life-cycle assessment for each option.

Stationary storage analysis

Gravimetric and volumetric capacities were used to estimate the necessary storage material, total weight, and total volume required for the pilot facility and regional hub scenarios, assuming perfect conversion for chemical solid and liquid storage. As MOFs require temperature and pressure maintenance, we excluded them from long-duration stationary storage. Typical storage equipment used in the fossil fuel industry for powder solids, flammable liquids, and liquid CO₂ were assumed. Specifications of storage silos or tanks assumed for the small- and large-scale storage systems are included in Table S1 (ESI†). Physical footprint was estimated based on the storage equipment diameter plus spacing of tanks based on NFPA 30 safety codes. This value was divided by the stored CO₂ to estimate land footprint intensities in units of m² per tCO₂.

Results and discussion

Sorbent carrier potential

Solid porous adsorbents have been extensively studied and developed to separate CO₂ from dilute sources where CO₂ concentrations are typically below 30% and as low as 0.04% if capturing from ambient air. This requires sorbents to have high CO₂ selectivity and uptake capacity as well as fast kinetics at sub-atmospheric partial pressure which typically requires surface functionalization with alkaline molecules such as amines. Implicit in these parameters are other critical parameters such as the enthalpy of adsorption of CO₂, which determines both the selectivity and energy required for regeneration. Binding CO₂ too strongly may enhance selectivity and kinetics of adsorption but can lead to costly regeneration. While there are many types of porous materials under investigation for CO₂ capture, we identified MOF,⁴¹ activated carbon,⁴² and zeolite^43,44 adsorbents that have CO₂ uptake data at pressures greater than 3 MPa at near room temperature. The properties of the identified adsorbents are shown in Table 1. A number of materials can adsorb CO₂ at high temperatures, including CaO and MgO, which are discussed in the following section, hydrotalcites, and lithium-based materials.⁴⁵ We do not provide further details due to their expected high costs.

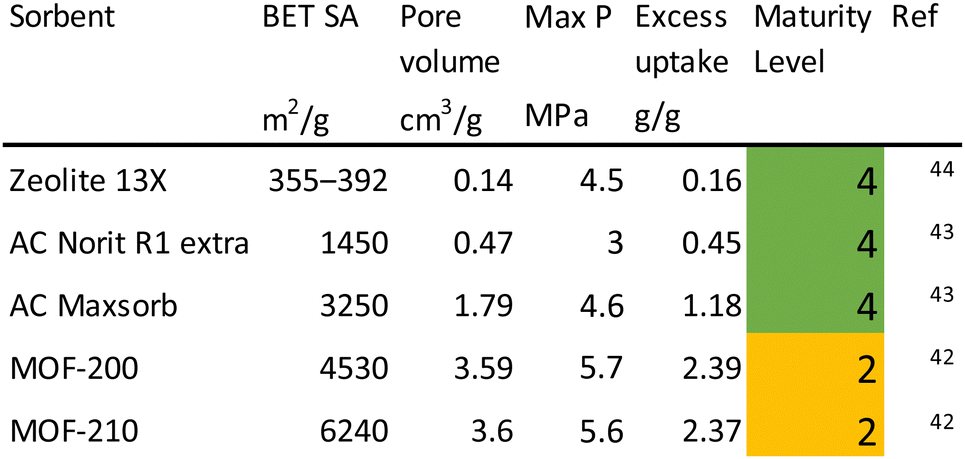

Table 1 Physical characteristics and measured CO₂ uptake data of candidate adsorbents at 25 °C. Max P: maximum pressure a measurement was taken at. SA: surface area

---

Zeolites

Zeolites are porous aluminosilicate materials that have relatively low material costs, very high stability and have demonstrated rapid adsorption and low energy penalties in post-combustion applications.²⁷ Zeolite 13x is commercially available and has an excess CO₂ uptake, which is defined as the amount of CO₂ bonded to the surface and can be thought of as the gravimetric capacity, of 0.16 g g⁻¹ at 4.5 MPa (excluding void spaces). The reference values shown in Table 1 are based on the NIST reference zeolite material, ammonium ZSM-5 zeolite. The measured values are based on a standardized high-pressure CO₂ measurement, harmonizing results across measurement techniques and procedures being practiced. Notably, zeolites have been challenged by the presence of water, where CO₂ adsorption capacity drops over time as water competes for binding sites. As such, research has focused on how to add highly charged species on the surface to increase affinity for CO₂, such as alkali and alkaline earth metal cations.⁴⁶ Future research for tuning zeolites for storage applications would need to study whether the lack of water may lead to higher cycling capacity and whether this increase in affinity subsequently increases the energy required for regeneration.

Activated carbon

Enhanced activated carbons are amorphous porous forms of carbon that have low material costs, very high surface areas, and require relatively low temperatures for regeneration. Overcoming the relatively low capacities of CO₂ at low pressure has been a focus for separation applications, however, due to the high surface areas, activated carbons can have very high CO₂ capacities at higher pressures that would be used for storage applications.⁴⁷ That being said, predicting performance at specific conditions from result reported in literature is challenging as reporting methods are not standardized and the correlation between surface chemistry and capacity is still not well understood. Maxsorb, a commercially available high-surface area activated carbon, has the highest surface area and CO₂ adsorption at elevated pressure amongst activated carbon as shown in Table 1.

Metal–organic frameworks

Metal–organic frameworks consist of metal-based nodes bridged by organic linking groups to form a network. They have ultra-high surface areas compared to the materials just discussed, and have highly tuneable structures and surface chemistries. In particular, tuning structures in the M₂(dobdc)(M = Mg, Mn, Fe, Co, Ni, Zn) series has been an area of focus for CO₂ capture. The highest excess CO₂ uptake has been demonstrated relatively recently in MOF-200 and MOF-210 structures. MOF-210 has an ultrahigh surface area of 6240 m² g⁻¹ and a crystal pore volume of 3.6 cm³ g⁻¹.⁴¹ The volume-specific internal surface area (2060 m² cm⁻³) nears for the ultimate adsorption limit for solid materials. Unlike zeolites which have degraded performance in the presence of water, MOFs show increased chemical stability in the presence of steam. Carbon dioxide storage could be an attractive application for MOFs due to their high capacities, however, several challenges must be overcome, including high material costs and potentially weak mechanical strength.

Down-selection of sorbents

Future experimental work is needed to characterize material performance as some key challenges, such as amine degradation for MOFs, low uptake at low pressures for activated carbons, or low uptake in the presence of water for zeolites, may not arise in storage applications. Still, sorbents offer better capacities than compressed gas tanks.

For the analysis, we selected MOF-210 which uses an octahedral metal-ion cluster (Zn₄O(CO₂)₆) with 4,4′,4′′-[benzene-1,3,5-triyl-tris(ethyne-2,1-diyl)]tribenzoate (BTE) and biphenyl-4,4′-dicarboxylate (BPDC) linkers to serve as a representative material due to the availability of single-component gas adsorption isotherm data for making predictions on CO₂ uptake under higher pressures. MOF-200 has also been demonstrated for CO₂ separation, but was not considered for transport and storage due to its instability that limits its cyclic use. At 298 K, the density of gaseous CO₂ is 1.8–162 kg m⁻³ between 0.1–5.6 MPa without adsorbents. The total CO₂ density inside the volume increases to 6–436 kg m⁻³ at the same pressure if MOF-210 pellets are used to facilitate CO₂ uptake through adsorption. While at this operational range, the volumetric storage capacity of MOF-210 is larger than compressed CO₂, it remains smaller than conventional approaches of storing CO₂ at liquid or supercritical state. However, storing CO₂ at liquid or supercritical state comes with higher energy demand due to heating/cooling as well as compression requirements. Thus, adsorbents may provide a more energy-efficient storage solution if the CO₂ capacity can be further improved.

A theoretical upper bound of CO₂ uptake of adsorbents can be estimated by assuming the crystal pore space can be saturated with CO₂via condensation, so that the density of CO₂ in the pore volume reaches the density of liquid CO₂. We refer to this hypothetical case as future MOF. The total CO₂ uptake using future MOF is estimated by adjusting the CO₂ density inside the pore volume of MOF-210 with a multiplier so that the CO₂ density inside the pore volume at 5.6 MPa reaches that of liquid CO₂ at around 730 kg m⁻³. This is equivalent to increasing the absolute quantity of adsorbed CO₂ on MOF-210 by 69%. While increasing the uptake capacity of adsorbents is not a trivial task, this simplified example illustrates potential benefits of adsorbent-based CO₂ storage.

Chemical solid carbon dioxide carrier potential

Chemical solid CO₂ carriers are discussed in this section and classified as alkali carbonates, alkaline earth metal carbonates, and other non-sorbent chemical solids. Properties of the reviewed materials are provided in Table 2. Some of the most abundant elements found in the earth crust are silicon, aluminium, iron, titanium and manganese which makes them potentially interesting for storing and transporting large quantities of CO₂ as carbonates. Also, ammonium is a common compound that forms carbonate and bicarbonate. However, none of these carbonates shows promising characteristics for temporary CO₂ storage. A more detailed description of these materials and why they are not suitable for temporary CO₂ storage is provided in the ESI.†

Table 2 Key physiochemical properties of solid and liquid chemical carriers for CO₂

---

Alkali carbonates

Lithium carbonate only exists in anhydrous form and has a solid density of 2110 kg m⁻³, which results in a CO₂ mass fraction of 59.6 CO₂ wt% and a CO₂-density of 1257 kg m⁻³ (in powder form this number is expected to decrease by roughly 50%). When heated to about 800 °C (melting point 723 °C) Li₂CO₃ starts to decompose into Li₂O; however, much higher temperatures are needed for complete conversion.⁴⁸ After regeneration, Li₂O can be used directly to capture CO₂ or converted to LiOH which is used as a solid sorbent in submarines to capture CO₂ from breathing air⁴⁹ or can be dissolved in water for gas scrubbing (similarly to industrial gas scrubbing process using NaOH or KOH). Lithium hydroxide is an order of magnitude more soluble than Li₂CO₃ (12.9 g L⁻¹) which can be recovered by precipitation or crystallization. This property and the formation of metastable LiHCO₃ in aqueous solutions under slightly elevated CO₂ partial pressures is industrially used in the Quebec process to obtain technical grade LiCO₃;⁵⁰ however, is considered to be energy intensive.⁴⁸ Other regeneration processes for the release of CO₂ after storage include the use of Ca(OH)₂ to produce CaCO₃ and LiOH. Due to the hygroscopic nature of dry Li₂CO₃, it needs to be stored in a cool and dry environment and shelf life is limited to about 1–2 years. The chemistry around LiHCO₃ is still not well understood and it is believed that the bicarbonate only exists as metastable ion in aqueous solutions.

Sodium carbonate has similar properties as Li₂CO₃. In its anhydrous form it has a solid density of 2540 kg m⁻³. However, as sodium atoms are more than 3-times heavier than lithium atoms, this results in a 16% reduction in CO₂-density to 1055 kg m⁻³ (again, in powder form this number is expected to decrease by roughly 50%). The corresponding CO₂ mass fraction is 41.5 CO₂ wt%. While the production and storage of Na₂CO₃ is relatively straight forward – it can be obtained from the reaction of NaOH with air as commonly done in DAC systems⁵¹ – the regeneration of CO₂ from Na₂CO₃ is challenging. Sodium carbonate does not thermally decompose into CO₂ and Na₂O even at temperatures as high as 2000 °C (very high reaction enthalpy 319.3 kJ mol⁻¹). Instead Ca(OH)₂ can be used to restore the NaOH while producing CaCO₃ which can be separated and thermally decomposed into CaO and CO₂ (more discussion about this reaction later).⁵¹ Depending on the regeneration logistics with Ca(OH)₂, the CO₂ can be stored as either Na₂CO₃ or CaCO₃. The use of Ca(OH)₂ for CO₂ recovery from the absorbent has been successfully demonstrated and is currently commercially pursued by companies like Carbon Engineering who adopted this process from the pulp and paper industry (Kraft process).²⁰ If Na₂CO₃ is produced from an aqueous solution, it is likely that hydrated and bicarbonate species form.⁵² Sodium carbonate is known to form monohydrate, heptahydrate and decahydrate. The co-crystallization of water substantially reduces CO₂ mass fraction and CO₂-density, which are 15.4 CO₂ wt% and 225 kg m⁻³ for the decahydrate (other hydrates are listed in Table 2). Due to the higher water content, hydrated forms of Na₂CO₃ are expected to have longer shelf lives. Sodium bicarbonate is an interesting by-product with a density of 2200 kg m⁻³ and CO₂ mass fraction that is higher than that of Na₂CO₃ (52.4 CO₂ wt% if all CO₂ is removed from sodium, e.g. using Ca(OH)₂ to form CaCO₃ which then can be thermally decomposed to obtain CO₂). However, when considering the energetically attractive low temperature thermal decomposition of NaHCO₃ to Na₂CO₃ at 100–200 °C, only 50% of the CO₂ is released leading to an effective CO₂ mass fraction of 26.2 CO₂ wt% and a CO₂-density of 576 kg m⁻³. The preparation of NaHCO₃ is relatively simple as it can be precipitated by bubbling CO₂ through aqueous NaCO₃ brines/solutions. This way of producing NaHCO₃ has become a significant industrial process in the US as part of Na₂CO₃ production from Trona.⁵³

Potassium carbonate is the last alkali metal carbonate we consider, as rubidium and caesium are too costly. Anhydrous K₂CO₃ has a density of 2430 kg m⁻³, and due to the heavier metal cation, a relatively low CO₂ mass fraction of 31.8 CO₂ wt%, and a CO₂-density of 774 kg m⁻³. Similar to Na₂CO₃, K₂CO₃ does not decompose to CO₂ and K₂O upon heating, which is an extremely endothermic reaction with a reaction enthalpy of 393.5 kJ mol⁻¹. Thus, K₂CO₃ is thermally extremely stable; however, it is very hygroscopic and dissolves 1103 g L⁻¹. This strong hygroscopicity typically limits its shelf life to about 1–5 years depending on the storage conditions. The regeneration of K₂CO₃ can be accomplished in a similar manner to Na₂CO₃ by using Ca(OH)₂ to form KOH and CaCO₃ which is a mildly exothermic process and likely to be exergonic at ambient conditions. When K₂CO₃ is produced in aqueous solutions or directly from KOH, the formation of sesquihydrate is possible (K₂CO₃·3/2H₂O) which reduces the CO₂ mass fraction to 26.6 CO₂ wt% and the CO₂-density to 645 kg m⁻³. To obtain the anhydrous form and drive off the water, the sesquihydrate can be dried at 200–350 °C. The reaction of gaseous CO₂ with aqueous KOH to obtain pure K₂CO₃ is a commercial process whereby the K₂CO₃·3/2H₂O is separated via crystallization under vacuum with cooling and subsequently dried to achieve a purity of 98–100%.⁵⁴ In some industrial K₂CO₃ production processes, KHCO₃ is obtained as a precursor.⁵⁴ For KHCO₃, two CO₂ regeneration routes exist. If KHCO₃ is converted to K₂CO₃ at around 100–120 °C, the effective CO₂ mass fraction of the CO₂ storage medium is 22.0 CO₂ wt% and the CO₂-density is 477 kg m⁻³. If complete CO₂ recovery is considered, i.e. with Ca(OH)₂, the effective CO₂ mass fraction of the CO₂ storage medium is 44.0 CO₂ wt% and the CO₂-density is 954 kg m⁻³.

Alkaline earth metal carbonates

Magnesium carbonate is the lightest alkaline earth metal discussed here and has a density of 2958 kg m⁻³. With a CO₂ mass fraction of 52.2 CO₂ wt%, this results in an effective CO₂ storage density of 1544 kg m⁻³. The solubility of MgCO₃ is low with only 0.1 g L⁻¹, which is certainly an advantage when producing MgCO₃ from aqueous solutions. In aqueous solutions MgCO₃ can be produced via the reaction with aqueous NaHCO₃; however, if reacted with Na₂CO₃, basic MgCO₃ is formed (a hydrated complex of MgCO₃ and Mg(OH)₂). In the presence of water, MgCO₃ may form dihydrate, trihydrate and pentahydrate crystals which have significantly lower CO₂-densities as seen in Table 2. To reduce the water content, drying at temperatures above 157 °C is necessary but drying is not complete until a temperature of 300 °C is reached.⁵⁵ Alternatively, the anhydrous salt can be produced from a Mg(OH)₂ slurry directly if high CO₂ partial pressures are available (0.4–0.5 MPa), which is the preferred industrial process for high purity MgCO₃ production. This pathway includes the formation of aqueous bicarbonate under moderate temperatures and pressures before being vacuum dried. Magnesium bicarbonate is not a stable side-product, only exists in aqueous solution, and decomposes into CO₂ and H₂O during drying while forming MgCO₃.⁵⁶ The regeneration of the magnesium carrier and release of CO₂ can be achieved by thermal decomposition over a temperature range of 360–800 °C (800 °C are needed for complete conversion).⁵⁶ In the industrial calcination process for the production of MgO from MgCO₃ minerals, temperatures between 700–2000 °C are used. However, lower calcination temperatures of 540–800 °C lead to more reactive MgO which is more suitable for CO₂ adsorption.⁵⁷ The reaction enthalpy with 116.9 kJ mol⁻¹ is relatively low and presents an interesting “low energy” pathway for CO₂ storage compared to some of the other carbonate carriers. Other regeneration routes include acid treatment with HCl or H₂SO₄. A recent review offers insights into several modifications to MgO that can improve its use as an adsorbent for CO₂, including the use of promoters, hybrid materials, and amine functionalization; however, benefits such as cyclic stability are more relevant for CO₂ capture.⁵⁸

Calcium carbonate has a higher molecular weight than MgCO₃. While the density of CaCO₃ is similar to MgCO₃, the higher mass of calcium leads to a lower CO₂ mass fraction and CO₂-density with 44.0 CO₂ wt% and 1244 kg m⁻³ respectively. Calcium carbonate is highly insoluble, only 0.013 g dissolve in 1 L of water at 25 °C. Furthermore, CaCO₃ does not form hydrates even in aqueous solutions. A monohydrate of CaCO₃ exists but does not form under normal circumstances (forms via a Mg-rich amorphous calcium carbonate precursor)⁵⁹ and the hexahydrate is only stable below 7 °C.⁶⁰ Calcium carbonate is an intermediate product in DAC systems where aqueous NaOH is used to capture the CO₂ followed by the reaction of solid Ca(OH)₂ with aqueous Na₂CO₃ to form solid CaCO₃.⁵¹ Calcium carbonate is easy to separate from the NaOH solution due to its low solubility and lack of bicarbonate and hydrate side reactions. Thus, when heating CaCO₃ all energy goes towards the actual regeneration of CaCO₃ and not into reversing side reactions. The regeneration of CaCO₃ occurs at temperatures greater than 650 °C (industrial quicklime processes use >900 °C to achieve appreciable reaction rates)^61,62 and the reaction enthalpy of the reaction is 178.4 kJ mol⁻¹. This is substantially higher than the reaction enthalpy of MgCO₃ and one might wonder why DAC systems use Ca instead of Mg. Besides the higher solubility of MgCO₃ and formation of hydrates (drying hydrates would increase energy demand), Mg(OH)₂ is weaker than Ca(OH)₂ and the reaction of Mg(OH)₂ with aqueous Na₂CO₃ is endergonic (ΔG_Mg = 34.8 kJ mol⁻¹vs. ΔG_Ca = −18.4 kJ mol⁻¹) and would not happen spontaneously at ambient conditions.

Other solids

Oxalic acid is a commercially available solid dicarboxylic acid with the formula H₂C₂O₄. Oxalic acid has a density of 1900 kg m⁻³ and an extremely high CO₂ mass fraction of 97.8 CO₂ wt% leading to a remarkably high CO₂-density of 1857 kg m⁻³. In aqueous solution H₂C₂O₄ may form a dihydrate crystal which can be reduced to its anhydrous form by drying at modest temperatures of 100 °C.⁶³ These properties make it a very interesting compound for CO₂ transport and storage.

While there are other carboxylic acids, such as citric acid that are interesting from a CO₂ storage perspective, the challenge is to find reaction pathways for the production of these chemicals using CO₂. At the same time a viable CO₂ regeneration pathway is necessary to recover and reuse the carrier if a non-ubiquitous reactant is used as carrier. Oxalic acid is a compound that possesses both of these characteristics. Traditionally, H₂C₂O₄ is produced from carbohydrates using nitric acid, a process which was discovered in 1776. Nevertheless, commercial processes for a CO₂-based synthesis exist via the reverse water gas shift reaction, the dialkyl oxalate process and traditional acidification; however, recently new CO₂-based reaction pathways have been discovered. Oxalate can be produced directly from CO₂via electrochemical routes using aprotic solvents with faradaic efficiencies up to 80%.⁶⁴ Alternatively, oxalate can be produced from CO (e.g. from CO₂ electrolysis), biomass or the coupling of formate (which can be produced from CO or CO₂). The oxalate can then be converted to H₂C₂O₄via traditional acidification or electrodialysis.⁶⁵ When H₂C₂O₄ is heated to about 125–175 °C it decomposes to CO₂ and formic acid (ΔH = 11.4 kJ mol⁻¹).⁶⁶ Formic acid can be further decomposed to CO₂ and H₂ at ambient temperatures using catalysts (ΔH = 42.9 kJ mol⁻¹) as described in the following sections.⁶⁷ Oxalic acid is already a C₂ molecule and can become a new base chemical for polymers, enabling numerous new CO₂ utilization pathways that offer long term storage.⁶⁵

Down-selection of solids

Among the various solids evaluated, NaHCO₃, MgCO₃, CaCO₃ and H₂C₂O₄ stand out as potentially attractive CO₂ storage media. They are stable at ambient conditions and exhibit some of the highest CO₂ mass fractions and CO₂-densities. If a concentrated CO₂ stream is available NaHCO₃ is relatively easy to precipitate in aqueous NaOH solutions without any hydrate by-products. For regeneration, NaHCO₃ can be integrated with current DAC systems that rely on a NaOH–Ca(OH)₂ cycle. If DAC systems run 100% on renewables like wind and solar, this external source of NaHCO₃ can be added to bridge intermittencies and increase the overall capacity factor of the DAC systems while improving the economies of scale. Similarly, CaCO₃ can be used in combination with DAC systems. Calcium carbonate has the advantage that it can be used with lower CO₂ partial pressures and NaOH. Magnesium carbonate is really attractive due to its low regeneration energy requirement and might be an interesting alternative if high CO₂ partial pressures are available. One of the most exciting CO₂ storage chemicals is H₂C₂O₄ due to its extremely high CO₂ mass fraction, extremely high CO₂-density as well as its chemistry. The CO₂-density of H₂C₂O₄ exceeds the density of liquid CO₂; however, it is important to understand that in powder form this density is likely to decrease by approximately 50%. Nevertheless, even in powder form its density is still very attractive for transportation and storage applications.

Liquid organic carbon dioxide carriers

Liquid organic carriers with high carbon contents are discussed in this section and properties are included in Table 2. Urea was reviewed but does not show promise as a candidate. Additional details on urea are provided in the ESI.†

Methanol

Methanol stores CO rather than CO₂, and would require additional oxygen if it was necessary to produce CO₂ upon decommissioning CO₂ storage systems. Methanol, which has a H₂ content of 12.5 H₂ wt% (99 kg m⁻³), can be stored as a liquid at ambient conditions, and offers a CO content of 87.4 CO₂ wt% (which for the sake of comparison can be translated into 137.4 CO₂ wt% and 1088 kg m⁻³). Storing CO₂via methanol has been demonstrated commercially via different pathways, such as direct catalytic conversion using H₂, conversion via hydrides, and integration of amine-captured CO₂ or biomass conversion.^68–70 Recently methanol production using CO₂ and green H₂ has been demonstrated by Carbon Recycling International, making it one of the most mature liquid carriers for both CO₂ and H₂.⁷¹ Recent reviews highlight the ways in which techniques such as photochemical, electrochemical,⁷² and biological processes can increase the rate, efficiency, and selectivity of conversion.⁷³ For methanol or other alcohols, CO₂ can be recovered during the decommissioning of a storage facility, or upon delivery, in a controlled manner.⁷⁴ For example, steam reforming for dehydrogenation under elevated pressures (2 MPa) and temperatures (250–250 °C) has been widely investigated (eqn (5)).⁷⁵ As evident in the reaction, the fixation process for methanol forms H₂O as a by-product, and its regeneration process requires H₂O. Dehydrogenation temperatures vary widely in literature and have been reported as high as 450 °C in commercial systems.⁷⁶

CH₃OH + H₂O ⇌ CO₂ + 3H₂ (5)

Formic acid and formate salts

Formic acid and formate salts are stable H₂ carriers that can be used to store and transport CO and CO₂. Formic acid has a high CO₂ capacity (95.6 CO₂ wt% and 1152 kg m⁻³) and low H₂ capacity (4.4 H₂ wt% and 53 kg m⁻³). It is already stored and transported in bulk quantities for a number of industrial uses, particularly in Europe, and tends to be transported in a nonpure form to eliminate issues relating to venting and flammability. With proper storage, formic acid can have a shelf life of two years or more.⁷⁷ The potential safety and stability of formic acid is highlighted by companies such as OCOchem that are developing catalytic approaches for converting CO₂ to products under mild conditions.⁷⁶ Formate salts (HCOOM; M = Li⁺, Na⁺, K⁺, Cs⁺, NH₄⁺) use a formate bicarbonate cycle for storage.⁷⁸ Formate salts will have different features depending on the cation, as noted in Table 2. For example, when the cation is sodium, CO₂ capacity is 64.7 CO₂ wt% with CO₂-density of 1229 kg m⁻³ in comparison to when the cation is potassium and the CO₂ capacity is 52.3 CO₂ wt% with CO₂-density of 994 kg m⁻³. The direct hydrogenation of CO₂ into FA or FS is challenging due to the unfavorable phase change (eqn (6)), but the thermodynamic preference can be altered when the reaction is carried out in aqueous forms, with ΔG of −4 kJ mol⁻¹.⁷⁹ There are multiple pathways of storing CO or CO₂ in the form of FA or FS other than direct hydrogenation (e.g. via methanol), but commercialization requires improvements to selectivity, product separations and stability. As noted in a recent review by Duarah et al., emerging electro-chemical pathways have been developed to improve these processes under ambient conditions, with faradaic efficiencies achieved above 90%.⁸⁰ One advantage of FA and FS is that they can be dehydrogenated under mild conditions or used directly upon decommissioning of a storage facility to manufacture a wide range of chemicals.⁸¹

CO₂(g) + H₂(g) ⇌ H₂CO₂(l) ΔG (298 K) = +32.9 kJ mol⁻¹ (6)

Down-selection of LOHC

Among the liquid carriers that can simultaneously store CO₂ and H₂, methanol and FA are the most promising as they have relatively high technology maturities and favourable gravimetric and volumetric CO₂ densities. Synthesis of FS has largely been demonstrated for CO and not CO₂, and justifies us not evaluating it further in the following analysis. The shelf life of these liquid carriers may be a few years even if stored properly, which is short compared with most of the solid carriers listed in Table 2 and may make them more viable for transportation applications. Additionally, unlike sorbents and solid carriers, LOHC require a deformation of CO₂, which requires substantial amounts of energy. We decided to include these materials in our analysis as there have been major advancements in reactor design as well as direct electroreduction of CO₂ focused on lowering the cost of CO₂ utilization,^82,83 which will also lower the cost of LOHC for CO₂ storage. For example, Sun et al. review the promise of tuning two-dimensional nanosheets to avoiding the use of catalysts based on costly noble metals.⁸⁴ Moving towards an electrochemical approach may improve overall synergies with DAC facilities with dedicated renewables or established grid connections.

Storage analysis

The importance of gravimetric capacity becomes apparent when estimating the quantity of material required to store the same amount of CO₂ (Fig. 4). Oxalic acid and FA require very little material per unit of CO₂ stored, while NaHCO₃, when removing 0.5 CO₂ per Na, requires substantial amounts of material. Methanol technically only stores CO, so an additional amount of oxygen is required to provide CO₂. Volumetric capacity and the phase of the material and flammability of material are key variables influencing the physical footprint of the system. At the pilot scale, FA and methanol have the largest footprint per unit of CO₂ stored due to the space required for safety, despite their good gravimetric capacities. NFPA 30 requires spatial separation of large-scale storage of Class 1 flammable liquids of at least 15 meters, and we conservatively use this value to estimate safety spacing for methanol and formic acid. Liquid CO₂ has the smallest footprint due to its high density and relatively small assumed safety spacing requirement. It offers high densities, but requires thermal insulation and liquefaction has a high energy consumption. Liquified CO₂ is energetically costly and subject to boil-off issues, making it unsuitable for long-term CO₂ storage.

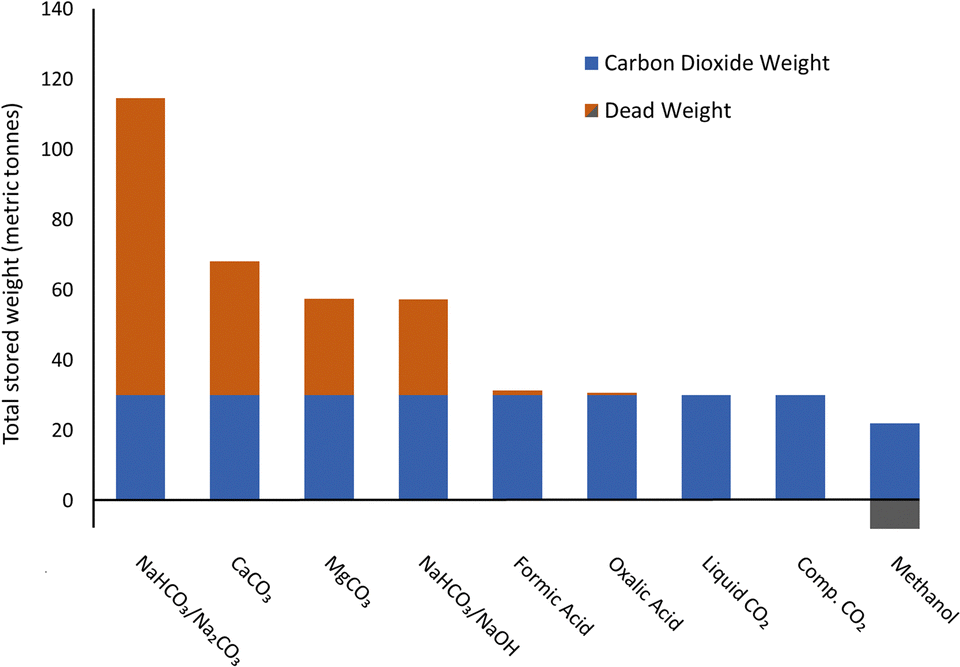

Fig. 4 Quantity of carrier weight required to store 30 tCO₂. Carbon dioxide weight is excluded for methanol as it stores CO rather than CO₂.

Results are substantially different at the regional hub scale (Fig. 5), as liquid CO₂ tanks do not achieve great economies of scale (110 m³ compared to 28 m³ capacity for the pilot facility) relative to other materials. The poor gravimetric capacity of NaHCO₃ does not outweigh the great economies of scale achieved with bulk powder silos, and it has a similar footprint intensity as liquid CO₂. Flammable liquid storage also scales well with capacity, and methanol and FA require less than 60 storage vessels, compared with the bulk powder materials that require between 100–400, and liquid CO₂ which requires nearly 8260 tanks. Oxalic acid, which offers the smallest land footprint for a regional hub, would still require a space the size of approximately 22 soccer fields (7140 m²) or 6.5% of an average landfill in the United States. Carbonate salts require slightly more land area at the regional hub scale than oxalic acid (20–61% more), but still perform far better than methanol and FA at all scales studied.

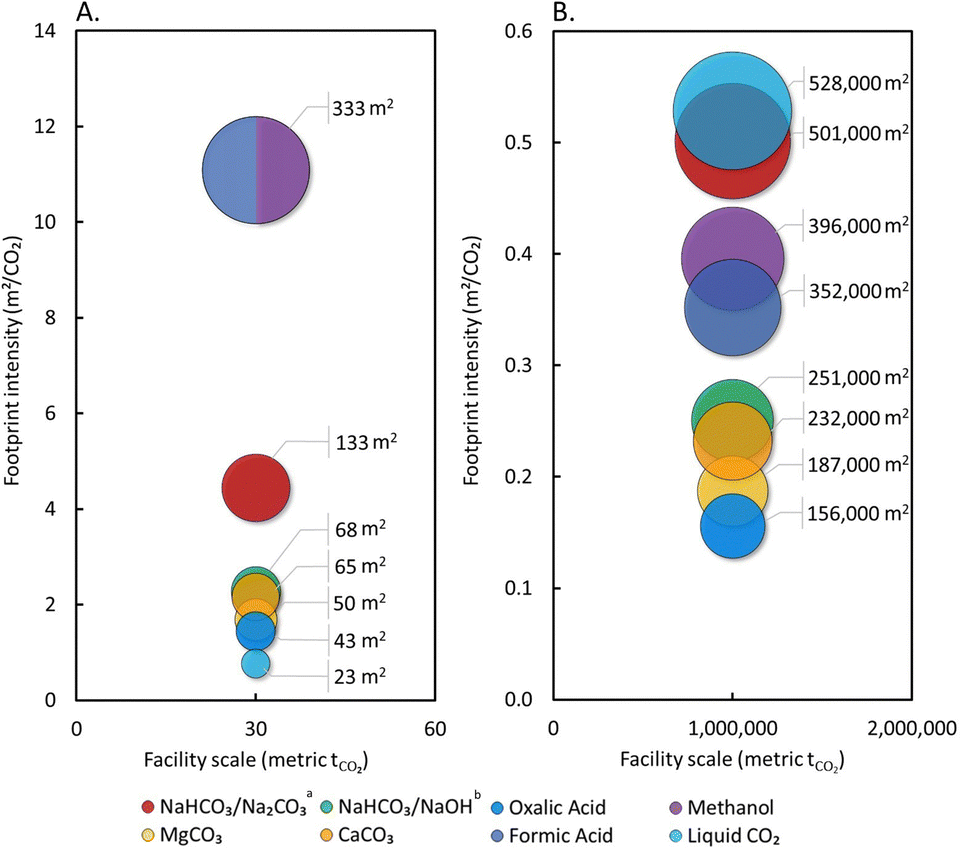

Fig. 5 Land footprint intensity per tonne of CO₂ stored and total physical footprint required to store CO₂ for the following scenarios: (A) pilot facility (three years of storage, or 30 tCO₂) and (B) regional hub (one year of storage or 1 MtCO₂). The area of circle represents the total land footprint required (m²). For reference, a soccer field is 7140 m² and an average United States landfill is 2.4 million m². Assumes 50% powder void fraction. ^aRemoving 0.5 CO₂ per Na. ^bRemoving 1.0 CO₂ per Na.

Transportation analysis

Considering B-train trucks, we find that the quantity of CO₂ that can be transported per vehicle is limited by weight, except for sorbents where the volume of the tanks limited CO₂ delivery per truck (Table S2, ESI†). Methanol, formic acid, and oxalic acid can deliver more CO₂ per truck than liquified CO₂ trucks, and all return empty except for oxalic acid which has very little dead weight. Liquid chemical carriers tend to outperform solid carriers due to their high carbon contents and good bulk densities. It is notable that for methanol, the mass of CO₂ transported per tonne of methanol is 1.38 tonne, which is higher than the mass of the methanol required. This is due to the fact that additional oxygen (when reforming in the form of steam) is required when releasing CO₂ from methanol. Oxalic acid has an extremely high gravimetric capacity of 97.8 CO₂ wt%, which leads to similar transport characteristics as liquefied CO₂. In comparison, the weight of the returning trucks for other carbonate salts, can be almost as heavy as a full truck which increases energy requirement of CO₂ transport. MOFs do not have as significant a deadweight, but are limited in volume as it relies on compressing gaseous CO₂.

Moving 1 million tonnes of CO₂ from a hypothetical plant annually through methanol, formic acid, oxalic acid, and liquid CO₂ would require operating 39–56 B-trains each day. Moving the same amount of CO₂via MOF or future MOF would need 114 or 71 B-trains daily, respectively. Moving CO₂ with other solids can require up to 207 B-trains daily due to limited capacity. Just comparing across a single round-trip, methanol can deliver the most CO₂, with only 39 trucks required to move daily CO₂ production in the regional hub scenario. No truck transportation technology can match the low transportation energy of supercritical pipelines.

Energy consumption per truck is a function of weight and increases linearly with round-trip distance (31–40 MJ per km-truck). The total transport energy for trucking shown in Fig. 6 accounts for diesel fuel consumed by a truck fleet moving 1 million tonnes of CO₂. Methanol, formic acid, and oxalic acid can deliver CO₂ with diesel consumption close to or less than trucking liquified CO₂. Emissions associated with diesel consumption derived using our approach were between 45 and 57 grams of CO₂ equivalents per tonne-km, which aligns well with emission factors reported for long-haul trucks (57 gCO₂ per t-km).⁸⁵ Emissions associated with diesel consumption and with recompression for pipelines will have a negligible impact, especially over expected transportation distances (<500 km). The emissions breakeven distance shows that pipeline is the most efficient mode of CO₂ transport, followed by methanol, formic acid, oxalic acid, liquid CO₂ and future MOF trucking. Lowering the speed of trucks from 100 to 80 kg h⁻¹ reduces the transport energy intensity by 15–20% while increasing the breakeven distance by 19–23% in all carriers considered. Smaller changes were observed for solid carriers due to the heavy weight of the returning trucks. However, the relative orders amongst carriers in terms of energy intensity and breakeven distances are unaffected. The breakeven distance of methanol, the best-performing carrier, is 37.8 km when operating trucks at 80 km h⁻¹, which is still considerably shorter than 63.4 km of CO₂ pipeline. Trucking CO₂ with MOF will create more emissions during delivery compared to conventional means even when its uptake capacity can be increased in the future. This is due to the dead weight and volume occupied by MOF pellets limiting the quantity of the transported CO₂. The quantity of CO₂ transported using a truck filled with MOFs can be further increased by lowering temperature or increasing pressure during transport, but these strategies were not considered in this analysis due to the lack of data.

Fig. 6 Truck driving distances and (A) estimated energy consumed for transport of CO₂ by way of gas, liquid, and solid carriers, and (B) break-even distance before more CO₂ is emitted during transportation than is stored. Values are presented in Table S2 (ESI†).

Pathways for capturing CO₂, converting it for storage, loading and unloading a vehicle, and recovering the CO₂ have very different processes involved, and estimating energy consumption is outside the scope of this analysis. For example, the relatively low diesel consumption required for methanol and FA transport is likely to be overshadowed by the energy intensive processes required for hydrogenation and dehydrogenation, unless these processes can rely on low-carbon electricity. There are concepts to take advantage of high decarbonation temperatures in thermal energy storage, e.g. in thermal solar plants,⁸⁶ which might present an interesting integration of systems that improves life-cycle performance. Upfront compression requirements for sorbent transportation technologies at the scale of a refuelling station must be compared with relevant scale systems for liquified CO₂ or supercritical pipeline CO₂, as the behaviour of CO₂ varies substantially from ideal in these ranges.^35,87,88 Whether liquid carriers outcompete sorbents or solid carriers on a carbon emission or energy intensity basis will need to be assessed through life-cycle assessment that determines impacts from CO₂ transportation and from H₂ transportation.

Concluding remarks

In this analysis, we reviewed several classes of materials for their viability as storage materials for CO₂. Material classes were identified based on carbonate chemistry in nature and industry, consideration in CO₂ capture systems, and consideration for H₂ storage. Materials were screened based on their ability to offer stable but reversible storage over relevant time scales, their theoretical gravimetric and volumetric storage capacities, compatibility with existing solid, liquid, and gaseous infrastructure currently used in industry, and availability of experimental data describing performance. The quantity of material and subsequent number of trucks and storage units were estimated for storage capacities of 30 tCO₂ and 1 MtCO₂ and capture rates of 10 tpy and 1 Mtpy.

While many materials derived from CO₂ have been ruled out as options for permanent sequestration of CO₂ due to limited compound stability under ambient storage conditions, the concept of temporary storage in the form of an environmentally friendly cheap compound to bridge temporal, spatial and economic scale gaps may not be that absurd. This is especially true considering the dramatically poor scaling of liquid CO₂ stationary storage compared with solid chemical carriers (Fig. 5). Our first-order evaluation of materials for CO₂ storage and transportation suggests that the land footprint and number of trucks required to manage CO₂ in the absence of geologic storage and pipelines is large, but improved over gaseous and liquified CO₂ storage. We also find that the greenhouse gas emissions associated with transporting CO₂ by diesel truck is negligible but still greater than emissions associated with recompression in pipelines. Both CO₂ pipelines and liquefaction facilities are capital-intensive infrastructure to build, especially at small annual capacities, and would require CO₂ sources and sinks to remain relatively fixed. Other storage and transport options – such as chemicals and sorbents – may offer flexibility to emerging distributed and highly mobile CO₂ capture technologies that are positioned to tackle our climate crisis.

Carbonates are possible candidates for stationary storage but it is unclear whether the long shelf life of the material will offset challenges associated with acquiring the large initial quantity of carrier material required (Fig. 4). Formic acid, oxalic acid, and methanol provide higher densities than cryogenic liquid CO₂, with less starting material required than carbonates. Tradeoffs between material requirements (Fig. 4), land requirements (Fig. 5), storage duration (Table 2) and energy consumption (Fig. 6) will all influence cost. While it is not within the scope of this study to estimate which method may be most economic for long duration CO₂ storage, we offer the following thoughts on cost. First, the maturity, long storage duration, and high density of carbonates could lead to low costs. Second, the ultra-high storage capacity of oxalic acid, along with the potential to be readily produced from CO₂ and water under mild conditions could also lead to low costs. The same is true for formic acid, and both acids have gained increased attention as valuable products of electroreduction of CO₂ at ∼400 $ per t market value.⁸⁹ Third, the cost of LOHC that require hydrogen will be highly dependent on the price of H₂. Fourth, for some of our top candidates, we wish to highlight an exciting benefit, which would be the direct capture of CO₂ into liquid or solid materials for storage without the need for CO₂ compression, examples of which are noted by Gutierrez-Sanchez et al. for formic acid and methanol.⁹⁰ Future experimental and engineering design work are needed to advance the integration of storage materials into CO₂-capture concepts, and we hope this study will draw attention to this research gap.

Finally, we identify multiple pathways for low-energy recovery of CO₂ from storage materials. This is important for recycling solid and liquid carrier materials for reuse or sale. In a circular economy there will be many different CO₂-sources and technologies utilized to control CO₂ emissions. Thus, it is likely that various CO₂ storage media will find use in a circular economy upon decommissioning the CO₂ storage system.⁹¹ At the same time, given the scale of storage required, it is essential to find alternatives to materials with high supply risk and cost. The issue of material criticality for clean energy systems has led to national investments in domestic production of materials such as lithium. It is notable that our top candidates for storage do not rely on critical materials, however, we do note that sorbents may require cobalt, nickel, or manganese, and that some catalysts for LOHC use critical materials such as iridium. Considering the potential market growth of liquid H₂ carriers^92,93 with careful planning and road mapping, integrating H₂ and CO₂ transportation may likely have economic and environmental benefits.¹⁰ We envision scenarios where large potential off-takers of CO₂, such as the cement industry, use H₂ to provide clean heat and electricity.

The ability to recycle solid sorbent materials such as MOFs is unknown, and their use may be limited to CO₂ capture and transportation applications where they will undergo frequent cycling. While the projected future cost of MOFs for H₂ and natural gas storage ranges between $10–71 per kg-sorbent,⁹⁴ some of the best performing MOFs for CO₂ are unlikely to achieve such low costs. In comparison, activated carbon sells on markets such as Alibaba at as low as $0.45–6 per kg-sorbent. As such, the use of MOFs for small stationary storage, or short duration storage with high cycling, such as for transportation, is more feasible than large-scale bulk storage. It is important to note that our sorbent-based transportation analysis was limited by the lack of high-pressure CO₂ adsorption data points; further measurement of MOFs, activated carbons, and zeolites at high-pressure environment relevant to CO₂ storage would reduce the technical uncertainty of sorbent-based storage and transportation.

In conclusion, material emplacement of CO₂, or material-based storage at large scales, should be taken seriously as a CO₂ storage solution as it can be: (1) deployed today; (2) geographically agnostic; (3) used as a form of bulk CO₂ transportation, avoiding the construction of pipelines; and (4) decommissioned and monitored. Carbon dioxide storage and transportation are essential components of CO₂ removal, and the discovery and development of advanced storage technologies could play a critical role in enabling the deployment of capture technologies in the next decade. As summarized in this study, the benefits and challenges of each material reviewed are highly specific, and will require further analysis to verify storage durability and to identify the most cost-effective solutions. We encourage the community of scientists advancing the use of materials for CO₂ capture and for utilization to apply their knowledge to this pressing application.
