Correction: Mesoporous polyvalent Ni–Mn–Co–O composite nanowire arrays towards integrated anodes boosting high-properties lithium storage
Junxiang
Zhou
,
Yudeng
Wang
,
Bo
Feng
,
Yong
Sun
* and
Jiafu
Wang
*
Shaanxi Key Laboratory of Artificially-Structured Functional Materials and Devices, Air Force Engineering University Department of Basic Sciences, Xi'an 710051, China. E-mail: suny2015@stumail.nwu.edu.cn; wangjiafu1981@126.com
First published on 24th April 2023
Abstract
Correction for ‘Mesoporous polyvalent Ni–Mn–Co–O composite nanowire arrays towards integrated anodes boosting high-properties lithium storage’ by Junxiang Zhou et al., Dalton Trans., 2023, 52, 3526–3536, https://doi.org/10.1039/D3DT00211J.
The authors would like to make a correction to the published Fig. 4(a) and (b). In the previous study, CV tests were performed on more than ten samples. However, in the later data collation of the paper, there was an error in the correspondence between the samples and the CV data, resulting in that the CV curves of Fig. 4(a) and (b) did not correspond to the actual samples.
 | ||

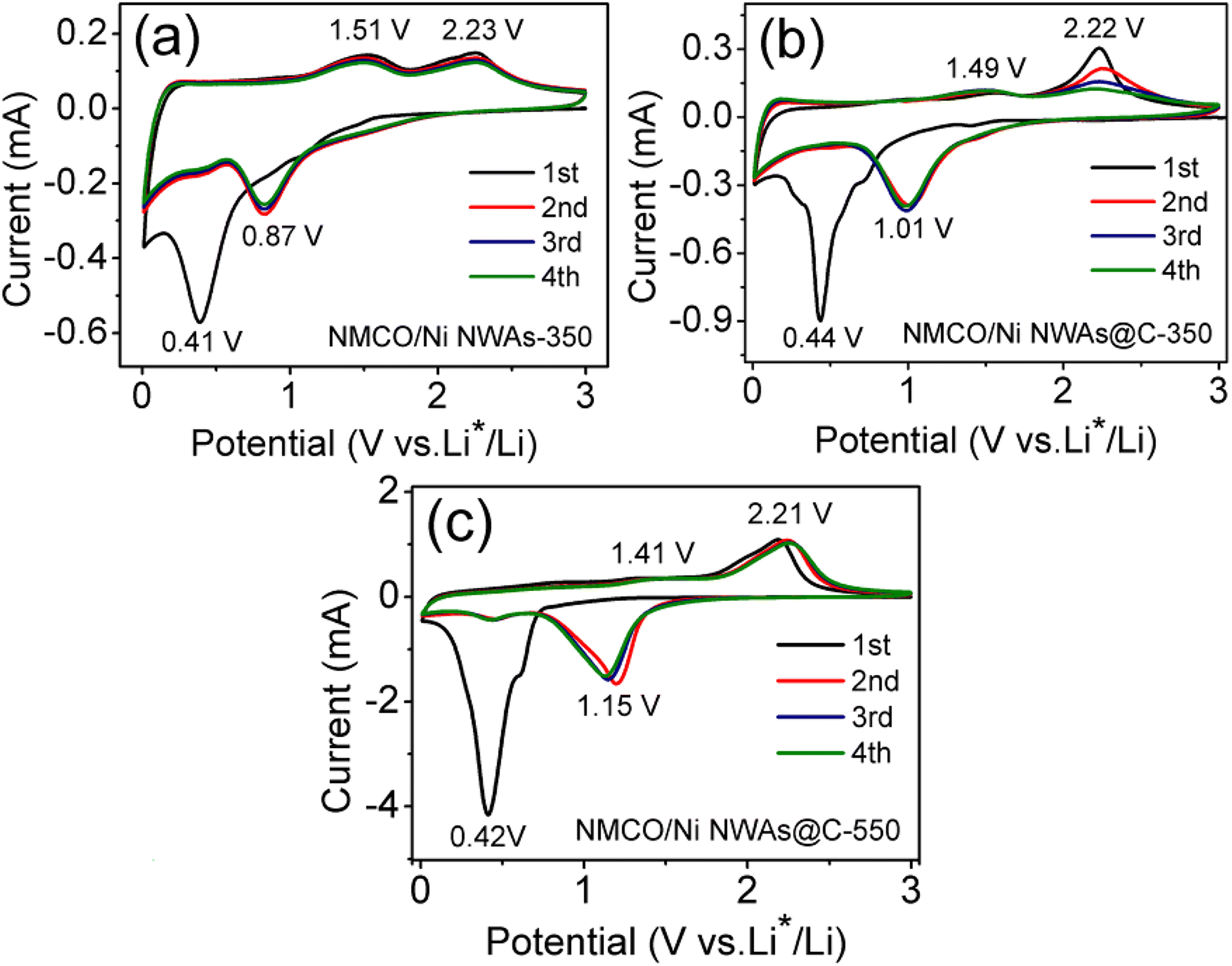

| Fig. 4 CV measurements of (a) NMCO/Ni NWAs-350, (b) NMCO/Ni NWAs@C-350, and (c) NMCO/Ni NWAs@C-550 acquired at a scan rate of 0.1 mV s−1. | ||
According to the revised Fig. 4(a) and (b), relevant data of the CVs’ performance analysis in the paper are modified, which does not affect the conclusions of the paper. The revised text is as follows:
CV measurements of NMCO samples are shown in Fig. 4. In the first cathodic scan of the three NMCO samples, a sharp reduction peak appears in the range 0.41–0.44 V, which is attributed to the reduction of NMCO to Ni0, Mn0, and Co0, and formation of the SEI layer and amorphous Li2O.28–30 Proverbially, as a conversion mode material, the NMCO is reduced to the elementary substances during the first cathode scan. Subsequently, the Ni0, Mn0, and Co0 are oxidized to the corresponding oxide during the initial anodic scan. During this process, the newly formed oxide nanoparticles might be several nanometers in size. This results in that the reduction potential of all the NMCO samples shifts to 0.87–1.15 V in a subsequent cathodic scan.31–33 Two peaks of all NMCO samples appeared at 1.41–1.51 V and 2.21–2.23 V in the initial anodic scan, relating to the formation of NiO, MnO, and CoO, respectively.34
The Royal Society of Chemistry apologises for these errors and any consequent inconvenience to authors and readers.
