Atomic layer deposition of CoF₂, NiF₂ and HoF₃ thin films

Abstract

The present study describes atomic layer deposition (ALD) processes and characterization of CoF₂, NiF₂, and HoF₃ thin films. For CoF₂ deposition CoCl₂(TMEDA) (TMEDA = N,N,N′,N′-tetramethylethylenediamine) and NH₄F were used as precursors. CoF₂ deposition was studied at 180–275 °C, resulting in a growth per cycle (GPC) of 0.7 to 1.2 Å. All the films consist of tetragonal CoF₂ according to XRD. The impurity contents were measured with ToF-ERDA and less than 1 at% of N and Cl were detected in the films, indicating effective reactions. In addition, the F/Co ratio is close to 2 as measured by the same method. The saturation of the GPC with respect to precursor pulses and purges was verified at 250 °C. The common feature of ALD metal fluoride films – remarkable roughness – is encountered also in this process. However, the films became smoother as the deposition temperature was increased. CoF₂ deposition was also demonstrated on graphite substrates. NiF₂ deposition was studied at 210–250 °C by using Ni(thd)₂ and TaF₅ or a new fluoride source NbF₅ as the precursors. Tetragonal NiF₂ was obtained, but the oxygen and hydrogen contents in the films were remarkable, up to ∼11 at%, as measured by ToF-ERDA. This was observed also when the films were in situ capped with YF₃. NbF₅ was shown to be a potential fluoride precursor by combining it with Ho(thd)₃ to deposit HoF₃ films. Orthorhombic HoF₃ was obtained at deposition temperatures of 200–275 °C. The films deposited at 235–275 °C are pure, and the Nb contents in films deposited at 250 and 275 °C are only 0.21 and 0.15 at%. The main impurity in both films is oxygen, but the contents are only 1.5 and 1.6 at%. The saturation of the GPC with respect to precursor pulses was verified at 250 °C. The GPC is ∼1 Å.

---

Introduction

Lithium-ion batteries (LIBs) have been considered as the best choice for challenging energy storage, such as transport, due to their good gravimetric and volumetric energy densities, long cycle life and relatively low cost. To make the most of the LIB technology, research is now focusing on, e.g., 3D solid-state batteries. The performance of 3D solid-state batteries can be improved by developing new cathode materials which have higher capacities than the currently used intercalation transition metal oxides.

One of the active cathode research topics has been transition metal fluorides. They are potential cathode materials for both Li and Na-based battery systems and surpass the commonly used metal oxides in energy densities. The operation principle of transition metal fluoride cathodes is based on conversion reactions with lithium ions. Compared to the conventional layered intercalation oxide cathodes, transition metal fluorides can provide higher capacities due to more transferring electrons per one transition metal ion. In addition, the conversion reactions go to completion, as opposite to the intercalation reactions in the layered oxides, where typically only a fraction of the redox-active metals can be utilized. A selection of conversion cathode materials, such as FeF₂, FeF₃, CoF₂, CoF₃, NiF₂, and CuF₂ have been studied.¹

For the future 3D solid-state batteries, cathode materials are needed in the form of conformal thin films. However, not many methods have been reported for fabricating thin films of the discussed metal fluorides. For cobalt(II) fluoride, for example, only pulsed laser deposition (PLD), thermal evaporation and molecular beam epitaxy (MBE) have been reported.^2–6 To realize complicated structures needed for 3D solid-state batteries, a sophisticated thin film manufacturing method, such as atomic layer deposition (ALD), is needed. ALD is an advanced version of chemical vapor deposition (CVD) technique. The characteristics of ALD are its ability to uniformly coat 3D shapes, easily controllable film thickness, excellent film purity and stoichiometry, reproducibility, and in general lower deposition temperatures compared to the traditional CVD. These features arise from the self-limiting reactions of the gaseous precursors.⁷

Thanks to the advantageous nature of ALD, many battery component materials (electrodes, solid electrolytes, barrier layers, and artificial electrode–electrolyte interface layers) have already been deposited with ALD.⁸ These processes include also some metal fluorides, e.g., LiF and AlF₃ which can serve as protective layers for the electrodes.^9,10 Common to all the above-listed metal fluoride cathode materials FeF₂, FeF₃, CoF₂, CoF₃, NiF₂, and CuF₂ is that they lack an ALD process.

In this work, an ALD process for CoF₂ is reported. CoF₂ was deposited by using CoCl₂(TMEDA) (TMEDA = N,N,N′,N′-tetramethylethylenediamine) and NH₄F as precursors. Also deposition of NiF₂ was attempted. However, NiF₂ deposition was not straightforward with traditional precursor combinations, and film growth was observed only with the combination of Ni(thd)₂ (thd = 2,2,6,6-tetramethyl-3,5-heptanedionato) and TaF₅ or NbF₅. In addition, the hygroscopicity of NiF₂ was noticed to cause remarkable issues to the deposition process. Since NbF₅ was however identified as a potential fluoride source, we studied its usability in ALD by studying the deposition of a more stable metal fluoride, holmium fluoride. NbF₅ was combined with Ho(thd)₃ to produce HoF₃ films.

Experimental section

Film deposition

The films were deposited in an F120 cross-flow reactor (ASM Microchemistry Ltd) using 99.999% nitrogen as carrier and purging gas. In-house synthesized CoCl₂(TMEDA) and Co(thd)₂ (Volatec Oy) were used as cobalt precursors. Their sublimation temperatures were 170 and 98–110 °C. The synthesis of the CoCl₂(TMEDA) precursor is presented elsewhere.¹¹ NiF₂ film deposition was studied by using Ni(thd)₂ (Volatec Oy) and in-house synthesized NiCl₂(TMPDA) as nickel precursors. The evaporation temperatures were 125 °C for Ni(thd)₂ and 157 °C for NiCl₂(TMPDA). The synthesis of the NiCl₂(TMPDA) precursor is presented elsewhere.¹² HoF₃ films were deposited with Ho(thd)₃ (Volatec Oy) as the holmium precursor. The evaporation temperature was 125 °C.

NH₄F (Sigma-Aldrich, ≥99.99%), TiF₄ (Strem, 98%), TaF₅ (Alfa Aesar, 99.9%) and NbF₅ (abcr GmbH, 99.5%) were used as fluoride precursors. Their sublimation temperatures were 65–67, 135–145, 45 and 40–45 °C, respectively.

The films were mainly deposited on Si(100) substrates with the native oxide. CoF₂ deposition was studied also on graphite substrates (99.95% carbon foil from Goodfellow). The films were stored in a desiccator after deposition.

Film characterization

Thicknesses of the films were measured with a Film Sense FS-1 multiwavelength ellipsometer by fitting the data with a Cauchy model. Also energy dispersive X-ray spectroscopy (EDS) was used for the thickness determination using an Oxford INCA 350 microanalysis system connected to a Hitachi S-4800 field-emission scanning electron microscope (FESEM). The thicknesses were calculated with the GMRFILM program. Some film thicknesses were confirmed with cross-section FESEM.

EDS was used also to confirm the elements present in the films. Prior to the EDS measurements, the films were coated with carbon to increase the conductivity of the films.

Time-of-flight recoil detection analysis (ToF-ERDA) was used to quantitatively determine the stoichiometry of the films and the impurity contents. A 5 MV tandem accelerator at the accelerator laboratory of University of Helsinki was used for measurements. Measurements were done using 35–40 MeV ⁷⁹Br or ¹²⁷I primary ions and 40° detection angle.

PANalytical X′pert Pro MPD diffractometer in the grazing incidence X-ray diffraction mode (GI-XRD) was used for crystallinity measurements. The diffractograms were analyzed with a PANalytical HighScore plus software (version 4.7).

FESEM and atomic force microscopy (AFM) were used for studying the morphology of the films. A Veeco Multimode V instrument was used for recording the AFM images. Tapping mode images were captured in air using silicon probes with nominal tip radius of 10 nm and nominal spring constant of 5 N m⁻¹ (Tap150 from Bruker). Images were flattened to remove artefacts caused by sample tilt and scanner bow. Roughness was calculated as a root-mean-square value (R_q). For FESEM imaging, the films were coated with Au/Pd to increase the conductivity of the samples.

Thermodynamic calculations were done with HSC Chemistry 7.1 software (Outokumpu Research Oy).

Results and discussion

Cobalt(II) fluoride films

CoF₂ deposition was attempted with the combinations of Co(thd)₂ (thd = 2,2,6,6-tetramethyl-3,5-heptanedionato) and NH₄F, TiF₄, TaF₅, or NbF₅. With NH₄F no film was obtained. With TiF₄ the film deposited at 200 °C possibly consisted of CoF₂ according to XRD, but for the film deposited at 300 °C XRD showed strongly crystalline TiF₃ phase in addition to the possible CoF₂ phase. The combinations of Co(thd)₂ and TaF₅ or NbF₅ were briefly studied at the deposition temperature of 250 °C. In both cases CoF₂ phase was seen in XRD. However, in the case of NbF₅ the film was blurry and contained ∼5 at% of Nb according to EDS. In the case of TaF₅ the film contained more tantalum than cobalt according to EDS.

CoF₂ was successfully deposited by using CoCl₂(TMEDA) (TMEDA = N,N,N′,N′-tetramethylethylenediamine) and NH₄F as precursors. CoCl₂(TMEDA) is a volatile adduct of the extremely low-volatility CoCl₂. It was first presented by Väyrynen et al. in an ALD process for cobalt(II) oxide.¹¹ The neutral adduct ligand TMEDA is assumed to be released during the chemisorption of the molecule on the growth surface. NH₄F in turn decomposes to HF and NH₃ inside the ALD reactor upon heating.¹³

The evaporation temperature of CoCl₂(TMEDA) is 170 °C and it has been reported to decompose at 300 °C.¹¹ The deposition was thus studied at temperatures of 180–300 °C. After confirming that the precursor combination produces CoF₂ films, the saturation of the growth per cycle (GPC) was studied at 250 °C using 1000 cycles. The NH₄F pulse was studied first by keeping the CoCl₂(TMEDA) pulses and purges at 1 s. Soft saturation was observed when 3 s NH₄F pulses were applied (Fig. 1a, black squares). The effect of the CoCl₂(TMEDA) pulses was studied by keeping the NH₄F pulses at 3 s and the purges at 1 s. For CoCl₂(TMEDA) 0.5 s pulses were sufficient to reach saturation (Fig. 1b). Later, however, it was noticed that more uniform films were obtained when the evaporation temperature of NH₄F was increased by a couple of degrees to 67 °C. The saturation of the GPC was studied again by using 1 s CoCl₂(TMEDA) pulses and 4 s purges (Fig. 1a, red triangles). A better saturation curve was achieved, and 3 s NH₄F pulses were sufficient for the saturation. It was also verified that 3 s purges are sufficient (Fig. 1a, blue circle). The GPC is 1.15 Å.

Fig. 1 GPC as a function of (a) NH₄F and (b) CoCl₂(TMEDA) pulse lengths at 250 °C.

CoF₂ films were deposited at 250 °C also with 250, 500, and 1500 cycles to study the linearity of the growth. As seen in Fig. 2, the thickness of the films grows linearly with the increasing cycle number.

Fig. 2 Thickness of the films as a function of CoF₂ deposition cycles.

Film growth was studied at 180–300 °C. The lowest deposition temperature 180 °C is only 10 °C higher than the evaporation temperature of the metal precursor but results in uniform films. At 300 °C, in turn, very spotty films were obtained, and this temperature was not studied further. The adhesion of the films to the Si substrate was in general good as was tested with the Scotch tape test.

Fig. 3 shows the GPC of the films deposited at different temperatures using 1000 cycles as calculated from ellipsometry and EDS. In general, the EDS and ellipsometry results are in line with each other at high deposition temperatures, whereas at lower temperatures the difference is larger. This might be explained by the large roughness of the films deposited at lower temperatures which complicates the ellipsometry measurements. Nevertheless, as seen in the EDS results, the trend in the GPC is increasing from 180 to 225 °C and the GPC stays approximately constant at 225 and 250 °C. The GPC increases again at 275 °C. The increase could be explained by the onset of the precursor decomposition as CoCl₂(TMEDA) has been reported to decompose at 300 °C and above.

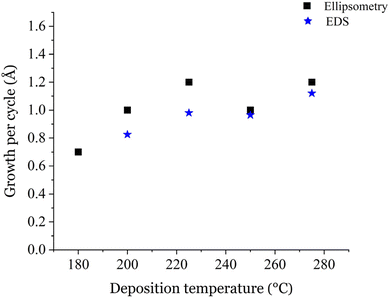

Fig. 3 GPC of CoF₂ films as a function of the deposition temperature.

All the deposition temperatures (180–300 °C) result in polycrystalline tetragonal CoF₂ films as measured by XRD (Fig. 4, ICDD PDF 33-417). There are however differences in the relative diffraction intensities of films deposited at different temperatures which might indicate different orientations. For a randomly oriented CoF₂, the strongest reflection is positioned at 2θ of ∼27°. This reflection is seen in our films, and it becomes dominant as the deposition temperature increases. In Fig. 4, the thicknesses of the films are 60–69 nm, except the film deposited at 180 °C which is 48 nm thick. Tetragonal CoF₂ has been obtained also with thermal evaporation method.⁵

Fig. 4 GI-XRD of CoF₂ films deposited at 180–300 °C. The films are 60–69 nm thick, except the film deposited at 180 °C that is 48 nm thick.

The composition of the films was studied qualitatively with EDS. In addition to Co, F, and light impurity elements, a small Ni signal was sometimes observed. The possible explanations for this are nickel residues in the reactor or contaminants in the CoCl₂ used for the synthesis of CoCl₂(TMEDA).

The impurities as well as the stoichiometry were quantitatively measured with ToF-ERDA. Table 1 represents the elemental contents in the films including the surface and Si/CoF₂ interface regions. The F/Co ratio 1.9–2.2 is close to the expected 2.0 and thus in line with the XRD results. In addition, the impurity contents are low. For example, the N and Cl contents are less than 1 at% in all the measured films, despite both precursors containing nitrogen. The purest films are those deposited at 225–275 °C, having H, C, N, O, and Cl contents lower than 1 at%. At 250 °C, the total content of these impurities is only 1.15 at%. If some precursor decomposition was to take place already at 275 °C, as discussed earlier, it is not seen as increased impurity contents.

Table 1 Elemental contents and stoichiometry as measured by ToF-ERDA for CoF₂ films (F/Co ratio 1.9–2.2) deposited with 1000 cycles at different deposition temperatures

T dep (°C)	Co (at%)	F (at%)	H (at%)	C (at%)	N (at%)	O (at%)	Cl (at%)	F/Co
180	33 ± 2	61 ± 5	2.1 ± 0.9	0.62 ± 0.12	0.11 ± 0.01	2.3 ± 0.2	0.60 ± 0.08	1.9
200	31.6 ± 1.0	63 ± 2	3 ± 2	1.1 ± 0.3	0.19 ± 0.08	0.98 ± 0.06	0.28 ± 0.07	2.0
225	32.6 ± 0.8	65 ± 2	0.9 ± 0.3	0.60 ± 0.15	0.04 ± 0.00	0.79 ± 0.06	0.23 ± 0.05	2.0
250	31.2 ± 0.6	68 ± 2	0.25 ± 0.08	0.10 ± 0.01	0.04 ± 0.00	0.63 ± 0.04	0.13 ± 0.02	2.2
275	33.4 ± 0.6	64.1 ± 1.3	0.8 ± 0.3	0.7 ± 0.3	0.03 ± 0.00	0.92 ± 0.06	0.17 ± 0.03	1.9

---

The possible nickel contamination cannot be determined with ToF-ERDA because the similar masses of cobalt and nickel makes their separation impossible. However, because Ni was only occasionally detected with EDS, and the small amount of nickel is not assumed to affect the CoF₂ growth, the nickel content was not determined quantitatively with other methods either.

Based on the XRD and ToF-ERDA results, the precursor combination of CoCl₂(TMEDA) and NH₄F seems to work well. To our knowledge, no successful ALD process has been reported in the literature using the precursor combination of a metal chloride and NH₄F. These combinations have been previously tested at least for AlF₃ and ZnF₂, but no film growth was observed.¹³ It is interesting to note that ZnF₂ films have been deposited by ALD using zinc acetate and NH₄F as precursors.¹³ In addition, the AlCl₃ + TiF₄ process has been shown to work for AlF₃ deposition.¹⁴

Fig. 5 shows FESEM images of films deposited at 200, 250, and 275 °C with 1000 cycles. In the film deposited at 200 °C, rod-shaped grains are seen, and the surface appears rough. At 250 and 275 °C, the grains are larger and merged together, making the film appear more uniform and smoother. The difference in the morphology between the films deposited at 200 and 275 °C is seen also in the cross-section FESEM images (Fig. 6).

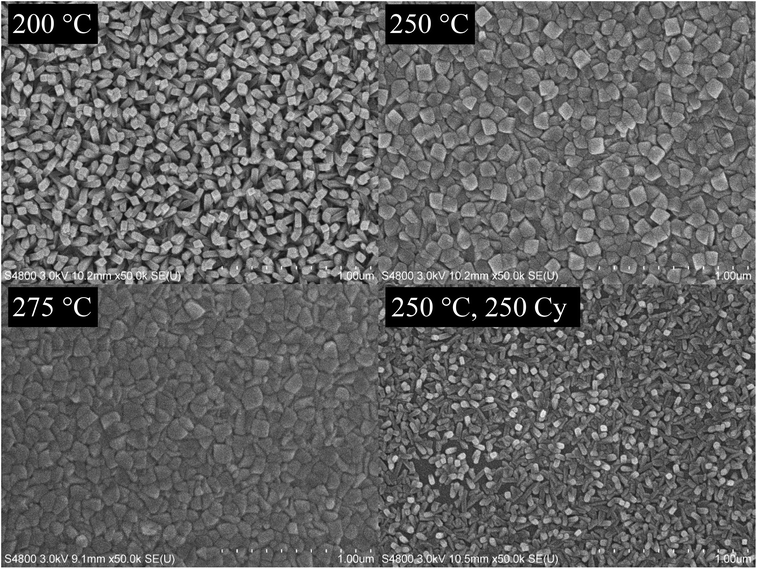

Fig. 5 FESEM images of CoF₂ films deposited at 200, 250, and 275 °C with 1000 cycles and at 250 °C with 250 cycles.

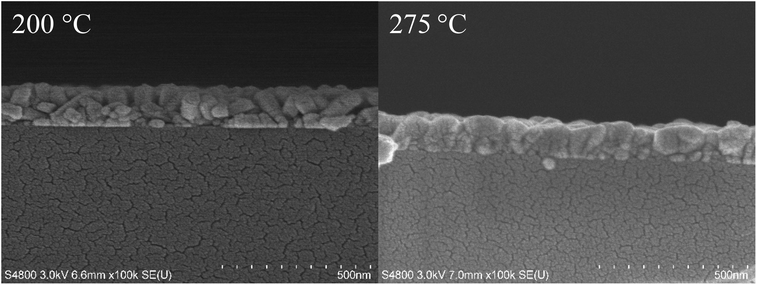

Fig. 6 Cross-section FESEM images of CoF₂ films deposited at 200 and 275 °C with 1000 cycles.

Also a thinner film (250 cycles) was deposited at 250 °C and imaged with FESEM (Fig. 5). The morphology resembles the film deposited at 200 °C rather than the thicker film deposited at 250 °C. The film is also not yet continuous. The continuity of thin films was not specifically studied, but at least a film deposited with 500 cycles at the same deposition temperature is continuous.

Due to the morphology of the films, their roughness was assumed to be remarkable. Fig. 7 shows AFM images of films deposited at 200–275 °C. Although the films are only 60–69 nm thick, the root mean square roughnesses (R_q) are between 10.9 and 24.7 nm. The largest roughness is measured from the film deposited at the lowest temperature, and the roughness gets smaller as the deposition temperature is increased. This is in line with the FESEM studies. Due to the roughness, the film deposited at the lowest temperature was very difficult to measure with AFM. Note that the z-scales of 200 and 225 °C images are different compared to 250 and 275 °C images.

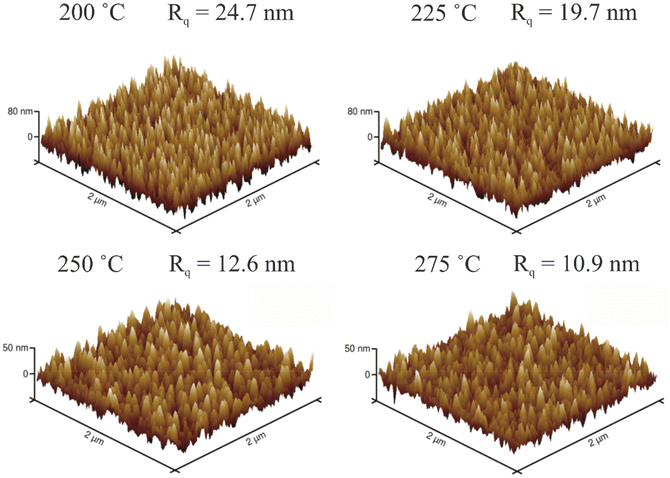

Fig. 7 AFM images of CoF₂ films deposited at 200–275 °C. Note the larger z-scale in 200 and 225 °C images.

Since the electronic conductivity of metal fluorides is poor, potential battery materials have been combined, e.g., with carbon to create conducting nanostructures.¹⁵ Therefore, we briefly studied CoF₂ deposition also on a graphite substrate. The deposition was done by applying 700 cycles at 250 °C. The precursor pulse lengths were adopted from the CoF₂ process on Si, but the purge times were lengthened to 5 s. In FESEM images rod-like features are seen (Fig. 8). According to XRD the film consists of tetragonal CoF₂ (Fig. 9).

Fig. 8 FESEM images of (a) the bare graphite substrate and (b) a CoF₂ film deposited on the graphite substrate.

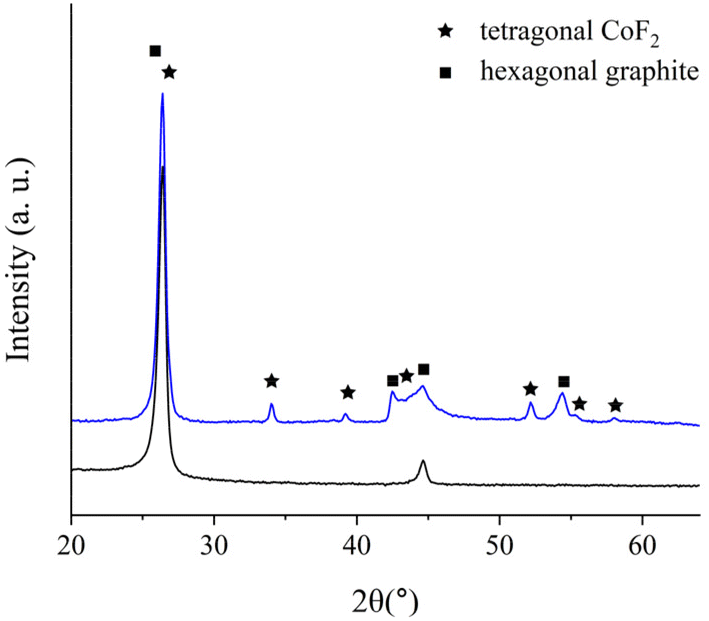

Fig. 9 GI-XRD of a bare graphite substrate and a CoF₂ film deposited at 250 °C on a graphite substrate.

Nickel(II) fluoride films

Nickel(II) fluoride deposition was first attempted with the combination of NiCl₂(TMPDA) (TMPDA = N,N,N′,N′-tetramethyl-1,3-propanediamine)¹² and NH₄F, which is similar to the precursor combination used in the successful CoF₂ deposition. No film was obtained, however. Also the more traditional precursor combinations of Ni(thd)₂ and NH₄F or TiF₄ were studied but no film growth was observed.

NiF₂ growth was achieved with the combination of Ni(thd)₂ and NbF₅. The use of NbF₅ as the fluoride source in ALD has been mentioned in patents,^16,17 but to our knowledge no process has been published in scientific papers. However, its use as a niobium source in ALD has been reported.¹⁸ NiF₂ deposition was studied at 210, 230, and 250 °C. Ni(thd)₂ has been reported to decompose at 275 °C,¹⁹ and 250 °C was therefore the highest studied deposition temperature.

According to XRD, all films consist of tetragonal NiF₂ (Fig. 10, ICDD PDF file 24-792). The GPC is 0.67 Å at 210 °C and decreases to 0.53 Å at 250 °C. Films deposited with 1500 cycles using 1 s pulses and purges were measured with ToF-ERDA (Table 2). The F/Ni ratio is 2.0–2.2 and thus in line with the XRD results. The hydrogen and oxygen contents are however large in all films, ranging from 8.3 to 10.7 at%. The carbon content is lower, 2.1–3.7 at%. The Nb content is also modest, 3.9–4.4 at%, with no clear trend with the deposition temperature. In addition, small nitrogen contents (0.03–0.07 at%) were found in the films.

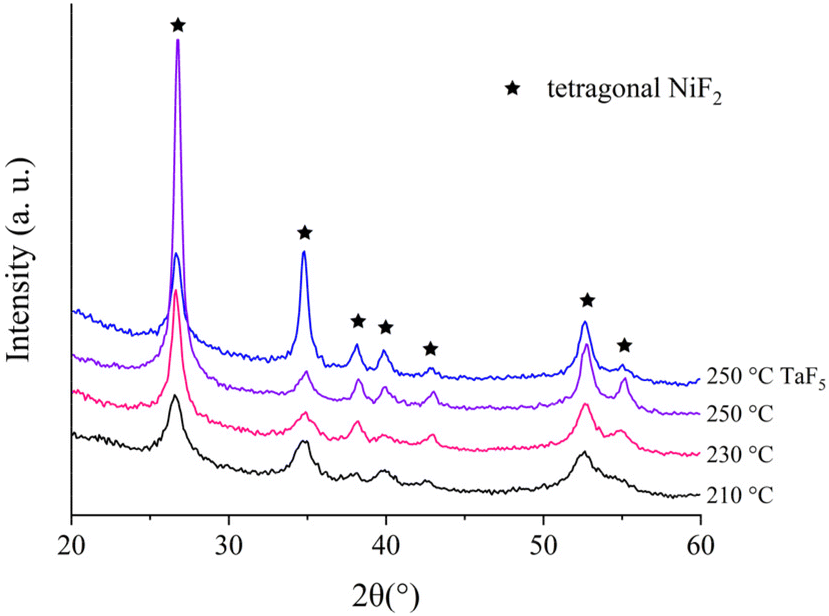

Fig. 10 GI-XRD of NiF₂ films deposited with NbF₅ and TaF₅ as precursors.

Table 2 Elemental contents and stoichiometry of NiF₂ films (F/Ni ratio 2.0–2.2) deposited with 1500 cycles at different deposition temperatures as measured by ToF-ERDA

T dep (°C)	Ni (at%)	F (at%)	H (at%)	C (at%)	N (at%)	O (at%)	Nb (at%)	F/Ni
210	24.8 ± 0.5	49 ± 2	10 ± 2	3.7 ± 0.8	0.03 ± 0.01	8.3 ± 0.8	4.0 ± 0.2	2.0
230	22.8 ± 0.5	51 ± 2	9.7 ± 1.2	3.0 ± 0.8	0.07 ± 0.01	9.6 ± 0.7	3.9 ± 0.1	2.2
250	23.5 ± 0.6	50 ± 3	10 ± 2	2.1 ± 0.6	0.04 ± 0.01	10.7 ± 0.9	4.4 ± 0.2	2.1

---

The fast erosion of some ALD metal fluoride films during the ToF-ERDA measurement was observed also with the NiF₂ films. Therefore, no accurate elemental depth profiles were obtained. To investigate if the hydrogen and oxygen impurities are located on the surface and therefore would be due to post-deposition oxidation, one NiF₂ film was capped in situ with YF₃ film and measured with ToF-ERDA. YF₃ was deposited at 250 °C by using Y(thd)₃ and TaF₅ as precursors. Despite the capping, the hydrogen and oxygen contents are still large indicating that hydrogen and oxygen are probably incorporated into the films already during the deposition. As seen in the depth profiles, hydrogen and oxygen reside clearly in the NiF₂ films (Fig. 11a).

Fig. 11 Elemental depth profiles of YF₃-capped NiF₂ films deposited using (a) NbF₅ or (b) TaF₅ as fluoride source as measured by ToF-ERDA.

NiF₂ deposition was briefly studied also by using TaF₅ as the fluoride source. The films contained tetragonal NiF₂ as measured by XRD (Fig. 10). One film was capped with YF₃ and measured with ToF-ERDA. The hydrogen and oxygen contents are similar to the films deposited with NbF₅ as the fluoride source. Also in these films hydrogen and oxygen reside clearly in the NiF₂ film as seen in the depth profile (Fig. 11b). The large hydrogen and oxygen contents in the NiF₂ films deposited with both NbF₅ and TaF₅ are assumed to result from the hygroscopicity of the NiF₂ films.

To investigate the differences in the reactivity of Ni(thd)₂ towards NH₄F, TiF₄, NbF₅, and TaF₅, thermodynamics were calculated for NiF₂ formation in each case using HSC Chemistry software. There are no thermodynamic data for metal thd complexes and therefore corresponding oxides were used as their approximations. In both thd complexes and metal oxides the metal atoms are bonded to oxygen atoms. The calculations were done in bulk form using the following reaction equations:

NiO + 2 HF (g) → NiF₂ + H₂O (g)

2 NiO + TiF₄ (g) → 2 NiF₂ + TiO₂

5 NiO + 2 NbF₅ (g) → 5 NiF₂ + Nb₂O₅

5 NiO + 2 TaF₅ (g) → 5 NiF₂ + Ta₂O₅

Table 3 lists the calculated Gibbs free energies for the formation of one mole of NiF₂ at 250 °C. The successful fluoride precursors NbF₅ and TaF₅ have the most thermodynamically favorable reactions, but there are no noteworthy differences in the Gibbs free energies, especially between TiF₄ and NbF₅. The reason for obtaining film growth with NbF₅ but not with TiF₄ is thus not likely explained by thermodynamics alone.

Table 3 Calculated Gibbs free energies for the formation of one mole of NiF₂ and CoF₂ at 250 °C from different precursors. NiO and CoO serve as approximations for Ni(thd)₂ and Co(thd)₂

Metal source	Fluoride source	ΔG (kJ mol^−1)
NiO	HF (from NH4F)	−48
NiO	TiF4	−64
NiO	NbF5	−67
NiO	TaF5	−76
CoO	HF (from NH4F)	−62
CoO	TiF4	−78
CoO	NbF5	−82
CoO	TaF5	−90

---

Similar calculations were done also for the formation of one mole of CoF₂ at 250 °C from Co(thd)₂ and NH₄F, TiF₄, NbF₅, or TaF₅ using metal oxides as approximations for metal thd complexes (Table 3). Also in this case NbF₅ and TaF₅ have the most thermodynamically favorable reactions, but there are no large differences in the Gibbs free energies.

Thermodynamics were calculated also for the reactions NiCl₂ + 2 HF (g) → NiF₂ + 2 HCl (g) and CoCl₂ + 2 HF (g) → CoF₂ + 2 HCl (g). The Gibbs free energy for the formation of one mole of NiF₂ at 250 °C is 9.5 kJ whereas for CoF₂ it is 2.6 kJ. There is thus no large difference in the favorability of the reactions, although the combination of CoCl₂(TMEDA) + NH₄F resulted in CoF₂ growth and the combination of NiCl₂(TMPDA) + NH₄F did not result in NiF₂ growth.

Note that the Gibbs free energy for the CoF₂ formation is positive for the successful combination of CoCl₂ and NH₄F whereas it is negative for the combinations of Co(thd)₂ and NH₄F, TiF₄, NbF₅, or TaF₅. In the calculations the metal thd complexes have been approximated as metal oxides and in the case of CoCl₂(TMEDA) and NiCl₂(TMPDA) the reacting species is thought to be CoCl₂ and NiCl₂. Due to these approximations and assumptions the calculations should be used only to roughly compare the favorability of CoF₂ and NiF₂ formation from similar precursor combinations. Mechanistical studies would be needed to get more insight on the differences in the growth behavior of NiF₂ and CoF₂. These studies are however out of the scope of this study.

Holmium fluoride films

Despite the impurity contents in NiF₂ films, NbF₅ seemed to be a potential fluoride source, especially because the use of TiF₄ and NH₄F as fluoride sources did not produce any film. To show that NbF₅ is usable in ALD, we investigated deposition of another metal fluoride—HoF₃—by using NbF₅ as the fluoride source and Ho(thd)₃ as the holmium source. We chose a rare earth ion since they are known to form fluorides easily. Of the rare earth fluorides an ALD process has been reported for YF₃, LaF₃, and TbF₃ using metal thd and TiF₄ as precursors^20–22 and for SmF₃, EuF₃, GdF₃, and TbF₃ using metal thd and NH₄F as precursors.^23,24 We chose HoF₃, a potential material for laser applications,²⁵ since it has not been deposited earlier by ALD. It is likely that NbF₅ is usable also in the deposition of other rare earth fluorides due to the similar nature of the rare earth metals.

The deposition was studied at 200–275 °C. Orthorhombic HoF₃ was obtained at all deposition temperatures as measured by XRD (Fig. 12, ICDD PDF 23-284). Saturation of the growth per cycle with respect to pulse lengths was verified at 250 °C (Fig. 13). The Ho(thd)₃ pulse was varied between 1 and 3.5 s while keeping the NbF₅ pulses at 2 s and purges at 2 s. The GPC saturates around 2 s Ho(thd)₃ pulses to ∼1 Å (Fig. 13a). The NbF₅ pulse length was varied between 0.5 and 3 s while keeping the Ho(thd)₃ pulses at 3 s and purges at 2 s. Saturation of GPC is achieved with 1 s NbF₅ pulses (Fig. 13b).

Fig. 12 GI-XRD of HoF₃ films deposited at 200–275 °C.

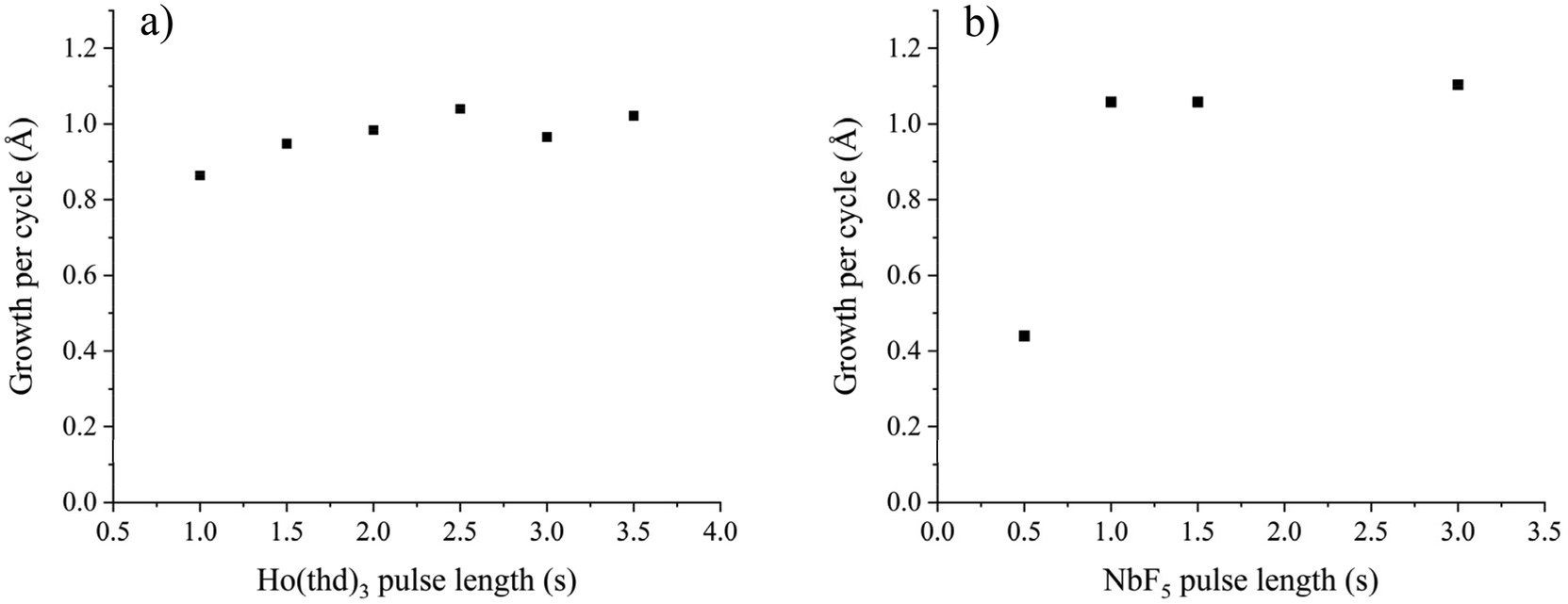

Fig. 13 GPC as a function of (a) Ho(thd)₃ and (b) NbF₅ pulse lengths at 250 °C.

The stoichiometry and elemental contents in the films were measured with ToF-ERDA (Table 4). The F/Ho ratio varies between 2.9 and 3.4 with no clear deposition temperature dependence. The ratio is in line with the XRD results. In the film deposited at 200 °C the impurity contents are quite large. The hydrogen content is the highest, 11.2 at%, followed by the oxygen content (8.1 at%). The Nb content is however modest, 2.3 at%. The films deposited at 235–275 °C are purer, especially the films deposited at 250 and 275 °C. The main impurity in both films is oxygen (1.5 and 1.6 at%). Importantly, the Nb contents are only 0.21 and 0.15 at%.

Table 4 Elemental contents and stoichiometry of 84–97 nm HoF₃ films (F/Ho ratio 2.9–3.4) deposited at different deposition temperatures as measured by ToF-ERDA

T dep (°C)	Ho (at%)	F (at%)	H (at%)	C (at%)	N (at%)	O (at%)	Nb (at%)	F/Ho
200	19.2 ± 0.2	55.5 ± 1.2	11.2 ± 1.1	3.7 ± 0.4	<0.03	8.1 ± 0.5	2.3 ± 0.2	2.9
235	20.5 ± 0.2	69.9 ± 1.3	4.3 ± 0.6	1.2 ± 0.2	<0.07	2.9 ± 0.2	1.24 ± 0.12	3.4
250	23.4 ± 0.2	73.4 ± 1.5	1.1 ± 0.3	0.43 ± 0.09	<0.03	1.5 ± 0.2	0.21 ± 0.04	3.1
275	22.8 ± 0.2	74.4 ± 1.5	0.7 ± 0.2	0.30 ± 0.09	<0.05	1.6 ± 0.2	0.15 ± 0.03	3.3

---

In FESEM, the 84–97 nm thick films show a lamellar structure, best seen at higher deposition temperatures (Fig. 14). Similar morphology was observed in YF₃ films deposited with ALD.²⁰ The film deposited at 200 °C looks smoother, but the impurity content is also larger than in the other films.

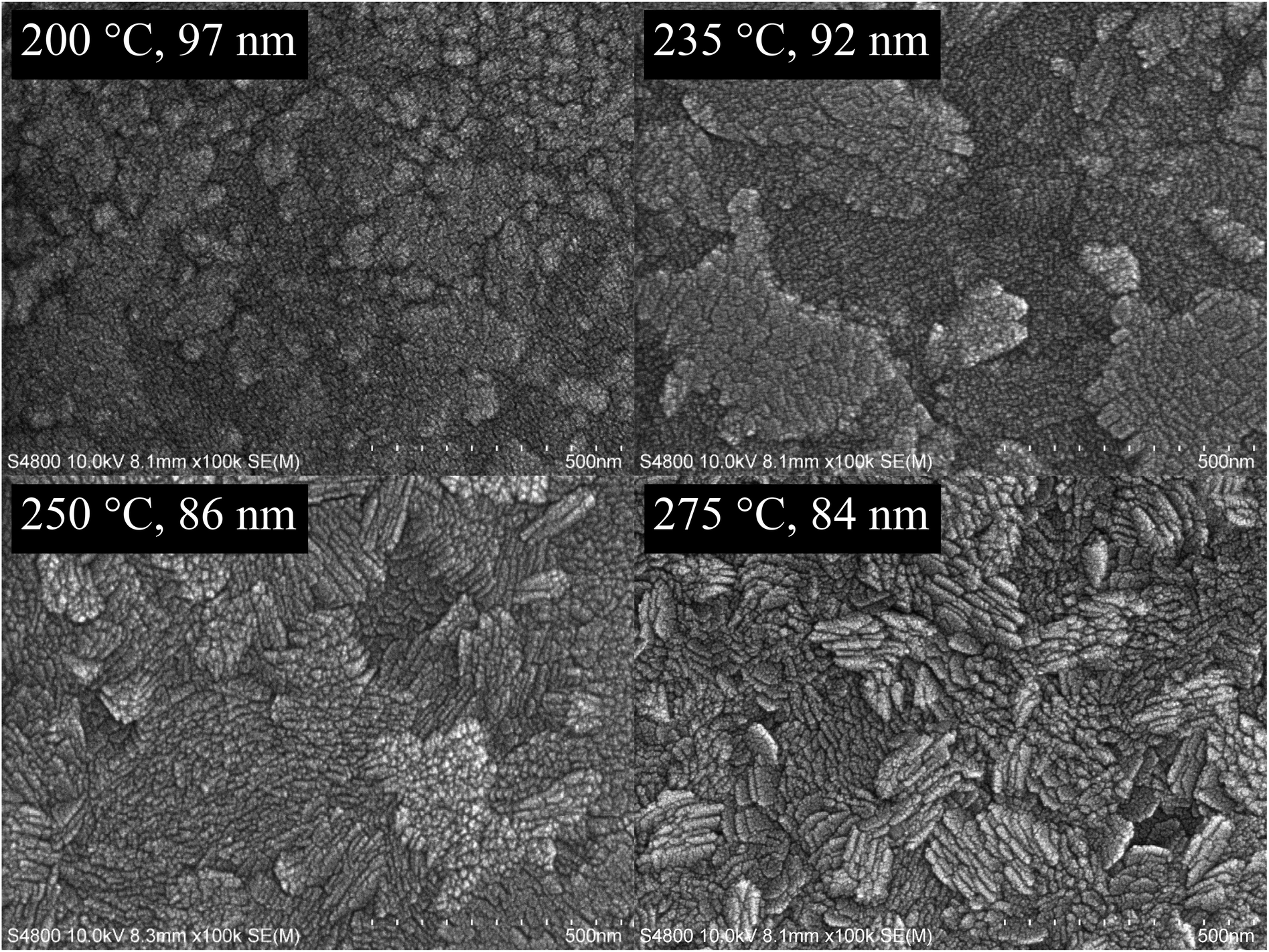

Fig. 14 FESEM images of HoF₃ films deposited at 200–275 °C.

Conclusions

An ALD process for CoF₂ using CoCl₂(TMEDA) and NH₄F as precursors was developed. Depositions at 180–275 °C result in tetragonal CoF₂. The composition of the film is close to stoichiometric, and the H, C, N, O, and Cl impurities are low as measured by ToF-ERDA. As an example, the total impurity content of these impurities in a CoF₂ film deposited at 250 °C is only 1.15 at%. The films grow in rod-like morphology at lower deposition temperatures, whereas at higher deposition temperatures the films are smoother as seen in both SEM and cross-section SEM. Due to the morphology, the films deposited at low temperatures are very rough, e.g., rms roughness is 24.7 nm for a 69 nm film. CoF₂ growth on graphite was also briefly studied at a deposition temperature of 250 °C. Tetragonal CoF₂ with a rod-like morphology was obtained. CoF₂ deposition was also attempted with the precursor combinations of Co(thd)₂ and NH₄F, TiF₄, TaF₅, or NbF₅. Either no film growth was seen or there was substantial metal impurity incorporation in the CoF₂ films.

NiF₂ deposition was studied by using the precursor combinations of Ni(thd)₂ + NH₄F, TiF₄, TaF₅, or NbF₅ and NiCl₂(TMPDA) + NH₄F which is similar to the precursor combination found successful for the CoF₂ deposition. Film growth was observed only when Ni(thd)₂ was combined with NbF₅ or TaF₅. The films deposited at 210–250 °C by using NbF₅ are tetragonal NiF₂ according to XRD. However, the films have large hydrogen and oxygen contents as measured by ToF-ERDA. The H and O contents were large in the NiF₂ films also when the films were in situ capped with YF₃, indicating their incorporation into the films already during the deposition. Similar H and O contents were seen also when TaF₅ was used as the fluoride source.

The most remarkable difference between CoF₂ and NiF₂ is the hygroscopicity of NiF₂. In addition, CoCl₂(TMEDA) and NH₄F resulted in film growth whereas the combination of NiCl₂(TMPDA) and NH₄F did not produce any film. There are however no large differences in the Gibbs free energy of the formation of CoF₂ and NiF₂ from these precursors. With both cobalt and nickel the favorability of the reaction between the metal thd (approximated in calculations as oxides) and a different fluoride source increases in the order NH₄F – TiF₄–NbF₅–TaF₅. There are no large differences in the Gibbs free energies, however. CoF₂ formation is in general slightly more favorable than NiF₂ formation. In both cases no film was obtained with NH₄F as the fluoride source. In the case of cobalt, a film was obtained with TiF₄, NbF₅ and TaF₅, but severe metal impurity incorporation was seen. In the case of nickel, film was obtained only with NbF₅ or TaF₅ as the fluoride source. Reaction mechanism studies could reveal the differences in the growth of CoF₂ and NiF₂, but those are out of the scope of the current paper.

Since NbF₅ is a new fluoride source in ALD, we wanted to show that it can be used to deposit good quality ALD metal fluoride films. Thus, we studied the deposition of HoF₃ by combining NbF₅ with Ho(thd)₃. Orthorhombic HoF₃ films were obtained at all the studied deposition temperatures 200–275 °C. The saturation of the GPC with respect to both precursor pulses was achieved at 250 °C. The films deposited at 235–275 °C are pure according to ToF-ERDA, e.g., in the films deposited at 250 and 275 °C the Nb contents are only 0.21 and 0.15 at%. In addition to producing pure HoF₃ films, NbF₅ produced films with Ni(thd)₂ when no growth was observed with TiF₄ or NH₄F. NbF₅ is thus a potential fluoride source in ALD.
