Correction: Optical absorption and shape transition in neutral SnN clusters with N ≤ 40: a photodissociation spectroscopy and electric beam deflection study

Andreas Lehr *, Filip Rivic , Marc Jäger , Martin Gleditzsch and Rolf Schäfer
Technical University of Darmstadt, Eduard-Zintl-Institut, Alarich-Weiss-Straße 8, 64287 Darmstadt, Germany. E-mail: andreas.lehr@tu-darmstadt.de

Received 25th October 2023 , Accepted 25th October 2023

First published on 9th November 2023


Abstract

Correction for ‘Optical absorption and shape transition in neutral SnN clusters with N ≤ 40: a photodissociation spectroscopy and electric beam deflection study’ by Andreas Lehr et al., Phys. Chem. Chem. Phys., 2022, 24, 11616–11635, https://doi.org/10.1039/D2CP01171A.


The authors would like to point out that while revaluating the data published in the original paper, a systematic error was observed, which has a minor impact on several figures, but does not change the conclusions drawn and thus the text in the published paper.

The errors were made in the molecular dynamics simulations of the electric deflection beam profiles. By mistake, the computed electric dipole moment components μx, μy and μz, which serve as input for the molecular dynamics simulations, did not coincide with the centre-of-mass-based depiction of the cluster's coordination frame.

This affects partly the simulated electric deflection profiles (dashed lines in Fig. 5–9 of the original manuscript) of the tin clusters SnN with N ≤ 25. The corrected simulations are presented in Fig. C1–C4 (dotted lines) herein. While for many clusters, the corrected simulated beam profiles differ insignificantly from the original simulated beam profiles, less symmetric clusters can show clearly visible changes that either slightly improve on the agreement with experimental results or slightly deteriorate this agreement. In none of these cases the conclusions drawn from these results are altered and thus the text in the original paper is not affected. Only regarding the Sn19 cluster, when assuming two isomers to be present in the molecular beam experiment, the isomer ratio changes slightly in favour of isomer 19-I. This is now in slightly better agreement with the thermodynamic considerations in Section S3 of the electronic supplementary information (ESI) associated with the published paper.

The electric dipole moment components μx, μy and μz as well as the total electric dipole moment μiso were given in Table S3 of the ESI. Here, three transmission errors regarding the isomers 8-I, 30-III and 40-II occurred when setting up the table. The correct values have been updated in the ESI associated with the original paper.


image file: d3cp90218h-u1.tif
Fig. C1 Corrected simulated electric deflection profiles (dotted lines) in direct comparison with the erroneous electric deflection profiles of the original manuscript (dashed lines) for the SnN clusters with N = 8–11. Details of this figure are given in the caption of Fig. 4 of the original paper.




image file: d3cp90218h-u2.tif
Fig. C2 Corrected simulated electric deflection profiles (dotted lines) in direct comparison with the erroneous electric deflection profiles of the original manuscript (dashed lines) for the SnN clusters with N = 12–15. Details of this figure are given in the caption of Fig. 4 of the original paper.




image file: d3cp90218h-u3.tif

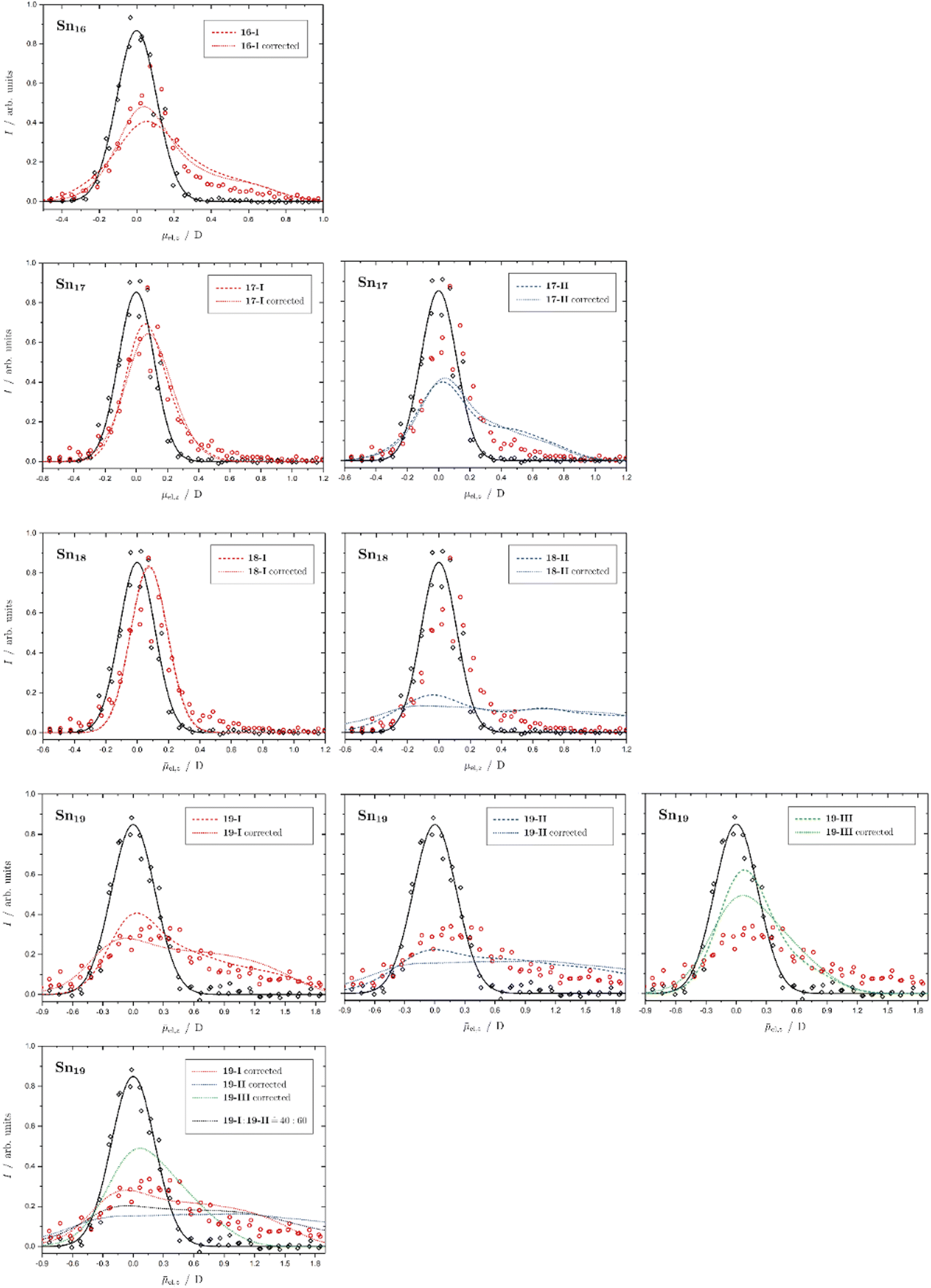

Fig. C3 Corrected simulated electric deflection profiles (dotted lines) in direct comparison with the erroneous electric deflection profiles of the original manuscript (dashed lines) for the SnN clusters with N = 16–19. Details of this figure are given in the caption of Fig. 4 of the original paper.




image file: d3cp90218h-u4.tif

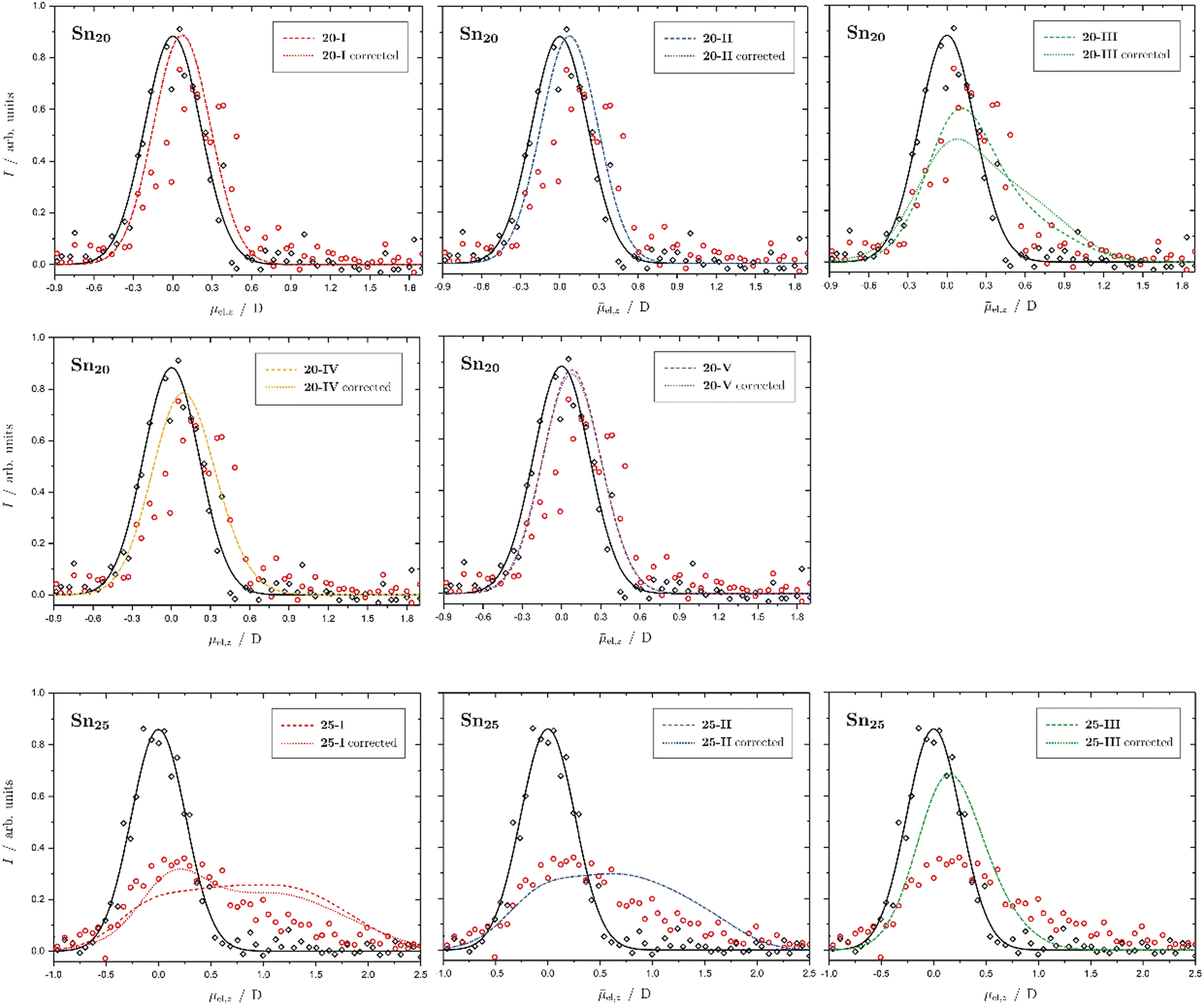

Fig. C4 Corrected simulated electric deflection profiles (dotted lines) in direct comparison with the erroneous electric deflection profiles of the original manuscript (dashed lines) for the SnN clusters with N = 20 and 25. Details of this figure are given in the caption of Fig. 4 of the original paper.



The Royal Society of Chemistry apologises for these errors and any consequent inconvenience to authors and readers.
