Structurally flexible pyrrolidinium- and morpholinium-based ionic liquid electrolytes

Abstract

Ion transport measures and details as well as physico-chemical and electrochemical properties are presented for a small set of structurally flexible pyrrolidinium (Pyrr) and morpholinium (Morph) cation-based ionic liquids (ILs), all with oligoether phosphate-based anions. All have high thermal stabilities, low glass transition temperatures, and wide electrochemical stability windows, but rather moderate ionic conductivities, where both the anions and the cations of the Pyrr-based ILs diffuse faster than those of the Morph-based ILs. Overall, the Pyrr-based ILs show significantly more promise as high-temperature supercapacitor electrolytes, rendering a specific capacitance of 164 F g⁻¹ at 1 mV s⁻¹, a power density of 609 W kg⁻¹ and a specific energy density of 27 W h kg⁻¹ at 90 °C in a symmetric graphite supercapacitor.

---

Introduction

In the past decades, ionic liquids (ILs) have demonstrated promising performance characteristics in a range of exciting potential applications, such as solvents,¹ electrolytes for different energy storage devices,² catalysts,³ lubricants,⁴ extractants,⁵ absorbents,⁶ magnetic fluids,⁷ optical fluids,⁸ crystallization media,⁹ and antibacterial media for biomedical devices.¹⁰ The main reasons for their use are their negligible vapor pressures, large liquidus ranges, high thermal stabilities, non-flammable properties with wide electrochemical stability windows (ESWs), and great potential in structural designability compared with organic solvents.^11,12

From the point of view of the IL cation structural designability, N-heterocycles such as pyrrolidinium (Pyrr) and morpholinium (Morph) rings are very interesting synthons for the development of new task-specific ILs due to their small and compact sizes.¹³ These rings can be ionized upon quaternization of the tertiary nitrogen atom, resulting in a stable positive charge.¹⁴ Furthermore, the oxygen atom in the Morph ring widens the ESW and enhances the ionic conductivity.¹⁵ In comparison with other ILs, both Pyrr- and Morph-based ILs show higher ionic conductivities, wider ESWs, higher thermal stabilities, and lower viscosities.^15,16 In addition, they are less toxic and more biodegradable than conventional ILs based on other cations.^17–19

Turning to the design of IL anions, interest in alkyl phosphate-based anions is growing, not least due to safety concerns regarding energy storage devices, where the anions play a key role in the optimization of separator²⁰ and electrode materials,²¹ and are used as electrolyte additives for overcharge protectors and redox mediators.^22,23 With respect to the latter, the most common flame retardants are organophosphorus organic compounds^24–27 or ILs;^28,29 the former compounds, however, are limited by their lower ESWs and thermal stabilities, which is why ILs with phosphate-based anions are promising.

Here, ILs based on oligoether phosphate-based anions and Pyrr- and Morph-based cations, with different oligoether chain lengths are synthesized and subsequently studied with respect to their physico-chemical and electrochemical properties alongside their ion transport properties, with the overall aim of being used as (high-temperature) electrolytes with high ionic conductivities, wide ESWs, and low glass transition temperatures.

Experimental

Materials, synthesis and characterisation

Phosphorus(V) oxychloride (99% purity; Sigma Aldrich), diethylene glycol ethyl ether (99% purity; Sigma Aldrich), triethylene glycol monomethyl ether (95% purity; Sigma Aldrich), 1-methylpyrrolidine (98% purity; Sigma Aldrich) and 4-methylmorpholine (99% purity; Sigma Aldrich), sodium sulfate (99% purity; Sigma Aldrich), ethyl acetate (99.5% purity; Sigma Aldrich) and hexane (99% purity; Sigma Aldrich) were used without further purification. The synthesis and characterization details are provided in the ESI.† All of the as-made ILs were kept in a vacuum oven at 90 °C for at least one week until the water content was <100 ppm (Table 1), as determined via Karl Fischer titration using a 917 Coulometer (Metrohm) placed inside a glovebox with a water and oxygen content of <1 ppm.

Table 1 Molecular weight, water content, glass transition temperature, decomposition temperature, and ionic conductivity values of the ILs

Ionic liquid	MW (g mol^−1)	Water content (ppm)	T decomp (°C)	T g (°C)	σ @ 20 °C (mS cm^−1)
[MmMPyrr][TEEP]	621.70	87 ± 5	238	−76	0.14
[EmMPyrr][DEEP]	531.61	78 ± 5	239	−80	0.10
[MmMMorph][TEEP]	637.70	92 ± 5	224	−69	0.03
[EmMMorph][DEEP]	547.61	74 ± 5	225	−73	0.03

---

The structure and purity of the intermediate compounds and the final products were confirmed using a nuclear magnetic resonance (NMR) spectrometer with a Bruker Ascend Aeon WB 400 magnet system (Bruker BioSpin AG, Fällanden, Switzerland). CDCl₃ was used as a solvent in all the experiments. The working frequencies were 400.21 MHz for ¹H, 100.64 MHz for ¹³C, and 162.01 MHz for ³¹P. The data were processed using Bruker Topspin 3.5 software. ³¹P (161.988 MHz) NMR spectra of the ILs as a function of temperature were recorded by placing the sample in a 5 mm standard NMR tube. The sample was heated at 10 K step-wise increments, and measurements were carried out after 15 minutes of thermal equilibration. ESI-MS analysis was performed using a Bruker Impact ESI-Q-TOF system.

Attenuated total reflection Fourier transform infrared (ATR-FTIR) spectra of the intermediate and the final products were recorded using a Bruker IFS 80v spectrometer equipped with a deuterated triglycine sulphate (DTGS) detector and a diamond ATR accessory. The experiments were performed at room temperature (∼20 °C) using the double side forward–backward acquisition mode. 256 scans were co-added and signal-averaged at an optical resolution of 4 cm⁻¹.

Thermal properties

A PerkinElmer 8000 TGA instrument was used for thermogravimetric analysis, which was carried out at a heating rate of 10 °C min⁻¹ using nitrogen as the inert carrier gas. A sample of about 3–5 mg was used for each experiment. Pyris software was used to analyse the onset of decomposition temperature (T_onset) by taking the intersection of the baseline representing the weight loss and the tangent of the weight vs. temperature curve.³⁰ Differential scanning calorimetry (DSC) was carried out using a PerkinElmer DSC 6000 instrument. About 2–5 mg of sample was packed in an aluminium pan for each experiment. Inert nitrogen gas was used at a constant flow of 20 mL min⁻¹. DSC traces were recorded both during cooling and heating from −135 to 0 °C, with a scanning rate of 5 °C min⁻¹. The glass transition temperature (T_g) values was determined from the onset, while the decomposition temperature (T_decomp) was determined from the intersection of the baseline and the tangent of the weight vs. temperature, using the Pyris software.

Electrochemistry

All measurements were carried out using an Autolab PGSTAT302N electrochemical workstation (FRA32 M module). The ionic conductivity was measured with a TSC 70 closed cell from RHD instruments, Germany. In the Microcell HC system, the temperature was controlled through a Peltier element, which enables the temperature to be regulated from −20 to 100 °C. For the electrochemical impedance spectroscopy (EIS) measurements, a two-electrode system with a Pt wire as the working electrode (WE) and a Pt cup as a counter electrode (CE), as well as a sample container, was used with the cell constant determined using a 100 μS cm⁻¹ KCl standard solution from Metrohm (K_cell = 18.5396 cm⁻¹). The frequency range used was from 0.1 Hz to 1 MHz, and the ionic conductivity was analyzed by fitting the EIS data to the Vogel–Fulcher–Tammann (VFT) equation
where σ₀ is a pre-exponential factor, B is a factor related to the activation energy and T₀ is the ideal glass transition temperature. The activation energy of ionic conductivity is related to B via E_σ = B·R.

Linear sweep voltammetry (LSV) was carried out using a three-electrode system, with a Pt wire as the WE, a Pt cup as the CE, and a Ag wire (coated with AgCl) as a pseudo-reference electrode (RE), and with a scan rate of 1 mV s⁻¹. The electrochemical potentials were recorded with ferrocene as the internal reference.³¹ The ESW limits were determined using 0.1 mA cm⁻² as the cut-off current density.³²

Furthermore, both cyclic voltammetry (CV) and EIS of the ILs as electrolytes for supercapacitors made using graphite electrodes were carried out. Commercially available graphite-coated copper sheets (Cambridge Energy Solutions, UK) were used as electrodes and a TSC battery cell (RHD instruments, Germany) was employed, where the details can be found in our previous publications.^33,34 CV was performed at different scan rates from 1 mV s⁻¹ to 200 mV s⁻¹ at several temperatures, and EIS was carried out in the frequency range from 0.01 Hz to 1 MHz. The specific capacitance (C_s [F g⁻¹]) was calculated from CV using:³⁵

where is the absolute area under the CV curve (I is the current, in A), m is the mass of one electrode (in g), K is the scan rate in (V s⁻¹), and ΔV is the potential window (in V).

Using the galvanostatic charge discharge (GCD) data, the specific capacitance was calculated using the following equation:^36,37

where C_s denotes the capacitance, I is the current density, m is the mass of both electrodes (3.6 mg), and Δt/ΔV denotes the direct slope of the liberation curve, where Δt is the discharge time and ΔV is the potential difference. The energy and power densities are given by the equations below, where E_D is the energy density, V is the potential window, P_D is the power density, and the discharge time is given by Δt.

NMR diffusometry

Pulsed gradient spin echo-nuclear magnetic resonance (PGSE-NMR) measurements were performed using the Bruker Ascend Aeon WB 400 NMR spectrometer. NMR self-diffusion measurements were carried out for ¹H (400.21 MHz) using a Diff50 (Bruker) PGSE-NMR probe. The sample was placed in a standard 5 mm glass sample tube and closed with a plastic stopper to avoid air contact. Before measurements, the sample was equilibrated at a specific temperature for 30 min. The diffusional decay (DD) was recorded using the stimulated echo (StE) pulse train. For single-component diffusion, the form of the DD can be described as:³⁸
Here, A is the integral intensity of the NMR signal; τ is the time interval between first and second radiofrequency pulses; τ₁ is the time interval between second and third radiofrequency pulses; γ is the gyromagnetic ratio for ¹H; g and δ are, respectively, the amplitude and the duration of the gradient pulse; t_d = (Δ − δ/3) is the diffusion time; Δ is the time interval between two identical gradient pulses; and D is the diffusion coefficient. In the measurements, the duration of the 90° pulse was 7 μs, δ was in the range from 1 to 2 ms, τ was in the range of 3–5 ms, and g was varied from 0.06 up to the maximum of the gradient amplitude, 29.73 T m⁻¹. The diffusion time t_d was varied from 4 to 100 ms. The repetition time during accumulation of the signal transients was 3.5 s. Data were recorded at temperatures ranging from 295 to 373 K. The following VFT equation was used to further analyze the diffusion data:
where T₀ and B are adjustable parameters. The activation energy for diffusion is related to B via E_D = B·R.

Results and discussion

First, a brief description of the synthesis and structural characterization of the ILs is given, followed by the thermal behaviour, ionic conductivity, ion diffusivity and electrochemical assessment data. Finally, the ion–ion interactions and their role in ion transport and dynamics are described and discussed using both the NMR and FTIR spectroscopy data.

Synthesis and characterization

Following the TMOP and TEOP synthesis (Scheme S1, ESI†),³⁹ the first set of Pyrr- and Morph-based ILs was synthesized efficiently using single-step reactions between TMOP and either 1-methylpyrrolidine or 4-methylmorpholine in a 1 : 1 stoichiometric ratio. The corresponding [MmMPyrr][TEEP] and [MmMMorph][TEEP] ILs were obtained in quantitative yields (Scheme S2, ESI†). To investigate the effect of the ion size, [EmMPyrr][DEEP] and [EmMMorph][DEEP], i.e., ILs with shorter oligoether chains on the anions and cations, were prepared using the same procedure (Scheme S3, ESI†). The chemical structures and abbreviations of the synthesized ILs are shown in Scheme 1. In the ¹H NMR spectrum of [MmMPyrr][TEEP], the sharp singlet at 3.25 ppm is assigned to the methyl protons attached to the nitrogen atom of the Pyrr ring. The other two different sets of ¹H resonance lines observed in the ranges of 3.80–3.76 ppm and 2.25–2.16 ppm correspond to the methylene protons of the Pyrr ring in [MmMPyrr][TEEP]. The ¹H resonance lines in the ranges of 3.97–3.82 ppm, 3.63–3.59 ppm and 3.52–3.50 ppm are due to the ethoxy protons, and those in the range of 3.36–3.32 ppm are due to the methoxy protons. All the characteristic ¹³C resonance lines are observed in the ¹³C{¹H} NMR spectra of all the synthesized ILs. The ³¹P{¹H} NMR spectra of these ILs reveal sharp single resonance lines for the phosphorus nuclei present in the anions. All the ¹H, ¹³C and ³¹P NMR spectra are presented in the ESI.†

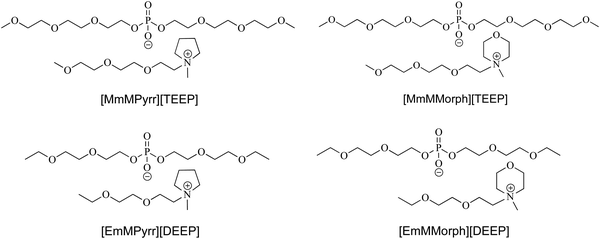

Scheme 1 Chemical structures and abbreviations of the ionic components for the ILs.

Thermal properties

The TGA data show that the Pyrr-based ILs exhibit 10–15 °C higher decomposition temperatures compared with the Morph-based ILs (Fig. 1a and Table 1), while there are no significant differences upon changing the length of the oligoether chain. Differential thermogravimetric (DTG) analysis (Fig. 1b) shows the highest rate of weight loss in a single step for the Pyrr-based ILs, while the maximal rate is reached in two steps for the Morph-based ILs, where >20 wt% min⁻¹ is observed from 270 to 320 °C. Overall, the thermal stabilities are comparable to/or better than other Pyrr- and Morph-based ILs.^40–42

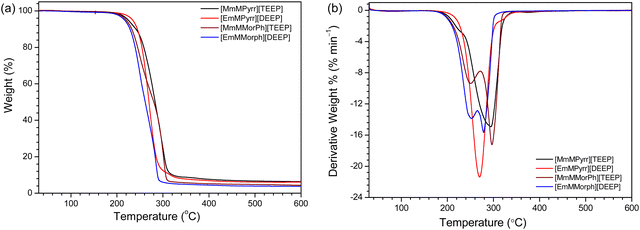

Fig. 1 (a) TGA thermograms and (b) DTG curves of the Pyrr- and Morph-based ILs.

The DSC data reveal that all the ILs are glass-forming liquids with glass transition temperature (T_g) values in the range from −59 to −80 °C (Fig. 2). The Pyrr-based ILs show lower T_g values than the Morph-based ILs, pointing towards weaker cation–anion interactions, and there is weak effect of the oligoether chain length, where the ILs with the longer oligoether chains, i.e., [MmMPyrr][TEEP] and [MmMMorph][TEEP], exhibit higher glass transition temperatures (Fig. 2 and Table 1), which possibly indicates a more effective packing of the longer oligoether chains.

Fig. 2 DSC traces of the Pyrr- and Morph-based ILs.

Ionic conductivity

The ionic conductivities of the Pyrr-based ILs are between around half and one order of magnitude higher than those of the Morph-based ILs (Fig. 3); this may be due to the Morph cations being somewhat bulkier and having stronger ion–ion interactions,¹⁵ including the role of the ring oxygen atom making them more polar, which is also manifested in the higher glass transition temperatures.

Fig. 3 Ionic conductivities of the Pyrr- and Morph-based ILs. The symbols denote the experimental data and the solid lines show the best fit to the VFT equation for each.

The VFT fit parameters (Table S1, ESI†) show that the activation energies for the Morph-based ILs are slightly higher than for the Pyrr-based ILs, and likewise for the [DEEP]⁻- and [TEEP]⁻-based ILs, which corroborates well with the DSC data. The ideal glass transition temperatures (T_o) are 50–60 K lower than the measured glass transition temperatures (T_g), which is in accordance with the common empirical approximation for ILs (and other liquids).⁴³

NMR diffusometry

The PFG NMR diffusion data reveal a continuous increase in the diffusivity of all ions as a function of increasing temperature, which follows the VFT behavior (Fig. 4 and Table S2, ESI†). Both ions in the [MmMPyrr][TEEP] IL diffuse faster than those in the [EmMPyrr][DEEP] IL, thus indicating that ion–ion interactions are more important than the ion sizes – as also observed previously for other ILs⁴⁴ – and that the stronger positive resonance or mesomeric effect of the ethoxy groups in both the [EmMPyrr]⁺ cation and the [DEEP]⁻ anion stabilizes both.

Fig. 4 Ion diffusion coefficients for the ions in the Pyrr- and Morph-based ILs. The symbols denote the experimental data and the solid lines show the best fit to the VFT equation for each.

In stark contrast to the Pyrr-based ILs, both the cation and the anion in the [EmMMorph][DEEP] IL diffuse faster than the corresponding ions in the [MmMMorph][TEEP] IL. Overall, the ion mobility in the Pyrr-based ILs is significantly higher than in the Morph-based ILs, primarily due to the smaller cation sizes and (presumably, see below) weaker ion–ion interactions, as shown by the D₀ value being more than twice as large, whilst at the same time showing rather similar molar activation energies (Table S2, ESI†).

Electrochemistry

Starting with the anodic stabilities, the ILs are stable up to +3.32 V vs. Fc/Fc⁺, while the cathodic limits are close to −1.75 V vs. Fc/Fc⁺ (Fig. 5, and Table S3, ESI†). We stress that our set cut-off current density is 0.1 mA cm⁻² and thus all the ESWs are very conservative.⁴⁵ Overall, the ESWs of these ILs are ∼4.5 V, with the [MmMMorph][TEEP] IL being the most stable (>5.0 V), which is wider compared with previously reported Pyrr- and Morph-based ILs.^46,47 After establishing the electrochemical stability, the [EmMPyrr][DEEP] and [EmMMorph][DEEP] ILs were further evaluated as electrolytes in symmetric graphite supercapacitors (SCs).

Fig. 5 Cathodic and anodic LSV scans of the Pyrr- and Morph-based ILs.

Moving to the evaluation of these ILs as electrolytes in SCs, the [EmMPyrr][DEEP] IL shows a much better performance compared with the [EmMMorph][DEEP] IL (Fig. 6 and Fig. S23 (ESI†)), which can simply be attributed to its higher ionic conductivity and ion diffusivity. At a device level, the specific capacitance decreases with increasing scan rate whereas it increases as a function of temperature (Fig. S24 and S25, ESI†), where the latter is enabled by the thermal stability of the ILs and improved ion–ion dissociation and mobility. Overall, the Pyrr-based IL shows typical capacitive behaviour, with a uniform current–potential fluctuation and no CV plot distortion, while a modest distortion and poor capacitive performance is observed for the Morph-based IL, suggesting worse wetting of the electrode pores.⁴⁸

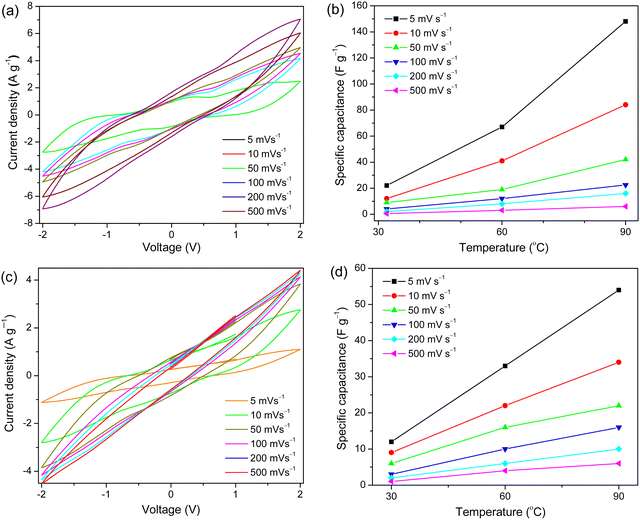

Fig. 6 Cyclic voltammograms obtained using different scan rates at 90 °C (a) and (c) and the specific capacitance as a function of temperature (b) and (d) for SCs made using the [EmMPyrr][DEEP] IL (a and b) and [EmMMorph][DEEP] IL electrolytes (c and d).

That the SC with [EmMPyrr][DEEP] IL as an electrolyte has both a higher specific capacitance and reversibility at elevated temperatures is due primarily to this IL's higher ionic conductivity and lower resistivity, as confirmed by the EIS data (Fig. S26, ESI†). Both ILs exhibit straight lines in the lower frequency domain, and hence capacitive behaviour,⁴⁹ while their redox behaviour leads to uneven semicircles.⁵⁰ In terms of the performance, the SC with the [EmMPyrr][DEEP] IL as an electrolyte rendered a specific energy density of ∼27 W h kg⁻¹ and a power density of ∼609 W kg⁻¹ at a current density of 0.5 A g⁻¹. By comparison, the SC with the Morph-based IL as an electrolyte exhibited around a ten-fold lower energy density, but a comparable power density (Fig. S27 and Table S4, ESI†). However, both the ILs showed a similar cyclic stability and capacitance retention up to 150 cycles at a current density of 1.5 A g⁻¹ (Fig. S28, ESI†).

The capacitance of a supercapacitor is greatly influenced by the ion diffusion in the bulk as well as inside the porous electrodes. A faster ion diffusion facilitates faster charging and discharging processes.⁵¹ Due to their smaller cation size, Pyrr-based ILs improve the specific capacitance and show a lower resistance than conventional imidazolium- and pyridinium-based ILs for the same anion, which mechanistically is attributed to an increased ion concentration in the double-layer.⁵² The nature of the anion also plays a crucial role; the [Pyr_1,4][C(CN)₃] IL shows a much better performance than the analogous IL based on the [TFSI]⁻ anion, especially at higher C-rates.⁵³ Similarly, the [EmMPyrr][DEEP] IL outperforms the [EmMMorph][DEEP] IL due to the faster ion diffusion and higher ion conductivity.

NMR and FTIR spectroscopy

The ³¹P NMR resonance lines are broader at lower temperatures and become sharper as a function of temperature (Fig. 7a), suggesting faster re-orientational dynamics,⁵⁴ and in the case of the Morph-based ILs this is also due to ion–ion dissociation, which is supported by the observed chemical shifts as a function of temperature that also suggest decreased interactions between the anions and the corresponding cations (Fig. 7b and Fig. S29, ESI†).

Fig. 7 (a) ³¹P NMR spectral line widths and (b) ³¹P NMR chemical shifts of the ILs as a function of temperature.

Turning to the FTIR spectroscopy data, all the characteristic stretching frequencies for the functional groups of the neutral TMOP and TEOP compounds, such as P=O, PO₃, O–P–O and P–O–C, are shifted, which confirms the formation of the [TEEP]⁻ and [DEEP]⁻ anions in the Pyrr- and Morph-based ILs (Fig. 8).⁵⁵ The symmetric P=O stretching band shifts to a lower wavenumber (∼1250 cm⁻¹) for both [MmMPyrr][TEEP] and [MmMMorph][TEEP], and to ∼1255 cm⁻¹ for [EmMPyrr][DEEP] and [EmMMorph][DEEP] (Fig. 8a and c). The PO₃ stretching band shifts to a higher wavenumber (∼1066 cm⁻¹) for all ILs, while the O–P–O stretching band shifts towards a lower wavenumber (∼950 cm⁻¹; Fig. 8c and d) due to the formation of anions from the neutral TMOP and TEOP compounds. Overall, larger shifts are observed for the Morph-based ILs than for the Pyrr-based ILs, suggesting stronger ion–ion interactions. In addition, some prominent changes are observed between 700 and 800 cm⁻¹, i.e., the (P–O)–C stretching band, where the band around 775–780 cm⁻¹ in the spectra of the Morph-based ILs is shifted down for the Pyrr-based ILs, again clearly indicating that the Morph-based ILs have stronger ion–ion interactions.

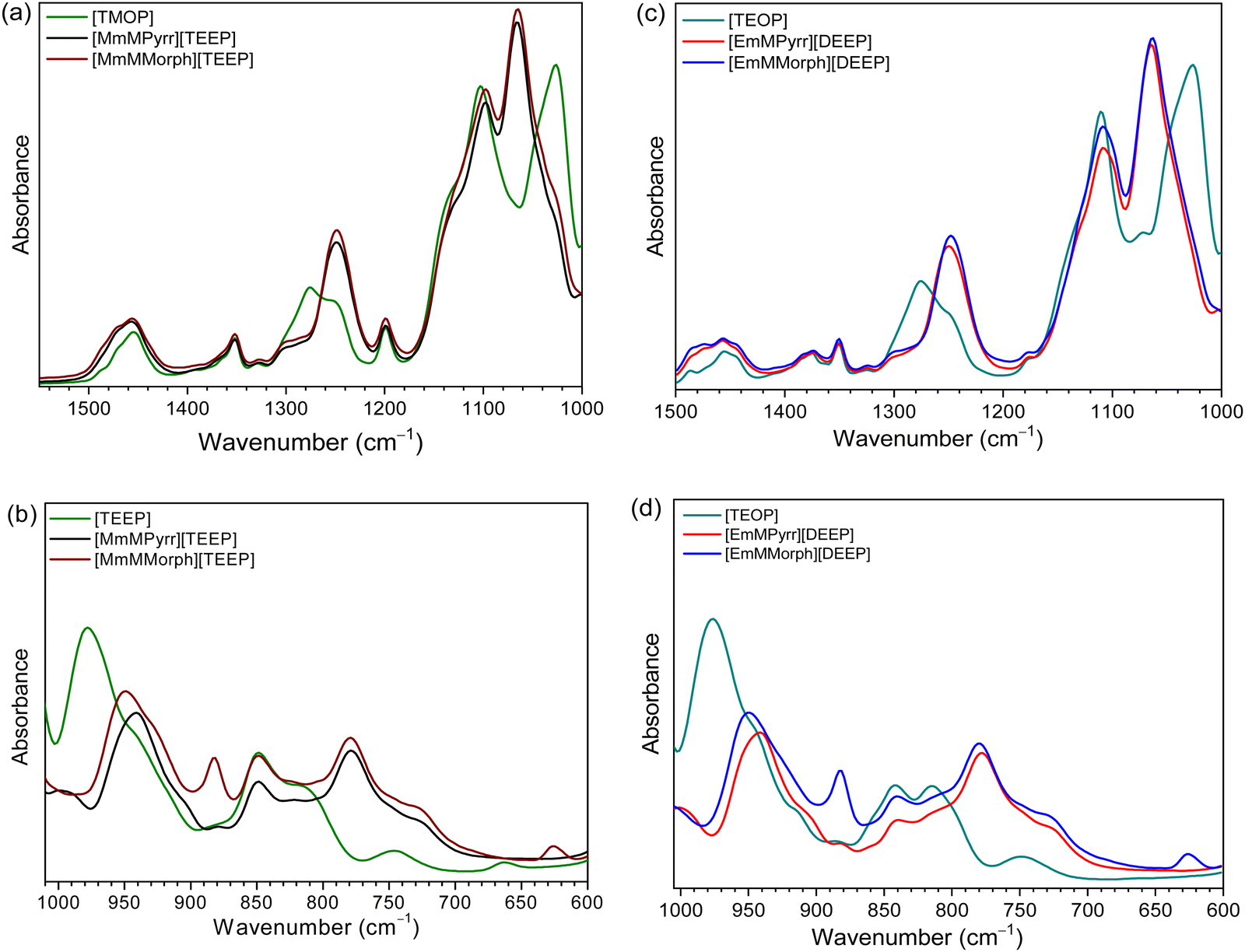

Fig. 8 FTIR spectra of the neutral compounds and the ILs in the frequency range of 600–1500 cm⁻¹.

Conclusions

The new Pyrr-based ILs exhibited favourable properties compared with the structurally analogous Morph-based ILs that bear common oligoether phosphate anions. Despite their comparable molecular masses and ion sizes, the Pyrr-based ILs displayed higher thermal stabilities and better transport properties over a wide temperature range than did the corresponding Morph-based ILs. The rapid ion dissociation as a function of temperature, particularly for the Morph-based ILs, is a result of weaker cation–anion interactions, as confirmed via both FTIR and NMR spectroscopy. Having superior transport properties, the Pyrr-based ILs performed much better as electrolytes in supercapacitors, particularly at elevated temperatures. Altogether, this study confirmed that the Pyrr-based ILs offered more beneficial properties than the structurally similar Morph-based ILs, suggesting that the Pyrr-based ILs can potentially be used as electrolytes in energy storage devices.

Conflicts of interest

There are no conflicts to declare.

Acknowledgements

The Kempe Foundation in memory of J. C. and Seth M. Kempe is gratefully acknowledged for the financial support in the form of a stipend for SB (grant number: SMK21-0013). Financial support from the Swedish Energy Agency (project number: 48194-1) is also gratefully acknowledged.
