The reaction of organic peroxy radicals with unsaturated compounds controlled by a non-epoxide pathway under atmospheric conditions

Abstract

Today, the reactions of gas-phase organic peroxy radicals (RO₂) with unsaturated Volatile Organic Compounds (VOC) are expected to be negligible at room temperature and ignored in atmospheric chemistry. This assumption is based on combustion studies (T ≥ 360 K), which were the only experimental data available for these reactions until recently. These studies also reported epoxide formation as the only reaction channel. In this work, the products of the reactions of 1-pentylperoxy (C₅H₁₁O₂) and methylperoxy (CH₃O₂) with 2,3-dimethyl-2-butene (“2,3DM2B”) and isoprene were investigated at T = 300 ± 5 K with Proton Transfer Reaction Time-of-Flight Mass Spectrometry (PTR-ToF-MS) and Gas Chromatography/Electron Impact Mass Spectrometry. Unlike what was expected, the experiments showed no measurable formation of epoxide. However, RO₂ + alkene was found to produce compounds retaining the alkene structure, such as 3-hydroxy-3-methyl-2-butanone (C₅H₁₀O₂) with 2,3DM2B and 2-hydroxy-2-methyl-3-butenal (C₅H₈O₂) and methyl vinyl ketone with isoprene, suggesting that these reactions proceed through another reaction pathway under atmospheric conditions. We propose that, instead of forming an epoxide, the alkyl radical produced by the addtion of RO₂ onto the alkene reacts with oxygen, producing a peroxy radical. The corresponding mechanisms are consistent with the products observed in the experiments. This alternative pathway implies that, under atmospheric conditions, RO₂ + alkene reactions are kinetically limited by the initial addition step and not by the epoxide formation proposed until now for combustion systems. Extrapolating the combustion data to room temperature thus underestimates the rate coefficients, which is consistent with those recently reported for these reactions at room temperature. While slow for many classes of RO₂, these reactions could be non-negligible at room temperature for some functionalized RO₂. They might thus need to be considered in laboratory studies using large alkene concentrations and in biogenically-dominated regions of the atmosphere.

---

Introduction

The cycles involving OH, HO₂ and organic RO₂ radicals in Earth's atmosphere are driving the atmosphere's oxidizing capacity. Over the last decades, trying to reconcile the atmospheric concentrations for these radicals with model predictions has led to important progress in the understanding of their chemistry. Numerous observations, under low-NO_x conditions and/or in vegetation-impacted regions,^1–6 have reported elevated OH concentrations compared to model predictions, which was attributed to unidentified OH sources and RO₂ sinks.^5,6 These observations prompted numerous experimental and theoretical studies, which, in turn, led to the identification of many monomolecular reactions for the RO₂ (H-shifts, cyclisation, etc.) regenerating OH without consuming NO.^7–14 These reactions are now included in atmospheric chemical models. But, while they have reduced the discrepancies with atmospheric observations,¹⁵ some differences remain and unknown sinks for RO₂ are still reported in the atmosphere.^5,6 Discrepancies with models are also reported for laboratory studies, in particular at low NO_x,¹⁴ which can also potentially be due to unidentified RO₂ reactions.

Until today, the reactions of RO₂ with unsaturated VOCs were considered negligible at room temperature and ignored in atmospheric chemistry. This assumption was entirely based on rate coefficients obtained at high temperature (T ≥ 360 K) in combustion systems, which were, until recently, the only experimental data available.¹⁶ The combustion studies also reported epoxide formation as the sole product channel for these reactions, and proceeding by two steps illustrated in Scheme 1:^16–18 a first and rapid addition of the RO₂ (I) onto the double bond of the alkene (II) producing the alkyl radical (adduct) (III) (reaction (1)), followed by the slow and kinetically-limiting formation of the epoxide (IV) and alkoxy radical (V) (reaction (2)).

Scheme 1 Mechanism for the addition of RO₂ onto unsaturated compound proposed in the literature.^16–18

However, a recent kinetic study of these reactions at T = 298 ± 5 K for a series of RO₂ and alkenes¹⁹ reported bimolecular rate coefficients, k^II (cm³ s⁻¹) that were significantly larger than those expected from the combustion data. For instance, for CH₃O₂ + 2,3DM2B, k^II was reported to be ∼7 × 10⁻¹⁸ cm³ s⁻¹ instead of 6 × 10⁻²⁰ cm³ s⁻¹ extrapolated from combustion data.¹⁶ While this previous kinetic study was based on monitoring the consumption of RO₂^20,21 the present work further investigates these reactions by investigating their products. For this, the reactions of 1-pentylperoxy (C₅H₁₁O₂) with 2,3-dimethyl-2-butene (2,3DM2B) and isoprene and of methylperoxy (CH₃O₂) with 2,3DM2B were investigated at 300 ± 5 K by PTR-TOF-MS and GC/MS.

Experimental

Flow reactor experiments

A list of the experiments and experimental conditions in this work is provided in Table S1 of the ESI.† All the experiments were conducted in a vertical Quartz reactor (length L = 120 cm, internal diameter d = 5 cm) described previously (Fig. 1).^19,21 The bath gas was synthetic air, with flows of F_air = 1–3.5 sLm (sLm = standard temperature = 273 K and pressure = 1 atm) and operated in continuous flow, at a total pressure P = 0.9 atm. Under these conditions the Reynold's number is between 100 and 150, thus in the laminar regime, and the mixing length between 15 and 25 cm. Since the reactions took place beyond 50 cm in the reactor (between z = 56 and 106 cm) the reagents were well mixed in the experiments. The measurements were also made over timescales of ∼10–15 min, much larger than the radial diffusion time in the reactor (∼60 s), ensuring that the concentrations were radially equilibrated.

Fig. 1 Schematics of the flow reactor set-up.

This reactor was surrounded by 4 narrow-band UV-c lamps (Phillips TUV 36W SLV/6) emitting essentially at λ = 254 nm. The radical precursors (iodoalkanes) were introduced in the gas by bubbling a small flow of N₂ through the pure liquids, followed by a dilution loop, and introduced at the top of the reactor (Fig. 1). For iodopentane, the concentration used in the experiments was in the range 1–2 ppm and for iodomethane, 10–30 ppm (Table S1, ESI†). As explained in the Chemicals section below, these concentrations were determined from the ratio of the precursor and total flows in the reactor. In this study, the radicals were produced in the upper part of the reactor by irradiating a 25 cm-section above z = 54 cm (Fig. 1), the remainder of the reactor being kept in the dark with aluminum foil. The alkenes were also introduced in the gas by bubbling a small flow of N₂ through the pure compounds followed by a dilution loop, but were injected below the irradiation zone (z = 56 cm) (Fig. 1). Therefore, the reactions RO₂ + alkene took place entirely in the dark in our experiments, while the RO₂ were produced photolytically in the upper part of the reactor. The alkene concentrations used in the experiments were 1–10 ppm for 2,3DM2B and 1–5 ppm for isoprene. These concentrations were limited by the upper limit of detection of the Proton Transfer Reaction Time-of-Flight Mass Spectrometry (PTR-ToF-MS) instrument used in this study. A fraction of the total flow (∼350 sccm) was sampled for PTR-ToF-MS analysis (see details below) at z = 106 cm (Fig. 1). In order to apply first-order kinetic analysis to the results, the experiments were performed at two different flow regimes, typically 3 and 1 sLm, so that the sampling at z = 106 cm corresponded to reaction times of 17 s and 53 s, respectively. The concentrations of iodoalkane and alkene and the total reactor pressure were kept identical in both regimes by adjusting the flows accordingly. The iodoalkanes and alkenes were flown continuously through the reactor, the lights being switched on and off in 10–20 min cycles to produce the RO₂ and trigger the reactions. This was done in order to distinguish the actual reaction products from pollution in the reactor or impurities introduced together with the gas precursors. Because the alkene concentrations that could be used were limited, the RO₂ self-reactions were significantly competing with RO₂ + alkene reactions in the experiments. In each series of experiment, at least one cycle was performed with RO₂ being produced while [alkene] = 0 to examine the impact of the RO₂ self-chemistry alone.

The temperature inside the reactor was determined in separate series of experiments with an infrared thermometer (Extech 101) to 300 ± 5 K, where the uncertainties include both the variabilities in each experiment and over the time span of the study.

Radical generation

All the RO₂ were produced by irradiating the corresponding iodoalkane at 254 nm with the UV-c lamps. For CH₃O₂ the precursor was iodomethane, CH₃I, which reacted as:

CH₃l + hν → CH₃ + I, (1)

CH₃ + O₂ + M → CH₃O₂ + M. (2)

For 1-pentylperoxy, C₅H₁₁O₂, it was 1-iodopentane, C₅H₁₁I, which reacted as:

C₅H₁₁I + hν → C₅H₁₁ + I, (3)

C₅H₁₁ + O₂ + M → C₅H₁₁O₂ + M. (4)

Separate series of experiments showed that, over the 25 cm window, 18% of C₅H₁₁I was photolyzed in a total flow of 3 sLm (∼8 s of residence time in the irradiated zone) and 40% in a flow of 1 sLm (∼26 s of residence time), corresponding to a photolysis rate of 0.02 s⁻¹. CH₃I was assumed to have the same photolysis rate, as both compounds have identical UV absorption spectra.²² The concentrations of RO₂ just above alkene injection (z = 54 cm in Fig. 1), [C₅H₁₁O₂]₀ and [CH₃O₂]₀, were then estimated by kinetic modeling with ChemSimul (V3.90), taking into account the photolytic rates, self-reactions and reaction of RO₂ with HO₂, and autoxidation reactions in the case of C₅H₁₁O₂.²¹ Initial concentrations of C₅H₁₁I of 3.4 and 6.0 × 10¹³ cm⁻³ (Table S1, ESI†) gave [C₅H₁₁O₂]₀ = 1 to 2.5 × 10¹² cm⁻³, and initial concentrations of CH₃I of 2.3 to 7.7 × 10¹⁴ cm⁻³ gave [CH₃O₂]₀ = 1.5 to 3.5 × 10¹² cm⁻³.

Potential side-chemistry from the iodine atoms did not seem to impact the experiments. The fastest expected reactions would be I + alkene, for which the rate coefficients at 300 K are estimated to ∼10⁻¹⁷ cm³ s⁻¹.²³ I-Atom concentration was modeled to be of the order of 10¹³ cm⁻³ in the irradiation zone, thus consuming the alkene at rates of ∼10⁻⁴ s⁻¹, thus slower than the RO₂ + alkene reactions (Fig. 2). This and other I-atom reactions should produce iodinated compounds, which were found to be only minor among the observed ions (as explained below, at the resolution used in the experiments, the observed m/z allowed to distinguish between iodinated ions and C_xH_yO_z⁺ ones). Most of the produced I atoms seemed either to remain unreacted or to recombine into I₂ in the reactor, as shown by the ions at m/z = 126.90 and 253.81 observed at the bottom of the reactor (Tables S2–S4, ESI†).

Fig. 2 Typical mass spectra in the investigation of C₅H₁₁O₂ + 2,3DM2B (experiment Alk38, highest peaks truncated to focus on the reaction products): Top: Overall mass spectrum obtained by averaging 16 spectra; Bottom: Differential mass spectrum. Signals labelled in blue are ions produced by the source (H₃O⁺, m/z = 19. 018; O₂⁺, m/z = 31.989) or internal calibrant (di-iodobenzene fragment, m/z = 203.943); in green are the protonated reagents (see text); signals labelled in black are attributed to fragment ions from the reagents (mostly 2,3DM2B); those labelled in red are attributed to reaction products.

Product analysis by PTR-ToF-MS

The reaction mixtures were analyzed in real time by PTR-ToF-MS using a state-of-the-art FUSION PTR-TOF 10k (Ionicon Analytik Gmbh, Innsbruck, Austria).²⁴ This instrument will be fully described and characterized elsewhere. Briefly, it consists of an orthogonal-acceleration reflectron Time-of-flight, allowing for a mass resolution up to 10 000, a drift tube (where the proton-analyte reactions take place) equipped with RF-ring-electrodes and ion funnel combination, an inlet system injecting the sample directly in the axis of the drift tube, and a TRION source, allowing to generate either H₃O⁺, NO⁺, NH₄⁺ or O₂⁺ reagent ions. In this study, only H₃O⁺ ions were used. The organic compound, “A”, present in the reaction mixtures were thus ionized by proton exchange with H₃O⁺:

H₃O⁺ +A → AH⁺ + H₂O. (5)

The drift tube was operated around 3.8 mbar and with a voltage of ∼250 V, corresponding to an DC field of strength E/N ∼ 40 Td (1 Td = 10⁻²¹ V m²). RF fields were also applied to the drift tube, which added some substantial energy.

The data were analyzed with the PTR-MS Viewer software V3.4.3.12 (Ionicon Analytik Gmbh, Innsbruck, Austria). After determination of the elemental composition of the ion signals (Tables S2–S4, ESI†), these were tentatively attributed to either fragment ions from the reagents or to reaction products based on their time trace. Note that, with a mass resolution of 7000–9000, it was possible to attribute a single sum formula to all ions with m/z ≤ 250, thus all those discussed in this work. In particular, it was possible to distinguish iodine-containing ions from C_xH_yO_z⁺ ions because of the large negative mass defect of iodine. The search for isomers was made using the MOLGEN software online.²⁵

Tenax sampling and analysis by gas chromatography/electron impact mass spectrometry

To confirm the attribution of some of the ions observed by PTR-ToF-MS to specific isomers, samples of reaction mixtures in C₅H₁₁O₂ + 2,3DM2B experiments (Alk39 and Alk40, Table S1, ESI†) were collected on Tenax sorbent tubes (porous polymer based on 2,6-diphenyl-p-phenylene oxide) for Gas Chromatographic/Electron Impact Mass Spectrometric (GC/EIMS) analysis. These experiments were performed in the flow reactor, identically to the other experiments, and five Tenax samples were collected at the outlet of the reactor, z ∼ 140 cm (Fig. 1) corresponding to reaction times of 19 and 60 s for flows of 3 and 1 sLm, respectively: the first sample (referred to as “sample 3” in both experiments) was taken in the dark, before the reaction took place, but with iodopentane and 2,3DM2B flowing into the reactor. The four other samples were taken during experiments, samples 4 and 5 from a total flow of 3 sLm, and samples 6 and 7 from a flow of 1 sLm. In each flow regime the 2,3DM2B concentration was varied: for samples 4 and 6 it was 2.7 × 10¹⁴ cm⁻³ and in sample 5 and 7, 7.2 × 10¹³ cm⁻³ (Table S1, ESI†). The samples were collected on the Tenax tubes for 1 h with a sampling flow between 30 and 40 sccm then desorbed in a Gas Chromatograph (Agilent Technologies 7890A) equipped with a Thermal Desorption Unit (Gerstel), a HP-5MS column (5% Phenyl Methyl Siloxane, 30 m × 0.25 mm × 0.25 μm), and helium as carrier gas. The chromatograph was connected to a Mass Spectrometer with triple axis detector (Agilent Technologies 5975 C) using electron ionization as ionization technique. The TDU program had an initial temperature of 120 °C, maintained for 1 min before to be ramped up to 250 °C over 11 s, and maintained for 5 min. The GC oven program had an initial temperature of 30 °C, which was maintained for 13 min. It was then ramped up to 100 °C over 7 min, maintained for 30 s, then ramped up again to 240 °C over 6.5 min and maintained for 1.5 min.

NMR analyses

¹H-NMR analyses of the bulk 2,3DM2B and isoprene employed in the experiments were performed with a 400 MHz Bruker Ascend. The samples were placed in CDCl₃ and 128 scans were taken (10 min).

Chemicals

Gases: synthetic air HiQ 5.0 (≥99.999%), N₂ HiQ 5.5 (≥99.9995), all Linde Gas. Liquids: iodomethane, 99.5%, stab. with copper, Alfa Aesar AB; iodopentane, 97%, stabilized, Thermo Scientific; isoprene, 99%, stabilized with ∼0.02% 4-tert-butylcathechol, Alfa Aesar; 2,3-dimethyl-2-butene, 98%, Acros Organics; cis-2,3-epoxybutane, 97%, thermo scientific. The alkenes and iodoalkanes were placed in glass bubblers and introduced in the reactor by sending controlled flows of N₂ through the liquids, followed by a dilution loop. The gas-phase concentration of these compounds in the reactor were determined from the ratio of their flows to the total flow and from their vapor pressure at 300 K (in cm⁻³): Pv(CH₃I) = 1.3 × 10¹⁹; Pv(C₅H₁₁I) = 1.4 × 10¹⁷; Pv(isoprene) = 1.8 × 10¹⁹; Pv(2,3DM2B) = 4.0 × 10¹⁸.

Results

Ion attribution (overall mass spectra)

The experiments proceeded by flowing the precursors (alkenes and iodoalkanes) continuously through the reactor, and periodically switching the UV lights ON and OFF in the irradiation window to produce the RO₂. As explained in the Experimental section, the RO₂ were generated in the upper part of the reactor, while their reactions with alkenes took place entirely in the dark in the lower part. The experiments then proceeded in two parts, the first one corresponding to measurements performed at a reaction time of 17 s, the second to a reaction time of 53 s. In each part, the alkene concentration was gradually decreased, starting by the largest and following the values given in Table S1 (ESI†). An example of overall mass spectrum obtained with PTR-TOF-MS in the presence of RO₂ is shown in Fig. 2. These spectra were dominated by the peaks from the reaction precursors, mostly the alkenes and their ion fragments: 2,3DM2B (C₆H₁₂) at m/z = 85.101 (C₆H₁₂H⁺), isoprene (C₅H₈) at m/z = 69.070 (C₅H₈H⁺) and 137.132 ((C₅H₈)₂H⁺) and their fragments at m/z = 39.023, 41.039, 43.054, 53.002 … (in black in Fig. 2) (Tables S2–S4, ESI†). These large peaks did not display any significant variations between the RO₂ “ON” and RO₂ “OFF” cycles thus indicating that they were not reaction products. Ions corresponding to the iodoalkanes were also detected, but with much lower intensities, at m/z = 142.935 (CH₃IH⁺) for CH₃I, and m/z = 198.998 (C₅H₁₁IH⁺) for C₅H₁₁I.

Identification of the reaction products

Potential reaction products were searched among the ions displaying a significant increase in intensity in the presence of RO₂. For this, differential mass spectra were established by subtracting the average spectrum obtained with RO₂ “ON” from the one obtained with RO₂ “OFF”. An example is shown in Fig. 2. However, not all peaks in these differential spectra necessarily corresponded to reaction products. In fact, the most intense ones were residual signals from the subtraction of the largest peaks of the overall spectra. Thus, a first criterion to identify reaction products, either from RO₂ + alkene or from RO₂ side-chemistry, was to verify that their time-profiles displayed some systematic increase during the RO₂ “ON” cycles (see examples in Fig. 3). Next, these products were attributed either to RO₂ + alkene reactions or to RO₂ side-chemistry (self-reaction, autoxidation…) depending on whether they were produced in the absence of alkene and on whether their time-profiles varied proportionally or inversely with alkene concentration during the reactions. Complete lists of the ions observed in the differential spectra and their attributions are given in Tables S2–S4 (ESI†).

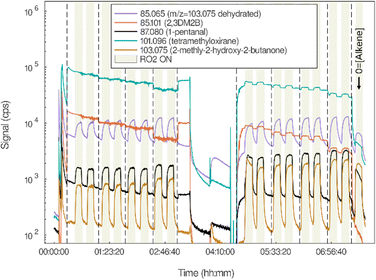

Fig. 3 Time-evolution of the ion signals observed with FUSION PTR-ToF-MS in the investigation of C₅H₁₁O₂ + 2,3DM2B (experiment Alk38). The shadowed areas correspond to RO₂ “ON” cycles, the last cycle being performed with [2,3DM2B] = 0. The dashed lines indicate changes in [2,3DM2B]. The PTR-MS measurements were interrupted in the middle of the experiments to take Tenax samples.

Evidence for RO₂ + alkene reaction

In all the reactions studied, the aldehyde corresponding to the RO₂ (I) was expected to be one of the main products, as it should have been produced both by RO₂ + alkene (from the alkoxy radical (V) in Scheme 1) and by the RO₂ self-reaction. In the experiments with C₅H₁₁O₂ an intense signal at m/z = 87.080, corresponding to the protonated ion of 1-pentanal (C₅H₁₀OH⁺), was indeed observed and displayed large variations between the RO₂ “ON” and RO₂ “OFF” cycles (Fig. 3 and Fig. S5a, ESI†). In the experiments with CH₃O₂, an intense ion signal was observed at m/z = 31.018 (CH₂OH⁺), corresponding to the protonated ion of formaldehyde, CH₂O (Table S4, ESI†), which also varied significantly between RO₂ “ON” and RO₂ “OFF” (Fig. S5, ESI†). However, the concentration of these aldehydes was found to vary inversely with that of the alkene during the reactions and to be maximum in the absence of alkene (profiles in black in Fig. 3 and Fig. S5 (ESI†), where the alkene concentration is gradually decreased during the experiment). In addition to the time-profiles, plots of the signal intensity for these ions as function of alkene concentration are provided in Fig. S5e–g (ESI†) and evidence these trends. This indicated that most, if not all, of these aldehydes were produced by the RO₂ self-reaction rather than by RO₂ + alkene. The fact that aldehyde formation decreased markedly with alkene concentration demonstrated that the RO₂ self-reaction was in competition with RO₂ + alkene, and thereby confirmed that the latter was taking place in the experiments.

Because this trend in aldehyde formation was important to understand the reactions in the experiments, it was confirmed by GC/MS analysis for the reaction C₅H₁₁O₂ + 2,3DM2B. Since the ion at m/z = 87.080 corresponds to 74 isomers²⁵ it was necessary to ensure that the trends observed with PTR-TOF-MS were specifically those of 1-pentanal and not of one of its isomers (such analysis was not necessary for the reactions of CH₃O₂, since formaldehyde, CH₂O, has only one isomer). In the gas chromatograms, 1-pentanal was identified at its retention time of 4.67 min (Fig. S6, ESI†). Integrating the peaks for its main EIMS ions, at m/z = 44 and m/z = 85 (the later only in Expt. Alk40), provided its concentration in different samples corresponding to different alkene concentrations. The results are presented in Fig. S7a (ESI†) and show that, for a given reaction time, 1-pentanal concentration was systematically larger in the samples corresponding to the lowest alkene concentration: in sample 5 (2.9 ppm of 2,3DM2B) compared to 4 (10.8 ppm of 2,3DM2B), and in sample 7 (2.9 ppm of 2,3DM2B) compared to 6 (10.8 ppm of 2,3DM2B). This confirmed that this aldehyde was mainly produced by the self-reaction of C₅H₁₁O₂ and that the reaction C₅H₁₁O₂ + 2,3DM2B was taking place and efficiently competing with the self-reaction.

Epoxide formation

Next, the formation of epoxide (IV) (Scheme 1), the main expected product of RO₂ + alkene, was investigated. First, the detection of an epoxide standard, epoxybutane (C₄H₈O), was tested with PTR-ToF-MS to determine if proton transfer was efficient for this class of compounds. Unfortunately, no commercial standard was available for tetramethyloxirane, the epoxide from 2,3DM2B, nor for the isoprene epoxides, 2-methyl-2-vinyloxirane and 3-methyl-2-vinyloxirane. With epoxybutane, a single ion at m/z = 73.065 was observed, corresponding to C₄H₈OH⁺ and confirming that epoxides were efficiently detected by PTR-ToF-MS in our experiments.

In all the experiments, intense ion signals corresponding to the expected epoxides were observed. For the reactions with 2,3DM2B this ion was at m/z = 101.096 (C₆H₁₂OH⁺) corresponding to protonated tetramethyloxirane (or 2,3-dimethyl-2,3-epoxybutane), C₆H₁₂O (Fig. 3, Fig. S5c and Tables S2, S4, ESI†). However, the time profiles in the experiments suggested that it was not a reaction product: first, this ion was observed as soon as 2,3DM2B was injected in the reactor and before any reaction took place. Second, it hardly displayed any variations in the presence and the absence of RO₂ (≤10% of its background signal, Fig. 3 and Fig. S5c, ESI†). Such small variations were within the uncertainties resulting from the normalization of the signals with the parent ion signal, H₃O⁺. A signal increase of similar amplitude was also observed for this ion in the absence of alkene (see for instance Fig. S5c, ESI†), confirming that these variations resulted from normalization artefacts and not from RO₂ + 2,3DM2B. Thus, in spite of a large “background” of tetramethyloxirane throughout the experiments, this compound did not seem to be produced by the reaction RO₂ + 2,3DM2B.

To verify that any epoxide formation in the reaction RO₂ + 2,3DM2B should have resulted in measurable signal variations, kinetic simulations were performed, using ChemSimul. 3.90 (Section S8, ESI†). The results show that, under our experimental conditions, C₅H₁₁O₂ + 2,3DM2B should have produced up to 1.4 × 10¹¹ cm⁻³ of tetramethyloxirane. Assuming a typical detection sensitivity for epoxides of 5000 cps per ppb (see Section S8, ESI†), this should have resulted in a signal increase of up to 28 000 cps, thus almost 10 times larger than the variations observed. Similarly, CH₃O₂ + 2,3DM2B should have produced up to 5 × 10¹⁰ cm⁻³ of tetramethyloxirane and resulted in a signal increase of up to 10 000 cps, thus 2.5 times larger than the variations observed. A production of epoxide in these reactions should thus have been measurable in our experiments.

The presence and production of tetramethyloxirane in the experiments was further investigated by GC/MS and ¹NMR. This was necessary because the signal at m/z = 101.096 corresponds to 210 isomers,²⁵ and it was important to verify that the minor signal variations on the PTR-ToF-MS time profiles did not result from the opposite contributions of different isomers, for instance. ¹H-NMR analyses of the 2,3DM2B sample indicated the presence of 0.2% of tetramethyloxirane as main impurity (Fig. S9, ESI†). This was consistent with the observation of this compound as soon as 2,3DM2B was injected in the reactor and before any reaction took place. The concentration of this compound in experiments Alk39 and Alk40 was quantified with CG/MS by its retention time at 4.49 min (Fig. S6, ESI†). The results of the integration of the main EIMS ion peak at m/z = 59 are shown in Fig. S7b (ESI†). They confirmed that tetramethyloxirane was present in the reactor before any reaction took place (sample 3) and that its concentration did not increase during the reaction (samples 4–7). These results definitely confirmed that tetramethyloxirane was not produced by C₅H₁₁O₂ + 2,3DM2B in our experiments.

The reaction with isoprene was expected to produce two epoxide isomers of brut formula C₅H₈O: 3,4-epoxy-3-methyl-1-butene (or 2-methyl-2-vinyloxirane) and 3,4-epoxy-2-methyl-1-butene (or 3-methyl-2-vinyloxirane). An intense ion signal was observed at m/z = 85.065 in all the C₅H₁₁O₂ + isoprene experiments, which corresponds to the protonated epoxides, C₅H₈OH⁺ (Table S4, ESI†). This ion was observed in the reactor as soon as isoprene was injected and before any reactions had taken place. ¹H-NMR analyses of the isoprene sample showed the presence of impurities, of structure consistent with the isoprene epoxides, and for a total concentration not exceeding 2% (Fig. S8, ESI†). This confirmed that these epoxides were present as impurities in the isoprene sample. Unlike in the 2,3DM2B experiments, the signal at m/z = 85.065 displayed some significant variations between the RO₂ “ON” and RO₂ “OFF” cycles (∼5000 cps and ∼40% of the background signal, Fig. S5a, ESI†). The kinetic simulations (Section S8, ESI†) showed that C₅H₁₁O₂ + isoprene should have produced 3 × 10¹⁰ cm⁻³ of epoxide, corresponding to a signal increase of about 7000 cps, thus only slightly larger than those observed. However, the amplitude of these variations decreased with increasing isoprene concentrations during the reaction and were maximum with [alkene] = 0 (see Fig. S5a at t = 17 s, for instance, ESI†). This indicated that they resulted from an isomer of the epoxides produced by RO₂ side-chemistry rather than by RO₂ + isoprene. The formation of epoxide by RO₂ + isoprene, in addition to this product, should have thus resulted in significantly larger signals than those observed. The reaction C₅H₁₁O₂ + isoprene thus did not seem to produce any significant amounts of epoxide either.

The lack of epoxide production in RO₂ + alkene in our experiments suggested that the epoxide channel (2) was not taking place (or was only minor) and that an alternative pathway was more favored at room temperature.

Identification of other products from RO₂ + alkene

RO₂ + 2,3DM2B experiments

The other products of RO₂ + alkene reactions were identified in our analysis by their lack of production in the absence of alkene and by their increase proportionally with alkene concentration during the reactions. They were therefore clearly distinguished from the products of the RO₂ side-chemistry (self-reaction, autoxidation…), which, by contrast, had maximum ion signals in the absence of alkene and varied inversely with alkene concentration in the reactions. In many cases, however, different isomers produced by these different reactions contributed to the ion signals. This resulted, for instance, in a significant signal with [alkene] = 0 even for ions that were ultimately attributed to RO₂ + alkene. But in most cases, the products of the RO₂ side-chemistry had a smaller contribution than those of RO₂ + alkene, evidenced by a smaller signal with [alkene] = 0 than during the reactions, and allowing to establish that RO₂ + alkene produced some compounds contributing to these signals.

In the experiments with 2,3DM2B, the main products of RO₂ + 2,3DM2B thus identified were at m/z = 85.065 (C₅H₈OH⁺) and m/z = 103.075 (C₅H₁₀O₂H⁺) (Fig. 3 and Fig. S5d, ESI†). Both ions were attributed to 3-hydroxy-3-methyl-2-butanone, with m/z = 103.075 being the parent ion and m/z = 85.065 its dehydrated ion (more intense than the parent ion, indicating substantial dehydration). In the experiments with CH₃O₂ both ions were mostly produced in the presence of 2,3DM2B and varied proportionally to its concentration (Fig. S5d, ESI†), thus identifying them as a product of RO₂ + 2,3DM2B. The modest signals observed with [2,3DM2B] = 0 were attributed to some small contribution of ions produced by side-reactions of CH₃O₂.

In the experiments with C₅H₁₁O₂, these ions were also observed but their trends was complicated by a substantial contribution of pentanoic acid, an isomer of 3-hydroxy-3-methyl-2-butanone, produced by the side-reactions of C₅H₁₁O₂ and also having an ion at m/z = 103.075. Other compounds clearly identified as produced by RO₂ + 2,3DM2B were, with C₅H₁₁O₂, m/z = 97.065 (C₆H₈OH⁺), 125.096 (C₈H₁₂OH⁺), 127.112 (C₈H₁₄OH⁺), and 139.075 (C₈H₁₀O₂H⁺) (Fig. 4), and with CH₃O₂m/z = 97.101 (C₇H₁₁H⁺). Their variations proportional to alkene concentration is evidenced in Fig. 4, where the small ion signals in the absence of alkene were attributed to small contributions of isomers from RO₂ side-reactions. These products could however not be identified. Finally, formaldehyde, observed at m/z = 31.018 (CH₂OH⁺) and acetone, at m/z = 59.049 (C₃H₆OH⁺) were also found to be substantially produced by RO₂ + 2,3DM2B (Tables S2–S4, ESI†). But these compounds also had other chemical sources in the experiments, in particular formaldehyde from the self-reaction of CH₃O₂.

Fig. 4 Evolution of the ion signals with [2,3DM2B] in the study of C₅H₁₁O₂ + 2,3DM2B (experiment Alk48).

All the other compounds observed during the reactions were attributed to the side-chemistry of RO₂ (maximal formation in the absence of 2,3DM2B and variations opposite to its concentration). Those included hydroxyacetaldehyde, C₂H₄O₂, observed at m/z = 61.028 and, mostly, at its dehydrated ion C₂H₂OH⁺ (m/z = 43.018). Ion fragments potentially resulting from autoxidation products of C₅H₁₁O₂ were also observed such as C₅H₈O₂H⁺ at m/z = 101.060, attributed to the dehydrated ions of the ketone-hydroperoxides C₅H₁₀O₃ resulting from H-shift reactions in C₅H₁₁O₂. Ions corresponding to the further dehydration and fragmentation of C₅H₈O₂H⁺ were also observed, such as C₅H₆OH⁺ at m/z = 83.049 and C₄H₆OH⁺ at m/z = 71.049. In the experiments with CH₃O₂ much fewer ions were produced by the side-chemistry of CH₃O₂.

The chromatograms obtained in the GC/MS analysis of reaction mixtures of C₅H₁₁O₂ + 2,3DM2B were also investigated for other products than the epoxide. For this, differential chromatograms were established by subtracting the chromatograms obtained with RO₂ “OFF” (sample 3) from those obtained with RO₂ “ON” under the same conditions (sample 4) (Fig. S11, ESI†). A number of peaks were visible in these differential chromatograms at retention times 5.5, 12.0 and 22.0 min. In particular, the product at t = 5.5 min was attributed to 3-hydroxy-3-methyl-2-butanone based on the mass spectra at this retention time. This was consistent with the observation of this compound as main reaction product of RO₂ + 2,3DM2B at m/z = 103.076 and 85.065 with PTR-ToF-MS.

RO₂ + isoprene experiments

In the C₅H₁₁O₂ + isoprene experiments, the most intense product signals were at m/z = 101.060 (C₅H₈O₂H⁺), m/z = 83.049 (C₅H₆OH⁺), and m/z = 71.049 (C₄H₆OH⁺) (Fig. S5b, ESI†). Because these ions are isomers of those produced by the side-chemistry of C₅H₁₁O₂ and discussed above, they were significantly produced in the absence of isoprene. However, their overall time profiles did not display any trend with isoprene concentration during the reactions, indicating that C₅H₁₁O₂ + isoprene was producing other compounds at these masses that compensated for the negative trends from the products of the side-chemistry of C₅H₁₁O₂. The ion at m/z = 101.060 (C₅H₈O₂H⁺) was attributed to 2-hydroxy-2-methyl-3-butenal and m/z = 83.049 to its dehydrated ion, C₅H₆O₂H⁺. The ion at m/z = 71.049 (C₄H₆OH⁺) was attributed to methacrolein (“MACR”) or methyl vinyl ketone (“MVK”). The latter seemed modestly produced in RO₂ + isoprene, as most of the signal intensity was due to a large background.²⁶ Weak ion signals were also observed at m/z = 117.055 (C₅H₈O₃H⁺) (Fig. S5b, ESI†) and attributed to a small production of hydroperoxy aldehyde (“HPALD”) in RO₂+ isoprene.²⁶ Finally, the ions at m/z = 119.034 (C₄H₆O₄H⁺) and 123.117 (C₉H₁₄H⁺) (Table S3, ESI†) were also unambiguously identified as products of RO₂ + isoprene. But they contributed to weaker signals and could not be identified (Fig. S5b, ESI†).

Discussion

The products reported above for the RO₂ + alkene reactions can not be accounted for by the epoxide channel. 3-Hydroxy-3-methyl-2-butanone, acetone, 2-hydroxy-2-methyl-3-butenal, and methyl vinyl ketone (or methacrolein) have branched structures and can not be explained for by further reactions of the linear-chain alkoxy radicals from 1-C₅H₁₁O₂ or CH₃O₂ (1-C₅H₁₁O and CH₃O) co-produced in the epoxy channel. These products retain some of the alkene structure and appear to replace the expected formation of epoxide. They can not be explained by further reaction of the epoxides either, as those are rather slow in the gas phase for epoxides not containing –OH substituents (k^II_OH+epoxide ≤ 6 × 10⁻¹² cm³ s⁻¹).^27,28 Furthermore, the large alkene concentrations in our experiments ensured that OH radicals (as well as most other types of oxidants) were nearly inexistant. Therefore, the production of these compounds by the RO₂ + alkene reactions implies that an alternative pathway to epoxide formation must be taking place at room temperature.

Epoxide channel vs. peroxy radical channel: proposed mechanism

The mechanisms proposed for the reactions of RO₂ with 2,3DM2B and isoprene are presented in Schemes 2 and 3, respectively. We suggest that, at room temperature, instead of producing the epoxide (IV), the alkyl radical (III) reacts with O₂ and produces a peroxy radical (VII) (Schemes 2 and 3). The peroxy radical (VII) can then undergo a series of reactions, depending on its structure and the reaction conditions. The mechanisms of these reactions are generally similar to those following the addition of OH radical on these alkenes, except that the presence of the –OOR group instead of an –OH group allows for some additional isomerizations (H-shift reactions), thus reaction products.

Scheme 2 Proposed mechanism for the reactions of RO₂ with 2,3DM2B. Red boxes are the products observed in the experiments, and red circles those expected but not observed.

Scheme 3 Proposed mechanism for the reaction of RO₂ with isoprene. For clarity, only the addition on the first carbon atom of isoprene is represented. The red boxes are the products observed in the experiments and the red circles those expected but not observed.

Reactions with 2,3DM2B

In the reaction RO₂ + 2,3DM2B (Scheme 2) the peroxy radicals (VII) would either cross-react with the initial peroxy radical (I) to produce a highly substituted alkoxy radical (VIII) or react with HO₂ to produce the hydroperoxide (VIIb), although no hydroperoxide were observed in the experiments. H-shift reactions in (VII) are expected to be slow (≤10⁻⁴ s⁻¹).¹² Similarly to the reaction of 2,3DM2B with OH,²⁹ most of the alkoxy radical (VIII) is expected to decompose into acetone. But this time the co-product is a substituted alkyl radical leading, after reaction with O₂ to the peroxy radical (IXa), then to the peroxide-ketone (Xa) and formaldehyde. The observation of acetone in the reactions with 2,3DM2B in our experiments confirms that this pathway took place, although the peroxide (Xa) was not observed. Alternatively, the radical (IXa) can react with HO₂ to produce an hydroperoxide. Another possible reaction pathway for the alkoxy radical (VIII), not allowed in the reaction of 2,3DM2B with OH, would be a 1,6 H-shift producing the alkyl radical (IXb). The recombination of the alkyl radical (IXb) with O₂ would lead to a peroxy radical group directly adjacent to the peroxide group, likely to decompose into 2-methyl-2-hydroxy-2-butanone (Xb), the organic acid (Xc), and formaldehyde. The observation of (Xb) as main product of this reactions in the experiments supports the occurrence of this reaction pathway. Apart from the lack of detection of the organic peroxides (Xa) and hydroperoxides (due to ionization problems in PTR-MS, see discussion below), this mechanism is consistent with the products observed in the experiments.

Reaction with isoprene

The mechanism of the reaction with isoprene (Scheme 3) is also similar to that of the reaction isoprene + OH. Because the latter is very complex and has been extensively studied in the literature, this discussion will focus on the main features and the on the steps that differ from the reaction with OH. As for OH radical, the initial peroxy radical (I) can add on either one of the double bonds leading, after allylic rearrangement, to six possible alkyl radicals (III).²⁶ Only the major pathways, corresponding to the addition of (I) on the first carbon atom and leading to the most substituted alkyl radical (III) will be further discussed and illustrated in Scheme 3. Note that the other pathways would produce compounds that are either identical to or isomers of those described below, and would not be differentiated from them with PTR-ToF-MS. We propose that, instead of producing an epoxide, (III) recombines with molecular oxygen. This produces three isomer peroxy radical, (VII-1), (VII-2), and (VII-3), referred to as β-RO₂-I, E-δ-RO₂-I, and Z-δ-RO₂-I, respectively, by analogy with the isoprene oxidation mechanisms proposed in the literature.^14,26,30 All three radicals could react with HO₂ to produce the hydroperoxides (VII-1a), (VII-2a), and (VII-3a). In addition, (VII-1) and (VII-2) can cross-react with other RO₂ to produce the alkoxy radicals (VIII-1) and (VIII-2). For (VII-3) (Z-δ-RO2-I), however, H-shift reactions are fast and would lead ultimately to the hydroperoxyl aldehyde (HPALD) (VII-3b),^14,26 observed as a minor product in our experiments. In addition, (VII-2) (E-δ-RO₂-I) can possibly undergo cyclisation to lead ultimately to the cyclic organic peroxide (IX-2b). Further reactions of the alkoxy radical (VIII-1) with molecular oxygen would produce methyl vinyl ketone (MVK, IX-1a), observed in our experiments, and the peroxide aldehyde (IX-1b) or, alternatively the peroxide ketone (IX-1c) and formaldehyde. The alkoxy radical (VIII-1) could also undergo a 1,6H-shift reaction, leading to the alkyl radical (IX-1d) and ultimately to 2-hydroxy-2-methyl-3-butenal (X-1a) and the organic acid (X-1b). The observation of (X-1a) with PTR-ToF-MS suggests that this reaction pathway is significant. Finally, further reactions of the alkoxy radical (VIII-2) with oxygen should lead ultimately to the peroxide ketone (IX-2a).

Thus, while not all the product expected from these mechanisms were observed in our experiments, those observed support the main proposed pathways rather than the formation of epoxide. In all the experiments, the products that were not detected were systematically those containing either a hydroperoxide or an organic peroxide structure. This is likely due to fragmentation in the ionization of these compounds with PTR-MS, as recently reported.³¹ To verify this, we attempted the detection of a standard mixture of t-butyl peroxide (99% Thermo Scientific, 300 ppb in N₂) with PTR-ToF-MS. No signal was observed at the expected m/z = 147.139, nor anywhere in the spectra, confirming that organic peroxides (and probably hydroperoxides) can not be detected with PTR-MS.

Epoxide channel vs. peroxy radical channel: kinetic discussion

The kinetic data available in the literature further supports our proposition that, under atmospheric conditions, the formation of the peroxy radical (VII) should be favored over that of the epoxide (IV) in RO₂ + alkene reactions. The rate of recombination of the alkyl radical (III) with molecular oxygen (reaction (3)) is very fast: using the rate coefficient for t-butyl radical, k^II(t-butyl + O₂) = 7.5 × 10⁻¹² cm³ s⁻¹,³² and [O₂] = 5 × 10¹⁸ cm⁻³ gives r₃ ∼ 4 × 10⁷ s⁻¹. Monomolecular rate coefficients for epoxidation reactions (reaction (2)) have been estimated for organic peroxides³³ to r₂ = 2 × 10²–5 × 10⁴ s⁻¹, thus significantly slower than the reaction of the alkyl radical (III) with O₂. According to this previous study, epoxidation rates are fast only for HO-substituted hydroperoxides.³³ Note that, in combustion systems, this peroxy radical pathway had been ruled out as negligible compared to the epoxide channel.¹⁷ The rate of the epoxidation step (2) in combustion systems must have also been much smaller than estimated by ref. 33, as it was systematically reported to be kinetically-limiting over step (1).^16–18

The fact that RO₂ + alkene proceeds by a peroxy radical pathway instead of the epoxide pathway also implies that, at room temperature, the overall reaction is kinetically limited by the initial addition step (1) rather than the epoxidation step (2) as reported until now.^16–18 Typical values of r₁ for step 1 can be estimated from the rate coefficients recently measured at room temperature for these reactions. These measurements were based on monitoring the consumption of the RO₂ (I), thus actually monitored the first addition step. These were k^II₁(CH₃O₂ + 2,3DM2B) = 6.7 × 10⁻¹⁸ cm³ s⁻¹ and k^II₁(C₅H₁₁O₂ + 2,3DM2B) = 1.6 × 10⁻¹⁶ cm³ s⁻¹.¹⁹ The maximum concentration of [2,3DM2B] used in each type of experiment (2.7–3.5 × 10¹⁴ cm⁻³) thus gives r₁ ≤ 2 × 10⁻³–4 × 10⁻² s⁻¹. The reactions following the formation of the peroxy radical (VI) would be faster than r₁ as they involve reactions of peroxy radicals with other RO₂ (>5 × 10⁻² s⁻¹ in our experiments), or with HO₂ or NO in the atmosphere, and reactions of alkoxy radicals, which are also fast (>10⁵ s⁻¹ for isomerisation, >10⁷ s⁻¹ for recombination with oxygen). Step (1) is thus expected to be the kinetically-limiting step in most systems under atmospheric conditions.

Since the reactions RO₂ + alkene are kinetically limited by step (1) at room temperature, but by step (2) at high temperature,¹⁶ extrapolating down the kinetic data obtained at high temperature should significantly underestimate the actual rate coefficients at room temperature. For CH₃O₂ + 2,3DM2B the combustion data lead to a rate coefficient of k^II(CH₃O₂ + 2,3DM2B) ∼ 6 × 10⁻²⁰ cm³ s⁻¹.¹⁶ The rate coefficients for the two other reactions can be estimated from the combustion data to k^II(C₅H₁₁O₂ + 2,3DM2B) ∼ 3 × 10⁻¹⁹ cm³ s⁻¹ and k^II(C₅H₁₁O₂ + isoprene) ∼ 6 × 10⁻²¹ cm³ s⁻¹ by applying some correction factors to account for the larger RO₂ (see discussion in ref. 19). By comparison, recent kinetic experiments reported rate coefficients recently these reactions at 298 K¹⁹ of k^II(C₅H₁₁O₂) + 2,3DM2B = 1.6 × 10⁻¹⁶ (0.3–8 × 10⁻¹⁶) cm³ s⁻¹; k^II(C₅H₁₁O₂ + isoprene) = 7.8 × 10⁻¹⁸ (1.6–39 × 10⁻¹⁸) cm³ s⁻¹; and k^II(CH₃O₂ + 2,3DM2B) = 6.7 × 10⁻¹⁸ (3.4–33.5 × 10⁻¹⁸) cm³ mol⁻¹ s⁻¹. In the present work, attempts were made to measure these rate coefficients again but from the product build-up in the experiments. For this, pseudo-first order analyses were applied to the ion signals displaying a clear increase with alkene concentration (Section S10, ESI†): m/z = 127.112 for C₅H₁₁O₂ + 2,3DM2B; m/z = 119.034 for C₅H₁₁O₂ + isoprene, and m/z = 85.065 for CH₃O₂ + 2,3DM2B. The results are presented in Section S10 (ESI†). Unfortunately, under our experimental conditions the reactions were too slow to determine these rate coefficients accurately. However, the results were generally consistent (within a factor 3) with those reported recently. The differences of 1 to 2 orders of magnitude between the experimental results at room temperature and the combustion data show that the later are not adequate to estimate the rate coefficients for RO₂ + alkene reactions under atmospheric conditions. Yet, these combustion data have been the reason for underestimating RO₂ + alkene reactions under atmospheric conditions until now.

Conclusions

Experimental investigations of RO₂ + alkene reactions under atmospheric conditions (atmospheric pressure, [O₂] = 5 × 10¹⁸ cm⁻³ and T = 300 ± 5 K) in this work showed that, unlike what had been proposed in the literature until now, these reactions did not produce any significant amount of epoxide. Instead, the formation of other products such as 3-hydroxy-3-methyl-2-butanone, acetone, 2-hydroxy-2-methyl-3-butenal, and methyl vinyl ketone suggested the existence of other reaction pathways. We propose that, at room temperature, the reaction of the initial alkyl radical adduct with oxygen to produce a peroxy radical is more favored than its epoxidation, which is supported by kinetic data.

The fact that RO₂ + alkene proceeds by a peroxy radical pathway instead of the epoxide pathway at room temperature implies that it is kinetically limited by the initial addition step and not by the epoxidation, as reported until now for combustion systems. The kinetic data obtained from combustion systems thus do not represent adequately the mechanisms at room temperature. Extrapolating the rate coefficients from these data leads to significant underestimation at room temperature and has been responsible for overlooking these reactions under atmospheric conditions until now. These discrepancies also explain the unexpected large rate coefficients recently measured at room temperature for these reactions.

Implications for the atmosphere and chamber studies

In the atmosphere and in chamber studies these reactions would only be significant under very low NO_x condition ([NO] ≤ 0.05 ppb). They would be expected to act as additional sinks for the RO₂, thus potentially reducing the total RO₂ concentration. However, because the R’O₂ produced by RO₂ + alkene do not allow for fast H-shift, as with their HO-RO₂ analogs, these reactions are not expected to contribute to OH recycling and might even compete with it. The effects of RO₂ + alkene reactions should be mostly significant for slow-reacting RO₂ since their rate coefficients are likely to be small for many classes of RO₂, in particular aliphatic ones, with k^II_RO2+alkene ≤ 10⁻¹⁵ cm³ s⁻¹. Only for RO₂ with specific structures such as HO-, allyl-, or acyl substituents, they might be significant at room temperature (see structure–activity discussions in ref. 16 and 19). Previous kinetic measurements gave a rate coefficient of 10⁻¹⁴ cm³ s⁻¹ for the reaction of peroxy acyl radical, CH₃C(O)O₂, with 2,3DM2B, which can be used as typical value for the reactions of functionalized RO₂ with alkenes.

Thus, in regions of the atmosphere that are strongly impacted by biogenic emissions, a concentration [alkene] = 5 ppb³⁴ would correspond to first-order rates of ∼10⁻³ s⁻¹. For the RO₂ present in these regions and having slower sinks, RO₂ + alkene reactions could be competitive, thus acting as additional sinks and potentially accounting for the “missing RO₂ sinks” reported in several studies.^5,6

To estimate the potential effects of RO₂ + alkene reactions in chamber experiments, simple kinetic simulations were performed and compared with the isoprene + OH experiments in ref. 14 (see details Section S12, ESI†). The kinetic system was kept as simple as possible to examine mostly the trends on the isoprene-RO₂ (“IsopRO2”), total RO₂ (ΣRO₂), and OH recycling. With an initial concentration of [isoprene] = 5 ppb and a first order rate of the order of 10⁻³ s⁻¹ for RO₂ + isoprene, these reactions were expected to compete with the sinks of several isoprene-RO₂, in particular with the 1,5-H shift discussed for β-RO₂-I in ref. 14. This could potentially account for the overestimation of ΣRO₂ by the models in ref. 14. To determine a lower limit for the impact of RO₂ + isoprene in these experiments, the simulations only took onto account the RO₂ channel for Z-δ-RO₂-I, which has the fastest monomolecular sink rate (0.1–0.4 s⁻¹, see Table S12.1, ESI†).¹⁴ In spite of the large differences in the reaction rates between this sink and RO₂ + isoprene, the latter was found to significantly reduce ΣRO₂ (by 10 to 50%) as well as OH recycling (Fig. S12.2, ESI†). This unexpectedly large effect was due to the efficient recycling of OH by Z-δ-RO₂-I, largely controlling OH concentration. This, in turn, controlled the oxidation of isoprene and the total production of RO₂. Thus, even a small competition of RO₂ + isoprene with the main sink of Z-δ-RO₂-I was sufficient to significantly reduce [OH] and the overall RO₂ production. These results indicate that, in addition to providing additional sinks for slow-reacting RO₂ and reducing ΣRO₂, RO₂ + alkene reactions could have more impacts than expected from their small reaction rates in chamber experiments where RO₂ reactions affect OH concentration.

Author contributions

BN supervised the study, performed the experiments, analyzed the data and wrote the paper. OD contributed to the analyses of the FUSION PTR-ToF data and to the figures in the manuscript. ED performed the GC/MS experiments and subsequent analyses. SK developed the GC/MS method employed in the study. ÅE supervised the GC/MS studies. FF contributed to the GC/MS analyses, NMR analyses, the discussion of the reaction mechanisms, and to the Schemes presented in the manuscript. FP and AW contributed to the analyses of the FUSION PTR-ToF data. All the authors read and commented the manuscript before submission.

Conflicts of interest

There are no conflicts to declare.

Acknowledgements

This work was part of the ERC Advanced Grant Project EPHEMERAL (grant no. 884532) and has received funding from the European Research Council (ERC) under the European Union's Horizon 2020 research and innovation programme. Clarisse Marin (ENS/Paris-Saclay University and KTH) is warmly thanked for the NMR spectra.

References

1. D. Tan, I. Faloona, J. B. Simpas, W. Brune, P. B. Shepson, T. L. Couch, A. L. Sumner, M. A. Carroll, T. Thornberry, E. Apel, D. Riemer and W. Stockwell, J. Geophys. Res., 2001, 106, 24407–24427.
2. J. Lelieveld, T. M. Butler, J. N. Crowley, T. J. Dillon, H. Fischer, L. Ganzeveld, H. Harder, M. G. Lawrence, M. Martinez, D. Taraborrelli and J. Williams, Nature, 2008, 452, 737–740.
3. A. Hofzumahaus, F. Rohrer, K. D. Lu, B. Bohn, T. Brauers, C. C. Chang, H. Fuchs, F. Holland, K. Kita, Y. Kondo, X. Li, S. R. Lou, M. Shao, L. M. Zeng, A. Wahner and Y. H. Zhang, Science, 2009, 324, 1702–1704.
4. L. K. Whalley, P. M. Edwards, K. L. Furneaux, A. Goddard, T. Ingham, M. J. Evans, D. Stone, J. R. Hopkins, C. E. Jones, A. Karunaharan, J. D. Lee, A. C. Lewis, P. S. Monks, S. J. Moller and D. E. Heard, Atmos. Chem. Phys., 2011, 11, 7223–7233.
5. Z. Tan, K. Lu, A. Hofzumahaus, H. Fuchs, B. Bohn, F. Holland, Y. Liu, F. Rohrer, M. Shao and K. Sun, Atmos. Chem. Phys., 2019, 19, 7129–7150.
6. L. K. Whalley, E. J. Slater, R. Woodward-Massey, C. Ye, J. D. Lee, F. Squires, J. R. Hopkins, R. E. Dunmore, M. Shaw and J. F. Hamilton, Atmos. Chem. Phys., 2021, 21, 2125–2147.
7. J. Peeters, T. L. Nguyen and L. Vereecken, Phys. Chem. Chem. Phys., 2009, 11, 5935–5939.
8. J. Peeters and J.-F. Muller, Phys. Chem. Chem. Phys., 2010, 12, 14227–14235.
9. J. D. Crounse, F. Paulot, H. G. Kjaergaard and P. O. Wennberg, Phys. Chem. Chem. Phys., 2011, 13, 13607–13613.
10. J. D. Crounse, L. B. Nielsen, S. Jørgensen, H. G. Kjaergaard and P. O. Wennberg, J. Phys. Chem. Lett., 2013, 4, 3513–3520.
11. E. Praske, R. V. Otkjær, J. D. Crounse, J. C. Hethcox, B. M. Stoltz, H. G. Kjaergaard and P. O. Wennberg, Proc. Natl. Acad. Sci. U. S. A., 2018, 115, 64–69.
12. L. Vereecken and B. Nozière, Atmos. Chem. Phys., 2020, 20, 7429–7458.
13. L. Vereecken, G. Vu, A. Wahner, A. Kiendler-Scharr and H. Nguyen, Phys. Chem. Chem. Phys., 2021, 23, 16564–16576.
14. A. Novelli, L. Vereecken, B. Bohn, H.-P. Dorn, G. I. Gkatzelis, A. Hofzumahaus, F. Holland, D. Reimer, F. Rohrer and S. Rosanka, Atmos. Chem. Phys., 2020, 20, 3333–3355.
15. M. M. Lew, P. S. Rickly, B. P. Bottorff, E. Reidy, S. Sklaveniti, T. Léonardis, N. Locoge, S. Dusanter, S. Kundu and E. Wood, Atmos. Chem. Phys., 2020, 20, 9209–9230.
16. M. S. Stark, J. Phys. Chem. A, 1997, 101, 8296–8301.
17. K. Selby and D. J. Waddington, J. Chem. Soc., Perkin Trans. 2, 1980, 65–67.
18. D. A. Osborne and D. J. Waddington, J. Chem. Soc., Perkin Trans. 2, 1980, 925–930.
19. B. Nozière and F. Fache, Chem. Sci., 2021, 12, 11676–11683.
20. B. Nozière and D. R. Hanson, J. Phys. Chem. A, 2017, 121, 8453–8464.
21. B. Nozière and L. Vereecken, Angew. Chem., Int. Ed., 2019, 58, 13976–13982.
22. H. Keller-Rudek, G. K. Moortgat, R. Sander and R. Sörensen, Earth Syst. Sci. Data, 2013, 5, 365–373.
23. S. W. Benson, K. W. Egger and D. M. Golden, J. Am. Chem. Soc., 1965, 87, 468–476.
24. A. F. Jordan, S. Feil, S. Hanel, L. Märk and P. Sulzer, 8th International Conference on Proton Transfer Reaction Mass Spectrometry and Its Applications, Innsbruck University Press, Innsbruck, Austria, 2019, pp. 133–136.
25. R. Gugisch, A. Kerber, A. Kohnert, R. Laue, M. Meringer, C. Rücker and A. Wassermann, Adv. Math. Chem. Appl., 2016, 1, 113–138.
26. J. Peeters, J.-F. O. Müller, T. Stavrakou and V. S. Nguyen, J. Phys. Chem. A, 2014, 118, 8625–8643.
27. H. El Othmani, Y. Ren, Y. Bedjanian, S. El Hajjaji, C. Tovar, P. Wiesen, A. Mellouki, M. R. McGillen and V. Daële, ACS Earth Space Chem., 2021, 5, 960–968.
28. C. M. Tovar, I. Barnes, I. G. Bejan and P. Wiesen, Atmos. Chem. Phys., 2022, 22, 6989–7004.
29. E. C. Tuazon, S. M. Aschmann, J. Arey and R. Atkinson, Environ. Sci. Technol., 1998, 32, 2106–2112.
30. D. J. Medeiros, M. A. Blitz, P. W. Seakins and L. K. Whalley, JACS Au, 2022, 2, 809–818.
31. H. Li, T. G. Almeida, Y. Luo, J. Zhao, B. B. Palm, C. D. Daub, W. Huang, C. Mohr, J. E. Krechmer and T. Kurtén, Atmospheric Measurement Techniques Discussions, 2021, 2021, 1–24.
32. R. Atkinson, D. L. Baulch, R. A. Cox, J. N. Crowley, R. F. Hampson, R. G. Hynes, M. E. Jenkin, M. J. Rossi and J. Troe, Atmos. Chem. Phys., 2006, 6, 3625–4055.
33. K. H. Møller, T. Kurtén, K. H. Bates, J. A. Thornton and H. G. Kjaergaard, J. Phys. Chem. A, 2019, 123, 10620–10630.
34. S. Noe, K. Hüve, Ü. Niinemets and L. Copolovici, Atmos. Chem. Phys., 2012, 12, 3909–3926.

---

Footnote

† Electronic supplementary information (ESI) available: List of experiments, lists of main ions observed in experiments; time profiles for the main ions; GC/MS analyses, NMR analyses. kinetic analyses. See DOI: https://doi.org/10.1039/d2cp05166d

---
