Water vapour induced structural flexibility in a square lattice coordination network

Abstract

Herein, we introduce a new square lattice topology coordination network, sql-(1,3-bib)(ndc)-Ni, with three types of connection and detail its gas and vapour induced phase transformations. Exposure to humidity resulted in an S-shaped isotherm profile, suggesting potential utility of such materials as desiccants.

---

Crystal engineering of coordination networks (CNs) has evolved from its initial focus upon design^1–3 into fine-tuning of structure/property relationships, thereby resulting in architectures that can be tailored to specific applications, especially gas storage and separation.^4–6 That CNs are typically amenable to design from first principles and can exhibit permanent porosity affords them with the potential to address topical environmental challenges, including direct air capture of CO₂,^7,8 separation of CO₂ from N₂ (e.g. flue gas remediation) or CH₄ (for natural gas refinement),^9,10 as well as atmospheric water harvesting (AWH).¹¹

A feature of CNs that facilitates design is that they can be represented as topological blueprints that enable design of platforms of related CNs when deconstructed to nodes and linkers. For example, linear ditopic linker ligands and 4-connected metal nodes can yield platforms of sql (square lattice) or dia (diamondoid) topology CNs. In this context, linear pyridyl ditopic ligands (e.g. 4,4′-bipyridine) have been utilised to create platforms of sql networks of general formula ML₂X₂ (X = counteranion).^12–14 More recently, angular pyridyl ditopic ligands (e.g. 4,4′-dipyridylsulfide) have emerged as alternatives to their linear counterparts, sometimes offering ultramicropores that enable strong gas separation performance.^15–17 In these cases, such angular ligands can enable formation of spiro-linked 1D coordination polymers comprised of M₂L₂ loops (M = metal, L = ligand), which self-assemble with auxiliary dianionic linkers (L′) into 2D, typically sql, networks of general formula ML₂L′.

From a crystal engineering perspective, substitution of a pyridyl moiety with an imidazolyl in angular ligands should permit the same topological outcome. Herein, we focus on an imidazolyl angular linker ligand, 1,3-bib = 1,3-bis(imidazol-1-yl)benzene, which is understudied in the context of gas or vapour sorption.^18–20 Its linear analogue, 1,4-bib = 1,4-bis(imidazol-1-yl)benzene, was reported for its gas^21,22 or water vapour²³ sorption in flexible CNs. A survey on CNs sustained by 1,3-bib vs. 1,4-bib using the TOPOS TTO database²⁴ revealed that 1,3-bib forms mostly 2D networks with sql topology while 1,4-bib tends to afford 3D networks with dia or pcu (primitive cubic) topology (Fig. S1, ESI†). Analysis of the conformation of 1,3-bib and 1,4-bib in coordination compounds archived in the CSD (version 2023.2.0)²⁵ revealed that the two linkers are distinct from a crystal engineering point of view (Fig. S2–S5, ESI†). While 1,4-bib can sustain a narrow range of metal-to-metal (M–M) distances depending on if it is syn or anti, 1,3-bib allows more variety of M–M distances due to added complexity in the syn conformer, which can either be endo (leading to M₂L₂ loops) or exo (leading to tethering).

Water stable CNs offer potential for utility in AWH, for which a “stepped” or “S-shaped” water vapour isotherm profile is desirable as it offers increased working capacity and a low energy footprint compared to traditional desiccants with type I profiles.²⁶ This profile can be achieved either by rigid^27–29 or flexible^30–32 CNs, typically through pore-filling or gate-opening mechanisms, respectively. Even though flexible CNs offer potential for AWH,³³ water vapour induced structural flexibility in CNs remains understudied, with just 34 examples identified in a recent study (Table S1, ESI†),³⁴ despite the presence of >118 000 CNs in the cambridge structural database (CSD) database.²⁵ Furthermore, those CNs reported to undergo water vapour induced transformations are mostly 3D (Table S1, ESI†).

Motivated by the above, we exploited 1,3-bib to form a new 2D CN, [Ni₂(1,3-bib)₃(ndc)₂(H₂O)₂]_n or sql-(1,3-bib)(ndc)-Ni (ndc = 1,4-naphthalenedicarboxylate). Solvothermal reaction of 1,3-bib, ndc and Ni(NO₃)₂·6H₂O afforded plate-shaped single crystals of sql-(1,3-bib)(ndc)-Ni-α (for experimental details see ESI†). Single-crystal X-ray diffraction (SCXRD) experiments revealed that sql-(1,3-bib)(ndc)-Ni-α had crystallized in the orthorhombic space group Cmc2₁ (Table S2, ESI†). The Ni(II) centres adopt octahedral coordination geometry, the two axial positions being occupied by an aqua ligand and a nitrogen atom from a 1,3-bib linker (Fig. 1a). The coordination sphere is completed by nitrogen atoms from different 1,3-bib linkers and oxygen atoms from two monodentate ndc linkers. Interestingly, there are three distinct types of connection: ndc linkers; a single 1,3-bib linker; a pair of 1,3-bib linkers that connect two adjacent Ni(II) centres, creating a [Ni₂(1,3-bib)₂] loop (Fig. 1b). Topologically, if this dimer is regarded as a two-point connection, the metal nodes can be simplified as 4-connected, classifying the structure as an sql net (see ESI† for detailed topological analysis). A CSD search (version 2023.2.0) revealed that, while this dimeric [M₂(1,3-bib)₂] moiety is common among 0D complexes sustained by 1,3-bib, it is present in only five other 2D CNs (Fig. S7 and Table S3, ESI†). Adjacent 2D nets in sql-(1,3-bib)(ndc)-Ni-α have inter-network Ni⋯Ni distances of 7.644 Å (Fig. 1c, d and Fig. S8, ESI†). Crystal packing of the 2D layers results in 1D channels accounting for a guest-accessible space of 16.2% of the unit cell volume (1018 ų, probe radius 1.2 Å). The channels are occupied by N,N-dimethylacetamide (DMA) and hydrate molecules, as confirmed by SCXRD (Fig. S9–S11, ESI†). Specifically, hydrate molecules occupy a special position between the two Ni centres, forming hydrogen bonds with the aqua ligands (O⋯O = 2.775 Å, Fig. S12, ESI†). Thermogravimetric (TG) analysis (Fig. S13, ESI†) showed that solvent loss was complete by 225 °C and Fourier transform infrared (FTIR) spectroscopy (Fig. S14, ESI†) was consistent with a hydrate. In situ variable temperature powder X-ray diffraction (VT-PXRD) measurements demonstrated that heating sql-(1,3-bib)(ndc)-Ni-α under N₂ flow did not trigger a phase change below 175 °C. Decomposition at 200 °C was accompanied by a change in colour from blue to green (Fig. S15 and S16, ESI†).

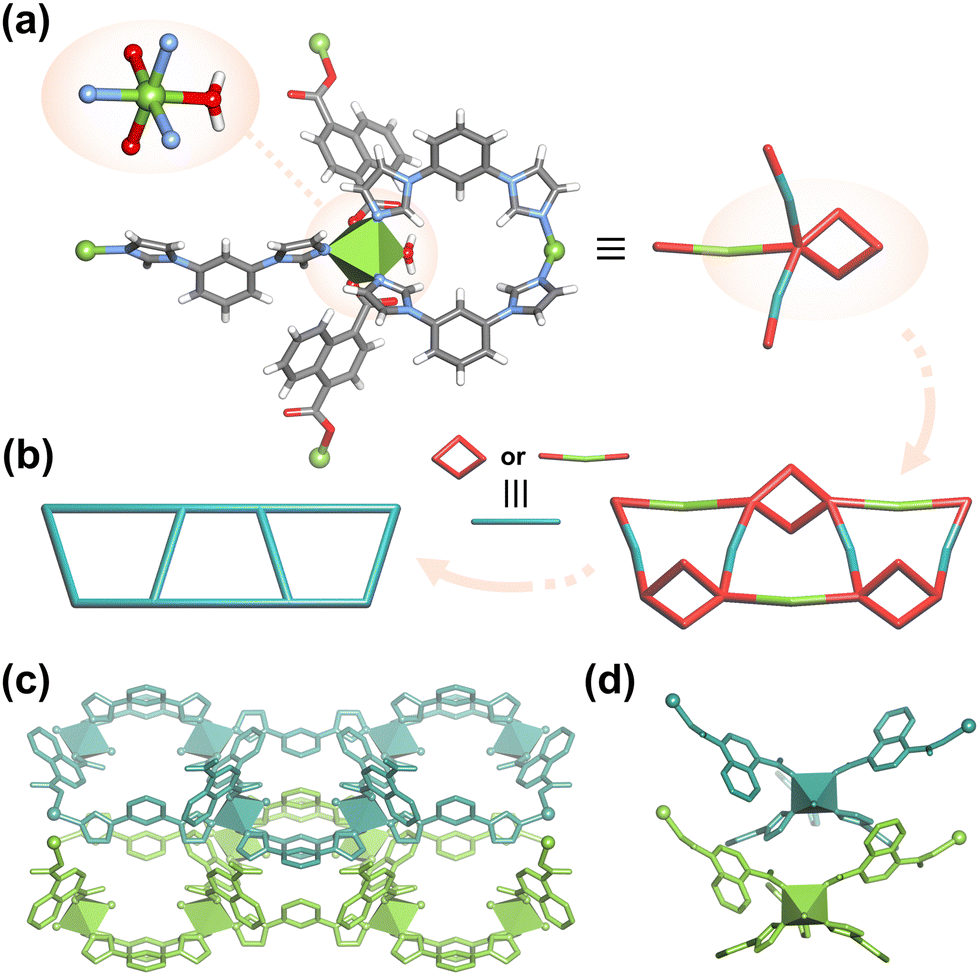

Fig. 1 (a) Coordination geometry around the Ni(II) centres; (b) [Ni₂(1,3-bib)₂] loop formation and topological analysis, simplified to sql net; (d) layered sql nets shown in cyan and green along the crystallographic a axis (c) and c axis (d). Hydrogen atoms are omitted for clarity in (c) and (d). Colour codes (for (a)): grey, C; red, O; blue, N; green, Ni.

To activate without triggering decomposition, sql-(1,3-bib)(ndc)-Ni-α was exchanged with a more volatile solvent, methanol, resulting in a new phase, sql-(1,3-bib)(ndc)-Ni-γ, via a single-crystal to single-crystal (SC–SC) transformation (Fig. 2a and b). Although sql-(1,3-bib)(ndc)-Ni-γ had crystallised in the same space group as the parent compound and retained the same connectivity, a larger unit cell volume was observed, 6901.8 ųvs. 6279.8 ų (Table S2 and Fig. S17, ESI†). This unit cell expansion was accompanied by an increase in the guest-accessible space to 22.1% and enlargement of the interlayer distance to 8.550 Å (Fig. S8, ESI†). SCXRD data and a TG trace revealed that the hydrogen-bonded hydrate molecule between two Ni centres had remained, even though solvent molecules had been replaced by methanol (Fig. S18 and S19, ESI†). Differential scanning calorimetry (DSC) measurements suggested that another phase change occurred upon loss of methanol solvate molecules when heating sql-(1,3-bib)(ndc)-Ni-γ at ca. 60 °C. This is consistent with the endotherm observed at that temperature for the first heating cycle, but not for the second cycle (Fig. S20, ESI†). Indeed, heating sql-(1,3-bib)(ndc)-Ni-γ under vacuum induced transformation to a phase with reduced porosity, sql-(1,3-bib)(ndc)-Ni-β (Fig. 2c). Both the unit cell volume and the interlayer distance had contracted to 5857.2 ų and 7.047 Å, respectively, while the PXRD pattern revealed peaks shifted to higher 2θ values (Fig. S8, S17 and Table S2, ESI†). A TG trace indicated that this phase had reduced porosity, a guest-accessible space of 7.7% along the cavities and channels filled with H₂O molecules adsorbed from laboratory atmosphere (Fig. S10 and S21, ESI†). A hydrogen-bonded H₂O molecule was located within 2.777 Å of the two adjacent aqua ligands (Fig. S12, ESI†), along with an additional H₂O molecule in the interlayer space. SCXRD of the β phase conducted in a capillary sealed under dynamic vacuum indicated that the hydrogen-bonded H₂O molecule remained even under activation conditions (Fig. S12 and S22, ESI†). Further, VT-PXRD measurements revealed that heating sql-(1,3-bib)(ndc)-Ni-β under vacuum did not induce a phase change until eventual decomposition, consistent with structural rigidity despite removal of guest water molecules (Fig. S23, ESI†).

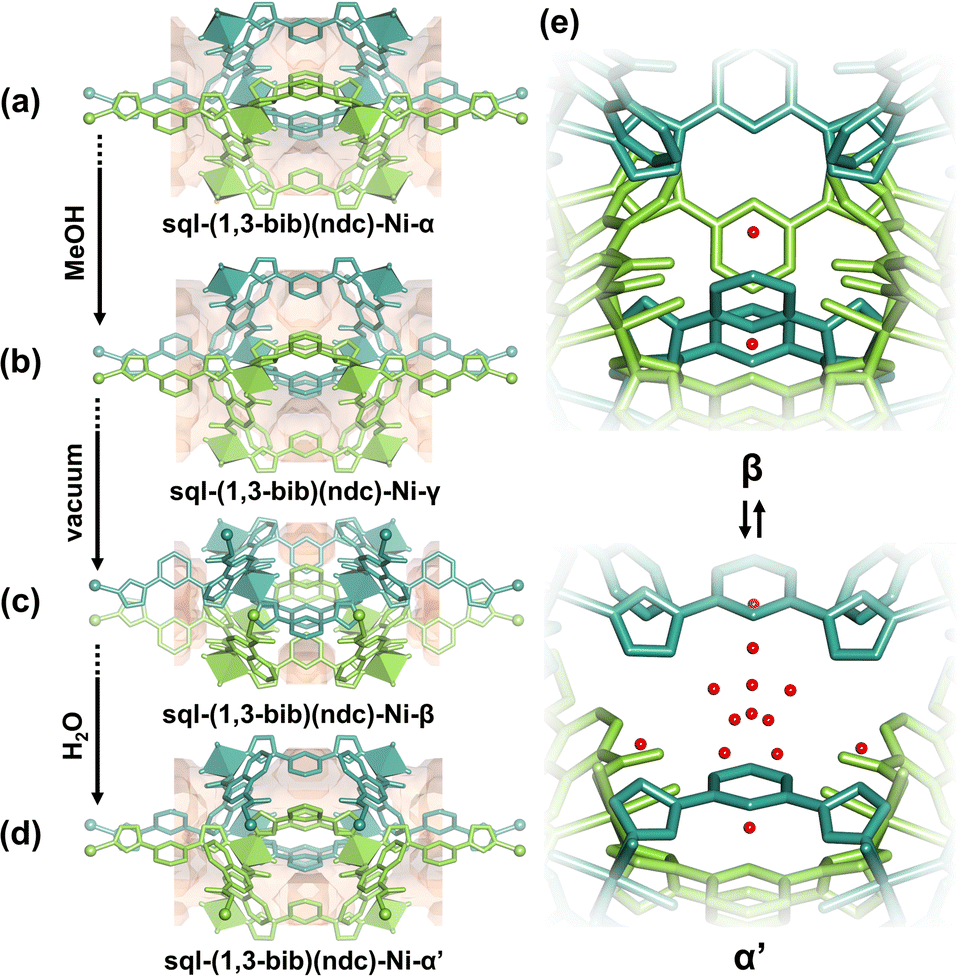

Fig. 2 Change in guest accessible space through structural transformations in sql-(1,3-bib)(ndc)-Ni-α (a), sql-(1,3-bib)(ndc)-Ni-γ (b), sql-(1,3-bib)(ndc)-Ni-β (c) and sql-(1,3-bib)(ndc)-Ni-α′ (d); (e) guest water molecules in sql-(1,3-bib)(ndc)-Ni-β and sql-(1,3-bib)(ndc)-Ni-α′. Hydrogen atoms are omitted for clarity.

The response of sql-(1,3-bib)(ndc)-Ni-β to water vapour prompted us to investigate its behaviour towards water. When sql-(1,3-bib)(ndc)-Ni-β was immersed in water, a new phase, sql-(1,3-bib)(ndc)-Ni-α′, was obtained (Fig. 2d), with a PXRD pattern resembling that of sql-(1,3-bib)(ndc)-Ni-α (Fig. S17, ESI†). sql-(1,3-bib)(ndc)-Ni-α′ had crystallised with a unit cell volume of 6296.4 ų and its interlayer distances were found to be 7.608 Å (compared to 6279.8 ų and 7.644 Å for α). Even though α′ has similar guest-accessible space to α, its voids are filled with water, as suggested by its TG profile (Fig. S24, ESI†). SCXRD analysis afforded the location of the hydrate molecules, including that between two Ni centres (O⋯O = 2.777 Å, Fig. S12, ESI†). Hydrate molecules were located in seven other positions with partial occupancies, amounting to four H₂O molecules per Ni (Fig. 2e). FTIR spectroscopy further indicated that α′ can adsorb more water than β, transforming to a phase with the water content of β when left in air for 5 minutes (Fig. S14, ESI†).

Analysis of the crystal structures of α, β, γ and α′ provided a plausible mechanism for the flexibility induced by water vapour. The flexible nature of 1,3-bib facilitated twisting of the imidazole rings with respect to the central phenyl ring, while the carboxylate carbon atoms in ndc enabled elongation/shrinkage of the linker (Fig. S25 and S26, ESI†). Consequently, intra-network adjacent Ni⋯Ni distances changed from 11.267 Å in α to 11.403, 10.980 and 11.290 Å in β, γ and α′, respectively. With respect to water vapour sorption, a hydrate molecule in β (O1B) interacting with an uncoordinated oxygen atom from the ndc ligand hydrogen bonds with other water molecules at high humidity, resulting in α′ (Fig. S27 and Tables S4, S5, ESI†). Furthermore, while the hydrogen bonded hydrate molecule in α, γ and α′ is held in place by H⋯O interactions within the same net, one of these interactions in β is replaced by an H⋯O bond with an adjacent net. Indeed, this acts as a driving force for converting α to β, bringing the individual nets closer together (Fig. S12, ESI†).

Dynamic vapour sorption (DVS) experiments were conducted on sql-(1,3-bib)(ndc)-Ni-β, which exhibited a variant of an S-shaped (in particular, a type F-II³⁵) isotherm when exposed to water vapour (Fig. 3a), which is consistent with flexibility. PXRD patterns at various levels of relative humidity (RH; 0, 30 and 100%; Fig. 3b and Fig. S28, ESI†) indicated that it underwent reversible transformation induced by water vapour between the β (0% RH) and α′ (100% RH) phases. The maximum uptake was observed to be 101.3 cm³ g⁻¹, in agreement with the SCXRD data for α′ (calculated 107.4 cm³ g⁻¹, Table S6, ESI†).

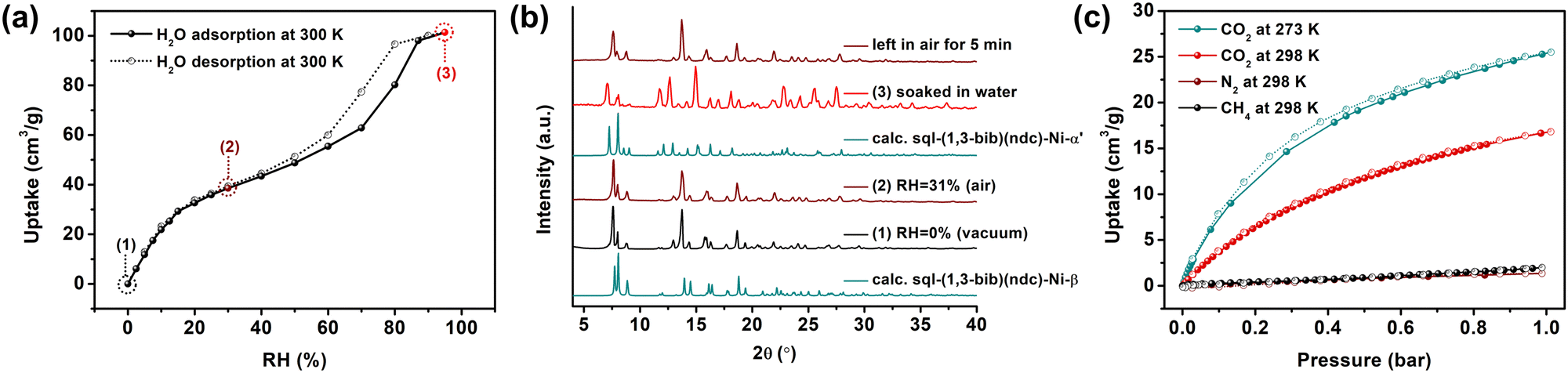

Fig. 3 (a) Water vapour sorption isotherm recorded on sql-(1,3-bib)(ndc)-Ni-β at 300 K; (b) calculated (calc.) and experimental PXRD patterns collected at various relative humidity (RH) values and room temperature; (c) gas sorption isotherms for CO₂ (at 273 and 298 K), N₂ and CH₄ (at 298 K).

Gas sorption studies on sql-(1,3-bib)(ndc)-Ni-β at cryogenic temperatures for CO₂ (195 K) and N₂ (77 K) revealed adsorption of CO₂ but not N₂, an indication that it could be a CO₂/N₂ sieve (Fig. S29, ESI†). Specifically, β showed a type F-II isotherm profile³⁵ towards CO₂ with a saturation uptake of 74.7 cm³ g⁻¹ at 1 bar, resembling the shape of the water isotherm and indicating flexibility. Isotherms consistent with flexibility were also observed for C2 gases (C₂H₂, C₂H₄ and C₂H₆) at 273 and 298 K (Fig. S30 and S31, ESI†). In contrast, β showed no evidence flexibility towards CO₂ at 273 and 298 K, while registering negligible uptake for CH₄ (at both temperatures) and N₂ (at 298 K) (Fig. 3c and Fig. S32, ESI†). The recorded uptakes of CO₂ at 1 bar were 25.5 and 16.8 cm³ g⁻¹ at 273 and 298 K, respectively. Ideal adsorbed solution theory (IAST) afforded selectivities of 36.6 for CO₂/N₂ (15 : 85) and 16.0 for CO₂/CH₄ (50 : 50), at 1 bar (Table S7 and Fig. S33, ESI†). The pressure-dependent selectivity values obtained are characteristic of sieving and show the limited applicability of IAST to such an adsorbent, in which equivalent adsorption sites are not available to competing adsorbate species.³⁶In situ PXRD study of CO₂-loaded sql-(1,3-bib)(ndc)-Ni-β collected at 298 K revealed that exposure to CO₂ up to 1 bar did not trigger a phase change (Fig. S34, ESI†). Conversely, the PXRD patterns collected at 0.5 and 1.0 bar are consistent with micropore adsorption in the narrow-pore β phase.

In summary, we report the prototypal member of a new type of 2D coordination network, sql-(1,3-bib)(ndc)-Ni, and detail its structural flexibility towards water vapour and organic guests (DMA and methanol). SCXRD studies verified structural transformations from the as-synthesized α phase, initially to a more porous phase, γ, and eventually to a less porous phase, β. Water vapour sorption studies revealed that humidity (>50% RH) induced transformation of β to a phase resembling the as-synthesised phase, α′. SCXRD data enabled us to determine the location of the adsorbed water molecules, providing insight into the flexibility of sql-(1,3-bib)(ndc)-Ni. Moreover, gas sorption experiments indicated that β behaved as a sieve for CO₂ over N₂ and CH₄. Given the large number of 2D networks archived in the CSD, these findings suggest that other CNs with aqua ligands offer potential as reversible, flexible desiccants.
