In situ real-time neutron imaging of gaseous H₂ adsorption and D₂ exchange on carbon-supported Pd catalysts

Abstract

We use in situ neutron imaging to observe the adsorption/absorption of hydrogen within a packed catalyst bed of a Pd/C catalyst at a spatial and temporal resolution of ∼430 μm and a ∼9 s respectively. Additionally, the H₂/D₂ exchange process across the catalyst bed is followed in real time.

---

Heterogeneous catalysis plays a major role in many industrial processes ranging from commodity chemicals to pharmaceuticals,¹ with hydrogenation reactions having wide application. The particular sensitivity of neutron scattering to hydrogen, has resulted in extensive use of this technique for both ex and in situ catalyst studies.²

Methods to observe in real time what is happening inside a reactor are scarce. X-Ray imaging methods are sensitive to heavy atoms, but insensitive to light atoms such as H, C, N, and O, that are typically the constituents of the reactants and products. Neutron attenuation³ does not have this limitation as it depends on the total (the sum of the scattering and absorption) neutron cross section. This is both element and isotope dependent⁴ and means that light atoms in the presence of heavy atoms are readily detectable. In particular, the large cross section of ¹H (82.03 barn, 1 barn = 10⁻²⁸ m²) means that neutrons are particularly sensitive to hydrogen. For comparison, the total cross sections of ²H, C, N and O are 7.64, 5.55, 11.51, and 4.23 barn respectively.

Neutron imaging methods have long been used to image water flow in fuel cells.⁴ More recently, they have been used to study CO₂ methanation, ortho-/para-hydrogen conversion, methanol synthesis and for combinatorial studies.⁵

Supported palladium catalysts are widely used as hydrogenation catalysts.⁶ As a demonstration of the potential of the technique to follow a reaction, here, we use neutron imaging to follow the adsorption/absorption process by successive exposure of a clean Pd/C catalyst to H_2(g) and D_2(g). Under the conditions of a continuous flow of dihydrogen in the feed stream at 293 K, dihydrogen readily dissociates on the Pd surface and diffuses into the bulk of the Pd crystallite to form β-PdH_x (x ∼ 0.7).⁷ This is the archetypal hydrogen-in-metal system where H/D occupies the octahedral holes in the face centred cubic lattice of Pd metal (the presence of β-PdH_x was confirmed post-reaction using inelastic neutron scattering (INS) spectroscopy (see ESI,† Fig. S1)).

Approximately 8.0 g of Pd (20 wt%) supported on activated carbon (sample 1, present as a fine powder, see ESI† Table S1 and Fig. S2 for the characterisation of the catalysts used) that had been reduced in hydrogen and then the hydrogen desorbed, within a glove box, was placed in an aluminium sample can with a sample thickness of 13 mm. This included connections to allow a flow of gas to enter at the bottom of the sample can, flow through and over the sample, and exit at the top of the can.

Initially, a flow of 100 cm³ min⁻¹ of He at 1.0 barg was allowed to flow over the sample and neutron radiographs were collected. Fig. 1 shows a low noise full-frame neutron radiograph corresponding to approximately 250 s of total exposure time recorded with the IMAT⁸ instrument at the ISIS Neutron and Muon Source.

Fig. 1 A low noise full-frame neutron radiograph of sample 1 corresponding to approx. 250 s of total exposure. Various parts of the sample are labelled: (a) steel upper and lower flanges and bolts, (b) aluminium sample cell, (c) silica wool packing, (d) catalyst bed. Red arrow denotes entry point of gas and overall direction of flow.

Various parts of the sample can be identified in Fig. 1, including the steel ConFlat® flanges at the top and bottom of the cell together with the steel bolts (the top flange is marked as “a”), that ensure the sample is hermetically sealed by an indium seal and the aluminium cell body (“b”). In the centre of the frame, the catalyst sample can be seen as slightly more neutron-attenuating (i.e. darker) region (“d”), than the areas around it, which are the silica wool (“c”) used to ensure the powdered catalyst does not migrate out of the can during gas flow. It is also possible to see on the left side of the sample there is a small catalyst bed by-pass region, and some parts of the catalyst bed show visible cracks and discontinuities. This inhomogeneity of packing within the bed will affect gas/solid exchange dynamics throughout the region of powered catalyst.

In order to investigate whether the uptake of hydrogen gas could be detected, radiographs were set to be collected repeatedly (approx. 5 s of exposure every 9 s, with a spatial resolution of ∼430 μm) and a small percentage of hydrogen gas (5 cm³ min⁻¹) was entrained into the helium carrier flow (100 cm³ min⁻¹). Due to the high neutron scattering cross-section of natural abundance hydrogen (referred to as H₂) regions of the sample that adsorb H₂ should increase their neutron attenuation and provide a lower signal, i.e., a lower grey value in the neutron radiographs. In contrast, any exchange of molecular deuterium (²H₂, herein referred to as D₂) for H₂ in the sample should result in an increase in grey value/less neutron attenuation as fewer neutrons are scattered.

The reduced sample 1 was maintained at room temperature with a continuous feed of He at 100 cm³ min⁻¹; H₂ and/or D₂ were then introduced to the gas feed in the following sequence: (i) H₂, 2 cm³ min⁻¹, ∼9040 s (2.5 h), (ii) H₂, 5 cm³ min⁻¹; (iii) H₂, 20 cm³ min⁻¹; (iv) H₂ stopped and catalyst purged with He for ∼1200 s (∼20 min) to remove gaseous H₂; (v) D₂, 2 cm³ min⁻¹, ∼2760 s (∼46 min) (vi) D₂, 20 cm³ min⁻¹.

The left part of Fig. 2 shows a cropped-frame neutron image of sample 1, with four different regions of interest (ROIs) marked in coloured squares; two covering the silica wool below (black) and above (magenta) the catalyst bed, and two within the catalyst bed itself (blue and green). Of the two ROIs in the catalyst, the blue region is at the bottom of the sample, close to the ingress point of the gas flow, whereas the green region is at the top of the sample and distant from any cracks or bypasses.

Fig. 2 Left: A cropped-frame neutron radiograph of sample 1 showing just the catalyst area of interest. Each region of interest (ROI) that underwent further analysis is marked in a coloured square. Right: A plot of the average grey value in each corresponding ROI (colours match the ROI from the left figure) versus elapsed time. Note the broken x-axis showing a gap in data collection time between H_2(g) and D_2(g) flows. The blue arrow shows approximately when H_2(g) flow was initiated. The red arrow shows approximately when D_2(g) flow was initiated.

The right-hand side of Fig. 2 shows plots corresponding to the average grey values in each ROI for each frame in the collected datasets over time (Savitzky–Golay signal smoothed; representative raw data is available in the ESI,† see Fig. S3 and S4). It is clear to see that the black and magenta ROIs show only a slight variation in grey value over the course of the experiment, remaining within <0.5% of the original value over the course of ∼72 000 s (∼20 h). This is to be expected, as the silica wool is not thought to interact strongly with the gasses flowing through it. This also shows that the gas phase H₂ is invisible due to its low density.

However, the blue and green ROIs show much more interesting trends. Firstly, for both ROIs, once H₂ begins to enter the system, there is a distinct drop in transmitted neutrons leading to grey values which plateau at around a 2% reduction. This plateau was reached even with just 2 cm³ min⁻¹ flow rate of H₂ and did not reduce further with increased H₂ flow rate (data not shown). For the blue region, close to the bottom of the catalyst bed where the gas enters the system, this drop is very rapid, reaching saturation after ∼420 s (∼7 min). In fact, the decrease in grey value in this region is essentially instantaneous within the approximately 9 s time resolution of the neutron imaging measurement, with the measured delay up to the sudden decrease likely to reflect the time for the gas switch to be transmitted to the cell from the gas manifold (there are ∼10 m of 1/8′′ pipe between the manifold and the cell). For the green region, which is at the top of the catalyst bed, this adsorption process takes notably longer, only reaching saturation after ∼1800 s (∼30 min). This extended delay is thought to indicate resistance to gas flow within the bed and is indicative of catalyst packing density throughout the bed volume. Indeed, the cracks and by-pass regions identified in Fig. 1 facilitate rapid gas exchange in those zones, as indicated by the essentially instantaneous (within the time resolution, ∼9 s) gas retention by the solid on contact with H₂.

Eqn (1) seeks to account for these observations:

where H_2(g) signifies gaseous dihydrogen, represents dihydrogen present at a Pd crystallite and k₁ is a rate coefficient that describes the diffusion of dihydrogen gas throughout the catalyst bed. The asterisk is an adsorption site at the surface of the Pd crystallite and k₂ is a rate coefficient that accounts for the dissociative adsorption of dihydrogen. Using half-life as a kinetic indicator, Fig. 2(b) may be interpreted as indicating that under our conditions the adsorption process is universally fast (t_1/2 ≪ 9 s) but that the gas percolation throughout the bed can be unimpeded (t_1/2 ≪ 9 s) or retarded (t_1/2 ∼ 15 min), with the different values illustrating the different bed packing densities within the reactor.

The discontinuous x-axis in Fig. 2 denotes time between measurements. After this point, from t ≈ 63 000 s (t ≈ 17.5 h), the sample had been saturated with H₂ but was undergoing a purge flow of just He. At approximately t = 64 000 s (17.8 h, as indicated by a red arrow), D₂ is introduced into the carrier gas. For both regions in the catalyst bed (Fig. 2, green and blue boxes), a slow increase in grey value can be seen over the course of approximately 4500–5400 s (75–90 min), which eventually returns to the same level as at the start of the experiment, with both areas exhibiting a t_1/2 value of ∼2475 s (∼41 min). Eqn (2) describes the elementary reactions of the spatially resolved H₂/D₂ exchange process visualised in Fig. 2(b):

where k₃ is the rate coefficient for the progressive H/D exchange process at the Pd surface. Thus, we infer that the majority of adsorbed, highly attenuating H₂ is exchanged with the much less attenuating D₂, and that this exchange process is significantly slower than the original adsorption process and the process for the equilibration of H₂ across the whole of the catalyst bed.

To investigate the possibility of a H₂ diffusion/adsorption front, a reference radiograph recorded before H₂ gas dosing was subtracted from each image frame of the H₂ adsorption experiment. This produced a set of “difference” radiographs, highlighting just regions of the data that changed over time. A video of these data can be seen in the ESI† and Fig. 3 shows selected frames over a period of 1548 s (∼26 min). Dark blue regions indicate increased neutron attenuation, caused by adsorption of H₂ gas.

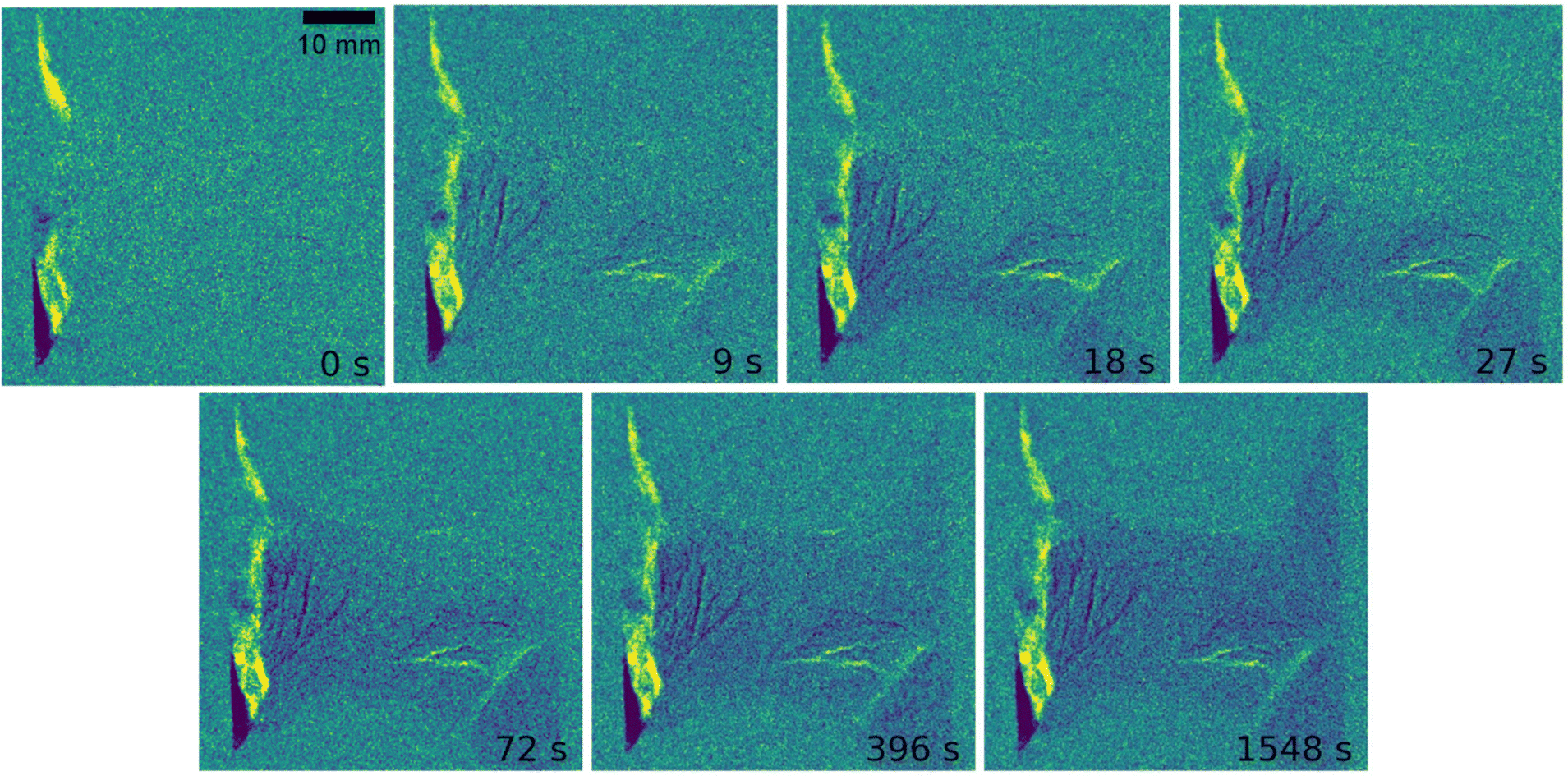

Fig. 3 Selected difference frames of the catalyst bed for sample 1 at various times showing the advancing of a front of H₂ adsorption. Times are approximate and assume 9 s between frames during data acquisition. NB: the strong feature on the left-hand side of every frame was caused by an initial shift in the position of some of the catalyst powder upon beginning the gas flow and can be ignored for the purposes of examining H₂ adsorption.

These data demonstrate that H₂ uptake begins in the lower-left corner of the catalyst bed and the gas uptake front advances over time until the entire sample is saturated. Additionally, regions of the catalyst bed that are more accessible due to cracking show faster H₂ uptake, as might be expected.

The measurements for sample 1 were repeated for a second fresh sample of the same 20 wt% Pd/C catalyst (sample 2, mass approximately 7.0 g, see ESI† for additional images and figures, Fig. S5 and S6), and reproduced all of the trends observed for sample 1, confirming the repeatability of the reported outcomes over this representative hydrogenation catalyst.

However, Al has limitations for catalyst studies requiring elevated temperatures and/or pressures. To address this point, preliminary measurements were performed on a different Pd/C catalyst (sample 3, 5 wt% Pd/C, see the ESI†), mass approximately 1–2 g located within a flat stainless steel cell. Here, the Pd/C catalyst powder was located between an upper and lower layer of activated carbon (Norit RX-3 extra) that was present in pelleted form. Fig. 4 shows a low noise full-frame neutron radiograph corresponding to ∼250 s of total neutron exposure time and shows the carbon pellets to be readily observable throughout the reactor. The red box in Fig. 4 shows the location of the hydrogen dosed Pd/C powder that is just about discernible as a slightly ‘fuzzy’ zone in the middle of the reactor. Exchanging D₂ for H₂ in the gas flow led to an increase in grey value (i.e., a decrease in neutron attenuation) within this zone (results not shown). Although the signal was weaker than observed in Fig. 2 (stainless steel being a stronger attenuator of neutrons than Al, plus the lower Pd loading in sample 3), nonetheless this outcome confirms that H₂/D₂ exchange can be directly imaged on a range of catalysts and reactors.

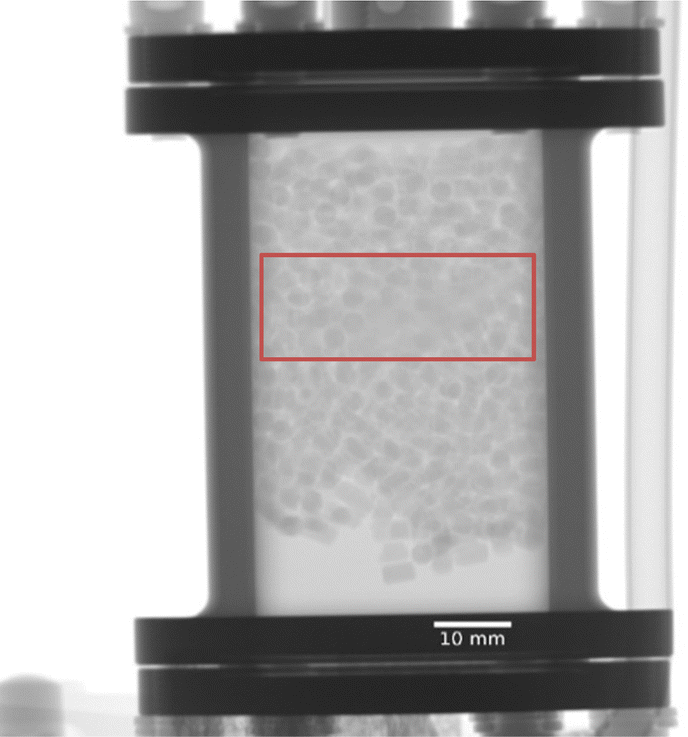

Fig. 4 Full-frame neutron radiograph of sample 3 corresponding to approx. 250 s of total exposure. The red rectangle indicates the region of greatest powdered catalyst concentration.

In summary, this work highlights several features of neutron imaging that are valuable for catalyst studies. The progress of a reaction front moving through a catalyst bed is readily observable, which clearly shows the crucial importance of how the catalyst bed is packed. The particular nature of this catalyst means that the ultimate scattering species is identifiable as β-PdH_x, as confirmed by INS. As noted previously,⁶ the attenuation of the neutron beam by adsorbed H₂ is readily quantifiable. The difference in kinetics, as indicated by a half-life, between adsorption of H₂ in different regions of an activated catalyst and the exchange of adsorbed H₂ with D₂ are discernible. The first two samples used a relatively high loading catalyst of 20 wt% Pd to maximise the sensitivity, the third was significantly less at 5 wt% but still yielded fair images. Even lower metal loadings may also be accessible. Our first two samples used Al cans because we were concerned about the attenuation by steel. Our third sample shows that this is not overly significant (the transmission is ∼70% that of Al) and opens the way for reactions at elevated temperatures and pressures. We also note that the technique lends itself to operando measurements.

The STFC ISIS Neutron and Muon Source is thanked for access to neutron beam facilities via RB2220700.⁹ The assistance of the ISIS Pressure and Furnace section is gratefully acknowledged. The EPSRC are thanked for the provision of a PhD studentship (CB, EP/T517896/1 and EP/W524359/1). Johnson Matthey plc are thanked for project support.

Conflicts of interest

There are no conflicts to declare.
