Copper nanoparticle-embellished Zr-based metal–organic framework for electrocatalytic hydrogen evolution reaction

Ravari Kandy Aparna a, Arun Karmakar b, Rathnam Tharayil Arsha a, Subrata Kundu b and Sukhendu Mandal *a
aSchool of Chemistry, Indian Institute of Science Education and Research Thiruvananthapuram, Thiruvananthapuram, Kerala-695551, India. E-mail: sukhendu@iisertvm.ac.in
bElectrochemical Process Engineering (EPE) Division, CSIR-Central Electrochemical Research Institute (CECRI), Karaikudi-630006, Tamil Nadu, India

Received 10th July 2023 , Accepted 2nd August 2023

First published on 2nd August 2023


Abstract

Copper nanoparticles (Cu NPs) have gained immense popularity in catalysis by virtue of their impressive properties and earth abundance. Herein, we incorporated small-sized copper nanoparticles into the amine-functionalized NU-1000 MOF and used this composite material as an effective catalyst for electrocatalytic Hydrogen Evolution Reaction (HER) studies.


Copper nanoparticles have garnered significant attention in recent years owing to their impressive physical and chemical properties.1–3 Copper, being the 8th most abundant element on the earth's crust, is inexpensive, and this makes it a cost-effective candidate for applications in various fields such as electronics, machinery, engineering, pharmaceutical, agriculture, energy, environment, etc. among which catalysis has gained great recognition because of its versatility and affordability.3–6 However, the use of copper nanoparticles is often hindered by their inherent instability under atmospheric conditions due to the low redox potential, thus leading to their aggregation. The prevention of agglomeration of Cu NPs is paramount in sustaining the high performance of the catalyst. So, to overcome this, several approaches were used, and among these, anchoring the NPs into porous structures, such as metal–organic frameworks, constitutes a powerful strategy to increase the stability and size tunability of Cu NPs.7

Metal–organic frameworks (MOFs) are porous substances with exceptional structural stability8–10 and these are recognized as excellent supports for NPs. When it comes to catalysis, MOFs hold the upper hand over most of the other porous materials because of their high synthetic tunability, excellent stability, and the potential to provide pore channels for the transmission of reactants/products.7,11 Zr-based MOFs are considered perfect candidates as support materials due to their easy synthetic procedure and extraordinary thermal and chemical stability. NU-1000, a Zr-based MOF, is composed of eight connected Zr63-O)43-OH)4(H2O)4(OH)4 nodes at each vertex and tetratopic 1,3,6,8-(p-benzoate) pyrene (TBAPy4−) linkers at each edge.12 The strong interaction between the carboxylates of the linker and zirconium nodes contributes to the exceptional thermal and chemical stability of NU-1000. The eight terminal non-bridging –OH groups offer great possibility for chemical modifications.13

Electrocatalytic water splitting has gained attention as it constitutes a promising strategy for producing hydrogen, which is considered a clean and sustainable fuel.14 Hydrogen can not only substitute fossil fuels which cause numerous environmental issues but also produce water as the sole product when it is burned with oxygen. The development of a cost-effective, highly efficient catalyst is of paramount importance when it comes to the electrocatalytic hydrogen evolution reaction (HER). Pt-based catalysts are considered to be excellent for HER, but the low earth abundance and high cost of Pt hinder their application. Even though researchers have made significant progress in developing cost-effective electrocatalysts using elements such as Fe, Ni, Co, etc., copper is still much less-explored.15–17

In this project, small-sized copper nanoparticles are embedded in NU-1000 MOF, and this NP-MOF composite material is used as a catalyst for electrocatalytic HER. In order to have a better interaction between MOF and Cu NPs, the MOF was functionalized with amine group using a post-synthetic functionalization method, SALI (Solvent assisted ligand incorporation).13

A solvothermal procedure was adopted for the synthesis of NU-1000, and the amine functionalization was carried out using the SALI technique with 4-Aminobenzoic acid (4-ABA). The incorporation of Cu NPs has been executed using the solution impregnation method (Scheme 1), which is evidenced by a color change from yellow to brownish-yellow of the material (Fig. S1, ESI).

Powder X-ray diffraction (PXRD) patterns were analyzed for NU-1000 based samples, and the diffraction peaks of NU-1000, NU-1000-NH2, and Cu@NU-1000-NH2 coincide with the peaks of simulated NU-1000 (Fig. S2, ESI). This confirms that the stability of the parent metal–organic framework is unaltered even after the incorporation of both the amine group and copper nanoparticles. Expected diffraction peaks of metallic copper at 43.4° and 50.6° arising from the planes (110) and (200), respectively, are absent in Cu@NU-1000-NH2. This might be due to the small size and low loading of copper nanoparticles. The unchanged rod-like morphology of the framework upon the functionalization, revealed by the SEM images, further corroborates the structural stability of the MOF (Fig. S3, ESI). In the Fourier Transform Infrared (FTIR) spectroscopy data a shoulder band of primary amine, seen at 3226.9 cm−1 in case of 4-ABA can also be visualized at 3224.9 cm−1 in the spectrum of NU-1000-NH2, which is absent in NU-1000 (Fig. S4, ESI). This confirms the incorporation of the –NH2 into the framework. The slight enhancement of visible light absorption in the case of NU-1000-NH2 compared to NU-1000 in the UV-DRS spectra of the materials further confirms the presence of the amine group in the functionalized MOF (Fig. S5, ESI). The peak around 550 nm, corresponding to the surface plasmon resonance peak of Cu NPs in the spectrum of NP@MOF composite validates the incorporation of Cu.18 The Cu-loading was found to be 12.13 ppm using Inductively coupled plasma-mass spectrometric (ICP-MS) analysis.


image file: d3cc03294a-s1.tif

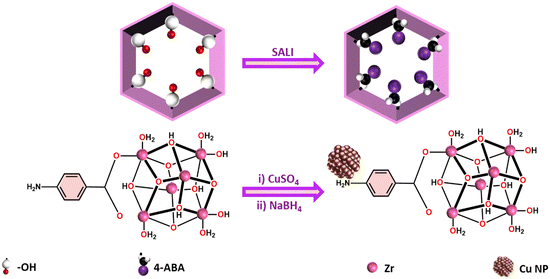

Scheme 1 Schematic diagram of the synthesis of Cu@NU-1000-NH2.

Transmission electron microscopic (TEM) analysis revealed the small size and homogenous distribution of the nanoparticles (Fig. 1a–d). The average size of the nanoparticles was found to be 3.83 ± 0.91 nm. The lattice fringes with a spacing of 0.20 nm, which corresponds to the (111) plane of metallic copper, revealed the high crystallinity of NPs.19 The elemental mapping using TEM-EDS analysis showed the presence of all the desired elements (Fig. S6, ESI). This was also supported by SEM-EDS analysis (Fig. S7, ESI). Brunauer–Emmett–Teller (BET) surface area of NU-1000-NH2 and Cu@NH-1000-NH2 were found to be 947.6 m2 g−1 to 438.6 m2 g−1, respectively (Fig. S8, ESI). The reduction of surface area and pore volume after nanoparticle incorporation might be due to the surface block of the cavities by the incorporated nanoparticles.20


image file: d3cc03294a-f1.tif
Fig. 1 (a)–(c) HR-TEM images, (d) size distribution histogram of Cu@NU-1000-NH2, (e) XPS survey spectrum, (f) spectrum of Cu 2p, (g) spectrum of N 1s of Cu@NU-1000-NH2 and (h) spectrum of N 1s of NU-1000-NH2.

The X-ray photoelectron spectroscopic (XPS) survey spectra of NU-1000-NH2 and Cu@NU-1000-NH2 show the presence of all the expected elements in the framework (Fig. 1e). Cu 2p spectrum shows two spin–orbit components at 932.8 eV and 952.6 eV (for Cu 2p3/2 and 2p1/2, respectively). The oxidation state of Cu could be zero as satellite peaks are absent in the spectrum (Fig. 1f).22 N 1s spectrum of NU-1000-NH2 has binding energy at 399.7 eV, which confirms the presence of primary amine in the material.21 There is a decrease in the binding energy of N 1s spectrum to 399.2 eV after the incorporation of copper nanoparticles in NU-1000-NH2 (Fig. 1g and h). This validates the electronic interaction between the amine group and the introduced copper nanoparticles.

Initial activity towards HER is primarily monitored by linear sweep voltammetry (LSV) in 0.5 M H2SO4 solution (pH = 0.3) with a lower scan rate of value of 5 mV s−1. From Fig. 2a, it is notable that initial polarization towards HER started at a lower applied potential region as compared to pristine MOF. The Cu@NU-1000-NH2 portrays a lower overpotential value of 158 mV to drive 10 mA cm−2 current density value, while the pristine MOF demands a higher potential value of 615 mV to drive the same current density. Meanwhile, the Cu@ NU-1000-NH2 delivers a much higher magnitude of HER current density than the pristine MOF (Fig. 2b). The charge transfer kinetics at the electrode–electrolyte interface for both materials have been analyzed from the Tafel plot acquired from the iR-drop free LSV information (Fig. 2c). The Cu@NU-1000-NH2 possesses a lower Tafel slope value of 105 mV dec−1, whereas the calculated Tafel slope value was 392 mV dec−1 for pristine MOF. The lower Tafel slope value for Cu@NU-1000-NH2 indicates a faster charge transfer kinetics with electrochemical desorption (Volmer–Heyrovsky step) as the RDS of the H2 molecule at the interface.


image file: d3cc03294a-f2.tif

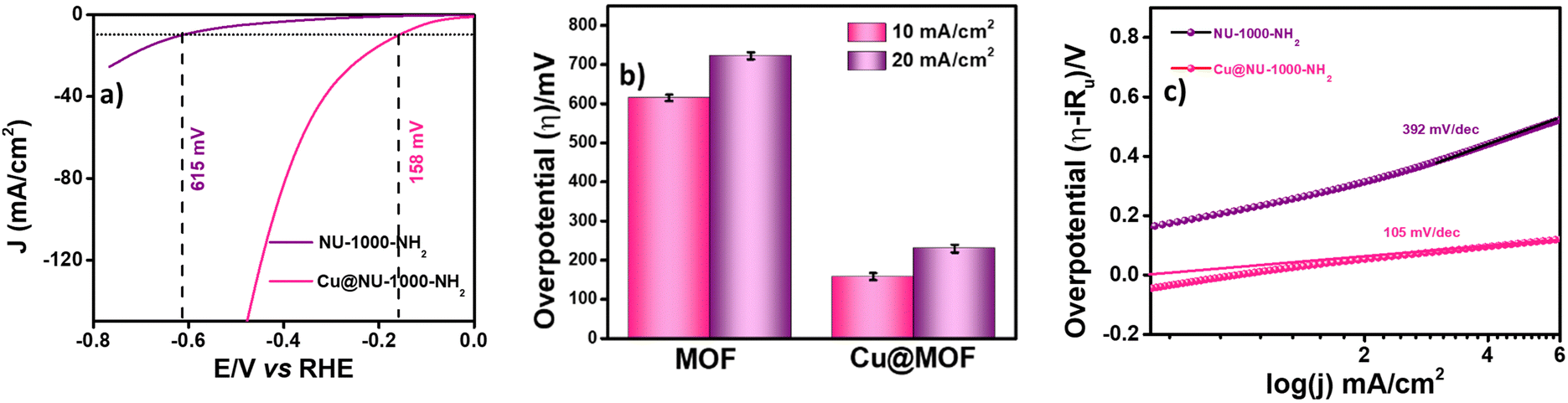

Fig. 2 HER performance of the catalysts. (a) LSV curves, (b) bar diagram representing the over potential at 10 mA cm−2, (c) Tafel slopes of NU-1000-NH2 and Cu@NU-1000-NH2.

Charge transfer resistance (Rct) towards the electron transfer at the interface was calculated by EIS analysis, and obtained EIS features have been portrayed in Fig. 3a. The calculated Rct values were 6.35 and 37.79 Ω for Cu@NU-1000-NH2 and pristine MOF, respectively. To verify the high HER capability of Cu@NU-1000-NH2, the analysis of exposed active sites by double layer capacitance (Cdl) method was carried out.


image file: d3cc03294a-f3.tif
Fig. 3 (a) Nyquist plots, (b) linear fit for estimating the double-layer capacitance of UiO-66-SH and Cu@NU-1000-NH2 and (c) chronoamperometry measurements for the stability test of Cu@NU-1000-NH2.

The scan rate-dependent CV curves have been portrayed in Fig. S9 (ESI) for both Cu@NU-1000-NH2 and pristine MOF, respectively. From the slope of the given J vs. scan rate plot (Fig. 3b), the Cdl values for Cu@NU-1000-NH2 and pristine MOF are 2.35 and 0.74 mF cm−2, respectively. The TOF value of Cu@NU-1000-NH2 is calculated to be 1.97 s−1 (see ESI for calculation). The durability of the catalyst was verified via chronoamperometric (CA) study for 45 hours with a constant applied potential of −0.3 V vs. RHE. The resulting CA outcome is portrayed in Fig. 3c. The amount of hydrogen formed was monitored using GC-MS analysis by measuring the produced gas under the application of a constant potential. According to Faraday's second law of electrolysis, the amount of produced gas has been compared with the calculated amount, and faradaic efficiency was found to be 91.55% (Fig. S10, ESI).

This as-synthesized catalyst showed impressive catalytic activity and stability compared to other Cu-based catalysts (Table S1, ESI).

Post-catalytic stability of the catalyst was investigated using various techniques. HR-TEM analysis shows the rod-like morphology of the MOF was retained, and the presence of all the expected elements, including Zr, N, and Cu, were confirmed using TEM-EDS elemental mapping (Fig. S11c–f, ESI). PXRD plot of the catalyst coated on carbon cloth after the catalysis revealed that the peaks remained unchanged. This depicts the persisting crystallinity of the material (Fig. S12, ESI). In order to study the leaching of Cu ion from the catalyst, ICP-MS analysis was done for the electrolyte solution of the chronoamperometric measurement. The amount of copper in the electrolyte was found to be 0.001 ppm which indicates the negligible leaching of the metal. Post-catalytic XPS analysis also corroborates the presence of all the desired elements (Fig. S13, ESI). The binding energy values of Cu 2p3/2 and 2p1/2 were found to be 933.7 and 953.1 eV, respectively, which is close to the binding energy values of the pre-catalytic sample. In the case of the N 1s spectrum, the BE values were obtained at 399.5 eV which is also near enough to that of the sample before catalysis.

Copper is a less-explored element for HER, which is considered an efficient strategy for producing hydrogen fuel. Even though copper is earth-abundant and inexpensive, stabilization of monodispersed small Cu nanoparticles is challenging due to their low redox potential in ambient conditions. Here, we synthesized monodispersed small sized Cu NPs onto the amine functionalized zirconium-based MOF scaffold. Several state-of-the-art characterizations methods established the composition and structural morphology of this NP-MOF composite material. This composite material delivered an efficient HER activity with an overpotential of 158 mV (current density of 10 mA cm−2) and Tafel slope of 105 mV dec−1 with cycling stability of 45 h (without any structural change).

RKA, AK, and ART did all the experiments, SM conceived and SK and SM supervised the project, and all the authors contributed to the manuscript write-up.

We acknowledge Science Engineering and Research Board (SERB) (Govt. of India) for the financial support through grant CRG/2022/000984. CECRI manuscript number: CECRI/PESVC/Pubs/2023-098.

Conflicts of interest

There are no conflicts to declare.

References

  1. J. Zhang, J. Liu, Q. Peng, X. Wang and Y. Li, Chem. Mater., 2006, 18, 867–871 CrossRef CAS.
  2. A. K. Patra, A. Dutta and A. Bhaumik, Catal. Commun., 2010, 11, 651–655 CrossRef CAS.
  3. M. B. Gawande, A. Goswami, F. X. Felpin, T. Asefa, X. Huang, R. Silva, X. Zou, R. Zboril and R. S. Varma, Chem. Rev., 2016, 116, 3722–3811 CrossRef CAS PubMed.
  4. D. Kim, C. S. Kley, Y. Li and P. Yang, Proc. Natl. Acad. Sci. U. S. A., 2017, 114, 10560–10565 CrossRef CAS PubMed.
  5. M. C. Crisan, M. Teodora and M. Lucian, Appl. Sci., 2021, 12, 141 CrossRef.
  6. M. Bakshi and A. Kumar, Chemosphere, 2021, 281, 130940 CrossRef CAS PubMed.
  7. C. Rösler and R. A. Fischer, CrystEngComm, 2015, 17, 199–217 RSC.
  8. H. Furukawa, K. E. Cordova, M. O’Keeffe and O. M. Yaghi, Science, 2013, 341, 1230444 CrossRef.
  9. H.-C. Zhou, J. R. Long and O. M. Yaghi, Chem. Rev., 2012, 112, 673–674 CrossRef CAS PubMed.
  10. M. Safaei, M. M. Foroughi, N. Ebrahimpoor, S. Jahani, A. Omidi and M. Khatami, TrAC, Trends Anal. Chem., 2019, 118, 401–425 CrossRef CAS.
  11. R. K. Aparna, V. Surendran, D. Roy, B. Pathak, M. M. Shaijumon and S. Mandal, ACS Appl. Energy Mater., 2023, 6, 4072–4078 CrossRef CAS.
  12. T. Islamoglu, K. I. Otake, P. Li, C. T. Buru, A. W. Peters, I. Akpinar, S. J. Garibay and O. K. Farha, CrystEngComm, 2018, 20, 5913–5918 RSC.
  13. P. Deria, W. Bury, J. T. Hupp and O. K. Farha, Chem. Commun., 2014, 50, 1965–1968 RSC.
  14. M. G. Walter, E. L. Warren, J. R. McKone, S. W. Boettcher, Q. Mi, E. A. Santori and N. S. Lewis, Chem. Rev., 2010, 110, 6446–6473 CrossRef CAS PubMed.
  15. R. Mejia-Rodriguez, D. Chong, J. H. Reibenspies, M. P. Soriaga and M. Y. Darensbourg, J. Am. Chem. Soc., 2004, 126, 12004–12014 CrossRef CAS.
  16. V. Artero, M. Chavarot-Kerlidou and M. Fontecave, Angew. Chem., Int. Ed., 2011, 50, 7238–7266 CrossRef CAS PubMed.
  17. O. R. Luca, S. J. Konezny, J. D. Blakemore, D. M. Colosi, S. Saha, G. W. Brudvig, V. S. Batista and R. H. Crabtree, New J. Chem., 2012, 36, 1149–1152 RSC.
  18. N. L. Pacioni, A. Pardoe, K. L. McGilvray, M. N. Chrétien and J. C. Scaiano, Photochem. Photobiol. Sci., 2010, 9, 766–774 CrossRef CAS PubMed.
  19. G. Cheng and A. R. Hight Walker, Anal. Bioanal. Chem., 2010, 396, 1057–1069 CrossRef CAS PubMed.
  20. L. Vradman, M. V. Landau, D. Kantorovich, Y. Koltypin and A. Gedanken, Microporous Mesoporous Mater., 2005, 79, 307–318 CrossRef CAS.
  21. L. Shen, W. Wu, R. Liang, R. Lin and L. Wu, Nanoscale, 2013, 5, 9374–9382 RSC.
  22. M. Raja, J. Subha, F. B. Ali and S. H. Ryu, Mater. Manuf. Processes, 2008, 23, 782–785 CrossRef CAS.

Footnote

Electronic supplementary information (ESI) available. See DOI: https://doi.org/10.1039/d3cc03294a
