The effect of axial and helical chirality on circularly polarized luminescence: lessons learned from tethered twistacenes

Abstract

The effect of axial and helical twisting on the circularly polarized luminescence of acenes was studied both experimentally and computationally, using four series of tethered twisted acenes. We find that the combination of axial and helical chirality yields the highest anisotropy factors, and that the ratio between the absorption and emission anisotropy factors is an intrinsic property for twistacenes.

---

Circularly polarized luminescence (CPL) lies at the heart of several cutting-edge photonic technologies, including enantioselective biosensors,¹ optical information storage and encryption devices, and security inks,² as well as CPL emitters for CP-OLED,³ bio-imaging and chiral sensing applications.⁴ CPL is often quantified by the emission anisotropy factor, g_lum, with higher g_lum values indicating larger difference between left and right circularly polarized emission. However, in small organic molecules, the g_lum values are low (10⁻⁵–10⁻²), limiting their applications.^5,6 In order to design small organic molecules with higher g_lum values, there is a need for clearer understanding of the factors affecting the g_lum values. Undertaking an intelligent search for such molecules relies on first obtaining a profound understanding of excited-state chirality, how chiral molecules interact with their surroundings, and of the structural underpinnings of CPL.⁷

Several studies have attempted to identify the structural features expected to increase CPL.⁷ The axial angle between two chromophores was found to be a crucial factor. For example, two binaphthyl derivatives that differ only with respect to degree of axial twist (70° versus 90°) show CPL with opposite signals.⁸ The CPL of helicenes has also been extensively studied,^9,10 and was found to be significantly affected by length, orientation (“s” or “c”), and substituents.¹¹ The nature of the substituents also has substantial effects when using a helicene scaffold.^12,13 Several works highlighted the effect of extended conjugation of the dissymmetry factor.¹⁴ The addition of substituents on various position of an intrinsically-chiral backbone was also reported to increase g_lum.¹⁵ While helical chirality, axial chirality and extended conjugation were all mentioned as factors affecting the CPL, it is often difficult to draw clear conclusions from the underlying trends since they do not reflect systematic structural change in a single series of compounds, because of the unavailability of such series.⁷ In addition, whereas CPL was extensively studied in helicenes,^10,16–18 the CPL of their para-fused analogues, twisted acenes (twistacenes), has not been investigated.

We recently introduced tethered twistacenes, in which tether length determines the degree of end-to-end twisting of the acene backbone.¹⁹ This allows various properties to be studied systematically. We found that twisting affects electronic, optical and magnetic properties.^20–22 We also found that maximal ellipticity increases linearly with increasing twist.²³ Extension of the twistacenes resulted in a non-linear increase in their chiroptical properties, an advantage that was explained by their helical secondary structure.²⁴

In this work, we experimentally and computationally study the geometric factors affecting CPL in acenes. For this purpose, we investigate four series of twistacenes with varying degrees of helical and axial chirality, and extended conjugation. In the first series, we measure CPL as helical chirality varies (1-Cn and 2-Cn, Fig. 1a). In the second series, consisting of phenyls rather than alkynes in the 9,10-positions of anthracene, we study the effect of varying both axial and helical chirality (3-Cn, Fig. 1b). Finally, we study the combined effect of helicity and extended conjugation by introducing a new family of compounds composed of tethered twistacenes connected by a diacetylene linker (4-Cn, Fig. 1c). Our results indicate that CPL is similarly affected by increasing twist in all twistacenes, but that the combination of axial and helical chirality contributes significantly to increased CPL.

Fig. 1 Structures of the compounds studied in this work.

Compounds 1-Cn, 2-Cn and 3-Cn were synthesized according to previous reports.^19,24 For the synthesis of compound 4-Cn, the precursor 5-Cn underwent Pd-catalysed homocoupling to yield the respective products with 96% yield (see ESI† for synthetic details). All compounds were synthesized from their enantiopure precursors (separated by preparative chiral HPLC).

We began our investigation by calculating the effects of conformational changes (i.e., backbone twist and dihedral angles) on chiroptical properties as expressed in both the absorption and emission spectra. The electronic circular dichroism (ECD) or CPL intensity of a given transition is proportional to its rotational strength (R): R = |μ||m|·cos(Θ), where μ and m are the electric and magnetic transition dipole moment vectors, respectively, and Θ is the angle between them.^5,25 To understand how the abovementioned parameters are affected by a systematic deviation from planarity, we used time-dependent density-functional theory (TD-DFT) to calculate the properties and dynamics of each twistacene skeleton without the tethers (Fig. 2), following the lowest energy transition (the ¹L_a transition in anthracene, which is a π–π* transition). Since the backbone is rigid, the excited state (S₁) shows a trend similar to that observed for the ground-state (S₀); that is, increasing twist correlates with a systematic increase in the absolute value of the rotational strength and cos(Θ).

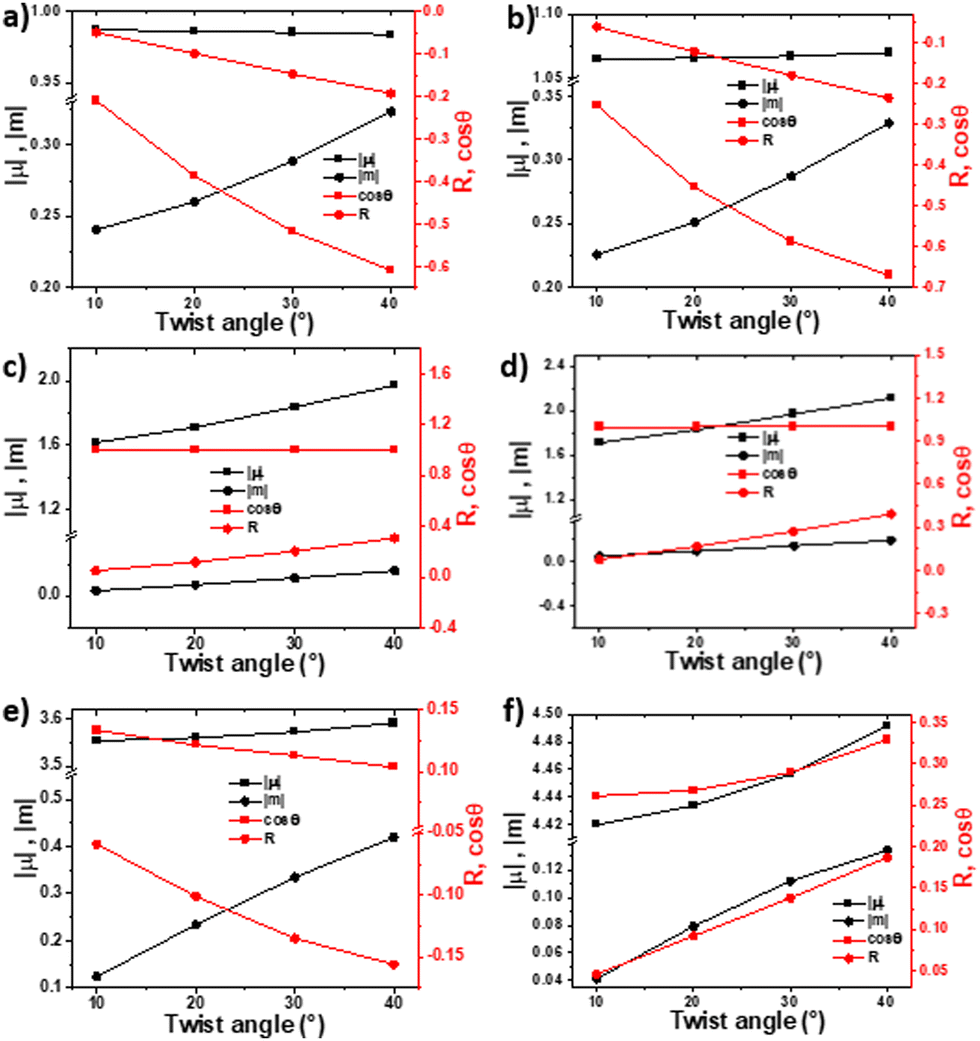

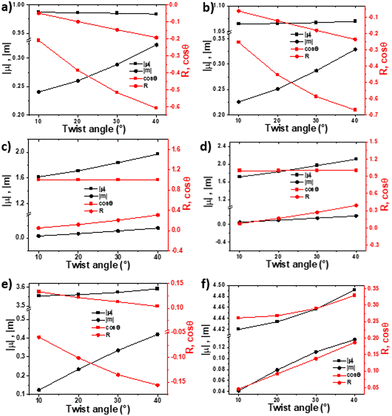

Fig. 2 Computed (TDDFT-CAMB3LYP-6-31G(d)) transition dipole moments (left axis) and the rotational strength (R) and cos(θ) (right axis) at the optimized (a) S₀ of 1-Cn, (b) S₁ of 1-Cn (c) S₀ of 3-Cn and (d) S₁ of 3-Cn, (e) S₀ of 4-Cn and (f) S₁ of 4-Cn.

For helically chiral 1-Cn, the increase in R is non-linear but becomes more significant as the degree of twist increases. In contrast, for 3-Cn, which exhibits both axial and helical chirality, R increases linearly with increasing twist. This can be explained by two opposite causes: the increase in the end-to-end anthracene twist, and decrease in the axial twist of the central phenyl-rings. However, for any given end-to-end twist, the value of R is larger for 3-Cn compared with 1-Cn. This can be explained by the combined contribution of axial and helical twisting on the overall value of R. Despite larger conjugation length, the dimer, 4-Cn is expected to show low rotational strengths, since the angle between μ and m is larger, resulting in relatively small cos(Θ).

Fig. 3 displays the photophysical properties of representative members of 1,3,4-Cn (for the entire series, see ESI†). The absorption and emission spectra are presented in the upper panels, while the ECD and CPL spectra are presented in the lower panels of each pair. Both 1-Cn and 2-Cn produce similar absorption spectra, with the typical vibronic structure of the ¹L_a band of acenes in the 420–490 nm range (Fig. 3a, upper panels). For 3-Cn, the vibronic structure is slightly broader, which can be ascribed to the additional degrees of freedom provided by the axial twisting (Fig. 3b, upper panel). Finally, 4-Cn (Fig. 3c, upper panel) shows a bathchromically-shifted ¹L_a band extending up to 520 nm, which can be attributed to the extended conjugation provided by the diacetylene spacer.

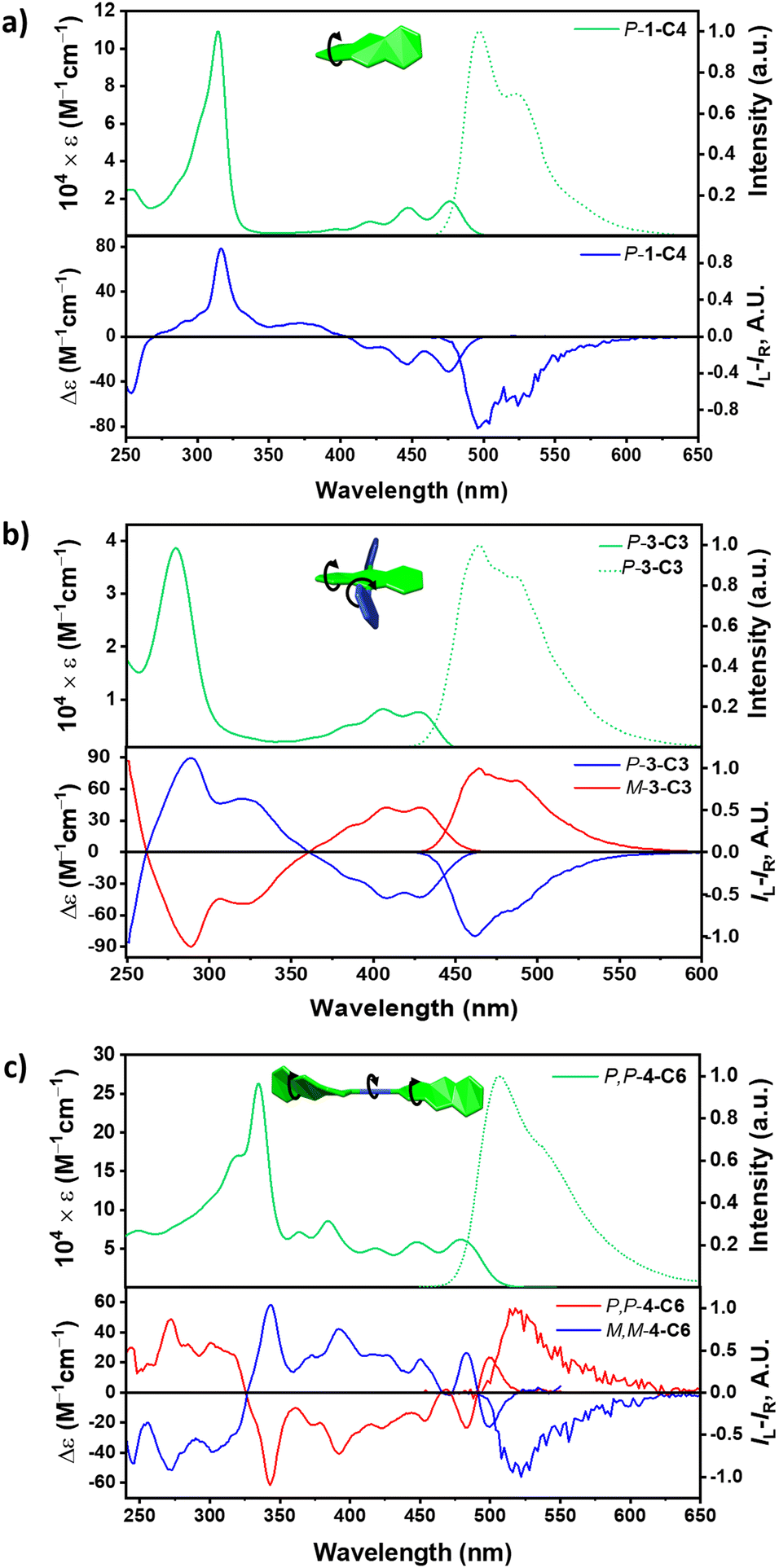

Fig. 3 Absorption and emission spectra (upper panel of each pair) and ECD and CPL spectra (lower panel of each pair) for (a) 1-C4, (b) 3-C3 and (c) 4-C6.

The emission spectra are similar for all the compounds, and the differences between members of the series are similar to those observed in the absorption spectra, namely sharper vibronic shoulders for shorter tethers and a bathochromic shift with twisting. Small Stokes shift (0.1–0.3 eV) indicates that no significant structural reorganization takes place upon excitation. This also applies to the dimer 4-Cn, which has a rotatable diacetylene linker between the two chromophores. We note that for all the compounds, the fluorescence quantum efficiency decreases with twisting, as has previously been explained by faster intersystem crossing.²¹ Being the most rigid members, 1-Cn and 2-Cn display the most pronounced vibronic structures.

We have previously observed that the maximal molar circular dichroism (Δε_max) increases linearly with increasing twist angle for 1-Cn, 2-Cn and 3-Cn.^19,24 We note that a similar trend is observed for the longer dimeric 4-Cn. It is interesting to note that while values of Δε_max are higher for 4-Cn, this increase correlates with the increased number of chromophores, thus its anisotropy factor, g_abs, is similar to the values found for 1-Cn and 2-Cn. In contrast to the 1–3-Cn series, the ECD spectrum of 4-Cn displays a distinct Cotton effect, with two opposite signs at 504 and 487 nm, which can result from the excitonic coupling between the two twistacenes connected by the diacetylene bridge.¹⁷ Upon cooling to −40 °C, 4-Cn shows increase in the intensity of Δε, which can be mostly associated with the rotation around the diacetylene bond.

The CPL for all compounds is displayed in the lower right panels of Fig. 3a–c, in the lower panel of each pair. As expected, the CPL signals of all the compounds are identical with those obtained from the lowest energy transition, indicating that the S₁ → S₀ transition is of the same nature as the S₀ → S₁ transition, as expected for rigid chromophores. This is true also for the dimer, 4-Cn, which indicates that despite the flexible diacetylene linker, the geometry is similar for both S₀ and S₁ states. We note that 4-Cn shows the most intense brightness as it consists of the largest ε and relatively strong quantum efficiency (Table S1, see ESI†).

The degree of chirality is often expressed by the absorption and emission anisotropy factors, g_abs and g_lum, respectively, where g_abs = Δε/ε and g_lum = 2(I_L − I_R)/(I_L + I_R), where I_L and I_R are the emission intensities of left- and right-handed circularly polarized light, respectively. Fig. 4a and b display the g_abs and g_lum values for 1–4-Cn as a function of backbone twist. For all cases, the anisotropy factors increase with backbone twisting. The lowest g_abs values are for 2-Cn, which has triazole linkers. This can be explained by 2-Cn having the shortest conjugation length, given the relation between effective conjugation length and anisotropy factor.^7,10 In particular, it is interesting to note that 4-Cn, despite having the longest effective conjugation, has anisotropy factors similar to those of 1-Cn and 2-Cn. This can be explained by the angles of the calculated transition dipole moments for the lowest energy transition of 4-Cn (71–75°) being unable to yield maximal dissymmetry factors because they are neither parallel nor antiparallel. In contrast, in parent acenes these transition dipole moments are antiparallel regardless of the twisting angle, which should yield the maximal value.²³

Fig. 4 Anisotropy factors (a) g_lum and (b) g_absversus backbone twist in 1–4-Cn, and (c) their g_lumversus g_abs.

Compound 3-Cn, possessing both axial and helical chirality, stands out with significantly higher g_abs (3–5 × 10⁻³) and g_lum (1.8–2.5 × 10⁻³) values, although these values show a dependence on backbone twist similar to that observed for the other compounds. Fig. 4c displays the ratio g_lum/g_abs that was previously formulated by Mori as indicating the nature of the specific class of molecules.²⁶ Plotting the value for all twistacene members on the same graph indicates good correlation (r² = 0.97) and shows that the average ratio of g_lum/g_abs is 0.52 for the whole series. This value is slightly lower than that observed for helicenes (0.61). A potential reason for the lower ratio in our twistacene series is the increased degrees of freedom arising from the phenyl side groups, which induce larger conformational change upon excitation. However, overall, the good correlation between all members of the 1–4-Cn series suggests that the g_lum/g_abs value of 0.52 is an intrinsic property of twisted acenes.

In summary, this work presents the first computational and experimental study of the effect of helical and axial chirality on CPL in twisted acenes. The g_lum values range between 10⁻⁵ and 5 × 10⁻³, depending on the degree of end-to-end twisting, conjugation, and whether there is a combination of axial and helical chirality. We find that increasing the end-to-end twist increases CPL in all cases, with the increase arising mostly from a steady increase in the magnetic transition dipole moment. Extending conjugation by using a diacetylene linker, while producing a Cotton effect, does not result in a noticeable strengthening of the chiroptical properties, which was explained by the angle formed between the electric and magnetic dipole moments. In contrast, combined axial and helical chirality significantly increases g_lum. We can conclude that inducing a backbone twist and addition axial chirality elements are a highly effective method for increasing the chiroptical properties of acenes. In contrast, extending the effective conjugation length does not necessarily leads to this result. As we observed that the rotational strength is highly dependent on the substituent position, it seems that the diagonal extension from the 1,5-position is not necessarily the optimal pathway, and alternative extension, for example from 9,10-positions might result in stronger rotational strength. The g_lum/g_abs ratio is consistent for all the twistacenes studied, and was found to be 0.52, which is slightly lower than the value observed for helicenes. Overall, this study provides the first design principles for increasing CPL activity in twisted acenes.

O. G. acknowledges the support of European Research Council (ERC) under the European Union's Horizon 2020 research and innovation program (Grant Agreement No. 850836, ERC Starting Grant “PolyHelix”) and by The Israel Science Foundation – FIRST Program (grant No. 1453/19). G.M. acknowledges the Israel Science Foundation (grant No 1257/22).

Conflicts of interest

There are no conflicts to declare.

Notes and references

1. J. R. Brandt, F. Salerno and M. J. Fuchter, Nat. Rev. Chem., 2017, 1, 1–12.
2. L. E. MacKenzie and R. Pal, Nat. Rev. Chem., 2021, 5, 109–124.
3. L. Wan, J. Wade, X. Shi, S. Xu, M. J. Fuchter and A. J. Campbell, ACS Appl. Mater. Interfaces, 2020, 12, 39471–39478.
4. Y. He, S. Lin, J. Guo and Q. Li, Aggregate, 2021, 2, e141.
5. Circularly Polarized Luminescence of Isolated Small Organic Molecules, ed. T. Mori, Springer, Singapore, 2020.
6. E. M. Sánchez-Carnerero, A. R. Agarrabeitia, F. Moreno, B. L. Maroto, G. Muller, M. J. Ortiz and S. de la Moya, Chem. – Eur. J., 2015, 21, 13488–13500.
7. J. L. Greenfield, J. Wade, J. R. Brandt, X. Shi, T. J. Penfold and M. J. Fuchter, Chem. Sci., 2021, 12, 8589–8602.
8. T. Kimoto, N. Tajima, M. Fujiki and Y. Imai, Chem. – Asian J., 2012, 7, 2836–2841.
9. W.-L. Zhao, M. Li, H.-Y. Lu and C.-F. Chen, Chem. Commun., 2019, 55, 13793–13803.
10. Y. Nakai, T. Mori and Y. Inoue, J. Phys. Chem. A, 2012, 116, 7372–7385.
11. H. Tanaka, M. Ikenosako, Y. Kato, M. Fujiki, Y. Inoue and T. Mori, Commun. Chem., 2018, 1, 1–8.
12. B. C. Baciu, P. J. Bronk, T. de Ara, R. Rodriguez, P. Morgante, N. Vanthuyne, C. Sabater, C. Untiedt, J. Autschbach, J. Crassous and A. Guijarro, J. Mater. Chem. C, 2022, 10, 14306–14318.
13. P. Sumsalee, L. Abella, T. Roisnel, S. Lebrequier, G. Pieters, J. Autschbach, J. Crassous and L. Favereau, J. Mater. Chem. C, 2021, 9, 11905–11914.
14. J. L. Greenfield, E. W. Evans, D. Di Nuzzo, M. Di Antonio, R. H. Friend and J. R. Nitschke, J. Am. Chem. Soc., 2018, 140, 10344–10353.
15. H. Kubo, T. Hirose, T. Nakashima, T. Kawai, J. Hasegawa and K. Matsuda, J. Phys. Chem. Lett., 2021, 12, 686–695.
16. T. Hasobe, in Circularly Polarized Luminescence of Isolated Small Organic Molecules, ed. T. Mori, Springer, Singapore, 2020, pp. 99–116.
17. K. Dhbaibi, L. Favereau, M. Srebro-Hooper, C. Quinton, N. Vanthuyne, L. Arrico, T. Roisnel, B. Jamoussi, C. Poriel, C. Cabanetos, J. Autschbach and J. Crassous, Chem. Sci., 2020, 11, 567–576.
18. J. Crassous, in Circularly Polarized Luminescence of Isolated Small Organic Molecules, ed. T. Mori, Springer, Singapore, 2020, pp. 53–97.
19. A. Bedi, L. J. W. Shimon and O. Gidron, J. Am. Chem. Soc., 2018, 140, 8086–8090.
20. A. Bedi and O. Gidron, Acc. Chem. Res., 2019, 52, 2482–2490.
21. P. Malakar, V. Borin, A. Bedi, I. Schapiro, O. Gidron and S. Ruhman, Phys. Chem. Chem. Phys., 2022, 24, 2357–2362.
22. A. Bedi, R. Carmieli and O. Gidron, Chem. Commun., 2019, 55, 6022–6025.
23. A. Bedi and O. Gidron, Chem. – Eur. J., 2019, 25, 3279–3285.
24. A. Bedi, A. Manor Armon, Y. Diskin-Posner, B. Bogosalvsky and O. Gidron, Nat. Commun., 2022, 13, 451.
25. N. Berova, L. D. Bari and G. Pescitelli, Chem. Soc. Rev., 2007, 36, 914–931.
26. H. Tanaka, Y. Inoue and T. Mori, ChemPhotoChem, 2018, 2, 386–402.

---

Footnotes

† Electronic supplementary information (ESI) available. See DOI: https://doi.org/10.1039/d2cc07074j

‡ Authors contributed equally.

§ Present address: Department of Chemistry, SRM Institute of Science and Technology, Kattankulathur, 603203, Tamil Nadu, India.

---
