Highly electron deficient diketopyrrolopyrroles

Abstract

The synthesis, spectroelectrochemical and structural characteristics of highly electron-accepting diketopyrrrolopyrrole (DPP) molecules with adjoining pyridinium rings is reported, along with an assessment of their toxicity, which is apparently low. The compounds show reversible electrochemistry and in one subfamily a massive increase in molar extinction coefficient upon electrochemical reduction.

---

Electron acceptors are attractive as components in devices related with energy storage and capture, particularly redox-flow batteries^1–3 and photovoltaic solar cells.^4–6 Those based on bi-pyridinium species have received significant attention, in these and other areas,⁷ because of their electron-deficient character and tuneable redox properties.^8,9 This family of compounds is of such interest because the parent 4,4′-bipyridinium and its derivatives are relatively easy to prepare and reduce.¹⁰ Tuning their properties can be achieved by changing the N-substituent and the counter anion,^11,12 as well as adding electron-withdrawing units to the pyridinium rings.¹³ Another approach is to modify the linker between the rings to stabilize the reduced forms of the compounds and to modify the photophysical and photochemical properties.¹⁴ In parallel, diketopyrrolopyrrole (DPP) dyes and pigments are an increasingly investigated family of organic semi-conductor materials.¹⁵ Their intermolecular interactions, most notably π–π stacking and hydrogen bonding, influence charge carrier mobility in their materials.^16–20 Typically, DPPs have been used as donor materials, habitually with thiophene as the aryl substituent, despite the fact that the materials were identified as being ambipolar.²¹ The DPP bearing pyridyl groups has been employed as an H₂ gas and acid sensor,^22,23 exploiting protonation of the pyridyl moiety, resulting in distinct optical and structural changes as well as a significant decrease in resistivity.

The combination of these two structural types was appealing to us for new organic materials. While some mono-pyridinium DPP derivatives have been reported,²⁴ we are unaware of the more highly electron deficient symmetrical structures. In this work we show the synthesis of new bipyridinium systems linked by a DPP core unit (Scheme 1). The redox properties are modulated by the electron-withdrawing character of the DPP, and lead to very different absorption characteristics, a property tuneable through access to the different redox states.

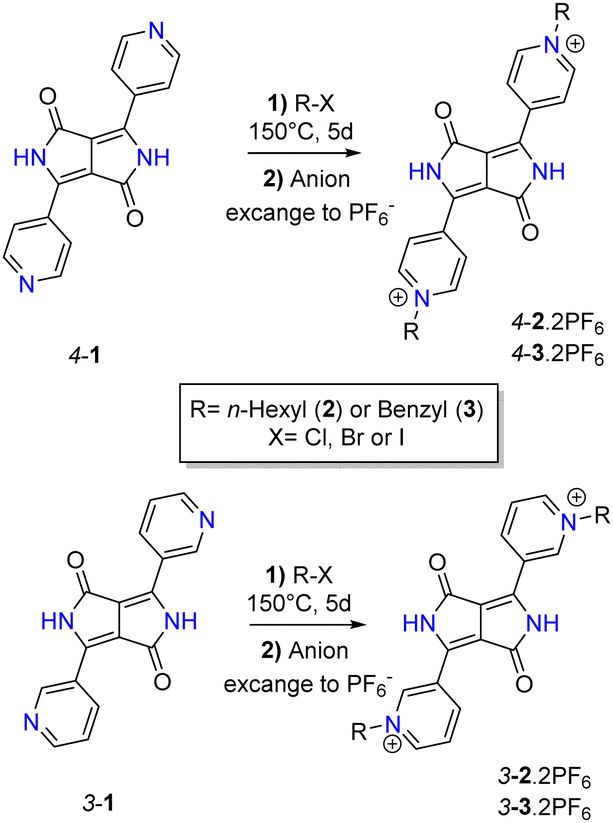

Scheme 1 Synthesis of 4-2.2PF₆, 4-3.2PF₆, 3-2.2PF₆, 3-3.2PF₆.

The desired bipyridinium DPPs 2²⁺ and 3²⁺ (Scheme 1) were obtained (see ESI†) from the known 3-pyridyl and 4-pyridyl DPP compounds 1.²⁵ The quaternization of the nitrogen atoms of the pyridine ring required a relatively harsh environment for this type of pyridine alkylation reaction, at 150 °C for 5 days in the neat alkyl halide. We believe these conditions are necessary as a result of the low solubility of the starting material and the weak nucleophilic character of the pyridine nitrogen atoms, caused by the strong electron-withdrawing character of the DPP core. This hypothesis is supported by the reported pK_a of the more soluble pyridine parent.²⁶ The products were isolated as their hexafluorophosphate salts by counter anion exchange. They have improved solubility in common polar organic solvents compared with starting materials 1, an uncommon property for DPPs without alkylation at the nitrogen atom in the lactam ring.

Single crystals were obtained for three of the compounds that are the object of this study. They were grown by slow diffusion of water and methyl–ethyl ketone for 4-2.2PF₆ (isolated as a hydrate) and slow evaporation of acetonitrile for 3-2.2PF₆ and 3-3.2PF₆ (isolated as an acetonitrile solvate). All molecules exhibit an essentially flat π-conjugated system across the pyridinium and DPP moieties in the solid-state (Fig. 1). They display dihedral angles between the DPP core and pyridinium rings of 6.3°, 3.1° and 2.9° for 4-2.2PF₆, 3-2.2PF₆ and 3-3.2PF₆, respectively. There are close intramolecular contacts between the lactam carbonyl group and the pyridinium hydrogen atom closest to the core (2.20–2.26 Å). For 3-2.2PF₆ there are also intermolecular contacts between pyridinium hydrogen atoms and the oxygen atom (ESI†). The N–H and carbonyl of the lactam of 4-2.2PF₆ are bound to water solvate molecules in the solid. A cyclic dimer is formed that results in a continuous chain of hydrogen bonded molecules. The N–H and the proton at the 2-position of the pyridinium ring in 3-2.2PF₆ interact with the anion, while the carbonyl is bound to the proton at the 5-position of a neighbouring pyridinium ring. The nitrogen atoms of the pyridinium ring in 3-3.2PF₆ (they are oriented to the carbonyl group) display opposite orientation with respect to the DPP core compared with 3-2.2PF₆ (they are oriented to the NH group, see ESI†) in the solid state. While the DPP cores have parallel orientation, there is no significant π–π stacking.

Fig. 1 Views of the molecular structures of 4-2.2PF₆ (A) and 3-2.2PF₆ (B) from their crystal structures (anions and water molecules, in the case of the former, are omitted for clarity).

The redox properties of the compounds were studied with cyclic voltammetry (CV) on a glassy carbon electrode in DMF solution with tetra-n-butyl-ammonium hexafluorophosphate (TBAPF₆; 0.2M) as supporting electrolyte. Three discrete reduction processes appear for 4-2.2PF₆ and 4-3.2PF₆ (ESI†). The first and second one electron reduction waves at approximately −0.50 V and −0.70 V (versus Fc⁺/Fc) appear reversible and correspond to the formation of the mono-cation radical and neutral species, respectively. These processes are reminiscent of those in paraquat (E_red1,1/2 = −0.83 V and E_red2,1/2 = −1.24 V vs. Fc⁺/Fc),¹³ albeit at much less negative potentials. The shift to less negative potentials is attributed to the electron-withdrawing effects of the DPP core. The third process, at −2.2 V, is assigned to reduction of the DPP core itself.²⁷ This hypothesis is supported by density functional theory (DFT) calculations where the DPP core contributes to the singly occupied molecular orbital (SOMO) (ESI†). The nature of the substituent (n-hexyl or benzyl) on the nitrogen atoms of the pyridinium rings has little effect on the potential at which the redox processes take place in these molecules.

Compounds 3-2.2PF₆ and 3-3.2PF₆ display quite different electrochemical behaviour compared to their 4-pyridinium analogues. Only the first reduction, at approximately −0.90 V (versus Fc⁺/Fc), shows behaviour that appears reversible (ESI†). The subsequent reduction has no associated oxidation wave but instead increases the re-oxidation current at the first reduction, presumably a result of the oxidation of precipitated material at the electrode surface generated upon formation of the neutral species.

The DPP family of compounds generally have distinctive absorbance maxima between 400 and 550 nm, and emission in the range of 500 and 650 nm, with fluorescence quantum yields between 0.4 and 0.9.¹⁸ By contrast, the quaternary derivatives 4-2.2PF₆ and 4-3.2PF₆ display a bathochromic shift in UV-visible absorption maxima and broadened emission spectra with larger Stokes shifts (ESI†). Low emission quantum yields suggest the presence of an efficient fluorescence quenching mechanism that may involve intramolecular charge transfer (ICT). In comparison, 3-2.2PF₆ and 3-3.2PF₆ derivatives have blue shifted UV-visible absorption maxima; their fluorescence spectra are less broadened, have larger quantum yields and give Stokes shifts approximately half those of the 4-substituted analogues. These differences suggest that the fluorescence quenching mechanism operating in 4-2.2PF₆ and 4-3.2PF₆ is either absent or less pronounced for 3-2.2PF₆ and 3-3.2PF₆, making the 3-substituted derivatives more similar in character to the broader family of DPP compounds.

The UV-visible absorption profiles of the three redox states were investigated for 4-2.2PF₆ and 4-3.2PF₆ and 3-2.2PF₆ and 3-3.2PF₆ using spectroelectrochemistry. For the 4-substituted compounds, 4-2.2PF₆ and 4-3.2PF₆, the single electron reduction caused absorption bands at ∼280 nm and ∼580 nm to diminish whilst new bands at ∼640 nm and ∼775 nm emerged (Fig. 2). The only significant difference between the spectral profiles of these compounds when reduced was the relative intensity of these two bands (ESI†).

Fig. 2 UV-visible absorption monitoring of the first reduction process of 4-2.2PF₆. Red line 4-2.2PF₆, cyan line 4-2˙⁺·PF₆. Coloured lines correspond to ε and grey lines show absorbance. Spectra were recorded in DMF containing TBAPF₆ (0.2 M) as the supporting electrolyte at 273 K (A). UV-visible absorption monitoring of the second reduction process of 4-2.2PF₆. Cyan line 4-2˙+·PF₆, blue line 4-2. Coloured lines correspond to ε and grey lines show absorbance. Spectra were recorded in DMF containing TBAPF₆ (0.2 M) as the supporting electrolyte at 273 K (B).

The second reduction, generating a neutral species, caused the absorption band at ∼775 nm to diminish while the band at ∼640 nm increased significantly, together with the formation of a new band at ∼590 nm (Fig. 2). Upon reduction a large increase in extinction coefficient is noteworthy, with a value of ε that increases from ∼20 000 to ∼70 000 M⁻¹ cm⁻¹ for the one-electron reduced species. The neutral 4-2 and 4-3 species have an ε value of 158 600 and 276 700 M⁻¹ cm⁻¹, respectively. This large increase in ε, we believe, is a result of the formation of the quinoidal form that leads to better overlap between ground and excited state orbitals in the DPP core, as confirmed by theoretical calculations (see below).

This kind of quinoidal state has been inferred elsewhere in another context.²⁸ Nonetheless, the increase in absorption is quite extraordinary. It is not seen in bipyridinium derivatives, or DPPs that show the quinoidal form.²⁸ The re-oxidation of both 4-substituted compounds generate the initial UV-visible spectral profile (ESI†) indicating chemical reversibility under these conditions.

TD-DFT calculations capture the increased oscillator strength and changes in λ_max on one- and two-electron reduction. The calculated excited states for the dication and neutral forms are well described by a single HOMO → LUMO transition. The close similarity between the dication LUMO and neutral HOMO suggests a quinoidal structure for the neutral (i.e. doubly reduced) form of 4-2 (Fig. 3). The low energy absorption band associated with the radical cation involves significant contributions from two transitions, the first resembling the dication transition, and the second resembling that of the neutral form.

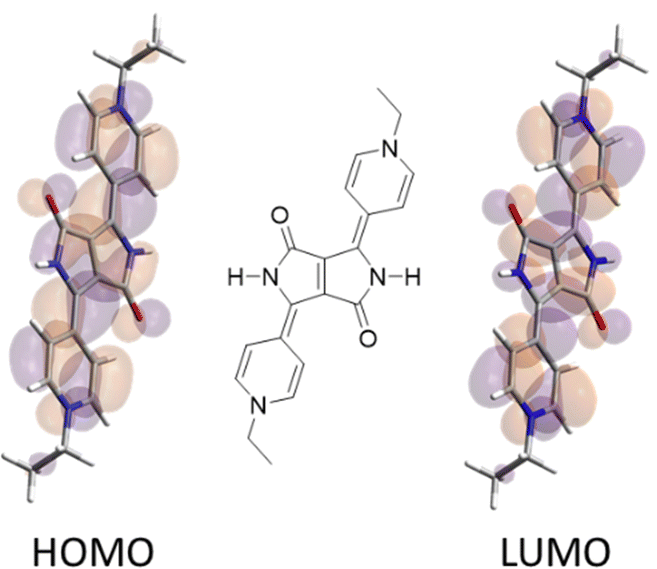

Fig. 3 Calculated HOMO and LUMO of a simplified quinoidal form equivalent to the doubly reduced 4-2²⁺ (with an ethyl substituent used for computational simplicity).

The UV-visible absorbance spectra of one-electron reduced 3-2.2PF₆ and 3-3.2PF₆ shows a structured band, with peak maximum at 650 nm, that replaces a structured band at λ_max 520 nm in the neutral compounds (Fig. 4), with this interconversion producing isosbestic points at ca. 450 and 550 nm. Re-oxidation to the original spectral profile of the dications was achieved but only slowly and after the application of a significant over-potential, which may indicate the involvement more complex electrochemical mechanisms during these longer timescale experiments.

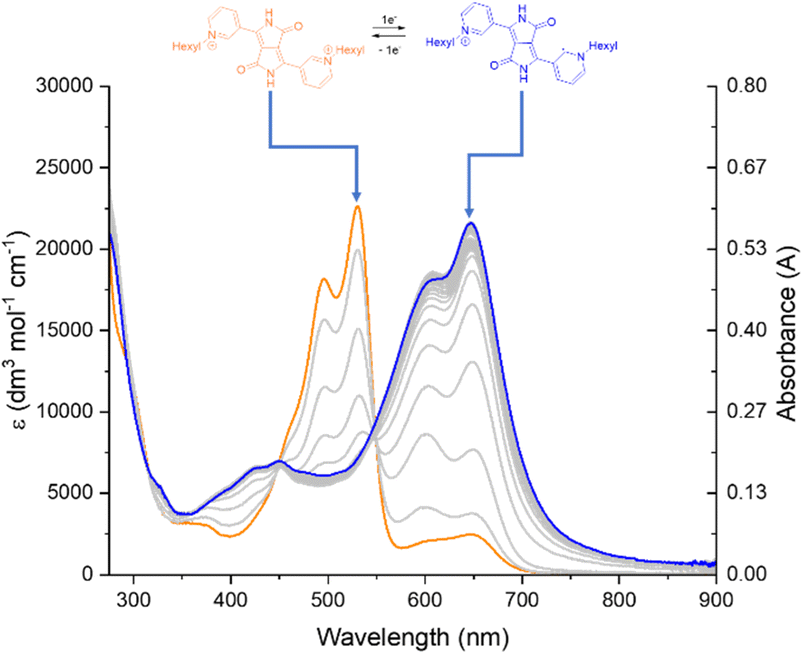

Fig. 4 UV-visible absorption spectra showing the first reduction of 3-2.2PF₆. Orange line 3-2.2PF₆, blue line 3-2˙⁺·PF₆. Colored lines correspond to ε and grey lines to absorbance. Spectra were recorded in DMF containing TBAPF₆ (0.2 M) as the supporting electrolyte at 273 K.

Electronic paramagnetic resonance (EPR) spectroscopy confirmed the presence of paramagnetic radical species for singly reduced 4-2˙⁺·PF₆, 4-3˙+·PF₆ and 3-3˙⁺·PF₆ and the spectra show extensive hyperfine couplings (ESI†). The complexity of the EPR signals indicates delocalization of the unpaired electron over the whole π–framework which must include the pyridinium functionalities; a conclusion confirmed by MO calculations of the SOMO (ESI†).

The structural similarity of the compounds to paraquat made us concerned about their potential toxicity to researchers, as well as the compound's potential environmental impact. Therefore, we studied the effects of the more soluble 4-pyridinium compounds on two human-derived cell lines (A549 lung carcinoma and MRC-5 fibroblast), using paraquat as a standard for comparison.

MTT assays were performed at time of test agent addition and following 72 hours exposure to the compounds (see ESI† for details). While negligible activity is noted for the DPP pyridinium compounds (LC₅₀ and GI₅₀ values >100 μM in both cell lines), the GI₅₀ values for paraquat are ∼5 μM against both A549 and MRC-5 cells. Therefore, growth inhibitory activity and toxicity of the title compounds is significantly less than paraquat under these conditions. Because of their characteristics, it will be of future interest to explore the effects that these compounds might have as mitochondrial probes,²⁹ for example.

In conclusion, pyridinium DPP derivatives are synthetically accessible and are chemically and electrochemically stable, they can be reversibly converted into their radical species at potentials much higher than other bipyridinium species thanks to the presence of the DPP core, with large changes in their spectroscopic properties, making them very attractive electron acceptors. In particular, the 4-substituted analogues are excellent electron acceptors and present extraordinary increases in absorbance upon reduction, a full order of magnitude for analogous bands at around 600 nm. This feature also makes them promising candidates as electrochromic materials.³⁰

This work was supported by the University of Nottingham through the Beacon of Excellence Propulsion Futures and the EPSRC through the LDMI DTP for funding. The Diamond Light Source Ltd (beamline I19) is thanked for access to collect diffraction data of crystals.

Conflicts of interest

There are no conflicts to declare.
