Accessing unsymmetrical Ru(II) bipyridine complexes: a versatile synthetic mechanism for fine tuning photophysical properties

Lukas Hallen a, Alexandra M. Horan b, Brendan Twamley a, Eoghan M. McGarrigle *b and Sylvia M. Draper *ac
aSchool of Chemistry, Trinity College Dublin, the University of Dublin, Dublin 2, Ireland. E-mail: smdraper@tcd.ie
bSSPC, the SFI Research Centre for Pharmaceuticals, Centre for Synthesis & Chemical Biology, UCD School of Chemistry, University College Dublin, Belfield, Dublin 4, Ireland. E-mail: eoghan.mcgarrigle@ucd.ie
cAMBER (Advanced Materials and Bioengineering Research) Centre, Trinity College Dublin, Dublin 2, Ireland

Received 5th September 2022 , Accepted 22nd November 2022

First published on 23rd November 2022


Abstract

Three novel unsymmetrical Ru(II) bipyridine complexes were generated via a convenient, modular, convergent synthetic route. An investigation of their photophysical properties revealed solvent-dependent excited state behaviour including altered absorption and emission wavelengths, emission lifetimes and quantum yields of phosphorescence.


Transition metal complexes comprising N-coordinating ligands such as bipyridine and phenanthroline, have been actively targeted for many applications in photophysics and photochemistry.1–6 The high stability, strong absorption and low biotoxicity of ruthenium polypyridyl complexes in particular have led to the development of a wide library of such compounds.7 Applications range from photodynamic therapy (PDT) to triplet-triplet annihilation upconversion (TTA-UC), and from photovoltaics to photocatalysis,5,8–11 but in all cases the design of the ligand chromophore(s) is key to tuning the nature and emissive character of the excited states.

Two main approaches have been explored to determine the structure-property relationships that govern the important optical characteristics such as absorption wavelengths, excited-state lifetimes and singlet oxygen quantum yields. The first is to append self-contained, highly-absorbing chromophores such as Nile Red or BODIPY to the ligand, allowing population of the chromophore's triplet excited state by exploiting the heavy-atom effect of the metal centre.12–14 The second is to modify the energy levels of the N-coordinating ligand, using donor and/or acceptor moieties, so as to make these energy levels accessible via intra-ligand electronic transitions.15–17 Of particular interest in the latter, are unsymmetrical ligand systems, where different donor/acceptor groups are attached to e.g. the bipyridine rings in either the 4,4′ or 5,5′-positions, as these can reveal some very unusual optical properties.2,18

Gordon and co-workers recently reported solvent-dependent excited state switching in unsymmetrical rhenium bipyridyl systems, where two separate and distinct excited states were accessed depending on the solvent.3 Draper et al. showed that appending accepting groups can significantly alter the excited state properties of unsymmetrical Ir complexes compared to analogous symmetrical dual donor systems.2 It is clear that there is enormous potential for fine-tuning the electronic properties of unsymmetrical polypyridyl systems. However their syntheses remain challenging, not least because they typically require sequential synthetic functionalisation of each pyridine ring, complicating purification processes.18–21

A common synthetic approach involves successive palladium-catalysed reactions such as Suzuki or Sonogashira couplings on preformed symmetrical halogenated bipyridines, although Wittig reactions have also been employed.15,19,20 Such desymmetrisation methodologies suffer from stepwise reductions in yield and challenging purifications due to site-selectivity problems. A convergent, modular synthetic approach to unsymmetrical bipyridine ligands would facilitate an investigation of the effects of donor/acceptor moieties on the photophysical properties of the resulting Ru(II) complexes.

The McGarrigle group recently disclosed a sulfur-mediated ligand-coupling methodology for the preparation of unsymmetrical bipyridines, including biologically active targets (Scheme 1).22–26 In this process, a pyridyllithium or Grignard reagent is reacted with a pyridylsulfonium salt, to give a trigonal bipyramidal sulfurane intermediate, which on collapse yields the desired bipyridine. This methodology permits the modular and selective introduction of functionality to either side of an unsymmetrical bipyridine ligand, i.e., from both the organometallic reagent and the pyridylsulfonium salt.


image file: d2cc04910d-s1.tif

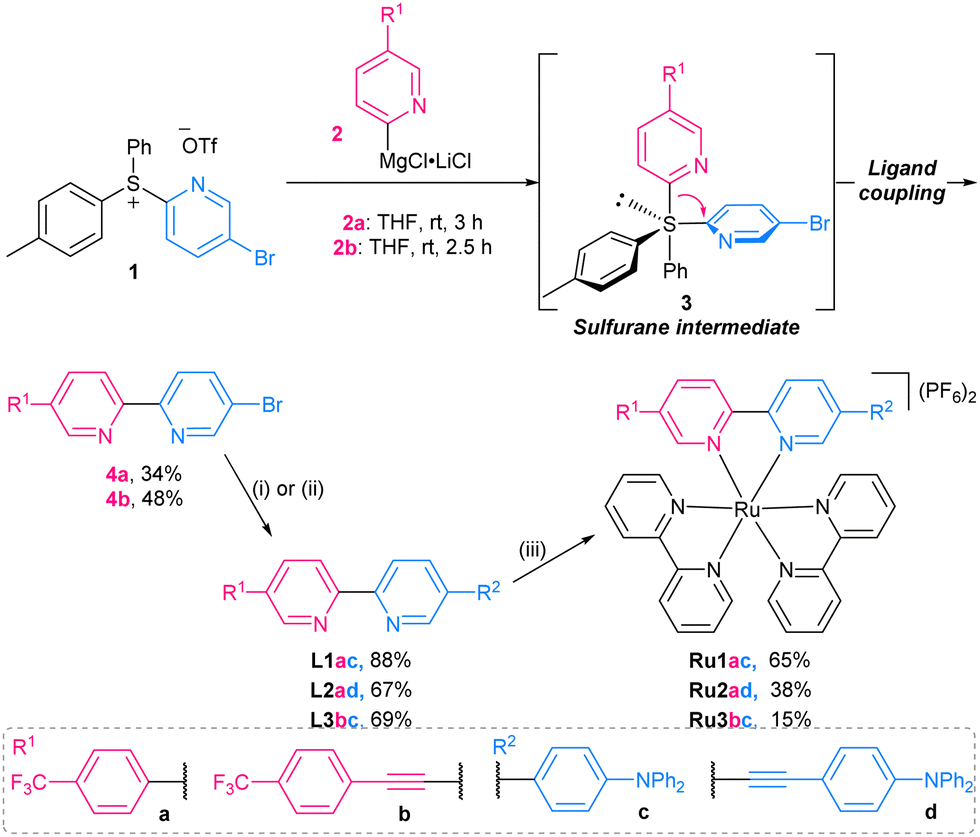

Scheme 1 Synthetic route to ligands L1–3 and complexes Ru1–3. [(i): Ph2NC6H4B(OH)2 (1.2 equiv.), Pd(PPh3)4 (3 mol%), K2CO3 (3.0 equiv.) THF[thin space (1/6-em)]:[thin space (1/6-em)]H2O (2[thin space (1/6-em)]:[thin space (1/6-em)]1), 80 °C, 22 h], [(ii): Ph2NC6H4C[triple bond, length as m-dash]CH (1.2 equiv.) Pd(PPh3)4 (3 mol%) CuI (3 mol%) Et3N[thin space (1/6-em)]:[thin space (1/6-em)]toluene (3[thin space (1/6-em)]:[thin space (1/6-em)]1), 80 °C, 5 h], [(iii): Ru(bpy)2Cl2 (0.9 equiv.), ethylene glycol, 140 °C, 16 h]

Herein, we demonstrate the use of this reaction in the syntheses of three novel unsymmetrical functionalised 2,2′-bipyridine ligands (Scheme 1 and Fig. 2). Our standard coupling conditions using 5-bromopyridylsulfonium salt 1 and Grignard reagents 2a,b gave the brominated bipyridines 4a,b in acceptable yield (without optimisation). Subsequent Sonagashira or Suzuki coupling introduced the triphenylamine donor moieties. Complexation with [Ru(bpy)2Cl2] gave Ru1–3.


image file: d2cc04910d-f1.tif
Fig. 1 (a) UV-vis absorption spectra Ru1–3; (b–d) Normalized emission spectra of Ru1–3 (λex = 435 nm for Ru1; 440 nm for Ru2 and Ru3). Emission spectra measured under Argon (yellow) and in air (black). MeCN, [10−5 M], 298 K.

image file: d2cc04910d-f2.tif
Fig. 2 Chemical structures of Ru1–Ru3.

Ready access to L1–3 and Ru1–3 provided a platform for an investigation of the effects of the appended donor/acceptor moieties on the overall photophysical behaviour of the novel bipyridine ligands and their Ru(II) complexes. The route also enabled us to incorporate bridging linkers to either the donor or the acceptor species for the first time and to explore the opto-electronic consequences of selective conjugation.

The absorption and emission spectra of the ligands were measured in CH2Cl2 (Table 1 and Fig. S22, ESI). The emissions are sensitive to solvent (Fig. S23–S25, ESI) and are typical of singlet charge transfer (1CT) transitions. Low-temperature measurements confirm the 1CT nature of the excited state (Fig. S29–S31, ESI). The fluorescence quantum yields (Φem) for L1–3 were recorded using fluorescein in 0.1 M aq. NaOH as a standard and are shown in Table 1.27,28 Due to literature inconsistencies in the quantum yield of fluorescein in 0.1 M NaOH a range of quantum yields are reported.

Table 1 Spectroscopic data for ligands L1–3 in CH2Cl2
λ abs [nm] ε (×104)b [M−1cm−1] λ em [nm] Φ em [%] τ em [ns]
a In CH2Cl2 [10−5 M], 298 K. b Molar extinction coefficient at the absorption maxima. c Emission maximum in CH2Cl2, excited at the corresponding λabs value. d Fluorescence quantum yield with Fluorescein as a standard (Φf = 79% in 0.1 M aq. NaOH).27,28 e Emission lifetime in CH2Cl2. f Fitted monoexponentially.
L1 375 3.71 520 86.9–93.3 3.21f
L2 390 3.43 540 95.4–98.7 3.47f
L3 380 3.37 540 86.8–92.9 3.02f


The high quantum yields reflect the proficiency of the triphenylamine donor and trifluorotoluene acceptor to act as electronic scaffolds for 1CT transitions.29 Dilution studies performed on the three ligands eliminated the possibility of any contribution to the quantum yield of emission through aggregation -enhanced or -enabled emission (Fig. S26–S28, ESI). The emission lifetimes (3.02–3.47 ns) are typical of singlet excited state character (for traces see Fig. S44–S46, ESI).

The UV-Vis absorption spectra of Ru1–3 (Fig. 1a) in MeCN show high-energy transitions under 300 nm and a broad absorption band around 440 nm. The high-energy bands are assigned to π → π* transitions centred on the bipyridine ligands. The lower energy absorption around 440 nm is likely comprised of the metal-to-ligand charge transfer (1MLCT) transitions typical of polypyridyl ruthenium complexes.1 It is possible that this absorption band also contains an intra-ligand charge transfer (1ILCT) transition from the triphenylamine to the trifluorotoluene moieties. A red-shift in ligand charge-transfer absorption bands following conjugation to a metal centre is common for CT-active ligands, and similar behaviour was reported by Wang et al.2,30 There are no significant differences between the maximum absorption wavelengths, of Ru1 compared to Ru2/Ru3, suggesting that the influence of the acetylene linker on the absorption is minimal (Fig. 1a and Fig. S32–S34, ESI). The emission spectra of Ru1–3 (Ru1 excited at 435 nm; Ru2 and Ru3 at 440 nm) in MeCN were recorded in air and argon and are shown in Fig. 1b–d. The profiles of the emission bands are broad and featureless, suggesting a CT-type excited state. The emission wavelengths are red-shifted compared to those of the ligands, with Ru1 emitting at 645 nm and Ru2/Ru3 emitting at 670 nm. The presence of the acetylene linker exerts a greater influence on the emission wavelength than on the absorption wavelength, although its position in the ligand structure does not cause any change to either. The emission intensity of the complexes is enhanced in deaerated MeCN, suggesting that the excited state has triplet character and is capable of sensitising triplet oxygen, an important prerequisite for a wide range of applications such as PDT and TTA-UC.2,11

The emission lifetimes of the complexes in deaerated MeCN, are shown in Table 2 (Traces shown in S38-S40). The short emission lifetimes of Ru2 and Ru3 are unusual for ruthenium complexes, potentially arising from rapid nonradiative relaxation pathways accessible through the acetylene moiety.7 The similarities in emission wavelength, lifetime and quantum yield of phosphorescence between Ru2 and Ru3 (Table 2) suggest that they share a common, likely metal-based emissive excited state in MeCN.

Table 2 Spectroscopic data for Ruthenium Complexes Ru1–3 in MeCN
λ abs [nm] ε (× 104)b [M−1cm−1] λ em [nm] Φ em [%] τ em [ns]
a In MeCN [10−5 M], 298 K. b Molar extinction coefficient at λabs. c Emission maximum in MeCN, excited at the corresponding λabs value. d Phosphorescent quantum yield in deaerated MeCN with [Ru(bpy)3](PF6)2 as a standard (Φp = 9.5% in MeCN).13 e Emission lifetime in deaerated MeCN. f Fitted monoexponentially.
Ru1 435 3.00 645 1.79 1.044f
Ru2 440 2.87 670 0.78 0.21f
Ru3 440 3.11 670 1.12 0.23f


Solvatochromic absorption and emission studies were completed for the three metal complexes (Fig. S32–S37, ESI). In the majority of ruthenium complexes, increasing solvent polarity leads to a stabilisation of the excited state dipole by solvent rearrangement.13 This stabilisation results in a reduction of LUMO energies, leading to a red shift in emission wavelength.

Absorption wavelengths are shifted bathochromically by 20–25 nm in CH2Cl2 compared to MeCN (Table 3), with Ru2 and Ru3 showing a larger shift than Ru1. Such behaviour is unusual in ruthenium tris-bipyridine complexes, although Das et al. have recorded similar trends in their ruthenium arene complexes.31 Excitation studies in CH2Cl2 and MeCN are reported in Fig. S32–S34 (ESI).

Table 3 Spectroscopic data for Ruthenium Complexes Ru1–3 in CH2Cl2
λ abs [nm] ε (×104)b [M−1cm−1] λ em [nm] Φ em [%] τ em [μs]
a In CH2Cl2 [10−5 M], 298 K. b Molar extinction coefficient at the absorption maxima past 400 nm. c Emission maximum in CH2Cl2, excited at the corresponding λabs value. d Phosphorescent quantum yield in deaerated CH2Cl2 with [Ru(bpy)3](PF6)2 in MeCN as a standard (Φp = 9.5% in MeCN).13 e Emission lifetime in deaerated CH2Cl2. f Fitted monoexponentially.
Ru1 455 3.25 700 3.40 2.85f
Ru2 465 2.87 745 1.02 0.42f
Ru3 465 2.96 720 2.38 1.42f


The emission wavelengths of the complexes Ru1 to Ru3 in CH2Cl2 are shifted significantly compared to those in MeCN, however the expected trend of red-shifted emission wavelength with increasing solvent polarity is not observed e.g. the emission wavelength for Ru2 shows a red shift of 75 nm in less polar CH2Cl2. Additionally, where there was no difference in the emission wavelengths between Ru2 and Ru3 in MeCN, there is one in CH2Cl2.

Continued investigation into the excited state properties of the complexes in CH2Cl2 revealed additional changes in behaviour compared to those observed in MeCN (Table 3). (i) The emission lifetime was strongly affected, with a 600% increase in emission lifetime recorded for Ru3 and smaller % increases recorded for both Ru1 and Ru2. (ii) The quantum yields of phosphorescence are also clearly solvent-dependent and are much larger in CH2Cl2. (iii) As can be seen in Fig. S32–S34 (ESI), the emission profiles also change significantly, with the emissions in CH2Cl2 being significantly broader compared to those in MeCN. These combined differences strongly suggest different excited states are being accessed that are dependent on the ligand structure and the solvent.

Low-temperature measurements of the complexes (Fig. S47–S49, ESI) in an EtOH/MeOH (4[thin space (1/6-em)]:[thin space (1/6-em)]1) glass at 77 K show the presence of multiple bands at low temperatures, as seen in [Ru(bpy)3]2+.32 These coalesce to form the single emission peak observed at room temperature. While the low-temperature emission spectra are not solvent-sensitive (Fig. S51, ESI), those at room temperature in the same solvents are (Fig. S50, ESI). Although further studies, (including time-resolved and transient investigations of the excited states) are required to fully rationalise the observed differences, the behaviour recorded for Ru1–3 resemble those seen in rhenium complexes by Gordon and co-workers.3 The presence of two separate excited states at room temperature, one accessed in CH2Cl2 and the other in MeCN, would explain the difference in absorption and emission wavelengths, quantum yields of phosphorescence and emission lifetimes.21

In addition, this work shows that the position of the acetylene linker significantly influences the excited state in CH2Cl2, but not in MeCN. In CH2Cl2, a hypsochromic shift in emission wavelength and increases in both quantum yield of phosphorescence and emission lifetime are observed when the acetylene links to the CF3 (as in Ru3), as compared to Ru2 where it links to the NPh3. This suggests that the excited state accessed in CH2Cl2 has greater ligand character than the one accessed in MeCN. It does not rule out however the possibility of different MLCT states (Ru → bpy and Ru → bpysub) and further analysis is necessary to determine the exact nature of these two excited states.

In summary, we have demonstrated the suitability of recently developed sulfonium-enabled unsymmetrical bipyridyl synthesis for the efficient generation of unsymmetrical ruthenium triplet photosensitisers. A series of novel ruthenium complexes were generated to investigate the effect that selectively enhanced conjugation to donor or acceptor groups would have on their photophysical behaviour. The fascinating results indicate the presence of two separate excited states, one with greater metal character at higher energies and one with greater ligand character at lower energies (Fig. S52, ESI). Continued investigations of these complexes and other related unsymmetrical systems are now possible via the application of a new synthetic route. This will allow researchers to investigate just how widespread the phenomenon of solvent-dependent excited state switching might be and could have a profound influence on how emissive excited states are investigated in the future.

This material is based upon works supported by Science Foundation Ireland under PI Research Grant 15/IA/3046, AMBER II research centre award 12/RC/2278_p2 and additional funding from the Higher Education Authority and the Department of Further and Higher Education, Research, Innovation and Science. A. M. H. thanks the Irish Research Council for a Postgraduate Scholarship (GOIPG/2017/1306) and SFI (12/RC/2275_p2) and (18/RI/5702) for MS infrastructure. We thank Drs J. O’Brien, Y. Ortin, M. Reuther, J. Muldoon and G. Hessman for spectroscopic and technical assistance.

Conflicts of interest

There are no conflicts to declare.
