Tetrabutylammonium-chloride-glycerol of deep eutectic solvent functionalized MnO₂: a novel mimic enzyme for the quantitative and qualitative colorimetric detection of L-cysteine

Abstract

L-Cysteine is a common amino acid that plays an important role in human livelihood and production. Therefore, a novel method for the simultaneous quantitative and qualitative determination of L-cysteine by a colorimetric detection system is proposed. As a viable oxidase mimic, [N₄₄₄₄]Cl-G/MnO₂, which consisted of MnO₂ nanosheets functionalized by a tetrabutylammonium chloride–glycerol ([N₄₄₄₄]Cl-G) based deep eutectic solvent (DES) was fabricated. Owing to the oxidation of MnO₂ nanosheets, [N₄₄₄₄]Cl-G/MnO₂ could oxidize the colorless 3,3′,5,5′-tetramethylbenzidine (TMB) into a blue product (oxTMB) with the characteristic UV–vis spectrum absorbance at 652 nm. The oxidation of TMB by DES/MnO₂ was inhibited when L-cysteine was introduced, and the absorbance decreased proportionally with the increase in L-cysteine concentration. Due to this inhibition effect, a colorimetric detection system ([N₄₄₄₄]Cl-G/MnO₂-TMB) was developed for the quantitative determination of L-cysteine. Under optimal conditions, the assay showed good linearity over the concentration range of 0.125–2.00 μg mL⁻¹ with a low detection limit of 5.96 ng mL⁻¹. A study of the inhibition mechanism demonstrated that the sulfhydryl group of L-cysteine could decompose [N₄₄₄₄]Cl-G/MnO₂ into Mn²⁺, thus limiting the conversion of TMB to oxTMB. In addition, the [N₄₄₄₄]Cl-G/MnO₂-TMB system was used in test strips for the visual qualitative detection of L-cysteine. The selectivity and test strip results demonstrated the high selectivity, simple operation, and rapid response of the [N₄₄₄₄]Cl-G/MnO₂-TMB system for the qualitative detection of L-cysteine. Given the satisfying performance of the detection strategy, colorimetric sensing based on the [N₄₄₄₄]Cl-G/MnO₂-TMB system is considered to have prospective application value in the quantitative and qualitative detection of L-cysteine.

---

Introduction

As a common amino acid, L-cysteine is the main substance of nails, toenails, skin and hair and also plays a critical role in human livelihood and production. In particular, as an essential intracellular biothiol, L-cysteine has been used as a critical parameter for diagnosing various diseases, such as hair depigmentation, skin lesions, edema, liver damage, brain damage, Alzheimer's, and a retarded growth rate.^1–4 Due to the biological activity of L-cysteine, the accurate quantitation and fast monitoring of L-cysteine are extremely important for clinical medicine.⁵ Generally, several methods have been applied to detect L-cysteine, mainly including fluorescence/mass spectroscopy, high-performance liquid chromatography, and electrochemical techniques.⁶ However, these methods have not been used extensively because of some limitations, such as complicated material synthesis, long operation time, and the need for complex and expensive instruments. Thus, establishing new methods for the high-performance quantitative or qualitative analysis of L-cysteine is crucial.

In recent years, due to the advantages of its simple operation, there is no need for expensive instruments, visible detection by the naked eye, and the nanozyme-based colorimetric method has gradually attracted increasing attention and has been widely used in the field of analysis and detection.⁷ To date, research on the reported oxidase mimics as colorimetric materials has mainly focused on metal nanoclusters/nanoparticles,^8,9 metal–organic frameworks,¹⁰ graphene oxide,¹¹ iron oxides,¹² carbon dots,¹³etc. MnO₂ nanosheet, a type of transition metal oxide, has low toxicity and good biocompatibility, rich redox chemistry, and excellent catalytic and oxidase-like activity. Owing to its superior chemical and physical properties, many researchers have combined MnO₂ nanosheets with chem/biosensing techniques for the determination of dopamine,¹⁴ hydroquinone,¹⁵ glutathione,¹⁶ salmonella,¹⁷etc. More importantly, different from the reported peroxidase mimics for colorimetric sensing, MnO₂ nanosheets represent a label-free colorimetric probe that can oxidize the colorless 3,3′,5,5′-tetramethylbenzidine (TMB) into a blue product (oxTMB), which has a characteristic UV–vis spectrum absorbance at 652 nm, without the addition of H₂O₂. Nevertheless, it is worth noting that bare MnO₂ nanosheets can easily agglomerate and have poor dispersibility in water. Thus, some necessary functionalization modifications need to be taken to enhance the dispersibility and oxidase-like activity of MnO₂ nanosheets.

Deep eutectic solvent (DES), as an emerging solvent, has been identified as offering new possibilities to replace traditional solvents in the field of organic and material synthesis,^18,19 separation,²⁰ electrochemistry,²¹ and so on. DES is made of hydrogen-bond acceptors (HBAs) and hydrogen-bond donors (HBDs) in a proper ratio under certain conditions.²² Generally, choline chloride, betaine, quaternary ammonium/phosphonium salts, and amino acid are mainly considered as HBAs, while glycerol, ethylene glycol, polymer, carbohydrates, carboxylic acids, and urea are regard as HBDs.^23–25 Its unique composition can be tuned to design the DES to obtain specific properties, so it is often used as a functional monomer to functionalize various nanomaterials, for example metal–organic frameworks,¹⁹ graphene oxide,²⁶ silica microspheres,²⁷ carbon dots.²⁸ From the above reported literature, it is known that the properties of nanomaterials can be promoted and improves by the introduction of DES.

Inspired by the above, we tried to modify DES as a functional monomer on MnO₂ nanosheets to prepare DES/MnO₂. By combining their physical and chemical properties, the poor dispersion of MnO₂ nanosheets in water could be overcome, and the enzyme-like property of DES/MnO₂ could be further improved. To the best of our knowledge, there are no reported studies on the simultaneous quantitative and qualitative detection of L-cysteine. Herein, we aimed to design a sensitive, convenient, and label-free colorimetric strategy for the visual detection of L-cysteine a through DES/MnO₂-TMB sensing system (as shown in Scheme 1). First, a DES of tetrabutylammonium chloride–glycerol ([N₄₄₄₄]Cl-G) was chosen as the functional monomer to be modified on MnO₂ nanosheets to synthesize the novel mimic enzyme [N₄₄₄₄]Cl-G/MnO₂. Then, we combined this with 3,3′,5,5′-tetramethylbenzidine (TMB) to construct a scheme for quantitative and qualitative colorimetric detection of L-cysteine based on the [N₄₄₄₄]Cl-G/MnO₂-TMB system, respectively. At the end, the detection mechanisms and test strips study are also investigated and discussed.

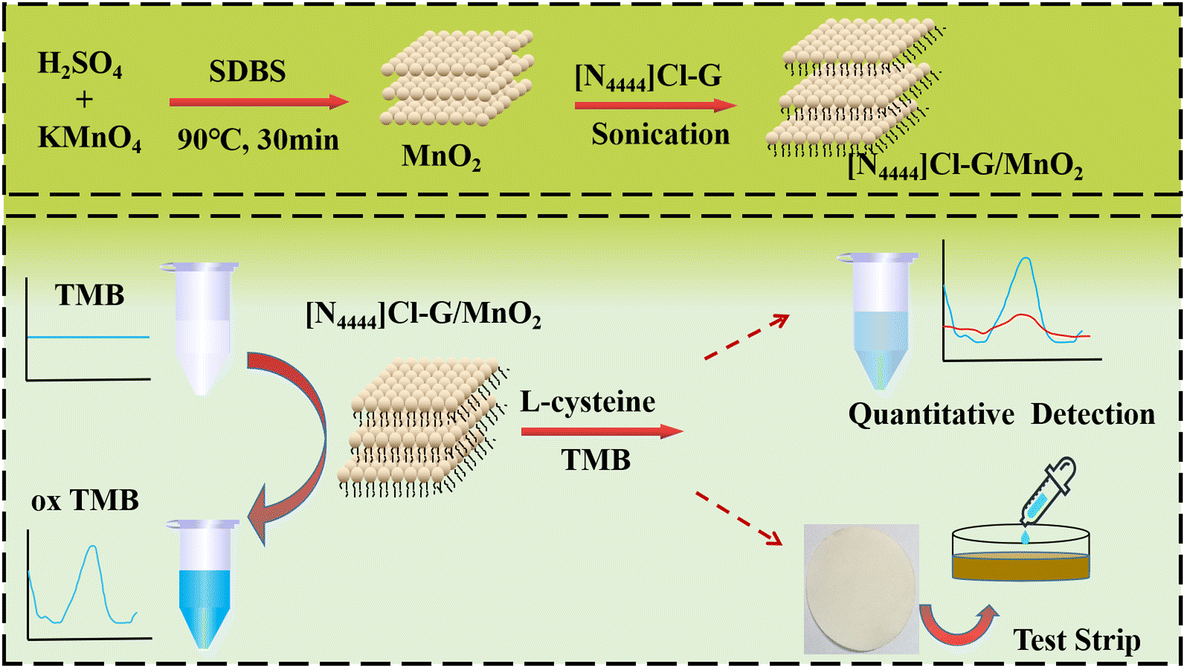

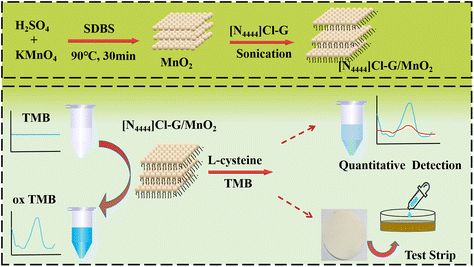

Scheme 1 Preparation of [N₄₄₄₄]Cl-G/MnO₂ and its application for the colorimetric detection of L-cysteine.

Experimental section

Materials and apparatus

L-Arginine (Arg, ≥98%), L-proline (Pro, ≥99%), L-phenylalanine (Phe, 99%), L-aspartic acid (Asp, 99%), glutathione (GHS, 99%), and L(+)-ascorbic acid (AA, 99%) were obtained from Shanghai Yuanye Bio-Technology Co., Ltd (Shanghai, China). D-(+)-Glucose (Glu, >99%), glycerol (>99%), ethanol (EtOH, ≥99%), potassium chloride (KCl, 99%), sodium chloride (NaCl, ≥99%), glutamic acid (Glu, ≥98%), L-lysine (Lysine, ≥98%), glycine (Gly, >99%), L-alanine (Ala, ≥98.5%), L-sodium dodecyl benzene sulfonate (SDBS, ≥95%), sulfuric acid, and KMnO₄ were bought from Sinopharm Chemical Reagent Co., Ltd (Shanghai, China). Valine (Val, 98%), L-serine (Ser, 99%), 3,3′,5,5′-tetramethylbenzidine (TMB, >98%), and tetrabutylammonium chloride ([N₄₄₄₄]Cl>95%) were supplied by Adamas Reagent Co., Ltd (Shanghai, China). Homocysteine (Hcy, 97%) was obtained from Sigma-Aldrich Chemical Reagent Co., Ltd (Anhui, China). All the reagents used were of analytical grade.

The instruments used for the characterizations and experiments were: an ESCALAB 250Xi X-ray photoelectron spectroscopy system (XPS, Thermo Scientific, U.S.); FT-IR spectrometry system (PerkinElmer, U.S.); STA 409 thermal gravimetric analyzer (TGA, Netzsch, Germany); INOVA 400NB NMR (Varian, Japan); D/Max 2500 X-ray diffraction system (XRD, Rigaku, Japan); QYC200 incubator shaker (Shanghai, China); UV2450 UV–vis spectrophotometry system (Shimadzu, Japan); Zetasizer Nano-ZS90 dynamic light scattering system (DLS, Malvern, Britain); and JEM-3010 transmission electron microscopy system (TEM, JEOL, Japan).

Synthesis of [N₄₄₄₄]Cl-G, MnO₂ nanosheet and [N₄₄₄₄]Cl-G/MnO₂

The detailed process for synthesizing MnO₂ nanosheets, [N₄₄₄₄]Cl-G, and [N₄₄₄₄]Cl-G/MnO₂ can be found in the reported literature²⁹ and in our previous research.³⁰Fig. 1 shows the synthetic route for the [N₄₄₄₄]Cl-G. The prepared DES was characterized by ¹H NMR, ¹³C NMR, and FT-IR (as also can be seen in our previous research³⁰). The synthesis of [N₄₄₄₄]Cl-G/MnO₂ can be briefly described as follows: 1 mL of [N₄₄₄₄]Cl-G and 4 mL of methanol were put into a 50 mL round-bottom flask, and then MnO₂ nanosheets (100 mg) were added to the above mixed solution. Following ultrasonic reaction for 2 h and then washing with ethanol 2 times, finally the crude [N₄₄₄₄]Cl-G/MnO₂ was obtained. The crude product was centrifuged and then freeze-dried to obtain the final [N₄₄₄₄]Cl-G/MnO₂, which was then dispersed in water and prepared as a stock solution with a concentration of 0.1 mg mL⁻¹ for further use in the study.

Fig. 1 Synthesis of [N₄₄₄₄]Cl-G.

Preparation of the quantitative colorimetric system

First, 150 μL of [N₄₄₄₄]Cl-G/MnO₂ stock solution and 1650 μL of sodium acetate buffer (HAc-NaAc solution, 0.1M) were added into a 2 mL centrifuge tube. Then, 100 μL of L-cysteine with different concentrations was selected as the model analyte and added into the above centrifuge tube, and incubated 1 h at the appropriate temperature. Subsequently, 100 μL of TMB dissolved in ethanol (1 mg mL⁻¹) was added into the above centrifuge tube and continuously incubated for 1 h. Finally, the UV–vis spectrum absorbance of the solution was measured because the [N₄₄₄₄]Cl-G/MnO₂ could directly catalyze the oxidation of TMB (colorless) to oxTMB (blue) with a characteristic spectrum at λ_max = 652 nm.

Results and discussion

Characterization of [N₄₄₄₄]Cl-G/MnO₂

According to the literature³¹ and Fig. 2A(a), two characteristic peaks were found at 641.19 and 653.38 eV that could be assigned to Mn 2p_3/2 and Mn 2p_1/2 of MnO₂, respectively. As shown in Fig. 2A(b), the high-resolution XPS spectrum of N 1s easily confirmed that the [N₄₄₄₄]Cl-G was modified on the MnO₂ nanosheets. In addition, Fig. 2A(c) presents the XPS full survey of [N₄₄₄₄]Cl-G/MnO₂, where distinct peaks of C 1s, N 1s, and O 1s could be clearly observed at binding energies of 284.86, 402.04, and 529.19 eV, respectively. All the XPS spectrum results verified that [N₄₄₄₄]Cl-G/MnO₂ had been successfully synthesized. Fig. 2B shows the FT-IR spectra of MnO₂ and [N₄₄₄₄]Cl-G/MnO₂. As shown by the curve of MnO₂, the characteristic peak at 516 cm⁻¹ referred to ν_Mn–O and ν_Mn–O–Mn.³² After the MnO₂ nanosheet was modified by [N₄₄₄₄]Cl-G, several distinct peaks of [N₄₄₄₄]Cl-G could be clearly observed from the line of [N₄₄₄₄]Cl-G/MnO₂. For example, the broad band at 3350 cm⁻¹ was assigned to the ν_O–H of [N₄₄₄₄]Cl-G. The other characteristic peaks at 2962, 2973, and 2875 cm⁻¹ could be attributed to ν_C–H of CH₃ and CH₂. Comparing the FT-IR spectra of MnO₂ and [N₄₄₄₄]Cl-G/MnO₂, it could be definitively proven that the [N₄₄₄₄]Cl-G had been correctly modified on the surface of MnO₂ nanosheet. TGA analysis was performed to explore the weight percentage of [N₄₄₄₄]Cl-G on the surface of the MnO₂ nanosheet. As shown in Fig. 2C, when the temperature exceeded 250 °C, the [N₄₄₄₄]Cl-G started to decompose, with a weight loss of about 9.84%, which indicated the grafting yield of [N₄₄₄₄]Cl-G modified on the surface of the MnO₂ nanosheet was approximately 9.84 wt%. As can be seen from Fig. 2D, the crystallographic structure of [N₄₄₄₄]Cl-G/MnO₂ was researched by powder XRD. Four remarkable diffraction peaks were observed at 2θ = 12.48°, 18.54°, 36.14°, and 65.54°, which indicated the characteristic XRD pattern of MnO₂, which was consistent with previous studies.^33,34 TEM was performed to analyze the microscopic structure of [N₄₄₄₄]Cl-G/MnO₂. As shown in Fig. 2E and its inset, [N₄₄₄₄]Cl-G/MnO₂ had good dispersibility in water and the average lateral dimension was about 50 nm.

Fig. 2 (A) Mn 2p XPS spectra of [N₄₄₄₄]Cl-G/MnO₂ (a), N 1s (b) and full survey of the [N₄₄₄₄]Cl-G/MnO₂; (B) FT-IR spectra of MnO₂ and [N₄₄₄₄]Cl-G/MnO₂; (C) TGA spectra of MnO₂ and [N₄₄₄₄]Cl-G/MnO₂; (D) XRD spectrum of [N₄₄₄₄]Cl-G/MnO₂; (E) TEM image of [N₄₄₄₄]Cl-G/MnO₂ and its aqueous solution (0.1 mg mL⁻¹).

Optimization of the colorimetric detection platform

The single-factor optimization method was adopted to establish the optimum [N₄₄₄₄]Cl-G/MnO₂-TMB catalytic platform. The incubation pH, temperature, time, and the concentration of [N₄₄₄₄]Cl-G/MnO₂ solution were systematically explored. In this section, all the sample solutions had their UV–vis spectrum absorbance recorded at λ_max = 652 nm measured after the incubation reaction. Also, all the analysis detection conditions were carried out at room temperature without specific instructions. First, a series of HAc–NaAc buffer solutions (0.1 M, pH value from 3.0 to 6.0), incubation temperatures (from 10 °C to 45 °C), and times (from 0 to 120 min) were tested one by one. As shown in Fig. 3A–C, the test results clearly showed that the maximum catalytic ability was obtained at pH 4.0, with a temperature around 25 °C, and incubation time of approximately 60 min. Next, in order to get the best amount of [N₄₄₄₄]Cl-G/MnO₂, a series of concentrations of [N₄₄₄₄]Cl-G/MnO₂ solution (100 μL) were dropped in to a mixture solution containing 100 μL of TMB (1.0 mg mL⁻¹) and 1800 μL of HAc-NaAc solution (pH 4.0, 0.1 M). As seen from Fig. 3D, the UV–vis spectrometer absorbance changed in response to the [N₄₄₄₄]Cl-G/MnO₂ concentrations. The absorption intensity almost kept linearly in a rising tendency when the [N₄₄₄₄]Cl-G/MnO₂ concentration was increased from 0 to 20 μL mL⁻¹, then once the concentration exceeded 20 μL mL⁻¹, the absorption intensity curve began to decline. Therefore, the optimal conditions for the colorimetric detection platform were determined as follows: pH 4.0, room temperature, incubation time of 1 h, and concentration of [N₄₄₄₄]Cl-G/MnO₂ of 20 μL mL⁻¹, respectively.

Fig. 3 Optimization of the colorimetric detection platform: (A) pH, (B) temperature, (C) time, and (D) concentration of [N₄₄₄₄]Cl-G/MnO₂. All the wavelengths of the UV–vis absorbance were recorded at λ_max = 652 nm.

Under the above optimal conditions, this study also systematically investigated the change in the UV–vis absorbance values at λ_max = 652 nm of MnO₂, [N₄₄₄₄]Cl-G/MnO₂, and TMB solution when the three substances were placed alone for 1 h, respectively. As shown in Table 1, the UV–vis absorption values of the three substances showed no significant change under the continuous monitoring time. In particular, the UV–vis absorbance value of TMB solution was always kept under 0.003, almost the same as the background noise value of the instrument, and therefore it could be completely ignored. In comparing the UV–vis absorbance changes in Fig. 3C and Table 1, one could effectively ignore the influence of the changes of the UV–vis absorbance for three types of substances during the incubation time.

Table 1 UV–vis absorbance change of MnO₂, [N₄₄₄₄]Cl-G/MnO₂ and TMB alone when left standing for 1 h, respectively

Sample	Time (min)
	1 (min)	10 (min)	20 (min)	30 (min)	40 (min)	50 (min)	60 (min)
MnO2 alone (20 μL mL^−1)	0.015	0.012	0.013	0.012	0.014	0.012	0.012
[N4444]Cl-G/MnO2 alone (20 μL mL^−1)	0.006	0.008	0.009	0.008	0.008	0.007	0.006
TMB alone (50 μg mL^−1)	0.003	0.001	0.001	0.002	0.003	0.001	0.001

---

Quantitative colorimetric detection

The [N₄₄₄₄]Cl-G/MnO₂-TMB system was applied for the colorimetric quantification of L-cysteine. All the test conditions were carried out under the optimal conditions as follows: pH 4.0, room temperature, incubation time of 1 h, and concentration of [N₄₄₄₄]Cl-G/MnO₂ of 20 μL mL⁻¹, respectively. Then, a series of different concentrations of L-cysteine were successively added to the above conditions for reaction, and the UV–vis absorbance value at λ_max = 652 nm was recorded. As illustrated in Fig. 4A, at the beginning, with the continuous addition of L-cysteine, the value of ΔA (A₀ − A) showed a linear and rapid growth pattern. Then, as the amount of L-cysteine continued to increase, the growth rate of ΔA gradually slowed down. A good relationship between ΔA and L-cysteine concentration could be obtained with the concentration of L-cysteine increasing from 0.125 to 2.00 μg mL⁻¹. The regression equation was determined as y = 0.3361x − 0.0202 (R² = 0.996) and the LOD (S/N = 3) was 5.96 ng mL⁻¹ (as seen from Fig. 4B). Previous literature³⁵ showed that the normal concentration of L-cysteine in healthy serum was 152.8–266.5 nmol mL⁻¹. Hence, through unit conversion, one could get the linear detection interval of L-cysteine concentrations as ranging from 1.03 to 16.5 nmol mL⁻¹. These result showed that this method could be used when the L-cysteine concentration was much lower than the normal concentration of L-cysteine in healthy serum. In addition, Fig. 4C shows the transformation of the UV–vis absorbance spectra.

Fig. 4 (A) Dose–response curve between the L-cysteine concentration and absorbance intensity signal. Inset shows the response color change photographs. (B) Linear plot of the absorbance intensity ratio versus the concentration of L-cysteine under optimum conditions. (C) Corresponding UV–vis absorption spectra of the [N₄₄₄₄]Cl-G/MnO₂-TMB system with various concentrations of L-cysteine.

Moreover, in order to highlight the different catalytic activities of [N₄₄₄₄]Cl-G/MnO₂, and MnO₂ nanosheet, four concentrations of L-cysteine (in the linear detection interval) were selected to react with the [N₄₄₄₄]Cl-G/MnO₂ and MnO₂ nanosheets, respectively. All the detection conditions were optimal, and only the concentration of L-cysteine was changed. The results from the tests are listed in Table 2. It could be clearly seen that the catalytic activity of the MnO₂ nanosheets was slightly higher than that of [N₄₄₄₄]Cl-G/MnO₂, but not too obvious. On the contrary, the ΔA error value (±) and RSD value of [N₄₄₄₄]Cl-G/MnO₂ were much smaller than those of the MnO₂ nanosheets, which indicated that the catalytic activity of [N₄₄₄₄]Cl-G/MnO₂ was more stable and precise after the functional modification of [N₄₄₄₄]Cl-G. This might be due to the large steric hindrance of [N₄₄₄₄]Cl-G, which could effectively prevent the agglomeration of MnO₂ nanosheets and allow [N₄₄₄₄]Cl-G/MnO₂ to have better dispersion.

Table 2 Catalytic activities of MnO₂ and [N₄₄₄₄]Cl-G/MnO₂

L-Cysteine	Sample	ΔA				Average of ΔA	ΔA err(±)	RSD (%)
0.50 (μg mL^−1)	MnO2	Sample number	1	2	3	—	—	—
		ΔA	0.1293	0.1623	0.215	0.1689	0.04339	25.677
	[N4444]Cl-G/MnO2	Sample number	1	2	3	—	—	—
		ΔA	0.1463	0.1443	0.1473	0.1460	0.00153	1.046
1.00 (μg mL^−1)	MnO2	Sample number	1	2	3	—	—	—
		ΔA	0.3283	0.3003	0.4203	0.3496	0.06278	17.956
	[N4444]Cl-G/MnO2	Sample number	1	2	3	—	—	—
		ΔA	0.3183	0.3123	0.3133	0.31463	0.00321	1.022
1.50 (μg mL^−1)	MnO2	Sample number	1	2	3
		ΔA	0.6153	0.5673	0.4413	0.5413	0.08987	16.602
	[N4444]Cl-G/MnO2	Sample number	1	2	3
		ΔA	0.4953	0.4873	0.5013	0.4946	0.00702	1.420
2.00 (μg mL^−1)	MnO2	Sample number	1	2	3	—	—	—
		ΔA	0.6153	0.5673	0.4413	0.6086	0.03940	6.473
	[N4444]Cl-G/MnO2	Sample number	1	2	3	—	—	—
		ΔA	0.5983	0.5953	0.5903	0.5946	0.00404	0.6796

---

Mechanism of L-cysteine detection

Owing to the sulfhydryl group of L-cysteine, [N₄₄₄₄]Cl-G/MnO₂ was reduced to produce Mn²⁺ by L-cysteine.²⁹ Due to the decomposition of [N₄₄₄₄]Cl-G/MnO₂, the conversion of TMB to oxTMB was inhibited, resulting in decreased absorbance in the UV–vis spectrum. A mechanism study was conducted under the optimal detection conditions with 100 μL (50 μg mL⁻¹) L-cysteine. Fig. 5(A) and (C) depict the corresponding TEM images of the [N₄₄₄₄]Cl-G/MnO₂-TMB system for L-cysteine detection before and after incubating for 1 h. Furthermore, in order to exclude the possibility of self-decomposition, a TME image of individual [N₄₄₄₄]Cl-G/MnO₂ left to stand for 1 h was obtained (as seen in Fig. 5B). Comparing the microscopic morphologies of [N₄₄₄₄]Cl-G/MnO₂ in Fig. 5A and B, it could be clearly seen that the micro morphology and size of [N₄₄₄₄]Cl-G/MnO₂ had not changed significantly after 1 h of standing, which could effectively eliminate an impact from the degradation of [N₄₄₄₄]Cl-G/MnO₂. As seen from Fig. 5A and C, it could be found that the [N₄₄₄₄]Cl-G/MnO₂ had been destroyed with no obvious aggregates, which further proved that [N₄₄₄₄]Cl-G/MnO₂ had decomposed.

Fig. 5 Schematic of the L-cysteine detection mechanism. Inset photographs (A) and (C) are the TEM images of the [N₄₄₄₄]Cl-G/MnO₂-TMB system for L-cysteine detection before and after incubating for 1 h. Photograph (B) is the individual [N₄₄₄₄]Cl-G/MnO₂ left standing for 1 h at room temperature. Scale bars of (A), (B), and (C) are 100, 100, and 20 nm, respectively.

Selectivity

In order to evaluate the specificity of the [N₄₄₄₄]Cl-G/MnO₂-TMB system for L-cysteine detection, several interfering substances were tested. The selectivity tests were carried out with a working solution with 150 μL of [N₄₄₄₄]Cl-G/MnO₂, 1650 μL of HAc-NaAc (pH 4.0) and 100 μL of TMB. Next, 100 μL (50 μg mL⁻¹) of common amino acids, including Pro, Lysine, Ala, Asp, Val, Gly, Arg, Phe, Glu, and Ser, were used as interfering substances, respectively. As seen from Fig. 6A, no significant changes in the absorption intensity were observed except for L-cysteine. The absorbance was obviously lower in the presence of L-cysteine in contrast to the other amino acids, including Pro, Lysine, Ala, Asp, Val, Gly, Arg, Phe, Glu, and Ser. These results clearly illustrated that the proposed method could provide good selectivity to detect L-cysteine from common amino acids. Besides, three kinds of amino acids with reducing properties or interfering substances containing a thiol group (such as Hcy, GSH, AA) were tested as possible interfering substances. Here, 100 μL (50 μg mL⁻¹) of Hcy, GSH, and AA were added to the above working solution, respectively. As shown within the red dashed box in Fig. 6, Hcy, GSH, and AA all had a great impact on the [N₄₄₄₄]Cl-G/MnO₂-TMB detection system. This might be because these 3 substances all could decompose the MnO₂ nanosheets into Mn²⁺ ions,^36,37 which was consistent with the detection mechanism of L-cysteine. Apparently, this is a common disadvantage of colorimetric detection methods, and similar results can be seen in the published literature.^38–40 To eliminate the effects of the above three kinds of interfering substances, corresponding measures should be adopted, for example, by adding masking agents⁴¹ or they should be further separated by combining with other precision techniques (such as high-performance liquid chromatography), etc. Therefore, this is also an opportunity and challenge for colorimetric detection analysis methods.

Fig. 6 Absorbance intensity signal and corresponding photographs of the [N₄₄₄₄]Cl-G/MnO₂-TMB system for L-cysteine and common analytes, respectively.

Detection by test strips

Because of the easy storage, low cost, simple operation, and quick test operation of paper-based sensors, test strip recognition was developed to pave a new way for performing L-cysteine analysis. The indicating test paper was simply fabricated as follows: first, the well-dispersed [N₄₄₄₄]Cl-G/MnO₂-TMB solution (1.0 mg mL⁻¹) was prepared and poured into a surface dish. Then a piece of Whatman qualitative filter paper was soaked in the above solution. A few minutes later, the paper was taken out and dried in the air. As shown in Fig. 7, the indicating test paper displayed a pale yellow color under daylight. A capillary tube was used to absorb the TMB solution as ink and then used to write “AB” on the test paper. The ink immediately showed up with a blue color and displayed good stability. Nevertheless, for the L-cysteine test strip study, a mixed solution composed of 1.0 mg mL⁻¹ TMB and 50 μg mL⁻¹ of analyte solution (including Pro, Lysine, Ala, Asp, Val, Gly, Arg, Phe, Glu, and Ser, respectively) was dropped on to the indicating test paper. The color change of the test strip could be observed with the naked eye. One could vividly see that the tested amino acids caused an evident blue color signal on the indicating test paper, except for L-cysteine. In addition, the L-cysteine and various amino acids analyte solutions were also dropped on the test paper as the control groups. As shown by the black dashed line figures in Fig. 7, the color of L-cysteine and various amino acids analyte solution in the test strip without [N₄₄₄₄]Cl-G/MnO₂-TMB were transparent and there was no obvious color change after drying. All the test strip results proved that the [N₄₄₄₄]Cl-G/MnO₂-based test strip had a rapid response, simple operation, and portable features. More importantly, the [N₄₄₄₄]Cl-G/MnO₂-based test strip has potential as a highly promising platform for the convenient detection of L-cysteine.

Fig. 7 [N₄₄₄₄]Cl-G/MnO₂-TMB-based test strips for the visual detection of L-cysteine and various amino acids. Control group is the change from adding L-cysteine and various amino acids when the strip had no [N₄₄₄₄]Cl-G/MnO₂-TMB.

Conclusions

In conclusion, a simple and convenient colorimetric method was developed for the facile sensing of L-cysteine based on [N₄₄₄₄]Cl-G-functionalized MnO₂ nanosheets with TMB. The [N₄₄₄₄]Cl-G selected in this study could effectively prevent the agglomeration of MnO₂ nanosheets through its large steric hindrance effect, thus further enhancing the dispersion and catalytic activity of [N₄₄₄₄]Cl-G/MnO₂ in water. Most importantly, due to the special role of MnO₂ nanosheets, the presented colorimetric method was label-free and did not require hydrogen peroxide. The colorimetric system was then successfully utilized for fabricating a paper-based device for L-cysteine's detection. In summary, the [N₄₄₄₄]Cl-G/MnO₂-TMB platform holds promising potential applications in sensing for the quantitative and qualitative colorimetric detection of L-cysteine.
