Recent years have witnessed a rapid development of organic photovoltaic devices (OPVs). The significant improvement in power conversion efficiency is due to not only the discovery of new π-conjugated frameworks, but also careful substituent engineering to achieve optimal morphology in bulk-heterojunction active layers. Indeed, all aspects of the light-to-electricity conversion in OPVs, such as light absorption, exciton diffusion, and charge-carrier transport, are influenced by the morphological characteristics of active layers. The importance of active-layer morphology on the performance of OPVs has made substituent engineering an increasingly important part of OPV semiconductor design. Herein, we overview recent prominent examples of substituent engineering, focusing on flexible substituents that regulate morphology, rather than the molecular electronic structure, of small-molecule organic semiconductors.
Another critical concern is related to the morphology of active layers.9–13 Herein, the term ‘morphology’ is defined as a wide range of structural factors of active layers including molecular orientation and intermolecular arrangement, domain size, crystallinity, and surface topology. The current state-of-the-art OPVs are primarily designed to possess a solution-processed active layer of the bulk-heterojunction (BHJ) type, which is prepared from a blend solution of p- and n-type compounds to form microscale phase separation with a large heterojunction area.13–15 The morphology of BHJ active layers affects essentially all aspects of the photovoltaic process from light absorption to charge-carrier extraction. For example, the phase-separation characteristics (e.g., size, connectivity, and purity of domains) determine the behavior of excitons and charge carriers. Therefore, optimization of the BHJ morphology is a prerequisite for achieving the highest possible PCE. In relation to this, not only the resultant morphology, but also its evolution is a critical target of study, making the in situ morphology analysis during deposition of BHJ layers increasingly common in the development of OPVs.16–18
The intrinsic morphological properties of SCs can be tuned through modification of substituents on π-conjugated backbones; accordingly, substituent engineering has become a routine in the development of new OPV SCs. Note that actual morphological outcomes are also affected by extrinsic factors such as deposition conditions, annealing conditions, and the nature of the combined material(s) in target BHJ films. Additionally, substituents are, in most cases, also responsible for solution processability of SCs, and the need for solubilization is highly dependent on the structure of π-backbones. Hence, substituents must be optimized on a case-by-case basis, which makes the substituent engineering of OPV SCs quite complex and hard to generalize.
With this background in mind, this Review aims to provide a broad picture of substituent impact by overviewing recent prominent studies. We focus on the studies that directly compared the photovoltaic performance of small-molecule (SM) SCs with different substituents. Readers interested in the substituent impact among polymer SCs are referred to previous reviews and several recent papers on that topic.19–27 Also note that the substituents compared in this Review are limited to those intended mainly for the modulation of morphological behavior of SMSCs rather than the modulation of their electronic characteristics at the molecular level. As such, studies on the ‘halogen impact’ are not covered in this Review, although it affects the BHJ morphology to a certain degree.28–33 The following sections overview substituent impact on different types of SMSMs in the order of (1) phthalocyanines, (2) porphyrins, (3) perylene diimide derivatives, (4) diketopyrrolopyrrole derivatives, (5) dithienosilole, (6) benzodithiophene-based systems, (7) indacenodithiophene-based systems (8) di(thienopyrrolo)benzothiadiazole-based core, and (9) other systems (Fig. 1). Finally, we conclude with prospects regarding the substituent design of SMSCs for OPV applications.
![]() | ||
Fig. 2 Chemical structures of (a) SMSCs 1-1-1-4 and (b) the compounds employed with 1-1-1-4 in OPV active layers. The best PCEs obtained with each phthalocyanine derivative are shown in parentheses (see Table 1 for full OPV parameters). The inset shows relevant substitution positions of the phthalocyanine core. |
Entry | Active layer | Solvent | Additional conditions | V OC (V) | J SC (mA cm−2) | FFb (%) | PCEb (%) | Ref. |
---|---|---|---|---|---|---|---|---|
a Structures of active-layer compounds are shown in Fig. 2. CF: chloroform, CB: chlorobenzene, DIO: 1,8-diiodooctane. b Data of the best-performing devices. | ||||||||
1-1 |
1-1a![]() ![]() ![]() ![]() |
CF | 0.2 vol% DIO | 0.77 | 9.5 | 48 | 3.5 | 37 |
1-2 |
1-1b![]() ![]() ![]() ![]() |
CF | 0.2 vol% DIO | 0.73 | 9.6 | 53 | 3.7 | 37 |
1-3 |
1-1c![]() ![]() ![]() ![]() |
CF | 0.2 vol% DIO | 0.69 | 7.8 | 42 | 2.6 | 37 |
1-4 |
1-1d![]() ![]() ![]() ![]() |
CF | 0.2 vol% DIO | 0.67 | 4.1 | 35 | 1.0 | 37 |
1-5 |
1-1e![]() ![]() ![]() ![]() |
CF | 0.2 vol% DIO | 0.65 | 1.4 | 28 | 0.3 | 37 |
1-6 | P3HT![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() |
CB | 145 °C, 10 min | 0.49 | 7.9 | 28 | 1.1 | 39 |
1-7 | P3HT![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() |
CB | 145 °C, 10 min | 0.58 | 10.5 | 39 | 2.4 | 39 |
1-8 | P3HT![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() |
CB | 145 °C, 10 min | 0.60 | 10.7 | 46 | 3.0 | 39 |
1-9 | PTB7![]() ![]() ![]() ![]() |
CF | 100 °C, 10 min | 1.00 | 0.60 | 45 | 0.27 | 40 |
1-10 | PTB7![]() ![]() ![]() ![]() |
CF | 100 °C, 10 min | 1.03 | 6.18 | 42 | 2.67 | 40 |
1-11 | PM6![]() ![]() ![]() ![]() |
CB | 0.5% DIO; 100 °C, 10 min | 0.84 | 9.69 | 60 | 4.92 | 41 |
1-12 | PM6![]() ![]() ![]() ![]() |
CB | 0.5% DIO; 100 °C, 10 min | 0.96 | 7.44 | 47 | 3.37 | 41 |
1-13 | PM6![]() ![]() ![]() ![]() |
CB | 0.5% DIO; 100 °C, 10 min | 0.82 | 7.19 | 53 | 3.15 | 41 |
1-14 | PM6![]() ![]() ![]() ![]() |
CB | 0.5% DIO; 100 °C, 10 min | 0.89 | 6.4 | 46 | 2.67 | 41 |
In the following year, the same group reported an extension of this work to a ternary system in which a mixture of 1-1a and 1-1b was used as the p-type material in BHJ OPVs with phenyl-C61-butylic acid methyl ester (PC61BM) as the n-type material (data not shown in Table 1).38 It turned out that the 25:
75 mol% mixture of 1-1a and 1-1b afforded a PCE of 3.8%, working better than pure 1-1a (PCE = 1.4%) or 1-1b (3.1%). The improved performance of the mixture was attributed to the decreased crystallite size and balanced mobilities between holes and electrons in the BHJ active layer.
Huang et al. reported in 2019 a systematic evaluation of subphthalocyanine triimides with different groups on the imide nitrogen and central boron atoms.41 They directly compared compounds 1-4a–d as n-type materials in BHJ OPVs containing PM6 (PBDBT-2F or PBDB-TF) as the p-type material (entries 1-11–1-14). Among these four compounds, the B-fluoro/N-butyl derivative 1-4a worked best yielding a 4.92% PCE. When its three butyl groups were all replaced with significantly larger 1-pentylhexyl groups (1-4b), PCE decreased to 3.37% mainly due to the large drop in JSC from 9.69 to 7.44 mA cm−2. The same tendency was observed also for chlorides 1-4c and 1-4d; namely, a higher JSC and PCE were obtained with the butyl derivative (7.19 mA cm−2 and 3.15%) than the 2-pentylhexyl derivative (6.4 mA cm−2 and 2.67%). In contrast to the cases of 1-1 and 1-3 series, the alkyl-size dependency in the 1-4 series exists as an outlier because the bulkier 1-pentylhexyl group afforded higher electron mobilities (μe) and better hole/electron mobility ratios (μe/μe) (μe = 1.39 × 10−5, 5.07 × 10−5, 7.76 × 10−6, 4.70 × 10−5 cm2 V−1 s−1 and μe/μe = 13.38, 10.10, 19.72, 9.91 for 1-4a–d, respectively), which usually lead to higher JSC and FF, thus higher PCE.
As exemplified by the 1-3 and 1-4 series, axial groups on the central atom of (sub)phthalocyanine complexes can effectively attenuate the excessive aggregation of molecules, so that relatively small substituents may suffice the need for achieving adequate solution processability and miscibility in BHJ layers. Such molecular design is unique to this class of compounds; on the other hand, covalent conjugation with other π-frameworks is scarce for phthalocyanines largely due to their unfeasibility to have meso substituents. The latter is in contrast quite common with porphyrins as described in the next section.
![]() | ||

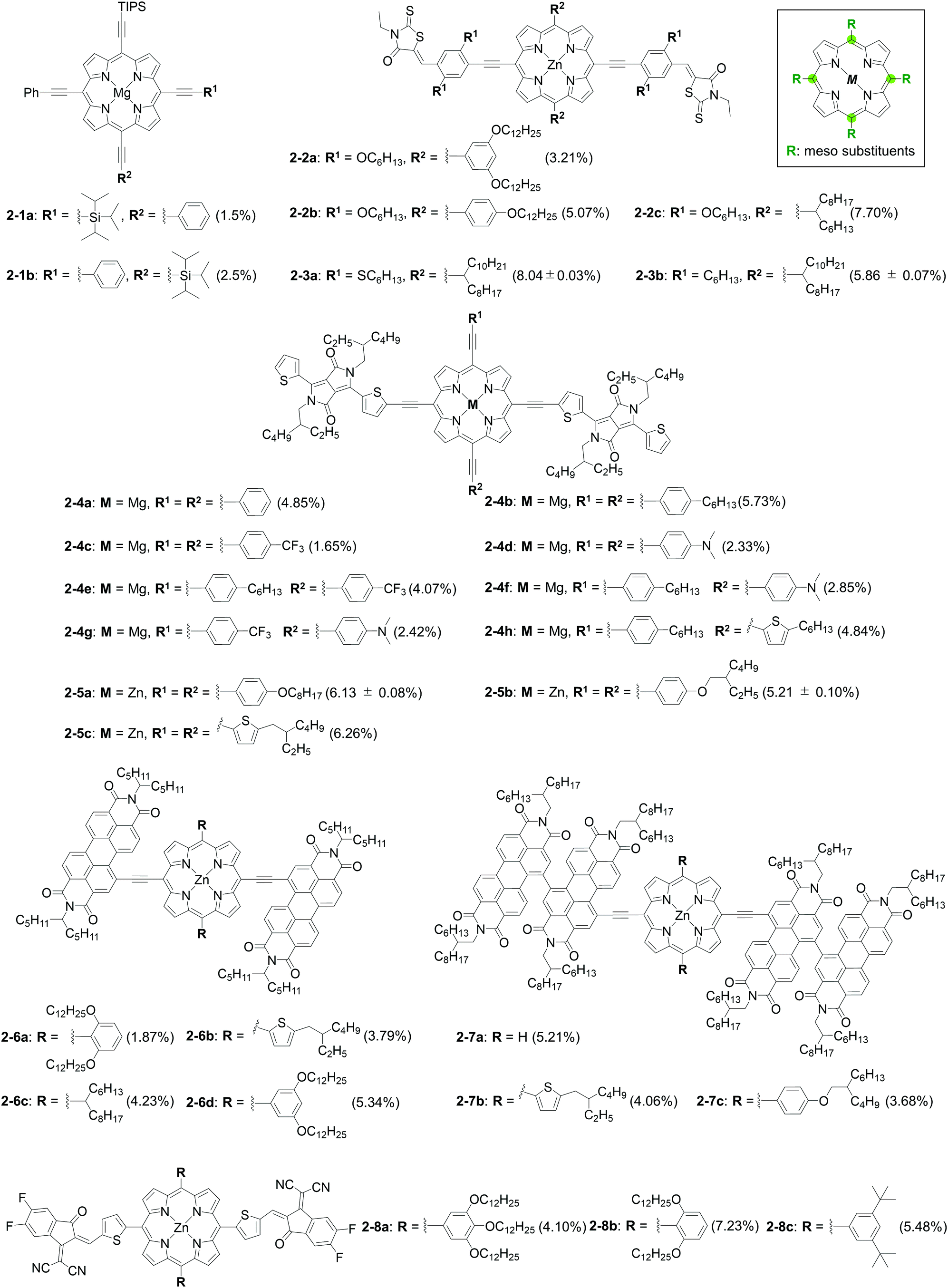

Fig. 3 Chemical structures of SMSCs 2-1-2-8. The best PCEs obtained with each compound are shown in parentheses (see Table 2 for full OPV parameters). The inset shows relevant substitution positions of the porphyrin core. |
![]() | ||
Fig. 4 Chemical structures of the compounds employed with 2-1-2-7 in OPV active layers. PC61BM and PC71BM are shown in Fig. 2. |
Entry | Active layer | Solvent | Additional conditions | V OC (V) | J SC (mA cm−2) | FFb (%) | PCEb (%) | Ref. |
---|---|---|---|---|---|---|---|---|
a Structures of the active-layer compounds are shown in Fig. 3 and 4. CB: chlorobenzene, CF: chloroform, Py: pyridine, THF: tetrahydrofuran, DIO: 1,8-diiodooctane. b Data of the best-performing devices when available; otherwise, average of multiple devices. | ||||||||
2-1 |
2-1a![]() ![]() ![]() ![]() |
CB | — | 0.83 | 4.8 | 36 | 1.4 | 45 |
2-2 |
2-1a![]() ![]() ![]() ![]() |
CB | — | 0.83 | 4.5 | 39 | 1.5 | 45 |
2-3 |
2-1a![]() ![]() ![]() ![]() |
CB | — | 0.85 | 3.9 | 34 | 1.2 | 45 |
2-4 |
2-1b![]() ![]() ![]() ![]() |
CB | — | 0.89 | 3.2 | 36 | 1.0 | 45 |
2-5 |
2-1b![]() ![]() ![]() ![]() |
CB | — | 0.89 | 4.5 | 42 | 1.7 | 45 |
2-6 |
2-1b![]() ![]() ![]() ![]() |
CB | — | 0.92 | 6.4 | 41 | 2.5 | 45 |
2-7 |
2-1b![]() ![]() ![]() ![]() |
CB | — | 0.91 | 5.8 | 40 | 2.1 | 45 |
2-8 |
2-2a/PC71BM (1![]() ![]() |
CB | 1% Py; 90 °C, 10 min | 0.90 | 7.20 | 48.12 | 3.21 | 46 |
2-9 |
2-2b/PC71BM (1![]() ![]() |
CB | 1% Py; 90 °C, 10 min | 0.90 | 10.14 | 55.60 | 5.07 | 46 |
2-10 |
2-2c/PC71BM (1![]() ![]() |
CB | 1% Py; 90 °C, 5 min | 0.91 | 13.32 | 63.60 | 7.70 | 46 |
2-11 |
2-3a![]() ![]() ![]() ![]() |
CB | 2 vol% Py; 100 °C, 5 min; THF vapour 20 s | 0.91 ± 0.01 | 13.19 ± 0.04 | 66.70 ± 0.01 | 8.04 ± 0.03 | 47 |
2-12 |
2-3b![]() ![]() ![]() ![]() |
CB | 2 vol% Py; 100 °C, 5 min; THF vapour 20 s | 0.87 ± 0.01 | 11.53 ± 0.07 | 58.50 ± 0.03 | 5.86 ± 0.07 | 47 |
2-13 |
2-4a![]() ![]() ![]() ![]() |
CB | 1% Py, 20 mg mL−1 | 0.74 | 13.27 | 49 | 4.85 | 48 |
2-14 |
2-4b![]() ![]() ![]() ![]() |
CB | 1% Py, 20 mg mL−1 | 0.70 | 12.04 | 57 | 4.83 | 48 |
2-15 |
2-4b![]() ![]() ![]() ![]() |
CB | 1% Py, 30 mg mL−1 | 0.69 | 14.80 | 56 | 5.73 | 48 |
2-16 |
2-4c![]() ![]() ![]() ![]() |
CB | 1% Py, 20 mg mL−1 | 0.79 | 4.61 | 45 | 1.65 | 48 |
2-17 |
2-4d![]() ![]() ![]() ![]() |
CB | 1% Py, 20 mg mL−1 | 0.52 | 9.19 | 48 | 2.33 | 48 |
2-18 |
2-4e![]() ![]() ![]() ![]() |
CB | 1% Py; THF vapour 20 s | 0.73 | 12.01 | 47 | 4.07 | 49 |
2-19 |
2-4f![]() ![]() ![]() ![]() |
CB | — | 0.60 | 12.26 | 39 | 2.85 | 49 |
2-20 |
2-4g![]() ![]() ![]() ![]() |
CB | 100 °C, 10 min | 0.63 | 10.02 | 38 | 2.42 | 49 |
2-21 |
2-4h![]() ![]() ![]() ![]() |
CB | 80 °C, 10 min | 0.69 | 14.86 | 47 | 4.84 | 49 |
2-22 |
2-5a![]() ![]() ![]() ![]() |
CF | 0.8 vol% DIO, 0.5 vol% Py | 0.71 ± 0.01 | 15.46 ± 0.19 | 56 ± 0 | 6.13 ± 0.08 | 50 |
2-23 |
2-5b![]() ![]() ![]() ![]() |
CF | 0.8 vol% DIO, 0.5 vol% Py | 0.71 ± 0.01 | 14.03 ± 0.34 | 53 ± 2 | 5.21 ± 0.10 | 50 |
2-24 |
2-5c![]() ![]() ![]() ![]() |
CF | 0.8 vol% DIO, 0.5 vol% Py | 0.70 ± 0.01 | 11.46 ± 0.01 | 51 ± 1 | 4.08 ± 0.02 | 50 |
2-25 |
2-5a![]() ![]() ![]() ![]() |
CF | 0.8 vol% DIO, 0.5 vol% Py | 0.72 | 10.56 | 53 | 4.05 | 50 |
2-26 |
2-5b![]() ![]() ![]() ![]() |
CF | 0.8 vol% DIO, 0.5 vol% Py | 0.70 | 8.64 | 50 | 2.98 | 50 |
2-27 |
2-5c![]() ![]() ![]() ![]() |
CF | 0.8 vol% DIO, 0.5 vol% Py | 0.69 | 14.54 | 62 | 6.26 | 50 |
2-28 | PBDB-T![]() ![]() ![]() ![]() |
CB | 10 vol% Py | 0.88 ± 0.01 | 4.10 ± 0.01 | 49 ± 1 | 1.87 (Av. 1.78) | 51 |
2-29 | PBDB-T![]() ![]() ![]() ![]() |
CB | 10 vol% Py | 0.79 ± 0.00 | 9.56 ± 0.12 | 50 ± 2 | 3.79 (Av. 3.75) | 51 |
2-30 | PBDB-T![]() ![]() ![]() ![]() |
CB | 10 vol% Py | 0.80 ± 0.01 | 9.48 ± 0.06 | 53 ± 2 | 4.23 (Av. 3.99) | 51 |
2-31 | PBDB-T![]() ![]() ![]() ![]() |
CB | 10 vol% Py | 0.81 ± 0.01 | 11.02 ± 0.64 | 58 ± 1 | 5.34 (Av. 5.07) | 51 |
2-32 | PTB7-TH![]() ![]() ![]() ![]() |
CB | 0.5% Py | 0.66 | 13.54 | 58.29 | 5.21 | 52 |
2-33 | PTB7-TH![]() ![]() ![]() ![]() |
CB | 0.5% Py | 0.67 | 10.55 | 57.15 | 4.06 | 52 |
2-34 | PTB7-TH![]() ![]() ![]() ![]() |
CB | 0.5% Py | 0.68 | 9.61 | 56.20 | 3.68 | 52 |
2-35 | PTB7-Th![]() ![]() ![]() ![]() |
CB | 0.4 vol% Py; CF vapour, 5 min | 0.78 | 9.88 | 53.2 | 4.10 | 53 |
2-36 | PTB7-Th![]() ![]() ![]() ![]() |
CB | 0.4 vol% Py; CF vapour, 5 min | 0.80 | 13.94 | 64.8 | 7.23 | 53 |
2-37 | PTB7-Th![]() ![]() ![]() ![]() |
CB | 0.4 vol% Py; CF vapour, 5 min | 0.77 | 12.55 | 56.7 | 5.48 | 53 |
So far, the most common molecular design of porphyrin-based SMSCs for OPVs is the trans-type fourfold meso substitution. The π-conjugation is extended mainly along one axis to tune the frontier-orbital energy levels and to achieve a wide light-absorption range, while the other two meso positions are typically substituted with bulky or flexible groups to control the molecular arrangement in active layers. According to this design, Wang and co-workers synthesized three acceptor–donor–acceptor (A–D–A) conjugates 2-2a–c with Zn(II) porphyrin and 3-ethylrhodanine as the D and A units, respectively.46 The three conjugates were different in the 5,15-substituents of the porphyrin core: 3,5-di(dodecyloxyl)phenyl for 2-2a, 4-dodecyloxylphenyl for 2-2b, and 1-hexylnonyl for 2-2c. Among these compounds, 2-2c performed the best as a p-type material in BHJ OPVs with the n-type PC71BM, affording a PCE of 5.20% at best, while 2-2a and 2-2b gave lower PCEs of 3.21% and 5.07%, respectively, under the same conditions (entries 2-8–2-10). Note that the device with 2-2c was further improved to show 7.70% PCE after optimizing the p:n-ratio and annealing conditions. The authors suggested that the alkyl substituents of 2-2c are superior to the perpendicular aromatic substituents of 2-2a and 2-2b in terms of providing adequate miscibility with PC71BM and allowing effective intermolecular π–π-stacking. This suggestion was supported by the lower surface roughness and higher hole mobility for the 2-2c:PC71BM blend than 2-2a:PC71BM and 2-2b:PC71BM.
In 2018, the same group reported two modified derivatives of the A–D–A system comprising Zn(II) porphyrin and 3-ethylrhodanine (2-3a and 2-3b).47 The structural difference of these derivatives is only in the substituents on the phenylene moieties: hexylthio for 2-3a and hexyl for 2-3b. However, the difference in performance as p-type materials in OPVs was profound: while 2-3a afforded an excellent PCE of 8.04%, 2-3b gave only a 5.86% PCE (entries 2-11 and 2-12). The superiority of 2-3a was attributed to its ability to self-assemble into J-aggregates through intermolecular S⋯S interactions. In contrast, compound 2-3a without sulphur atoms did not show preferential formation of a specific self-assembly. It is worth pointing out that such relatively weak interactions can induce a drastic change in the arrangement of large π-conjugated frameworks in BHJ blended films.
Substituent impact for another type of porphyrin-based A–D–A system was reported by Ogumi et al. in 2017 (entries 2-13–2-17).48 They replaced the two triisopropylsilyl (TIPS) groups of tetraethynylporphyrin 2-1b with dithienyldiketopyrrolopyrrole (DPP) in order to enhance the light absorption capability, and introduced three different substituents (hexylphenyl, trifluoromethylphenyl, or dimethylaminophenyl) at the 4-positions of the two phenyl groups in order to modulate the morphological behaviour and frontier-orbital energies. Among the four derivatives 2-4a–d (including one without substituents on the phenyl rings), the 4-hexylphenyl derivative 2-4b worked best as a p-type material in BHJ OPVs with PC61BM, affording a reasonably high PCE of 4.83%. Compound 2-4b was found to afford a higher FF of 57% as compared to the non-substituted derivative 2-4a (FF = 49%), probably due to a higher degree of phase separation and thus more efficient charge-carrier transport (entries 2-13 and 2-14). Indeed, this advantage allowed 2-4b to afford an improved PCE of 5.73% in a thicker active layer deposited from a 30 mg mL−1 solution instead of the original 20 mg mL−1 solution (entry 2-15). The electron-withdrawing trifluoromethyl groups of 2-4c and the electron-donating dimethylamino groups of 2-4d affected the VOC as expected from the corresponding changes in the energy level of the highest-occupied MOs (HOMOs); however, a positive impact on the overall photovoltaic process was not observed with these derivatives (PCEs were 1.65% and 2.33% with 2-4c and 2-4d, respectively, when the active layers were deposited from a 20 mg mL−1 solution; entries 2-16 and 2-17).
Soon after, the same group expanded the scope of structural screening of the Mg(II) porphyrin–DPP conjugate system to include asymmetrically substituted molecules 2-4e–h (entries 2-18–2-21).49 This study confirmed that asymmetric substitution was beneficial not only for fine-tuning of the molecular electronic structure, but also for improving solubility. The latter aspect is rather important because large π-conjugated frameworks are intrinsically low in solubility and thus require extensive decollation with large, flexible, and insulating solubilizing substituents to be compatible with solution processes. However, such solubilizing groups tend to pose negative effects in terms of forming intermolecular contacts necessary for efficient carrier transport. Therefore, asymmetric substitution is an attractive approach to improve solubility without relying too much on an insulating solubilizing substituent. Among the four asymmetric derivatives, the 4-hexylphenyl/4-hexylthienyl substituted 2-4h afforded the highest PCE of 4.84%. Indeed, this compound was found to be the most soluble in the 2-4 family, enabling the deposition of a thick active layer of 215 nm which afforded a 4.06% PCE.
Hadmojo et al. explored the substituent impact for an A–D–A system comprising Zn(II) porphyrin, instead of Mg(II) porphyrin of the 2-4 series mentioned above, and DPP moieties.50 The 5,15-carbons of the central Zn(II) porphyrin were substituted with 4-octyloxyphenyl, 4-(2-ethylhexyloxy)phenyl, or 5-(2-ethylhexyloxy)-2-thienyl, and the resultant compounds 2-5a–c were evaluated as p-type materials in BHJ OPVs with a non-fullerene acceptor IDIC. Compounds 2-5a–c are very similar in frontier-orbital energy levels to afford essentially the same VOCs of around 0.70 V (entries 2-22–2-24). On the other hand, the JSC and FF largely depend on substituents: both parameters decreased in the order of 2-5a > 2-5b > 2-5c. Accordingly, PCEs also decreased in the order of 2-5a (6.13%) > 2-5b (5.21%) > 2-5c (4.08%). Based on the XRD data, the authors reasoned that the higher performance of 2-5a could be attributed to the higher tendency of molecules to adopt a face-on orientation in the 2-5a:IDIC layer. Interestingly, when PC71BM was employed as the n-type material, a better PCE was obtained with compound 2-5c (6.26%) than 2-5a (4.05%) and 2-5b (2.98%) (entries 2-25–2-27). This result clearly demonstrates that the molecular design of organic semiconductors for BHJ layers must consider the structure of the partner compound as well.
In addition, Tsai et al. reported three Zn(II) porphyrin-based A–D–A conjugates having 2-(5,6-difluoro-3-oxo-2,3-dihydro-1H-inden-1-ylidene)-malononitrile as the electron-accepting end group.53 Similar to the above examples, the three conjugates 2-8a–c are different from each other only in the structure of meso substituents of the central porphyrin unit; namely, 3,4,5-tridodecyloxyphenyl for 2-8a, 2,6-didodecyloxyphenyl for 2-8b, and 3,5-di-tert-butylphenyl for 2-8c. These compounds were evaluated as n-type materials in BHJ OPVs with a p-type polymer PTB7-Th. Derivative 2-8b was determined to be the best n-type material among the three, affording a PCE of 7.23%, while the corresponding values were 4.10% and 5.48% with 2-8a and 2-8c, respectively (entries 2-35–2-37). Superiority in the performance of the device with 2-8b originated from its higher JSC and FF than those of the other two derivatives, and the authors ascribed this to a slightly shorter π–π stacking distance (4.06 Å) as compared to those of the other systems (4.10 and 4.15 Å for PTB7-Th:2-8a and PTB7-Th:2-8c) as determined by the out-of-plane profiles of two-dimensional grazing-incident wide-angle X-ray scattering (2D-GIWAXS) data.
It is notable that all the porphyrin derivatives mentioned in this section were constructed by taking full advantage of meso substitution of the porphyrin core. These meso substituents were introduced either through or not through an acetylene linker depending on the need for coplanarity between the porphyrin framework and substituents. This aspect largely affects the molecular packing of the resultant compounds, and accordingly the optimal structure of peripheral substituents.
![]() | ||
Fig. 5 Chemical structures of SMSCs 3-1-3-8. The best PCEs obtained with each compound are shown in parentheses (see Table 3 for full OPV parameters). The inset shows relevant substitution positions of the PDI unit. |
![]() | ||
Fig. 6 Chemical structures of the compounds employed with 3-1-3-8 in OPV active layers. P3HT and PTB-7Th are shown in Fig. 2 and 4, respectively. |
Entry | Active layer | Solvent | Additional conditions | V OC (V) | J SC (mA cm−2) | FFb (%) | PCEb (%) | Ref. |
---|---|---|---|---|---|---|---|---|
a Structures of active-layer compounds are shown in Fig. 5 and 6. CF: chloroform, CB: chlorobenzene, o-DCB: o-dichlorobenzene, 2Me-THF: 2-methyltetrahydrofuran; 1,2,4-TMB: 1,2,4-trimethylbenzene, DIO: 1,8-diiodooctane; CN: chloronaphthalene. b Data of the best-performing devices when available; otherwise, average of multiple devices. | ||||||||
3-1 | BP/3-1a (50 nm/20 nm) | CF![]() ![]() ![]() ![]() |
180 °C, 20 min | 0.62 | 5.3 | 61 | 2.0 | 62 |
3-2 | BP/3-1b (50 nm/20 nm) | CF![]() ![]() ![]() ![]() |
180 °C, 20 min | 0.74 | 2.2 | 21 | 0.4 | 62 |
3-3 | BP/3-1c (50 nm/20 nm) | CF![]() ![]() ![]() ![]() |
180 °C, 20 min | 0.64 | 0.2 | 16 | 0.02 | 62 |
3-4 | BP/3-1d (50 nm/20 nm) | CF![]() ![]() ![]() ![]() |
180 °C, 20 min | 0.64 | 4.7 | 58 | 1.7 | 62 |
3-5 | F-DTS![]() ![]() ![]() ![]() |
CB | 0.4 vol% DIO | 0.75 | 8.09 | 53 | 3.21 | 63 |
3-6 | F-DTS![]() ![]() ![]() ![]() |
CB | 0.4 vol% DIO | 0.75 | 5.88 | 45 | 1.98 | 63 |
3-7 | F-DTS![]() ![]() ![]() ![]() |
CB | 0.4 vol% DIO | 0.00 | 0.42 | — | — | 63 |
3-8 | F-DTS![]() ![]() ![]() ![]() |
CB | 0.4 vol% DIO | 0.32 | 1.52 | 38 | 0.19 | 63 |
3-9 | P3HT![]() ![]() ![]() ![]() |
o-DCB | 3 wt% CN | 0.43 | 2.01 | 47.2 | 0.41 | 65 |
3-10 | P3HT![]() ![]() ![]() ![]() |
o-DCB | 8 wt% CN | 0.59 | 2.89 | 44.8 | 0.76 | 65 |
3-11 | P3HT![]() ![]() ![]() ![]() |
o-DCB | 1.75 wt% CN | 0.67 | 3.83 | 60.0 | 1.54 | 65 |
3-12 | PBDTTT-C-T![]() ![]() ![]() ![]() |
o-DCB | 3 vol% DIO | 0.67 | 6.68 | 42.94 | 1.92 | 66 |
3-13 | PBDTTT-C-T![]() ![]() ![]() ![]() |
o-DCB | 3 vol% DIO | 0.72 | 10.36 | 42.08 | 3.11 | 66 |
3-14 | PBDTTT-C-T![]() ![]() ![]() ![]() |
o-DCB | 3 vol% DIO | 0.72 | 8.86 | 39.75 | 2.54 | 66 |
3-15 | PBDTTT-C-T![]() ![]() ![]() ![]() |
o-DCB | 1.5 vol% CN + 1.5 vol% DIO | 0.73 | 10.58 | 46.80 | 3.63 | 66 |
3-16 | PTB7-Th![]() ![]() ![]() ![]() |
2Me-THF | — | 0.911 ± 0.003 | 11.10 ± 0.20 | 42 ± 3 | 4.81 (4.27 ± 0.28) | 67 |
3-17 | PTB7-Th![]() ![]() ![]() ![]() |
2Me-THF | — | 0.949 ± 0.003 | 11.41 ± 0.65 | 43 ± 2 | 4.81 (4.64 ± 0.10) | 67 |
3-18 | PTB7-Th![]() ![]() ![]() ![]() |
2Me-THF | — | 0.949 ± 0.008 | 8.99 ± 0.57 | 35 ± 1 | 3.69 (2.99 ± 0.23) | 67 |
3-19 | PTB7-Th![]() ![]() ![]() ![]() |
2Me-THF | — | 0.939 ± 0.009 | 12.50 ± 0.64 | 41 ± 3 | 5.21 (4.77 ± 0.24) | 67 |
3-20 | PTB7-Th![]() ![]() ![]() ![]() |
2Me-THF | — | 0.964 ± 0.001 | 11.41 ± 0.45 | 42 ± 3 | 4.89 (4.62 ± 0.13) | 67 |
3-21 | PTB7-Th![]() ![]() ![]() ![]() |
2Me-THF | — | 0.957 ± 0.004 | 12.08 ± 0.86 | 45 ± 2 | 5.55 (5.16 ± 0.14) | 67 |
3-22 | PTB7-Th![]() ![]() ![]() ![]() |
2Me-THF | — | 0.910 ± 0.005 | 7.46 ± 0.32 | 41 ± 2 | 3.37 (2.80 ± 0.27) | 67 |
3-23 | PTB7-Th![]() ![]() ![]() ![]() |
2Me-THF | — | 0.956 ± 0.005 | 12.41 ± 0.74 | 45 ± 2 | 5.47 (5.33 ± 0.10) | 67 |
3-24 | PTB7-Th![]() ![]() ![]() ![]() |
2Me-THF | 0.25 vol% DIO | 0.955 ± 0.003 | 15.36 ± 0.37 | 43 ± 1 | 6.58 (6.24 ± 0.19) | 67 |
3-25 | TTFQx-T1![]() ![]() ![]() ![]() |
2Me-THF | 180 °C, 10 min | 1.034 | 12.47 | 48.8 | 6.29 | 68 |
3-26 | PTB7-Th![]() ![]() ![]() ![]() |
CB | — | 0.78 | 8.40 | 45.2 | 2.88 | 69 |
3-27 | PTB7-Th![]() ![]() ![]() ![]() |
CB | — | 0.79 | 7.73 | 53.1 | 3.25 | 69 |
3-28 | PTB7-Th![]() ![]() ![]() ![]() |
CB | — | 0.80 | 9.94 | 46.4 | 3.68 | 69 |
3-29 | P3TEA![]() ![]() ![]() ![]() |
1,2,4-TMB | 2.5% DIO | 1.02 ± 0.00 | 10.27 ± 0.37 | 47 ± 2 | 5.16 (4.92 ± 0.11) | 70 |
3-30 | P3TEA![]() ![]() ![]() ![]() |
1,2,4-TMB | 2.5% DIO | 1.02 ± 0.00 | 9.20 ± 0.14 | 47 ± 3 | 4.68 (4.40 ± 0.26) | 70 |
3-31 | PDBT-T1![]() ![]() ![]() ![]() |
o-DCB | 0.25% DIO; 100 °C, 5 min | 0.963 ± 0.005 | 12.22 ± 0.19 | 67.8 ± 0.7 | 8.03 (7.97 ± 0.05) | 74 |
3-32 | PDBT-T1![]() ![]() ![]() ![]() |
o-DCB | 0.25% DIO; 100 °C, 5 min | 0.968 ± 0.004 | 12.17 ± 0.25 | 68.1 ± 1.4 | 8.15 (8.02 ± 0.14) | 74 |
3-33 | PDBT-T1![]() ![]() ![]() ![]() |
o-DCB | 0.25% DIO; 100 °C, 5 min | 0.976 ± 0.006 | 12.20 ± 0.20 | 66.7 ± 1.1 | 8.05 (7.94 ± 0.10) | 74 |
3-34 | PDBT-T1![]() ![]() ![]() ![]() |
o-DCB | 0.25% DIO; 100 °C, 5 min | 0.981 ± 0.003 | 12.58 ± 0.19 | 69.2 ± 0.3 | 8.64 (8.54 ± 0.09) | 74 |
Sun et al. reported the photovoltaic performance of PDI derivatives 3-2a–d which were different from each other in the structure of alkyl substituents on the imide nitrogens.63 In the comparative evaluation of these PDIs, the N,N′-di(3-pentyl) derivative 3-2a yielded the highest PCE of 3.21% when used as the n-type material in BHJ OPVs with a p-type SMSC F-DTS. Derivatives 3-2b and 3-2d, with 4-heptyl and 8-pentadecyl groups, respectively, afforded considerably lower PCEs of 1.98% and 0.19%, while the 2-ethylhexyl substituted derivative 3-2c gave only negligible PCEs (entries 3-5–3-8). Thus, substitution with more compact alkyl groups resulted in higher performance in BHJ OPVs. This observation is consistent with the above-mentioned case of PHJ OPVs with 3-1a–d.
PDI dimers can be constructed by linking monomers directly at bay positions. This way, the twist angle between PDI units becomes much larger as compared to that of 3-3a–c with a thienyl linker. Accordingly, crystallization or aggregation in BHJ films can be further attenuated. Jiang et al. studied the substituent impact on the morphological behaviour and photovoltaic performance of such a highly twisted dimeric system. Specifically, they compared three PDI dimers 3-4a–c having different alkyl substituents on the imide nitrogens.66 In BHJ OPVs with PBDTTT-C-T as the p-type material, the N,N′-di(6-undecyl) derivative 3-4b afforded a higher PCE of 3.11% than the di(4-heptyl) derivative 3-4a (PCE = 1.92%) and di(8-pentadecyl) derivative 3-4c (2.54%) when deposited under the same conditions (entries 3-12–3-14). PCE in the PBDTTT-C-T:3-4b system was further improved to 3.63% by optimizing the deposition conditions (entry 3-15). These results show that despite twist-shaped dimers’ low crystallinity, peripheral alkyl groups and deposition conditions are critical.
Dayneko et al. synthesized a series of bridge-less PDI dimers 3-5a–h which were N-annulated at the bay positions of PDI units and decollated with alkyl groups at the pyrrolic N-atoms.67 Their performance as n-type materials was evaluated with PTB7-Th as the p-type material (entries 3-16–3-23). The observed photovoltaic parameters did not show an apparent trend regarding the structure of alkyl groups; nonetheless, the superiority of hexyl and 2-ethylhexyl derivatives was noticeable. Indeed, the 2-ethylhexyl derivative 3-5h afforded a 6.58% PCE after optimization of the p:n ratio and solvent additive in the cast solution (entry 3-24). In addition, the PCE with hexyl derivative 3-5f was improved to 6.29% when a medium band-gap polymer PPTFQx-T1 was used as the p-type material (entry 3-25).68
Twisted PDI dimers can also be constructed in the form of N–N-linked benzo[ghi]perylenetriimides. Chen et al. investigated the substituent effect among this class of dimers by comparing three derivatives 3-6a–c with branched alkyl chains at the imide nitrogen atoms.69 Their performance as n-type materials in BHJ OPVs was studied using PTB7-Th as the p-type material, wherein derivative 3-6c with the longest alkyl chains was found to give the highest PCE of 3.68% (entries 3-26–3-28). The authors attributed the better performance of 3-6c to the formation of finer phase separation in the BHJ active layers compared to 3-6a and 3-6b.
Wang et al. compared two N-alkylated PDI tetramers 3-7a and 3-7b as n-type materials in OPVs.70 These tetramers have pyrazino[2,3-g]quinoxaline (PQ) as the core unit, to which four PDI units are linked at the bay positions through phenylene linkers. The BHJ devices with P3TEA as the p-type material showed PCEs as high as 5.16% when the N-6-undecyl derivative 3-7a was used as the n-type material, while the PCE was the highest at 4.68% with the N-7-tridecyl derivative 3-7b (entries 3-29 and 3-30). Namely, in contrast to the cases of dimers 3-6a–c and trimers 3-8a–d (see below), substitution with a shorter alkyl chain resulted in higher photovoltaic performance for this PDI tetramer system. Based on 2D-GIWAXS and AFM analyses, the authors suggested that the higher crystallinity and smaller π-stack distance in the P3TEA:3-7a film would have contributed to the higher JSC, thereby resulting in the higher PCE as compared to P3TEA:3-7b.
The examples in this section highlight the fact that PDI often need both twisted molecular conformation and branched alkyl substituents, reflecting their strong tendency to aggregate. Indeed, this class of chromophores generally requires longer alkyl groups to form BHJ active layers of optimal morphology as compared to the cases of phthalocyanine and porphyrin mentioned earlier.
![]() | ||
Fig. 7 Chemical structures of SMSCs 4-1-4-7. The best PCEs obtained with each compound are shown in parentheses (see Table 4 for full OPV parameters). The inset shows relevant substitution positions of the DPP unit. |
Entry | Active layer | Solvent | Additional conditions | V OC (V) | J SC (mA cm−2) | FFb (%) | PCEb (%) | Ref. |
---|---|---|---|---|---|---|---|---|
a Structures of active-layer compounds are shown in Fig. 7. CF: chloroform, DIO: 1,8-diiodooctane. b Data of the best-performing devices when available; otherwise, average of multiple devices. | ||||||||
4-1 |
4-1a![]() ![]() ![]() ![]() |
CF | — | 0.75 | 9.2 | 44 | 3.0 | 81 and 82 |
4-2 |
4-1b![]() ![]() ![]() ![]() |
CF | — | 0.47 | 4.2 | 40 | 0.79 | 81 |
4-3 |
4-2a![]() ![]() ![]() ![]() |
CF | 120 °C, 10 min | 0.90 | 7.91 | 49 | 3.45 | 84 |
4-4 |
4-2b![]() ![]() ![]() ![]() |
CF | 80 °C, 10 min | 0.72 | 3.37 | 33 | 0.76 | 84 |
4-5 |
4-2c![]() ![]() ![]() ![]() |
CF | 80 °C, 10 min | 0.87 | 4.33 | 30 | 1.11 | 84 |
4-6 |
4-3a![]() ![]() ![]() ![]() |
CF | 140 °C, 10 min | 0.93 | 8.27 ± 0.10 | 54 ± 1 | 4.2 ± 0.1 | 85 |
4-7 |
4-3b![]() ![]() ![]() ![]() |
CF | 120 °C, 10 min | 0.93 | 3.73 ± 0.17 | 35 ± 1 | 1.2 ± 0.1 | 85 |
4-8 |
4-4a![]() ![]() ![]() ![]() |
CF | 100 °C, 1 min | 0.85 | 5.89 | 50 | 2.48 | 86 |
4-9 |
4-4b![]() ![]() ![]() ![]() |
CF | 100 °C, 1 min | 0.84 | 7.47 | 53 | 3.30 | 86 |
4-10 |
4-4c![]() ![]() ![]() ![]() |
CF | 100 °C, 1 min | 0.79 | 5.30 | 45 | 1.90 | 86 |
4-11 |
4-5a![]() ![]() ![]() ![]() |
CF | CS2 vapour, 20 s | 0.85 | 0.74 | 24 | 0.14 | 87 |
4-12 |
4-5b![]() ![]() ![]() ![]() |
CF | CS2 vapour, 20 s | 0.79 | 1.16 | 26 | 0.23 | 87 |
4-13 |
4-5c![]() ![]() ![]() ![]() |
CF | CS2 vapour, 20 s | 1.00 | 5.40 | 48 | 2.60 | 87 |
4-14 |
4-5d![]() ![]() ![]() ![]() |
CF | CS2 vapour, 20 s | 0.84 | 3.49 | 36 | 1.05 | 87 |
4-15 |
4-6a![]() ![]() ![]() ![]() |
CF | — | 0.95 | 4.0 | 29.0 | 1.10 | 88 |
4-16 |
4-6b![]() ![]() ![]() ![]() |
CF | — | 0.94 | 3.9 | 29.2 | 1.08 | 88 |
4-17 |
4-6a![]() ![]() ![]() ![]() |
CF | 0.6 vol% DIO; 70 °C, 10 min | 0.85 | 9.9 | 51.3 | 4.35 | 88 |
4-18 |
4-6b![]() ![]() ![]() ![]() |
CF | 0.4 vol% DIO; 70 °C, 10 min | 0.82 | 7.3 | 45.2 | 2.69 | 88 |
4-19 |
4-7a![]() ![]() ![]() ![]() |
CF | 10 vol% CS2, 200 °C, 10 min | 0.67 | 15.2 | 52 | 5.2 | 89 |
4-20 |
4-7b![]() ![]() ![]() ![]() |
CF | 200 °C, 10 min | 0.69 | 13.6 | 49 | 4.5 | 89 |
4-21 |
4-7c![]() ![]() ![]() ![]() |
CF | 160 °C, 30 min | 0.70 | 9.1 | 48 | 3.1 | 89 |
4-22 |
4-7d![]() ![]() ![]() ![]() |
CF | 180 °C, 30 min | 0.66 | 0.88 | 33 | 0.19 | 89 |
Seo pointed out in a paper published in 2009 that the structure of alkyl substituents on lactam nitrogens exerted a considerable effect on the performance of BHJ OPVs based on the comparison between two 3,6-bis(5′′-hexyl[2,2′:5′,2′′-terthiophen]-5-yl)diketopyrrolopyrroles 4-1a and 4-1b as p-type materials;81 specifically, N,N′-di(2-ethylhexyl) derivative 4-1a showed a 3.0% PCE,82 while N,N′-di(2-ethylhexyl) derivative 4-1b afforded PCEs of up to only 0.79% with PC71BM as the n-type material (entries 4-1 and 4-2). The VOC of the 4-1b:PC71BM device (0.47 V) was found to be much lower than that of the 4-1a:PC71BM device (0.75 V), which could be traced back to the difference in the ionization energies in the solid state (4.92 and 4.61 eV for 4-1a and 4-1b, respectively). The author assumed that this dissimilarity between the two compounds was related to the disruption of molecular packing due to branched alkyl (i.e., 2-ethlyhexyl) chains. In relation to the steric effect of the branched alkyl chains, Zerdan et al. prepared compound 4-1a in a stereo-controlled fashion, and confirmed that the stereo-centres of the 2-ethylhexyl groups only weakly affected the overall photovoltaic process.83
Interestingly, 3,6-bis[4-(5′-hexyl[2,2′-bithiophen]-5-yl)phenyl]diketopyrrolopyrroles 4-2a and 4-2b showed an opposite dependency on the structure of N-alkyl groups in terms of the performance as a p-type material in BHJ OPVs. Lin et al. reported that 4-2a and 4-2b gave PCEs of 3.45% and 0.76% at best, respectively, with PC71BM as the n-type material (entries 4-3 and 4-4).84 Note that the PCE obtained with 4-2b was even lower than that with 4-2c which did not have end-substituents (1.11%, entry 4-5). The authors reasoned that both increasing the bulkiness of the solubilizing N-alkyl groups and removing the linear end-alkyl groups induced micron-scale phase separations at high p:
n ratios, thereby requiring large excess of the n-type material (PC71BM) and resulting in limited photovoltaic efficiencies. The inconsistent results between 4-1 and 4-2 may be due to the steric effects of the phenylene moieties which causes deviation from coplanarity with the neighbouring DPP and thienylene units.
![]() | ||

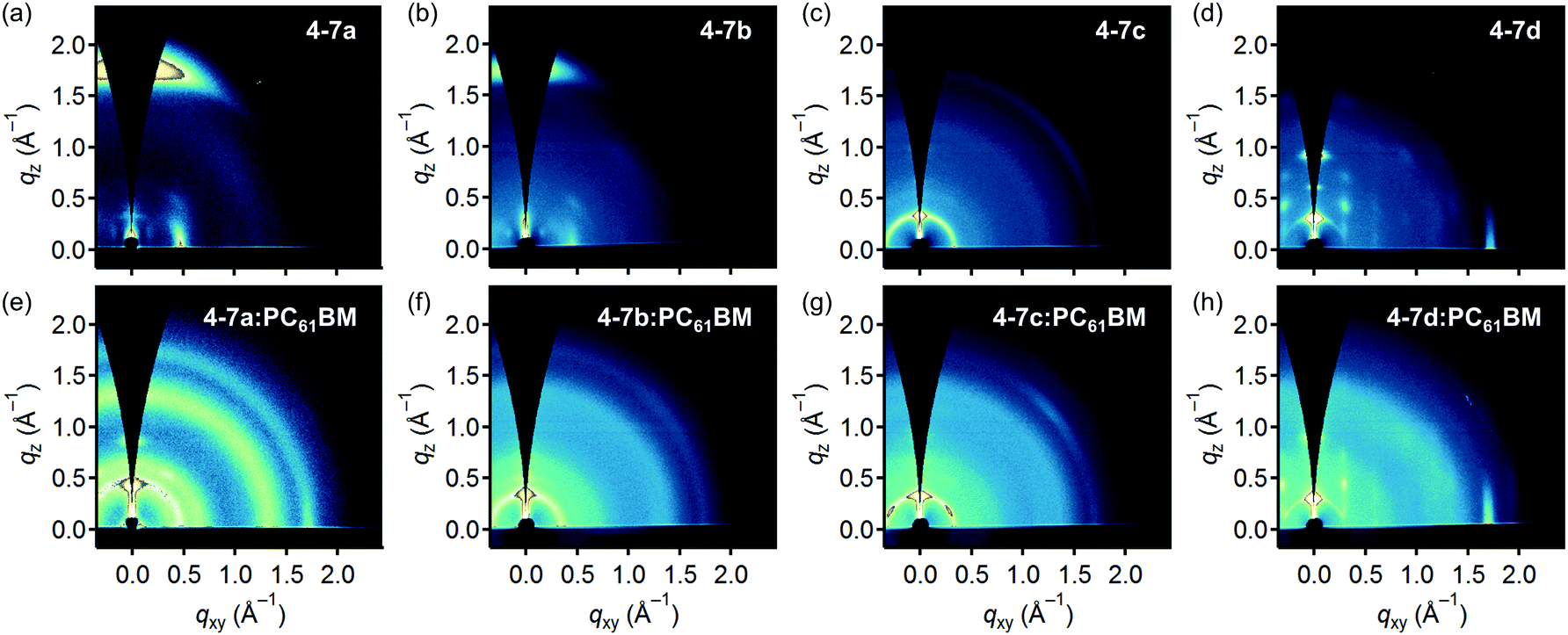

Fig. 8 2D-GIWAXS patterns of (a) 4-7a, (b) 4-7b, (c) 4-7c, (d) 4-7d, (e) 4-7a:PC61BM, (f) 4-7b:PC61BM, (g) 4-7c:PC61BM, and (h) 4-7d:PC61BM. All sample films were prepared by the thermal precursor approach. Adopted from ref. 89 with permission. Copyright 2017, Royal Society of Chemistry. |
The importance of end-alkyl groups was also demonstrated by Shin et al. in 2013.85 In this case, the authors comparatively evaluated two simple DPP derivatives 4-3a and 4-3b, the π-conjugated backbones of which were terminated with 4-hexylphenyl and 4-dodecylphenyl groups, respectively. While 4-3b afforded a low PCE of 1.2%, 4-3a performed much better as a p-type material to give a 4.2% PCE in BHJ OPVs with PC71BM (entries 4-6 and 4-7). The hexyl derivative 4-3a was found to have liquid-crystalline (LC) properties, and the 4-3a:PC71BM active layer showed a significant increase in JSC and FF upon thermal annealing via the LC organization process. On the other hand, the dodecyl derivative 4-3b did not show LC characters and the photovoltaic performance of the 4-3b:PC71BM system was essentially unchanged after thermal annealing. Thus, balancing the lengths of alkyl chains and a rigid π-backbone is quite important for achieving a favourable molecular order in BHJ films and thus improving photovoltaic performance.
Gevaerts et al. showed that the position of end-alkyl substituents was a critical factor in OPV performance by comparing isomeric DPP derivatives 4-4a–c having hexyl chains at different positions of the terminal thienyl groups.86 The three compounds were found to be largely dissimilar in terms of interaction with PC71BM, crystallization kinetics, and crystallite orientation. These factors were considered responsible for the observed variation in device performance, in which PCEs were 2.48%, 3.30%, and 1.90% for 4-4a, 4-4b, and 4-4c, respectively (entries 4-8–4-10). Similarly, Más-Montoya and Janssen compared thienyl end-capped di(2-pyridyl)diketopyrrolopyrroles 4-5a–d.87 Among the four compounds, only 4-5a had no end-alkyl chain, and the other three were substituted with hexyl groups at different positions of the thiophene units. In BHJ OPVs comprising a DPP derivative and PC71BM, derivatives 4-5c and 4-5d gave relatively high PCEs of 2.60% and 1.05%, whereas 4-5a and 4-5b showed significantly lower PCEs of 0.14% and 0.23% (entries 4-11–4-14). Spectroscopic data clearly showed that the former two derivatives formed J-aggregates, and the latter two H-aggregates. The authors assumed that more efficient exciton diffusion in J-aggregates caused the observed faster charge generation and thus higher photovoltaic efficiency with 4-5c and 4-5d.
The impact of N-alkyl substituents was also studied regarding A–D–A-type conjugates with DPP as the acceptor unit. In 2015, Jung et al. reported two such compounds, 4-6a and 4-6b, bearing 2-ethylhexyl or 2-butyloctyl groups, respectively, on the DPP nitrogens.88 The two compounds showed very similar photovoltaic performance as p-type materials in BHJ OPVs when deposited without a solvent additive (1,8-diiodooctane, DIO) to afford essentially the same PCEs of 1.10% and 1.08% (entries 4-15 and 4-16). In contrast, when a small amount of DIO was added to the cast solution, the PCE obtained with 4-6a was considerably higher than that of 4-6b (4.35% vs. 2.69%, entries 4-17 and 4-18). The authors concluded that compound 4-6b with longer alkyl groups suffered from excessive phase separation that limited JSC and FF, while 4-6a with shorter alkyl groups formed bicontinuous morphology with favorable domain sizes for the photovoltaic process. In relation to this report, it is worth pointing out that most of the successful DPP-based SMSCs in BHJ OPVs are equipped with relatively short branched alkyls, typically 2-ethylhexyl, as N-substituents and linear alkyl groups as end substituents.
Meanwhile, Takahashi et al. prepared DPP-based A–D–A conjugates 4-7a–d with tetrabenzoporphyrin (BP) as the central donor unit, and studied the effect of N-alkyl chains on the performance of these conjugates as p-type materials.89 A unique aspect of this series of compounds is that they are essentially insoluble because of the large, considerably rigid π-framework and the minimal alkyl substituents. Accordingly, compounds 4-7a–d were deposited via a thermal precursor approach, wherein soluble precursor compounds 4-8a–d were deposited as a solution then transformed to the target compounds by thermally induced retro-Diels–Alder reactions in the solid state (Scheme 1). The solubilizing dimethylbicyclo[2.2.2]octadieno units of the precursors can be quantitatively converted to the benzo units to from a BP framework, and the by-produced isobutene molecules escape from the film as a gas. By employing this approach, one can design SMSCs with a minimum of bulky flexible solubilizing substituents if not at all, and thus the role of substituents becomes largely focused on the control of molecular packing and phase-separation behaviors in the solid state.90
![]() | ||

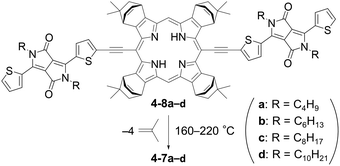

Scheme 1 Thermal conversion of precursors 4-8a–d to 4-7a–d. (*![]() |
Comparative evaluation of 4-7a–d in BHJ OPVs with PC61BM revealed that the PCE was higher when the N-alkyl groups were shorter: 5.2% for 4-7a with butyl, 4.5% for 4-7b with hexyl, 3.1% for 4-7c with octyl, and 0.19% for 4-7d with decyl (entries 4-19–4-22). One of the problems associated with longer alkyl chains was that they induced excessive phase separation with the n-type material PC61BM during the solid-state thermal reactions for generating 4-7a–d from precursors 4-8a–d. Note that the blended films before thermal reactions (i.e., 4-8:PC61BM films) were very smooth and highly homogeneous, probably because the steric effect of the bulky solubilizing units prevented the precursor compounds from self-aggregation. Another issue with longer alkyl chains was that they induced edge-on arrangements of molecules during the solid-state thermal reactions, which significantly limits carrier transport in the out-of-plane direction and thus the overall photovoltaic process. The dependence of molecular arrangement on alkyl-chain lengths was clearly observed in the2D-GIWAXS patterns of neat films (Fig. 8a–d); namely, butyl and hexyl derivatives 4-7a and 4-7b showed clear diffractions on the qz axis around qz = 1.79 Å which indicated that these compounds formed π–π stacking in the out-of-plane direction with a face-on molecular orientation. The data of 4-7c showed an arc-shaped diffraction around q = 1.75 Å, indicating a rather random orientation of π–π stacking. On the other hand, it was apparent from the strong diffraction on the qxy axis around qxy = 1.74 Å that 4-7d had a high tendency to form π–π stacking in the in-plane direction with edge-on molecular orientation. The difference in molecular orientation became somewhat less distinct, but was generally preserved in BHJ films with PC61BM (Fig. 8e–h). These results demonstrated well the cruciality of substituent design also for those SMSCs processed via the thermal precursor approach.
![]() | ||
Fig. 9 Chemical structures of (a) SMSCs 6-1-6-4 and (b) n-type polymer N2200. The best PCEs obtained with each DTS derivative are shown in parentheses (see Table 5 for full OPV parameters). The inset shows relevant substitution positions of DTS-based SMSCs. |
Entry | Active layer | Solvent | Additional conditions | V OC (V) | J SC (mA cm−2) | FFb (%) | PCEb (%) | Ref. |
---|---|---|---|---|---|---|---|---|
a Structures of active-layer compounds are shown in Fig. 9. CF: chloroform, CB: chlorobenzene, DIO: 1,8-diiodobenzene. b Data of the best-performing devices. | ||||||||
5-1 |
5-1a![]() ![]() ![]() ![]() |
CF | — | 0.92 | 6.37 | 56 | 3.27 | 92 |
5-2 |
5-1b![]() ![]() ![]() ![]() |
CF | Thermal annealing | 0.89 | 6.61 | 49 | 2.88 | 92 |
5-3 |
5-1c![]() ![]() ![]() ![]() |
CF | Thermal annealing | 0.92 | 8.73 | 48 | 3.81 | 92 |
5-4 |
5-2a![]() ![]() ![]() ![]() |
CF | – | 0.85 | 10.05 | 62.0 | 5.30 | 96 |
5-5 |
5-2b![]() ![]() ![]() ![]() |
CF | – | 0.91 | 4.37 | 31.5 | 1.25 | 96 |
5-6 |
5-3a![]() ![]() ![]() ![]() |
CF | 110 °C, 10 min | 0.82 | 2.1 | 30 | 0.5 | 97 |
5-7 |
5-3b![]() ![]() ![]() ![]() |
CF | 110 °C, 10 min | 0.70 | 3.7 | 47 | 1.2 | 97 |
5-8 |
5-3c![]() ![]() ![]() ![]() |
CF | 110 °C, 10 min | 0.77 | 7.5 | 60 | 3.5 | 97 |
5-9 |
5-4a![]() ![]() ![]() ![]() |
CB | 0.2 vol% DIO; 120 °C, 10 min | 0.825 | 5.51 | 56.4 | 2.45 | 98 |
5-10 |
5-4b![]() ![]() ![]() ![]() |
CB | 0.2 vol% DIO; 120 °C, 10 min | 0.784 | 5.65 | 60.0 | 2.68 | 98 |
5-11 |
5-4c![]() ![]() ![]() ![]() |
CB | 0.2 vol% DIO; 120 °C, 10 min | 0.807 | 4.18 | 57.7 | 1.95 | 98 |
5-12 |
5-4d![]() ![]() ![]() ![]() |
CB | 0.2 vol% DIO; 120 °C, 10 min | 0.787 | 6.08 | 63.3 | 3.04 | 98 |
Several papers have reported the substituent effects on the performance of DTS-based p-type SMSCs. For example, Ye et al. reported three A–D–A systems 5-1a–c bearing a DTS framework as the central D unit in 2013.92 In BHJ OPVs with PC61BM, compound 5-1a performed better as a p-type material than the corresponding tetramethyl derivative 5-1b (PCEs = 3.27% and 2.88%, entries 5-1 and 5-2). This difference was mainly attributed to the change in FF (56% vs. 49%), and the authors speculated that the four methyl groups on the thiophene rings in 5-1b induced an unfavorable BHJ morphology for the photovoltaic process. Accordingly, the BHJ films of 5-1a:PC61BM and 5-1b:PC61BM showed opposite responses to thermal annealing; namely, the former systems gave the best device results without thermal annealing, while the latter system required thermal annealing to exhibit its optimal performance. The other compound 5-1c afforded an even higher PCE (3.81%, entry 5-3) than 5-1a. The authors mentioned that this improvement with 5-1c was not only due to its wider light-absorption range caused by the replacement of the ester groups with cyano groups, but also due to a rougher morphology most likely caused by its lower solubility. Note that certain degrees of film roughening has been known to induce improvements in charge-transport efficiency.93–95
In addition, Min and co-workers reported substituent effects on the photovoltaic performance of a similar series of DTS-based p-type small molecules 5-2a and 5-2b.96 Evaluation of these compounds in BHJ OPVs with PC71BM revealed much higher performance with the methyl derivative 5-2a (PCE = 5.30%) than the hexyl derivative 5-2b (1.25%) because of a higher JSC and FF (entries 5-4 and 5-5). The authors showed that the terminal alkyl groups (i.e., the methyl or hexyl chains) had a significant effect on the intermolecular interaction and solubility, and thus the morphological characteristics and semiconducting properties of these compounds in the BHJ active layers. In particular, the 5-2b system showed a relatively inefficient and unbalanced charge-carrier transport which resulted in considerable non-geminated recombination. On the other hand, the 5-2a system did not show signs of charge-mobility limitation and enhanced bimolecular recombination.
Jung et al. compared three A–D–A conjugates comprising the DTS and DPP frameworks (5-3a–c).97 These compounds were substituted with octyl or 2-ethylhexyl, respectively, at the silicon and nitrogen atoms, and showed considerably different performances in BHJ OPVs with PC61BM (entries 5-6–5-8; note that the corresponding fully octyl substituted compound 5-3d was also prepared but not evaluated in an OPV because of its insufficient solubility). In thermally annealed BHJ active layers, the Si-octyl/N-2-ethylhexyl derivative 5-3c afforded a considerably higher PCE of 3.5% than the Si-2-etheylhexyl/N-2-ethylhexy derivative 5-3a (0.5%) and the Si-octyl/N-2-ethylhexy derivative 5-3b (1.2%). This superiority in the performance of 5-3c was attributed to its isotropic arrangement of intermolecular π–π stacks in the active layer, which was more favorable for charge-carrier transport in OPVs than the edge-on-preferred orientation of 5-3a and 5-3b.
In 2018, Han et al. reported a comparison between 5-4a (p-DTS(FBTTh2)2) and its cyclohexyl end-capped derivative 5-4b.98 The two compounds were evaluated as p-type materials in BHJ OPVs with an n-type polymer N2200 (entries 5-9 and 5-10). Analyses with 2D-GIWAXS and AFM revealed that the 5-4b:N2200 film had a more pronounced face-on molecular orientation and a more coarse morphology than the 5-4a:N2200 film. The authors attributed these differences in the microstructure of active layers to the higher JSC and FF obtained with 5-4b. Additionally, the same trend was observed with the corresponding dithienogermoles 5-4c and 5-4d in terms of both photovoltaic performance (entries 5-11 and 5-12) and film microstructure. As observed also for other DTS derivatives and similar linearly extended p-systems in the following sections, it seems generally advantageous to keep the end substituents relatively compact in order to obtain high PCEs.
![]() | ||
Fig. 10 Chemical structures of (a) SMSCs 6-1-6-9 and (b) the compounds employed with 6-1-6-9 in OPV active layers. PC61BM and PC71BM are shown in Fig. 2, and IDIC is shown in Fig. 4. The best PCEs obtained with each BDT derivative are shown in parentheses (see Table 6 for full OPV parameters). The inset shows relevant substitution positions of BDT-based SMSCs. |
![]() | ||
Fig. 11 Chemical structures of (a) SMSCs 6-10-6-13 and (b) the compounds employed with 6-10-6-13 in OPV active layers. PC61BM and PC71BM are shown in Fig. 2. The best PCEs obtained with each BDT derivative are shown in parentheses (see Table 6 for full OPV parameters). |
Entry | Active layer | Solvent | Additional conditions | V OC (V) | J SC (mA cm−2) | FFb (%) | PCEb (%) | Ref. |
---|---|---|---|---|---|---|---|---|
a Structures of active-layer compounds are shown in Fig. 10 and 11. CF: chloroform, CN: 1-chloronaphthralene, DIO: 1,8-diiodooctane, TSA: thermal followed by solvent annealing; Py: pyridine; THF: tetrahydrofuran. b Data of the best-performing devices when available; otherwise, average of multiple devices. c Information not provided. | ||||||||
6-1 |
6-1a![]() ![]() ![]() ![]() |
CF | 0.2% CN; 110 °C, 10 min | 0.83 | 9.36 | 56 | 4.4 | 103 |
6-2 |
6-1b![]() ![]() ![]() ![]() |
CF | 0.2% CN; 110 °C, 10 min | 0.86 | 2.43 | 29 | 0.6 | 103 |
6-3 |
6-1a![]() ![]() ![]() ![]() |
CF | 0.2% CN | 0.92 | 6.76 | 39 | 2.4 | 103 |
6-4 |
6-1b![]() ![]() ![]() ![]() |
CF | 0.2% CN | 0.97 | 3.59 | 30 | 1.1 | 103 |
6-5 |
6-2a![]() ![]() ![]() ![]() |
CF | 110 °C, 10 min | 0.837 | 11.00 | 55.8 | 5.15 | 104 |
6-6 |
6-2b![]() ![]() ![]() ![]() |
CF | 0.75% CN; 110 °C, 10 min | 0.799 | 12.17 | 62.1 | 6.04 | 104 |
6-7 |
6-3a![]() ![]() ![]() ![]() |
CB | 0.4 vol% DIO; 100 °C, 10 min | 0.88 | 7.87 | 60.4 | 4.19 | 105 |
6-8 |
6-3b![]() ![]() ![]() ![]() |
CB | 0.4 vol% DIO; 100 °C, 10 min | 0.89 | 10.9 | 73.6 | 7.12 | 105 |
6-9 |
6-4a![]() ![]() ![]() ![]() |
CF | TSA | 0.92 | 10.68 | 60 | 5.90 | 106 |
6-10 |
6-4b![]() ![]() ![]() ![]() |
CF | TSA | 0.87 | 10.15 | 58 | 5.12 | 106 |
6-11 |
6-5a![]() ![]() ![]() ![]() |
CF | 120 °C, 10 min | 0.977 | 15.21 | 65.46 | 9.73 | 107 |
6-12 |
6-5b![]() ![]() ![]() ![]() |
CF | 120 °C, 10 min | 0.955 | 10.51 | 54.89 | 5.51 | 107 |
6-13 |
6-6a![]() ![]() ![]() ![]() |
CF | CF vapour, 1 min | 0.88 | 7.38 | 65.39 | 4.25 | 108 |
6-14 |
6-6b![]() ![]() ![]() ![]() |
CF | CF vapour, 1 min | 0.90 | 11.69 | 66.48 | 6.99 | 108 |
6-15 |
6-6c![]() ![]() ![]() ![]() |
CF | CF vapour, 1 min | 0.94 | 11.70 | 61.61 | 6.78 | 108 |
6-16 |
6-7a![]() ![]() ![]() ![]() |
CF | — | 0.93 | 11.75 | 68.1 | 7.44 | 109 |
6-17 |
6-7b![]() ![]() ![]() ![]() |
CF | — | 0.97 | 13.45 | 70.5 | 9.20 | 109 |
6-18 |
6-7c![]() ![]() ![]() ![]() |
CF | — | 0.90 | 11.03 | 65.5 | 6.50 | 109 |
6-19 |
6-8a![]() ![]() ![]() ![]() |
CF | 2.0 vol% Py + 0.5 vol% DIO; 120 °C, 10 min | 0.79 ± 0.01 | 19.36 ± 0.13 | 65.6 ± 0.6 | 10.03 ± 0.29 | 110 |
6-20 |
6-8b![]() ![]() ![]() ![]() |
CF | 2.0 vol% Py + 0.5 vol% DIO; 120 °C, 10 min | 0.75 ± 0.01 | 17.27 ± 0.16 | 64.0 ± 0.5 | 8.29 ± 0.25 | 110 |
6-21 |
6-9a![]() ![]() ![]() ![]() |
CF | 120 °C, 10 min | 0.848 | 21.35 | 65.12 | 11.79 | 111 |
6-22 |
6-9b![]() ![]() ![]() ![]() |
CF | 120 °C, 10 min | 0.852 | 23.03 | 65.43 | 12.84 | 111 |
6-23 |
6-9c![]() ![]() ![]() ![]() |
CF | 120 °C, 10 min | 0.854 | 24.69 | 70.06 | 14.78 | 111 |
6-24 |
6-9a![]() ![]() ![]() ![]() |
CF | 120 °C, 10 min | 0.796 | 18.15 | 64.16 | 9.27 | 111 |
6-25 |
6-9b![]() ![]() ![]() ![]() |
CF | 120 °C, 10 min | 0.783 | 18.27 | 69.29 | 9.91 | 111 |
6-26 |
6-9c![]() ![]() ![]() ![]() |
CF | 120 °C, 10 min | 0.776 | 18.95 | 70.41 | 10.35 | 111 |
6-27 |
6-10a![]() ![]() ![]() ![]() |
CF | — | 0.90 | 9.08 | 66 | 5.42 | 112 |
6-28 |
6-10b![]() ![]() ![]() ![]() |
CF | — | 0.91 | 5.17 | 46 | 2.13 | 112 |
6-29 |
6-11a![]() ![]() ![]() ![]() |
CF | 1.0 vol% DIO | 0.62 | 15.64 | 59.4 | 5.77 | 113 |
6-30 |
6-11b![]() ![]() ![]() ![]() |
CF | 0.8 vol% DIO | 0.67 | 8.35 | 57.0 | 3.20 | 113 |
6-31 |
6-12a![]() ![]() ![]() ![]() |
CF | 0.5% CN; 120 °C, 10 min | 0.69 | 13.39 | 56 | 5.12 | 114 |
6-32 |
6-12b![]() ![]() ![]() ![]() |
CF | 0.3% CN; 120 °C, 10 min | 0.65 | 6.08 | 60 | 2.36 | 114 |
6-33 |
6-13a![]() ![]() ![]() ![]() |
CF | THF vapour | 0.893 | 16.66 | 64 | 9.52 | 115 |
6-34 |
6-13b![]() ![]() ![]() ![]() |
CF | THF vapour | 0.909 | 18.27 | 68 | 11.24 | 115 |
6-35 |
6-13c![]() ![]() ![]() ![]() |
CF | THF vapour | 0.929 | 17.92 | 63 | 10.52 | 115 |
6-36 |
6-13d![]() ![]() ![]() ![]() |
CF | THF vapour | 0.928 | 16.15 | 61 | 9.14 | 115 |
6-37 |
6-14a![]() ![]() ![]() ![]() |
—c | 120 °C; THF vapour, 40 s | 0.564 | 4.9 | 33.9 | 0.90 | 116 |
6-38 |
6-14b![]() ![]() ![]() ![]() |
—c | 120 °C; THF vapour, 40 s | 0.865 | 20.1 | 71.3 | 12.40 | 116 |
6-39 |
6-14c![]() ![]() ![]() ![]() |
—c | 120 °C; THF vapour, 40 s | 0.870 | 14.2 | 67.0 | 8.25 | 116 |
6-40 |
6-15a![]() ![]() ![]() ![]() |
CF | 80 °C, 30 min | 0.75 | 4.0 | 35.3 | 1.06 | 117 |
6-41 |
6-15b![]() ![]() ![]() ![]() |
CF | 80 °C, 30 min | 0.87 | 8.82 | 68.9 | 5.30 | 117 |
6-42 |
6-15b![]() ![]() ![]() ![]() |
CF | 80 °C, 30 min | 0.87 | 10.54 | 71.4 | 6.55 | 117 |
Similarly, Zhang et al. highlighted the correlation between core substituents, molecular crystallinity, and photovoltaic performance in a comparative evaluation of BDT–DPP conjugates 6-2a and 6-2b (in addition to another derivative which is not mentioned here because its π-conjugated backbone is different from those of 6-2a and 6-2b).104 In BHJ OPVs with PC61BM, the dithienyl-BDT derivative 6-2a afforded a PCE of 5.15%, while the bis(bithienyl) derivative 6-2b gave a PCE of 6.04% at best (entries 6-5 and 6-6). The authors showed that compound 6-2b had a lower crystallinity and finer phase separation than 6-2a in the BHJ films, which could lead to a more effective exciton diffusion and charge-carrier transport, thus higher JSC and FF. The crystallinity and phase separation in the 6-2a:PC61BM film were considered excessive for smooth photovoltaic process.
Meanwhile, the 2-ethylhexyloxy-substituted derivative 6-3a showed a lower performance than the corresponding 5-(2-ethylhexyl)thienyl substituted derivative 6-3b.105 The substitution with relatively small 2-ethylhexyloxy groups led to a higher degree of crystallization of 6-3a in BHJ films, but the film morphology was fixed such that the annealing effect was rather limited. In contrast, the morphology of the 6-3b:PC61BM film was significantly improved upon the use of a molecular additive (DIO) and thermal annealing to form well-developed phase separation. Accordingly, the best PCEs were 4.19% and 7.12% with 6-3a and 6-3b, respectively (entries 6-7 and 6-8). The 7.12% PCE was the highest at that time among those obtained with small-molecule DBT–DPP conjugates. Similar comparisons were performed between BDT–DTP conjugates 6-4a and 6-4b,106 as well as between BDT–difluorobenzotriazole conjugates 6-5a and 6-5b (entries 6-9–6-12).107 In these cases again, the 5-(2-ethylhexyl)thienyl substituted derivatives 6-4a and 6-5a performed better (PCE = 5.90% and 9.73%) than the corresponding 2-ethylhexyloxy substituted derivatives 6-4b and 6-5b (5.12% and 5.51%) in BHJ OPVs.
The same trend was further observed in a comparative evaluation of BDT–rhodanine conjugates by Yin and co-workers, wherein the dodecyloxy derivative 6-6a and 5-dodecylthienyl derivative 6-6b afforded PCEs of 4.25% and 6.99%, respectively, in BHJ OPVs with PC71BM (entries 6-13 and 6-14).108 Denser molecular packing and higher hole mobility of the alkylthienyl derivative were highlighted in this study similar to the cases of 6-3-6-5; thus, the superiority of alkylthienyl over alkyloxy as core substituents of the BDT unit seems broad in scope.
Yin et al. also evaluated the corresponding alkylthiothienyl derivative 6-6c in the same paper, which afforded a slightly lower PCE (6.78%) than the alkylthienyl derivative 6-6b (entry 6-15). This result contrasted with the study by Min and co-workers in 2016 which reported that the 5-(2-ethylhexyl)thiothienyl derivative 6-7b afforded a PCE of 9.20%, while the 5-(2-ethylhexyl)thienyl derivative 6-7a gave only 7.44% at best in BHJ OPVs with PC71BM (entries 6-16 and 6-17).109 These opposite trends between 6-6 and 6-7 should be related to the structure of alkyl groups (i.e., dodecyl vs. 2-ethylhexyl), demonstrating the subtle nature of substituent impact. Note here that the advantage of 5-(2-ethylhexylthio)thienyl over 5-(2-ethylhexyl)thienyl was also observed between dimeric porphyrin compounds 6-8a (PCE = 10.03%) and 6-8b (8.29%) as reported by Piradi et al. in 2020 (entries 6-19 and 6-20).110
Additionally, Min et al. also reported that the corresponding 5-(2-ethylhexyloxyl)thienyl derivative 6-7c gave a good 6.50% PCE (entry 6-18). Although this PCE was somewhat lower than those of 6-7a and 6-7b, a significant decrease in JSC as in the case of 6-6a was not observed. Therefore, the general effectiveness of thienyl substitution, rather than direct alkyloxy substitution, on BDT was also supported in this case.
Concerning branched alkyl substituents such as 2-ethylhexyl, Zhou et al. studied the effect of the branching point by comparing dithienobenzodithiophene (DTBDT)-based SMSCs 6-9a–c.111 Their evaluation revealed that, by moving the branching point away from the DTBDT core, the crystallinity and intermolecular π–π stacking were enhanced in BHJ films with a non-fullerene n-type compound IDIC-4F or Y6. This change in molecular arrangement resulted in the improvement of JSC and FF. Accordingly, PCEs of the corresponding BHJ OPVs showed monotonic increase for 6-9a–c from 11.79% to 12.84% and to 14.78% with IDIC-4F, or from 9.27% to 9.91% and to 10.35% with Y6 (entries 6-21–26).
The effects of different end substituents were also studied with BDT–DPP conjugates 6-11a and 6-11b.113 The N,N-diphenylamino group of 6-11a affected the electronic characteristics of the π-conjugated system, resulting in an enhanced light absorbance by a factor of 46% when compared to that of butyl substituted 6-11b. However, this effect did not fully explain the large difference in JSC: 15.64 vs. 8.35 mA cm−2 with 6-11a and 6-11b, respectively (entries 6-29 and 6-30). Further analyses revealed that the aromatic branched diphenylamino end group brought about a higher compatibility with PC61BM to form finer phase separation that led to more efficient photon-to-charge conversion in the BHJ film. In addition, charge recombination probability was reduced. With all these factors combined, 6-11a afforded a significantly higher JSC and thus PCE (5.77%) than 6-11b (3.20%).
In relation to the latter work, Hoang et al. reported the effect of a hexyl end group on the photovoltaic performance of a similar BDT–DPP system.114 The authors compared two derivatives 6-12a and 6-12b as p-type materials in BHJ OPVs with PC71BM, and found that the non-substituted derivative 6-12a yielded a higher PCE (5.12%) than the hexyl-substituted derivative 6-12b (2.36%) (entries 6-31 and 6-32). Again, the difference in PCE could be traced back to the morphological behavior of the two compounds, namely, the introduction of end-hexyl groups led to excessive phase separation in the 6-12b:PC71BM blend film which significantly deteriorated charge-carrier generation and transport, and thus the JSC (13.39 and 6.08 mA cm−2 with 6-12a and 6-12b, respectively).
Yang et al. compared rhodanine-appended BDT trimers 6-13a–d (entries 6-33–6-36).115 These four derivatives are different from each other in the length of N-alkyl chains of the rhodanine units, and the N-butyl derivative 6-13b was found to perform the best as a p-type material in BHJ OPVs with IT-4F, affording a PCE of 11.24% associated with a high JSC of 18.27 mA cm−2. Notably, the 2D-GIWAXS analysis revealed that molecular orientation in thin films shifted from edge-on to face-on with the elongation of N-alkyls from ethyl (6-13a) to octyl (6-13d). The authors explained the superiority of 6-13b to other derivatives based on the molecular orientation, crystallinity, and phase-separation behavior (i.e., domain sizes), which all affected charge-carrier mobility in BHJ layers. In addition, the preferable morphology brought about high tolerance of the 6-13b:IT-4F system to film thickness; specifically, it retained 10% PCE with an active-layer thickness of up to 300 nm.
The effect of the branching point in end alkyl groups was investigated with a series of BDT–rhodanine conjugates 6-14a–c.116 Indeed, the difference in PCE was drastic in BHJ OPVs with IDIC-4Cl, that is, merely 0.90% with 3-heptyl substituted 6-14a, 12.40% with 2-ethylhexyl derivative 6-14b, and 8.25% with 3-ethylpentyl derivative 6-14c (entries 6-37–6-39). Red-shifted absorption and enhanced crystallinity were observed as the branching point of end alkyls shifted away from the π-conjugated backbone, indicating that outer branching induced stronger intermolecular interactions among this series of compounds. An excellent PCE of 12.40% with 6-14b could be due to its favourable degree of phase separation against the n-type material (IDIC-4Cl) to form a large heterojunction area with sufficient charge-carrier transport paths.
![]() | ||
Fig. 12 Chemical structures of the ID and IT frameworks, and the non-fullerene n-type molecule ITIC. The structure of IDIC is shown in Fig. 4. |
![]() | ||
Fig. 13 Chemical structures of SMSCs 7-1-7-17. The best PCEs obtained with each compound are shown in parentheses (see Table 7 for full OPV parameters). The inset shows relevant substitution positions of BDT-based SMSCs. |
![]() | ||

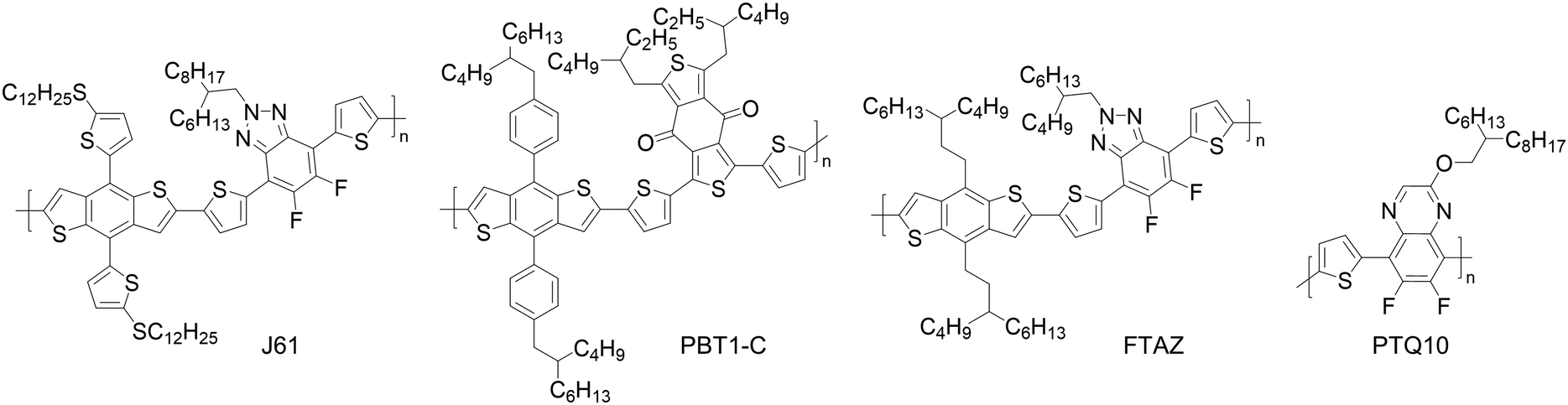

Fig. 14 Chemical structures of the compounds employed with 7-1-7-17 in OPV active layers. PBDB-T, PTB7-Th, and PM6 are shown in Fig. 2 or Fig. 4. |
Entry | Active layer | Solvent | Additional conditions | V OC (V) | J SC (mA cm−2) | FFb (%) | PCEb (%) | Ref. |
---|---|---|---|---|---|---|---|---|
a Structures of active-layer compounds are shown in Fig. 13 and 14. CF: chloroform, CB: chlorobenzene, o-DCB: o-dichlorobenzene, DIO: 1,8-diiodooctane, THF: tetrahydrofuran, DPE: diphenylether. b Data of the best-performing devices when available; otherwise, average of multiple devices. | ||||||||
7-1 | J61![]() ![]() ![]() ![]() |
CF | 130 °C, 5 min | 0.898 | 17.97 | 65.49 | 10.57 | 120 |
7-2 | J61![]() ![]() ![]() ![]() |
CF | 130 °C, 5 min | 0.912 | 18.31 | 70.55 | 11.77 | 120 |
7-3 | PBDB-T![]() ![]() ![]() ![]() |
CB | 0.5 vol% DIO; 120 °C, 10 min | 0.89 | 16.5 | 71 | 10.4 | 122 |
7-4 | PBDB-T![]() ![]() ![]() ![]() |
CB | 0.5 vol% DIO; 120 °C, 10 min | 0.85 | 14.8 | 67 | 8.5 | 122 |
7-5 | PM6![]() ![]() ![]() ![]() |
CB | 100 °C, 10 min | 0.78 | 18.85 | 45 | 6.67 | 124 |
7-6 | PM6![]() ![]() ![]() ![]() |
CB | 100 °C, 10 min | 0.83 | 20.44 | 76 | 12.88 | 124 |
7-7 | PM6![]() ![]() ![]() ![]() |
CB | 100 °C, 10 min | 0.87 | 20.32 | 77 | 13.54 | 124 |
7-8 | PBT1-C![]() ![]() ![]() ![]() |
CF | 0.5% DIO | 0.85 ± 0.01 | 17.0 ± 0.3 | 66.7 ± 2.4 | 10.0 (9.6 ± 0.5) | 126 |
7-9 | PBT1-C![]() ![]() ![]() ![]() |
CF | 0.5% DIO | 0.88 ± 0.01 | 20.3 ± 0.2 | 74.6 ± 1.1 | 13.7 (13.4 ± 0.2) | 126 |
7-10 | PBT1-C![]() ![]() ![]() ![]() |
CF | 0.5% DIO | 0.98 ± 0.01 | 18.1 ± 0.3 | 71.3 ± 1.3 | 12.7 (12.5 ± 0.4) | 126 |
7-11 | PBDB-T![]() ![]() ![]() ![]() |
CB | — | 0.97 | 15.85 | 68 | 10.45 | 128 |
7-12 | PBDB-T![]() ![]() ![]() ![]() |
CB | 125 °C, 10 min | 0.97 | 16.41 | 73 | 11.61 | 128 |
7-13 | PBDB-T![]() ![]() ![]() ![]() |
CB | 0.5% DIO | 0.91 | 16.27 | 69 | 10.21 | 128 |
7-14 | PBDB-T![]() ![]() ![]() ![]() |
CB | 0.5 vol% DIO; 150 °C, 30 min | 1.01 | 12.31 | 51 | 6.3 | 129 |
7-15 | PBDB-T![]() ![]() ![]() ![]() |
CB | 0.5 vol% DIO; 150 °C, 30 min | 0.93 | 17.53 | 73 | 11.9 | 129 |
7-16 | PBDB-T![]() ![]() ![]() ![]() |
CB | 0.5 vol% DIO; 150 °C, 30 min | 0.97 | 16.38 | 68 | 10.8 | 129 |
7-17 | PBDB-T![]() ![]() ![]() ![]() |
CB | 0.5 vol% DIO; 150 °C, 30 min | 0.96 | 14.69 | 56 | 7.9 | 129 |
7-18 | FTAZ![]() ![]() ![]() ![]() |
CF | 0.25 vol% DIO | 0.915 | 15.84 | 61.26 | 8.88 | 130 |
7-19 | FTAZ![]() ![]() ![]() ![]() |
CF | 0.25 vol% DIO | 0.849 | 19.33 | 73.73 | 12.1 | 130 |
7-20 | FTAZ![]() ![]() ![]() ![]() |
CF | 0.25 vol% DIO | 0.751 | 17.19 | 70.07 | 9.06 | 130 |
7-21 | FTAZ![]() ![]() ![]() ![]() |
CF | 0.25 vol% DIO | 0.962 | 16.34 | 68.33 | 10.7 | 130 |
7-22 | PBDB-T![]() ![]() ![]() ![]() |
CB | 0.3% DIO | 0.89 | 13.47 | 59.03 | 7.04 | 132 |
7-23 | PBDB-T![]() ![]() ![]() ![]() |
CB | 0.3% DIO | 0.90 | 14.94 | 55.09 | 7.43 | 132 |
7-24 | PBDB-T![]() ![]() ![]() ![]() |
CB | 0.3% DIO | 0.89 | 14.94 | 58.21 | 8.26 | 132 |
7-25 | PBDB-T![]() ![]() ![]() ![]() |
CB | 0.3% DIO | 0.90 | 14.88 | 59.35 | 7.93 | 132 |
7-26 | PBDB-T![]() ![]() ![]() ![]() |
CB | 0.3% DIO; THF vapour, 1 min; 120 °C, 10 min | 0.88 | 16.30 | 64.18 | 9.29 | 132 |
7-27 | PBDB-T![]() ![]() ![]() ![]() |
CB | 0.5% DPE | 0.87 | 15.45 | 57 | 7.8 | 133 |
7-28 | PBDB-T![]() ![]() ![]() ![]() |
CB | 0.5% DPE | 0.89 | 16.71 | 70 | 10.4 | 133 |
7-29 | PBDB-T![]() ![]() ![]() ![]() |
CB | 0.5% DPE | 0.87 | 18.04 | 70 | 11.0 | 133 |
7-30 | PM6![]() ![]() ![]() ![]() |
CB | 0.5% DPE | 0.96 | 17.78 | 73 | 12.5 | 133 |
7-31 | PBDB-T![]() ![]() ![]() ![]() |
o-DCB | — | 0.89 | 13.30 | 53.9 | 6.42 | 134 |
7-32 | PBDB-T![]() ![]() ![]() ![]() |
o-DCB | — | 0.88 | 16.18 | 71.1 | 10.12 | 134 |
7-33 | PBDB-T![]() ![]() ![]() ![]() |
o-DCB | — | 0.86 | 15.64 | 72.3 | 9.68 | 134 |
7-34 | PBDB-T![]() ![]() ![]() ![]() |
CB | 130 °C, 5 min | 0.819 | 17.27 | 73.60 | 10.41 | 135 |
7-35 | PBDB-T![]() ![]() ![]() ![]() |
CB | 130 °C, 5 min | 0.869 | 12.20 | 57.90 | 6.14 | 135 |
7-36 | PBDB-T![]() ![]() ![]() ![]() |
CB | 130 °C, 5 min | 0.822 | 18.08 | 77.42 | 11.50 | 135 |
7-37 | PM6![]() ![]() ![]() ![]() |
CB | 130 °C, 30 s | 0.941 | 19.06 | 78.32 | 14.04 | 135 |
7-38 | PM6![]() ![]() ![]() ![]() |
CB | — | 0.963 | 17.94 | 71.60 | 12.37 | 136 |
7-39 | PM6![]() ![]() ![]() ![]() |
CB | 130 °C, 10 min | 0.928 | 17.21 | 70.13 | 11.20 | 136 |
7-40 | PM6![]() ![]() ![]() ![]() |
CB | 0.5 vol% DIO, 130 °C, 10 min | 0.921 | 16.66 | 69.34 | 10.64 | 136 |
7-41 | PM6![]() ![]() ![]() ![]() |
CB | — | 0.963 | 18.55 | 73.26 | 13.10 | 136 |
7-42 | PM6![]() ![]() ![]() ![]() |
CB | 130 °C, 10 min | 0.961 | 18.91 | 74.45 | 13.53 | 136 |
7-43 | PM6![]() ![]() ![]() ![]() |
CB | 0.5 vol% DIO, 130 °C, 10 min | 0.926 | 18.87 | 75.58 | 13.21 | 136 |
7-44 | PTB7-Th![]() ![]() ![]() ![]() |
CB | 0.5% DIO, 120 °C, 5 min | 0.940 | 16.9 | 57 | 9.1 | 137 |
7-45 | PTB7-Th![]() ![]() ![]() ![]() |
CB | 0.5% DIO, 120 °C, 5 min | 0.940 | 17.0 | 59 | 9.4 | 137 |
7-46 | PBDB-T![]() ![]() ![]() ![]() |
CB | 0.5% DIO, 120 °C, 5 min | 0.93 | 14.43 | 76.41 | 10.22 | 138 |
7-47 | PBDB-T![]() ![]() ![]() ![]() |
CB | 0.5% DIO, 120 °C, 5 min | 0.88 | 11.94 | 57.90 | 6.11 | 138 |
7-48 | PBDB-T![]() ![]() ![]() ![]() |
o-DCB | — | 0.92 ± 0.01 | 15.1 ± 0.47 | 68 ± 2 | 9.60 (9.40 ± 0.16) | 139 |
7-49 | PBDB-T![]() ![]() ![]() ![]() |
o-DCB | — | 0.92 ± 0.01 | 14.8 ± 0.24 | 69 ± 2 | 9.64 (9.35 ± 0.24) | 139 |
7-50 | PBDB-T![]() ![]() ![]() ![]() |
o-DCB | — | 0.85 ± 0.01 | 11.5 ± 0.35 | 71 ± 1 | 7.23 (6.96 ± 0.16) | 139 |
7-51 | PBDB-T![]() ![]() ![]() ![]() |
CF | 160 °C, 2 min | 0.917 | 16.56 | 61.61 | 9.35 | 140 |
7-52 | PBDB-T![]() ![]() ![]() ![]() |
CF | 160 °C, 2 min | 0.943 | 16.25 | 65.41 | 10.02 | 140 |
7-53 | PTQ10![]() ![]() |
CF | 120 °C, 5 min | 0.892 | 18.94 | 71.7 | 12.09 | 141 |
7-54 | PTQ10![]() ![]() |
CF | 110 °C, 5 min | 0.906 | 19.87 | 74.8 | 13.46 | 141 |
On the other hand, Liu et al. reported that replacement of all the p-hexylphenyl groups of ITIC with p-(2-methoxyethoxy)methylphenyl to form derivative 7-2 resulted in lowering of the PCE from 10.4% to 8.5% (entries 7-3 and 7-4).122 The polar substituents of 7-2 led to decreased crystallinity and excessive mixing with the p-type polymer PBDB-T,123 which induced lower mobilities and enhanced recombination of charge carriers.
Liu et al. compared end-chlorinated ITIC derivatives 7-3a–c which differed in their alkyl-chain length in the four p-alkylphenyl groups.124 The performance of the corresponding BHJ OPVs with a p-type polymer PBDB-TF (or PM6)125 was increased as the alkyl chains were elongated from n-hexyl of 7-3a (PCE = 6.67%) to n-octyl of 7-3b (12.88%), and to n-decyl of 7-3c (13.54%) (entries 7-5–7-7). The authors concluded that the short alkyl chains of 7-3a induced the formation of tight molecular aggregations and excessive phase separation in BHJ films with PM6, leading to an increased non-radiative energy loss. The longer alkyl chains in 7-3b and 7-3c, in contrast, loosened intermolecular contacts and enabled finer phase separation, thereby suppressing the non-radiative energy loss.
Similarly, Ye et al. compared a series of A–D–A conjugates 7-4a–c comprising a 6,6,12,12-tetraalkylated IT core and 2-(5-methylene-6-oxo-5,6-dihydro-4H-cyclopenta[c]thiophen-4-ylidene)malononitrile (TIC) end units.126 Single-crystal X-ray structure analysis revealed that molecular stacking was largely affected by the length of alkyl chains on the IT core, namely, molecules of n-hexyl derivative 7-4a crystallized in a π–π stacking mode, n-octyl derivative 7-4b in a mixed π–π/no π–π-stacking mode, and n-decyl derivative 7-4c in a no π–π stacking mode. Meanwhile, BHJ OPVs with PBT1-C127 as the p-type material showed maximum PCEs of 10.0% with 7-4a, 13.7% with 7-4b, and 12.7% with 7-4c (entries 7-8–7-10). These results indicated that the end-group π–π staking could be non-critical in achieving sufficient charge-carrier transport and high photovoltaic efficiency; however, close side-atom contacts in non-π-staking modes could provide effective charge-carrier paths in the BHJ films. The authors also pointed out that energy loss was reduced with longer-alkyl derivatives.
Zhang et al. investigated the effect of outer substituents by comparing n-hexyl substituted derivative 7-5 with ITIC.128 The steric hinderance of the outer n-hexyl groups was expected to lock the orientation of the end electron withdrawing units, leading to enhanced planarity of the overall π-conjugated system. In addition, these alkyl chains were found to weaken the π–π stacking, enhancing the compatibility of this compound with the donor polymer PBDB-T. These effects brought about a PCE of 10.45% which is slightly higher than that with the original ITIC (10.21%, entries 7-11 and 7-13). The efficiency was further improved to 11.61% (entry 7-12) after thermal annealing at 125 °C which induced a higher degree of phase separation and crystallization of the polymer to form fibrous morphology.
The effect of end-unit substituents in this class of n-type compounds has also been studied by several groups. For example, Li et al. evaluated four methoxy-substituted ITIC derivatives 7-6a–d for their performance in BHJ OPVs with PBDB-T (entries 7-14–7-17).129 Higher PCEs were obtained with 7-6b (11.9%) and 7-6c (10.8%) with methoxy groups at the 6- and 5-positions, respectively, of the two 2-(2-methylene-3-oxo-2,3-dihydro-1H-inden-1ylidene)malononitrile (IC) units. In contrast, the derivatives with 7- and 4-methoxy IC units (7-6a and 7-6d) afforded considerably lower PCEs of 6.3% and 7.9%. The superiority of 7-6b and 7-6c was explained with higher planarity of their IC units due to lower steric hinderance, which led to a more efficient intermolecular π–π stacking and higher charge-carrier mobilities. The effect of these factors was observed as enhanced JSC and FF.
In a related vein, Li et al. compared four 6,6,12,12-tetra(5-hexylthiophen-2-yl) IT derivatives differently substituted at the benzo moiety of the IC end-capping units: non-substituted 7-7a (known as ITIC-Th), 5- or 6-fluoro derivative 7-7b, 5,6-difluoro derivative 7-7c, and 6-methoxy derivative 7-7d.130 These substituents altered not only the electronic structures of the main π-conjugated backbone, but also the intermolecular arrangement and the morphological behavior. Monosubstituted derivatives 7-7b and 7-7c showed a more ordered molecular packing, associated with higher crystallinity and longer coherence length than 7-7a and 7-7d in blended films with a p-type polymer FTAZ131 as revealed by the 2D-GIWAXS data. Additionally, the monofluorinated derivative 7-7b showed smaller-sized domains in the blended film with FTAZ, resulting in a higher PCE (12.1%) of the FTAZ:7-7b system than those of FTAZ:7-7a (8.88%), FTAZ:7-7c (9.06%), and FTAZ:7-7d (10.7%) (entries 7-18–7-21).
Qu et al. investigated the optimal length of end-alkyl chains on an A–D–A system comprising IT as the donor, rhodanine as the acceptor, and benzothiadiazole as the linker.132 Among the four end-alkylated derivatives, the hexyl derivative 7-8c afforded a higher PCE of 8.26% than the ethyl (7-8a, 7.04%), butyl (7-8b, 7.43%), and octyl (7-8d, 7.93%) derivatives in BHJ OPVs with PBDB-T as the p-type material (entries 7-22–7-25). The 2D-GIWAXS data of these BHJ films suggested that the size of crystallites increased in the order of PBDB-T:7-8a < PBDB-T:7-8b < PBDB-T:7-8d < PBDB-T:7-8c, roughly matching with the order of the JSCs as well as PCEs. Note that derivative 7-8c afforded an improved PCE of 9.29% after solvent-vapor annealing followed by thermal annealing (entry 7-26). In addition, derivative 7-8a showed a higher crystallinity than the other derivatives in neat films, demonstrating that the morphology of blended films cannot be predicted based on the structure of neat films alone.
Hydrogen-bond-directed manipulation of molecular packing and film morphology was attempted with hydroxy-functionalized ITIC derivatives by Liu et al.133 By comparing ITIC with end-hydroxyl derivatives 7-9a and 7-9b, the authors demonstrated that hydroxy substitution at the end-capping IC units brought about a higher packing order and crystallinity in BHJ films with PBDB-T, which was attributed to the formation of intermolecular hydrogen-bonding. Predictably, the dihydroxy derivative 7-9b showed a higher crystallinity than the monohydroxy derivative 7-9a. Consequently, the BHJ systems of PBDB-T:7-9a and PBDB-T:7-9b afforded PCEs of 10.4% and 11.0%, while PBDB-T:ITIC gave a somewhat lower PCE of 7.8% (entries 7-27–7-29). Furthermore, the diol 7-9b gave an even higher PCE of 12.5% when combined with PM6 (entry 7-30).
In 2017, Feng et al. reported that nonsymmetric substitution of the ID core at the 4- and 9-carbons led to improved photovoltaic performance.134 The authors evaluated three IDIC derivatives 7-10a–c, and demonstrated that the nonsymmetric di(4-hexylpheny)–dioctyl derivative 7-10b afforded a higher PCE (10.12%) than the tetra(4-hexylphenyl) derivative 7-10a (6.42%) and the tetraoctyl derivative 7-10c (9.68%) in BHJ OPVs with PBDB-T (entries 7-31–7-33). While the devices with symmetric derivatives suffered from either excessive phase separation (7-10a) or lower electron mobility (7-10c), the nonsymmetrically substituted 7-10b yielded adequately attenuated crystallinity and improved charge-carrier mobilities in the BHJ film. Interestingly, photovoltaic efficiency of the PBDB-T:7-10b system was found to be less sensitive to active-layer thickness than other systems, giving a 9.17% PCE even in a >200 nm-thick film.
Li et al. proposed a different molecular design to avoid excessive aggregation while at the same time achieve efficient charge-carrier transport. The authors demonstrated the superiority of phenylbutyl over hexyl and 4-hexylpheny as 4,4,9,9-substituents on the ID core by comparing IDIC and its two derivatives 7-11a and 7-11b.135 Evaluation of the three compounds resulted in PCEs of 10.41% (IDIC), 6.14% (7-11a), and 11.50% (7-11b) in BHJ OPVs with PBDB-T (entries 7-34–7-36). Here, the FF of the PBDB-T:7-11b device was as high as 77.42%, and impressively, it was further optimized to 78.32% when PM6 was used instead of PBDB-T (entry 7-37). Thus, introduction of a slightly bulky phenyl group at the tail, rather than the head, of core alkyl substituents would be an effective molecular design for obtaining optimal morphology in BHJ films.
In connection to the work by Li et al., Chen et al. demonstrated that an even subtler difference in substituent structure could bring about appreciable differences in the morphology and performance of BHJ films.136 They evaluated compound 7-12 which was differentiated from IDIC only by the alkyl substituents on the ID core (4-methylpentyl for 7-12, hexyl for IDIC), and demonstrated that 7-12 afforded a higher PCE of 13.53% than IDIC (11.20%) in thermally annealed BHJ layers with PM6 (entries 7-39, 42). In a similar manner to the phenylbutyl groups of 7-11b, the alkyl chains with a branched terminal in 7-12 modestly attenuated crystallization and self-aggregation without sacrificing π–π stacking and charge-carrier mobilities. The difference in morphological behavior between the PM6:7-12 and PM6:IDIC systems could be noted when comparing their response to annealing treatments (entries 7-38–7-43).
Additionally, Chen et al. reported a related study with ID–benzothiadiazole–rhodanine conjugates 7-13a and 7-13b.137 In this case, again, substitution with more extended alkyl chains (octyl) on the ID core adequately attenuated self-aggregation and phase separation when compared to more compact (hexyl) alkyl chains in BHJ films. Accordingly, higher photovoltaic performance resulted from 7-13b (PCE = 9.4%) than 7-13a (9.1%) in BHJ OPVs with PTB7-Th as the p-type material (entries 7-44 and 7-45).
Here, it would be worth pointing out that the ID core requires smaller substituents as compared to the IT core for obtaining BHJ layers with optimal morphology. Specifically, alkyl groups up to octyl are common for ID, while the considerably larger hexylphenyl is typical for IT. This difference should be a reflection of the size of these π-cores.
Regarding the end IC units, the positive effects of alkyl substitution have been reported in several papers. For example, Li et al. showed that cyclohexyl-fused derivative 7-14 performed better than IDIC, providing a PCE of 10.22% (6.11% with IDIC) in a BHJ OPV with PBDB-T (entries 7-46 and 7-47).138 Also, Ryu et al. reported that derivatives 7-15a and 7-15b with end-octyl substituents afforded similarly high PCEs of 9.60% and 9.64%, respectively, while that with IDIC was only 7.23% at the best (entries 7-48–7-50).139 In both examples, end-alkyl-substitution led to higher crystallinity of the corresponding BHJ films without excessive phase separation, which contributed to more balanced, higher charge-carrier mobilities and thus enhancement in JSC. Note that the improvement in FF was also significant in the PBDB-T:7-14 system, while the resultant increase of both JSC and VOC was achieved in the PBDB-T:7-15 systems.
Luo et al. studied the effect of substituents at linker units in an ID–TIC-conjugate system by comparing 2-ethylhexyl substituted 7-16a and 2-ethylhexyloxy substituted 7-16b.140 As can be expected from the alkoxy substituents’ more electron-donating nature than that of alkyl ones, 7-16b showed a higher LUMO level resulting in an enhanced VOC in a BHJ device with PBDB-T (entries 7-51 and 7-52). In addition, the authors pointed out that more favorable phase separation and balanced charge-carrier mobilities were observed in 7-16b, which contributed to the higher FF than that of the PBDB-T:7-16a BHJ system.
Li et al. reported in their article in 2019 that the introduction of methoxy groups as the core substituents led to higher photovoltaic efficiency (entries 7-53 and 7-54).141 The best PCE obtained with the methoxy-substituted compound 7-17a was 13.46% when used as the n-type material in BHJ OPVs in combination with the p-type polymer PTQ10. On the other hand, the PCE with the parent compound 7-17b (commonly called IDIC-2F) remained 12.09% at the best. The methoxy derivative was designed in the context of simplifying the synthesis to realize easily accessible, cost-effective SMSCs for OPVs; at the same time, this work revealed the effectiveness of core substitution for achieving high-performance IDIC-based materials.
![]() | ||
Fig. 16 Chemical structures of SMSCs 8-1–8-7. The best PCEs obtained with each compound are shown in parentheses (see Table 8 for full OPV parameters). The inset shows relevant substitution positions of Y6 and its derivatives. Structures of the partner material in the photovoltaic active layer (PM6) are shown in Fig. 2. |
Entry | Active layer | Solvent | Additional conditions | V OC (V) | J SC (mA cm−2) | FFb (%) | PCEb (%) | Ref. |
---|---|---|---|---|---|---|---|---|
a Structures of active-layer compounds are shown in Fig. 16. CF: chloroform, CB: chlorobenzene, DIO: 1,8-diiodooctane, CN: chloronaphthalene. b Data of the best-performing devices. | ||||||||
8-1 | PM6![]() ![]() ![]() ![]() |
CF | 0.05% CN; 90 °C, 5 min | 0.847 | 24.02 | 74.7 | 15.20 | 144 |
8-2 | PM6![]() ![]() ![]() ![]() |
CF | 0.05% CN; 90 °C, 5 min | 0.852 | 21.47 | 70.6 | 12.91 | 144 |
8-3 | PM6![]() ![]() ![]() ![]() |
CF | 0.05% CN, 90 °C, 5 min | 0.837 | 25.81 | 73.9 | 15.98 | 144 |
8-4 | PM6![]() ![]() ![]() ![]() |
CF | 0.05% CN, 90 °C, 5 min | 0.819 | 25.01 | 69.9 | 14.31 | 144 |
8-5 | PM6![]() ![]() ![]() ![]() ![]() ![]() |
CF | 90 °C, 5 min | 0.839 | 25.849 | 74.1 | 16.061 | 145 |
8-6 | PM6![]() ![]() ![]() ![]() |
CF | 90 °C, 5 min | 0.852 | 25.901 | 74.9 | 16.532 | 145 |
8-7 | PM6![]() ![]() ![]() ![]() |
CF | 0.5 vol% CN | 0.689 | 15.74 | 67.01 | 7.28 | 146 |
8-8 | PM6![]() ![]() ![]() ![]() |
CF | 0.5 vol% CN | 0.84 | 23.82 | 72.68 | 14.54 | 146 |
8-9 | PM6![]() ![]() ![]() ![]() |
CF | 0.5 vol% CN; 100 °C | 0.709 | 16.43 | 68.00 | 7.92 | 146 |
8-10 | PM6![]() ![]() ![]() ![]() |
CF | 0.5 vol% CN; 100 °C | 0.804 | 25.11 | 67.25 | 13.58 | 146 |
8-11 | PM6![]() ![]() ![]() ![]() |
CF | 100 °C, 5 min | 0.803 | 21.80 | 67.3 | 11.77 | 147 |
8-12 | PM6![]() ![]() ![]() ![]() |
CF | – | 0.844 | 21.31 | 61.6 | 11.07 | 147 |
8-13 | PM6![]() ![]() ![]() ![]() |
CF | – | 0.863 | 19.07 | 63.1 | 10.38 | 147 |
8-14 | PM6![]() ![]() ![]() ![]() |
CF | 0.5 vol% DIO; 100 °C | 0.84 | 19.82 | 68.27 | 11.36 | 148 |
8-15 | PM6![]() ![]() ![]() ![]() |
CF | 0.5 vol% DIO; 100 °C | 0.88 | 18.90 | 56.24 | 9.38 | 148 |
8-16 | PM6![]() ![]() ![]() ![]() |
CF | 0.5 vol% DIO; 100 °C | 0.85 | 24.80 | 72.20 | 15.13 | 148 |
8-17 | PM6![]() ![]() ![]() ![]() |
CF | 0.5 vol% DIO; 100 °C | 0.86 | 23.24 | 69.78 | 13.95 | 148 |
8-18 | PM6![]() ![]() ![]() ![]() |
CB | 0.5 vol% DIO; 100 °C | 0.83 | 25.13 | 68.94 | 14.28 | 148 |
8-19 | PM6![]() ![]() ![]() ![]() |
CB | 0.5 vol% DIO; 100 °C | 0.85 | 25.26 | 76.25 | 16.43 | 148 |
8-20 | PM6![]() ![]() ![]() ![]() |
CF | 0.5 vol% CN; 100 °C, 5 min | 0.82 | 25.3 | 75.5 | 15.7 | 149 |
8-21 | PM6![]() ![]() ![]() ![]() |
CF | 0.5 vol% CN; 100 °C, 5 min | 0.92 | 13.3 | 53.5 | 6.6 | 149 |
8-22 | PM6![]() ![]() ![]() ![]() |
CF | 0.5 vol% CN; 100 °C, 5 min | 0.89 | 23.2 | 78.5 | 16.1 | 149 |
8-23 | PM6![]() ![]() ![]() ![]() |
CF | 0.25% DIO; 100 °C, 10 min | 0.84 | 25.91 | 76.0 | 16.61 | 150 |
8-24 | PM6![]() ![]() ![]() ![]() |
CF | 0.25% DIO; 100 °C, 10 min | 0.87 | 25.72 | 81.5 | 18.32 | 150 |
8-25 | PM6![]() ![]() ![]() ![]() |
CF | 0.25% DIO; 100 °C, 10 min | 0.88 | 25.08 | 78.8 | 17.39 | 150 |
8-26 | PM6![]() ![]() ![]() ![]() |
CF | 0.25% DIO; 100 °C, 10 min | 0.89 | 24.57 | 74.6 | 16.26 | 150 |
8-27 | PM6![]() ![]() ![]() ![]() |
CF | 0.5% CN; 100 °C, 10 min | 0.94 | 20.31 | 62.53 | 11.92 | 151 |
8-28 | PM6![]() ![]() ![]() ![]() |
CF | 0.5% CN; 100 °C, 10 min | 0.92 | 21.38 | 68.25 | 13.43 | 151 |
8-29 | PM6![]() ![]() ![]() ![]() |
CF | 0.5% CN; 100 °C, 10 min | 0.95 | 18.79 | 61.79 | 11.08 | 151 |
The TPBT framework offers three types of positions to introduce substituents: pyrrolic nitrogens (inner), thieno β-carbons (outer), and end-benzo carbons (end) as depicted in the inset of Fig. 15. Soon after the first paper on Y6, Jiang et al. reported the photovoltaic performance of three derivatives 8-1a–c which were differently substituted at the inner and outer positions.144 Among the three derivatives, inner-3-ethylheptyl/outer-dodecyl 8-1b performed better (PCE = 15.98%) than the original inner-2-ethylhexyl/outer-dodecyl Y6 (15.20%) in BHJ OPVs with PM6, while inner-dodecyl/outer-2-ethylhexyl 8-1a and inner-4-ethyloctyl/outer-dodecyl 8-1c afforded lower PCEs of 12.91% and 14.31%, respectively (entries 8-1–8-4). Derivative 8-1a was found have lower solubility than the other three compounds, forming large domains in the BHJ film with PM6. Combined with the considerably lower PCE from 8-1a, this result indicated that a certain degree of bulkiness of inner substituents would be necessary for the TPBT framework to form an adequate BHJ morphology. Meanwhile, the effect of branching positions in inner alkyl chains was found to be relatively minor, but still non-negligible. In relation to this work, Yu et al. compared 2-ethylhexyl and 3-ethylhexyl as the inner substituents of tetrachloro derivatives 8-2a and 8-2b, respectively. They found the latter worked slightly better in devices with PM6 to afford a PCE of 16.532%, while the former provided PCEs of up to 16.061% (entries 8-5 and 8-6).145
There have been several other reports regarding the optimization of the inner substituents of Y6-type systems. Han et al. introduced 4-phenylbutyl and 6-phenylhexyl instead of branched alkyl chains, and compared the performance of the resulting compounds 8-3a and 8-3b in BHJ OPVs bearing PM6 as the p-type material.146 Indeed, the difference between the two compounds turned out to be significant, that is, the 4-phenylbutyl derivative 8-3a gave a 7.28% PCE, while the 6-phenylhexyl derivative 8-3b afforded a 14.54% PCE without annealing treatment (entries 8-7 and 8-8). With thermal annealing, PCEs were 7.92% for 8-3a and 13.58% for 8-3b (entries 8-9 and 8-10). The authors pointed out that the PM6:8-3b BHJ film showed stronger tendency for face-on orientation, tighter molecular stacking, and a larger crystallite coherence length than the PM6:8-3a blend. The superior performance of 8-3b could be linked to the synergistic contribution of these morphological factors. In addition, Yi and co-workers demonstrated that 6-phenylhexyl was a better choice than 6-phenoxyhexyl and octyl as the inner substituent by comparing compounds 8-4a–8-4c (8-4a = 8-3b) in BHJ OPVs with PM6 (PCE = 11.77%, 11.07%, and 10.38%), although the difference was less significant as compared with the case of the 8-3 series (entries 8-11–8-13).147
Mo et al. comparatively evaluated 8-5a–d in BHJ OPVs with PM6.148 All these four compounds had chlorine atoms instead of fluorine atoms of Y6 at the end benzo units and were differentiated from each other by the structure of inner alkyl chains (dodecyl for 8-5a, 2-ethylhexyl for 8-5b, 2-butyloctyl for 8-5c, and 2-hexyldecyl for 8-5d). Interestingly, the authors successfully obtained a single-crystal X-ray structure of 8-5c and revealed that the two inner alkyl chains extruded in the opposite directions from each other from the π-framework, indicating strong influence of the alkyl chains in determining π-stacking motif in the solid state. The OPV performance was indeed largely dependent on alkyl-chain lengths; specifically, PCEs were 11.36%, 9.38%. 15.13%, and 13.95% for 8-5a–d, respectively, when the active layers were cast from chloroform solutions (entries 8-14–8-17). The unexpectedly low PCE with the 2-ethylhexyl derivative 8-5b was due to its insufficient solubility in chloroform, which was improved to 14.28% when chlorobenzene was used to replace chloroform (entry 8-18). In addition, the 2-butyloctyl derivative 8-5c afforded an impressive PCE of 16.43% when deposited from chlorobenzene (entry 8-19). The superiority of 8-5c was partly attributed to the higher and more balanced charge-carrier mobilities in the corresponding BHJ film, which should be related to the shorter π–π stacking distance revealed by the 2D GIWAXS analysis. In general, the branched alkyl chains yielded more positive effects than the linear dodecyl chain regarding photovoltaic performance.
The impact of the outer alkyl groups was investigated by Chen et al.149 They compared Y6 with symmetric dialkoxy derivative 8-6a and non-symmetric alkyl/alkoxy derivative 8-6b in BHJ OPVs with PM6 as the p-type polymer (entries 8-20–8-22). As could be expected from the more electron-donating nature of alkoxy groups as compared to that of alkyl groups, the LUMO level was increased upon replacing the dodecyl groups of Y6 with dodecyloxy to form 8-6a (−3.89 → −3.76 eV). The increase in the LUMO level of the n-type material is in general favourable for obtaining a high VOC, and this was the case in 8-6a (0.82 → 0.92 V). However, the PCE with this didodecyloxy derivative was considerably lower than that with Y6 (6.6% vs. 15.7%). This result was attributed to the poor solubility of 8-6a in the cast solvent (chloroform) which induced excessive crystallinity and domain sizes. The non-symmetric alkyl/alkoxy derivative 8-6b, on the other hand, showed both sufficient solubility and moderately improved VOC, affording the best PCE (16.1%) among the three compounds.
In a similar vein, Li et al. comparatively evaluated Y6 and its three derivatives 8-6c–e having 2-butyloctyl, 2-hexyldecyl, and 2-octyldodexyl, respectively, as the outer substituents.150 The highest efficiency was obtained with 8-6c (PCE = 18.32%) in a BHJ OPV using Y6 as the p-type material, while Y6, 8-6d, and 8-6e afforded PCEs of 16.61%, 17.39%, and 16.26% (entries 8-23–8-26). The better performance of the 2-butyloctyl derivative 8-6c was attributed to its effective π–π contacts and an adequate degree of phase separation/crystallization in the BHJ active layer as indicated by XRD and microscopic analyses. The authors pointed out that the outer substituents are near the major π–π stack position of the Y6 derivative and thus an interesting structural factor to consider for tuning the molecular arrangement in the solid state.
Chen et al. studied the effect of end groups by evaluating compounds 8-7a–c for performance in BHJ OPVs with PM6 (entries 8-27–8-29).151 All the three compounds were substituted with a methyl group and a bromine atom at each end benzo moiety, with different substitution positions. Among the three isomers, 8-7b afforded a higher PCE (13.43%) than 8-7a (11.92%) and 8-7c (11.08%), which was ascribed to the higher crystallinity of the PM6:8-7b film.
Overall, the currently available data point to the superiority of branched alkyls as both the inner and outer substituents, as well as the need for halogen end groups, for achieving the state-of-the-art Y6-derived acceptors. Nonsymmetric substitution may bring about additional improvement, which requires further systematic investigation.
![]() | ||
Fig. 17 Chemical structures of (a) SMSCs 9-1-9-9 and (b) the compounds employed with 9-1-9-9 in photovoltaic active layers. PC71BM, PBDB-T, PM6, and PTB7-Th are shown in Fig. 2 or Fig. 4. |
Entry | Active layer | Solvent | Additional conditions | V OC (V) | J SC (mA cm−2) | FFb (%) | PCEb (%) | Ref. |
---|---|---|---|---|---|---|---|---|
a Structures of active-layer compounds are shown in Fig. 17. CF: chloroform, CB: chlorobenzene, THF: tetrahydrofuran, CN: chloronaphthalene; DIO: 1,8-diiodooctane; PDIN: N,N′-di[3-(N′′,N′′-dimethylamino)propyl]perylene-3,4:9,10-tetracarboxylic diimide; PFNDI-Br: poly[(9,9-bis(3′-((N,N-dimethyl)-N-ethylammonium)propyl)-2,7-fluorene)-alt-5,5′-bis(2,2′-thiophene)-2,6-naphthalene-1,4,5,8-tetracaboxylic-N,N′-di(2-ethylhexyl)imide]dibromide. b Data of the best-performing devices when available; otherwise, average of multiple devices. | ||||||||
9-1 |
9-1a![]() ![]() ![]() ![]() |
CF | CS2 vapour, 80 s | 0.74 ± 0.00 | 9.73 ± 0.20 | 62.2 ± 0.8 | 4.50 ± 0.09 | 152 |
9-2 |
9-1b![]() ![]() ![]() ![]() |
CF | CS2 vapour, 120 s | 0.70 ± 0.02 | 3.95 ± 0.13 | 50.2 ± 0.4 | 1.39 ± 0.01 | 152 |
9-3 | PhBADT/9-2a![]() ![]() ![]() ![]() |
CF | THF vapour, 60 s | 0.966 | 6.71 | 62.0 | 4.02 | 153 |
9-4 | PhBADT/9-2b![]() ![]() ![]() ![]() |
CF | THF vapour, 60 s | 0.419 | 7.20 | 48.3 | 1.46 | 153 |
9-5 | PhBADT/9-2c![]() ![]() ![]() ![]() |
CF | THF vapour, 60 s | 0.499 | 7.19 | 56.2 | 2.02 | 153 |
9-6 | PhBADT/9-2d![]() ![]() ![]() ![]() |
CF | THF vapour, 60 s | 0.602 | 6.83 | 54.1 | 2.22 | 153 |
9-7 | PBDB-T![]() ![]() ![]() ![]() |
CF | 0.5% CN; 150 °C, 10 min | 0.784 | 16.81 | 53 | 6.98 | 155 |
9-8 | PBDB-T![]() ![]() ![]() ![]() |
CF | 0.5% CN; 150 °C, 10 min | 0.781 | 24.40 | 69 | 13.15 | 155 |
9-9 | PBDB-T![]() ![]() ![]() ![]() |
CF | 0.5% CN; 150 °C, 10 min | 0.757 | 25.84 | 70 | 13.75 | 155 |
9-10 | PM6![]() ![]() ![]() ![]() |
CB | 0.5 vol% DIO; 140 °C, 10 min | 0.806 | 19.49 | 67.39 | 10.59 | 156 |
9-11 | PM6![]() ![]() ![]() ![]() |
CB | 0.5 vol% DIO; 140 °C, 10 min | 0.836 | 20.30 | 67.38 | 11.43 | 156 |
9-12 | PM6![]() ![]() ![]() ![]() |
CB | 0.5 vol% DIO; 140 °C, 10 min | 0.883 | 21.03 | 68.31 | 12.68 | 156 |
9-13 | PM6![]() ![]() ![]() ![]() |
CB | 0.5 vol% DIO; 140 °C, 10 min | 0.887 | 21.70 | 68.79 | 13.24 | 156 |
9-14 | PM6![]() ![]() ![]() ![]() |
CB | 0.5 vol% DIO; 140 °C, 10 min | 0.901 | 22.36 | 69.23 | 13.95 | 156 |
9-15 | PM6![]() ![]() ![]() ![]() |
CB | 0.5 vol% DIO; 140 °C, 10 min | 0.896 | 22.61 | 65.16 | 13.20 | 156 |
9-16 | PM6![]() ![]() ![]() ![]() |
CB | 0.5 vol% DIO; 140 °C, 10 min | 0.909 | 22.32 | 61.77 | 12.53 | 156 |
9-17 | PTBT-Th![]() ![]() ![]() ![]() |
CF | — | 1.02 | 13.30 | 44 | 5.97 | 157 |
9-18 | PTBT-Th![]() ![]() ![]() ![]() |
CF | THF vapour, 15 s | 1.02 | 15.27 | 54 | 8.33 | 157 |
9-19 | PTBT-Th![]() ![]() ![]() ![]() |
CF | — | 0.92 | 14.99 | 45 | 6.21 | 157 |
9-20 | PTBT-Th![]() ![]() ![]() ![]() |
CF | THF vapour, 15 s | 0.95 | 15.82 | 51 | 7.60 | 157 |
9-21 | PBDB-T![]() ![]() ![]() ![]() |
CF | 10 min, 0.5% CN; 140 °C | 0.807 | 18.65 | 60.3 | 9.09 | 158 |
9-22 | PBDB-T![]() ![]() ![]() ![]() |
CF | 10 min, 0.5% CN; 140 °C | 0.816 | 19.39 | 66.9 | 10.55 | 158 |
9-23 | PBDB-T![]() ![]() ![]() ![]() |
CF | 10 min, 0.5% CN; 140 °C | 0.780 | 19.16 | 63.8 | 9.53 | 158 |
9-24 | J52![]() ![]() ![]() ![]() |
CF | 0.5% CN; 120 °C | 0.769 | 24.69 | 61.69 | 11.71 | 159 |
9-25 | J52![]() ![]() ![]() ![]() |
CF | 0.5% CN; 120 °C | 0.814 | 26.02 | 69.96 | 14.82 | 159 |
9-26 | PM6![]() ![]() ![]() ![]() |
CF | 0.5% CN; 90 °C, 5 min | 0.88 | 19.76 | 63.84 | 11.16 | 160 |
9-27 | PM6![]() ![]() ![]() ![]() |
CF | 0.5% CN; 90 °C, 5 min | 0.90 | 24.63 | 72.09 | 16.00 | 160 |
9-28 | PM6![]() ![]() ![]() ![]() |
CF | 0.5% CN; 90 °C, 5 min | 0.87 | 18.28 | 55.74 | 8.89 | 160 |
9-29 | PM6![]() ![]() ![]() ![]() |
CF | 0.5% CN; 90 °C, 5 min; PDIN buffer | 0.96 | 11.34 | 51.96 | 5.67 | 161 |
9-30 | PM6![]() ![]() ![]() ![]() |
CF | 0.5% CN; 90 °C, 5 min; PDIN buffer | 0.92 | 22.39 | 70.10 | 14.50 | 161 |
9-31 | PM6![]() ![]() ![]() ![]() |
CF | 0.5% CN; 90 °C, 5 min; PFNDI-Br buffer | 0.91 | 24.03 | 76.22 | 16.66 | 161 |
9-32 | PM6![]() ![]() ![]() ![]() |
CF | 0.5% CN; 100 °C, 5 min; Ag electrode | 0.73 | 6.47 | 47.60 | 2.26 | 162 |
9-33 | PM6![]() ![]() ![]() ![]() |
CF | 0.5% CN; 100 °C, 5 min; Ag electrode | 0.88 | 21.67 | 60.27 | 11.55 | 162 |
9-34 | PM6![]() ![]() ![]() ![]() |
CF | 0.5% CN; 100 °C, 5 min; Ag electrode | 0.88 | 22.34 | 66.95 | 13.14 | 162 |
9-35 | PM6![]() ![]() ![]() ![]() |
CF | 0.5% CN; 100 °C, 5 min; Al electrode | 0.87 | 25.10 | 71.60 | 15.63 | 162 |
![]() | ||
Fig. 18 Supramolecular structures and photovoltaic performance obtained with barbiturated oligo(butylthiophene)s 9-1a and 9-1b. Adopted from ref. 116 with permission. Copyright 2018, Royal Society of Chemistry. |
Suzuki and co-workers compared four alkylated derivatives of di(bithienyl)anthracene, 9-2a–d.153 Depending on the structure of end-alkyl groups, these compounds afforded considerably different VOCs in BHJ OPVs: 0.966 V with 9-2a, 0.419 V with 9-2b, 0.499 V with 9-2c, and 0.602 V with 9-2d. Accordingly, the corresponding PCEs ranged widely from 1.46% to 4.02% (entries 9-3–9-6). The authors reasoned, based on single-crystal X-ray analysis and quantum chemical calculations, that the higher VOC from 9-2a was the result of its branched 2-ethylhexyl chains that effectively inhibited the formation of the non-slipped stacking of π-frameworks that would have otherwise led to an increase in the HOMO level and thus a decrease in VOC. On the other hand, the linear alkyl chains in 9-2b–d partially allowed the formation of the non-slipped stacking, and this tendency was stronger when alkyl chains were shorter. Note that compounds 9-2a–d were deposited through a precursor approach similarly to the case of the 4-7 series in Section 5. The difference is that compounds 9-2a–d were formed by a light-induced reaction, rather than thermally induce ones for 4-7, from the corresponding α-diketone-type precursors 9-3a–d (Scheme 2).154 The relationship between the substituent structure, molecular packing, and photovoltaic properties was revealed in this study using the precursor approach which relieved the concerns regarding solubility.
An extensive screening of side alkyl substituents on the seven-ring-fused system was reported by Kan et al.156 The authors introduced linear alkyl chains of different lengths to the outer side position of the fused-ring system to form compounds 9-5b–g (9-5a was a non-substituted version), and evaluated them as n-type materials in BHJ OPVs with PM6 (entries 9-10–9-16). The octyl derivative 9-5e was found to perform best among the seven compounds, providing a PCE of 13.95%. Note that ternary system PM6:9-5e:F-Br gave an excellent PCE up to 15.34%.
Relatively simple, non-fused conjugates 9-6a and 9-6b were compared by Lee et al.157 These compounds were flanked by different alkyl chains (2-butyloctyl for 9-6a and octyl for 9-6b) and their effects were examined in BHJ OPVs with PTB7-Th. The result was that 9-6b (PCE = 6.21%) performed better than 9-6a (5.97%) in the as-cast active layers, 9-6a (8.33%) outperformed 9-6b (7.60%) after solvent-vapour annealing (entries 9-17–9-20). It was found that the hole and electron mobilities were more balanced in the annealed PTB7-Th:9-6a blend as compared with PTB7-Th:9-6b.
A comparison between different alkyl side chains was also performed with a dialkoxyquinoxaline–cyclopentadithiophene conjugate system bearing chlorinated version of ICs (IC-4F) as end groups (9-7a–c).158 The three compounds had different alkyl chains on the alkoxy units and the cyclopentadiene moieties. A general trend observed among them was that the introduction of longer branched alkyl chains induced a more favourable π–π stacking and phase separation in PBDB-T:9-7 films. Accordingly, the 2-ethylhexyloxy/2-butyloctyl derivative 9-7b afforded a higher PCE (10.55%) than the 2-ethylhexyloxy/2-ethylhexyl derivative 9-7a (9.09%) and hexyl/2-butyloxtyl derivative 9-7c (9.53%) as shown in entries 9-21–9-23.
Zhan et al. compared two benzotriazole–cyclopentadithiophene–IC conjugates 9-8a and 9-8b as n-type materials in BHJ OPVs with p-type polymer J52.159 The effect of the octyl chains on the outer side of cyclopentadithiophene was significant; compound 9-8b afforded a PCE of 14.82%, while 9-8a gave only 11.71% (entries 9-24 and 9-25). Addition of electron donating alkyl chains resulted in not only a higher LUMO energy level as reflected in a larger VOC, but also higher crystallinity, improved conformational rigidity, and a smaller reorganization energy. In the BHJ film with J52, 9-8b demonstrated balanced charge-carrier mobility, smaller energy loss, and more favorable morphology as compared to the non-substituted 9-8a.
Recently, substituent impact was intensively studied on a series of A–D–A non-fullerene acceptors comprising the ladder type benzobis(dithienopyrrole) core as the central D unit (9-9a–h). When all the four alkyl substituents were branched (2-ethylhexyl, 2-butyloctyl, and 2-decyltetradexy for 9-9a, b, and c), the derivative with medium-length chains (9-9b) performed the best to afford PCEs up to 16.00% in BHJ OPVs with PM6 (entries 9-26–28).160 Either shorter alkyl (9-9a, PCE = 11.16%) or longer alkyl chains (9-9c, 8.89%) resulted in inferior performance. The authors pointed out that 9-9b formed π–π stacking with a spacing of 3.45 Å, which was shorter than the corresponding values of 9-9a (3.51 Å) and 9-9c (4.08 Å). This shorter π–π stack distance was regarded as a cause for the higher charge-carrier mobilities, JSCs, and thus PCEs with 9-9b. In a different study, the same group compared derivatives 9-9d and 9-9e, which were differentiated by alkyl chains on the pyrrole nitrogens: linear n-octyl for 9-9d and branched 2-hexyldecyl for 9-9e.161 Notably, the latter was found to preferably adopt a face-on orientation, while the former preferred an edge-on arrangement. Accordingly, 9-9e afforded a considerably higher PCE (14.50%) than 9-9d (5.67%) (entries 9-29, 30). Replacement of the cathode buffer material from PDIN to PFNDI-Br resulted in an even higher PCE of 16.66% with 9-9e. A similar trend between molecular orientation and structure of alkyl substituents was observed with derivatives 9-9f–h,162 namely, when all the four alkyl groups are branched 2-butyloctyl, the π-framework adopted a face-on arrangement to show a higher PCE (13.14% with 9-9h) as compared to those with linear dodecyl groups (2.26% with 9-9f, 11.55% with 9-9g) (entries 9-32–34). The PCE with 9-9h was further improved to 15.63% by changing the cathode material from Ag to Al.
Not surprisingly, the effects of substituents appeared very specific to each π-conjugated backbone. For example, 2-ethylhexyl performed better than hexyl as N-substituents of the DPP core between dithienyl-DPP derivatives 4-1a (N-2-ethylhexyl, PCE = 3.0%) and 4-1b (N-hexyl, 0.79%), while an opposite result was obtained with diphenyl-DPP derivatives 4-2a (N-hexyl, 3.45%) and 4-2b (N-2-ethylhexyl, 0.76%). The degree of substituent impact was also found case-by-case. In particular, the difference in the branch point of alkyl chains showed a relatively minor impact on the PCE in the case of core substituents of DTBDT–rhodanine conjugates 6-9a–c (11.79–14.78%), while it significantly affected in the case of end substituents of BDT–rhodanine conjugates 6-14a–c (0.90–12.40%). Another important aspect is that the modification of the substituent structure often substantially alters the morphological response of BHJ films to different types or conditions of the cast solvent, solvent additive, and annealing treatment. Furthermore, a partner material or materials in BHJ films regulate the outcome of substituent impact for a compound in question.
Such a complex, multifactorial nature of the substituent impact makes it difficult to extract general rules from previous examples. Indeed, accurate prediction of optimal substituent design for achieving ideal BHJ morphology remains quite a challenge even after decades of research. This is especially true for those molecules with highly extended π-conjugated frameworks that require many flexible solubilizing substituents. At the same time, with the substantial amount of knowledge and experience accumulated so far, we can now optimize substituent design through a systematic screening with a relatively narrow target distribution, rather than arduous examination of wide-range targets. In this context, this review is intended to provide an overview of the currently available knowledge and clues for an optimal substituent design of new SMSCs. For example, the state-of-the-art Y6-type SMSCs generally possess relatively bulky alkyls (typically the size of within 12 carbons) on the central ladder unit and small groups (typically halogen atoms) as the end substituents. This combination of substituents allows the resultant molecules to be sufficiently soluble and miscible, while maintaining effective intermolecular π–π contacts between end groups and certain degrees of packing order in OPV active layers. This substituent design is common also for other systems including IDIC and ITIC derivatives and can be a good starting point in optimization of substituents for novel SMSCs. One can then fine-tune the structure and position of substituents depending on the nature of the π-framework or partner compounds, and synthetic accessibility.
On the other hand, substituent engineering of simple model systems is still of considerable importance because it elucidates general rules hidden behind the complexity of experimental data. In addition, active control of solid-state molecular arrangement via the use of highly directional substituents (e.g., hydrogen-bonding groups) should be useful in achieving an optimal BHJ morphology with high reliability. The precursor approach89,153 and supramolecular approach152 mentioned in Section 10 may be valuable in these contexts. Another important research direction would be to unravel the evolution of active-layer morphology during material deposition and annealing. Toward this end, in situ analysis of morphology should be of critical importance; indeed, in situ light absorption, photoluminescence, and X-ray scattering analyses are becoming increasingly common in OPV research.163–166 We also note that the use of computer-aided approaches should be widely extended to accelerate the understanding of the structure–morphology–performance relationship of OPV materials. There have been already several studies in this context,167–173 and research efforts in this area will aid achieving PCEs nearing the theoretical limit.
This journal is © The Royal Society of Chemistry 2022 |
