Correction: Rationally designed 1D Ag@AgVO3 nanowire/graphene/protonated g-C3N4 nanosheet heterojunctions for enhanced photocatalysis via electrostatic self-assembly and photochemical reduction methods
Shouwei
Zhang
ab,
Jiaxing
Li
*ac,
Xiangke
Wang
*acd,
Yongshun
Huang
a,
Meiyi
Zeng
b and
Jinzhang
Xu
b
aSchool of Environment and Chemical Engineering, North China Electric Power University, Beijing, 102206, P. R. China. E-mail: lijx@ipp.ac.cn; xkwang@ipp.ac.cn; xkwang@ncepu.edu.cn
bSchool of Materials Science and Engineering, Hefei University of Technology, Hefei 230031, P. R. China
cCollaborative Innovation Center of Radiation Medicine of Jiangsu Higher Education Institutions, School for Radiological and Interdisciplinary Sciences (RAD-X), Soochow University, P. R. China
dFaculty of Engineering, King Abdulaziz University, Jeddah 21589, Saudi Arabia
First published on 11th October 2022
Abstract
Correction for ‘Rationally designed 1D Ag@AgVO3 nanowire/graphene/protonated g-C3N4 nanosheet heterojunctions for enhanced photocatalysis via electrostatic self-assembly and photochemical reduction methods’ by Shouwei Zhang et al., J. Mater. Chem. A, 2015, 3, 10119–10126, https://doi.org/10.1039/C5TA00635J.
There is an error in Fig. 4A of the published article as the Raman spectrum of Ag@AgVO3/rGO/PCN shown mistakenly used an incorrect proportion of silver vanadate composite. The correct figure is shown below.
 | ||

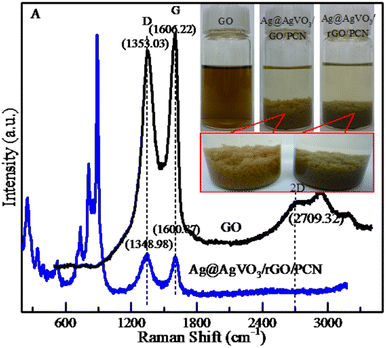

| Fig. 4 (A) Raman spectra of the GO nanosheets and Ag@AgVO3/rGO/PCN heterostructures. | ||
There are also some errors in the description of the Raman data in the article which should be corrected as follows.
On page 10122, the sentence beginning “For Ag@AgVO3/rGO/PCN heteroconjugates…” should be changed to “For Ag@AgVO3/rGO/PCN heteroconjugates, the peaks of G and D bands shifted a little bit to lower frequencies from ∼1606 to ∼1600 cm−1 for the G-band and shifted from ∼1353 to ∼1348 cm−1 for the D band, indicating a reduction of GO to rGO.”
On page 10122, the sentence beginning “The ratio of D/G…” should be changed to “The ratio of D/G band intensity of the GO nanosheets was calculated to be ∼0.94, while it changed to be ∼1.05 for Ag@AgVO3/rGO/PCN heteroconjugates.”
The authors apologize for this oversight and any inconvenience caused.
An independent expert reviewed the raw data provided by the authors and concluded that it was consistent with the corrected figure and does not change the discussions or conclusions presented in the article.
The Royal Society of Chemistry apologises for these errors and any consequent inconvenience to authors and readers.
