Thin film nanocomposite membranes of superglassy PIM-1 and amine-functionalised 2D fillers for gas separation

Abstract

Loss of free volume over time (i.e. aging) is the main hurdle towards the commercial use of super glassy polymers for gas separation membranes. Aging takes place at a much faster rate in polymeric thin films, with permeability reductions of over 50% in only a few days. In this work 2D reduced holey graphene oxide (rHGO) nanosheets containing amine groups were added into thin films of the super-glassy polymer of intrinsic microporosity PIM-1. At filler loadings of 1 wt% of rHGO-tris(4-aminophenyl)amine, the CO₂ permeance after 1 year of physical aging was 846 ± 37 GPU, which remained very close to that of the fresh membrane tested right after preparation (1050 ± 70 GPU), and was double that of 1 year-aged purely PIM-1 thin film composite membranes (432 ± 4 GPU). Membranes with lower filler concentrations of 0.1 wt% showed CO₂ permeance values of 604 ± 34 GPU after 1 year of aging, but they aged quite rapidly; the initial CO₂ permeance values of the fresh thin film nanocomposite (TFN) membrane at filler loading of 0.1 wt% was 3351 ± 662 GPU. The aging behaviour was also investigated in several tens of micrometres thick membranes (up to 2 years) for filler loadings of 0.1 wt% and the gas separation performance showed similar tendencies to that of thin films; leading to higher CO₂ permeability without sacrificing CO₂/CH₄ selectivity.

---

1. Introduction

The demand for new technologies to mitigate high atmospheric levels of carbon dioxide (CO₂) is experiencing an unprecedented growth. Membrane-based processes can contribute to the reduction of greenhouse gases emissions,¹ as they feature minimal operating cost, relatively small footprint, and are less energy-intensive than conventional CO₂ separation technologies such as amine absorption.² Polymers are by far the most commonly used materials in membranes for gas separation applications. However, despite the extensive research in recent years, only a handful of them are commercially available. The need to find new materials that can overcome current long-term stability issues is crucial. Alcohol vapour and liquid treatments,³ as well as blending with organic polymers and fillers to obtain mixed matrix membranes (MMMs)^4,5 have been shown to be efficient strategies to slow down physical aging, or to recover from it. It is also important to bear in mind that physical aging (i.e. densification due to polymer chain relaxation) and plasticisation (i.e. swelling at high CO₂ partial pressures) effects are more pronounced in polymeric thin films, which are the preferred configurations for commercial membranes due to their higher flux. Thin films can be produced by depositing a thin selective layer (typically only a few μm thick) on top of a previously prepared porous support, giving so-called thin film composite (TFC) membranes. Another fabrication approach is the one-step immersion-precipitation technique, where a thin polymer solution is cast and introduced into a coagulation bath to obtain integrally skinned asymmetric membranes. In both techniques, nanofillers may be introduced in the selective top layer to render the membranes with superior properties. TFCs containing disperse nanomaterials are known as thin film nanocomposite (TFN) membranes.

Over recent years, two-dimensional materials, including graphene oxide (GO)^6–8 and other GO derivatives such as porous holey graphene oxide (HGO),^9,10 have arisen as promising materials for membrane technology. Like GO, HGO possesses oxygen functional groups that result from the oxidation of graphite and can act as anchoring sites for a range of molecules and nanoparticles to tailor their properties. As the name suggests, HGO can be described as a GO sheet with some carbon atoms vacancies (holes/pores) in its lattice. When used as a filler, membranes can benefit from the structural changes it induces in the polymeric matrix and also from the additional pores in its lattice, creating additional diffusion paths with low resistance for the gas molecules, enhancing the membrane permeability.¹¹ Moreover, it is hypothesised that the incorporation of graphene can affect the chain packing and restrict the mobility of the polymer chains, consequently reducing the membrane swelling and physical aging.^12–14 Most of the research on the use of HGO in membrane technology is based on simulations^15–17 and only a few experimental works are available in the literature. Li et al. reported an improvement in CO₂ permeability and CO₂/N₂ selectivity of 21% (70 GPU) and 20.8% (130), respectively, by incorporating porous graphene oxide into thin-film composite (TFC) polyimide membranes through interfacial polymerization.¹⁰ Recently, Luque-Alled and co-workers¹⁸ reported mitigation of physical aging of MMMs when incorporating 10 wt% (PIM-1)-functionalised HGO into PIM-1 polymeric matrix. These retained 70% of the initial CO₂ permeability after 150 days. Zhang and co-workers⁹ studied Pebax@1657 membranes that were functionalised by o-hydroxyazo-hierarchical porous organic polymers (o-POPs) and PGO. The gas separation performance of these membranes surpassed the Robeson’s upper bounds (2008), exhibiting a CO₂ permeability and CO₂/N₂ ideal selectivity of 232.7 barrer and 80.7, respectively. Chen et al.¹⁹ reported a method to improve the permeability and CO₂ selectivity of PIM-1 by incorporating GO nanosheets. The combination of the hydrophilic/hydrophobic microphase segregation in the membrane from the uniform assembly of GO nanosheets and the very porous MMMs with pore size of about 0.78 nm significantly improved the gas separation performance of PIM-1 membrane with an excellent CO₂ permeability of up to 6169 barrer as well as a high CO₂/N₂ selectivity of 123.5. Tamaddondar et al.²⁰ showed that the incorporation of a low cross-link density (LCD) network PIM-1 into a PIM-1 matrix is an effective way to reduce the physical aging effects of the membrane performance.

In this work, supported TFN and freestanding mixed matrix membranes were fabricated by incorporating amine-functionalised reduced graphene oxide into polymer of intrinsic microporosity PIM-1. PIM-1 possesses high CO₂ permeability and relative high selectivity for important gas-pairs, such as CO₂/CH₄, which contributed to the revision of the Robeson’s upper bound in 2008.²¹ Two different amines were investigated (N,N,N′,N′-tetrakis(4-aminophenyl)-1,4-phenylenediamine (tetrakis) and tris(4-aminophenyl)-amine (TAPA)). The performance of all membranes was investigated for CO₂/CH₄ gas separation, as well as the effect of filler loading on the physical aging.

2. Experimental part

2.1. Materials

Hydrogen peroxide (H₂O₂, 30% w/v) was purchased from Acros Organics. L-Ascorbic acid (AA, 99%), anhydrous dimethylacetamide (DMAc), anhydrous dichlorobenzene (DCB), methanol, ethanol, 1,4-dioxane and chloroform were purchased from Sigma Aldrich (UK) and used as received. Anhydrous potassium carbonate (K₂CO₃, 99%) from Fisher Scientific Ltd (UK) was ground into a fine powder and dried in a vacuum oven at 110 °C overnight before use. Tetrachloroterephthalonitrile (TCTPN, ≥99%) was purchased from Jinan Finer Chemical Co. Ltd (China). Aqueous GO at a concentration of 10 mg mL⁻¹ was kindly provided by William Blythe (UK). N,N,N′,N′-tetrakis(4-aminophenyl)-1,4-phenylenediamine (tetrakis) (C₃₀H₂₈N₆, ≥95%) was purchased from Carbosynth (UK). Tris(4-aminophenyl)-amine (TAPA) (C₁₈H₁₈N₄, 97%) and 3,3,3′,3′-tetramethyl-1,1′-spirobisindane-5,5′,6,6′-tetraol (TTSBI, ≥96.0%) were purchased from Alfa Aesar. Both TTSBI and TCTPN were dried in a vacuum overnight at room temperature before use. Polyacrylonitrile (PAN) supports were supplied by Saudi Aramco (Saudi Arabia). The chemical structures of TAPA and tetrakis are shown in Fig. 1(a) and (b), respectively.

Fig. 1 (a) Tris(4-aminophenyl)-amine (TAPA) and (b) N,N,N′,N′-tetrakis(4-aminophenyl)-1,4-phenylenediamine (tetrakis).

2.2. Synthesis and characterisation of PIM-1

The PIM-1 synthesis was modified from the procedure described by Foster et al.,²² with 51.06 g of TCTPN (0.15 mol), 39.89 g of TTSBI (0.15 mol) and 62.19 g of K₂CO₃ (0.45 mol) reacted in a solvent mixture of 300 mL of DMAc and 150 mL of DCB under N₂ at 120 °C (Fig. 2). The polymerization was carried out under mechanical stirring with the addition of the base in the monomers-containing solution after 25 min, when the internal temperature of the reaction mixture had reached 60 °C. The reaction mixture was brought up to 120 °C and maintained at that temperature for 2.5 h (Fig. S1†). These temperature conditions were selected to provide a topologically-rich PIM-1 polymer which has been shown in membranes to give improved gas separation performance. The stirring rate was increased throughout the reaction time as the viscosity of the solution increased. The viscous solution was then quenched into excess methanol. The yellow crude product was collected by vacuum filtration, redissolved in chloroform (5 g/120 mL), and then reprecipitated by pouring slowly into excess methanol. The polymer was again collected via filtration and then refluxed in deionized water for 16 h. The recovered product was immersed in a minimal amount of 1,4-dioxane for 15 min, before being washed with copious amounts of acetone during filtration. The polymer sample was left to soak in methanol overnight. It was then finally vacuum-filtered using a sintered glass funnel and dried in a vacuum oven at 120 °C for 2 days. 67 g (97% yield) was obtained after purification. A Viscotek gel permeation chromatography (GPC) max VE 2001 instrument (Malvern, UK) equipped with two PL mixed B columns and a Viscotek TDA302 triple detector array were used to determine the weight-average molecular weight (M_w), number-average molecular weight (M_n) and dispersity (Đ) of PIM-1. PIM-1 was dissolved in chloroform to obtain a concentration of 1 mg mL⁻¹. Analysis was performed in chloroform at a flow rate of 1 mL min⁻¹ and an injection volume of 100 μL. OmniSEC software (Malvern, UK) was used to analyze the data. GPC results: M_w = 74 100, M_n = 49 500, Đ = 1.5. A Flash 2000 organic elemental analyser (Thermo Scientific, The Netherlands) was employed to obtain elemental analysis data. 5 mg of powder was used for each experiment. Elemental analysis results (wt%): C = 72.32%, H = 4.33%, N = 5.75%, Cl = 1.42% (theoretical content for C₂₉H₂₀N₂O₄: C = 75.64%, H = 4.37%, N = 6.08%). ¹H nuclear magnetic resonance (NMR) spectrum of PIM-1 polymer was recorded using a Bruker Avance II 500 MHz instrument. 50 mg mL⁻¹ polymer solutions in CDCl₃ were prepared for the NMR analysis. ¹H NMR spectrum indicated a branched PIM-1 is formed, this is shown in the ESI, Fig. S2.†

Fig. 2 PIM-1 polymerization.

2.3. Synthesis of holey graphene oxide (HGO)

Holey graphene oxide (HGO) was prepared by gradually adding 5 mL of H₂O₂ into a 200 mL GO aqueous dispersion (1 mg mL⁻¹). The mixture was constantly stirred and refluxed for 10 h at 80 °C. After that, part of the HGO suspension (120 mL) was centrifuged and washed with deionized (DI) water to remove the remaining H₂O₂ and debris, and finally dried in a vacuum oven for 24 h at room temperature. The remaining HGO suspension (80 mL) was functionalised with two different amines as described in the next Section 2.4.

2.4. Synthesis of reduced amine-functionalised graphene oxide

Amine-functionalisation of HGO was carried out following the procedure described by Alberto et al.²³ The concentration ratio of HGO to amines (tetrakis and TAPA) was fixed at 1.0 mg of HGO to 0.01 mmol of amine. Firstly, amine was dissolved in ethanol up to a concentration of 5 mg mL⁻¹. Then, the amine solution was slowly added into the HGO aqueous dispersion and stirred for approximately 24 h at 60 °C under reflux. The reaction suspension was filtered with ethanol to remove the unreacted amine followed by a final wash with chloroform.

The obtained functionalised HGOs were chemically reduced to improve their dispersion in chloroform for membrane preparation. For that, 0.992 g of AA were added to 140 mg of amine-functionalised HGO (1 mg mL⁻¹) and the mixture was allowed to stir for 2 h at 90 °C. The resulting suspension was filtered and washed with ethanol and chloroform. The final product was collected and dispersed in chloroform (2.86 mg mL⁻¹) and labelled as rHGO-TAPA or rHGO-tetrakis.

2.5. Membrane fabrication

2.5.1. Mixed matrix membranes (MMMs). 2 wt% of PIM-1 polymeric solutions were prepared with different loadings of reduced amine-functionalised HGO (0.01, 0.05, 0.1, 0.25, 1, and 5 wt%, relative to the mass of PIM-1). The dope solutions were prepared by adding the required amounts of fillers into the polymeric solution (PIM-1 dissolved with chloroform) and undergoing probe sonication (UP200St (200 W, 26 kHz), Hielscher Ultrasound Technology, Germany) for 15 min in a pulsatile manner (5 s sonication with 3 s pause), followed by bath sonication for 2 h. After that, the dope solutions were poured onto Steriplan® Petri dishes (diameter of 5 cm) and immediately covered with a lid and placed in a drying cabinet for 3 days at room temperature under nitrogen atmosphere. The resulting films were removed from the glass petri dish and soaked in methanol for 24 h and dried at 80 °C for 8 h under vacuum prior to gas permeation tests and characterisation. The thickness of the membranes was measured by a micrometer (Mitutoyo IP65 Coolant Proof, United Kingdom, accuracy of ±0.5 μm). The average membrane thickness resulted from at least 5 measurements on each membrane. These membranes were labelled xxrHGO-tetrakis and xxrHGO-TAPA, for tetrakis and TAPA functionalisations, respectively where xx represents the wt% of the filler in the PIM-1 polymeric matrix, followed by the holey reduced graphene oxide filler. Pristine PIM-1 freestanding membranes were prepared as controls and were labelled PIM-1.

2.5.2. Thin-film nanocomposite (TFN) membranes. TFC membranes supported on porous PAN were prepared through kiss coating using the in-house built system that is shown in Fig. 3(a). The polymer content used in all coating solutions was 2 wt% in chloroform, and the filler loading ranged from 0.01 to 5 wt% relative to the polymer weight. PAN membranes were cut into rectangular shapes (2 cm × 6 cm) and coated with PIM-1 for approximately 0.7 s. The membranes were dried at room temperature and atmospheric pressure and were labelled TFN-xxrHGO-tetrakis and TFN-xxrHGO-TAPA for rHGO-TAPA and rHGO-tetrakis-containing membranes, respectively, where xx represents the wt% of the filler. Pristine PIM-1 TFC membranes were labelled TFC-PIM-1. Fig. 3(b) shows a picture of one of the prepared TFN membranes.

Fig. 3 (a) Diagram and picture of the apparatus used for the fabrication of TFN membranes via kiss coating, and (b) representative TFN PIM-1 membrane supported on a PAN porous support.

2.6. Characterisation of HGO fillers and membranes

Attenuated total reflection fourier transform infrared spectroscopy (ATR-FTIR) was used to analyse the structure of the graphene-based materials, pristine PIM-1 membranes (freestanding and TFC), MMMs, and TFN membranes. The spectra were acquired with an iDS Nicolet iS5 instrument (Thermo Scientific, UK), equipped with a Ge crystal as background over the wavenumber range of 500–4000 cm⁻¹, and step size of 0.5 cm⁻¹.

Thermogravimetric analysis (TGA) was used to study the thermal stability of the synthesized graphene-like fillers, MMMs and TFC membranes. A TGA 550 thermal analyser (TA instruments, USA) was used, with a heating rate of 10 °C min⁻¹ and under 60 mL min⁻¹ nitrogen flow rate. The analysis was carried out from 50 to 800 °C.

A scanning electron microscope (SEM) FEI Quanta 650 FEG SEM (FEI, USA) was used to study the morphology of the membranes and the lateral size distribution of the GO nanosheets. Cross sectional samples were prepared by cryo-fracturing in liquid nitrogen. Initially, the sample membranes were immersed in ethanol for about 30 s, and subsequently introduced into liquid nitrogen for another 30 s, where the membranes were fractured. Also, the samples were sputtered with platinum nanoparticles using an Emitech sputter coater (Quorum Technologies, UK) before imaging under SEM. To obtain the lateral size of the prepared GO nanosheets, a silicon wafer was dipped in a GO dispersion (0.05 mg mL⁻¹), dried at room temperature under vacuum and imaged. The processing software ImageJ® was used to perform the flake size analysis.

2.7. Gas permeation measurements

2.7.1. Testing of mixed matrix membranes (MMMs). Gas permeation measurements were conducted using a binary CO₂/CH₄ mixture with equal volume fractions of each gas (flow rates of 25 mL min⁻¹ of each gas). The feed pressure was controlled at 2–2.4 bar, while the permeate side was kept at atmospheric pressure. Helium (flow rate of 20 mL min⁻¹) was used as a sweep gas to dilute the permeating gases and direct them to a 490 micro gas chromatography system (Agilent, USA) equipped with a PoraPLOT (PPU) column. The experiments were conducted at 25 °C.

The gas permeability P for each gas was calculated using eqn (1).

in which Q is the permeate gas flow rate (cm³(STP) s⁻¹), l is the membrane thickness (cm), A is the effective membrane area (cm²) and Δp is the partial pressure difference across the membrane (cmHg) for the gas. P is given in barrer units (1 barrer = 10⁻¹⁰ cm³[STP] cm cm⁻² s⁻¹ cmHg⁻¹). The selectivity for a gas pair, α_A/B (gases A and B) is calculated as the ratio of the permeabilities of the two gases, P_A and P_B, using eqn (2):

All membrane samples were sandwiched between two aluminum tape rings and sealed with epoxy resin to prevent breakage and cracking when handling and during testing. The effective membrane area ranged from 0.18 to 0.48 cm². At least two membranes of each composition were tested.

2.7.2. Testing of thin-film nanocomposite (TFN) membranes. Single gas permeation measurements were performed based on the fixed pressure, variable volume method.²⁴ Pure gas permeation measurements were performed for CH₄ and CO₂ at room temperature with TFN membranes of 2.1 cm² effective area. Membranes were cut into discs of the required size and directly placed into the permeation cell (no aluminium rings were used). The pressure of the feed side was maintained at 2.4 bar. Aging effects in this case were monitored using different discs but cut from the same rectangular membrane. At least two discs from two different membranes were tested and the average permeance values are reported. The gas permeance (K, in GPU (1 GPU = 10⁻⁶ cm³[STP] cm⁻² s⁻¹ cmHg⁻¹)) was calculated using eqn (3):where, V_k (cm³) is the volume of the permeated gas at STP (0 °C and 1 atm) during a time t (s) through a membrane area A (cm²).

2.7.3. Single gas permeability measurements. Pure gas permeation measurements of aged membranes were obtained using time-lag apparatus at a temperature of 25 °C and feed pressure of 1.2 bar. Both sides of the membrane cell were emptied for 2.5 h using an Edwards T-station turbo pumping station 75 with an EXT75DX turbopump and an E2M1.5 rotary vane oil-sealed pump. On the permeate side, the initial pressure was 10⁻³ mbar and subsequent increments in pressure were measured with MKS baratron gauges at intervals of 1 s for ∼500 s and with an accuracy of 10⁻⁴ mbar. Data was collected using Labview and NI CRio. The permeability of a gas (P_i) was calculated using eqn (4) and (5).where Q_i is the gas flow rate (cm³ s⁻¹), V_p (cm³) is the permeate side volume, v_stp is the molar volume of a gas at standard temperature and pressure (22 400 cm³ mol⁻¹), R is the gas constant (cmHg cm³ K⁻¹ mol⁻¹), T is the absolute temperature (K), dp/dt is the pressure build-up of permeate side (cmHg s⁻¹), Δp is the average pressure difference between feed and permeate sides (cmHg), and l is the membrane thickness (cm).

The diffusion coefficient (D) was obtained using eqn (6). The solubility coefficient (S) was calculated from the permeability (P) and diffusion (D) coefficients using eqn (7); the time-lag (θ) was obtained from the graph of permeate pressure against time, and l is the membrane thickness.

P = DS (7)

The permeability of the membrane can be modelled using Maxwell–Wagner–Sillars equation. Eqn (8),²⁵ which is an adjusted function of the Maxwell equation, includes a parameter n that can be related to the orientation and shape of the holey GO fillers in the membranes

where P_M,P_p and P_f are the gas permeability values of the TFN membranes, the continuous phase (polymer, PIM-1) and the dispersed phase (filler, TFN-rHGO), respectively, all in barrer. Ø is the volume fraction of the filler, and n is the shape factor of the filler related to the geometry and the orientation. For prolate ellipsoids 0 ≤ n ≤ 1/3, for oblate ellipsoids 1/3 ≤ n ≤ 1, and for spherical fillers n = 1/3, which is the key assumption of Maxwell’s theory. When n = 0 the gas passes through parallel plates, and when n = 1 the gas goes through laminate series plates.²⁶ The above mentioned model has been broadly used for the prediction of permeation performance in MMMs and reported by our group for 2D fillers-containing membranes.^18,27

3. Results and discussion

The lateral size distribution of the GO nanosheets was obtained from several SEM images; a representative SEM image is shown in Fig. S4(a).† According to the normal distribution curve-fitting used, the mean value of the lateral GO flake size is 3.5 ± 2.5 μm (Fig. S4(b)†).

Fig. S3a and b† show the porosity of the surface of PAN supports at low and high magnifications, respectively. From the acquired images, the obtained average pore size and surface porosity are 45.6 nm and 11.7%, respectively. Fig. 4 shows SEM images of the surface and cross-sections of pristine PIM-1 TFC membranes and TFN-1.0rHGO-TAPA-TFC membranes. From these images, it can be observed that the kiss-coating method followed in this study led to the production of defect-free TFN membranes and no agglomerates were visible, suggesting that the fillers were uniformly dispersed in the polymeric matrix. Generally, the membrane thickness for thin membranes was about 2–5 μm. More SEM images of the surface and cross sections of the TFC prepared in this study are shown in Fig. S5.†

Fig. 4 SEM images of surface and cross sections of (a and c) PIM-1 TFC, and (b and d) TFN-1.0rHGO-TAPA membranes.

FTIR spectra of rHGO, rHGO-TAPA and rHGO-tetrakis samples are shown in Fig. S6(a).† The FTIR spectrum of rHGO showed the oxygen-containing groups in which the main broad absorption band occurs at 3320 cm⁻¹ representing O–H group stretching vibrations of hydroxyl and carboxyl groups. Moreover, the absorption peaks at 1700 cm⁻¹ and 1600 cm⁻¹ correspond to the C=O stretching of carboxylic and C=C stretching in the aromatic ring, respectively. The absorption peaks at approximately 1200 cm⁻¹ and 1040 cm⁻¹ represent epoxy C–O stretching vibration and alkoxy C–O stretching vibrations, respectively.²⁸ After functionalisation, the FTIR spectra of TAPA/GO and tetrakis/GO show the N–H wag peaks at 875 cm⁻¹. Additionally, both GO-based materials show two peaks at 1535 and 1571 cm⁻¹ that are attributed to N–H stretching. New medium intensity peaks appeared in these spectra in the 1400–1200 cm⁻¹ region due to antisymmetric C–N stretching vibrations coupled with out-of-plane NH₂ and NH modes.²⁹ The peaks in the region from 3400 to 3250 cm⁻¹ correspond to N–H stretching. FTIR was also employed to study the chemical structure of the as-cast free PIM-1 membrane. As shown in Fig. S6(b),† the characteristic peaks from approximately 2800 cm⁻¹ to 3010 cm⁻¹ correspond to the aliphatic and aromatic C–H stretching. In addition to that, the FTIR also showed characteristics peak at ∼2240 cm⁻¹ for C≡N, ∼1610 cm⁻¹ for C=C aromatic bending and 1000–1300 cm⁻¹ for C–O bending.³⁰ Fig. S6(c) and (d)† show the FTIR spectra of MMMs and TFN membranes, respectively. No significant difference was observed between the FTIR spectrum of pristine PIM-1 membranes (freestanding and TFC) and the spectra of MMMs and TFN membranes, which might be due to the low filler concentration of the prepared membranes.

The thermal stability of TAPA (as received), tetrakis (as received), GO, rHGO-tetrakis and rHGO-TAPA was assessed by TGA and the curves are shown in Fig. S7(a).† For all the samples the weight loss up to approximately 100 °C is attributed to the evaporation of adsorbed water. The weight loss between 100 and 300 °C of GO stems from the decomposition of oxygen-containing functional groups, and at higher temperatures up to 650 °C the pyrolysis of the carbon skeleton takes place.³¹ At 700 °C, the GO registered a weight loss of 95.4%. TAPA and tetrakis are thermally stable up to approximately 250 °C, showing negligible weight loss in this temperature range, with subsequent degradation at higher temperatures.²⁸ rHGO-TAPA and rHGO-tetrakis are both more hydrophobic than GO due to the amine functionalisation and chemical reduction, as confirmed by the lower weight loss up to 100 °C. The thermal stability of MMMs and TFN membranes was also investigated and the results are shown in Fig. S7(b) and (c),† respectively. Results show that the thermostability of those membranes has not been significantly affected by both the type and loading of the fillers.

Gas permeation tests of PIM-1 TFC membranes and rHGO-tetrakis- and TAPA-based PIM-1 TFN membranes were carried out with single gases (CO₂ and CH₄) on a fixed pressure cell at 25 °C. The CO₂ permeance and the ideal CO₂/CH₄ selectivity of the rHGO-tetrakis/PIM-1 and rHGO-TAPA/PIM-1 TFNs are plotted in Fig. 5(a) and (b), respectively, and the raw data is provided in ESI (Tables S1 and S2†). As can be observed, the incorporation of the fillers affected the CO₂ and CH₄ gas permeation of the PIM-1 thin films, with increased selectivity for less permeable membranes (>0.25 wt% of fillers). The TFNs containing a filler loading of 0.1 wt% showed a two-fold increase in CO₂ permeances as compared to pristine PIM-1 TFC membranes for both fillers: 3351 ± 662 and 3200 ± 842 GPU for 0.1rHGO-TAPA-TFN and 0.1rHGO-tetrakis-TFN, respectively. The ideal CO₂/CH₄ selectivity of both sets of membranes, decreases from ∼9 for pure PIM to ∼7. Li et al.¹⁰ studied the incorporation of porous graphene nanosheets into polyimide membranes for CO₂/N₂ separation and reported similar results; at relatively low filler loadings (0.04–0.05 wt%) the CO₂ permeation through the membrane increased and it then decreased for higher filler loadings. Similarly, Kim et al. incorporated GO and reduced GO (rGO) into thermally rearranged (TR) polymers to form ultrathin TFN membranes. TFNs containing rGO showed a high initial CO₂ permeance of 1784 GPU which corresponds to an increase of 482 times compared to pristine polymer TFC membranes, with a selectivity of 32.4.³² This behaviour can be rationalised considering two competitive factors – disruption of the polymers chains that cause the increase in the gas permeability and the creation of the more tortuous path for the gas transport that leads to a reduction in gas permeation. This phenomenon is also reported in other studies in the literature.^33,34 A similar study by Zhao et al. where metallic ion-cross-linked PIM-1 thin film membranes were fabricated, reported high CO₂/N₂ selectivity (23) and good CO₂ permeance (1058 GPU).³⁵ Likewise, PIM-1 based ultrathin membranes containing 2D metal–organic framework (MOF) nanosheets fabricated by Cheng et al. resulted in a CO₂/CH₄ selectivity of 15.6 and CO₂ permeance up to 407 GPU, surpassing other PIM-1 based membranes.³⁶

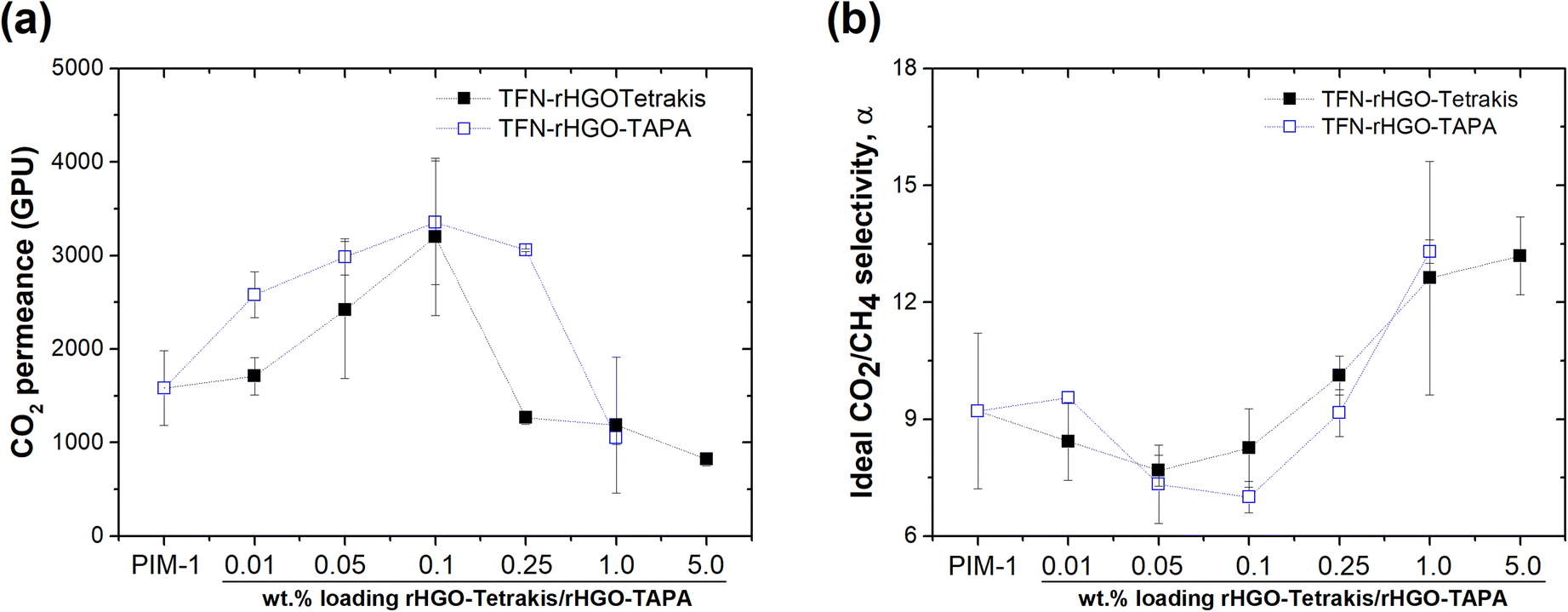

Fig. 5 (a) CO₂ permeance and (b) CO₂/CH₄ ideal selectivity of rHGO-tetrakis and rHGO-TAPA-based PIM-1 TFN membranes. ★ represents the performance of TFC PIM-1 membranes (dashed lines are used for guide purposes only).

More important than the initial gas separation values, is the performance of the thin films over time. Stability is crucial in industrial operations, where predictable outputs are required. Due to the intrinsic high free volume of PIM-1, polymer chain relaxation that leads to a lower energy state and thus lower free volume is expected.^37,38 The prepared TFNs in this work were kept in plastic petri dishes, sealed with parafilm and monitored up to 1 year and the results are plotted in Fig. 6 (raw data is provided in ESI in Tables S1 and S4†). On day 1, PIM-1 TFC membranes showed CO₂ permeance of (1583 ± 400) GPU and ideal CO₂/CH₄ selectivity of (9.2 ± 2). After 66 days of aging, 58% of the initial CO₂ permeance was lost, and after 1 year the loss was 73% ((432 ± 4) GPU). The reduction in CH₄ permeance was higher (c.a. 81%) than that for CO₂ over the same period, leading to the expected increase in ideal selectivity for the CO₂/CH₄ mixture upon aging. As explained in the work by Bernardo et al.³⁹ aging in PIM-1 membranes mainly affects the gas diffusivity, which is more pronounced for molecules with larger kinetic diameters. The kinetic diameters of CH₄ and CO₂ are 3.8 Å and 3.3 Å, respectively. Thus, the physical aging in PIM-1 membranes tends to restrict to a higher degree the diffusion of CH₄, improving the CO₂/CH₄ selectivity, as observed for the prepared TFNs. Moreover, the results also show a more rapid physical aging rate in thin films than in thick films (ESI†). In this study, thick freestanding PIM-1 membranes showed a CO₂ permeability reduction of approximately 67% after 457 days. The physical aging rate dependency on the membrane thickness has been reported previously.⁴⁰ As an example, Borisov et al. showed a drop in CO₂ permeance of 3 month-aged PIM-1 TFC membranes between 10 and 40 times (208–297 GPU).⁴¹ More recently, Foster et al. reported the effect of blending topologically distinct samples of PIM-1 on the performance and aging behaviour of TFCs.⁴² Those containing a multi-loop polymeric structure (with 3 small loops) and very few chain ends (0–1 max) showed the best aging behaviour, with CO₂ permeance of 671 GPU after 120 days.

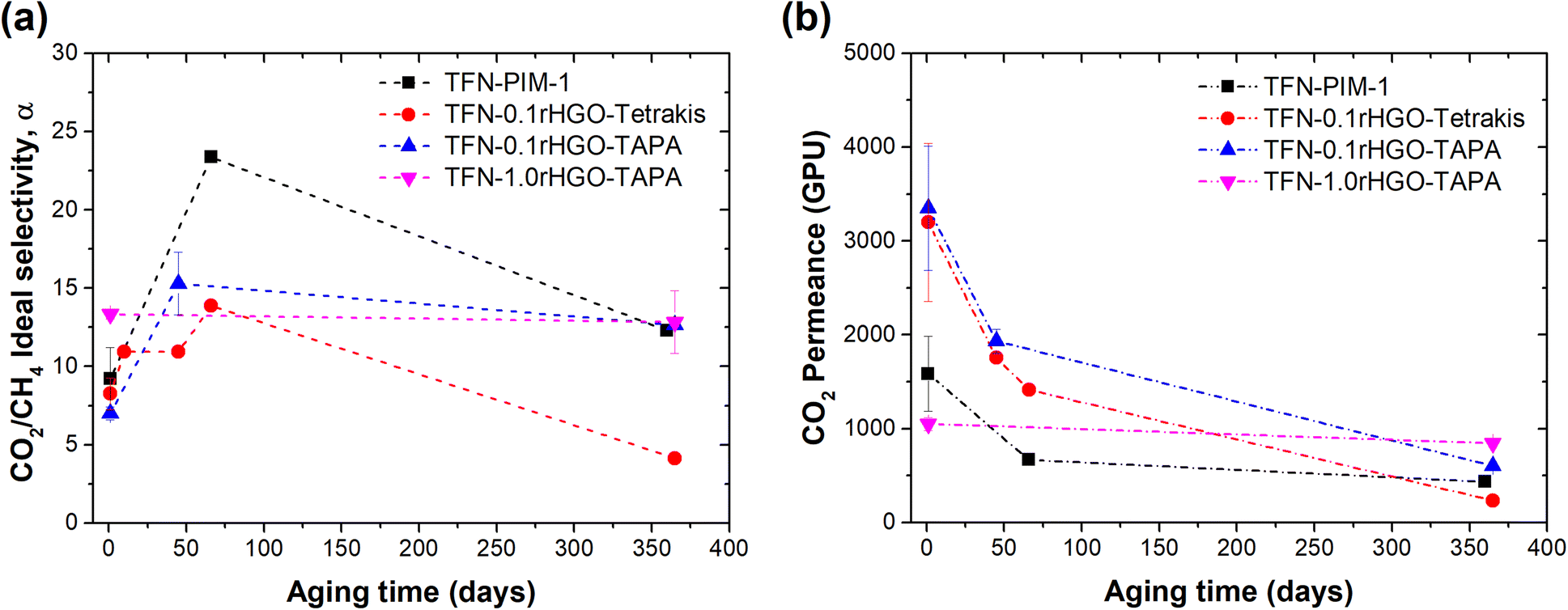

Fig. 6 (a) CO₂ permeance and (b) ideal CO₂/CH₄ selectivity of PIM-1 TFC and TFN membranes containing rHGO-tetrakis and rHGO-TAPA as fillers. Pure gas measurements at room temperature and a feed pressure of 2.4 barg. Effective membrane area 2.1 cm², and samples stored at ambient conditions between testing. (1 GPU = 10⁻⁶ cm³[STP] cm⁻² s⁻¹ cmHg⁻¹) (dashed lines are used for guide purposes only).

Some of the prepared TFN membranes with amine-functionalised-rHGO were able to reduce the physical aging of the PIM-1 polymer, for example the membrane containing 0.25 wt% of tetrakis (TFN-0.25rHGO-tetrakis) experienced a loss of CO₂ permeance of only 14% (from (1265 ± 70) to (1092 ± 108) GPU) over a period of 66 days. Similarly, the membrane containing 1 wt% of TAPA (TFN-1.0rHGO-TAPA) was able to preserve 81% of its initial CO₂ permeance after one year from preparation at (846 ± 37) GPU, only a reduction of ∼19.4%. In all cases, CO₂/CH₄ ideal selectivities increased quite substantially for the first couple of months (Fig. 6b) due to the aforementioned more effective packing of the polymer and, therefore, an increase in the diffusivity-selectivity. However, prolonged aging of the TFNs led to selectivities down to their original values, which could be explained by the formation of small interfacial gaps between the polymer and the filler during the testing period.

The incorporation of fillers into the PIM-1 polymer to obtain gas separation membranes has been previously reported in the literature. However, most studies focus on freestanding thick MMMs, and only a few report the preparation of TFNs. In a recent publication by our research group,⁴³ thin film nanocomposites (TFNs) membranes were prepared by incorporating porous silica nanosheets (SN) functionalized by a sulfonic acid (S-SN) in the PIM-1 polymer matrix. The incorporation of 0.05 wt% of S-SN led to 35% higher initial CO₂ permeance (3771 ± 5 GPU) than the TFC PIM-1 (2778 ± 1010 GPU), and enhanced physical aging was obtained. However, the CO₂ permeance of 28 days-aged TFC PIM-1 and TFN PIM/S-SN0.05 dropped by 97% (81 ± 10 GPU) and 87% (403 ± 43 GPU), respectively.

Bhavsar et al.⁴⁴ showed that the incorporation of highly permeable nanoparticulate fillers (carbonized form of hypercrosslinked polystyrene, C-HCP) into PIM-1 TFN membranes drastically reduced the physical aging rate. The incorporation of a very high loading of C-HCP (60 wt%) into the PIM-1 polymeric active layer showed CO₂ permeance of >9300 GPU after 90 days.

Tables S3 and S8(a)† show the gas separation performance of freestanding PIM-1 membranes and freestanding MMMs containing rHGO-tetrakis as filler (0.01–5.0 wt%). A 50/50 vol% CO₂ and CH₄ binary mixture was introduced to the feed side and tests were conducted at 25 °C under a transmembrane pressure of 1 bar. At least two membranes of each composition were tested. Experimental results showed that the incorporation of rHGO-tetrakis into the polymeric matrix has distinct effects of the gas separation performance, depending on the loading of the filler. A significant increase in CO₂ permeability of the MMMs was observed with increasing filler loading over the range 0.01–0.1 wt% rHGO-tetrakis, reaching a maximum CO₂ permeability of (9760 ± 449) barrer for the sample 0.1rHGO-tetrakis, representing an increase of 31% when compared to pristine PIM-1 membrane. On the other hand, the permeability of CO₂ dropped for filler loadings higher than 1.0 wt% rHGO-tetrakis. The membrane 5.0rHGO-tetrakis presented a CO₂ permeability of (3393 ± 315) barrer, the lowest amongst all, even lower than a pristine PIM-1 membranes. In addition to that, membrane selectivity increased for this range of filler loadings. These findings are underpinned by both the semi-impermeability of holey graphene and by the creation of a more tortuous path for the gas molecules to cross the membrane. Similar results were obtained by Althumayri et al.⁴⁵ that reported a two-fold increase in CO₂ permeability of MMMs containing a loading of graphene of 0.05 vol% in a PIM-1 polymeric matrix, whereas, the CO₂ permeability decreases with the further increasing loading of graphene. Shen et al.³⁴ reported a similar trend when GO was incorporated into Pebax matrix. CO₂ permeability increased upon addition of 0.1 wt% GO to the Pebax membrane reaching 100 barrer. Further addition of GO led to a decrease of the CO₂ permeability from 100 to 30 Barrer for an addition of 0.5 wt% GO. MMMs based on polyimide with either GO or laminated GO as fillers prepared by Ge et al.⁴⁶ showed the same behaviour. The addition of both fillers resulted in an increase of CO₂ permeability with the increase of filler loading up to 3.0 wt% which was followed by a decrease in CO₂/N₂ selectivity. Opposite behaviour was shown by both MMMs when the filler loading surpassed 4.0 wt%. Functionalised multi-walled carbon nanotubes (f-MWCNTs) with polyethylene glycol (PEG) in PIM-1 MMMs were investigated by Khan et al. Similar to previous studies, the addition of 0.5 wt% of f-MWCNTs loading to polymer matrix resulted in ∼21% increase in CO₂ permeability. Likewise, f-MWCNTs loading between 1 wt% and 2 wt% further enhanced the gas permeability. On the other hand, with the increase of f-MWCNTs loading from 2% to 3%, the CO₂ permeability decreased.⁴⁷ A related study on MMMs incorporating g-C₃N₄ nanosheets into the PIM-1 matrix reported by Tian and co-workers also showed an enhancement in gas permeabilities with increase filler loadings. At low g-C₃N₄ loadings (<1.5 wt%), there was an apparent increase in gas permeability until it reached the maximum of 1 wt% g-C₃N₄ loading, then further loading decreased the permeability. The decrease in permeability was hypothesised to be due to the partial agglomeration of restacked g-C₃N₄, which blocked the ultramicropores of the PIM-1 matrix.⁴⁸

Assuming the addition of 2D sheets (rHGO) into PIM-1 follows the ellipsoids theory and knowing that the permeability of the rHGO is way lower than the PIM-1 permeability, hence the P_f can be neglected. The n parameter can be calculated from the experimental gas permeability values for the PIM-1 and the TFN membranes. The calculation of the volume fraction Ø was determined by considering the wt% of each membrane. The density of PIM-1 was considered to be 0.948 g cm⁻³,¹² and the density of GO was calculated as the two-dimensional mass density of a graphene single layer (7.63 × 10⁻⁸ g cm⁻²) divided by the GO flake thickness (1 nm) as previously reported.¹⁸ The n parameter was calculated for each TFN membranes using eqn (8) with P_M (experimental gas permeability of the TFN membranes) and P_p (experimental gas permeability of pure PIM-1), and the results are shown in Table S5.† The n values results range between 0.943 and 1, which indicates that most of the rHGO flakes are parallel to each other and horizontally orientated to the gas flow. Fig. S8† shows the CO₂ permeability prediction for the rHGO-tetrakis-containing membranes based on the Maxwell equation.

The CO₂/CH₄ separation performance of MMMs containing different loadings of rHGO-TAPA into PIM-1 polymeric matrix was also investigated under the same conditions as the previous rHGO-tetrakis MMMs. The performance of rHGO-TAPA/PIM-1 MMMs is shown in Table S4. Fig. S9(b)† compares the performance of rHGO-TAPA- and rHGO-tetrakis-based PIM-1 MMMs. For filler loading up to 0.1 wt%, both fillers induced an increase in CO₂ permeability. Among these membranes, the maximum CO₂ permeability was reached by the membrane 0.1rHGO-TAPA ((11 077 ± 261) barrer). In terms of CO₂/CH₄ selectivity, rHGO-TAPA/PIM-1-based membranes showed always higher selectivity than rHGO-tetrakis/PIM-1-based membranes. This might be due to the size of the molecules TAPA and tetrakis. Tetrakis molecules are bigger than TAPA molecules, which can induce a greater disruption of the polymer chains and therefore create more non-selective voids between the filler and the polymer chains. Moreover, bigger molecules may also cause an increase in tortuosity path for the gas molecules and therefore a decrease in membrane permeability.

Physical aging of the membranes was evaluated in terms of CO₂ permeability and CO₂/CH₄ selectivity for 611 days and the results are shown in Fig. S10(a) and (b)†, respectively (Tables S3 and S4 in the ESI†). The CO₂ permeability of all MMMs decreased over time, while the CO₂/CH₄ selectivity is enhanced for the same testing period. After 611 days, 0.05rHGO-TAPA and 0.05rHGO-tetrakis showed the highest ((3839 ± 907) barrer) and lowest ((1999 ± 173) barrer) average CO₂ permeability, respectively. The same tendency of highly permeable glassy polymers to show a decrease in CO₂ permeability over time has been shown in the literature.^13,39,49 The relative CO₂ permeability and relative CO₂/CH₄ selectivity of pristine PIM-1 membranes and MMMs, 611 days after preparation are shown in Fig. S10(c) and (d)†, respectively. Pristine PIM-1 membranes experienced a drop of 66% in CO₂ permeability after 611 days. Over the same period, the lowest CO₂ permeability loss, 55%, was shown by 0.05rHGO-TAPA. It is worth noting that the membrane 0.05rHGO-tetrakis presented the highest relative CO₂ permeability loss (79%) and also the second highest initial CO₂ permeability ((9361 ± 374) barrer). This might be due to the greater free volume generated by the introduction of the filler into the polymeric matrix. The higher the initial free volume, the higher the gas permeability, increasing the tendency to raise the physical aging rate. Generally, MMMs presented a lower increase in relative CO₂/CH₄ selectivity compared to pristine PIM-1 membranes. This might be due to voids still present in the membrane structure upon the disruption of the polymer chains created by the presence of the filler in the membrane matrix.

Fig. S11† displays the gas separation performance of freestanding PIM-1 and rHGO-tetrakis/PIM-1 and rHGO-TAPA/PIM-1 MMMs, the 2008 Robeson and the 2019 Jansen/McKeown upper-bounds. It can be observed that the performance of the membranes moved towards lower CO₂ permeability and higher CO₂/CH₄ selectivity.

To further investigate the effect of the fillers in the MMMs, single gas permeation measurements of aged membranes (aged for 850 days) were undertaken using a time-lag apparatus. The solution-diffusion mechanism is the most widely used transport model for gas permeation in polymer membranes, hence pure gas measurements were obtained by a constant volume instrument to evaluate the solubility (S) and diffusivity (D) coefficients of PIM-1 and rHGO-tetrakis- and TAPA-based PIM-1 membranes (shown in Table 1). The calculated values of S and D in the PIM-1 membrane are similar to those reported by Budd et al.²¹D and S values for CO₂ are both greater than CH₄, owing to the smaller kinetic diameter of CO₂ and higher polarity, respectively. It has been found that aging has a significant effect on the diffusivity, however, the solubility is almost constant as a function of time. The D values for all MMMs are greater than pristine PIM-1. Therefore, the addition of the fillers leads to higher free volume after a long period of aging. It is worth mentioning that the permeability of all the MMMs was still higher than that of neat PIM-1. Thus, the improvements in permeability are due to faster diffusion of CO₂ through the MMMs. This suggests that adding amine-functionalised rHGO helps keep a higher diffusivity, avoiding the collapse of free volume. However, the lower values of solubility suggest some of the polymer sorption sites in PIM-1 are blocked due to interactions with the fillers, as has been reported in the literature.⁵⁰

Table 1 Gas permeability (P), diffusion (D), solubility (S) coefficients and ideal selectivity for aged freestanding membranes (∼850 days)

Aged (850) days membrane	P (barrer)		D × 10^7 (cm^2 s^−1)		S × 10^3 (cm^3(STP) cm^−3 cmHg^−1)		Ideal sel CO2/CH4	Diffusivity selectivity	Solubility selectivity
	CO2	CH4	CO2	CH4	CO2	CH4
PIM-1	2195	156	5	1	456	109	14.1	3.4	4.2
0.01rHGO-TAPA	2453	154	6	2	384	90	15.9	3.7	4.3
0.05rHGO-TAPA	3179	210	7	2	427	107	15.1	3.8	4.0
0.1rHGO-TAPA	3245	247	9	4	350	63	13.2	2.4	5.6
0.01rHGO-tetrakis	3062	231	7	3	442	85	13.3	2.6	5.2
0.05rHGO-tetrakis	3088	172	9	2	326	102	17.9	5.6	3.2
0.1rHGO-tetrakis	2738	173	24	5	115	33	15.8	4.5	3.5

---

For comparison reasons, the gas separation performance of TFC PIM-1, TFN membranes and aged MMMs was plotted in a selectivity-permeability log–log graph with the 2008 Robeson upper-bound (Fig. 7). An average membrane thickness of 3 μm (obtained from the SEM images) was considered. Results show that TFC and TFN films do age more rapidly than MMMs, which is in accordance with the findings reported in the literature.^51,52 It can be also seen that fresh MMMs at day 1 are all above the 2008 upper bound and loss in permeability over time makes them go slightly below it. Contrarily, the initial performance of the TFN containing TAPA-functionalised holey GO is below the selectivity-permeability trade-off, which at low filler loadings move parallel to it, and for the 1 wt% membrane (the less permeable TFN at day 1) it remains almost unaltered after 360 days.

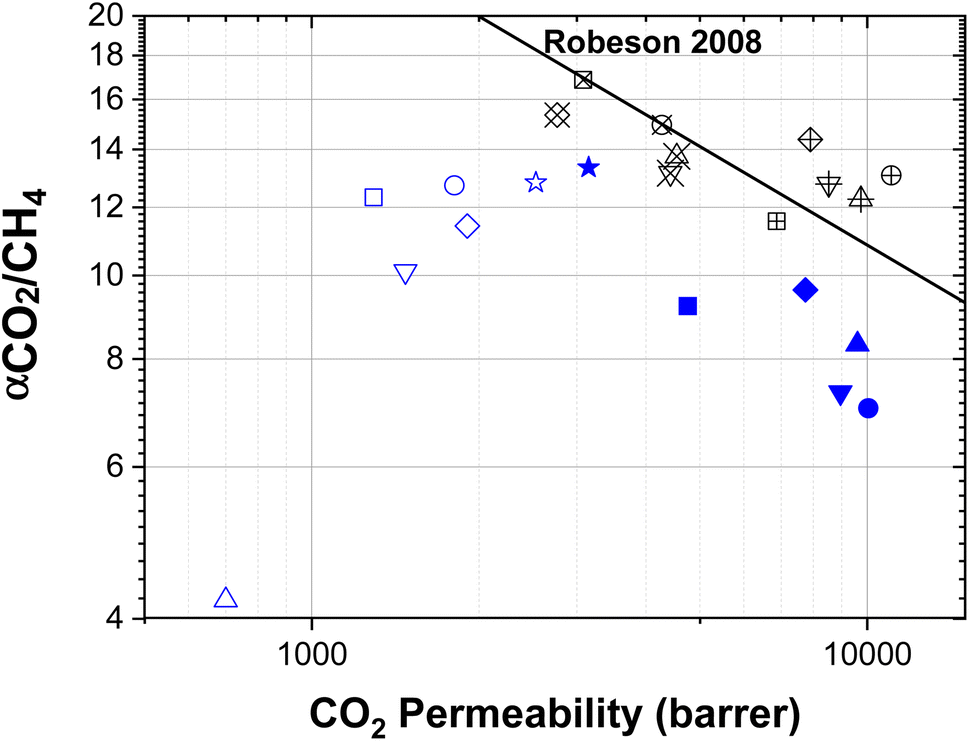

Fig. 7 Membrane performance of aged MMMs (457 days), PIM-1 TFC and TFN membranes (360 days) for CO₂/CH₄ separation with the 2008 Robeson upper-bound. A membrane thickness of 3 μm was considered. ■ PIM-1, • 0.1 TAPA, ▼ 0.05 TAPA, ♦ 0.01 TAPA, ★ 1.0 TAPA and ▲ 0.1 tetrakis. Filled symbols: performance of TFC and TFN membranes at day 1, unfilled symbols: performance of TFC and TFN membranes at day 360, unfilled symbols with a +: performance of MMM at day 1, unfilled symbols with X: performance of MMMs at day 457.

4. Conclusions

Thin film nanocomposite (TFN) membranes of PIM-1 containing amine-functionalised reduced HGO (rHGO-tetrakis and rHGO-TAPA) were prepared and tested for CO₂/CH₄ separation. Also the effects of filler loadings on physical aging were investigated.

After 1 year of physical aging, membranes with filler loading of 1 wt% rHGO-TAPA showed CO₂ permeance of (846 ± 37) GPU. The results obtained were close to the permeance value of fresh membranes tested after preparation and double that of 1 year-aged purely PIM-1 thin film composite membranes, (1050 ± 70) GPU and (432 ± 4) GPU, respectively. On the other hand, membranes with lower filler concentrations of 0.1 wt% after 1 year of aging obtained a CO₂ permeance of (604 ± 34) GPU, however, they aged faster. Fresh TFN membrane at filler loading of 0.1 wt% showed an initial CO₂ permeance value of (3351 ± 662) GPU.

The aging behaviour was also investigated in several tens of micrometres thick membranes for filler loadings of 0.1 wt% and the gas separation performance showed similar tendencies to that of thin films; leading to higher CO₂ permeability without sacrificing CO₂/CH₄ selectivity. 0.1wt% rHGO-tetrakis and 0.1wt% rHGO-TAPA reached an initial CO₂ permeability of (9760 ± 449) and (11 077 ± 261) barrer, respectively. The CO₂/CH₄ separation performance outperformed pristine PIM-1 membranes after 611 days, where 0.05rHGO-TAPA showed the highest CO₂ permeability of (3839 ± 907) barrer. Gas solubility and diffusivity values were obtained experimentally and confirmed that the addition of amine-functinalised rHGO helped maintain a higher diffusivity, avoiding the collapse of free volume, and suggested some extent of blockage of the polymer sorption sites.

In conclusion, the incorporation of amine-functionalised reduced HGO is an effective strategy to enhance the gas performance of PIM-1 based membranes.
