Atom probe analysis of electrode materials for Li-ion batteries: challenges and ways forward

Abstract

The worldwide development of electric vehicles as well as large-scale or grid-scale energy storage to compensate for the intermittent nature of renewable energy generation has led to a surge of interest in battery technology. Understanding the factors controlling battery capacity and, critically, their degradation mechanisms to ensure long-term, sustainable and safe operation requires detailed knowledge of their microstructure and chemistry, and their evolution under operating conditions, on the nanoscale. Atom probe tomography (APT) provides compositional mapping of materials in three dimensions with sub-nanometre resolution, and is poised to play a key role in battery research. However, APT is underpinned by an intense electric field that can drive lithium migration, and many battery materials are reactive oxides, requiring careful handling and sample transfer. Here, we report on the analysis of both anode and cathode materials and show that electric-field driven migration can be suppressed by using shielding by embedding powder particles in a metallic matrix or by using a thin conducting surface layer. We demonstrate that for a typical cathode material, cryogenic specimen preparation and transport under ultra-high vacuum leads to major delithiation of the specimen during the analysis. In contrast, the transport of specimens through air enables the analysis of the material. Finally, we discuss the possible physical underpinnings and discuss ways forward to enable shielding from the electric field, which helps address the challenges inherent to the APT analysis of battery materials.

---

Introduction

Batteries are at the core of many technologies that will have a significant impact on the decarbonation of our society.¹ The high-capacity energy storage needed in electric vehicles or grid energy storage is currently largely achieved using Li-ion batteries (LIBs),² which appear to be one of the most viable and scalable energy storage technologies to accommodate the variability of renewable energy sources,^3,4 assuming that sufficient Li can be extracted. A battery is an assembly of a cathode, an electrolyte and an anode. During charging, the cathode is delithiated and the Li ions migrate through the electrolyte and are inserted inside the anode; during discharge, the opposite reactions take place.⁵ LIBs and their individual constituents have been subject to significant research and development efforts in the past few decades,⁶ leading to the Nobel Prize in Chemistry in 2019 to Goodenough, Whittingham, and Yoshino for their work on Co-based oxides.^7,8

Extending the operating lifetime of LIBs would decrease their environmental footprint and cost, but requires understanding the microstructural origins of capacity-loss and the degradation during cycling to develop strategies to design new high-performance materials.⁹ However, these degradation mechanisms occur across length scales ranging from sub-nanometres to microns or more,^10,11 and ultimately precluding direct investigation by any single characterization technique. Recent efforts in high-resolution, multiscale, correlative and cryogenic microscopies have been reported, leading to precious insights into these complex processes.^12,13 However, like many oxides, battery materials can be unstable under electron beam irradiation, and transport of samples through air may cause modifications of their composition and structure, making their observation highly challenging.¹⁴ The Li distribution on the nanoscale also remains elusive due to its high mobility and low atomic weight, which limits its interactions with electrons in transmission electron microscopy (TEM).

Atom probe tomography (APT)¹⁵ has been proposed as a technique to reveal the three-dimensional distribution of Li in these materials. APT provides compositional mapping in three-dimensions with sub-nanometre resolution,^16,17 and its sensitivity is in principle not related to the atomic weight, and hence Li can be readily detected. However, there are specific challenges inherent to the analysis of alkalis by APT.^18–20 In the case of Li-containing materials, the intense electric field necessary to trigger the field evaporation of surface atoms to enable their analysis can also drive atomic migration during the analysis itself.²¹ This in situ delithiation process²² can make the data unreliable. Species-specific losses associated with the dissociation of molecular ions have been also evidenced in these materials, thereby lowering the spatial resolution and elemental sensitivity.¹⁹ These difficulties have hindered the widespread deployment of the application of APT to materials for LIBs and the number of reports has hence remained limited.^{10,13,23–25}

Here, we report on the atom probe analysis of pristine anode and cathode oxide materials. We show that under conventional laser APT conditions, Li can indeed diffuse out during the analysis. Counter intuitively, we demonstrate that specimens prepared by cryo-preparation and transferred under ultrahigh-vacuum are particularly subject to this unwanted delithiation, compared to samples prepared and transported under ambient conditions. This outward migration of Li appears driven by the penetration of the electrostatic field inside the specimen,²¹ and we show how the presence of a conducting layer on the specimen's surface provides shielding against the field that can circumvent this problem. In addition, we further show that this layer can be extrinsic, i.e. deposited, or intrinsic as it can develop because of the sensitivity of these materials to an ambient atmosphere. We discuss the details of the origins of the formation of the intrinsic shielding and compare these routes to stability in the APT and the implications for the quantification of the data. Finally, we lay out possible ways forward for the analysis of battery materials by APT.

Experimental

Anode materials

We first analysed bulk Li₄Ti₅O₁₂ (LTO) by using an atom probe. The microwave-assisted hydrothermal synthesis of these materials is detailed in ref. 26 and samples were provided by the Dou group at the University of Wollongong, who later demonstrated high performance of these anode materials.^27–30 APT specimens were prepared using a FEI Quanta 3D dual-beam scanning-electron microscope/focused-ion beam (SEM/FIB) and following the in situ lift-out protocol outlined in ref. 31. Specimens were then transferred through air, under ambient temperature and pressure conditions. The data were acquired on a Cameca LEAP 3000X Si at a base temperature of 32 K, a laser pulse energy of 0.3 nJ (λ = 532 nm, spot size spot diameter below 10 μm), and a detection rate of 2 × 10⁻³ ion per pulse.

We then analysed Li₄Ti₅O₁₂ commercial powder (>99%, Sigma Aldrich). The powder was first dispersed onto a TEM grid and imaged on a JEM-2200FS TEM (JEOL) operating at 200 kV equipped with an energy-dispersive X-ray analysis (EDX) system (see Fig. S1†).

The nanoparticle powder was then embedded in a Ni-matrix using the approach described in ref. 32. The powder was first dispersed in a Watts Ni-ion electrolyte. Subsequently the solution was poured into a commercial nanoparticle depositor (Oxford Atomic Ltd.). A constant current of −19 mA was applied for 600 s for the co-electrodeposition process, which results in ∼8 μm thickness of the Ni film.

The Ni-embedded powder specimens for APT were prepared by a site-specific lift-out standard method on a dual-beam focused ion beam FEI Helios 600 (Thermo-Fisher) followed by ambient air transfer to the atom probe. Details are described in Fig. S2.† APT measurements were carried out using a CAMECA 5000 XS system (i.e. straight flight path) in pulsed-laser mode at a base temperature of 60 K, a detection rate of 1%, a laser energy of 40 pJ (λ = 355 nm, spot size below 3 μm), and a laser frequency of 125 kHz. All measurements had a low background level of below 10 ppm ns⁻¹. All APT data were processed and reconstructed with the default voltage-protocol parameters in APSuite developed by CAMECA Instruments.

Cathode materials

Commercial NMC811 was sourced from Targray. Its nominal composition is LiNi_0.8Co_0.1Mn_0.1O₂. We used the N₂-filled glovebox of the Laplace project³³ to avoid or limit the influence of the atmosphere on the samples. The powder was dispersed onto Cu tape placed on a flat-stub for scanning-electron imaging, followed by applying a soft dry-N₂ flow to blow off the looser powder particles. The stub was mounted on an atom probe puck sample holder. To avoid contact with air, this puck was then transferred into a dual beam SEM/Xe-plasma FIB (FEI Helios PFIB) through an ultra-high vacuum (UHV) suitcase (Ferrovac GmbH). At first, conventional room temperature sharpening of the specimens for APT was performed. In a second attempt cryogenic sharpening was also employed, as it has been shown to limit damage to beam-sensitive materials³⁴ and ingress of spurious species.³⁵ Subsequently, the specimens from both sharpening methods were transferred under UHV, to prevent surface reactions,³³ into a CAMECA LEAP 5000 XR, i.e. reflectron-fitted, or a CAMECA LEAP 5000 XS, i.e. straight flight instrument. APT analyses were performed under a wide range of conditions of base temperature of 30–60 K and laser-pulse energies (5–20 pJ). Trials with high voltage pulsing (5–50% pulse fraction) were also attempted without success.

To mimic results obtained by other groups, specimens from the same material were prepared at room temperature using a Ga ion FIB (FEI Helios 600) and transferred through air, under ambient lab conditions. Details are described in Fig. S3.†

A metallic coating was also deposited directly on specimens using physical-vapor deposition of ultra-high purity nickel (99.99%) mounted in a direct current gun in a BESTEC PVD cluster (BESTEC, Berlin, Germany). The films were grown at a sputtering rate of approximately 0.07 nm s⁻¹ at ambient temperature to a thickness estimated to be 50 nm, directly on the pre-sharpened APT specimens following Ga-FIB preparation and transport through air, under ambient lab conditions. The base pressure prior to sputtering was <6 × 10⁻⁶ Pa, whereupon argon was introduced as the working gas at a flow rate of 20 standard cubic centimetres per minute to a pressure of 0.5 Pa.

All specimens transferred through air, with and without coating, were analysed on a CAMECA LEAP 5000 XS. From the preceding UHV-cryo transfer APT analyses, the analysis parameters of the moderately successful analyses were a base temperature of 60 K with a pulsed laser energy of 5 pJ (λ = 355 nm). Therefore, the same parameters were used for the air-exposed specimens with a pulse frequency of 100 kHz and a detection rate of 0.5% with a low background level (<10 ppm ns⁻¹). All the APT data were processed using APSuite and reconstructed using the standard voltage reconstruction protocol.³⁶

Results

Anode materials: bulk LTO

An example of an APT analysis obtained on bulk LTO is shown in Fig. 1a. A high concentration of Li is readily visible towards the top of the reconstructed data. A one-dimensional composition profile in a 20 nm-diameter cylinder parallel to the specimen's main axis is plotted in Fig. 1b, showing an increase in the Li content towards the specimen's tip and a constant but relatively low level below 30–40 nm, well below the expected stoichiometry. Multiple datasets collected showed a similar profile, and, based on the experimental and modelling work by Greiwe et al.,²¹ it was interpreted as evidence for the outward migration and leaching of Li, i.e. in situ delithiation. The specimen's geometry in Greiwe's prior work was rather different, with a thin film of Li-containing glass deposited on a sharp metallic needle used as a substrate. The high electrostatic field is hence generated at the apex of the metallic substrate, which can facilitate the penetration of the field throughout the film and drive the delithiation. Although this geometry is rather different to our conventional lifted-out specimen, the interpretation proposed by Greiwe et al. seem directly applicable to our observed results of in situ delithiation of LTO.

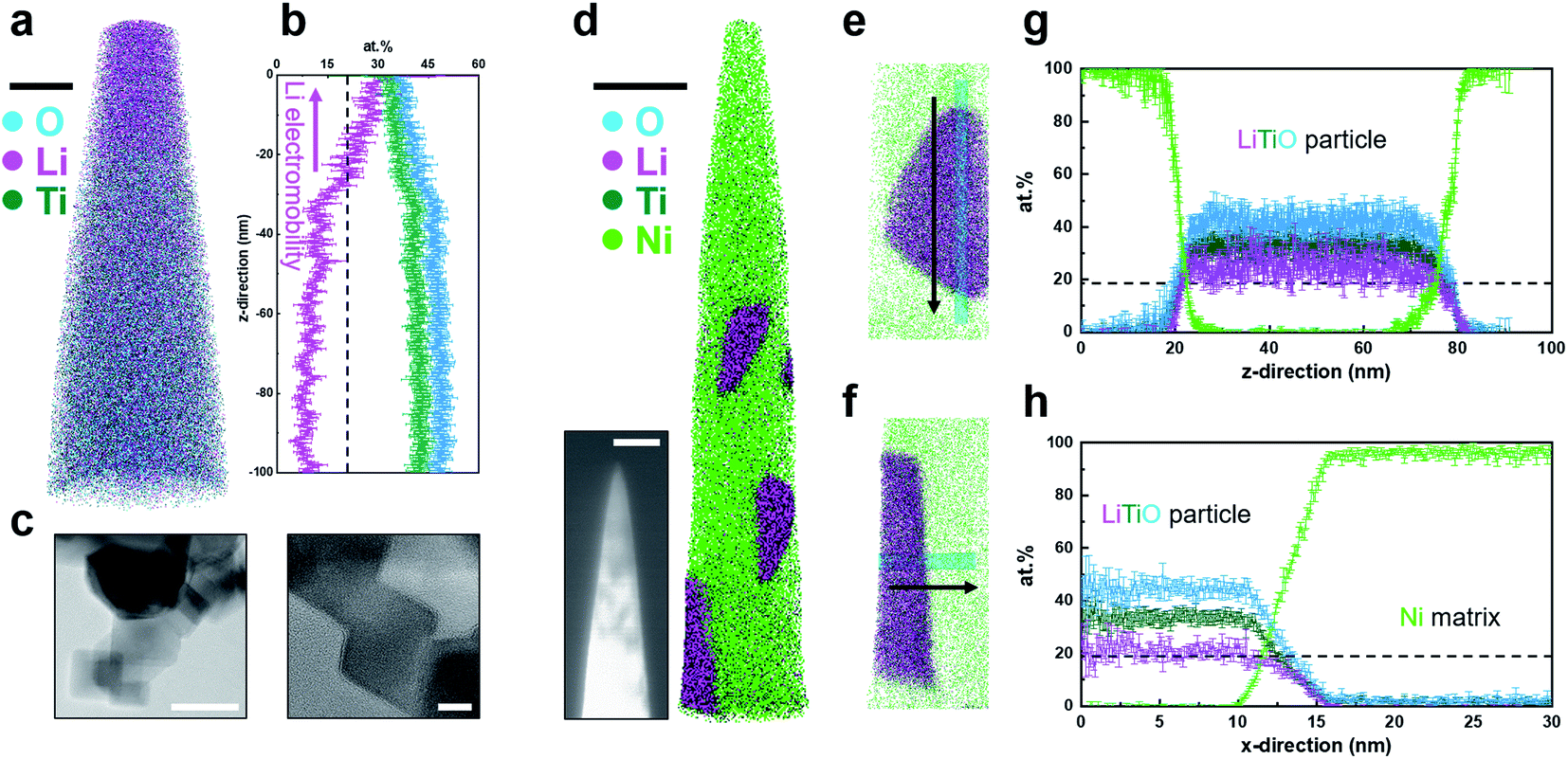

Fig. 1 (a) 3D atom map of bulk LTO. Cyan, pink, and dark green dots represent reconstructed O, Li, and Ti atoms, respectively. Scale bar is 20 nm. (b) 1D compositional profile along the measurement direction. A black dashed line displays the nominal Li atomic composition. (c) Bright field high resolution TEM images of LTO particles. Scale bars are (left) 50 and (right) 10 nm. (d) 3D atom map of LTO particles embedded in Ni. Scale bar is 50 nm. Green dots represent reconstructed Ni matrix atoms. Inset image is the corresponding backscattered SEM image of LTO particle APT specimen (scale bar = 200 nm). (e & f) Extracted nanoparticle regions in the atom map and (g & h) corresponding atomic compositional profiles along the cylindrical region of interest (ϕ5 nm). Ga distribution is discussed in Fig. S5 and S6.†

Anode materials: LTO powder

The LTO powder was first imaged by TEM, as shown in Fig. 1c, and the powder appears to be mostly made of a set of individual cuboidal grains. High-resolution imaging confirms the crystalline nature of the powder grains. Fig. S2† shows a cross-sectional electron micrograph following FIB slicing of the composite formed by electroplating of the powder within a Ni-metallic matrix to facilitate APT specimen preparation.³⁷ The dark contrast corresponds to regions containing the LTO powder, and, as shown in the inset image in Fig. 1d, some were present inside the specimen following sharpening of the specimen in the FIB at room temperature. Another APT dataset is shown in Fig. S4.† The Li/Ti atomic ratio in the reconstructed LTO particle is ∼0.77, close to the stoichiometry of Li₄Ti₅O₁₂ (0.8). The reconstruction from the resulting APT analysis is displayed in Fig. 1d, with close-ups on two of the analysed LTO powder grains in Fig. 1e and f, with morphologies compatible with the TEM imaging. One-dimensional composition profiles obtained from these two grains are plotted in Fig. 1g and h, respectively, with no sign of delithiation, with the concentration of Li, Ti and O constant across these powder grains.

These results are in stark contrast with those obtained on bulk LTO, assuming that the results obtained on the LEAP 3000 and 5000 generations are comparable, despite the differences in the laser wavelength and spot size. Several studies have demonstrated that data on different generation of instruments^18,38 could be comparable, including for battery materials.¹⁹ Here, the level of background is substantially different (Fig. S7†), and may well account for some of the Li losses as discussed in ref. 18 and 19. An important aspect is also that the electrodeposition did not induce changes in the chemical distribution and mass composition of the main species within the powder grains.

Cathode materials: NMC811 vacuum transfer

Over two dozen specimens were prepared by lift-out at room temperature and cryogenic sharpening, followed by ultrahigh-vacuum transfer into the atom probe. In Fig. 2a, we display the corresponding tomographic reconstructions from 6 of these datasets, along with the analysis conditions used. All trials led to inhomogeneous field evaporation conditions and regions of (erroneous) high-density Li indicative of in situ delithiation. This process also led to unstable field evaporation conditions, as strong bursts of field evaporation of Li led to sudden high detection rates, causing the software to drop the high voltage to lower the electrostatic field and detection rate. These datasets exhibited relatively high levels of background as well (see Fig. S7†). This appeared to be more pronounced at a lower base temperature (here 30 K) than at higher temperature (e.g. 60 K), i.e. under conditions where the electrostatic field was relatively higher. Dropping the laser pulse energy, that is decreasing the peak temperature reached by the specimen subsequently to the illuminating pulse, also seemed to make the distribution more homogeneous. Nevertheless, the data quality was far from what one could expect or consider acceptable.

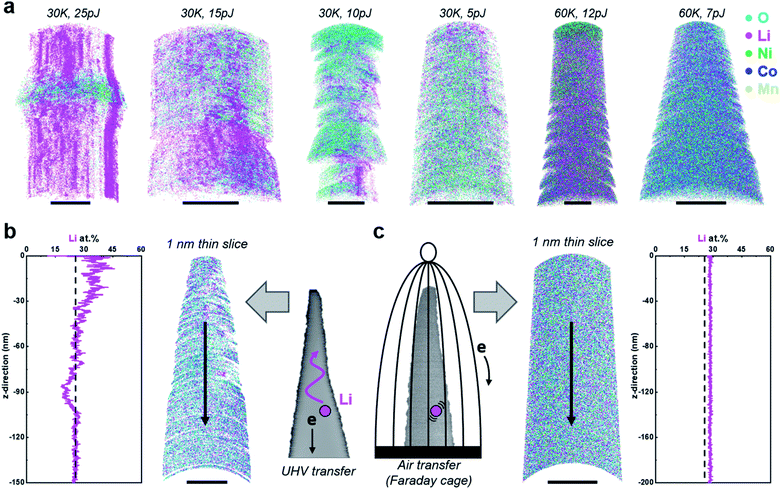

Fig. 2 (a) A series of 3D atom maps of NMC811 samples after UHV transferring. Scale bars are all 10 nm. A comparison of APT results between (b) UHV- and (c) air transferred samples. The black dashed lines in the 1D composition profiles indicate the nominal Li composition of NMC811. Both APT measurements were performed at a base temperature at 60 K and a pulsed laser energy of 5 pJ. Scale bars in the atom maps are (b) 20 and (c) 50 nm.

Fig. 2b displays the results of a single, longer dataset obtained at 60 K, 5 pJ, and 5 ions per 1000 pulses on average, which appeared to be an optimal set of experimental conditions for that specimen, following the aforementioned preliminary trials. Although the overall bulk composition matches with the nominal composition of the NMC811, even here, the composition profile along the length of the specimen evidences in situ delithiation, accompanied by strong variations of the point density across the reconstructed dataset.

Cathode materials: NMC811 atmospheric transfer

Seeking to reproduce the results from the literature,^24,25 we prepared specimens from NMC811 by FIB milling at room temperature and transferred the specimens through air, under ambient lab conditions. Fig. 2c displays the corresponding reconstruction from a dataset obtained in laser pulsing mode using the same conditions as for the data reported in Fig. 2b. Stable analysis conditions are achieved with 45 × 10⁶ ions collected, the Li distribution appears homogeneous, and there is no evidence for in situ delithiation in the composition profile along the depth of the reconstructed data.

In search of possible compositional changes associated with the air exposure, we performed another similar experiment – reproducing the results in Fig. 2c, and the APT reconstruction shown in Fig. 3a. We collected over 11 × 10⁶ ions, corresponding to an analysis of 40–50 nm in depth, and observed no substantial changes in the composition of the material during the acquisition. At this stage, the specimen's surface is laid bare and the bulk of the specimen exposed. The specimen was thus taken out of the ultrahigh vacuum of the atom probe, left in ambient lab air for 4 h and reinserted into the APT vacuum chamber. APT data collection from this specimen was then resumed, at a high-voltage comparable to the voltage reached at the end of the first analysis, and a further 13 × 10⁶ ions were collected (Fig. 3c). The composition of the inner bulk region for each dataset is summarized in Fig. 3. The corresponding composition at the end of the first run and the start of the second run is summarised in Fig. 3d, suggesting a slight enrichment in Ni and O, and a decrease in Li at the surface, after exposure to air.

Fig. 3 3D atom maps of a sample analysed (a) before and (b) after 4 h oxidation. Scale bar is 20 nm. The measurement was stopped after the first run and the sample was taken out of the high vacuum into air for 4 h. After the oxidation, the measurement was continued without changing the laser position or analysis conditions. 10 nm-thin-sliced tomograms of each 3D atom map are presented in Fig. S6.† (c) Atomic compositions extracted inside each atom map. (d) Composition comparison of atomic layers between before and after oxidation. Inset image shows field strength (Ni²⁺/Ni⁺) vs. oxygen/metal ratio. The oxygen/metal ratio decreases as the field increases. Red and blue stars represent before and after the oxidation, respectively, from 5000 XS measurement and the green circle represents the data acquired from 5000 HR measurement.

Fig. S8† shows 2 nm-thick slices through the tomographic reconstructions from the corresponding analyses showing only the Li ion distributions, which appear close to random, and are further confirmed by the close match between the experimental frequency distribution³⁹ for dataset #2 and the corresponding binomial distribution shown in Fig. S9.†

However, after the exposure to air of the cleaned NMC811 surface, hydroxyl ions (OH⁺, 17 Da) appear to be adsorbed on its surface. A third dataset was acquired after this same specimen was taken out of the ultrahigh vacuum of the atom probe and left in air for 24 h, and again re-inserted and reanalysed. This new experiment started at a voltage similar to the end of the preceding analysis. The specimen only yielded a further 1.5 × 10⁶ ions before failing (see Fig. S10a and b†). However, the Li distribution also appears to be random, unlike results for the UHV-transferred specimens (see Fig. S10c†), and the absorption of OH-molecular ions on the surface was again observed from air exposure.

Finally, to facilitate the comparison of the composition across datasets, we performed a series of analyses on another specimen, also transported through air, for a range of laser pulse energies, from 2 to 15 pJ at 60 K on the same specimen analysed on the LEAP 5000 XS. Indeed, compositional measurements by APT are known to be affected by the strength of the electrostatic field,^40,41 even more so for oxides,^19,42 through potentially complex loss mechanisms.^42–44 The specific case of the compositional dependence on the intensity of the electrostatic field in mixed NiMnCo-based oxides has not been reported. When the laser energy increased up to 20 pJ, mostly only Li ions were detected, which can be attributed to heat-induced, electric-field-driven delithiation (see Fig. S11†); therefore, laser energies lower than 15 pJ were used for evaluating the influence of the electric field strength on the composition. We acquired a series of datasets containing approx. 1 × 10⁶ ions. For each condition, we estimated the charge-state-ratio (CSR) for nickel, defined here as the ratio of the number of ions in the peak of ⁵⁸Ni²⁺ to the number of ions in ⁵⁸Ni¹⁺. The CSR is used as a proxy for the intensity of the electrostatic field in the vicinity of the field emitter.⁴⁵ The ratio of O to metal (Ni, Mn, and Co) is plotted against the CSR in the inset in Fig. 3d, along with a linear fit as a guide for the eye. The change in the O concentration is consistent with other reports of the measurement of O composition as a function of the electric field.^19,44,46

Discussion

Origins of the in situ delithiation

The in situ delithiation can be considered as electromigration, i.e. a thermally activated transport process, in which the electric field lowers the activation potential energy barrier, facilitating directional ion migration by thermal agitation. Species with lower energy barriers to movement will therefore migrate under such conditions. It is worth noting that electromigration can drive transport even against a concentration gradient and is typically fast compared to diffusion.⁴⁷

Reports of the in situ delithiation during APT raised questions on its origin:

(i) Is the delithiation taking place even prior to field evaporation during APT data collection and is it associated with the specimen preparation in the SEM/FIB?

The damage and energy imparted by incident electrons during imaging and the ion-beam sputtering/implantation during specimen shaping could indeed have activated the outward transport of Li towards the surface. This fact motivated the use of the cryogenic specimen preparation methods. In addition, the known sensitivity to air exposure of these reactive materials motivated the use of the vacuum transfer system. This approach, whilst minimising any preparation artefacts, was unsuccessful in mitigating challenges for the analytical performance of APT, although only the ultra-high vacuum transfer appears to be to blame.

(ii) Is delithiation predominantly, or exclusively, an effect of the electrostatic field that enables ion migration at the low temperature of APT analyses (30–80 K typically)?²¹

Our work supports this second mechanism and demonstrates the importance of shielding from the electrostatic field in order to obtain satisfactory results in the analysis of two Li-containing materials that can be subject to in situ delithiation during APT analysis. Effective shielding can be achieved by coating the specimen with a conductive material for instance. The coating of sharpened specimens had been already demonstrated by several groups, in order primarily to improve the yield and the analytical performance of laser-pulsed APT through faster heat conduction within the coated layer.^48–50 Here, for LTO, we exploit the shielding offered by an electro-conductive layer to avoid critical issues associated with the penetration of the field within the bulk of the specimen that will drive electro-migration and delithiation during the analysis itself. The exposure of the specimen's surface to a suitable environment may also lead to reactions that modify its surface electronic properties that provide sufficient shielding. This will be material dependent and it may also degrade the properties and subsequent analytical performance. These aspects are further discussed in the following sections.

Intrinsic shielding

The case of NMC811 is rather complex and somehow puzzling: the transport of the prepared specimens through air appears to lead to an intrinsic shielding that does not form when the specimens are transported under vacuum. There are multiple differences in the two sets of experiments and below, we try to address these successively.

First, the batch of specimens transported in an ultra-high vacuum was prepared using a PFIB at cryogenic temperature (Fig. 2a and b), whereas the second batch was prepared at room temperature using a conventional Ga-FIB (Fig. 2c and 3). To evaluate if the FIB-specimen preparation process was the origin of the shielding effect, since Ga is known to be chemically active, we performed two new sets of experiments.

Following the sharpening of the specimen at 30 kV, we did not perform any cleaning at a low acceleration voltage (5 kV), and then performed cleaning for 5 seconds and 45 seconds, on three specimens. These specimens were then analysed using a LEAP 5000XS, and the corresponding reconstructed data are shown in Fig. S10.† We can report that without cleaning, the surface composition contains Ga. However, as the cleaning proceeds, this layers progressively disappears. In all three cases, the specimen was successfully analysed by APT without noticeable delithiation artifacts.

We then prepared specimens with the PFIB at room temperature with ambient air transfer, and Fig. S13† shows the corresponding reconstructed dataset. Once again, the analysis was successful and the Li is randomly distributed. The difference in behaviour is evidenced by the difference in the voltage curves during the analysis, as shown in Fig. S14.†

Second, there is a possibility that the composition has changed across the entire specimen. We compared the composition obtained following ultra-high vacuum transfer and air transfer to check for a possible change in composition across the entire specimen. For one of the rare acceptable datasets after UHV transfer, we estimated the O to metal ratio and Ni CSR. This data point was added as a green star in the plot in the inset in Fig. 3d. The O content may appear slightly lower, yet as this specimen was analysed on the LEAP 5000 XR, the data may not be directly comparable.⁵¹ The field evaporation conditions appear far from optimal and may lead to additional O losses that cannot be traced easily because of the reflectron that prevents the use of e.g. correlation histograms.⁵²

The O pick-up could have taken place either during the specimen preparation at room temperature inside the (P)FIB or during transport through air. Hydrogen pick-up was demonstrated in some metallic materials and was suppressed by using low-temperature^35,53 FIB specimen preparation. This was not reported in oxides though, and the extremely low levels of O contamination found following cryo-PFIB preparation of APT specimens from pure Mg may dismiss this possibility.³³ The transfer of the specimens through air lasted less than 1 h, during which oxygen can adsorb on the surface of reactive metals.³³ An estimate of the time to form a monolayer of O₂ is approximately 0.3 s in air, compared to nearly 70 days under UHV conditions used during the transfer (see the ESI†).

We cannot, at this stage, conclude whether this could have led to a change in the composition of the material, but these processes would be diffusion controlled and no indication of inward or outward diffusion of species was observed in the elemental distribution extracted from our analyses. In addition, no redistribution of Li or other species was reported following cryogenic specimen preparation and observation by cryo-transmission-electron microscopy,¹² and this hence seems unlikely.

Another possibility is that only a layer of a slightly different composition or structure appears in the near surface region due to migration of species from the material itself, possibly activated by the exposure to air (change of the O₂ partial pressure). This layer could offer a sufficiently high conductivity to shield from the electrostatic field and prevent field penetration. The actual conductivity of such mixed oxides, esp. at low temperature, is often unknown, and it might be that only the first few atomic layers are modified. An increased Ni concentration was shown to increase the conductivity of bulk Ni–Mn–Co oxides for instance,⁵⁴ even if the resistivity remains orders of magnitude higher than that for a metal. The composition of the surface after the specimen was cleaned by field evaporation and after exposure to air are reported in the inset in Fig. 3d as a red and blue star, respectively. The change in the charge-state-ratio from dataset to dataset indicates that the slight difference in the measured composition after exposure to air may be related to the measurement and not to a substantial change in the surface's composition following exposure to air.

Finally, there is a possibility that only the very surface composition was changed by the adsorption of oxygen, nitrogen or moisture from the air on the outermost surface of the specimen. The latter could explain the detection of additional OH_x⁺ at 17–19 Da on the surface after exposure to air (see Fig. 4a and b). APT analysis has a limited field of view and cannot collect data from the edges of the specimen,⁵⁵ and hence we can only assume that the entire surface area of the specimen is covered.

Fig. 4 (a) OH_x molecule distributions (#1) before and (#2) after the oxidation test on the NMC811 sample. Sizes of the extracted volumes from Fig. 3a and b are 20 × 10 × 30 nm³. The red arrow indicates the adsorption of OH_x on the 4 h air-exposed surface. (b) The corresponding ¹⁶O⁺-normalized mass spectra. Scale bar is 10 nm.

Recent efforts towards specimen coating using only a few graphene sheets^50,56,57 demonstrated that even a very thin conductive layer can achieve the necessary increase in conductivity and sufficient shielding to enable APT analysis. These species may simply neutralise dangling bonds for instance or modify the very local conduction properties, enabling surface conductivity, i.e. akin to a topological insulator. Moisture was shown to cause a bending of the electronic bands and a change in the surface electronic structure of topological insulators.⁵⁸ The bending of the electronic bands can also arise from the intense electrostatic field, which was suggested to enable field-ion imaging of oxides for instance.^59–61 Beyond NMC811, the notable air-sensitivity of Li–Fe–PO₄ (ref. 62) could also explain the absence of delithiation reported by Santhanagopalan et al.¹⁹

Measuring the changes in the electronic structure, resistivity or conductivity associated with the slight changes in the surface composition can be extremely challenging. Perhaps X-ray photoelectron spectroscopy or scanning-tunnelling microscopy performed directly on sharpened specimens transferred under UHV conditions and then exposed to air could reveal these changes. Dedicated atomistic simulations may also provide very valuable insights, yet performing accurate e.g. density-functional theory calculations on oxides under the extreme fields encountered during an atom probe analysis is not without challenges. These could constitute important next steps in our study, but fall outside the scope of the current paper. Yet there is evidence from adsorption experiments⁶³ and density-functional theory^64,65 that gaseous absorption on NiO surfaces makes them more conductive. These appear to support our proposed mechanism and involve only minute changes in the pristine material underneath the top layer and hence enable meaningful APT analyses.

Extrinsic shielding

We expect processes leading to intrinsic shielding to be very material-dependent and one should hence be careful with interpreting data too hastily. For instance, the compositional or structural modification of the material upon cycling may prevent the formation of this conductive layer, thereby preventing the study of degradation processes or of slight changes in the composition of the surface that could explain the drop in lifetime. For instance, despite transport through air, the results on LTO contrast with what we observed in the case of reactive NMC811. We could interpret these results as LTO being inert in air, thus requiring an extrinsic conductive coating. There is also a possibility that the artefacts observed were due to the use of an older generation of instruments that was notable for facing problems in analysing alkalis.¹⁸

Ultimately, LTO is typically used for the anode, and we were able to simply use the electroplating approach, which has demonstrated its versability for the analysis of a range of nanostructures.^66–68 Electroplating could however only be used in the cases where the application of the voltage will not affect the atomic distribution or its composition, as some materials can be subject to corrosion or dealloying from the combined effect of the solution and applied potential. Extrinsic shielding through the use of a capping layer directly deposited on the specimen would be more reliable for routine analysis.

We hence tried to deposit the metal by PVD on already sharpened specimens to demonstrate the feasibility of protecting the surface yet achieving appropriate analysis conditions, as has been demonstrated previously by Seol et al.⁴⁸ for instance. The PVD was performed following transport through air though and led to satisfactory analysis, as shown in Fig. S15 and S16.† The measured composition of the surface and bulk as well as the Li distribution appear comparable to the data reported in Fig. 2c and 3. Any modification of the material's surface or composition has already taken place.

Going back to the discussion point above of a possible change in the very surface composition via adsorption, and that the shielding can be achieved extrinsically also for NMC811, we would need to find a way to perform metal deposition reachable through UHV transport or directly inside the FIB. The chemical-vapour deposition from the gas-injection-system inside the FIB may also be an option for coating specimens,⁶⁹ yet the field evaporation behaviour of the deposited precursor rarely enables satisfactory analysis conditions.⁷⁰ In addition, FIB-based deposition under cryogenic conditions requires much fine-tuning to be achieved properly,^71,72 and may need to be followed by an appropriate level of in situ curing via illumination with an electron and/or ion beam.⁷³ We show, however, that specimens can yield APT data following PVD and that the PVD does not lead to a modification of the specimen's composition, which in principle validates this approach for extrinsic shielding.

Conclusions

To summarise, we have shown that the analysis of Li-containing materials by APT is extremely challenging due to the influence of the electrostatic field applied during the experiment that drives in situ delithiation. The variations of the experimental conditions do not lead to any satisfactory solution. We also show that the use of cryogenic preparation and transfer is not always the “miracle solution” that we sometimes hope it will be for the analysis of air-sensitive materials. We have however demonstrated that by shielding from the field through building an equivalent of a Faraday cage at the specimen's surface, we can prevent the penetration of the field and hence prevent delithiation. Whether or not a coating is necessary will be highly dependent on the nature of the considered specimen, as the surface reactivity of NMC811 led to the formation of an intrinsic shielding, or on the goal of the analysis, as the intrinsic shielding alters the surface of the sample. How much this process may have been taking place without being noticed and enabled previous APT analyses of oxides could also be debated at length in the future. Generalising the use of an extrinsic shielding by either metal electrodeposition or physical-vapor deposition could facilitate the APT analysis of some of these highly challenging materials, maybe also through a future workflow to combine with cryogenic preparation that will need to be developed.
