Enrichment of low concentration methane: an overview of ventilation air methane

Abstract

Methane (CH₄) is the second most important greenhouse gas after carbon dioxide (CO₂), but its global warming potential is 21–28 times that of CO₂. Coal mining accounts for 9% of global CH₄ emissions, among which 60–70% is contributed by ventilation air methane (VAM). Currently the simplest way to reduce CH₄ emissions from ventilation air is to thermally oxidize it to CO₂; however the low and changeable CH₄ concentrations (0.1–1.5% CH₄) and the large volume of ventilation air make it a challenge since conventional technologies used for CH₄ separation/purification in natural gas (CH₄ concentration 55–98%) are not suitable for VAM enrichment. It is therefore highly desirable to concentrate VAM up to levels for further harnessing, as the utilization of VAM can not only reduce CH₄ emissions but also provide extra economic benefits to relevant industries. Herein, for the first time, we present a review on both unconventional technologies and materials for VAM enrichment. The feasibility of technologies including vortex tubes, mechanical towers, gas hydrates, membranes and adsorption-based processes has been discussed, with focus on adsorption-based processes. Given that the adsorbents used in adsorption-based processes are one of the key factors for gas enrichment performance, materials including zeolites, porous carbon materials and metal–organic frameworks for methane separation have been critically analyzed and overviewed, covering the summary of the textural properties, CH₄ adsorption capacity, CH₄/N₂ equilibrium selectivity and CO₂/CH₄ equilibrium selectivity of these materials under ambient conditions and highlighting some new synthesis strategies to achieve high CH₄ adsorption capacity and CH₄/N₂ equilibrium selectivity. This review not only provides state-of-the-art technologies and materials for VAM enrichment (also applicable to other low grade CH₄), which will inspire further studies to better mitigate and utilize VAM and other low grade CH₄, but also supports the upcoming low-carbon economy.

---

Zhuxian Yang

Zhuxian Yang received her BSc from East China Normal University in 1995 and her MSc from Fudan University, China in 1998. She earned her PhD in 2007 from the School of Chemistry at the University of Nottingham in the United Kingdom, working on the synthesis, characterization and application of micro/mesoporous carbon materials. She is now a Research Fellow in the College of Engineering, Mathematics and Physics Sciences, University of Exeter, working on the conversion of carbon dioxide to dimethyl carbonate. Her research interests include the applications of porous materials in gas storage and separation, as catalysts and electrocatalysts.

Yanqiu Zhu

Yanqiu Zhu has been a Chair of Functional Materials at the University of Exeter since 2010. He obtained his BSc, MSc and PhD in China, in 1989, 1992 and 1996, respectively. He has research experience in China, Japan and the UK. He worked at the University of Sussex and University of Nottingham, prior to joining Exeter. His research covers a wide range of materials science and engineering, with special interest in functional nanomaterials and nanocomposites. He is an author/co-author of over 200 journal publications.

Yongde Xia

Yongde Xia earned his PhD from Fudan University in 1999. After one year as a postdoctoral researcher at the Korea Advanced Institute of Science and Technology and another year at the University of Paris-Sud, France, he then moved to the UK and worked as a Research Fellow at the University of Nottingham. Followed by joining Exeter in 2010, he is now a Senior Lecturer in Functional Materials in the College of Engineering, Mathematics and Physics Sciences at the University of Exeter. His main research interests include novel porous materials for energy, electrochemical energy storage and conversion, photocatalysis and adsorption.

---

1. Introduction

It is more urgent than ever to cut down on greenhouse emissions given that we are confronting frequent extreme weather events. As the second most important greenhouse gas after carbon dioxide (CO₂), methane (CH₄) possesses global warming potential (GWP) 21–28 times that of CO₂ for a 100 year time horizon.¹ CH₄ is released mainly from enteric fermentation (livestock), energy industry, landfills, wastewater treatment, rice cultivation, etc. The estimated global anthropogenic CH₄ emissions by the source in 2020 is 9390 million metric tons of CO₂ equivalent, of which 9% is contributed by coal mining. Fig. 1 shows the estimated global anthropogenic CH₄ emissions by sources.² The global CH₄ emissions from coal mining continue growing even with the declining coal production.³

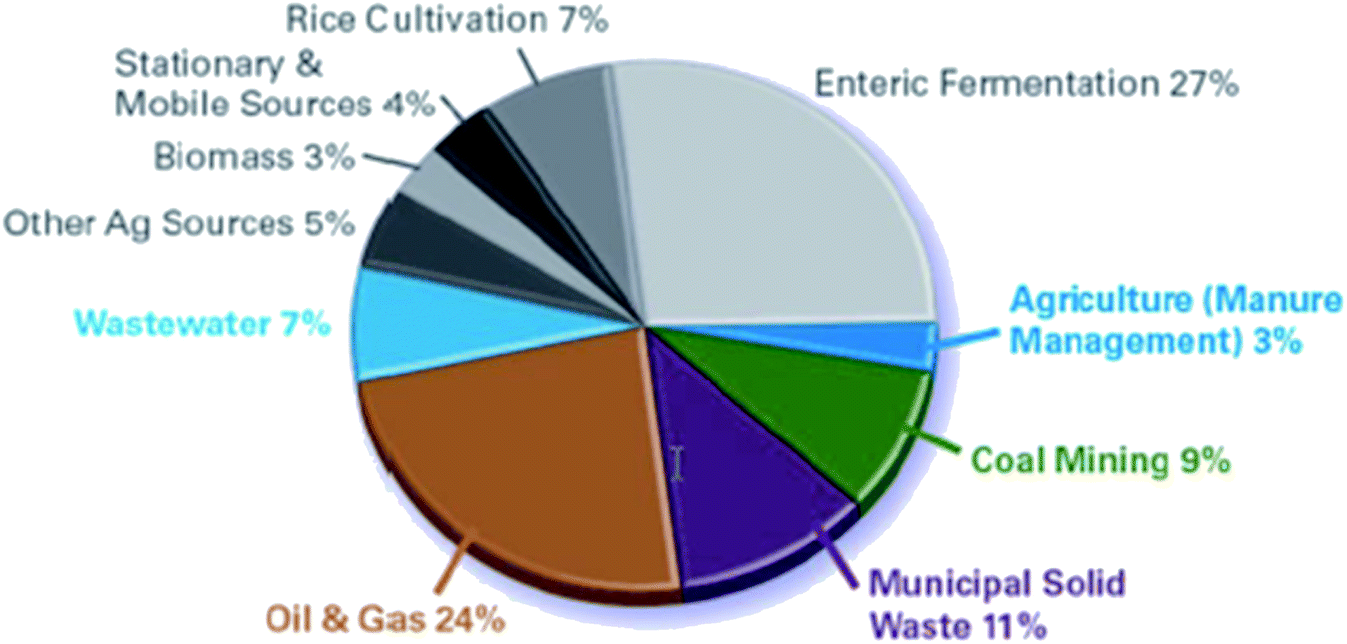

Fig. 1 Estimated global anthropogenic CH₄ emissions by sources. Adapted with permission.² Copyright 2020, Global Methane Initiative website.

Coal production releases CH₄ trapped in coal seams and surrounding strata, which can be categorized into three types of CH₄: CH₄ drained from the seam before mining (60–95% CH₄), CH₄ drained from worked areas of the mine (30–95% CH₄) and CH₄ diluted through ventilation fans (0.1–1.5% CH₄) while extracting coal.^4,5 Drained gas with CH₄ concentration more than 30% normally can be upgraded for pipeline quality gases or readily used by industries for heating or power generation.⁶ The diluted CH₄ through ventilation fans is discharged to the atmosphere via mine exhausts and is called ventilation air methane (VAM). The VAM gas mixture is characterized by large volume (200–385 m³ s⁻¹), the majority being air (nitrogen ∼79%, oxygen ∼20%, carbon dioxide 0.13–0.19% and small amounts of other gases), low and changeable VAM concentration (0.1–1.5%), high relative humidity (70–100%) and high dust loading (0.13–4.47 mg m⁻³).^4,7 VAM contributes about 60–70% of total CH₄ emissions from coal mining activities.^6,8 Therefore, the utilization of VAM can not only reduce greenhouse gas emissions, but also provide extra economic benefits to the mining industry.

The key challenges of VAM mitigation and utilization are the low and changeable CH₄ concentrations (0.1–1.5% CH₄), the large volume, the high relative humidity, and the high dust loading of ventilation air.⁴ Currently the simplest way to reduce CH₄ emissions from ventilation air is to thermally oxidize it via the reaction CH₄ + 2O₂ → CO₂ + 2H₂O.⁹ In the oxidation processes, VAM is used as either an ancillary fuel or the principal fuel in lean-burn gas turbines, recuperative gas turbines, thermal flow reversal reactors (TFRRs) and catalytic flow reversal reactors (CFRRs).^8,10–12

By converting CH₄ into CO₂, the effect of CH₄ on climate change can be significantly reduced given that the GWP of CH₄ is 21–28 times that of CO₂. In addition, the thermal energy produced from the CH₄ oxidation process can be readily utilized for domestic or industrial applications. Technologies for energy recovery are commercially available, but they are not very effective when the CH₄ concentration is less than 0.5%.¹³ In addition, for lean-burn gas turbines, a CH₄ concentration of 0.8–2% (a minimum CH₄ concentration of 0.8%) is required for self-sustaining operation.^8,10,14 Therefore, it is highly desirable to concentrate VAM up to levels for further harnessing. If CH₄ can be concentrated to approximately 30% or higher, it can be used for conventional gas turbines without significant modifications to generate electricity.⁸

There have been excellent reviews on the emission sources and mitigation options for the major CH₄ sources,^6,8,15–17 in addition, the latest developments and opportunities in CH₄ mitigation technologies have been presented by Pratt et al. recently.¹⁸ However, to the best of our knowledge, there has been no comprehensive analysis and overview on the enrichment and mitigation of VAM. Given that VAM contributes about 60–70% of total CH₄ emissions from coal mining activities,^6,8 it is of great importance to present a dedicated review on the enrichment of VAM, to discuss the current advance in technologies and materials for VAM enrichment and to inspire further studies in relevant areas, and consequently to better mitigate and utilize VAM, which will not only cut down on the VAM emission, but also provide extra economic benefits to the mining industry.

Herein, for the first time, we present a review to discuss and analyze the technologies and materials for VAM enrichment. Because the conventional technologies widely used for CH₄ separation/purification from natural gas (CH₄ concentration of 55–98%) are not suitable for VAM enrichment, we first discuss the unconventional technologies including vortex tubes,^19–23 mechanical towers,^24,25 gas hydrates,^26–28 membranes^29,30 and adsorption based processes,^31–35 with focus on adsorption-based processes. Since the adsorbents used in adsorption-based processes are one of the key factors for gas separation/enrichment performance, we then discuss various materials including zeolites, porous carbon materials and metal–organic frameworks (MOFs) that are potentially useful as adsorbents for VAM and other low grade CH₄ enrichment, with focus on porous carbon materials and MOFs. Apart from the summary on the textural properties, CH₄ adsorption capacity, CH₄/N₂ equilibrium selectivity and CO₂/CH₄ equilibrium selectivity of these materials under ambient conditions, new synthesis strategies for materials with high CH₄ adsorption capacity and high CH₄/N₂ equilibrium selectivity have been highlighted. Finally, we draw conclusions and provide prospective research directions in this field.

2. Technologies for CH₄ separation from ventilation air

Generally, gas separation may involve one of the following mechanisms: phase creation by heat transfer to or from the mixture, absorption in a liquid solvent, adsorption on a solid adsorbent or permeation through a membrane. The differences in gas properties, such as the kinetic diameter, polarizability, quadrupole and dipole moments, could be harnessed for gas separation.³⁶ The key challenge to separate CH₄ from ventilation air is the similar chemical and physical properties of CH₄, CO₂ and N₂, as listed in Table 1.³⁷ Due to these similar properties, the adsorbents with high CH₄ uptake capacities also exhibit high CO₂ uptake capacities.^29,36 The significant difference in the polarizability between CH₄ and N₂ could be exploited to separate CH₄ from N₂, which has been demonstrated by some MOFs.^38–40

Table 1 Properties of CH₄, N₂ and CO₂ gases. Reproduced with permission.³⁷ Copyright 1994, Elsevier

Gas	Molecular weight (g mol^−1)	Kinetic diameter (nm)	Polarizability (× 10^−25 cm^3)	Dipole moment (× 10^18 esu cm)	Quadrupole moment (×10^−26 esu cm^2)
CH4	16	0.38	26.0	0.00	0.00
N2	28	0.364	17.6	0.00	1.52
CO2	44	0.33	26.5	0.00	4.30

---

Conventional technologies for natural gas (containing 55–98% CH₄) separation include cryogenic distillation to remove N₂ and higher hydrocarbons, dehydration by adsorption to remove H₂O, and gas sweetening by amine absorption to remove acidic gases (CO₂ and H₂S). Cryogenic distillation requires a gas–liquid phase change, which will add a significant energy cost. These processes become uneconomic or impractical when the CH₄ content is below about 40%. In the case of VAM where the CH₄ concentration varies in the range of 0.1–1.5%, it is highly desirable to separate or selectively adsorb CH₄ itself from the gas mixture (the majority is air), so as to concentrate or enrich CH₄ for further utilization.⁴¹ In this section, we will first discuss the feasibility of unconventional technologies for CH₄ separation/enrichment from ventilation air.

Unconventional technologies that have been investigated for gas separation include vortex tubes,^19–23 mechanical towers,^24,25 gas hydrates,^26–28 membranes^29,30 and adsorption based separation.^31–35 The first three (vortex tubes, gas hydrates and mechanical towers) are technologies/concepts without commercial applications currently, but the last two (membrane separation and adsorption-based separation) have been used on a commercial scale for natural gas and other gas separation. We will discuss the feasibility of these technologies in the application of VAM enrichment in the following part.

2.1. Vortex tubes

A vortex tube, also known as a Ranque–Hilsch vortex tube, is a simple mechanical device. It separates a compressed fluid that tangentially enters the vortex chamber through inlet nozzles into two streams, the cold one at one end of the tube and the hot one at the other end. It was hypothesized that a stream of a compressed gas mixture flew into the vortex tube could be separated into individual gas streams based on the differential centrifugal forces acting on them.¹⁹ Linderstrom-Lang experimentally studied the gas separation of three gas mixtures (O₂/N₂, O₂/CO₂, and O₂/He) in a vortex tube in detail. They found that gas separation was created by centrifugation, supporting the centrifugation hypothesis.²⁰ Gas separation by using a vortex tube is relatively less investigated.^19–23

Kulkarni et al. studied the separation of a gas mixture of CH₄ and N₂ with a vortex tube to verify if gas separation occurs. Fig. 2 shows the schematic experimental setup. The two gases were mixed before passing through the vortex tube. Gas samples at the exits of the vortex tube were collected in gas sampling bags and were injected into a gas chromatograph for analysis. The two parameters including the inlet pressure and cold flow fraction (the ratio of mass of gases exiting the cold exit to the mass of gases entering the vortex tube) were studied. The results showed that gas separation took place in the vortex tube as evidenced by the CH₄ concentration at the cold and hot ends. Moreover, the experimental values and the calculated ones of gas separation were comparable. The inlet pressure was identified to be the most dominant factor affecting the separative power of a vortex tube of fixed geometry, and the higher the inlet pressure, the higher the separative power of the vortex tube.¹⁹

Fig. 2 Schematic experimental setup for the separation of a gas mixture of CH₄ and N₂ with a vortex tube. Adapted with permission.¹⁹ Copyright 2002, American Society of Civil Engineers.

The advantage of a vortex tube is that it has no moving parts and does not break or wear, so it requires little maintenance. However, this technique does demand the inlet gas stream to be pressurized (165–248 kPa was used in the above study).¹⁹ Given that the volume of ventilation air is huge, pressurizing it is a big issue. Further feasibility studies on CH₄ separation/enrichment from ventilation air via a vortex tube are very much needed.

2.2. Mechanical towers

Wang et al. designed a mechanical tower for the enrichment of VAM by using CH₄ buoyancy under free diffusion conditions (namely, the gas mixture moves freely under the force of gravity) based on the fact that the density of CH₄ is lower than that of air.²⁴ The enrichment characteristics of segregated (CH₄ and N₂ enter the system separately) and non-segregated (CH₄ and N₂ are pre-mixed before entering the system) mixtures under free diffusion conditions were studied. For a CH₄/N₂ mixture with 0.5% CH₄, a CH₄ concentration of 0.54% was monitored for the non-segregated mixture, which is not promising.

Recently Wang et al. carried out a follow up study using a similar mechanical tower for the VAM (0.5% CH₄) enrichment, under free diffusion conditions and weak eddy conditions, respectively. For a non-segregated mixture, under weak eddy field conditions, the maximum CH₄ concentration is 0.54% (0.55%) in the top (middle) tower.²⁵ This enrichment from 0.5% to 0.55% is far from enough for lean-burn gas turbines, which require a minimum CH₄ concentration of 0.8% for self-sustaining operation.^8,10,14 Since this technique is based on the difference in the density of the gases to be separated, significant improvement in the CH₄ enrichment performance with this technique seems difficult.

2.3. Gas hydrates

Gas hydrates (clathrate hydrates) are crystalline solid structures formed via the inclusion of gas molecules (such as CH₄, N₂, O₂, CO₂, H₂, etc.) into cavities of the frame built from hydrogen-bound water molecules without forming a chemical bond between the gas molecules and the water molecules. Generally, low temperature and high pressure are required for the formation of gas hydrates.⁴² However, the use of thermodynamic promoters, such as tetra-n-butyl ammonium bromide (TBAB), tetra-n-butyl ammonium chloride (TBAC), tetrabutyl phosphonium bromide (TBPB) etc., has been reported to be able to reduce the hydrate formation pressure.^43–45

CH₄ separation from coal mine methane (CMM) via hydrate formation has been extensively investigated,^44,46,47 but only a few studies on CH₄ separation from ventilation air via hydrate formation have been reported. In particular, Adamova et al. theoretically calculated the hydrate formation of VAM (0.5% CH₄, 75% N₂, and 24.5% O₂) in the temperature range of 258 to 273 K and the pressure range of 0.1 to 35.5 MPa.²⁶ At 273 K and 17.96 MPa, CH₄ concentration in the gas clathrate is 1.9%, nearly 4 times that in the gas phase (0.5%). Based on this theoretical study and the formation of methane hydrate under milder conditions (282.7–291.5 K and 0.15–5.10 MPa) achieved with the addition of TBPB,⁴⁵ Du et al. investigated phase equilibrium conditions for gas hydrates formed from simulated mine ventilation air in the presence of TBPB,²⁷ tri-n-butyl phosphine oxide (TBPO) or TBAB.²⁸ With 37.1 wt% TBPB, at 278 K and 4 MPa, CH₄ was enriched from 0.5% to 1.75% in the hydrate phase,²⁷ and with an addition of 5 wt% TBPO, approximately 3-fold CH₄ enrichment could be achieved in the hydrate phase.²⁸ They also proposed the concept of a hydrate-based CH₄ concentrator shown in Fig. 3, in which with 5 wt% TBPO, at 281 K and pressure higher than 0.91 MPa, CH₄ could be enriched to a level meeting the requirements of lean-burn CH₄ utilization technologies.

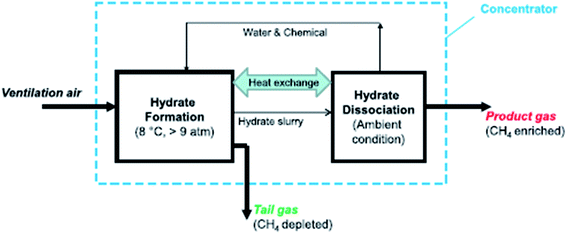

Fig. 3 Conceptual diagram of CH₄ enrichment via hydrate crystallization. The product gas released from hydrate decomposition can be fed to lean-burn turbines. Adapted with permission.²⁸ Copyright 2015, Elsevier.

Although the results of CH₄ separation from coal mine methane via hydrate formation are promising, the conditions (281 K and >0.91 MPa) for the formation of VAM hydrate are still a concern, because it would be a great challenge to cool and pressurize a large volume of ventilation air. Further studies on the energy cost and feasibility of VAM enrichment via a gas hydrate are urgently needed. Breakthroughs in the improvement of VAM hydrate formation conditions could make this method viable for practical application.

2.4. Membrane separation

Gas separation using membranes can offer the advantages of lower cost and smaller equipment size, lower energy consumption and ease of operation compared to conventional processes.⁴⁸ The usage of membranes has been widely employed for natural gas separation in industry for the removal of acidic gases, such as CO₂ and H₂S.^29,30 However, currently, membranes are not suitable for separating low concentration CH₄ from ventilation air because of the high costs of initial capital investment and membrane maintenance or replacement due to fouling.¹³ Advances to make membrane separation systems commercially viable for VAM are highly demanded.⁴⁹

2.5. Adsorption based processes

2.5.1. Basics of adsorption-based separation. Adsorption is a physical phenomenon in which molecules of a gas, vapor, or liquid become trapped within the nanosized pores of a solid material, which is called the adsorbent, and the trapped material is termed the adsorbate. The reverse of the adsorption process is called desorption. Different molecules interact with the adsorbents differently, which can be harnessed for separation. There are two types of separation mechanisms: equilibrium separation and kinetic separation, with the first one being more common and widely employed. In equilibrium separation, the adsorbent preferably adsorbs one type of molecule over others in the gas mixture, which depends either on the molecular size or kinetic diameter or affinity.^50–54 In kinetic separation, the adsorption rate of one component is faster than that of others in the gas mixture, which is very useful in the cases when the equilibrium uptakes of components are similar or when the size of the adsorbent pore is close to the size of the molecules to be separated.^29,55,56

Accordingly, there are two types of selectivity, equilibrium selectivity and kinetic selectivity. Equilibrium selectivity (or thermodynamic selectivity) depends on the difference in adsorption at equilibrium, and kinetic selectivity depends on the difference in adsorption rates.

The equilibrium selectivity for a binary gas mixture of components i and j is defined as:

where x_i and x_j are the mole fractions of components i and j in the adsorbed phase, and y_i and y_j are the mole fractions in the gas phase, respectively; the equilibrium selectivity can be calculated from adsorption data measured with pure component gases using an equilibrium thermodynamic model, such as ideal adsorption solution theory (IAST) or by computer modelling.^29,41,57 The value in eqn (1) changes depending on the mole fractions of components. Values greater than unity mean that component i is more strongly adsorbed than component j.

The equilibrium selectivity for a binary gas mixture of components i and j can be estimated by using eqn (2). The value in eqn (2) is a constant and only valid at a very low gas pressure and low adsorption loading on the adsorbent.⁵⁸

where K_i and K_j are Henry's law constants of components i and j, respectively; q_mi, b_i, q_mj and b_j are the Langmuir equation constants for components i and j, respectively.^29,41,58

In a kinetically controlled separation process, both the kinetic and equilibrium effects determine the actual kinetic selectivity, which is given by the following equation in the linear range of the isotherms:^59,60

where K_Hi and K_Hj are Henry's law constants of components i and j, and k_μi and k_μj are the overall mass-transfer coefficients of components i and j.

2.5.2. Adsorption-based separation processes. Typically, two types of adsorption-based separation processes have been studied for VAM enrichment: the fluid bed concentrator and the swing mode process that includes both pressure swing adsorption and temperature swing adsorption.

Fluid bed concentrators, widely used for volatile organic compounds, were proposed to concentrate CH₄ of very dilute VAM flows up to levels that might be beneficial as a fuel in a gas turbine, reciprocating engine, or support oxidation in a TFRR or CFRR.⁶¹ The concentration principle is as follows: the bed concentrator consists of a series of perforated plates or trays supporting an adsorbent medium (e.g., activated carbon beads). The VAM stream enters from the bottom of the concentrator and passes upward through the trays where it fluidizes the adsorbent medium to enhance the capture of CH₄. The CH₄ saturated adsorbent drops to the bottom of the concentrator, where it can be discharged to the storage vessel and then the desorber. The adsorbent is regenerated by increasing the temperature to release the adsorbed CH₄ into a stream of a lower flow rate and higher CH₄ concentration.⁶¹ However, experimental results on a fluidized bed concentrator using simulated ventilation air with 0.5% CH₄ from Environmental C & C, Inc. in 2003 were not promising, and the trials were stopped.^8,61,62 It is worth mentioning that a lot of new and advanced adsorbents with high CH₄ adsorption capacities (up to 2.90 mmol g⁻¹) and high CH₄/N₂ selectivity (up to 12.5) have been prepared and studied since the trial.^38,63–71 Studies on the performance of concentrators with these newly developed adsorbents are highly desirable, which could lead to high performance and cost-effective concentrators.

In swing mode adsorption processes, at least two columns packed with adsorbents are required to carry out the separation process. The feed gas mixture passes through the first column, and the adsorbent selectively adsorbs one of the components till it is saturated. Then, the feed gas mixture is directed to the second column. Meanwhile, the first column is regenerated by desorbing the adsorbed component. When the second column is saturated, the feed gas mixture is directed toward the first column and the second column is regenerated.²⁹ In practice, multiple columns are employed in a swing-mode to make the process continuous and additional steps are added to maximize the productivity and reduce the energy consumption.⁷² The adsorbed component is desorbed from the adsorbent in the regeneration process, which results in the enrichment of the adsorbed component. When the adsorbent is regenerated by desorption at a lower pressure than that used for the adsorption phase of the cycle, the process is termed pressure swing adsorption (PSA).⁷³ In the case of regeneration that takes place under vacuum, it is called vacuum pressure swing adsorption (VPSA) or vacuum swing adsorption (VSA).^74,75 When the adsorbent is regenerated by desorption at a higher temperature than that used for the adsorption phase of the cycle, it is called temperature swing adsorption (TSA).⁷⁶ Normally the feed gas is pressurized in the adsorption step, but in the case of VAM enrichment, given the large volume of the ventilation air flow, it would not be practical to pressurize the feed gas flow. Therefore, the operating pressure close to atmospheric pressure is preferred.⁷⁷

Due to their low operational costs, high separation efficiency and flexibility compared to mature separation technologies, such as absorption and distillation, swing mode separation processes are widely used for natural gas separation and purification, the production of hydrogen, the separation of O₂ and N₂ from air, etc.³³ Recently, these processes have been extensively studied for the enrichment of low-grade CH₄ gas^78–80 and VAM^7,77,81–87 too. VAM enrichment has been investigated by several research groups, including University of Science and Technology Beijing,^81–84 Dalian University of Technology,⁸⁵ East China University of Science and Technology,⁸⁸ and Commonwealth Scientific and Industrial Research Organization (CSIRO).^7,77,86

2.5.2.1. VPSA process. Early studies on VAM enrichment were carried out via the VPSA process.^81,82,85 For example, Liu et al. used coconut shell-based activated carbon as an adsorbent via the VPSA process at an adsorption pressure of 150 to 250 kPa, and the CH₄ concentration was improved from 0.3% to 0.73%.⁸⁷ Although the enriched VAM concentration was still below 1% in these early reports, it triggered further investigations in VAM enrichment via PSA processes. Later Quyang et al. studied VAM enrichment using a coconut shell-based activated carbon adsorbent (CH₄/N₂ selectivity of 6.18) via the VPSA process with a feed gas of 0.42% CH₄ and 99.58% N₂.⁸⁵ The concentration of CH₄ was enriched from 0.42% to 1.09%, which can satisfy the requirements of flow-reversal reactors or lean-burn combustion turbines to generate power.

Based on their early study,⁸⁷ Yang et al. recently carried out the VAM enrichment via a three-bed VPSA process unit which was equipped with a new vacuum exhaust step for the VPSA process.⁸⁴ The coconut shell-based active carbon with an equilibrium CH₄/N₂ selectivity of 5 was used as the adsorbent. On a lab scale, the VAM was enriched from 0.2% to 0.4% and 0.69% as the vacuum exhaust ratio increased from 0 to 3.1, respectively. Moreover, a pilot-scale test system has been built at Julong Mine, Jizhong Energy Handan Mig., Handan, China.⁸⁴ It uses a two-stage three-bed separation unit which can handle a flow rate of 500 m³ h⁻¹. As shown in Fig. 4, the feed gas is compressed with a Roots blower (P1) and transferred to the adsorption bed of the first stage–stage separation unit. The CH₄-rich gas is vacuumed with a vacuum pump (VP1) and transferred to the second separation unit with a Roots blower (P2). The product is collected from the vacuum pump (VP2). The VAM was enriched from 0.2% to over 1.2% in this system, which is well above the minimum CH₄ concentration of 0.8% required for self-sustaining operation of lean-burn gas turbines,^8,10,14 making it promising for VAM enrichment. Further studies are expected to evaluate the cost, efficiency, etc. for commercial possibility.

Fig. 4 Process diagram for the pilot plant. BED-adsorber; PT-pressure transmitter; TT-temperature transmitter; V-gas buffer; KV-pneumatic valve; FT-flowmeter; MV-gas-manual control valve; P1/P2-pump; VP1/VP2-vacuum pump; A-methane sensor.⁸⁴

2.5.2.2. Vacuum swing (VS) followed by a temperature and vacuum swing adsorption (TVSA) process. Bae et al. developed a prototype VAM capture unit with a honeycomb monolithic carbon fiber composite (HMCFC) adsorbent and employed it in a large-scale test for VAM capture under various conditions in 2014.^5,77 In the regeneration stage, a new vacuum and temperature swing process is employed to desorb CH₄ from the adsorbent, involving initial VS followed by TVSA. The initial VS was found to be vital for the final CH₄ concentration. A VAM of less than 1% can be enriched by 5 or 11 times by one-step adsorption, and a CH₄ concentration of more than 25% can be achieved by two-step adsorption, as shown in Fig. 5. A VAM of less than 5% obtained from the one-step adsorption can be utilized as a principal fuel for lean burn turbines.

Fig. 5 Enrichment of simulated VAM with monolithic carbon fiber composites (MCFCs) by vacuum swing (VS) followed by combined temperature and vacuum swing adsorption (TVSA). Adapted with permission.⁷⁷ Copyright 2014, American Chemical Society.

Based on the above study,⁷⁷ Bae et al. built up a two-stage prototype VAM enrichment unit with VTVSA in accordance with relevant Australian Standards and local mine site regulations. The enrichment of simulated ventilation air from 0.30%, 0.60%, and 0.98% CH₄ up to 19.28%, 24.24%, and 36.92% CH₄, respectively was demonstrated, avoiding the explosion range of 5–15% CH₄.⁸⁶ Very recently they have successfully carried out site trials of a two-stage VTVSA process using carbon fiber composites for VAM enrichment at an Australian coal mine.⁷

The schematic diagram of the prototype VAM enrichment unit is shown in Fig. 6. About 22–60 L min⁻¹ VAM from the outlet of an oxidation unit was fed to the prototype unit by using a blower with a variable speed drive, until CH₄ was detected in the exhaust stream of the first column. Then the first column was vacuumed until a predetermined pressure was reached. The HMCFC in the first column was then heated up to 383 K by circulating a heated thermal fluid (about 20 L min⁻¹), followed by vacuuming to desorb gas out of the column. The desorbed gas stream was fed to the second column. The hot thermal fluid in the first column was drained and cooled down to ambient temperature for the next test. These processes were repeated until the second column was saturated, which has undergone the same regeneration processes to produce the final product. The inlet VAM was enriched from 0.54–0.73% to 4.34–4.94% after the first stage and 27.62–35.89% after the second stage.⁷ As mentioned by the authors, these VTVSA processes were scalable and portable to cope with changes in mine site operation and specifications, but the involvement of the energy intensive step of the temperature swing adsorption (TSA) process is an issue for practical applications. In this regard, the VPSA with CO₂ displacement process (VPSA-CO₂DIS) (discussed below) could be a solution to tackle this energy consultation issue.

Fig. 6 Schematic diagram of the prototype VAM enrichment unit equipped with two-stage adsorption processes and installed at an Australian coal mine site. Adapted with permission.⁷ Copyright 2020, American Chemical Society.

2.5.2.3. VPSA with CO₂ displacement process (VPSA-CO₂DIS). Compared to CH₄, CO₂ is more strongly adsorbed by activated carbon, so in the VPSA-CO₂DIS process, after the column has adsorbed CH₄, the feed gas is switched to CO₂ and the adsorbed CH₄ is displaced and pushed out of the column by CO₂.⁸⁹ In 2011, Liu et al. studied the VPSA-CO₂DIS process with activated carbon as the adsorbent for coal bed CH₄ enrichment (CH₄/N₂ mixture of 17% CH₄). The results demonstrated a CH₄ enrichment from 17% up to 90% with CH₄ recovery higher than 98%.⁸⁹ Based on this study, Yang et al. investigated the VPSA-CO₂DIS process with activated carbon beads as the adsorbent for the enrichment of VAM in 2016.⁸⁸ CH₄ enrichment from 1% to 53.5% was achieved, demonstrating that the VPSA-CO₂DIS process is promising for VAM enrichment. More studies on the cost, efficiency, scalability, etc. of the VPSA-CO₂DIS process for real VAM enrichment are highly demanded.

2.6. Summary on technologies for VAM enrichment

Among various technologies investigated for VAM enrichment, pressure swing adsorption (PSA)-based process has been the most studied and the most promising technology for VAM enrichment. Specifically, a pilot-scale study with the VPSA process and a site trial with the VTVSA process for VAM enrichment have been carried out by two research groups, respectively. Nevertheless, further studies on the cost, efficiency, scalability, etc., are needed. Meanwhile, as discussed in the following part, many adsorbents with high CH₄ adsorption capacities (up to 2.90 mmol g⁻¹) and high CH₄/N₂ selectivity (up to 12.5) have been reported recently.^38,63–71 The use of some of these highly efficient adsorbents in PSA and/or TSA processes is expected to lead to improved VAM enrichment performance.

3. Materials for selective adsorption of CH₄ from CH₄–N₂ mixtures

The performance of PSA and TSA units for the enrichment of VAM is mainly determined by the adsorbents employed for the separation process, though the engineering of PSA and TSA units is also very important.⁹⁰ Adsorbents with simultaneously high CH₄/N₂ selectivity and high CH₄ adsorption capacity are preferred, as the former can reduce the number of cycles for the treatment of an input stream to reach a desired CH₄ concentration and the latter may lower the overall cost.⁷⁰ Therefore, information on the adsorption equilibrium and kinetic data of adsorbents is essential for the design of adsorption columns.^59,91

Due to their porous nature, zeolites, carbon materials and metal–organic frameworks (MOFs) have been extensively studied as adsorbents for gas storage and separation.^{29,36,92–96} For natural gas purification, studies have been devoted to the separation of N₂ and CO₂ from CH₄, in which case CH₄ is the major component and N₂ and CO₂ are impurities, so adsorbents with high N₂ or CO₂ adsorption capacities and high N₂/CH₄ selectivity or CO₂/CH₄ selectivity are preferred. Excellent reviews on natural gas separation/purification and related adsorbents can be found in the literature.^29,36,72

In the case of VAM (and other low concentration CH₄) enrichment, the above adsorbents are naturally good candidates. However, adsorbents with high CH₄ adsorption capacity and high CH₄/N₂ selectivity are prerequisites given the low concentration of CH₄ (0.1–1.5%) in ventilation air and the large volume of ventilation air. It has been demonstrated that the CH₄ uptake amount is almost linearly related to the surface area of the adsorbent;^90,97 meanwhile, it has also been revealed that the optimum pore diameter for CH₄ adsorption is within the range of 0.7–1.0 nm.^98–100 Therefore, an adsorbent with a high surface area associated with an optimal pore size is the key prerequisite for high CH₄ adsorption capacity. Given that N₂ and CO₂ are present in ventilation air, low CO₂/CH₄ selectivity of the adsorbent is also important. In addition, due to the high relative humidity (70–100%) of ventilation air, the effect of water on the performance of the adsorbents also needs to be taken into account. Therefore, in the following part, we discuss the textural properties, CH₄ adsorption capacity, CH₄/N₂ equilibrium selectivity and CO₂/CH₄ equilibrium selectivity of these materials under ambient conditions unless otherwise specified, the effect of water on the adsorbents, and the advantages and disadvantages of the widely studied three types of adsorbents (zeolites, carbon materials and MOFs). In addition, we highlight new synthesis strategies to achieve high CH₄ adsorption capacity and high CH₄/N₂ equilibrium selectivity, including the combination of the advantages of zeolites and MOFs, or the advantages of carbon and MOFs, heteroatom (N or S) doping, and the surface property modification for porous carbons, the creation of coordinatively unsaturated metal centers for MOFs and the pore wall environment control of MOFs. It is worth noting that materials with relatively lower CH₄ adsorption capacity or lower CH₄/N₂ selectivity (compared to those listed in the tables) are excluded from the tables; if several samples were studied in the same paper, only some of them are listed in the tables.

3.1. Zeolites

Zeolites are 3-dimensional aluminosilicate frameworks constituted by Si and Al tetrahedra linked through bridged oxygen atoms giving rise to a regular distribution of pores and cavities of molecular dimensions. In the case of VAM separation, due to the close kinetic diameters of CH₄ (0.38 nm) and N₂ (0.364 nm), it is extremely difficult to separate them by using the molecular sieving effect; therefore the separation of CH₄ from N₂ by using the adsorption equilibrium difference between CH₄ and N₂ would be a better choice. Consequently, zeolites with high CH₄ adsorption capacity and high CH₄/N₂ selectivity are required.

The polarizability, dipole and quadrupole moments of a gas determine the strength of the interaction between the gas and the zeolite surface. Due to their large dipole and quadrupole moments, H₂O and CO₂ are usually the strongest adsorbed species on hydrophilic zeolites.¹⁰¹ Given that ventilation air is usually saturated with H₂O and contains CO₂, zeolites with high CH₄/CO₂ selectivity are preferred for the separation of CH₄ from ventilation air. Kim et al. studied the CH₄ capture effectiveness of two classes of materials by computer modelling, including liquid solvents and zeolites, for a low-quality natural gas and VAM, respectively. Among the 190 experimentally realized International Zeolite Association (IZA) structures and over 87 000 predicted crystallography open database (PCOD) structures, they found that zeolites ZON and FER with the largest adsorbed CH₄/CO₂ ratio and K_H(CH₄) (Henry's constant) of 1.29 and 1.12 mol kg⁻¹ kPa⁻¹, respectively, are excellent candidates for concentrating a dilute CH₄ stream into moderate concentration.⁴¹

Wu et al. introduced the subunits of ZIFs into zeolite Y and zeolite ZSM-5 for CH₄/N₂ separation, based on a theoretical study that the preferential adsorption sites for CH₄ on ZIF-8 are in specific regions close to the organic imidazolate. The results showed that the CH₄/N₂ selectivity of the zeolites was greatly improved to above 8 at 100 kPa and 298 K, which was higher than that of zeolites and even better than that of ZIFs.¹⁰² However, the CH₄ adsorption capacity is low, only 0.11–0.27 mmol g⁻¹. Nevertheless, this strategy provides a way to combine the advantages of the low cost and mature synthesis technology of zeolites and the high CH₄/N₂ selectivity of MOFs, avoiding the complicated and high costs of synthesis processes of MOFs. Other combinations of zeolites and MOFs could result in both high CH₄/N₂ selectivity and high CH₄ adsorption capacity.

Table 2 summarizes the textural properties, CH₄ adsorption capacities, CH₄/N₂ selectivity and CO₂/CH₄ selectivity of zeolites under ambient conditions. As shown in Table 2, the CH₄/N₂ selectivity of commercial zeolites 5A and 13X is less than 3.2 and the CH₄ adsorption capacities are less than 0.82 mmol g⁻¹.^{50,58,103,104} The majority of zeolites in Table 2 show CH₄ adsorption capacities below 1 mmol g⁻¹, but ion-exchanged CHA (Li-CHA) shows a high CH₄ adsorption capacity of 1.47 mmol g⁻¹ with a CH₄/N₂ selectivity of 4.7 and a CO₂/CH₄ selectivity of 32.¹⁰⁵ All the zeolites with available CO₂/CH₄ selectivity listed in Table 2 show that their CO₂/CH₄ selectivity is higher than their CH₄/N₂ selectivity, except for silicalite-I reported by Yang et al. with a CH₄/N₂ selectivity of 3.60 and a CO₂/CH₄ selectivity of 2.55. However, its CH₄ adsorption capacity is only 0.65 mmol g⁻¹.¹⁰⁶ A theoretical study using silicalite-I as the adsorbent for the concentration of CH₄ from low concentration CH₄/N₂ mixtures by a concentration thermal swing adsorption (CTSA) process has been reported by Delgado et al.¹⁰⁷ It would be interesting to see similar simulation work for VAM concentration with silicalite-I as the adsorbent for PSA processes.

Table 2 Textural properties, CH₄ adsorption capacity, CH₄/N₂ equilibrium selectivity and CO₂/CH₄ equilibrium selectivity of zeolites at 298 K and 100 kPa unless otherwise specified

Zeolites	BET surface area (m^2 g^−1)	Pore volume (cm^3 g^−1)	CH4 uptake (mmol g^−1)	Equilibrium selectivity CH4/N2	Equilibrium selectivity CO2/CH4	Ref.
a Calculated from the IAST model and values in brackets are the gas mixture ratio used for the calculation. b Measured by CO2 adsorption at 273 K. c Calculated from Henry's selectivity. d Obtained at 303 K. e Calculated from Langmuir equation parameters. f Obtained at 305 K. g Obtained at 302 K. h Obtained at 313 K. i Obtained at 295 K. j Calculated from the ratio of adsorption amounts at 273 K.
Silicalite-I	439	0.19	0.65	3.60^a	2.55^a	106
Silicalite-I-H	323	0.137	0.67	3.9^a	5.63^a	108
Silicalite-I-M	342	0.130	0.67	3.9^a	5.83^a	108
K-KFI	430.4^b	0.10^b	0.78	8.5	35	105
Na-KFI	556.2^b	0.15^b	0.79	4.1	92	105
Li-KFI	550.6^b	0.14^b	0.71	3.0	80	105
Ca-KFI	333.5^b	0.07^b	0.72	3.0	19	105
K-CHA	278.5^b	0.07^b	0.85	14.5	24	105
Na-CHA	594.8^b	0.16^b	1.35	4.3	42	105
Li-CHA	638.0^b	0.17^b	1.47	4.7	32	105
5A	—	—	0.81	0.94^c	256.47^c	58
5A	—	—	0.69^f	1.96^f	—	103
13X	—	—	0.59	2.36^e	14.9^e	50
Linde 4A	—	0.108	0.95^g	3.4^g	6.5^g	109
H-ZSM-5	—	—	0.71^h	3.28^d^,^h	6.11^d^,^h	110
H-clinoptilolite	—	—	0.93	3.91^e^,^i	—	111
K/Na (50 : 50)-clinoptilolite	—	—	1.05	3.27^e^,^i	—	111
Zeolite X/AC composite	802	0.64	0.77	3.4^j	—	112

---

The disadvantages of zeolites as sorbents for methane adsorption include low surface area, low CH₄ adsorption capacities and hydrophilic surface. As mentioned above, an adsorbent with high surface area associated with optimal pore size is the key prerequisite for methane adsorption, but the surface area of zeolites is generally low compared to porous carbon materials, which results in a low CH₄ adsorption capacity. In addition, the hydrophilic surface of zeolites will reduce the adsorption capacity in the presence of moisture (given the high relative humidity in ventilation air methane). Furthermore, zeolites with polar surfaces that possess high electric-field gradients have stronger interaction with CO₂ than with the non-polar CH₄ and N₂ molecules.¹¹³ As can be observed from Table 2, most zeolites have a tendency to adsorb CO₂ over CH₄. The advantages of zeolites as the adsorbents are the low cost and mature synthesis technology of zeolites compared to MOFs. A new synthesis strategy that combines the advantages of zeolites (low cost and mature synthesis technology) and MOFs (high CH₄/N₂ selectivity), avoiding the complexity and high costs of synthesis processes of MOFs, is highly preferred to generate zeolites with both high CH₄/N₂ selectivity and high CH₄ adsorption capacity.

3.2. Porous carbon materials

Porous carbon materials, including high surface area activated carbons (ACs),^114,115 activated carbon fibers (ACFs),^92,116 and carbon molecular sieves (CMSs),^117,118 have been extensively studied as the adsorbents in adsorption based processes for low concentration CH₄ recovery from unconventional natural gases^115,119,120 and VAM enrichment.^7,77,84–86Table 3 summarizes the textural properties, CH₄ adsorption capacity, CH₄/N₂ selectivity and CO₂/CH₄ selectivity of porous carbon materials under ambient conditions unless otherwise specified.

Table 3 Textural properties, CH₄ adsorption capacity, CH₄/N₂ equilibrium selectivity and CO₂/CH₄ equilibrium selectivity of porous carbons at 298 K and 100 kPa unless otherwise specified

Carbon materials	BET surface area (m^2 g^−1)	Pore volume (cm^3 g^−1)	CH4 uptake (mmol g^−1)	Equilibrium selectivity CH4/N2	Equilibrium selectivity CO2/CH4	Ref.
a Carbon has been studied for VAM enrichment. b N-doped carbon. c Calculated from the IAST model and values in brackets are the gas mixture ratio used for the calculation. d Micropore volume. e Calculated from Henry's law constants. f Calculated from the initial slopes of adsorption isotherms at very low pressures. g Calculated at 303 K. h Calculated from Langmuir equation parameters. i Calculated from the initial slopes of adsorption isotherms at relevant pressures (CH4 0.69 kPa and N2 79.99 kPa).
AC^a (from coconut shell)	329	0.145	—	6.18^c (50 : 50)	—	84 and 85
ACF composites^a	577	0.135^d	—	5.9 /4.2^f	3.29^f	77
AC (GCTAC)	700	—	1.21	9.8^c (2.5 : 97.5)	—	67
BPL AC	—	—	—	4.5	2.5^e	31
AC (CGUC-1-6)	624	0.267	1.01	5.9^c (50 : 50)	16.9^c (40 : 60)	134
AC (CGUC-1-8)	1071	0.439	1.34	5.0^c (50 : 50)	9.4^c (40 : 60)	134
AC (PRCs)	776	—	1.12	5.7^c (15 : 85)	—	128
AC beads	1457	0.57	1.06	5.5^c^,^g (50 : 50)	3.6^c^,^g (50 : 50)	135
Granular AC	1227	0.505	1.59	3.2^g	—	136
AC (SCs)	914	0.35	1.86	5.7^c (50 : 50)	—	137
AC^b (N-WAPC)	862	0.5	1.01	7.62 (50 : 50) 11.76^c (15 : 85) 13.71^c (5 : 95)	3.19^c (50 : 50) 5.98^c (15 : 85) 8.66^c (5 : 95)	63
AC^b (ClCTF-1-650)	974	0.37	1.47	8.6 (50 : 50)	8.1^c (1 : 99)	64
AC^b (ClCTF-1-550)	986	0.37	1.27	8.1 (50 : 50)	7.8^c (1 : 99)	64
AC^b (NAPC-2-6)	1247	0.69	1.3	4.1^c (50 : 50)	10.1^c (50 : 50)	124
AC^b (OTSS-1-550)	778	0.31	1.49	5.22^c (50 : 50)	8.15^c (10 : 90)	138
AC^b (SNMC-1-600)	1021	0.43	1.45	5.1^c (50 : 50)	6.9^c (40 : 60)	139
AC^b (SNMC-2-600)	1884	0.78	1.57	4.2^c (50 : 50)	4.3^c (40 : 60)	139
AC^b (SNMC-3-600)	3049	1.4	1.17	3.6 (50 : 50)	3.2^c (40 : 60)	139
AC^b (ACSs-N)	697	0.46	1.30	3.76^c	7.49^c	125
S-doped AC (CSK-7)	1324	0.81	1.23	2.92^c	2.3^c	126
CMS (1023)	389	0.182^d	1.33	4.74^h	—	130
Mesoporous carbon	599	0.66	1.05	5.8^e	—	133
Mesoporous carbon (sOMC)	2255	2.17	0.90	3.7 (10 : 90)	2.8^c (10 : 90)	132
Carbon composite (MNS-derived)	—	—	1.48	6.3^e/10.4^i	—	65
Carbon nanoplates (PCNPs)	690	—	1.17	10^c (30 : 70)	—	66

---

3.2.1. Activated carbons (ACs). Due to their advantages, such as high CH₄ adsorption capacity, CH₄/N₂ selectivity, easy scale up and low price, ACs are the most studied carbon materials for CH₄ separation from CH₄ and N₂ gas mixtures. Much attention has been devoted to the investigation of the effect of the textural properties of ACs on the CH₄ adsorption capacity and the CH₄/N₂ selectivity. Optimal pore sizes of 0.7–0.9 nm,¹²¹ 0.758–0.776 nm,¹¹⁹ 0.7–1.3 nm,¹²² 0.5–0.8 nm (ref. 120) and 0.55–0.85 nm (ref. 123) for high CH₄/N₂ selectivity have been suggested.

In addition, heteroatom-doped (N or S) porous carbons have also been extensively studied, and some N-doped carbons show very high CH₄/N₂ selectivity up to 8.6 for a 50 : 50 mixture.^64,124–126 Most of the reported N-doped porous carbons showed CH₄/N₂ selectivity lower than CO₂/CH₄ selectivity. However, N-doped AC with a high N content (>10 wt%) reported by Yao et al. showed a high CH₄ adsorption capacity of up to 1.47 mmol g⁻¹ at 298 K and 100 kPa and high CH₄/N₂ selectivity up to 8.6, which was attributed to the unusually high N content as well as the suitably narrow ultramicropore size distribution.⁶⁴ In addition, it is worth pointing out that Li et al. reported that a N-doped AC (14.48 wt% N content) derived from waste wool showed a high CH₄/N₂ selectivity of 7.6 for a 50 : 50 mixture and 13.7 for a 5 : 95 mixture with a decent CH₄ adsorption of 1.01 mmol g⁻¹.⁶³

Apart from the textural properties and N-doping, the surface chemistry properties of the porous carbons have also been found to be important for the gas separation performance.^127,128 For example, Tang et al. prepared binderless particle rice-based carbon materials (PRCs) with narrow micropore distribution by carbonization of rice followed by CO₂ activation, which showed a high CH₄ uptake of 1.12 mmol g⁻¹ and a CH₄/N₂ selectivity of 5.7 at 298 K and 100 kPa.¹²⁸ Simulation calculations showed that the surface carboxyl groups played an important role in the improvement of the CH₄/N₂ selectivity. Fixed-bed experiments demonstrated that this carbon material can greatly separate CH₄/N₂ mixtures under ambient conditions.

3.2.2. Carbon molecular sieves (CMSs). Carbon molecular sieves (CMSs) are activated carbons with a relatively narrow micropore size distribution. As mentioned earlier, gas separation can be achieved by different equilibrium capacities (equilibrium separation) or by differences in the transport rate (kinetic separation). CMSs have been demonstrated to be able to separate CH₄ and N₂ by kinetic separation.^59,129,130 For example, Zhang et al. prepared a CMS by deposition and carbonization of benzene on activated carbon.¹³⁰ A CH₄ adsorption capacity of 1.33 mmol g⁻¹, an equilibrium CH₄/N₂ selectivity of 4.74 and a very high N₂/CH₄ kinetic selectivity of 35.26 were achieved. PSA results demonstrated a better performance in the separation of feed mixtures with a low concentration of CH₄.

3.2.3. Activated carbon fibers (ACFs). ACFs have a long history for gas separation and purification^92,116 and have fast intraparticle adsorption kinetics compared with pelletized or granular ACs.¹³¹ Honeycomb monolithic carbon fiber composites have been extensively studied as an adsorbent for the enrichment of VAM via a PSA process by Bae et al. They exhibited a CH₄/N₂ selectivity of 4.2 and 5.9 at 298 K obtained from the initial slopes of adsorption isotherms at very low pressures and from Henry's law constants, respectively, and have been applied in a prototype VAM enrichment unit.^7,77,86 It is important to develop other ACFs to improve the VAM enrichment performance.

3.2.4. Other carbon materials. Other carbon materials studied for CH₄/N₂ gas mixture separation include mesoporous carbon, carbon composites, carbon nanoplates, etc.^{65,66,132,133} For example, Bae et al. reported new carbon composites which showed a CH₄/N₂ selectivity of about 10.4 calculated at each relevant partial pressure CH₄ 0.69 kPa (0.66 vol%) and N₂ 79.99 kPa (78.95 vol%) 79.99 kPa or 6.5 calculated at very low pressures.⁶⁵ Very recently, Xu et al. reported self-pillared ultramicroporous carbon nanoplates (PCNPs) with a CH₄/N₂ selectivity of 10 at 100 kPa and 298 K for a 30CH₄ : 70N₂ mixture.⁶⁶ Further studies on the CO₂/CH₄ selectivity of these carbon nanoplates and their performance of VAM enrichment with SPA processes are highly needed.

As shown in Table 3, a lot of carbon materials with high CH₄ adsorption capacity and high CH₄/N₂ selectivity have been reported recently. So far the highest CH₄ adsorption capacity of 1.86 mmol g⁻¹ with a CH₄/N₂ selectivity of 5.7 (for a 50 : 50 gas mixture) has been reported by Du et al.¹³⁷ and the highest CH₄/N₂ selectivity of 13.7 (for a 5 : 95 mixture) with a CH₄ adsorption capacity of 0.5 mmol g⁻¹ has been reported by Li et al.⁶³ It is noteworthy that some of these ACs show CH₄/N₂ selectivity higher than the CO₂/CH₄ selectivity.^{31,63,64,132,139} Given that ventilation air usually contains CO₂, it is highly desirable to study the VAM enrichment with SPA processes using these adsorbents. In addition, those carbon materials without available data on CO₂/CH₄ selectivity but with high CH₄ adsorption capacity and high CH₄/N₂ selectivity are potentially attractive too for VAM enrichment studies.^{65–67,128,130}

Although porous carbon materials are generally hydrophobic, both experimental and theoretical studies show that microporous carbons can adsorb a large amount of water vapor.^140–142 Different from non-polar fluids, the adsorption mechanism of water in the micropores of carbon is determined by the balance between fluid–solid and fluid–fluid interactions, and it has been observed that the adsorption of water occurs via cluster formation.¹⁴² It has also been demonstrated that the presence of water vapor adversely affects the adsorption capacity of microporous carbon and limits its effectiveness as an adsorbent material in humid environments.¹⁴⁰ Considering the high relative humidity of ventilation air, it is important to study the effect of humidity on the adsorption capacities and selectivity of adsorbents in humid environments. In this respect, the adsorbent (carbon fiber composites) used in the site study for VAM enrichment by Bae et al. shows that the presence of moisture in ventilation air has no effect on CH₄ capture.⁷ It is important to investigate the effect of water vapor on the adsorption performance of other porous carbon materials (with high CH₄ adsorption capacity and high CH₄/N₂ selectivity) that are potentially useful for VAM enrichment.

Compared to zeolites and MOFs, the downside of porous carbon materials would be the less control over the pore size distribution. However, porous carbon materials possess the advantages including high CH₄ adsorption capacity, high CH₄/N₂ selectivity, hydrophobicity, excellent chemical stability, low cost and ease of production. So far porous carbon materials have been the only adsorbents that have been used for site studies, demonstrating their potential in practical VAM enrichment.^7,84

3.3. MOFs

MOFs, formed by coordination bonds between metal clusters and organic linkers, have great potential for gas adsorption and separation because of their high surface areas, tunable pore sizes, and versatile chemistry. Some MOFs have been investigated by molecular simulation studies, while plenty of MOFs have been experimentally studied for CH₄ separation from a CH₄/N₂ gas mixture. Table 4 summarizes the textural properties, CH₄ adsorption capacity, CH₄/N₂ selectivity and CO₂/CH₄ selectivity of MOFs at 100 kPa and 298 K unless otherwise specified.

Table 4 Textural properties, CH₄ adsorption capacity, CH₄/N₂ equilibrium selectivity and CO₂/CH₄ equilibrium selectivity of MOFs at 298 K and 100 kPa unless otherwise specified

Carbon materials	BET surface area (m^2 g^−1)	Pore volume (cm^3 g^−1)	CH4 uptake (mmol g^−1)	Selectivity CH4/N2	Selectivity CO2/CH4	Ref.
a Calculated from the IAST model and values in brackets are the gas mixture ratio used for the calculation. b Calculated from Langmuir equation parameters. c Micropore volume. d Calculated from Henry's law constants. e Calculated with the dual-site Langmuir model and values in brackets are the gas mixture ratio used for the calculation.
[Co3(C4O4)2(OH)2]	76	—	0.40	12.5 (50 : 50)	—	69
Cu-MOF [Cu(hfipbb)(H2hfipbb)0.5]	105	—	0.46	6.9^b	3.1^b	146
Cu-MOF	110	—	0.63	11.18	—	70
[Ni3(HCOO)6]	293	0.097^c	0.82	6.18^d	—	40
Ni(DOBDC)	1018	0.49	1.90	3.80^a (50 : 50)	30^a (50 : 50)	151
3D Ni-MOF	1168	0.807	1.76	7.0	—	152
[Cu(INA)2]	252	0.12	0.80	8.34^d	—	147
Cu(Me-4py-trz-ia)	1473	0.586	1.12	4.2^d	—	156
ATC-Cu	600	0.23	2.90	9.7 (50 : 50)	—	68
CAU-21-BPDC (Al based MOF)	523	0.38	0.99	11.9 (50 : 50)	—	38
Co(DOBDC)	1089	0.50	1.95	3.2^a (50 : 50)	40^a (50 : 50)	151
ZIF-94	597	—	1.5	7^a (30 : 70) (50 : 50)	—	148
ROD-8 (Cd^II-MOF)	369	—	0.77	9.1 (50 : 50)	3.3^e (50 : 50)	71
ACF@[Ni3(HCOO)6]	1053	0.453	1.10	6.22	—	149
Ni-MA-BPY	464	0.160^c	1.01	7.4	—	150

---

Liu et al. carried out molecular simulation studies on the separation of CH₄/N₂ mixtures by using MOFs including Cu-BTC, MIL-47 (V), IRMOF-1, IRMOF-12, IRMOF-14, IRMOF-11, and IRMOF-13,¹⁴³ and ZIFs including ZIF-68 and ZIF-69.¹⁴⁴ The highest CH₄/N₂ selectivity of 4.7 was achieved for MIL-47 (V).¹⁴³ Peng et al. studied the adsorption and separation of CH₄/N₂ and CO₂/CH₄ of UMCM-1 and UMCM-2 using a hybrid method of computer simulation and adsorption theory.¹⁴⁵ A CH₄/N₂ selectivity of 2 was achieved for both MOF materials, which was insensitive to the pressure.

As listed in Table 4, for those frequently studied MOFs, so far the highest CH₄/N₂ selectivity of 12.5 has been reported by Li et al.⁶⁹ for an ultramicroporous squarate-based MOF, [Co₃(C₄O₄)₂(OH)₂] (C₄O₄²⁻ = squarate); however, the CH₄ adsorption capacity is low (0.40 mmol g⁻¹). In addition, a number of MOFs with very high CH₄/N₂ selectivity (6–12.5) have been reported in recent years,^{38,40,68–71,146–152} with some of them also showing decent or extremely high CH₄ adsorption capacity (up to 2.9 mmol g⁻¹), making them very promising candidates for VAM or low grade CH₄ enrichment. Further studies on VAM enrichment using these MOFs with high CH₄/N₂ selectivity and decent or high CH₄ adsorption capacity are very much demanded.

The high CH₄/N₂ selectivity of those MOFs has been ascribed to the properties of the MOFs under study, including the uniform ultra-micropores and optimal polarizability,^39,40 or the suitable SOD cage size (0.84 nm) acting as a strong adsorption potential,¹⁴⁸ or the optimal coupling of the polarizability and structure of the MOF framework,¹⁵³ or strong interactions between CH₄ molecules and their coordinatively unsaturated metal sites,^68,151 or an increased number of polar sites,³⁸etc. For example, it is known that coordinatively unsaturated metal centers can bind CH₄ significantly.¹⁵¹ Niu et al. reported a CH₄ nano-trap that features oppositely adjacent open metal sites and dense alkyl groups in a MOF, ATC-Cu.⁶⁸ As illustrated in Fig. 7, when two opposite coordinatively unsaturated metal centers are adjacent to each other, a nano-trap for CH₄ can be generated based on the cooperative coulombic interaction between the CH₄ molecules and the two metal centers. This MOF showed a record-high CH₄ adsorption capacity of 2.90 mmol g⁻¹ and a high CH₄/N₂ selectivity of 9.7 at 298 K and 100 kPa. Breakthrough experiments showed a complete separation of mixtures of 50CH₄ : 50N₂ and 30CH₄ : 70N₂ and good results for a 15CH₄ : 85N₂ gas mixture.

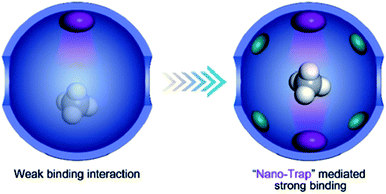

Fig. 7 The schematic comparison of a traditional CH₄ adsorbent and nano-trap. The purple and green ellipsoids represent coordinatively unsaturated metal centers and alkyl groups, respectively. Adapted with permission.⁶⁸ Copyright 2019, Wiley-VCH.

Given that CH₄ has a greater polarizability than N₂, Lv et al. demonstrated a strategy to improve CH₄/N₂ selectivity by controlling the pore wall environment of two isomeric Al-based metal–organic frameworks (MOFs) with four highly symmetric polar sites for strengthened adsorption affinity toward CH₄ over N₂. At 298 K and 100 kPa, CAU-21-BPDC with four highly symmetric polar sites in the pore walls showed a CH₄ uptake capacity of 0.99 mmol g⁻¹ and a CH₄/N₂ selectivity of 11.9, which was 2.4 times higher than that of the MOF without four highly symmetric polar sites.³⁸

Apart from high CH₄/N₂ selectivity and high CH₄ adsorption capacity, considering that ventilation air is saturated with water, good water stability is also important for MOFs to be used as adsorbents for VAM separation/enrichment. It has been reported that one of the decisive factors in determining the water stability of MOFs is their metal clusters, with trinuclear chromium clusters more stable than copper paddlewheel clusters, which are more stable than basic zinc acetate clusters.¹⁵⁴ Other factors that affect the water stability including the strength of the bond between the metal oxide cluster and the bridging linker, the functionality of the ligand (hydrophilic or hydrophobic), the intrinsic textual properties, etc., have been proposed.¹⁵⁵ Water stable MOFs with high CH₄/N₂ selectivity, such as [Ni₃(HCOO)₆], three-dimensional Cu-MOF, squarate-based MOFs, Co-MA-BPY and Ni-MA-BPY, have been reported.^40,69,70,150 Moreover, due to the high relative humidity of ventilation air, apart from the water stability of MOFs, it is highly desirable to investigate the effect of water vapor on the adsorption performance of VAM for those promising MOF candidates with high CH₄ adsorption capacity and high CH₄/N₂ selectivity.

In addition, it is worth mentioning that Liu et al. prepared a formate metal–organic framework and activated carbon fiber composite, ACF@[Ni₃(HCOO)₆], with a CH₄/N₂ selectivity of 6.22 and a CH₄ adsorption capacity of 1.10 mmol g⁻¹.¹⁴⁹ This strategy could be adopted for the preparation of other carbon/MOF composites with desired CH₄/N₂ selectivity and CH₄ adsorption capacity for gas separation/enrichment.

For most of the MOFs with CO₂/CH₄ selectivity available listed in Table 4, their CH₄/N₂ selectivities are lower than their CO₂/CH₄ selectivities, except in a few cases. In particular, Cu-MOF [Cu(hfipbb)(H₂hfipbb)_0.5] showed a CH₄/N₂ selectivity of 6.9, CO₂/CH₄ selectivity of 3.1, and adsorption capacity of 0.46 mmol g⁻¹,¹⁴⁶ and ROD-8 (Cd^II-MOF) showed a CH₄/N₂ selectivity of 9.1, CO₂/CH₄ selectivity of 3.3 and adsorption capacity of 0.77 mmol g⁻¹.⁷¹ Considering the presence of CO₂ in ventilation air, these MOFs with CH₄/N₂ selectivity higher than their CO₂/CH₄ selectivity are very promising candidates for VAM enrichment.

The disadvantages of MOFs lie in the complexity and high cost of synthesis processes. On the other hand, MOFs have more flexibility in tuning the pore size and surface properties to achieve adsorbents with desired properties (e.g., high CH₄ adsorption capacity, high CH₄/N₂ selectivity, and water stability). Some MOFs (in Table 4) show the highest CH₄ adsorption capacity among the widely studied three types of adsorbents (zeolites, porous carbon materials and MOFs), making them promising candidates for VAM enrichment.

3.4. Combination of adsorbents

Given that zeolites have stronger adsorption for CO₂ than for CH₄ and N₂, while carbon molecular sieves (CMSs) can kinetically separate CH₄ from N₂, a combination of zeolites and CMSs in a PSA system has been employed to separate the ternary mixtures of CH₄/CO₂/N₂. For example, ACs, CMS, and zeolite 13X in a specially designed PSA has shown that CO₂, CH₄ and N₂ could apparently be enriched in the top, side and bottom product streams, respectively.¹⁵⁷ In addition, a layered pressure swing adsorption (LPSA) system based on the assumption that CO₂ would be almost completely adsorbed in 13X followed by kinetic separation of CH₄/N₂ in the CMS layer has been demonstrated to be able to enrich CH₄ from 60% to 86%.³⁵ The combination of different types of adsorbents in PSA processes for VAM enrichment could be a choice to simultaneously collect CH₄, CO₂ and N₂ separately, which could add value to the processes.

3.5. Summary of adsorption materials

In general, the limitation of zeolites as the adsorbent for CH₄ separation lies in the low CH₄/N₂ selectivity and low CH₄ adsorption capacity compared to porous carbons and MOFs, and the hydrophilic surface. A number of porous carbons and MOFs exhibiting both high CH₄/N₂ selectivity and high CH₄ adsorption capacity are very promising candidates for VAM enrichment, especially those with CH₄/N₂ selectivity higher than CO₂/CH₄ selectivity, and some MOFs show the highest CH₄ adsorption capacity among the widely studied three types of adsorbents. So far porous carbon materials have been the only sorbents that have been used in site studies for VAM ventilation. However, further studies on the VAM enrichment performance, regenerability, kinetics, compatibility and cost are highly desirable for their practical applications. Porous carbons have the advantages of excellent chemical stability, low cost and ease of production, while MOFs have more flexibilities on the pore size, surface property, etc. New strategies to produce novel porous materials that combine the advantages of zeolites and MOFs or the advantages of carbon and MOFs could lead to promising adsorbents with desired properties for gas enrichment, such as high CH₄/N₂ selectivity, high CH₄ adsorption capacity, easy regenerability, good chemical stability, etc.

4. Conclusions and prospects

We have presented an overview on the technologies and materials for VAM enrichment with focus on adsorption-based processes (PSA and TSA). PSA processes have been the most studied and the most promising technology for VAM enrichment so far. A pilot-scale study with VPSA and a site trial with VTSA for VAM enrichment have been carried out, respectively. Further studies on the cost, efficiency, scalability etc. of these technologies are needed.

The adsorbents used in the adsorption processes (PSA and TSA) are one of the key factors for gas separation/enrichment performance. We have summarized materials that are potentially useful for VAM enrichment, including zeolites, porous carbon materials and MOFs with focus on those with high CH₄/N₂ selectivity and high CH₄ adsorption capacity and highlighted new synthesis strategies to achieve high CH₄ adsorption capacity and CH₄/N₂ equilibrium selectivity. In general, zeolites exhibit low CH₄/N₂ selectivity and low CH₄ adsorption capacity compared to porous carbons and MOFs. Several porous carbons and MOFs exhibiting both high CH₄/N₂ selectivity (up to 12.5) and high CH₄ adsorption capacity (up to 2.90 mmol g⁻¹) are very promising candidates for VAM enrichment,^38,63–71 especially those with CH₄/N₂ selectivity higher than CO₂/CH₄ selectivity. Making use of these adsorbents in PSA and/or TSA processes is likely to result in desirable VAM enrichment performance.

New synthesis strategies including the combination of the advantages of zeolites and MOFs, or the advantages of carbon and MOFs, heteroatom (N or S) doping, and surface property modification for porous carbons, the creation of coordinatively unsaturated metal centers for MOFs and the pore wall environment control of MOFs could lead to novel adsorbents with desirable properties such as high CH₄/N₂ selectivity, high CH₄ adsorption capacity, easy regenerability, good chemical stability, etc. for VAM enrichment.

This review will inspire further studies and advances for VAM enrichment to better mitigate and utilize VAM or other low grade CH₄, which will not only cut down on CH₄ emissions, but also provide extra economic benefits to the mining industry and ultimately contribute to the future low carbon economy.

Conflicts of interest

There are no conflicts to declare.

Acknowledgements

This work was supported by the EU RFCS [RFCS-2016-754077] and Leverhulme Trust [RPG-2018-320].

References

1. IPCC, Global Warming Potential Values. Intergovernmental Panel on Climate Change, http://ghgprotocol.org/sites/default/files/ghgp/Global-Warming-Potential-Values%20(Feb%2016%202016).pdf, 2016.
2. Global Methane Emissions and Mitigation Opportunities, Global Methane Initiative, https://www.globalmethane.org/documents/gmi-mitigation-factsheet.pdf, 2020.
3. N. Kholod, M. Evans, R. C. Pilcher, V. Roshchanka, F. Ruiz, M. Cote and R. Collings, J. Cleaner Prod., 2020, 256, 120489.
4. S. Su, H. W. Chen, P. Teakle and S. Xue, J. Environ. Manage., 2008, 86, 44–62.
5. R. Thiruvenkatachari, S. Su and X. X. Yu, J. Hazard. Mater., 2009, 172, 1505–1511.
6. I. Karakurt, G. Aydin and K. Aydiner, Renewable Sustainable Energy Rev., 2011, 15, 1042–1049.
7. J. S. Bae, S. Su, X. X. Yu, J. J. Yin, A. Villella, M. Jara and M. Loney, Ind. Eng. Chem. Res., 2020, 59, 15732–15741.
8. S. Su, A. Beath, H. Guo and C. Mallett, Prog. Energy Combust. Sci., 2005, 31, 123–170.
9. P. Hinde, I. Mitchell and M. Riddell, Johnson Matthey Technol. Rev., 2016, 60, 211–221.
10. J. J. Yin, S. Su, X. X. Yu, J. S. Bae, Y. G. Jin, A. Villella, M. Jara, M. Ashby, M. Cunnington and M. Loney, Energy Fuels, 2020, 34, 9885–9893.
11. D. Ursueguía, P. Marín, E. Díaz and S. Ordóñez, J. Nat. Gas Sci. Eng., 2021, 88, 103808.
12. P. Marín, F. V. Díez and S. Ordóñez, Chem. Eng. Process., 2019, 135, 175–189.
13. X. Jiang, D. Mira and D. L. Cluff, Prog. Energy Combust. Sci., 2018, 66, 176–199.
14. R. I. Holmes, Journal of Applied Engineering Sciences, 2016, 6, 41–50.
15. L. Hoglund-Isaksson, Atmos. Chem. Phys., 2012, 12, 9079–9096.
16. I. Karakurt, G. Aydin and K. Aydiner, Renewable Energy, 2012, 39, 40–48.
17. R. O. Yusuf, Z. Z. Noor, A. H. Abba, M. A. Abu Hassan and M. F. M. Din, Renewable Sustainable Energy Rev., 2012, 16, 5059–5070.
18. C. Pratt and K. Tate, Environ. Sci. Technol., 2018, 52, 6084–6097.
19. M. R. Kulkarni and C. R. Sardesai, J. Energy Eng., 2002, 128, 1–12.
20. C. U. Linderstrøm-Lang, Int. J. Heat Mass Transfer, 1964, 7, 1195–1206.
21. R. Manimaran, Aust. J. Mech. Eng., 2020, 29, 1816735.
22. S. Mohammadi and F. Farhadi, Sep. Purif. Technol., 2014, 138, 177–185.
23. J. Yun, Y. Kim and S. Yu, Int. J. Heat Mass Transfer, 2018, 126, 353–361.
24. W. Wang, H. Wang, H. M. Li, D. Y. Li, H. B. Li and Z. H. Li, Energies, 2018, 11, 428.
25. W. Wang, J. D. Ren, X. J. Li, H. B. Li, D. Y. Li, H. M. Li and Y. Song, Sci. Rep., 2020, 10, 7276.
26. T. P. Adamova, O. S. Subbotin, L. J. Chen and V. R. Belosludov, J. Eng. Thermophys., 2013, 22, 62–68.
27. J. W. Du, H. J. Li and L. G. Wang, Ind. Eng. Chem. Res., 2014, 53, 8182–8187.
28. J. W. Du, H. J. Li and L. G. Wang, Chem. Eng. J., 2015, 273, 75–81.
29. D. Saha, H. A. Grappe, A. Chakraborty and G. Orkoulas, Chem. Rev., 2016, 116, 11436–11499.
30. S. Sridhar, B. Smitha and T. M. Aminabhavi, Sep. Purif. Rev., 2007, 36, 113–174.
31. S. Sircar and T. C. Golden, Sep. Sci. Technol., 2000, 35, 667–687.
32. J. G. Jee, J. S. Lee and C. H. Lee, Ind. Eng. Chem. Res., 2001, 40, 3647–3658.
33. S. U. Nandanwar, D. R. Corbin and M. B. Shiflett, Ind. Eng. Chem. Res., 2020, 59, 13355–13369.
34. A. Olajossy, A. Gawdzik, Z. Budner and J. Dula, Chem. Eng. Res. Des., 2003, 81, 474–482.
35. S. Cavenati, C. A. Grande and A. E. Rodrigues, Chem. Eng. Sci., 2006, 61, 3893–3906.
36. T. E. Rufford, S. Smart, G. C. Y. Watson, B. F. Graham, J. Boxall, J. C. D. da Costa and E. F. May, J. Pet. Sci. Eng., 2012, 94–95, 123–154.
37. T. C. Golden and S. Sircar, J. Colloid Interface Sci., 1994, 162, 182–188.
38. D. F. Lv, Y. Wu, J. Y. Chen, Y. H. Tu, Y. N. Yuan, H. X. Wu, Y. W. Chen, B. Y. Liu, H. X. Xi, Z. Li and Q. B. Xia, AIChE J., 2020, 66, e16287.
39. X. Y. Ren, T. J. Sun, J. L. Hu and S. D. Wang, Microporous Mesoporous Mater., 2014, 186, 137–145.
40. Y. Guo, J. L. Hu, X. W. Liu, T. J. Sun, S. S. Zhao and S. D. Wang, Chem. Eng. J., 2017, 327, 564–572.
41. J. Kim, A. Maiti, L. C. Lin, J. K. Stolaroff, B. Smit and R. D. Aines, Nat. Commun., 2013, 4, 1694.
42. A. Eslamimanesh, A. H. Mohammadi, D. Richon, P. Naidoo and D. Ramjugernath, J. Chem. Thermodyn., 2012, 46, 62–71.
43. M. Arjmandi, A. Chapoy and B. Tohidi, J. Chem. Eng. Data, 2007, 52, 2153–2158.
44. J. Z. Zhao, Y. S. Zhao and W. G. Liang, Energy Technol., 2016, 4, 864–869.
45. T. Suginaka, H. Sakamoto, K. Iino, Y. Sakakibara and R. Ohmura, Fluid Phase Equilib., 2013, 344, 108–111.
46. D. L. Zhong, Y. Ye, C. Yang, Y. Bian and K. Ding, Ind. Eng. Chem. Res., 2012, 51, 14806–14813.
47. J. Cai, C. G. Xu, Z. M. Xia, Z. Y. Chen and X. S. Li, Appl. Energy, 2017, 204, 1526–1534.
48. T. Rodenas, M. van Dalen, E. Garcia-Perez, P. Serra-Crespo, B. Zornoza, F. Kapteijn and J. Gascon, Adv. Funct. Mater., 2014, 24, 249–256.
49. P. Marín, Z. Yang, Y. Xia and S. Ordóñez, J. Nat. Gas Sci. Eng., 2020, 81, 103420.
50. S. Cavenati, C. A. Grande and A. E. Rodrigues, J. Chem. Eng. Data, 2004, 49, 1095–1101.
51. S. Cavenati, C. A. Grande and A. E. Rodrigues, Sep. Sci. Technol., 2005, 40, 2721–2743.
52. Q. Wu, L. Zhou, J. Q. Wu and Y. P. Zhou, J. Chem. Eng. Data, 2005, 50, 635–642.
53. G. Watson, E. F. May, B. F. Graham, M. A. Trebble, R. D. Trengove and K. I. Chan, J. Chem. Eng. Data, 2009, 54, 2701–2707.
54. Z. Huang, L. Xu, J. H. Li, G. M. Guo and Y. Wang, J. Chem. Eng. Data, 2010, 55, 2123–2127.
55. C. A. Grande, Advances in Pressure Swing Adsorption for Gas Separation, ISRN Chem. Eng., 2012, 982934.
56. M. B. Kim, Y. S. Bae, D. K. Choi and C. H. Lee, Ind. Eng. Chem. Res., 2006, 45, 5050–5058.
57. J. F. Yang, R. Krishna, J. M. Li and J. P. Li, Microporous Mesoporous Mater., 2014, 184, 21–27.
58. D. Saha, Z. B. Bao, F. Jia and S. G. Deng, Environ. Sci. Technol., 2010, 44, 1820–1826.
59. Y. Yang, A. M. Ribeiro, P. Li, J. G. Yu and A. E. Rodrigues, Ind. Eng. Chem. Res., 2014, 53, 16840–16850.
60. T. E. S. Rufford, G. C. Y. Watson, B. F. Graham, J. Boxall, J. C. Diniz da Costa and E. F. Maya, J. Pet. Sci. Eng., 2012, 94–95, 32.
61. US EPA, Assessment of the worldwide market potential for oxidizing coal mine ventilation air methane, United States Environmental Protection Agency, EPA 430-R-03-002, July 2003.
62. P. Franklin, US Environmental Protection Agency VAM Vendor's Workshop Summary, Washington DC, 2nd and 3rd June 2004.
63. Y. Li, R. Xu, B. B. Wang, J. P. Wei, L. Y. Wang, M. Q. Shen and J. Yang, Nanomaterials, 2019, 9, 266.
64. K. X. Yao, Y. L. Chen, Y. Lu, Y. F. Zhao and Y. Ding, Carbon, 2017, 122, 258–265.
65. J. S. Bae, Y. G. Jin, C. Huynh and S. Su, J. Environ. Manage., 2018, 217, 373–380.
66. S. Xu, W.-C. Li, C.-T. Wang, L. Tang, G.-P. Hao and A.-H. Lu, Angew. Chem., Int. Ed., 2020, 60, 6339–6343.
67. G. P. Hu, Q. H. Zhao, L. F. Tao, P. Xiao, P. A. Webley and K. G. Li, Chem. Eng. Sci., 2021, 229, 116152.
68. Z. Niu, X. L. Cui, T. Pham, P. C. Lan, H. B. Xing, K. A. Forrest, L. Wojtas, B. Space and S. Q. Ma, Angew. Chem., Int. Ed., 2019, 58, 10138–10141.
69. L. Y. Li, L. F. Yang, J. W. Wang, Z. G. Zhang, Q. W. Yang, Y. W. Yang, Q. L. Ren and Z. B. Bao, AIChE J., 2018, 64, 3681–3689.
70. M. Chang, Y. J. Zhao, Q. Y. Yang and D. H. Liu, ACS Omega, 2019, 4, 14511–14516.
71. R. J. Li, M. Li, X. P. Zhou, S. W. Ng, M. O'Keeffe and D. Li, CrystEngComm, 2014, 16, 6291–6295.
72. M. Tagliabue, D. Farrusseng, S. Valencia, S. Aguado, U. Ravon, C. Rizzo, A. Corma and C. Mirodatos, Chem. Eng. J., 2009, 155, 553–566.
73. D. Tondeur and P. C. Wankat, Sep. Purif. Methods, 1985, 14, 157–212.
74. S. Cavenati, C. A. Grande and A. E. Rodrigues, Energy Fuels, 2006, 20, 2648–2659.
75. C. A. Grande and A. E. Rodrigues, Ind. Eng. Chem. Res., 2007, 46, 4595–4605.
76. G. S. Duarte, B. Schurer, C. Voss and D. Bathen, ChemBioEng Rev., 2017, 4, 277–288.
77. J. S. Bae, S. Su and X. X. Yu, Environ. Sci. Technol., 2014, 48, 6043–6049.
78. Y. Zhou, Q. Fu, Y. H. Shen, W. N. Sun, D. H. Zhang, D. D. Li and H. Y. Yan, Energy Fuels, 2016, 30, 1496–1509.
79. Y. L. Li, Y. S. Liu and X. Yang, Sep. Sci. Technol., 2013, 48, 1201–1210.
80. D. L. Qu, Y. Yang, Z. L. Qian, P. Li, J. G. Yu, A. M. Ribeiro and A. E. Rodrigues, Chem. Eng. J., 2020, 380, 122509.
81. Y. L. Li, Y. Meng, Y. S. Liu, X. Yang and C. Z. Zhang, Adv. Mechan. Design, Parts 1–3, ed. W. Z. Chen, P. Dai, Y. L. Chen, Q. T. Wang and Z. Jiang, 2012, 479–481, pp. 648–653.
82. Y. L. Li, C. Z. Zhang, Y. S. Liu, X. Yang and Y. Meng, Adv. Mechan. Design, Parts 1–3, ed. W. Z. Chen, P. Dai, Y. L. Chen, Q. T. Wang and Z. Jiang, 2012, 479–481, pp. 260–265.
83. X. Yang, Y. S. Liu and Y. L. Li, Chem. Eng. Mater. Properties, Parts 1 and 2, ed. H. M. Zhang and B. Wu, 2012, 391–392, pp. 1253–1258.
84. X. Yang, Y. S. Liu, Z. Y. Li, C. Z. Zhang and Y. Xing, Energies, 2018, 11, 1030.
85. S. B. Ouyang, S. P. Xu, N. Song and S. L. Jiao, Fuel, 2013, 113, 420–425.
86. J. S. Bae, S. Su and X. X. Yu, Ind. Eng. Chem. Res., 2019, 58, 21700–21707.
87. Y. S. Liu, X. Yang, Y. L. Li, H. J. Yang, C. Z. Zhang and Y. Meng, Energy Educ. Sci. Technol., Part A, 2012, 29, 217–226.
88. Y. Yang, Y. J. Wu, H. Q. Liu, A. M. Ribeiro, P. Li, J. G. Yu and A. E. Rodrigues, Chem. Eng. Sci., 2016, 149, 215–228.
89. C. M. Liu, Y. P. Zhou, Y. Sun, W. Su and L. Zhou, AIChE J., 2011, 57, 645–654.
90. V. C. Menon and S. Komarneni, J. Porous Mater., 1998, 5, 43–58.
91. K. F. Loughlin, M. M. Hassan, A. I. Fatehi and M. Zahur, Gas Sep. Purif., 1993, 7(4), 264–273.
92. G. Q. Lu and M. RostamAbadi, Gas Sep. Purif., 1996, 10, 89–90.
93. J. W. Yoon, H. Chang, S. J. Lee, Y. K. Hwang, D. Y. Hong, S. K. Lee, J. S. Lee, S. Jang, T. U. Yoon, K. Kwac, Y. Jung, R. S. Pillai, F. Faucher, A. Vimont, M. Daturi, G. Ferey, C. Serre, G. Maurin, Y. S. Bae and J. S. Chang, Nat. Mater., 2017, 16, 526–531.
94. D. E. Jaramillo, D. A. Reed, H. Z. H. Jiang, J. Oktawiec, M. W. Mara, A. C. Forse, D. J. Lussier, R. A. Murphy, M. Cunningham, V. Colombo, D. K. Shuh, J. A. Reimer and J. R. Long, Nat. Mater., 2020, 19, 517–521.
95. J. H. Zhao, S. H. Mousavi, G. K. Xiao, A. H. Mokarizadeh, T. Moore, K. F. Chen, Q. F. Gu, R. Singh, A. Zavabeti, J. Z. Liu, P. A. Webley and G. K. Li, J. Am. Chem. Soc., 2021, 143, 15195–15204.
96. F. F. Zhang, K. J. Li, J. Chen, X. R. Zhang, K. B. Li, H. Shang, L. Ma, W. J. Guo, X. L. Wu, J. F. Yang and J. P. Li, Sep. Purif. Technol., 2022, 281, 119951.
97. A. Policicchio, R. Filosa, S. Abate, G. Desiderio and E. Colavita, J. Porous Mater., 2017, 24, 905–922.
98. J. Alcaniz-Monge, D. Lozano-Castello, D. Cazorla-Amoros and A. Linares-Solano, Microporous Mesoporous Mater., 2009, 124, 110–116.
99. C. Guan, F. B. Su, X. S. Zhao and K. Wang, Sep. Purif. Technol., 2008, 64, 124–126.
100. D. Lozano-Castello, D. Cazorla-Amoros, A. Linares-Solano and D. F. Quinn, Carbon, 2002, 40, 989–1002.
101. N. Kosinov, J. Gascon, F. Kapteijn and E. J. M. Hensen, J. Membr. Sci., 2016, 499, 65–79.
102. Y. Q. Wu, D. H. Yuan, D. W. He, J. C. Xing, S. Zeng, S. T. Xu, Y. P. Xu and Z. M. Liu, Angew. Chem., Int. Ed., 2019, 58, 10241–10244.
103. J. A. C. Silva, A. Ferreira, P. A. P. Mendes, A. F. Cunha, K. Gleichmann and A. E. Rodrigues, Ind. Eng. Chem. Res., 2015, 54, 6390–6399.
104. G. M. Nam, B. M. Jeong, S. H. Kang, B. K. Lee and D. K. Choi, J. Chem. Eng. Data, 2005, 50, 72–76.
105. J. F. Yang, Q. Zhao, H. Xu, L. B. Li, J. X. Dong and J. P. Li, J. Chem. Eng. Data, 2012, 57, 3701–3709.
106. J. F. Yang, J. M. Li, W. Wang, L. B. Li and J. P. Li, Ind. Eng. Chem. Res., 2013, 52, 17856–17864.
107. J. A. Delgado, V. I. Agueda, J. Garcia and S. Alvarez-Torrellas, Sep. Purif. Technol., 2019, 209, 550–559.
108. J. F. Yang, N. Yuan, M. Xu, J. Q. Liu, J. P. Li and S. G. Deng, Microporous Mesoporous Mater., 2018, 266, 56–63.
109. N. K. Jensen, T. E. Rufford, G. Watson, D. K. Zhang, K. I. Chan and E. F. May, J. Chem. Eng. Data, 2012, 57, 106–113.
110. P. J. E. Harlick and F. H. Tezel, Sep. Sci. Technol., 2002, 37, 33–60.
111. A. Jayaraman, A. J. Hernandez-Maldonado, R. T. Yang, D. Chinn, C. L. Munson and D. H. Mohr, Chem. Eng. Sci., 2004, 59, 2407–2417.
112. C. L. Xue, W. P. Cheng, W. M. Hao, J. H. Ma and R. F. Li, J. Chem., 2019, 2019, 2078360.
113. J. R. Li, R. J. Kuppler and H. C. Zhou, Chem. Soc. Rev., 2009, 38, 1477–1504.
114. I. Esteves, M. S. S. Lopes, P. M. C. Nunes and J. P. B. Mota, Sep. Purif. Technol., 2008, 62, 281–296.
115. T. L. Saleman, G. Li, T. E. Rufford, P. L. Stanwix, K. I. Chan, S. H. Huang and E. F. May, Chem. Eng. J., 2015, 281, 739–748.
116. G. M. Kimber, M. Jagtoyen, Y. Q. Fei and F. J. Derbyshire, Gas Sep. Purif., 1996, 10, 131–136.
117. S. Cavenati, C. A. Grande and A. E. Rodrigues, Sep. Sci. Technol., 2005, 40, 2721–2743.
118. A. Jayaraman, A. S. Chiao, J. Padin, R. T. Yang and C. L. Munson, Sep. Sci. Technol., 2002, 37, 2505–2528.
119. G. F. Zhao, P. Bai, H. M. Zhu, R. X. Yan, X. M. Liu and Z. F. Yan, Asia-Pac. J. Chem. Eng., 2008, 3, 284–291.
120. M. Gu, B. Zhang, Z. D. Qi, Z. J. Liu, S. Duan, X. D. Du and X. F. Xian, Sep. Purif. Technol., 2015, 146, 213–218.
121. P. Kluson, S. Scaife and N. Quirke, Sep. Purif. Technol., 2000, 20, 15–24.
122. C. M. Liu, Y. Y. Dang, Y. P. Zhou, J. Liu, Y. Sun, W. Su and L. Zhou, Adsorption, 2012, 18, 321–325.
123. D. S. Yuan, Y. N. Zheng, Q. Z. Li, B. Q. Lin, G. Y. Zhang and J. F. Liu, Powder Technol., 2018, 333, 377–384.
124. J. Wang, P. X. Zhang, L. Liu, Y. Zhang, J. F. Yang, Z. L. Zeng and S. G. Deng, Chem. Eng. J., 2018, 348, 57–66.
125. J. Wang, R. Krishna, J. F. Yang, K. P. R. Dandamudi and S. G. Deng, Mater. Today Commun., 2015, 4, 156–165.
126. W. Su, L. Yao, M. Ran, Y. Sun, J. Liu and X. J. Wang, J. Chem. Eng. Data, 2018, 63, 2914–2920.
127. H. Y. Pan, Y. Yi, Q. Lin, G. Y. Xiang, Y. Zhang and F. Liu, J. Chem. Eng. Data, 2016, 61, 2120–2127.
128. R. L. Tang, Q. B. Dai, W. W. Liang, Y. Wu, X. Zhou, H. Y. Pan and Z. Li, Chem. Eng. J., 2020, 384, 123388.
129. S. Cavenati, C. A. Grande and A. E. Rodrigues, Sep. Sci. Technol., 2005, 40, 2721–2743.
130. J. H. Zhang, S. J. Qu, L. T. Li, P. Wang, X. F. Li, Y. F. Che and X. L. Li, J. Chem. Eng. Data, 2018, 63, 1737–1744.
131. M. Suzuki, Carbon, 1994, 32, 577–586.
132. B. Yuan, X. F. Wu, Y. X. Chen, J. H. Huang, H. M. Luo and S. G. Deng, Environ. Sci. Technol., 2013, 47, 5474–5480.
133. B. Yuan, X. F. Wu, Y. X. Chen, J. H. Huang, H. M. Luo and S. G. Deng, J. Colloid Interface Sci., 2013, 394, 445–450.
134. P. X. Zhang, J. Wang, W. Fan, Y. Zhong, Y. Zhang, Q. Deng, Z. L. Zeng and S. G. Deng, Chem. Eng. J., 2019, 375, 121931.
135. Y. J. Wu, Y. Yang, X. M. Kong, P. Li, J. G. Yu, A. M. Ribeiro and A. E. Rodrigues, J. Chem. Eng. Data, 2015, 60, 2684–2693.
136. D. L. Qu, Y. Yang, K. Lu, L. Yang, P. Li, J. G. Yu, A. M. Ribeiro and A. E. Rodrigues, Adsorption, 2018, 24, 357–369.
137. S. J. Du, Y. Wu, X. J. Wang, Q. B. Xia, J. Xiao, X. Zhou and Z. Li, AIChE J., 2020, 66, e16231.
138. Y. Zhang, L. Liu, P. X. Zhang, J. Wang, M. Xu, Q. Deng, Z. L. Zeng and S. G. Deng, Chem. Eng. J., 2019, 355, 309–319.
139. P. X. Zhang, Y. Zhong, J. Ding, J. Wang, M. Xu, Q. Deng, Z. L. Zeng and S. G. Deng, Chem. Eng. J., 2019, 355, 963–973.
140. B. P. Russell and M. D. LeVan, Ind. Eng. Chem. Res., 1997, 36, 2380–2389.
141. T. Ohba and K. Kaneko, Langmuir, 2011, 27, 7609–7613.
142. J. Bahadur, C. I. Contescu, D. K. Rai, N. C. Gallego and Y. B. Melnichenko, Carbon, 2017, 111, 681–688.
143. B. Liu and B. Smit, Langmuir, 2009, 25, 5918–5926.
144. B. Liu and B. Smit, J. Phys. Chem. C, 2010, 114, 8515–8522.
145. X. Peng, X. Cheng and D. P. Cao, J. Mater. Chem., 2011, 21, 11259–11270.
146. X. F. Wu, B. Yuan, Z. B. Bao and S. G. Deng, J. Colloid Interface Sci., 2014, 430, 78–84.
147. J. L. Hu, T. J. Sun, X. W. Liu, Y. Guo and S. D. Wang, RSC Adv., 2016, 6, 64039–64046.
148. Q. Shi, J. Wang, H. Shang, H. H. Bai, Y. Zhao, J. F. Yang, J. X. Dong and J. P. Li, Sep. Purif. Technol., 2020, 230, 115850.
149. X. W. Liu, J. L. Hu, T. J. Sun, Y. Guo, T. D. Bennett, X. Y. Ren and S. D. Wang, Chem.–Asian J., 2016, 11, 3014–3017.
150. X. W. Liu, Y. M. Gu, T. J. Sun, Y. Guo, X. L. Wei, S. S. Zhao and S. D. Wang, Ind. Eng. Chem. Res., 2019, 58, 20392–20400.
151. L. B. Li, J. F. Yang, J. M. Li, Y. Chen and J. P. Li, Microporous Mesoporous Mater., 2014, 198, 236–246.
152. C. E. Kivi, B. S. Gelfand, H. Dureckova, H. T. K. Ho, C. Ma, G. K. H. Shimizu, T. K. Woo and D. T. Song, Chem. Commun., 2018, 54, 14104–14107.
153. J. L. Hu, T. J. Sun, X. Y. Ren and S. D. Wang, Microporous Mesoporous Mater., 2015, 204, 73–80.
154. K. A. Cychosz and A. J. Matzger, Langmuir, 2010, 26, 17198–17202.
155. W. Zhang, Y. L. Hu, J. Ge, H. L. Jiang and S. H. Yu, J. Am. Chem. Soc., 2014, 136, 16978–16981.
156. J. Mollmer, M. Lange, A. Moller, C. Patzschke, K. Stein, D. Lassig, J. Lincke, R. Glaser, H. Krautscheid and R. Staudt, J. Mater. Chem., 2012, 22, 10274–10286.
157. F. Dong, H. M. Lou, A. Kodama, M. Goto and T. Hirose, Sep. Purif. Technol., 1999, 16, 159–166.

---
