Morphology-controlled synthesis of MoS₂ using citric acid as a complexing agent and self-assembly inducer for high electrochemical performance

Abstract

Two-dimensional MoS₂ with a controllable morphology was prepared via a simple one-step hydrothermal method. Citric acid was used as a complexing agent and self-assembly inducer. The morphology of MoS₂ changed from clusters to nanosheets, and, eventually, to stacked nanorods. A formation mechanism is proposed for the observed evolution of the morphology. The nanosheet structure presents a relatively large specific surface area, more exposed active sites and greater 1T phase content compared to the other morphologies. The electrochemical performance tests show that the MoS₂ nanosheets exhibit excellent electrochemical behavior. Their specific capacitance is 320.5 F g⁻¹, and their capacitance retention is up to 95% after 5000 cycles at 5 mA cm⁻². This work provides a feasible approach for changing the morphology of MoS₂ for high efficiency electrode materials for supercapacitors.

---

Introduction

Supercapacitors have attracted intense attention due to their excellent attributes, such as high power density, fast charge/discharge rates, and higher magnitudes of energy density. Supercapacitors are considered to be the best option for storing renewable energy.^1–3 Suitable electrode materials are important for achieving high-performance supercapacitors. To date, a number of materials have been developed for use as electrode materials in supercapacitors.^4–8

MoS₂ is a common electrode material in supercapacitors. It can provide two-dimensional permeable channels for ion adsorption and transport, which is attributed to weak interlayer van der Waals interactions between the individual molecular layers.⁹ In application, the influence of the morphology of MoS₂ on the resulting performance cannot be ignored. In the past decades, various types of MoS₂ nanostructures, including nanosheets,¹⁰ quantum dots,¹¹ nanoflowers,¹² and nanomeshes,¹³ have been fabricated. Among these nanostructures, layered MoS₂ nanosheets are expected to act as excellent electrode materials due to their significantly enlarged specific surface areas.

Many works have reported attempts to prepare nanosheet MoS₂. Alkali-metal intercalation–exfoliation¹⁴ and CVD¹⁵ are considered to be effective preparation methods for the synthesis of nanosheet MoS₂. However, these approaches are complex and difficult to use in the fabrication of large-scale devices because of their low yields. The hydrothermal method is a common method for preparing MoS₂, but the MoS₂ prepared by this method is clustered and poorly dispersed, which reduces the specific surface area and active sites of MoS₂.^16,17 Therefore, surfactants or template agents are selectively added to the solvent to improve the agglomeration or change the morphology of MoS₂.

Citric acid is a common organic acid and is often used as complexing agent or capping agent.¹⁸ For example, F. A. Deorsola et al.¹⁹ synthesized MoS₂ via a hydrothermal method and added citric acid as a reductant/complexing agent to obtain MoS₂ nanoparticles for lubricant applications. X. D. Zheng et al.²⁰ prepared MoS₂ with flower-like hollow microsphere and blocky structures with citric acid as a surfactant.

In addition to its morphology, the phase composition of MoS₂ is also crucial to its electrochemical performance. The metastable trigonal phase (1T) of MoS₂ presents excellent conductivity and electrochemical properties.²¹ In the process of preparing MoS₂ via a hydrothermal method as mentioned above, it has been proved that MoS₂ with a high 1T phase content can be prepared without introducing any surfactant.²² However, the introduction of a surfactant will affect the crystallinity of the MoS₂, and the content of the 1T phase will be reduced. Determining how to manage the trade-off between nanosheet morphology and high 1T phase content is an area that requires attention.

Herein, we report a novel approach for the controlled synthesis of high-1T-phase MoS₂ clusters, nanosheets and nanorods with citric acid as a complexing agent and self-assembly inducer. It involves an easy and economical one-pot hydrothermal method for the preparation of morphology-controlled MoS₂. The experimental results show that the MoS₂ nanosheets have the best electrochemical performance because of their sufficient exposed active sites. The specific capacitance of the MoS₂ nanosheets is 320.5 F g⁻¹, and their capacitance retention is up to 95% after 5000 cycles at 5 mA cm⁻². This work may attract the attention of peers regarding the role of citric acid in the synthesis of nano-powder and provide an idea for the fabrication of MoS₂ nanomaterials.

Experimental

Synthesis of different morphologies of MoS₂

MoS₂ was synthesized via a one-step hydrothermal method using ammonium molybdate ((NH₄)₆Mo₇O₂₄·4H₂O) and thiourea as the molybdenum and sulfur sources. First, 2.472 g of ammonium molybdate and 2.394 g thiourea were dissolved in 40 mL deionized water, and different amounts of citric acid (0, 0.005, 0.015, 0.02, and 0.03 mol, respectively) were added to the transparent solution. After 0.5 h of stirring, the transparent solution was transferred to a 100 mL Teflon-lined reactor and reacted at 200 °C for 24 h. After being cooled to room temperature, the black products were vacuum-filtered and washed with deionized water and ethanol. Finally, the black products were dried at 70 °C for 5 h and labelled as MoS₂-CA(No.), in which CA means citric acid and No. is the number of moles of citric acid. For example, MoS₂-CA(0.02) means the sample prepared using 0.02 mol citric acid.

Characterization

The XRD data of the MoS₂ samples were collected using a Rigaku D/max-(β) X-ray diffractometer with a graphite monochromator and Cu Kα radiation (λ = 0.15418 nm) with a scanning range (2θ) of 5–80°. The microstructure and morphology of the samples were observed using a scanning electronic microscope (SEM, JEOM-JMS-6700F, Japan) and a transmission electron microscope (TEM) as well as high resolution TEM (HRTEM) (Titan G260-300). The Raman spectra of the samples were recorded using a Raman spectrometer (HR800, HoribaJobinYvon). The X-ray photoelectron spectroscopy tests were performed using a Thermo Scientific K-Alpha equipped with PerkinElmer instruments using an Al Kα monochromatic X-ray source. The photoelectron spectra were calibrated according to the binding energy of C1s at 284.5 eV. The specific surface areas of the MoS₂ samples were determined using the Brunauer–Emmett–Teller (BET) method, and the pore sizes were determined with the Barrett–Joyner–Halenda (BJH) method using the nitrogen desorption branches of the isotherms measured at 77 K (Micromeritics TriStar II 3020). Infrared spectra of the samples were recorded using a Nicolet Nexus 470 FT-IR spectrometer.

The electrochemical performances of the MoS₂ samples were tested using a three-electrode workstation (CHI660E, Shanghai Chenhua Instruments) at room temperature. 80 wt% MoS₂, 10 wt% acetylene black and 10 wt% polyvinylidene difluoride (PVDF, Aldrich) were mixed uniformly and spread onto a nickel foam substrate with a size of 1.5 × 1.5 cm to prepare the working electrodes. The active materials loaded on the substrate weighed about 1–1.5 mg per cm² per electrode. A platinum plate was used as a counter electrode and a saturated calomel electrode (SCE) as a reference electrode. 3 M KOH was chosen as the aqueous electrolyte solution. The CV curves were measured between −1.0 V and −0.3 V (vs. SCE). The galvanostatic charge/discharge (GCD) curves were recorded at 5 mA cm⁻², 10 mA cm⁻², 30 mA cm⁻² and 50 mA cm⁻².

Results and discussion

In this work, different morphologies of MoS₂ were obtained by adjusting the amount of citric acid. Fig. 1 shows the SEM images of the samples synthesized with different mole contents of citric acid. As presented in Fig. 1a, MoS₂-CA(0) without citric acid shows a flower-like morphology, as has been reported elsewhere.^23,24 When the citric acid content is 0.005 mol, the resulting MoS₂-CA(0.005) is no longer clustered and forms MoS₂ nanosheets (Fig. 1b). The size of the MoS₂ nanosheets is about 250 nm. As the citric acid content is increased to 0.015 mol, the resulting MoS₂-CA(0.015) nanosheets show orderly stacking and begin to form self-assembled nanorods (Fig. 1c); the nanosheets of MoS₂ are approximately 150 nm. With further increasing the citric acid content, the order of the MoS₂ nanosheet stacking gradually increases (Fig. 1d and e). As presented in Fig. S1,† a hole is observed in the cross section of some MoS₂-CA(0.02), and hollow nanorod structure is observed. The size of the nanosheets is about 100–150 nm. Fig. S2† shows that the MoS₂-CA(0.03) nanorods are composed of small nanoparticles, and the size of the nanoparticles decreases to 80 nm. This demonstrates that the addition of citric acid will induce directional self-arrangement of MoS₂ and reduce its size from nanosheets to nanoparticles.

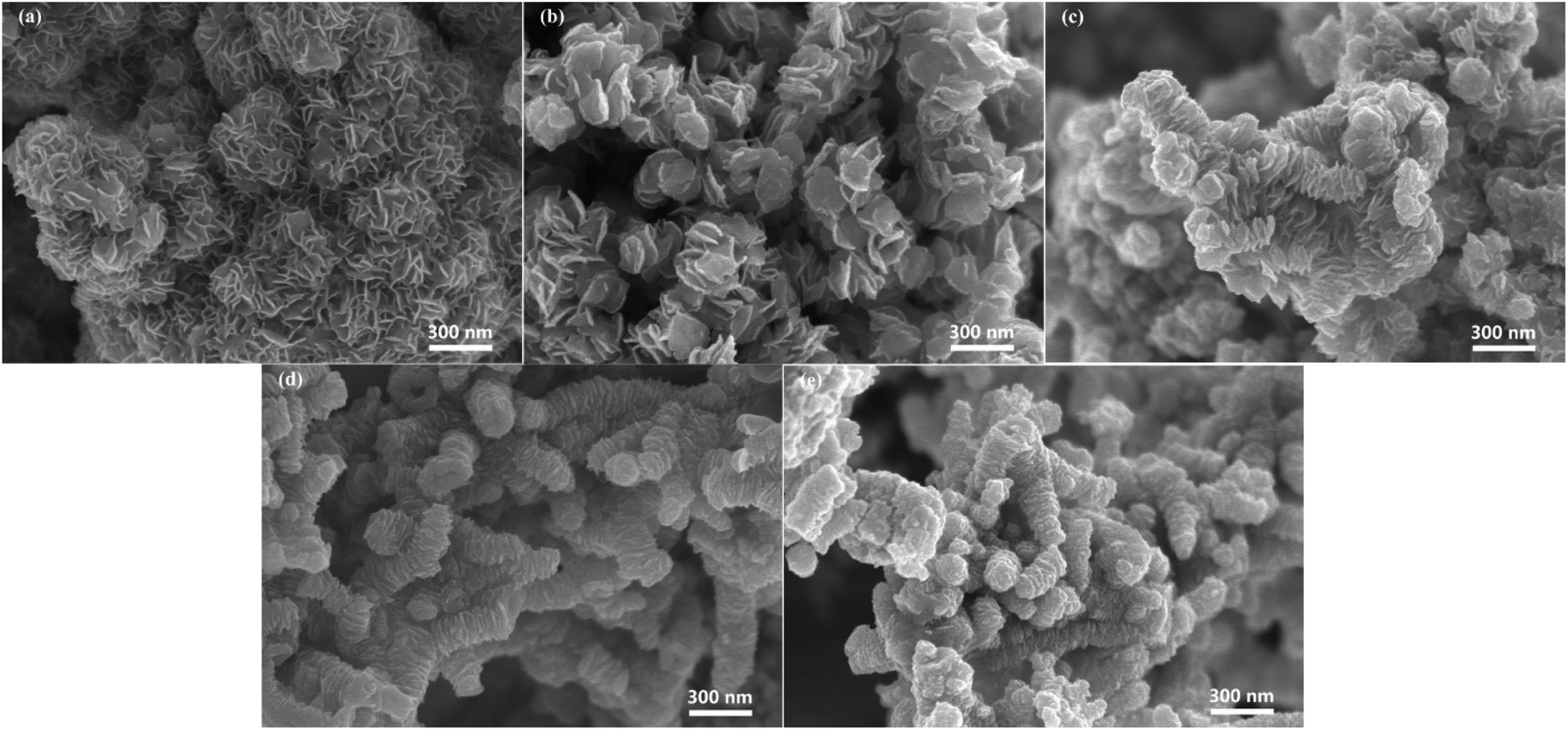

Fig. 1 SEM images of (a) MoS₂-CA(0), (b) MoS₂-CA(0.005), (c) MoS₂-CA(0.015), (d) MoS₂-CA(0.02), and (e) MoS₂-CA(0.03).

Fig. 2 shows the TEM images, corresponding SAED patterns, and HRTEM images of the MoS₂-CA samples. Fig. 2a reveals that the curved nanosheets of MoS₂-CA(0) stacked into a flower-like structure. The HRTEM image (Fig. 2b) shows that the interlayer spacings are about 0.9 nm and 0.24 nm, corresponding to (002) and (100).^25,26 It can be seen that the 1T phase coexists with the 2H phase in a basal plane, suggesting atomic lateral heterostructures in MoS₂.²⁷ The diffraction rings in the selected area electron diffraction patterns (Fig. 2c) correspond to the (100), (103), and (110) planes,²⁵ demonstrating that polycrystalline MoS₂ was obtained. Fig. 2d shows that the MoS₂-CA(0.005) sample exhibits irregular nanosheets. From the HRTEM image of MoS₂-CA(0.005) (Fig. 2e), the interlayer spacing of (002) is about 0.9 nm, and coexistence of the 1T phase and 2H phase can also be observed. Fig. 2f reveals that the MoS₂-CA(0.015) nanosheets stack regularly into rods, and that certain gaps can be observed between the nanosheets, which present a loose stacking. For a CA content of 0.02 mol, a hollow nanorod of MoS₂ was selected; the TEM image shows a hollow rod that consists of stacked circular nanosheets (Fig. 2g). The SAED pattern (Fig. 2h) reveals distinct diffraction rings and/or bright ambiguous areas, indicating the existence of both polycrystalline and amorphous components in the sample.²⁸ This demonstrates that increasing the citric acid content makes MoS₂ tend to be amorphous. Fig. S3† reveals the coexistence of the 1T and 2H phases in MoS₂-CA(0.02), which proves that citric acid does not change the phase of MoS₂. Fig. 2i reveals a regular dense nanorod structure for MoS₂-CA(0.03), which corresponds with the SEM image (Fig. 1e).

Fig. 2 (a) TEM image of MoS₂-CA(0), (b) HRTEM image of MoS₂-CA(0), and (c) the corresponding SAED diffraction pattern of MoS₂-CA(0). (d) and (e) TEM and HRTEM images of MoS₂–CA(0.005). (f) TEM image of MoS₂–CA(0.015). (g) and (h) TEM image and SAED diffraction pattern of MoS₂-CA(0.02). (i) TEM image of MoS₂–CA(0.03).

Fig. 3a presents the XRD patterns of all the samples. As depicted in Fig. 3a, compared with the standard card no. 73-1539, the typical (002) peaks are located at 9.2°, indicating an interlayer expansion. The interlayer spacing calculated using the Scherrer equation is about 0.95 nm, which is close to the observed value in the HRTEM images (Fig. 2b and e), and represents an enlargement of about 0.33 nm compared to the theoretical value of 0.62 nm. The expansion should be ascribed to the intercalation of ammonium ions (NH₄⁺) with a radius of 0.35 nm.^29–31 The ammonium ions should come from the raw material (NH₄)₆Mo₇O₂₄. The intensity of the diffraction peaks decreases with the addition of CA, especially for MoS₂-CA(0.005) and MoS₂-CA(0.015). This result illustrates that the citric acid has a negative effect on the crystallinity of MoS₂, which can be proven by the SAED pattern of MoS₂-CA(0.02) (Fig. 2h).

Fig. 3 (a) XRD patterns of MoS₂-CA, (b) FT-IR spectrum of MoS₂-CA, and (c) Raman spectra of MoS₂-CA.

Fig. 3b presents the FTIR spectra of all the MoS₂-CA samples. The vibrational modes at ∼3138 and 1670 cm⁻¹ were assigned to the stretching vibration and bending vibration of H₂O absorbed on the MoS₂ nanosheets.^32,33 The peaks observed at 1595 cm⁻¹ were attributed to the presence of COO.^34,35 The vibrational peaks at 1403 cm⁻¹ should be assigned to the ammonium group.^29,36 Furthermore, the vibration modes in the region 1203–1031 cm⁻¹ were attributed to the stretching modes of C–OH.^34,35 Additionally, the peaks at 912 and 760 cm⁻¹ could be attributed to the Mo–O stretching vibration in MoO₃, illustrating that part of the MoS₂ was oxidized.^37,38 The weak peak at 455 cm⁻¹ corresponds to the characteristic vibrational mode of Mo–S in MoS₂.^33,38 The amount of citric acid did not affect the functional groups on the surface of MoS₂.

The Raman spectra of MoS₂ are shown in Fig. 3c. It can be observed that there are five peaks at 405, 377, 335, 284 and 236 cm⁻¹. The characteristic peaks at 284 cm⁻¹ (E_1g), 377 cm⁻¹ (E¹_2g) and 405 cm⁻¹ (A_1g) correspond to 2H MoS₂.^39,40 Additionally, the vibration peaks emerging at 236 cm⁻¹ (J₂) and 335 cm⁻¹ (J₃) are attributed to the superlattice distortion in the basal plane of the 1T phase of MoS₂,⁴¹ suggesting the coexistence of the 1T phase and 2H phase in all samples. This proved that MoS₂ with the 1T phase can be synthesized via the simple one-step hydrothermal method in this paper.

Energy-dispersive X-ray spectroscopy (EDX) mappings of MoS₂-CA(0.02) were taken from the area shown in Fig. 4, and illustrate the uniform distribution of Mo, S and N in MoS₂. The element N is considered to be derived from NH₄⁺.

Fig. 4 EDX elemental mapping of Mo, S, and N in MoS₂-CA(0.02).

The phase identification of the synthesized MoS₂-CA(0) and MoS₂-CA(0.02) was further studied by X-ray photoelectron spectroscopy. The two polymorphs of MoS₂ can be identified from the XPS of the Mo 3d and S 2p regions, as shown in Fig. 5. As shown in Fig. 5a and d, there are four peaks at 225.1, 228, 231, and 235.5 eV. The peak at 235.5 eV is due to the Mo 3d_5/2 of Mo⁶⁺, which is derived from the oxidation of Mo⁴⁺ in the air atmosphere.⁴² The peak centered at 225.1 eV is due to S 2s in MoS₂.¹⁶ According to the literature,^43–45 the binding energy of 1T-MoS₂ is lower than that of 2H-MoS₂. The peaks at 232.4 and 228.5 eV represent the binding energies of Mo 3d_3/2 and Mo 3d_5/2 for 2H-MoS₂,³⁰ while the peaks at 231.1 and 227.8 eV correspond to the Mo 3d binding energy of 1T-MoS₂.⁴⁶ Similarly, the S 2p peaks of 1T-MoS₂ are located at ∼160.5 and ∼162 eV, corresponding to S 2p_3/2 and S 2p_1/2, respectively. The corresponding S 2p peaks in 2H-MoS₂ are centered at ∼161 and ∼163.3 eV, which are slightly higher energies than those for 1T-MoS₂ (Fig. 5b and e).⁴⁷ The XPS results further demonstrate the co-existence of the 1T phase and 2H phase in MoS₂-CA(0) and MoS₂-CA(0.02). Based on the deconvolution of the Mo 3d and S 2p regions in the MoS₂-CA(0) and MoS₂-CA(0.02) spectra, the relative contents of the 1T phase were estimated to be 69.1% and 49.2%, respectively. In this paper, MoS₂ with a high content of the 1T phase was prepared via a simple hydrothermal method. From the estimated data, the addition of citric acid decreases the content of the 1T phase in MoS₂-CA(0.02). Fig. 5c and f show the characteristic peaks of N 1s for MoS₂-CA(0) and MoS₂-CA(0.02), demonstrating the presence of the element N. The peak located at ∼401 eV should be attributed to the intercalation of NH₄⁺,^29,30 which is consistent with the XRD and EDS results.

Fig. 5 XPS spectra: (a) Mo 3d of MoS₂-CA(0), (b) S 2p of MoS₂-CA(0), (c) N 1s of MoS₂-CA(0), (d) Mo 3d of MoS₂-CA(0.02), (e) S 2p of MoS₂-CA(0.02), and (f) N 1s of MoS₂-CA(0.02).

The formation mechanism of the 1T phase of MoS₂ could be related to the insertion of NH₄⁺ in the lattice (see Fig. 6). NH₄⁺, which has a large radius, enlarges the interlayer distance (see Fig. 2b and e), leading to a distortion in the 2H phase. This kind of distortion would provide the driving energy for the emergence of the 1T phase. Dezhi Wang et al. discovered this phenomenon when ammonia or ammonium bicarbonate was added to the solution.^29,30

Fig. 6 The process of phase engineering.

Fig. 7 depicts the mechanism by which citric acid controls the morphology of MoS₂. The hydrolysis and reaction of (NH₄)₂MoO₄ and CH₄N₂S resulted in the formation of MoS₂. During the hydrothermal process, the reaction is usually rapid, and MoS₂ rapidly grows into clusters at the crystal nuclei that are initially formed. When citric acid is added, it acts as a complexing agent, stabilizing the metal species via the formation of metal citrate complexes⁴⁸ and preventing the interaction between the Mo atoms and S atoms. This effect leads to deterioration of the crystallinity of MoS₂, as observed in the XRD patterns, and slowing of the growth rate of MoS₂.^49,50 The effect of complexation on size is more obvious, and the size of nanosheets decreases from 250 nm to 80 nm (see Fig. 1). At the same time, citric acid acts as a self-assembly inducer. Citric acid has three carboxyl (–COOH) groups, and these three –COOH functional groups may also selectively bind onto the planes of MoS₂ and form hydrogen bonding between hydrogen and sulfur.

Fig. 7 Diagram of the mechanism by which citric acid controls the morphology of MoS₂.

When the amount of citric acid added is 0.005 mol, there is not enough citric acid to complex with the Mo atoms and prevent the growth of MoS₂. Additionally, the hydrogen bonds between citric acid and nanosheets are weak, so MoS₂ nanosheets are formed. With increasing the citric acid to 0.015 mol, the size of the obtained nanosheets decreases, and due to the strong hydrogen bonding, the nanosheets self-assemble into nanorods with warping and distortion (Fig. 2f). With further increasing the citric acid, the hydrogen bonding effect becomes more obvious, and MoS₂ finally stacks to form a regular rod shape. From the SEM and TEM images, the size of MoS₂-CA(0.03) is about 80 nm. Regular nanorods are obtained by the synergistic effect of hindrance and hydrogen bonding.

The adsorption–desorption isotherms and pore size distribution curves of MoS₂-CA are shown in Fig. 8. Fig. 8a–e shows that the BET surface areas of MoS₂-CA(0), MoS₂-CA(0.005), MoS₂-CA(0.015), MoS₂-CA(0.02) and MoS₂-CA(0.03) were 13.81 m² g⁻¹, 21.89 m² g⁻¹, 12.63 m² g⁻¹, 13.05 m² g⁻¹ and 30.20 m² g⁻¹, respectively. The BET surface area of MoS₂-CA(0.005) was higher than that of MoS₂-CA(0); this effect is due to the addition of citric acid, which changes the stacking form of MoS₂. MoS₂-CA(0.005) exhibits a nanosheet structure and has more surfaces. As the amount of citric acid increased, the surface areas of MoS₂-CA(0.015) and MoS₂-CA(0.02) decreased. This can be attributed to the increase in hydrogen bonding between MoS₂ nanosheets, and the MoS₂ gradually stacked from the nanosheet structure into a rod shape. Some MoS₂ nanosheets are covered by adjacent MoS₂ nanosheets, reducing the specific surface area. MoS₂-CA(0.03) has the largest surface area, which is due to the smaller size of the MoS₂ nanoparticles. The adsorption–desorption isotherms have H3 hysteresis loops, which is a typical loop with unevenly distributed holes. Therefore, the obtained pore diameter represents slit holes formed by the accumulation of nanosheets. The BJH adsorption average pore diameters of MoS₂-CA(0), MoS₂-CA(0.005), MoS₂-CA(0.015), MoS₂-CA(0.02) and MoS₂-CA(0.03) were 25.76 nm, 27.52 nm, 25.20 nm, 28.30 nm and 14.78 nm, respectively. The pore size of MoS₂-CA(0.015) is lower than that of MoS₂-CA(0.005) due to the close packing of MoS₂ nanosheets and small slit holes. The MoS₂-CA(0.02) has a higher pore size due to the formation of hollow nanorods (see Fig. S1† and 2g). The MoS₂-CA(0.03) has the smallest pore size due to the extensive hydrogen bonding between MoS₂ nanoparticles and smaller slit holes compared to MoS₂-CA(0.015) and MoS₂-CA(0.02). The higher level of pore diameter indicates adequate contact between the active sites and electrolyte.

Fig. 8 N₂ adsorption–desorption isotherms and pore diameter distributions of the samples: (a) MoS₂-CA(0), (b) MoS₂-CA(0.005), (c) MoS₂-CA(0.015), (d) MoS₂-CA(0.02), and (e) MoS₂-CA(0.03).

To evaluate the electrochemical performance of the MoS₂-CA samples, cyclic voltammetry (CV) and galvanostatic charge–discharge (GCD) tests were performed using three-electrode systems. Fig. 9a shows the CV curves of the MoS₂-CA samples at a scanning rate of 100 mVs⁻¹ in the potential window from −1.0 to −0.3 V (vs. SCE). The integral area enclosed by the CV curve of the MoS₂-CA(0.005) electrode is found to be the largest of all the electrodes, showing that the MoS₂-CA(0.005) electrode has the maximum specific capacitance. This is attributed to the fact that, due to the small amount of citric acid, MoS₂ exhibits dispersed monolayer sheets, exposing more planes and boundaries able to be in contact with the electrolyte, which facilitates the ion intercalation and deintercalation reactions. The MoS₂-CA(0.015) electrode and MoS₂-CA(0) electrode have similar CV curve areas. The CV areas of MoS₂-CA(0.02) and MoS₂-CA(0.03) are smaller than that of MoS₂-CA(0). It is noteworthy that due to the large amount of citric acid, the amorphous carbon formed after hydrothermal reaction can no longer be ignored. The generated amorphous carbon reduces the conductivity of MoS₂.

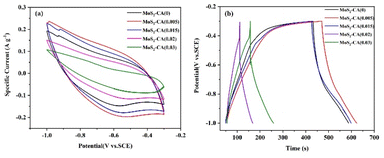

Fig. 9 (a) CV profiles at 100 mV s⁻¹ and (b) GCD curves at 5 mA cm⁻² of the as-prepared samples.

Fig. 9b shows the galvanostatic charge–discharge curves of the MoS₂-CA electrodes at a current density of 5 mA cm⁻². There are noticeable differences among the MoS₂-CA electrodes in terms of charge–discharge time. For MoS₂-CA(0.005), the time for the charge and discharge is higher than that for MoS₂-CA(0) and MoS₂-CA(0.015), which is attributed to the high BET surface area and edge defect supplying high electrochemical activity for ion intercalation–deintercalation in electrode. In accordance with the CV results, MoS₂-CA(0.02) and MoS₂-CA(0.03) show poor charge and discharge performance. The specific capacitance based on GCD can be calculated using eqn (1):^51,52

C = IΔt/mΔV (1)

where I is the constant current density of GCD (mA cm⁻²), Δt is the discharge time (s), m is the mass of the active material in the electrode (g), and ΔV is the potential window (V). The specific capacitances of MoS₂-CA(0), MoS₂-CA(0.005), MoS₂-CA(0.015), MoS₂-CA(0.02) and MoS₂-CA(0.03) are 268.3 F g⁻¹, 320.5 F g⁻¹, 261.9 F g⁻¹, 114.8 F g⁻¹ and 112.6 F g⁻¹ at a discharge current of 5 mA cm⁻², respectively. MoS₂-CA(0.005) shows a larger specific capacitance compared to the other electrodes, demonstrating that nanosheets are favourable for improving the energy-storage behavior of the electrode.

The specific capacitance of composites is an important performance parameter for supercapacitors.⁵³ Fig. 10a shows the specific capacitance of MoS₂-CA(0), MoS₂-CA(0.005) and MoS₂-CA(0.015). When the current density increased, the specific capacitance of all three samples decreased. At all current densities, the specific capacitance of MoS₂-CA(0.005) is higher than those of MoS₂-CA(0) and MoS₂-CA(0.015), which can be attributed to the fact that its dispersed single nanosheets of MoS₂ and high content of the 1T phase provide high surface area for ion transition and high conductivity between the electrode and the electrolyte. The EIS measurements of MoS₂-CA(0), MoS₂-CA(0.005) and MoS₂-CA(0.015) were performed in the frequency range of 0.01 Hz to 100 kHz at the open-circuit potential with an amplitude of 5 mV. Fig. 10b shows the Nyquist plots of the three samples. The intercept of the EIS curve at the Z′ axis represents the internal resistance of the electrode and electrolyte. The diameter of the semicircle at high frequency represents the charge transfer resistance. Additionally, the straight line at low frequency relates to the Warburg impedance.^51,52,54 The impedance data of MoS₂-CA(0.005) were fitted using the software ZView to generate an equivalent electrical circuit (Fig. 10c inset). From Fig. 10b and combined with the fitting results, the internal resistance of MoS₂-CA is about 0.3 Ω, which reveals that the MoS₂-CA electrode has low internal resistance. The charge transfer resistances of MoS₂-CA(0.005) and MoS₂-CA(0.015) are approximately 0.1 Ω, which is smaller than that of MoS₂-CA(0) (0.28 Ω), which indicates that MoS₂-CA(0.005) and MoS₂-CA(0.015) exhibit favorable charge transport. In the low-frequency region, the slope of MoS₂-CA(0.005) is close to 90°, which suggests the ideal kinetic behavior of ionic diffusion.^53,54

Fig. 10 (a) Specific capacitance of MoS₂-CA(0), MoS₂-CA(0.005) and MoS₂-CA(0.015) at different scan rates. (b) EIS curves of MoS₂-CA(0), MoS₂-CA(0.005) and MoS₂-CA(0.015); inset is the high-frequency region of the three samples. (c) EIS curve of MoS₂-CA(0.005) and its fitting curve; inset is the equivalent circuit for fitting. (d) CV profiles of MoS₂-CA(0.005) composites. (e) GCD curves of MoS₂-CA(0.005) composites. (f) Cycling capacitance retention of MoS₂-CA over 5000 cycles at 5 mA cm⁻² (0.005).

The electrochemical properties of MoS₂-CA(0.005) were further analysed. Fig. 10d shows the typical CV curves of the MoS₂-CA(0.005) electrode at different scan rates ranging from 10 mV s⁻¹ to 100 mV s⁻¹. The shape of the CV curve is quasi-rectangular when the scan rate is low, showing no redox reactions. However, weak redox peaks appear in the range from −0.6 V to −0.7 V. During charging, K⁺ in the electrolyte can absorb onto the surface of MoS₂ and participate in the reverse reaction process to form MoS–SK. The redox reaction can be expressed by eqn (2):

MoS₂ + K⁺ + e⁻ → MoS−SK (2)

Moreover, the high content of the 1T phase in MoS₂-CA(0.005) boosts the electrochemical reaction because of the excellent conductivity of the metastable phase. The GCD curves of the MoS₂-CA(0.005) electrode are shown in Fig. 10e. The shape of the GCD curves is a quasi-isosceles triangle at high current density (30 mA cm⁻² and 50 mA cm⁻²), which indicates good reversibility during the charge/discharge process. At low current density, the GCD curves exhibit a near-triangle shape, and deviate slightly from linearity, which is more noticeable for the charging process. This behavior is related to the redox reaction as described in eqn (2). To further analyse the performance of MoS₂-CA(0.005) for electrochemical energy storage, its cycling stability was investigated via repeated charge/discharge processes at 5 mA cm⁻². Fig. 10f shows the cycling capacitance retention of MoS₂-CA(0.005) at 5 mA cm⁻² over 5000 cycles. The MoS₂-CA(0.005) exhibits excellent cycle stability with almost 95% capacitance retention. This is attributed to the nanosheets having a high surface area and allowing abundant adsorption of ions, as well as efficient ion migration and charge transportation.

A comparison of the electrochemical properties of MoS₂ electrode materials with different morphologies used to build supercapacitors that have been reported in the literature and in this study was conducted. Compared with those in many previous reports, the MoS₂-CA(0.005) nanosheet electrode has high capacitance and long cycle life (Table 1).

Table 1 Comparison of the electrochemical properties of similar electrode materials for supercapacitors reported in the literature and the results in this paper

Electrode material	Method of preparation	Specific capacitance	Cycle life (%)	Ref
MoS2 nanosheets	Hydrothermal	129.2 F g^−1 @ 1 A g^−1	85 @ 500 cycles	55
MoS2 nanostructure	Hydrothermal	106 F g^−1 @ 5 mV s^−1	93.8 @ 1000 cycles	56
MoS2 microspheres	Biopolymer-assisted hydrothermal	145 F g^−1 @ 3 A g^−1	100 @ 500 cycles	57
3D-MoS2 nanosheets	Hydrothermal	683 F g^−1 @ 1 A g^−1	85.1 @ 10000 cycles	58
Few-layered MoS2	Ball milling	14.7 F g^−1 @ 0.75 A g^−1	91.2 @ 5000 cycles	59
MoS2 nanoworms	Hydrothermal	138 F g^−1 @ 1 A g^−1	86 @ 5000 cycles	60
MoS2 nanosheet	Hydrothermal	320.5 F g^−1 @ 5 mA cm^−2	95 @ 5000 cycles	This work

---

Conclusion

In summary, MoS₂ with different morphologies was synthesized via a one-step hydrothermal method with the addition of citric acid. Flower-like cluster, nanosheet and nanorod MoS₂ were obtained. During the formation of MoS₂, citric acid acted as a complexing agent, preventing the growth and deteriorating the crystallinity of MoS₂. At the same time, the hydrogen bonding introduced by citric acid promoted the establishment of nanorods. The electrochemical properties of these structures were investigated. MoS₂-CA(0.005) exhibited the optimum electrochemical performance with a larger specific capacitance and smaller charge transfer resistance than the other MoS₂-CA composites due to its large specific surface area, more abundant exposed active sites and high 1T phase content. MoS₂-CA(0.02) and MoS₂-CA(0.03) showed poor electrochemical properties due to their low crystallinity and small specific surface area after the hydrothermal reaction with citric acid. For supercapacitors, the specific capacities of MoS₂-CA(0), MoS₂-CA(0.005), MoS₂-CA(0.015), MoS₂-CA(0.02) and MoS₂-CA(0.03) were 268.3 F g⁻¹, 320.5 F g⁻¹, 261.9 F g⁻¹, 114.8 F g⁻¹ and 112.6 F g⁻¹ at a current density of 5 mA cm⁻², respectively. This work will provide a method for the morphology design and performance modification of MoS₂ for supercapacitors.
