Enhancing mechanism of arsenic(III) adsorption by MnO₂-loaded calcined MgFe layered double hydroxide

Abstract

The use of MnO₂/MgFe-layered double hydroxide (MnO₂/MgFe-LDH) and MnO₂/MgFe-layered double oxide (MnO₂/MgFe-LDO_{400 °C}) for arsenic immobilization from the aqueous medium is the subject of this research. Fourier transform infrared spectroscopy, X-ray diffraction, X-ray photoelectron spectroscopy, scanning electron microscopy, and transmission electron microscopy were used to characterise MnO₂/MgFe-LDH and MnO₂/MgFe-LDO_{400 °C}. Based on our developed method, MnO₂ was spread on the clay composites' surfaces in the form of a chemical bond. The clay composite exhibited a good adsorption effect on arsenic. The experimental findings fit the pseudo-second-order model well, indicating that the chemisorption mechanism played a significant role in the adsorption process. Furthermore, the Freundlich model suited the adsorption isotherm data of all adsorbents well. The recycling experiment showed that MnO₂/MgFe-LDH and MnO₂/MgFe-LDO_{400 °C} exhibited good stability and reusability. In summary, MnO₂/MgFe-LDH and MnO₂/MgFe-LDO_{400 °C} are promising for developing processes for efficient control of the pollutant arsenic.

---

1. Introduction

As one of the most dangerous elements in wastewater effluents, arsenic is an extremely toxic metal described as a potent class-one non-threshold carcinogen.¹ Arsenic poisoning can harm plant growth, development, and metabolism, resulting in yield loss. In addition, arsenic levels in the human body rise as a result of drinking arsenic-contaminated water or consuming foods with high arsenic contents. Increased arsenic levels are linked to various acute and chronic human health issues, including malignancies and adverse effects on the cardiovascular, neurological, hematological, renal, reproductive, and respiratory systems.^2,3 The World Health Organization has set the maximum safe limit of arsenic in drinking water to 10 μg L⁻¹ because of its extreme toxicity and carcinogenicity. However, several areas worldwide, including China, still suffer from the threat of arsenic contamination.^4,5 Approximately 20 million Chinese people are possibly exposed to drinking water contaminated with arsenic. Therefore, there is an urgent need to explore environmentally friendly ways to remove arsenic from the aquatic environment.

Extensive studies have been conducted on the treatment of arsenic using biological methods,⁶ coagulation,⁷ adsorption,⁸ and the reverse osmosis method.⁹ Among there, adsorption is one of the most promising technologies for arsenic removal from aqueous solutions because of its simple operation and broad applicability. In addition, the adsorption method can achieve a high removal efficiency and recover arsenic from aqueous solutions with different arsenic concentrations over a wide range of pH values. Various materials for arsenic removal are continuously being evaluated by researchers worldwide, including activated carbon,¹⁰ biochar-based sorbents,¹¹ organic polymers,¹² and Al₂O₃.¹³ However, the reported adsorbents could adsorb arsenate (As(V)) more easily, but experienced difficulty attaching arsenite (As(III)). Arsenic occurs in two main states in the natural aquatic environment: trivalent (As(III)) and pentavalent (As(V)). The toxicity of As(III) is 20–60 times higher than that of As(V).¹⁴ In addition, compared to As(V), As(III) is more difficult to be removed from water than As(V), is easier to transfer in the environment, and has a stronger ability to enter biological cells under neutral and acidic conditions.¹⁵ Therefore, we focused on evaluating an efficient adsorption material for As(III) contamination.

Manganese is one of the most widely distributed elements in the environment, and manganese oxides showed a high affinity to various pollutants.¹⁶ Among these Mn-oxides, manganese dioxide (MnO₂) is non-toxic and has extensive sources, and has been applied in the removal of various pollutants from the aquatic environment.¹⁷ Owning to its oxidation, MnO₂ showed excellent superiority as an adsorbent for As(III) removal. Wei et al. reported that MnO₂ could remove As(III) by absorption and oxidisation.¹⁸ Jian et al. used β-MnO₂ composite materials to adsorb arsenic(III), indicating that MnO₂ oxidises As(III) to As(V), resulting in an easier removal of As(III) from water.¹⁹ However, this material is difficult to crystallise during synthesis, undergoes reduction easily, and releases manganese ions during the process of As(III) oxidation. Some precursor studies have proven that loading on a suitable carrier, to form the compound materials could be an efficient way to overcome the disadvantages of MnO₂ and improve its application.^20,21

Layered double hydroxides (LDHs), known as anionic clays or hydrotalcites, are a kind of materials that have attracted attention worldwide owing to their low cost, high anion exchange capacity, large specific surface area, and excellent interlayer intercalation. Moreover, their calcined products, namely layered double oxides (LDOs), have many advantages, including uniform dispersion, excellent thermal stability, huge specific surface areas, and synergistic action between elements.²² Benefiting from excellent characteristics, these two types of materials have been extensively used as precursors for catalyzers²³ and absorbents.²⁴ Dai et al. developed a novel two-dimensional magnetic NiFe LDH nanosheet grown on diatomite with superior adsorption performance for anionic, cationic dyes, As(III), and As(V) from wastewater.²⁵ Long et al. synthesized polyaniline/Mg–Al layered double oxides which the composites showed highly efficient removal of hexavalent chromium from aqueous solution. Furthermore, “memory effect” of LDOs performed favorable ability for arsenic removal.²⁶ The research of Lv et al. revealed that controlling the calcination temperature to 500 °C could enhance the As(V) adsorption capacity of NiAL-LDO composite.²⁷ Also Mubarak et al. reported that the MgFe-LDO hollow nanospheres showed high adsorption effectiveness for As(V).²⁸ Thus there are reasons to believe the combination of MnO₂ and LDO to form composites can provide potential adsorbents to enhance As(III) oxidation and adsorption activity through the synergistic effects between MnO₂ and LDO. However, to our knowledge, little research has been done in this aspect. Meanwhile, the related arsenic removal mechanism is worth exploring.

In this study, MnO₂-doped MgFe LDH and LDO were successfully synthesised to efficiently remove arsenate from aqueous solutions. This research aimed to investigate the adsorption behaviour and preliminary mechanism of clay composites (MnO₂/MgFe-LDH, MnO₂/MgFe-LDO_{400 °C}) for As(III) removal.

2. Materials and methods

2.1 Chemicals

The chemicals Mg(NO₃)₂·6H₂O, Fe(NO₃)₃·9H₂O, KMnO₄, MnCl₂·4H₂O, NaAsO₂, NaOH, Na₂CO₃, NaCl, HCl, H₂SO₄, H₂SO₄, and HNO₃ were purchased from Xilong Scientific Co., Ltd. The chemical reagents used in this study were of analytical grade, and solutions were prepared using deionised (DI) water.

2.2 Material synthesis methods

The co-precipitation approach was used to prepare MnO₂/MgFe-LDH. To prepare the mixed aqueous solution, 4.615 g of Mg(NO₃)₂·6H₂O and 2.424 g of Fe(NO₃)₃·9H₂O were dissolved in 300 mL of DI water. Under vigorous stirring, NaOH was slowly added dropwise to the mixed solution. The pH of the reaction solution was maintained at 11 ± 0.5 by controlling the lowering speed of the NaOH solution. After 48 h of ageing at 60 °C, the KMnO₄ and MnCl₂·4H₂O were carefully added, followed by 4 h of stirring at 30 °C. After ageing for 12 h, the slurry was centrifuged and rinsed numerous times with DI water until the supernatant was neutral. The MnO₂/MgFe-LDH was then dried at 70 °C, and crushed into a powder. Finally, a portion of the MnO₂/MgFe-LDH powder was calcined at 400 °C for 5 h in a tube furnace to produce MnO₂/MgFe-LDO_{400 °C}.

2.3 Characterisation and analysis

The surface physical morphology and microstructure of the clay composites were determined by a scanning electron microscopy (SEM). The transmission electron microscopy (TEM) was employed for microstructural and compositional analyses of the clay composites. The specific surface areas were determined using the Brunauer–Emmett–Teller (BET) method. A Nano ZS 90 type nanoparticle size and zeta potential analyser was used to analyse and test the zeta potential of the materials. X-ray diffraction (XRD) patterns were obtained using an X'Pert 3 Powder diffractometer (PNAlytical, Holland) with copper K_α radiation (λ = 1.54059 Å). Fourier transform infrared spectroscopy (FT-IR) was used to observe the structural changes in the particle surface. The surface elements species were analysed using X-ray photoelectron spectroscopy (XPS).

2.4 Adsorption experiments

2.4.1 Material selection. Briefly, 30 mg of the materials were added to 30 mL of 50 mg L⁻¹ As(III). After the reaction, residual As(III) was measured using inductively coupled plasma emission spectrometry (ICP-OES) concentration.

2.4.2 Effect of pH on adsorption. The effect of pH on the adsorption of As(III) by the adsorbents was studied in the pH range 2 to 12. In the solution containing 50 mg L⁻¹ As(III), the adsorbent concentration (MnO₂/MgFe-LDH and MnO₂/MgFe-LDO_{400 °C}) was maintained at 1.0 g L⁻¹. The pH was adjusted with 0.1 M HCl or NaOH. To reach the adsorption equilibrium, the adsorbent-desorbent system oscillated in a constant-temperature oscillator at a speed of 160 rpm. The solution was removed and passed through a 0.45 μm aqueous filter membrane, and the residual As(III) concentration was measured using ICP-OES.

2.4.3 Kinetic adsorption. Briefly, 30 mg of MnO₂/MgFe-LDH and MnO₂/MgFe-LDO_400°C were each into 30 mL of 30, 40 and 50 mg L⁻¹ As(III) solutions,. The suspensions were placed in a shaker and samples were withdrawn at 5; 10; 30; 60; 120; 240; 360; 540; 720; 1080; 1440; 1800; 2160; 2520; 2880; 3240; 3600; and 3960 min. Then, suspensions were filtered through 0.45 μm syringe filters, and As(III) concentrations were measured using an ICP-OES (Optima 7000 DV,USA). Three replicates were performed for each contact time point. The pseudo-first-order (eqn (1)) and pseudo-second-order (eqn (2)),²⁹ equations were used for data modelling.where q_e (mg g⁻¹) and q_t (mg g⁻¹) are the amounts of arsenic adsorbed by the clay composites at equilibrium and at time t (min), respectively, and k₁, and k₂ are the rate constants of the pseudo first-order, and pseudo second-order kinetic equations, respectively.

2.4.4 Isotherm adsorption. Here, 30 mg each of MnO₂/MgFe-LDH and MnO₂/MgFe-LDO _{400 °C} composite materials were placed into individual 50 mL centrifuge tubes weighted and then added 30 mL of the initial concentration of 1, 2, 5, 10, 20, 30, 40, 50, 60, 80, and 100 mg L⁻¹ As(III) solution was added to each individual tubes. The solutions were placed in a shaker at 25 °C, 35 °C, and 45 °C till it reached equilibrium. After collecting the supernatant was taken, the solution was measured after passing through a 0.45 μm water filter membrane residual As(III) concentrations. Langmuir (eqn (3)) and Freundlich (eqn (4)) adsorption isotherm models were sued to evaluate the adsorption capacity at different temperatures.³⁰ The equations are expressed as follows.where q (mg g⁻¹) is the adsorption capacity of the target pollutants in the adsorption equilibrium, q_m (mg g⁻¹) is the adsorption capacity of the mixture for target pollutants, C_e (mg L⁻¹) is the equilibrium concentration of As(III) on the clay composites, n is a characteristic constant related to the adsorption strength or favourable adsorption degree, and lastly, K_L (L mg⁻¹) and K_F (mg g⁻¹) are the Langmuir and Freundlich constants, respectively. The adsorption type can be preliminarily determined according to K_L. The K_L value decreased as the temperature increased, indicating that the adsorption process was exothermic and involved physical adsorption. Otherwise, it is an endothermic process, that is, a chemical adsorption process.

2.4.5 Desorption. Following the adsorption of As(III) by MnO₂/MgFe-LDH and MnO₂/MgFe-LDO_400°C composite materials, 0.1 mol L⁻¹ NaOH solutions were utilised as desorption solutions, which were soaked for 8 h. If the As(III) concentration in the final two desorption solutions remained below 5%, desorption was considered complete. After the desorption is completed, the substance was neutralized with ultrapure water before being used and placed in a box for drying before reuse.

3. Results and discussion

3.1 Selection of materials

Through a series of adsorption experiments, the materials of MnO₂/MgFe-LDO_{400 °C} exhibited the best adsorption performance, whereas MnO₂ had the lowest arsenic adsorption capacity. Among the LDH materials, MnO₂/MgFe-LDH displayed a slightly better adsorption capacity compared with that of MgFe-LDH (Fig. 1), with an initial arsenic concentration of 50 mg L⁻¹. Therefore, modification by calcination for MnO₂/MgFe-LDH at the temperatures of 400 °C, 500 °C, and 600 °C was carried out to improve the adsorption of As(III). The results showed that the adsorption capacity of As(III) by MnO₂/MgFe-LDO_{400 °C} reaches 35.93 mg g⁻¹, which is greater than that of MnO₂/MgFe-LDO_{500 °C} (30.09 mg g⁻¹) and MnO₂/MgFe-LDO_{600 °C} (20.82 mg g⁻¹). These phenomena can be illustrated by the irreversible oxide formation and elimination of the “memory effect” in the structure of LDH at high calcination temperatures.²⁷ Consequently, MnO₂/MgFe-LDO_{400 °C} presents the best removal performance for As(III) among the selected calcination temperatures.

Fig. 1 Comparison of arsenic adsorption capacities of materials.

3.2 Structure characterization

The structures of the clay composites were studied using XRD. The XRD spectrum of MgFe-LDH revealed a succession of peaks 2 = 11.341°, 22.783°, 34.142°, 38.542° and 59.388°, which correspond to (003), (006), (012), (015), and (110) of the hydrotalcite-like structure.³¹ As shown in Fig. 2(a), diffraction peaks with hydrotalcite structures were also visible in the MnO₂/MgFe-LDH spectra. Furthermore, the characteristic MnO₂ peaks occurred at 2θ = 12.183° (002) and 18.618° (101), indicating that the loading of MnO₂ did not disrupt the hydrotalcite structure and that the MnO₂/MgFe-LDH composite material was successfully produced. The XRD pattern of MnO₂/MgFe-LDO_{400 °C} revealed the obvious absence of several diffraction peaks, indicating that the material lost some interlayer molecules and anions, such as water molecules and CO₃²⁻, and the layered structure was disrupted, resulting in a magnesium-iron mixed metal oxide.

Fig. 2 (a) XRD spectra of MgFe-LDH, MnO₂/MgFe-LDH and MnO₂/MgFe-LDO_{400 °C}. (b) FT-IR of MgFe-LDH, MnO₂/MgFe-LDH and MnO₂/MgFe-LDO_{400 °C.}

The FT-IR spectra are shown in Fig. 2(b). The three materials displayed prominent absorption peaks between 3400–3500 cm⁻¹, which were assigned with the O–H bending vibration peak of the interlayer water molecules and the stretching vibration of O–H on the laminate.³² From the spectral point of view, the absorption peak of approximately 1630 cm⁻¹ corresponded to the O–H vibration peak in crystallisation water.³³ The absorption peaks in the low-frequency region (less than 1000 cm⁻¹) are caused by O-M or O-M-O (M = Mg, Fe, Mn) bending vibrations.^34,35 The absorption peak in the spectra of MgFe-LDH and MnO₂/MgFe-LDH was induced by the interlayer CO₃²⁻ ion asymmetric tensile vibration at 1386 cm⁻¹. The absorption peak at 3699 cm⁻¹ in the MnO₂/MgFe-LDH spectrum corresponded to the hydroxyl vibration on the sample surface, where the calcined MnO₂/MgFe-LDH material did not show an O–H peak at 3699 cm⁻¹. In addition, at 1386 cm⁻¹, CO₃²⁻ ions did not cause a vibration peak, but a new absorption peak caused by the vibration of HCO₃⁻ ions appeared at 1440 cm⁻¹, indicating that water loss and dehydroxylation during the calcination process, and due to decomposition, CO₃²⁻ transformed to HCO₃⁻.³⁶ In addition, the absorption peak at 1012 cm⁻¹ in the MnO₂/MgFe-LDH spectrum should be the C–O vibration in C–O-M (M = Mg, Fe, Mn), which appears at approximately 1006 cm⁻¹ after calcination, indicating that MnO₂ is chemically bonded the way is loaded to LDH.³⁷

The micromorphologies of three materials were studied using SEM, and the results for MgFe-LDH, MnO₂/MgFe-LDH, and MnO₂/MgFe-LDO_{400 °C} are presented in Fig. 3(a–c). The MgFe-LDH material has a plate-like structure with rough flake fragments on its surface, a typical anionic clay structure. The rough and uneven surface of the MnO₂/MgFe-LDH, with layered and scaly particles, improved the specific surface area and void ratio. The MnO₂/MgFe-LDO_{400 °C} surface had crumbled, leaving uneven shards. Many adsorption sites were found on this rough, uneven surface.

Fig. 3 (a) SEM of MgFe-LDH, (b) MnO₂/MgFe-LDH and (c) MnO₂/MgFe-LDO_{400 °C}. (d) TEM image of MnO₂. (e) TEM image of MgFe-LDH, (f) TEM image of MnO₂/MgFe-LDH, (g) TEM image of MnO₂/MgFe-LDO_{400 °C}, and (h) mapping of MnO₂/MgFe-LDH.

TEM was used to explore the microstructures of the materials. As displayed by the TEM image in Fig. 3(d), MnO₂ has a certain thickness, and it is clear that its surface is not perfectly smooth. MgFe LDH had sheet-like shape, composed of thin nano-scale curved platelets (Fig. 3(e)). We can see MnO₂/MgFe-LDH (Fig. 3(f)) and MnO₂/MgFe-LDO_{400 °C} (Fig. 3(g)) composites, their surface showed a morphology similar to that of MnO₂, element mapping of MnO₂/MgFe-LDH (Fig. 3(h)) indicated that the elements of Mg, Fe, and Mn were distributed uniformly in the structure. The Mn–K signal is attributed to the loading of MnO₂, which showed that MnO₂ binds to MgFe-LDH uniformly. Combined with XRD, manganese oxide was successfully loaded on MgFe-LDH.

According to BET results in Table 1, the specific surface area of MgFe-LDH after loaded MnO₂ is significantly larger than that of MgFe-LDH. While calcination could can result in the reduction of specific surface area of MnO₂/MgFe-LDH.

Table 1 BET characterization of samples

Sample	SBET/(m^2 g^−1)	Vtotal/(cm^2 g^−1)	DBET/nm
MgFe-LDH	154.005	0.390	10.135
MnO2/MgFe-LDH	226.794	0.388	6.841
MnO2/MgFe-LDHO400 °C	153.455	0.589	15.349

---

3.3 Effect of pH on adsorption

The pH of the materials has a significant impact on their adsorption process. The adsorption capacity of MnO₂/MgFe-LDH for As(III) diminished when the pH value increased, as illustrated in Fig. 4(a). This phenomenon can be explained by the electrostatic repulsion between As(III) and the MnO₂/MgFe-LDH. At a pH lower than 9, As(III) exists in the solution in the form of H₃AsO₃.³⁸ The surface of MnO₂/MgFe-LDH becomes negatively charged as the pH rises(Fig. 4(b)), and the H₃AsO₃ in the solution dissociates into H₂AsO₃⁻, HAsO₃²⁻, and AsO₃³⁻.³⁹ The adsorption capacity of MnO₂/MgFe-LDO_400°C for As(III) improves with increasing pH, and is superior to that of MnO₂/MgFe-LDH in the pH range of 3–12. Arsenic generates Fe–O–As, Mn–O–As, and other complexes with the surface metal of the material because the metal active sites of LDO are relatively uniformly spread and have a large specific surface area. When the pH value was high, As(III) anions were incorporated into the interlayer structure due to the “memory effect” of the LDO material.

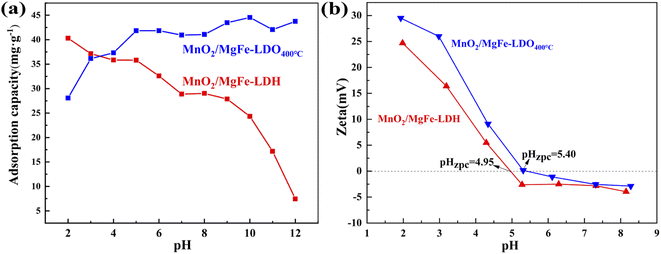

Fig. 4 (a) Effect of initial pH on the adsorption of arsenic, (b) pH-zeta of MnO₂/MgFe-LDH and MnO₂/MgFe-LDO_{400 °C} composites.

3.4 Adsorption kinetic

As shown in Fig. 5, the adsorption kinetics of the As(III) solutions showed that the amount of As(III) adsorbed increased with increasing of As(III) concentration. The MnO₂/MgFe-LDO_{400 °C} adsorption capacity increased with time and gradually tended to equilibrium. The equilibrium times were 2,520, 2,880, and 3240 minutes for the initial As(III) concentration of 30, 40, and 50 mg L⁻¹, respectively. Meanwhile, the adsorption effect of MnO₂/MgFe-LDO_{400 °C} was more significant than that of MnO₂/MgFe-LDH. The MnO₂/MgFe-LDH adsorption capacity increased with time and gradually reached equilibrium, and the equilibrium times were 1,800, 2,160, and 2520 minutes for the initial As(III) concentrations at 30, 40, and 50 mg L⁻¹, respectively.

Fig. 5 The As(III) adsorption kinetics with (a) MnO₂/MgFe-LDH and (b) MnO₂/MgFe-LDO_{400 °C}.

Two kinetic models of pseudo-first-order and pseudo-second-order equations were used to investigate the adsorption behavior of MnO₂/MgFe-LDH and MnO₂/MgFe-LDO_{400 °C} on As(III) during the adsorption process. The fitted results are shown in Fig. S1,† and the relevant parameters for each kinetic model are listed in Table 2. The pseudo-second-order model was more suitable than pseudo-first-order model for fitting the experimental data of MnO₂/MgFe-LDH and MnO₂/MgFe-LDO_{400 °C} at the initial concentrations of 30, 40, and 50 mg L⁻¹ As(III), where the correlation coefficients (R²) were >0.999 and >0.996, respectively. The results showed that the adsorption of As(III) by the two composite materials was a chemical adsorption process.

Table 2 Kinetic parameters for As(III) adsorption

Materials	C0 (mg L^−1)	Pseudo-first-order			Pseudo-second-order
		Qe(mg g^−1)	K1	R^2	Qe(mg g^−1)	K2	R^2
MnO2/MgFe-LDH	30	5.05	4.8389 × 10^−4	0.9815	16.40	1.079 × 10^−3	0.9994
	40	7.20	7.2183 × 10^−4	0.9937	20.89	1.001 × 10^−3	0.9996
	50	10.21	8.8669 × 10^−4	0.9946	24.85	8.045 × 10^−4	0.9996
MnO2/MgFe-LDO400 °C	30	15.15	7.9165 × 10^−4	0.9900	22.94	3.676 × 10^−4	0.9982
	40	19.47	7.3657 × 10^−4	0.9875	29.16	2.701 × 10^−4	0.9979
	50	25.78	6.4443 × 10^−4	0.9798	36.58	1.727 × 10^−4	0.9967

---

3.5 Adsorption isotherm

Langmuir and Freundlich adsorption isotherm models were used to fit the adsorption behaviours of MnO₂/MgFe-LDH and MnO₂/MgFe-LDO_{400 °C} composites under different initial As(III) concentrations. The results and related parameters are presented in Fig. S2† and Table 3, respectively. Better fitting data for As(III) adsorption on the two composite materials were obtained using the Freundlich isotherm model. The adsorption capacity of the material for As(III) increased with the increasing of temperature, indicating that the adsorption process is an endothermic process. When the temperature increased, the movement of solute molecules in the system accelerates, and the mass transfer rate and diffusion coefficient increase, thereby increasing the adsorption capacity.⁴⁰

Table 3 Isothermal parameters for As(III) adsorption

Materials	TEMP(°C)	Langmuir isotherm			Freundlich isotherm
		Qm(mg g^−1)	KL	R^2	KF	1/n	R^2
MnO2/MgFe-LDH	25	53.793	0.0356	0.9846	3.794	0.57684	0.9994
	35	55.843	0.04107	0.9837	4.402	0.5656	0.9991
	45	52.522	0.04839	0.9804	4.985	0.53171	0.9992
MnO2/MgFe-LDO400 °C	25	51.028	0.06605	0.9765	6.834	0.46887	0.9913
	35	50.360	0.09817	0.9655	9.379	0.41053	0.9904
	45	58.939	0.11574	0.9655	11.785	0.40909	0.9920

---

For MnO₂/MgFe-LDH and MnO₂/MgFe-LDO_{400 °C}, under the optimal experimental conditions, the maximum adsorption capacity of As(III) reached 53.8 mg L⁻¹ and 51.0 mg L⁻¹, respectively (Table 3). Compared with the maximum adsorption capacities of various materials in the Table 4, MnO₂/MgFe-LDH and MnO₂/MgFe-LDO_{400 °C} present good advantages in arsenic removal.

Table 4 Comparison of the maximum adsorption capacity of As on LDHs with other adsorbents

Adsorbents	Adsorption capacities (mg g^−1)	Ref.
MgAl–CO3-LDH	44.66	Wu et al.^41
MgFeLa-CLDHs	47.40	Jun et al.^42
Mg–Al–Cl	36.00	Pigna et al.^43
Activated carbon	30.50	Rojas et al.^44
HT-Zn-MOF-74	48.70	Mahmoodi et al.^45
UiO-66-(SH)2	40.00	Cox et al.^46
MnO2/MgFe-LDH	53.79	This study
MnO2/MgFe-LDO400 °C	51.03	This study

---

3.6 Regeneration and reuse

Six solutions of NaOH, Na₂CO₃, NaCl, HCl, HNO₃, and H₂SO₄ with an initial concentration of 0.1 mol L⁻¹ were selected as desorbents to explore the recycling performance of the material on As(III). The desorption effects of the six adsorbents are shown in Fig. 6(a). The desorption effect of 0.1 mol L⁻¹ NaOH was the most superior, with the adsorption capacity can reaching 25.5 and 30.1 mg g⁻¹, respectively. We selected 0.1 mol L⁻¹ NaOH as the desorbents to study the regeneration performance of the adsorbent on As(III), and the results are shown in Fig. 6(b). The figure shows that after five times of adsorption–desorption of As(III) by MnO₂/MgFe-LDH and MnO₂/MgFe-LDO_400°C, the adsorption capacity of the composite still reached 28.5 and 28.9 mg g⁻¹, and the desorption rates were as high as 99% and 96% respectively. This demonstrates that the material can be used repeatedly in treating of As(III), and thus is a renewable and environmentally friendly material that will not cause secondary pollution.

Fig. 6 (a) The influence of six analytical agents on the desorption effect of As(III), (b) the influence of the number of regenerations by the two materials on the adsorption capacity.

4. Adsorption mechanisms

As shown in Fig. 7(a), before and after the adsorption of As(III) by MnO₂/MgFe-LDH, the peak intensities at 38.087° and 58.722° were weaker than those before adsorption, and the adsorbed material was AsMn₂O₇ (ICSD card No.00-042-0035). Combined with the kinetic and isothermal adsorption results, it could be concluded that the adsorption process was chemical-based multilayer adsorption, and it was determined that As(III) and manganese complexed on the surface of the composite material to form a ternary complex to be removed.^47,48 After MnO₂/MgFe-LDO_{400 °C} adsorbed As(III), the characteristic peaks of AsMn₂O₇ (ICSD card No. 00-042-0035) appeared at 2θ = 20.629° (020), 34.118° (220), and 59.096° (003). This demonstrates that manganese participated in the removal reaction of As(III) through surface complexation. In addition, the XRD characteristic peaks of MnO₂/MgFe-LDO_{400 °C} + As were similar to those of MnO₂/MgFe-LDH, indicating that structural reconstruction of MnO₂/MgFe-LDO_{400 °C} had occurred due to the “memory effect”.⁴⁹

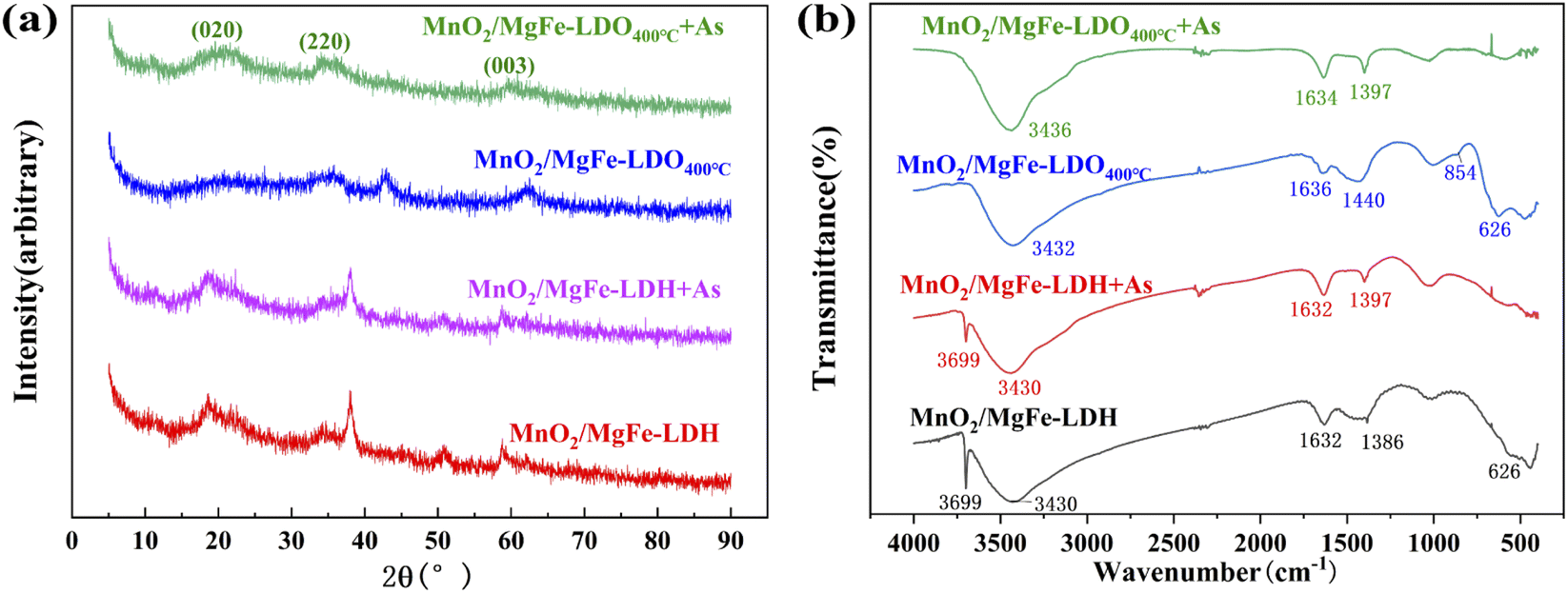

Fig. 7 (a) XRD pattern of MnO₂/MgFe-LDH and MnO₂/MgFe-LDO_400°C before and after As(III) adsorption. (b) FT-IR of MnO₂/MgFe-LDH and MnO₂/MgFe-LDO_{400 °C} before and after As(III) adsorption.

As shown in Fig. 7(b), the tensile vibration absorption peak near 3430 cm⁻¹ was obviously enhanced. However, the flexural vibration absorption peak of crystal water between 1632 and 1634 cm⁻¹ was still retained after the adsorption As(III) by the two composite materials, indicate that water molecules are absorbed by the adsorbent during the adsorption process. It may also be that As(V) ions have reacted with the hydroxyl groups on the laminate, resulting in interlayer water.⁵⁰ The absorption peaks at 626 and 854 cm⁻¹ were caused by O-M or O-M-O (M = Mg, Fe, Mn) bending vibrations. After As(III) absorption, the absorption peak intensity weakened or even disappeared. This may be due to the coordination complexation reaction between As(III) and M–O on the laminate material, which produced a number of complexes.⁵¹ The 1386 cm⁻¹ peak representing Mn–O shifted to 1397 cm⁻¹, further confirming that Mn–O participated in the reaction. Combined with the adsorption reaction model and XRD analysis, As(III) was partially oxidised to As(V), forming As–O or As–O–As.⁵²

The MnO₂/MgFe-LDH and MnO₂/MgFe-LDO_{400 °C} samples after the As(III) adsorption were analysed for microscopic morphology and elements using SEM-EDS. The results are shown in Fig. 8. The surfaces of the two materials were covered with scale-like substances. Compared with Fig. 3(a–c), after the adsorption of As(III), the surface of the material was rougher, and more granular and scaly substances were present, indicating that new substances of complexes were attached to the material. This can be reciprocally verified with the XRD results.

Fig. 8 The SEM images of (a) MnO₂/MgFe-LDH and (b) MnO₂/MgFe-LDO_{400 °C} after As(III) adsorption.

The surface compositions and valence states of MnO₂/MgFe-LDH and MnO₂/MgFe-LDO_{400 °C} were analysed by XPS. The high-resolution O 1s spectra are shown in Fig. 9(a). Before the reaction, the O 1s spectra can be deconvoluted into three peaks at approximately 531.1, 531.7, and 532.8 eV, corresponding to the lattice oxygen M–O, –OH and adsorbed-water, respectively. However, after the reaction, the content of the –OH decreased, and a new peak appeared at 531.2 eV, which can be assigned to As–O.⁵³ It can be concluded that arsenic species achieved the complexation of –OH on the adsorbent surface. Fig. 9(b) shows the As 3d spectra after adsorption of arsenic, indicating that the adsorbed inorganic arsenic species for the two adsorbents were almost As(V) after the reaction.⁵⁴ Compared to MnO₂/MgFe-LDH, the As 3d signal of MnO₂/MgFe-LDO_{400 °C} after adsorption was stronger than that of MnO₂/MgFe-LDH. Therefore, it can be inferred that MnO₂/MgFe-LDO_{400 °C} favoured the uptake of the arsenic to form As–O-M species.^23,55 As shown in Fig. 9(c–d), for MnO₂/MgFe-LDH before the reaction, the peaks of Mn 2p_3/2 located at 643.81 eV and 642.09 eV were ascribed to Mn(IV) (50.62%) and Mn(II) (49.38%), respectively. After the reaction, the relative proportion of Mn(II) increased from 49.38% to 57%. For MnO₂/MgFe-LDO_{400 °C}, the relative proportion of Mn(II) increased from 51% to 53%. These results suggest the reduction of Mn(IV) to Mn(II), indicating that Mn(IV) participates in electron transfer.

Fig. 9 XPS spectrum of (a) O 1s of MnO₂/MgFe-LDH before and after reaction, (b) As 3d fitting and (c) Mn 2p of MnO₂/MgFe-LDH and (d) MnO₂/MgFe-LDO_{400 °C} after As(III) adsorption.

In summary, the main adsorption mechanisms for As(III) removal for MnO₂/MgFe-LDH and MnO₂/MgFe-LDO_{400 °C} including complexation, oxidation, and electrostatic attraction, as shown in Fig. 10. The results of XRD, FT-IR, and SEM indicated that As(III) might combine with functional groups of Mn–O or Fe–O on the surface of MnO₂/MgFe-LDH and MnO₂/MgFe-LDO_{400 °C} to form complexes, shown in Fig. 10(a). Inner-sphere bidentate surface complex with iron ions on the hydroxide material surface can be formed from H₂AsO₃⁻ and H₂AsO₄⁻.^38,56 As shown in Fig. 10(b), some AsO₂⁻ and H₃AsO₃ were oxidised to H₂AsO₄⁻ by MnO₂, and MnO₂ mainly acted as an oxidant for oxidation.⁵⁷ According to the XPS analysis, electron transfer occurs during adsorption, and the valence states of manganese and arsenic are changed. In addition, the pH adsorption experiment proved the electrostatic attraction between the sorbents and As(III)/As(V) (Fig. 10(c)). At pH < 4.95, the electrostatic attraction was present between the positively charged MnO₂/MgFe-LDH and negatively charged AsO₃³⁻/AsO₄³⁻ (Fig. 4(a)).³⁹ Similarly, for MnO₂/MgFe-LDO_{400 °C}, electrostatic attraction could occur in the arsenic removal process when the solution pH was below 5.40. Besides, As(III) also can be absorbed through the “memory effect” of MnO₂/MgFe-LDO_400°C (Fig. 10(d)).

Fig. 10 The As adsorption mechanism of MnO₂/MgFe-LDH and MnO₂/MgFe-LDO_{400 °C}.

5. Conclusion

In summary, the focus of this study was to investigate the adsorption behaviour and preliminary mechanism of heavy metal arsenic in water using two materials MnO₂/MgFe-LDH and MnO₂/MgFe-LDO_{400 °C}. According to the XRD, FT-IR spectrum, XPS, and SEM-EDS characterisation results, the mechanism of MnO₂/MgFe-LDH and MnO₂/MgFe-LDO_{400 °C} mediated adsorption of As(III) was inferred. The adsorption mechanisms of MnO₂/MgFe-LDH and MnO₂/MgFe-LDO_{400 °C} adsorbents for As(III) were mainly involved complexation, oxidation, electrostatic attraction, and “memory effect”. After the materials adsorbed As(III), it was adsorbed and desorbed by 0.1 mol L⁻¹ NaOH for five times, with no significant loss of As(III) adsorption capacity. Therefore, MnO₂/MgFe-LDH and MnO₂/MgFe-LDO_{400 °C} composite materials are potential renewable adsorption materials that can effectively adsorb As(III) in water.
