Enhanced photocatalytic hydrogen evolution and ammonia sensitivity of double-heterojunction g-C₃N₄/TiO₂/CuO

Abstract

The performance of semiconductor photocatalysts has been limited by rapid electron–hole recombination. One strategy to overcome this problem is to construct a heterojunction structure to improve the survival rate of electrons. In this context, a novel g-C₃N₄/TiO₂/CuO double-heterojunction photocatalyst was developed and characterized. Its photocatalytic activity for hydrogen production from water–methanol photocatalytic reforming was explored. Methanol is always used to eliminate semiconductor holes. The g-C₃N₄/TiO₂/CuO double-heterojunction photocatalyst with a narrow bandgap of ∼1.38 eV presented excellent photocatalytic activity for hydrogen evolution (97.48 μmol (g h)⁻¹) under visible light irradiation. Compared with g-C₃N₄/TiO₂ and CuO/TiO₂, the photocatalytic activity of g-C₃N₄/TiO₂/CuO for hydrogen production was increased approximately 7.6 times and 1.8 times, respectively. Below 240 °C, the sensitivity of g-C₃N₄/TiO₂/CuO to ammonia was approximately 90% and 46% higher than that of g-C₃N₄/TiO₂ and CuO/TiO₂, respectively. The enhancement of the photocatalytic activity and gas sensing properties of the g-C₃N₄/TiO₂/CuO composite resulted from the close interface contact established by the double heterostructure. The trajectory of electrons in the double heterojunction conformed to the S-scheme. UV-vis, PL, and transient photocurrent characterization showed that the double heterostructure effectively inhibited the recombination of e⁻/h⁺ pairs and enhanced the migration of photogenerated electrons.

---

1. Introduction

With rapid economic development, the demand for clean energy is constantly increasing.^1–3 Therefore, the exploitation of renewable clean energy is a focus of attention globally. Hydrogen has been widely studied because it is nontoxic, pollution-free and renewable and has a high calorific value.^4,5 To date, many encouraging methods have been obtained, such as chemical, physical-chemical or electrocatalytic hydrogen evolution.^6,7 Therefore, photocatalytic technology for hydrogen production has received more attention because it is clean, inexpensive, and environmentally friendly.⁸ Since the initial report of water splitting for hydrogen evolution based on photo-assisted electrochemical technology in 1972, photocatalysis has been accepted as a prospective method for hydrogen production.⁹ Although prominent progress has been made in photocatalytic techniques, how to effectively inhibit the rapid recombination of photogenerated electrons and holes is still a problem to be solved.¹⁰

One strategy to reduce the electron–hole recombination of semiconductors is to add a sacrificial agent (hole scavenger) to the reaction solution. The efficiency of photocatalysts for hydrogen production in pure water is not ideal. Methanol is the most commonly used sacrificial agent and can eliminate the holes that are generated after electron transition. More surviving electrons are used in the reduction reaction to produce hydrogen. The hydrogen atoms result partly from water cracking and partly from the dehydrogenation of hole scavengers. Methanol is considered a possible candidate fuel with several advantages: a simple molecular structure, a high hydrogen carbon ratio and the ability to extract it from biomass energy.

It is also one of the common methods to enhance the density and survival rate of photogenerated electrons by constructing heterojunctions.^11,12 To make better use of sunlight, many researchers are looking for photocatalytic semiconductors with low band gap energy.¹³ Graphitic carbon nitride (g-C₃N₄) is a burgeoning photocatalyst and has a narrow band gap, physical-chemical stability, and low cost characteristics. Nevertheless, the practical application of bare g-C₃N₄ is still hindered by the problems of a high electron–hole recombination rate and low quantum efficiency.¹⁴ In general, the construction of a heterojunction between g-C₃N₄ and other semiconductors can enhance g-C₃N₄ photocatalytic performance. Heterojunctions encourage light excitation of e⁻/h⁺ pairs and prolong their life for separation. However, although titanium dioxide (TiO₂,∼3.2 eV) has a wide band gap and low visible light utilization, its catalytic performance is still high.¹⁵ As shown in preceding records, the band gap of TiO₂ was opportunely matched with the band gap of g-C₃N₄.¹⁶ Combining TiO₂ with g-C₃N₄ to produce a new composition can increase the flat plate potential and reduce the band gap of the composite. This is conducive to the electronic transition between heterogeneous interfaces. In addition, the photoelectrons (e⁻) in the conduction band (CB) of g-C₃N₄ can be diverted to the CB of TiO₂. The process can control the rapid recombination of electrons and holes. In addition, metal oxides have great cocatalytic properties due to their excellent conductivity, such as CeO₂/g-C₃N₄,¹⁷ NiO/TiO₂,¹⁸ ZnO/In₂O₃,¹⁹ CuO/ZnO,²⁰ CuO/WO₃,²¹ etc. Among these metallic oxides, copper oxide (CuO) has become a research hotspot in the preparation of heterojunction photocatalysts attributable to the low toxicity of raw materials and absorption ability in the visible light spectrum. As a p-type semiconductor with a narrow band gap, CuO has shown excellent photocatalytic performance. Studies have shown that putting CuO into the structure of TiO₂ can result in an increase in photocatalytic activity owing to the internal electric field.²² In recent years, the S-scheme (step-scheme)^23,24 photocatalytic system was considered an interpretation to explain the result that presented to decrease the recombination rate, energy separation of generated charges and retaining excellent redox ability. Vairamuthu Raj et al.²⁵ researched g-C₃N₄/TiO₂/CuO S-scheme composites as effective photocatalysts in the field of photocatalytic degradation. However, the g-C₃N₄/TiO₂/CuO catalysts H₂ evolution of the photocatalytic performance has not been verified.

On this basis, we designed and constructed g-C₃N₄/TiO₂/CuO heterojunction structures. In this structure, TiO₂ and g-C₃N₄ are n-type semiconductors, and CuO is a p-type semiconductor. Therefore, this special structure contains double p–n heterostructures at the same time. The double p–n heterobonding electron transition provides sufficient space, which can effectively reduce the recombination rate of electron holes, prolong the electron lifetime and improve the performance of H₂ production. The cross section of the p–n heterojunction also has a certain synergistic effect. Double heterojunctions can independently control e⁻ and h⁺ injection/extraction while maintaining a high photogenerated carrier migration rate.²⁶ Therefore, this work provides unique insight into the design of a multicomponent photocatalyst heterojunction mechanism.

2. Experiment section

2.1 Materials

Tetrabutyl titanate (TBOT) and melamine (MA) were purchased from Shanghai Ron Chemical Technology Co., Ltd. Titanium dioxide (P25, 20 nm) was purchased from Macklin Co., Ltd. Anhydrous ethanol, concentrated hydrochloric acid (HCl, 32 wt%) and methanol were obtained from Sinopharm Chemical Reagent Co., Ltd. Copper acetate (Cu(CH₃COO)₂) was procured from Tianjin BASF Chemical Co. Ltd. All chemicals were of analytical purity without further purification.

2.2 Synthesis

2.2.1 Synthesis of g-C₃N₄, TiO₂ and CuO. MA powder (5 g) was placed and heated at 500 °C for 2 h in a muffle furnace. When cooled, the g-C₃N₄ sheet was obtained and ground into powder in a mortar. TiO₂ powder was prepared in triplicate by a sol–gel strategy. First, TBOT (17 mL) was added into a 200 mL beaker. Then, anhydrous ethanol (40 mL) was added dropwise to the beaker through a peristaltic pump (2 rpm), and the resulting solution I was continuously stirred for 30 min. Ethanol (60 mL) and deionized water (2.5 mL) were added to the second 200 mL beaker. When the pH of the resulting mixing solution II was adjusted to 1–2 with HCl (32 wt%), solution II was added to solution I slowly by a peristaltic pump (2 rpm) to form solution III. After stirring for 2 h, solution III was allowed to stand for 24 h to obtain the colloid and then dried overnight to acquire the TiO₂ precursor. Next, the precursor was calcined for 2 h to prepare powder. Cu(CH₃COO)₂ powder (2.51 g) was added to deionized water (50 mL) and stirred for 15 min to form a homogeneous solution, which was heated at 100 °C and continuously stirred until evaporation. The obtained solids were dried overnight and ground to powder in a mortar. Then, the powder was calcined at 500 °C in air for 2 h to acquire CuO powder.

2.2.2 Synthesis of g-C₃N₄/TiO₂ and CuO/TiO₂. The previously prepared g-C₃N₄ powder (1 g) and TiO₂ powder (1 g) were added to deionized water (50 mL) and stirred evenly. The mixing solution was heated at 100 °C and stirred successively to evaporation. Afterward, the obtained sample was dried overnight in an oven and ground to powder. g-C₃N₄/TiO₂ was acquired by calcining the powder at 500 °C in air for 2 h. The g-C₃N₄ powder was replaced with the previously prepared CuO powder, and the above steps were repeated to obtain the CuO/TiO₂ catalyst.

2.2.3 Synthesis of g-C₃N₄/TiO₂/CuO. g-C₃N₄/TiO₂ powder (1 g), Cu(CH₃COO)₂ powder (2.51 g) and deionized water (50 mL) were blended together. The mixed solution was heated to evaporation at 100 °C. The mixture was dried in an oven overnight and calcined in air at 500 °C for 2 h to obtain g-C₃N₄/TiO₂/CuO powder.

2.3 Catalyst characterization

The phases and crystal structure characteristics of the catalysts were examined by X-ray diffraction (XRD, D8-advance, brukeraxs). The chemical functional groups of the samples were explored by Fourier transform infrared spectroscopy (FTIR, Nicolet 5700, Thermo Nicolet Corporation) in the range of 4000 to 500 cm⁻¹ with a PerkinElmer spectrophotometer. The micromorphology and elemental mapping were observed by scanning electron microscopy (SEM, FEI Sirion 200). Transmission electron microscopy (TEM, FEI Tecnai G2F 20) and selected area electron diffraction (SAED) were used to characterize the morphology and the crystal structure of the fabricated photocatalyst. X-ray photoelectron spectroscopy (XPS, AXIS Supra) was carried out to analyze the chemical bonds of substances and valence state. The Brunauer–Emmett–Teller (BET) specific surface area and pore structure properties of the photocatalysts were obtained employing a quantachrome instrument nitrogen adsorption apparatus at 75 K. The optical absorption characteristics and band gap calculation were measured by ultraviolet visible diffuse reflectance spectroscopy (UV-vis, Shimadzu, UV3600). At an excitation wavelength of 320 nm, room-temperature photoluminescence emission spectra (PL, Edinburgh, FLS9800) were measured to study the suppression of the e⁻/h⁺ recombination rate. The instantaneous photocurrent response was tested by an electrochemical workstation (Edinburgh, FLS9800) via the standard three-electrode configuration, including the Ag/AgCl electrode with K₂S₂O₈ (0.05 M) and Na₂SO₄ (0.5 M) as the electrolyte.

2.4 Photocatalytic performance

A closed gas circulation/evacuation system was used to collect the amount of H₂ generated by the water–methanol solution in the presence of the above photocatalysts. In a standard photocatalytic process, photocatalyst (0.05 g), methanol (25 mL) and deionized water (25 mL) were added to a 0.2 L hermetic quartz container and blended together. The resulting solution was stirred under dark conditions for at least 30 minutes to achieve desorption and adsorption equilibrium. Afterward, the air was completely expelled from the airtight quartz container by N₂ in 40 min. The reactant solution was kept at ∼6 °C and irradiated under a 300 W Xe lamp during the whole photocatalytic process. The gaseous products were measured by gas chromatography (Beijing Zhongjiao Jinyuan Technology Co., Ltd, GC-7920) with a TDX-01 column and thermal conductivity detector (TCD). Gaseous products were taken every 30 min for detection, and the experimental period was not less than 6 h.

2.5 Gas sensitivity test

First, a certain amount of catalyst was scattered into absolute ethanol to form a ropy solution. Afterward, an appropriate amount of catalyst-containing solution was applied to the ceramic tube. The ceramic tubes were fixed on the welding table by spot welding, and electrifying resistances were formed through a resistance wire. The coated electrodes were put in a dehumidifier for 24 h. Then, each sensor board was installed in a homemade poison gas chamber with a volume of 18 L. The sensor plate was attached to the gas sensing test system (WS-30, Winse) to obtain response signals of the sensor in terms of resistance. Ammonia (100 ppm) was injected into the gas chamber and converted to steam on a high-temperature platform. There was a small fan in the air chamber, which could diffuse the steam evenly. The response value of the sample to ammonia was detected at 260 °C and calculated using (1)²⁷

Response = R_g/R_a (1)

where R_a represents the sensor resistance in bare air and R_g represents the sensor resistance in measurement gases.

3. Results and discussion

3.1 Crystal phase and functional group analysis

The XRD spectrum analysis patterns of the prepared catalysts are shown in Fig. 1. In the pattern of pure CuO, diffraction peaks for CuO (JCPDS Card No. 00-089-5895) at 35.44°, 38.58°, 48.72°, 53.56°, 57.99°, 61.49°, 65.91° and 67.60° could be observed, corresponding to the (002), (111), (112), (020), (202), (113), (310), and (220) monoclinic crystalline planes, respectively.²⁸ The all diffraction peaks of CuO could be evidently observed in g-C₃N₄/TiO₂/CuO and CuO/TiO₂, which proves that CuO is successfully introduced into the g-C₃N₄/TiO₂/CuO and CuO/TiO₂ catalysts. This is also confirmed in the following FTIR spectra. The diffraction peaks at 25.50°, 37.76°, 48.04°, 55.06° and 62.76° could be ascribed to the TiO₂ (101), (004), (200), (211) and (204) planes, respectively.²⁹ This confirms that the crystal form of TiO₂ is anatase. And the diffraction peaks of TiO₂ are disappeared in the spectra of g-C₃N₄/TiO₂/CuO and CuO/TiO₂, except the (101) diffraction peak. We speculate the peaks of TiO₂ are covered by the diffraction peaks of CuO. The two diffraction peaks at 13.6° and 27.7° in the XRD spectrum of g-C₃N₄ correspond to the (100) and (002) peaks, respectively. The characteristic peak of (100) is related to the stacking of periodic array motifs of tris-triazine in the plane, while the (002) peak is due to the long-range planar stacking of aromatic rings.³⁰ Simultaneously, there are other miscellaneous peaks caused by incomplete condensation of melamine. No characteristic peaks of g-C₃N₄ are found in the XRD images of g-C₃N₄/TiO₂ and g-C₃N₄/TiO₂/CuO. There are several possibilities for this phenomenon. One reason is that the characteristic peaks of g-C₃N₄ are covered by the strong peaks of TiO₂. Another probable reason might be that g-C₃N₄ is decomposed by TiO₂.³⁰ The third is that it may be due to the high dispersion of g-C₃N₄ in the composites.¹⁷ However, the uniform loading of C and N elements in the EDS spectrum confirms the existence of g-C₃N₄. The crystallite sizes are 22.86, 11.17, 13.23, 20.52, 5.33 and 19.39 nm for CuO, g-C₃N₄, g-C₃N₄/TiO₂, CuO/TiO₂, and g-C₃N₄/TiO₂/CuO, respectively. And they are calculated from X-ray line broadening (ω) according to the Scherrer formula (2):¹²

D = 0.89 λ/ω cos θ (2)

where λ is the X-ray wavelength and λ = 0.15406 nm. D presents the crystallite size, θ is the peak position and ω is FWHM (radians).

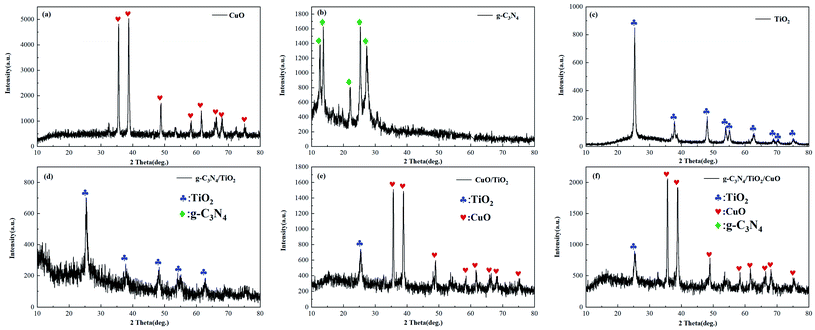

Fig. 1 XRD images of CuO, g-C₃N₄, TiO₂, g-C₃N₄/TiO₂, CuO/TiO₂, g-C₃N₄/TiO₂/CuO.

The FTIR spectra of the CuO, g-C₃N₄, g-C₃N₄/TiO₂, CuO/TiO₂, and g-C₃N₄/TiO₂/CuO catalysts are displayed in Fig. 2. For g-C₃N₄, the bands related to the breathing of triazine units and stretching vibration of N–H are perceived at 802 and 3117 cm^−1.31 Interestingly, these two peaks at the corresponding positions almost disappear in the g-C₃N₄/TiO₂/CuO catalyst, which may be due to another calcination at 500 °C in the preparation of the catalyst. At 1200–1650 cm⁻¹, four other distinct peaks are observed at 1094, 1332, 1464, and 1611 cm⁻¹, which are derived from the representative stretching modes of the C–N heterocycles.³² Similarly, compared with g-C₃N₄, the strength of the four typical peaks of g-C₃N₄ becomes weaker in the g-C₃N₄/TiO₂/CuO catalyst. The band at 532 cm⁻¹ is ascribed to vibrations of Cu–O bonds.³³ Moreover, no other bands are found in the range of 605 to 660 cm⁻¹. The existence possibility of the Cu₂O phase is completely excluded.³⁴ The prime characteristic peak of g-C₃N₄ almost appears in the g-C₃N₄/TiO₂ complex, which confirms its successful synthesis. Similarly, the successful synthesis of CuO/TiO₂ and g-C₃N₄/TiO₂/CuO is indicated through the retaining characteristic peaks of CuO and g-C₃N₄.

Fig. 2 FTIR images of CuO, g-C₃N₄, TiO₂, g-C₃N₄/TiO₂, CuO/TiO₂, g-C₃N₄/TiO₂/CuO.

3.2 Morphology and element distribution of g-C₃N₄/TiO₂/CuO

SEM and EDS were conducted to investigate the morphology and element distribution of the g-C₃N₄/TiO₂/CuO catalyst. From Fig. S1(b–f),† it can be unambiguously observed that the dispersion of C and N elements is completely uniform, which confirms that g-C₃N₄ is equally supported on the composite catalyst. At the same time, Ti seems to have agglomerated, while Cu is evenly dispersed on the surface of TiO₂ under the influence of selective deposition. CuO and g-C₃N₄ clusters are tightly wrapped around TiO₂ because of the selective deposition method and direct contact with the TiO₂ surface, resulting in the establishment of a double heterojunction due to the synergistic effect between the three components and the balance of the Fermi level.

The successful preparation of g-C₃N₄/TiO₂, CuO/TiO₂, and g-C₃N₄/TiO₂/CuO heterojunction photocatalysts are further verified by TEM and SAED images. Fig. 3(a and b) are the TEM image of g-C₃N₄/TiO₂ catalyst. In Fig. 3(b), the lattice stripe with d = 0.3557 nm can be obtained by measuring the grid spacing, which corresponds to the (101) crystal plane of TiO₂ (JCPDS PDF#21-1227).³⁵ In Fig. 3(d), it can be seen that CuO is directly contact with TiO₂ in CuO/TiO₂ photocatalyst. CuO particles are smaller on the left and TiO₂ particles are larger on the right. In Fig. 3(e), the lattice stripes with d = 0.3520 nm and d = 0.1757 nm are measured, which correspond to the (101) crystal plane of TiO₂ and the (112) crystal plane of CuO (JCPDS Card No. 00-089-5895), respectively.²⁸ The TEM of g-C₃N₄/TiO₂/CuO is exhibited in Fig. 3(g–h), which indicate that the g-C₃N₄/TiO₂/CuO material is a heterojunction nanocomposite with combined geometry. In Fig. 3(h), the lattice stripes with d = 0.3520 nm and d = 0.2899 nm are obtained by measuring the grid spacing, which correspond to the (101) crystal plane of TiO₂ and the (−110) crystal plane of CuO. Heterojunction structure of g-C₃N₄/TiO₂/CuO can enlarge the active sites and enhance the dynamic sites of reactant molecular adsorption. This is conducive to the separation of electron–hole, resulting in significant photocatalytic activity.²⁰ Fig. 3(c) shows the SAED diagram of g-C₃N₄/TiO₂ heterojunction, indicating the formation of single crystal heterojunction composites. Fig. 3(f and i) show the SAED diagram of CuO/TiO₂ and g-C₃N₄/TiO₂/CuO heterojunction, which exhibit the formation of polycrystalline heterojunction composites. The existence of g-C₃N₄ was not detected in the TEM images of g-C₃N₄/TiO₂ and g-C₃N₄/TiO₂/CuO, which are consistent with the results of XRD.

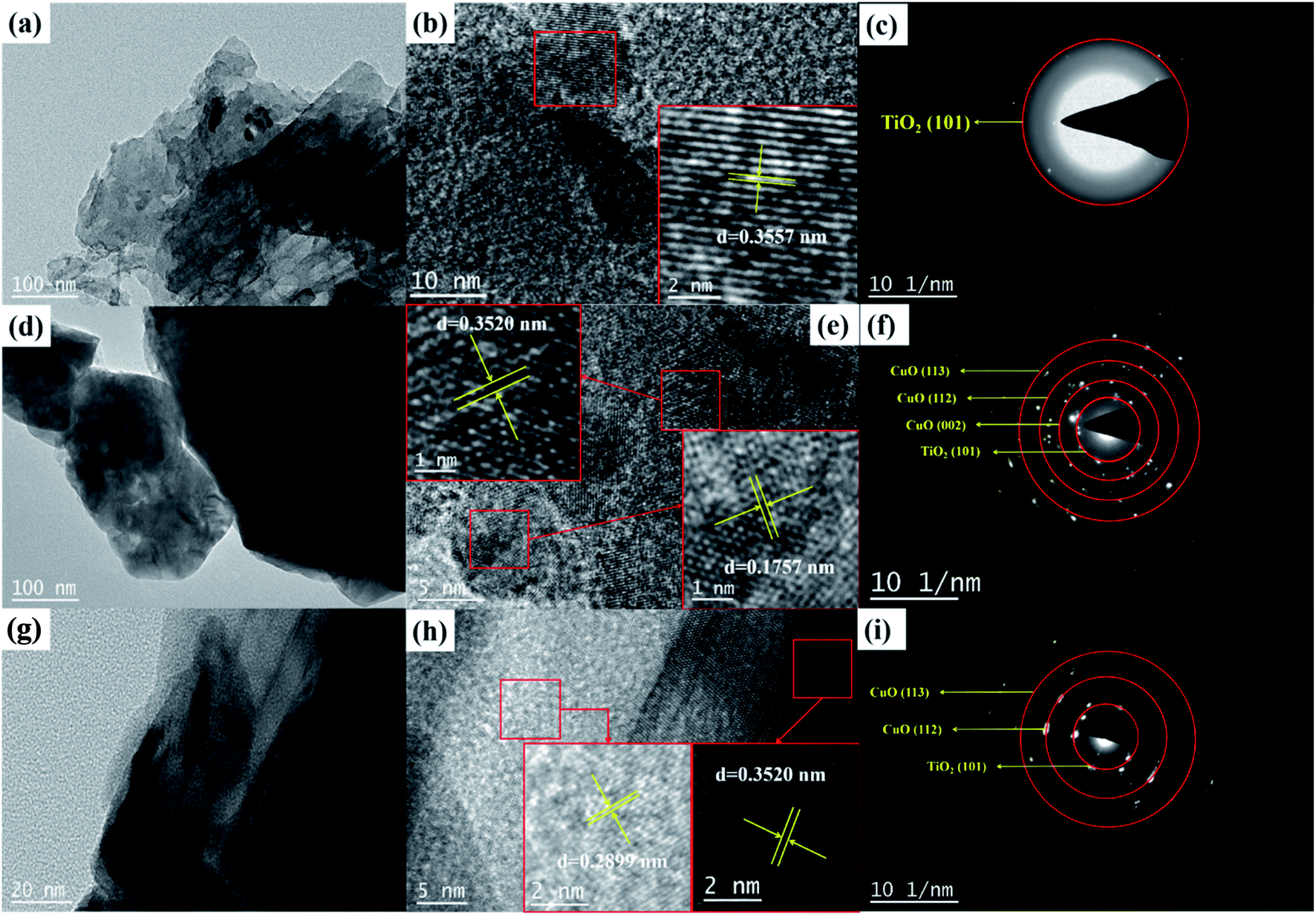

Fig. 3 (a and b) Representative TEM micrographs and (c) SAED image of g-C₃N₄/TiO₂, (d and e) TEM micrographs and (f) SAED image of CuO/TiO₂, (g and h) TEM micrographs and (i) SAED image of g-C₃N₄/TiO₂/CuO.

3.3 Valence and chemical bond analysis of g-C₃N₄/TiO₂/CuO

The valence state and chemical bond of the g-C₃N₄/TiO₂/CuO catalyst were analyzed by XPS characterization analysis. As shown in Fig. 4(a), the presence of Cu, C, N, Ti and O elements can be clearly distinguished in the full spectrum diagram. Fig. 4(b) displays the spectrum of Cu 2p. The bands at 933.2 and 953.5 eV are attributed to Cu 2p_3/2 and Cu 2p_1/2, respectively, and the other three shake-up satellite peaks appear at 941.6, 943.5 and 962.3 eV, which indicate that Cu²⁺ is formed.³⁶ Meanwhile, there is no characteristic peak of Cu⁺. To verify the chemical bond of g-C₃N₄ in g-C₃N₄/TiO₂/CuO, high-resolution spectra of C 2s and N 1s are obtained, as shown in Fig. 4(c) and (d). Three peaks are observed at 284.7, 285.3, and 288.5 eV in the XPS spectrum of C 1s (Fig. 4(c)). The first two peaks belong to polluted C, while the latter corresponds to the N=C–N binding mode. The three peaks at 398.9, 400.0, and 401.1 eV in the XPS spectral profile of N 1s (Fig. 4(d)) are explained to N=C–N,N–(C)3, and N–H chemical bond, respectively.³⁷ The Ti 2p spectrum (Fig. 4(e)) shows two prime peaks at 458.5 and 464.2 eV corresponding to the respective contributions of Ti 2p_3/2 and Ti 2p_1/2, which imply that Ti exists by Ti⁴⁺ formation.³⁸ As seen from Fig. 4(f), the peaks of O 1s at 529.8 and 531.5 eV are derived from the contribution of the –OH and Ti–O–Ti chemical bonds, respectively. Since g-C₃N₄/TiO₂/CuO is calcined in an air atmosphere, more oxygen vacancies are produced, leading to a clear peak shift of O 1s.³⁹

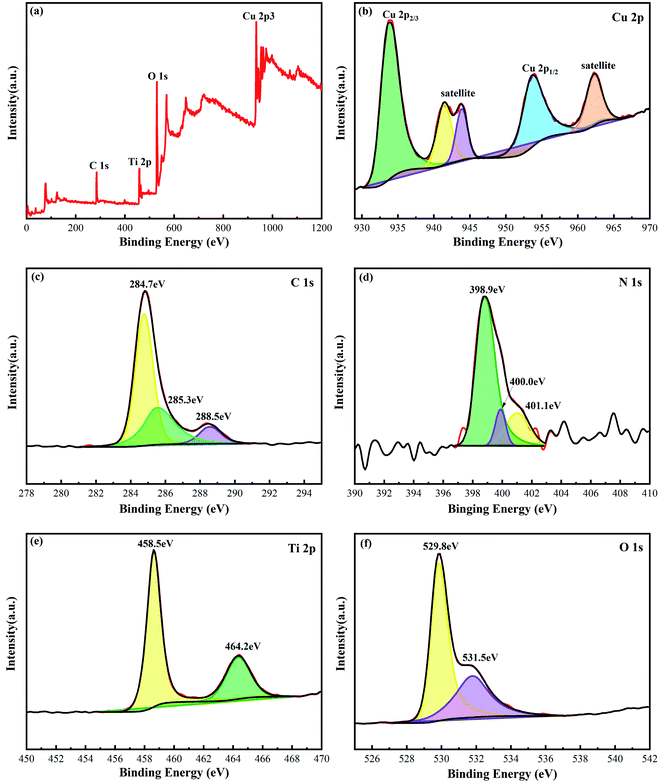

Fig. 4 XPS spectra of g-C₃N₄/TiO₂/CuO sample: (a) survey XPS spectrum, (b) Cu 2p, (c) C 1s, (d) N 1s (e) Ti 2p, (f) O 1s.

3.4 Textural properties

The N₂ adsorption–desorption isotherm and pore size distribution characteristics for the as-prepared catalysts are exhibited in Fig. 5. The specific surface areas of g-C₃N₄/TiO₂ and CuO/TiO₂ are only 28.51 and 6.34 m² g⁻¹, respectively, while that of the g-C₃N₄/TiO₂/CuO ternary catalyst is 3.38 m² g⁻¹ and lower than those of the other two catalysts, as shown in Table 2, which is caused by the combination of CuO deposition and g-C₃N₄ pore coverage.¹⁶ As expected, the g-C₃N₄/TiO₂/CuO catalyst also gives the lowest pore volume of 0.009 cm³ g⁻¹, corresponding to a pore diameter of 10.71 nm, which is higher than those of the other two catalysts. A large aperture can increase the refractive index of incident light to improve the utilization of light. This is consistent with the photocatalytic capacity of H₂ production below. On the other hand, g-C₃N₄/TiO₂, CuO/TiO₂, and g-C₃N₄/TiO₂/CuO catalysts all display type IV isotherm while presenting a discrete hysteresis loop (H3 type) under the relative pressure (P/P₀, 0.40–1.0) range. The phenomenon are caused by the slit-like pores and capillary condensation exist in the mesoporous.⁴⁰

Fig. 5 The N₂ adsorption–desorption isotherm (inset: Barrett–Joyner–Halenda (BJH) mesoporous size distribution) of the (a) g-C₃N₄/TiO_2, (b) CuO/TiO₂, and (c) g-C₃N₄/TiO₂/CuO, respectively.

Table 1 Comparison photocatalytic H₂ production performance of relevant g-C₃N₄ and CuO-based heterojunction photocatalysts

Photocatalysts	Cocatalysts	Sacrificial agents	Light source (wavelength/nm)	Activity (μmol h^−1 g^−1)	Ref.
SiO2/g-C3N4/CdS QDs	None	Na2S and Na2SO3	Visible light	225.1	41
TiO2/g-C3N4	Pt	Methanol	450 W Xe lamp	74.7	42
g-C3N4/CdS	None	Lactic acid	300 W Xe lamp (λ > 400 nm)	392.84	43
g-C3N4/CeO2	Pt	Lactic acid	300 W Xe lamp (λ > 420 nm)	73	44
CuO/MoO3	None	Methanol	Visible light	98.5	45
CuO/CdS	None	Lactic acid	300 W Xe lamp (λ > 420 nm)	3317.5	46
CuO/ZnO	None	Na2SO4	Three tungsten lamps (200 W, 410–800 nm)	340	47
CuO/WO3/CdS	None	MB	300 W Xe lamp	44.5	48
CuO/Ag–TiO2	Ag	Methanol	450 W Hg lamp (200–800 nm)	180	49
g-C3N4/TiO2/CuO	None	Methanol	300 W Xe lamp	97.48	This work

---

Table 2 The pore characteristics of g-C₃N₄/TiO₂, CuO/TiO₂, and g-C₃N₄/TiO₂/CuO

Catalyst	Surface area (m^2 g^−1)	Vtotal (cm^3 g^−1)	Pore size (nm)
g-C3N4/TiO2	28.51	0.065	9.11
CuO/TiO2	6.34	0.012	7.35
g-C3N4/TiO2/CuO	3.38	0.009	10.71

---

3.5 H₂ production performance and gas sensitivity of different catalysts

The photocatalytic performances of g-C₃N₄, CuO, g-C₃N₄/TiO₂, CuO/TiO₂, and g-C₃N₄/TiO₂/CuO for H₂ production are revealed in Fig. 6. The CuO and g-C₃N₄ catalysts exhibit low hydrogen evolution rates of 13.33 and 6.01 μmol (g h)⁻¹, respectively. This is affected by the properties of CuO and g-C₃N₄. The combination of CuO or g-C₃N₄ with TiO₂ further improves the H₂ production rate to 53.56 μmol (g h)⁻¹ and 12.87 μmol (g h)⁻¹, respectively. The H₂ generation rate of the CuO/TiO₂ heterojunction catalyst is 4.0 times that of CuO, while g-C₃N₄/TiO₂ gives a hydrogen evolution rate of 2.1 times that of g-C₃N₄. The heterojunction would be a dominating factor for the promotion of H₂ production capacity. The photocatalytic performance of g-C₃N₄/TiO₂/CuO was further explored to inspect whether the double heterojunction can promote the H₂ generation capacity. As seen in Fig. 6, in the case of double-heterostructure construction, the H₂ evolution rate exhibits a palpable enhancement and obtains a first-rank value at g-C₃N₄/TiO₂/CuO (97.48 μmol (g h)⁻¹). Compared with g-C₃N₄/TiO₂ and CuO/TiO₂, the photocatalytic activity of g-C₃N₄/TiO₂/CuO for H₂ production is increased by 7.6 times and 1.8 times, respectively. In order to verify the commercial prospects of g-C₃N₄/TiO₂/CuO double-heterostructure photocatalyst, the hydrogen production performance of g-C₃N₄/TiO₂/CuO was compared with that of commercial P25 photocatalyst. The result show that the H₂ generation rate of the g-C₃N₄/TiO₂/CuO catalyst is 3.8 times that of P25. And the comparison photocatalytic H₂ production performance of relevant g-C₃N₄ and CuO-based heterojunction photocatalysts in recent years are exhibited in Table 1.

Fig. 6 (a) Photocatalytic H₂ production rate and (b) H₂ production histograms of CuO, g-C₃N₄, P25, g-C₃N₄/TiO₂, CuO/TiO₂, and g-C₃N₄/TiO₂/CuO.

Because of the excellent H₂ production ability of the g-C₃N₄/TiO₂/CuO catalyst, it is important to explore its cycle stability. As shown in Fig. 7, in the 24 h (4 continuous cycles) H₂ evolution process, the stability of the double-heterojunction g-C₃N₄/TiO₂/CuO photocatalyst decreases with the passage of time and the increase in cycle times. The hydrogen evolution rate decreases from 97.48 μmol (g h)⁻¹ in the first cycle to 60.05 μmol (g h)⁻¹ in the fourth cycle. After that, the H₂ generation rate of the g-C₃N₄/TiO₂/CuO catalyst basically stabilizes. We speculate that the reason for this outcome is the carbon deposition of the catalyst owing to strong light. Furthermore, the loss due to the catalyst being stirred to the inner wall of the reactor cannot be ignored. The above results indicate that the successful construction of double heterojunctions can effectively improve the photocatalytic functioning of H₂ production. Thus, promoting the stability of the g-C₃N₄/TiO₂/CuO catalyst and exploring the mechanism of the double heterojunction in the photocatalytic process of H₂ production are important issues.

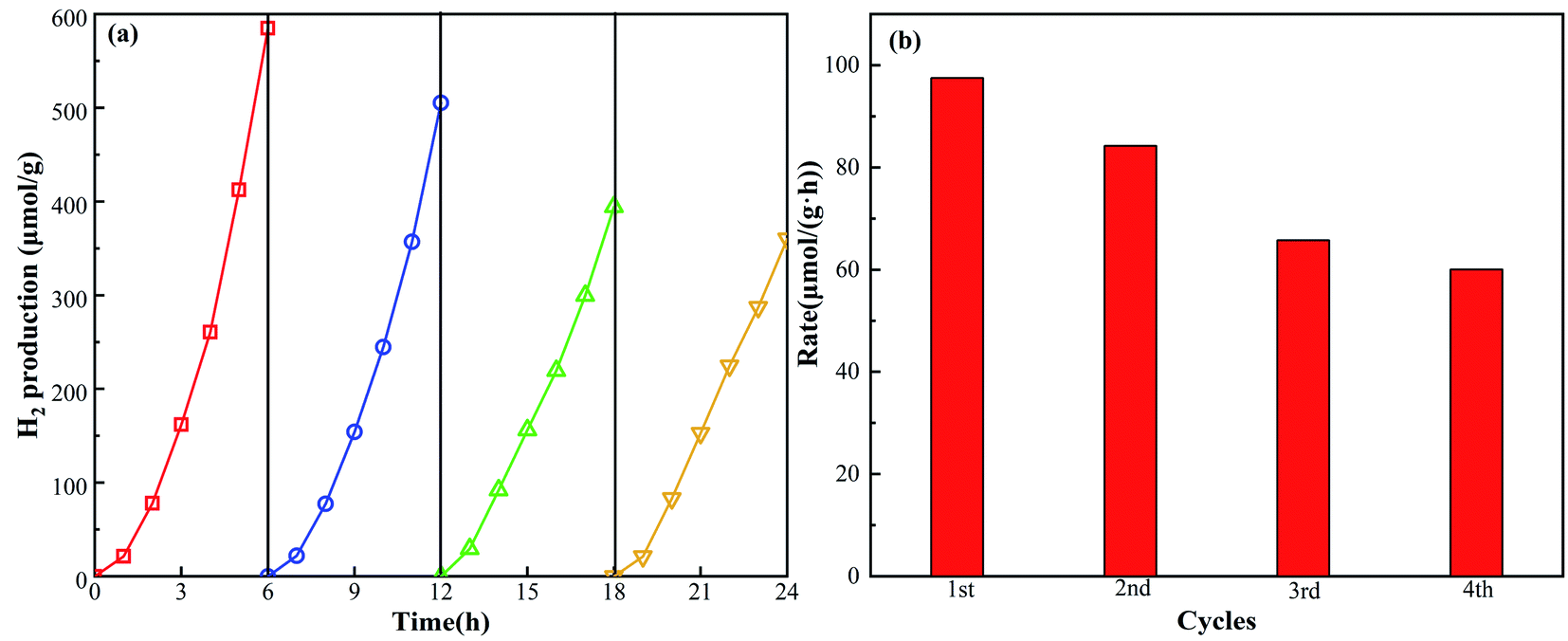

Fig. 7 (a) The cycle curve of the g-C₃N₄/TiO₂/CuO catalyst and (b) the histogram of the g-C₃N₄/TiO₂/CuO catalyst.

The double-heterojunction g-C₃N₄/TiO₂/CuO semiconductor was tested by ammonia sensitivity performance. As shown in Fig. 8, g-C₃N₄/TiO₂ has a very weak response to ammonia. Meanwhile, the response value of CuO/TiO₂ is also weak. The establishment of a double heterojunction significantly improves the response value of the g-C₃N₄/TiO₂/CuO semiconductor to ammonia. The maximum response value of g-C₃N₄/TiO₂/CuO to ammonia is approximately 1.9. The reasons for the improvement of ammonia sensitivity are summarized as electrical effects, synergistic effects and structural effects. The conductivity of the material is affected by the interface barrier formed by the heterojunction.⁵⁰ Heterojunctions are constructed for direct contact of each component to form synergistic effects.⁵¹

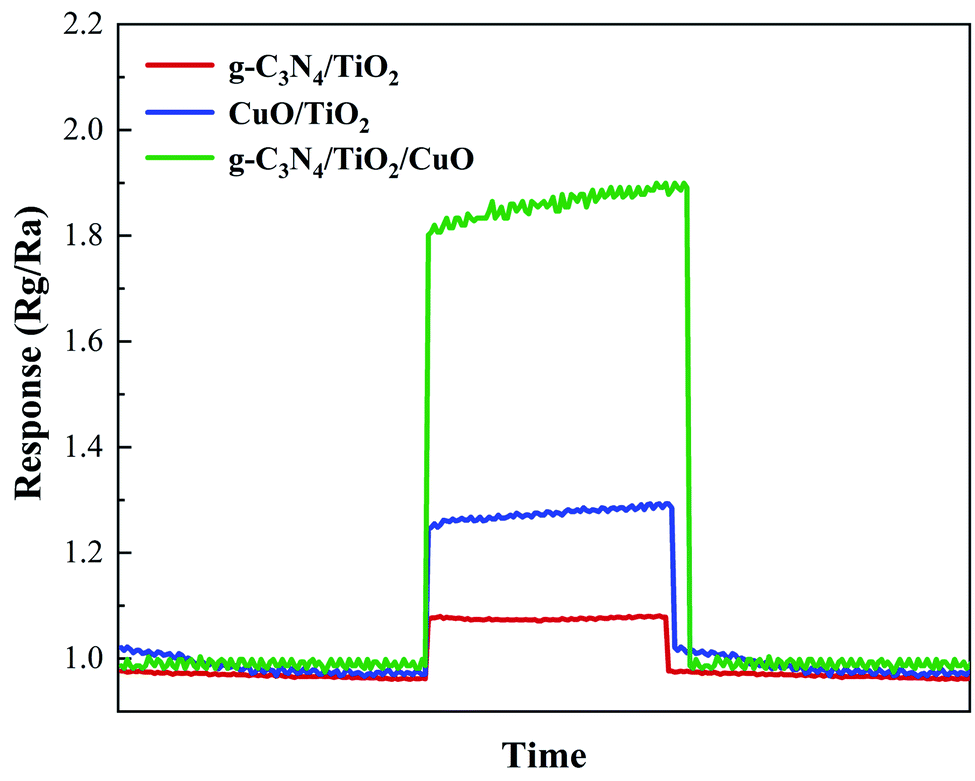

Fig. 8 Ammonia sensitivity performance test images of g-C₃N₄/TiO₂, CuO/TiO₂, and g-C₃N₄/TiO₂/CuO.

3.6 Analysis of electron hole recombination rate

Fig. 9(a) shows the UV-vis opical spectra of g-C₃N₄/TiO₂, CuO/TiO₂, and g-C₃N₄/TiO₂/CuO. As a result of introducing g-C₃N₄ with a narrow band gap, the absorption edge of g-C₃N_4/TiO₂ reaches nearly 460 nm. Due to the loading of CuO, the light absorption ranges of the CuO/TiO₂ and g-C₃N₄/TiO₂/CuO heterojunction catalysts are obviously widened, whose absorption edges are up to nearly 730 nm. The extension of the absorption edge in the visible range can be explained by surface plasmon resonance.⁵² Because of the d to d trajectory transition of Cu²⁺ in CuO NPs, it is more likely to prolong visible light absorption.⁵³ Moreover, compared with the CuO/TiO₂ catalyst, the g-C₃N₄/TiO₂/CuO catalyst further promotes the absorption of visible light. This also provides evidence for the inference that double heterojunctions are conducive to the improvement of catalyst performance. In addition, the band gap width of these synthetic photocatalysts can be calculated from the Tauc diagram.⁵⁴ In Fig. 9(b), the light absorption ranges of g-C₃N_4/TiO₂, TiO₂/CuO, and g-C₃N₄/TiO₂/CuO are 2.71, 1.50, and 1.38 eV, respectively. The introduction of a double heterojunction is conducive to modifying the band gap and broadening the optical absorption range. Obviously, the improvement of light absorption capacity is an important factor to improve H₂ evolution capacity.

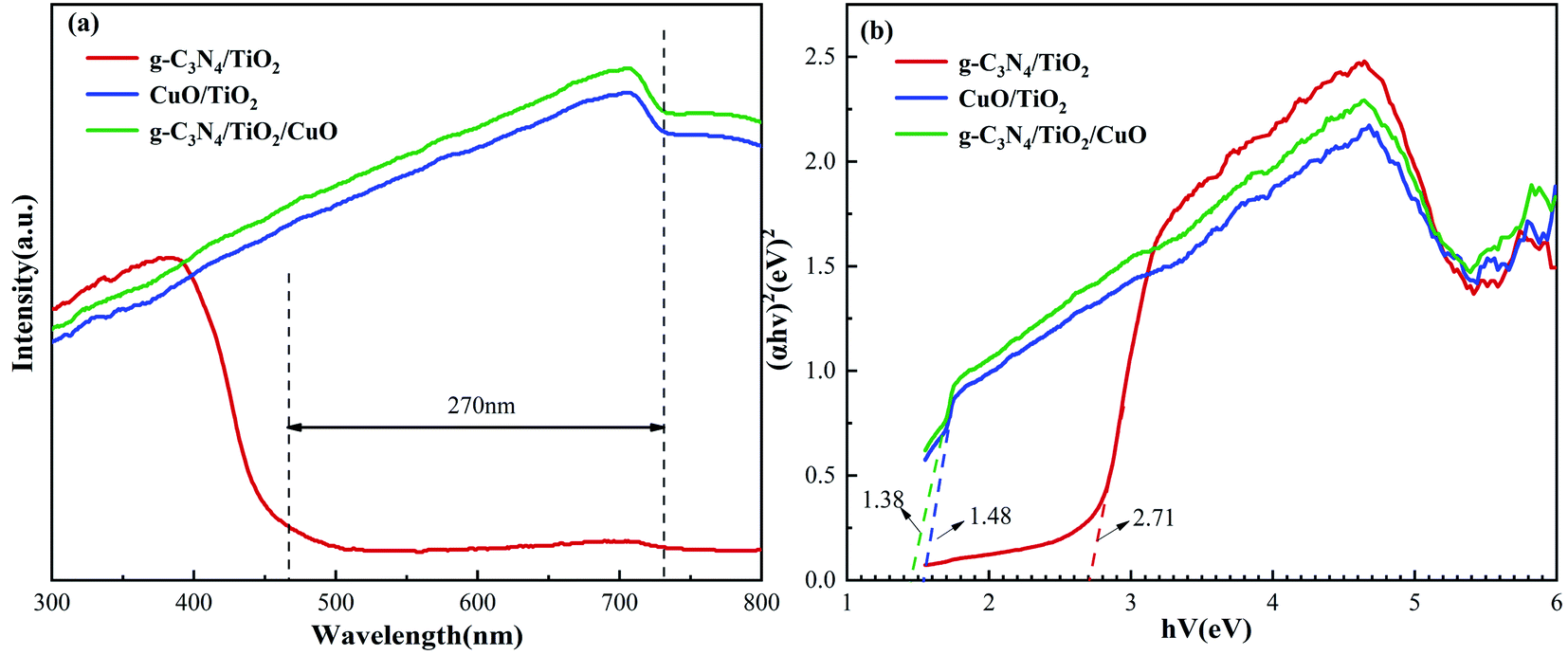

Fig. 9 (a) UV-vis absorption spectra and (b) transformed Kubelka–Munk functions of g-C₃N₄/TiO₂, CuO/TiO₂, and g-C₃N₄/TiO₂/CuO.

The separation of photogenerated electron holes and the transfer of electrons are significant factors to evaluate photocatalytic activity. Fig. 10(a) shows the PL spectra of the g-C₃N₄/TiO₂, CuO/TiO₂, and g-C₃N₄/TiO₂/CuO samples. The separation efficiency of photogenerated electron holes can be verified from the figure. The PL intensity of g-C₃N₄/TiO₂/CuO is clearly lower than that of g-C₃N₄/TiO₂ and CuO/TiO₂, which means a lower electron–hole recombination of g-C₃N₄/TiO₂/CuO. This result further confirms that the g-C₃N₄/TiO₂/CuO double heterojunction is successfully constructed. As shown in Fig. 10(b), during the instantaneous photocurrent test process, when the light source is turned off, it immediately returns to the initial state. The process can be repeated, which means the excellent structural stability of the catalyst.⁵⁵ Moreover, the transient photocurrent density of g-C₃N₄/TiO₂/CuO is 2.0 times higher than that of g-C₃N₄/TiO₂ and 1.3 times higher than that of CuO/TiO₂. This is mainly because the ternary heterojunction structure effectively promotes electron charge separation and improves light absorption.⁵⁴ The density and transfer velocity of photogenerated electrons are increased. Therefore, the increase in photocurrent can be mainly due to effective photogeneration, separation, and transfer. Which is conducive to photocatalysis process.

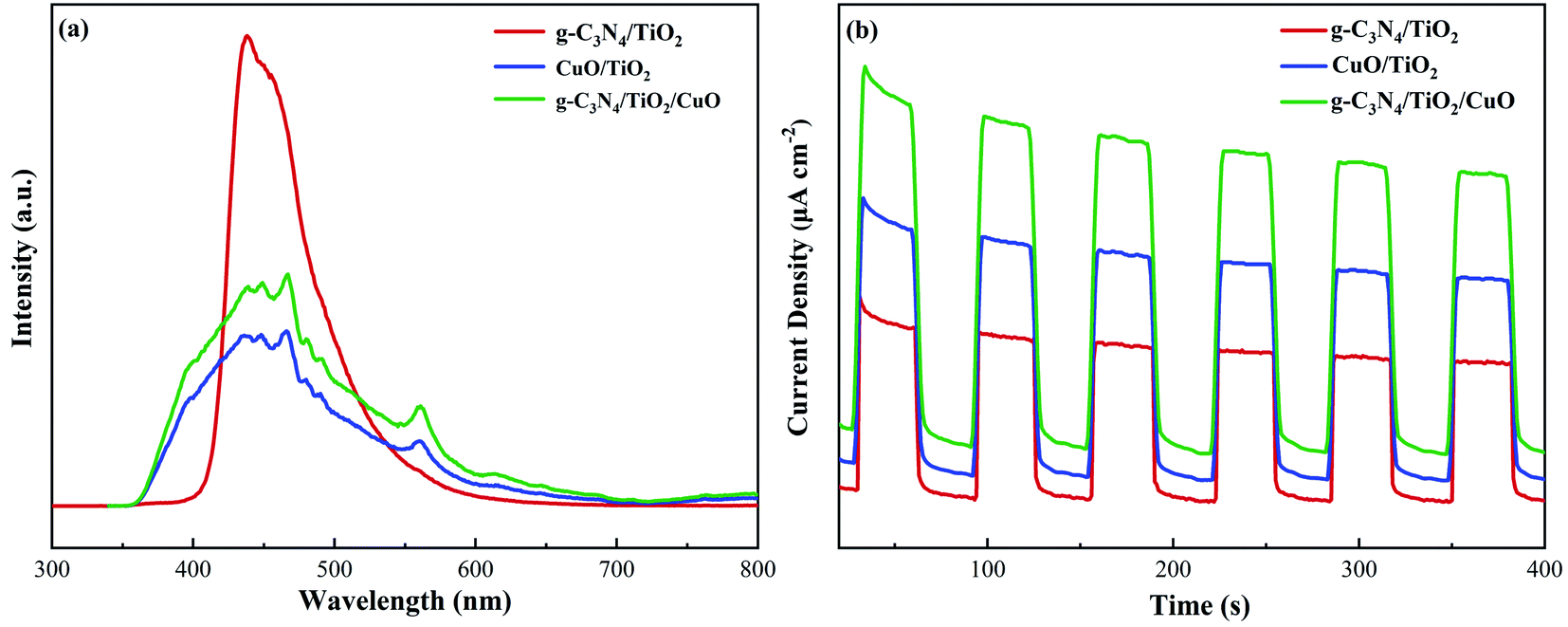

Fig. 10 (a) PL emission spectra and (b) transient photocurrent spectra of g-C₃N₄/TiO₂, CuO/TiO₂, and g-C₃N₄/TiO₂/CuO.

3.7 Explanation of electron trajectory by S-scheme

Fig. 11 exhibits the H₂ production mechanism of the g-C₃N₄/TiO₂/CuO photocatalyst in water–methanol. The double p–n heterostructure of g-C₃N₄/TiO₂/CuO was constructed to ensure high electron mobility. The recombination rate of electron hole pairs is reduced, and the H₂ evolution rate is increased. The visible light is first absorbed by the surface layer of the g-C₃N₄ material. Then, the g-C₃N₄ layer is penetrated by visible light to compel electrons that jump from the VB to CB. When the incident light becomes scattered light, it will refract between the g-C₃N₄ and TiO₂ layers owing to the existence of a protective layer. Meanwhile, the CuO material will produce an electron resonance swing effect owing to light excitation and then generate electron hole pairs via Landau damping attenuation. As shown in Fig. 11, we can explain the trajectory of electron–hole pairs between semiconductors by the S-scheme. The band edge locations of the g-C₃N₄, TiO₂ and CuO catalysts are determined by the empirical formula E_CB = χ − E_e − 0.5. Where E_CB is the edge energy of CB, E_e is the free electron potential (∼4.5 eV),⁵⁶ and χ indicates the Mulliken absolute electronegativity of atomic components. For instance, g-C₃N₄ = χ ∼4.72 eV, CuO = χ ∼5.81 eV, and TiO₂ = χ ∼5.81 eV.⁵⁷ Eventually, the E_CB values of g-C₃N₄, TiO₂ and CuO are −1.13, −0.29 and 0.65 eV, respectively. Likewise, E_VB is the edge potential of the VB, and the calculation formula is E_VB = E_CB + E_g.⁵⁶ E_g is the bandgap energy of the as-defined semiconductor (g-C₃N₄ = 2.7 eV, E_g of TiO₂ = 3.2 eV, and E_g of CuO = 1.32 eV), so the E_CB values of g-C₃N₄, TiO₂ and CuO are 1.57, 2.91, and 1.97 eV, respectively.

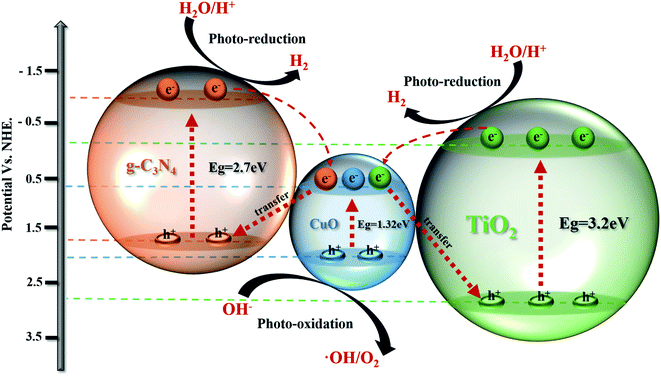

Fig. 11 Illustration of the photocatalytic H₂ production mechanism of g-C₃N₄/TiO₂/CuO.

Based on the above discussions, the CB of CuO is higher than that of g-C₃N₄ and TiO₂, which means that some electrons may migrate from the CB of g-C₃N₄ and TiO₂ to the CB of CuO. Then, the electrons of CuO are drivably transferred to the VB of TiO₂ and g-C₃N₄ based on the S-scheme mechanism.²⁵ The S-scheme heterojunction consists of reduction photocatalysts (RP, high CB and VB positions) and oxidation photocatalysts (OP, low CB and VB positions) with staggered band structures. RP has a smaller work function than OP, which leads to the spontaneous migration of electrons in RP to OP by van der Waals forces. An electron depletion layer is formed near the RP interface, resulting in its positive charge. Similarly, an electron stacking layer is formed near the OP interface, resulting in its negative charge. Meanwhile, RP and OP generate an internal electric field that accelerates the transfer of photon-generated carrier. In the S-scheme, the electrons stored in the CB of RP are reduced, and the holes in the VB of OP are oxidized. The S-scheme retains the strong redox ability of the photocatalysts, which is attributed to partly meaningless electron–hole recombination.⁵⁸ The Fermi energy of OP and RP should correspond to the same energy level to achieve the balance of the Fermi energy level. The photogenerated electrons in the CB of OP are shifted to combine with holes in the VB of RP by band bending and Coulomb force. In the g-C₃N₄/TiO₂/CuO ternary catalyst, TiO₂ and g-C₃N₄ are used as RP and CuO as OP. Here, CuO acts as an electron acceptor and plays a bridging role. CuO not only functions as a structural defect to capture electrons but also plays an electronic medium role to promote electron–hole pair separation. These electrons will remain in the VB of g-C₃N₄ and TiO₂ and combine with their holes. This facilitates the separation of original electron hole pairs on g-C₃N₄ and TiO₂, thus improving the H₂ production rate of the material.

4. Conclusion

A novel ternary heterostructure g-C₃N₄/TiO₂/CuO photocatalyst was successfully developed and used in water–methanol for hydrogen evolution under visible light irradiation. Benefiting from the synergistic effect of the S-scheme and the double p–n heterostructures, g-C₃N₄/TiO₂/CuO photocatalyst presented considerable H₂ generation performance. Based on the S-scheme, the electrons in the CB of CuO and the holes in the VB of g-C₃N₄ and TiO₂ are recombined. Useless electrons and holes are recombined. Band bending, internal electric field, and Coulomb attraction are the main factors that trigger this phenomenon. This study further explained the mechanism of the S-scheme, and the ternary catalyst provides an idea for further design and synthesis with a low electron–hole recombination rate and strong redox properties. We believe that more efforts should be made to improve the stability of photocatalysts in order to obtain better performance of hydrogen production. At the same time, the preparation of small particle size, high specific area and excellent morphology of the photocatalysts are the next step forward direction.
