Solution- and gas-phase behavior of decavanadate: implications for mass spectrometric analysis of redox-active polyoxidometalates

Abstract

Decavanadate (V₁₀O₂₈⁶⁻ or V10) is a paradigmatic member of the polyoxidometalate (POM) family, which has been attracting much attention within both materials/inorganic and biomedical communities due to its unique structural and electrochemical properties. In this work we explored the utility of high-resolution electrospray ionization (ESI) mass spectrometry (MS) and ion exclusion chromatography LC/MS for structural analysis of V10 species in aqueous solutions. While ESI generates abundant molecular ions representing the intact V10 species, their isotopic distributions show significant deviations from the theoretical ones. A combination of high-resolution MS measurements and hydrogen/deuterium exchange allows these deviations to be investigated and interpreted as a result of partial reduction of V10. While the redox processes are known to occur in the ESI interface and influence the oxidation state of redox-active analytes, the LC/MS measurements using ion exclusion chromatography provide unequivocal evidence that the mixed-valence V10 species exist in solution, as extracted ion chromatograms representing V10 molecular ions at different oxidation states exhibit distinct elution profiles. The spontaneous reduction of V10 in solution is seen even in the presence of hydrogen peroxide and has not been previously observed. The susceptibility to reduction of V10 is likely to be shared by other redox active POMs. In addition to the molecular V10 ions, a high-abundance ionic signal for a V₁₀O₂₆²⁻ anion was displayed in the negative-ion ESI mass spectra. None of the V₁₀O₂₆ cations were detected in ESI MS, and only a low-abundance signal was observed for V₁₀O₂₆ anions with a single negative charge, indicating that the presence of abundant V₁₀O₂₆²⁻ anions in ESI MS reflects gas-phase instability of V₁₀O₂₈ anions carrying two charges. The gas-phase origin of the V₁₀O₂₆²⁻ anion was confirmed in tandem MS measurements, where mild collisional activation was applied to V10 molecular ions with an even number of hydrogen atoms (H₄V₁₀O₂₈²⁻), resulting in a facile loss of H₂O molecules and giving rise to V₁₀O₂₆²⁻ as the lowest-mass fragment ion. Water loss was also observed for V₁₀O₂₈ anions carrying an odd number of hydrogen atoms (e.g., H₅V₁₀O₂₈⁻), followed by a less efficient and incomplete removal of an OH˙ radical, giving rise to both HV₁₀O₂₆⁻ and V₁₀O₂₅⁻ fragment ions. Importantly, at least one hydrogen atom was required for ion fragmentation in the gas phase, as no further dissociation was observed for any hydrogen-free V10 ionic species. The presented workflow allows a distinction to be readily made between the spectral features revealing the presence of non-canonical POM species in the bulk solution from those that arise due to physical and chemical processes occurring in the ESI interface and/or the gas phase.

---

Polyoxidometalates (POMs) are a unique class of polynuclear inorganic compounds, which are mostly composed of transition metal and oxygen atoms, although other atoms (such as phosphorus and silicon) may also be involved.¹ POMs are frequently viewed as the “missing link” between the single-molecule and the bulk material scales.² Apart from their obvious importance for the field of mesoscopics and helping understand how the physical properties of materials are determined by the chemical properties of constituent molecules, POMs continue to enjoy considerable attention in fields as diverse as catalysis,³ electronics^4,5 and medicine.^6–8 Decavanadate (V₁₀O₂₈⁶⁻, or V10) is one particularly interesting member of the POM family, which had been shown to interact with a variety of biomolecules in vivo, eliciting a range of biological effects that are distinct from those typically associated with smaller oxidovanadate species.⁹ Despite being a focus of extensive research efforts in the past two decades, several aspects of V10 structural and chemical properties remain incompletely understood. As is the case with many other POMs, V10 can interconvert between multiple species in solution, but the mechanisms of such processes (which likely include an intricate interplay of acid–base and redox chemistry) remain elusive. For example, the existence of a partially reduced V10 species (V₁₀O₂₆⁴⁻) has been reported based on spectroscopic measurements,¹⁰ but never confirmed independently. Likewise, the proton association with V10 species in solution and the hydrogen bonding phenomena have been shown to play important roles in dissociation/association of this paradigmatic member of the POM family.¹¹ Lastly, the notion of the low-energy metastable configurations of V10 (distinct from its crystal structure¹²) has been invoked to explain several phenomena related to its interaction with the solvent.^13,14

The majority of work on V10 (as well as other POMs) characterization has been traditionally carried out using X-ray crystallography in the solid state and spectroscopic methods in solution. While the former provides atomic-level structural data for stable POM molecules, it is insensitive to those species that are present in solution in minute quantities or become populated only transiently. In contrast, NMR can be used to speciate heterogeneous populations of POMs. The natural abundance of the ¹⁷O isotope and the NMR activity of many metal centers allow for facile application of the technique to a wide array of POMs. However, the atomic-level resolution afforded by the NMR is frequently insufficient for complete characterization of distinct ensembles of POMs that may co-exist in solution. Indeed, while the state of a single atom and its unique chemical environment can be monitored with unprecedented precision using NMR, grouping such states together to yield distinct molecular states is not straightforward.

In comparison to X-ray crystallography and NMR, mass spectrometry (MS) has played a less prominent role in characterization of POMs, even though the initial application of MS in this field dates back nearly four decades ago.¹⁵ Introduction of electrospray ionization (ESI) and, to a lesser extent, matrix-assisted laser desorption/ionization (MALDI) provided further impetus to developing robust MS-based methods to characterize a variety of POMs,^16–19 including polyoxidovanadates.²⁰ In many ways, MS offers an attractive alternative for the analysis of POMs compared to the traditional approaches, as it enables POMs speciation in solution and allows oxidation states to be distinguished from one another. At the same time, the possibility of ion fragmentation occurring in the gas phase raises the concern of introducing artifacts in MS-based POM speciation measurements. Likewise, the frequent occurrence of electrochemical processes within the liquids being electrosprayed²¹ may cast doubt on the validity of oxidation state profiling obtained with ESI MS. In fact, the complete elimination of interfering redox processes may require the use of complicated setups and extensive front-end modification of commercial MS equipment.²² The main goal of this work was to evaluate and illustrate the utility of high-resolution MS for characterization of both structure and chemistry of decavanadate species in aqueous solutions with a particular emphasis on exploring both similarities and differences between V10 behavior in the bulk solution and in the solvent-free environment.

In addition to its obvious importance vis-a-vis validation of the ESI MS-based methods of POM structural analysis, the juxtaposition of the solution- and gas-phase behavior for this class of analytes may provide important insights into the POMs/solvent interactions (and, by extension, the phenomena occurring at the insoluble metal oxide/water interface). For example, previous computational studies have indicated that the presence of hydrogen at an oxometallate surface facilitates the abstraction of oxygen from the surface.²³ Oxygen abstraction from polyoxidovanadate clusters has also been shown to be triggered by partial reduction of the latter,²⁴ although no distinct partially reduced species could be detected; instead, their existence was inferred from the spectroscopic data. MS is unique in that it allows such species to be detected even if they account only for a minor fraction of the entire ensemble of molecules present in solution. In this work we use high resolution MS as an on-line detection tool for ion exclusion chromatography to provide conclusive evidence that multiple partially reduced V10 species exist in solution alongside the canonical (fully oxidized) V10 prior to the MS measurement. These reduced species accommodate a larger number of protons during the ESI process, leading to formation of ions that readily dissociate via a facile loss of water molecules and, to a lesser extent, OH^· radicals, thus mirroring processes that were previously hypothesized to take place in solution.

Experimental section

Materials

The decavanadate samples in the form of (NH₄)₆V₁₀O₂₈, Na₆V₁₀O₂₈ and K₄Na₂V₁₀O₂₈ salts were prepared using a procedure described elsewhere^25,26 and the speciation was characterized using ⁵¹V NMR and absorbance spectroscopy.²⁷ Hydrogen peroxide (H₂O₂) and heavy water (²H₂O) were purchased from Millipore-Sigma (St Louis, MO). All other solvents and buffers used in this work were of analytical grade or higher.

Methods

All MS measurements were carried out using a SolariX 7 (Bruker Daltonics, Billerica, MA) hybrid quadrupole-Fourier transform ion cyclotron resonance mass spectrometer equipped with a standard electrospray ionization source. V10 samples were dissolved in a 5 mM aqueous solution of ammonium acetate whose pH was adjusted with formic acid to 4.85 ± 0.15. Final decavanadate concentrations were 1 mM (negative ion mode) or 0.1 mM (positive ion mode). Decavanadate was typically kept in solution for 30 min prior to MS analysis. The ESI source conditions and ESI MS interface ion optics parameters were optimized to produce abundant signal in the 400–1100 m/z; the typical settings in the negative ion mode were as follows: ESI capillary, 3800 V; end plate offset, 500 V; nebulizer, 1.6 bar; dry gas, 4.0 L min⁻¹; dry temperature, 150 °C; capillary exit, −180 V; deflector plate, −180 V; funnel 1, −150 V, skimmer 1, −10 V; funnel RF amplitude, 200 V_p–p. External calibration was used to determine ionic masses in mass spectra acquired in the broad-band mode for both positive and negative ions. Post-calibration mass accuracy was determined to be at least ±3 ppm throughout the entire 200–1200 m/z region. Internal calibration was used for mass measurements in the narrow-band mode, providing mass accuracy of at least 0.3 ppm. Theoretical isotopic distributions of ionic species and accurate masses of relevant isotopologues were calculated using a web-based tool at https://www.sisweb.com/mstools/isotope.htm. Fragment ion spectra were obtained by mass-selecting precursor ions of interest in the front-end quadrupole (mass selection window 3.0 m/z units unless specified otherwise) followed by their activation in the collision cell using argon as a collision gas. Ion exclusion LC and LC-MS measurements were carried out with an Agilent 1100 (Agilent Technologies, Santa Clara, CA) HPLC system using a 4.1 mm × 250 mm PRP-X300 (Hamilton Co., Reno, NV) ion exclusion column. The mobile phase consisted of 30 mM triethylamine, 100 mM ammonium acetate and 0.8% formic acid. The UV detection of V10 was based on the absorbance at 254 nm. On-line LC-MS measurements were carried out by directing the eluate flow off the column directly to the ESI source of the mass spectrometer without splitting.

Results and discussion

V10 (in a variety of protonation states) is the predominant vanadium species in moderately concentrated (>1 mM) and mildly acidic (3 ≤ pH ≤ 6) aqueous solutions, but it readily converts to other oxo-forms (e.g., VO₄³⁻/HVO₄²⁻ at basic pH, V₄O₁₂⁴⁻/H₂VO₄⁻ at neutral pH, or VO_3̄/HVO₃ upon dilution).^28,29 Although these and other smaller vanadates are expected to be present in lower quantities at mildly acidic pH as well, the negative ion mass spectrum of Na₆V₁₀O₂₈ acquired at pH 4.7 (Fig. 1) shows only two oxidovanadate species in the low-m/z region of the mass spectrum, V₆O₁₆²⁻ and (H/Na)V₄O₁₁⁻. Outside of this region, the mass spectrum is dominated by two clusters of abundant ions with distinct charge states: a group of singly charged ions (m/z region 950–1100) and the doubly charged ones (m/z 450–550). The nominal masses of the most abundant peaks in each cluster indicate that these two species (H₅V₁₀O₂₈⁻ and H₄V₁₀O₂₈²⁻) are produced by partial balancing of the net charge of the presumed most abundant V10 species in solution (V₁₀O₂₈⁶⁻, HV₁₀O₂₈⁵⁻ and H₂V₁₀O₂₈⁴⁻) with “extra” protons or ubiquitous alkali metal cations upon electrospraying. This behavior is similar to the ESI production of the moderately-charged species representing high charge-density organic polyelectrolytes, such as heparin oligomers.³⁰

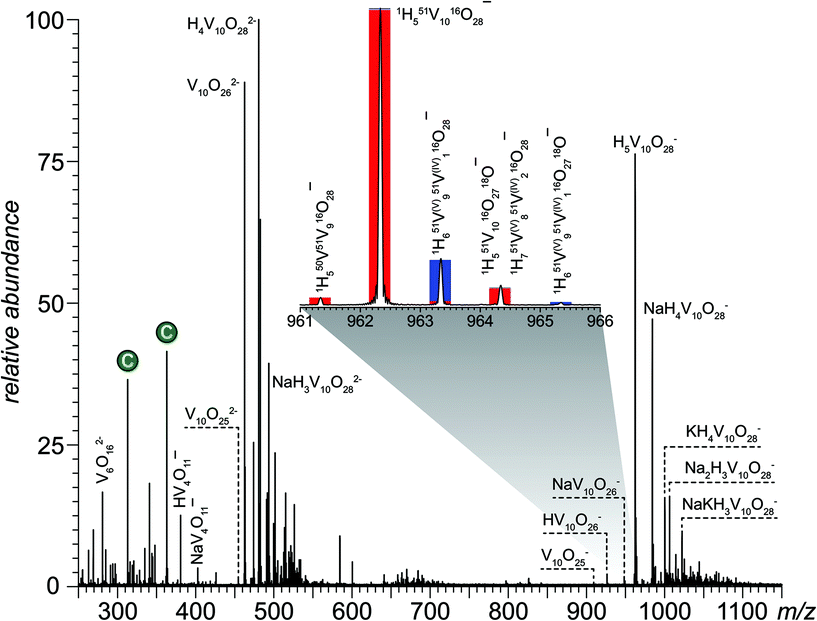

Fig. 1 ESI mass spectrum of a 1 mM aqueous solution of sodium V10 in 5 mM ammonium acetate (pH adjusted to 4.7). The inset shows the isotopic distribution of the most abundant mono-anionic species (black trace) and the calculated isotopic distributions for the fully oxidized species (H₅V₁₀O₂₈⁻, red bars) and a partially reduced one (H₆V₁₀O₂₈⁻, blue).

It is now commonly accepted that the extent of protonation (and, more broadly, multiple charging in general) of polyprotic acids in ESI MS does not reflect the acid–base equilibria in solution, but is instead dictated by the physical size of the analyte.³¹ Consistent with this notion, V10 generates abundant ionic signal in the positive-ion ESI MS as well, where it is represented by H_(7−n−k)Na_nK_kV₁₀O₂₈⁺ (n, k = 0–4) ions (see ESI† for more detail).

While the extent of protonation of the dominant V10 ionic species in ESI MS cannot be related to the acid/base equilibria in solution, the total charge accommodated by these ions in both negative- and positive ion modes is consistent with the notion of all metal ions being fully oxidized (i.e., charge state +5). Indeed, the most abundant peak in the isotopic distribution of the mono-anionic V10 species m/z region 961–966 can be confidently assigned as the most abundant isotopologue of H₅V₁₀O₂₈⁻ (the calculated mass for ¹H₅⁵¹V₁₀¹⁶O₂₈⁻ is 962.3369, a value that is within 0.2 ppm of the measured mass). The lowest-mass detectable monoisotopic peak of the H₅V₁₀O₂₈⁻ species (m/z 961.3373) can also be readily assigned as ¹H₅⁵⁰V⁵¹V₉¹⁶O₂₈⁻ (calculated mass 961.34031, and the intensity ratio of these two isotopologues (which we will term M and M − 1, respectively) is in excellent agreement with the known ⁵¹V : ⁵⁰V natural abundance ratio (the theoretical isotopic distribution of the H₅V₁₀O₂₈⁻ is represented with red bars in the inset in Fig. 1). However, the abundance of the third isotopologue in this distribution (M + 1, measured m/z 963.3443) appears anomalously high, exceeding the expected contribution of ¹H₅⁵¹V₁₀¹⁷O¹⁶O₂₇⁻ by more than an order of magnitude. Furthermore, the spacing between the M + 1 and M species (1.0071) shows a significant deviation from the mass difference between the ¹⁶O and ¹⁷O isotopes (1.0042), but is reasonably close to the hydrogen atom mass (1.0078). Therefore, this species was tentatively assigned as ¹H₆⁵¹V^(V)₉⁵¹V^(IV)₁¹⁶O₂₈⁻, which represents a partially reduced decavanadate, where an extra proton is needed in order to keep the overall single net charge of the anion (compensating for the lost positive charge on one of the metals). Such satellite species are observed for all other reasonably abundant anions containing the decavanadium core, and their mass shifts in ²H₂O solutions (vide infra) confirm the presence of an “extra” hydrogen atom, lending strong support to the notion of partial V10 reduction.

It is worth noting that the partially reduced V10 species (see the inset in Fig. 1) are present in all V10 samples examined in this work, regardless of the nature of the counterion (Na⁺, K⁺ or NH₄⁺, see ESI† for more detail). The relative abundance of the partially reduced species shows some variations among different V10 samples with distinct counter-ions, and even within the same sample temporal variations in the intensity ratios of the M and M + 1 species are apparent (data not shown). In many instances, low-intensity ionic signal was also observed for V10 species where more than a single reduction event takes place (e.g., H₇V^(V)₈V^(IV)₂O₂₈⁻ and H₈V^(V)₇V^(IV)₃O₂₈⁻ incorporating two and three vanadium atoms in oxidation state IV, respectively, to ensure the charge balance). Such seemingly random variations naturally lead to a suggestion that the partial reduction occurs during the ESI process, a phenomenon that has been documented for a range of redox-active species in the past.³² Furthermore, the observation of the partially reduced V10 species in the mass spectra of V10 acquired in the presence of hydrogen peroxide in solution appears to lend further support to the notion of the ESI-driven redox processes being responsible for the partial reduction of these POM assemblies. Should the partial reduction take place in the ESI source, it would be reversed by simply switching the polarity of the ion source. However, examination of the V10 mass spectra acquired in the positive-ion mode also reveals the presence of the partially reduced V10 species, such as NaH₇V₁₀O₂₈⁺ (see ESI†), contradicting the notion of V10 partial reduction being an ESI artifact.

To obtain definitive evidence with regards to the origin of the partially reduced V10 species, ion exclusion chromatography (IEC) with on-line ESI MS detection was used. IEC is a mixed-mode chromatographic modality, in which differential exclusion of weak electrolytes from the anionic resin pores is used as a physical principle enabling analyte separation.³³ Although in the past IEC has been applied almost exclusively to separation of weak organic acids (based on their sizes and pK_a values³⁴), it can be used for separation of inorganic anions as well.^35,36 Since V10, as well as many smaller vanadates, are weak acids, we hypothesized that it may be possible to achieve their retention on IEC. Furthermore, partial reduction of V10 in solution should have an effect on the pK_a values, and unless the redox equilibria are too fast on the chromatographic time scale (e.g., the H₅V^(V)₁₀O₂₈⁻ ⇌ H₆V^(IV)V^(V)₉O₂₈⁻ ⇌ H₇^(IV)V₂^(V)V₈O₂₈⁻ interconversion occurs within <1 min), it should be possible to achieve chromatographic separation of V10 species at different oxidation states. In contrast, if the partial reduction of V10 is triggered by electrochemical processes in the ESI source, no separation of the V10 species at different oxidation states would be possible with IEC. Unfortunately, achieving efficient retention of V10 with IEC is not straightforward, as the principal species for the canonical, fully oxidized form of this POM in the pH range of interest are H₂V₁₀O₂₈⁴⁻ and HV₁₀O₂₈⁵⁻, while the pK_a value of the fully protonated (electrically neutral) V10 species is significantly below 1 (and possibly below 0).³⁷ This means that V10 retention on anionic resins is very ineffective, unless an appropriate ion pairing reagent is identified. Indeed, our initial attempts to achieve V10 retention with an IEC column failed until triethylamine (TEA) was selected as an ion pairing agent. The elution time of V10 off the IEC column in the presence of 30 mM TEA was equivalent to application of 3 column volumes of the eluent.

Importantly, the extracted ion chromatograms (XICs) recorded for the individual monoisotopic peaks representing H_5+nV₁₀O₂₈⁻ for n = 0–3 clearly show incongruent elution profiles (Fig. 2). These chromatograms provide clear and conclusive evidence of the solution phase origin of the partially reduced species. Furthermore, this observation also indicates that the interconversion rate among the V10 species at different oxidation states in solution is relatively low, allowing at least partial chromatographic separation to be achieved on a time scale exceeding 10 min. Indeed, the elution profiles of chemically reactive species that are at dynamic equilibrium during the elution process are very sensitive to the kinetics of the interconversion reactions, yielding a single unresolved peak in the case of fast equilibria and allowing separation of the reactants only for systems with slower kinetics.^38,39 The significant overlap of the elution profiles of different V10 species shown in Fig. 2 would yield an unresolved asymmetric peak should UV absorption be used as the only means of the analyte detection. However, the unique ability of MS to distinguish the species of interest by examining the corresponding XICs allows kinetic analysis to be carried out in situations when the normal methods of detection (such as UV absorbance) fail, as was recently demonstrated for on-column association/dissociation equilibria of large protein complexes.⁴⁰ The elution order of the four ionic species representing different oxidation states of V10 correlate with the extent of oxidation (with the fully oxidized V10 exhibiting the most efficient retention), in line with the expectation that the higher electron density (the result of partial reduction) disfavors the POM interaction with the anionic resin. Another intriguing feature revealed by the XICs shown in Fig. 2 is the apparent correlation between the oxidation state of V10 and the peak shape. Both peak widths (measured at half-maximum) and the extent of tailing of the four XICs follow the order H₅V^(V)₁₀O₂₈⁻ ≫ H₆V^(IV)V^(V)₉O₂₈⁻ ≫ H₇V^(IV)₂V^(V)₈O₂₈⁻ ≈ H₈V^(IV)₃V^(V)₇O₂₈⁻. The XIC shapes of reactive analytes in dynamic systems can be used to extract the rates of relevant reactions,⁴⁰ and even though such a task is beyond the scope of this work, these calculations can be performed in the future to determine the rates of V10 partial reduction and re-oxidation.

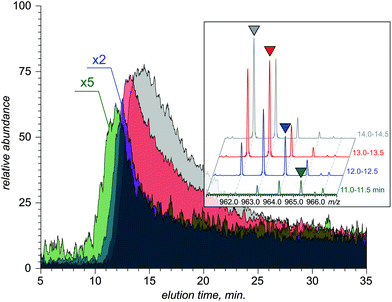

Fig. 2 Extracted ion chromatograms representing the fully oxidized V10 (gray) and the partially reduced species incorporating one (red), two (blue) and three (olive) metal atoms at oxidation state IV obtained using ion exclusion LC with on-line MS detection. The inset shows the evolution of the ionic signal within the m/z window 961–967 as a function of elution time.

In addition to the partial reduction of the molecular ions, another unexpected feature of the V10 mass spectra acquired in the negative ion mode is the presence of prominent ions representing neutral H₂O (and, to a significantly lesser extent, OH) loss from the molecular ions (Fig. 1). Intriguingly, while the V₁₀O₂₆²⁻ ion consistently appears nearly equi-abundant to the doubly charged molecular V10 ion, its singly-charged counterpart (HV₁₀O₂₆⁻) is only a minor feature in the mass spectrum of V10. Furthermore, it is the loss of two water molecules that gives rise to these oxygen-deficient V10 anions. Oxygen loss from smaller oxidovanadates (such as V6) has been reported in the past,²² although the proposed scenario invoked a removal of a single oxygen atom from the metal oxide cluster upon addition of V(Mes)₃THF in dichloromethane, leaving behind a reactive V^(III) within the molecule (inconsistent with the results of this work, where the most abundant signal in the isotopic clusters of V₁₀O₂₆²⁻ and HV₁₀O₂₆⁻ represents the fully oxidized species). Earlier molecular modeling studies carried out with large oxidovanadate clusters (V20) concluded that it was the protonation of the surface oxygen atoms that weakened their interaction with the neighboring metal atoms and facilitated their removal from the cluster.²³

Although it might be tempting to conclude that the H₂O/OH loss from V10 clusters observed in our work takes place in solution, one must remember that the extent of protonation of V10 molecular species generated by ESI is significantly higher compared to that in solution (vide supra). Therefore, it is possible that the water abstraction process occurs in the gas phase, rather than in solution. In order to investigate the origins of oxygen-deficient V10 species, tandem MS measurements were carried out on several molecular species of V10 using low-energy collisional excitation (Fig. 3). All parent ions displayed a remarkable degree of instability, with fragmentation ensuing immediately upon the precursor ion isolation even before any additional collisional activation is applied. Low-energy collisional activation results in robust dissociation of all precursor ions, giving rise to the oxygen-deficient species, all of which had been observed in the mass spectrum of V10 prior to fragmentation. Interestingly, the isotopic distributions of the surviving precursor ions no longer show the presence of the partially reduced V10 species carrying “extra” hydrogen atoms (e.g., see the right-hand-side inset in Fig. 3), which appear to be particularly vulnerable to collisional activation. In fact, it is the gas-phase dissociation of such partially reduced species that give rise to the “terminal” fragmentation products in Fig. 3, e.g. V₁₀O₂₅²⁻, which appears to be generated as follows:

Fig. 3 Low-energy CAD mass spectra of H₄V₁₀O₂₈²⁻ (red trace), H₅V₁₀O₂₈⁻ (brown) and NaH₄V₁₀O₂₈⁻ (blue) acquired by placing the most abundant isotopologue of each species in the center of a 3-m/z unit wide mass selection window and applying low (5 V) collisional activation. The dotted lines show positions of the three precursor ions, and the stars represent the FT harmonics. The insets show isotopic distributions of the surviving precursor ions (right) and the “terminal” fragment ion, V₁₀O₂₅⁻ (left). The precursor ion isolation window highlighted in orange and the black traces represent isotopic distributions of these ions in MS1.

The ease of generating the oxygen-deficient V10 ions (V₁₀O₂₆²⁻ in particular) provides strong evidence that they are MS artifacts. Further increase of collisional activation energy results in a dramatic expansion of the fragment ion repertoire by breaking the metal framework of the V10 cluster and giving rise to abundant V4 and V5 and less abundant V3 and V6 species (see ESI† for more detail), only one of which is observed in the original mass spectrum of V10 (vide infra).

Although the mass spectrum of V10 is dominated by decavanadate anions, two smaller (and lower-abundance) oxidovanadate species, V₆O₁₆²⁻ and (H/Na)V₄O₁₁⁻ are detected as well (Fig. 1). While one of them (HV₄O₁₁⁻) can be produced upon collisional activation of H₄V₁₀O₂₈²⁻, its generation requires considerable collisional energy (see ESI† for more detail). V₆O₁₆²⁻ was never observed in our tandem MS experiments (although its singly charged counterpart, HV₆O₁₆⁻ has been detected at elevated collisional energy – see ESI† for more detail). The absence of these ions among the fragments produced upon low-energy collisional activation of V10 anions suggests that they represent solution-phase oxidovanadates. Furthermore, should they arise as a result of dissociation of metastable V10 species, one would expect a similar share of partially reduced species among them (e.g., V₆O₁₆²⁻ should have an anomalous satellite peak M + 1 corresponding to HV^(IV)V^(V)₅O₁₆²⁻). However, the recorded isotopic distribution appears consistent with that calculated using the natural isotopic abundance, and acquiring the mass spectrum in ²H₂O does not result in a shift of the M + 1 peak to the M + 3 position, as is the case for V10-derived fragments, such as V₁₀O₂₆²⁻ (see Fig. 4). Therefore, we conclude that V₆O₁₆²⁻ and (H/Na)V₄O₁₁⁻ represent smaller oxidovanadate species that are present in solution alongside V10 (rather than being the products of its dissociation in the gas phase), and are not as susceptible to the partial reduction in solution under ambient conditions as V10 is.

Fig. 4 Zoomed views of mass spectra of V10 (sodium salt) acquired in H₂O and ²H₂O (black and blue traces, respectively) showing isotopic clusters corresponding to V₁₀O₂₆²⁻ (left) and V₆O₁₆²⁻ (right). The inset on the left panel shows the results of high-resolution measurements acquired in the narrow-band mode.

A careful examination of V10 behavior using an array of MS-based methods presented in this work indicates that interpretation of straightforward MS measurements, particularly those carried out at lower resolution offered by conventional instruments, should be approached with extreme caution. Indeed, the additional protonation of V10 polyanions in the course of ESI process gave rise to metastable molecular ions. Water is readily abstracted from these metastable ions in the gas phase generating oxygen deficient V10 species. Furthermore, the apparent susceptibility of V10 to partial reduction in solution generates anions whose extent of protonation is even higher than that observed for fully oxidized V10 species, facilitating more extensive oxygen abstraction (via H₂O/OH loss) in the gas phase. Although V10 dissociation gives rise to oxygen-deficient anions in the gas phase, rather than in solution, the underlying processes and the critical role of the surface-bound hydrogen atoms bear remarkable similarity to generation of “oxygen vacancies” within large oxidovanadate clusters and indeed the bulk material surface that had been predicted in earlier computational studies.²³ Oxygen vacancies are believed to be key to a range of catalytic properties of oxidovanadates,⁴¹ but their experimental investigation has been notoriously difficult, particularly on a larger scale. In this respect, high-resolution MS and MS/MS may lend themselves as potent tools capable of unveiling the most intimate details of oxygen vacancy formation within large vanadate clusters unaffected by solvent.

Conclusions

Decavanadate is a versatile member of the POM family displaying a variety of unique properties that can be exploited for a range of diverse applications. Our own interest in this molecule stems from its polyanionic nature that lends V10 as a viable candidate for applications in medicine as a disruptor of electrostatically-driven biopolymer interactions such as the platelet factor 4/heparin interactions⁴² underlying the etiology of heparin-induced thrombocytopenia. The unique chemical properties of V10 are also enjoying considerable attention in areas ranging from chemical catalysis to electronics. Last, but not the least, POMs in general and V10 in particular offer unique opportunities for fundamental studies in material sciences by serving as an atomically defined bridge between micro- and macro-scales.

Mass spectrometry, particularly ESI MS, has had long and illustrious history in inorganic structural analysis and related fields, although complex physical processes occurring within the ESI interface frequently require that the conclusions derived from such measurements be taken cum grano salis. For example, high-resolution measurements of ionic isotopic distributions allow the oxidation states to be determined at both single^43,44 and multi-metal level,⁴⁵ but the measurement outcomes can be affected by the redox processes in the ESI interface. Likewise, mass measurements afforded by high-resolution MS provide a unique opportunity to unequivocally identify a wide range of metallo-compounds, but can be complicated by the metastable nature of molecular ions giving rise to their dissociation in the gas-phase.

In this work we demonstrate that the origin of the redox processes affecting the oxidation state of POMs can be reliably traced to the bulk solution when incorporating ion exclusion LC as an on-line front-end separation tool in ESI MS measurements. We also use two orthogonal MS-based methods, tandem MS and hydrogen/deuterium exchange, to determine the origin of V10 species whose structures deviate from that of the “canonical” species. While this work is focused entirely on V10, the experimental strategies reported in this manuscript will undoubtedly advance the ongoing efforts to elucidate structure and reactivity of other members of the POM family.

Author contributions

I.K. and D.F. designed the study, D.C. designed and chose the compounds for the study, D.F. and I.K. designed the experimental work, H.M. produced the materials, D.F. and C.B. carried out the experimental work, D.F., S.E and I.K. interpreted the data, D.F. and I.K. wrote the manuscript. All authors participated in editing the manuscript, and have read and given their consent to its final (submitted) version.

Conflicts of interest

The authors declare no conflict of interest.

Acknowledgements

This work was supported in part by the grants R01 GM112666 from the National Institutes of Health and CHE-1709552 from the National Science Foundation. The FT ICR mass spectrometer used in this work was acquired through the grant CHE-0923329 from the National Science Foundation (Major Research Instrumentation program) and is now a part of the Mass Spectrometry Core facility at UMass-Amherst (RRID:SCR_019063).
