Open Access Article
Victoria
Haider‡
a,
Paul
Zebrowski‡
a,
Jessica
Michalke
b,
Uwe
Monkowius
c and
Mario
Waser
*a
aInstitute of Organic Chemistry, Johannes Kepler University Linz, Altenbergerstrasse 69, 4040 Linz, Austria. E-mail: mario.waser@jku.at
bInstitute of Catalysis, Johannes Kepler University Linz, Altenbergerstrasse 69, 4040 Linz, Austria
cSchool of Education, Chemistry, Johannes Kepler University Linz, Altenbergerstrasse 69, 4040 Linz, Austria
First published on 3rd January 2022
Selenium-containing amino acids are valuable targets but methods for the stereoselective α-selenation of simple amino acid precursors are rare. We herein report the enantioselective electrophilic α-selenation of azlactones (masked α-amino acid derivatives) and isoxazolidin-5-ones (masked β-amino acids) using Cinchona alkaloids as easily accessible organocatalysts. A variety of differently substituted derivatives was accessed with reasonable levels of enantioselectivities and further studies concerning the stability and suitability of these compounds for further manipulations have been carried out as well.
Over the last years, our group has had a fundamental interest in the development of organocatalytic protocols to access enantioenriched α-(hetero)-functionalized α- and β-AA derivatives.12,13 Inspired by the value of organoselenium compounds and considering the availability of established electrophilic Se-transfer reagents,14 we now became interested in developing organocatalytic protocols to control the asymmetric α-selenation of easily accessible azlactones 1 (as α-AA precursors)6 and isoxazolidin-5-ones 2 (as β-AA building blocks)15,16 (Scheme 1).17
![]() | ||
| Scheme 1 Targeted organocatalytic electrophilic α-selenation of masked α- and β-AA derivatives 1 and 2. | ||
| Entry | Cat. (mol%) | Base | Solvent | T [°C] | Yieldb [%] | erc |
|---|---|---|---|---|---|---|

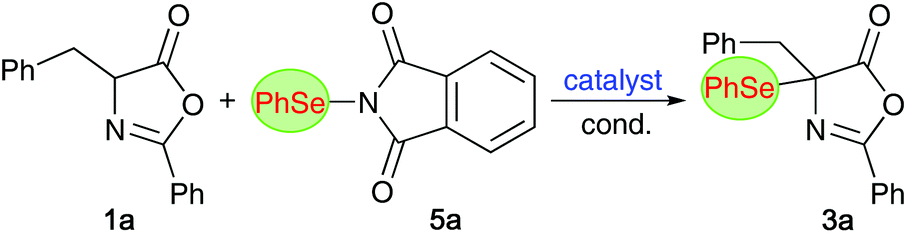

| a Unless otherwise stated, reactions were run for 1 h using 0.05 mmol 1a and 0.055 mmol 5a in the presence of the given catalyst in the indicated solvent (c = 0.05 M with respect to 1a) under Ar and exclusion of light. b Isolated yields. c Determined by HPLC using a chiral stationary phase (given as (−)/(+)-enantiomeric ratio). d c = 0.0125 (based on 1a). e 1 mmol scale. | ||||||
| 1 | A (10%) | K3PO4 | Toluene | 25 | 85 | 52 : 48 |
| 2 | B (10%) | K3PO4 | Toluene | 25 | 34 | 51 : 49 |
| 3 | C (10%) | K3PO4 | Toluene | 25 | 78 | 53 : 47 |
| 4 | QN (10%) | — | Toluene | 25 | 82 | 82 : 18 |
| 5 | QD (10%) | — | Toluene | 25 | 96 | 28 : 72 |
| 6 | CN (10%) | — | Toluene | 25 | 84 | 38 : 62 |
| 7 | CD (10%) | — | Toluene | 25 | 95 | 60 : 40 |
| 8 | QN (10%) | — | CH2Cl2 | 25 | 92 | 78 : 22 |
| 9 | QN (10%) | — | MTBE | 25 | 98 | 50 : 50 |
| 10 | Me-QN (10%) | — | Toluene | 25 | 90 | 68 : 32 |
| 11 | DHQN (10%) | — | Toluene | 25 | 90 | 85 : 15 |
| 12 | D (10%) | — | Toluene | 25 | 68 | 50 : 50 |
| 13 | DHQN (5%) | — | Toluene | 25 | 97 | 85 : 15 |
| 14 | DHQN (1%) | — | Toluene | 25 | 85 | 62 : 38 |
| 15 | DHQN (5%) | — | Toluened | 25 | 97 | 87 : 13 |
| 16 | DHQN (5%) | — | Toluened | 0 | 92(94)e | 89 : 11 (88 : 12)e |
| 17 | DHQN (5%) | — | Toluened | −20 | 95 | 82 : 18 |
Comparing different solvents next (entries 4, 8, and 9), toluene was found to be superior to halogenated or ether-based solvents (other aromatic solvents did not allow for any improvement anymore). Modified quinine-derivatives were screened as well but, as exemplified for Me-QN, O-alkylation had a detrimental effect on the enantioselectivity (entry 10). Encouragingly however, dihydroquinine (DHQN) allowed for a slightly higher selectivity than QN (compare entries 11 and 4). Considering the beneficial effect of free OH-groups within the tested Cinchona alkaloids, we also used Takemoto's bifunctional thiourea-containing catalyst D,20 which however did not allow for any enantioinduction (entry 12).
Having identified DHQN as the best-suited (easily accessible) chiral organobase catalyst for the asymmetric synthesis of the masked α-Se-α-AA 3a, we carried out a final optimization with this alkaloid (entries 13–17). Lowering of the catalyst loading to 5 mol% was possible without negatively effecting the outcome (see entries 13 and 14) and a slightly higher dilution had a beneficial effect on the enantioselectivity (entry 15). With respect to the reaction temperature, 0 °C was found to be the optimum (entry 16), while lower temperatures had a detrimental effect on the selectivity again (entry 17). Gratifyingly, the reaction could also successfully be carried out under the optimized conditions on 1 mmol 1a scale (entry 16), substantiating the robustness of the protocol.

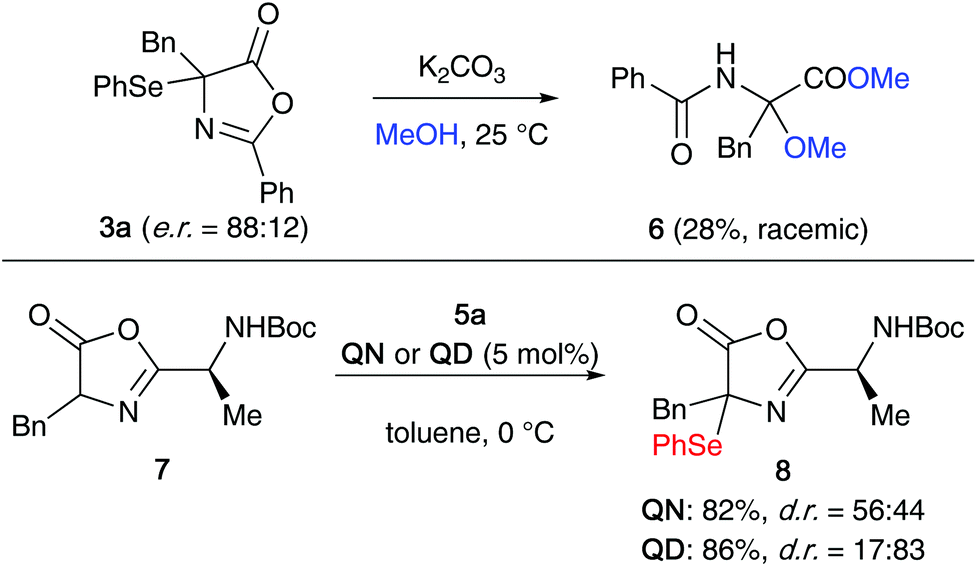

One important observation that we made during this optimization process was that product 3a slowly decomposes when kept in solution, especially in the presence of light, by forming diphenyldiselenide. The stability is however significantly improved in the absence of light and the compound was found to be benchstable for several weeks when stored in substance under argon in the dark. With this obvious sensitivity noted, we next tested the suitability of compound 3a for further manipulations. Unfortunately however, we were not able to carry out the selective (nucleophilic) ring opening of this azlactone to analogous acyclic α-Se-α-AA derivatives, as compound 3a undergoes relatively rapid decomposition and deselenation reactions upon treatment with acid or base. For example, as outlined in the upper part of Scheme 2, the treatment of enantioenriched 3a with K2CO3 in MeOH lead to the formation of rac-6 in low yield only (accompanied with unidentified side-products). Opting for other bases and solvents turned out to be even worse and besides several not further specified decomposition products again the formation of diphenyldiselenide was observed.
As it was not possible to access more advanced α-Se-α-AA derivatives from 3a, we also explored the direct α-selenation of the dipeptide-based azlactone 7 (Scheme 2, lower reaction). Although it was possible to carry out this reaction with reasonable yields in the presence of either QN or QD (leading to opposite diastereoisomer preferences), product 8 was found to be very unstable and decomposed within a few hours when kept in solution.
Having identified suited conditions for the enantioselective α-selenation of 1a (entry 16, Table 1) and with a better understanding of the sensitivity of the hereby accessed product 3a at hand, we next investigated the application scope (Scheme 3) for a variety of differently substituted azlactones 1 (giving products 3a–u) as well as utilizing alternative phthalimide-based Se-transfer reagents 5 (products 3v–x). Unfortunately, the α-phenyl product 3b was found to be very sensitive and although its formation was indicated by crude product 1H NMR analysis, it was not possible to isolate this derivative at all because of its fast decomposition. In sharp contrast, the α-alkylated targets 3c–g were found to be more stable and could be obtained in satisfying isolated yields and with moderate to good enantioselectivities, depending on their substitution pattern (i.e. the presence of a bulky i-Pr group (3d) or a nitrobenzyl group (3i) had a negative effect on the enantioselectivity). Interesting effects were observed when varying the substituent in the 2-position of the azlactone skeleton (products 3j–p). While the presence of an electronrich methoxybenzene group (3l) had a positive effect on the enantioselectivity, electronpoor aryl substituents, i.e. –CF3 (3j) and –NO2 (3k), lead to significantly reduced selectivities. Moreover, the presence of alkyl substituents in this position resulted in more or less racemic product formation only (3o and 3p). Testing a few other 2-methoxybenzene containing substrates 1 with different residues in the α-position revealed a complex scenario of substituent effects. While the products 3q and 3r could be obtained with higher enantioselectivities than their 2-phenyl analogues 3h and 3i, the presence of an isobutyl group had a detrimental effect hereby (3tvs.3e).
A few alternative selenation reagents were prepared as well22 and tested herein (products 3v–x), showing a rather pronounced dependency of the overall reaction progress and the enantioselectivity based on the nature of these reagents.
| Entry | Cat. | 5 | Solvent | t [h] | T [°C] | Yieldb [%] | erc |
|---|---|---|---|---|---|---|---|

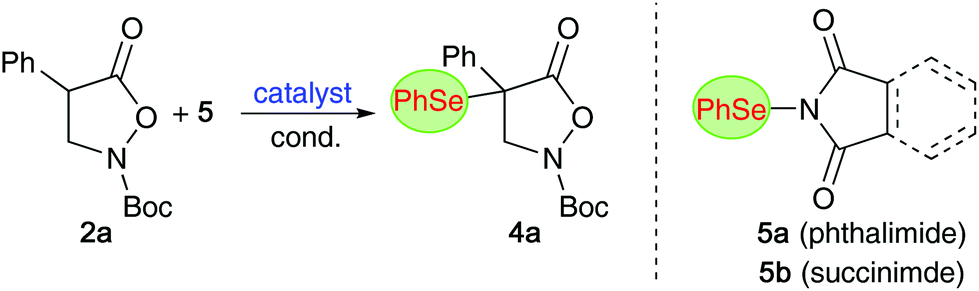

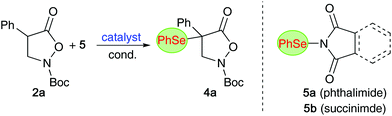

| a Unless otherwise stated, reactions were run using 0.05 mmol 2a and 0.055 mmol 5 in the presence of the given catalyst in the indicated solvent (c = 0.05 M with respect to 2a) under Ar and exclusion of light. b Isolated yields. c Determined by HPLC using a chiral stationary phase (given as (+)/(−)-enantiomeric ratio). d With 1.1 equiv. K2CO3. e c = 0.025 based on 2a. f 0.8 mmol scale. | |||||||
| 1 | A (5%)d | 5a | Toluene | 20 | 25 | 37 | 62 : 38 |
| 2 | B (5%)d | 5a | Toluene | 20 | 25 | 48 | 51 : 49 |
| 3 | C (5%)d | 5a | Toluene | 20 | 25 | 47 | 54 : 46 |
| 4 | D (5%) | 5a | Toluene | 2 | 25 | 81 | 51 : 49 |
| 5 | QN (10%) | 5a | Toluene | 2 | 25 | 68 | 75 : 25 |
| 6 | QD (10%) | 5a | Toluene | 2 | 25 | 65 | 32 : 68 |
| 7 | CD (10%) | 5a | Toluene | 2 | 25 | 65 | 73 : 27 |
| 8 | DHQN (10%) | 5a | Toluene | 2 | 25 | 73 | 76 : 24 |
| 9 | QN (5%) | 5a | Toluene | 2 | 25 | 43 | 69 : 31 |
| 10 | QN (10%) | 5a | CH2Cl2 | 2 | 25 | 76 | 69 : 31 |
| 11 | QN (10%) | 5a | MTBE | 2 | 25 | 76 | 61 : 39 |
| 12 | QN (10%) | 5a | Toluene | 2 | 0 | 82 | 75 : 25 |
| 13 | QN (10%) | 5a | Toluene | 2 | −20 | 76 | 75 : 25 |
| 14 | QN (10%) | 5a | Toluenee | 2 | 25 | 78 | 76 : 24 |
| 15 | QN (10%) | 5b | Toluene | 2 | 25 | 74 | 81 : 19 |
| 16 | DHQN (10%) | 5b | Toluenee | 2 | 25 | 72 | 83 : 17 |
| 17 | DHQN (10%) | 5b | Toluenee | 14 | 0–25 | 69(72)f | 83 : 17(83 : 17)f |
Interestingly, it was also possible to increase the enantiopurity of product 4a up to er = 98
:
2 by slowly crystallizing racemic 4a out of a solution of enantioenriched 4a (er = 83
:
17) in Et2O.25
We next tested the suitability of compound 4a for the transformations outlined in Scheme 4. Gratifyingly, the nucleophilic ring opening with benzylic amines (giving amides 9) as well as with MeOH in the presence of Amberlyst A21 (accessing ester 10) proceeded reasonably well without causing any erosion of er. The treatment of 4a with mCPBA on the other hand led to a direct elimination reaction, most presumably via syn-elimination of the in situ formed selenoxide-species, which allows for the straightforward synthesis of alkene 11 hereby.
Finally, we also investigated the application scope for the DHQN-catalysed α-selenation of a variety of differently substituted α-arylated derivatives 2 (Scheme 5). It should be noted that we also tested the analogous α-benzylated substrate (Bn instead of Ar). Unfortunately however, and in accordance with our previous α-halogenation results,13b this compound was found to be much less reactive than the α-aryl analogues, giving traces of targeted product only. Furthermore, we also observed a strong influence of the nature of the aryl substituent (Ar) on the outcome of the reaction in terms of yield, conversion, and enantioselectivity. The naphthalene-based 4b as well as the halogenated products 4d–4g could be obtained with complete conversion of the respective starting materials 2 and with moderate levels of enantioselectivities. In contrast, the thiophene-substituted 4c as well as the MeO- and the Me-containing 4h and 4i were formed much slower and in these cases the enantioselectivities were also lower (4h could not be isolated at all because of its low stability). Also, the use of alternative Se-transfer reagents (accessing products 4j–l) was found to be difficult herein, illustrating that our protocol for the α-selenation of compounds 2 is unfortunately rather sensitive to substituent effects.
Further studies concerning the stability and suitability of these compounds for further manipulations have been carried out as well, demonstrating a certain sensitivity, especially in the presence of light and/or in solution.
:
EtOAc gradient) giving products 3 in the report yields and enantiopurities (compare with Scheme 3).
:
11. TLC (heptanes
:
EtOAc = 3.5
:
1): Rf = 0.49. [α]24D = −65.1 (c 1.00, CHCl3). 1H-NMR (300 MHz, CDCl3, 298.0 K): δ/ppm = 7.57 (d, J = 9.0 Hz, 2H), 7.50 (d, J = 6.0 Hz, 2H), 7.39 (t, J = 9.0 Hz, 1H), 7.26 (t, J = 9.0 Hz, 2H), 7.19–7.14 (m, 4H), 7.12–7.02 (m, 4H), 3.54 (d, J = 12.0 Hz, 1H), 3.42 (d, J = 15.0 Hz, 1H). 13C-NMR (75 MHz, CDCl3, 298.0 K): δ/ppm = 176.4, 160.7, 138.3, 134.6, 132.8, 130.2, 130.2, 129.2, 128.7, 128.5, 127.9, 127.6, 125.3, 73.9, 41.3. HRMS (ESI-QTOF, MeOH) m/z: [M + H]+ calculated for C23H17NO2Se, 408.0498; found, 408.0500. HPLC: Chiralpak AD-H (n-hexane
:
i-PrOH = 20
:
1, flow rate 0.3 mL min−1, 10 °C, λ = 220 nm), retention times tR(minor) = 26.4 min, tR(major) = 27.8 min.
:
EtOAc = 1
:
0 to 10
:
1) to obtain products 4 in the given yields and enantiopurities (compare with Scheme 5).
:
17. TLC (EtOAc
:
heptanes = 10
:
1): Rf = 0.24 (UV). [α]23D = +90.2 (c 1.01, CHCl3). 1H-NMR (300 MHz, CDCl3, 298.0 K): δ/ppm = 7.41–7.34 (m, 3H), 7.30–7.18 (m, 7H), 4.75 (d, J = 12.7 Hz, 1H), 4.34 (d, J = 12.7 Hz, 1H), 1.56 (s, 9H). 13C-NMR (75 MHz, CDCl3, 298.0 K): δ/ppm = 172.1, 156.6, 138.3, 135.7, 130.6, 129.3, 128.8, 128.6, 127.5, 126.3, 84.7, 59.5, 49.3, 28.4. HRMS (ESI-QTOF, MeOH) m/z: [M + NH4]+ calculated for C20H25N2O4Se+, 437.0974; found, 437.0973. HPLC: Chiralpak AD-H (n-hexane
:
i-PrOH = 20
:
1, flow rate 1.0 mL min−1, 20 °C, λ = 254 nm), retention times tR(minor) = 9.7 min, tR(major) = 11.0 min.
:
47).Footnotes |
| † Electronic supplementary information (ESI) available: Full experimental details and analytical data. CCDC 2121570. For ESI and crystallographic data in CIF or other electronic format see DOI: 10.1039/d1ob02235k |
| ‡ These authors contributed equally (in alphabetical order). |
